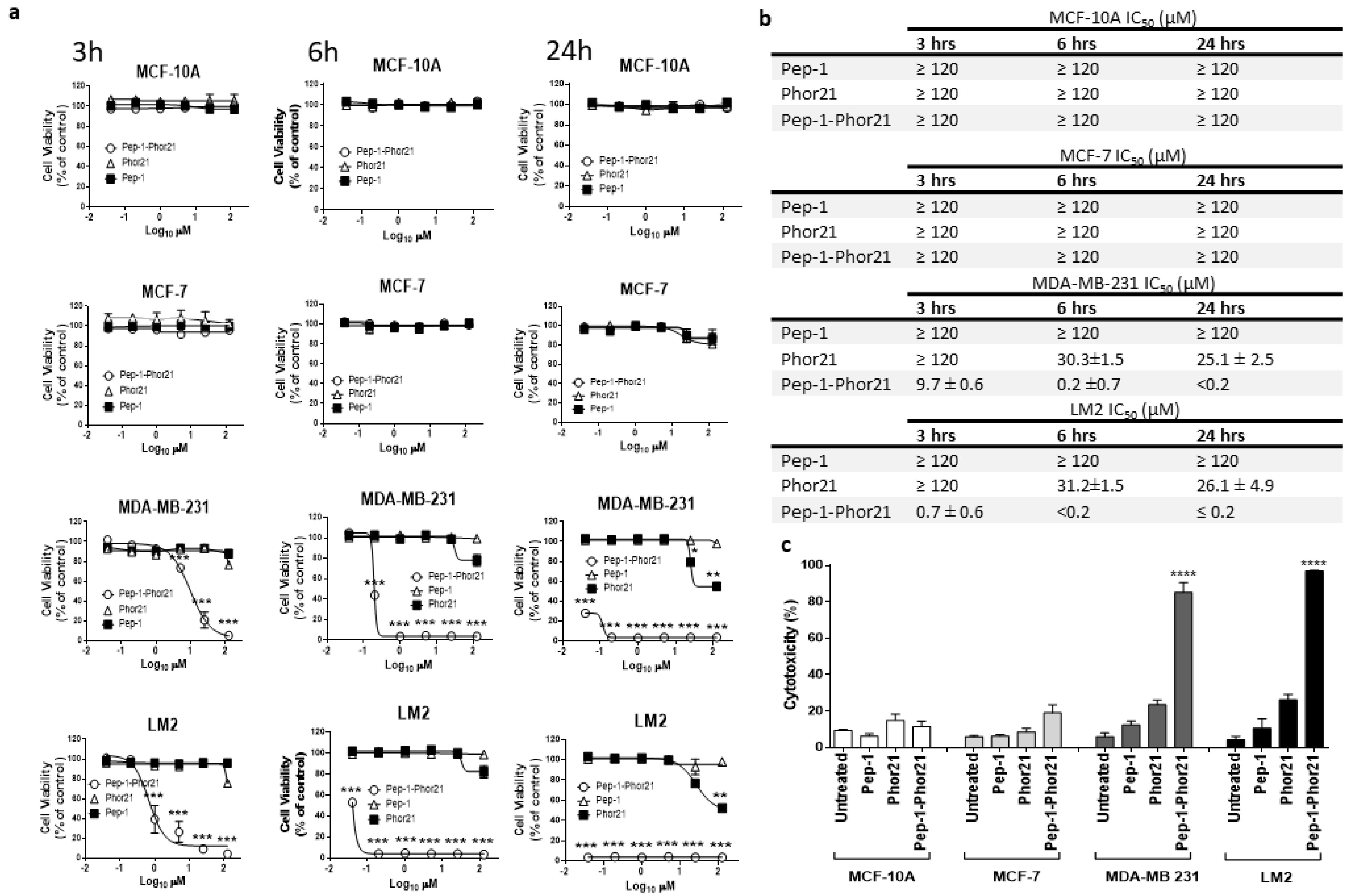

Figure 4.
Treatment of representative breast cancer cell lines with Pep-1-Phor21. (
a) Dose-dependent effect of Pep-1-Phor21 (O), Pep-1 (■), or Phor21 (∆) on the viability of non-tumorigenic (MCF-10A), non-TNBC (MCF-7), and TNBC cells (MDA-MB 231, LM2). Cells were treated with different concentrations of Pep-1-Phor21 (effective concentration range = 0–120 µM, a 5-fold serial dilution) and their viability was assessed after 3 h, 6 h, or 24 h of the treatment by Alamar Blue assay. (
b) The IC
50 of peptides for various cell lines for different incubation times. (
c) The cytotoxic effect of individual peptides on cell lines was also assessed by CellTox assay. MCF-10A and MCF-7 cells were treated for 3 h with 120 µM Pep-1-Phor21 (maximum concentration used in the dose-response analysis, Alamar Blue,
Figure 4a). MDA-MB 231 and LM2 cells were treated with Pep-1-Phor21 at 24 µM (maximal effective concentration against LM2, as determined in dose-response analysis, Alamar Blue,
Figure 4a). Pep-1-Phor21 had a significant cytotoxic effect only against IL-13Rα2-expressing TNBC cells (MDA-MB-231, LM2; relative cytotoxicity = 85.2% ± 5.4 and 96.9% ± 0.38, respectively, versus non-treated cells). Data = mean value ± SEM of three independent experiments (*
p ≤ 0.05; **
p ≤ 0.01; ***
p ≤ 0.001; ****
p ≤ 0.0001).
Figure 4.
Treatment of representative breast cancer cell lines with Pep-1-Phor21. (
a) Dose-dependent effect of Pep-1-Phor21 (O), Pep-1 (■), or Phor21 (∆) on the viability of non-tumorigenic (MCF-10A), non-TNBC (MCF-7), and TNBC cells (MDA-MB 231, LM2). Cells were treated with different concentrations of Pep-1-Phor21 (effective concentration range = 0–120 µM, a 5-fold serial dilution) and their viability was assessed after 3 h, 6 h, or 24 h of the treatment by Alamar Blue assay. (
b) The IC
50 of peptides for various cell lines for different incubation times. (
c) The cytotoxic effect of individual peptides on cell lines was also assessed by CellTox assay. MCF-10A and MCF-7 cells were treated for 3 h with 120 µM Pep-1-Phor21 (maximum concentration used in the dose-response analysis, Alamar Blue,
Figure 4a). MDA-MB 231 and LM2 cells were treated with Pep-1-Phor21 at 24 µM (maximal effective concentration against LM2, as determined in dose-response analysis, Alamar Blue,
Figure 4a). Pep-1-Phor21 had a significant cytotoxic effect only against IL-13Rα2-expressing TNBC cells (MDA-MB-231, LM2; relative cytotoxicity = 85.2% ± 5.4 and 96.9% ± 0.38, respectively, versus non-treated cells). Data = mean value ± SEM of three independent experiments (*
p ≤ 0.05; **
p ≤ 0.01; ***
p ≤ 0.001; ****
p ≤ 0.0001).
![Cancers 16 01006 g004]()
Figure 9.
Confocal cell imaging of breast cancer spheroids treated with Pep-1-Phor21. Indicated cell lines established as spheroids (48 h) were treated with Pep-1-Phor21 or Phor21 (3 h, 30 µM) and assessed for the presence of live and dead cells using confocal fluorescent microscopy. IL-13Rα2-positive TNBC spheroids (MDA-MB-231, LM2) exhibited diffuse dead cell staining (red fluorescence, EthD-1) with the concomitant disruption of spheroid integrity after Pep-1-Phor21 treatment. Some foci of live cells (green fluorescence, Vybrant DiO) were detectable within the core of the disrupted spheroid after 3 h. In contrast, IL-13Rα2-negative MCF-10A breast epithelial and non-TNBC MCF-7 cells exhibited only viable cell staining with no observable loss of spheroid structure post-treatment.
Figure 9.
Confocal cell imaging of breast cancer spheroids treated with Pep-1-Phor21. Indicated cell lines established as spheroids (48 h) were treated with Pep-1-Phor21 or Phor21 (3 h, 30 µM) and assessed for the presence of live and dead cells using confocal fluorescent microscopy. IL-13Rα2-positive TNBC spheroids (MDA-MB-231, LM2) exhibited diffuse dead cell staining (red fluorescence, EthD-1) with the concomitant disruption of spheroid integrity after Pep-1-Phor21 treatment. Some foci of live cells (green fluorescence, Vybrant DiO) were detectable within the core of the disrupted spheroid after 3 h. In contrast, IL-13Rα2-negative MCF-10A breast epithelial and non-TNBC MCF-7 cells exhibited only viable cell staining with no observable loss of spheroid structure post-treatment.
