Genetic Alterations in Glioma

Abstract

Gliomas are the most common type of primary brain tumor and have a dismal prognosis. Understanding the genetic alterations that drive glioma formation and progression may help improve patient prognosis by identification of novel treatment targets. Recently, two major studies have performed in-depth mutation analysis of glioblastomas (the most common and aggressive subtype of glioma). This systematic approach revealed three major pathways that are affected in glioblastomas: The receptor tyrosine kinase signaling pathway, the TP53 pathway and the pRB pathway. Apart from frequent mutations in the IDH1/2 gene, much less is known about the causal genetic changes of grade II and III (anaplastic) gliomas. Exceptions include TP53 mutations and fusion genes involving the BRAF gene in astrocytic and pilocytic glioma subtypes, respectively. In this review, we provide an update on all common events involved in the initiation and/or progression across the different subtypes of glioma and provide future directions for research into the genetic changes.

1. Introduction

Gliomas are the most common primary brain tumor in adults (incidence 5.97 per 100,000, CBTRUS statistical report 2010, http://www.cbtrus.org/) and can be subdivided based on their histological appearance into an astrocytic (A), oligodendroglial (OD), or oligoastrocytic (OA) lineage. They can be further subclassified into grades: I (pilocytic astrocytomas, PA), II (low grade), III (anaplastic) and IV (glioblastoma, GBM), depending on the number of malignant features present (high cellularity, nuclear atypia, mitosis, necrosis, and endothelial proliferation). Secondary GBMs are those that have progressed from lower grade gliomas, whereas primary GBMs arise de novo.

The prognosis of glioma patients varies between the different histological subtypes and grades; for example, patients with grade II OD have the longest survival (median survival 11.5 years) whereas patients with a glioblastoma (the most common subtype of glioma) have a median survival of only 4.9 months [1]. Pilocytic astrocytomas are the only subtype of glioma with a favorable prognosis (94–96% five year survival) (CBTRUS statistical report 2010; [1]).

Current treatment options involve a combination of surgical resection, radiotherapy and chemotherapy. Complete surgical resection of gliomas is virtually impossible due to their invasive growth pattern. Radiotherapy is effective. However, the infiltrating cells can only be reached by whole brain irradiation where the benefits of radiotherapy may not outweigh the side effects caused by radiation damage. Temozolomide has thusfar proven effective in improving the median overall survival in glioblastoma by three months [2], and is most effective in those in which the MGMT promoter is hypermethylated [3]. Adjuvant procarbazine, CCNU (lomustine) and vincristine (PCV) improved progression free survival but not overall survival in anaplastic oligodendrogliomas and oligoastrocytomas [4,5]. In these studies, tumors harboring loss of 1p and 19q chromosomal arms comprise a favorable subgroup. In spite of these advances, the prognosis of gliomas remains poor and therefore other strategies have to be developed. A better understanding of the genes (and their associated molecular pathways) involved in gliomagenesis and/or progression may reveal new options for targeted therapy.

2. Glioblastoma

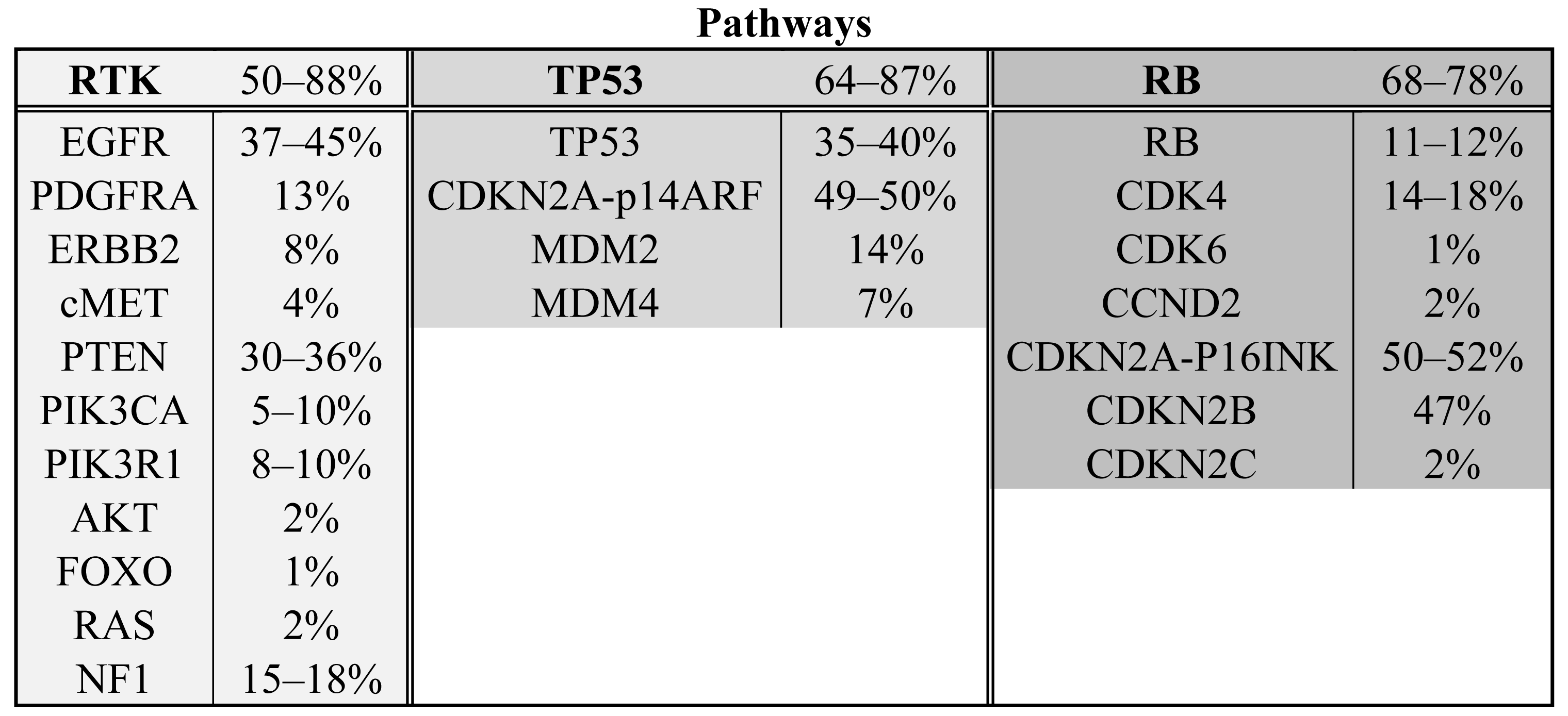

The Cancer Genome Atlas project has published mRNA expression data and DNA copy number alteration data of 206 GBMs and has sequenced >600 genes in 91 GBMs [6]. The project is still ongoing and ultimately aims to include data from 500 gliomas, but already has shown the importance of a systematical approach and high sample numbers. Combining all detected homozygous deletions, focal amplifications and validated somatic nucleotide substitutions, they found three major pathways affected in a high percentage of glioblastomas: receptor tyrosine kinase signaling (altered in 88% of the GBMs), TP53 signaling (altered in 87%) and the pRB tumor suppressor pathway (altered in 78%). Novel genes in those pathways include the NF1 tumor suppressor gene and PIK3R1. Another large study on 22 GBMs sequenced all protein coding genes and performed copy number analysis and expression data analysis on these tumors [7]. All genes affected in more than two tumors were validated in a set of 80 GBMs. Besides confirmation of affected oncogenes and tumor suppressor genes in the formerly mentioned three pathways (50%, 64% and 68%, respectively) (see Scheme 1 and

Table 1. Genes or regions with the most characteristic genetic alterations in glioma subtypes. * % are calculated on a mixture of primary and secondary glioblastoma. LOH: loss of heterozygosity; PA: Pilocytic Astrocytoma.

Ref.		[7]*	[6]*	[43]	[31]	[32]	[27]	[1]*
Tumor Type
PA	BRAF			66%
Oligodendroglioma	IDH1/2				69%	74.7–86.7%
	LOH 1p19q						40%	69%
Oligoastrocytoma	IDH1/2				78%	72.3–82.9%
	LOH 1p19q						48%	45%
	TP53							44%
Astrocytoma	IDH1/2				68%	64.9–73.6%
	TP53							53-88%
Sec Glioblastoma	IDH1/2	12%			88%
	TP53	40%	35%					31%
Prim Glioblastoma	EGFR	37%	45%					34%
	CDKN2A	50%	53%					31%
	PTEN	30%	36%					24%

), they found the IDH1 gene to be mutated in 12% of the GBMs [7]. These mutations occurred in younger patients with mostly secondary GBMs and such tumors had a relatively favorable prognosis [7,8]. (For a more elaborate discussion on IDH1 see below).

2.1. Copy Number Alterations

Copy number amplifications are more frequent in GBMs than in lower grade gliomas [9,10]. A distinction can be made between focal, high copy number amplifications (e.g., ≥7n) and larger, intermediate copy number amplifications (e.g., 3n). High copy amplicons often occur in regions with known oncogenes (EGFR, MDM2 and CDK4), but may also occur in other regions [11] (for a summary see [12]). Frequent intermediate copy number gains or losses include trisomy of chromosome 7 (42%) and monosomy of chromosome 10 (58%) [6,13,14]. The genes involved in gliomagenesis and/or progression on these chromosomes (except for PTEN) remain to be determined. GBMs with trisomy of chromosome 7and loss of chromosome 10 have a poor prognosis [6,13,14]. In general, aCGH data can identify three genetic GBM subgroups; one with gain of chromosome 7 and loss of chromosome 10, one with only chromosome10 loss and one without gain of chromosome 7 or loss of chromosome 10 [15].

2.2. Receptor Tyrosine Kinase Signaling

The receptor tyrosine kinase (RTK) signaling pathway is involved in the translation of growth factor signals into increased proliferation and survival. The most frequently altered gene in the RTK pathway is EGFR. It is amplified in up to 45% of glioblastomas and results in an increase in mRNA and protein expression [6,16,17]. In addition to amplification, EGFR is often constitutively activated by variants including EGFRVIII in which exons 2–7 are deleted [18]. 3′ truncations are also frequently observed [18]. Both variants are due to intragenic deletions, are thought to occur following EGFR amplification and result in constitutively active proteins [19-22]. Although a number of point mutations are also observed in the EGFR gene [6,7], the activating mutations in the ATP binding domain observed in lung cancer (NSCLC) are not observed in gliomas [23]. Other RTKs may also be affected in GBM and include PDGFRA (amplified in 13%), ERBB2 (mutated in 8%) and cMET (amplified in 4%) [6].

RTKs signal (a.o.) through phosphoinositide 3 kinases (PI3 kinases) that phosphorylate phosphatidylinositol (4,5)-bisphosphate (PIP2) to phosphatidylinositol (3,4,5)-trisphosphate (PIP3). This reaction is reversed by PTEN. Of the PI3 kinases, PIK3CA and its adaptor protein PIK3R1 are most frequently mutated in GBM (15–27%) [6,7,24,25]. PTEN is homozygously deleted in 36% of GBMs and infrequent mutations in downstream PIP3 targets have been identified in AKT and FOXO (2% AKT amplification, 1% inactivating FOXO mutation) [6].

Ras is another important protein activated by receptor tyrosine kinases and a key regulator of tumorigenesis. Ras mutations (N-Ras, H-Ras, KRas) occur infrequently in GBM (2% activating Ras mutations) [6]. However, the NF1 gene, which encodes for the Ras inhibiting protein neurofibromin 1 (a RasGAP), is frequently inactivated in GBM (15-18% inactivating mutations or homozygous deletions) [6,7].

2.3. TP53 Signaling

TP53 signaling is important in apoptosis, cellular senescence and cell cycle arrest in response to DNA damage. Most tumor types need to circumvent or shut down the TP53 pathway. TP53 heterozygous dominant negative point mutations and homozygous deletions are common in GBM (35–40%) [6,7]. Two TP53 inhibitors, MDM2 and MDM4, that are involved in the ubiquitinylation and degradation of TP53, are amplified in 14% and 7% of the glioblastomas, respectively [6]. The CDKN2A locus is also part of the TP53 pathway and is frequently deleted or inactivated in glioblastomas (49–50%) [6,7]. One of the two genes that can be expressed from the CDKN2A locus is P14ARF, which is an inhibitor of MDM2. The CDKN2A locus also encodes for p16INK4A which is part of the pRB signaling pathway (see below)

2.4. RB Signaling

The retinoblastoma protein (pRB) is a major protein involved in cell cycle progression from G1 to S phase. In the hypophosphorylated state pRB binds to the transcription factor E2F, thereby preventing cell cycle progression. Phosphorylated pRB does not associate with E2F, which results in cell cycle progression. The pRB gene is homozygously deleted or mutated in 11–12% of the GBMs [6,7]. Interestingly, CDK4, CDK6 and CCND2 phosphorylate pRB and are amplified in 14–18%, 1% and 2% of glioblastomas, respectively [6,7]. Conversely, CDKN2A/p16INK4A, CDKN2B and CDKN2C, inhibit the different CDKs and are frequently inactivated in GBM (homozygously deleted or mutated in 50–52%, homozygously deleted in 47%, homozygously deleted in 2%, respectively) [6,7].

3. Grade II and III Glioma

In general, only few frequent genetic changes have been identified in lower grade gliomas (Table 1). Larger chromosomal aberrations include combined loss of 1p19q in grade II and III oligodendroglioma (40–69%) and oligoastrocytoma (44–48%). Such losses are far less common in astrocytoma (0–11%) [1,26,27]. The remarkably high frequency of LOH of 1p and 19q suggests the remaining arms harbor yet to be identified tumor suppressor genes (Knudson two-hit hypothesis [28]). Frequent mutations have been identified in IDH1 (all grade II and III gliomas, see below) and TP53 genes (predominantly astrocytic). TP53 mutations and LOH of 1p 19q are mutually exclusive [1], thereby distinguishing two different pathways of glioma development. Complete hemizygous losses of 1p are tightly associated with 19q loss and oligodendroglial phenotype and predict longer overall and progression free survival [29]. However, partial 1p deletions are mainly observed in astrocytic tumors, are not associated with 19q loss and have a negative prognostic value [29].

Based on these genetic changes, three large groups can be genetically characterized in low grade and anaplastic gliomas: tumors with TP53 mutations and IDH1/2 mutations (32%), tumors with LOH 1p19q and IDH1/2 mutations (37%) and tumors with only IDH1/2 mutations (17%) [30]. These molecular changes segregate with the distinct histological subgroups of glioma: for example, most of the diffuse astrocytoma have TP53 and IDH1/2 mutation and most of the oligodendrogliomas have LOH 1p19q and IDH1/2 mutation. The oligoastrocytomas were more equally distributed among the three different groups (33%, 34% and 19% respectively) [30].

IDH1/IDH2

IDH1 mutations were initially discovered in GBMs by Parsons et al. [7]. However, IDH1 mutations were detected at much higher frequencies (over 70%) in grade II and II gliomas [31-35].; Mutations in the homologous IDH2 gene were also identified (around 5%), predominantly in oligodendroglial tumors [32,35]. IDH1 mutations are an early event in tumorigenesis [34], are an independent favorable prognostic marker in gliomas and are closely associated with1p19q codeletion and MGMT methylation status [36]. IDH1/2 mutations are heterozygous missense mutations affecting highly conserved arginines that are involved in substrate binding. Wildtype IDH converts isocitrate into alpha-ketoglutarate, whereas mutant IDH enzymes have reduced ability to catalyze this reaction [35]. Instead, mutant IDH enzymes have gained the ability to convert alpha-ketoglutarate into D-2-hydroxyglutarate [37]. The oncogenic function and the molecular pathway of IDH1/2 and D-2-hydroxyglutarate are not fully understood yet. However, a recent study suggests that IDH1/2 mutations result in an increase in global methylation [38] and IDH1/2 mutations are associated with a more hypermethylated DNA methylation profile [39,40]. It is therefore possible that IDH1/2 mutations are involved in oncogenesis by the inactivation of tumor suppressor genes following promoter hypermethylation.

4. Pilocytic Astrocytoma

The majority of pilocytic astrocytomas are cytogenetically normal [41] except for a small tandem dulication of 2 Mb at 7q34 (66%) [42]. This duplication results in a fusion gene incorporating the kinase domain of BRAF to KIAA1549 (exon 1-16/15) [42]. This fusion gene produces a constitutively active BRAF, which is able to transform NIH3T3 cells [42]. Activating BRAF point mutations (V600E/ins 3 bp at 598) can also occur in pilocytic astrocytoma [42,43].

5. Genetic Alterations in Molecular Subtypes

Current classification of gliomas is largely based on histological appearance. However, histological classification of gliomas is troublesome and subject to interobserver-variation [44-47]. Gliomas may also be classified based on their similarities in gene expression profiles [48-50]. Such classification correlates better with survival than histological classification of gliomas [48]. Distinct genetic changes also segregate into the different molecular subtypes of glioma [48,50]. For example, EGFR amplifications are predominantly found in classical and neural subtypes [50] or in cluster 18 gliomas [48]. IDH1 mutations segregate in proneural type GBMs [50] or in gliomas containing predominantly secondary GBMs (Cluster 22) as well as in gliomas with more favorable prognosis (Clusters 9 and 17) [48].

6. Epigenetic Changes

Methylation in cancer often occurs in the promoter regions of tumor suppressor genes [51,52]. Inactivation of gene expression by promoter methylation thus contributes to tumor formation as the second “hit” in tumor suppressor genes (Knudson's two-hit hypothesis [28]). Several groups have therefore performed genome wide methylation profiling in GBMs and have identified a subset of tumors that have more favorable prognosis [40,53]. These tumors show an overall increase in DNA methylation at CpG sites (CIMP; CpG island methylator phenotype) [40]. It remains to be determined whether reversal of CIMP status can be used as a treatment for gliomas.

7. Future Perspectives

Large scale sequencing efforts, such as those described in this review, have revealed an unprecedented insight into the biology of gliomas. The rapid development of novel sequencing techniques will lead to even more genetic data in the next decade. It can therefore be expected that virtually all genetic changes in all glioma subtypes will be identified in the near future. However, not all genetic changes in gliomas (or other tumors) are causal for the disease; mutations can arise during cell division and are then found throughout the tumor due to clonal expansion [54]. In fact, the majority of somatic mutations in cancer may be such “passenger” mutations [54]. Distinguishing such “passenger” mutations from the causal “driver” mutations is therefore required.

One way to distinguish driver from passenger mutations is by frequency analysis: causal genetic changes are thought to occur at a higher incidence than predicted by chance. However, few genetic changes are recurrent events (so-called “mountains” in the genomic landscape of [55]); only a handful of genes are mutated at frequencies >10% not only in gliomas [6,7,54] but also in many other cancer types [56,57]. These studies show that many more genes are mutated at low frequencies (so-called “hills”). Such infrequent candidates have been demonstrated to contribute to tumor formation and/or progression (see e.g., [58]). Future research will thus require distinguishing “drivers” from “passengers” on infrequently mutated genes.

Eventually, the knowledge of these genetic alterations can be used for the development of targeted therapy. However, many infrequent “hills” could indicate that each tumor has its own unique spectrum of causal genetic changes. Treatments aimed at targeting these individual genetic changes may therefore be difficult. Nevertheless, it is likely that different genetic changes are part of a select set of molecular pathways. Therefore, pathway inhibition or reactivation can be used to target a broader range of tumors. In the future, it is likely that individual cancer genomes will therefore be sequenced to direct targeted therapies. Such practice does require a further increase in sequencing capacity and speed and dedicated data analysis pipelines.
