Communication

Plasma-Deposited Ru-Based Thin Films for Photoelectrochemical Water Splitting

by
Lukasz Jozwiak
,
Jacek Balcerzak
and
Jacek Tyczkowski
*
Department of Molecular Engineering, Faculty of Process and Environmental Engineering, Lodz University of Technology, Wolczanska 213, 90−924 Lodz, Poland
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(3), 278; https://doi.org/10.3390/catal10030278
Submission received: 2 February 2020 / Revised: 23 February 2020 / Accepted: 26 February 2020 / Published: 1 March 2020
(This article belongs to the Special Issue Electrocatalysis in Energy and Green Chemistry)
Browse Figures
Versions Notes

Abstract

:
Plasma-enhanced chemical vapor deposition (PECVD) was used to produce new Ru-based thin catalytic films. The surface molecular structure of the films was examined by X-ray photoelectron spectroscopy (XPS). To determine the electro- and photoelectrochemical properties, the oxygen evolution reaction (OER) process was investigated by linear sweep voltammetry (LSV) at pH = 13.6. It was found that Ru atoms were mainly in the metallic state (Ru0) in the as-deposited films, whereas after the electrochemical stabilization, higher oxidation states, mainly Ru+4 (RuO2), were formed. The stabilized films exhibited high catalytic activity in OER—for the electrochemical process, the onset and η10 overpotentials were approx. 220 and 350 mV, respectively, while for the photoelectrochemical process, the pure photocurrent density of about 160 mA/cm2 mg was achieved at 1.6 V (vs. reversible hydrogen electrode (RHE)). The plasma-deposited RuOX catalyst appears to be an interesting candidate for photoanode material for photoelectrochemical (PEC) water splitting.

Graphical Abstract

1. Introduction

Ruthenium (Ru)—in both its oxidized, especially RuO2 (Ru+4), and metallic (Ru0) forms—has been widely studied and applied as a heterogeneous catalyst and electrocatalyst [1,2]. A lot of attention has been paid to the use of such catalysts in the reactions occurring in fuel cells [3,4] as well as in the photo- [5,6], electro- [7,8,9,10], and photoelectro-splitting of water [11,12]. In the water splitting processes, Ru-based materials have proven to be one of the most efficient catalysts in the oxygen evolution reaction (OER) [13].
The Ru-based catalytic materials have been prepared in many different ways and various forms. For instance, Reier et al. [14] reported Ru nanoparticles (average size approx. 5 nm) synthesized by an incipient wetness method and then electrochemically oxidized. Although the OER performance of these nanoparticles was outstanding, stability problems prevent their utilization as a practical nanoscaled OER catalyst. Jirkovský et al. [15] also showed that nanocrystalline RuO2 particles prepared by the sol-gel method exhibited increasing activity towards water oxidation with decreasing particle size (from 40 to 15 nm). The high activity of RuO2 nanoparticles (~6 nm) for OER was confirmed by Lee et al. [16]. In this case, the study showed high stability of this catalytic form, which can serve as a benchmark in the development of active OER catalysts for electrolyzers, metal-air batteries, and photoelectrochemical (PEC) water splitting applications. The influence of preparation conditions on the catalytic activity of RuO2 for OER was described by Ma et al. [17]. The RuO2 catalyst was prepared by a pyrolysis process in a nitrate melt at 300 °C, and then calcined at different temperatures, from 350 to 550 °C. It was found that the electrocatalytic activity of the RuO2 layer decreased with increasing calcination temperature. At the same time, the resistance of this layer decreased. More detailed studies regarding the dependence of the activity and stability of the Ru-based catalyst on its preparation procedure were presented by Kim et al. [18]. The catalytic films were prepared by Ru electrodeposition and then thermally oxidized at various temperatures (300−600 °C) under atmospheric conditions. It was concluded that the OER activity and stability were strongly related to the surface composition—specifically, the quantities of anhydrous RuO2 and hydrous RuO2 on the surface—which, in turn, was associated with the annealing temperature. Recently, to control the mesoporous structure of RuO2 and thus create improved electrocatalytic properties over commercial RuO2 nanoparticles for the oxygen evolution reaction, Han et al. [19] successfully used a nanocasting technique. Interesting results were also obtained by Tsuji et al. [20], who prepared thin films by the RF magnetron sputtering technique and showed that the films in amorphous form are more active in the OER than those containing the rutile crystalline RuO2 form.
Ru-based catalytic materials were also obtained in more complex forms. Das et al. [21], for example, prepared ruthenium oxide on zeolite Y by thermal decomposition of ruthenium carbonyl, resulting in RuO2 fibers with the approximate dimensions of lengths of 50 nm and widths of 5 nm. This material proved to be a very effective catalyst for water oxidation to O2. Another important solution proposed by Park et al. [13] was the fabrication of three-dimensional RuO2 branched Au-TiO2 nanowire arrays for the photostable electrodes in PEC water oxidation. These nanowire arrays have shown a remarkable enhancement in the photocurrent density by approximately 60% and 200% in the UV-visible and Visible region respectively, compared with pristine TiO2 nanowires at the same potential. Recently, some progress in the construction of Ru-based catalysts for the OER has been made by producing their composites, e.g., with iridium oxide [22], or alloys, e.g., with platinum [23]. Much attention is also paid to co-catalysts with RuO2 participation [12,24,25].
One particularly interesting method that could be used to prepare Ru-based catalysts is plasma-enhancement chemical vapor deposition (PECVD). This method is very useful and efficient in the production of completely new materials with a controlled molecular structure and, as a consequence, with the desired properties. The great advantage of this method is the ability to easily realize molecular projects through the selection of appropriate plasma process parameters, as well as the selection of precursors and their mixtures. In addition, the PECVD enables the synthesis of uniform and very thin films (with thicknesses much lower than 1 μm) on virtually any support (e.g., fine meshes) without changing their geometry. This is especially important when designing sophisticated systems for structured reactors. The PECVD method has already been widely used to produce various thin films from metalorganic precursors, which have been studied as catalysts in chemical and electrochemical processes [26,27]. Among them, plasma-deposited Ru-based films were also tested in the CO2 hydrogenation process [28]. However, these films have not been studied in electrochemical and photoelectrochemical water splitting processes.
Considering the above, in the present paper, we have focused our attention on the possibilities of applying these new catalytic systems, which are plasma-deposited Ru-based films, in the oxygen evolution reaction, both in the electrochemical and photoelectrochemical processes. Positive results would pave the way for progress in using the PECVD method to produce nanocatalysts for water splitting.

2. Results and Discussion

The first step in examining the possibility of utilizing plasma-deposited Ru-based thin films as catalysts in the OER was to determine their activity and stability in this process. Figure 1 presents the measurements of linear sweep voltammetry (LSV) in successive cycles for the film (approx. 200 nm), deposited on carbon paper and used as the working anode. As one can see, after five cycles the sample is practically stable. The first measurement cycle of the dependence of current density on the applied potential, strongly different from the others, should undoubtedly be associated with changes in the molecular structure of the Ru-based film. Then, the film surface stabilizes and shows good electrocatalytic activity towards OER, with an onset potential of about 1.45 V vs reversible hydrogen electrode (RHE), which gives an overpotential η = 220 mV. The overpotential required for the current density of 10 mA/cm2, as a commonly used OER reference is, in this case, η10 = 350 mV. Further measurement for 5 h at a constant current of 10 mA did not practically change this value, indicating good stability of the tested catalytic film. For a typical RuO2 catalyst measured in similar alkaline conditions, the onset and η10 overpotentials were approx. 280 and 420 mV, respectively [29]. For more sophisticated systems, namely Ru-RuO2/CNT hybrids, η10 = 210 mV [10]. In turn, electrodeposited Ru films were characterized by η10 = 320 mV [30]. As one can see, our plasma-deposited films can be classified as catalysts with high OER performance.
For comparison, the polarization curve for a pure carbon substrate is also shown in Figure 1. Almost no current signal is recorded in the potential range used, which confirms the catalytic activity of the plasma-deposited Ru-based films.
To accurately determine the presumed changes in the molecular structure of the Ru-based film surface, which occur during LSV measurements, investigations by X-ray photoelectron spectrometry (XPS) were performed. The most intense XPS Ru 3d band is composed of doublet Ru 3d5/2 and Ru 3d3/2. Due to the fact that the latter peak was overlapping with a very intense C 1s band originating from the carbon substrate, the analysis was carried out only for the 3d5/2 peak. By eliminating C 1s and Ru 3d3/2 signals from the spectrum envelope, the remaining Ru 3d5/2 peak was deconvoluted into four symmetrical, Gaussian:Lorentzian (70:30) shaped components, for both the as-deposited film and the film with stabilized structure after five LSV cycles (Figure 2). The component located at a binding energy of 280.0−280.1 eV is undoubtedly assigned to metallic Ru0 atoms. The three remaining components situated in the higher binding energy region represent oxidized Ru states: Ru+4 (at 280.5−280.6 eV), Ru+3 (281.4−281.5 eV) and finally Ru+6 (at 282.3−282.4 eV) [31].
The XPS results indicate a significant surface oxidation of the film during the electrochemical process. As-deposited Ru-based films contain about 58.0 at % of Ru0 (in relation the total Ru content), whereas, after electrochemical stabilization, it decreases to 14.4 at %. In fact, the Ru-based film is transformed into an active and stable catalyst composed mainly of the Ru+4 oxidation state (RuO2). Its content increases from 29.3 at % up to 46.3 at %. It should also be noticed that the concentration of Ru+3 and Ru+6 oxidation states clearly increase in the film surface after stabilization via LSV measurements, from 8.1 at % to 25.8 at % and from 4.6 at % to 13.4 at %, respectively.
Although there is no doubt that the plasma-deposited Ru-based film used as the anode in the OER is oxidized, especially in the first LSV measurement cycle, it is difficult to determine at this moment which oxidation forms of ruthenium present on the stable film surface are mainly responsible for catalyzing the oxygen evolution process.
The plasma-deposited Ru-based films were also tested as a photo-electrocatalyst for the OER process. These investigations were carried out as follows: firstly, five LSV cycles in the dark were performed to obtain the stable form of the film deposited on the carbon paper and used as the anode. In Figure 3a, the course of the last cycle is shown as curve (a). Then, the anode was irradiated by a 150 W xenon lamp (full spectral range from 230 to 750 nm) for 1 h, after which time the LSV relationship (curve (b)) was recorded without interrupting the lighting. Finally, one more LSV measurement (curve (c)) was made in the dark. The sample showed almost identical electrocatalytic activity as before irradiation.
Subtracting curve (c) from curve (b), the pure photocurrent response of the film in the OER process is obtained (Figure 3b). The rapid increase in the photocurrent above 1.4 V indicates strong photocatalytic activity of the plasma-deposited Ru-based films. With an applied potential of 1.6 V (vs RHE), the photocurrent density reaches about 9.0 mA/cm2, which is a very high performance in the OER process compared to other Ru-based [13], as well as other thin-film types of photocatalysts tested in this process [32]. It should also be emphasized that the films we study represent a very small amount of material. Taking the active surface of the anode equal to 0.8 cm2, the film thickness of about 200 nm and its density about 3−4 g/cm3, we can determine the photocurrent density per unit mass of the catalyst, which for the potential of 1.6 V (vs RHE) is about 160 mA/cm2mg.
The electro- and photoelectro-catalytic OER kinetics of the plasma-deposited Ru-based films were analyzed using the appropriate Tafel plots (Figure 3c) derived from the polarization curves shown in Figure 3a. The linear regions of the Tafel plots are fitted to the Equation:
η = α + β log(j),
where η is overpotential, j is the current density, and β is the Tafel slope).
The resulting Tafel slopes are found to be ~141, ~278, and ~114 mV/dec for the sample measured in the dark, under illumination, and in the dark after lighting, respectively. The Tafel slopes for the film in the dark, before and after lighting, are almost the same, but the slope for the illuminated sample is clearly higher, although in this case the same current density as for the sample in the dark is obtained at lower overpotential values. This indicates a more complex mechanism of the oxygen evolution process during UV-visible irradiation.
Despite notable experimental and theoretical work on Ru-based catalysts for the electrocatalytic OER process, let alone its photoelectro-catalytic studies, the mechanism of this process is still unclear [33,34,35]. This problem is further complicated by the fact that the OER process is significantly influenced by the structure and nanostructure of ruthenium-based catalysts, which largely depends on the preparation conditions of these materials [15,20]. From the electronic structure point of view, catalysts based on RuO2, depending on the production procedure and the post-deposition treatment, can behave as a semiconductor [36] that exhibits both p-type and n-type electrical conductivity [37,38], and also, especially after calcination at high temperature (above 523 K), can reveal metallic-like properties [39].
In our case, the structure of the films is very complex and, as is shown by XPS studies (Figure 2), consists of different types of ruthenium oxides, but with a significant predominance of RuO2 in electrochemically stabilized films. Since the films are prepared only at a slightly elevated temperature, it can be assumed that they have the nature of a semiconductor. However, despite the lack of precise knowledge about the molecular structure of the films under discussion, the basic reactions in the OER process that occur on the film surface in an alkaline solution can be proposed according to [40]:
OH−aq → OH−ads → OHads + e− (β = 120 mV/dec)
OHads → Oads + H+aq + e− (β = 40 mV/dec)
Oads + Oads → O2g
H+aq + OH−aq → H2Oaq,
where the symbols aq, ads, and g denote molecules in solution, adsorbed on the catalytic film surface and in the gas phase, respectively.
Reactions (2) and (3) are sequential steps associated with electron transfer, which drives the OER process and generates the measured current (Figure 3). The theoretical calculation of the Tafel slope (β) showed that, depending on which step is rate-determining, the values of these slopes differ significantly (as given for reactions (2) and (3)) [33]. As one can see, in our case the estimated Tafel slope value for the electrocatalytic (in dark) process (Figure 3c) is largely consistent with the value provided for step (2). It follows that the bottleneck of the OER process is the adsorption of OH− ions on the catalytic film surface and the electron transfer.
When the film is illuminated, assuming, as discussed above, its semiconductor nature, we can expect the generation of electron−hole pairs. The measured energy gap for RuO2-based semiconductive catalysts is 2.6−2.9 eV [36,41], which indicates that the light used in our studies (230−750 nm, 5.4−1.7 eV) can generate electron−hole pairs in the bulk of the film. However, the possibility of a photoinjection of current carriers at the contact between the semiconducting film and the metal-like substrate, which is carbon (graphite) paper, cannot be overlooked [42]. The thickness of the film (approx. 200 nm) allows light to reach the contact. The graphite with an energy gap close to 0 eV and a work function of about 4.2−5.2 eV [43] can form with RuO2, with an energy gap equal to 2.6−2.9 eV, as mentioned above, and the work function of about 5.2 eV [44], a junction similar to the neutral contact with a barrier height not higher than 2.9 eV. The barrier can be easily overcome by the photon energy of the light used. Although in our case we do not know the details of the electronic structure of the plasma-deposited Ru-based catalytic film, the observed photoconductivity and the discussion presented above authorize us to assume that photogenerated or photoinjected holes (these carriers are of interest due to the positive polarization of the catalytic electrode) are transported by the electric field to the film surface contacting with the solution. Such holes (h+) play the role of additional active centers that enhance the performance of step (2) by recombining with the negative charge on OH− ions:
OH−ads + h+ → OHads
In this case, the rate-determining process in the OER is photogeneration (photoinjection) of holes and their transport through the semiconductor film to its surface in contact with the solution.

3. Materials and Methods

The Ru-based films were deposited in a parallel-plate radio frequency (RF 13.56 MHz) plasma reactor (self-constructed), schematically presented in Figure 4a. The carrier gas (argon with a purity of 99.99%, Linde Gaz Polska Ldt., Cracow, Poland)) was introduced through a mass flow controller (Model 5850, Brooks Instrument LLC, Hatfield, PA, USA into the gas system of the reactor, with a flow rate of 0.71 sccm. Bis(ethylcyclopentadienyl)ruthenium(II) (98%, Sigma-Aldrich, At. Louis, MO, USA, with the chemical formula shown in Figure 4b) liquid in the standard state, was used as a ruthenium precursor. The reservoir for the precursor was heated to 413 K to ensure adequate vapor pressure. The mixture of the precursor vapor and the carrier gas was fed to the plasma reactor chamber by means of a perforated grounded electrode. All the gas lines and both the electrodes were heated to 433 K to prevent precursor condensation. The glow discharge power was 40 W, and the total pressure maintained in the plasma chamber was approx. 4.0 Pa. The films (about 200 nm thick) were deposited on the carbon paper (SpectraCarb, The Fuel Cell Store, College Station, TX, USA) used as a substrate.
The electrochemical and photoelectrochemical experiments were carried out at room temperature in a 1M NaOH (p.a., P.H. Stanlab Ltd., Lublin, Poland) electrolyte (pH = 13.6) in a three-electrode electrochemical cell (Photon Institute Ltd., Cracow, Poland) adopted for photoconductivity measurements. The Ru-based films plasma-deposited on the carbon substrate constituted the working photoanode. In turn, a saturated calomel electrode (SCE, Eurosensor, Gliwice, Poland) and a Pt electrode (Photon Institute Ltd., Cracow, Poland) were used as the reference and counter electrodes, respectively. The electrodes were coupled to a potentiostat (Metrohm, Model: Autolab PGSTAT 302N, Metrohm AG, Herisau, Switzerland). The electrochemical properties of the films were characterized using the linear sweep voltammetry method (LSV) under dark conditions and illumination with an Xe illuminator (Photon Institute Ltd., Cracow, Poland)) equipped with a 150 W xenon short arc lamp (Model UXL 151-H, Ushio Inc., Tokyo, Japan) and a hot mirror (Edmunds Optics, Barrington, NJ, USA) to decrease the heat caused by infrared radiation. The illuminator’s light spectrum corresponded to the full emission spectrum of the Xe lamp in the range of 230–750 nm. The area of samples was approx. 0.8 cm2. The working electrode was scanned at 25 mV/s between 0 and 600 mV versus SCE. All potentials measured with respect to SCE were recalculated against a reversible hydrogen electrode (RHE), according to the following equation:
ERHE = ESCE + E0SCE + 0.059 pH [V],
where E0SCE is the standard potential of SCE equal to 0.244 V at 298 K.
The study of the surface molecular structure of the deposited films was carried out by X-ray photoelectron spectroscopy (XPS), using an AXIS Ultra spectrometer (Kratos Analytical Ltd., Manchester, UK) with monochromatic Al Kα X-rays (1486.6 eV). The spectra were collected from at least five analysis areas of 300 μm x 700 μm, for each sample. The power of the anode was set at 150 W and the hemispherical electron energy analyzer was operated at a pass energy of 20 eV for all the high-resolution measurements. All the measurements were carried out using a charge neutralizer, and the main carbon peak (graphitic C 1s, 284.6 eV) was taken for a final calibration of each spectrum.

4. Conclusions

The main feature of the PECVD method—apart from its wide capabilities and low costs of producing new materials, and also catalytic ones—is the ability to prepare very thin films with a controlled molecular structure, and thus also controlled properties. In our work, we have confirmed the advantages of this method by plasma-depositing new Ru-based films, which have turned out to be a very active electro- and photoelectro-catalyst in the OER process. Generally, the molecular structure of the deposited material is in the form of RuOX, with a predominance of RuO2 (about 46 at % in relation to the total Ru atoms in various oxidation states) in electrochemically-stabilized films. The films tested as an anode electrocatalyst in alkaline electrolyte (1M NaOH) reveal the overpotential required for the current density of 10 mA/cm2 equals to 350 mV, which classified them as a catalyst with very high OER performance. The photoelectrochemical properties of these films in the OER process are even more promising. For an applied potential of 1.6 V (vs RHE), the pure photocurrent density reaches about 9.0 mA/cm2, which, taking into account the amount of catalytic material, gives a photocurrent efficiency of about 160 mA/cm2 mg. Plasma-deposited thin Ru-based films fit well into the group of nanocatalysts, with potential applications for photoelectrochemical water splitting. Research on further improvement of the catalytic activity of these films, for example by plasma co-deposition with other metal atoms, which can easily be accomplished by the PECVD technique, should undoubtedly continue.

Author Contributions

L.J. contribution to the synthesis of catalysts and electrochemical investigations; J.B. contribution to the chemical structure investigations; J.T. conceptualization, supervision, writing and editing the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the National Science Center (NCN) of Poland, on the bases of decision DEC 2012/07/B/ST8/03670.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Over, H. Surface chemistry of ruthenium dioxide in heterogeneous catalysis and electrocatalysis: From fundamental to applied research. Chem. Rev. 2012, 112, 3356–3426. [Google Scholar] [CrossRef]
  2. Jeong, J.M.; Jin, S.B.; Yoon, J.H.; Yeo, J.G.; Lee, G.Y.; Irshad, M.; Lee, S.; Seo, D.; Kwak, B.E.; Choi, B.G.; et al. High-throughput production of heterogeneous RuO2/graphene catalyst in a hydrodynamic reactor for selective alcohol oxidation. Catalysts 2019, 9, 25. [Google Scholar] [CrossRef] [Green Version]
  3. Yang, X.; Wei, X.; Liu, C.; Liu, Y. The electrocatalytic application of RuO2 in direct borohydride fuel cells. Mater. Chem. Phys. 2014, 145, 269–273. [Google Scholar] [CrossRef]
  4. Takagi, Y.; Kerman, K.; Ko, C.; Ramanathan, S. Operational characteristics of thin film solid oxide fuel cells with ruthenium anode in natural gas. J. Power Sources 2013, 243, 1–9. [Google Scholar] [CrossRef]
  5. Tatsat, B.; Mukherjee, A. Overall water splitting under visible light irradiation using nanoparticulate RuO2 loaded Cu2O powder as photocatalyst. Energy Procedia 2014, 54, 221–227. [Google Scholar] [CrossRef] [Green Version]
  6. Creus, J.; De Tovar, J.; Romero, N.; Garcia-Anton, J.; Philippot, K.; Bofill, R.; Sala, X. Ruthenium nanoparticles for catalytic water splitting. ChemSusChem 2019, 12, 2–24. [Google Scholar] [CrossRef] [PubMed]
  7. Jeon, H.S.; Permana, A.D.C.; Kim, J.; Min, B.K. Water splitting for hydrogen production using a high surface area RuO2 electrocatalyst synthesized in supercritical water. Inter. J. Hydrog. Energy 2013, 38, 6092–6096. [Google Scholar] [CrossRef]
  8. Yu, J.; He, Q.; Yang, G.; Zhou, W.; Shao, Z.; Ni, M. Recent advances and prospective in ruthenium-based materials for electrochemical water splitting. ACS Catal. 2019, 9, 9973–10011. [Google Scholar] [CrossRef]
  9. Cherevko, S.; Geiger, S.; Kasian, O.; Kulyk, N.; Grote, J.P.; Savan, A.; Shrestha, B.R.; Merzlikin, S.; Breitbach, B.; Ludwig, A.; et al. Oxygen and hydrogen evolution reactions on Ru, RuO2, Ir, and IrO2 thin film electrodes in acidic and alkaline electrolytes: A comparative study on activity and stability. Catal. Today 2016, 262, 170–180. [Google Scholar] [CrossRef]
  10. Zhang, M.; Chen, J.; Li, H.; Cai, P.; Li, Y.; Wen, Z. Ru-RuO2/CNT hybrids as high-activity pH-universal electrocatalysts for water splitting with 0.73 V in an asymmetric-electrolyte electrolyser. Nano Energy 2019, 61, 576–583. [Google Scholar] [CrossRef]
  11. Gómez-Solís, C.; Ballesteros, J.C.; Torres-Martínez, L.M.; Juárez-Ramírez, I. RuO2−NaTaO3 heterostructure for its application in photoelectrochemical water splitting under simulated sunlight illumination. Fuel 2016, 166, 36–41. [Google Scholar] [CrossRef]
  12. Yang, W.; Prabhakar, R.R.; Tan, J.; Tilley, S.D.; Moon, J. Strategies for enhancing the photocurrent, photovoltage, and stability of photoelectrodes for photoelectrochemical water splitting. Chem. Soc. Rev. 2019, 48, 4979–5015. [Google Scholar] [CrossRef] [PubMed]
  13. Park, J.; Lee, J.W.; Ye, B.U.; Chun, S.H.; Joo, S.H.; Park, H.; Lee, H.; Jeong, H.Y.; Kim, M.H.; Baik, J.M. Structural evolution of chemically-driven RuO2 nanowires and 3-dimensional design for photo-catalytic applications. Sci. Rep. 2015, 5, 11933. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Reier, T.; Oezaslan, M.; Strasser, P. Electrocatalytic oxygen evolution reaction (OER) on Ru, Ir, and Pt catalysts: A comparative study of nanoparticles and bulk materials. ACS Catal. 2012, 2, 1765–1772. [Google Scholar] [CrossRef]
  15. Jirkovsky, J.; Hoffmannova, H.; Klementova, M.; Krtil, P.J. Particle size dependence of the electrocatalytic activity of nanocrystalline RuO2 electrodes. J. Electrochem. Soc. 2006, 153, E111–E118. [Google Scholar] [CrossRef]
  16. Lee, Y.; Suntivich, J.; May, K.J.; Perry, E.E.; Shao-Horn, Y. Synthesis and activities of rutile IrO2 and RuO2 nanoparticles for oxygen evolution in acid and alkaline solution. J. Phys. Chem. Lett. 2012, 3, 399–404. [Google Scholar] [CrossRef]
  17. Ma, H.; Liu, C.; Liao, J.; Su, Y.; Xue, X.; Xing, W. Study of ruthenium oxide catalyst for electrocatalytic performance in oxygen evolution. J. Mol. Catal. A Chem. 2006, 247, 7–13. [Google Scholar] [CrossRef]
  18. Kim, J.Y.; Choi, J.; Kim, H.Y.; Hwang, E.; Kim, H.J.; Ahn, S.H.; Kim, S.K. Activity and stability of the oxygen evolution reaction on electrodeposited Ru and its thermal oxides. Appl. Surf. Sci. 2015, 359, 227–235. [Google Scholar] [CrossRef]
  19. Han, J.; An, H.J.; Kim, T.W.; Lee, K.Y.; Kim, H.J.; Kim, Y.; Chae, H.J. Effect of structure-controlled ruthenium oxide by nanocasting in electrocatalytic oxygen and chlorine evolution reactions in acidic conditions. Catalysts 2019, 9, 549. [Google Scholar] [CrossRef] [Green Version]
  20. Tsuji, E.; Imanishi, A.; Fukui, K.; Nakato, Y. Electrocatalytic activity of amorphous RuO2 electrode for oxygen evolution in an aqueous solution. Electrochim. Acta 2011, 56, 2009–2016. [Google Scholar] [CrossRef]
  21. Das, S.K.; Dutta, P.K. Synthesis and characterization of a ruthenium oxide–zeolite Y catalyst for photochemical oxidation of water to dioxygen. Micropor. Mesopor. Mat. 1998, 22, 475–483. [Google Scholar] [CrossRef]
  22. Mamaca, N.; Mayousse, E.; Arrii-Clacens, S.; Napporn, T.W.; Servat, K.; Guillet, N.; Kokoh, K.B. Electrochemical activity of ruthenium and iridium based catalysts for oxygen evolution reaction. Appl. Catal. B Environ. 2012, 111–112, 376–380. [Google Scholar] [CrossRef]
  23. Yi, J.; Lee, W.H.; Choi, C.H.; Lee, Y.; Park, K.S.; Min, B.K.; Hwang, Y.J.; Oh, H.S. Effect of Pt introduced on Ru-based electrocatalyst for oxygen evolution activity and stability. Electrochem. Commun. 2019, 104, 106469. [Google Scholar] [CrossRef]
  24. Azevedo, J.; Steier, L.; Dias, P.; Stefik, M.; Sousa, C.T.; Araújo, J.P.; Mendes, A.; Graetzel, M.; Tilley, S.D. On the stability enhancement of cuprous oxide water splitting photocathodes by low temperature steam annealing. Energy Environ. Sci. 2014, 7, 4044–4052. [Google Scholar] [CrossRef] [Green Version]
  25. Zuo, J.; Zhu, J.; Zhang, M.; Hong, Q.; Han, J.; Liu, J. Synergistic photoelectrochemical performance of La-doped RuO2-TiO2/Ti electrodes. Appl. Surf. Sci. 2020, 502, 144288. [Google Scholar] [CrossRef]
  26. Tyczkowski, J. Cold plasma—a promising tool for the development of electrochemical cells. In Electrochemical Cells—New Advances in Fundamental Researches and Applications; Shao, Y., Ed.; InTech: Rijeka, Croatia, 2012; Chapter 5; pp. 105–138. [Google Scholar] [CrossRef]
  27. Tyczkowski, J. Cold plasma produced catalytic materials. In Plasma Science and Technology—Progress in Physical States and Chemical Reactions; Mieno, T., Ed.; InTech: Rijeka, Croatia, 2016; Chapter 3; pp. 25–65. [Google Scholar] [CrossRef]
  28. Kierzkowska-Pawlak, H.; Tracz, P.; Redzynia, W.; Tyczkowski, J. Plasma deposited novel nanocatalysts for CO2 hydrogenation to methane. J. CO2 Util. 2017, 17, 312–319. [Google Scholar] [CrossRef]
  29. Li, L.; Tian, T.; Jiang, J.; Ai, L. Hierarchically porous Co3O4 architectures for efficient oxygen generation from electrochemical water splitting. J. Power Sources 2015, 294, 103–111. [Google Scholar] [CrossRef]
  30. McCrory, C.C.L.; Jung, S.; Ferrer, I.M.; Chatman, S.M.; Peters, J.C.; Jaramillo, T.F. Benchmarking hydrogen evolution reaction and oxygen evolution reaction electrocatalysts for solar water splitting devices. JACS 2015, 137, 4347–4357. [Google Scholar] [CrossRef] [Green Version]
  31. Balcerzak, J.; Redzynia, W.; Tyczkowski, J. In-situ XPS analysis of oxidized and reduced plasma deposited ruthenium-based thin catalytic films. Appl. Surf. Sci. 2017, 426, 852–855. [Google Scholar] [CrossRef]
  32. Kaur, M.; Chhetri, M.; Rao, C.N.R. Photoelectrochemical OER activity by employing BiVO4 with manganese oxide co-catalysts. Phys. Chem. Chem. Phys. 2020, 22, 811–817. [Google Scholar] [CrossRef]
  33. Doyle, R.L.; Godwin, I.J.; Brandon, M.P.; Lyons, M.E.G. Redox and electrochemical water splitting catalytic properties of hydrated metal oxide modified electrodes. Phys. Chem. Chem. Phys. 2013, 15, 13737–13783. [Google Scholar] [CrossRef] [PubMed]
  34. Stoerzinger, K.A.; Rao, R.R.; Wang, X.R.; Hong, W.T.; Rouleau, M.; Shao-Horn, Y. The role of Ru redox in pH-dependent oxygen evolution on rutile ruthenium dioxide surfaces. Chem 2017, 2, 668–675. [Google Scholar] [CrossRef] [Green Version]
  35. Stoerzinger, K.A.; Diaz-Morales, O.; Kolb, M.; Rao, R.R.; Frydendal, R.; Qiao, L.; Wang, X.R.; Halck, N.B.; Rossmeisl, J.; Hansen, H.A.; et al. Orientation-dependent oxygen evolution on RuO2 without lattice exchange. ACS Energy Lett. 2017, 2, 876–881. [Google Scholar] [CrossRef] [Green Version]
  36. Silva, R.C.; Gouveia, A.F.; Sczancoski, J.C.; Santos, R.S.; Sá, J.L.S.; Longo, E.; Cavalcante, L.S. Electronic structure, morphological aspects, optical and electrochemical properties of RuO2 nanocrystals. Electron. Mater. Lett. 2019, 15, 645–653. [Google Scholar] [CrossRef]
  37. Tong, K.Y.; Jelenkovic, V.; Cheung, W.Y.; Wong, S.P. Temperature dependence of resistance in reactively sputtered RuO2 thin films. J. Mater. Sci. Lett. 2001, 20, 699–700. [Google Scholar] [CrossRef]
  38. Steeves, M.M.; Lad, R.J. Influence of nanostructure on charge transport in RuO2 thin films. J. Vac. Sci. Technol. A 2010, 28, 906–911. [Google Scholar] [CrossRef]
  39. Alberding, B.G.; DeSario, P.A.; So, C.R.; Dunkelberger, A.D.; Rolison, D.R.; Owrutsky, J.C.; Heilweil, E.J. Static and time-resolved terahertz measurements of photoconductivity in solution-deposited ruthenium dioxide nanofilms. J. Phys. Chem. C 2017, 121, 4037–4044. [Google Scholar] [CrossRef] [Green Version]
  40. Guerrini, E.; Trasatti, S. Electrocatalysis in water electrolysis. In Catalysis for Sustainable Energy Production; Barbaro, P., Bianchini, C., Eds.; Wiley-VCH Verlag: Weinheim, Germany, 2009; Chapter 7.5; pp. 255–264. [Google Scholar]
  41. Patil, P.S.; Ennaoui, E.A.; Lokhande, C.D.; Müller, M.; Giersing, M.; Diesner, K.; Tributsch, H. Characterization of ultrasonic spray pyrolysed ruthenium oxide thin films. Thin Solid Film. 1997, 310, 57–62. [Google Scholar] [CrossRef]
  42. Kao, K.C.; Hwang, W. Electrical Transport in Solids; Pergamon Press: Oxford, UK, 1981; Chapter 6.3; pp. 436–453. [Google Scholar]
  43. Simonov, P.A.; Likholobov, V.A. Physicochemical aspects of preparation of carbon-supported noble metal catalysts. In Catalysis and Electrocatalysis at Nanoparticle Surfaces; Wieckowski, A., Savinova, E.R., Vayenas, C.G., Eds.; CRC Press: Boca Raton, FL, USA, 2003; Chapter 12.1. [Google Scholar] [CrossRef]
  44. Lakshminarayana, G.; Kityk, I.V.; Nagao, T. Synthesis, structural, and electrical characterization of RuO2 sol–gel spin-coating nano-films. J. Mater. Sci. Mater. Electron. 2016, 27, 10791–10797. [Google Scholar] [CrossRef] [Green Version]
Catalysts 10 00278 g001 550

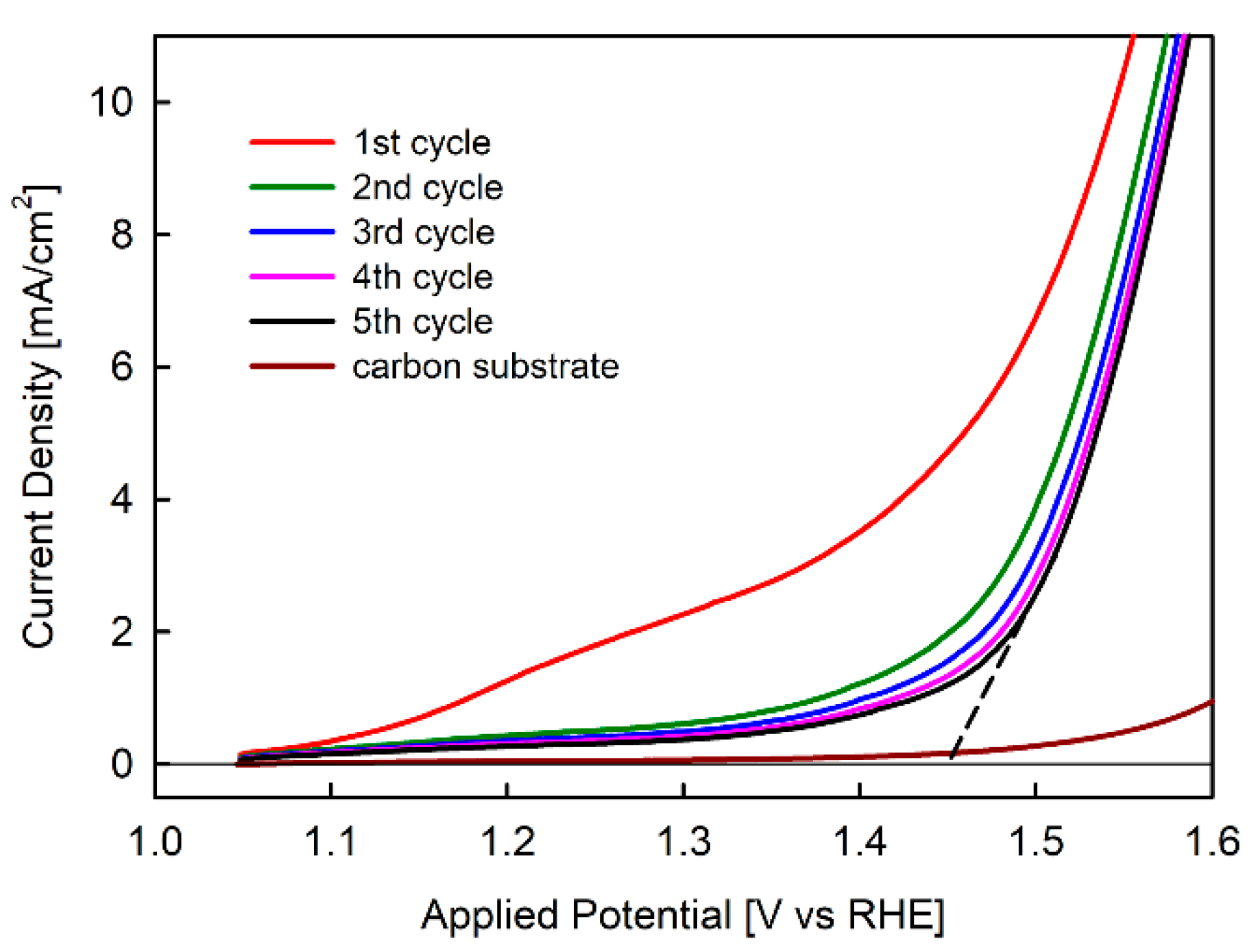

Figure 1. Linear sweep voltammetry (LSV) for the plasma-deposited Ru-based film. Current density as a function of applied potential (V vs reversible hydrogen electrode (RHE)) for five successive measurement cycles. The LSV for the carbon substrate is also shown.
Figure 1. Linear sweep voltammetry (LSV) for the plasma-deposited Ru-based film. Current density as a function of applied potential (V vs reversible hydrogen electrode (RHE)) for five successive measurement cycles. The LSV for the carbon substrate is also shown.
Catalysts 10 00278 g001
Catalysts 10 00278 g002 550

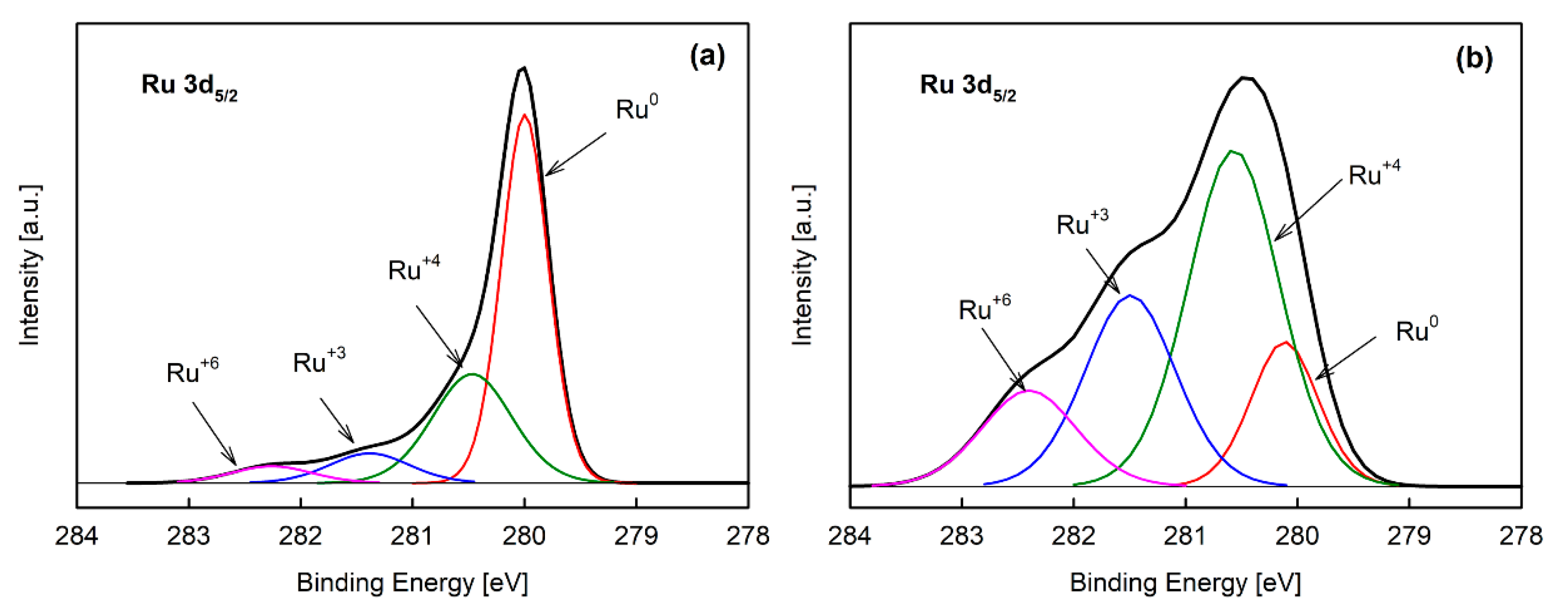

Figure 2. X-ray photoelectron spectrometry (XPS) Ru 3d5/2 spectra of the plasma-deposited Ru-based film: (a) as-deposited; (b) after five LSV cycles.
Figure 2. X-ray photoelectron spectrometry (XPS) Ru 3d5/2 spectra of the plasma-deposited Ru-based film: (a) as-deposited; (b) after five LSV cycles.
Catalysts 10 00278 g002
Catalysts 10 00278 g003 550

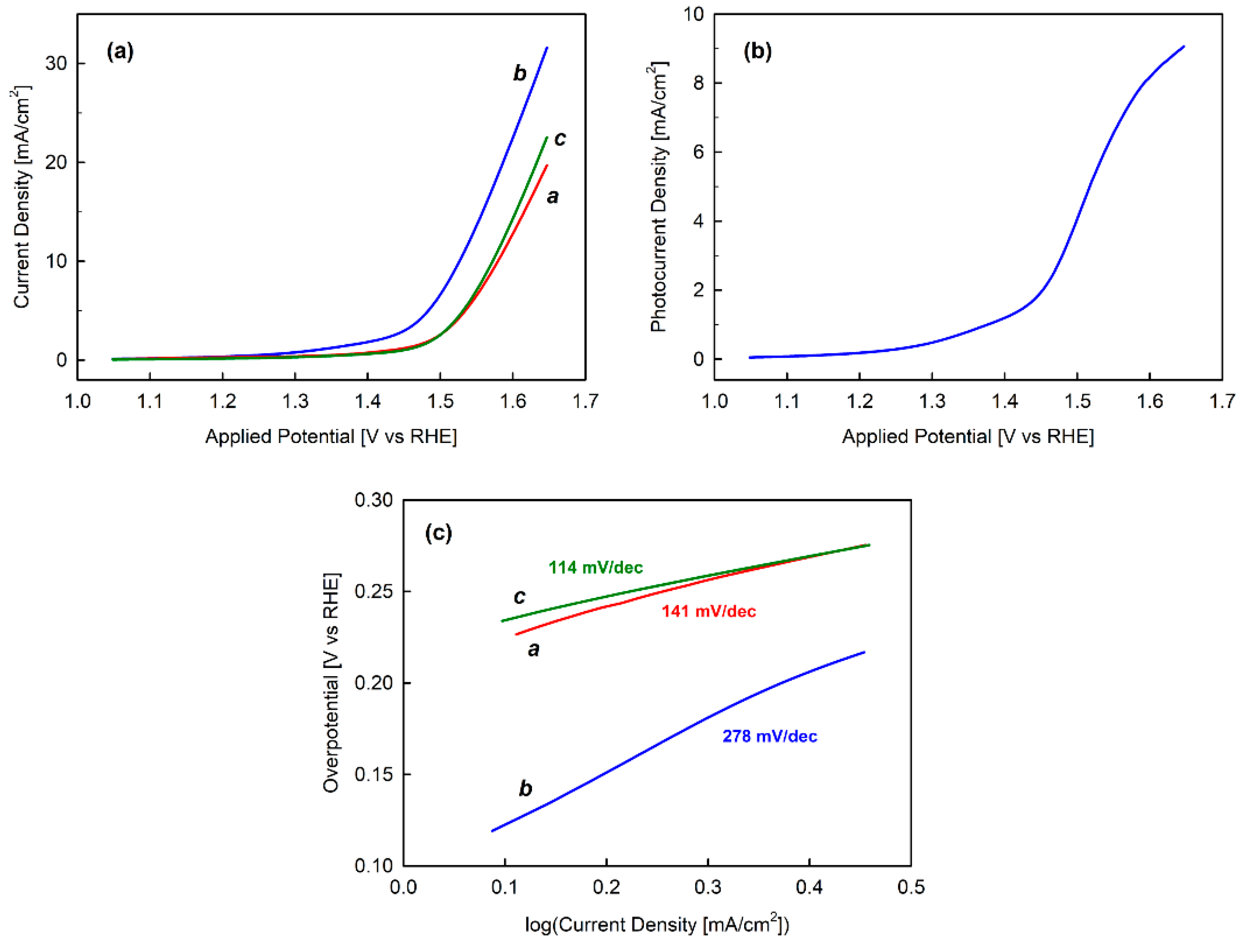

Figure 3. Photoelectrochemical response of the plasma-deposited Ru-based film in the oxygen evolution reaction (OER) process: (a) LSV measurements: a−in the dark, b−under illumination, c−in the dark after illumination; (b) photocurrent dependence; (c) Tafel plots.
Figure 3. Photoelectrochemical response of the plasma-deposited Ru-based film in the oxygen evolution reaction (OER) process: (a) LSV measurements: a−in the dark, b−under illumination, c−in the dark after illumination; (b) photocurrent dependence; (c) Tafel plots.
Catalysts 10 00278 g003
Catalysts 10 00278 g004 550

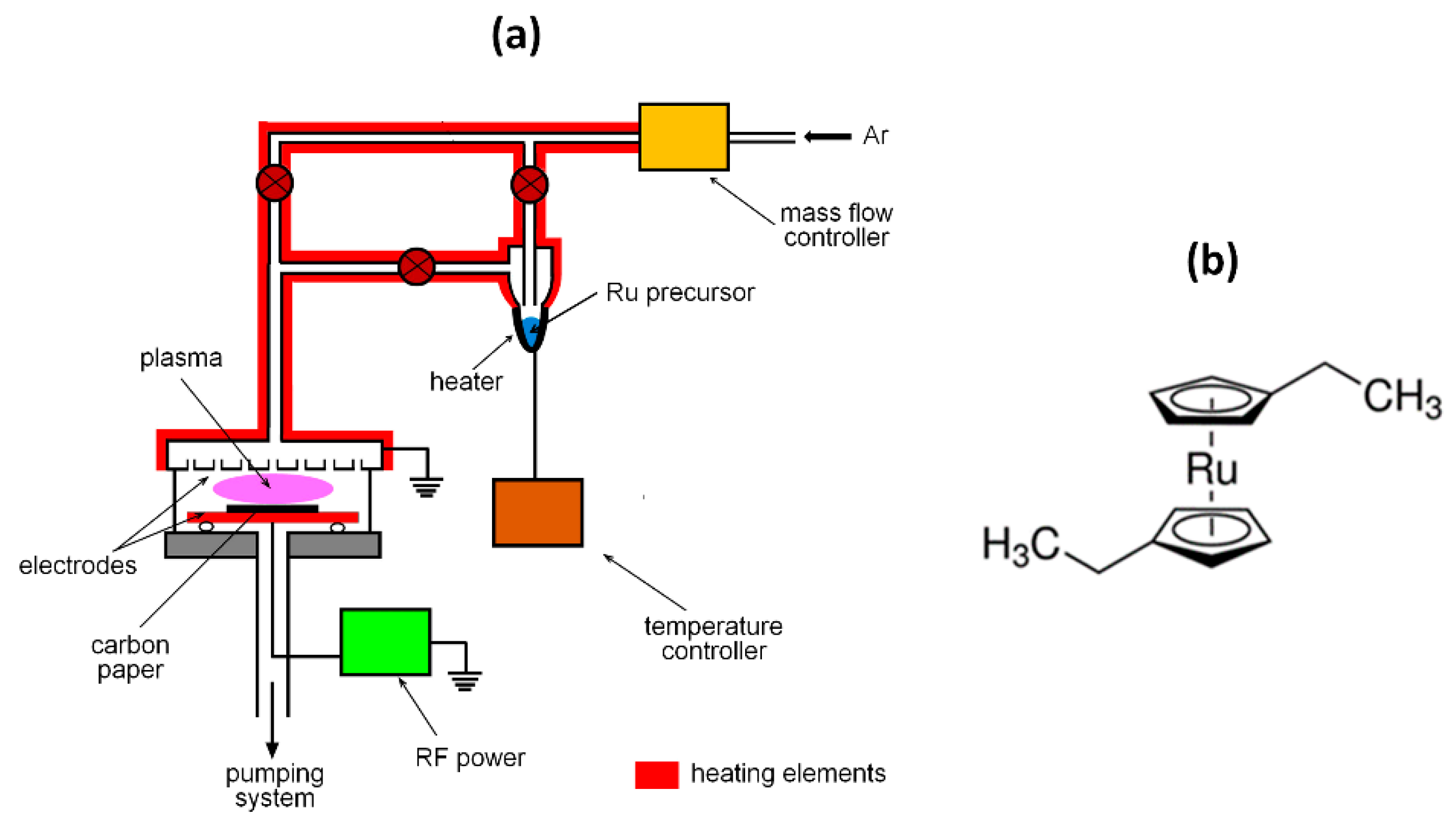

Figure 4. (a) schematic diagram of the RF plasma reactor used for deposition of Ru-based films; (b) chemical formula of the Ru-precursor.
Figure 4. (a) schematic diagram of the RF plasma reactor used for deposition of Ru-based films; (b) chemical formula of the Ru-precursor.
Catalysts 10 00278 g004
