Analysis of Adsorption and Decomposition of Odour and Tar Components in Tobacco Smoke on Non-Woven Fabric-Supported Photocatalysts

Abstract

The release of substantial amounts of toxicologically significant, irritant, and malodourous compounds during the complete combustion of tobacco can generate an unpleasant environment, especially indoors. Herein, we developed non-woven fabric-supported UV- and visible-light-responsive photocatalysts capable of adsorbing and decomposing the odour and tar components of tobacco smoke under irradiation with UV or visible light. The processes of odour component adsorption and subsequent decomposition under irradiation were evaluated in terms of colour changes in the catalytic system and by gas chromatography–mass spectrometry. By considering three different photocatalysts, namely TiO₂, Fe(III)-grafted TiO₂, and Cu(II)-grafted WO₃, we assessed the magnitude of odour and tar component adsorption on the fabric fibres, as well as the decomposition of these species after specific visible light or UV irradiation periods. Considering the expansion of our technology for practical applications, the best results among the three tested materials were obtained for non-woven fabric-supported Fe/TiO₂. We believe that our technology can be implemented in the design of interior decoration materials for creating a comfortable environment.

1. Introduction

In recent years, third-hand smoke has been identified as a new, hazardous, and unpleasant consequence of cigarette smoking [1]. It comprises all the chemical residues resulting from smoking tobacco, which soak into clothing, upholstery, walls, furniture, hair, and other objects even after the cigarette has been put out. These deposits remain attached to the host material for months, and are hard to eliminate using common ventilation systems, hence causing serious health consequences not only for smokers but for whoever enters a contaminated environment [2]. In addition, a recent study revealed that hazardous airborne emissions can be generated not only from burning cigarettes but also from extinguished cigarette butts [3]. In this regard, some companies in Japan are encouraging visitors not only to avoid smoking in their offices or locations, but even before getting there.

Photocatalysts have demonstrated strong oxidation abilities in redox systems since they were first reported in the 1970s [4]; as most pollutants in the atmosphere can be removed by several kinds of active oxidative species, photocatalysts are widely used in air purification systems [5]. In recent years, multiple practical air purifiers have been developed, based on photocatalysis, which can decompose the main tobacco smoke contaminants [6,7,8]. However, although numerous practical air purifiers for tobacco smoke have developed, very few studies have focused on the fundamental understanding, and report standard methods of analysis, of the adsorption and decomposition of odour and tar constituents in tobacco smoke trapped on clothes or other materials. On the other hand, tailored semiconductor heterostructures come into prominence as the forefront of photocatalyst development [9,10]. In particular, composites prepared by the grafting of metal species on a TiO₂ surface can absorb visible light because of interfacial charge transfer (IFCT) from TiO₂ to metal ions [11,12]. This visible-light activity is important in practical applications such as the fabrication of interior materials, clothes, and fabrics.

In this study, we developed a non-woven fabric-supported, UV- and visible-light-responsive photocatalyst, fashioned to adsorb and decompose the hazardous components in tobacco smoke under UV or visible light irradiation. Tobacco smoke is comprised of airborne particulates and gases. The particulates may be composed of drops of condensed heavier hydrocarbons called ‘tar’, which exhibit a yellow to brown colour. The gases are mainly volatile organic compounds (VOCs), which have a pungent odour and are harmful to inhale. Therefore, by evaluating the changes in colour of the system, and by gas chromatography–mass spectrometry (GC-MS) analysis, we could establish the magnitude of adsorption of the odour and tar components and their subsequent decomposition under light irradiation, and quantify each process. Our material might be engineered in the future as a constituent of textile and upholstery materials and applied in interior furnishing to avoid the persistence of third-hand smoke, and create comfortable and pleasant indoor environments.

2. Results

2.1. Preparation of the Non-Woven Fabric-Supported Photocatalysts

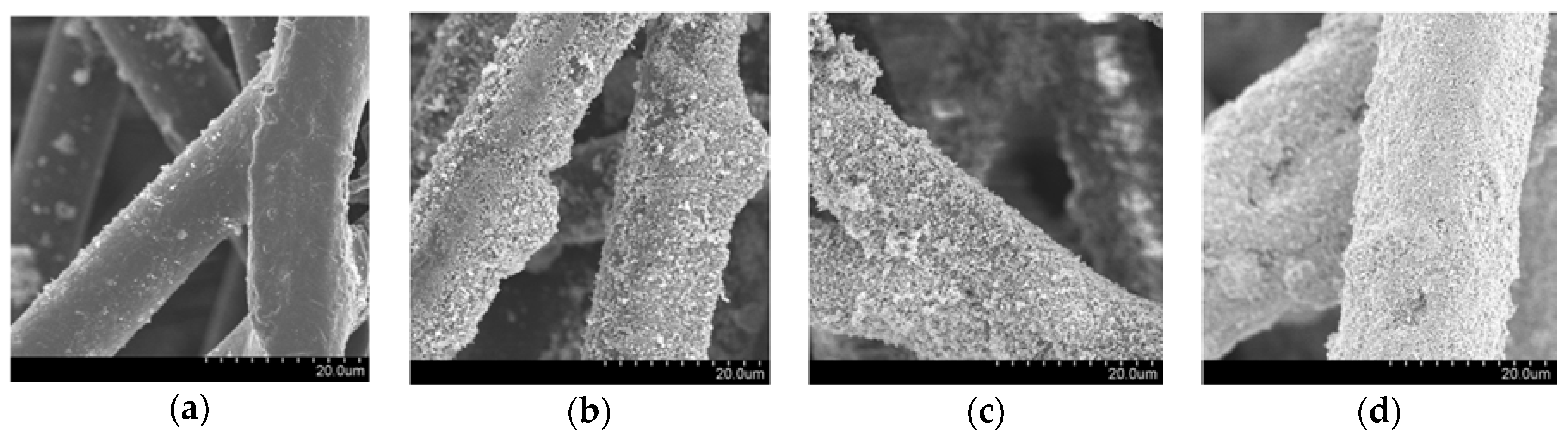

Figure 1a shows the scanning electron microscopy (SEM) image of pristine non-woven fabric, whose fibres are made of a thermoplastic resin; the fibres have diameters of 10–20 µm with a smooth surface. On the other hand, the SEM images of the fabric after modification with the host UV-responsive photocatalyst, TiO₂ P 25, are shown in Figure 1b, evidencing that the TiO₂ films are made up of sub-micron particles. These fabrics show a similar morphology with fabrics that we previously prepared and analysed by SEM and X-ray diffraction (XRD) [13]. The SEM images of the fabrics embedded with Fe/TiO₂ and Cu/WO₃, the visible-light-responsive photocatalysts, are shown in Figure 1c,d, respectively. These figures indicate that photocatalyst particles were successfully immobilised on the surface of the fabric. Due to the different loading levels achievable with the different photocatalysts, the morphologies of the fibres of the three fabric samples are different, even though the adhered particles have the same size and shape: the loading levels for Fe/TiO₂ and Cu/WO₃ on the fabric surface could be as high as 18.6 and 89.4 g/m², respectively, while TiO₂ loading could only reach 6.0 g/m². Therefore, the former fabrics show high photocatalyst density.

2.2. Adsorption and Decomposition of the Odour and Tar Components on the TiO₂-Embedded Fabrics

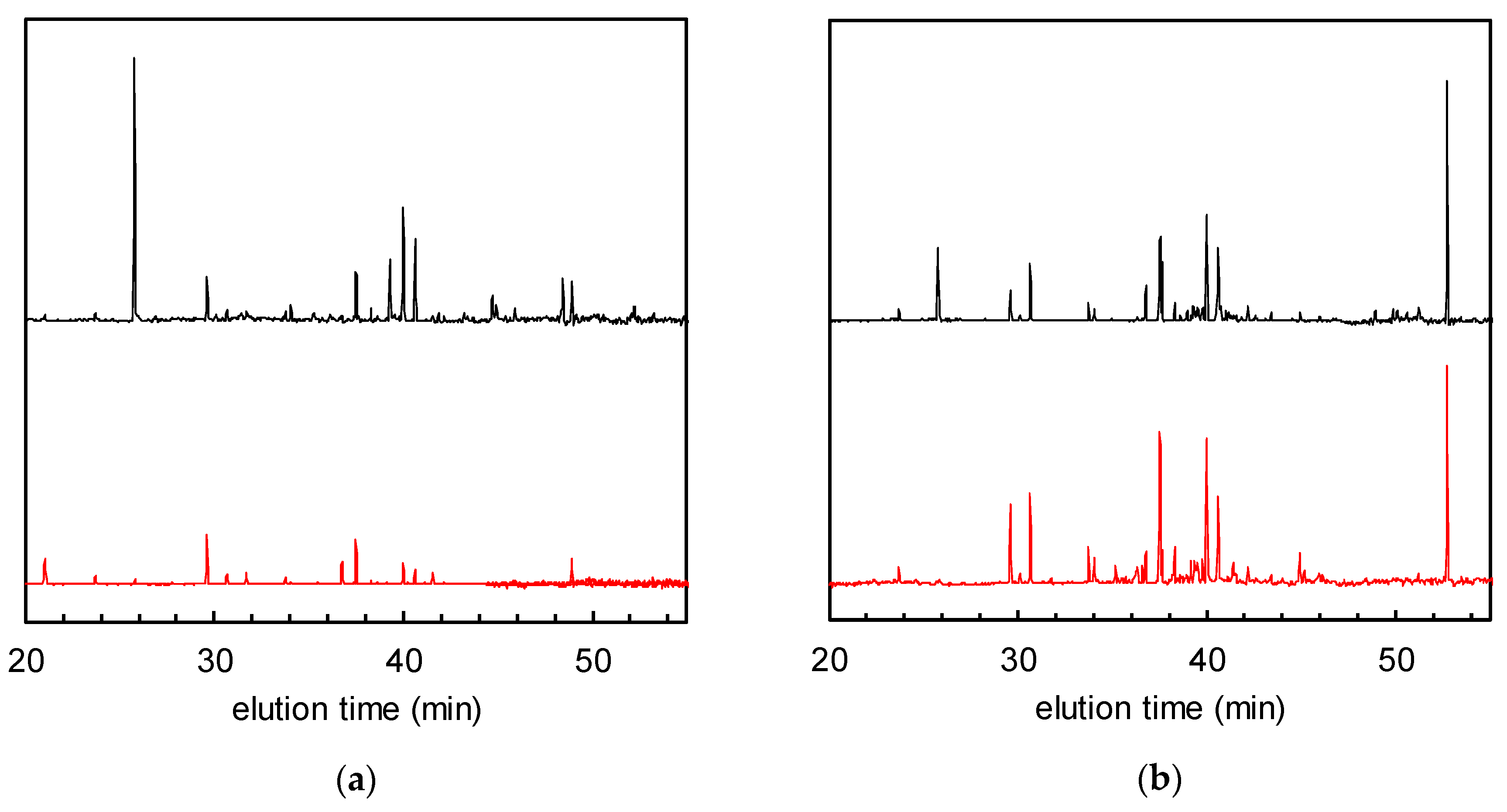

Figure 2 shows the normalised GC-MS chromatograms of the solid phase-extracted odour components from non-woven fabric samples with and without TiO₂. Many peaks attributable to VOCs were observed in the chromatogram of the fabric with TiO₂ after tobacco smoke adsorption, and before UV treatment (= 0 h of UV irradiation, hereafter defined as “0 h”), which had decreased after 24 h of irradiation. The total VOC (TVOC) concentrations were calculated for all the peaks located between the elution times of n-hexane (16 min) and n-hexadecane (53 min) according to a reported method; they were then calibrated and converted to toluene peak equivalents (located at 30 min of elution time) [8,14]. For the TiO₂-embedded fabrics, the TVOC concentrations at 0 and 24 h were 0.91 and 0.25 μg/m³, respectively (corresponding to 73% removal ratio of TVOCs, Figure 2a). On the other hand, although the non-woven fabric without TiO₂ shows almost the same TVOC concentration as its modified counterpart at 0 h (0.93 μg/m³), the VOC peaks remained almost unchanged after 24 h of irradiation (Figure 2b). These data indicate that the VOCs could be degraded by the photocatalyst.

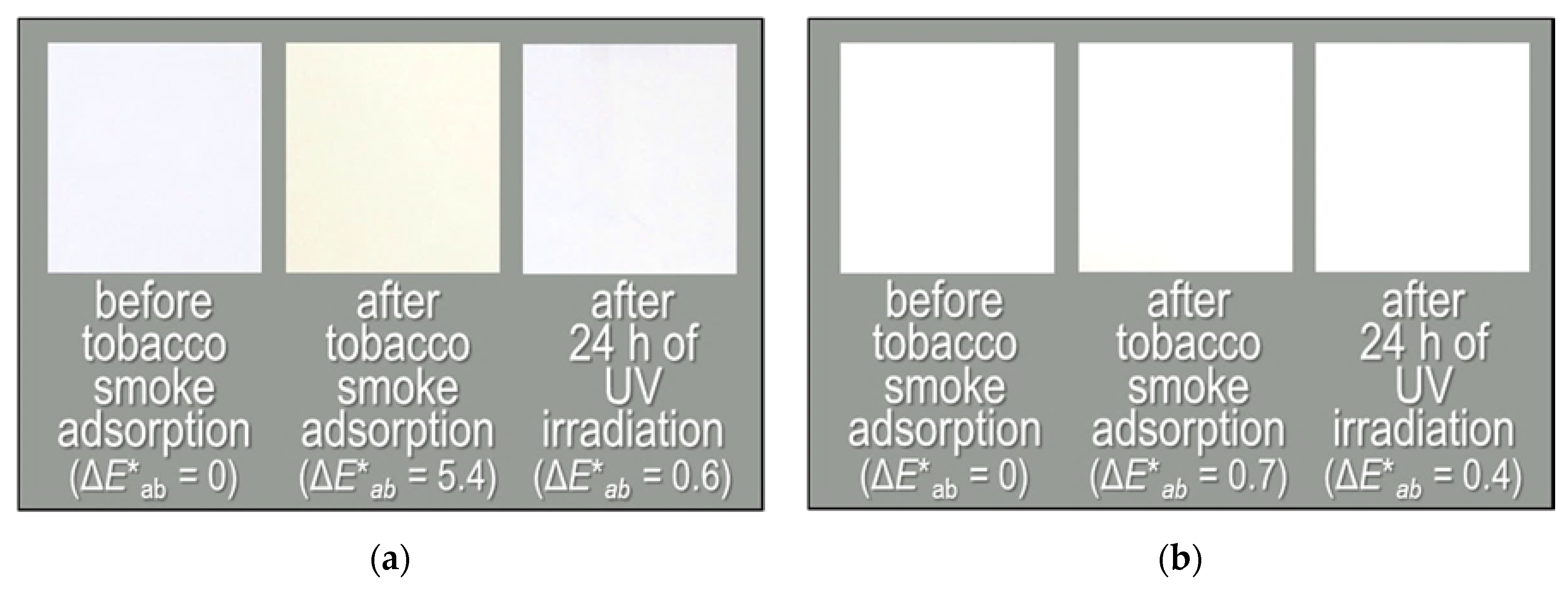

We could observe that, after tobacco smoke adsorption, the non-woven fabric with TiO₂ dramatically changed colour, due to the uptake of the tar components (Figure 3a). The colour difference (evaluated with the ΔE*_ab scale) of the fabric after tobacco smoke adsorption at 0 h compared to the fabric before tobacco smoke adsorption was 5.4. After 24 h of UV irradiation, the ΔE*_ab value, relative to the colour of the fabric before tobacco smoke adsorption, became 0.6; these colour differences can be easily perceived by the naked eye, with the 24-h sample looking almost white (Figure 3a, right end). This indicates that the adsorbed tar components had almost entirely decomposed after UV irradiation in the presence of the photocatalyst [6]. On the other hand, the colour of the non-woven fabric without TiO₂ did not change significantly after tobacco smoke adsorption (ΔE*_ab = 0.7, Figure 3b).

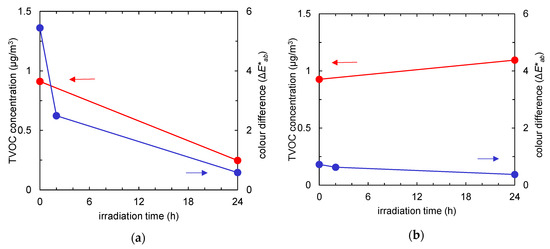

Figure 4 summarises the time course of the TVOC concentration (red) and the colour difference (blue) of the fabrics with and without TiO₂. Due to an increase in active surface area after TiO₂ absorption, a tangible difference was observed in pollutants uptake. Regardless of the pollutants’ composition, after 24 h of UV irradiation, the amounts of both tar and odour could be almost totally reduced by photocatalysis.

2.3. Adsorption and Decomposition of Odour and Tar Components on the Fabrics Modified with Visible-Light-Activated Photocatalysts

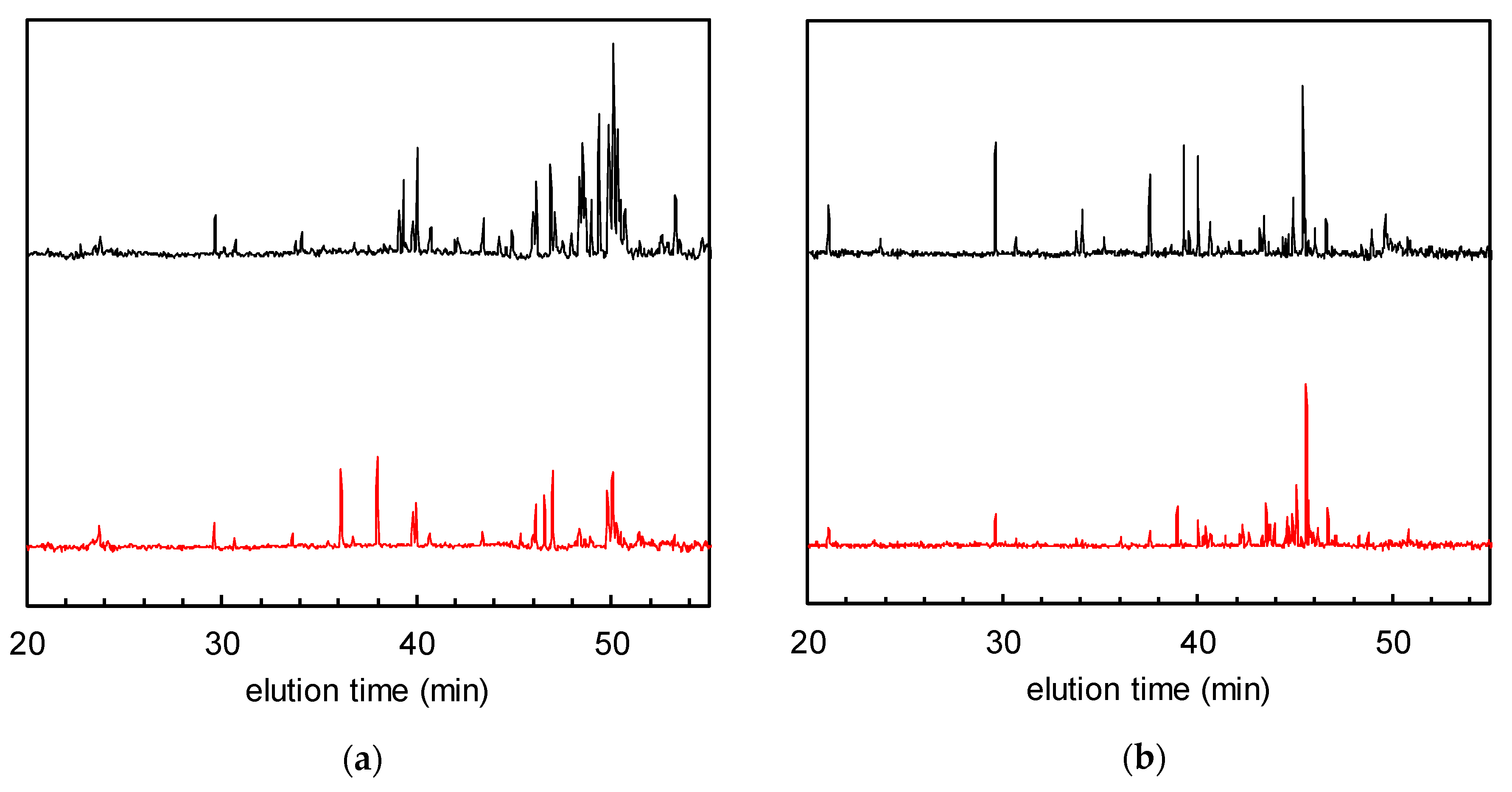

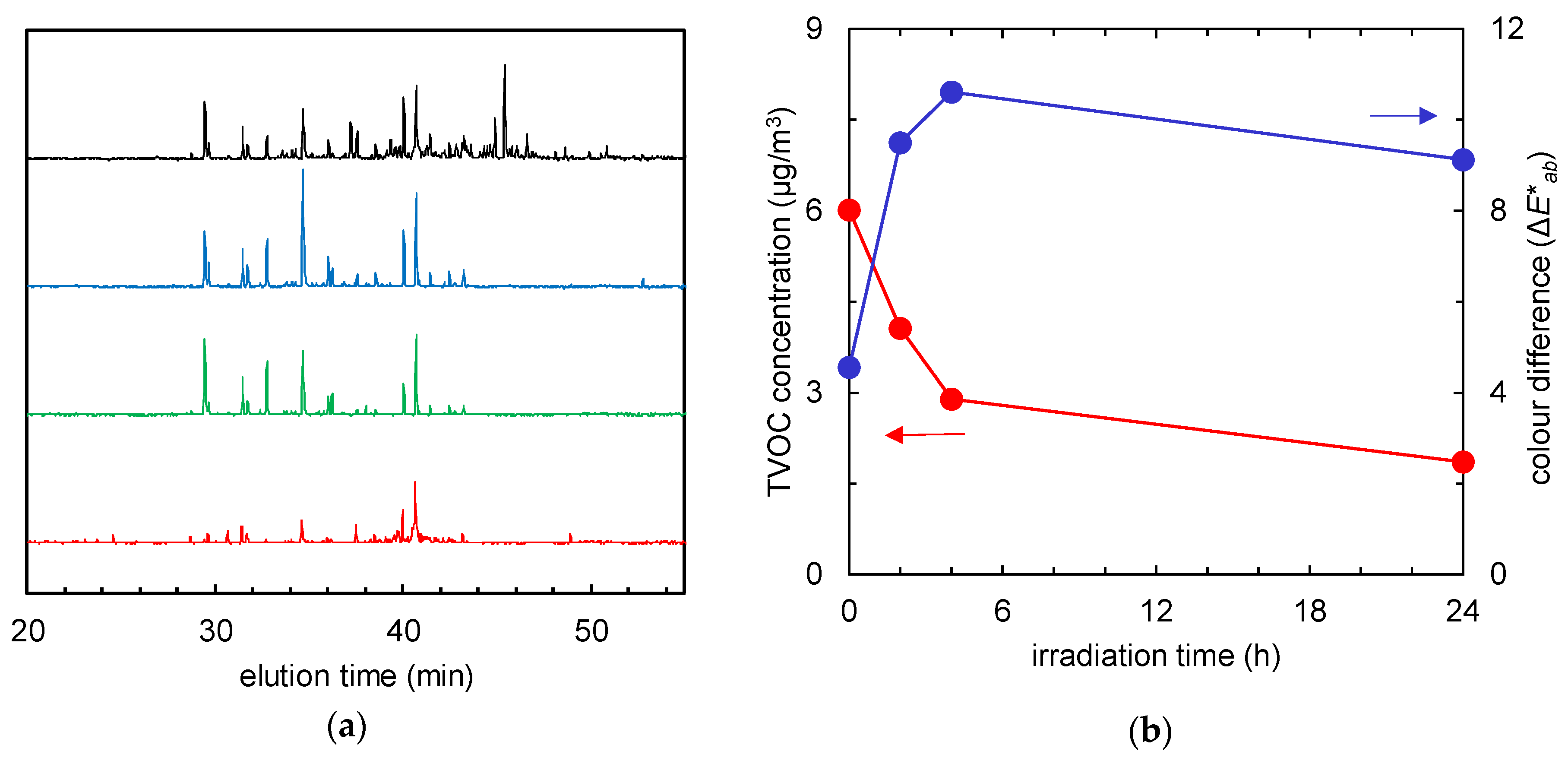

Figure 5 shows the normalised GC-MS chromatograms of the solid-phase-extracted odour components from the non-woven fabric samples with and without Fe/TiO₂. Similar to the previous case, the VOC peaks decreased after 24 h of visible light irradiation, with a removal ratio of TVOC of 55% (Figure 5a). On the other hand, the VOC peaks remained almost unchanged in the chromatogram of the pristine non-woven fabric after 24 h of visible light irradiation (Figure 5b). These data indicate that the VOCs could also be removed by visible-light-induced photocatalysis.

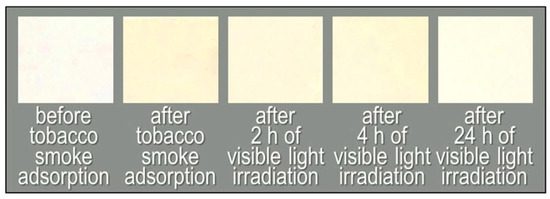

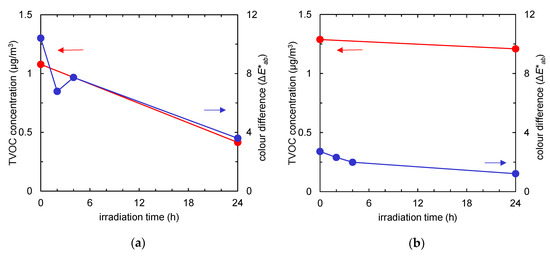

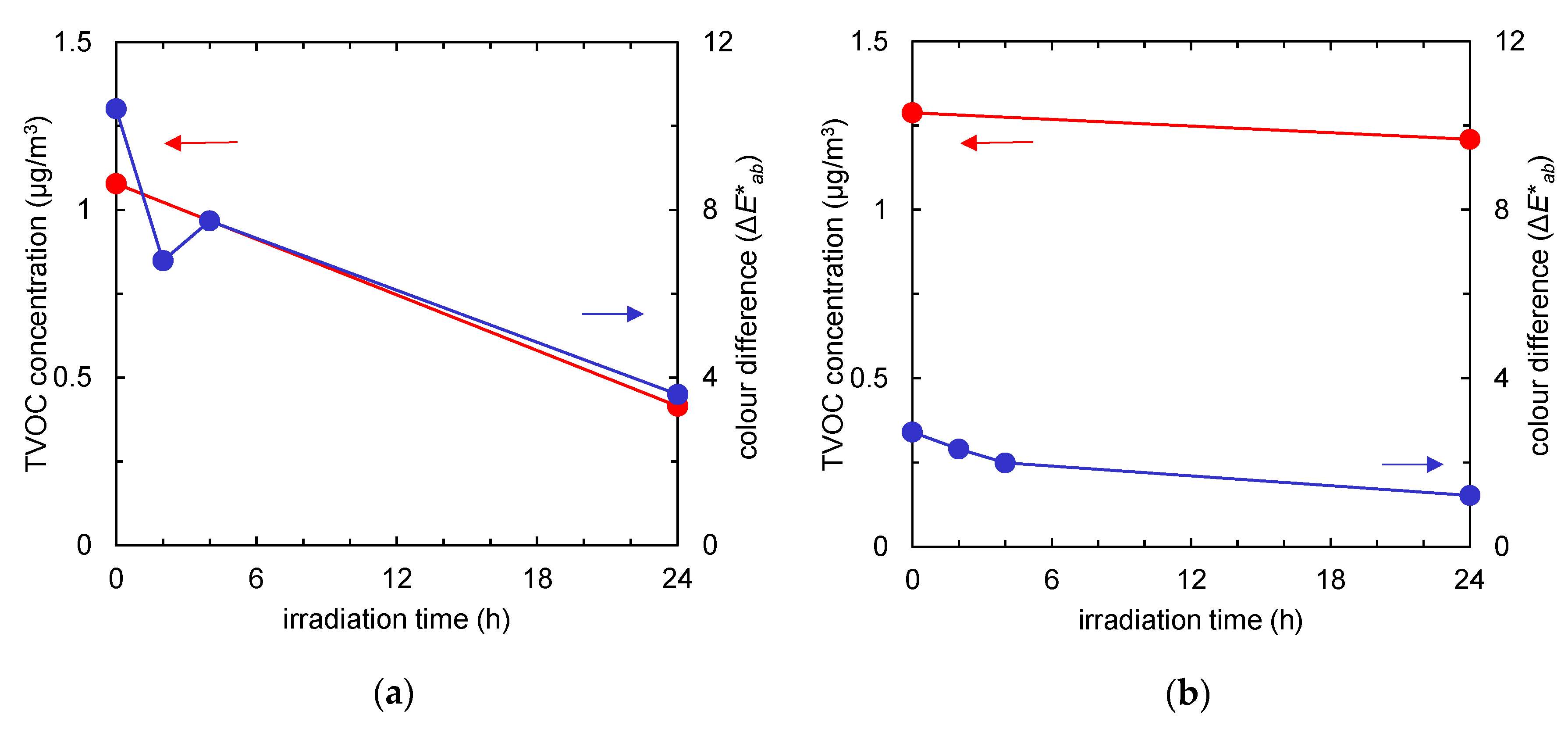

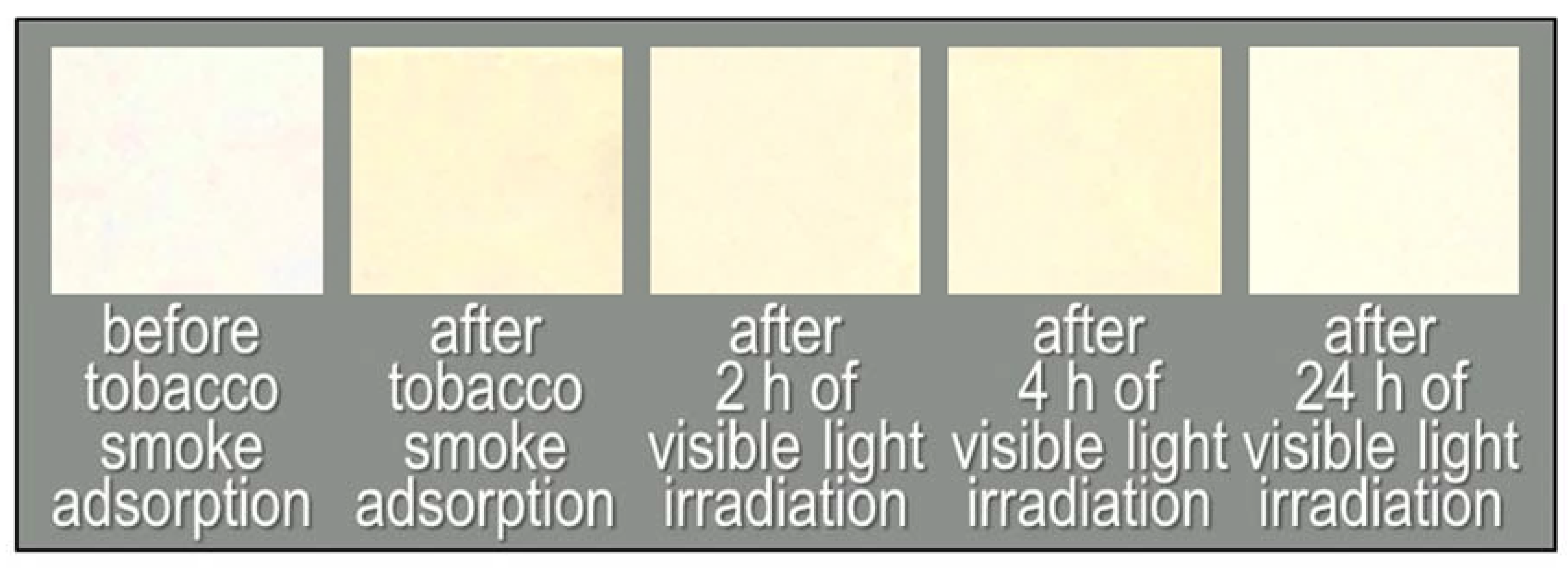

Figure 6 and Figure 7 show the colour changes of a Fe/TiO₂-embedded fabric sample subject to visible light irradiation, and the time courses of TVOC concentrations and colour differences, respectively. The colour difference of the fabric after 0 h of irradiation compared to the initial colour was 10.4 (Figure 6, left end). After 24 h of visible light irradiation, the ΔE*_ab value decreased to 3.6 (Figure 6, right end; Figure 7a, blue line). This indicates that the tar constituents were also decomposed by visible-light-induced photocatalysis. On the other hand, the pristine non-woven fabric shows a small colour change after 24 h of visible light irradiation (ΔE*_ab dropped from 2.7 to 1.2, Figure 7b, blue line).

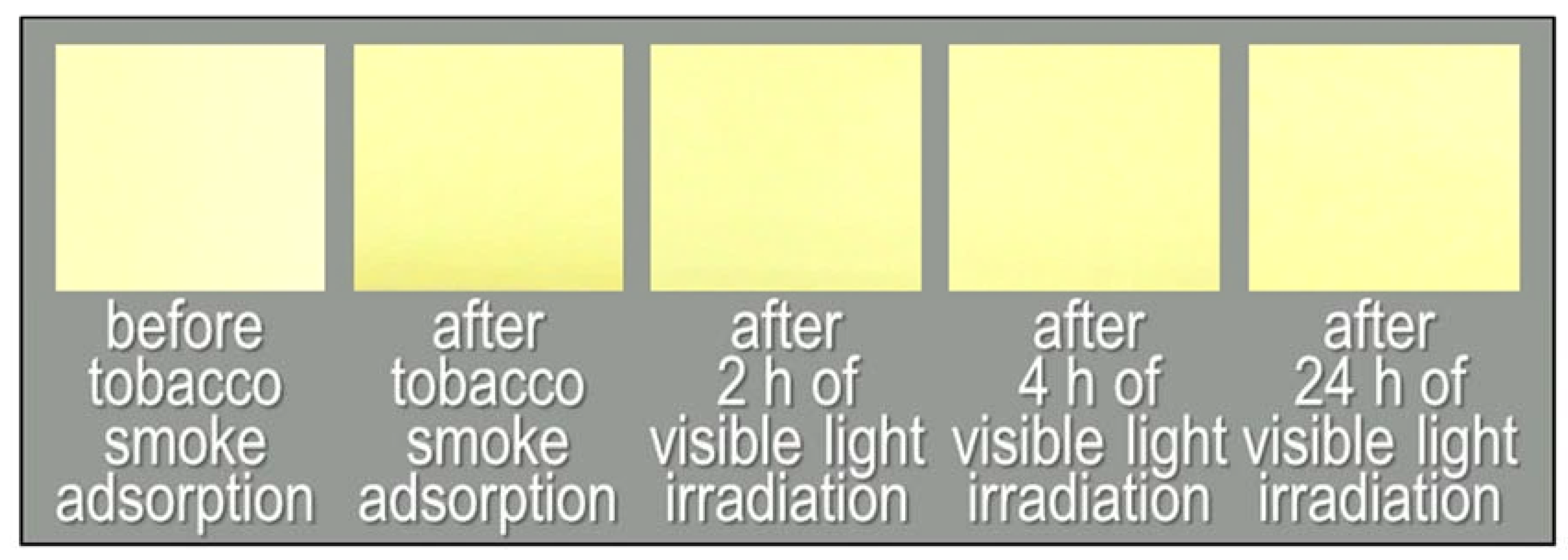

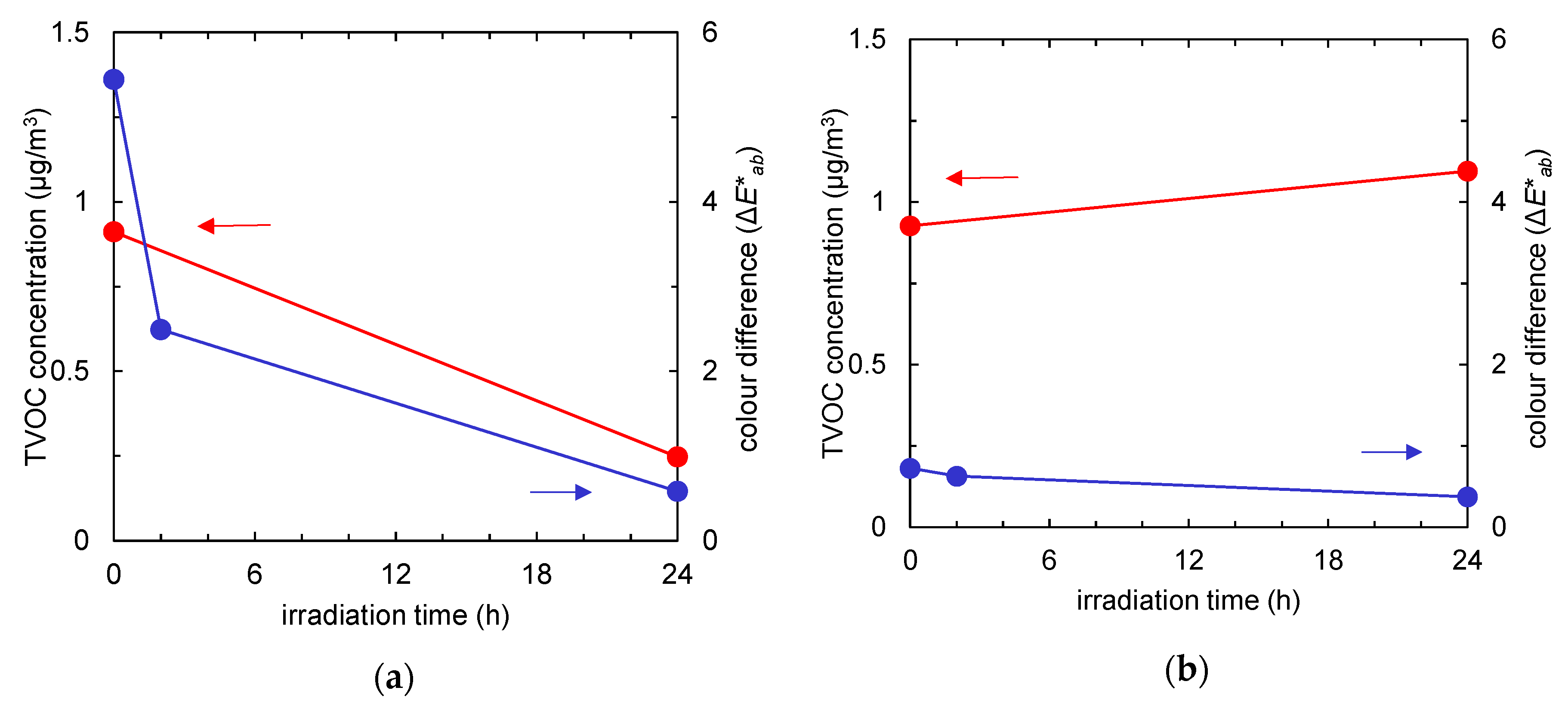

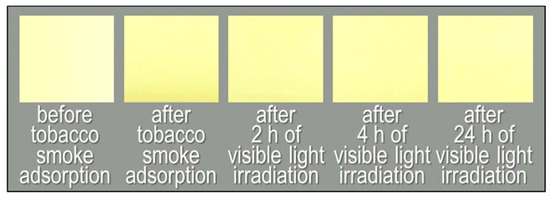

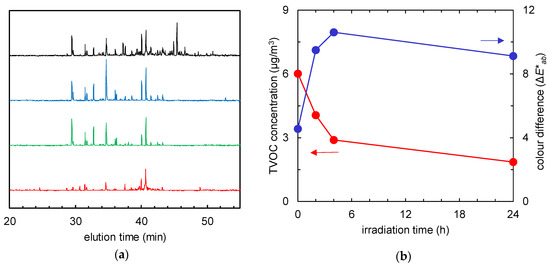

Another type of visible-light-activated photocatalyst, Cu/WO₃, showed different results, and Figure 8 and Figure 9 report the behaviour of the non-woven fabric samples embedded with this catalyst. Although the normalised GC-MS chromatograms of the solid-phase-extracted odour components (Figure 8a) and the time course graphs of TVOC concentration (Figure 8b, red line) indicate that the odour components were decomposed, the colour did not revert to white after 24 h of irradiation (Figure 8b, blue line); instead, the colour of the fabric changed from yellow to dark yellow (Figure 9).

3. Discussion

As can be seen from Figure 1, the three photocatalysts were successfully immobilised on the surface of the fibres, but could be loaded in different quantities. We speculate that these substantial differences in loading level may be caused by a high affinity between the visible-light-responsive photocatalysts and the fabric material. The conditions used to load the catalysts onto the non-woven fabrics might also play a role the heating and blowing steps, in which the catalysts were heated to above the melting point of the plastic and blown onto the thermoplastic fibre surface. Moreover, we might conclude that the higher the loading, the higher the photocatalytic activity. However, the different catalysts function through different mechanisms, and the overall pollutant uptake and conversion might be imputable to multiple factors.

For the odour constituents, according to GC-MS analysis, there is almost no difference in adsorption between the samples with and without TiO₂ (Figure 2). On the other hand, for the tar components, there are significant differences (Figure 3). The fabric used in this study is non-porous, with a small surface area, and hence, a low adsorption ability. However, the embedding of the TiO₂ particles increased the surface area of the fabric and caused a tangible difference in its adsorption ability. These adsorption properties especially affected the tar contents and resulted in a significant difference in colour between the samples with and without TiO₂ (Figure 3). These results indicate that the adsorption kinetics of the odour constituents is different from that of the tar components. Several researchers have reported the efficiency of the adsorption of oils onto TiO₂-embedded materials [15,16]; this affinity may cause the observed adsorption behaviour in the case of tar, which is mainly constituted of a mixture of hydrocarbons. Regardless of the uptake differences, odour and tar constituents could be successfully degraded by the strong oxidation ability of TiO₂ under UV irradiation [5].

Furthermore, Figure 5, Figure 7 and Figure 8 show that the VOCs could be removed by visible-light-induced photocatalysis.

Fe/TiO₂ is obtained by grafting Fe(III) species with an amorphous FeO(OH)-like structure on a rutile TiO₂ surface [11]. This system can absorb visible light with λ ≥ 400 nm, attributable to IFCT from TiO₂ to the iron ions. In this mechanism, the excited electrons reduce Fe(III) to Fe(II) ions, which have the capacity to reduce oxygen, while photo generated holes remain in the valence band of TiO₂ and oxidise organic compounds, such as the constituents of cigarette smoke odour, and tar. The Fe/TiO₂-embedded fibres showed similar odour and tar components removal behaviour to the TiO₂-embedded fibres.

For the third photocatalyst, Cu/WO₃, although the normalised GC-MS chromatograms of the solid-phase-extracted odour components (Figure 8a) and the time-course graphs of TVOC concentration (Figure 8b, red line) indicate that the odour components were decomposed, reversion to the initial colour (ΔE*_ab = 0) did not occur after 24-h irradiation (Figure 8b, blue line); instead, the colour of the fabric changed from yellow to dark yellow (Figure 9). When Cu(II) is grafted on the surface of WO₃ powder, the same photo-induced IFCT effect occurs from WO₃ to Cu(II) ions, as happens for Fe(III) ions in Fe/TiO₂. In this system, a catalytic multi-electron oxygen reduction by the Cu(I) ions, caused by Cu(II) reduction, and the strong oxidation power of the holes produced in the valence band of WO₃, generate multiple effects: Cu(II) d–d transitions (700–800 nm) [17], a WO₃ interbank transition (~460 nm) [12,18], and the absorption due to IFCT from the WO₃ to Cu(II) (in the case of IFCT from TiO₂ to Cu(II) in Cu(II)/TiO₂: ~460 nm [12]; in the case of IFCT from TiO₂ to Cu_xO clusters in Cu_xO/TiO₂: 400–500 nm (where ‘Cu_xO’ defines clusters with different Cu contents) [19]) all interplay to generate a complex emission profile. However, the absorption due to IFCT from WO₃ to Cu(II) is masked by the interbank transition [12]. The colour change of the Cu/WO₃ fabric may be caused by the intervention and interference of the decomposed products with these absorption mechanisms. In addition, the diverse dye molecules in tar adsorbed on the photocatalyst surface may cause self-photosensitisation and be simultaneously decomposed [20]. Given the broad diversity of dye molecule types, this effect is hard to quantify by simple spectrophotometric methods, which highlights the need for novel methods of quantitative dye molecule analysis for accurate estimation.

Table 1. Comparison of photocatalyst systems used for the removal of tobacco smoke components.

Material	Target	Adsorption and Decomposition Behaviour	Reference
UV-responsive photocatalysts
Non-woven fabrics made of a thermoplastic resin modified with TiO2	5.5 μg of TVOC adsorbed per 1 m2 of the material; adsorbed tar components	Adsorbed TVOC and decomposition ratio under 1 mW cm−2 of UV-A were 1.0 and ∞ times those of the unmodified fabric, respectively; 1 adsorbed tar components and decomposition ratio under 1 mW cm−2 of UV-A were 7.5 and 1.8 times those of the unmodified fabric, respectively	This work
Ti mesh modified with TiO2	410 μg of nicotine vapour and 50 μg of 3-ethenylpyridine vapour in 1 m3 chamber; adsorbed tar components	Nicotine and 3-ethenylpyridine removal ratios obtained for 7 pieces of the mesh (279 mm × 215 mm each) under 0.7 mW cm−2 of UV-C were 1.0 and 2.7 times those obtained in the dark, respectively; 2 adsorbed tar components were almost totally decomposed by 32-h illumination with 1.2 mW cm−2 of UV-A 3	[6]
Visible-light-responsive photocatalysts
Non-woven fabrics made of a thermoplastic resin modified with Fe/TiO2	7.8 μg of TVOC adsorbed per 1 m2 of the material; adsorbed tar components	Adsorbed TVOC and decomposition ratio under 10,000 lux of visible light were 1.0 and 9.1 times those of the unmodified fabric, respectively; adsorbed tar components and decomposition ratio under 10,000 lux of visible light were 3.8 and 1.2 times those of the unmodified fabric, respectively	This work
Glass plate coated with visible-light-driven photocatalyst, ILUMIO®	Odour concentration level of 74 in 5-L gas bag	Decomposition ratio under 1000 lux of visible light for 50 cm2 of the plate was 4.0 times that of the uncoated plate	[21]
polypropylene fibres modified with TiO2/Ag (modified ethanol dispersion fibre after friction)	151.4 μg of nicotine adsorbed per 1 g of the material	Adsorbed nicotine concentration and decomposition rate constant upon irradiation with solar light passing through a glass window were 5.2 and 1.8 times those of the unmodified fibre, respectively	[22]

¹ The decomposition ratio of the unmodified fabric could not be calculated. ² Adsorption and decomposition were observed simultaneously. ³ Control experiments were not carried out.

compares the photocatalyst systems used for the removal of tobacco smoke components. Although very few studies have focused on the fundamental understanding of the adsorption and decomposition of odour and tar constituents of tobacco smoke trapped on clothes or other materials, our work achieved relatively high removal ratios of these components, as exemplified by the TVOC decomposition ratio under irradiation with both UV and visible light.

In summary, we aimed to achieve the decomposition of adsorbed harmful compounds by photocatalysis, to develop a smart material immune to third-hand smoke. The visible-light activity is especially important in practical applications, such as in the fabrication of interior materials, clothes, and fabrics. However, to increase the visible-light activity, we noticed that our material is subject to a negative colour change. Moreover, this staining was attributed to the presence of decomposed harmful products. Although we could assess that the odour components can be totally decomposed, the permanence of tar residues is definitely an obstacle to practical applications. From this viewpoint, among the three materials tested, the non-woven fabrics with Fe/TiO₂ are definitely the better option when considering the expansion of our technology for practical applications, specifically the use of our modified fabric as indoor upholstery materials.

4. Materials and Methods

TiO₂ P 25 (Evonik Industries) was selected as the UV-responsive photocatalyst. Fe(III)-grafted rutile TiO₂ (Fe/TiO₂) [11] and Cu(II)-grafted WO₃ (Cu/WO₃) [12], prepared following the reported procedures, were selected as the visible-light-responsive photocatalysts. Non-woven fabrics, made of a thermoplastic resin (Japan Vilene Co., Ltd., Tokyo, Japan), were used as the support for the photocatalysts. The different catalyst powders were heated above the thermoplastic resin’s melting point, and were loaded onto the resin by blowing onto the thermoplastic resin’s surface. The surface of the fabrics was observed by scanning electron microscopy (SEM; S-4800, Hitachi High-Technologies Corporation, Tokyo, Japan). The colour differences of the fabrics were measured using a colour reader (CR-10, Konica Minolta Japan, Inc., Tokyo, Japan) and expressed as L*a*b* and ΔE*_ab values [23]. In the former system, L* represents brightness, equalling zero for a black diffuser and 100 for a perfectly reflecting one; a* represents colour on the red-green axis, being positive for red and negative for green; b* represents colour on the blue-yellow axis, being positive for yellow and negative for blue. The colour difference was calculated as ΔE*_ab = ((∆L*)² + (∆a*)² + (∆b*)²)^1/2, where ∆L* is the difference in brightness between two vivid surfaces, and ∆a* and ∆b* are the differences in the colour coordinates a* and b*, respectively. TVOC concentrations were calculated by GC-MS analysis, using a GCMS-QP2010SE (Shimadzu, Kyoto, Japan) equipped with a DB-624 fused silica capillary column (60 m × 0.25 mm i.d. × 1.4 μm film, Agilent Technologies, Santa Clara, CA, USA) and a split injection system (split ratio = 11:1). The experimental conditions employed for the GC-MS analysis and the solid-phase extraction from the fabrics were taken from a previous publication [8]. The initial oven temperature of 35 °C was held for 15 min and then raised to 240 °C over 8 min at a rate of 6 °C/min. The adsorbed odour components were desorbed by blowing 60 L (0.5 L/min) of air, re-adsorbed onto a charcoal tube, extracted with 1 mL of carbon disulphide, and analysed by GC-MS. TVOC concentrations calculated for all compounds eluted between n-hexane and n-hexadecane were calibrated and converted to toluene equivalents.

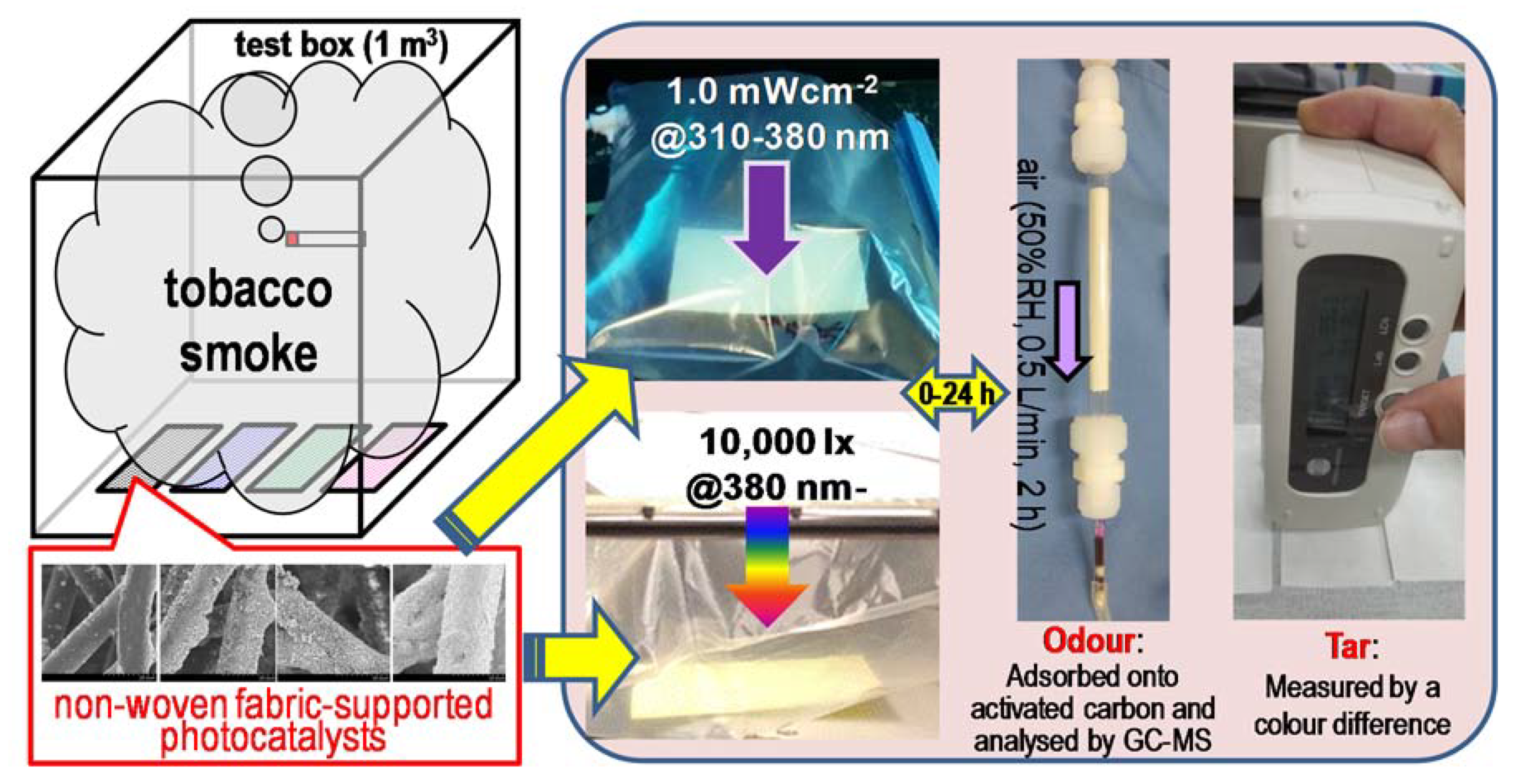

The experimental methods and conditions employed for the detection of smoke components are summarized in Figure 10. The fabrics were placed inside an acryl sealed test box (1 m³) and exposed to tobacco smoke generated by simultaneously burning five cigarettes (Mevius Original^®, tar: 8 mg; nicotine: 0.6 mg) in the box for 16 h [7]. The tar and odour components adsorbed on the fabric were analysed by the above-mentioned colour difference measurement and GC-MS after solid-phase extraction. Then, the other fabrics prepared at the same time were enclosed into a 5-L Tedlar^® Gas Sampling Bag with 3 L of synthesized air and subjected to UV (eight black-light blue fluorescent lamps, FL20BLB (Toshiba Lighting & Technology Corporation, Yokosuka, Japan), 20 W each, 1.0 mWcm^-2@310–380 nm) or visible light (three fluorescent lamps, FL20SS (Panasonic Corporation, Osaka, Japan), 20 W each, 10,000 lx, UV was cut off completely by passing it through an acrylic sheet (N-169, Nitto Jushi Kogyo. Co., Ltd., Tokyo, Japan)) irradiation. The extraction of the above components from the fabrics and their analysis were carried out at specific time intervals to evaluate the corresponding time evolution and decomposition profiles (the fabrics analysed at each specific time were individual). For comparison, control experiments employing pristine and unmodified non-woven fabrics were carried out with the same methods and conditions.

5. Conclusions

We described the methods employed to analyse the adsorption and decomposition of cigarette smoke pollutants by using a newly developed system—use of photocatalyst-embedded non-woven fibres. By considering three different photocatalysts, TiO₂, Fe(III)-grafted TiO₂, and Cu(II)-grafted WO_3, we assessed the magnitude of odour and tar constituent adsorption on the fabric fibres as well as their decomposition after specific visible light or UV irradiation periods. Among the three tested materials, the non-woven fabrics containing Fe/TiO₂ yielded superior results when considering the expansion of our technology for practical applications. Compared to previously reported photocatalyst systems used for the removal of tobacco smoke components, our technique achieved higher removal ratios, as exemplified by the TVOC decomposition ratio under both UV and visible light irradiation. However, studies focusing on the fundamental understanding of the adsorption and decomposition of the odour and tar constituents of tobacco smoke trapped on clothes or other materials remain few. We believe that our study makes a significant contribution to literature because the engineering of smart materials, such as fabrics, that can intrinsically degrade cigarette smoke components is crucial in today’s society, where third-hand smoke, the pollution of objects with cigarette smoke, is causing increasing numbers of health problems. We believe our proposed technology, with its simple fabrication process and effective ability, will facilitate the exploration of smart materials that can overcome the concerning effects of cigarette smoke.
