Biomass-Derived Nitrogen-Doped Porous Carbon for Highly Efficient Ambient Electro-Synthesis of NH₃

Abstract

In this communication, we report a biomass-derived nitrogen-doped porous carbon (named as NC-800) as an electrocatalyst for the ambient conversion of N₂ to NH₃. The catalyst NC-800 was prepared from naturally renewable and easily available bamboo shoots, with inherently an approximate 8 wt % of N-containing components, such as the N source, in a cost-effective and environmentally benign manner. This exhibited remarkable catalytic activity with a large NH₃ yield and a Faradaic efficiency as high as 16.3 μg h⁻mg^-1_cat and 27.5%, respectively, at −0.35 V versus a reversible hydrogen electrode (RHE) in 0.1 M HCl solution at ambient conditions. More importantly, the catalyst NC-800 demonstrated excellent electrochemical selectivity and stability.

1. Introduction

Ammonia (NH₃), as one of the most important chemicals for industry, has been widely used as a source to synthesize fertilizer, plastics, pharmaceuticals, explosives, and so on [1]. As a high-efficiency and carbon-free energy carrier, with a hydrogen capacity of 17.8 wt % [2], NH₃ is also considered as a promising candidate for the future renewable energy economy. The ever-increasing demand for NH₃ drives more and more attention toward artificial N₂ fixation. However, the current industrial NH₃ synthesis still dominantly depends on the energy-intensive Haber–Bosch process, leading to massive fossil fuel consumption and serious greenhouse gas emissions [3,4]. Therefore, it is highly desirable to develop more efficient and energy-saving synthetic routes for NH₃ production.

Over the past few decades, great efforts have been devoted to the sustainable synthesis of NH₃ from nitrogen, including biomimetic catalysis, photo catalysis, and photo(electro)catalysis [5,6,7]. Apart from the development of synthetic strategies, the detection methods for quantification of the produced ammonia were also developed accordingly [8,9]. Among all of the synthetic routes, electrocatalytic N₂ reduction to NH₃, ideally operating under ambient conditions with water as the hydrogen source, has been considered as a sustainable and effective way for N₂ fixation and NH₃ production, especially when it is powered by renewable electricity (e.g., solar and wind) [10]. Consequently, various metal-based and metal-free catalysts have been developed for the synthesis of NH₃ under mild conditions via the electrochemical N₂ reduction reaction (NRR) [11,12]. However, the efficiency of NH₃ production is still far from comparable to that of the Haber–Bosch process, due to the extreme difficulty in breaking the strong N≡N triple bond of N₂ and the competing hydrogen evolution reaction (HER) during the electrocatalysis. Among those developed electrocatalysts, metal-free carbon-based catalysts are more intriguing because of their unique features, such as low-costs, large surface areas, mechanical flexibility with good electronic conductivity, and robust tolerance to acidic and/or alkaline conditions [13]. As a consequence, a number of carbon-based materials have been developed for NRR to NH₃ production, specifically, heteroatom- (e.g., O [14], N [15], S [16], B [17], F [18], Cl [12], and P [19]) doped carbon materials, which demonstrated highly improved catalytic efficiency. Despite great progress, the current approaches for the introduction of heteroatoms into porous carbon significantly suffer from high-costs and tedious preparation procedures, with the utilization of complicated and expensive starting materials, e.g., metal organic frameworks (MOFs) [20], and metal-ligands complexes [21], which greatly limit their large scale-up for practical applications. Ideally, from both cost-effective and eco-friendly viewpoints, heteroatoms-doped porous carbon materials can be directly prepared from naturally renewable and easily available materials in a facile and environmentally benign manner, and more importantly can enable a highly efficient conversion of N₂ to NH₃ via the ambient NRR process, which are perfect candidates and will be the ultimate goal for chemists [14,22].

Recently, we have developed a facile and environmentally friendly method for the preparation of N-doped porous carbon with a large surface area, and hierarchical pores from naturally available and renewable biomass–bamboo shoots as the starting material [23]. In this process, the approximate 8 wt % of N-containing compositions, including the proteins and amino acids in bamboo shoots, was effectively decomposed to N atoms and incorporated into carbon lattices via pyrolysis under high temperature. In this work, we report such a biomass-derived N-doped porous carbon can electrochemically convert N₂ into NH₃ at room temperature and with atmospheric pressure in an acidic aqueous solution. In 0.1 M HCl, the rate of NH₃ production and Faradaic efficiency (FE) are as high as 16.3 μg h⁻¹mg⁻¹_cat and 27.5%, respectively, at −0.35 V versus a reversible hydrogen electrode (RHE). To the best of our knowledge, these performance metrics are unprecedented and the highest value for the electrocatalytic production of NH₃ from N₂ under ambient conditions at such a lower potential, compared with those previous results catalyzed by metal-free carbon-based materials [12,24].

2. Results and Discussion

The biomass-derived nitrogen-doped porous carbon was prepared through a facile hydrothermal-pyrolysis process, as shown in Scheme 1a. Typically, fresh bamboo shoots were first cut into small pieces, dried, and ground into powder, followed by the hydrothermal carbonization process in a Teflon-inner stainless-steel autoclave, with deionized water at 180 °C to obtain the biochar, which was then filtered, washed thoroughly with deionized water and dried under vacuum at 60 °C. Finally, the obtained brown biochar was pyrolyzed at 600, 800, and 1000 °C, respectively, under an N₂ atmosphere for 4 h at the heating rate of 5 °C min⁻¹. The prepared catalysts were named as NC-T, where T represents the pyrolysis temperature. Note that, toxic or environmentally unfriendly activating agents [25,26], e.g., KOH, ZnCl₂, or H₃PO₄, are not required for carbonization in this process, making this method cost-effective and sustainable.

Comprehensive characterizations, including XRD, Raman, BET, HR-TEM, and XPS, were performed to disclose the physical and chemical features of the NC-800. The TEM image (Scheme 1b) shows that it has a loose and interconnected structure with formation of interstitial porosity and graphitic carbon layers. HR-TEM images (Scheme 1c,d) show the well-resolved lattice spacing of 0.34 nm corresponding to the (002) plane of graphitic carbon. The High-angle annular dark-field scanning TEM (HAADF-STEM) image and elemental mapping (Scheme 1e) indicate that N atoms were homogeneously distributed on graphitic carbon. XRD pattern (Scheme 1f) reveals a graphitic carbon structure with characteristic peaks at 2θ = 23 and 43^o, corresponding to (002) and (100) reflection planes, which is consistent with the HR-TEM results. The formation of the graphitic order with a certain degree of defects on the NC-800, induced by high temperature pyrolysis, was further confirmed by Raman spectrum, with observation of two characteristic D (1330 cm⁻¹) and G bands (1590 cm⁻¹) (Scheme 1g) [27]. The XPS for NC exhibits typical C, N, and O peaks (Figures S1, S2, and S3). N 1s XPS spectrum (Scheme 1h) reveals that three types of N species, i.e., pyridinic- (398.4 eV), pyrrolic- (399.7 eV) and graphitic-N (400.9 eV), were embedded into the graphitic carbon structure [28], and the populations of them are 25.7%, 6.7%, and 67.6%, respectively. The pyridinic-N and pyrrolic-N were considered as dangling bonds to activate the N₂ molecule [22]. BET analysis (Figure S6) indicates that the NC-800 has a large specific surface area (913.7 m²g⁻¹), and a hierarchical micro-meso-macroporous structure (Table S1). The large specific surface area and the hierarchical structure could lead to the excellent NRR performance for NC-800. The N content in the catalyst NC-800 was estimated to be 3.05 wt% by elemental analysis (Table S1). The large electronegativity of N (3.04) incorporated into the carbon lattices could induce the modification of charge density, electronic structure, and polarization charge, which lead to the strong adsorption of N₂ for NC [7].

The ambient NRR performance of NC-800 was conducted in a typical H-cell, separated by a piece of Nafion membrane in an N₂-saturated HCl (0.1 M) electrolyte (Figure S8). The catalyst NC-800 was deposited on carbon paper as the working electrode with Ag/AgCl (saturated KCl electrolyte) as the reference in the cathode chamber, and a platinum plate as the counter electrode in the anode chamber. During electrolysis, N₂ gas was bubbled into the cathode, where H⁺ protons transported through the electrolyte could react with N₂ adsorbed on the surface of the catalyst, to produce NH₃. All potentials are recorded with respect to an RHE scale. The concentrations of the produced NH₃ were spectrophotometrically determined using the indophenol blue method and ion chromatography method (Figures S9 and S15) [29], and the possible N₂H₄ as a by-product was evaluated using the Watt and Chrisp method (Figure S11) [30].

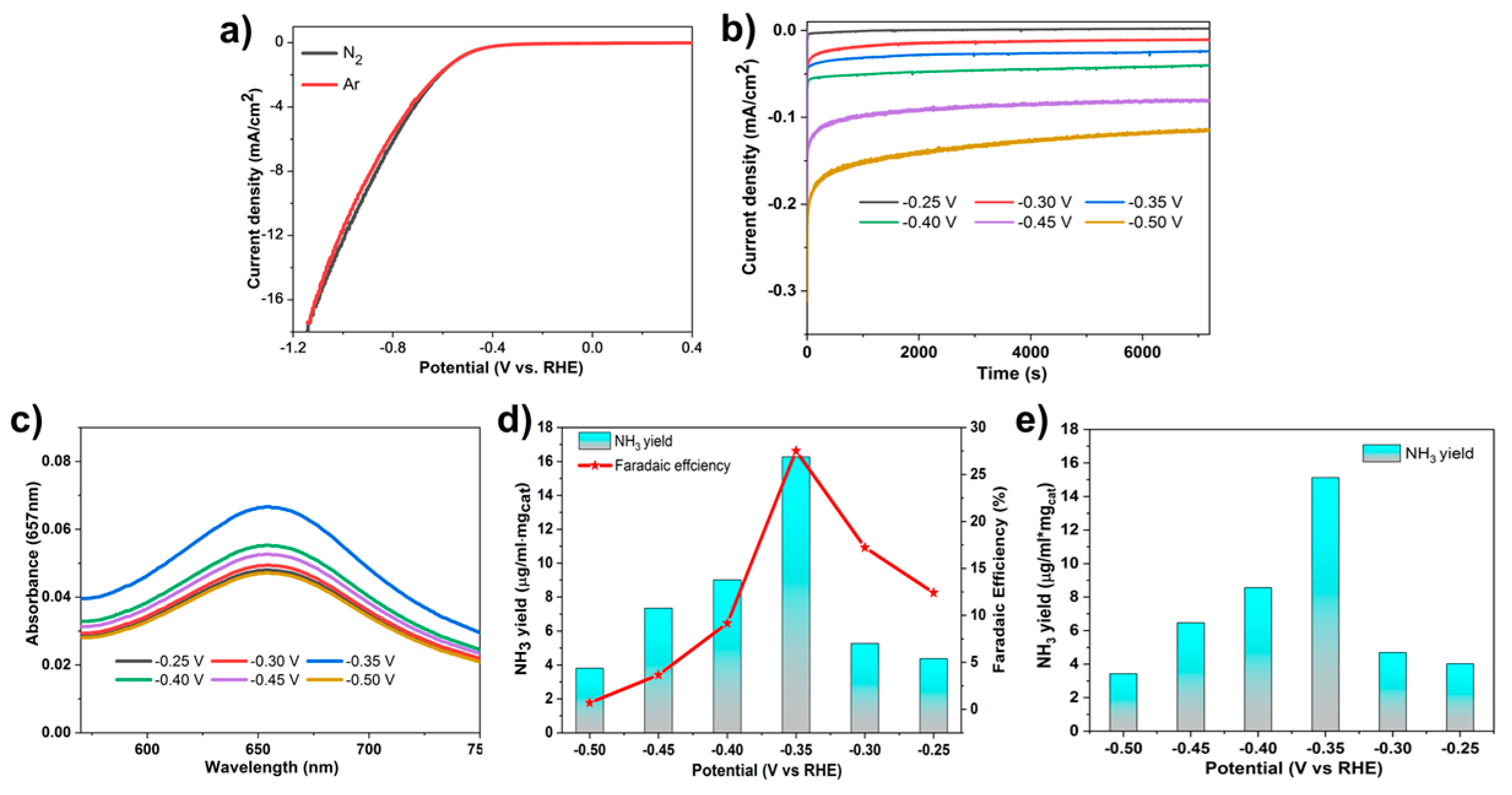

In order to assure the potential range of NRR for the catalyst NC-800, the linear sweep voltammetry (LSV) curves were measured in an Ar- and N₂-saturated HCl solution. When the potential is more negative than −0.35 V (vs. RHE), the current density of NC-800 under N₂ increases obviously in comparison with that under Ar, demonstrating that electrocatalytic N₂ reduction occurs on NC-800 with an onset potential of −0.25 V (Figure 1a). The time-dependent current density curves over NC-800 from −0.25 to −0.50 V were collected over 2 h and are presented in Figure 1b. The corresponding UV/Vis absorption spectra of the electrolytes stained with indophenol blue indicator were displayed in Figure 1c. Both results show that the peak of the highest absorbance intensity is located at −0.35 V. The corresponding FEs and NH₃ yields at different potentials are plotted in Figure 1d. Both FEs and NH₃ yields increase at negatively applied potentials until −0.35 V, and then decrease gradually, which is ascribed to the competitive selectivity toward the hydrogen evolution reaction (HER) [12,31,32]. The highest FE (27.5%) and maximum NH₃ yield of 16.3 μg h⁻¹mg⁻¹_cat are achieved at −0.35 V vs. RHE, which is comparable and even superior to those of mostly reported results catalyzed by metal-free carbon or even metal-based catalysts. A more detailed comparison is compiled in Table S3. To ensure the reliability and accuracy of the obtained catalytic activity, the ion chromatography method was also adopted for NH₃ quantification, and a NH₃ yield (15.13 μg h⁻¹mg⁻¹_cat) very close to that of the indophenol blue method was observed (Figure 1e). Moreover, N₂H₄ was not detected at all potentials during the NRR process (Figure S12), indicative of a 100% selectivity of NC-800 for the electrocatalytic N₂ reduction to NH₃. In addition, for comparison, NC-600 and NC-1000 were also used as the electrocatalysts to assess their catalytic performance at −0.35 V under identical conditions, and it turned out that NC-800 gave the best FEs and NH₃ yield (Figure S13). The outstanding electrochemical NRR performance of NC-800 can be attributed to the following two reasons. Firstly, the large specific surface area makes active sites more accessible for electrochemical N₂-NH₃, while the abundance of micropores in the NC-800 could accelerate the electron and mass transfer process (Figure S6). Secondly, the presence of pyridinic-N on carbon could function as the active sites to facilitate the activation of N₂ molecule. Therefore, NC-800 was used as the ideal catalyst for further investigation.

To verify that the detected NH₃ was generated through the NRR process over NC-800, the electrolysis was carried out in either N₂-saturated solution at open circuit potential or Ar-saturated solution at −0.35 V (vs. RHE) for 2 h [33]. In either case, almost no NH₃ was detected (Figure 2a), strongly suggesting that the NH₃ was produced exclusively from the NRR reaction catalyzed by NC-800 electrode. Furthermore, a linear correlation between m_NH3 and the reaction time of electrolysis was also observed, as shown in Figure 2b. To further confirm the N source of the NH₃ product during NRR process, we also performed the ¹⁵N isotopic measurements using ¹⁵N₂ as the feeding gas. As shown in Figure 2e, there is a distinguishable chemical shift of a doublet pattern with a coupling constant of ¹J_N-H = 72 Hz for ¹⁵NH₄⁺ NRR samples, indicating that ammonia is produced via electrochemical nitrogen reduction. In contrast, a triplet coupling with the ¹J_N-H = 52 Hz for ¹⁴NH₄⁺ samples are observed when using ¹⁴N₂ as the feeding gas and there is no detectable amount of ammonia in the Ar-feeding electrolyte, which further confirms that the N source of ammonia is N₂ gas. Of note, to exclude any contamination of NH₃ production originating from the surroundings, nitrogen and argon gas were pre-purified by passing a glass vessel containing 0.1 M NaOH (50 mL) solution before feeding into the cathode. In addition, detection of any ammonia formation from the electrolyte was also analyzed before each NRR test. Besides, the electrolytes of the tail gas trap combined with the anode chamber were also detected, and the results show that the ammonia production was negligible. Taking all results into account, we can safely conclude that NH₃ did originate from the NRR catalyzed by NC-800.

The stability of an electrocatalyst is a key factor for its practical application. We subsequently investigated the electrolytic performance of the catalyst NC-800 for successive uses. As presented in Figure 2d, the NH₃ yields and FEs show a slight variation after five consecutive recycling tests, indicating the high stability of NC during the N₂ reduction process. Meanwhile, small attenuation in the current density of the chronoamperometric measurements was also observed after around 12 h of NRR electrolysis at −0.35 V (Figure 2c). In addition, the used catalyst NC-800 also demonstrated NH₃ yield (16.28 μg h⁻¹mg⁻¹_cat) and FEs (24.43%) for NRR electrolysis under identical conditions, which is equal to that obtained from the fresh NC-800 (Table S2). All of these results further confirm the long-term electrochemical durability of the catalyst NC-800.

Previous reports regarding the NRR process electrocatalyzed by N-doped carbon as the catalyst reveal that pyridinic and pyrrolic N moieties incorporated in a graphitic layer, together with the generated adjacent atomic vacancy (e.g., C and N), are active sites for adsorbing and activating the N₂ molecule to initiate the conversion of N₂ to NH₃ [13,22]. Thus, we consider the present catalyst similar to those previously reported catalysts in catalytically active sites and a preferable electrochemical reaction pathway for NH₃ synthesis on NC-800. To further verify this, density functional theory (DFT) calculations were conducted (Scheme S1 and Figure S17). Our theoretical calculations reveal that two adjacent pyridinic-N vacancy species in the graphitic carbon structure can form a strong interaction with the molecule N₂ in a very stable structure, which can be hydrogenated by the proton H⁺, followed by the process N-N→N-NH→HN-NH→HN-NH₂→HN-NH₃ to generate NH₃ molecule and simultaneously create the N vacancies for further N₂ adsorption and activation. Such a finding is in line with previous reports [13,22,34].

3. Conclusions

In summary, we report a hierarchically porous N-doped carbon (NC-800), derived from N-containing bamboo shoots, as a catalyst for the ambient electrochemical conversion of N₂ to NH₃. A large NH₃ yield and a Faradaic efficiency as high as 16.3 μgh⁻¹mg⁻¹_cat and 27.5%, respectively, were achieved at −0.35 V versus a reversible hydrogen electrode (RHE) in 0.1 M HCl solution at ambient conditions. More importantly, the NC-800 also exhibited excellent electrochemical selectivity and stability. Our work opens a new avenue to develop various metal-based catalysts for electrocatalysis using the hierarchically porous N-doped carbon.
