Article

Preparation of Metal Oxides Containing ppm Levels of Pd as Catalysts for the Reduction of Nitroarene and Evaluation of Their Catalytic Activity by the Fluorescence-Based High-Throughput Screening Method

by
Taeho Lim
and
Min Su Han
*
Department of Chemistry, Gwangju Institute of Science and Technology (GIST), Gwangju 61005, Korea
*
Author to whom correspondence should be addressed.
Catalysts 2020, 10(5), 542; https://doi.org/10.3390/catal10050542
Submission received: 20 April 2020 / Revised: 1 May 2020 / Accepted: 9 May 2020 / Published: 13 May 2020
(This article belongs to the Special Issue State-of-the-Art Catalytical Technology in South Korea)
Browse Figures
Versions Notes

Abstract

:
Herein, an easily accessible and efficient green method for the reduction of nitroarene compounds was developed using metal oxide catalysts. Heterogeneous metal oxides with or without Pd were prepared by a simple and scalable co-precipitation method and used for the reduction of nitroarenes. A fluorescence-based high-throughput screening (HTS) method was also developed for the rapid analysis of the reaction conditions. The catalytic activity of the metal oxides and reaction conditions were rapidly screened by the fluorescence-based HTS method, and Pd/CuO showed the highest catalytic activity under mild reaction conditions. After identifying the optimal reaction conditions, various nitroarenes were reduced to the corresponding aniline derivatives by Pd/CuO (0.005 mol% of Pd) under these conditions. Furthermore, the Pd/CuO catalyst was used for the one-pot Suzuki–Miyaura cross-coupling/reduction reaction. A gram-scale reaction (20 mmol) was successfully performed using the present method, and Pd/CuO showed high reusability without a loss of catalytic activity for five cycles.

Graphical Abstract

1. Introduction

The synthesis of highly functionalized aniline derivatives is an important chemical reaction, because these derivatives are key intermediates in the production of valuable chemicals including pharmaceuticals, agrochemicals, dyes, and polymers [1]. Among several methods available for the synthesis of aniline, the catalytic transformation of a nitro group to the corresponding amine group is a widely used method based on noble metals such as Pd, Pt, Rh, and Au, or non-noble metals such as Fe, Zn, and Ni [2,3,4,5]. However, these methods have some drawbacks, such as the use of toxic organic solvents, expensive hydrides, flammable hydrogen gas, high-pressure equipment, and a large amount of expensive metal catalysts. The latter could result in high levels of residual metals in the product, which is a serious problem in pharmaceutical chemistry [6]. In addition, some methods require harsh reaction conditions, such as acidic pHs and high temperatures. These conditions hinder the application of the method to nitro compounds containing sensitive functional groups. To solve these problems, several methods using Pd nanoparticles (NPs)-based catalysts, such as Pd NPs in nanomicelle [7,8] and polymer-supported Pd NPs [9], have recently been developed. These approaches could efficiently achieve the reduction of nitro to amine groups under mild conditions. However, reactive reagents, surfactants, polymers, and electrochemical methods were used to prepare the catalysts, which could limit their accessibility. Thus, the development of an easily accessible green methodology for the reduction of nitro groups remains a challenge.
Supported noble metal catalysts are widely used in the synthetic field because of their high activity and/or selectivity for specific chemical reactions, including coupling [10,11,12], oxidation [13,14,15], and reduction [16,17,18,19]. In general, the supporting material is one of the most important parts of a catalyst because it affects many of its properties, such as stability, distribution, and size. Thus, the interaction between the noble metal and supporting material plays a crucial role in their catalytic activity. Various materials have been used as support, such as carbon-based materials as well as non-metal and metal oxides. Among these systems, metal oxides are attracting increasing attention as promising supporting materials due to their large surface area, easy preparation, low cost, and controllable morphology. Owing to these advantages, several researchers have recently explored the combination of metal oxides and noble metals to develop active catalysts [20,21]. These studies showed that the activity of the catalyst was controlled by the type of metal oxide. We thought that this strategy could be applied to the development of a green methodology for the reduction of nitroarene.
In order to develop a new synthetic method, numerous reaction parameters, including catalysts, temperature, reagents, and solvent, should be screened to optimize the reaction conditions. This screening consumes significant human and material resources and slows down the development of a new method. To overcome this issue, several high-throughput screening (HTS) methods have been designed to enhance the efficiency of the development process, facilitating the analysis required to develop an efficient approach. In general, automated analysis instruments such as high-performance liquid chromatography (HPLC) [22,23], gas chromatography (GC) [24,25,26], mass spectrometry (MS) [27,28,29], and nuclear magnetic resonance (NMR) [30,31] have been used in HTS methods. Although these approaches provide accurate results, they require long analysis times per sample; another issue is represented by the cost of the automated instruments. To address these problems, colorimetric [32,33,34,35] or fluorescent [36,37,38,39,40,41,42] HTS methods have been developed; these approaches require short analysis times and relatively inexpensive instruments. Based on these advantages, our group previously developed several HTS methods for chemical reactions, using an optical chemosensor system to evaluate the efficiency of reaction parameters including catalysts, additives, solvents, and substrates [43,44,45,46,47,48,49,50]. The efficiency of the reaction conditions was rapidly analyzed based on optical changes in the chemosensor. We thought that this strategy could be applied to accelerate the development of new methods for the reduction of nitroarene compounds.
Herein, we developed a fluorescence-based HTS method and a green approach for the nitroarene reduction. The fluorescence-based HTS method using a chemosensor was designed to rapidly evaluate the efficiency of the reaction conditions. Metal oxides containing Pd were prepared by a simple and scalable co-precipitation method and used for the reduction of nitroarene. In order to determine the optimal conditions, the catalytic activity of the metal oxides and the reaction conditions were screened using the fluorescence-based HTS method (Scheme 1). Using the optimal reaction conditions, we investigated the substrate scope and evaluated the synthetic application of the prepared catalysts.

2. Results and Discussion

2.1. Development of Fluorescence-Based HTS Method for the Reduction of Nitroarene

The present fluorescence-based HTS method was developed to evaluate the catalytic activity of metal oxides for the reduction of nitroarenes. The transformation of a nitro group to the corresponding amine has been widely used in the development of chemosensors for targets or enzyme assay because the reaction induces a dramatic change in the chemosensor signal [51,52,53]. We also used this strategy to develop a fluorescence-based HTS method for the reduction of nitroarenes. To achieve an efficient and accessible HTS method, we considered two important properties of a chemosensor: sensitivity and accessibility. Therefore, 2-nitro-9H-fluorene (1a) was selected as a chemosensor for the following reasons. First, fluorene, which is the signal portion of 1a, consists only of carbon and hydrogen and thus exhibits a high chemical stability in various reaction conditions [54]. Second, the quantum yield of 1a showed a dramatic increase when 1a was reduced to 9H-fluoren-2-amine (2a) [55]. Third, 1a is a commercially available chemosensor and no synthetic preparation step of 1a is required. Based on these advantages, a sensitive and accessible fluorescence-based HTS method was developed using the chemosensor 1a. As shown in Figure S1, the fluorescence intensity at 358 nm increased with the ratio of 2a. The linear standard curve for 2a was obtained from these results and then used to calculate the yield of 2a. After the reduction of 1a under various reaction conditions, the fluorescence of 2a in the reaction mixture was analyzed by a fluorescence spectrophotometer. The fluorescence of the reaction mixture was converted to yield using the standard curve, and the obtained yield was denoted as the fluorescence yield. The present HTS method enables a rapid analysis of the efficiency of metal oxides and reaction conditions.

2.2. Preparation of Metal Oxides

Metal oxides with or without Pd were prepared by co-precipitation following a previously reported procedure, with some modifications [13,56]. In this method, we used 50 mmol of metal ions and only 50 µmol (0.1 mol%) of Pd. A mixed EtOH/H2O solvent was used because lowering the dielectric constant of the solvent influences the solubility and particle size of the precursor [57,58,59]. After the calcination at 600 °C, a quantitative amount of metal oxides was obtained. The metal oxides containing Pd were denoted as Pd/MxOy. Most of the metal oxides were successfully prepared by following general procedures, but in some cases the pH was adjusted because high pH values increased the solubility of the hydroxide form of zinc and alumina. The metal hydroxides were calcinated at 600 °C. Finally, gram-scale metal oxides were obtained via simple procedures. The metal oxides were analyzed by X-ray diffraction (XRD); the results are summarized in Table S1. In all cases, no XRD peaks of palladium species were present, and the XRD patterns of the metal oxides with or without Pd were identical. These results indicate that the metal oxides contained a small amount of Pd, which did not change their structure. After the preparation of the metal oxides, their catalytic activity for the reduction of nitroarene was evaluated by the fluorescence-based HTS method.

2.3. HTS of Metal Oxides Catalysts

The first screening was performed using 5 mg of metal oxides (34 kinds of metal oxides with or without Pd) and 0.5 mmol of 1a. To test the reaction conditions, we used 2 mL of mixed EtOH/H2O (1:1) solvent. NaBH4 (4 equiv) was selected as a reducing reagent because of its non-toxic by-products, easy accessibility, and cost-effectiveness [9,60,61]. After 0.5 h, H2O and toluene were added to the reaction mixture. An aliquot of the toluene layer was collected and diluted using toluene. The diluted sample was analyzed by a fluorescence spectrophotometer within 1 min. The fluorescence value of the samples was converted to fluorescence yield using a standard curve. As shown in Figure 1, few metal oxides showed catalytic activity. Pd/Fe2O3 and Pd/Co3O4 showed a low fluorescence yield of less than 30%. In the case of CuO, unexpectedly, the fluorescence yield was observed (74%). To confirm the Pd content in CuO, the CuO was analyzed by inductively coupled plasma-mass spectroscopy (ICP-MS), and 1 ppm of Pd was observed in CuO. By adding a small amount of Pd to the CuO (Pd:Cu = 1:1000), the Pd/CuO showed a very high yield (93%). Considering the high yield and application to the palladium-catalyzed sequential reaction, Pd/CuO was selected as a hit catalyst. In general, the mechanism of the support effect has been described in terms of metal cluster stabilization [62], charge transfer [63,64], size of metal [65,66], and support–substrate interaction [67]. However, the reason of the present result could not be explained in this case, because it is difficult to monitor trace amounts of Pd in metal oxides (1366 ppm of Pd in Pd/CuO, as estimated by inductively coupled plasma optical emission spectrometry (ICP-OES)). After the first screening of the metal oxides, the Pd/CuO was further analyzed by X-ray photoelectron spectroscopy (XPS), scanning electron microscopy (SEM), and transmission electron microscopy (TEM); the obtained data can be found in the supporting information (Figures S7–S10).

2.4. Optimization of Reaction Conditions

To optimize the reaction conditions, various types and amounts of solvents and reducing agents were screened by the fluorescence-based HTS method. Initially, a reduced amount of Pd/CuO was employed. As shown in Table 1, a low yield was obtained with 1 mg of Pd/CuO, whereas 2 mg resulted in a similar yield with 5 mg (Table 1, entries 1 and 2). Thus, 2 mg of Pd/CuO was selected as an appropriate amount of catalyst. This result highlighted the high catalytic activity of Pd/CuO: 2 mg of Pd/CuO per 0.5 mmol of substrate corresponded to only 0.005 mol% of Pd. This low Pd content is one of the most important features of these catalysts. The amount of NaBH4 was also initially reduced, resulting in a decreased yield of 2a. However, 3 equiv of NaBH4 produced a similar yield as that obtained with 4 equiv (Table 1, entries 3–5). The reduction of 1a was performed without Pd/CuO. For 12 h, 1a was not reduced and ~99% of 1a was recovered. Several reducing agents and solvents were also studied. NH3BH3 (4 equiv) showed a good yield, although lower than that of 3 equiv of NaBH4 (Table 1, entry 6). Other reducing agents could not reduce 1a (Table 1, entries 7–9). The protic solvent, EtOH, showed a high yield (Table 1, entry 10). When H2O was used as a solvent, 1a was not reduced because of the low solubility of 1a in H2O. In addition, 1a was not reduced when aprotic or non-polar solvents were used (Table 1, entries 12–15). According to recent studies, protic solvents play an important role in nitro group reduction using NaBH4, and our results were similar to the reported studies [68,69].

2.5. Substrate Scope

To evaluate the scope of the methodology, several nitroarenes (Table 2) were reduced under the optimized reaction conditions determined by HTS. 1-Nitronaphthalene (1b) and 2-nitro-1,1’-biphenyl (1c) were successfully reduced (Table 2, entries 2 and 3). Two nitroarenes with alkene substituents, 1d and 1e, were also investigated. The stilbene derivative 1e, which contains an internal alkene group, was reduced with a high selectivity (Table 2, entry 5). However, in the case of 1d, bearing a terminal alkene, both the alkene and nitro groups were reduced under the optimized reaction conditions, resulting in ethylaniline (Table 2, entry 4). Several nitroarenes substituted with halides such as fluorine, chlorine, and bromine were reduced to the corresponding anilines within 2 h, and dichloronitrobenzene was successfully reduced without protodehalogenation (Table 2, entries 6–9). Anilines bearing nitrile (2j), benzyloxy (2k), and amide (2l) groups were obtained with a high selectivity for the nitro group (Table 2, entries 10–12). The sterically hindered triphenyl substrate 1m was reduced efficiently but required long reaction times compared to the other substrates.

2.6. Synthetic Applications

After studying the substrate scope, we investigated the synthetic application of the present method. First, we assessed the potential of the Pd/CuO catalyst for one-pot reactions. The Suzuki–Miyaura cross-coupling/reduction reaction was selected as a representative one-pot reaction. 4-Bromonitrobenzene was selected as a halide-containing nitroarene and reacted with phenylboronic acid derivatives (Figure 2). After the cross-coupling, the temperature of the reaction mixture was reduced to 40 °C. Then, NaBH4 was directly added to the reaction mixture. We initially used 3 equiv of NaBH4, but this amount could not completely reduce the intermediates; hence, the amount of NaBH4 was increased to 6 equiv. After the one-pot reaction, the biaryl compounds 2n and 2o were obtained in 82% and 69% yields, respectively. These results showed that Pd/CuO catalyzed the cross-coupling reaction and could then be used for sequential one-pot reactions. After the one-pot reaction, we investigated a gram-scale reaction (Figure 3). 1-Chloro-4-nitrobenzene (1g, 20 mmol, 3.15 g) was used and reduced under the optimized reaction conditions. Although the gram-scale reaction required more time to completely reduce 1g, the isolated yield of this reaction was higher than that of the 0.5 mmol-scale reaction (Table 2, entry 7). This result shows that the present methodology is suitable for performing gram-scale reactions.
As reusability is another important feature of a catalyst, we investigated the recyclability of Pd/CuO. The 1a compound was used as a substrate and reduced under the optimized reaction conditions. Once the reduction was completed, the reaction medium except for Pd/CuO was carefully separated from the reaction vial. The product in the reaction medium was purified following general reduction procedures. The residual Pd/CuO in the reaction vial was washed and dried in an oven, and the recovered Pd/CuO was reused to reduce 1a. The yields of five runs are summarized in Table 3. Pd/CuO could successfully reduce 1a with a high yield for five runs, but the reused catalysts needed slightly more time to completely reduce 1a. The longer reaction time may be due to the loss of a small amount of catalyst during the separation of the reaction medium. Thus, these results demonstrated the high reusability of Pd/CuO.

3. Materials and Methods

3.1. Materials and Instruments

All the chemical reagents were purchased from commercial sources (Sigma-Aldrich (St. Louis, MO, USA), Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan), and Alfa Aesar (Ward Hill, MA, USA)) and used as received without further purification. The NMR spectra were recorded using a JEOL (400 MHz) NMR spectrometer (JEOL Ltd., Tokyo, Japan). The fluorescence spectra were recorded on an Agilent Cary Eclipse fluorescence spectrophotometer (Agilent, Santa Clara, CA, USA). The XRD measurement was conducted on a D8 Advance (Bruker, Billerica, MA, USA). The XPS studies were carried out with a Thermo Scientific K-Alpha (Thermo Fisher Scientific, Waltham, MA, USA). The SEM images were obtained on a Hitachi SU-70. The TEM images were collected on a FEI Tecnai F20 UT. The Pd loadings in the catalyst sample were determined by an ICP-OES (Avio 500, Perkin Elmer, Waltham, MA, USA) and ICP-MS (Nexion 300X, PerkinElmer, Waltham, MA, USA).

3.2. General Procedure for the Preparation of Pd/MxOy

In general, 50 mmol of metal salts were dissolved in 500 mL of mixed EtOH/H2O (2:3) solvent. To this solution, K2PdCl4 (0.0163 g, 50 µmol) was added. The solution was stirred vigorously at room temperature. An aqueous NaOH solution (20 g of NaOH in 100 mL of H2O) was added to the solution. In this step, the clear solution turned to a turbid suspension very quickly (generation of metal hydroxide). After 4 h, the suspension was filtered. The filtered solid was washed with mixed EtOH/H2O (1:1) solvent until the pH of the filtrate become neutral and dried in an oven. The dried solid was calcinated at 600 °C for 6 h. Finally, a gram-scale of Pd/MxOy was obtained. In the case of MxOy, the MxOy was prepared by same procedure, except for the addition of K2PdCl4.

3.3. General Procedure for High-Throughput Screening Method for the Reduction of Nitroarene

The metal oxide catalyst (5 mg) was added to a reaction vial containing a PTFE-coated magnetic stirring bar. To the reaction vial, 2 mL of mixed solvent EtOH/H2O (1:1) was added and sonicated for about 20 s to disperse the catalyst. Pre-fluorescent chemosensor 2-nitro-9H-fluorene (1a) (0.1056 g, 0.5 mmol) was added to the suspension. The reaction mixture was stirred vigorously at 40 °C in a heating block. NaBH4 (0.0757 g, 2.0 mmol) was added to the reaction mixture directly. After 0.5 h, the stirring bar was stopped and 0.5 mL of H2O and 2 mL of toluene were added to the mixtures. The reaction mixture was shaken gently by hand for about 10 s. The reaction mixture was separated into two layers. An aliquot of the toluene layer was collected and diluted with toluene. The solution was further diluted by toluene (5 µM based on 1a). The solution was analyzed by a fluorescence spectrophotometer. The fluorescence value of the solution was converted to the fluorescence yield using a standard curve.

3.4. General Procedure for the Reduction of Nitroarene

Pd/CuO (2 mg) was added to a reaction vial containing a PTFE-coated magnetic stirring bar. To the reaction vial, 2 mL of mixed EtOH/H2O (1:1) solvent was added and sonicated about 20 s to disperse a Pd/CuO. The nitroarene (0.5 mmol) was added to the suspension. The reaction mixture was stirred vigorously at 40 °C in a heating block. NaBH4 (0.0568 g, 1.5 mmol) was added to the reaction mixture directly. The reaction was monitored by thin layer chromatography (TLC). After the starting material was consumed, the reaction mixture was diluted with H2O and ethyl acetate. The organic layer was collected and washed with brine. The organic layer was dried with Na2SO4, filtered, and evaporated under reduced pressure. The residue was purified by silica gel column chromatography. In some cases, the column-purified product was dissolved in organic solvent and bubbled by HCl (g) to give a HCl salt form of product.

3.5. One-Pot Procedure for Suzuki-Miyaura Cross Coupling and Nitro Reduction

Pd/CuO (10 mg) was added to a reaction vial containing a PTFE-coated magnetic stirring bar. To the reaction vial, 4 mL of mixed EtOH/H2O (3:1) solvent was added and sonicated for about 20 s to disperse the Pd/CuO. 1-Bromo-4-nitrobenzene (0.1010 g, 0.5 mmol), phenylboronic acid derivatives (0.6 mmol), and K2CO3 (0.1382 g, 1.0 mmol) were added to the suspension. The reaction mixture was stirred vigorously at 100 °C in a heating block. The reaction was monitored by TLC. After the consumption of aryl halide, the temperature was cooled to 40 °C. Without any purification of the reaction mixture, NaBH4 (0.1135 g, 3.0 mmol) was added to the reaction mixture directly. After the reduction was finished, the reaction mixture was diluted with H2O and ethyl acetate. The organic layer was collected and washed with brine. The organic layer was dried with Na2SO4, filtered, and evaporated under a reduced pressure. The residue was purified by silica gel column chromatography.

3.6. Gram-Scale Reaction of Reduction of Nitroarene

Pd/CuO (40 mg) was added to a round bottom flask containing a PTFE-coated magnetic stirring bar. To the flask, 40 mL of mixed EtOH/H2O (1:1) solvent was added and sonicated for about 20 s to disperse the Pd/CuO. 1-Chloro-4-nitrobenzene (3.15 g, 20 mmol) was added to the suspension. The reaction mixture was stirred vigorously at 40 °C in an oil bath. NaBH4 (2.27 g, 60 mmol) was added to the reaction mixture. The reaction was monitored by TLC. After the starting material was consumed, the reaction mixture was diluted with H2O and ethyl acetate. The organic layer was collected and washed with brine. The organic layer was dried with Na2SO4, filtered, and evaporated under a reduced pressure. The residue was purified by silica gel column chromatography.

3.7. Procedure for the Reuse of Catalyst

Pd/CuO (8 mg) was added to a reaction vial containing a PTFE-coated magnetic stirring bar. To the reaction vial, 8 mL of mixed EtOH/H2O (1:1) solvent was added and sonicated for about 20 s to disperse the Pd/CuO. 1a (0.4224 g, 2.0 mmol) was added to the suspension. The reaction mixture was stirred vigorously at 40 °C in a heating block. NaBH4 (0.2270 g, 6.0 mmol) was added to the reaction mixture directly. The reaction was monitored by TLC. After the starting material was consumed, the reaction media were carefully separated from the reaction vial using a syringe (be careful of the loss of catalyst). The separated reaction media were purified following the general procedure for the reduction of nitroarene to obtain 2a. The remaining Pd/CuO in the vial was washed with H2O and EtOH carefully and dried in an oven. The recovered Pd/CuO was reused for the reduction of 1a.

4. Conclusions

In this work, we developed an easily accessible green methodology for the reduction of nitroarenes. To achieve this goal, metal oxides with or without Pd were prepared by a simple and scalable co-precipitation method and used as catalysts for the reduction of nitroarene compounds. A fluorescence-based HTS method for the rapid analysis of the reaction conditions was developed using chemosensor 1a. Using this HTS method, the catalytic activity of the prepared metal oxides and various reaction conditions were rapidly screened. Among the present metal oxides, Pd/CuO showed an outstanding catalytic activity in the reduction of nitroarene compounds. After optimization, various nitroarenes were successfully reduced to the corresponding aniline derivatives by the Pd/CuO catalyst (0.005 mol% of Pd) under mild reaction conditions. These low Pd contents and mild reaction conditions are important features of the method developed in this study.
Furthermore, we investigated the synthetic application of the present method. Using Pd/CuO, biaryl compounds containing amine groups were synthetized by a one-pot Suzuki–Miyaura cross-coupling/reduction reaction. Furthermore, gram-scale amounts of aniline derivatives were prepared by a large-scale reaction. We also examined the reusability, one of the most important features of the catalysts; Pd/CuO maintained a high activity over five runs. These results demonstrated the excellent performance of the present easily accessible green methodology in synthetic applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/10/5/542/s1: Figure S1: standard curve; Figures S2–S6: XRD analysis; Figures S7–S9: TEM and SEM analysis; Figures S10 and S11: XPS analysis; Table S1: summary of XRD results and 1H and 13C NMR spectra copies.

Author Contributions

Conceptualization, M.S.H.; methodology, T.L.; formal analysis, T.L.; investigation, T.L.; writing—original draft preparation, T.L.; writing—review and editing, T.L. and M.S.H.; supervision, M.S.H.; project administration, M.S.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (NRF-2020R1A2B5B01002392).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rappoport, Z. The Chemistry of Anilines, Part 1; John Wiley & Sons Ltd: Chichester, UK, 2007. [Google Scholar]
  2. Blaser, H.-U.; Steiner, H.; Studer, M. Selective catalytic hydrogenation of functionalized nitroarenes: An update. ChemCatChem 2009, 1, 210–221. [Google Scholar] [CrossRef]
  3. Orlandi, M.; Brenna, D.; Harms, R.; Jost, S.; Benaglia, M. Recent developments in the reduction of aromatic and aliphatic nitro compounds to amines. Org. Process Res. Dev. 2018, 22, 430–445. [Google Scholar] [CrossRef]
  4. Formenti, D.; Ferretti, F.; Scharnagl, F.K.; Beller, M. Reduction of nitro compounds using 3d-non-noble metal catalysts. Chem. Rev. 2019, 119, 2611–2680. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, L.; Zhou, M.; Wang, A.; Zhang, T. Selective hydrogenation over supported metal catalysts: From nanoparticles to single atoms. Chem. Rev. 2020, 120, 683–733. [Google Scholar] [CrossRef] [PubMed]
  6. Garrett, C.E.; Prasad, K. The art of meeting palladium specifications in active pharmaceutical ingredients produced by Pd-catalyzed reactions. Adv. Synth. Catal. 2004, 346, 889–900. [Google Scholar] [CrossRef]
  7. Feng, J.; Handa, S.; Gallou, F.; Lipshutz, B.H. Safe and selective nitro group reductions catalyzed by sustainable and recyclable Fe/ppm Pd nanoparticles in water at room temperature. Angew. Chem. Int. Ed. 2016, 55, 8979–8983. [Google Scholar] [CrossRef]
  8. Pang, H.; Gallou, F.; Sohn, H.; Camacho-Bunquin, J.; Delferro, M.; Lipshutz, B.H. Synergistic effects in Fe nanoparticles doped with ppm levels of (Pd + Ni). A new catalyst for sustainable nitro group reductions. Green Chem. 2018, 20, 130–135. [Google Scholar] [CrossRef]
  9. Uberman, P.M.; García, C.S.; Rodríguez, J.R.; Martín, S.E. PVP-Pd nanoparticles as efficient catalyst for nitroarene reduction under mild conditions in aqueous media. Green Chem. 2017, 19, 739–748. [Google Scholar] [CrossRef]
  10. Fihri, A.; Bouhrara, M.; Nekoueishahraki, B.; Basset, J.-M.; Polshettiwar, V. Nanocatalysts for Suzuki cross-coupling reactions. Chem. Soc. Rev. 2011, 40, 5181–5203. [Google Scholar] [CrossRef]
  11. Zhang, X.; Sun, Z.; Wang, B.; Tang, Y.; Nguyen, L.; Li, Y.; Tao, F.F. C−C coupling on single-atom-based heterogeneous catalyst. J. Am. Chem. Soc. 2018, 140, 954–962. [Google Scholar] [CrossRef]
  12. Holz, J.; Pfeffer, C.; Zuo, H.; Beierlein, D.; Richter, G.; Klemm, E.; Peters, R. In situ generated gold nanoparticles on active carbon as reusable highly efficient catalysts for a Csp3–Csp3 Stille Coupling. Angew. Chem. Int. Ed. 2019, 58, 10330–10334. [Google Scholar] [CrossRef] [PubMed]
  13. Qiao, B.; Wang, A.; Yang, X.; Allard, L.F.; Jiang, Z.; Cui, Y.; Liu, J.; Li, J.; Zhang, T. Single-atom catalysis of CO oxidation using Pt1/FeOx. Nat. Chem. 2011, 3, 634–641. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, X.; Chen, J.; Zeng, J.; Wang, Q.; Li, Z.; Qin, R.; Wu, C.; Xie, Z.; Zheng, L. The synergy between atomically dispersed Pd and cerium oxide for enhanced catalytic properties. Nanoscale 2017, 9, 6643–6648. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Qu, J.; Cao, Y.; Duan, X.; Li, N.; Xu, Q.; Li, H.; He, J.; Chen, D.; Lu, J. Eye-readable detection and oxidation of CO with a platinum-based catalyst and a binuclear rhodium complex. Angew. Chem. Int. Ed. 2019, 58, 12258–12263. [Google Scholar] [CrossRef]
  16. Min, H.; Lee, S.; Park, M.; Hwang, J.; Jung, H.M.; Lee, S. Preparation of polymer-bound palladium catalyst and its application to the reduction of nitro arenes and the hydrodehalogenation of aryl halides. J. Organomet. Chem. 2014, 755, 7–11. [Google Scholar] [CrossRef]
  17. Byun, S.; Song, Y.; Kim, B.M. Heterogenized bimetallic Pd−Pt−Fe3O4 nanoflakes as extremely robust, magnetically recyclable catalysts for chemoselective nitroarene reduction. ACS Appl. Mater. Interfaces 2016, 8, 14637–14647. [Google Scholar] [CrossRef]
  18. Cho, H.R.; Kwon, Y.M.; Lee, Y.J.; Park, Y.A.; Ji, H.G.; Lee, J.H. Morphological control of gold nanoparticles on exfoliated layers of layered double hydroxide: A reusable hybrid catalyst for the reduction of p-nitrophenol. Appl. Clay Sci. 2018, 156, 187–194. [Google Scholar] [CrossRef]
  19. Shokouhimehr, M.; Hong, K.; Lee, T.H.; Moon, C.W.; Hong, S.P.; Zhang, K.; Suh, J.M.; Choi, K.S.; Varma, R.S.; Jang, H.W. Magnetically retrievable nanocomposite adorned with Pd nanocatalysts: Efficient reduction of nitroaromatics in aqueous media. Green Chem. 2018, 20, 3809–3817. [Google Scholar] [CrossRef]
  20. Monyoncho, E.A.; Ntais, S.; Brazeau, N.; Wu, J.-J.; Sun, C.-L.; Baranova, E.A. Role of the metal-oxide support in the catalytic activity of Pd nanoparticles for ethanol electrooxidation in alkaline media. ChemElectroChem 2016, 3, 218–227. [Google Scholar] [CrossRef]
  21. Zhao, G.; Yang, F.; Chen, Z.; Liu, Q.; Ji, Y.; Zhang, Y.; Niu, Z.; Mao, J.; Bao, X.; Hu, P.; et al. Metal/oxide interfacial effects on the selective oxidation of primary alcohols. Nat. Commun. 2017, 8, 14039. [Google Scholar] [CrossRef] [Green Version]
  22. Cai, C.; Chung, J.Y.L.; McWilliams, J.C.; Sun, Y.; Shultz, C.S.; Palucki, M. From high-throughput catalyst screening to reaction optimization: Detailed investigation of regioselective Suzuki coupling of 1,6-naphthyridone dichloride. Org. Process Res. Dev. 2007, 11, 328–335. [Google Scholar] [CrossRef]
  23. Fang, H.; Xiao, Q.; Wu, F.; Floreancig, P.E.; Weber, S.G. Rapid catalyst screening by a continuous-flow microreactor interfaced with ultra-high-pressure liquid chromatography. J. Org. Chem. 2010, 75, 5619–5626. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Trapp, O. Gas chromatographic high-throughput screening techniques in catalysis. J. Chromatogr. A 2008, 1184, 160–190. [Google Scholar] [CrossRef] [PubMed]
  25. Uozumi, Y.; Nakai, Y. An amphiphilic resin-supported palladium catalyst for high-throughput cross-coupling in water. Org. Lett. 2002, 4, 2997–3000. [Google Scholar] [CrossRef] [PubMed]
  26. Jiang, X.-B.; van Leeuwen, P.W.N.M.; Reek, J.N.H. SUPRAphos-based palladium catalysts for the kinetic resolution of racemic cyclohexenyl acetate. Chem. Commun. 2007, 22, 2287–2289. [Google Scholar] [CrossRef] [PubMed]
  27. Reetz, M.T.; Becker, M.H.; Klein, H.-W.; Stöckigt, D. A method for high-throughput screening of enantioselective catalysts. Angew. Chem. Int. Ed. 1999, 38, 1758–1761. [Google Scholar] [CrossRef]
  28. Szewczyk, J.W.; Zuckerman, R.L.; Bergman, R.G.; Ellman, J.A. A mass spectrometric labeling strategy for high-throughput reaction evaluation and optimization: Exploring C-H activation. Angew. Chem. Int. Ed. 2001, 40, 216–219. [Google Scholar] [CrossRef]
  29. Markert, C.; Pfaltz, A. Screening of chiral catalysts and catalyst mixtures by mass spectrometric monitoring of catalytic intermediates. Angew. Chem. Int. Ed. 2004, 43, 2498–2500. [Google Scholar] [CrossRef]
  30. Reetz, M.T.; Eipper, A.; Tielmann, P.; Mynott, R. A practical NMR-based high-throughput assay for screening enantioselective catalysts and biocatalysts. Adv. Synth. Catal. 2002, 344, 1008–1016. [Google Scholar] [CrossRef]
  31. Mori, K.; Ichikawa, Y.; Kobayashi, M.; Shibata, Y.; Yamanaka, M.; Akiyama, T. Prediction of suitable catalyst by 1H NMR: Asymmetric synthesis of multisubstituted biaryls by chiral phosphoric acid catalyzed asymmetric bromination. Chem. Sci. 2013, 4, 4235–4239. [Google Scholar] [CrossRef]
  32. Lavastre, O.; Morken, J.P. Discovery of novel catalysts for allylic alkylation with a visual colorimetric assay. Angew. Chem. Int. Ed. 1999, 38, 3163–3165. [Google Scholar] [CrossRef]
  33. Kawatsura, M.; Hartwig, J.F. Transition metal-catalyzed addition of amines to acrylic acid derivatives. A high-throughput method for evaluating hydroamination of primary and secondary alkylamines. Organometallics 2001, 20, 1960–1964. [Google Scholar] [CrossRef]
  34. Löber, O.; Kawatsura, M.; Hartwig, J.F. Palladium-catalyzed hydroamination of 1,3-Dienes: A colorimetric assay and enantioselective additions. J. Am. Chem. Soc. 2001, 123, 4366–4367. [Google Scholar] [CrossRef] [PubMed]
  35. Kennedy, D.F.; Messerle, B.A.; Rumble, S.L. Application of UV-Vis spectroscopy to high throughput screening of hydroamination catalysts. New J. Chem. 2009, 33, 818–824. [Google Scholar] [CrossRef]
  36. Shaughnessy, K.H.; Kim, P.; Hartwig, J.F. A fluorescence-based assay for high-throughput screening of coupling reactions. Application to Heck chemistry. J. Am. Chem. Soc. 1999, 121, 2123–2132. [Google Scholar] [CrossRef]
  37. Stambuli, J.P.; Stauffer, S.R.; Shaughnessy, K.H.; Hartwig, J.F. Screening of homogeneous catalysts by fluorescence resonance energy transfer. Identification of catalysts for room-temperature Heck reactions. J. Am. Chem. Soc. 2001, 123, 2677–2678. [Google Scholar] [CrossRef]
  38. Stauffer, S.R.; Beare, N.A.; Stambuli, J.P.; Hartwig, J.F. Palladium-catalyzed arylation of ethyl cyanoacetate. fluorescence resonance energy transfer as a tool for reaction discovery. J. Am. Chem. Soc. 2001, 123, 4641–4642. [Google Scholar] [CrossRef]
  39. Stauffer, S.R.; Hartwig, J.F. Fluorescence resonance energy transfer (FRET) as a high-throughput assay for coupling reactions. Arylation of amines as a case study. J. Am. Chem. Soc. 2003, 125, 6977–6985. [Google Scholar] [CrossRef]
  40. Angelovski, G.; Keränen, M.D.; Linnepe, P.; Grudzielanek, S.; Eilbracht, P. A rapid and reliable assay for regioselectivity using fluorescence spectroscopy. Adv. Synth. Catal. 2006, 348, 1193–1199. [Google Scholar] [CrossRef]
  41. Guo, H.-M.; Tanaka, F. A fluorogenic aldehyde bearing a 1,2,3-triazole moiety for monitoring the progress of aldol reactions. J. Org. Chem. 2009, 74, 2417–2424. [Google Scholar] [CrossRef] [Green Version]
  42. Xia, B.; Gerard, B.; Solano, D.M.; Wan, J.; Jones II, G.; Porco, J.A., Jr. ESIPT-mediated photocycloadditions of 3-hydroxyquinolinones: Development of a fluorescence quenching assay for reaction screening. Org. Lett. 2011, 13, 1346–1349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Jung, E.; Kim, S.; Kim, Y.; Seo, S.H.; Lee, S.S.; Han, M.S.; Lee, S. A colorimetric high-throughput screening method for palladium-catalyzed coupling reactions of aryl iodides using a gold nanoparticle-based iodide-selective probe. Angew. Chem. Int. Ed. 2011, 50, 4386–4389. [Google Scholar] [CrossRef] [PubMed]
  44. Kim, S.; Jung, E.; Kim, M.J.; Pyo, A.; Palani, T.; Eom, M.S.; Han, M.S.; Lee, S. A simple, fast, and easy assay for transition metal-catalyzed coupling reactions using a paper-based colorimetric iodide sensor. Chem. Commun. 2012, 48, 8751–8753. [Google Scholar] [CrossRef] [PubMed]
  45. Pyo, A.; Kim, S.; Kumar, M.R.; Byeun, A.; Eom, M.S.; Han, M.S.; Lee, S. Palladium-catalyzed hydrodehalogenation of aryl halides using paraformaldehyde as the hydride source: High-throughput screening by paper-based colorimetric iodide sensor. Tetrahedron Lett. 2013, 54, 5207–5210. [Google Scholar] [CrossRef]
  46. Byeun, A.; Baek, K.; Han, M.S.; Lee, S. Palladium-catalyzed C–S bond formation by using N-amido imidazolium salts as ligands. Tetrahedron Lett. 2013, 54, 6712–6715. [Google Scholar] [CrossRef]
  47. Eom, M.S.; Noh, J.; Kim, H.-S.; Yoo, S.; Han, M.S.; Lee, S. High-throughput screening protocol for the coupling reactions of aryl halides using a colorimetric chemosensor for halide ions. Org. Lett. 2016, 18, 1720–1723. [Google Scholar] [CrossRef]
  48. Kim, H.-S.; Eom, M.S.; Han, M.S.; Lee, S. Paper-based colorimetric sensor system for high-throughput screening of C-H borylation. Chem. Eur. J. 2017, 23, 6282–6285. [Google Scholar] [CrossRef]
  49. Son, Y.; Lee, S.; Kim, H.-S.; Eom, M.S.; Han, M.S.; Lee, S. Organosilane-patterned paper-based colorimetric sensors for high-throughput screening of cross-coupling reactions with aryl bromides. Adv. Synth. Catal. 2018, 360, 3916–3923. [Google Scholar] [CrossRef]
  50. Noh, H.; Lim, T.; Park, B.Y.; Han, M.S. A fluorescence-based high-throughput screening method for olefin metathesis using a ratiometric fluorescent probe. Org. Lett. 2020, 22, 1703–1708. [Google Scholar] [CrossRef]
  51. Yu, F.; Han, X.; Chen, L. Fluorescent probes for hydrogen sulfide detection and bioimaging. Chem. Commun. 2014, 50, 12234–12249. [Google Scholar] [CrossRef]
  52. Yuan, J.; Xu, Y.-Q.; Zhou, N.-N.; Wang, R.; Qian, X.-H.; Xu, Y.-F. A highly selective turn-on fluorescent probe based on semi-cyanine for the detection of nitroreductase and hypoxic tumor cell imaging. RSC Adv. 2014, 4, 56207–56210. [Google Scholar] [CrossRef]
  53. Li, Y.; Sun, Y.; Li, J.; Su, Q.; Yuan, W.; Dai, Y.; Han, C.; Wang, Q.; Feng, W.; Li, F. Ultrasensitive near-infrared fluorescence-enhanced probe for in vivo nitroreductase imaging. J. Am. Chem. Soc. 2015, 137, 6407–6416. [Google Scholar] [CrossRef] [PubMed]
  54. Suman Bagui, A.; Datt, R.; Gupta, V.; Singh, S.P. A simple fluorene core-based non-fullerene acceptor for high performance organic solar cells. Chem. Commun. 2017, 53, 12790–12793. [Google Scholar] [CrossRef] [PubMed]
  55. Catalfo, A.; Serrentino, M.E.; Librando, V.; Perrini, G.; De Guidi, G. Spectroscopic properties of some drivatives of polycyclic aromatic hydrocarbons. Appl. Spectrosc. 2008, 62, 1233–1237. [Google Scholar] [CrossRef] [PubMed]
  56. Lang, R.; Xi, W.; Liu, J.-C.; Cui, Y.-T.; Li, T.; Lee, A.F.; Chen, F.; Chen, Y.; Li, L.; Li, L.; et al. Non defect-stabilized thermally stable single-atom catalyst. Nat. Commun. 2019, 10, 234. [Google Scholar] [CrossRef] [PubMed]
  57. Chen, H.-I.; Chang, H.-Y. Homogeneous precipitation of cerium dioxide nanoparticles in alcohol/water mixed solvents. Colloids Surf. A Physicochem. Eng. Asp. 2004, 242, 61–69. [Google Scholar] [CrossRef]
  58. Ma, G.; Li, S.; Zhang, W.; Yang, Z.; Liu, S.; Fan, X.; Chen, F.; Tian, Y.; Zhang, W.; Yang, S.; et al. A general and mild approach to controllable preparation of manganese-based micro- and manostructured bars for high performance lithium-Ion batteries. Angew. Chem. Int. Ed. 2016, 55, 3667–3671. [Google Scholar] [CrossRef]
  59. Laguna, M.; Nuñez, N.O.; Becerro, A.I.; Lozano, G.; Moros, M.; de la Fuente, J.M.; Corral, A.; Balcerzyk, M.; Ocaña, M. Synthesis, functionalization and properties of uniform europium-doped sodium lanthanum tungstate and molybdate (NaLa(XO4)2, X = Mo,W) probes for luminescent and X-ray computed tomography bioimaging. J. Colloid Interface Sci. 2019, 554, 520–530. [Google Scholar] [CrossRef] [Green Version]
  60. Kadam, H.K.; Tilve, S.G. Advancement in methodologies for reduction of nitroarenes. RSC Adv. 2015, 5, 83391–83407. [Google Scholar] [CrossRef]
  61. Netskina, O.V.; Ozerova, A.M.; Komova, O.V.; Odegova, G.V.; Simagina, V.I. Hydrogen storage systems based on solid-state NaBH4/CoxB composite: Influence of catalyst properties on hydrogen generation rate. Catal. Today 2015, 245, 86–92. [Google Scholar] [CrossRef]
  62. Farmer, J.A.; Campbell, C.T. Ceria maintains smaller metal catalyst particles by strong metal-support bonding. Science 2010, 329, 933–936. [Google Scholar] [CrossRef] [PubMed]
  63. Bruix, A.; Rodriguez, J.A.; Ramírez, P.J.; Senanayake, S.D.; Evans, J.; Park, J.B.; Stacchiola, D.; Liu, P.; Hrbek, J.; Illas, F. A new type of strong metal−support interaction and the production of H2 through the transformation of water on Pt/CeO2(111) and Pt/CeOx/TiO2(110) Catalysts. J. Am. Chem. Soc. 2012, 134, 8968–8974. [Google Scholar] [CrossRef] [PubMed]
  64. Lykhach, Y.; Kozlov, S.M.; Skála, T.; Tovt, A.; Stetsovych, V.; Tsud, N.; Dvořák, F.; Johánek, V.; Neitzel, A.; Mysliveček, J.; et al. Counting electrons on supported nanoparticles. Nat. Mater. 2016, 15, 284–288. [Google Scholar] [CrossRef] [PubMed]
  65. Valden, M.; Lai, X.; Goodman, D.W. Onset of catalytic activity of gold clusters on titania with the appearance of nonmetallic properties. Science 1998, 281, 1647–1650. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. McClure, S.M.; Lundwall, M.J.; Goodman, D.W. Planar oxide supported rhodium nanoparticles as model catalysts. Proc. Natl. Acad. Sci. USA 2011, 108, 931–936. [Google Scholar] [CrossRef] [Green Version]
  67. Graciani, J.; Mudiyanselage, K.; Xu, F.; Baber, A.E.; Evans, J.; Senanayake, S.D.; Stacchiola, D.J.; Liu, P.; Hrbek, J.; Sanz, J.F.; et al. Highly active copper-ceria and copper-ceria-titania catalysts for methanol synthesis from CO2. Science 2014, 345, 546–550. [Google Scholar] [CrossRef]
  68. Fountoulaki, S.; Daikopoulou, V.; Gkizis, P.L.; Tamiolakis, I.; Armatas, G.S.; Lykakis, I.N. Mechanistic Studies of the Reduction of Nitroarenes by NaBH4 or Hydrosilanes Catalyzed by Supported Gold Nanoparticles. ACS Catal. 2014, 4, 3504–3511. [Google Scholar] [CrossRef]
  69. Zhao, Y.; Li, R.; Jiang, R.; Zhang, K.; Dong, Y.; Xie, W. Mechanistic Study of Catalytic Hydride Reduction of −NO2 to −NH2 Using Isotopic Solvent and Reducer: The Real Hydrogen Source. J. Phys. Chem. C 2019, 123, 15582–15588. [Google Scholar] [CrossRef]
Catalysts 10 00542 sch001 550

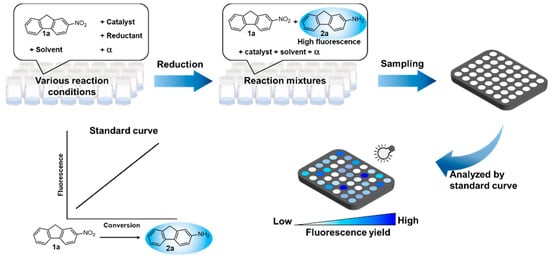

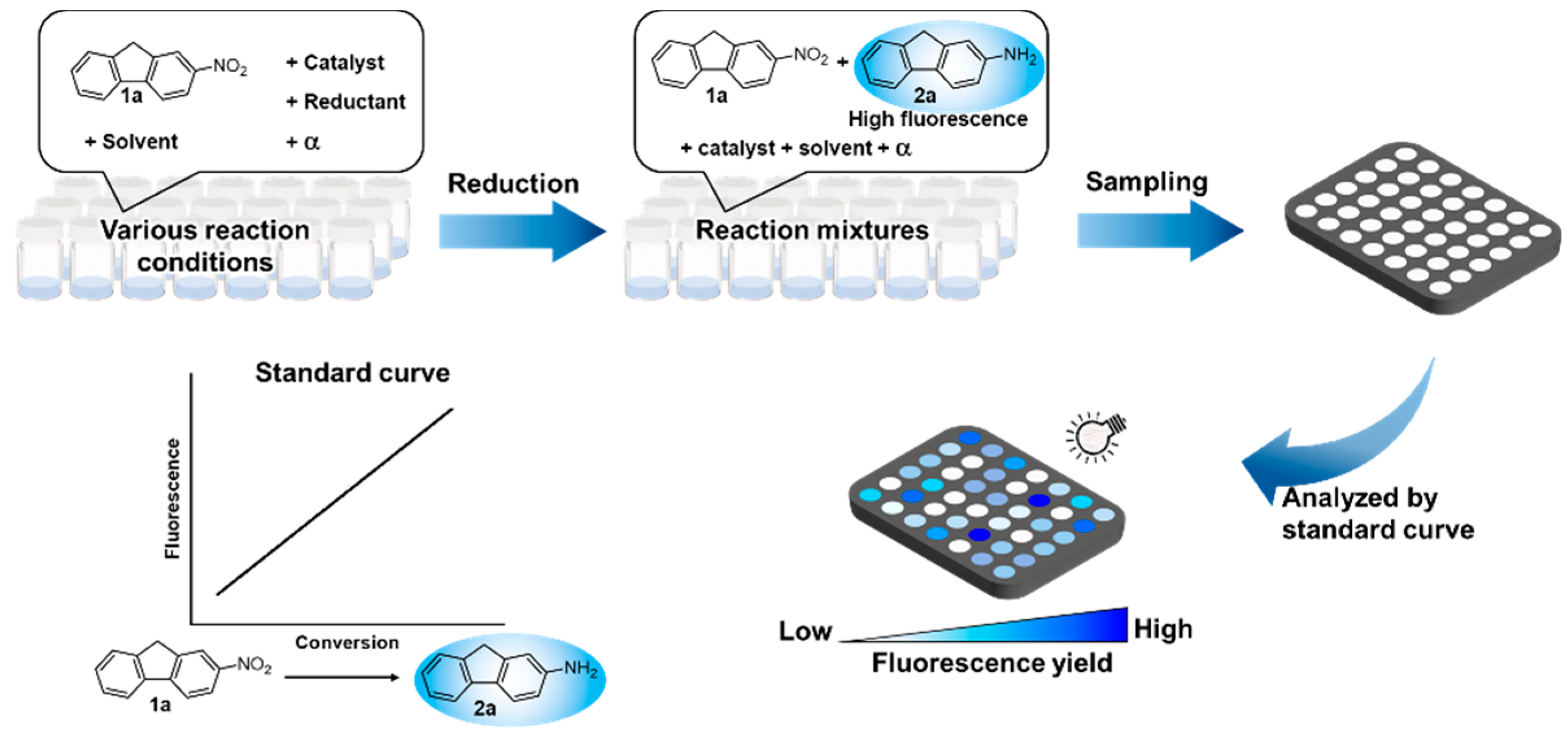

Scheme 1. Schematic representation of fluorescence-based high-throughput screening method for the reduction of nitroarene.
Scheme 1. Schematic representation of fluorescence-based high-throughput screening method for the reduction of nitroarene.
Catalysts 10 00542 sch001
Catalysts 10 00542 g001 550

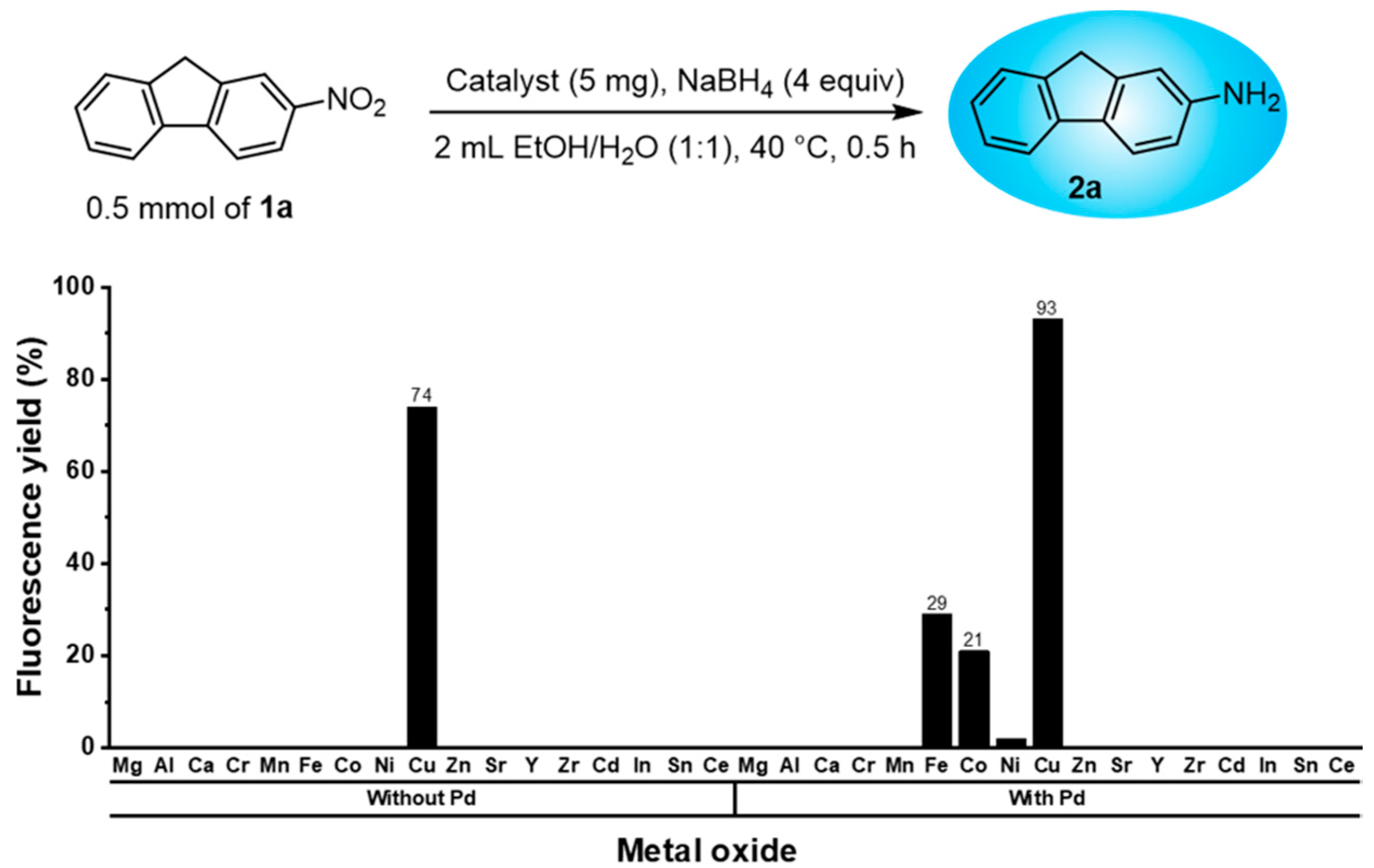

Figure 1. Results of the first screening of the catalytic activity of metal oxides.
Figure 1. Results of the first screening of the catalytic activity of metal oxides.
Catalysts 10 00542 g001
Catalysts 10 00542 g002 550

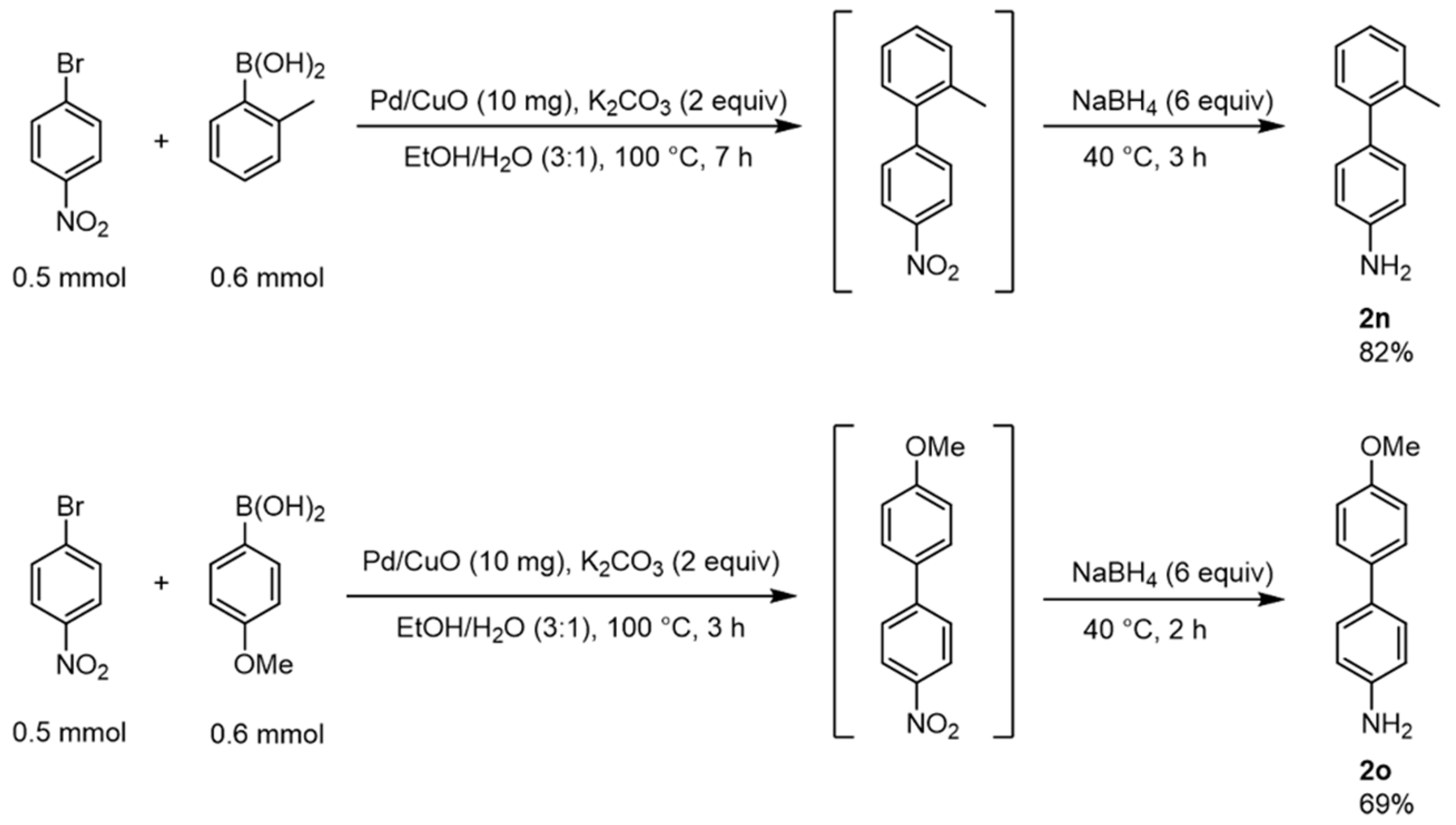

Figure 2. One-pot Suzuki–Miyaura cross-coupling and nitro group reduction catalyzed by Pd/CuO.
Figure 2. One-pot Suzuki–Miyaura cross-coupling and nitro group reduction catalyzed by Pd/CuO.
Catalysts 10 00542 g002
Catalysts 10 00542 g003 550

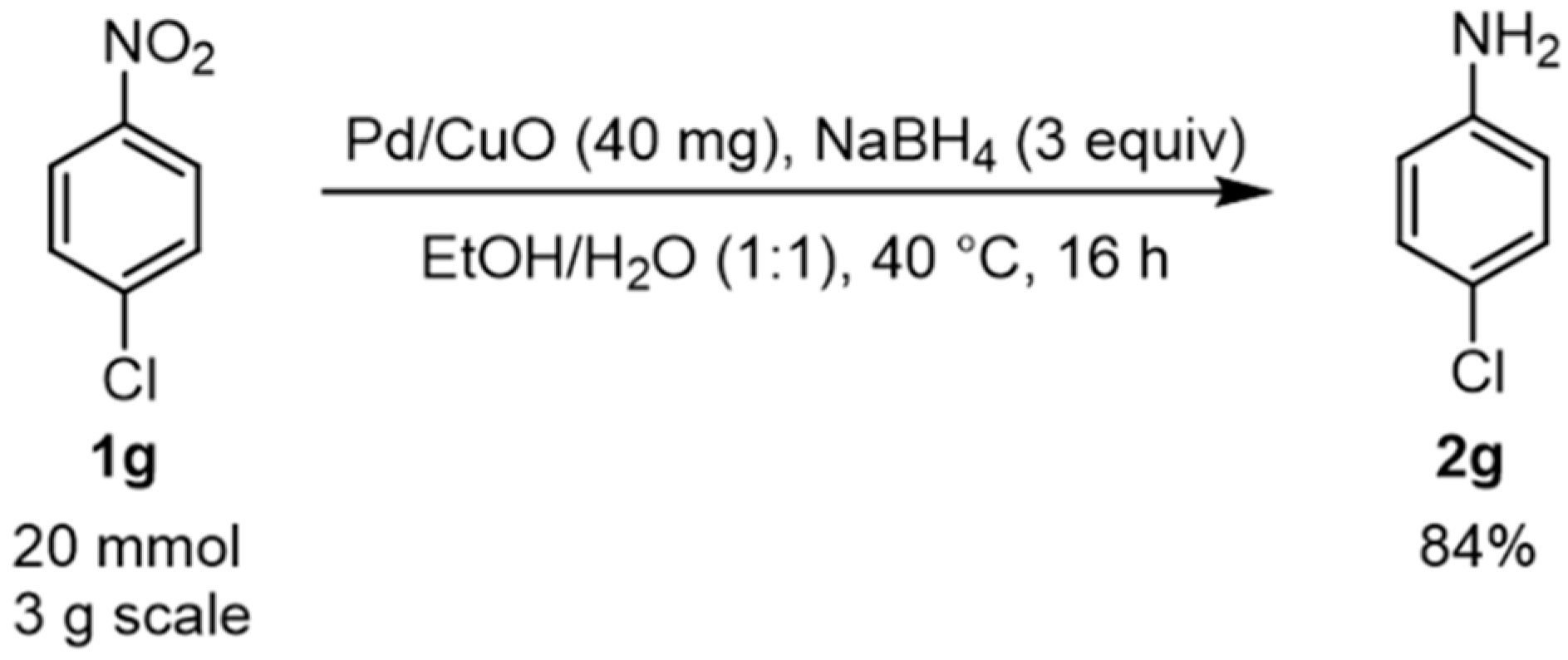

Figure 3. Gram-scale reaction.
Figure 3. Gram-scale reaction.
Catalysts 10 00542 g003
Table
Table 1. Optimization of the nitroarene reduction a.
Table 1. Optimization of the nitroarene reduction a.
Catalysts 10 00542 i001
EntryCatalystReducing AgentSolventYield c
1Pd/CuO 2 mgNaBH4 4 equivEtOH/H2O (1:1)90
2Pd/CuO 1 mgNaBH4 4 equivEtOH/H2O (1:1)75
3Pd/CuO 2 mgNaBH4 3 equivEtOH/H2O (1:1)89
4Pd/CuO 2 mgNaBH4 2 equivEtOH/H2O (1:1)86
5Pd/CuO 2 mgNaBH4 1 equivEtOH/H2O (1:1)46
6Pd/CuO 2 mgNH3BH3 4 equivEtOH/H2O (1:1)74
7Pd/CuO 2 mgNaBH3CN 4 equivEtOH/H2O (1:1)0
8 bPd/CuO 2 mgH2 (1 atm)EtOH/H2O (1:1)0
9Pd/CuO 2 mgNH2NH2 4 equivEtOH/H2O (1:1)0
10Pd/CuO 2 mgNaBH4 3 equivEtOH>99
11Pd/CuO 2 mgNaBH4 3 equivH2O0
12Pd/CuO 2 mgNaBH4 3 equivAcetonitrile9
13Pd/CuO 2 mgNaBH4 3 equivDMF0
14Pd/CuO 2 mgNaBH4 3 equivToluene0
15Pd/CuO 2 mgNaBH4 3 equivDioxane0
a Reaction conditions: 0.5 mmol of 1a, 2 mg of Pd/CuO (0.005 mol% Pd, 5 mol% Cu), reducing agent, solvent (2 mL) at 40 °C for 0.5 h. b Room temperature. c Fluorescence yield calculated by the standard curve.
Table
Table 2. Evaluation of the scope of the nitroarene reduction a.
Table 2. Evaluation of the scope of the nitroarene reduction a.
Catalysts 10 00542 i002
EntrySubstrateProductTimeYield (%) b
1 Catalysts 10 00542 i003
1a		 Catalysts 10 00542 i004
2a		0.5 h94
2 Catalysts 10 00542 i005
1b		 Catalysts 10 00542 i006
2b		4 h93
3 Catalysts 10 00542 i007
1c		 Catalysts 10 00542 i008
2c		17.5 h73
4 c Catalysts 10 00542 i009
1d		 Catalysts 10 00542 i010
2d		3 h62
5 Catalysts 10 00542 i011
1e		 Catalysts 10 00542 i012
2e		12 h86
6 c Catalysts 10 00542 i013
1f		 Catalysts 10 00542 i014
2f		1 h68
7 Catalysts 10 00542 i015
1g		 Catalysts 10 00542 i016
2g		2 h71
8 Catalysts 10 00542 i017
1h		 Catalysts 10 00542 i018
2h		1.5 h61
9 Catalysts 10 00542 i019
1i		 Catalysts 10 00542 i020
2i		11 h80
10 Catalysts 10 00542 i021
1j		 Catalysts 10 00542 i022
2j		6 h53
11 Catalysts 10 00542 i023
1k		 Catalysts 10 00542 i024
2k		1.5 h98
12 c Catalysts 10 00542 i025
1l		 Catalysts 10 00542 i026
2l		3 h88
13 c,d Catalysts 10 00542 i027
1m		 Catalysts 10 00542 i028
2m		40 h80
a Reaction conditions: 0.5 mmol of nitro substrate, 2 mg of Pd/CuO (0.005 mol% Pd, 5 mol% Cu), 1.5 mmol of NaBH4, 2 mL of EtOH/H2O (1:1) at 40 °C. b Isolated yield. c Obtained as HCl salt form. d EtOH (2 mL) was used in the reaction.
Table
Table 3. Reusability of Pd/CuO a.
Table 3. Reusability of Pd/CuO a.
Catalysts 10 00542 i029
CycleTimeYield (%) b
1st1.0 h96
2nd1.5 h95
3rd1.5 h98
4th5.0 h96
5th5.5 h95
a Reaction conditions: 2.0 mmol of 1a, 8 mg of Pd/CuO (0.005 mol% Pd, 5 mol% Cu), 6.0 mmol of NaBH4, 8 mL of EtOH/H2O (1:1) at 40 °C. b Isolated yield.

Share and Cite

MDPI and ACS Style

Lim, T.; Han, M.S. Preparation of Metal Oxides Containing ppm Levels of Pd as Catalysts for the Reduction of Nitroarene and Evaluation of Their Catalytic Activity by the Fluorescence-Based High-Throughput Screening Method. Catalysts 2020, 10, 542. https://doi.org/10.3390/catal10050542

AMA Style

Lim T, Han MS. Preparation of Metal Oxides Containing ppm Levels of Pd as Catalysts for the Reduction of Nitroarene and Evaluation of Their Catalytic Activity by the Fluorescence-Based High-Throughput Screening Method. Catalysts. 2020; 10(5):542. https://doi.org/10.3390/catal10050542

Chicago/Turabian Style

Lim, Taeho, and Min Su Han. 2020. "Preparation of Metal Oxides Containing ppm Levels of Pd as Catalysts for the Reduction of Nitroarene and Evaluation of Their Catalytic Activity by the Fluorescence-Based High-Throughput Screening Method" Catalysts 10, no. 5: 542. https://doi.org/10.3390/catal10050542

APA Style

Lim, T., & Han, M. S. (2020). Preparation of Metal Oxides Containing ppm Levels of Pd as Catalysts for the Reduction of Nitroarene and Evaluation of Their Catalytic Activity by the Fluorescence-Based High-Throughput Screening Method. Catalysts, 10(5), 542. https://doi.org/10.3390/catal10050542

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
