Inversion of the Photogalvanic Effect of Conductive Polymers by Porphyrin Dopants

Abstract

Conductive polymers are widely used as active and auxiliary materials for organic photovoltaic cells due to their easily tunable properties, high electronic conductivity, and light absorption. Several conductive polymers show the cathodic photogalvanic effect in pristine state. Recently, photoelectrochemical oxygen reduction has been demonstrated for nickel complexes of Salen-type ligands. Herein, we report an unexpected inversion of the photogalvanic effect caused by doping of the NiSalen polymers with anionic porphyrins. The observed effect was studied by means of UV-Vis spectroscopy, cyclic voltammetry and chopped light chronoamperometry. While pristine NiSalens exhibit cathodic photopolarization, doping with porphyrins inverts the polarization. As a result, photoelectrochemical oxidation of the ascorbate proceeds smoothly on the NiSalen electrode doped with zinc porphyrins. The highest photocurrents were observed on NiSalen polymer with o-phenylene imine bridge, doped with anionic zinc porphyrin. Assuming this, porphyrin serves both as a catalytic center for the oxidation of ascorbate and an internal electron donor, facilitating the photoinduced charge transport and anodic depolarization.

1. Introduction

Conductive polymers (CP) are a unique class of materials, which combine the benefits of organic materials and electronic conductors. Since their discovery, the CPs have been widely used not only as a replacement to inorganic conductors [1,2,3], but as advanced functional materials for electronics [4,5,6], electrochromic devices [6,7,8,9], sensing [10,11,12], and energy storage [13,14,15,16,17,18]. One of the main applications of the CPs is in photovoltaics, where they are used as donor phase [19,20,21] and hole transporting layer [22] materials in organic photovoltaic devices or counter electrode materials for dye-sensitized solar cells (DSSC) [23,24].

At the same time, an intrinsic photogalvanic effect is known for polythiophene CPs, which indicates the potential of these materials as active layers in DSSC-type architectures [25,26]. It was shown that the photocurrents of polythiophenes depended strongly on the nature of anionic dopant [27] and film morphology [28]. An increase of the photocurrent was observed with increasing polymer orderliness and rigidity as well as decreasing dopant mobility [29]. Based on this knowledge, recently, the photogalvanic effect on highly rigid NiSalen-type conductive polymers has also been discovered [30] and implemented for the photoelectrochemical oxygen reaction reduction reaction (ORR) cell to produce hydrogen peroxide [31].

The electrochemical and optical properties of the CPs strongly depend on the nature of its anionic dopants, which may be illustrated by the comparison of commercial PEDOT:PSS material and PEDOT doped with low molecular ions [32]. The effect of anion dopant is realized through the tuning of the polymer morphology [33] or ion diffusion parameters [34,35]. However, an anionic dopation phenomenon of the CPs may be exploited to anchor the functional fragments into a CP to enhance its properties. For example, poly (terthiophene) doped with anionic manganese porphyrin exhibits an outstanding photoelectrocatalytic performance for electrochemical water splitting [36].

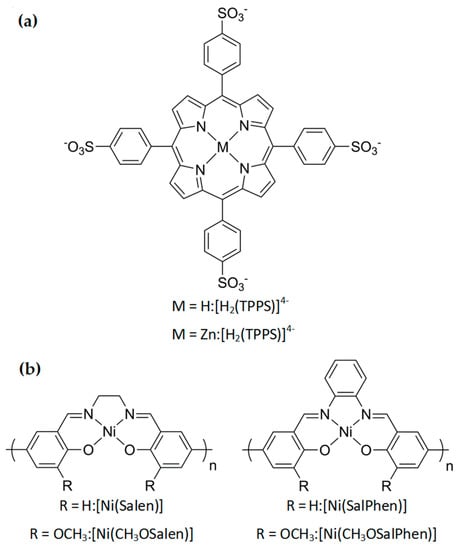

Herein, we report an unexpected effect of dopation of the anionic porphyrin in the NiSalen-type conductive polymers (Figure 1), which was expected to increase the photogalvanic effect of the polymer by an antenna approach, analogous to the photosynthetic systems [37,38,39]. Surprisingly, an introduction of the porphyrin anions was found to decrease the ORR performance, previously observed on the pristine films [31], even when irradiated at the Soret band of the porphyrin. At the same time, in the presence of the electron donor (ascorbate, Asc⁻) in the electrolyte, porphyrin-doped films exhibit an enhanced anodic photogalvanic effect. The origin of the observed effect was investigated by electrochemical methods.

2. Results and Discussion

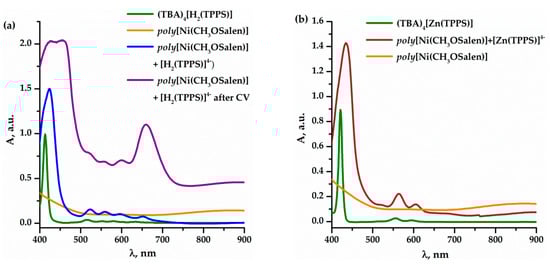

Initially, the free base porphyrin salt [Bu₄N]₄[H₂(TPPS)] was used as an anionic dopant for the preparation of the composite film. The poly[Ni(CH₃OSalen)]:[H₂(TPPS)] film was deposited onto the ITO substrate from the solution of [Ni(CH₃OSalen)] with the [Bu₄N]₄[H₂(TPPS)] as a supporting electrolyte (Figure S5). Freshly prepared films exhibited the distinctive features on UV-Vis, attributed to the presence of poly[Ni(CH₃OSalen)] polymer and [H₂(TPPS)]⁴⁻ particles (Figure 2a), but during the CV measurements or even storage in the reduced state, unexpected spectral changes were noticed. A New Soret band emerged at 460 nm, accompanied by an intensive Q-band at 660 nm (Figure 2b), which indicates the formation of the nickel porphyrin complex accompanied by demetallation of the poly[Ni(CH₃OSalen)] units by the strongly coordinating porphyrin ligand. Considering the sluggish kinetics for the insertion of nickel into meso-tetraaryl porphyrins [40], this fact may be explained by the participation of the reduced nickel in this process [41].

To overcome this problem, metallated porphyrin [Zn(TPPS)]⁴⁻ was used instead of the free base one. Indeed, the polymeric films doped with [Zn(TPPS)]⁴⁻ showed excellent stability during all electrochemical experiments (Figure S1).

Photoelectrochemical Performance

Porphyrin—doped polymeric films were successfully deposited for all four monomeric NiSalen-type complexes. To assess the photoelectrochemical behavior of the obtained films, light sources with λ_max at 420 and 470 nm were used. These wavelengths, on the one hand, lie near the maximum of the insolation spectrum of the Earth, and on the other hand, excite polyNiSalen species selectively (470 nm) or excite both components (420 nm). Previously, it was reported that polyNiSalens act as photocathodes, and in aerated solutions noticeable currents of oxygen electroreduction are observed under the illumination of photoelectrochemical cells containing such polymers [31]. However, the irradiation of obtained porphyrin—doped films used as a cathode in ORR photoelectrochemical cells with 420 and/or 470 nm light gave disappointing results: the cathodic currents became at least an order of magnitude lower in comparison with the corresponding pristine polyNiSalen films, and moreover, the current direction changed to anodic in case of phenylene-bridged complexes (Figure S2). The current value suffers relatively fast decay, which may indicate the depletion of electron donating particles responsible for this effect. In absence of an external electron donor, the self-oxidation of the composite film may occur, while an electron was removed from the porphyrin molecule, which is an explanation for the observed decay of the anodic current.

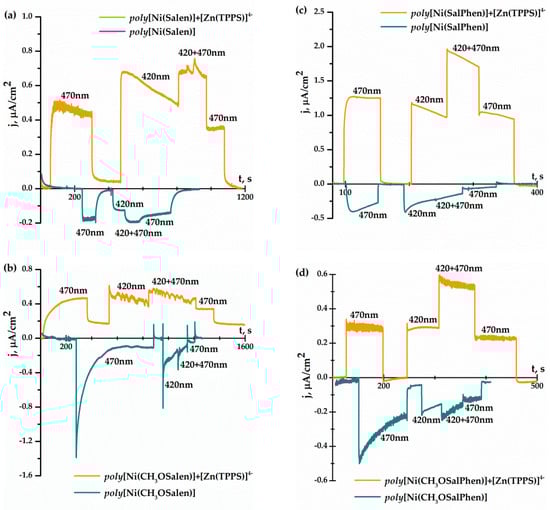

To disclose this unusual effect, a series of experiments were performed with an external electron donor (0.1 M ascorbic acid) in the supporting electrolyte. As anticipated, sustainable anodic currents appeared upon irradiation with both wavelengths in case of porphyrin-doped films, while pristine polyNiSalen films still exhibit a diminishing cathodic current, confirming the role of porphyrin in the formation of anodic current (Figure 3).

The partial light absorptions of porphyrin and polymer components depend on the polymer structure, due to the unequal dopation extents and unequal absorption spectra of different polymers. To account for this, the obtained current values should be corrected for the illuminance at the specific wavelength and experimental absorption of the film at this wavelength. As a result, the following parameter, LE, was chosen as a photogalvanic performance index:

$$L{E}_{\lambda }=\frac{j_{\lambda }}{\left(1-T_{\lambda }\right)E_{\lambda }}$$

(1)

when j_λ (A cm⁻²) is the photocurrent density, T_λ is the light transmission and E_λ (lux) is the illuminance at specific wavelength.

The results of both ORR and ascorbate oxidation experiments are summarized in the

Table 1. Relative light efficiencies of the films.

		LE [a], µA cm−2 Mlx−1
Ni-L	λ, nm	O2 Reduction	Asc− Oxidation	O2 Reduction	Asc− Oxidation
		Ni-L [b]	Ni-L [b]	Ni-L:P [c]	Ni-L:P [c]
poly[Ni(Salen)]	470	−130.4	−2.1	−18.0	7.9
	420	−174.7	−5.6	−17.4	21.1
poly [NiCH3O(Salen)]	470	−98.2	−4.0	−2.6	3.2
	420	−53.7	−4.5	−9.3	5.7
poly [Ni(SalPhen)]	470	−38.8	−1.5	−2.1	33.5
	420	−120.1	−5.3	−2.5	68.3
poly [Ni(CH3OSalPhen)]	470	−20.5	−0.8	−3.4	9.2
	420	−40.7	−6.7	−6.2	20.7

^[a] calculated from the plateau or and point current; ^[b] polyNiSalen film; ^[c] polyNiSalen + [Zn(TPPS)]⁴⁻.

. The ORR reaction proceeds on the pristine polymeric films with greater efficiency compared to porphyrin-doped analogues. The most efficient at both wavelengths are poly[Ni(Salen)] films. Oxidation of the Asc⁻ on pristine films is negligible, affording a little cathodic current attributed to a trace amounts of oxygen in solution or autoxidation of the film. In contrast, porphyrin-doped NiSalen films afford a significant anodic photogalvanic effect. For all four films, the LE at 420 nm is 2–2.5 times higher than at 470 nm, and the highest LE is observed for poly[Ni(SalPhen)]:[ZnTPPS] film, indicating the key role of the porphyrinic species in the anodic photogalvanic effect.

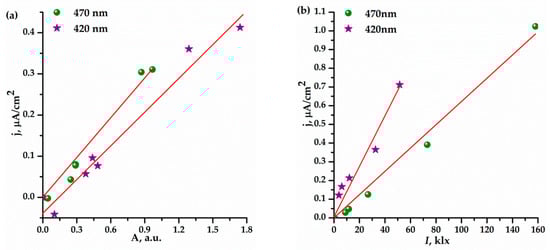

To examine the optical linearity of the effect, two series of experiments were performed. Within the first series, films of different thickness were examined under the same conditions, including constant illuminance, while during the second series, the illuminance was varied for the single polymeric film (Figure S3). The observed photoresponse is linear vs. the illuminance intensity and film thickness (Figure 4), which indicates that the photocurrent is limited by the amount of incident photons.

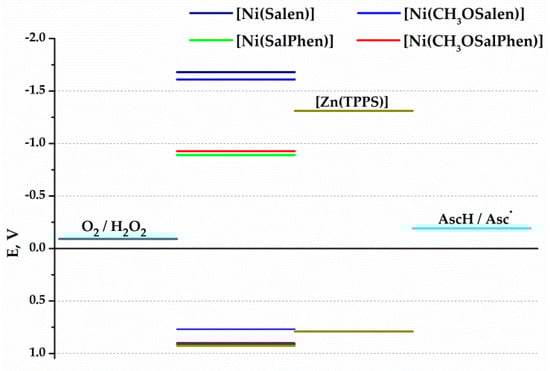

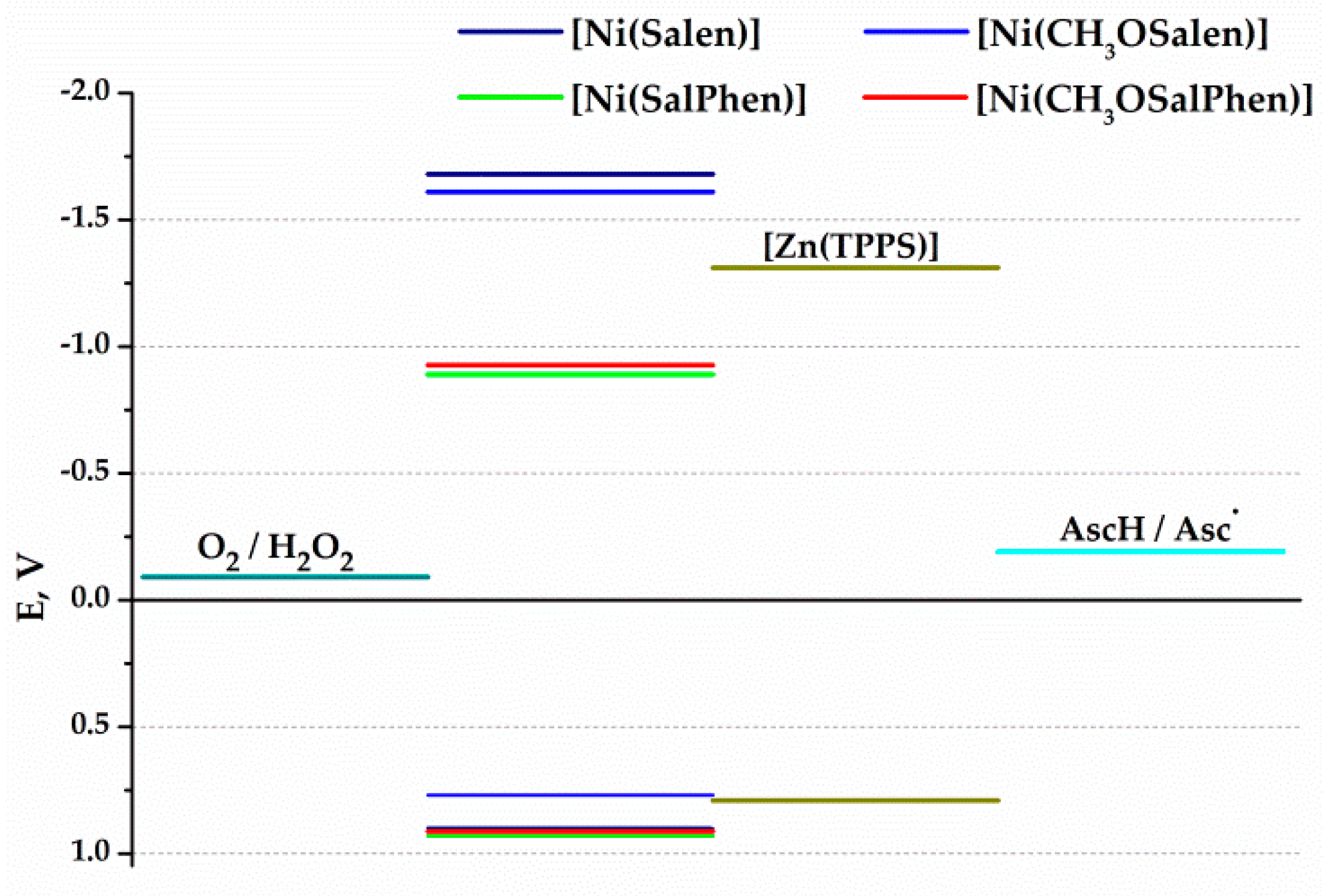

To understand the possible internal electron transport pathways, an energy diagram of electrochemical HOMO-LUMO levels was obtained on a basis of CV data of pristine polymeric NiSalen films and a solution of [Bu₄N]₄[Zn(TPPS)] (Figure 5). The HOMO-LUMO gap values for polymeric films were additionally verified by comparing with the optical band gaps calculated from the Tauc plots (Figure S4) [42].

According to the diagram, HOMO levels for all polymers are situated at ca. 0.9 V along with the HOMO of [Zn(TPPS)]⁴⁻, while LUMO levels strongly depend on a bridging fragment of the complex, comprising ca. −0.9 V for “Phen” polymers and −1.6 V for “En” polymers. The porphyrinic LUMO at −1.31 V thus lies higher than the LUMO of “Phen” polymers but lower than of “En” polymers, thus the electron transfer is possible from the excited state of [Zn(TPPS)]⁴⁻ to the “Phen” polymers, but not to “En” ones.

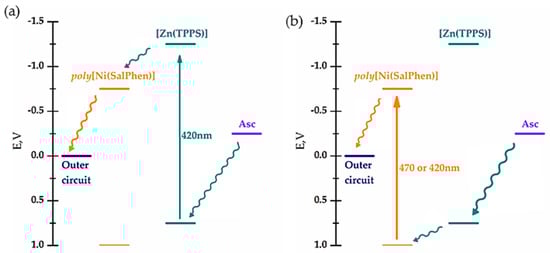

Based on the energy levels of the components, two plausible mechanisms for the PE oxidation of ascorbate on the poly[Ni(SalPhen)]:[ZnTPPS] electrode may be proposed, depending on the photoexcited particle. In case of [Zn(TPPS)]⁴⁻ excitation, which should be the main excitation pathway upon 420 nm, an electron transfer from the [Zn(TPPS)]⁴⁻ LUMO* to the poly[Ni(SalPhen)] LUMO occurs, followed by the collection of the resulting electron at the anode (Figure 6a). The oxidation of the [Zn(TPPS)]⁴⁻, which is known to result in a formation of the π-delocalized radical cation rather than the metal-centred oxidized state [43], is compensated by an electron transfer from the Asc⁻ molecule from the solution. In case of poly[Ni(SalPhen)] excitation, which occurs at both wavelengths, an electron transfer from the HOMO of the [Zn(TPPS)]⁴⁻ to the HOMO* of the poly[Ni(SalPhen)], followed by the reduction of the [Zn(TPPS)]⁴⁻ by Asc⁻ and collection of the electron at the anode (Figure 6b). Both mechanisms propose the photoinduced electron transfer from [Zn(TPPS)]⁴⁻ to the polymer, which explains an anomalously low PE activity of the porphyrin doped films in ORR compared for the pristine ones; while the holes generated in the pristine NiSalen polymers are mobile due to the p-type conductivity of the polymer, in the porphyrin-doped polymers holes are trapped on the [Zn(TPPS)]⁴⁻ species and cannot be collected in the outer circuit.

3. Materials and Methods

All reagents and Et₄NBF₄ salt were purchased from Sigma-Aldrich or ABCR. All monomers were synthetized by the procedure of Pfeiffer [44] from commercially available aldehydes and diamines. HPLC grade acetonitrile and deionized water from Merck Milli-Q system were used for electrolyte solutions. All electrochemical experiments were performed on Autolab PGstat 302, Ag/Ag⁺ non-aqueous reference electrode MF-2062 (Bio Analytical Systems, USA) filled with 10 mM AgNO₃ in 0.1 M Et₄NBF₄ in acetonitrile. Ag/AgCl (KCl sat.) reference electrode was used for aqueous solutions. UV-Vis spectra were recorded on a Shimadzu UV-1800 double-beam spectrophotometer in 1 cm quarz cuvettes.

Before each experiment, the ITO substrates were cleaned by 5 min ultrasonication in isopropanol, followed by deionized water rinsing and RCA cleaning protocol: 1:5:1 (v/v) NH₃(aq)/H₂O/H₂O₂(aq) at 80 °C for 10 min. After that, the substrates were washed with deionized water and dried at room temperature. Active area of the ITO was limited to 1 cm² by Parafilm mask. Polymers were deposited on the ITO glass electrodes in three-electrode cell with platinum as the counter electrode and Ag/AgNO₃ as reference electrode from 1 mM solutions of selected monomer in 0.1 M Et₄NBF₄ of 0.05 M of [Et₄N][MTPPS] in acetonitrile. The depositions were carried out in the CV mode in the range from 0.2 to 1.2 V vs. Ag/AgCl with the scan rate of 100 mV s⁻¹.

For the PEC experiments [31], LED light sources with λ_max of 420 and 470 nm were used, mounted to afford an illuminance of the active zone of the electrode of 37,300 and 131,000 lx, respectively unless other specified. Experiments were performed in three-electrode cells with 0.25 cm² platinum wire as a counter electrode and saturated Ag/AgCl as reference electrode, using 0.1 M phosphate buffer with pH 6.86 at a fixed potential of 0.0 V vs. Ag/AgCl. For ORR experiments, a solution was bubbled with oxygen (1 atm.) for 15 min, and then an atmosphere of 1 atm. O₂ was maintained in the cell headspace during the experiment. For Asc⁻ oxidation experiments [45], ascorbic acid was added to 100 mM resulting concentration, then a solution was degassed by Ar bubbling for 15 min, and an Ar atmosphere was maintained in the cell headspace during the experiment.

4. Conclusions

We report the photogalvanic effect demonstrated by pristine and porphyrin-doped NiSalen polymers in aqueous electrolyte solutions. While pristine polymeric films undergo cathodic photopolarization and generate photocurrent by oxygen reduction, porphyrin-doped films are virtually unable to reduce oxygen. Instead, an anodic polarization was demonstrated for these films, which provides an ability for the photoelectrochemical oxidation of ascorbic acid. Introduction of porphyrinic dopants results in anodic photocurrent of 1.25 µA cm⁻¹ in aqueous electrolyte containing ascorbate. The observed effect arises from the strongly donating behavior of porphyrin molecules, which serves as a hole acceptor.
