NH3 and CO Emissions from Fifteen Euro 6d and Euro 6d-TEMP Gasoline-Fuelled Vehicles

by
Tommaso Selleri
,
Anastasios Melas
,
Pierre Bonnel
and
Ricardo Suarez-Bertoa
*
European Commission, Joint Research Centre (JRC), 21027 Ispra, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2022, 12(3), 245; https://doi.org/10.3390/catal12030245
Submission received: 10 January 2022 / Revised: 15 February 2022 / Accepted: 19 February 2022 / Published: 22 February 2022
Browse Figures
Versions Notes

Abstract

:
Ammonia (NH3) plays a key role in atmospheric chemistry and largely contributes to the PM2.5 measured in urban areas around the globe. For that reason, the National Emission Ceilings directive, Gothenburg Protocol under the United Nations Convention on Long-Range Transboundary Air Pollution, and International Panel for Climate Change (IPCC) directive required a reduction of the emissions of NH3. Nonetheless, the European Environment Agency (EEA) indicated that road transport emissions of NH3 have increased. Moreover, recent studies reported that, not only vehicle NH3 emissions are greater than agricultural emissions in areas that gather > 40% of the U.S. population, but urban emissions of NH3 for passenger cars are underestimated by a factor of 17 in UK. In this study, fifteen gasoline-fuelled vehicles, meeting the most recent European emission standards, Euro 6d or Euro 6d-TEMP, were investigated in laboratory tests over the type-approval worldwide-harmonized light-duty vehicles test cycle (WLTC), at 23 °C and −7 °C, as well as over the motorway cycle Bundesautobahn (BAB). Results show that all the vehicles tested emitted NH3 over the different duty cycles, and presented emissions level that are comparable to those previously reported for Euro 4–Euro 6b vehicles. Finally, good agreement between the CO and the NH3 emissions was registered during the acceleration events, and, in general, a fair correlation, with R2 > 0.75, was obtained, when comparing the CO and NH3 emissions of the studied vehicles.

1. Introduction

Ammonia (NH3) plays a key role in the formation of PM2.5 in the atmosphere, being a precursor of ammonium nitrate (NH4NO3) and ammonium sulphate ((NH4)2SO4) [1,2] and essentially determining the overall available amounts of such substances. NH3 enhances particle nucleation by several orders of magnitude, increasing the number of potential cloud condensation nuclei that affect climate [3], and it can enhance secondary organic aerosol (SOA) formation [4,5].
NH3 is considered to be among the most harmful air pollutants, in terms of damage to ecosystems, as the chemically-formed ammonium species leads to eutrophication of waters and contributes to the acidification of soil, lakes, and rivers, causing the loss of animal and plant life and biodiversity [6,7,8,9]. In fact, an estimated 7% of the total of the European ecosystem area was at risk of acidification in 2014 and 2016, and the critical loads for eutrophication were still exceeded in over 62% of the European ecosystem area [10]. Moreover, NH3 contributes to negative short- and long-term impacts on human health. Short-term exposure (over a few hours or days) is linked to acute health effects, whereas long-term exposure (over months or years) is linked to chronic health effects [11].
Recent studies point out that ammonium nitrate and ammonium sulphate are the most abundant atmospheric secondary inorganic aerosols in many regions [12,13] and largely contribute to particulate matter (PM) and, in particular, the PM2.5 measured in urban areas around the globe [14,15,16]. Secondary PM may account for up to 50% of atmospheric PM2.5 mass concentrations in certain European regions [17], with NH3 contributing through secondary PM formation to 10-20% of the PM2.5 mass in densely populated areas in Europe [6]. PM2.5 is currently one of the major environmental concerns, as if affects human health [18] and impacts the global radiation budget [19,20]. Current estimates indicated that 82% to 97% of the EU-28 urban population was exposed to concentrations exceeding the WHO AQG value for PM2.5 in 2015, resulting in 399,000 (±35%) premature deaths, attributed to PM2.5 exposure.
For these reasons, the National Emission Ceilings directive 2001/81/EC [21], Gothenburg Protocol under the United Nations Convention on Long-Range Transboundary Air Pollution (LRTAP Convention) (UNECE 1999), and IPCC directive [22] required a reduction of the emissions of NH3. Over the past two decades, the agriculture and waste management sectors have reduced their NH3 emissions by 29% and 24%, respectively, while road transport emissions have increased by 378% [23]. Moreover, within the framework of The Clean Air Policy Package for Europe, the EU agreed on a revised National Emissions Ceilings (NEC) directive [24], which set 2020 and 2030 emission reduction commitments for SO2, NOx, non-methane volatile organic compounds (NMVOCs), NH3, and PM2.5, aiming at further improving Europe’s air quality, so that, by 2030, the number of premature deaths would be reduced by half, compared to 2005. At the moment, NH3 emissions present the smallest reduction (4% in the EEA-33) of all primary and precursor emissions contributing to ambient air concentrations of PM.
According to the EEA, the agricultural sector is the largest contributor to total NH3 emissions, accounting for 93% of total NH3 emissions in the EU-28 in 2015, and road transport accounted for 1% of the EU-28 total emissions. The EEA indicates, in their latest air quality report [25], that overall NH3 emissions have been reduced by approximately 10% in EU-28 but of only 2% in EEA-33, from 2000 to 2018. However, more recent studies [26,27] have shown that modern vehicles present the highest NH3 emission ever recorded. Although agricultural is considered the dominant source of NH3 in the U.S., and also at global scale, Sun et al. [28] and Fenn et al. [29] have recently reported that vehicle NH3 emissions are greater than agricultural emissions in areas that gather > 40% of the U.S. population. Moreover, it has been recently reported that the inventory estimates of urban emissions of NH3 for passenger cars are underestimated by a factor of 17 in the UK [29].
NH3 is present in exhaust from Diesel vehicles, since the introduction of selective catalytic reduction systems (SCR) and lean-NOx traps (LNT) [26,30,31,32]. Nonetheless, emissions of this compound have been measured in the exhaust of TWC-equipped gasoline vehicle, long before LNT and SCR systems were introduced in the automotive sector [33,34,35].
The emissions of NH3 from spark ignition engines equipped with TWCs have been associated to rich combustion [27,30,31,36,37,38]. Fuel-rich combustion is used at high engine loads to increase the maximum engine power output, avoiding at the same time excessive exhaust gas temperatures, with effects also on the after-treatment system, and knock. Such a strategy may exist on certain vehicles but should be, in principle, approved by authorities only when engine protection clauses can be invoked, which should happen only under exceptional circumstances [39].
During rich operation, NOx and H2 react to form NH3 over the TWC, which are then emitted. For that reason, NH3 can be the dominant reactive nitrogen species emitted by spark ignition engines [26,40], including hybrids [41,42]. Moreover, since CO emissions are also associated to rich operation [43], CO and NH3 emissions from gasoline vehicles have been shown to present a good correlation [30,36,44,45].
The present study investigates the emissions of NH3 gasoline EU RDE type-approved vehicles, namely Euro 6d and 6d-TEMP, and their correlation to CO emissions. The results obtained will contribute the creation of more accurate emission inventories for these modern vehicles and would allow more reliable modelling of the N (nitrogen) cycle.

2. Experimental

Fifteen gasoline-fuelled vehicles meeting the Euro 6d or Euro 6d-TEMP standard were tested at the Joint Research Centre (JRC) vehicle emissions laboratories (VELA 8 and VELA 2) of the European Commission. All vehicles were tested over the type-approval worldwide-harmonized light-duty vehicles test cycle (WLTC) at 23 °C, and eight of them were also tested at −7 ± 3 °C on the same cycle. WLTC is the reference cycle used at type approval in the laboratory. It consists of four sections, characterised by different duration and increasing average speed, simulating urban to motorway driving. The cycle is a part of the worldwide-harmonized light vehicles test procedures, as presented in the UNECE global technical regulation no 15 (GTR15). Four vehicles were also tested using the ADAC (Allgemeiner Deutscher Automobil-Club e.V.) motorway cycle (also known as BAB 130, where BAB stands for Bundesautobahn, i.e., federal highway). BAB is a motorway cycle, characterised by high-speed driving, at constant speed alternated with short deceleration–acceleration events, to simulate an overtake. Figure 1 illustrates the cycles’ speed profiles.
The tested vehicles covered a wide variety of powertrains, including eight conventional internal combustion engines (hereinafter ICE), two conventional or non-plug-in hybrids (hereinafter hybrids), and six plug-in hybrids (hereinafter PHEV). They also covered different fuel injection technologies, including direct injection (DI), port fuel injection (PFI), and a spark-controlled compression ignition (SPCCI). The after-treatment system of all vehicles tested, included a TWC, and most them also used a GPF to control particulate emissions. Table 1 below summarises the main characteristics of the vehicles tested.
Tests were performed at VELA 8 and VELA 2, two chassis dynamometer climatic test cells with controlled temperature and relative humidity. The characteristics of the climatic test cells are described elsewhere [46,47]. For all the tests conducted, all regulated gaseous emissions (CO, HC, NMHC, and NOx) were measured from the full dilution tunnel in real-time, using either an AMA i60 bench (AVL, Austria) or MEXA–7400HTR-LE (HORIBA, Japan), in VELA 8 and VELA 2, respectively.
NH3 emissions were measured using three FTIR spectrometers. Two FTIRs SESAM i60 from AVL were used in the tests performed in VELA 8 and VELA 2. The systems are equipped with a heated polytetrafluoroethylene sampling line at 191 °C. The FTIR instruments (Nicolet Antaris IGS Analyser—Thermo Electron Scientific Instruments LLC, Madison, WI, USA) were equipped with a multipath gas cell with a 2 m optical path, downstream sampling pump (6.5 L/min sampling rate), and acquisition frequency of 1 Hz, with a working pressure of 860 hPa. Moreover, three vehicles were tested at VELA 2, using a MKS Multigas analyzer 2030-HS (MKS instruments, Wilmington, MA, USA). The device was equipped with a heated polytetrafluoroethylene sampling line at 191 °C, a multipath gas cell with a 5.11 m optical path, upstream sampling pump (10 L/min sampling rate), and acquisition frequency of 5 Hz. Data were reported at 1 Hz.
The exhaust flow rate was determined by subtracting the flow of dilution air introduced into the tunnel, measured with a Venturi system, to the total flow of the dilution tunnel, measured by a critical flow Venturi. Mass emissions were derived from the exhaust gas flow rates (m3/s) and measured concentration (ppmV). The emission factors (mass per distance units) presented for the different vehicles at 23 °C, over the WLTC, correspond to the average of at least two tests performed at the same temperature and cycle for each vehicle.
The emissions presented for the PHEVs correspond to those obtained from charge-sustaining tests. This means that the vehicles were tested with the battery at their minimum state of charge. This approach was followed to be able to compare the different powertrains, pure ICE, hybrid, and PHEV, under more similar operative conditions.

3. Results and Discussion

The fifteen Euro 6d and Euro 6d-TEMP gasoline-fuelled vehicles emitted NH3 when tested over the different driving cycles. As Figure 2 illustrates, these emissions vary from 1 to 9 mg/km for most vehicles tested at 23 °C, over the WLTC, with two vehicles presenting higher emissions, 16 and 53 mg/km, respectively. These two vehicles were both pure ICE GDI vehicles. Four of the tested vehicles presented low NH3 emissions, 1–2 mg/km. They have different powertrains: three were PFI, and one was SPCCI.
NH3 is formed in the TWC by the reaction of NO and H2, according to reactions 3 and 4, presented below. H2 is formed due to steam reforming of hydrocarbons (reaction 1) and/or the water gas shift of reaction 2 [34,35]. The air-to-fuel ratio significantly impacts the NH3 formation, which increases as the conditions become richer. Hence, the formation of NH3 needs the presence of H2 and NO, under rich conditions.
CmH2n + n H2O → m CO + (m + n) H2
CO + H2O → CO2 + H2
2 NO + 4 CO +2 H2O + H2 → 2 NH3 + 4 CO2
2 NO + 5 H2 → 2 NH3 + 2 H2O
CO emissions vary from 29 up to 1063 mg/km. Interestingly, the highest CO and NH3 emissions are from the same vehicle. Two vehicles presented low CO emissions, below 100 mg/km; one was hybrid, and the other was PHEV. For reference the regulatory limit on the WLTC cycle, at 23 °C, in Europe, is 1000 mg/km.
The NH3 emissions measured were comparable to those reported from Euros 4, 5, and 6b gasoline vehicles, tested under similar conditions [27,30,31,38,41,48]. This is in contrast with a recent remote sensing study, which suggests that absolute NH3 emissions gradually decrease with increasing Euro class. It has been shown that for gasoline vehicles equipped with TWC, emissions of NH3 increase along with the mileage [26,49,50]. Hence, the decreasing NH3 emission trend with increasing Euro class reported by Farren et al. [50] could well be associated to an expected lower mileage of newer vehicles, i.e., those meeting Euro 6 standards, compared to previous ones.
Vehicles meeting Euro 6d and 6d-TEMP standards have entered the market very recently (2018). As consequence, the vehicles tested in this study have very low mileage (see Table 1). According to the aging effect, shown by previous studies, one could assume that, as these vehicles’ catalyst age, their NH3 emissions will likely increase.
Ageing of these catalytic systems has been linked, among other factors, to high temperatures to which automobile catalyst are exposed during driving (up to 1000 °C), leading to loss of activity and oxygen storage performance and, thus, the formation of NH3 mainly at high operating temperatures [51].
Besides the air-to-fuel ratio, the operation temperature plays an important role in the formation of NH3, as well [51]. For that reason, eight vehicles were also tested at −7 °C, over the WLTC. The results showed that for all vehicles NH3 emissions increased as the temperature decreased, as also shown in Figure 2. Higher emissions at sub-zero temperatures (i.e., −7 °C) have also been linked, by several studies, to rich combustion, mainly during cold-start operation [30,31,37,41]. The use of rich mixture during cold-start at cold temperatures has been associated with improved combustion performances and/or overcoming the poor mixing of the inlet charge, as a result of the cylinder walls being cold [52,53]. This was also true for those vehicles that presented low NH3 emissions at 23 °C. At this temperature, the emissions varied from 9 to 27 mg/km. This is also in line with what has been shown for Euro 5 and Euro 6 vehicles, including hybrids and plug-in hybrid vehicles [42].
Figure 3 shows average CO and NH3 emissions on the WLTC at 23 °C and −7 °C, as a function of the different engine technologies. It can be easily seen that pure ICE vehicles (left panel) tend to have a similar behaviour at the different temperatures, with an increase of approximately 25% of CO emissions at colder temperatures (CO increases from 395 up to 502 mg/km). NH3 also increased from 13 to 18 mg/km at −7 °C. Interestingly, the situation was significantly different for plug-in hybrids vehicles. These showed a better behaviour at 23 °C (251 mg/km of CO and 5 mg/km of NH3), with, however, an almost 4 times increase in emissions at −7 °C (820 mg/km of CO and 20 mg/km of NH3). Conventional hybrids were generally well-behaved, although only two vehicles for this category were tested.
Several studies have suggested that, due to the use of fuel enrichment, NH3 emissions correlate well with CO emissions [27,30,31,36,37,38]. Gasoline vehicles present high CO emissions during rich operation, when fuel is in excess, with respect to air. These conditions also favour the formation of H2 via reforming of hydrocarbons after the light-off of the catalyst. As summarised by reactions 3 and 4, the presence of H2 and NO lead to the formation of NH3. Therefore, rich operation leads to both the emission of CO and conditions for the formation and emission of NH3. Hence, these emissions appear simultaneously during the vehicle operation, as shown with an example in Figure 4. This, in turn, results in the correlation of the emissions of these two pollutants.
Figure 5 shows that, for all the NH3 and CO emissions (mass units) gathered in this study, the correlation was fair (R2 = 0.75). For this analysis, only emissions recorded after the light-off temperature for NH3 production on the catalyst are taken into consideration. This means that the CO peak, usually recorded in the initial phases of cold-start, is not considered, since, in this period, no NH3 is produced, due to the low temperature, and the two phenomena are independent. The correlation improved to R2 > 0.85 when the vehicles were subdivided by their powertrains in pure ICE and hybrids + PHEVs (see Figure 5, central and bottom panels). Although Figure 5 illustrates that higher emissions of CO are accompanied by higher emissions of NH3, attention shall be paid to the fact that the correlations might be influenced by a few experimental points high concentration values, representing vehicles with high CO and NH3 emissions. The analysis herein reported has been repeated, excluding these high emitters and obtaining correlation coefficients of 0.7, 0.68, and 0.73 for the top, central, and bottom panels, respectively. Beside the points at high CO and/or NH3 concentration, it is evident from the scatter plot of Figure 5 that few vehicles do not follow the correlation with satisfactory agreement. This is an interesting point that will require additional investigation and may relate to different engine mapping or combustions strategies, as well as with catalysts with different precious metal ratios.
Notice that, in both cases, the linear regression was performed without forcing the intercept to zero. Although this might have a slight impact on the R2, it was done to easily highlight the deviation at zero, with respect to an ideal behaviour.
CO emissions varied largely for the vehicles tested. In this case, the emissions factors ranged from 29 to 1061 mg/km, under the same conditions. As in the case of the NH3, the emissions of CO also increased for all the vehicles, when they were tested at sub-zero temperatures.
The emissions of CO were an order of magnitude higher during the BAB cycle, compared to the WLTC for the four vehicles tested over this cycle. A summary of the emission factors, in the different cycles and for the vehicles considered, can be found in Table 2 below.
The BAB is a hot cycle that presents highly dynamic, high-speed, and high-load operations. For that reason, we have used it to investigate the possibility of enrichment events. Figure 6 shows that high peaks of CO are measured during the BAB’s accelerations events, where fuel enrichment is expected to be triggered. Figure 6 also shows the good agreement between the CO and major NH3 emission peaks (i.e., >10 ppm) in these acceleration events during motorway driving. This is in line with previous studies, which suggested that NH3 emissions increased during strong acceleration events, as well as during dynamic cycles [44,54,55]. These studies associated the high NH3 emissions over more dynamic cycles, once again, to rich operation [44,54,55].
Following these considerations, the emissions obtained, during what can be considered the urban phases of the WLTC (low and medium phases, see Figure 1), where driving is not aggressive and at relatively low speeds, were compared to those measured during a portion of the BAB covering the same distance (approx. 8 km). The four vehicles presented 4 to 8 times higher emissions during the BAB operation (16–63 mg/km) than during the “urban” operation (3–11 mg/km), which, in turn, were higher than those measured during the whole WLTC.

4. Conclusions

Fifteen gasoline-fuelled vehicles, meeting the Euro 6d or 6d-TEMP standard, were tested over the type-approval WLTC, at 23 °C, eight of which were also tested at −7 ± 3 °C, on the same cycle, and four were also tested using the ADAC highway cycle (BAB 130).
All the vehicles tested emitted NH3 over the different driving cycles. The NH3 emissions increased when the vehicles were tested at −7 °C. The NH3 emissions measured from these Euro 6d or 6d-TEMP vehicles were comparable to those reported from the Euro 4, 5, and 6b gasoline vehicles, tested under similar conditions.
The emissions of NH3 and CO, subdivided by their powertrains, in pure ICE and hybrids+PHEVs, resulted in a fair correlation with R2 > 0.75. Moreover, excellent agreement between the CO and the NH3 emission peaks was registered during the acceleration events of the BAB cycle.
Higher emissions at sub-zero temperatures have been associated to rich combustion during cold-start operation, and the correlation of NH3 and CO emissions have been shown to be linked to fuel enrichment. Therefore, the combined presence of emissions of NH3 and CO during a test can be used as an indicator to recognise fuel enrichment events.

Author Contributions

Conceptualisation, T.S., R.S.-B., P.B.; Formal analysis, T.S., R.S.-B., A.M.; Writing—original main draft preparation, R.S.-B.; Writing—additional writing, reviewing and editing, T.S., R.S.-B., A.M., P.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

Authors would like to acknowledge the support and collaboration of A. Bonamin, M. Carriero, P. Le Lijour, M. Sculati, M. Otura-Garcia, M. Centurelli, C. Ferrarese, L. Bigozzi, C. Bonato, and A. Migneco.

Conflicts of Interest

The authors declare no conflict of interest.

Disclaimer

The opinions expressed in this manuscript are those of the authors and should not be considered to represent an official opinion of the European Commission.

References

  1. Finlayson–Pitts, B.J.; Pitts, J.N.J. Chemistry of the Upper and Lower Atmosphere; Academic Press: San Diego, CA, USA, 2000; pp. 349–360. [Google Scholar]
  2. Behera, S.N.; Sharma, M. Investigating the potential role of ammonia in ion chemistry of fine particulate matter formation for an urban environment. Sci. Total Environ. 2010, 408, 3569–3575. [Google Scholar] [CrossRef] [PubMed]
  3. Kirkby, J.; Curtius, J.; Almeida, J.; Dunne, E.; Duplissy, J.; Ehrhart, S.; Franchin, A.; Gagné, S.; Ickes, L.; Kürten, A.; et al. Role of sulphuric acid, ammonia and galactic cosmic rays in atmospheric aerosol nucleation. Nature 2011, 476, 429–433. [Google Scholar] [CrossRef] [PubMed]
  4. Na, K.; Song, C.; Switzer, C.; Cocker, D.R. Effect of Ammonia on Secondary Organic Aerosol Formation from α-Pinene Ozonolysis in Dry and Humid Conditions. Environ. Sci. Technol. 2007, 41, 6096–6102. [Google Scholar] [CrossRef] [PubMed]
  5. Huang, X.; Song, Y.; Li, M.; Li, J.; Huo, Q.; Cai, X.; Zhu, T.; Hu, M.; Zhang, H. A high-resolution ammonia emission inventory in China. Glob. Biogeochem. Cycles 2012, 26, GB1030. [Google Scholar] [CrossRef]
  6. EEA. Air Pollutant Emission Inventory Guidebook—2016, EEA Report No 21/2016. Available online: https://www.eea.europa.eu//publications/emep-eea-guidebook-2016 (accessed on 21 February 2022).
  7. Sutton, M.A.; Erisman, J.W.; Dentener, F.; Möller, D. Ammonia in the environment: From ancient times to the present. Environ. Pollut. 2008, 156, 583–604. [Google Scholar] [CrossRef]
  8. Bouwman, A.F.; Van Vuuren, D.P.; Derwent, R.G.; Posch, M. A Global Analysis of Acidification and Eutrophication of Terrestrial Ecosystems. Water Air Soil Pollut. 2002, 141, 349–382. [Google Scholar] [CrossRef]
  9. Erisman, J.W.; Grennfelt, P.; Sutton, M. The European perspective on nitrogen emission and deposition. Environ. Int. 2003, 29, 311–325. [Google Scholar] [CrossRef]
  10. European Environmental Agency. The European Environment—State and Outlook 2020. Knowledge for Transition to a Sustainable Europe 2019; European Environmental Agency: Copenhagen, Denmark, 2019. [Google Scholar] [CrossRef]
  11. Lelieveld, J.; Evans, J.S.; Fnais, M.; Giannadaki, D.; Pozzer, A. The contribution of outdoor air pollution sources to premature mortality on a global scale. Nature 2015, 525, 367–371. [Google Scholar] [CrossRef]
  12. Kim, B.M.; Teffera, S.; Zeldin, M.D. Characterization of PM25 and PM10 in the South Coast Air Basin of Southern California: Part 1—Spatial Variations. J. Air Waste Manag. Assoc. 2000, 50, 2034–2044. [Google Scholar] [CrossRef]
  13. Sillanpää, M.; Hillamo, R.; Saarikoski, S.; Frey, A.; Pennanen, A.; Makkonen, U.; Spolnik, Z.; Van Grieken, R.; Braniš, M.; Brunekreef, B. Chemical composition and mass closure of particulate matter at six urban sites in Europe. Atmos. Environ. 2006, 40, 212–223. [Google Scholar] [CrossRef]
  14. Huang, R.-J.; Zhang, Y.; Bozzetti, C.; Ho, K.-F.; Cao, J.-J.; Han, Y.; Daellenbach, K.R.; Slowik, J.G.; Platt, S.M.; Canonaco, F.; et al. High secondary aerosol contribution to particulate pollution during haze events in China. Nature 2014, 514, 218–222. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Park, S.-S.; Jung, S.-A.; Gong, B.-J.; Cho, S.-Y.; Lee, S.-J. Characteristics of PM2.5 Haze Episodes Revealed by Highly Time-Resolved Measurements at an Air Pollution Monitoring Supersite in Korea. Aerosol Air Qual. Res. 2013, 13, 957–976. [Google Scholar] [CrossRef]
  16. Petetin, H.; Sciare, J.; Bressi, M.; Gros, V.; Rosso, A.; Sanchez, O.; Sarda-Estève, R.; Petit, J.-E.; Beekmann, M. Assessing the ammonium nitrate formation regime in the Paris megacity and its representation in the CHIMERE model. Atmos. Chem. Phys. 2016, 16, 10419–10440. [Google Scholar] [CrossRef] [Green Version]
  17. Putaud, J.-P.; Van Dingenen, R.; Alastuey, A.; Bauer, H.; Birmili, W.; Cyrys, J.; Flentje, H.; Fuzzi, S.; Gehrig, R.; Hansson, H.; et al. A European aerosol phenomenology—3: Physical and chemical characteristics of particulate matter from 60 rural, urban, and kerbside sites across Europe. Atmos. Environ. 2010, 44, 1308–1320. [Google Scholar] [CrossRef]
  18. Paulot, F.; Jacob, D.J. Hidden Cost of U.S. Agricultural Exports: Particulate Matter from Ammonia Emissions. Environ. Sci. Technol. 2014, 48, 903–908. [Google Scholar] [CrossRef] [PubMed]
  19. Shindell, D.T.; Faluvegi, G.; Koch, D.M.; Schmidt, G.A.; Unger, N.; Bauer, S.E. Improved Attribution of Climate Forcing to Emissions. Science 2009, 326, 716–718. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. IPCC. Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, NY, USA, 2013. [Google Scholar]
  21. Directive 2001/81/EC of the European Parliament and of the Council of 23 October 2001 on National Emission Ceilings for Certain Atmospheric Pollutants; European Union: Brussels, Belgium, 2001.
  22. Directive 2008/1/EC of the European Parliament and of the Council of 15 January 2008 Concerning Integrated Pollution Prevention and Control; European Union: Brussels, Belgium, 2008.
  23. EEA Indicator IND-168-en Also Known as: APE 003. Data Source: National Emissions Reported to the Convention on Long-Range Transboundary Air Pollution (LRTAP Convention) Provided by United Nations Economic Commission for Europe (UNECE); Ammonia (NH3) Emissions; European Environment Agency: Copenhagen, Denmark, 2012; Available online: https://www.eea.europa.eu/data-and-maps/indicators/eea-32-ammonia-nh3-emissions-1/assessment-2 (accessed on 16 November 2021).
  24. Directive (EU) 2016/2284 of the European Parliament and of the Council of 14 December 2016 on the Reduction of National Emissions of Certain Atmospheric Pollutants, Amending Directive 2003/35/EC and Repealing Directive 2001/81/EC; European Union: Brussels, Belgium, 2016.
  25. European Environmental Agency. EEA Report No 09/2020 Air Quality in Europe—2020 Report; Office of the European Union: Luxembourg, 2020; ISBN 978-92-9480-292-7. [Google Scholar]
  26. Bishop, G.A.; Stedman, D.H. Reactive Nitrogen Species Emission Trends in Three Light-/Medium-Duty United States Fleets. Environ. Sci. Technol. 2015, 49, 11234–11240. [Google Scholar] [CrossRef]
  27. Suarez-Bertoa, R.; Zardini, A.A.; Lilova, V.; Meyer, D.; Nakatani, S.; Hibel, F.; Ewers, J.; Clairotte, M.; Hill, L.; Astorga, C. Intercomparison of real-time tailpipe ammonia measurements from vehicles tested over the new world-harmonized light-duty vehicle test cycle (WLTC). Environ. Sci. Pollut. Res. 2015, 22, 7450–7460. [Google Scholar] [CrossRef] [Green Version]
  28. Sun, K.; Tao, L.; Miller, D.J.; Khan, M.A.; Zondlo, M. On-Road Ammonia Emissions Characterized by Mobile, Open-Path Measurements. Environ. Sci. Technol. 2014, 48, 3943–3950. [Google Scholar] [CrossRef]
  29. Fenn, M.E.; Bytnerowicz, A.; Schilling, S.L.; Vallano, D.M.; Zavaleta, E.S.; Weiss, S.B.; Morozumi, C.; Geiser, L.H.; Hanks, K. On-road emissions of ammonia: An underappreciated source of atmospheric nitrogen deposition. Sci. Total Environ. 2018, 625, 909–919. [Google Scholar] [CrossRef] [Green Version]
  30. Suarez-Bertoa, R.; Zardini, A.; Astorga, C. Ammonia exhaust emissions from spark ignition vehicles over the New European Driving Cycle. Atmos. Environ. 2014, 97, 43–53. [Google Scholar] [CrossRef]
  31. Suarez-Bertoa, R.; Astorga, C. Isocyanic acid and ammonia in vehicle emissions. Transp. Res. Part D Transp. Environ. 2016, 49, 259–270. [Google Scholar] [CrossRef]
  32. Thiruvengadam, A.; Besch, M.; Carder, D.; Oshinuga, A.; Pasek, R.; Hogo, H.; Gautam, M. Unregulated greenhouse gas and ammonia emissions from current technology heavy-duty vehicles. J. Air Waste Manag. Assoc. 2016, 66, 1045–1060. [Google Scholar] [CrossRef] [PubMed]
  33. Bradow, R.L.; Stump, F.D. Unregulated Emissions from Three-Way Catalyst Cars, SAE (1977)Technical Paper No. 770369. Available online: https://www.sae.org/publications/technical-papers/content/770369/ (accessed on 16 November 2021).
  34. Barbier, J., Jr.; Duprez, D. Steam effects in three-way catalysis. Appl. Catal. B Environ. 1994, 4, 105–140. [Google Scholar] [CrossRef]
  35. Whittington, B.I.; Jiang, C.J.; Trimm, D.L. Vehicle exhaust catalysis: I. The relative importance of catalytic oxidation, steam reforming, and water-gas shift reactions. Catal. Today 1995, 26, 41–45. [Google Scholar] [CrossRef]
  36. Kean, A.; Littlejohn, D.; Ban-Weiss, G.; Harley, R.; Kirchstetter, T.; Lunden, M. Trends in on-road vehicle emissions of ammonia. Atmos. Environ. 2009, 43, 1565–1570. [Google Scholar] [CrossRef] [Green Version]
  37. Heeb, N.V.; Saxer, C.J.; Forss, A.-M.; Brühlmann, S. Trends of NO-, NO2-, and NH3-emissions from gasoline-fueled Euro-3- to Euro-4-passenger cars. Atmos. Environ. 2008, 42, 2543–2554. [Google Scholar] [CrossRef]
  38. Suarez-Bertoa, R.; Mendoza-Villafuerte, P.; Riccobono, F.; Vojtisek, M.; Pechout, M.; Perujo, A.; Astorga, C. On-road measurement of NH 3 emissions from gasoline and diesel passenger cars during real world driving conditions. Atmos. Environ. 2017, 166, 488–497. [Google Scholar] [CrossRef]
  39. U.S. 40 CFR 86. 1811-17. Available online: https://www.govinfo.gov/app/details/CFR-2014-title40-vol19/CFR-2014-title40-vol19-sec86-1811-17 (accessed on 16 November 2021).
  40. Link, M.F.; Kim, J.; Park, G.; Lee, T.; Park, T.; Bin Babar, Z.; Sung, K.; Kim, P.; Kang, S.; Kim, J.S.; et al. Elevated production of NH 4 NO 3 from the photochemical processing of vehicle exhaust: Implications for air quality in the Seoul Metropolitan Region. Atmos. Environ. 2017, 156, 95–101. [Google Scholar] [CrossRef]
  41. Suarez-Bertoa, R.; Astorga, C. Unregulated emissions from light-duty hybrid electric vehicles. Atmos. Environ. 2016, 136, 134–143. [Google Scholar] [CrossRef]
  42. Suarez-Bertoa, R.; Pavlovic, J.; Trentadue, G.; Otura-Garcia, M.; Tansini, A.; Ciuffo, B.; Astorga, C. Effect of Low Ambient Temperature on Emissions and Electric Range of Plug-In Hybrid Electric Vehicles. ACS Omega 2019, 4, 3159–3168. [Google Scholar] [CrossRef] [PubMed]
  43. Suarez-Bertoa, R.; Lähde, T.; Pavlovic, J.; Valverde, V.; Clairotte, M.; Giechaskiel, B. Laboratory and On-Road Evaluation of a GPF-Equipped Gasoline Vehicle. Catalysts 2019, 9, 678. [Google Scholar] [CrossRef] [Green Version]
  44. Livingston, C.; Rieger, P.; Winer, A. Ammonia emissions from a representative in-use fleet of light and medium-duty vehicles in the California South Coast Air Basin. Atmos. Environ. 2009, 43, 3326–3333. [Google Scholar] [CrossRef]
  45. Durbin, T.D.; Pisano, J.T.; Younglove, T.; Sauer, C.G.; Rhee, S.H.; Huai, T.; Miller, J.; MacKay, G.I.; Hochhauser, A.M.; Ingham, M.C.; et al. The effect of fuel sulfur on NH3 and other emissions from 2000–2001 model year vehicles. Atmos. Environ. 2004, 38, 2699–2708. [Google Scholar] [CrossRef]
  46. Clairotte, M.; Valverde, V.; Bonnel, P.; Giechaskiel, P.; Carriero, M.; Otura, M.; Fontaras, G.; Pavlovic, J.; Martini, G.; Krasenbrink, A. Joint Research Centre 2017 Light-Duty Vehicles Emissions Testing Contribution to the EU Market Surveillance: Testing Protocols and Vehicle Emissions Performance; Publications Office of the European Union: Luxembourg, 2018; ISBN 978-92–79-90600-8. [Google Scholar]
  47. Giechaskiel, B.; Suarez-Bertoa, R.; Lahde, T.; Clairotte, M.; Carriero, M.; Bonnel, P.; Maggiore, M. Emissions of a Euro 6b Diesel Passenger Car Retrofitted with a Solid Ammonia Reduction System. Atmosphere 2019, 10, 180. [Google Scholar] [CrossRef] [Green Version]
  48. Selleri, T.; Melas, A.; Joshi, A.; Manara, D.; Perujo, A.; Suarez-Bertoa, R. An Overview of Lean Exhaust deNOx Aftertreatment Technologies and NOx Emission Regulations in the European Union. Catalysts 2021, 11, 404. [Google Scholar] [CrossRef]
  49. Durbin, T.D.; Wilson, R.D.; Norbeck, J.M.; Miller, J.; Huai, T.; Rhee, S.H. Estimates of the emission rates of ammonia from light-duty vehicles using standard chassis dynamometer test cycles. Atmos. Environ. 2002, 36, 1475–1482. [Google Scholar] [CrossRef] [Green Version]
  50. Farren, N.J.; Davison, J.; Rose, R.A.; Wagner, R.L.; Carslaw, D.C. Underestimated Ammonia Emissions from Road Vehicles. Environ. Sci. Technol. 2020, 54, 15689–15697. [Google Scholar] [CrossRef]
  51. Nevalainen, P.; Kinnunen, N.M.; Kirveslahti, A.; Kallinen, K.; Maunula, T.; Keenan, M.; Suvanto, M. Formation of NH 3 and N2O in a modern natural gas three-way catalyst designed for heavy-duty vehicles: The effects of simulated exhaust gas composition and ageing. Appl. Catal. A Gen. 2018, 552, 30–37. [Google Scholar] [CrossRef]
  52. Roberts, A.; Brooks, R.; Shipway, P. Internal combustion engine cold-start efficiency: A review of the problem, causes and potential solutions. Energy Convers. Manag. 2014, 82, 327–350. [Google Scholar] [CrossRef] [Green Version]
  53. Suarez-Bertoa, R.; Astorga, C. Impact of cold temperature on Euro 6 passenger car emissions. Environ. Pollut. 2018, 234, 318–329. [Google Scholar] [CrossRef] [PubMed]
  54. Huai, T.; Durbin, T.D.; Miller, J.W.; Pisano, J.T.; Sauer, C.G.; Rhee, S.H.; Norbeck, J.M. Investigation of NH3 Emissions from New Technology Vehicles as a Function of Vehicle Operating Conditions. Environ. Sci. Technol. 2003, 37, 4841–4847. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Huai, T.; Durbin, T.D.; Younglove, T.; Scora, G.; Barth, M.; Norbeck, J.M. Vehicle Specific Power Approach to Estimating On-Road NH3 Emissions from Light-Duty Vehicles. Environ. Sci. Technol. 2005, 39, 9595–9600. [Google Scholar] [CrossRef] [PubMed]
Catalysts 12 00245 g001 550

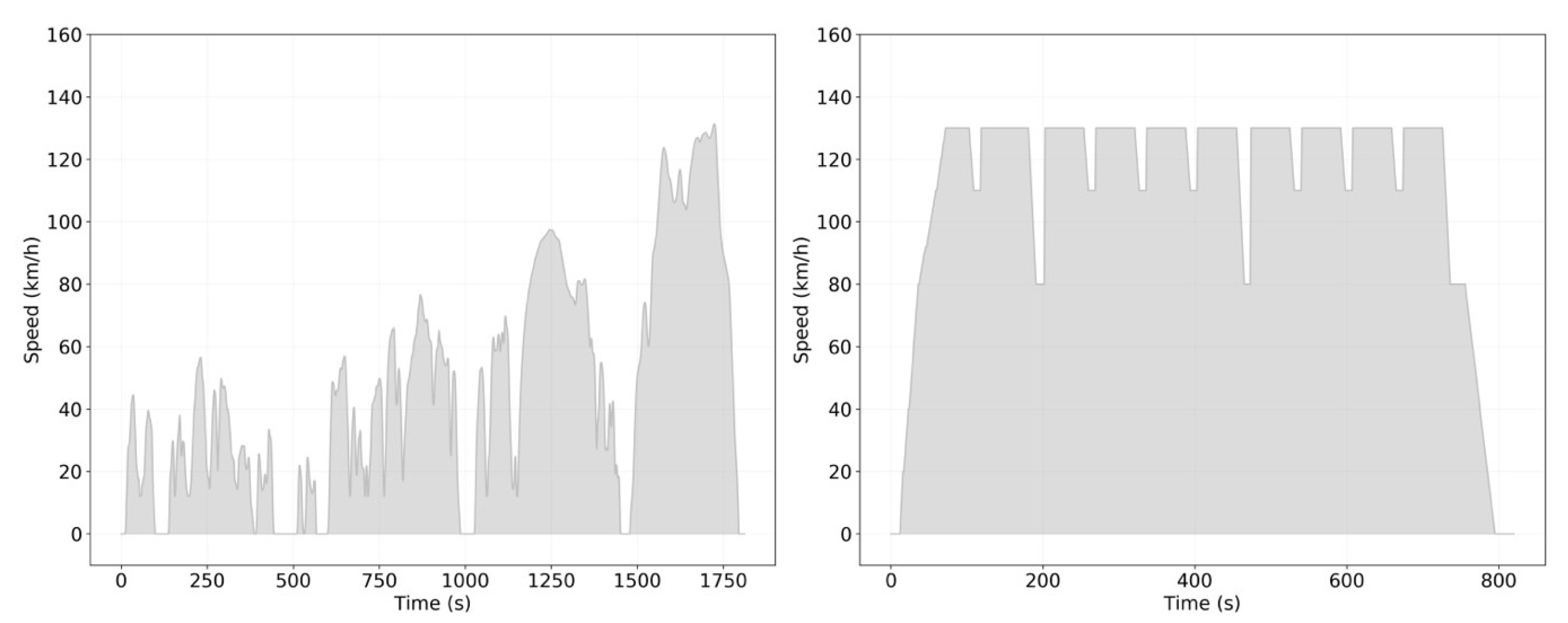

Figure 1. Test cycles speed profiles. Left panel: WLTC, right panel: BAB.
Figure 1. Test cycles speed profiles. Left panel: WLTC, right panel: BAB.
Catalysts 12 00245 g001
Catalysts 12 00245 g002 550

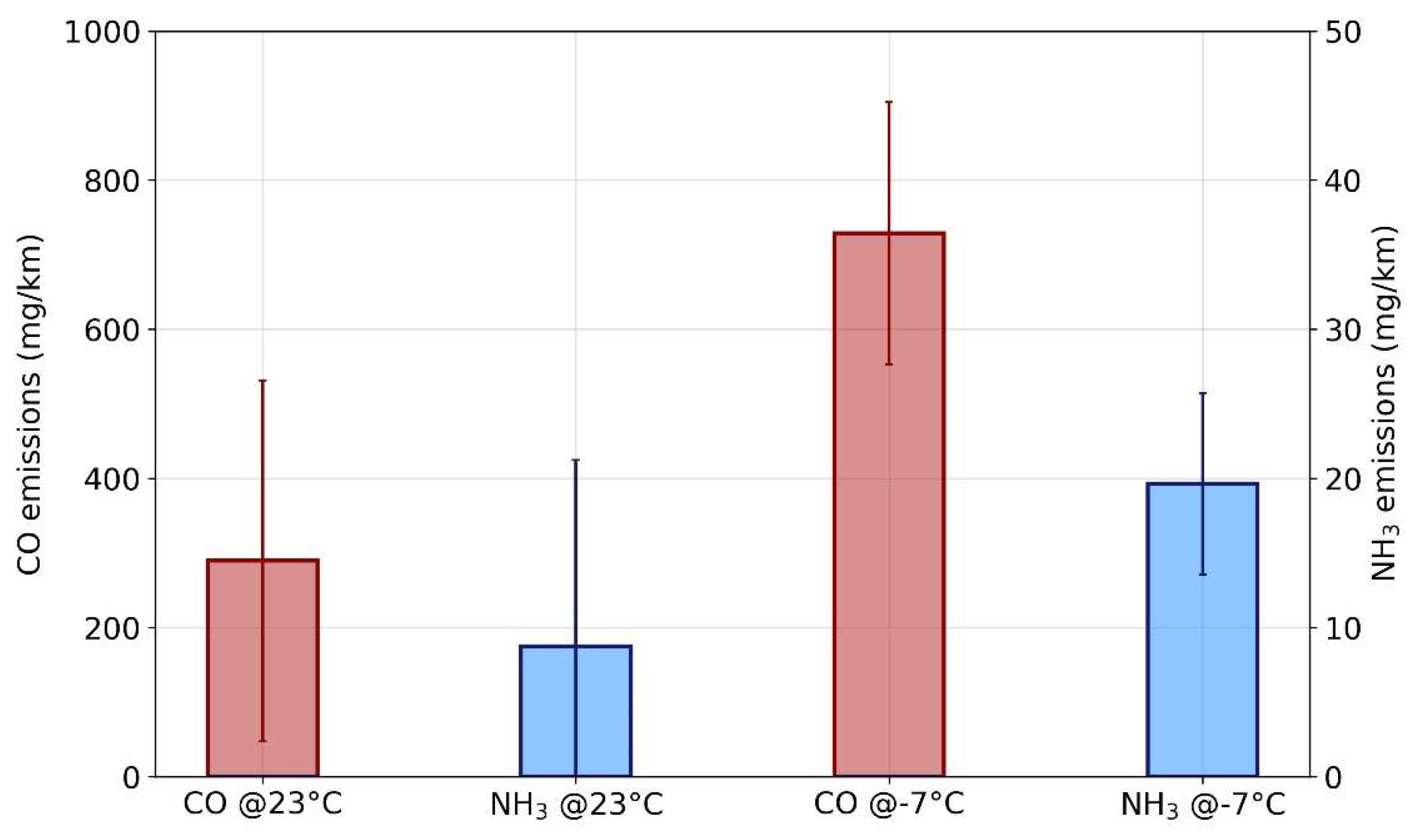

Figure 2. Bar plots of average NH3 and CO emissions emitted by fifteen vehicles on the WLTC, at 23 °C and at −7 °C. Error bars correspond to standard deviation.
Figure 2. Bar plots of average NH3 and CO emissions emitted by fifteen vehicles on the WLTC, at 23 °C and at −7 °C. Error bars correspond to standard deviation.
Catalysts 12 00245 g002
Catalysts 12 00245 g003 550

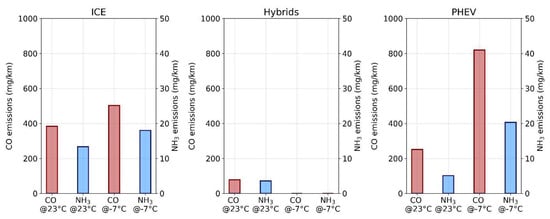

Figure 3. Bar plots of average NH3 and CO on the WLTC at 23 °C and at −7 °C for the different engine technologies.
Figure 3. Bar plots of average NH3 and CO on the WLTC at 23 °C and at −7 °C for the different engine technologies.
Catalysts 12 00245 g003
Catalysts 12 00245 g004 550

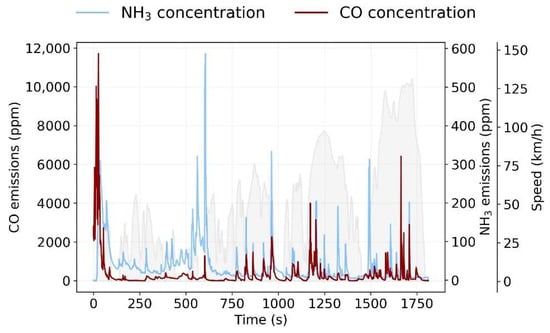

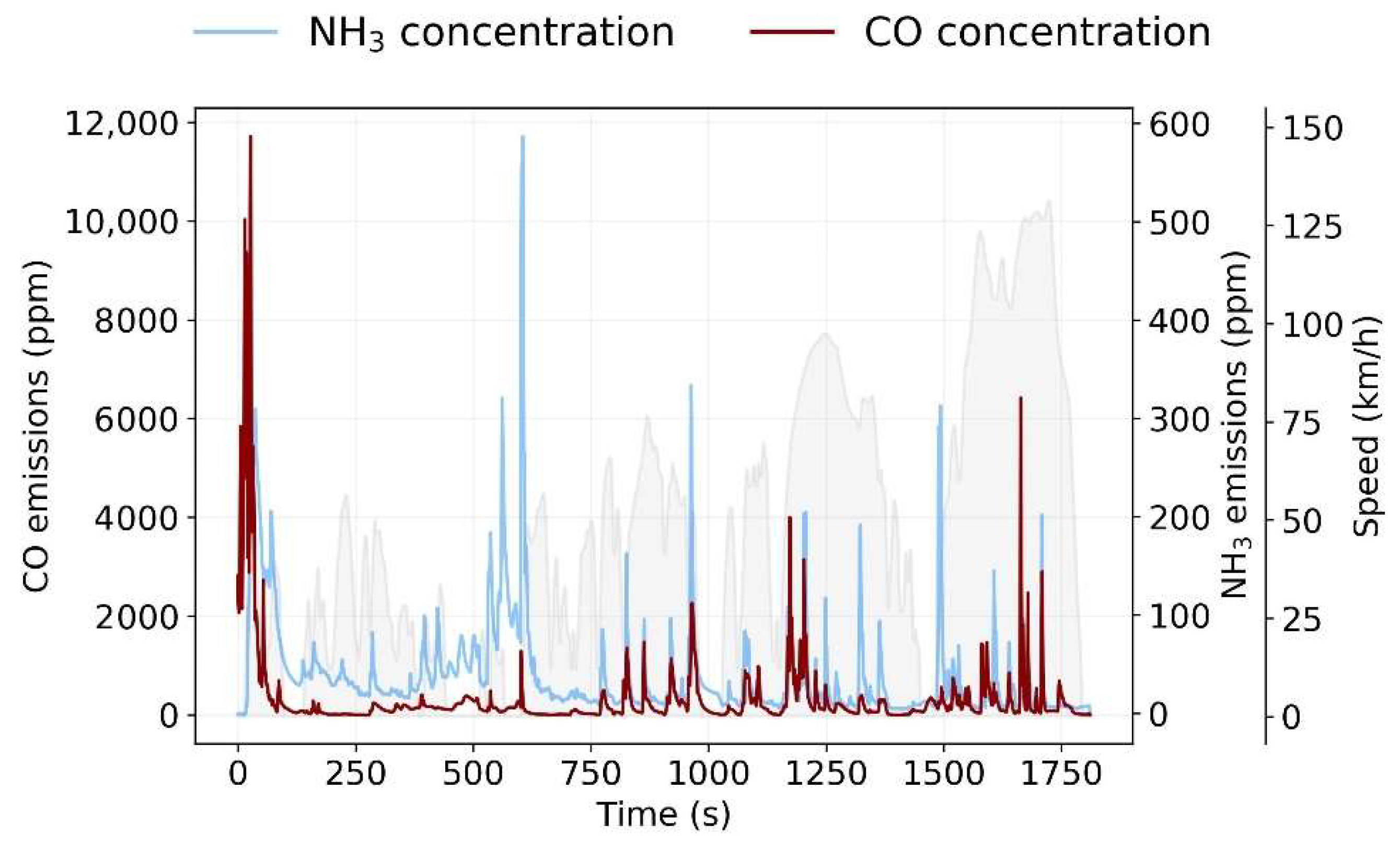

Figure 4. Example of CO (red line) and NH3 (light blue line) emission profiles over a WLTC. Speed profile reported in grey.
Figure 4. Example of CO (red line) and NH3 (light blue line) emission profiles over a WLTC. Speed profile reported in grey.
Catalysts 12 00245 g004
Catalysts 12 00245 g005 550

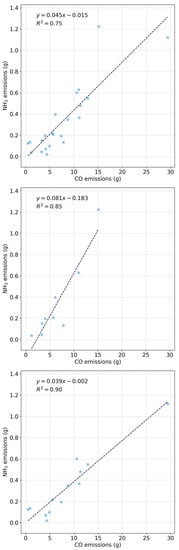

Figure 5. NH3 vs. CO concentrations correlation. Top panel: all measured emissions per vehicle for all tested vehicles. Central panel: all measured emissions from pure ICE vehicles. Bottom panel: all measured emissions from hybrids and PHEVs.
Figure 5. NH3 vs. CO concentrations correlation. Top panel: all measured emissions per vehicle for all tested vehicles. Central panel: all measured emissions from pure ICE vehicles. Bottom panel: all measured emissions from hybrids and PHEVs.
Catalysts 12 00245 g005
Catalysts 12 00245 g006 550

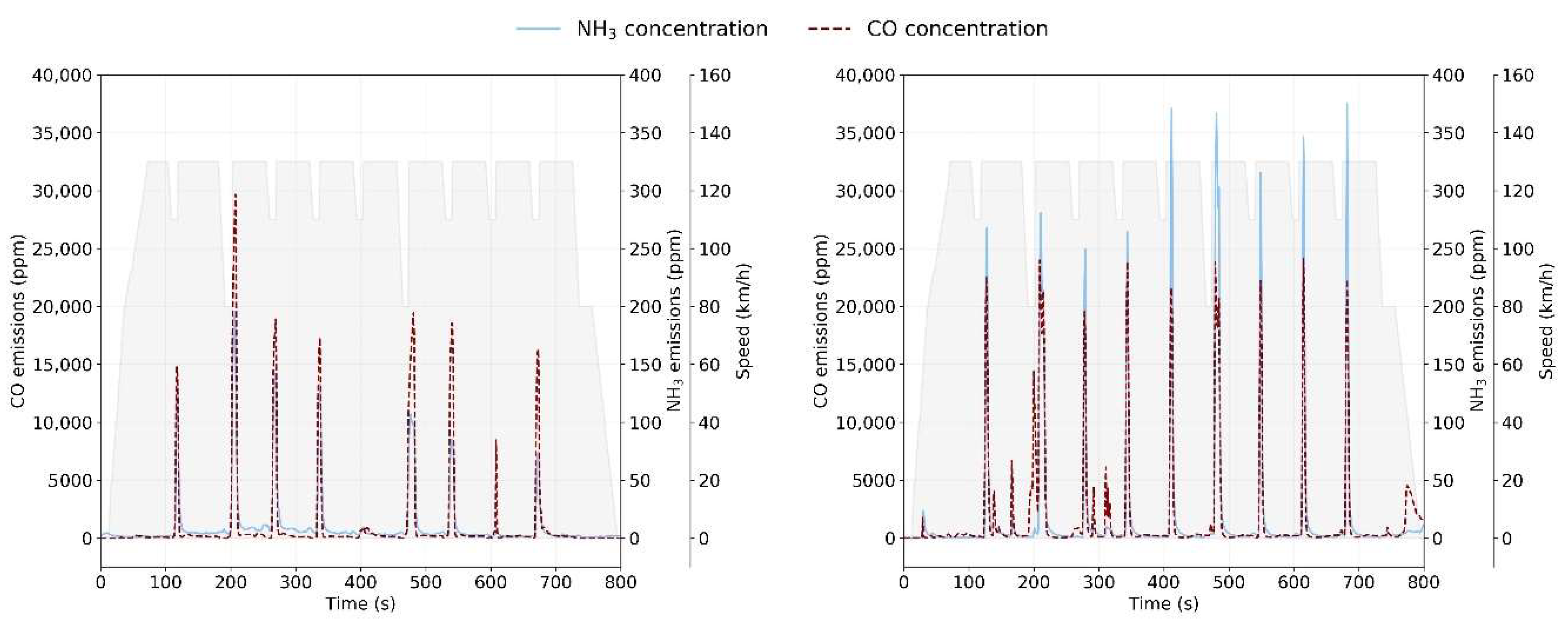

Figure 6. Examples of emission profile of NH3 (light blue lines) and CO (red line lines) during a BAB. Left panel: vehicle #1; right panel: vehicle #10. Speed profile reported in grey.
Figure 6. Examples of emission profile of NH3 (light blue lines) and CO (red line lines) during a BAB. Left panel: vehicle #1; right panel: vehicle #10. Speed profile reported in grey.
Catalysts 12 00245 g006
Table
Table 1. Characteristics of the vehicles tested; ICE: conventional internal combustion engine, hybrid: hybrid engine, PHEV: plug-in hybrid engine. DI: direct injection, PFI: port fuel injection, SCCI: spark-controlled compression ignition.
Table 1. Characteristics of the vehicles tested; ICE: conventional internal combustion engine, hybrid: hybrid engine, PHEV: plug-in hybrid engine. DI: direct injection, PFI: port fuel injection, SCCI: spark-controlled compression ignition.
#PowertrainInjectionDisplacement (cm3)ICE Power (kW)Euro Standard
1ICESPCCI1998132Euro 6d-ISC
2ICEDI1499100Euro 6d-TEMP
3ICEDI2498129Euro 6d-TEMP-EVAP-ISC
4ICEDI1798165Euro 6d-TEMP
5ICEPFI119961Euro 6d-TEMP
6ICEPFI124855.2Euro 6d-TEMP
7ICEPFI139864Euro 6d-TEMP
8HybridDI198890Euro 6d-TEMP-EVAP
9HybridPFI179872Euro 6d-TEMP
10PHEVDI1499100Euro 6d-TEMP-EVAP-ISC
11PHEVDI1598133Euro 6d-ISC
12PHEVDI158077.2Euro 6d-TEMP
13PHEVDI1499100Euro 6d-TEMP
14PHEVDI1598133Euro 6d-ISC
15PHEVPFI236099Euro 6d-TEMP
Table
Table 2. Summary of emission factors for the vehicles tested (averaged values, if test is more than one).
Table 2. Summary of emission factors for the vehicles tested (averaged values, if test is more than one).
#WLTC CO (mg/km)WLTC NH3 (mg/km)BAB CO (mg/km)BAB NH3 (mg/km)WLTC @ −7 °C CO (mg/km)WLTC @ −7 °C NH3 (mg/km)BAB @ −7 °C CO (mg/km)BAB @ −7 °C NH3 (mg/km)
11262242494749--
224316--53027--
3106353------
42407------
51782------
62749------
75326------
81266------
9291------
10358941702074621--
113324241787401511416
12345--77226--
133198------
14274355911185024--
151881--104016--
