The Role of Steps on Silver Nanoparticles in Electrocatalytic Oxygen Reduction

Abstract

Hydrogen fuel cell technology is an essential component of a green economy. However, it is limited in practicality and affordability by the oxygen reduction reaction (ORR). Nanoscale silver particles have been proposed as a cost-effective solution to this problem. However, previous computational studies focused on clean and flat surfaces. High-index surfaces can be used to model active steps presented in nanoparticles. Here, we used the stable stepped Ag(322) surface as a model to understand the ORR performance of steps on Ag nanoparticles. Our density functional theory (DFT) results demonstrate a small dissociation energy barrier for O₂ molecules on the Ag(322) surface, which can be ascribed to the existence of low-coordination number surface atoms. Consequently, the adsorption of OOH* led to the associative pathway becoming ineffective. Alternatively, the unusual dissociative mechanism is energetically favored on Ag(322) for ORR. Our findings reveal the importance of the coordination numbers of active sites for catalytic performance, which can further guide electrocatalysts’ design.

1. Introduction

The looming energy crisis is inevitable unless current energy sources are replaced with sustainable green alternatives. Energy sources have become more diverse and greener in recent years, yet solar and wind power alone are unlikely to overcome our predicament. The electrification of our power sector will meet the challenges of long-distance transport, metallurgy, etc. [1]. Hydrogen is an abundant element that could address the limitations of the current clean energy sector. It can be used for metallurgic purposes and as a source of portable high energy density storage technology [2,3]. However, extracting the energy from hydrogen has proved challenging. The hydrogen fuel cell is the primary technology that converts this gas into electricity and is the pathway to a 100% renewable economy [4,5]. Unfortunately, this technology is held back by the kinetically poor cathodic oxygen reduction reaction (ORR) [6,7,8,9]. Moreover, expensive Pt-based catalysts are necessary for commercial hydrogen fuel cells. Therefore, the low energy conversion efficiency and high cost of the electrocatalysts prevent the hydrogen fuel cell to compete with traditional alternatives. An intuitive approach for this problem is to increase the electrocatalytic performance of a non-expensive material [10]. However, these substitutes are difficult to mass-produce or have poor lifetimes [11,12]. Therefore, an earth-abundant elemental catalyst would be ideal.

Silver is a potential alternative electrocatalyst for hydrogen fuel cells. This is because Ag has similar properties to Pt [13,14,15]. In addition, Ag-based catalysts are 50 times cheaper than the industrial Pt/C standard [14]. Previous studies have revealed that Ag nanowires, nanocubes, and nanoparticles have high catalytic performance due to their unique surface morphology [16]. Since Ag nanomaterials are rich in high-Miller-index surfaces, their outstanding performance may be ascribed to the existence of these stepped surfaces [15]. Ag is facet-dependent and has shown significant variation in its catalytic properties due to the different bonding strengths with the adsorbates [13,17,18,19,20,21,22]. High-Miller-index surfaces often show stronger catalytic activity than their flat counterparts. Vattuone et al. found that Ag (210) showed different absorption properties of oxygen molecules at 105 K. Additionally, when Ag (210) absorbed an oxygen molecule, it became easier for the surface to absorb additional oxygen molecules. Jiang et al. investigated the benzene adsorption on stepped Ag(211), (533), (322), (755), and (544) surfaces. They found that the work function change of the surface was strongly related to the density of the steps [23]. In addition, the adsorption energy of benzene on the Ag(322) surface was found to be the strongest among all the considered systems, which was 9% stronger than that on Ag(111). While the ORR mechanisms of flat, low-Miller-index surfaces are well understood, minimal theoretical work has been conducted to investigate the mechanisms of their ORR pathways on these rough stepped surfaces [24]. Furthermore, a better understanding of the ORR pathways on stepped surfaces can illuminate ways to improve the overall performance of other nanocatalysts. To this end, an atomistic investigation of the ORR mechanisms on stepped surfaces is required.

Previous studies have demonstrated that computational methodology plays a crucial role in accurately understanding the adsorption properties of the O₂ on Ag surfaces [21,25,26,27]. The adsorption of the oxygen molecule is also controversial, as it has several adsorption states [28,29,30]. Studying ORR is notorious for being beyond the limits of the generalized gradient approximation (GGA) level studies. Several limitations, such as the self-interaction error and poor descriptions of two-body vdW forces, prevent the broad application of DFT [31,32,33]. Computations with some van der Waals (vdW) correction methods, e.g., D3, still fall short of experimental expectations [34]. Only hybrid or non-local functionals can reliably reproduce experimental values, but they suffer from large computational costs [35,36]. However, the SCAN-rVV10 method overcomes these limitations [37,38]. Our previous study demonstrated its excellent non-local vdW and close-range predictions [8]. Both SCAN and rVV10 have been shown individually to work around the self-interaction error and replicate an accurate oxygen dissociation energy barrier for Ag(111) [8,39]. Therefore, this method could be useful for further studies involving O₂ adsorption.

In this study, the ORR mechanism of the Ag(322) surface was investigated using the SCAN-rVV10 method. The Ag(322) surface was selected since it is a stable stepped surface with high reactivity [23,40], which can be reflective of the features of nanoparticles. The results showed that the dissociative pathway was energetically preferred for ORR on Ag(322). Furthermore, the coordination numbers of the surface atoms are essential to their catalytic performance.

2. Results and Discussion

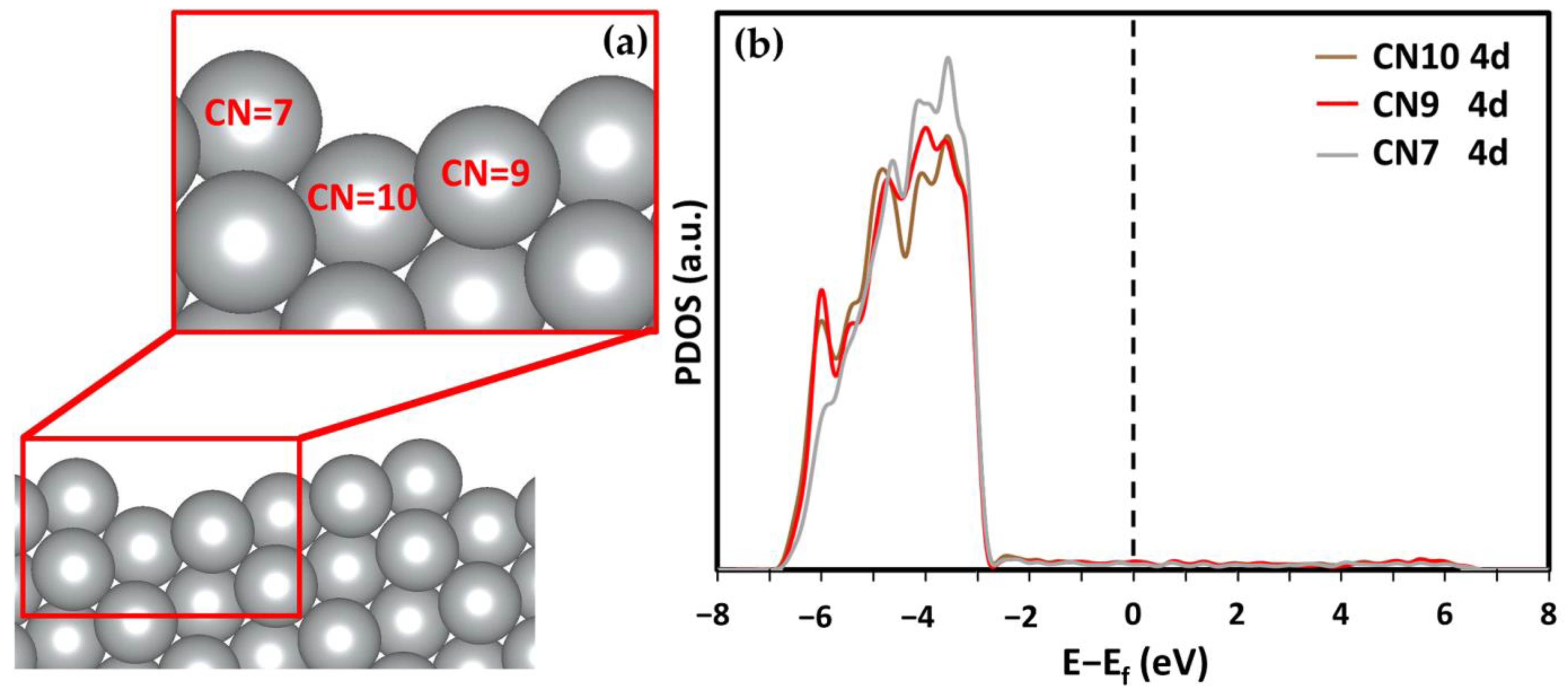

2.1. Surface Properties of Ag(322)

High-Miller-index surfaces have higher catalytic activity because of the differences in layer separation and the greater number of available bonding states [21]. However, the main drawback of high-Miller-index nanocatalysts is their short lifetime. Most high-Miller-index surfaces have large surface energies. For example, the (211) and (210) surfaces studied by Jiang et al. and Vattuone et al. had surface energies of 0.87 and 0.90 J/m², which is 14% and 18% higher than that of the most stable Ag(111) surfaces, respectively [40]. Such high surface energy leads to reconstruction to a thermodynamically stable configuration, limiting the lifetime of the high-Miller-index surfaces. By comparison, the Ag(322) surface has almost identical surface energy to that of the Ag(111) while still being a high-Miller surface [40]. The Ag(322) surface has noticeable surface relaxation because of its stepped edge. The interlayer distances between the first and second topmost layers (Δ12) and between the second and third layers (Δ23) are reduced by 19.58% and 4.55%, respectively. Conversely, the interlayer relaxation in the Ag(111) surface is negligible [8]. The large relaxation in Ag(322) is influenced by its unique morphology. The Ag(322) surface has three different coordination numbered (CN) Ag atoms (see Figure 1a). The CN of the topmost Ag atoms is 7. As a comparison, all the atoms in the topmost Ag(111) surface have a CN of 9. These differing CN atoms have different electronic configurations. The partial density of states (PDOS) of the Ag 4d states is shown in Figure 1b. It can be seen that the states of the CN7 atoms have sharper peaks, which are closer to the Fermi energy level. The PDOS images suggest that CN7 atoms are more reactive, which means they could have stronger adsorption capabilities in terms of the other surface atoms with larger CNs.

2.2. Adsorption of Atomic and Molecular Oxygen on Ag(322)

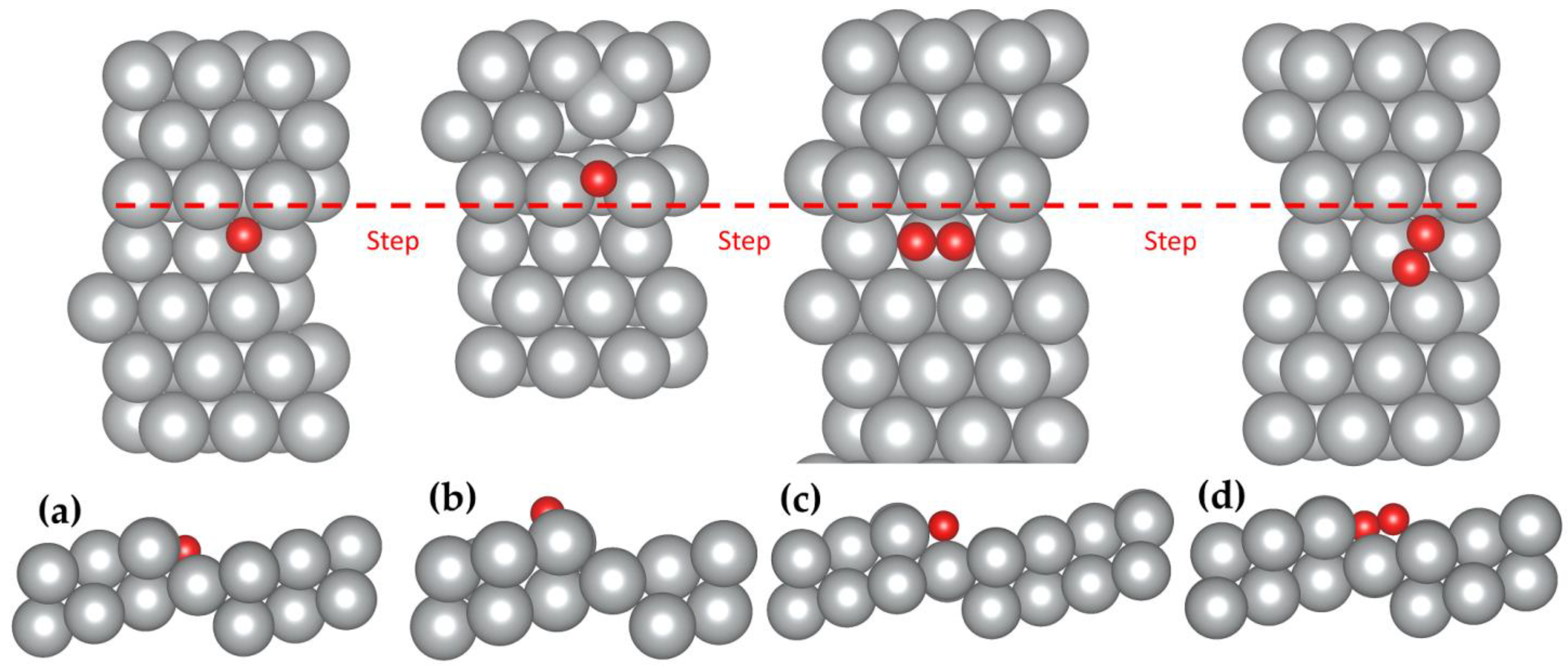

Several adsorption sites, including the fcc and hcp sites on the terrace, the bridge site at the step, and the hollow sites next to the step, were investigated in this study. The stable configurations for oxygen and molecular oxygen adsorption on Ag(322) are shown in Figure 2. For atomic O, the step-hollow (SH) and hollow (H) sites were optimal for adsorption (see Figure 2a,b). After the adsorption of the atomic oxygen, the average Ag-O bond length at the SH site was about 5% longer than that at the H site. A structural distortion adjacent to the H site was seen, as shown in Figure 2b. This is because the strong adsorption of the oxygen with stepped Ag atoms weakened the interaction between the CN7 atom and the neighboring CN9 atoms. Consequently, considerable surface relaxation was observed. Furthermore, the adsorbed oxygen atom bonded with two CN7 and two CN9 surface Ag atoms at the SH site. At the H site, the oxygen atom was only associated with two CN7 and one CN10 atom. As such, while a shortened Ag-O bond length was found at the H site, the overall adsorption energy of atomic oxygen at the SH site was lower (see

Table 1. Comparison of O* and O₂* adsorption properties on different silver surfaces. Ads stands for adsorption, E_ads is adsorption energy, d_O-Ag is the average O-Ag bond length, v_O-O is the vibrational frequency of the O-O bond, and m is the magnetic moment.

	Absorbate	Ads Site	Eads (eV)	dO-Ag (Å)	vO-O (cm−1)	$\mathbf{m} \left({\mathsf{\mu }}_{\mathsf{B}}\right)$	REF
322	O	SH	−4.40	2.24	n/a	0	This work
		H	−3.02	2.13	n/a	0
	O2	fSH	−0.70	2.37	668	0
		bSH	−0.27	2.36	762	0
111	O	fcc	−4.05	2.10	n/a	0	[8]
	O2	fH	−0.38	2.22	827	0

). For the same reason, the adsorption energy of the atomic oxygen at the SH site on Ag(322) was about 10% lower than that on Ag(111) since the oxygen atom only interacted with three CN9 atoms on the (111) surface.

Molecular oxygen could stably adsorb at the fcc step-hollow (fSH) and bridge step-hollow (bSH) sites (see Figure 2c,d). The SH, fSH, and bSH sites were all between the two terraces and bonded to the step atoms. The difference between fSH and bSH is the orientation of the O-O bond. In bSH, the O-O bond is parallel to the step edge, while that in fSH is almost perpendicular. At the bSH site, two O atoms only interact with one CN7 and one CN10 Ag atom. Meanwhile, at the fSH site, an O₂ molecule bonds to two CN7 atoms, two CN10 atoms, and one CN9 Ag atom. The different coordination geometries of adsorbed O₂ lead to various adsorption strengths. The adsorption energy of the O₂ molecules at the fSH site was 150% stronger than that at the bSH site (see Table 1). Figure 3a,b show the PDOS of the O 2p states and the 4d states of the Ag atoms associated with O₂. It can be seen that the O₂ 2p and Ag 4d states were closer to the Fermi energy level in the energy range of −1 to 0 eV when O₂ adsorbed at the bSH site. Additionally, the O₂ 2p states in the energy range of −4 to −3 eV were sharper at the bSH site in comparison with that at the fSH sites. The subtle difference supports the weaker adsorption strength of O₂ at the bSH site. The O-O bonding strength was further analyzed by using the partial crystal orbital Hamilton population (−pCOPH), as shown in Figure 3c,d. Within this range between −6 to −8 eV, the fSH site had a smaller bonding contribution than bSH. The fSH site anti-bonding contribution was larger and more jagged than that of bSH. Quantitatively, the −IpCOHP valued the average O-O interaction of the fSH site as −3.35 eV/bond, which is 0.10 eV/bond smaller than that of bSH. Therefore, both the qualitative and quantitative analyses confirmed the weakened O-O bond when O₂ adsorbs at the fSH site, which supports the stronger adsorption strength at this site.

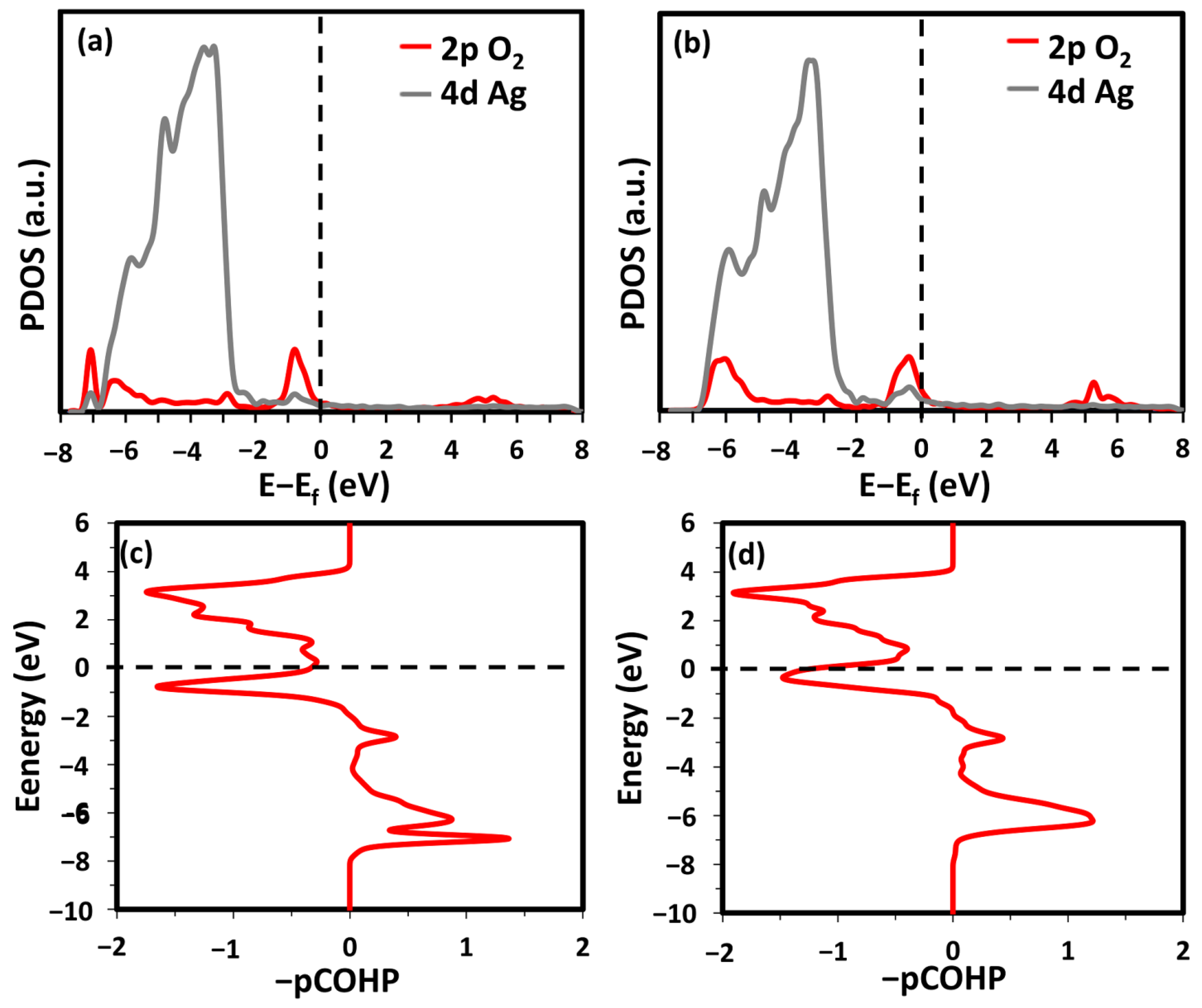

The magnetic moments of all systems were zero, suggesting that only the peroxo species was present (see Table 1). The peroxo species is ideal, as it contributes two e^- to the Ag-O bond. The Ag(322) fSH site had the largest O-Ag bond length but the shortest vibrational frequency, thus indicating a weak O-O bond and strong Ag-O interaction. Interestingly, the adsorption properties of O₂ on the Ag(322) surface were similar to those on Pt(111). The adsorption energy on Pt(111) is −0.68 eV with an O-O vibrational frequency of 743 cm⁻¹, similar to Ag(322) [34]. This suggests that the Ag(322) surface may have outstanding ORR performance, similar to Pt(111).

2.3. Dissociation of O₂ on Ag(322)

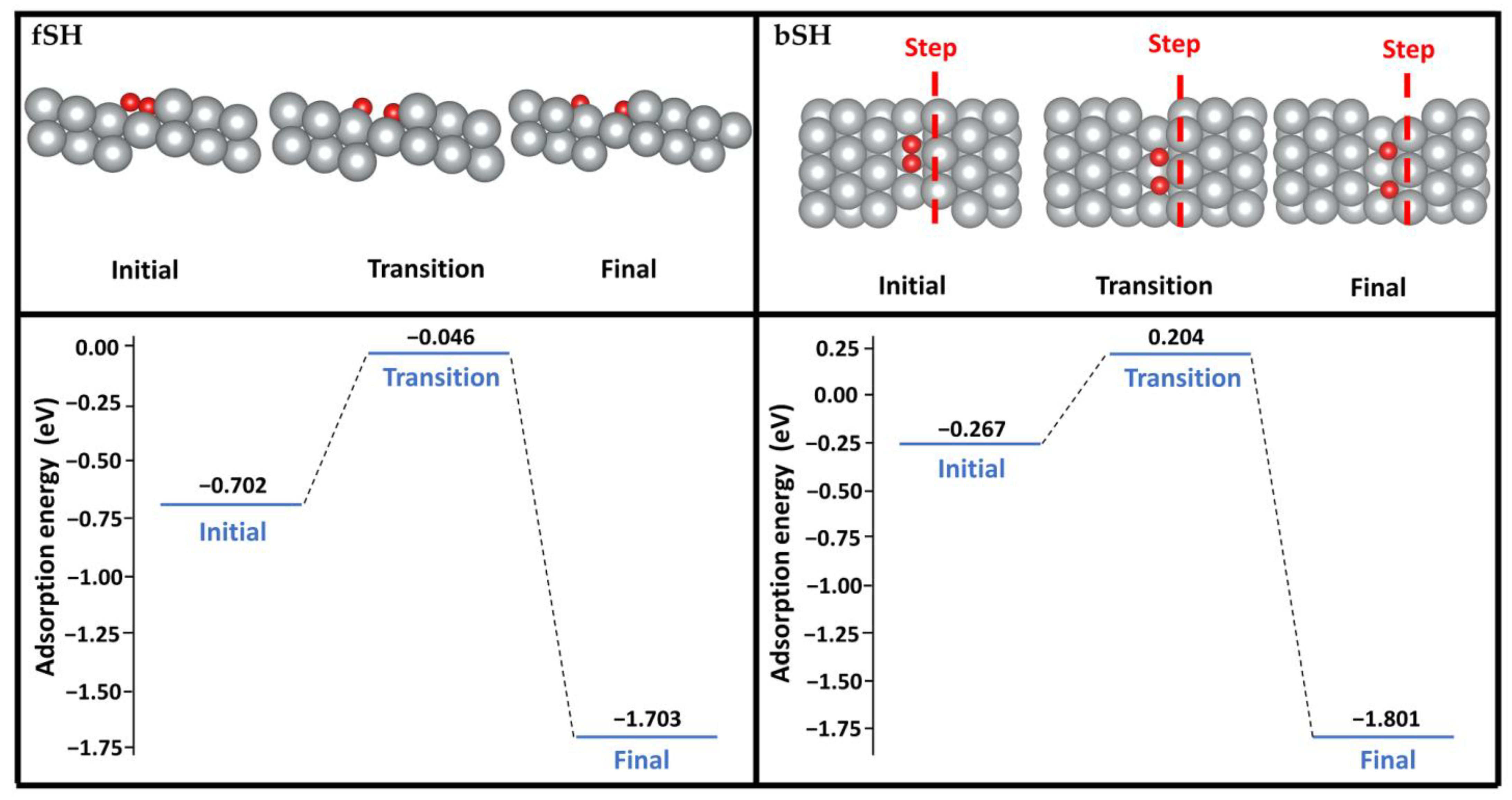

The oxygen dissociation at both the fSH and bSH sites was considered here using the climbing image nudged elastic band (CI-NEB) method with eight images between the initial and final states (see Figure 4). Starting from the adsorbed O₂ at the fSH site, one oxygen atom can shift to the hollow site of the terrace with another oxygen atom next to the step. The energy barrier of this pathway is 0.66 eV. When O₂ adsorbs at the bSH site, both oxygen atoms can shift to the SH site. This pathway has a lower energy barrier of 0.47 eV. The dissociation barriers of both pathways are much lower than on the flat Ag(111) surface, which is 1.22 eV [8]. The significantly lower energy barriers on the stepped Ag(322) surface demonstrated that the surface morphology played a crucial role with its larger reactive surface area and varying CN.

2.4. Electrocatalytic ORR Performance on Ag(322)

The Gibbs free energy changes of the adsorbed oxygen intermediates were used as the descriptor to evaluate the electrocatalytic ORR performance of Ag(322), which were calculated on the basis of the computational hydrogen electrode (CHE) method developed by Norskov and colleagues [41,42]. Under standard conditions, ORR may follow two pathways: the associative mechanism (see Equation (1)) or the dissociative mechanism (see Equations (2)–(3)) [7,8,13,41]. For the associative mechanism, the O₂ adsorbs to the catalytic site (*) and then becomes protonated multiple times.

$$\begin{array}{c}{\mathrm{O}}_2\ast +4\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{OOH}\ast +3\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{O}\ast +2\left(\mathrm{H}+{\mathrm{e}}^{-}\right)+{ \mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\\ \to \mathrm{OH}\ast +\left(\mathrm{H}+{\mathrm{e}}^{-}\right)+{ \mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\to 2{\mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\end{array}$$

(1)

The dissociative mechanism starts with the dissociation of adsorbed O₂*.

$$\begin{array}{c}{\mathrm{O}}_2\ast +4\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{O}\ast +\mathrm{O}\ast +4\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{O}\ast +\mathrm{OH}\ast +3\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\\ \to 2\mathrm{OH}\ast +2\left(\mathrm{H}+{\mathrm{e}}^{-}\right) \to 2{\mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\end{array}$$

(2)

or

$$\begin{array}{c}{\mathrm{O}}_2\ast +4\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{O}\ast +\mathrm{O}\ast +4\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\to \mathrm{O}\ast +\mathrm{OH}\ast +3\left(\mathrm{H}+{\mathrm{e}}^{-}\right)\\ \to \mathrm{O}\ast +2\left(\mathrm{H}+{\mathrm{e}}^{-}\right)+{ \mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\\ \to \mathrm{OH}\ast +\left(\mathrm{H}+{\mathrm{e}}^{-}\right)+{ \mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\to 2{\mathrm{H}}_2{\mathrm{O}}_{\left(\mathrm{l}\right)}\end{array}$$

(3)

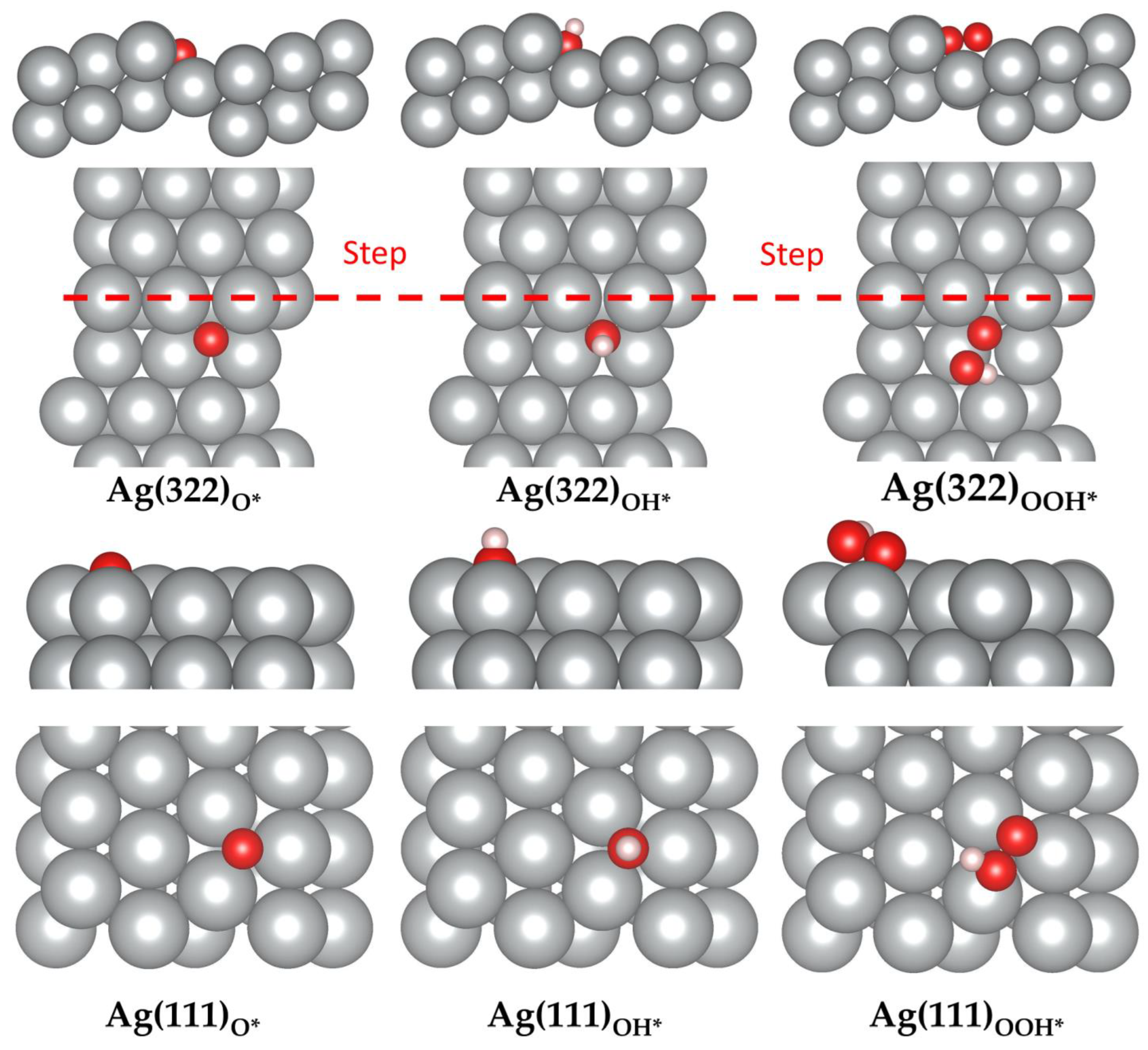

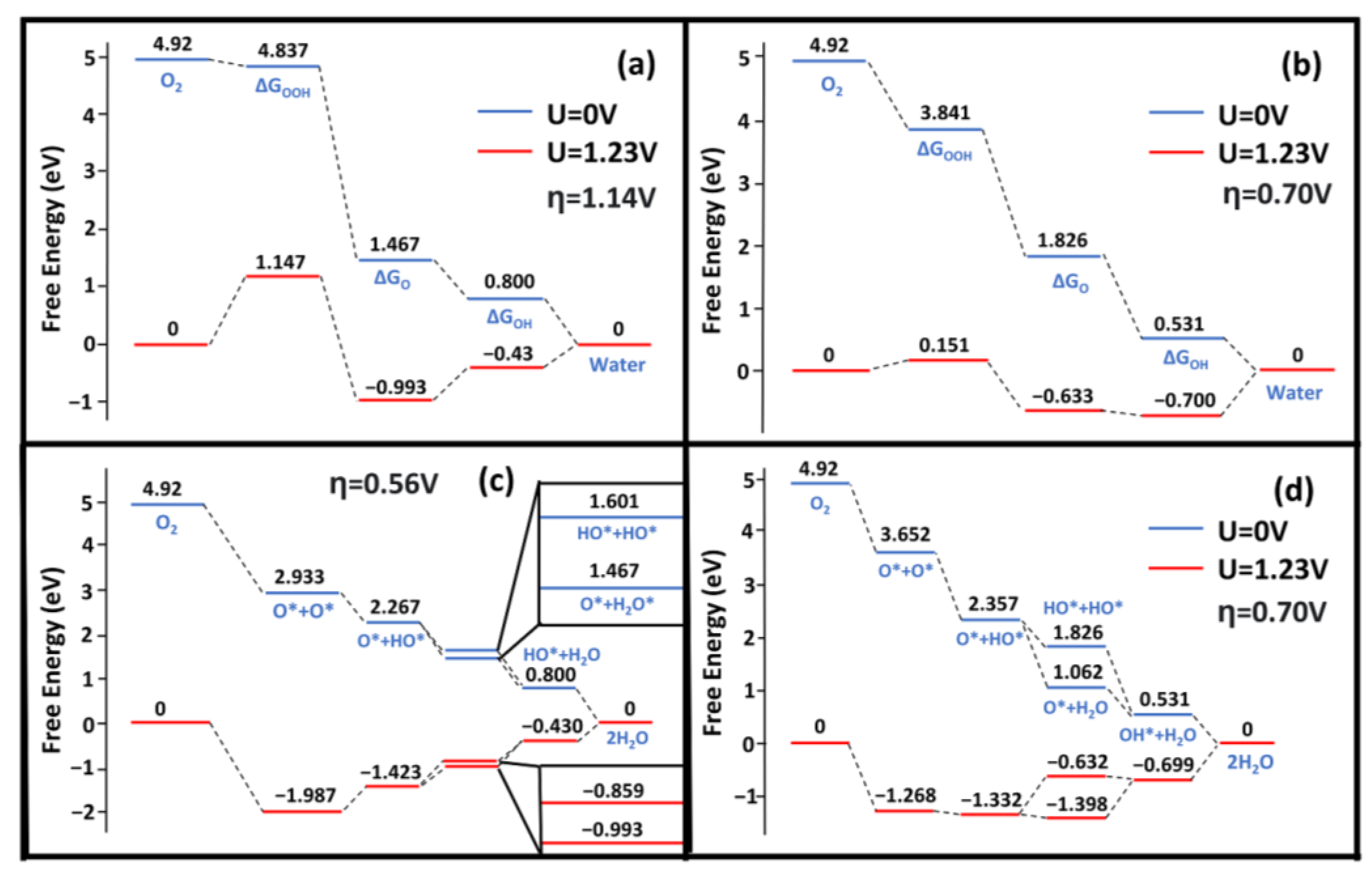

In this study, the Gibbs free energy changes were investigated with the consideration of both the associative and dissociative mechanisms (see Figure 5 and Figure 6). The associative overpotential for Ag(111) was large compared with the Pt(111) overpotential of 0.441 V [8,21,27,28,41]. The Ag(322) surface performed significantly worse, with a value ~85% larger than that of Pt(111). The dissociative overpotential for Pt(111) is 0.457 eV, which is smaller than that found in our Ag(111) results [8,21,27,28,41]. The Ag(322) surface was comparable to that of Pt, with a difference between the dissociative overpotentials of ~20%. This was supported by nanoparticle studies, as silver nanoparticles significantly improve the catalytic performance compared with the (111) surface crystal [43]. The large adsorption energy of the OH* and OOH* species caused large associative overpotentials and differences between computational studies. In comparison with the reported values, our adsorption energies for OH* and OOH* species were larger. This discrepancy could be caused by the different XC functionals. The GGA functional, such as PBE, has been widely used in most previous studies without the correct consideration of vdW forces [13,21,24,27,28,31,41]. Montemore et al. mentioned this drawback in their work and pointed out the trend of current ORR studies relying on outdated methodologies [28]. Methods with vdW correction, e.g., SCAN-rVV10, can predict better the adsorption properties of the OOH* and OH* species [31].

In comparison to Ag(111), the (322) surface showed better dissociative overpotentials but a worse associative overpotential. The associative overpotential of Ag(322) suffered from unideal OH and OOH adsorption energies. Previous studies have demonstrated that low CN atoms decrease the Gibbs free energy via strong interactions with intermediate species [44,45,46]. However, this was not the case for OOH*. The adsorption energies of OH and OOH on Ag(322) were −3.48 eV and −1.07 eV, respectively (see Figure 5). Comparatively, Ag(111) had OH and OOH adsorption energies of −3.12 eV and −1.23 eV, respectively (see Figure 5). The rate-limiting step for Ag(322) was the formation of OOH* species. The adsorption energy of OOH was too weak and required substantial energy to break the O-OH bond. Consequently, the $\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{O}\mathit{H}\mathbf{\ast }}$ of the reaction increased (see Figure 6). This is because the orientation of the OOH* species was not ideal, as it was difficult for it to fit in the fSH site. Additionally, the dissociative pathway of Ag(322) is promising, as it showed a low dissociation energy barrier and bypassed the energy traps of the associative method, such as H₂O₂ production [28].

The dissociative Gibbs energy profile of Ag(322) showed a minimal preference for H₂O_(l) or OH* formation (see Figure 6), which can increase the removal of OH* species [47]. OH* removal is a unique challenge for Ag. The characteristically strong OH* adsorption on Ag surfaces is often the potential-limiting step. Since $\Delta {\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$ is larger on Ag(322), the performance improves and prevents an energy well from forming. Compared with Pt(111), the $\Delta {\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$ and $\Delta {\mathit{G}}_{\mathit{O}\mathbf{\ast }}$ of Ag(322) were similar [41]. The potential-limiting step for the dissociation mechanism was the protonation of O*. The adsorption energy of O* was greater than that of OH*, which makes the process uphill under a potential of 1.23 V. However, the availability of low-CN Ag atoms played a crucial role in matching Pt(111) performance. The varying CN atoms not only weakened the O-O but also increased the ORR activity.

Some recent experimental studies on Ag nanoparticles have also suggested the existence of the dissociative pathway for ORR [18,43,48]. Since the 4e-associated mechanism for ORR has been experimentally and theoretically demonstrated on Ag(111) [43,48], the existence of steps in Ag nanoparticles may lead to the dissociative pathway, which closely matches our theoretical prediction in this study. However, while our DFT results can provide the insights to show the specific role of steps in the Ag nanoparticles for electrocatalytic ORR applications, it is worth noting that the theoretical data, e.g., the predicted ORR overpotential, may be different from experimental data. This is because the oversimplified models employed here without consideration of the impact of the water solvent, electrolyte, and applied bias potential cannot model the electrocatalysts under the working conditions [24,49,50,51]. Unfortunately, the consideration of working conditions is still computationally unaffordable and deserves further investigation using more advanced simulation methodologies in the future.

3. Computational Method

All DFT computations were performed using the Vienna Ab initio Simulation Package (VASP) [52] and based on the projected augmented wave (PAW) method [53]. It is known that the O₂ molecule is in a triplet state in its ground state. As such, spin-polarization was considered in all the computations for O₂ adsorption and dissociation. The electron–ion interaction was described using the PAW potentials, with 5s¹4d¹⁰, 1s¹, and 2s²2p⁴ treated as valence electrons of Ag, H, and O, respectively. The smooth part of the wave function was expanded by a kinetic energy cut-off value of 520 eV. During geometric optimization, atoms could relax until the Hellmann–Feynman forces were smaller than 1 × 10⁻³ eV/Å. The convergence criterion for the electronic self-consistent loop was set to 1 × 10⁻⁵ eV. The gamma-centered k-point meshes utilized a reciprocal space resolution of 2π × 0.02 Å⁻¹. For the electron exchange and correlation interactions, the SCAN functional at the meta-GGA level was used [37]. To better consider the vdW interactions, -rVV10 was coupled with SCAN [38]. Both were proven to be effective for this system in our previous work on Ag(111) [8].

The Ag(322) surface was modeled by a (2 × 1) unit cell with a vacuum layer of 15 Å to avoid interaction between the surfaces of neighboring slabs in the z-direction. A four-layer slab was used, in which the bottom two layers were fixed at the bulk position, and the other two were relaxed during structural optimization. The Ag(111) surface was constructed in the same way but used a (2√3×3) supercell [8].

The adsorption energy of O*, OH*, and OOH* species (see Equation (4)) is:

$$\mathsf{\Delta }{\mathit{E}}_{\mathit{ad}}=\frac{1}{N}({\mathit{E}}_{\mathit{ad}\mathbf{/}\mathit{surf}}-{ \mathit{E}}_{\mathit{surf}}-{ N\mathit{E}}_{\mathit{ad}})$$

(4)

where N is the number of adsorbates per unit cell, E_ad/surf, E_surf, and E_ad are the energies of the Ag(111) surface with the adsorbate, the clean silver surface, and the isolated adsorbate, respectively. For the calculations of the isolated atoms and molecules, a (20 × 20 × 20) ų unit cell and a Gamma-only k-point grid were used. Multiple adsorption sites were identified and are discussed within the paper. The strength of the O-O bond when adsorbed was also studied through the partial density of states (PDOS) and crystal orbital Hamilton population (COPH) analysis [54], vibrational frequency, and magnetic moments [52]. The O₂ dissociation energy barrier was investigated using the climbing image nudged elastic band (CI-NEB) method with eight images between the initial and final states [55].

The theoretical catalytic performance can be visualized via the Gibbs free energy. The Gibbs free energy is given by the standard definition as:

$$\mathsf{\Delta }{\mathit{G}}_{ }=\Delta E+\Delta ZPE-T\Delta S+\mathsf{\Delta }{\mathit{G}}_{\mathit{p}\mathit{H}}+neU$$

(5)

where $\Delta E$, $\Delta ZPE$, $T\Delta S$, and $neU$ are the DFT-calculated total binding energy, the zero-point energy change, the entropic contributions, and the shift in $\mathsf{\Delta }\mathit{G}$ caused by a change in relative potential with respect to the hydrogen electrode, respectively. Herein the $\Delta ZPE-T\Delta S$ was obtained by Nørskov et al. (2005) [56]. $\mathsf{\Delta }{\mathit{G}}_{\mathit{p}\mathit{H}}=-k_{b}T\ln 10\times pH$ is the pH contribution to the $\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{R}\mathit{R}}$. For our study, pH was set to 0 to negate the effect of $\mathsf{\Delta }{\mathit{G}}_{\mathit{p}\mathit{H}}$ and simplify the model. The Gibbs free energy of each adsorbate was found through:

$$\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}=\Delta E+\Delta ZPE-T\Delta S={\mathit{E}}_{\mathit{O}\mathit{H}\mathbf{\ast }}-{\mathit{E}}_{\mathbf{\ast }}+{\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}\mathit{O}}+\frac{1}{2}{\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}}-2\times {\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}\mathit{O}}+0.35 \mathrm{eV}$$

(6)

$$\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathbf{\ast }}=\Delta E+\Delta ZPE-T\Delta S={\mathit{E}}_{\mathit{O}\mathbf{\ast }}-{\mathit{E}}_{\mathbf{\ast }}+{\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}\mathit{O}}+{\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}}-2\times {\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}\mathit{O}}+0.05 \mathrm{eV}$$

(7)

$$\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{O}\mathit{H}\mathbf{\ast }}=\Delta E+\Delta ZPE-T\Delta S={\mathit{E}}_{\mathit{O}\mathit{O}\mathit{H}\mathbf{\ast }}-{\mathit{E}}_{\mathbf{\ast }}+\frac{3}{2}{\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}}-2\times {\mathit{E}}_{{\mathit{H}}_{\mathbf{2}}\mathit{O}}+0.40 \mathrm{eV}$$

(8)

where, E_*, E_OH*, E_O* and E_OOH* are the total energies of the bare surface, the surface with adsorbed OH, the surface with adsorbed O, and the surface with the adsorbed OOH, respectively. E_H2O and E_H2 are the total energy of the isolated H₂O and H₂, respectively. The associative free energy diagrams were constructed using Equations (6)–(8) and following the chemical Equation (1). Then, the Gibbs free energy of each elementary step based on the associative mechanism could be calculated through Equations (9)–(12):

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{1}}=\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$$

(9)

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{2}}=\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathbf{\ast }}-\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$$

(10)

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{3}}=\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{O}\mathit{H}\mathbf{\ast }}-\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathbf{\ast }}$$

(11)

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{4}}=4.92-\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{O}\mathit{H}\mathbf{\ast }}$$

(12)

The Gibbs free energy of each elementary step of the dissociative mechanism (see Equations (13)–(15)) is:

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{1}}=\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$$

(13)

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{2}}=\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathbf{\ast }}-\mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathit{H}\mathbf{\ast }}$$

(14)

$$\mathsf{\Delta }{\mathit{G}}_{\mathbf{3}}=4.92-2\times \mathsf{\Delta }{\mathit{G}}_{\mathit{O}\mathbf{\ast }}$$

(15)

The ORR overpotential was found following:

$${\mathit{\eta }}_{\mathit{O}\mathit{R}\mathit{R}}=1.23 \mathrm{V}-\frac{\mathit{m}\mathit{i}\mathit{n}(\mathsf{\Delta }{\mathit{G}}_{\mathit{n}})}{e}, \left(n=1 to 4 or 1 to 3\right)$$

(16)

where 1.23 V is the thermodynamic potential and $\frac{\mathsf{\Delta }{\mathit{G}}_{\mathit{n}}}{e}$ is the theoretical onset potential. The $\mathsf{\Delta }{\mathit{G}}_{\mathit{n}}{}_{ }$ is the smallest value from Equations (9)–(12) or (13)–(15) for the associative or dissociative ORR overpotential, respectively [41,57].

4. Conclusions

Hydrogen fuel cells are held back by their inflated cost from using Pt-based catalysts. Ag nanoparticles are an affordable and potential replacement for the industrial standard. In this study, we used SCAN-rVV10 to reveal the ORR performance of Ag(322), which is considered to be a substitute for silver nanoparticles. This stepped surface outperformed Ag(111) in adsorption energy, dissociation energy barrier, and theoretical overpotential. Specifically, we modeled a novel dissociation pathway on Ag(322) with an energy barrier of 0.471 eV. This pathway was supported by low-CN step atoms and weakened the O-O bond, thus allowing for a dissociation energy barrier comparable to that of Pt(111). The associative pathway was not preferred due to an overpowering OOH* adsorption, which increased the respective overpotential. Our results, therefore, highlight the importance of the effect of surface morphology and CN numbers for catalyst designs.
