Communication

Improvement of Chemical Stability of Perovskite Nanocrystals as a Photoelectrochemical Catalyst for Hydrogen Evolution Reaction

by
Hyunjung Kim
1 and
Hanleem Lee
2,*
1
Creative Research Institute, Sungkyunkwan University (SKKU), 2066 Seoburo, Suwon 16419, Gyeonggi-do, Republic of Korea
2
Department of Chemistry, The Natural Science Research Institute, Myongji University, 116 Myongji Ro, Yongin 17058, Gyeonggi-do, Republic of Korea
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(4), 752; https://doi.org/10.3390/catal13040752
Submission received: 30 March 2023 / Revised: 10 April 2023 / Accepted: 12 April 2023 / Published: 14 April 2023
(This article belongs to the Section Catalytic Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Recent advances in the synthesis and processing of perovskite materials have led to significant improvements in their stability under harsh conditions, making them increasingly attractive for use as photo and photoelectrochemical catalysts. In particular, core-shell structured perovskite nanocrystals have greatly enhanced chemical stability, enabling their use in aqueous environments; however, their low conductivity remains a challenge. To address this issue, this study developed two-time cross-linkable core-shell perovskite nanocrystals using two types of silanes, resulting in excellent chemical stability and high conductivity. The first cross-linking reaction was spontaneously initiated in the solution state, forming an ultrathin Si-O-Si amorphous matrix on the surface of the perovskite nanocrystals. The second cross-linking reaction was intentionally induced in the film state by exposing it to UV light. The resulting cross-linked perovskite/SiO2 nanocrystal films exhibited a high packing density, and among four different dopants, the Ag-doped film demonstrated the lowest onset potential for HER in a 0.5 M H2SO4 aqueous solution due to effective band modulation. These findings suggest that the two-time cross-linking approach can significantly enhance the performance of perovskite nanocrystals in photoelectrochemical applications.

Graphical Abstract

1. Introduction

Perovskite nanocrystals (NCs) exhibit significant promise as a photocatalytic material due to several scientific advantages, including high efficiency, tunable bandgap, and low-cost production [1,2,3]. Specifically, perovskite NCs’ high light absorption coefficients and excellent charge carrier mobility have resulted in high photoconversion efficiencies, rendering them a highly attractive candidate for the development of next-generation solar energy conversion and environmental remediation technologies [4]. Furthermore, the tunable bandgap of perovskite NCs allows for the facile modification of their electronic properties via compositional changes, enabling the development of perovskite-based catalysts with tailored properties for specific applications. Moreover, perovskite materials are relatively low-cost and amenable to large-scale production via solution-based methods, thereby making them highly accessible for practical applications. However, the primary challenge associated with perovskite pertains to its chemical stability [5]. As a result of its ionic binding character, perovskite NCs are highly susceptible to ion migration under polar media, which leads to low chemical stability under water and deterioration of their outstanding optical properties. The incorporation of a shell structure into perovskite NCs can potentially mitigate these challenges, enhancing their chemical and operation stability [6].
In recent times, core-shell perovskite NCs, including CsPbBr3/organic shell and CsPbBr3/inorganic shell, have been developed to enhance the chemical stability of the perovskite structure. Although CsPbBr3/organic shells are relatively easy to fabricate, the core and shell composition is primarily bonded through physiosorption. However, this physiosorbed moiety can be readily separated due to surrounding pH, which may result in perovskite structure degradation or co-catalyst poisoning that could affect the low catalytic efficiency of perovskite-based catalysts [7]. Alternatively, perovskite/inorganic shells, such as CsPbBr3/SiO2, CsPbBr3/Al2O3, and CsPbBr3/ZnS, have also been developed [8,9,10]. Among these, CsPbBr3/SiO2 NCs have garnered considerable attention as photonic materials under water, particularly for bio-imaging, photocatalyst, and photoelectrocheical catalyst. Song et al. demonstrated that CsPbBr3/SiO2 core-shell NCs fabricated using 3-aminopropyl-triethoxysilane (APTES) exhibited improved water resistance compared to pristine perovskite NCs [11]. This encapsulation strategy enhances the chemical stability of perovskite NCs while maintaining their consistent optical properties.
In catalyst applications, perovskite nanoparticles undergo repeated absorption and desorption events, leading to increased susceptibility to poisoning and degradation compared to their use in bio-imaging applications [12]. The stability of the perovskite structure can be impacted by various factors, including exposure to polar molecules, such as oxygen and moisture from ambient air, phase transitions, thermal stress, and illumination. The presence of surface defects resulting from strong absorption and/or desorption during redox reactions can facilitate ion migration in the presence of polar molecules. Moreover, phase transitions, thermal stress, and illumination can exacerbate defect generation and lead to defect proliferation [13]. Therefore, in prior studies, core-shell perovskite NCs were developed for use as photocatalysts or photoelectrochemical catalysts; and were primarily utilized in organic solvents such as acetonitrile, dichloromethane, alcohols, and halo acids due to their ability to stabilize the PbBr6 octahedral structure of perovskite. Although some research has demonstrated the efficacy of these NCs in aqueous solutions, these studies were typically conducted under neutral pH conditions.
Interestingly, the exceptional reduction ability of perovskite, due to the position of its CB, which is typically negative enough for H2 generation or CO2 reduction, prompted further examination of their photocatalytic behavior in water-based reactions. For instance, the Co2%@CsPbBr3/Cs4PbBr6 were developed as a photocatalyst for CO2 reduction in water [14]. The reaction effectively converted carbon dioxide to carbon monoxide with a conversion rate of ~11.95 μmol/g/h under 300 W Xe lamp, and the reaction remained stable for 20 h. However, only a few studies have demonstrated the photoelectrochemical properties of perovskite. Li et al. developed a CsPbBr3/a-TiO2 core/shell heterostructure to enhance the photocurrent and stabilize the crystal structure of the inner CsPbBr3 [15]. The material was able to sustain 8 h in a 0.1 M Na2SO4 aqueous solution during the photoelectrochemical reduction. Compared to pristine CsPbBr3 NCs, the core/shell CsPbBr3/a-TiO2 NCs exhibited a higher photocurrent, but still showed a low value of 10−6 A under illumination, which is considerably lower than that of other photoelectrochemical catalysts. This can be attributed to the low conductivity of the shell material of core-shell perovskite NCs. While a thick shell component can effectively prevent the penetration of water, resulting in high chemical stability, the insulating behavior of the shell severely impede the transport of carriers to active sites [16]. Thus, perovskite NCs with a controlled shell thickness, low-water-penetration rate, and high photoluminescence quantum yield (PLQY) are necessary to realize an efficient photoelectrochemical catalyst.
In this study, we developed two-time cross-linkable core-shell perovskite NCs using two types of silanes to achieve both excellent chemical stability and high conductivity. The vinyl-functional group is a widely used functional group that can polymerize with the help of a photo initiator under illumination, leading to C-C coupling under mild conditions. Along with silyl ether functional group as the primary cross-linking site, the vinyl-functional group was chosen as a secondary cross-linking site. The first cross-linking reaction was spontaneously initiated in the solution state during the purification process, forming an ultrathin Si-O-Si amorphous matrix on the surface of the perovskite NCs. The second cross-linking reaction was intentionally induced in the film state by exposing it to UV light. Due to the two-step cross-linking reaction (i.e., solution-state cross-linking and subsequent film-state cross-linking), CsPbBr3/SiO2 NCs with high packing density were generated, resulting in excellent chemical stability of core-shell perovskite NCs. The high packing of CsPbBr3/SiO2 NCs facilitates the carrier transport behavior between NCs, resulting in a high photocurrent of over 10−5 A observed for our cross-linked CsPbBr3/SiO2 NCs film. Finally, several types of cross-linked B-site doped CsPbBr3/SiO2 NCs films were fabricated, and Ag-doped CsPbBr3/SiO2 NCs demonstrated the lowest onset potential (−190 mV at 100 µA/cm2) for HER in a 0.5 M H2SO4 aqueous solution due to effective band modulation.

2. Results and Discussion

Our research group previously developed core-shell CsPbBr3/SiO2 NCs using a one-pot hot-injection method with APTES, which demonstrated exceptional chemical stability despite the relatively thin shell thickness of approximately 2–3 nm [16,17]. APTES was utilized as the precursor for the amorphous SiO2 shell formation. Following the hot injection process, the perovskite NCs were subjected to methyl acetate during the purification step. The silyl ether functional groups in APTES underwent hydrolysis and condensation with the aid of methyl acetate, leading to the formation of a Si-O-Si cross-linked matrix on the surface of the perovskite NCs [18]. As a result, the synthesized perovskite NCs exhibited a core-shell composition, consisting of a perovskite core and an amorphous SiO2 shell covered with surface ligands such as residual silane, oleic acid, and oleylamine. The core-shell CsPbBr3/SiO2 NCs with a 2–3 nm shell thickness demonstrated relatively stable features in various polar solvents, as we have previously reported, although their stability was insufficient for survival in water. In order to enhance the resistance of the perovskite NCs to water, it was necessary to increase the thickness of the shell. To achieve this, we added twice amount of APTES during the synthesis process, which showed 5–20 nm shell thickness. However, this led to a change in the crystal structure of the perovskite. As shown in Figure 1a, the XRD pattern of the core-shell CsPbBr3/SiO2 NCs synthesized with a low amount of APTES displayed dominant peaks at ~15.0°, ~21.4°, ~26.5°, and ~31.1°, which were assigned to the (100), (110), (111), and (200) crystal planes, respectively, for cubic Pm-3m symmetry [19]. On the other hand, the core-shell CsPbBr3/SiO2 NCs synthesized with a high amount of APTES showed dominant peaks at ~15.0°, ~21.4°, ~26.5°, ~30.5°, and ~34.0°, assigned to the (101), (121), (022), (202), and (222) crystal planes, respectively, for orthorhombic Pnma symmetry. This thermodynamically favorable phase change from the cubic to orthorhombic phase was due to the strong bonding of the amine functional group in APTES on the surface of perovskite NCs. In the case of core-shell CsPbBr3/SiO2 NCs synthesized with a low amount of APTES, the majority of NCs formed a core-shell structure with each NC existing separately (Figure 1b). However, core-shell CsPbBr3/SiO2 NCs synthesized with twice the amount of APTES exhibited an aggregated feature between NCs with an inhomogeneous thick shell (Figure 1c,d). This aggregation could impede carrier transport during photoelectrochemical reactions.
To achieve both excellent chemical stability and high conductivity, we designed cross-linkable core-shell perovskite NCs using two different silane molecules (Figure 2a). These two silane moieties played different roles: one for amorphous shell formation and the other as a cross-linking site in a film state. Unlike APTES, vinyltrimethoxysilane lacks a specific functional group that strongly interacts with the surface of perovskite NCs, allowing it to move more freely near the surface. As a result, the relatively small size of vinyltrimethoxysilane effectively filled in the voids of the Si-O-Si cross-linked matrix generated by APTES during the first cross-linking reaction. Thus, CsPbBr3/SiO2 NCs synthesized using APTES/vinyltrimethoxysilane exhibited a well-packed Si-O-Si matrix on the surface of perovskite NCs. The PLQY of core-shell CsPbBr3/SiO2 NCs was investigated as a function of the amount of vinyltrimethoxysilane used in the synthesis process, as the optical properties of perovskite NCs can be affected during functionalization reactions. The results showed that the highest PLQY was obtained with CsPbBr3/SiO2 NCs using 0.1 mL of vinyltrimethoxysilane, and the full width at half maximum (FWHM) of the emission peak also displayed a similar trend (Figure 2b,c). We posit that a small amount of vinyl, which was insufficient to cover all the voids between the Si-O-Si matrix created by APTES, resulted in a low PLQY and large FWHM. Conversely, using a large amount of vinyl beyond 0.1 mL facilitated the polymerization reaction and led to the aggregation of core-shell perovskite NCs.
The chemical stability of CsPbBr3/SiO2 NCs was assessed using three distinct polar solvents. The PL spectra of CsPbBr3/SiO2 NCs in an aqueous system exhibited an enhancement of approximately 11% for up to 90 min, attributable to recrystallization facilitated by low water penetration (Figure 3a). The chemical stability of CsPbBr3/SiO2 NCs was observed to have improved even before the second cross-linking reaction, as compared to the CsPbBr3/SiO2 NCs synthesized with solely APTES, which demonstrated PL loss after 60 min [18]. This suggests that a well-packing shell was produced for the APTES/vinyltrimethoxysilane system. The PL spectra of CsPbBr3/SiO2 NCs in ethanol showed a similar trend to that observed in the aqueous system (Figure 3b). The PL enhancement was sustained for up to 30 min, after which the PL proportionally decreased. The PL spectra of CsPbBr3/SiO2 NCs in IPA did not reveal a significant PL enhancement, but indicated no significant PL loss for up to 120 min. Most of the PL emission disappeared within 3 h in this system.
In this experimental setup, we deliberately induced a secondary cross-linking reaction at the film state by exposing it to UV light (1 W, 380–400 nm). The aim was to reduce the distance between the NCs and promote more efficient carrier transport. Since the activation of cross-linking reactions in vinyl-functional groups necessitates a high level of energy, we employed a photo initiator to expedite the reaction under mild conditions. Figure 4a illustrates the molecular structure of the photo initiator employed. Under UV light, the photo initiator generates a radical which, in turn, breaks the double bond of the vinyl functional group. This results in C-C coupling with the double bond of oleic acid or oleylamine, culminating in the creation of a cross-linked network between the NCs [20].
The second cross-linking reaction was evaluated through Fourier-transform infrared (FT-IR) analysis (Figure 4b). The FT-IR spectrum of the as-coated film using CsPbBr3/SiO2 NCs without a photo initiator revealed prominent peaks at 1456 cm−1, corresponding to aliphatic C-H bending or scissoring; and at ≈1022 cm−1, corresponding to -C=C- stretching, arising from oleic acid, oleylamine, and vinyl functionalized CsPbBr3/SiO2 NCs. These peaks did not show significant changes before and after UV irradiation in the absence of a photo initiator. On the other hand, the as-coated film using CsPbBr3/SiO2 NCs with a photo initiator exhibited a new peak around 1718~1722 cm−1, associated with the C=O stretching of the photo initiator for both before and after UV irradiation [19]. After UV irradiation, the -C=C- stretching peak exhibited a decrease in intensity due to the facilitated UV cross-linking reaction by the photo initiator. We also analyzed the XRD pattern of the corresponding film used for FT-IR, which revealed peaks at ~15.0°, ~21.4°, ~26.5°, and ~31.1°, assigned to the (100), (110), (111), and (200) crystal planes, respectively, for cubic Pm-3m symmetry. This indicated that no phase transition occurred during the addition of the photo initiator and UV treatment, which was critical in enabling the realization of the secondary cross-linking reaction.
The TEM image further supported this result, showing that the core-shell CsPbBr3/SiO2 NCs had a high crystalline structure after both the 1st and 2nd cross-linking reactions. It is worth noting that the CsPbBr3/SiO2 NCs synthesized using the APTES/vinyltrimethoxysilane system still exhibited an ultrathin passivation layer after the 2nd cross-linking reaction, unlike the inhomogeneous aggregated feature of CsPbBr3/SiO2 NCs synthesized solely with APTES (Figure 5a,b). As a result, the PL spectra of the film produced by CsPbBr3/SiO2 NCs showed PL enhancement until 20 min of UV exposure and only slightly decreased after 30 min of UV irradiation, but still exhibited higher PL intensity than that of the film before UV irradiation (Figure 5c).
Finally, we investigated the photoelectrochemical properties of CsPbBr3/SiO2 NCs on the HER reaction using two different systems, namely sole APTES and APTES/vinyltrimethoxysilane. The sole APTES system exhibited low dark current around 10−6 A and photocurrent around 10−6 A (Figure 6a), whereas the APTES/vinyltrimethoxysilane system demonstrated a significantly higher photocurrent (~4 × 10−5 A) and onset potential effectively shifted lower (−219 mV at 10 µA/cm2) due to the high packing of CsPbBr3/SiO2 NCs, facilitating carrier transport between NCs (Figure 6b) and reducing the electron-hole recombination at the surface. The stability test results in Figure 6c show that the current level of the cross-linked CsPbBr3/SiO2 NCs film remained sustained for up to 2 h, while the bare NCs died within 5 min. To modulate the active site of perovskite materials based on reaction thermodynamics, we fabricated four types of cross-linked doped CsPbBr3/SiO2 NCs films, incorporating dopants during the synthesis process of the core CsPbBr3. These dopants included Bi-doped CsPbBr3/SiO2 NCs, Cu-doped CsPbBr3/SiO2 NCs, Ni-doped CsPbBr3/SiO2 NCs, and Ag-doped CsPbBr3/SiO2 NCs. Among them, Ag-doped CsPbBr3/SiO2 NCs exhibited the lowest onset potential for HER (approximately −190 mV vs. the reversible hydrogen electrode (RHE) at 100 µA/cm2), followed by −267 mV at 100 µA/cm2 for Cu-doped CsPbBr3/SiO2 NCs, −312 mV at 100 µA/cm2 for Ni-doped CsPbBr3/SiO2 NCs, and −503 mV at 50 µA/cm2 for Bi-doped CsPbBr3/SiO2, respectively, in a 0.5 M H2SO4 aqueous solution (Figure 6d). The effectiveness of Ag-doped CsPbBr3/SiO2 NCs in promoting the redox reaction was attributed to their provision of an effective active site.
To clarify the doping effect, we investigated the band state of each sample. The UV–Vis spectra of Ag-doped NCs displayed distinct phenomena compared with pristine NCs without UV treatment or other doped NCs (Figure 7a). Pristine NCs and Cu-doped NCs exhibited nearly identical band edges, indicating a similar band gap. In contrast, Ni-doped NCs and Bi-doped NCs exhibited a blue-shifted band gap, while Ag-doped NCs exhibited a red-shifted band gap. Ultraviolet photoelectron spectroscopy (UPS) was conducted on all five samples, and the work function of each film was calculated using WF = 21.2 eV (He I radiation) − ECut-off (Figure 7b). The work function of pristine NCs was 3.6 eV, while Ni-doped NCs and Bi-doped NCs were 4.2 eV. Cu-doped NCs exhibited a work function of 4.3 eV, and Ag-doped NCs exhibited a work function of 4.4 eV. Ag-doped NCs demonstrated the closest work function towards the H2O/H2 reaction potential. Unlike other doped NCs, Ag-doped NCs displayed a relatively unclear band edge in the UV–Vis spectra and UPS analysis, suggesting that Ag doping induced mid-gap states, which facilitates carrier transport during the PEC performance. Consequently, the PL spectra of Ag-doped NCs exhibited a red-shifted emission wavelength with reduced PL intensity (Figure 7c). In addition to the band modulation, the conductivity of Ag-doped NCs was also enhanced. The I-V curve of four different samples was measured (Figure 7d), and all doped samples exhibited improved conductivity compared to pristine NCs without UV treatment. Notably, Ag-doped NCs displayed the highest current level among the four different doped NCs. Therefore, we believe that Ag-doped sample exhibited the lowest onset potential due to band modulation and its high conductivity.

3. Materials and Methods

3.1. Materials and Chemical

Lead bromide (PbBr2, 98%), oleyamine (OAm, 70%), oleic acid (OA, 90%), 3-aminopropyl-triethoxysilane (APTES, ≥98%), vinyltrimethoxysilane; (98%), and 1-octadecene (ODE, 90%) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Cesium stearate (Cs-t, 95%) was purchased from BOC Sciences (Shirley, NY, USA). All chemicals were used directly without further purification.

3.2. Synthesis of Core Shell Perovskite NCS

3.2.1. Preparation of Cs-Oleate Solution

In total, 1.2 mmol of cesium stearate (Cs-t), 1.0 mL of OA and 1.0 mL of OAm are dissolved in 16 mL of ODE for 30 min at 100 °C under vacuum until obtaining a clear solution.

3.2.2. Synthesis of CsPbBr3@SiO2 with Sole APTES Core-Shell NCS

PbBr2 (0.37 mmol), 1 mL of OA, 1.3 mL of APTES/OAm with 1.6 vol. ratio in 15 mL of ODE are degassed at 100 °C for 30 min under vacuum until obtaining a clear solution. The solution is heated up to 175 °C under N2. Following that, 0.7 mL of Cs-oleate solution is quickly injected and cooled by the ice bath after ~10 s reaction. The final green core-shell perovskite NCS was centrifuged with acetone at 5 krpm for 2 min, followed by methyl acetate at 15 krpm for 5 min twice and then dissolved in 5 mL of n-hexane.

3.2.3. Synthesis of CsPbBr3@ SiO2 with APTES/Vinyltrimethoxysilane Core-Shell NCS

PbBr2 (0.37 mmol), 1 mL of OA, 1.3 mL of APTES/OAm with 1.6 vol. ratio are dissolved in 15 mL of ODE and degassed at 100 °C for 30 min under vacuum until obtaining a clear solution. The solution is heated up to 175 °C under N2. Then, 0.7 mL of Cs-oleate solution and 0.15 mL of vinyltrimethoxysilane are injected under vigorous stirring and cooled by the ice-bath after ~10 s reaction. The final green core-shell perovskite NCS product was collected by centrifugation with acetone at 5 krpm for 2 min, followed by methyl acetate at 15 krpm for 5 min twice and then dissolved in 5 mL of n-hexane.

3.2.4. Synthesis of Doped CsPbBr3@ SiO2 with APTES/Vinyltrimethoxysilane Core-Shell NCS

PbBr2 (0.37 mmol), 1 mL of OA, 1.3 mL of APTES/OAm with 1.6 vol. ratio are dissolved in 15 mL of ODE and degassed at 100 °C for 30 min under vacuum until obtaining a clear solution. The solution is heated up to 175 °C under N2. Then, 0.7 mL of Cs-oleate solution are injected under vigorous stirring. After Cs injection, the solution is cooled to 150 °C under N2 and dopant solution is additionally injected (10 mmol of dopant was dissolved in 2 ml ODE and 2 ml of OAm). The reaction was maintained for 30 min. Finally, 0.15 mL of vinyltrimethoxysilane are injected under vigorous stirring and cooled by the ice bath after ~10 s reaction. The final green core-shell perovskite NCS product was collected by centrifugation with acetone at 5 krpm for 2 min, followed by methyl acetate at 15 krpm for 5 min twice and then dissolved in 5 mL of n-hexane.

3.3. Characterization

PL spectra were acquired using a FluoroMax® Plus instrument manufactured by HORIBA (Kyoto, Japan). X-ray diffraction (XRD) measurements were carried out using an XRD diffractometer (XRD-7000, Shimadzu, Kyoto, Japan) with Cu Kα radiation (λ = 0.15406 nm) and a scan speed of 5°/min to investigate the crystal structure and phase composition. The TEM samples were prepared by depositing a 0.1 mg/mL perovskite NCS solution in n-hexane onto a carbon-coated copper grid and drying it overnight in a vacuum chamber (<10−3 Torr). The structural features of the perovskite NCs were determined using TEM (Tecnai G2 F20 S-Twin, FEI, Portland, OR, USA) operating at 200 keV. The electrochemical measurements of HER were carried out using an electrochemical workstation (CHI 660E, CH Instruments, Inc., Shanghai, China) equipped with a standard three-electrode configuration and using 0.5 M H2SO4 (pH = 4) as the electrolyte. The working electrode was fabricated by spin-coating the NCs solution (1 mg/mL in hexane) onto the ITO electrode using a spin coater (2 krpm, 1 min). Prior to the spin-coating process, the NCs solution underwent ligand exchange to improve its conductivity. To achieve this, 10 mM sodium thiocyanate in ethanol was added to the NCs solution, and the mixture was allowed to react for 1 h. The resulting solution was then purified via centrifugation and washed three times with ethanol. The final product was redispersed in toluene and MC (4:1) to produce a spin-coating ink. For the electrochemical measurements, a Pt wire was used as a counter electrode, while Ag/AgCl was employed as a reference electrode.

4. Conclusions

This study examines the stability issues of perovskite NCs with respect to their applications as photo and photoelectrochemical catalysts. While core-shell structures and surface passivation have been widely employed to improve the chemical and operational stability of these materials, the insulating properties and aggregated nature of the protective layers can impede carrier transport and lead to rapid electron-hole recombination at the surface. To address these limitations, we have designed two types of cross-linking sites to increase the packing density of NCs with an ultrathin, dense amorphous SiO2 shell. Cross-linking reactions were carried out in two steps using APTES/vinyltrimethoxysilane, successfully demonstrating the production of a film with effectively cross-linked homogenous CsPbBr3 core NCs and an ultrathin amorphous SiO2 shell. Two different cross-linking sites were employed, with reactions occurring in different physical states (i.e., solution and film states). Using this strategy, we investigated the photoelectrochemical properties of CsPbBr3/SiO2 NCs for HER with different dopants. Ag-doped CsPbBr3/SiO2 NCs exhibited the best HER activity, with the lowest onset potential. Overall, this study presents a novel approach to improving the stability and activity of perovskite NCs for use in photo and photoelectrochemical catalysis, offering promising applications for renewable energy production and other areas.

Author Contributions

Conceptualization, H.L.; methodology, H.L. and H.K.; formal analysis, H.L. and H.K.; investigation, writing—original draft preparation, H.L. and H.K.; writing—review and editing, H.L.; visualization, H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work are supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (No. RS-2022-00166251), Basic Science Research Program through the NRF funded by the Ministry of Education (S-2022-2010-000), and the SungKyunKwan University and the BK21 FOUR (Graduate School Innovation) funded by the Ministry of Education (MOE, Korea) and NRF.

Data Availability Statement

The data that support the findings in the work are available from the corresponding author upon reasonable request.

Acknowledgments

This work are supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (No. RS-2022-00166251), Basic Science Research Program through the NRF funded by the Ministry of Education (S-2022-2010-000), and the SungKyunKwan University and the BK21 FOUR (Graduate School Innovation) funded by the Ministry of Education (MOE, Korea) and NRF.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, D.; Chen, X. Luminescent perovskite quantum dots: Synthesis, microstructures, optical properties and applications. J. Mater. Chem. C 2019, 7, 1413–1446. [Google Scholar] [CrossRef]
  2. Zhang, C.; Kuang, D.-B.; Wu, W.-Q. A Review of Diverse Halide Perovskite Morphologies for Efficient Optoelectronic Applications. Small Methords 2020, 4, 1900662. [Google Scholar] [CrossRef]
  3. Tang, X.; Yang, J.; Li, S.; Liu, Z.; Hu, Z.; Hao, J.; Du, J.; Leng, Y.; Qin, H.; Lin, X.; et al. Single Halide Perovskite/Semiconductor Core/Shell Quantum Dots with Ultrastability and Nonblinking Properties. Adv. Sci. 2019, 6, 1900412. [Google Scholar] [CrossRef] [PubMed]
  4. Nazir, G.; Lee, S.-Y.; Lee, J.-H.; Rehman, A.; Lee, J.-K.; Seok, S.I.; Park, S.-J. Stabilization of Perovskite Solar Cells: Recent Developments and Future Perspectives. Adv. Mater. 2022, 34, 2204380. [Google Scholar] [CrossRef] [PubMed]
  5. Niu, G.; Guo, X.; Wang, L. Review of recent progress in chemical stability of perovskite solar cells. J. Mater. Chem. A 2015, 3, 8970–8980. [Google Scholar] [CrossRef]
  6. Lee, H.; Trinh, C.K.; So, M.G.; Lee, C.-L. Sequential structural degradation of red perovskite quantum dots and its prevention by introducing iodide at a stable gradient concentration into the core–shell red perovskite quantum dots. Nanoscale 2022, 14, 3425–3440. [Google Scholar] [CrossRef] [PubMed]
  7. Kumar, M.; Hammond, G.B.; Xu, B. Cationic Gold Catalyst Poisoning and Reactivation. Org. Lett. 2014, 16, 3452–3455. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Chen, D.; Fang, G.; Chen, X. Silica-Coated Mn-Doped CsPb(Cl/Br)3 Inorganic Perovskite Quantum Dots: Exciton-to-Mn Energy Transfer and Blue-Excitable Solid-State Lighting. ACS Appl. Mater. Interfaces 2017, 9, 40477–40487. [Google Scholar] [CrossRef] [PubMed]
  9. Vashishtha, P.; Griffith, B.E.; Brown, A.A.M.; Hooper, T.J.N.; Fang, Y.; Ansari, M.S.; Bruno, A.; Pu, S.H.; Mhaisalkar, S.G.; White, T.; et al. Performance Enhanced Light-Emitting Diodes Fabricated from Nanocrystalline CsPbBr3 with In Situ Zn2+ Addition. ACS Appl. Electron. Mater. 2020, 2, 4002–4011. [Google Scholar] [CrossRef]
  10. Chen, W.; Hao, J.; Hu, W.; Zang, Z.; Tang, X.; Fang, L.; Niu, T.; Zhou, M. Enhanced Stability and Tunable Photoluminescence in Perovskite CsPbX3/ZnS Quantum Dot Heterostructure. Small 2017, 13, 1604085. [Google Scholar] [CrossRef] [PubMed]
  11. Song, W.; Wang, Y.; Wang, B.; Yao, Y.; Wang, W.; Wu, J.; Shen, Q.; Luo, W.; Zou, Z. Super stable CsPbBr3@SiO2 tumor imaging reagent by stress-response encapsulation. Nano Res. 2020, 13, 795–801. [Google Scholar] [CrossRef]
  12. Akkerman, Q.A.; Rainò, G.; Kovalenko, M.V.; Manna, L. Genesis, challenges and opportunities for colloidal lead halide perovskite nanocrystals. Nat. Mater. 2018, 17, 394–405. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, H.; Pradhan, B.; Hofkens, J.; Roeffaers, M.B.J.; Steele, J.A. Solar-Driven Metal Halide Perovskite Photocatalysis: Design, Stability, and Performance. ACS Energy Lett. 2020, 5, 1107–1123. [Google Scholar] [CrossRef]
  14. Mu, Y.-F.; Zhang, W.; Guo, X.-X.; Dong, G.-X.; Zhang, M.; Lu, T.-B. Water-Tolerant Lead Halide Perovskite Nanocrystals as Efficient Photocatalysts for Visible-Light-Driven CO2 Reduction in Pure Water. ChemSusChem 2019, 12, 4769–4774. [Google Scholar] [CrossRef] [PubMed]
  15. Li, Z.-J.; Hofman, E.; Li, J.; Davis, A.H.; Tung, C.-H.; Wu, L.-Z.; Zheng, W. Photoelectrochemically Active and Environmentally Stable CsPbBr3/TiO2 Core/Shell Nanocrystals. Adv. Funct. Mater. 2018, 28, 1704288. [Google Scholar] [CrossRef]
  16. Trinh, C.K.; Lee, H.; So, M.G.; Lee, C.-L. Synthesis of Chemically Stable Ultrathin SiO2-Coated Core–Shell Perovskite QDs via Modulation of Ligand Binding Energy for All-Solution-Processed Light-Emitting Diodes. ACS Appl. Mater. Interfaces 2021, 13, 29798–29808. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, P.; Patel, M.; Park, C.; Han, H.; Jeong, B.; Kang, H.; Patel, R.; Koh, W.-G.; Park, C. Highly luminescent biocompatible CsPbBr3@SiO2 core–shell nanoprobes for bioimaging and drug delivery. J. Mater. Chem. B 2020, 8, 10337–10345. [Google Scholar] [CrossRef] [PubMed]
  18. Kirschner, M.S.; Diroll, B.T.; Guo, P.; Harvey, S.M.; Helweh, W.; Flanders, N.C.; Brumberg, A.; Watkins, N.E.; Leonard, A.A.; Evans, A.M.; et al. Photoinduced, reversible phase transitions in all-inorganic perovskite nanocrystals. Nat. Commun. 2019, 10, 504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Lee, H.; Jeong, J.W.; So, M.G.; Jung, G.Y.; Lee, C.-L. Design of Chemically Stable Organic Perovskite Quantum Dots for Micropatterned Light-Emitting Diodes through Kinetic Control of a Cross-Linkable Ligand System. Adv. Mater. 2021, 33, 2007855. [Google Scholar] [CrossRef] [PubMed]
  20. Lee, H.; Suh, Y.-H.; Fan, X.-B.; Ni, L.; Yang, J.; Kim, Y.; Jo, J.-W.; Choi, H.W.; Jung, S.-M.; Shin, D.-W.; et al. Air stable eco-friendly quantum dots with a light-mediated photoinitiator for an inkjet printed flexible light emitting diode. J. Mater. Chem. C 2022, 10, 10708–10718. [Google Scholar] [CrossRef]
Catalysts 13 00752 g001 550

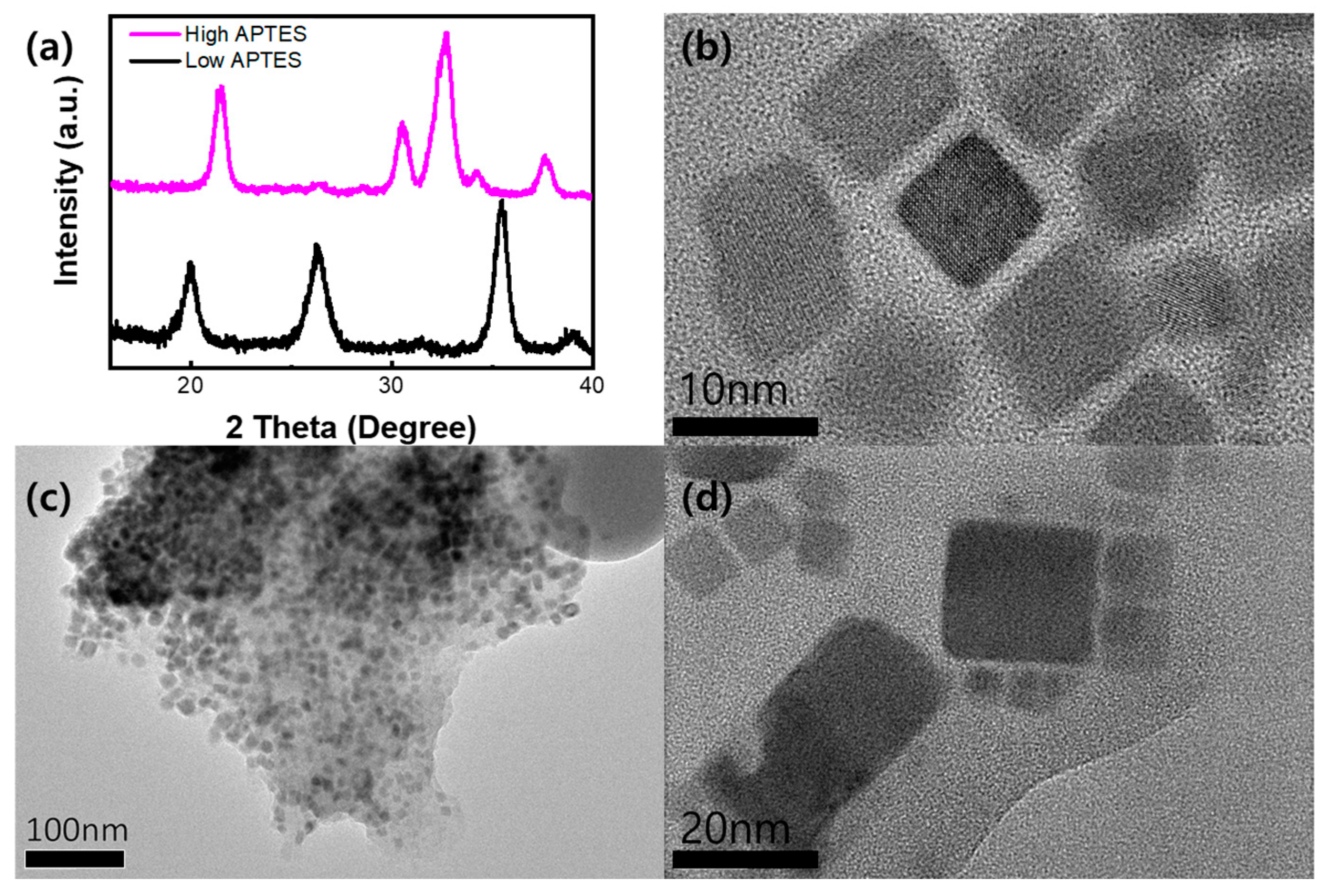

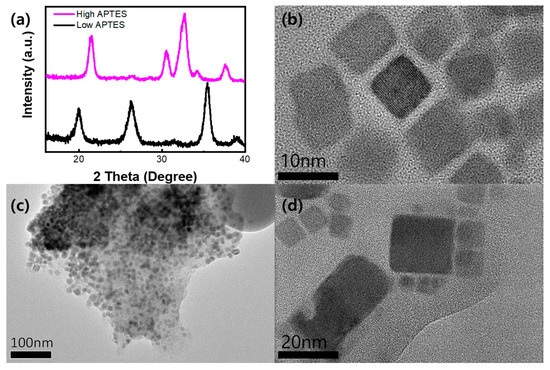

Figure 1. (a) XRD pattern for core-shell perovskite/SiO2 NCs with low and high amount of APTES. (b,c) TEM image of core-shell perovskite/SiO2 NCs synthesized with (b) low and (c) high amount of APTES. (d) High magnitude TEM image for core-shell perovskite/SiO2 NCs with high amount of APTES.
Figure 1. (a) XRD pattern for core-shell perovskite/SiO2 NCs with low and high amount of APTES. (b,c) TEM image of core-shell perovskite/SiO2 NCs synthesized with (b) low and (c) high amount of APTES. (d) High magnitude TEM image for core-shell perovskite/SiO2 NCs with high amount of APTES.
Catalysts 13 00752 g001
Catalysts 13 00752 g002 550

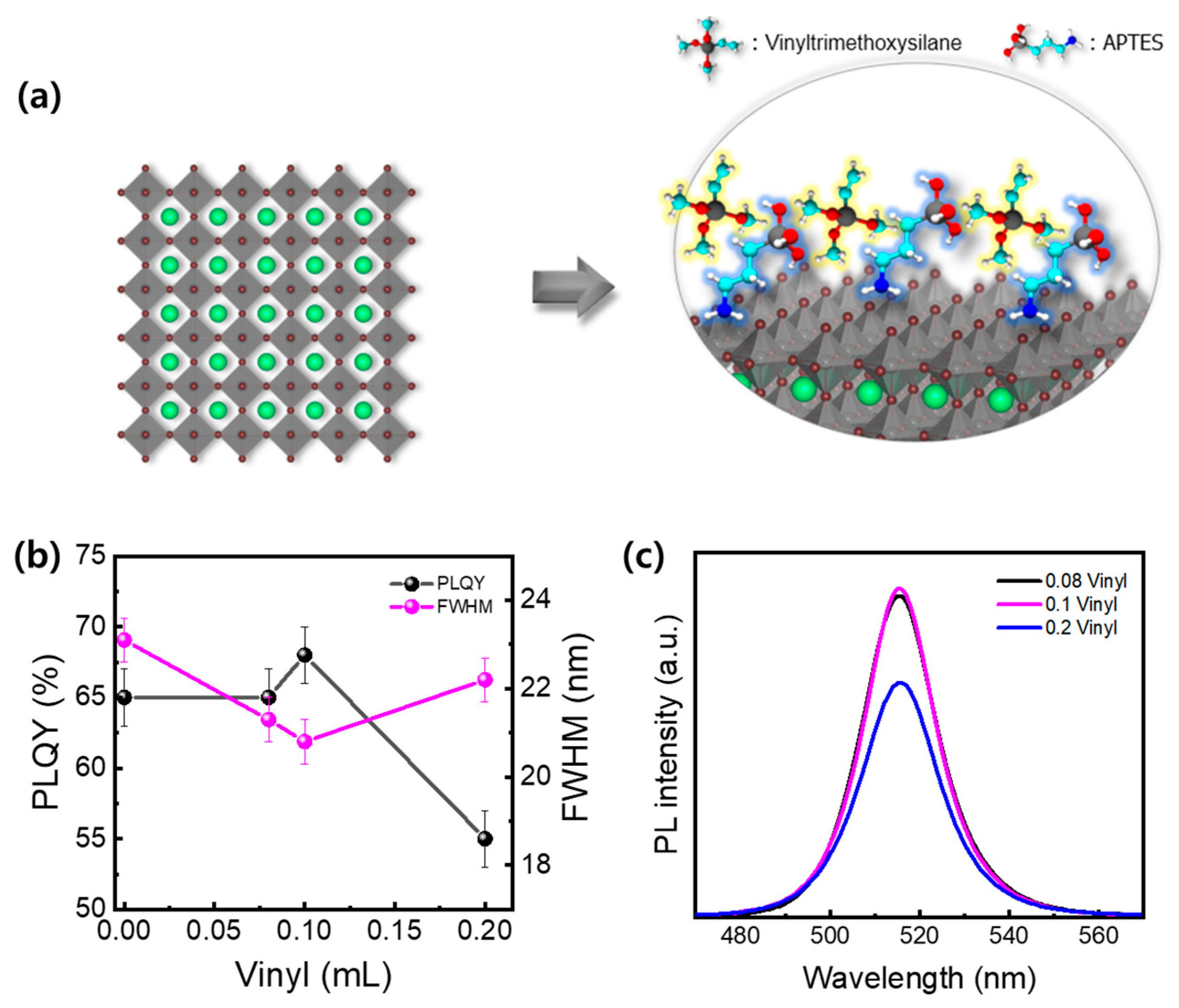

Figure 2. (a) Schematic illustration of two-time cross-linkable core-shell perovskite NCs. (b) The PLQY and FWHM of PL peak, and (c) PL spectra for core-shell perovskite/SiO2 synthesized with different amount of vinyltrimethoxysilane.
Figure 2. (a) Schematic illustration of two-time cross-linkable core-shell perovskite NCs. (b) The PLQY and FWHM of PL peak, and (c) PL spectra for core-shell perovskite/SiO2 synthesized with different amount of vinyltrimethoxysilane.
Catalysts 13 00752 g002
Catalysts 13 00752 g003 550

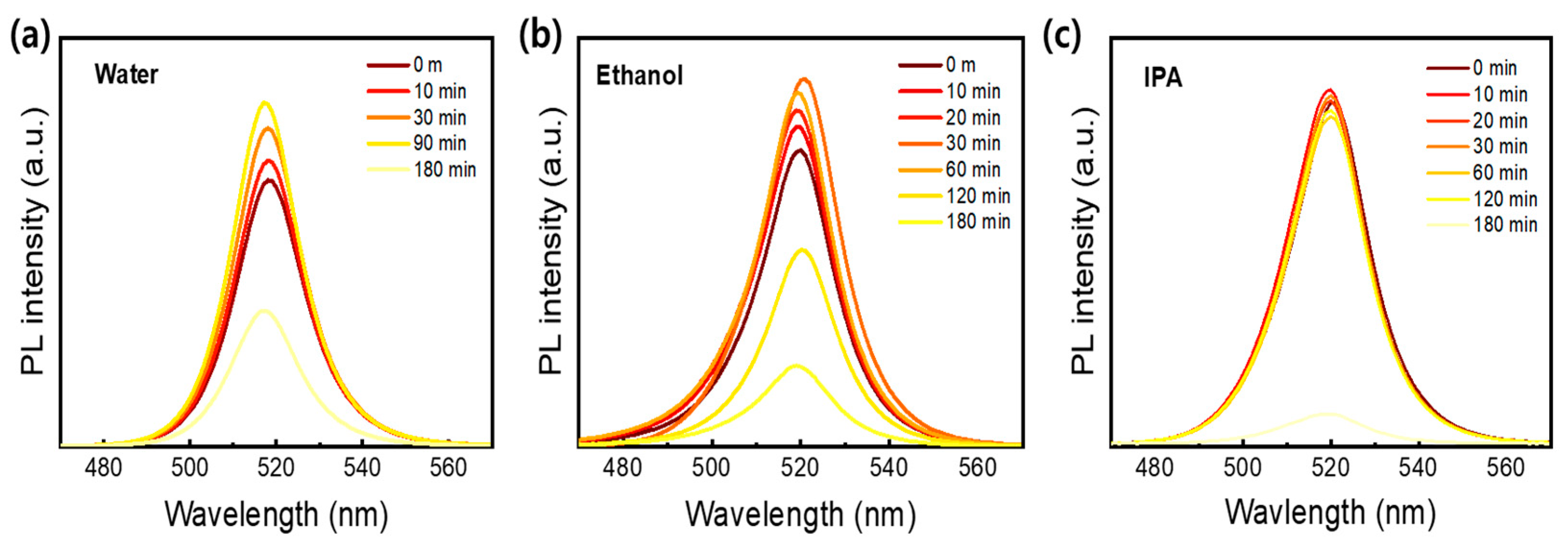

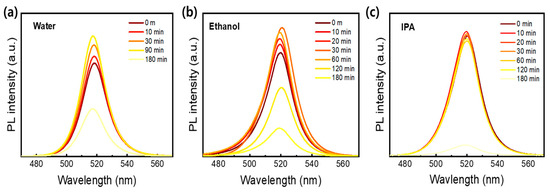

Figure 3. (a–c) PL spectra of CsPbBr3/SiO2 NCs solution in (a) water, (b) ethanol, and (c) IPA as time increased.
Figure 3. (a–c) PL spectra of CsPbBr3/SiO2 NCs solution in (a) water, (b) ethanol, and (c) IPA as time increased.
Catalysts 13 00752 g003
Catalysts 13 00752 g004 550

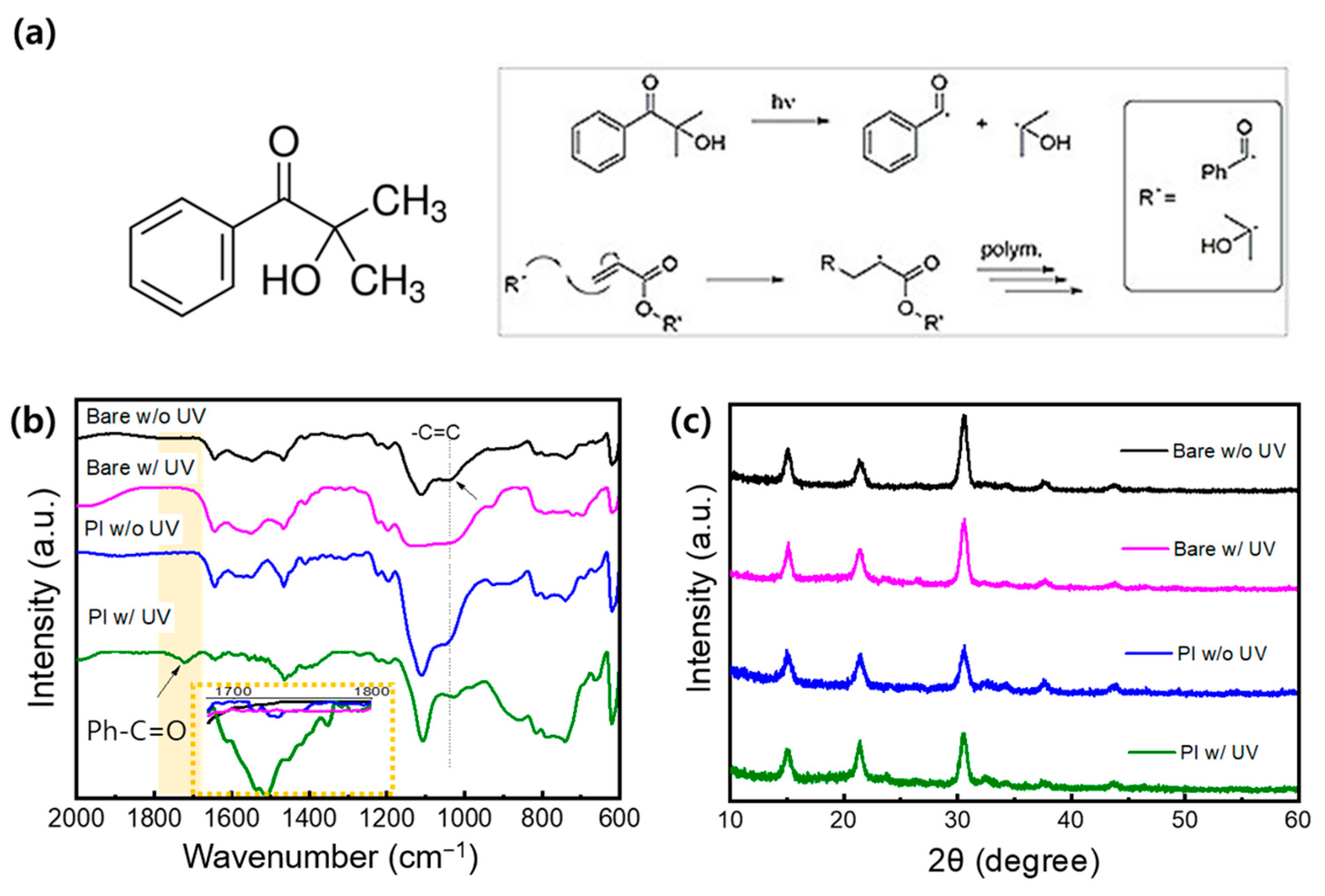

Figure 4. (a) Molecular structure of photo initiator and their reaction mechanism. (b) FT-IR spectra of as-coated film (Bare w/o UV), as-coated film after UV exposure (Bare w/UV), film of CsPbBr3/SiO2 NCs with photo initiator before UV exposure (PI w/o UV), and film of CsPbBr3/SiO2 NCs with photo initiator after UV exposure (PI w/UV). Inset demonstrated normalized FT-IR spectra range from 1680 to 1800 cm−1. (c) XRD pattern of corresponding film that was used in (b).
Figure 4. (a) Molecular structure of photo initiator and their reaction mechanism. (b) FT-IR spectra of as-coated film (Bare w/o UV), as-coated film after UV exposure (Bare w/UV), film of CsPbBr3/SiO2 NCs with photo initiator before UV exposure (PI w/o UV), and film of CsPbBr3/SiO2 NCs with photo initiator after UV exposure (PI w/UV). Inset demonstrated normalized FT-IR spectra range from 1680 to 1800 cm−1. (c) XRD pattern of corresponding film that was used in (b).
Catalysts 13 00752 g004
Catalysts 13 00752 g005 550

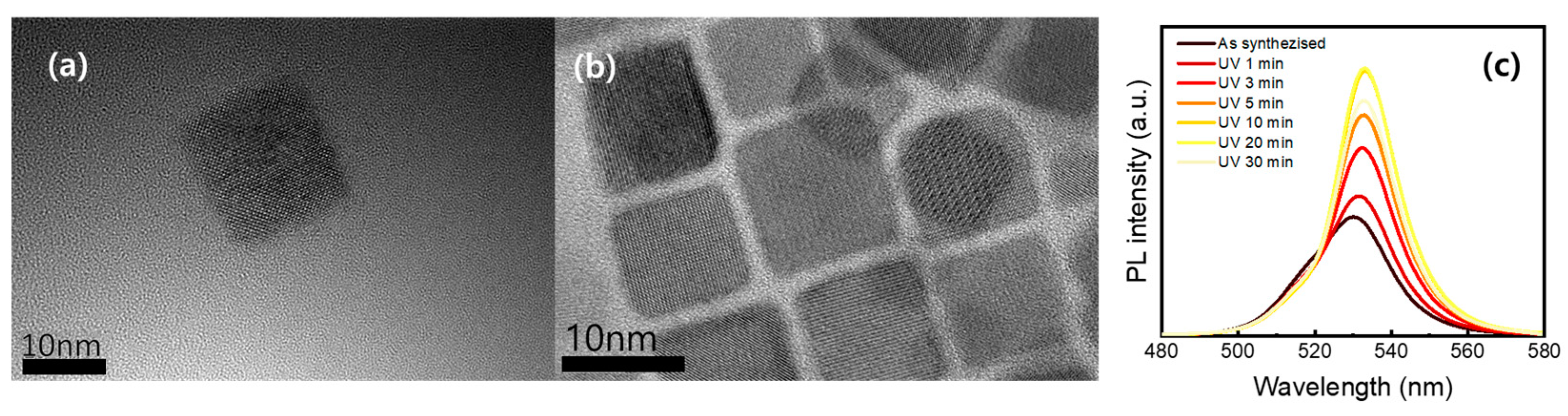

Figure 5. (a,b) TEM image of core-shell CsPbBr3/SiO2 NCs (a) after 1st cross-linking reaction and (b) after 2nd cross-linking reaction. (c) PL spectra of film using core-shell CsPbBr3/SiO2 NCs under UV irradiation with different exposure time.
Figure 5. (a,b) TEM image of core-shell CsPbBr3/SiO2 NCs (a) after 1st cross-linking reaction and (b) after 2nd cross-linking reaction. (c) PL spectra of film using core-shell CsPbBr3/SiO2 NCs under UV irradiation with different exposure time.
Catalysts 13 00752 g005
Catalysts 13 00752 g006 550

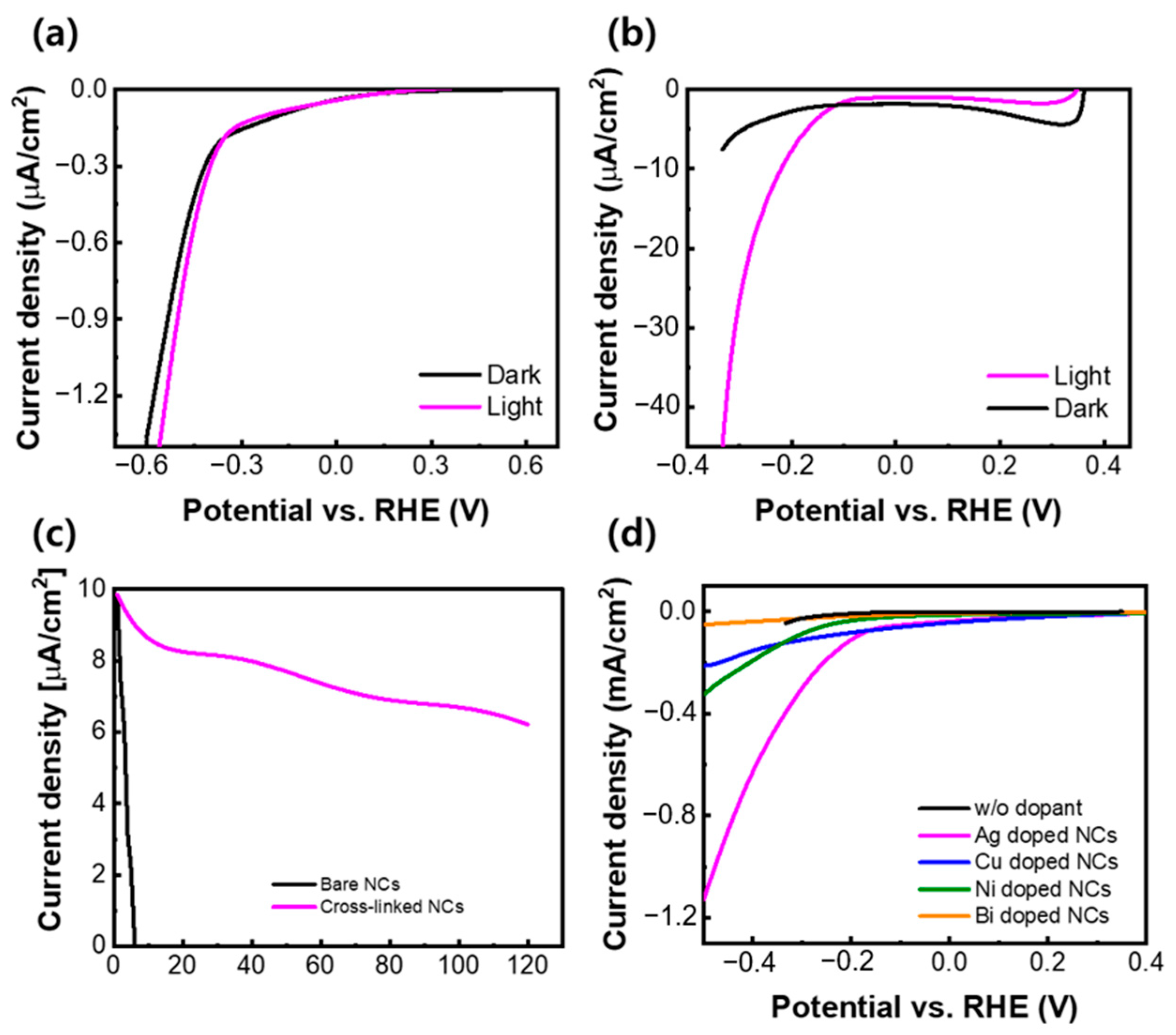

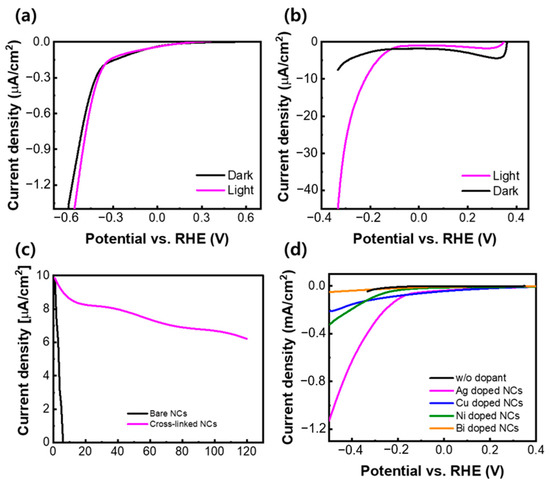

Figure 6. (a,b) Photoelectrochemical HER performance of core-shell CsPbBr3/SiO2 NCs (a) with sole APTES system and (b) with APTES/vinyltrimethoxysilane. (c) Stability test of CsPbBr3/SiO2 NCs with sole APTES system and with APTES/vinyltrimethoxysilane. (d) J-V curve under 1 Sun for four different core-shell CsPbBr3/SiO2 NCs with APTES/vinyltrimethoxysilane.
Figure 6. (a,b) Photoelectrochemical HER performance of core-shell CsPbBr3/SiO2 NCs (a) with sole APTES system and (b) with APTES/vinyltrimethoxysilane. (c) Stability test of CsPbBr3/SiO2 NCs with sole APTES system and with APTES/vinyltrimethoxysilane. (d) J-V curve under 1 Sun for four different core-shell CsPbBr3/SiO2 NCs with APTES/vinyltrimethoxysilane.
Catalysts 13 00752 g006
Catalysts 13 00752 g007 550

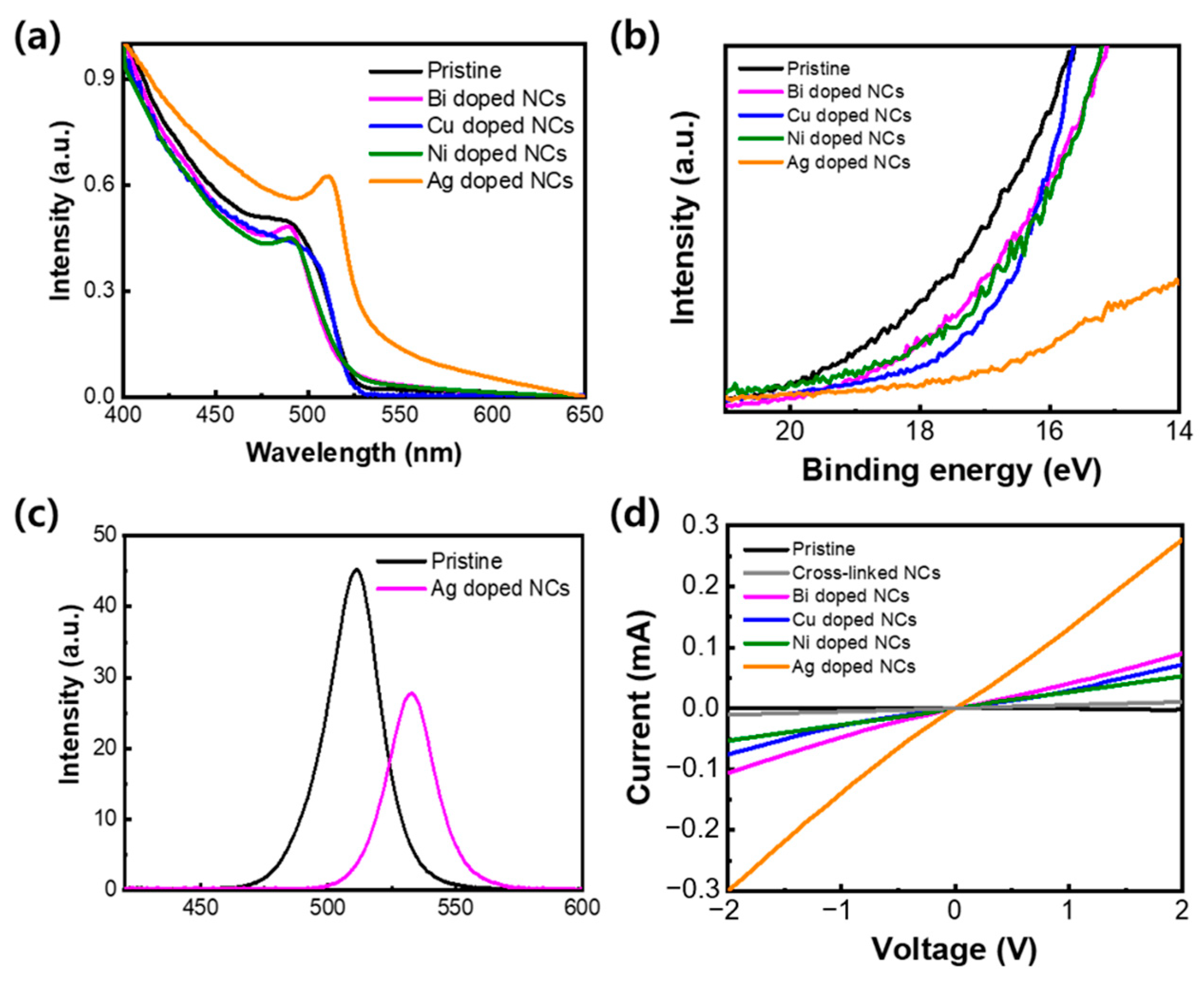

Figure 7. (a) UV–Vis spectra and (b) ultraviolet photoelectron spectroscopy of five different Perovskite NCs. (c) PL spectra of pristine NCs and Ag-doped NCs. (d) I-V curve of M-I-M structured devices using 6 different perovskite NCs as an insulating layer.
Figure 7. (a) UV–Vis spectra and (b) ultraviolet photoelectron spectroscopy of five different Perovskite NCs. (c) PL spectra of pristine NCs and Ag-doped NCs. (d) I-V curve of M-I-M structured devices using 6 different perovskite NCs as an insulating layer.
Catalysts 13 00752 g007
