Review

Waste Plastic Recycling Upgrade Design Nanogenerator for Catalytic Degradation of Pollutants

by
Qian Zhang
1,2,
Qiyu Peng
2,
Wenbin Li
2,
Yanzhang Liu
2 and
Xiaoxiong Wang
3,*
1
National Engineering Laboratory for High-Speed Train System Integration, CRRC Qingdao Sifang Co., Ltd., Qingdao 266111, China
2
College of Mechanical and Electrical Engineering, Qingdao University, Qingdao 266071, China
3
College of Physics, Qingdao University, Qingdao 266071, China
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(6), 1019; https://doi.org/10.3390/catal13061019
Submission received: 21 April 2023 / Revised: 7 June 2023 / Accepted: 11 June 2023 / Published: 19 June 2023
(This article belongs to the Special Issue Chemical Catalysis for Waste Plastics Recycling and Upcycling)
Browse Figures
Review Reports Versions Notes

Abstract

:
In recent years, electrocatalytic degradation of pollutants based on nanogenerators has gradually emerged. Compared with the huge energy consumption of traditional electrocatalysis, this method can effectively use displacement current to induce charge transfer and complete catalysis, so it can directly use the existing water flow energy and other energy sources in nature. This work will explain the basic principles, methods, and measurement methods of preparing nanogenerators from waste plastics, as well as the classification of electrocatalytic principles and methods relative to nanogenerators, which provides important support for the research in this emerging field. At the same time, the analysis based on this knowledge will also lay the foundation for future design.

1. Introduction

A nanogenerator converts mechanical energy into electrical energy. It attracts wide attention for its simple preparation process, which can be effectively achieved by using various forms of plastic, including recycled plastic products. In recent years, electrocatalytic degradation of pollutants based on nanogenerators has gradually emerged. Compared with the huge energy consumption of traditional electrocatalysis, this method can effectively use displacement current to induce charge transfer and complete catalysis, so it can directly use the existing water flow energy and other energy sources in nature. On the whole, the work of electrocatalytic degradation of pollutants based on recycled plastics is currently relatively scattered. Therefore, this work will explain the basic principles, methods, and measurement methods of preparing nanogenerators from waste plastics, as well as the classification of electrocatalytic principles and methods relative to nanogenerators, which provides important support for the research in this emerging field. At the same time, the analysis based on this knowledge will also lay the foundation for future design.
Plastic is a compound that is polymerized by addition polymerization or polycondensation reaction with monomer as the raw material. Over the past 100 years since its birth, this material has rapidly become widely used in all aspects of life [1,2,3]. However, the degradation problem caused by the excellent stability of plastics has become one of the most important environmental problems [4,5,6]. Especially in recent years, the penetration and pollution of microplastics in all aspects of human life have made the treatment of plastic pollution an urgent scientific problem [7,8]. At present, there are two ways to deal with the pollution of waste plastics. The first is to degrade plastics, including the use of degradable plastics, biological degradation, and chemical degradation [9,10,11,12]. The second is to recycle plastics and develop secondary products by using the widespread properties of plastics [13,14,15]. Figure 1 shows the variety of plastic pollutants in the ocean.
Nanogenerator (NG) is such a new and attractive research field. Generally, there are three types of NGs, namely piezoelectric nanogenerators (PENG), triboelectric nanogenerators (TENG), and pyroelectric nanogenerators (PyNG) [17,18,19,20,21]. PENG works on piezoelectric phenomena, and sufficient pressure on the material will induce current on the outer circuit with a relatively high voltage. To design this type of NG, piezoelectric materials will be required, such as polyvinylidene fluoride (PVDF) [22]. In this case, the materials should be polarized first, and a special PVDF was designed for better performance. Despite the struggle, PENGs have lower output and complex material design requirements. Despite its success in piezocatalysis, this type of NG still requires improvement for better application in recycled plastics. From this perspective, TENG has a wider material source and a more universal application environment. Meanwhile, such a material is reliable and has good performance, usually up to several tens of watts per square meter. The basic working principle of TENG is to carry out charge transfer through two materials with different electronegativity and then induce the external circuit to generate charge transfer through the relative position change of the material to convert mechanical energy into electrical energy. For TENG, the electronegativity of the material is the key to the good output of the design device. For plastic products, they can stably generate static electricity in a variety of friction environments, and using this static electricity to obtain power output can be very easily achieved. The most common example is the electrostatic discharge phenomenon when wearing a nylon cloth, indicating the wide existence of such a phenomenon. The last form of NG is PyNG; such NG converts heat into electric signals, requiring a cycled temperature change. Despite its rising tendency in the catalysis area, the recycled plastic design should be considered prior to the applications.
Electrocatalytic degradation of pollutants is one of the important methods in sewage treatment [23]. Through electrochemical design, environmentally harmful pollutants are degraded into environmentally harmless chemical compositions, including toxic substance degradation and colored dye degradation. However, traditional electrocatalytic degradation requires a lot of energy, and the ability to deal with actual environmental pollution problems is limited. Therefore, the design of new energy sources has become an important breakthrough direction in the field of development. Based on TENG, the direction of mechanical energy collection can be designed, including water flow energy collection, wind energy collection, etc., which can effectively use the existing energy in nature to convert it into electrical energy to degrade pollutants, thereby improving the relevant design effect.

2. The Basic Principles of Nanogenerators from Waste Plastics

Here, the working principles of the NGs are given individually. For scientific research, the three types of NGs can just be fabricated, and the NGs can be linked with electrolysis electrodes. In such a case, all NGs work as power sources. However, in real-world applications, the working principle should be studied before designing high-performance applications. Here, PENGs and TENGs collect mechanical energy, while PyNGs collect thermal energy. So, the most common scenarios of the former two are on the human body surface (movement), in wind, or in water (water flow or vibration), while PyNGs are applicable on the body surface or in flue holes.

2.1. PENG

PENG works depending on the piezoelectric effect. PENG’s working mechanism is shown in Figure 2a. This effect is well known [24,25], and if the piezoelectric material is pressed, charge will emerge on both sides of the material. Basically, such charge emerged due to the induced charge screen, and if an electrode was fabricated, such charge movement would be turned into electric current in the case of an existing closed outer circuit. Here, lead zirconate titanate piezoelectric (PZT) and PVDF are representatives for inorganic and organic piezoelectric materials individually. PVDF is widely used in daily life, but such a material usually requires difficult polarization under high electric field cooling. PZT emerges in daily life; it can generate thousands of volts after easy polarization simply by an electric field [26]. The key factor for evaluating the performance of a piezoelectric material is its piezoelectric coefficient, d33. The performance of a piezoelectric material can also be evaluated by measuring the charge generated by periodic pressing. Meanwhile, the polarization can also be measured by hysteresis loop measurement by dividing charge by area. Usually, materials with larger d33 or polarization outputs perform better.

2.2. TENG

TENG depends on the charge transfer when the two materials contact each other. The working mechanism of TENG is shown in Figure 2b. Such a phenomenon happens widely between two dielectric materials or one dielectric material—one conductor. The dielectric couple can even be the same material pair. After contact with each other, charge generates on the two interfaces, and by following separation, the capacitance change will lead to the induced charge transfer outside the circuit, leading to the current output such as PENG. However, the TENG design is much more flexible. Nowadays, there are mainly four types of TENG. The first is vertical contact-separation mode, in which two materials are in contact and separate vertically, as shown in Figure 3a. In such a mode, contact leads to charge transfer, and separation causes capacitance change. The second is contact-sliding mode, in which movements parallel with the material surface lead to simultaneous charge transfer and capacitance change, as shown in Figure 3b. The third one is single-electrode mode, similar to the first mode, but only one electrode connected to the ground wire is used, as shown in Figure 3c. Such a mode offers more flexibility. The last one is the freestanding mode, in which a third material moves between two materials, as shown in Figure 3d. The main factor that affects this is electronegativity, as shown in Figure 4. When the electronegativity between the two materials is larger, the output usually becomes larger [29,30,31,32,33].

2.3. PyNG

PyNG is different from the commonly observed thermoelectric phenomenon. Such ones work on the pyroelectric phenomenon. If there is a temperature change, the polarization of a piezoelectric material will change, resulting in an induced current between the electrodes. In this case, the typical materials are usually piezoelectric. A combination of energy harvesting techniques can be designed. For inorganic piezoelectric materials, PyNG uses the phase transition temperature (Tc) of ferroelectric materials, and the temperature range should be near it to get the best performance. Phase transition is a common phenomenon in condensed matter. Below such a temperature, ferroelectric order will be maintained, and above such a temperature, no net polarization will be maintained; therefore, the order to disorder transition will leave out the screen charge, and vice versa. In such cases, doping manipulation of Tc or size dependence is commonly used. Such ways will turn Tc to room temperature for the benefit of using such phenomena. For organic materials, Tc will be in a wide temperature range, and in such cases, the pyroelectric output originates from the temperature-induced polarization change and will be lower, but no manipulation of Tc is required [35].

3. The Methods of Nanogenerators from Waste Plastics

Based on these principles, NGs can be designed. Such design includes material preparation, electrode design, and circuit design for applications.

3.1. Material Choice

For material choice, PENGs and PyNGs are usually piezoelectric materials. Such materials include organic and inorganic ones. Usually, inorganic piezoelectric materials have better performance because of their large d33 and polarization, which originate from one-century development, and the representative inorganic piezoelectric materials are BaTiO3, PZT, and potassium-sodium niobate (KNN) [36,37,38,39,40,41,42,43]. Here, BaTiO3 is commonly used to study the piezoelectric regulations due to its well-controllable preparation conditions, including single crystal growth. PZTs possess the best piezoelectric output performance and are widely used in daily life, but they cause environmental problems due to the presence of Pb. In fact, various marvelous piezoelectric materials, including the well-known PMN-PT, are Pb-based ones, so searching for environmentally friendly ones led to the well-designed KNN, a good representation of lead-free piezoelectric materials. For plastic recycling, such inorganic grains can be integrated into the plastics to integrate or enhance the piezoelectric output. For organic ones, the representatives are PVDF and poly-lactic acid (PLLA). PVDF is widely used in daily life, and PLLA is an environmentally friendly plastic. As a representative, PVDF is widely used as a lithium-ion battery separator, vibration sensors, and energy harvesters. It can be solved by acetone and N, N-dimethylformamide (DMF) for further design. The solvents can be spun-coated, knifed, or electrospun into films for designing into applicable forms. Among these, electrospun polarizes PVDF and the film can be directly used, while the other forms of films should be polarized with a high enough electric field with cooling above 100 °C. In fact, some block copolymers can be more easily polarized, including PVDF-TrFE [44,45,46,47,48].
The material choice for TENG is much wider, and the most commonly used pair is nylon to PVDF [49,50,51,52,53,54]. Here, nylon is widely used, utilizing its strength properties, and it can be solved by formic and acetic acids. The preparation method is similar to piezoelectric ones. By combining such a nylon film with the above-mentioned PVDF film (no polarization is required) with a back electrode, TENG is fabricated in a simple way. In recent years, materials for TENGs have expanded, and the most important direction is liquid-solid TENG, which changes one side into liquids such as water. In fact, the water here can also be waste water, and polytetrafluoroethylene (PTFE) here works as another side. Usually, charge accumulation is required for better performance.

3.2. Electrodes

After getting the functional material or material couple, electrodes are the next issue. For a wired one, electrodes should be fabricated aside from the materials to conduct the energy for use. In this scenario, physical vapor deposition (PVD) usually has the best performance. Such methods usually use heat or ions to vaporize the metal and deposit it onto the functional materials. The methods use less metal, and the interface between functional material and metal is tight, so the performance of the device will be good. A compromise method is coating metal-included glues, such as full margin. Such a method requires no expensive PVD instruments but usually costs more metal. In recent years, new electrode materials, including conductive polymers, have also been reported to be applicable for TENG. Apart from the double-electrode design, some electrodeless designs are attracting more and more attention. These methods dig deeper into the mechanism of NGs, and displacement current is well designed. In such a case, the charge is directly used without an outer circuit, making it applicable for simplified applications such as recycled plastics. In the case of piezocatalysis, ultrasonics are used to supply the mechanical energy. The piezoelectric materials induce electric fields with a high enough voltage to lead to catalysis. In the case of a triboelectric design, a smart design is as follows: Aqueous droplets were used to roll down the PTFE. The charge transfer leads to high voltage, and pollutants are degraded. Meanwhile, our recent investigation showed triboelectricity can also happen under water, making it applicable for electrodeless designs such as bare nylon and PVDF contact. In such a case, the output voltage will be much higher.

3.3. Ways to Improve the Properties of Nanogenerators

Apart from the basic design of NGs, there are still ways to improve their properties, especially for recycled plastics. The first is functional group design. Polymers are macromolecules integrated by monomers, and the monomers can be changed during polymerization. For example, PVDF-TrFE decreases the electric field required for polarization, and methoxy poly(ethylene glycol) (mPEG) copolymerization with polycaprolactone (PCL) modifies the electronegativity of PCL, leading to larger output performance when it is in contact with nylon [55,56]. The second method is surface modification, including solution treatment, plasma treatment, ion treatment, and so on. For example, the micro-particles are integrated with the substrate by two-dimensional colloidal self-assembly using the solvent evaporation method. [57,58] Two low-cost materials, including silicon carbide (SiC) and polystyrene (PS), are utilized for modifying the surfaces. To apply the method, nylon (Polyamide 6–6) and fluorinated ethylene propylene (FEP) Teflon are selected, as nylon and FEP polymers show very high positive and negative electron affinities, respectively [59]. The effect of different modified surfaces on significantly enhancing the open-circuit voltage (Voc) and short-circuit current (Isc) of TENG is studied. The proposed method can be applied for large-area fabrication of micro-structures on various polymeric films, which can also improve the hydrophobicity of the surfaces. The good durability of the modified TENG performance is also proved by applying numerous cyclic loads. In addition, the practical application of modified TENG for energy harvesting applications is shown by charging different storage units. In another work, protons accelerated to 150 KeV were used to treat polyimide (PI). They penetrate the film and change the surface properties of the 2 μm area, leading to an increase in output when in contact with liquid metal [60]. The third method is surface contact modification. For example, an electrospun membrane can be designed by a roller collector, leading to the alignment of the fibers. Then the micro contact area will be different using two membranes with an ordered fiber arrangement in case the relative angle changes. The new design method is still emerging, but in cases where recycled plastic requires less treatment, the surface modification method will be the best choice [61,62].

4. Electrocatalytic Methods of Nanogenerators from Waste Plastics

Traditional methods of electrochemistry have been used for the removal of contaminants from wastewater, which involve electrochemical reduction, electrocatalytic oxidation, electrodialysis, and electroflotation. Electrocatalysis is commonly used for the treatment of biorefractory organic wastewater, as it is considered to be one of the most widely used electrochemical advanced oxidation processes (EAOPs). Its high effectiveness and reliability for treating wastewater have attracted considerable attention in recent times. By utilizing the electric energy obtained from NGs to drive electrocatalytic oxidation, it is possible to substantially reduce the need for external energy input and enhance the applicability of NGs for treating wastewater on a larger scale. Numerous studies have confirmed the effectiveness of using NGs to eliminate organic pollutants from wastewater while avoiding the need for a conventional electrochemical configuration. Therefore, considering the benefits of energy conservation and environmental preservation, the combination of NGs and electrocatalytic technology represents a highly advantageous approach to treating wastewater [63].
PENGs were the first reported degradation of pollutants. This method uses PENGs to convert mechanical vibration into electricity to degrade the pollutant. In fact, such an area overlaps with piezocatalysis. Compared with other methods, catalysis with PENGs has the advantage of easy manipulation. For example, ions can be easily doped to improve the conductivity of catalysis, and hetero junction can also be designed for the separation of carriers. Yu Yang fabricated a Ca-doped BaTiO3 membrane, and such a membrane was used to degrade Congo Red. To identify catalysis from adsorption, tert-butanol (TBA, •OH scavenging agent) and ethylenediamine diabetic acid tetrasodium dihydrate sodium salt (EDTA-2Na, h scavenging agent) were used, and if the change of color stops, it can be determined to be the degradation of dye [64]. The degradation and catalytic performance recovery test results of Congo Red are shown in Figure 5.
Paired with the TENG, the mechanical energy generated during wastewater treatment processes can be transformed into renewable electrical energy, which is then used to power the electrocatalysis process. With this approach, electrocatalysis becomes a self-sustaining system that enhances the efficiency of catalytic degradation in wastewater treatment. Previous research has indicated that self-powered electrochemical systems utilizing TENG technology have been successfully implemented in various applications, including water splitting, protecting against water pollution, providing cathodic protection, facilitating seawater desalination, and enabling electrochromic reactions. The low production costs, ease of fabrication, and outstanding electrocatalytic performance of TENG technology render it an attractive option for combined use with electrocatalysis in wastewater treatment processes. For example, Ye Chen designed a self-powered EF system based on the advantages of electric Fenton (EF) and the flexible design of triboelectric nanogenerators (TENG) and biomass carbon materials. It is driven by a sturdy and flexible multi-layer TENG (RFM TENG), using carbon materials derived from magnolia flowers as the cathode for oxygen reduction [65,66,67].
In the photo-catalytic system, there is a rapid recombination of charge carriers generated by light, which can decrease the quantum yield responsible for producing reactive oxygen species [63,68,69]. When compared to photo-catalysis, photoelectric catalysis presents a greater challenge for the recombination of photogenerated electrons and holes, resulting in increased effectiveness. Introducing an electric field to the process of photoelectric catalysis can enhance the redox potential available for the degradation of pollutants. TENGs produce electricity that meets the prerequisites for high voltage and low current, which can aid in the catalytic process. Therefore, the close integration of TENGs and photoelectric catalysis is capable of achieving high removal rates for wastewater treatment without any energy input. Photoelectric catalysis can be categorized into two distinct types: electroassisted photocatalysis and photoassisted electrocatalysis, such as photoelectric-Fenton. The photocatalyst is fixed to an electrode in the form of a photoanode. When the photoanode is exposed to sunlight, electrons are stimulated to move from the valence band to the conduction band, while holes are produced in the valence band. The use of an external electric field can result in greater efficiency in electron-hole separation. Utilizing TENG-based photocatalysis offers a practical and simple method for the efficient elimination of persistent organic pollutants during the treatment of wastewater. During electroassisted photocatalysis, the presence of TiO2 and other materials can hasten the recombination process of photogenerated electrons, thereby lessening the quantum yield related to the creation of reactive oxygen species (ROS). In electroassisted photocatalysis, the photocatalyst is affixed to a conductive support and functions as a photoanode in a two-electrode battery configuration. Under sunlight, when the photoanode is illuminated and the energy of the incident photon exceeds the energy bandgap of the semiconductor photocatalyst, electrons are excited from the valence band -VB to the conduction band -CB, leading to the generation of holes in the -VB. The oxidizable organic matter is oxidized to inorganic matter by the transfer of electrons to hVB+. As a result, a conjugation reaction takes place between H2O and active electrons, and between OH– or O2 and hVB+ to generate •OH and other ROS. These •OH then mineralize various waste plastics, effectively removing them from the environment. By utilizing TENG technology, the introduction of an external electrical bias can enhance the separation of charges and subsequently enhance the overall efficiency. TENGs also benefit from their wide material choice, and in such a case, polluted water can also be one friction side. In such a case, the charge transfer will lead to an improvement in carrier change, leading to enhanced degradation of dyes. For example, Song et al. used PTFE, which is a well-known material for designing liquid-solid NGs, and crystal violet was just used to simulate common dye wastes, and such a simple water droplet tumble showed very good catalysis performance, as shown in Figure 6 [70]. By using wasted plastic TENGs, photocatalyst can be loaded, achieving better performance. For example, Su et al. conducted a study that utilized a Teflon-Al-based triboelectric nanogenerator (TENG) to degrade methyl orange (MO), which is a primary component of waste plastics, using TiO2 under ultraviolet irradiation. The photo-generated electrons and holes migrate to the surface of TiO2 particles and act as redox sources, effectively reacting with adsorbed reactants to produce superoxide radical anions, hydrogen peroxide, and hydroxyl radicals—all of which are involved in the oxidation of waste plastics. The TENG generates electricity output that enhances the photodegradation of MO when used in tandem with TiO2 nanoparticles. This is because the electric field generated by the TENG helps to separate and suppress the recombination of photo-generated electrons and holes. Due to the photoelectrical coupling, the degradation percentages of MO after 120 min with and without TENG assistance were 76% and 27%, respectively. These results indicate that the fabricated TENGs have the potential for use in the degradation of waste plastics [71].
Scholars around the world have been focusing on the integration of photocatalysis and biodegradation, also known as ICPB, in recent years. This innovative technology combines the strengths of both biotechnology and photocatalysis, offering a low-cost, environmentally friendly, and sustainable approach for the treatment of pollutants [72]. ICPB involves the use of photocatalytic materials, porous carriers, and biofilms. The porous carrier’s surface allows for the conversion of refractory pollutants into biodegradable pollutants via photocatalysis. Meanwhile, the microorganisms on the biofilm inside the carrier facilitate the degradation of biodegradable pollutants into CO2 and H2O [73].
Through photoelectric catalysis outside the biofilm carrier, refractory pollutants can be broken down into biodegradable pollutants, thereby increasing the BOD/COD ratio [74]. Subsequently, microorganisms inside the carrier can degrade the biodegradable pollutants into inorganic matter. The TENG-IPECB system relies on the mechanism of intimate coupling between self-powered photoelectric catalysis and biodegradation. In this system, waste gas produced during the treatment of pollutants causes the internal materials of the TENG device to undergo friction, contact, and separation. A biological community is established in the porous carrier, which forms a biofilm used to degrade pollutants. The outer surface of the carrier is coated with photoelectric materials, while the inner surface is colonized by microorganisms. When the photoelectric materials are exposed to sunlight, holes (h+) are generated and electrons (e−) are formed. The electric energy generated by the TENG is then applied to IPECB cells. This electric energy is used to power the photoelectric catalysis system, creating a large potential difference between the photoanode and cathode. The flow of electrons from the photoanode to the cathode, under this potential difference, makes it difficult for e−/h+ pairs to recombine. Hence, refractory pollutants are oxidized by the h+ into biodegradable pollutants [75].
Microorganisms attached to the biofilm inside the porous carrier play a crucial role in degrading biodegradable pollutants into inorganic products. By significantly improving the efficiency of photocatalysis, the TENG-IPECB system can reduce the burden on subsequent biodegradation, leading to improved removal efficiency of contaminants throughout the process. In their study, Yasmina et al. utilized TiO2/Ti composite electrodes, along with biofilms, to degrade phenol via photocatalysis [76]. The results showed that the microorganisms attached to the TiO2 electrode acted as a biofilm and that the transfer of electrons from the electrode to the microorganisms facilitated the formation of the biofilm on the electrode. Ultimately, phenol was oxidized into absorbable organic matter on the biofilm, serving as the carbon source for the growth of microorganisms. In addition, through magnetron co-sputtering, Professor Kuru found that doping Mg with UV light can improve the photocatalytic activity of ZnO thin films. It was found that the photocatalytic efficiency of ZnO and MgZnO thin films after heat treatment is the highest at 400 degrees Celsius [77]. Moreover, the thickness of MgZnO film has an effect on its structure and photocatalytic performance [78]. Table 1 summarizes the content of the article, including the types of nanogenerators, the materials used to manufacture NG, the types of electrodes, and the advantages of their applications.

5. Conclusions

5.1. Conclusions

In short, catalysis using NGs is an emerging area. Various catalysis methods, including piezocatalysis, tribocatalysis, and pyrocatalysis, are the three main methods. They can be used directly to collect mechanical energy or to assist other catalysis. Despite intensive research efforts, the frontier of today still has a long way to go before real applications. The main challenge is the increased degradation of multiple types of pollutants. The recycled plastics decrease the second pollutant, but obviously, better design for the degradation of more pollutants increases the application value. To achieve this goal, mechanism research is fundamental, and better design based on the given mechanism is the key factor for area improvement. At the same time, the degradation of micro-plastics or even the NG itself is a further challenge. Despite the catalysis improvement, the NG design based on recycled plastics is also attractive. Some ways, such as electrostatic selection of plastics, may help collect plastics with better triboelectric performance. Meanwhile, electret is also a novel NG type, and plastics are novel candidates to be charged into electrets, and the best one is PI. Designing applications based on emerging NG technologies such as this will result in better performance. To conclude, NGs are based on common plastics, which is very easy to achieve with recycled plastics. NGs can be designed into various catalyzers applicable in electrocatalysis, degrading the pollutants and solving the water pollution problem.

5.2. Expectations for the Future

Firstly, there will be a classification method emerging in the near future for the systematic fabrication of tribo functional layers. For example, electrostatic classifications may help organize recycled plastics into positive and negative sides, and the organized parts may work even without further purification. Secondly, efficient surface modification methods will emerge, as will various optimization methods, such as increasing electronegativity/electropositivity or saving costs while maintaining the best performance. What’s more, surface roughness modification is essential considering the huge effect of surface roughness on triboelectrification.

Author Contributions

Conceptualization, Q.Z. and Q.P.; validation, X.W., W.L. and Y.L.; writing—original draft preparation, Q.Z. and Q.P.; writing—review and editing, X.W., W.L. and Y.L.; project administration, X.W.; funding acquisition, Q.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Shandong Provincial Natural Science Foundation, China (grant number ZR2019PEE011).

Data Availability Statement

Date availability is not applicable to this article as no new data were created or analyzed in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, D. Application of Plastics and Traditional Materials in Industrial Product. China Plast. Ind. 2017, 45, 20–23. [Google Scholar]
  2. Gu, L.; Ozbakkaloglu, T. Use of recycled plastics in concrete: A critical review. J. Waste Manag. 2016, 51, 19–42. [Google Scholar] [CrossRef] [PubMed]
  3. Dujardin, C.; Hamel, M. Introduction-Overview on Plastic and Inorganic Scintillators. In Plastic Scintillators: Chemistry and Applications; Hamel, M., Ed.; Springer: Cham, Switzerland, 2021; Volume 140, pp. 3–33. [Google Scholar]
  4. Golwala, H.; Zhang, X.; Iskander, S.M.; Smith, A.L. Solid waste: An overlooked source of microplastics to the environment. J. Sci. Total Environ. 2021, 769, 124. [Google Scholar] [CrossRef] [PubMed]
  5. Xi, B.; Wang, B.; Chen, M.; Lee, X.; Zhang, X.; Wang, S.; Yu, Z.; Wu, P. Environmental behaviors and degradation methods of microplastics in different environmental media. J. Chemosphere 2022, 299, 1343. [Google Scholar] [CrossRef]
  6. Lin, Z.; Jin, T.; Zou, T.; Xu, L.; Xi, B.; Xu, D.; He, J.; Xiong, L.; Tang, C.; Peng, J.; et al. Current progress on plastic/microplastic degradation: Fact influences and mechanism. J. Environ. Pollut. 2022, 304, 1191. [Google Scholar] [CrossRef]
  7. Lau, W.W.Y.; Shiran, Y.; Bailey, R.M.; Cook, E.; Stuchtey, M.R.; Koskella, J.; Velis, C.A.; Godfrey, L.; Boucher, J.; Murphy, M.B.; et al. Evaluating scenarios toward zero plastic pollution. Science 2020, 369, 1455. [Google Scholar] [CrossRef]
  8. Bergmann, M.; Collard, F.; Fabres, J.; Gabrielsen, G.W.; Provencher, J.F.; Rochman, C.M.; van Sebille, E.; Tekman, M.B. Plastic pollution in the Arctic. Nat. Rev. Earth Environ. 2022, 3, 323–337. [Google Scholar] [CrossRef]
  9. Kim, D.Y.; Rhee, Y.H. Biodegradation of microbial and synthetic polyesters by fungi. Appl. Microbiol. Biotechnol. 2003, 61, 300–308. [Google Scholar] [CrossRef]
  10. O’Brine, T.; Thompson, R.C. Degradation of plastic carrier bags in the marine environment. Mar. Pollut. Bull. 2010, 60, 2279–2283. [Google Scholar] [CrossRef]
  11. Ngoy, E.K.; Campbell, I.M.D.; Reid, R.G.; Paskaramoorthy, R. Modelling and prediction of the chemical and physical degradation of fibre reinforced plastics. J. Mater. Sci. 2009, 44, 2393–2407. [Google Scholar] [CrossRef]
  12. Tokiwa, Y.; Calabia, B.P.; Ugwu, C.U.; Aiba, S. Biodegradability of Plastics. Int. J. Mol. Sci. 2009, 10, 3722–3742. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Jin, X.; Zhu, Y.; Xu, H.; Tan, Y.; Yimit, M.; He, M. Research Progress on Degradation and Recycling of Waste Plastics. Eng. Plast. Appl. 2021, 49, 139–144. [Google Scholar]
  14. Klotz, M.; Haupt, M.; Hellweg, S. Limited utilization options for secondary plastics may restrict their circularity. Waste Manag. 2022, 141, 251–270. [Google Scholar] [CrossRef] [PubMed]
  15. Mao, S.; Gu, W.; Bai, J.; Dong, B.; Huang, Q.; Zhao, J.; Zhuang, X.; Zhang, C.; Yuan, W.; Wang, J. Migration characteristics of heavy metals during simulated use of secondary products made from recycled e-waste plastic. J. Environ. Manag. 2020, 266, 1105. [Google Scholar] [CrossRef] [PubMed]
  16. Rachman, C.M. Microplastics research—From sink to source. Science 2018, 360, 28–29. [Google Scholar] [CrossRef]
  17. Zhu, G.; Lin, Z.-H.; Jing, Q.; Bai, P.; Pan, C.; Yang, Y.; Zhou, Y.; Wang, Z.L. Toward Large-Scale Energy Harvesting by a Nanoparticle-Enhanced Triboelectric Nanogenerator. Nano Lett. 2013, 13, 847–853. [Google Scholar] [CrossRef]
  18. Song, Y.; Shi, Z.; Hu, G.-H.; Xiong, C.; Isogai, A.; Yang, Q. Recent advances in cellulose-based piezoelectric and triboelectric nanogenerators for energy harvesting: A review. J. Mater. Chem. A 2021, 9, 246. [Google Scholar] [CrossRef]
  19. Yang, Y.; Guo, W.; Pradel, K.C.; Zhu, G.; Zhou, Y.; Zhang, Y.; Hu, Y.; Lin, L.; Wang, Z.L. Pyroelectric Nanogenerators for Harvesting Thermoelectric Energy. Nano Lett. 2012, 12, 2833–2838. [Google Scholar] [CrossRef] [Green Version]
  20. Bowen, C.R.; Taylor, J.; LeBoulbar, E.; Zabek, D.; Chauhan, A.; Vaish, R. Pyroelectric materials and devices for energy harvesting applications. Energy Environ. Sci. 2014, 7, 3836–3856. [Google Scholar] [CrossRef] [Green Version]
  21. Zi, Y.; Lin, L.; Wang, J.; Wang, S.; Chen, J.; Fan, X.; Yang, P.-K.; Yi, F.; Wang, Z.L. Triboelectric-Pyroelectric-Piezoelectric Hybrid Cell for High-Efficiency Energy-Harvesting and Self-Powered Sensing. Adv. Mater. 2015, 27, 2340–2347. [Google Scholar] [CrossRef]
  22. Saxena, P.; Shukla, P. A comprehensive review on fundamental properties and applications of poly(vinylidene fluoride) (PVDF). Adv. Compos. Hybrid Mater. 2021, 4, 8–26. [Google Scholar] [CrossRef]
  23. Li, N.; Lu, X.; He, M.; Duan, X.; Yan, B.; Chen, G.; Wang, S. Catalytic membrane-based oxidation-filtration systems for organic wastewater purification: A review. J. Hazard. Mater. 2021, 414, 1254. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, D.; Chen, L.; Jiang, L.; Yu, Y.; Lu, Y.; Li, H.; Li, Y.; Meng, Z.; Su, Q.; Zhang, Y.; et al. A high temperature macroscopically flexible inorganic CaYAl3O7:Eu3+ nanofiber luminescent membrane. J. Mater. Chem. C 2022, 10, 7594–7603. [Google Scholar] [CrossRef]
  25. Wang, D.; He, H.; Wang, X.; Yu, Y.; Jiang, L.; Lu, Y.; Yu, J.; Zhang, J.; Long, Y.; Ruan, K. Grain size influence on the flexibility and luminous intensity of inorganic CaTiO3:Pr3+ crystal nanofibers. Ceram. Int. 2021, 47, 31329–31336. [Google Scholar] [CrossRef]
  26. Jiang, L.; Wang, X.-X.; Zhang, J.; Hong, H.; Du, K.; Zhang, Y.; Li, Y.; Zhang, Y.; Long, Y.; Ruan, K. Low temperature calcination induced flexibility in purely inorganic lead zirconate titanate and its application in piezoelectric enhanced adsorption. J. Eur. Ceram. Soc. 2021, 41, 7630–7638. [Google Scholar] [CrossRef]
  27. Wang, X.; Song, W.-Z.; You, M.-H.; Zhang, J.; Yu, M.; Fan, Z.; Ramakrishna, S.; Long, Y.-Z. Bionic Single-Electrode Electronic Skin Unit Based on Piezoelectric Nanogenerator. ACS Nano 2018, 12, 8588–8596. [Google Scholar] [CrossRef]
  28. Qiu, H.-J.; Song, W.-Z.; Wang, X.-X.; Zhang, J.; Fan, Z.; Yu, M.; Ramakrishna, S.; Long, Y.-Z. A calibration-free self-powered sensor for vital sign monitoring and finger tap communication based on wearable triboelectric nanogenerator. Nano Energy 2019, 58, 536–542. [Google Scholar] [CrossRef]
  29. Zou, H.; Guo, L.; Xue, H.; Zhang, Y.; Shen, X.; Liu, X.; Wang, P.; He, X.; Dai, G.; Jiang, P.; et al. Quantifying and understanding the triboelectric series of inorganic non-metallic materials. Nat. Commun. 2020, 11, 103. [Google Scholar] [CrossRef]
  30. Zou, H.; Zhang, Y.; Guo, L.; Wang, P.; He, X.; Dai, G.; Zheng, H.; Chen, C.; Wang, A.C.; Xu, C.; et al. Quantifying the triboelectric series. Nat. Commun. 2019, 10, 164. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Zhang, X.; Chen, L.; Jiang, Y.; Lim, W.; Soh, S. Rationalizing the Triboelectric Series of Polymers. Chem. Mater. 2019, 31, 1473–1478. [Google Scholar] [CrossRef]
  32. Liu, D.; Zhou, L.; Cui, S.; Gao, Y.; Li, S.; Zhao, Z.; Yi, Z.; Zou, H.; Fan, Y.; Wang, J.; et al. Standardized measurement of dielectric materials’ intrinsic triboelectric charge density through the suppression of air breakdown. Nat. Commun. 2022, 13, 337. [Google Scholar] [CrossRef]
  33. Wang, Y.; Yang, X.; Yu, X.; Duan, J.; Yang, Q.; Duan, Y.; Tang, Q. Triboelectric charging behaviors and photoinduced enhancement of alkaline earth ions doped inorganic perovskite triboelectric nanogenerators. Nano Energy 2020, 77, 105280. [Google Scholar] [CrossRef]
  34. Wang, Z.L. Triboelectric nanogenerators as new energy technology and self-powered sensors—Principles, problems and perspectives. Faraday Discuss. 2014, 176, 447–458. [Google Scholar] [CrossRef] [PubMed]
  35. Vijayakanth, T.; Liptrot, D.J.; Gazit, E.; Boomishankar, R.; Bowen, C.R. Recent Advances in Organic and Organic-Inorganic Hybrid Materials for Piezoelectric Mechanical Energy Harvesting. Adv. Funct. Mater. 2022, 32, 492. [Google Scholar] [CrossRef]
  36. Yang, Y.; Pan, H.; Xie, G.; Jiang, Y.; Chen, C.; Su, Y.; Wang, Y.; Tai, H. Flexible piezoelectric pressure sensor based on polydopamine-modified BaTiO3/PVDF composite film for human motion monitoring. Sens. Actuators A-Phys. 2020, 301, 111. [Google Scholar] [CrossRef]
  37. Panda, P.K.; Sahoo, B. PZT to Lead Free Piezo Ceramics: A Review. Ferroelectrics 2015, 474, 128–143. [Google Scholar] [CrossRef]
  38. Lin, J.; Cao, Y.; Zhu, K.; Yan, F.; Shi, C.; Bai, H.; Ge, G.; Yang, J.; Yang, W.; Shi, Y.; et al. Ultrahigh energy harvesting properties in temperature-insensitive eco-friendly high-performance KNN-based textured ceramics. J. Mater. Chem. A 2022, 10, 7978–7988. [Google Scholar] [CrossRef]
  39. Xu, K.; Li, J.; Lv, X.; Wu, J.; Zhang, X.; Xiao, D.; Zhu, J. Superior Piezoelectric Properties in Potassium-Sodium Niobate Lead-Free Ceramics. Adv. Mater. 2016, 28, 8519–8523. [Google Scholar] [CrossRef] [PubMed]
  40. Dagdeviren, C.; Su, Y.; Joe, P.; Yona, R.; Liu, Y.; Kim, Y.-S.; Huang, Y.; Damadoran, A.R.; Xia, J.; Martin, L.W.; et al. Conformable amplified lead zirconate titanate sensors with enhanced piezoelectric response for cutaneous pressure monitoring. Nat. Commun. 2014, 5, 5496. [Google Scholar] [CrossRef] [Green Version]
  41. Chen, H.; Zhou, L.; Fang, Z.; Wang, S.; Yang, T.; Zhu, L.; Hou, X.; Wang, H.; Wang, Z.L. Piezoelectric Nanogenerator Based on In Situ Growth All-Inorganic CsPbBr3 Perovskite Nanocrystals in PVDF Fibers with Long-Term Stability. Adv. Funct. Mater. 2021, 31, 73. [Google Scholar]
  42. Ramadan, K.S.; Sameoto, D.; Evoy, S. A review of piezoelectric polymers as functional materials for electromechanical transducers. Smart Mater. Struct. 2014, 23, 331. [Google Scholar] [CrossRef]
  43. Park, D.Y.; Joe, D.J.; Kim, D.H.; Park, H.; Han, J.H.; Jeong, C.K.; Park, H.; Park, J.G.; Joung, B.; Lee, K.J. Self-Powered Real-Time Arterial Pulse Monitoring Using Ultrathin Epidermal Piezoelectric Sensors. Adv. Mater. 2017, 29, 308. [Google Scholar] [CrossRef]
  44. Wu, J.; Qin, N.; Bao, D. Effective enhancement of piezocatalytic activity of BaTiO3 nanowires under ultrasonic vibration. Nano Energy 2018, 45, 44–51. [Google Scholar] [CrossRef]
  45. Lu, L.; Ding, W.; Liu, J.; Yang, B. Flexible PVDF based piezoelectric nanogenerators. Nano Energy 2020, 78, 105251. [Google Scholar] [CrossRef]
  46. Li, F.; Cabral, M.J.; Xu, B.; Cheng, Z.; Dickey, E.C.; LeBeau, J.M.; Wang, J.; Luo, J.; Taylor, S.; Hackenberger, W.; et al. Giant piezoelectricity of Sm-doped Pb(Mg 1/3 Nb 2/3)O3-PbTiO3 single crystals. Science 2019, 364, 264. [Google Scholar] [CrossRef]
  47. Shi, K.; Chai, B.; Zou, H.; Shen, P.; Sun, B.; Jiang, P.; Shi, Z.; Huang, X. Interface induced performance enhancement in flexible BaTiO3/PVDF-TrFE based piezoelectric nanogenerators. Nano Energy 2021, 80, 45–61. [Google Scholar] [CrossRef]
  48. Surmenev, R.A.; Chernozem, R.V.; Pariy, I.O.; Surmeneva, M.A. A review on piezo- and pyroelectric responses of flexible nano- and micropatterned polymer surfaces for biomedical sensing and energy harvesting applications. Nano Energy 2021, 79, 165–171. [Google Scholar] [CrossRef]
  49. Bhatta, T.; Maharjan, P.; Cho, H.; Park, C.; Yoon, S.H.; Sharma, S.; Salauddin, M.; Rahman, M.T.; Rana, S.M.S.; Park, J.Y. High-performance triboelectric nanogenerator based on MXene functionalized polyvinylidene fluoride composite nanofibers. Nano Energy 2021, 81, 69–74. [Google Scholar] [CrossRef]
  50. Chen, C.; Chen, L.; Wu, Z.; Guo, H.; Yu, W.; Du, Z.; Wang, Z.L. 3D double-faced interlock fabric triboelectric nanogenerator for bio-motion energy harvesting and as self-powered stretching and 3D tactile sensors. Mater. Today 2020, 32, 84–93. [Google Scholar] [CrossRef]
  51. Jiang, C.; Wu, C.; Li, X.; Yao, Y.; Lan, L.; Zhao, F.; Ye, Z.; Ying, Y.; Ping, J. All-electrospun flexible triboelectric nanogenerator based on metallic MXene nanosheets. Nano Energy 2019, 59, 268–276. [Google Scholar] [CrossRef]
  52. Rana, S.M.S.; Rahman, M.T.; Salauddin, M.; Sharma, S.; Maharjan, P.; Bhatta, T.; Cho, H.; Park, C.; Park, J.Y. Electrospun PVDF-TrFE/MXene Nanofiber Mat-Based Triboelectric Nanogenerator for Smart Home Appliances. ACS Appl. Mater. Interfaces 2021, 13, 4955–4967. [Google Scholar] [CrossRef]
  53. Chen, J.; Guo, H.; He, X.; Liu, G.; Xi, Y.; Shi, H.; Hu, C. Enhancing Performance of Triboelectric Nanogenerator by Filling High Dielectric Nanoparticles into Sponge PDMS Film. ACS Appl. Mater. Interfaces 2016, 8, 736–744. [Google Scholar] [CrossRef]
  54. Zhao, Z.; Zhou, L.; Li, S.; Liu, D.; Li, Y.; Gao, Y.; Liu, Y.; Dai, Y.; Wang, J.; Wang, Z.L. Selection rules of triboelectric materials for direct-current triboelectric nanogenerator. Nat. Commun. 2021, 12, 46. [Google Scholar] [CrossRef]
  55. Eom, K.; Shin, Y.-E.; Kim, J.-K.; Joo, S.H.; Kim, K.; Kwak, S.K.; Ko, H.; Jin, J.; Kang, S.J. Tailored Poly(vinylidene fluoride-co-trifluoroethylene) Crystal Orientation for a Triboelectric Nanogenerator through Epitaxial Growth on a Chitin Nanofiber Film. Nano Lett. 2020, 20, 6651–6659. [Google Scholar] [CrossRef]
  56. Hu, X.; Ding, Z.; Fei, L.; Xiang, Y.; Lin, Y. Wearable piezoelectric nanogenerators based on reduced graphene oxide and in situ polarization-enhanced PVDF-TrFE films. J. Mater. Sci. 2019, 54, 6401–6409. [Google Scholar] [CrossRef]
  57. Wu, Y.; Luo, Y.; Qu, J.; Daoud, W.A.; Qi, T. Nanogap and Environmentally Stable Triboelectric Nanogenerators Based on Surface Self-Modified Sustainable Films. ACS Appl. Mater. Interfaces 2020, 12, 55444–55452. [Google Scholar] [CrossRef]
  58. Zhao, L.; Zheng, Q.; Ouyang, H.; Li, H.; Yan, L.; Shi, B.; Li, Z. A size-unlimited surface microstructure modification method for achieving high performance triboelectric nanogenerator. Nano Energy 2016, 28, 172–178. [Google Scholar] [CrossRef]
  59. Cao, J.-P.; Zhao, J.; Zhao, X.; Hu, G.-H.; Dang, Z.-M. Preparation and characterization of surface modified silicon carbide/polystyrene nanocomposites. J. Appl. Polym. Sci. 2013, 130, 638–644. [Google Scholar] [CrossRef]
  60. He, W.; Fu, X.; Zhang, D.; Zhang, Q.; Zhuo, K.; Yuan, Z.; Ma, R. Recent progress of flexible/wearable self-charging power units based on triboelectric nanogenerators. Nano Energy 2021, 84, 175–183. [Google Scholar] [CrossRef]
  61. Wu, J.; Wang, X.; Li, H.; Wang, F.; Yang, W.; Hu, Y. Insights into the mechanism of metal-polymer contact electrification for triboelectric nanogenerator via first-principles investigations. J. Nano Energy 2018, 48, 607–616. [Google Scholar] [CrossRef]
  62. Ma, X.; Li, S.; Dong, S.; Nie, J.; Iwamoto, M.; Lin, S.; Zheng, L.; Chen, X. Regulating the output performance of triboelectric nanogenerator by using P (VDF-TrFE) Langmuir monolayers. J. Nano Energy 2019, 66, 356–373. [Google Scholar] [CrossRef]
  63. Shen, S.; Fu, J.; Yi, J.; Ma, L.; Sheng, F.; Li, C.; Wang, T.; Ning, C.; Wang, H.; Dong, K.; et al. High-Efficiency Wastewater Purification System Based on Coupled Photoelectric-Catalytic Action Provided by Triboelectric Nanogenerator. J. Nano-Micro Lett. 2021, 13, 695. [Google Scholar] [CrossRef] [PubMed]
  64. Yu, Y.; Wang, X.-X.; Xie, G.; Ma, J.; Lv, T.; Du, K.; Hu, H.; Zhang, J.; Li, Y.; Long, Y.-Z.; et al. Preparation and piezoelectric catalytic performance of flexible inorganic Ba1−xCaxTiO3 via electrospinning. J. Mater. Chem. A 2021, 9, 24695–24703. [Google Scholar] [CrossRef]
  65. Chen, Y.; Zhu, Y.; Tian, M.; Chen, C.; Jia, X.; Gao, S. Sustainable self-powered electro-Fenton degradation of organic pollutants in wastewater using carbon catalyst with controllable pore activated by EDTA-2Na. Nano Energy 2019, 59, 346–353. [Google Scholar] [CrossRef]
  66. Chen, C.; Zhu, Y.; Tian, M.; Chen, Y.; Yang, Y.; Jiang, K.; Gao, S. Sustainable self-powered electro-Fenton degradation using N, S co-doped porous carbon catalyst fabricated with adsorption-pyrolysis-doping strategy. Nano Energy 2021, 81, 485–496. [Google Scholar] [CrossRef]
  67. Tian, M.; Zhu, Y.; Zhang, D.; Wang, M.; Chen, Y.; Yang, Y.; Gao, S. Pyrrolic-nitrogen-rich biomass-derived catalyst for sustainable degradation of organic pollutant via a self-powered electro-Fenton process. Nano Energy 2019, 64, 259–271. [Google Scholar] [CrossRef]
  68. Dong, F.; Pang, Z.; Lin, Q.; Wang, D.; Ma, X.; Song, S.; Nie, S. Triboelectric nanogenerator enhanced radical generation in a photoelectric catalysis system via pulsed direct-current. Nano Energy 2022, 100, 582–599. [Google Scholar] [CrossRef]
  69. Dong, F.; Pang, Z.; Yang, S.; Lin, Q.; Song, S.; Li, C.; Ma, X.; Nie, S. Improving Wastewater Treatment by Triboelectric-Photo/Electric Coupling Effect. ACS Nano 2022, 16, 3449–3475. [Google Scholar] [CrossRef]
  70. Song, W.-Z.; Zhang, M.; Qiu, H.-J.; Li, C.-L.; Chen, T.; Jiang, L.-L.; Yu, M.; Ramakrishna, S.; Wang, Z.-L.; Long, Y.-Z. Insulator polymers achieve efficient catalysis under visible light due to contact electrification. Water Res. 2022, 226, 45–68. [Google Scholar] [CrossRef]
  71. Su, Y.; Yang, Y.; Zhang, H.; Xie, Y.; Wu, Z.; Jiang, Y.; Fukata, N.; Bando, Y.; Wang, Z.L. Enhanced Photodegradation of Methyl Orange with TiO2 Nanoparticles Using a Triboelectric Nanogenerator. Nanotechnology 2013, 24, 295401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Li, M.; Yin, H.; Zhu, M.; Yu, Y.; Lu, G.; Dang, Z. CoMetabolic and Biochar-Promoted Biodegradation of Mixed PAHs by Highly Efficient Microbial Consortium QY1. J. Environ. Sci. 2021, 107, 65–76. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, Y.; Chen, C.; Zhou, D.; Xiong, H.; Zhou, Y.; Dong, S.; Rittmann, B.E. Eliminating Partial-Transformation Products and Mitigating Residual Toxicity of Amoxicillin through Intimately Coupled Photocatalysis and Biodegradation. Chemosphere 2019, 237, 124491. [Google Scholar] [CrossRef] [PubMed]
  74. Ma, Y.; Xiong, H.; Zhao, Z.; Yu, Y.; Zhou, D.; Dong, S. Model-Based Evaluation of Tetracycline Hydrochloride Removal and Mineralization in an Intimately Coupled Photocatalysis and Biodegradation Reactor. Chem. Eng. J. 2018, 351, 967–975. [Google Scholar] [CrossRef]
  75. Deng, Y.; Tang, L.; Zeng, G.; Dong, H.; Yan, M.; Wang, J.; Hu, W.; Wang, J.; Zhou, Y.; Tang, J. Enhanced Visible Light Photocatalytic Performance of Polyaniline Modified Mesoporous Single Crystal TiO2 Microsphere. Appl. Surf. Sci. 2016, 387, 882–893. [Google Scholar] [CrossRef]
  76. Yasmina, M.; Mourad, K.; Mohammed, S.H.; Khaoula, C. Treatment Heterogeneous Photocatalysis; Factors Influencing the Photocatalytic Degradation by TiO2. Energy Procedia 2014, 50, 559–566. [Google Scholar] [CrossRef] [Green Version]
  77. Kuru, M.; Narsat, H. The effect of heat treatment temperature and Mg doping on structural and photocatalytic activity of ZnO thin films fabricated by RF magnetron co-sputtering technique. J. Mater. Sci.-Mater. Electron. 2019, 30, 18484–18495. [Google Scholar] [CrossRef]
  78. Kuru, M. The Effect of Thickness on Photocatalytic Performance in MgZnO Thin Films. Sak. Univ. J. Sci. 2020, 24, 586–595. [Google Scholar] [CrossRef]
Catalysts 13 01019 g001 550
Figure 1. Plastic pollutants in the ocean. Reproduced from [16] with permission from the American Association Advancement of Science.
Figure 1. Plastic pollutants in the ocean. Reproduced from [16] with permission from the American Association Advancement of Science.
Catalysts 13 01019 g001
Catalysts 13 01019 g002 550

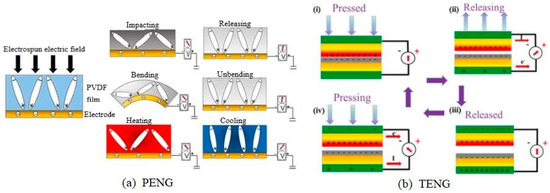

Figure 2. (a) Working mechanism of PENG. Reproduced from [27] with permission from the American Chemical Society. (b) Working mechanism of TENG. Reproduced from [28] with permission from the Elsevier.
Figure 2. (a) Working mechanism of PENG. Reproduced from [27] with permission from the American Chemical Society. (b) Working mechanism of TENG. Reproduced from [28] with permission from the Elsevier.
Catalysts 13 01019 g002
Catalysts 13 01019 g003 550

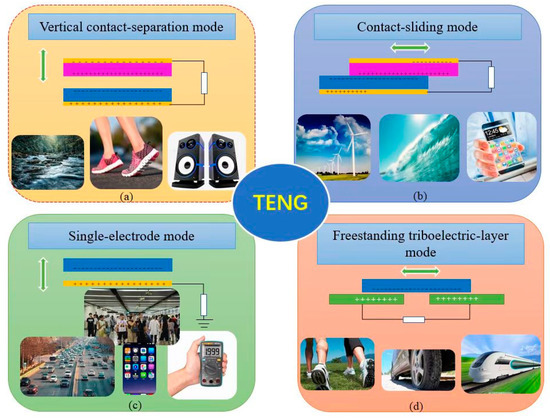

Figure 3. Typical modes of TENGs. (a) vertical contact-separation mode; (b) contact-sliding mode; (c) single electrode mode; and (d) freestanding triboelectric-layer mode. Adapted with permission from [34]. Copyright 2014 Royal Society of Chemistry.
Figure 3. Typical modes of TENGs. (a) vertical contact-separation mode; (b) contact-sliding mode; (c) single electrode mode; and (d) freestanding triboelectric-layer mode. Adapted with permission from [34]. Copyright 2014 Royal Society of Chemistry.
Catalysts 13 01019 g003
Catalysts 13 01019 g004 550

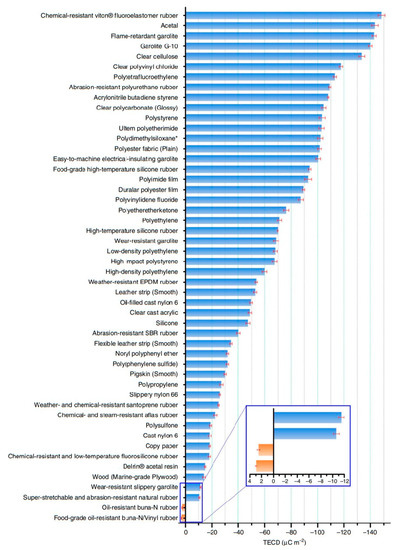

Figure 4. Electronegativity of common materials in series. ”*” Indicates the average of its molecular weight. Reproduced from [30] with permission from the Nature Portfolio.
Figure 4. Electronegativity of common materials in series. ”*” Indicates the average of its molecular weight. Reproduced from [30] with permission from the Nature Portfolio.
Catalysts 13 01019 g004
Catalysts 13 01019 g005 550

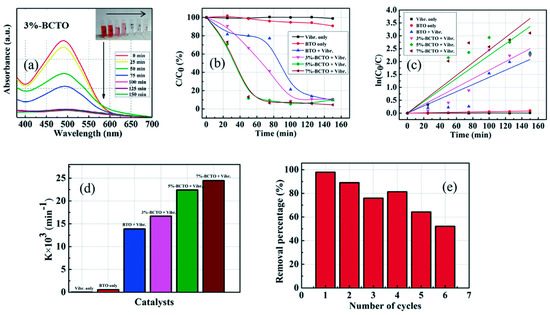

Figure 5. Piezocatalysis performance of Ca doped BaTiO3. (a) Spectrum recoding of degrading dye. The left to right samples were listed according to the catalytic time, from earlier to later. (b) Time dependence and (c) kinetic analysis of it catalyze performance. (d) Comparison results. (e) Cycle results. Reproduced from [64] with permission from the Royal Society of Chemistry.
Figure 5. Piezocatalysis performance of Ca doped BaTiO3. (a) Spectrum recoding of degrading dye. The left to right samples were listed according to the catalytic time, from earlier to later. (b) Time dependence and (c) kinetic analysis of it catalyze performance. (d) Comparison results. (e) Cycle results. Reproduced from [64] with permission from the Royal Society of Chemistry.
Catalysts 13 01019 g005
Catalysts 13 01019 g006 550

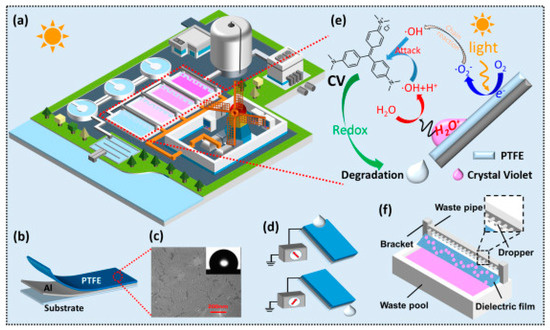

Figure 6. Tribocatalysis by liquid-solid contact. (a) Application demonstration, (b) solid side structure, (c) SEM image of solid side, (d) working principle, (e) reaction process, and (f) experiment set up. Reproduced from [70] with permission from the Pergamon-Elsevier Science Ltd.
Figure 6. Tribocatalysis by liquid-solid contact. (a) Application demonstration, (b) solid side structure, (c) SEM image of solid side, (d) working principle, (e) reaction process, and (f) experiment set up. Reproduced from [70] with permission from the Pergamon-Elsevier Science Ltd.
Catalysts 13 01019 g006
Table
Table 1. Summarizes the content of the article, including the types of nanogenerators, the materials used to manufacture NG, the types of electrodes and the advantages of their applications.
Table 1. Summarizes the content of the article, including the types of nanogenerators, the materials used to manufacture NG, the types of electrodes and the advantages of their applications.
TypeMaterialsElectrodeAdvantageRef.
TENGPTFE, PVDFMagnolia carbon material for the cathode or some metal materialLow cost, simple preparation method, and high efficiency electrocatalysis. The electric energy generated by the teng meets the requirements of high voltage and low current, which can assist the catalytic process.[66,67,70]
PENGBaTiO3 film doped with Ca, PZT, TVDF, BaTiO3, KNNwith the cathode carbon materials from TM and EDTA-2NaThe adsorption catalysis was evaluated, and the polymer catalysis had the advantage of being easy to operate.[36,37,38,39,40,41,42,43,65]
PyNGPZT, TVDF, BaTiO3, KNNFerroelectric materialIt converts heat into electrical signals.[36,37,38,39,40,41,42,43]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Q.; Peng, Q.; Li, W.; Liu, Y.; Wang, X. Waste Plastic Recycling Upgrade Design Nanogenerator for Catalytic Degradation of Pollutants. Catalysts 2023, 13, 1019. https://doi.org/10.3390/catal13061019

AMA Style

Zhang Q, Peng Q, Li W, Liu Y, Wang X. Waste Plastic Recycling Upgrade Design Nanogenerator for Catalytic Degradation of Pollutants. Catalysts. 2023; 13(6):1019. https://doi.org/10.3390/catal13061019

Chicago/Turabian Style

Zhang, Qian, Qiyu Peng, Wenbin Li, Yanzhang Liu, and Xiaoxiong Wang. 2023. "Waste Plastic Recycling Upgrade Design Nanogenerator for Catalytic Degradation of Pollutants" Catalysts 13, no. 6: 1019. https://doi.org/10.3390/catal13061019

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
