Catalytic Hydrogenation of Anthracene on Binary (Bimetallic) Composite Catalysts

by
Zainulla M. Muldakhmetov
,
Aigul T. Ordabaeva
*,
Majit G. Meiramov
,
Arstan M. Gazaliev
and
Sergey V. Kim
Institute of Organic Synthesis and Chemistry of Coal of Kazakhstan Republic, Alikhanov Str., 1, Karaganda 100000, Kazakhstan
*
Author to whom correspondence should be addressed.
Catalysts 2023, 13(6), 957; https://doi.org/10.3390/catal13060957
Submission received: 27 March 2023 / Revised: 19 May 2023 / Accepted: 30 May 2023 / Published: 31 May 2023
(This article belongs to the Section Catalytic Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
The catalytic activity of the binary composite catalysts of Fe2O3-CoO/CaA and Fe2O3-CoO/ZSM-5 was studied. They were obtained by impregnation of CaA and ZSM-5 zeolites with aqueous solutions of sulfates of iron (FeSO4·7H2O) and cobalt (CoSO4·7H2O). The total metal content was no more than 5%. Then, oxidizing burning at 720 °C for 60 min was performed to produce the metal oxides. It was found that the obtained Fe-Co/CaA catalyst contains iron and cobalt as CoFe2O4 compound, and the Fe-Co/ZSM-5 catalyst includes CoFe2O4 and CoFe. The phase composition of the obtained catalysts was detected by the X-ray diffraction analysis. The surface morphology was investigated by the electron microscopy. The elemental composition of the obtained catalysts was determined by energy dispersive spectroscopy with mapping and inductively coupled plasma atomic emission spectroscopy. The atomic absorption analysis by the IR-spectroscopy showed the shifts of absorption bands in the infrared spectra of the pure zeolites and with added Fe and Co. The catalytic hydrogenation of anthracene was performed to determine the catalytic properties of the obtained catalysts. It is one of the most common model compounds applied to investigate the efficiency of catalytic systems. The result of hydrogenation found that conversion of anthracene at 400 °C, initial pressure of 6 MPa and duration of 60 min using the Fe-Co/CaA catalytic system equaled to ~87%. However, hydrogenation products equaled to ~84%. Anthracene conversion using the Fe-Co/ZSM-5 catalytic system and the same conditions was ~91%; among them, hydrogenated derivatives were ~71%. The proposed method is characterized by its simple execution. The obtained catalysts are be slightly inferior to platinum and rhodium catalysts in the catalytic activity.

1. Introduction

Development of the new heterogeneous catalysts is an important direction, i.e., the progress of the chemical industry is impossible without it. At the same time, the availability of materials and simplicity of the synthesis method is a significant point. Catalysts with deposited metals of the iron subgroup (Fe, Co, Ni) or their compounds on various carriers have highly catalytic activity. Thus, they can increase the efficiency of processing various organic raw materials into valuable products [1]. The choice in favor of the iron subgroup metals is due to their prevalence in nature and affordability [2,3] in comparison with the noble metals.
Among the variety of catalysts, the bimetallic catalysts have a special place, i.e., their high activity and stability attracts attention. The unique properties of the bimetallic catalysts are related to presence of a synergistic effect [4]. This class of substances is of the scientific and practical interest to use them in the processing of the organic compounds.
It should be stated that for each case, the nature of a catalyst support and precursor as well as the conditions for the obtaining the catalyst play an important role for its properties [5]. So in the work of Xie et al. [6], it was found that the use of non-calcined SBA-15, containing an abundance of Si-OH groups, has an effect on the dispersion of Co and Fe particles, which contributes to the production of an effective catalyst for the processing of volatile organic compounds, besides having high stability. The dependence of physicochemical properties on the SiO2 content in the NiMo/SiO2-Al2O3 catalyst obtained by wet impregnation was studied in Leyva et al. [7], and it was found that with a change in the SiO2 content, the yields of products during the hydrotreating of heavy oil change.
The study of Przydacz et al. [8] shows that the higher the value of the specific surface area of the Ni-Fe/TiO2 catalyst substrate is, the higher the yield of biofuels during the hydroxygenation of 5-hydroxymethylfurfural is.
The ratio of metals in bimetallic catalysts is also an equally significant factor influencing their effectiveness. For example, Huang et al. [9] found that a bimetallic Ni-Co/CZY catalyst with a ratio of Ni:Co = 1:9 exhibits high catalytic activity in ammonia decomposition reactions, providing a conversion rate of 100%, which can be used to produce hydrogen. Eswaramoorthi et al. [10] determined that at a content of 3 wt.% Ni and 12 wt.% Mo in the NiMo/MWCNTs catalyst, its activity in the process of hydrotreating gas oil is higher than when using a catalyst with the same Ni and Mo content but with a more traditional Al2O3 substrate.
Zeolites are most commonly used as a catalyst support material in the manufacture of catalysts. Zeolites are one of the best materials due to their crystalline structure, the acidic properties and thermal stability. They provide high catalytic activity, selective adsorption, the ability to regulate acid properties and regeneration. Kantarellis et al. [11] showed that pyrolysis of biomass in the presence of a Ni-V/HZSM-5 catalyst obtained by impregnation, but with preliminary physicochemical treatment of the substrate, contributes to the production of deoxygenated liquid products saturated with hydrogen. Hu et al. [12] achieved a conversion of 100% by hydrogenation of acetylene in the presence of a CuNi/ZSM-12 catalyst obtained by impregnation at initial humidity prepared by incipient wetness impregnation method, while ethylene (82.48%) accounted for a significant proportion of the products obtained.
However, the properties of catalysts with this type of carriers also depend on the production conditions. So Aziz et al. [13] revealed that the bimetallic catalyst Fe-Co/ZSM-5, obtained in situ by hydrothermal method, demonstrates high efficiency in the adsorption and catalytic decomposition of volatile organic compounds than obtained by impregnation.
The structure of zeolite is an assembly of tetrahedral building blocks, i.e., Al and Si atoms are bound together by oxygen. The Al/Si ratio is an essential feature impacting on the thermal stability of zeolite [14]. The spherical pores connected by channels and the large specific surface area develop good conditions for adsorption, the ion exchange and catalytic reactions. The microporous structure of zeolites with the prescribed size pores can be used as the molecular sieves to extract the certain chemical substances with the molecular sizes relevant to size of zeolite pores [15,16]. The ability to regulate the structures and acidities of zeolites is their key advantage to select the support material, i.e., the presence of Bronsted and Lewis acid sites is a significant factor in the catalytic processes [17]. Zeolites modified by adding different metals to them, removing aluminum or silicon from the framework structure or by replacing them with other elements [18] open the broad prospects to apply them in the processing of various organic raw materials [19,20,21,22,23].
It is known that zeolite itself can act as a catalyst due to the presence of active sites in micropores. However, the efficiency of the catalytic properties of zeolite decreases due to the steric factor caused by the pore sizes. Therefore, it is necessary that the synthesis method of zeolites provides the possibility to regulate their properties. Modification of zeolite with various agents forming the additional mesopores enhances the probability of access of larger molecules to the active site [24]. Wang et al. [25] reported that mesoporous zeolite CaA obtained by hydrothermal method demonstrates high activity in the catalytic Scheconversion of methanol to dimethyl ether. Sahoob et al. [26] determined the optimal conditions for obtaining crystalline zeolite ZSM-5, which has high selectivity for ethylene and propylene in the process of conversion of methanol to olefins.
In order to study the efficiency of catalysts, the polyaromatic compounds are used as the model objects. The anthracene is one of the most common polycyclic aromatic compounds used as a model compound in various studies [27,28,29,30]. Anthracene as other polyaromatic hydrocarbons is part of heavy organic raw materials, e.g., the petroleum products, coal tar and organic waste [31]. It is examined as a model compound to study various catalytic systems and to develop the processing methods of different organic raw materials [32,33,34,35,36,37,38,39,40,41,42,43].
The current development trend of directions to involve the raw residues of the oil and coal industry in the production processes of the valuable fuels is related to the increasing demand of energy and environmental requirements. Accumulation of huge amounts of waste from coal and oil production constitutes a danger due to the high content of polyaromatic compounds, i.e., they are toxic [44]. The toxic, carcinogenic and mutagenic properties of polyaromatic compounds can cause the severe consequences for flora and fauna [45]. Ingress of these compounds in organisms increases the risk of cancer, various tumors and mutations [46]. The issue is relevant for countries with a developed coal and petrochemical industry. Therefore, development of the effective catalysts for the catalytic hydrotreatment of the polyaromatic substances is an urgent direction.
The previous studies have shown the high catalytic activity of bimetallic Fe-Co catalyst added on a carbon sorbent in hydrogenation of phenanthrene [47]. Conversion of phenanthrene was higher than for iron oxide added on a carbon sorbent and an industrial catalyst.
This study is devoted to research of the catalytic activity of iron and cobalt compounds added on aluminosilicate zeolites of ZSM-5 and CaA, which are common and widely used in various industrial processes [48].
ZSM-5 zeolite is a system of 14 tetrahedrons of AlO4 and SiO4, and their spatial arrangement forms a pentasil. Pentasil has eight faces, all pentagonal in shape. The possibility to synthesize ZSM-5 zeolite with different Si/Al ratio obtains catalysts for the specific tasks. Therefore, this zeolite has an extensive field of commercial application [49], and it attracts the attention of researchers as a promising material to develop new catalysts with the unique properties.
CaA zeolite has a wide commercial application due to its specific properties [50]. CaA structure consists of sodalite blocks connected to each other by four-member rings [51].
The bimetallic catalysts of Fe-Co/CaA and Fe-Co/ZSM-5 were synthesized by the impregnation method. The impregnation method is one of the most common methods of adding active phases on supports. As a result, the monometallic and mixed catalytic systems can be obtained. The ZSM-5 and CaA zeolites are impregnated with aqueous solutions of FeSO4·7H2O and CoSO4 sulfates under the intensive stirring, then the obtained catalyst systems are evaporated and calcined at 720 °C to transfer the active phases into the oxide forms. The method proposed in this study does not require pre-preparation of the support and initial reagents. The catalytic activity of the obtained bimetallic catalysts is comparable with catalysts of platinum and rhodium.
The surface morphology of the obtained catalysts was studied by scanning electron microscopy (SEM). The qualitative chemical composition was determined by energy dispersive spectroscopy (EDS) and infrared spectroscopy (IR). The phase composition was studied by X-ray phase analysis (XRD). Quantification of applied metal content was performed using the inductively coupled plasma atomic emission spectroscopy (ICP-AES).
The catalytic activity of the obtained composite catalysts of Fe-Co/CaA and Fe-Co/ZSM-5 was assessed using the process of anthracene hydrogenation in an autoclave in a hydrogen atmosphere. Hydrogenation products were identified by gas chromatography (GC).

2. Results

Diffractogram of the X-ray phase analysis in Figure 1 illustrates that CaA and ZSM-5 zeolites contain oxides and oxide-hydroxide compounds of iron and cobalt after impregnation and calcination procedures.
Absence of the distinct peaks of iron and cobalt and their compounds on a diffractogram (Figure 1) may be due to the fact that the catalysts were prepared using sulfate solutions of iron and cobalt with a total concentration of iron and cobalt not more than 5%, which is within the background. Iron and cobalt can be precipitated on the zeolite surface in a non-crystalline form [52], or their ions can be incorporated in the zeolite crystal lattice [53]. It is known that iron and cobalt added on ZSM-5 are detected by X-ray phase analysis at their concentration of 50% [54].
After calcination of the impregnated zeolites to 720 °C, the gas-phase evaporation of sulfates and sulfides of iron and cobalt created conditions for incorporation of iron and cobalt ions into the zeolite lattice. It is known that incorporation of a metal ion into the zeolite lattice is possible by the gas-phase method [54]. In our case, the calcination could cause gas-phase evaporation of sulfates and sulfides of metals.
The X-ray phase analysis (Figure 1) showed the presence of small peaks in the Fe-Co/CaA catalyst, mainly CoFe2O4, identified at angles of 30.07; 37.04; 43.04; 47.12; 53.39; 56.91; 62.50; 70.89; and 78.89. They correspond to the Miller indices of (220); (400); (331); (422); (511); (440); and (620).
Peaks between 20° and 30° are related to zeolites. For the Fe-Co/CaA catalyst, the characteristic zeolite peaks can be observed clearly at angles of 18.5; 20.175; 23.425; 31.1; 33.775; and 35.7.
For the Fe-Co/ZSM-5 catalyst, the characteristic zeolite peaks are observed at angles of 16.0; 23.08; 23.25; 23.4; 23.82; 23.96; 24.4; 25.9; 26.6; 26.8; 27.0; 27.4; 28.45; 29.3; and 29.9.
For the Fe-Co/ZSM-5 catalyst (Figure 1), iron and cobalt compounds are mostly in the form of CoFe2O4 identified by angles of 30.14; 35.50; 37.13; 43.14; 53.52; 62.66; and 66.93. They correspond to Miller indices of (220); (311); (222); (400); (422); (511); (440); (531); and (442). Peaks of weak intensity of the CoFe compound identified by angles of 44.97 and 65.48 with Miller indices of (110) and (200) are observed, respectively.
The electron microscopy analysis of Fe-Co/CaA catalysts (Figure 2) and Fe-Co/ZSM-5 (Figure 3) determined that the surface of Fe-Co/ZSM-5 catalyst contains the finer metal particles (to nanosized) than the surface of Fe-Co/CaA. Energy dispersive spectroscopy with element mapping provided the distribution of elements on the surface of the obtained catalysts. For the Fe-Co/CaA catalyst (Figure 2), a nonuniform distribution of Co and a random distribution of Fe over the zeolite surface were observed. The Fe-Co/ZSM-5 catalyst (Figure 3) showed a nonuniform distribution of Fe and Co. The nonuniform distribution of metals over the surface of the support is one of the disadvantages of the impregnation method.
The energy dispersive spectroscopy detected the presence of Fe, Co, Na, Al, Si, S and O elements in the obtained Fe-Co/CaA catalyst (Figure 2). Sulfur can be formed during the calcination of Fe-Co/CaA catalyst after impregnation with sulfate solutions; however, it is not observed for Fe-Co/ZSM-5 catalyst. The energy dispersive spectra obtained for the Fe-Co/ZSM-5 catalyst (Figure 3) determine the presence of Fe, Co, Al, Si and O.
Inductively coupled plasma atomic emission (ICP-AES) analysis showed that the Fe-Co/CaA catalyst has Fe ~2.2 and Co ~1.7. The Fe-Co/ZSM-5 catalyst has Fe ~2.2 and Co ~1.8.
Based on the IR-spectroscopy (Figure 4), it was determined that spectra show shifts of some absorption bands associated with effects of the precipitated metals of iron and cobalt.
Values of the wave numbers for absorption bands of the original zeolites and with added metals of iron and cobalt are presented in Table 1.
Absorption bands for pure CaA zeolite are observed in the range of 460–3500 cm−1. In order to obtain Fe-Co/CaA catalyst (Figure 4a), the small shifts in values of absorption bands compared to pure CaA zeolite and appearance of a band of weak intensity at 3142 cm−1 are detected (Table 1). The results of IR spectroscopy (Figure 4a) demonstrate changes in values and a decrease in values of absorption bands after addition of iron and cobalt metals in the range of 3400–3500 cm−1, corresponding to vibrations of the O-H bond. After addition of metals, the insignificant changes were observed in values of absorption bands in the range of 1100–1700 cm−1 corresponding to H-O-H vibrations and in the range of 460–1000 cm−1 corresponding to vibrations of the Si-Al-O bond.
For pure ZSM-5 zeolite (Figure 4b), the main absorption bands of vibrations with tetrahedral frame structure were located in the range of 450–3600 cm−1. The shift of absorption bands in values for Fe-Co/ZSM-5 catalyst (Figure 4b) in comparison with pure ZSM-5 zeolite was low. For Fe-Co/CaA catalyst, a new band of weak intensity was observed in the range of 773.55 cm−1 (Table 1). A decrease in values of absorption bands after addition of iron and cobalt was observed in the range of 3400–3500 cm−1 corresponding to O-H vibrations, in the range of 450–1250 cm−1 corresponding to (Si or Al)-O vibrations and in the range of 1250–1600 cm−1 corresponding to H-O-H.
A shift in values of the absorption bands may be due to the influence of added metals on zeolite structure [55].
The results of anthracene hydrogenation with the obtained catalysts of Fe-Co/CaA and Fe-Co/ZSM-5 are presented in Table 2.
Table 2 demonstrates that after hydrogenation of anthracene with the obtained catalysts of Fe-Co/CaA and Fe-Co/ZSM-5, the products consist mainly of di- and tetrahydroanthracene.
Anthracene conversion is slightly higher with Fe-Co/ZSM-5 catalyst than with Fe-Co/CaA. However, Fe-Co/CaA has a greater hydrogenation capacity, i.e., the total content of degradation products is about 2%, but their total fraction was ~15% for Fe-Co/ZSM-5. The appearance of phenanthrene in products of anthracene hydrogenation using Fe-Co/CaA and Fe-Co/ZSM-5 may be related to isomerization of 2-ethylbiphenyl under the influence of hydrogen [56]. Table 2 describes that using the Fe-Co/ZSM-5, the degradation products consist mostly of 2-ethylbiphenyl, which is probably a source of phenanthrene formation.
The probable mechanism of anthracene hydrogenation with obtained catalysts is as follows (Scheme 1):
Table 3 compares values of anthracene conversions and yields of dihydroanthracene, tetrahydroanthracene and octahydroanthracene during anthracene hydrogenation with catalysts of platinum and rhodium added on Al2O3 [36] with the obtained values in this study.
Table 3 demonstrates that the catalysts obtained in this study are inferior to catalysts of platinum and rhodium in total anthracene conversion and octahydroanthracene yield. Otherwise, the difference is not significant.

3. Materials and Methods

3.1. Materials

In order to synthesize catalysts, we used iron sulfate (FeSO4·7H2O) and cobalt sulfate (CoSO4·7H2O) purchased in Karagandareactivsbyt LLP (Karaganda, Kazakhstan), CaA zeolite produced by TATSORB (Tatarstan, Russia) and ZSM-5 zeolite made by Xi’an Lvneng Purification Technology Co., Ltd. (Xi’an, Shanxi, China). ZSM-5 zeolite with the molar ratio of SiO2/Al2O3 = 50 and crystallinity degree of about 90% was chosen for the catalyst synthesis. The catalytic properties of the obtained catalysts were evaluated during the hydrogenation of anthracene produced by Merck (Darmstadt, Germany, European Union).

3.2. Synthesis of Fe-Co/CaA and Fe-Co/ZSM-5 Catalysts

The Fe-Co/CaA and Fe-Co/ZSM-5 composite binary catalysts were synthesized under the same conditions and component ratios. The ratio of zeolites and sulfates of iron and cobalt was used so that the total content of iron and cobalt in the obtained catalysts was no more than 5% (based on 2.5% of Fe and 2.5% of Co).
To prepare catalysts, 0.372 g of iron sulfate (FeSO4-7H2O) and 0.198 g of cobalt sulfate (CoSO4) were dissolved in distilled water under intensive stirring, and after their complete dissolution, 3 g of crushed zeolite was added. Zeolite was impregnated with intensive stirring for 2 h. The mixture was evaporated at the RE-201D rotary evaporator (Lanphan Company, Zhengzhou, China) for 60 min and dried in a ShS-80-01-SPU drying cabinet made by Smolensk SKTB SPU (SKTB SPU, Smolensk, Russia) at 105 °C for 2 h. The obtained zeolites with the added iron and cobalt were heat-treated in the SNOL 7.2/1100 (Lithuania, European Union) muffle furnace at 720 °C and for 60 min. The pure zeolites of CaA and ZSM-5 were calcined under the same conditions.

3.3. Hydrogenation of Anthracene

Hydrogenation process was performed in a CJF-0.05 reactor manufactured by Zhengzhou Keda Machinery and Instrument (Zhengzhou, China), 0.05 l capacity, equipped with a stirrer, temperature and pressure sensors and an emergency pressure relief system. The initial pressure was 6 MPa. The autoclave temperature of 400 °C was the beginning of a reaction.
The premixed initial components were placed in a reactor, purged with hydrogen and pressurized. The autoclave heating rate was 10 °C/min. After cooling the reactor to room temperature, the reaction mixture was dissolved in benzene and analyzed by gas–liquid chromatography.

3.4. Physical and Chemical Studies

The phase composition of the synthesized composite catalysts of Fe-Co/CaA and Fe-Co/ZSM-5 was performed on a D8 ADVANCE ECO X-ray diffractometer (Bruker, Karlsruhe, Germany) using CuKα-radiation (λ = 1.5406 Å) in the angle (2θ) range of 15–100° and step of 0.02°. Processing of diffractograms to identify compounds was performed using the POW_COD database.
The surface morphology and energy-dispersive spectra of the obtained catalysts were studied using a TESCAN MIRA 3 LMU scanning electron microscope (TESCAN, Brno, Czech Republic) at an accelerating voltage of 20 kV. Sample preparation for SEM was as follows: a small amount of sample was added to a double-sided conductive carbon tape and sprayed as a thin layer of carbon.
The detectors used were a secondary electron detector (SE detector) and a backscattered electron detector (BSE detector). The SE detector showed the topographic contrast, and the BSE detector demonstrated the compositional contrast.
Inductively coupled plasma atomic emission analysis (ICP-AES) was performed on a Profile Plus instrument (Teledyne Leeman Labs, Hudson, NH, USA). The method is based on actuation of the spectrum by inductively coupled plasma with subsequent registration of spectral line emission by photoelectric method. The analysis uses dependence of the spectral line intensities of the elements on their mass fractions in the sample. For ICP-AES analysis, a 0.1 g sample weight was weighed with an accuracy of no more than ±0.0003, dissolved in 10 cm3 of nitric acid (1:1) at heating. Solutions were heated to remove nitrogen oxides without boiling, cooled, transferred to 100 cm3 volumetric flasks, diluted to the mark with water and stirred. Spectrometer was prepared for operation and operated according to the spectrometer operating instructions.
Preparation of samples for IR-spectrometry was performed by tablet pressing. Pure KBr, previously crushed and dried, was used as a substance of the matrix.
Tablet pressing was made in the following sequence: 2 mg of the test substance was weighed on analytical scales, and KBr powder was added. The total weight of the charge was adjusted to 300 mg. The prepared charge was placed in an agate mortar for grinding and mixing. The resulting mixture of the test substance and KBr was evenly poured into a mold and pressed at 8.0 ton-force. The tablet was with a diameter of 13 mm and a thickness of about 1 mm.
IR spectra were recorded on FSM-1201 device (Infraspek JSC, RF, Infraspek, Siant-Petersburg, Russia) in program Fspec (ver. 4.0.0.2) in the range of 400–4000 cm−1 in the transmission mode (wave number—8.0 cm−1).
The products of anthracene hydrogenation were identified using a Crystalux 4000 M chromatograph with a plasma ionization detector on a Zebron ZB-5 column (Phenomenex, Torrance, CA, USA): column type—capillary; length—30 m; inner diameter—0.32 mm; stationary phase thickness—0.50 μm. Temperature range from 60 to 360 °C. Temperature program was held from 120 to 260 °C by 12 °C per min.
The quantitative calculation of chromatographic information was performed using the program “NetChrom V 2.1” by the percentage normalization method. The concentration (wt. %) of hydrogenation products was calculated from the area of peaks. The anthracene conversion was calculated based on the obtained gas chromatography analysis data on the concentrations of hydrogenation products (wt. %) and the concentration of anthracene remaining after hydrogenation. The yield was calculated by the following formula:
Q = 100% − Xn,
where Q is the conversion, and Xn is the concentration (wt. %) of anthracene remaining after hydrogenation. Using the Fe-Co/CaA catalyst, the average value of the anthracene remaining after hydrogenation (Table 2) was 13.21%, and the conversion was calculated using the following formula: 100% − 13.21% = 86.70~87%. Using the Fe-Co/ZSM-5 catalyst, the amount of anthracene remaining after hydrogenation was 9.21%; hence, the conversion was 100% − 9.21% = 90.79~91%.
A method was developed for gas chromatography to analyze hydrogenation products of anthracene and phenanthrene. This method used a database of the component composition based on analysis of the standard samples.

4. Conclusions

The physical and chemical properties of bimetallic composite catalysts of Fe-Co/CaA and Fe-Co/ZSM-5 obtained by impregnation of zeolites in sulfate solutions with subsequent calcination were studied. It was established that distribution of iron and cobalt in the obtained catalysts had a heterogeneous character. Despite the nonuniform distribution of iron and cobalt on surface of the obtained catalysts, their catalytic activity was quite high.
Hydrogenation of anthracene with Fe-Co/CaA composite catalyst forms hydrogenation products mostly. The Fe-Co/ZSM-5 catalyst has cracking properties and hydrogenation ability. Anthracene conversion with the Fe-Co/ZSM-5 catalyst was slightly higher than with the Fe-Co/CaA catalyst. Formation of phenanthrene in hydrogenation products is probably due to isomerization of 2-ethylbiphenyl. The Fe-Co/ZSM-5 catalyst also has a higher isomerizing ability than Fe-Co/CaA.
Thus, impregnation of zeolites with sulfates of iron and cobalt with their subsequent calcination can be used to obtain the composite bimetallic catalysts with high catalytic activity.

Author Contributions

Conceptualization, M.G.M. and A.T.O.; methodology, A.T.O., M.G.M. and S.V.K.; investigation, M.G.M. and A.T.O.; resources, S.V.K.; data curation, Z.M.M. and A.M.G.; writing—original draft preparation, A.T.O.; supervision, Z.M.M. and A.M.G.; project administration, Z.M.M. and A.M.G.; funding acquisition, M.G.M., A.T.O. and Z.M.M. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by the Science Committee of the Ministry of Education and Science of the Republic of Kazakhstan under program No. BR10965230.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Shafigulin, R.V.; Filippova, E.O.; Shmelev, A.A.; Bulanova, A.V. Mesoporous silica doped with dysprosium and modified with nickel: A highly efficient and heterogeneous catalyst for the hydrogenation of benzene, ethylbenzene and xylenes. Catal. Lett. 2019, 149, 916–928. [Google Scholar] [CrossRef]
  2. Su, B.; Cao, Z.-C.; Shi, Z.-J. Exploration of earth-abundant transition metals (Fe, Co, and Ni) as catalysts in unreactive chemical bond activations. Acc. Chem. Res. 2015, 48, 886–896. [Google Scholar] [CrossRef] [PubMed]
  3. Kaplaneris, N.; Ackermann, L. Earth-abundant 3d transition metals on the rise in catalysis. Beilstein J. Org. Chem. 2022, 18, 86–88. [Google Scholar] [CrossRef] [PubMed]
  4. Bahri, S.; Patra, T.; Sonal Upadhayayula, S. Synergistic effect of bifunctional mesoporous ZSM-5 supported Fe-Co catalyst for selective conversion of syngas with low Ribblet ratio into synthetic fuel. Microporous Mesoporous Mater. 2019, 275, 1–13. [Google Scholar] [CrossRef]
  5. Bueno, A.C.; Mayer, M.; Weber, M.; Bechelany, M.; Klotz, M.; Farrusseng, D. Impregnation protocols on alumina beads for controlling the preparation of supported metal catalysts. Catalysts 2019, 9, 577. [Google Scholar] [CrossRef]
  6. Xie, X.; Xie, R.; Suo, Z.; Huang, H.; Xing, M.; Lei, D. A highly dispersed Co–Fe bimetallic catalyst to activate peroxymonosulfate for VOC degradation in a wet scrubber. Environ. Sci. Nano 2021, 8, 2976–2987. [Google Scholar] [CrossRef]
  7. Leyva, C.; Ancheyta, J.; Travert, A.; Mauge, F.; Mariey, L.; Ramirez, J.; Rana, M.S. Activity and surface properties of NiMo/SiO2–Al2O3 catalysts for hydroprocessing of heavy oils. Appl. Catal. A Gen. 2012, 425, 1–12. [Google Scholar] [CrossRef]
  8. Przydacz, M.; Jędrzejczyk, M.; Rogowski, J.; Szynkowska-Jóźwik, M.; Ruppert, A.M. Highly efficient production of DMF from biomass-derived HMF on recyclable Ni-Fe/TiO2 catalysts. Energies 2020, 13, 4660. [Google Scholar] [CrossRef]
  9. Huang, C.; Li, H.; Yang, J.; Wang, C.; Hu, F.; Wang, X.; Lu, Z.-H.; Feng, G.; Zhang, R. Ce0.6Zr0.3Y0.1O2 solid solutions-supported Ni-Co bimetal nanocatalysts for NH3 decomposition. Appl. Surf. Sci. 2019, 478, 708. [Google Scholar] [CrossRef]
  10. Eswaramoorthi, I.; Sundaramurthy, V.; Das, N.; Dalai, A.K.; Adjaye, J. Application of multi-walled carbon nanotubes as efficient support to NiMo hydrotreating catalyst. Appl. Catal. Gen. 2008, 339, 187–195. [Google Scholar] [CrossRef]
  11. Kantarelis, E.; Yang, W.; Blasiak, W. Effect of zeolite to binder ratio on product yields and composition during catalytic steam pyrolysis of biomass over transition metal modified HZSM5. Fuel 2014, 122, 119–125. [Google Scholar] [CrossRef]
  12. Hu, S.; Zhang, C.; Wu, M.; Ye, R.; Shi, D.; Li, M.; Zhao, P.; Zhang, R.; Feng, G. Semi-Hydrogenation of Acetylene to Ethylene Catalyzed by Bimetallic CuNi/ZSM-12 Catalysts. Catalysts 2022, 12, 1072. [Google Scholar] [CrossRef]
  13. Aziz, A.; Bae, J.; Kim, K.S. Preparation of Fe-Co-ZSM-5 Bimetal catalysts with different alternate metal inclusions for catalytic removal of VOCs from air. Water Air Soil Pollut. 2020, 231, 155. [Google Scholar] [CrossRef]
  14. Fattahi, N.; Triantafyllidis, K.; Luque, R.; Ramazani, A. Zeolite-Based Catalysts: A Valuable Approach toward Ester Bond Formation. Catalysts 2019, 9, 758. [Google Scholar] [CrossRef]
  15. Degnan, T.F. Applications of zeolites in petroleum refining. Top. Catal. 2000, 13, 349–356. [Google Scholar] [CrossRef]
  16. Busca, G. Acidity and basicity of zeolites: A fundamental approach. Microporous Mesoporous Mater. 2017, 254, 3–16. [Google Scholar] [CrossRef]
  17. Galadima, A.; Muraza, O. Role of zeolite catalysts for benzene removal from gasoline via alkylation: A review. Microporous Mesoporous Mater. 2015, 213, 169–180. [Google Scholar] [CrossRef]
  18. Verdoliva, V.; Saviano, M.; De Luca, S. Zeolites as acid/basic solid catalysts: Recent synthetic developments. Catalysts 2019, 9, 248. [Google Scholar] [CrossRef]
  19. Yilmaz, B.; Muller, U. Catalytic applications of zeolites in chemical industry. Top Catal. 2009, 52, 888–895. [Google Scholar] [CrossRef]
  20. Ojeda, M.; Grau-Atienza, A.; Campos, R.; Romero, A.A.; Serrano, E.; Marinas, J.M.; Martinez, J.G.; Luque, R. Hierarchical zeolites and their catalytic performance in selective oxidative processes. ChemSusChem 2015, 8, 1328–1333. [Google Scholar] [CrossRef]
  21. Ennaert, T.; Van Aelst, J.; Dijkmans, J.; De Clercq, R.; Schutyser, W.; Dusselier, M.; Verboekend, D.; Sels, B.F. Potential and challenges of zeolite chemistry in the catalytic conversion of biomass. Chem. Soc. Rev. 2016, 45, 584–611. [Google Scholar] [CrossRef] [PubMed]
  22. Zhao, X.; Xu, J.; Deng, F. Solid-state NMR for metal-containing zeolites: From active sites to reaction mechanism. Front. Chem. Sci. Eng. 2019, 14, 159–187. [Google Scholar] [CrossRef]
  23. Sánchez-López, P.; Kotolevich, Y.; Yocupicio-Gaxiola, R.I.; Antúnez-García, J.; Chowdari, R.K.; Petranovskii, V.; Fuentes-Moyado, S. Recent advances in catalysis based on transition metals supported on zeolites. Front. Chem. 2021, 9, 716745. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, Z.; Zhang, J.; Yu, B.; Zheng, G.; Zhao, J.; Hong, M. Amino Acid Mediated Mesopore Formation in LTA Zeolite. J. Mater. Chem. A 2016, 4, 2305–2313. [Google Scholar] [CrossRef]
  25. Wang, Y.; Ren, F.; Pan, D.; Ma, J. A Hierarchically micro-meso-macroporous zeolite CaA for methanol conversion to dimethyl ether. Crystals 2016, 6, 155. [Google Scholar] [CrossRef]
  26. Sanhoob, M.A.; Khan, A.; Ummer, A.C. ZSM-5 Catalysts for MTO: Effect and optimization of the tetrapropylammonium hydroxide concentration on synthesis and performance. ACS Omega 2022, 7, 21654–21663. [Google Scholar] [CrossRef]
  27. Zhang, Z.-G.; Okada, K.; Yamamoto, M.; Yoshida, T. Hydrogenation of anthracene over active carbon-supported nickel catalyst. Catal. Today 1998, 45, 361–366. [Google Scholar] [CrossRef]
  28. Mfincnerovfi, D.; Augustin, J. Fungal metabolism and detoxification of polycyclic aromatic hydrocarbons: A review. Bioresour. Technol. 1994, 48, 97–106. [Google Scholar]
  29. Nkansah, M.A.; Christy, A.A.; Barth, T. The use of anthracene as a model compound in a comparative study of hydrous pyrolysis methods for industrial waste remediation. Chemosphere 2011, 84, 403–408. [Google Scholar] [CrossRef]
  30. Reina, T.R.; Yeletsky, P.; Bermúdez, J.M.; Arcelus-Arrillaga, P.; Yakovlev, V.A.; Millan, M. Anthracene aquacracking using NiMo/SiO2 catalysts in supercritical water conditions. Fuel 2016, 182, 740–748. [Google Scholar] [CrossRef]
  31. Tao, S.; Li, X.; Yang, Y.; Coveney, R.M.; Lu, X.; Chen, H.; Shen, W. Dispersion modeling of polycyclic aromatic hydrocarbons from combustion of biomass and fossil fuels and production of coke in Tianjin, China. Environ. Sci. Technol. 2006, 40, 4586–4591. [Google Scholar] [CrossRef]
  32. Zanato, A.F.S.; Silva, V.C.; Lima, D.A.; Jacinto, M.J. Bimetallic magnetic PtPd-nanoparticles as efficient catalyst for PAH removal from liquid media. Appl. Nanosci. 2017, 7, 781. [Google Scholar] [CrossRef]
  33. Fang, Y.; Li, J.; Sheng, N.; Wang, X.; Chen Di Cai, M.; An, Y.; Chen, Y.; Dai, L. Enhanced catalytic oxidation of anthracene by deposition of MoO3 and WO3 nanoparticles on MCM-41. Mol. Catal. 2020, 497, 111209. [Google Scholar] [CrossRef]
  34. Liu, H.; Fan, S.; Gong, X.; Wang, J.; Guo, A.; Chen, K.; Wang, Z. Partial hydrogenation of anthracene with in situ hydrogen produced from water-gas shift reaction over Fe-based catalysts. Catalysts 2020, 10, 1379. [Google Scholar] [CrossRef]
  35. Zhang, X.; Wang, D.; Chen, X.; Meng, L.; Liang, C. Selective Hydrogenation of Anthracene to Symmetrical Octahydroanthracene over Al2O3-Supported Pt and Rh Catalysts Prepared by Strong Electrostatic Adsorption. Energy Fuels 2022, 36, 2775. [Google Scholar] [CrossRef]
  36. Kustov, L.M.; Kalenchuk, A.N. The Role of the metal in the catalytic reactions of hydrogenation–dehydrogenation of polycyclic hydrocarbons for hydrogen Storage. Metals 2022, 12, 2002. [Google Scholar] [CrossRef]
  37. Liu, Z.-Q.; Wei, X.-Y.; Liu, F.-J.; Wang, B.-J.; Zong, Z.-M. Temperature-controlled hydrogenation of anthracene over nickel nanoparticles supported on attapulgite powder. Fuel 2018, 223, 222. [Google Scholar] [CrossRef]
  38. Nelkenbaum, E.; Dror, I.; Berkowitz, B. Reductive hydrogenation of polycyclic aromatic hydrocarbons catalyzed by metalloporphyrins. Chemosphere 2007, 68, 210. [Google Scholar] [CrossRef]
  39. Cataldo, F.; Angelini, G.; Garcia-Hernandez, D.A.; Manchado, A. Far infrared (terahertz) spectroscopy of a series of polycyclic aromatic hydrocarbons and application to structure interpretation of asphaltenes and related compounds. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2013, 111, 68. [Google Scholar] [CrossRef]
  40. Zhang, Z.-G.; Yoshida, T. Behavior of hydrogen transfer in the hydrogenation of anthracene over activated carbon. Energy Fuels 2001, 15, 708. [Google Scholar] [CrossRef]
  41. Baikenov, M.I.; Baikenova, G.G.; Sarsembayev, B.S.; Tateeva, A.B.; Tusipkhan, A.; Matayeva, A.Z. Influence of catalytic systems on process of model object hydrogenation. Int. J. Coal Sci. Technol. 2014, 1, 88. [Google Scholar] [CrossRef]
  42. Li, M.; Wang, D.; Li, J.; Pan, Z.; Ma, H.; Jiang, Y.; Tian, Z. Facile hydrothermal synthesis of MoS2 nano-sheets with controllable structures and enhanced catalytic performance for anthracene hydrogenation. RSC Adv. 2016, 6, 71534. [Google Scholar] [CrossRef]
  43. Nador, F.; Moglie, Y.; Vitale, C.; Yus, M.; Alonso, F.; Radivoy, G. Reduction of polycyclic aromatic hydrocarbons promoted by cobalt or manganese nanoparticles. Tetrahedron 2010, 66, 4318. [Google Scholar] [CrossRef]
  44. Mougnol, J.B.B.; Waanders, F.; Fosso-Kankeu, E.; Al Alili, A.R. Leaching of polycyclic aromatic hydrocarbons from the coal tar in sewage wastewater, acidic and alkaline mine drainage. Int. J. Environ. Res. Public Health 2022, 19, 4791. [Google Scholar] [CrossRef] [PubMed]
  45. Patel, A.B.; Shaikh, S.; Jain, K.J.; Desai, C.; Madamwar, D. Polycyclic aromatic hydrocarbons: Sources, Toxicity, and Remediation approaches. Front. Microbiol. 2020, 11, 562813. [Google Scholar] [CrossRef] [PubMed]
  46. Armstrong, B.; Hutchinson, E.; Unwin, J.; Fletcher, T. Lung Cancer Risk after Exposure to Polycyclic Aromatic Hydrocarbons: A Review and Meta-Analysis. Environ. Health Perspect. 2004, 112, 970. [Google Scholar] [CrossRef]
  47. Meiramov, M.G. Angular–linear isomerization on the hydrogenation of phenanthrene in the presence of iron-containing catalysts. Solid Fuel Chem. 2017, 51, 107–110. [Google Scholar] [CrossRef]
  48. Yilmaz, B.; Trukhan, N.; Muller, U. Industrial Outlook on Zeolites and Metal Organic Frameworks. Chin. J. Catal. 2012, 33, 3–10. [Google Scholar] [CrossRef]
  49. Santos, M.B.; Vianna, K.C.; Pastore, H.O.; Andrade, H.M.C.; Mascarenhas, A.J.S. Studies on the synthesis of ZSM-5 by interzeolite transformation from zeolite Y without using organic structure directing agents. Microporous Mesoporous Mater. 2020, 306, 110413. [Google Scholar] [CrossRef]
  50. Singh, J.; White, R.L. A variable temperature infrared spectroscopy study of CaA zeolite dehydration and carbonate formation. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2019, 207, 189–196. [Google Scholar] [CrossRef]
  51. Julbe, A.; Drobek, M. Zeolite A Type. In Encyclopedia of Membranes; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
  52. Tišler, Z.; Klegová, A.; Svobodová, E.; Šafár, J.; Strejcová, K.; Kohout, J.; Šlang, S.; Pacultová, K.; Daily Rodríguez-Padrón, D.; Bulánek, R. Cobalt based catalysts on alkali-activated zeolite foams for N2O decomposition. Catalysts 2020, 10, 1398. [Google Scholar] [CrossRef]
  53. Otto, T.; Zones, S.I.; Hong, Y.; Iglesia, E. Synthesis of highly dispersed cobalt oxide clusters encapsulated within LTA zeolites. J. Catal. 2017, 356, 173–185. [Google Scholar] [CrossRef]
  54. Kosinov, N.; Liu, C.; Hensen, E.J.M.; Pidko, E. Engineering of transition metal catalysts confined in zeolites. Chem. Mater. 2018, 30, 3177–3198. [Google Scholar] [CrossRef]
  55. Nejad-Darzi, S.K.H.; Samadi-Maybodi, A.; Ghobakhluo, M. Synthesis and characterization of modified ZSM-5 nanozeolite and their applications in adsorption of Acridine Orange dye from aqueous solution. J. Porous Mater. 2013, 20, 909–916. [Google Scholar] [CrossRef]
  56. Tuli, L.B.; Mebel, A.M. Formation of phenanthrene via H-assisted isomerization of 2-ethynylbiphenyl produced in the reaction of phenyl with phenylacetylene. Int. Journ. Chem Kinet. 2020, 52, 875–883. [Google Scholar] [CrossRef]
Catalysts 13 00957 g001 550

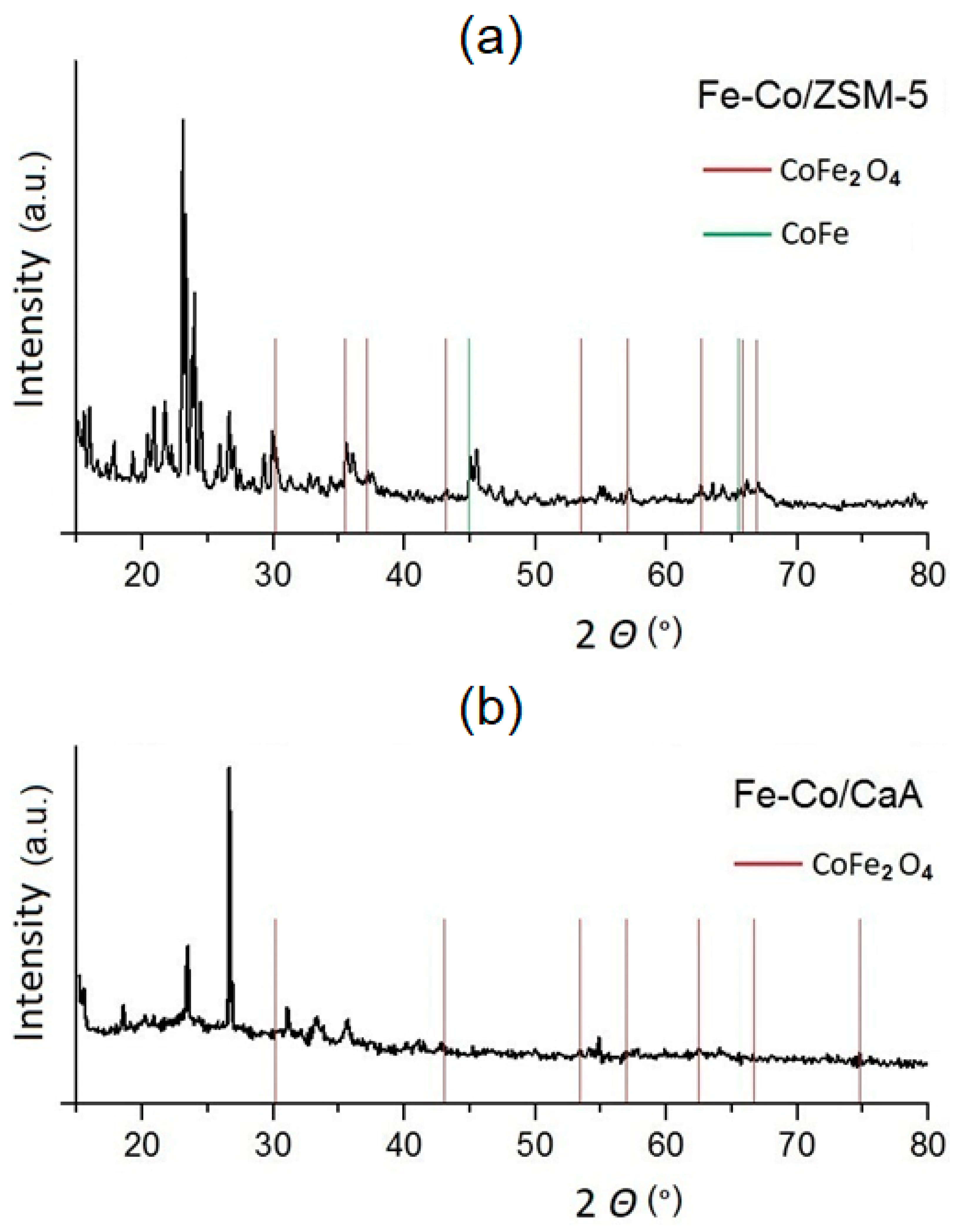

Figure 1. (a) Diffractograms of Fe-Co/ZSM-5 and (b) Fe-Co/CaA catalysts.
Figure 1. (a) Diffractograms of Fe-Co/ZSM-5 and (b) Fe-Co/CaA catalysts.
Catalysts 13 00957 g001
Catalysts 13 00957 g002 550

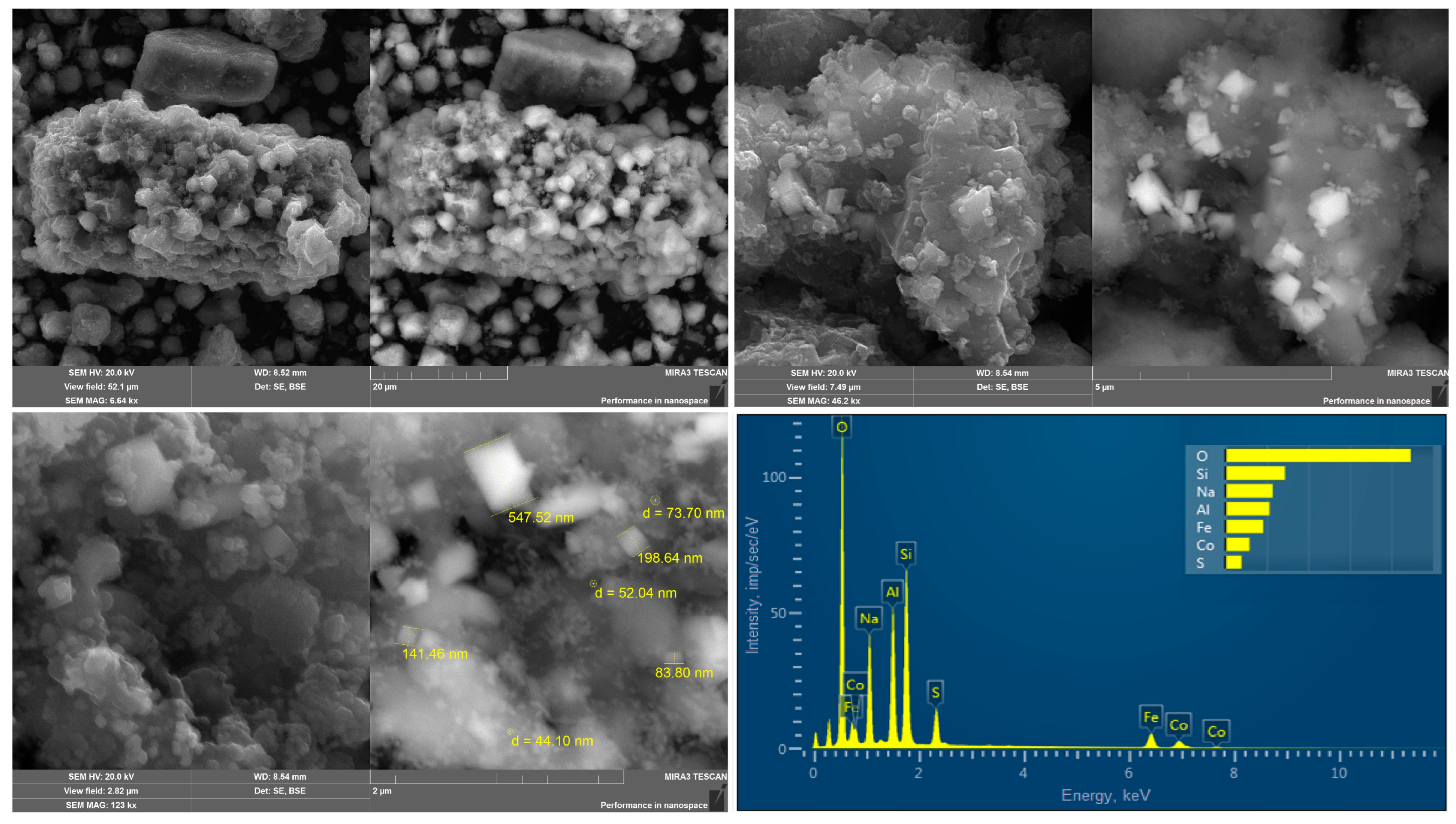

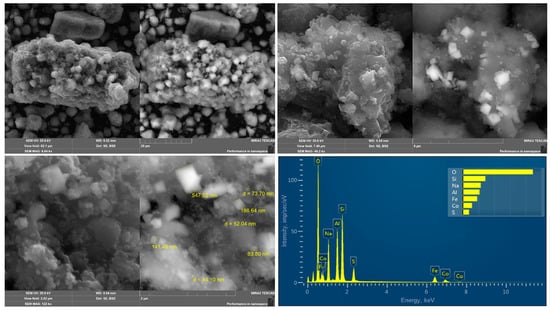

Figure 2. SEM images of Fe-Co/CaA with EDS elemental analysis.
Figure 2. SEM images of Fe-Co/CaA with EDS elemental analysis.
Catalysts 13 00957 g002
Catalysts 13 00957 g003 550

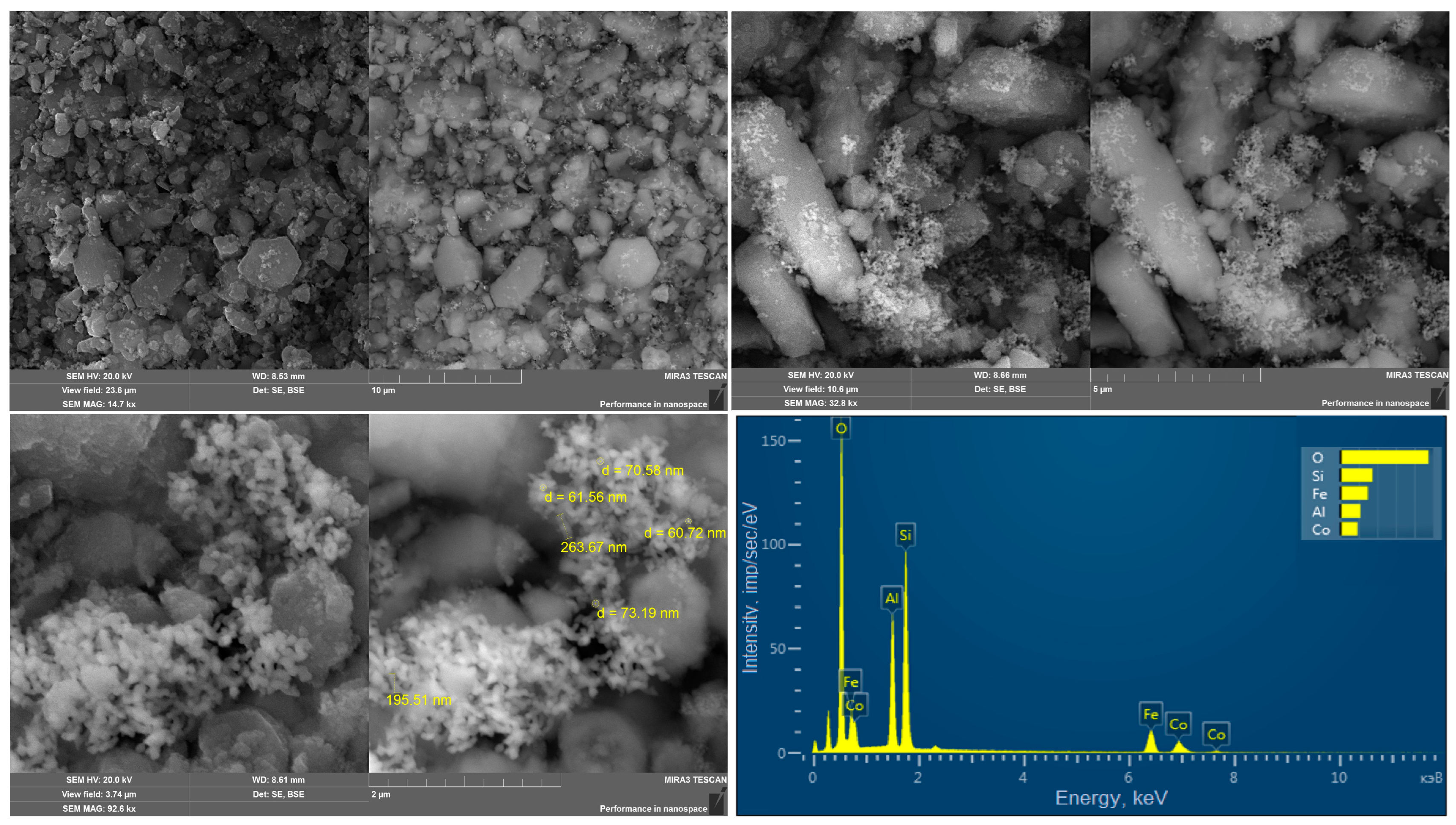

Figure 3. SEM images of Fe-Co/ZSM-5 with EDS elemental analysis.
Figure 3. SEM images of Fe-Co/ZSM-5 with EDS elemental analysis.
Catalysts 13 00957 g003
Catalysts 13 00957 g004 550

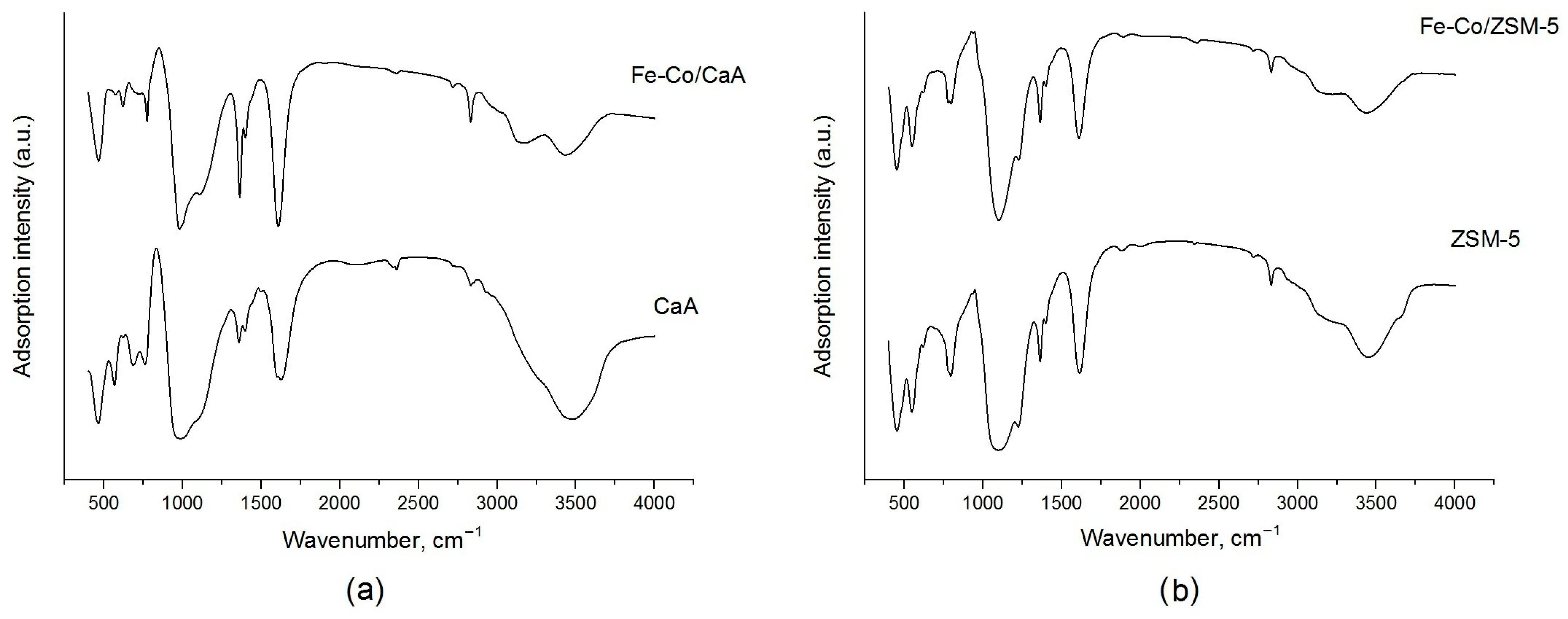

Figure 4. IR spectra of (a) Fe-Co/CaA and initial CaA; (b) Fe-Co/ZSM-5 and initial ZSM-5.
Figure 4. IR spectra of (a) Fe-Co/CaA and initial CaA; (b) Fe-Co/ZSM-5 and initial ZSM-5.
Catalysts 13 00957 g004
Catalysts 13 00957 sch001 550

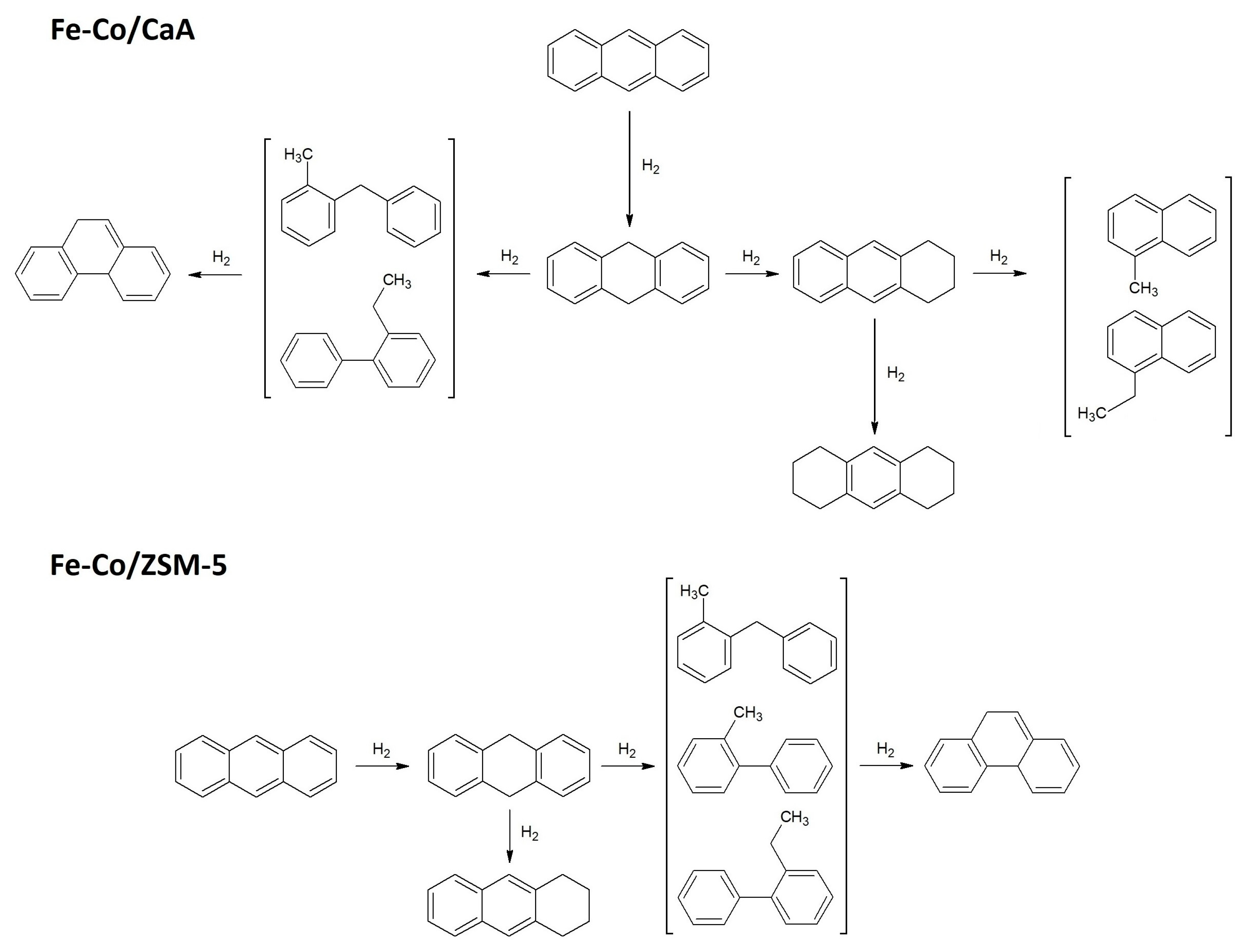

Scheme 1. The probable mechanism of anthracene hydrogenation with Fe-Co/CaA and Fe-Co/ZSM-5 catalysts.
Scheme 1. The probable mechanism of anthracene hydrogenation with Fe-Co/CaA and Fe-Co/ZSM-5 catalysts.
Catalysts 13 00957 sch001
Table
Table 1. Values of wave numbers for absorption bands of the original zeolites and with added iron and cobalt metals.
Table 1. Values of wave numbers for absorption bands of the original zeolites and with added iron and cobalt metals.
CaAFe-Co/CaAZSM-5Fe-Co/ZSM-5
3472.293443.353454.933427.92
-3142.423122.363169.43
2835.702833.782829.922833.78
2716.102716.102716.102716.10
2361.162363.092342.072359.23
1628.121604.971878.901882.75
1400.491398.561612.691604.97
1361.911361.911402.421396.63
1100.961113.061365.771361.91
976.10981.891224.951224.95
763.90773.551101.491099.56
682.89625.01792.84800.56
567.14561.35-773.55
462.97462.97621.15621.15
--545.92453.33
--453.33549.78
Table
Table 2. Composition of anthracene hydrogenation products in the presence of Fe-Co/CaA and Fe-Co/ZSM-5.
Table 2. Composition of anthracene hydrogenation products in the presence of Fe-Co/CaA and Fe-Co/ZSM-5.
Fe2O3-CoO/CaA
t = 400 °C, τ = 60 min, P = 6 MPa		Fe2O3-CoO/ZSM-5
t = 400 °C, τ = 60 min, P = 6 MPa
No.CompoundYield, %No.CompoundYield, %
11-methylnaphthalene0.171Benzene,1-methyl-2-phenylmethyl2.86
21-ethylnaphthalene0.4822-ethylbiphenyl11.98
31-methyl-2-phenylmethylbenzene0.923Dihydroanthracene35.37
42-ethylbiphenyl0.674Octahydroanthracene1.7
5Dihydroanthracene60.675Tetrahydroanthracene33.94
6Octahydroanthracene0.596Phenanthrene4.94
7Tetrahydroanthracene22.897Anthracene9.21
8Phenanthrene0.408--
9Anthracene13.219--
Anthracene conversion ~87Anthracene conversion ~91
Table
Table 3. Calculation of yields of the main hydrogenation products of anthracene.
Table 3. Calculation of yields of the main hydrogenation products of anthracene.
CatalystTime (h)Temperature (°C)Pressure (MP)DHA Yield (%)THA Yield (%)OHA yield (%)Anthracene Conversion (%)
Fe-Co/CaA1400660.722.90.686.8
Fe-Co/ZSM-51400635.3733.941.790.8
Pt/Al2O3-SEA [37]1240763.229.87.1100
Rh/Al2O3-SEA [37]1240731.543.422.799.5
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Muldakhmetov, Z.M.; Ordabaeva, A.T.; Meiramov, M.G.; Gazaliev, A.M.; Kim, S.V. Catalytic Hydrogenation of Anthracene on Binary (Bimetallic) Composite Catalysts. Catalysts 2023, 13, 957. https://doi.org/10.3390/catal13060957

AMA Style

Muldakhmetov ZM, Ordabaeva AT, Meiramov MG, Gazaliev AM, Kim SV. Catalytic Hydrogenation of Anthracene on Binary (Bimetallic) Composite Catalysts. Catalysts. 2023; 13(6):957. https://doi.org/10.3390/catal13060957

Chicago/Turabian Style

Muldakhmetov, Zainulla M., Aigul T. Ordabaeva, Majit G. Meiramov, Arstan M. Gazaliev, and Sergey V. Kim. 2023. "Catalytic Hydrogenation of Anthracene on Binary (Bimetallic) Composite Catalysts" Catalysts 13, no. 6: 957. https://doi.org/10.3390/catal13060957

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
