Molten Metals and Molten Carbonates in Solid Oxide Direct Carbon Fuel Cell Anode Chamber: Liquid Metal Anode and Hybrid Direct Carbon Fuel Cells

Scuola di Scienza dei Materiali, Via 25 Aprile 22, 16016 Genova, Italy
Catalysts 2023, 13(7), 1107; https://doi.org/10.3390/catal13071107
Submission received: 10 June 2023 / Revised: 10 July 2023 / Accepted: 12 July 2023 / Published: 15 July 2023

Abstract

:
To enhance the contact between the electrolyte (source of O2−) and the carbon fuel in solid oxide–direct carbon fuel cells (SO-DCFCs), molten metals and molten salts were used in the anode chamber. Oxygen ions can dissolve and be transported in the molten medium to the anode three-phase boundary to reach and oxidize the carbon particles. To improve the sluggish kinetics of the electrochemical oxidation of carbon, the same molten media can act as redox mediators. Moreover, using a liquid metal/salt anode, tolerant to fuel impurities, the negative effect of carbon contaminants on cell performance is mitigated. In this work, an overview of SO-DCFCs with liquid metals, liquid carbonates, and mixed liquid metals/liquid carbonates in the anode chamber is presented and their performance was compared to that of conventional SO-DCFCs.

Graphical Abstract

1. Introduction

Direct carbon fuel cells (DCFCs) have attracted growing interest as a power generation device that directly converts the chemical energy of solid carbon, a low-cost widely available fuel, to electrical energy [1,2]. DCFCs have a theoretical 100% electrochemical efficiency of converting chemical energy to electricity, more than twice that from thermal conversion [3,4], giving an actual efficiency of around 80%, higher than that of molten carbonate fuel cells (MCFCs) or solid oxide fuel cells (SOFCs), fueled with hydrogen or natural gas (45–60%) [3]. Similar to other fuel cells, a DCFC is formed by an anode, a cathode, an electrolyte, and a current collector. The main difference is the use of a solid fuel. Generally, DCFCs can be classified as molten hydroxide (MH-DCFCs), molten carbonate (MC-DCFCs), or solid oxide direct carbon fuel cells (SO-DCFCs), depending on the type of electrolyte [3,4]. Among them, SO-DCFCs are the most investigated. SOFCs have a number of advantages compared to the other types of fuel cells, due to their solid materials and high operating temperature. Since all the components are solid, there is no electrolyte loss, and electrode corrosion is eliminated. As SOFCs are operated at high temperature, there is no need to use expensive catalysts such as platinum or palladium. Moreover, because of high-temperature operation, another advantage of SOFC over other types of fuel cell is its tolerance to the impurities of inlet fuels, meaning that various types of fuel can be applied with SOFC. Due to high-quality waste heat for cogeneration applications and low activation losses, they have a great efficiency for electricity production. There are also some disadvantages due to the high operating temperature. The materials used are thermally challenged. The relatively high cost and complex fabrication are also significant problems that need to be solved. The recent advances in SO-DCFCs were reviewed by Yu et al. [5]. In an SO-DCFC, at the cathode side, oxygen is reduced to oxygen ions; then, O2− ions are transferred through the electrolyte to the anode three-phase boundary (TPB, the interphase between electrolyte, electrode, and gas/solid chemical species), where they react with carbon to generate CO2 [2,6]:
O2 + 4e → 2O2−
C + 2O2− → CO2 + 4e
The carbon particles in direct contact with the electrolyte can also be electro-oxidized sequentially to CO and CO2 [7]:
C + O2− → CO + 2e
CO + O2− → CO2 + 2e
The carbon particles not in direct contact with the electrolyte can be oxidized via the non-electrochemical reverse Boudouard reaction:
C + CO2 → 2CO
Reaction (5) can occur anywhere in the anode chamber and, in the presence of CO2, even when the cell is in the open-circuit condition, and does not contribute to the cell voltage. At temperatures above 700 °C, the reverse Boudouard reaction is strongly favored [2].
The use of carbon in SOFCs, however, presents some disadvantages: compared to conventional fuels, carbon is less reactive and is not a fluid, making the interaction between the carbon particles and the solid anode/electrolyte difficult. To improve the contact between the electrolyte and carbon, molten metals/salts were placed in the anode chamber. O2− can be dissolved and transported in the molten medium to the TPB to reach carbon particles and to complete cell reactions. Molten media can also act as redox mediators, to improve the sluggish kinetics of electrochemical carbon oxidation. Moreover, the degradation of the anode catalyst by carbon contaminants can be mitigated by using a liquid metal/liquid carbonate anode [8,9]. Liquid metals/liquid carbonates were initially used as anode catalysts in the place of solid anode catalysts. Then, overall, molten carbonates and, sometimes, molten metals were utilized together with a solid anode catalyst as facilitators of the electrolyte/anode contact with carbon and as redox mediators. A scheme reporting the various types of liquid metal/liquid carbonate DCFCs is shown in Figure 1. In this work, an overview of SO-DCFCs with liquid metals, liquid carbonates, and mixed liquid metals/liquid carbonates in the anode chamber is presented and their performance was compared to that of conventional SO-DCFCs.

2. Liquid Metal Anode–Direct Carbon Fuel Cells (LMA-DCFCs)

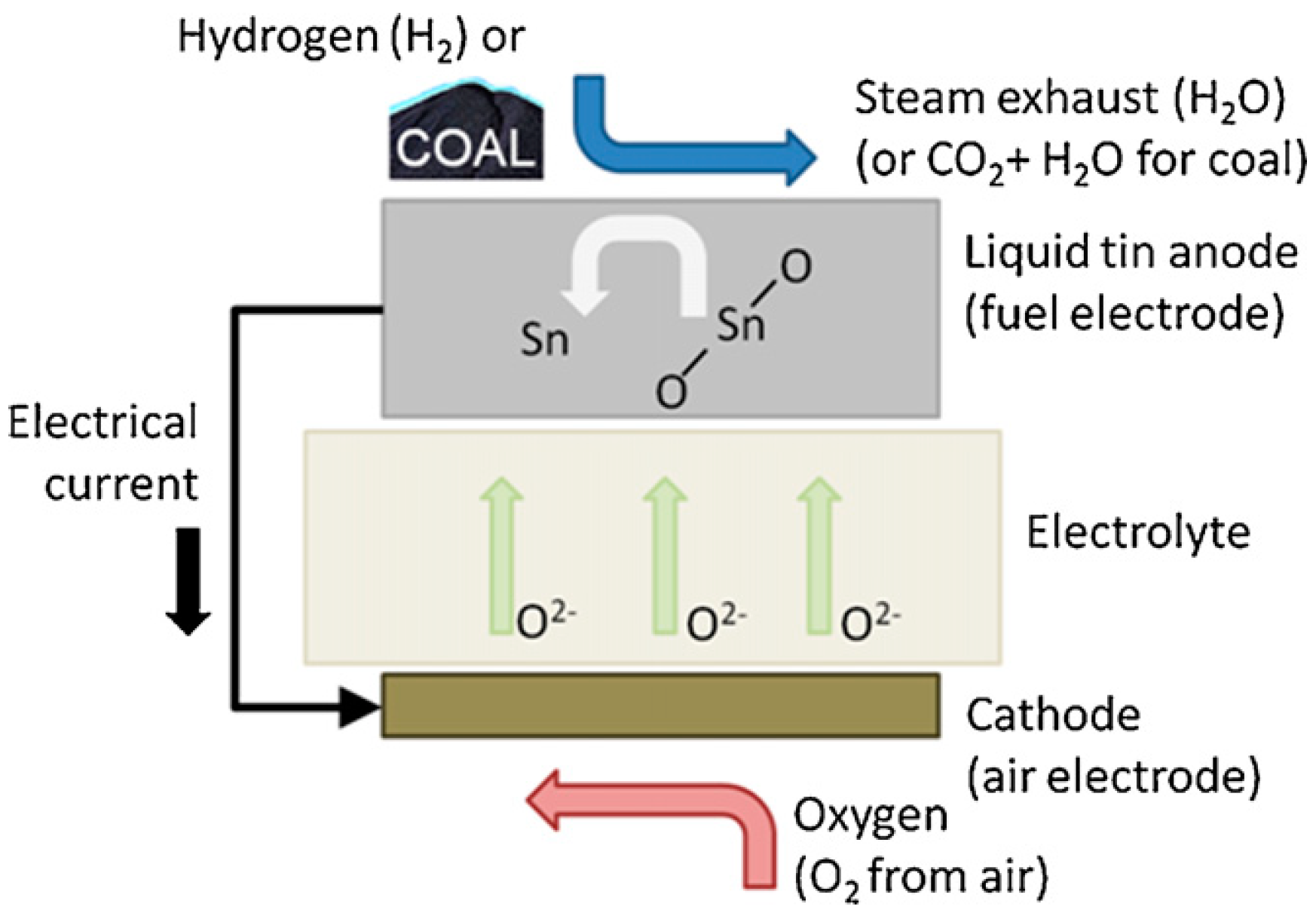

A schematic configuration of an LMA-DCFC is shown in Figure 2. The arrangement of an LMA-DCFC is the same as that of a conventional SOFC, except that the anode is a liquid metal. The liquid metal anode has a high tolerance to carbon impurities, such as sulfur and NOx [10]. Also, the ash can float on the liquid metal surface and can be easily removed. In addition, the liquid anode presents other suitable features: (i) the carbon active area can be effectively increased, by turning the solid electrode/solid carbon into a liquid electrode/solid carbon contact [8,9]; (ii) as the liquid metal is electronically conductive, the electrochemical reaction can be performed at the entire electrolyte/liquid metal interface; (iii) the molten metal, as an energy storage medium, can operate for a short period of time without fuels, in the battery mode, minimizing the negative effect of discontinuous fuel delivery [8]. First, Yentekakis et al. [11,12] reported the gasification of coal with the simultaneous generation of electricity in an SOFC with a molten iron anode, an yttria-stabilized zirconia (YSZ) electrolyte immersed in the molten anode, and a Pt [11] or a perovskite [12] cathode, with carbon particles dispersed in the molten iron. A mathematical model was developed, describing the steady-state behavior of this fuel cell and the effect of operating conditions on cell performance. The electrochemical cell generated very high current and power densities. However, as the SOFC operating temperature has to be higher than the iron melting point (1535 °C), their model was constructed for extremely high temperatures.
The liquid metal anode can act as a chemical intermediary for the oxidation of fuel. The anodic reaction can be split into two reactions [4,13]:
nM + xO2− → MnOx + 2xe
(x/2)C + MnOx → (x/2)CO2 + nM
Metal oxidation (reaction 6) takes place at the liquid anode–electrolyte interface, whereas carbon oxidation and metal reduction (reaction 7) occur at the fuel–anode interface. The reaction between metal oxide and carbon takes place as they are in intimate contact, but the reaction is slow if the oxide is solid at the fuel cell operation temperature, as for SnO2. In the case of Sb2O3, which is liquid at the fuel cell operation temperature, instead, this reaction is fast. Only the first step is electrochemical. The desired reaction, however, is the direct reaction between carbon and dissolved oxygen in the metal. The open-circuit voltage (OCV) for this reaction versus air depends on the type of carbon, but it is near 1 V [8,9]. If the reaction of oxygen is directly with carbon, the conventional OCVs will be held, which are generally higher than those of the reaction with the metal. Indeed, in the 700–1000 °C temperature range, the oxidation potential for spontaneous metal oxidation reaction is less than 1 V, resulting in a significant energy loss. To promote reaction 2, it is appropriate to use a metal with a low oxygen affinity and a high solubility of fuel and oxygen. Copper and silver fulfill these requirements. Among them, silver is preferred as it has a higher oxygen solubility and lower melting temperature than copper. Ag is also an excellent electronic conductor, with a good wetting ability for YSZ, a common SOFC electrolyte [14]. Moreover, Ag does not form stable oxides at SOFC operating temperatures [14], does not react with carbon, and does not form a carbide phase. Thus, carbon can be dispersed into the molten Ag without degradation [14]. Copper [15] and silver [16] were tested as metal anodes in LMA-DCFCs, but, due to their high melting point, the cell operation temperature was ≥1000 °C. For its use as a liquid metal anode, the melting temperature of the metal has to be below SOFC operating temperatures (700–1000 °C). Low-melting-point metals, such as tin, indium, bismuth, lead, and antimony, were tested as the anode of an LMA-DCFC [8,9,10,17,18,19,20,21]. As these metals also act as chemical mediators, their metal oxides have to be reduced by carbon spontaneously. The values of OCV for metal oxidation are in the order Sn > Sb > Pb > Bi [8]. Due to the low melting point and the high OCV at 800 °C (0.897 V), only near 0.1 V lower than that for carbon oxidation to CO2, Sn has been given much attention. However, a solid insulating SnO2 layer forms at the electrolyte interface during fuel cell operation, inhibiting the further transfer of oxygen from the electrolyte [17]. This drawback is observed using carbon as the fuel, whereas it is less important when using hydrogen [22], as H2 can effectively reduce SnO2 [23]. Thus, to use carbon as the fuel, besides Sn, other metals were investigated [23]. Bi presents a low resistance because of its ionically conductive oxide, but it has a low OCV. Both Pb and Sb have a low resistance and form oxides having relatively low melting temperatures, 888 °C for PbO and 656 °C for Sb2O3. This allows the oxides to be removed from the interface between the electrolyte and anode. Among them, Sb is the most promising because of its higher OCV and lower oxide melting temperature.
Preliminary works were carried out on liquid tin anode–direct carbon fuel cells (LTA-DCFCs) [10,24,25]. First, at CellTech, Westborough, MA, USA, the use of a molten tin anode in an SOFC was investigated [10,24]. To avoid the formation of an oxide layer, the LTA-SOFC operates at over 1000 °C, since SnO2 formation is thermodynamically unfavorable at this temperature. At EPRI, an LTA-DCFC power plant based on CellTech technology was evaluated and compared with hybrid direct carbon fuel cell (HDCFC) and MC-DCFC power plants [25]. This cell is a tubular-cathode-supported SOFC with a molten tin anode and an YSZ electrolyte layer. O2−, formed at the cathode and transferred at the anode through the electrolyte layer, oxidizes Sn to SnO2. Then, a large amount of molten Sn flows with SnO2 to the tin bath, where coal reduces SnO2 back to Sn. The power density and cell efficiency are 196 mW cm−2 and 83.85%, respectively. Among the DCFCs investigated, the molten-tin cycle has the lowest efficiency because coal is not fed into the fuel cell stacks directly, but it uses the Sn redox reaction as an intermediate step. Then, starting from 2011, various papers addressed DCFCs with a liquid metal anode. Literature data on liquid metal DCFCs are reported in Table 1 [13,15,16,19,20,22,26,27,28,29,30,31,32,33,34,35]. As can be seen in Table 1, only Sn and, in particular, Sb, alone or mixed with another metal, were investigated.

2.1. Molten Tin–Direct Carbon Fuel Cells

There are two types of liquid tin DCFCs, the properly said LTA-DCFCs, where molten tin acts as the anode, and liquid-tin-containing SO-DCFCs, where molten tin is added to a typical SOFC, with a solid Ni/YSZ anode.

2.1.1. LTA-DCFCs

Only two works addressed LTA-DCFCs, and in both papers, a poor performance was reported [23,30], due to the presence of an insulating SnO2 layer. The cell performance in battery mode, gas fuel mode, and solid carbon mode was compared, using a YSZ electrolyte and a Pt [23] or perovskite [30] cathode.

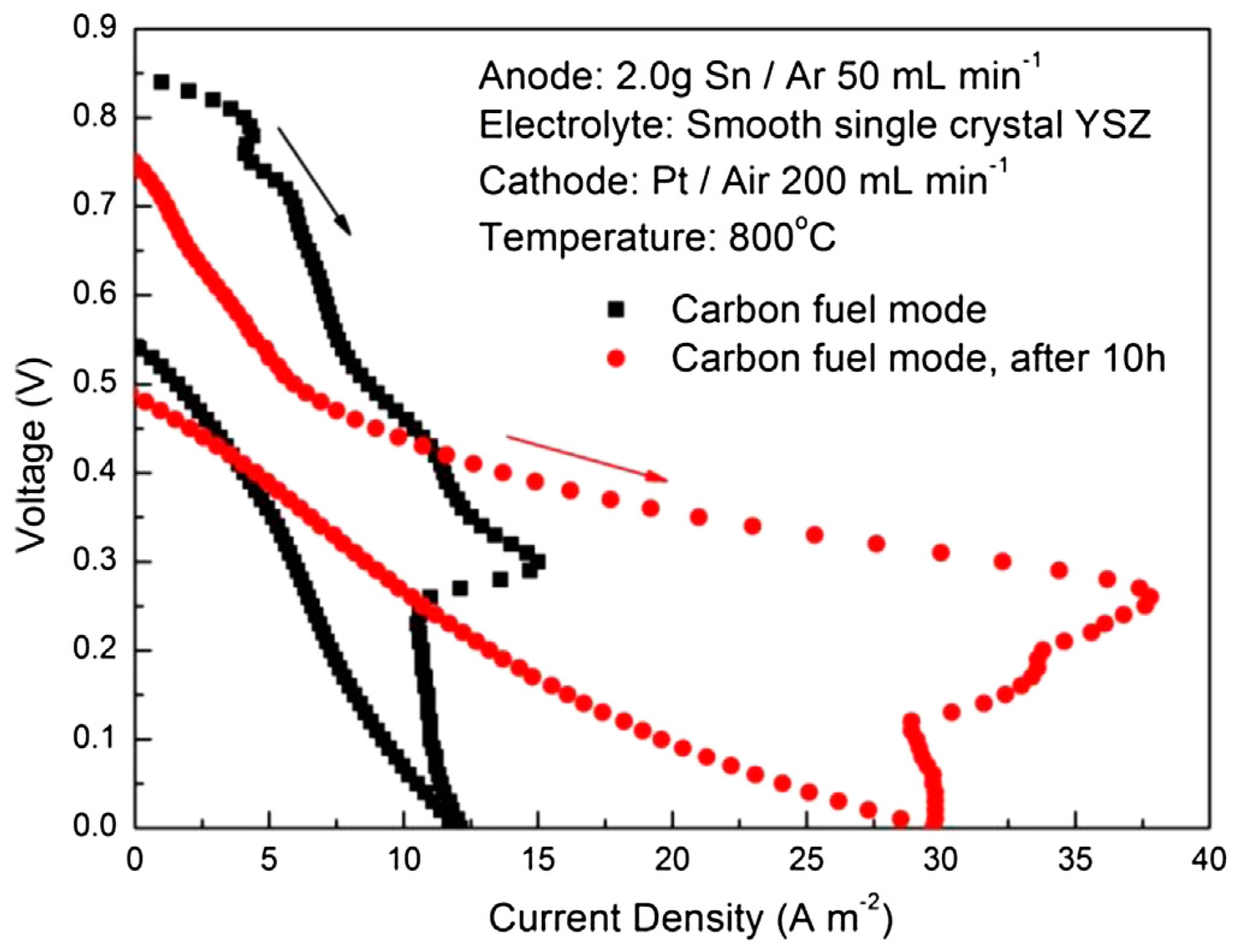

As reported by Wang et al. [23], at 800 °C, in battery mode, the formation of a SnO2 layer hinders the transport of liquid Sn and O2− to the reactive interface. When the LTA-DCFC operates in the H2 mode, the SnO2 layer can be effectively reduced, considerably enhancing the cell performance. With the cell operating in the CO mode, since the CO diffusion rate in the liquid Sn is much slower than in H2, only part of SnO2 was reduced. The OCV was slightly higher than the OCV in battery mode and lower than the OCV in the H2 mode, indicating that the cell performance depends on both Sn and CO electrochemical oxidation reactions. When the cell operates in the carbon mode, it is difficult for the carbon to reach the reactive interface between the liquid anode and electrolyte, so the cell performance is mainly governed by the Sn electrochemical oxidation. As it can be seen in Figure 3, after 45 min following carbon addition, the OCV increased from 0.6 to 0.7 V, and after 10 h, it increased to 0.75 V. And the maximum current density improved from 15 A m−2 to 38 A m−2, indicating that carbon can have small positive impacts on cell performance, reducing part of the SnO2 after a longer interval. The results of Khurana et al. [30] were similar. The OCV of 0.841 V for the cell operating in battery mode, close to the theoretical standard potential of 0.85 V at 900 °C, indicates Sn oxidation to SnO2. The increase in the OCV to 1.1 V for the H2-fed cell confirms that H2 reduces SnO2. The OCV of the cell following coal injection was 0.885 V, lower than that of the H2-fueled cell, but higher than that of the cell operated in battery mode, attesting that carbon addition led to a partial SnO2 reduction.
Summarizing, the expectations of a large-scale development of this type of fuel cell are not high. A challenge is to increase the performance by optimizing the fuel cell structure and operation conditions.

2.1.2. Liquid-Tin-Containing-SO-DCFCs

In this case, Sn acts as an “interfacial mediator” to improve the TPB. Some works reported the use of Sn as an “interfacial mediator”, with Ni/YSZ as the anode electrocatalyst and YSZ as the electrolyte [27,32,33]. First, Ju et al. [27] compared the performance of an SO-DCFC operating at 900 °C fueled with pure carbon black and Sn-containing carbon black (Sn:C 1:3 by weight). The maximum power density (MPD) of the Sn/carbon-fed SO-DCFC was more than four times higher than that of carbon-fed SO-DCFC, indicating that the transfer of carbon particles and the kinetics of the electrochemical carbon oxidation are facilitated. Jiang et al. [32] evaluated the effect of the presence of a low Sn amount on SO-DCFC performance. An amount of 15–30 mg of Sn mixed with 300 mg of carbon black was the optimum amount for a suitable interfacial effect. By the addition of 15 mg of Sn, the MPD at 750 and 850 °C was three and two four times higher, respectively, than that obtained with Sn-free carbon black. Conversely, 60 mg of Sn covered the Ni/YSZ surface and pores too thickly, hindering carbon access to the TPB. The OCV of the SO-DCFCs with Sn as the mediator did not follow the theoretical potential of Sn oxidation, but was close to carbon oxidation potential. Xu et al. [33] evaluated the effect of carbon type on the SO-DCFC performance using a high amount of tin (Sn:C 1:0.25 by weight) as a mediator. Graphite (GC), anthracite coal (AnC), lignite (PCF), and activated carbon (AC) were mixed with Sn powder and used as anode fuels. For Sn–GC-, Sn–AnC-, and Sn–PCF-fueled cells, the SnO2 reduction rate was lower than the electro-oxidation rate of Sn, leading to SnO2 accumulation on the anode surface. The OCV and MPD at 750–850 °C were similar to those of Sn-only fueled cells, suggesting that the anode performance was mainly governed by Sn electro-oxidation. For Sn–AC-fueled cells, instead, the high-surface-area carbon reduced SnO2 much faster than the other fuels and no SnO2 was detected in the anode pores. The power density was considerably higher than that of Sn-only-fueled cells. Two mechanisms were proposed to describe the carbothermal reduction process of SnO2 formed by reaction (8):
Sn + 2O2− → SnO2+ 4e
One was the direct reduction of SnO2 by carbon:
SnO2 + C → Sn + CO2
SnO2 + 2C → Sn + 2CO
namely, the solid–solid mechanism, and the other was based on two steps: first, the carbon particles are oxidized via the non-electrochemical reverse Boudouard reaction (reaction 5), then SnO2 is reduced by CO:
SnO2 + 2CO → Sn + 2CO2
namely, the solid–gas mechanism. Based on Levêque and Abanades’s studies [36], Xu et al. [33] inferred that AC reduced SnO2 through the solid–gas mechanism. Moreover, the OCV of Sn–AC was 1.0–1.03 V, corresponding to the C/CO electro-oxidation potential.

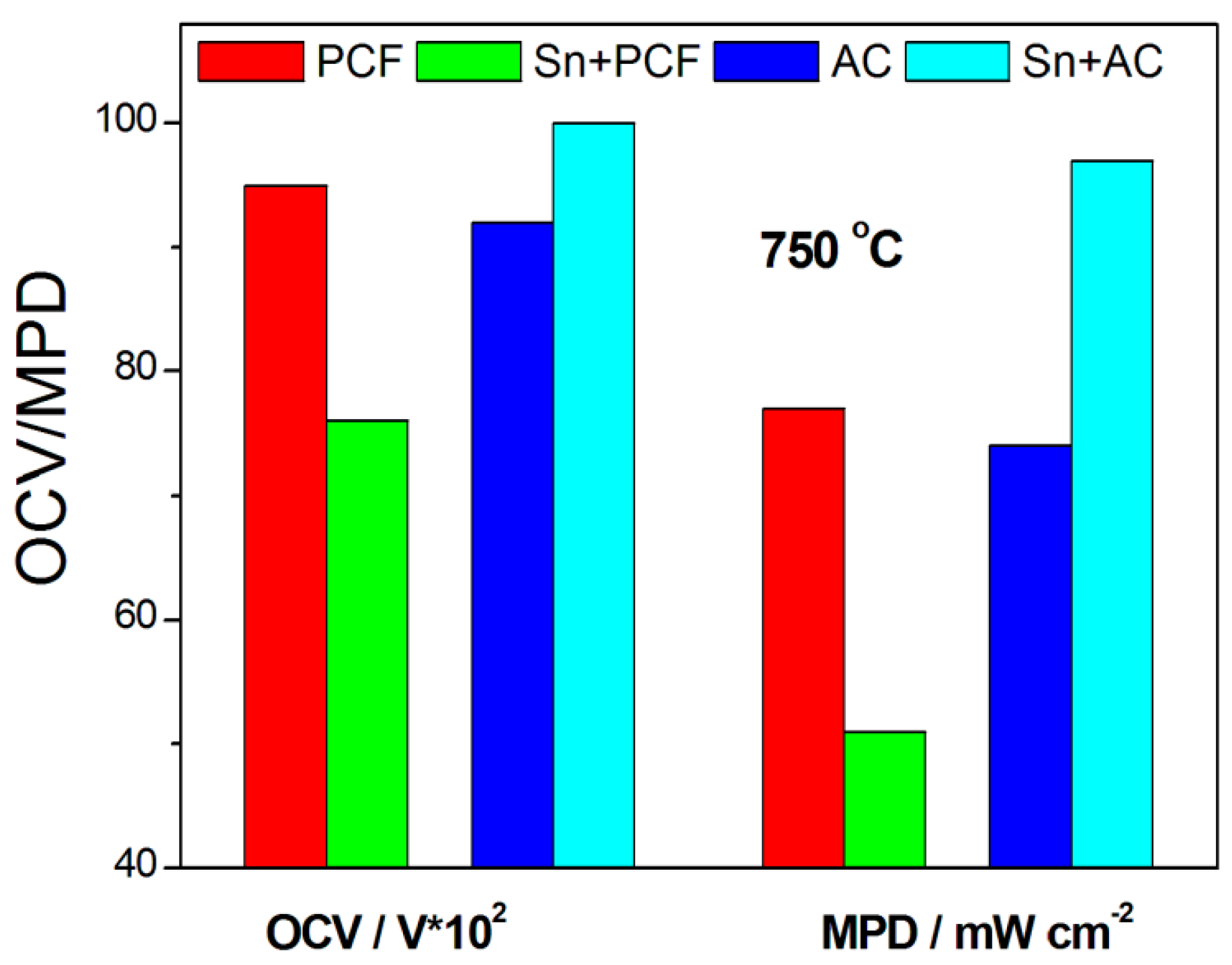

The histogram of OCV and MPD of the SO-DCFC fueled with PCF and AC without and with Sn presence is shown in Figure 4. As can be seen in Figure 4, for PCF, the addition of Sn results in a negative effect on OCV and MPD, while for AC, Sn presence leads to an enhancement of the performance. For PCF, in Sn absence, the cell performance is controlled by carbon oxidation, but in Sn presence, it is controlled by tin oxidation, resulting in a lower OCV; SnO2 accumulation on the anode surface gives rise to a decrease in SO-DCFC performance. For AC, the cell performance is controlled by carbon oxidation both with and without Sn in the fuel: in this case, no SnO2 accumulation occurs, and a positive effect of Sn, as an interfacial mediator, takes place on cell performance.

2.2. Liquid Antimony Anode–Direct Carbon Fuel Cells (LAA-DCFCs)

Among the metals investigated, antimony is the most promising, as the melting temperatures of both the metal and its oxide are below SO-DCFC operating temperatures, allowing for good contact between the metal and the electrolyte and between the oxide and the carbon fuel. Moreover, the impedance of molten Sb electrodes is very low, less than 0.1 Ω cm2 at 700 °C [26]. Although the Nernst potential for Sb oxidation is lower compared to that for C oxidation, 0.75 V vs. ~1 V at 700 °C, this difference in oxidation potentials makes the reduction of Sb2O3 by carbon fuels thermodynamically spontaneous. The anodic reactions are
2Sb + 3O2− → Sb2O3 + 6e
Sb2O3 + 3/2C → 2Sb + 3/2CO2
The liquid Sb2O3 migrates away from the anode/electrolyte interface, ensuring good contact between molten Sb and electrolyte. As can be seen in Table 1, a stable operation of LAA-DCFCs, fueled with different carbons, is reported, with a power density in the range of 25–300 mW cm−2 at a fixed current density or cell potential. An MPD of 360 mW cm−2 at 700 °C was obtained by a sugar-char-fed LAA-SO-DCFC with a scandia-stabilized zirconia (ScSZ, 100 μm) electrolyte and a LSF-ScSZ cathode.

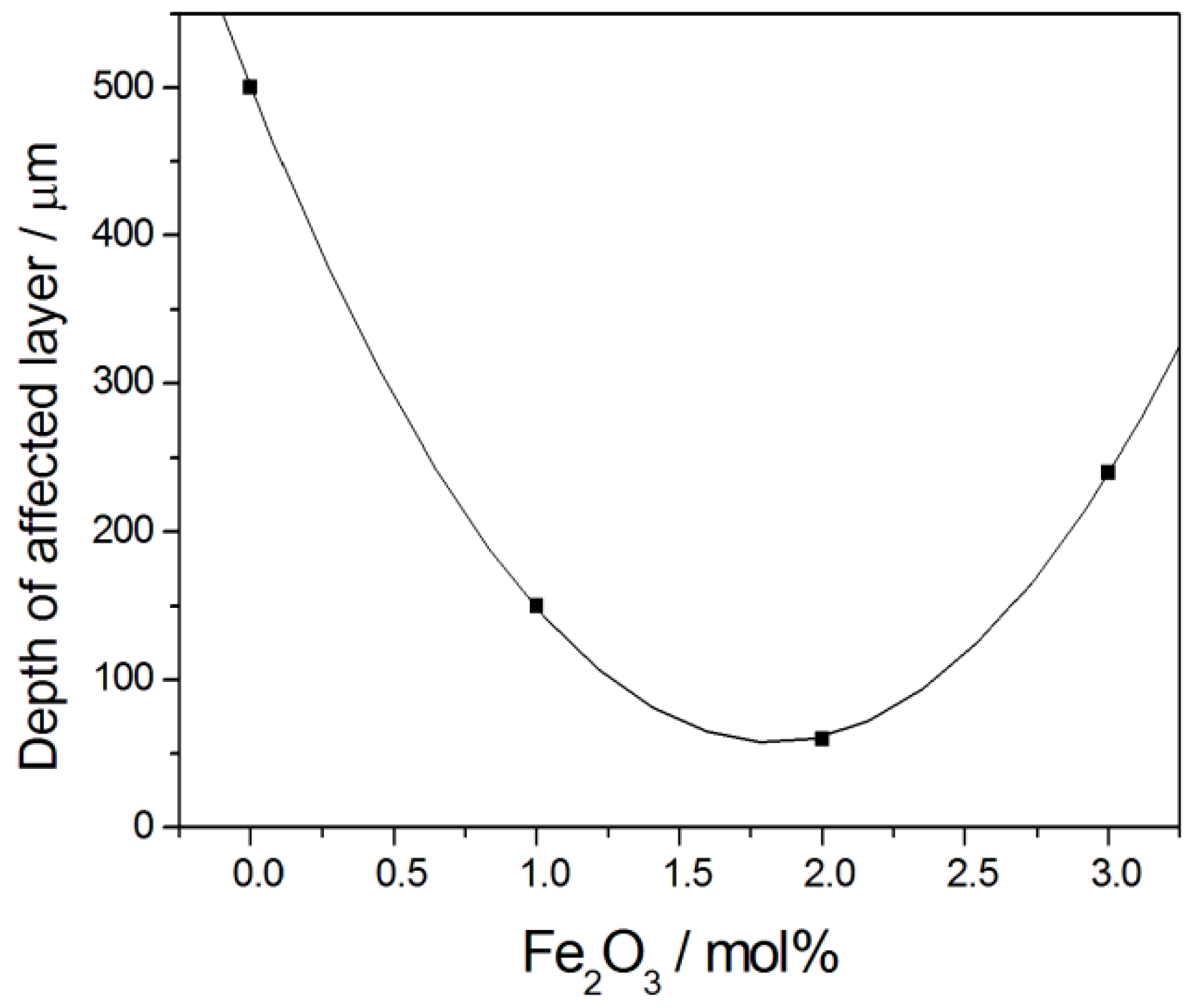

Corrosion of the electrolyte by liquid Sb/Sb2O3 at operating SO-DCFC temperatures is a critical issue. Both of the most used electrolyte materials, that is, stabilized ZrO2 and doped CeO2, are prone to corrosion by liquid Sb/Sb2O3 at temperatures above 700 °C. Jayakumar et al. [13] ascribed the more severe thinning of the ScSZ electrolyte by the liquid metal anode than that of YSZ to the smaller radius of Sc3+ cations than Y3+ cations. Zhou et al. [37], instead, reported that the thinning of zirconia-based electrolytes in SOFC with molten Sb anodes is due to chemical reactions between Sb2O3 and ZrO2, independently of the dopant. Cao et al. [38] investigated liquid Sb anode etching on YSZ and gadolinia-doped ceria (GDC) electrolytes, and observed electrolyte corrosion in both polycrystalline materials. In both cases, Sb migrated along grain boundaries, breaking connections between grains, and damaging the electrolytes. Ma et al. [39,40] observed that YSZ corrosion is different from GDC corrosion. Both liquid Sb and, to a lesser extent, Sb2O3 penetrate into GDC grain boundaries, resulting in spallation of the grains from the bulk [39]. YSZ corrosion in both liquid Sb and, to a greater extent, Sb2O3 occurs by Y dissolution, causing a phase transformation in the YSZ surface [40].
The accompanied volume change results in surface cracks along YSZ grain boundaries. The corrosion is enhanced by the presence of a current. Reducing the number of grain boundaries can be a solution to resist electrolyte corrosion by liquid Sb/Sb2O3. Cao et al. [41] investigated the corrosion resistance of a ScSZ electrolyte prepared by atmospheric plasma spray (APS) technology. APS technology allows for preparing robust films by melting feed powder in a plasma plume [42]. They tested two LAA-DCFCs with the same electrolyte material but prepared by sintering and APS methods. The etching effect was observed on a sintered electrolyte, but not on a plasma-sprayed electrolyte. As Sb was transported along grain boundaries in a sintered electrolyte, there were ample pathways for Sb migration. Grain boundaries in the plasma-sprayed electrolyte, instead, can hardly be identified. To enhance the corrosion resistance of GDC electrolytes for LAA-DCFCs, different amounts of Fe2O3 were added to GDC, namely GDCF [43]. Fe2O3 addition significantly increased the corrosion resistance of GDC by liquid Sb/Sb2O3. As can be seen in Figure 5, where the dependence of the depth of the affected layer by liquid Sb at 750 °C for 100 h on Fe2O3 content is reported, the GDCF with 2 mol% Fe2O3 added showed the highest corrosion resistance by liquid Sb: liquid Sb affected a GDC thickness of about 60 μm, which is smaller than 1/8 of that of pure GDC. Moreover, the affected thickness was only about 4 μm for GDC with 2 mol% Fe2O3 in contact with liquid Sb2O3. Part of the Fe added reacted with GDC, forming Fe5G3O12. The GDC with 3 mol% Fe2O3 contained the highest amount of Fe5Gd3O12, favoring the penetration of liquid Sb and explaining its weak corrosion resistance.
As in the case of tin, it should be interesting to carry out tests on liquid-antimony-containing SO-DCFCs, where molten Sb is added to a typical SOFC.

3. Hybrid Direct Carbon Fuel Cells (HDCFCs)

3.1. From MH-, MC-, and SO-DCFCs to HDCFCs

The first MH-DCFC dates back to 1896 [44]. Hydroxides have low melting points and high ionic conductivity, allowing the cell to operate at relatively low temperatures and, hereupon, to use less expensive materials [4]. MH-DCFCs, however, received little attention in the last few decades, due to the deterioration of the hydroxide electrolyte during cell operation [45]. Despite a renewal of the research into MH-DCFCs [46,47,48], the stability of the hydroxide is not satisfactory for practical applications. In 1979, Weaver et al. [49] proposed the use of a fuel cell with a molten carbonate electrolyte for direct carbon conversion, that is, an MC-DCFC. The state-of-the-art MCFC consists of a porous nickel anode; a porous, lithium-doped NiO cathode; and a LiAlO4 matrix filled with Li/K carbonates as the electrolyte [50]. At the cathode, CO2 is converted to CO32− [51]:
O2 + 2CO2 + 4e → 2CO32−
Then, CO32− ions diffuse through the matrix and reach the anode side. At the anode, CO32− ions reacts with carbon particles, releasing four electrons and CO2:
C + 2CO32− → 3CO2 +4e
The net electrochemical reaction is
C + O2 → CO2
with four electrons flowing from the anode to the cathode.
Different types of carbons were used as the fuel in MC-DCFCs with appreciable performances [51,52,53,54,55]. However, MC-DCFCs present some problems, such as cell material corrosion by carbonates and a change of chemical composition of solid fuels. Moreover, the molten carbonate can likely change chemically due to its interaction with carbon contaminants, leading to cell failure [56]. Compared with MC-DCFCs and MH-DCFCs, SO-DCFCs have the outstanding advantages of an all-solid-state structure, no electrolyte degradation and leakage, no CO2 recirculation from the anode to cathode, and high electrical-conversion efficiency [6]. As previously reported, however, the poor contact between the solid fuel and the solid electrode/electrolyte results in a low cell performance. A way to solve this drawback is to improve the anode structure. It is known that the porosity and microstructure of the anode have an important impact on SOFC performance [57,58].
However, the poor contact problem between the solid fuel and solid anode/electrolyte remains. For these reasons, HDCFCs were proposed. An HDCFC is a combination of an MC-DCFC and an SO-DCFC, and both reactions, that occur at the anode of the MC-DCFC and the SO-DCFC, take place at the anode of the HDCFC [4]. HDCFCs were first proposed by Peelen et al. [59]. This design consists of a solid cathode and solid oxide electrolyte, and a molten alkali carbonate–solid carbon slurry in the anode chamber [60]. The schematic configuration of an HDCFC is shown in Figure 6. The following reactions take place in the anode chamber [61]: (i) electrochemical oxidation of carbon by O2 ions, according to reactions 2 and 3; (ii) electrochemical oxidation of carbon by CO32− ions, according to reaction 15, 17, and 18:
C + CO32− → CO + CO2 + 2e
2C + CO32− → 3CO + 2e
(iii) electrochemical oxidation of CO, according to reactions 4 and 19:
CO + CO32− → 2CO2 +2e
(iv) the non-electrochemical reverse Boudouard reaction.
Moreover, the non-electrochemical carbonate decomposition can also occur as [62,63]
CO32− → O2− + CO2
Due to the additional carbon oxidation by carbonate, the OCV is expected to increase to 1.22 V at 700 °C [64]. Jiang and Irvine [65] observed that the OCV not only depends on thermal history, but also on carbonate amount in the carbon/carbonate slurry. Heat treatment was effective for high carbonate contents. After high-temperature treatment with 50 mol% carbonate, the OCV increased with decreasing temperature and reached 1.57 V at 550 °C. With a lower carbonate content (20 mol%), instead, the OCV decreased with decreasing temperature. The high OCV was also ascribed to the Li2O presence, formed by Li2CO3 decomposition at high temperatures [66]. Li2O can trap the formed CO2, decreasing its activity and improving the OCV.
As for conventional DCFCs [67], HDCFCs can be categorized on the basis of the material and design of anode, that is, a molten carbonate/fuel mixture, a solid catalyst anode, and a molten metal anode.

3.2. HDCFCs with a Liquid Carbonate/Carbon Anode

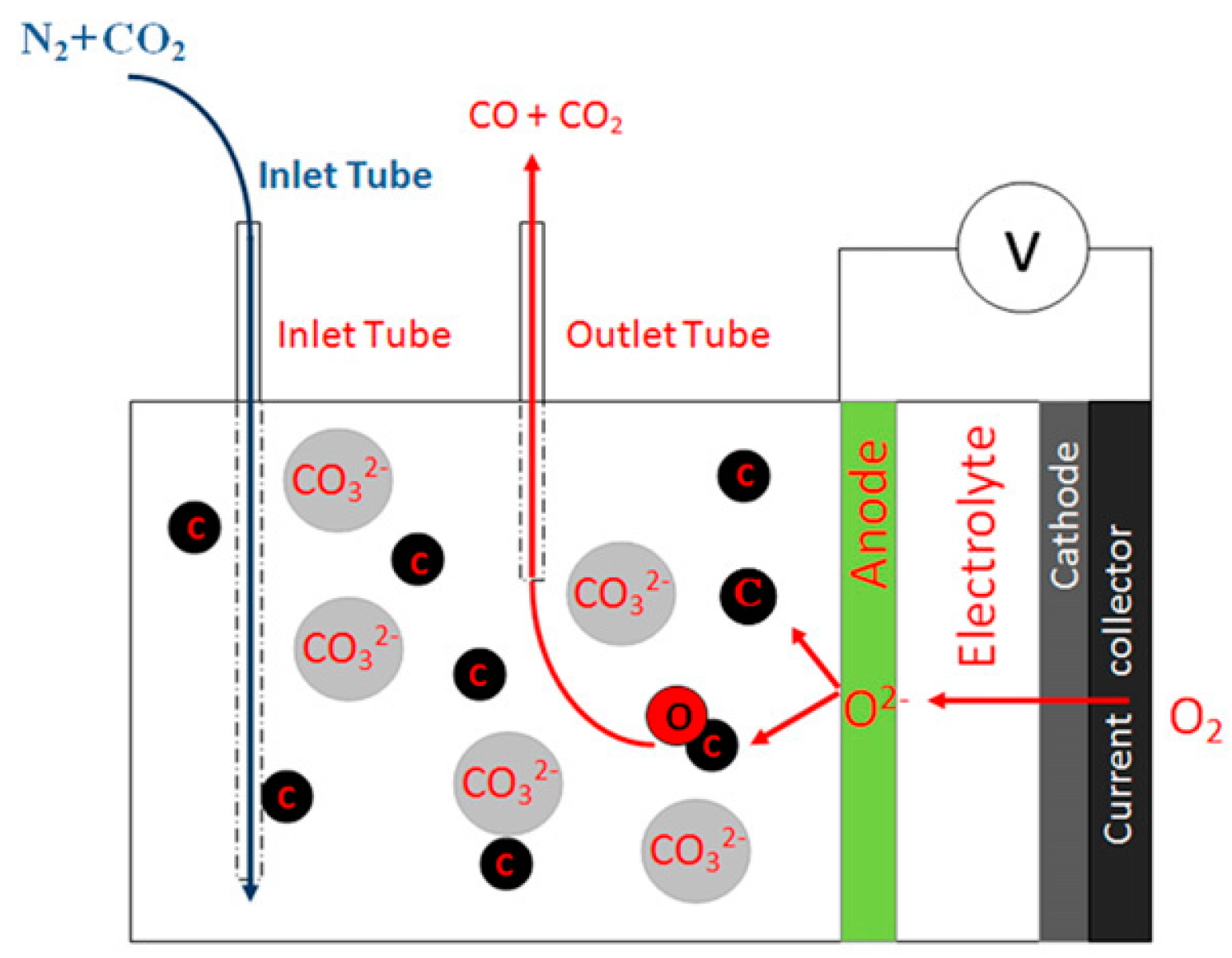

First, at SRI, a new type of DCFC was proposed [68], which is basically a tubular SOFC, without the traditional SOFC solid anode catalyst. This type of fuel cell is formed by a liquid anode, comprising a molten Li/Na/K carbonate mixture and the fuel (coal powder, ca., 40 vol%), an YSZ electrolyte, and a lanthanum strontium manganite (LSM) cathode catalyst. The immersion of coal powder in molten carbonates solves the drawback of the poor contact between the solid fuel and the electrolyte [69]. This HDCFC delivered an MPD above 100 mW cm−2 at 950 °C. Then, the performance of the SRI tubular HDCFC was evaluated by EPRI using two types of fuel, that is, coal and carbonized biomass. For both fuels, a power density of 90–100 mW cm−2 was attained at 790 °C. Prolonged exposure of the fuel cell at 600–700 °C to the molten salt/fuel slurry did not reveal appreciable degradation of the electrolyte. After these preliminary works, some papers were addressed to an HDCFC with a liquid carbonate/carbon anode [70,71,72,73]. In all these works, a planar HDCFC with a composite electrolyte was formed by samarium-doped ceria (SDC) and eutectic Li/Na carbonates, and a LiNiO2/electrolyte (70/30 wt%) composite cathode was tested. The carbon/carbonate weight ratio was 1:9. Jia et al. [70] put a mixture of activated carbon and molten carbonates in the anode cavity. With a CO2/O2 ratio of the cathode gas of 2:1, an MPD of 100 mW cm−2 was obtained. Elleuch et al., using anodes formed by a mixture of graphite powder [71], almond shell biochar [72], or olive wood charcoal [73] and molten carbonates, attained MPD values of 58 mW cm−2 at 700 °C, 127 mW cm−2 at 750 °C, and 105 mW cm−2 at 700 °C, respectively.

3.3. HDCFCs with a Solid Catalyst Anode

As previously reported, molten carbonates bring the oxygen ions to the coal particles to complete the cell reactions. The reaction rate, however, is low, so the presence of a catalyst can be helpful to improve it. The anode catalyst provides suitable sites for carbon electro-oxidation, and delivers the produced electrons to the current collectors [74]. To evaluate the effect of the presence of a solid anode, Cantero-Tubilla et al. [75] compared the performance of two identical HDCFCs, fueled with the same carbon/carbonate mixture, one with a GDC anode catalyst and the other without an anode catalyst. In the absence of a catalyst, the MPD was 7 mW cm−2, regardless of the operating temperature. In the presence of a dense GDC catalyst, the MPD at 800 °C increased more than 500%. Conversely, Xu et al. [76] reported that the performance of an HDCFC without an anode catalyst was better than with a Ni/SDC anode catalyst. This comparison, however, is not appropriate. Indeed, the HDCFC with a NiO/SDC catalyst and Ag paste as the current collector cannot be compared to the HDCFC without an anode catalyst, but with Cu foil immersed in the carbon/carbonate mixture as the current collector: indeed, the Cu foil also acts as an anode catalyst, with Cu as an active catalyst for the carbon/carbonate fuel [77].
As for the SOFCs, from a geometrical point of view, HDCFCs can be mainly classified into a planar cross-flow and tubular counter-flow type [78,79]. There are various structural configurations of SOFCs, including anode-, cathode-, and electrolyte-supported SOFCs [80]. Generally, HDCFCs were fabricated in anode- or electrolyte-supported configurations [81]. Jiang et al. [65] compared the performance of electrolyte- and anode-supported HDCFCs. The MPD increased from 70 to 390 mW cm−2 at 750 °C under N2, changing the cell configuration from a 1 mm-thick YSZ electrolyte-supported structure to an anode-supported structure with a 5 μm-thick YSZ electrolyte, due to the lower ohmic resistance of the electrolyte. Gil et al. [81] compared the performance of a cathode-supported HDCFC—which has the advantage of the use of a thin anode layer to promote the full contact between the fuel and the anode, together with the use of a thin electrolyte, maintaining a low ohmic resistance—to that of a conventional anode-supported HDCFC. The performance of the cathode-supported HDCFC was 1.7 times higher than that of the anode-supported cell. Notwithstanding the advantages of the cathode-supported configuration, the manufacturing of this type of cell remains extremely challenging.
Literature data on solid-catalyst-based HDCFCs are reported in Table 2 [60,61,62,64,65,74,75,76,77,81,82,83,84,85,86,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107]. The histograms in Figure 7 show the number of papers for the various types of anode and cathode catalysts, and of the electrolyte used in HDCFCs.

3.3.1. HDCFC Anode

As can be seen in Figure 7, Ni-YSZ cermet was the most used anode catalyst in HDCFCs; this catalyst, however, is subjected to various drawbacks, such as sintering, poor redox stability, and low tolerance to coke deposition. Another problem regarding Ni-YSZ is the poor stability of YSZ in molten carbonate [82]. This leads to the degradation of both YSZ mechanical properties and conductivity at temperature < 700 °C. One answer to this problem is to switch to an alternative carbonate mixture: it was found that YSZ is stable in Na/K carbonate eutectic [82], but the HDCFC performance was lower than with Li/K carbonate eutectic [75]. Another way to solve this drawback is to use doped ceria as an alternative to YSZ. The GDC structure seems to be stable in molten Li/K carbonates over 168 h at 500 °C [109]. Xu et al. [110] compared the stability of YSZ and SDC in molten carbonates. They found that SDC was more corrosion-resistant in the molten carbonate eutectics than YSZ. On these bases, GDC, SDC, and also Ce0.6Mn0.3Fe0.1O2 (CMF) were investigated as Ni supports in HDCFCs [60,61,74,76,84,92,98,99,100]. A disadvantage of doped ceria, however, is that at high temperature and low oxygen partial pressure, its behavior changes from total ionic conductivity to partial electronic conductivity.
Due to the limited contact between solid carbon fuels and the anode during HDCFC operation, notwithstanding the presence of carbonate, the commonly used Ni anode framework may not be suitable for carbon fuels with a particle size much larger than the anode pore size [111]. Thus, a more efficient anode structure should be designed to improve the reactivity of carbon and the electrochemical performance. Lee et al. [88] modified the anode microstructure (pore volume and surface area). The MPD increased with increasing surface area but was not correlated with the pore volume. In this case, the carbon particle size was always larger than the pore size, so they cannot penetrate into the pores. This behavior, however, is not general, as the performance depends on the ratio of carbon size to anode pore size: Wu et al. [98] tested a 3D NiO-GDC anode in an HDCFC. The 3D anode framework significantly extended the active zone for the electrochemical carbon oxidation. The graphite-fueled HDCFC with this anode achieved an MPD of 325 mW cm−2 at 600 °C.
A problem regarding the use of Ni-based anode catalysts in HDCFCs is related to the dissolution of Ni and NiO into molten carbonates [50,112]. In addition, as in SO-DCFCs, Ni is poisoned by sulfur present in raw coal fuels [113,114], leading to a significant reduction in cell performance. Due to their excellent sulfur poisoning tolerance, perovskite oxides have attracted considerable attention. Double perovskites showed high catalytic activity when used as anode catalysts in SOFC fueled with hydrogen and low-molecular-weight hydrocarbons [115], so they were tested in HDCFCs [94,97,105,106,107]. Yue et al. [94] investigated a (La, Sr)(Cr, Mn)O3 (LSCM) perovskite-GDC composite material as an alternative anode in HDCFCs and investigated its chemical stability in a carbon/molten carbonate mixture at 700–800 °C. The HDCFC with the GDC-LSCM anode showed a significantly higher performance than that with the Ni-YSZ anode, as a result of the high conductivity and high electro-catalytic properties of LSCM-GDC, as well as a high impurity tolerance. LSCM is not stable in a reducing environment, but the impregnation with GDC fine particles protects it from Li attack, enhancing LSCM anode stability.

3.3.2. HDCFC Electrolyte

To effectively operate in SOFCs, the electrolyte has to possess high ionic conductivity and electronic insulation [116]. The electrolyte has to have good chemical compatibility with anode and cathode catalysts, and the thermal expansion coefficient (TEC) of the electrolyte has to be in close proximity to that of the electrode catalysts, to avoid cell cracking [84]. As can be seen in Table 2 and Figure 7, YSZ is largely the most used electrolyte, overall due to its good compatibility with Ni cermets, commonly used as the anode catalyst in HDCFCs. Ceria-based electrolytes were also used in HDCFCs at temperatures ≤ 650 °C, where the electronic conductivity is acceptable for fuel cell application [116]. Lanthanum strontium gallium magnesium oxide (La0.8Sr0.2Ga0.8Mg0.2O3−δ, LSGM) perovskite showed a high ionic conductivity, five times higher than that of YSZ, negligible electronic conductivity, and high chemical stability over a wide range of oxygen partial pressures, so it fulfills the requirements for its use as an SOFC electrolyte [117]. A drawback is its reactivity with nickel. Indeed, it was found that the interfacial reaction between Ni-SDC and LSGM can give rise either to the formation of high-resistivity compounds, such as LaSrGa3O7, LaSrGaO4 and LaNiO3 [118], or the formation of fine MgO particles near the Ni-SDC/LSGM interface [119], leading to an increase in the ohmic resistance. Thus, the use of LSGM in HDCFCs with Ni-based anodes was limited. However, Liu et al. [99,100] used LSGM as the electrolyte with a Ni-cermet anode catalyst in HDCFCs, either inserting an SDC interlayer between the anode and the electrolyte, which prevented a chemical reaction between Ni and LSGM [99], or using a Ni-infiltrated catalyst into the CMF nanofiber anode [100]. On the other hand, LSGM, being chemically compatible and having a compatible TEC with perovskites oxides [120,121,122], was used in HDCFCs with a doped SFM perovskite as the anode catalyst [106,107].
A drawback peculiar to HDCFCs is the stability of solid electrolytes in contact with corrosive molten carbonates. Jiang et al. [83] reported a significant YSZ intergrain erosion under oxidizing conditions. Conversely, under reducing conditions, a good stability of YSZ was observed. Xu et al. [110] carried out high-temperature corrosion tests of YSZ and SDC in molten Li/K carbonate eutectic in air at 700 °C for 10 days of testing. The results confirmed YSZ and SDC corrosion, but YSZ was less corrosion-resistant than SDC.

3.3.3. HDCFC Cathode

As can be seen in Table 2 and Figure 7, La1−xSrxMnO3 (LSM) perovskites are the most used cathode materials in HDCFCs. The oxygen ion conductivity of LSM materials, however, is low, limiting the use of LSM cathodes at operating temperatures ≤ 800 °C [123,124]. Due to its high oxygen ion conductivity, La0.6Sr0.4Fe0.8Co0.2O3 (LSFC) is a promising candidate for SOFCs working at temperatures ≤800 °C [123,124]. For this reason, LSCF was widely used as the cathode catalyst in HDCFCs. However, LSCF perovskites are generally incompatible with YSZ electrolytes, as LSCF reacts with YSZ to form an SrZrO3 insulating phase at 800 °C [123,124]. Thus, a GDC diffusion barrier layer is commonly used to avoid the reaction between LSCF and YSZ [123,124]. On the other hand, LSFC is compatible with LSGM, and in HDCFCs, when LSGM was used as the electrolyte, LSFC was always used as the cathode catalyst. Precious metals (Pt and, in particular, Ag), LixNi1−xO, and other perovskite oxides, such as SrSc0.175Nb0.025Co0.8O3−d (SSNC) and Ba0.5Sr0.5Co0.8Fe0.2O3−δ (BSCF), were also used as cathode catalysts in HDCFCs.

3.3.4. Effect of Carbonate Presence (HDCFC vs. SO-DCFC) and Carbon/Carbonate Ratio

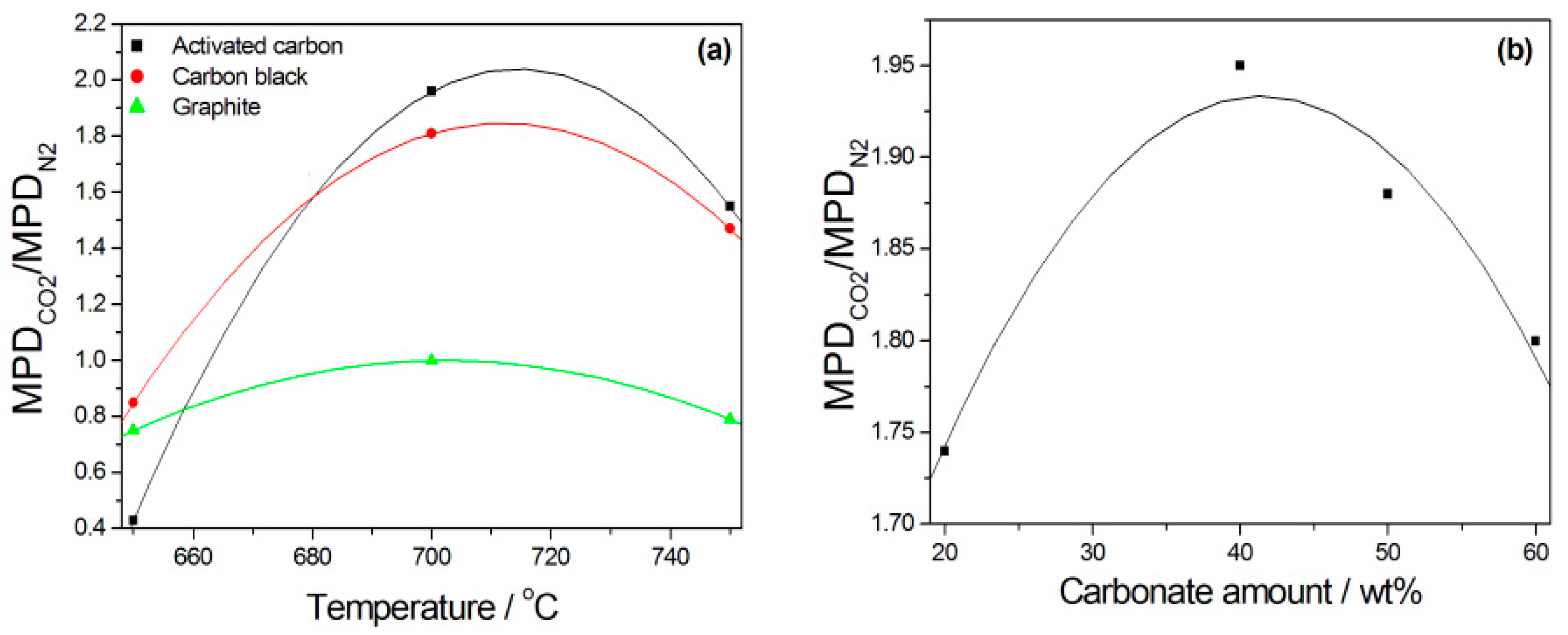

To evaluate the effect of carbonate presence, the performance of HDCFCs and SO-DCFCs with the same intrinsic and operational parameters was compared in different works [62,75,77,88,95,99]. In almost all the cases, the performance of the cell with carbonate was higher than without, due to the extension of the reaction zone. The dependence of the ratio of the MPD of HDCFC to MPD of SO-DCFC (MPDHDCFC/MPDSO-DCFC) on the operating temperature from data in refs. [62,77,88,95,99] is shown in Figure 8a.
The MPDHDCFC/MPDSO-DCFC ratio decreases with increasing operating temperature. In addition to temperature, the MPDHDCFC/MPDSO-DCFC ratio also depends on the type of carbon. The dependence of the MPDHDCFC/MPDSO-DCFC ratio on temperature for raw and heat-treated lignite is shown in Figure 8b. After heat treatment, the carbon content in lignite increased, whereas the volatile matter, such as moisture, sulfur, and oxygen contents, decreased. As a consequence, an improvement in the performance of both SO-DCFC and HDCFC fueled with heat-treated lignite than the cells fueled with raw lignite was observed. In the 700–800 °C temperature range, the MPDHDCFC/MPDSO-DCFC ratio linearly decreased with increasing temperature for both raw- and heat-treated lignite-fed cells. The dependence of the MPDHDCFC/MPDSO-DCFC ratio on temperature for the cell fed with raw lignite (d(MPDHDCFC/MPDSO-DCFC)/dT = −0.0041 mW cm−2 °C−1), however, was considerably higher than that of the cell fueled with heat-treated lignite (−0.0012 mW cm−2 °C−1). Obviously, at a fixed temperature, the values of the MPDHDCFC/MPDSO-DCFC ratio depends on the type of carbon. In the 700–800 °C temperature range, the MPDHDCFC/MPDSO-DCFC ratio for the cell fueled with raw lignite was always higher than that of the cell fueled with heat-treated lignite. Kaklidis et al. [77] compared the performance of SO-DCFC and HDCFC fueled with various carbons at 800 °C. For both SO-DCFC and HDCFC, the order, in terms of MPD, was pine charcoal (PCC) > demineralized bituminous coal (DBiC) > bituminous coal (BiC) > anthracite coal (AnC). When employing AnC and BiC as fuels in HDCFCs, the power output was almost doubled compared to SO-DCFCs. In the case of the PCC sample, instead, the MPD only slightly increased from 12 to 12.6 mW cm−2. This result and that for raw and heat-treated lignite seem to indicate that the positive effect of carbonate presence is more pronounced when a less performing fuel is employed. Moreover, the value of the MPDHDCFC/MPDSO-DCFC ratio at a fixed temperature depends on carbon/carbonate ratio. As can be seen in Table 2, the most used carbon/carbonate weight ratio in HDCFCs was 4:1 (20 wt% carbonate), independently of the carbon characteristics. The optimum carbon/carbonate ratio used in an HDCFC was evaluated in some works [75,101,125]. Cantero-Tubilla et al. [75] evaluated the effect of carbonate content in the carbon/carbonate mixture (0, 2.5, 6, 9.5, 13, and 22 vol % carbonates, corresponding to 0, 10, 20, 30, 40, and 60 wt%) on HDCFC performance at 800 °C, using Li/K carbonate eutectic and carbon black as the fuel. A maximum value of the MPDHDCFC/MPDSO-DCFC ratio was attained at a carbonate content of 20 wt%, as shown in Figure 8c. The main role of the molten carbonate solution is to uniformly wet the carbon fuel and electrolyte, providing a medium for carbon transport and electrochemical reaction. Depending on the concentration of carbonate, the HDCFC will most likely go from a liquid/solid and/or liquid/gas phase reaction mechanism to a solid/solid and/or solid/gas phase mechanism at the anode. This change in reaction mechanism depends on the distribution of the carbonates in the anodic mixture, since carbonate percolation controls the probability of forming a liquid solution within the anode. From the theoretical calculation based on the model of Malliaris and Turner [126], the minimum percolation threshold was 8.7 vol% carbonate. Thus, the highest kinetics of the electrochemical reaction for the range of compositions investigated by Cantero-Tubilla et al. [75] has to be between 6 and 9.5 vol% carbonate. For this reason, for carbonate loadings <6 vol%, a remarkable drop in MPD was observed. The decrease in the performance above 6 vol% carbonate was ascribed to the increase in the charge-transfer resistance. Li et al. [101], using Li/K carbonate eutectic and pyrolyzed sawdust as the fuel, obtained the best performance for a carbonate content of 40–50 wt%. The different optimal carbonate content essentially depends on the porosity and particle size of the carbon fuel: the higher the carbon surface area, the higher the amount of carbonate needed to wet the carbon surface. Finally, Jiang et al. [125] tested various amounts (10, 25 and 40 wt%) of ternary Li/K/Na carbonate in HDCFCs in terms of cell resistance, cell performance, and durability. The best performance was obtained for the HDCFC operating at 700 °C with 40 wt% carbonate.

3.3.5. Effect of the Type of Carbon

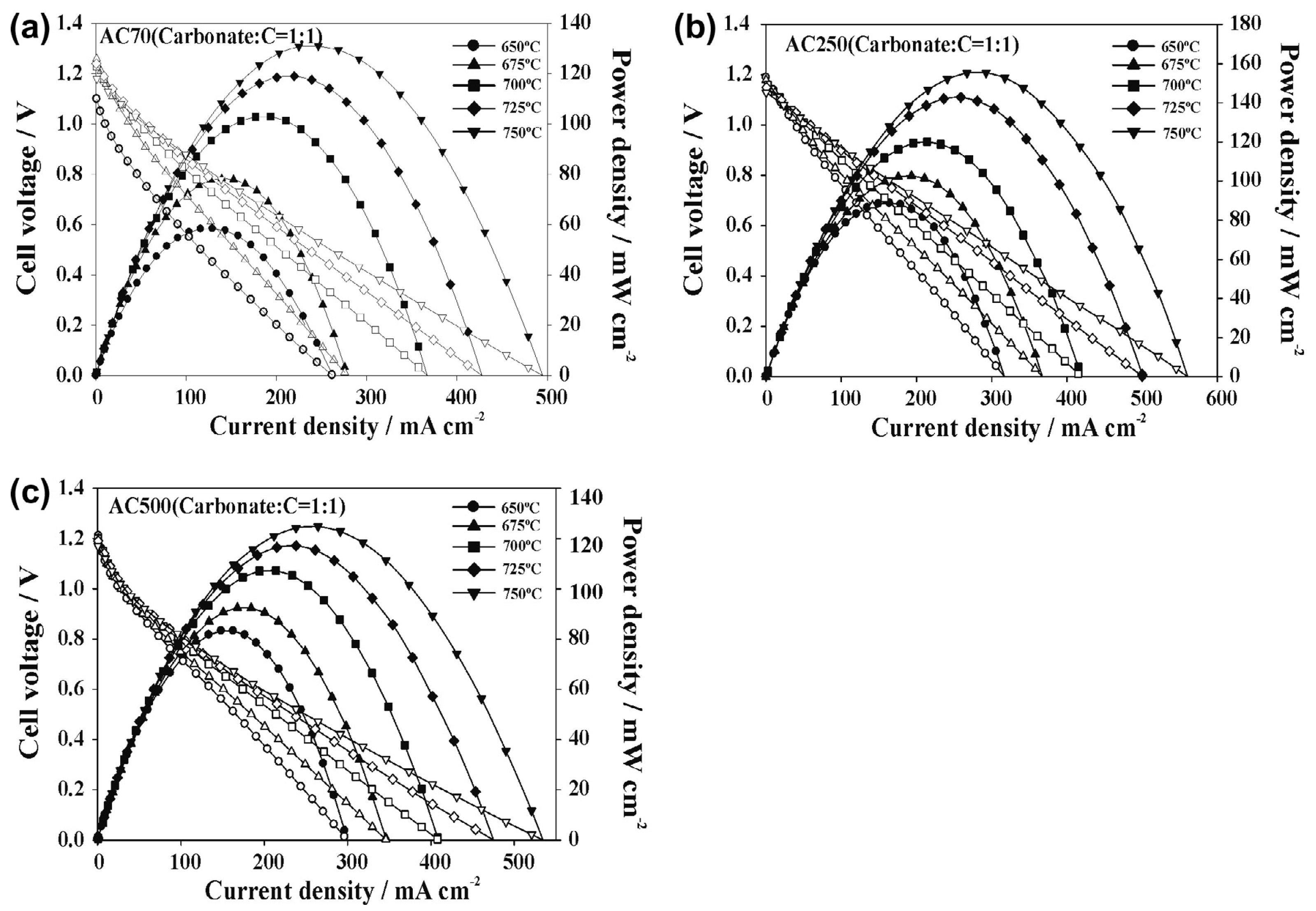

Different carbon materials have been used as the fuel in MC-DCFCs [49,52,54,127,128,129,130,131] and SO-DCFCs [132,133,134,135,136,137]. Generally, a high surface area and a small particle size of carbon fuel can improve its electrochemical reactivity by increasing the interaction between the carbon particles and the anode catalyst. Conversely, a high graphitic degree of carbon fuel can lead to a lower electrochemical reactivity due to the less reactive sites on the carbon surface. Moreover, the electrochemical reactivity of carbon fuels increases with increasing concentration of oxygen-containing functional groups on their surface.
As previously reported, in some works comparing HDCFCs and SO-DCFCs, the order of reactivity of different carbons was the same [77,102]. The increase in the power density was correlated with the increase in porosity and structure disorder. Conversely, high ash and sulfur contents hindered the electrochemical performance. The performance of various types of carbons as fuels in HDCFCs was compared in many works [76,84,87,90,92,93,94,96,104]. Generally, among various carbons, the HDCFC fueled with AC showed the highest MPD. The higher performance of AC was ascribed to its disordered structure and higher surface area, promoting CO formation via the reverse Boudouard reaction. Moreover, the mesoporous and macroporous structure of AC enhances the transport of carbonates through the carbon skeleton and leads to more active reaction sites. To investigate the effect of the size of carbon on the electrochemical performance, three activated carbons with different sizes (AC (70 μm), AC (250 μm), and AC (500 μm)) were used as the fuel in an HDCFC [84]. Independently of carbon size, the HDCFC operating at 750 °C showed a similar OCV. The HDCFC with the middle-size AC as the fuel delivered the highest power density. As shown in Figure 9, the dependence of the MPD on the particle size indicated an advantage when carbon with small particle size was used as the fuel; however, it was difficult to wet very fine carbon particles of AC (70 μm) by molten carbonate to form a percolating carbonate phase at a lower ratio of carbonate:carbon (1:1).
Anthracite and bituminous coals are promising candidates as the fuel for HDCFCs as they have a higher carbon content and higher conductivity than less ranked coals. The MPD of the HDCFC fueled with raw BiC was higher than that of raw AnC [90,93]. Short-term durability tests (<10 h) showed that the HDCFC fed with BiC had a slower performance drop than with AnC. Long-term duration tests for more than 120 h at 0.7 V, instead, showed a better performance of the AnC-fed HDCFC [93]. These results indicated that a high volatile matter, a high hydrogen content, and a low moisture content, as in the case of BiC, are desirable for a short-term operation, while for long-term operations, a high carbon content is preferable. To enhance the electrochemical performance of AnC and BiC, these carbons were submitted to pretreatments [90,104]. Thermal pretreatment of high-rank coals was not appropriate for their use in HDCFCs [90]. The air oxidation treatment, instead, can help to improve the reactivity of AnC coals (low H/C ratio). Oxidation pre-treatments can enhance some characteristics of AnC, such as oxygen content and reactivity. In the case of the BiC, instead, the formation of crosslinks and the reduction in aliphatic hydrogen during the oxidation pretreatment decrease the fluidity and the active area of the coal, leading to a lower cell performance. The pretreatment of BiC by pyrolysis at 800 °C, to remove organic volatiles, followed by modification with acetic acid, to reintroduce surface functional groups, increased cell performance [104]. Additional gas phase electrochemical reactions of CO(g) and H2(g) released from the coals with O2− and/or CO32− ions can contribute to the OCV increase and electricity generation. Both oxidized AnC and BiC have certain oxygen functionalities, which will be released mainly as CO(g) during fuel cell operation, contributing to the CO mediator system via the electrochemical reaction (4). Regarding H2(g), part of the H2 can be involved in electrochemical reactions, according to reaction (21):
H2(g) + O2− → H2O +2e
The electrochemical oxidation of CO(g) and/or H2(g) released from the coals can also be promoted by carbonate ions present in the HDCFC, according to reactions (19) and (22):
H2(g) + CO32− → CO2 + H2O + 2e

3.3.6. Effect of Carbonate Mixture Composition

As can be seen in Table 2, apart from two works that report the use of an eutectic Li/Na carbonate composition, the eutectic Li/K carbonate mixture was used in HDCFCs. Cantero-Tubilla et al. [75] were the only ones to evaluate the effect of carbonate composition on the performance of an electrolyte-supported HDCFC. Alternative Li/K carbonate compositions (Li/Na, Li/Na/K, Li/Ba, and Na/K in eutectic compositions) were tested at the 6 vol% carbonate content. Sodium seems to have a negative effect on HDCFC performance. With Li/Na carbonates, the power density of the HDCFC decreased 50% and 30% at 700 and 800 °C, respectively, compared to that with Li/K carbonates. Potassium has a strong catalytic effect for carbon oxidation [138]. Lithium enhanced the catalytic activity of potassium, as shown by the comparison of the HDCFC performance with Li/K and Na/K carbonates: among all the compositions, the HDCFC with Na/K carbonate presented the lowest performance. Barium was also investigated as a replacement for Na and K ions. For temperatures >700 °C, the HDCFC with the Li/Ba carbonate eutectic showed a higher performance than that with Li/Na carbonates. Summarizing, the HDCFC with the Li/K carbonate eutectic showed the highest power density at all temperatures.

3.3.7. Effect of Catalyst Addition to the Fuel

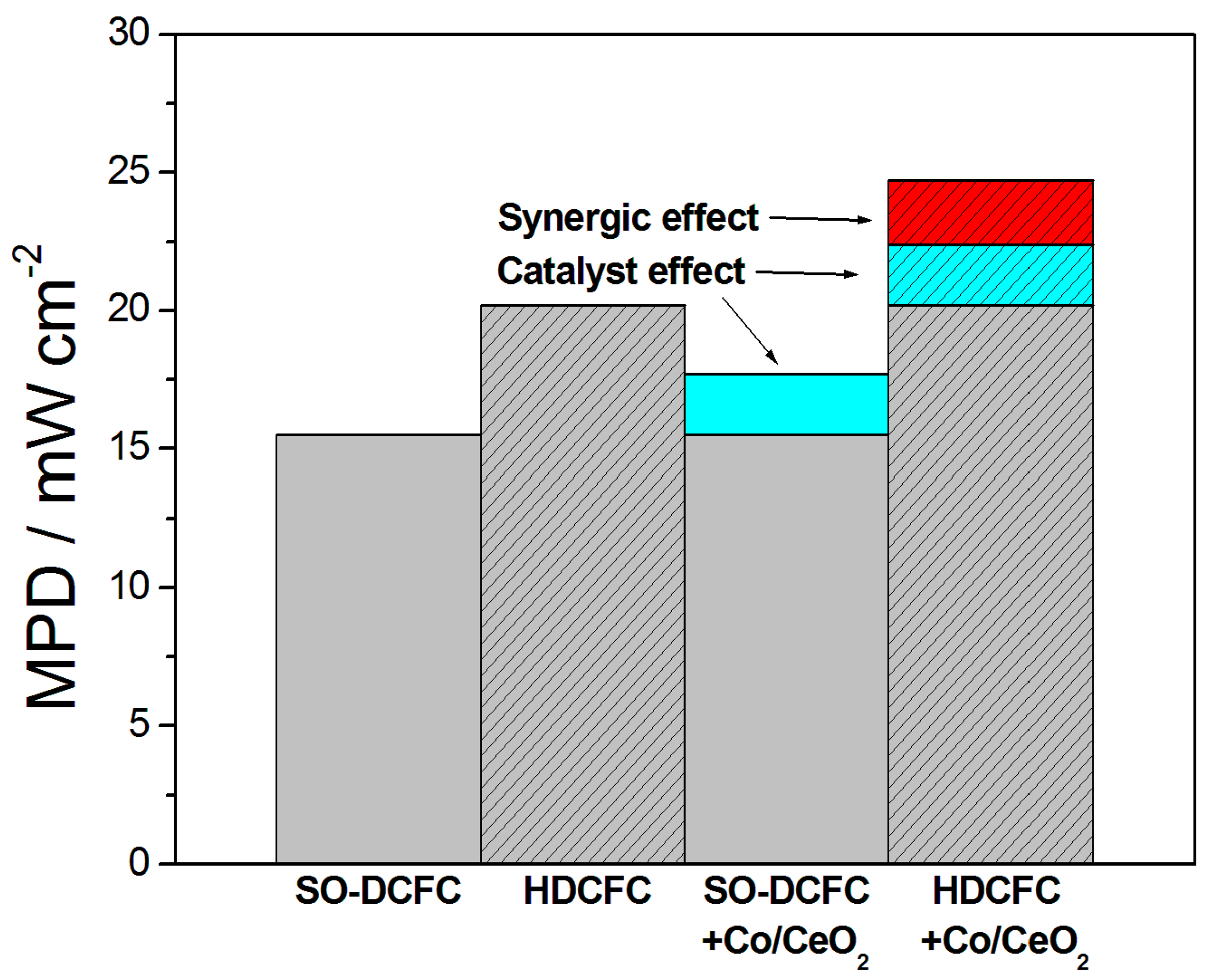

A way to improve the performance of SO-DCFC is the addition of metal/metal oxide catalysts in the carbon fuel, enhancing the reverse Boudouard reaction to carry out the internal carbon gasification, providing more CO to the anode [139,140,141,142,143,144,145]. Ag, Ni, Co, Ag2O, Fe2O3, and CaO were the most used materials to catalyze the Boudouard reaction in SO-DCFCs. The addition of a catalyst to the carbon/carbonate fuel in HDCFCs was reported in some works [64,86,102]. The addition of 50 wt% Ni drastically improved the OCV, and in the full temperature range (550–900 °C), the MPD of the HDCFC was higher than that of the cell fueled with catalyst-free carbon [64].
The addition of silver-based catalysts to the carbon/carbonate slurry enhanced the performance of the HDCFC in the order Ag < Ag2CO3 < Ag2O [86]. Kaklidis et al. [102] compared the performance of SO-DCFCs and HDCFCs, having the same cell structure, the only difference being the fuel composition, pure carbon, carbon/catalyst, carbon/carbonate, and catalyst/carbon/carbonate. A 20 wt% Co/CeO2 catalyst was added to BiC fuel. An eutectic Li/K carbonate mixture was added to BiC and BiC/catalyst feedstock at a carbon/catalyst/carbonates weight ratio of 4:2:1, to evaluate the effect of catalyst and carbonates on cell performance. As it can be seen in Figure 10, where the histogram of the MPD at 800 °C of SO-DCFCs and HDCFCs, with and without catalyst in the fuel, is reported, the improvement in the cell fueled with the carbon/catalyst/carbonate mixture with respect to the cell fed with bare carbon is not the sum of carbonate and catalyst effects, but a synergic effect is clearly visible. The addition of carbonates facilitates BiC diffusion, while providing additional CO2 through their thermal decomposition. The addition of catalyst improves the reverse Boudouard reaction and additional CO is produced, but its presence may interfere with the coal fluidity at the anode. The presence of catalyst and carbonates results in a beneficial effect on both the fluidity and the reverse Boudouard reaction, giving rise to higher power densities.

3.3.8. Effect of Purge Gas

In DCFCs, an inert gas or CO2 is often used to purge the reaction gas away from the TPB [4]. Purge gas significantly influences the OCV and cell performance. The presence of CO2 enhances the reverse Boudouard reaction at temperatures >650 °C, giving rise to an improvement in cell performance, especially the MPD, by the electrochemical oxidation of formed CO [4]. Elleuch et al. [71] observed that the performance of an HDCFC depends on the nature of the purge gas and on temperature. Up to 700 °C, N2 is preferred to keep the anode gas tight. Above 700 °C, as the reverse Boudouard reaction is thermodynamically favored, the performance of the cell with CO2 as the purge gas was significantly higher than that with N2. The dependence of the ratio of the MPD with CO2 purge gas to the MPD with N2 purge gas (MPDCO2/MPDN2) on temperature and various types of fuels is shown in Figure 11a from data by Li et al. [96]. For all the fuels, the lower performance of the HDCFC in CO2 flow than in N2 flow at 650 °C is due to the increase in both ohmic and polarization resistances, the lower OCV, and, mainly, the poor kinetic of the reverse Boudouard reaction. For the HDFCs fueled with AC and carbon black (BC), going from 650 to 700 °C, notwithstanding the lower OCV in CO2 flow than in N2 flow, the MPDCO2/MPDN2 remarkably increased, due to the improved reverse Boudouard reaction. For the HDCFC fueled with GC, the improvement in the MPDCO2/MPDN2 ratio was poor, since the stable structure of GC does not favor the reverse Boudouard reaction, and the microporous or nonporous structure in GC hindered the contact between carbon and molten carbonate. For all HDCFCs, by increasing the temperature from 700 to 750 °C, a slight decrease in the MPDCO2/MPDN2 ratio was observed. At 750 °C in flowing N2, the enhanced carbonate decomposition (reaction 20) resulted in a higher amount of CO2 formed, which generated more CO by the reverse Boudouard reaction. Conversely, in CO2 flow, carbonate decomposition was hindered. The effect of carbonate amount in the fuel on the MPDCO2/MPDN2 ratio is shown in Figure 11b from data in ref. [101]. The addition of carbonates facilitated carbon diffusion and provided additional CO2 through their thermal decomposition, generating CO by the reverse Boudouard reaction. By increasing the carbonate amount from 20 to 40 wt%, the improved carbon diffusion enhanced the reverse Boudouard reaction, thus explaining the higher MPDCO2/MPDN2 ratio. In N2 flow, a further increase in carbonate content in the fuel gave rise to more CO2 formation by carbonate decomposition, increasing the reverse Boudouard reaction; this did not occur in CO2 flow, which prevented carbonate decomposition, making the use CO2 purge gas less favorable and reducing the MPDCO2/MPDN2 ratio.

3.3.9. Effect of Temperature

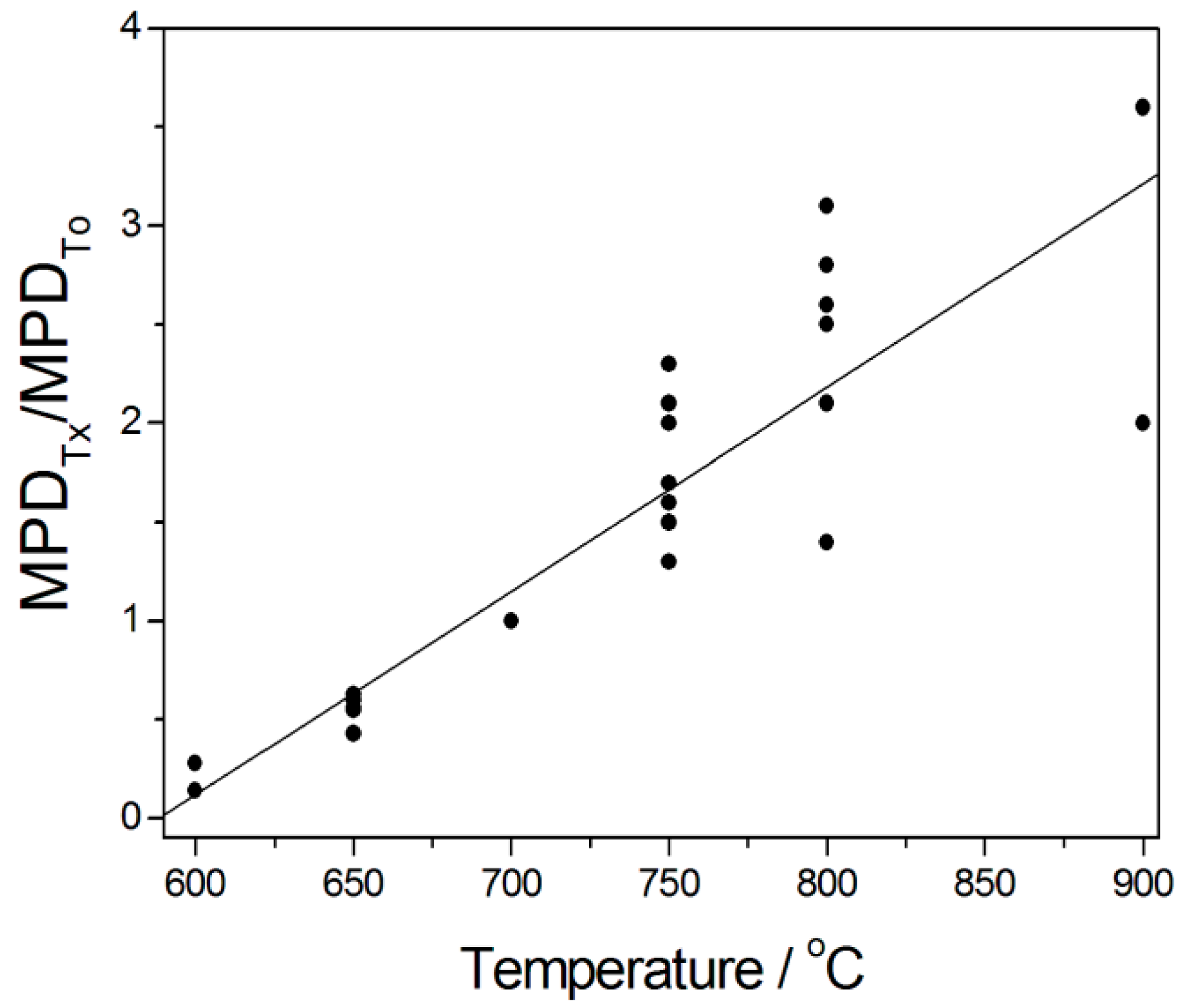

The dependence of the ratio of the x °C (Tx) to 700 °C (To) temperature maximum power density (MPDTx/MPDTo) of HDCFCs on cell temperature from data in Table 2 is shown in Figure 12. As can be seen in Figure 8, as expected, in the temperature range of 650–900 °C, the MPDTx/MPDTo ratio almost linearly increases with temperature, independently of the catalyst and carbon type. An increase in temperature improves the electrochemical kinetics of both carbon oxidation and oxygen reduction reactions. Moreover, both carbon and oxygen transport diffusivities increase with increasing temperature, resulting in low mass transport.
An interesting way to improve HDCFC performance is size-matching between the carbon particles and anode pores. The optimal carbonate content also depends on the porosity and particle size of the carbon fuel: the higher the carbon surface area, the higher the amount of carbonate needed to wet the carbon surface.

4. LTA-HDCFC and Liquid-tin-Containing HDCFC

Only two works addressed mixed molten metal/molten carbonate SO-DCFCs, one with LTA-HDCFC [146] and another with liquid-tin-containing-HDCFC [147]. Cao et al. [146] reported an LTA-HDCFC with a Sn-Li/K carbonate anode, an YSZ electrolyte, and a Pt cathode. With molten carbonate occupying the anode–electrolyte interface, the location of the Sn oxidation process changes from the anode–electrolyte interface to the carbonate–tin interface. Thus, the SnO2 film formed on molten carbonate droplets is less stable than that formed on the solid electrolyte and can be reduced more easily. In the absence of carbon, that is, in battery mode, for a pure tin anode, a maximum current density of 581.7 A m−2 was attained, followed by a sudden drop in current density, related to SnO2 film formation. After carbonate addition, for the composite anode containing 2 mol.% carbonate, the maximum current density was 1068.9 A m−2, indicating that carbonate addition decreased the stability of the formed SnO2 layer. To test the carbon conversion kinetics, the composite tin-carbonate anode was first discharged at 800 °C at a constant working potential of 0.4 V for 1 h, then 0.1 g of carbon black was introduced into the anode chamber. Before carbon introduction, the fuel cell performance reached its lowest value of 100.7 A m−2. Following carbon addition to the anode chamber, fuel cell performance increased abruptly to 208.6 A m−2. As solid carbon particles slowly migrated in the liquid metal anode, the immediate increase in fuel cell performance after fuel introduction was ascribed to the accelerated CO formation via Boudouard reaction in the presence of the molten carbonate. Then, a carbon-containing composite anode was prepared by adding 0.1 g of carbon black into the composite anode powder. The fuel cell with this carbon-containing anode was discharged at 800 °C at a constant working potential of 0.4 V. The performance of carbon mixed anode slightly decreased from 214.0 A m−2 to 167.4 A m−2 after the first 150 s. However, fuel cell performance increased in the later part of the discharge to a current density of 348.9 A m−2 after 5000 s. At beginning of the discharge, Sn is consumed while the reduction rate of SnO2 is relatively slow. In the later part of the discharge, SnO2 is transported into the bulk of the anode and interacts with carbon. During the reduction of SnO2 by carbon in the liquid phase anode, Sn metal is regenerated and CO is produced via the Boudouard reaction. By mixing carbon black homogenously with the liquid anode, the escape of the CO is more difficult, resulting in an increased performance.
Li et al. [147] evaluated the effect of the addition of liquid Sn in various compositions (0, 10, 20, and 50 wt%) to Li/K carbonate on the performance of an anode-supported HDCFC, consisting of a Ni/YSZ anode, a thin YSZ electrolyte, and a GDC/LSCF composite cathode. At 750 °C, for the Sn-free anode, the MPD was, ca., 65 mW cm−2. When introducing molten Sn into the anode, the OCV does not change significantly, indicating that the OCV is related to the carbon and carbonates rather than Sn. In the presence of Sn, the MPD is dependent on the Sn concentration. The MPD values were 58, 86, and 49 mW cm−2 for 10, 20, and 50 Sn wt% loading, respectively. Sn and Li2Co3 can react to form a Li2SnO3 phase:
Li2CO3 + Sn + O2 → Li2SnO3 + CO2
As a consequence, the consumption of Sn and Li2CO3 decreases the amount of oxidized carbon by Sn/SnO2 and CO2/CO32− redox cycling reactions. Thus, the decrease in MPD for a high Sn content was ascribed to the formation of a large amount of Li2SnO3. When tuning the Sn amount to an optimal value (20 wt%), the catalytic reactions of both Sn-SnO2 and Li-K systems prevail on the negative impact of Li2SnO3 formation.

5. Conclusions and Perspectives

LMA-DCFCs are an efficient tool for the direct electrochemical conversion of solid carbon into electrical energy. The first molten metals investigated acted only as physical mediators. In this case, their function is to enhance the carbon reaction active area by changing the contact between the solid electrode and solid carbon into a liquid electrode and solid carbon. Carbon is oxidized by O2− and the OCV is near 1 V. A physical mediator metal has to have a low affinity for oxygen and a high solubility of fuel and oxygen, its oxide has to be not stable at the cell operation temperature, and, if is stable, the metal oxide has to have poor reactivity with carbon. Cu and Ag are examples of physical mediator metals. A drawback of these metals, however, is their high melting temperature. Then, molten metals are used as physical and chemical mediators. When a molten metal acts as a chemical mediator, it is oxidized by O2−, the OCV is less than 1 V, and its metal oxide has to be reduced by carbon spontaneously. Among different metals, only Sn and, overall, Sb are used as physical and chemical mediators. A serious drawback of LTA-SOFCs is the formation of an insulating SnO2 layer, so, generally, tin is not employed as a molten anode, but, mixed with carbon and in the presence of a solid anode, acts as an interfacial mediator. The only LMA-DCFC with an appreciable performance is Sb as the liquid anode. A critical issue of LAA-DCFCs is the corrosion of the electrolyte by liquid Sb/Sb2O3 at operating cell temperatures. As electrolyte grain boundaries are weak points to Sb/Sb2O3 attack, the reduction in their number can be a solution to resist corrosion. The ScSZ electrolyte prepared by APS technology presents a low number of grain boundaries, leading to a lower Sb migration and a higher electrolyte stability. Fe2O3 is often used to form liquid phases at the grain boundaries during sintering processes and to improve grain-boundary conductivity [148]. The corrosion resistance of GDC electrolytes is enhanced by Fe2O3 addition. Refined grains in Fe2O3-GDC with much longer and more tortuous grain boundaries would make the penetration of Sb/Sb2O3 more difficult.
The introduction of carbonates in the SO-DCFC system leads to an enhancement of cell performance in terms of OCV and power output. The carbonates mainly act as a physical mediator, accelerating O2− transfer to the anode TPB, but also as a chemical mediator for carbon oxidation reaction. Carbonates are almost effective at low temperatures and using poor performing fuels. The characteristics of carbon fuels play an important role in the performance of HDCFCs. Generally, a high surface area and a small particle size of carbon fuel can improve its electrochemical reactivity by increasing the interaction between the carbon particles and the anode catalyst. Conversely, a high graphitic degree of carbon fuel can lead to a lower electrochemical reactivity due to the less reactive sites on carbon surface. Moreover, the electrochemical reactivity of carbon fuels increases with increasing concentration of oxygen-containing functional groups on their surface. Carbon contaminants, in the form of ash, affect HDCFC performance, facilitating or hindering carbon electrooxidation, so it is fundamental to evaluate their role during cell operation. The highest HDCFC performance is obtained with coals containing high fixed carbon, low sulfur, and a medium amount of volatile material and moisture. To enhance their electrochemical performance, pretreatments, such as heat treatment, acid or base washing, and air oxidation, are carried out on carbon fuels. Pre-treatments, however, do not always lead to an improvement in performance, depending on carbon characteristics. To improve HDCFC performance, different ways have been suggested, either modifying the electrodes or optimizing the external parameters, such as carbon/carbonate ratio, purge gas, and operation mode. Appropriate doping of the perovskite anode (chemical modification) or increasing the catalyst surface area (physical modification) leads to an enhancement in cell performance. An interesting way to improve HDCFC performance is size-matching between the carbon particles and anode pores. The optimal carbonate content also depends on the porosity and particle size of the carbon fuel: the higher the carbon surface area, the higher the amount of carbonate needed to wet the carbon surface. The purge also influences cell performance. Up to 700 °C, N2 is the preferred purge gas to keep the anode gas tight. Above 700 °C, as the reverse Boudouard reaction is thermodynamically favored, the performance of the cell with CO2 as the purge gas is significantly higher than with N2.
A serious drawback regarding HDCFCs is electrolyte corrosion by molten carbonates. YSZ is stable in reducing conditions, but not stable in oxidizing conditions. On the other hand, GDC is relatively stable in oxidizing conditions. Thus, a solution could be to use a composite double-layered YSZ/GDC electrolyte, with the YSZ layer at the anode side and the GDC layer at the cathode side. Another solution is to develop new carbonate corrosion-resistant materials, possessing suitable properties for their use as the electrolyte in HDCFCs, such as ionic conductivity and electronic insulation, good chemical compatibility with anode and cathode catalysts, and with the electrolyte TEC in close proximity to that of the electrode catalysts, to avoid cell cracking.
Finally, only two works addressed SO-DCFCs, with both molten tin and molten carbonates present in the anode chamber. As, in both studies, tin was used as the molten metal, there is plenty of room to explore this topic further in future works, in particular, using molten Sb.

Funding

This research received no external funding.

Data Availability Statement

No new data were created.

Conflicts of Interest

The author declares no conflict of interest.

Abbreviations

Activated carbon, AC; anthracite coal, AnC; atmospheric plasma spray, APS; bituminous coal, BiC; demineralized bituminous coal, DBiC; direct carbon fuel cell, DCFC; hybrid direct carbon fuel cell, HDCFC; gadolinia-doped ceria, GDC; graphite, GC; lignite, PCF; liquid antimony anode–direct carbon fuel cell, LAA-DCFC; liquid metal anode–direct carbon fuel cell, LMA-DCFC; lanthanum strontium gallium magnesium oxide, LSGM; lanthanum strontium manganite, LSM; liquid tin anode–direct carbon fuel cell, LTA-DCFC; maximum power density, MPD; molten carbonate fuel cell, MCFC; open-circuit voltage, OCV; pine charcoal, PCC; samarium-doped ceria, SDC; scandia-stabilized zirconia, ScSZ; solid oxide–direct carbon fuel cell, SO-DCFC; solid oxide fuel cell, SOFC; thermal expansion coefficient, TEC; yttria-stabilized zirconia, YSZ.
