Article

The Improved para-Selective C(sp2)-H Borylation of Anisole Derivatives Enabled by Bulky Lewis Acid

by
Dai-Yu Li
1,2,
Rui-Mu Yu
1,2,
Jin-Ping Li
1,2,
Deng-Feng Yang
2,
Qi Pang
1,* and
Hong-Liang Li
2,*
1
School of Chemistry and Chemical Engineering, Guangxi University, Daxue Road, Nanning 530005, China
2
Guangxi Key Laboratory of Marine Natural Products and Combinatorial Biosynthesis Chemistry, Guangxi Academic of Marine Sciences, Guangxi Academy of Sciences, Nanning 530003, China
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(8), 1193; https://doi.org/10.3390/catal13081193
Submission received: 3 July 2023 / Revised: 24 July 2023 / Accepted: 28 July 2023 / Published: 9 August 2023
(This article belongs to the Special Issue Advanced Metal-Catalyzed sp2 C-H Bond Functionalization Reaction)
Browse Figures
Review Reports Versions Notes

Abstract

:
An improved para-selective C(sp2)-H borylation of anisole derivatives is described. The selective borylation is probably dominated by the change in electron density on the aromatic ring when a Lewis acid is coordinated with an anisole substrate. In addition, a sterically hindered bipyridyl ligand used in the reaction also favors para-selectivity. With this strategy, it has been demonstrated that the ratio of para-borylated products could be dramatically improved. The reaction proceeds at a milder temperature, and most substrates display moderate to good site-selectivity.

1. Introduction

In the past few decades, transition-metal-catalyzed C-H functionalization has emerged as a powerful tool in synthetic organic chemistry [1,2,3,4,5,6,7,8,9,10]. The C-H bond, as the most basic chemical bond in organic chemistry, can be directly converted into various functional groups to construct different chemical bonds such as the carbon-carbon bond or the carbon-heteroatom bond with transition metal catalysts (e.g., Fe [3], Co [4], Ni [5], Ru [6], Rh [7], Pd [8], Ir [9], and Pt [10]). Compared with traditional synthetic methods, this strategy does require the introduction of potentially reactive functional groups such as alkenyl, carbonyl, aryl, and so on, greatly improving the efficiency of organic synthesis. However, most transition-metal-catalyzed C-H transformations adopt the directing group strategy: functional groups with coordinating ability (e.g., pyridine, amide, imine, ether, and carboxylate) chelate with transition-metal catalysts to form five/six-membered cyclometallic intermediate to achieve C-H bond cleavage, and the following functionalization with other reagents proceeds through oxidative addition and reductive elimination [11,12,13]. As a result, the activated C-H bond will be restricted to the site capable of forming cyclometallic intermediate [14,15,16]. For example, in the C-H functionalization of 2-phenylpyridine, only C-H bonds at the two ortho-positions of the pyridine directing group can be functionalized, while the C-H bonds at the meta- or para-positions far away from the pyridyl are difficult to activate [17,18,19]. Moreover, the difficulty of distal site-selectivity is more obvious in iridium (I)-catalyzed C(sp2)-H functionalization of aryl substrates, which is also a long-standing challenge in this area [20,21,22].
In recent years, some remote site-selective aromatic C-H functionalization has been accomplished with different methods mainly controlled by electronic effects, steric effects, and intermolecular non-covalent bond interactions. In 2003, Miyaura’s group reported a meta-selective C(sp2)-H borylation of 3-acylthiophene, in which the rich electronic effect of a five-membered aromatic heterocycle plays an important role in the remote regioselectivity [23,24]. As regards steric hindrance dominating distal regioselectivity, a para-selective aromatic C-H borylation of monosubstituted benzenes was disclosed by Itami’s group, which used a new iridium catalyst bearing a bulky diphosphine ligand. The para-selectivity increases with increasing bulkiness of the substituent on the arene, indicating that the regioselectivity of this reaction is primarily controlled by steric repulsion between substrate and catalyst [25,26,27,28,29]. In addition, Kanai’s group developed an innovative approach for distal selective aromatic C-H borylation [30,31]. Hydrogen-bonding interactions, an intermolecular non-covalent bond interaction between bipyridyl ligand and substrate, lead to high meta-selectivity. Based on this novel strategy, Phipps [32,33,34] and Chattopadhyay [35,36,37] created another two kinds of para-selective C(sp2)-H borylation of aromatic substrates by using intermolecular electrostatic interaction and Lewis acid-base interaction. Previously, we also developed an ortho-selective C(sp2)-H borylation of thioanisole derivatives controlled by Lewis acid-base interaction between bipyridyl ligand and substrates [38,39].

2. Results and Discussion

Anisole borylated derivatives, as an important structural unit, are widely utilized in many areas of chemistry, including pharmaceuticals, perfumes, and dyestuffs [40]. However, the iridium-catalyzed C-H borylation of anisole, usually gives a mixture of meta- and para-borylated products, and the ratio is about 3:1. It is difficult to obtain a single isomer of a borylated product, especially for the para-isomer. Herein, we report an improved para-selective C-H borylation of anisole assisted by the combination of a Lewis acid and a bulky bipyridyl ligand. We proposed that the mechanism is that the methoxy group, as a strong electron-donating group, will increase electron density at the ortho- and para-positions of the anisole substrate, which makes the electron-deficient meta-position easily functionalized. Once the Lewis acid is coordinated with the methoxy group, it results in a decrease in electron density at the para-position, which will lead to an increase in para-selectivity (Figure 1 (4)).
We initiated our investigation by treating anisole (3a) with bis(pinacolato)diboron (4) in the presence of an iridium catalyst [Ir(OMe)(cod)]2 and dtbpy (4,4′-ditert-butyl-2,2′-dipyridyl) at 40 °C, which gave a mixture of meta- and para-borylated products 1a and 2a in 80% yield, and the [para/meta] ratio was only 27:73 (Scheme 1, entry 1). Firstly, several Lewis acids were investigated (Scheme 1, entries 2–10). The borylation did not occur when trimethylaluminum was used. However, in the case of triisobutylaluminum, the [para/meta] ratio was improved to 50:50 (entry 3), but with a low yield. Then, we focused on screening some boron Lewis acid. The [para/meta] ratio was decreased to 38:62 when B(OMe)3 was used as Lewis acid. With increasing steric hindrance, the ratio was slightly increased to 58:42 (entry 5). We considered that the poor para-selectivity was probably due to the low Lewis acidity and steric hindrance [38]. Thus, we turned to tuning the electronic properties and steric hindrance of substituents on boron atoms. To our delight, B(Mes)3 gave a good result, improving the [para/meta] ratio to 78:22 with a 50% yield (entry 6). Unexpectedly, B(C6F5)3 with stronger Lewis acidity did not improve the ratio (entry 7). In addition, changing its steric effect has no effect on the para-selectivity of this reaction (entries 8–10). In order to further increase the [para/meta] ratio, we also screened a series of bipyridyl ligands [25,26,27,28,29,30]. In the case of bipyridyl ligands with substituents at different positions (entries 11–13), ligand 1 with substituents at the 2,2′-position gave a good [para/meta] ratio reaching 81:19 (entry 11), while ligand 2 and ligand 3 gave poor results. We postulated that the steric hindrance at the 2,2′-position would be the determinant for the para-selectivity. Finally, we found that Ligand 6 with n-butyl at the 2,2′-position could further improve the [para/meta] ratio to 84:16 with a 54% yield.
With the optimized reaction conditions in hand, we began to investigate the substrate scope of this para-selective borylation (Scheme 2). Substrates 3b–3d bearing alkyl substituents at ortho-position gave good [para/meta] ratios with moderate yields ranging from 43% to 50%. In the case of 3e, the [para/meta] ratio slightly decreased. On anisole substrates with halogen atoms at ortho-positions 3f–3g, the desired para-selective C-H borylation occurred with a good [para/meta] ratio without inhibition by the functional groups. In addition, the electronic properties of ortho-substituents have obviously an impact on para-selectivity, which can be seen from the moderate [para/meta] ratio of substrates 3i–3o, which indicated that ortho-substituents (such as trifluoromethyl, trifluoromethoxy, cyano, ester, amide, acetyl, and formyl groups) with electron-withdrawing effects would generate two electron-deficient centers (the meta- and para-position of the methoxy group), so that the worse para-selectivity was obtained. The para-selective borylation proceeded smoothly in the case of substrates 3p to 3s with heterocyclic substituents at the ortho-position. As regards 3t–3u, the reaction is expected to proceed at the para-position of the methoxy group with good yields. Moreover, benzofuran 3v and benzopyran 3w could also give acceptable [para/meta] ratios, while with thioanisole as substrate, the reaction still predominantly gave a meta-borylated product.
5-(4-methoxyphenyl)-1-(phenylsulfonyl)-1H-indole (the target compound; R=H) as a PED4 inhibitor was usually synthesized through Suzuki–Miyaura cross-coupling between para-borylated anisole (1′) and phenylsulfonyl protected 5-bromoindole (4′) (Scheme 3 (1)). The introduction of functional groups on the moiety of para-borylated anisole is a useful way to enrich the diversity of PED4 inhibitor compounds. However, substituted para-borylated anisole generally needs to be prepared from the corresponding 4-bromoanisole (7) and borylate (8), which not only increases the synthesis cost but also does not comply with the principle of atom economy [41]. On the contrary, the improved para-borylation of anisoles developed by us could easily synthesize a series of para-borylated anisoles with an ortho-substituent (1′). As a representative example, a derivative of PDE4 inhibitor (6) was synthesized from product 1s with an ortho-morpholinyl group through two steps [42,43]. First, a palladium-catalyzed cross-coupling reaction between 1s and 5-bromoindole (4) gave the coupling product (5) in a 65% yield without protecting the NH group. Then, the desired product (6) was obtained via acylation of 5 with phenylsulfonyl chloride in a yield of 88% (Scheme 3 (2)).
According to the initial hypothesis, the para-selective C-H borylation can be explained by a mechanism initiated by the formation of a bipyridyl-Ir-Bpin complex A with two cis-N ligands, three Bpin ligands, and a vacant coordination site (square). As anisole substrates and Lewis acid (B(Mes)3) were added to the reaction system, the vacant coordination site of complex A would facilitate the cleavage of the C-H bonds at the para-position due to the lower electron density caused by the coordination of Lewis acid with anisole substrate and forming complex B. After eliminating a HBpin, the complex C, primarily activating the para-Ar-H bonds, was formed. Then, the para-borylates product was given after reductive elimination, and ligand exchange of complex D occurred with B2pin2 to regenerate complex A (Figure 2).

3. Material and Methods

3.1. Materials

All reactions were carried out in a dry and degassed solvent in a glove box. Compounds B(Mes)3, B2Pin2, and [Ir(OMe)(cod)]2, the most commonly used Ir(I) catalyst in the C-H borylation reaction, were purchased from Aldrich (St. Louis, MO, USA) and Bide Pharmatech (Shanghai, China) and used without further purification unless otherwise noted. Anhydrous solvents were distilled and degassed by refluxing over CaH2 or a combination of sodium/benzophenone. Reactions were monitored by thin-layer chromatography (TLC) and visualized with UV light (254 nm). The para-borylated product was separated by preparative Gel Permeation Chromatography (GPC-JAI-LC9110NEXT) using chloroform (HPLC grade) as eluent. NMR spectra were recorded on 400 MHz (400 MHz for 1H NMR, 100 MHz for 13C NMR) and 800 MHz (800 MHz for 1H NMR, 201 MHz for 13C NMR) spectrometers. Proton and carbon chemical shifts are reported relative to the solvent used as an internal reference. The boron-bearing carbon atom was not observed due to quadrupolar relaxation. ESI-MS spectra were measured on a spectrometer for HRMS.

3.2. Methods

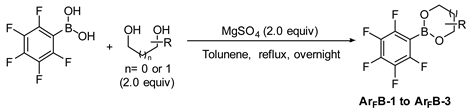

3.2.1. Preparation of Lewis Acid (Pentafluorophenyl Borate ArFB-1 to ArFB-3) [44]

Pentafluorophenyl boronic acid (1.00 g, 4.72 mmol), substituted diol (2.0 equiv.), and MgSO4 (1.14 g, 9.44 mmol) were dissolved in toluene (40 mL) in a 100 mL round-bottom flask equipped with a magnetic stir bar, and the mixture was refluxed for 12 h. After removal of the solvent, the crude product was purified by column chromatography on silica gel (petroleum/ethyl acetate = 10:1).
Catalysts 13 01193 i001
4-Methyl-2-(pentafluorophenyl)-1,3,2-dioxaborinane (ArFB-1)
Yield: 0.98 g, 78%; 1H NMR (800 MHz, CDCl3) 4.37–4.34 (m, 1H), 4.24–4.19 (m, 1H), 4.18–4.14 (m, 1H), 2.10–2.08 (m, 1H), 1.90–1.84 (m, 1H), 1.36 (d, J = 6.6 Hz, 3H); 13C NMR (201 MHz, CDCl3) δ 149.1 (d, J = 247 Hz), 142.7 (d, J = 249 Hz), 137.8 (d, J = 255 Hz), 68.9, 62.0, 34.0, 22.5; IR (KBr, ν/cm−1) 1507, 1404, 1320, 1283, 1068, 954, 763, 667; HRMS (ESI+) Calcd for C10H9BF5O2+ ([M + H]+) 267.0610, found 267.0598.
Catalysts 13 01193 i002
5,5-Dimethyl-2-(pentafluorophenyl)-1,3,2-dioxaborinane (ArFB-2)
Yield: 0.91 g, 70%; 1H NMR (800 MHz, CDCl3) δ 3.81 (s, 4H), 1.07 (s, 6H); 13C NMR (201 MHz, CDCl3) δ 149.1 (d, J = 243 Hz), 142.8 (d, J = 253 Hz), 137.8 (d, J = 251 Hz), 72.8, 31.9, 21.6; IR (KBr, ν/cm−1) 1651, 1508, 1429, 1321, 1259, 1045, 988, 969, 809, 691; HRMS (ESI+) Calcd for C11H11BF5O2+ ([M + H]+) 281.0767, found 281.0762.
Catalysts 13 01193 i003
4,4,6-Trimethyl-2-(pentafluorophenyl)-1,3,2-dioxaborinane (ArFB-3)
Yield: 0.80 g, 62%; 1H NMR (800 MHz, CDCl3) δ 4.43–4.39 (m, 1H), 1.93 (dd, J = 14.1, 3.0 Hz, 1H), 1.71–1.66 (m, 1H), 1.41 (s, 3H), 1.37 (s, 3H), 1.34 (d, J = 6.3 Hz, 3H); 13C NMR (201 MHz, CDCl3) δ 148.9 (d, J = 245 Hz), 142.5 (d, J = 255 Hz), 137.8 (d, J = 251 Hz), 73.0, 66.4, 45.9, 30.8, 28.0, 22.8; IR (KBr, ν/cm−1) 1520, 1482, 1408, 1315, 1238, 1160, 975, 926, 891, 767, 720; HRMS (ESI+) Calcd for C12H13BF5NO2+ ([M + H]+) 295.0923, found 295.0918.
Catalysts 13 01193 i004

3.2.2. Preparation of 2-alkyl Anisole Derivatives (3c to 3e) [45]

To a solution of 2-alkyl phenol (5.0 mmol) in anhydrous THF (20 mL), sodium hydride (1.2 equiv.) was slowly added at 0 °C. After stirring for 1.5 h at the same temperature, 1-iodoalkane (2.0 equiv.) was added dropwise. The mixture was slowly warmed to room temperature for 5 h. After that, the reaction was quenched by adding a saturated NH4Cl aqueous solution (20 mL). The organic layer was separated and dried with Na2SO4. The mixture was filtered, and the solvent was removed under vacuum. The crude product was purified by column chromatography on silica gel (petroleum/ethyl acetate = 15:1).
Catalysts 13 01193 i005
1-Ethyl-2-methoxylbenzene (3c)
Yield: 0.58 g, 85%; 1H NMR (800 MHz, CDCl3) δ 7.25–7.22 (m, 2H), 7.00–6.95 (m, 1H), 6.93–6.89 (m, 1H), 3.89 (s, 3H), 2.76–2.71 (m, 2H), 1.30–1.27 (m, 3H); 13C NMR (201 MHz, CDCl3) δ 157.3, 132.5, 128.9, 126.7, 120.4, 110.1, 55.1, 23.2, 14.1; IR (KBr, ν/cm−1) 1683, 1514, 1457, 1376, 1204, 838, 796, 724; HRMS (ESI+) Calcd for C9H13O+ ([M + H]+) 137.0961, found 137.0946.
Catalysts 13 01193 i006
1-Isopropyl-2-methoxylbenzene (3d)
Yield: 0.55 g, 73%; 1H NMR (800 MHz, CDCl3) δ 7.29–7.26 (m, 1H), 7.25–7.21 (m, 1H), 7.00–6.97 (m, 1H), 6.92–6.88 (m, 1H), 3.87 (s, 3H), 3.43–3.35 (m, 1H), 1.28 (d, J = 6.2, 6H); 13C NMR (201 MHz, CDCl3) 156.7, 136.9, 126.5, 125.9, 120.5, 110.3, 55.3, 26.6, 22.7; IR (KBr, ν/cm−1) 1704, 1651, 1379, 1190, 815, 788, 755; HRMS (ESI+) Calcd for C10H15O+ ([M + H]+) 151.1117, found 151.1121.
Catalysts 13 01193 i007
1-Methyl-2-ethoxylbenzene (3e)
Yield: 0.44 g, 64%; 1H NMR (800 MHz, CDCl3) δ 7.29–7.25 (m, 2H), 6.96–6.92 (m, 1H), 6.91 (d, J = 8.8 Hz, 1H), 4.17–4.08 (m, 2H), 2.36 (s, 3H), 1.55–1.51 (m, 3H); 13C NMR (201 MHz, CDCl3) δ 157.1, 130.5, 126.7, 126.7, 120.1, 110.9, 63.3, 16.2, 14.9; IR (KBr, ν/cm−1) 1778, 1490, 1389, 1138, 854, 760, 697, 598; HRMS (ESI+) Calcd for C9H13O+ ([M + H]+) 137.0961, found 137.0958.
Catalysts 13 01193 i008

3.2.3. Preparation of 2-Methoxy-N,N-Dimethylbenzamide (3m) [46]

2-Methoxybenzoic acid (5.00 g, 32.9 mmol) was added in a 100 mL round-bottom flask equipped with a reflux condenser. Thionyl chloride (11.9 mL, 165 mmol) and five drops of DMF were added, and the mixture was refluxed for 4 h. The reaction was allowed to cool to room temperature, and the excess of SOCl2 was carefully removed under vacuum. The crude acid chloride was dissolved in CH2Cl2 (80 mL), and Et3N (23.0 mL, 165 mmol) was added. The mixture was cooled to 0 °C in an ice-water bath, and dimethylamine hydrochloride (5.40 g, 65.8 mmol) was added. The reaction was stirred for 19 h at room temperature, concentrated, and purified by column chromatography on silica gel (dichloromethane/ethyl acetate = 3:1).
Catalysts 13 01193 i009
Yield: 3.24 g, 55%; H NMR (800 MHz, CDCl3) δ 7.33–7.30 (m, 1H), 7.21 (d, J = 7.4 Hz, 1H), 6.96 (t, J = 7.4 Hz, 1H), 6.89 (d, J = 8.4 Hz, 1H), 3.81 (s, 3H), 3.09 (s, 3H), 2.82 (s, 3H); 13C NMR (201 MHz, CDCl3) δ 169.3, 155.2, 130.2, 127.8, 126.2, 120.8, 110.8, 55.5, 38.1, 34.6; IR (KBr, ν/cm−1) 1622, 1471, 1395, 1246, 1075, 1021, 853, 755, 596; HRMS (ESI+) Calcd for C10H14NO2+ ([M + H]+) 180.1019, found 180.1017.

3.2.4. Preparation of 2-(2-Methoxylphenyl)-1,3-dioxolane (3p) [47]

In a 100 mL round-bottom flask equipped with a reflux condenser, o-Methoxy-benzaldehyde (3.00 g, 22.0 mmol) and ethane-1,2-diol (18.2 mL, 330 mmol) were dissolved in toluene (20 mL). TsOH (69.6 mg, 0.441 mmol) was added at room temperature and allowed the reaction mixture to stir at 115 °C for 5 h. After cooling to room temperature, the solvent was removed under vacuum, and the mixture was extracted with ethyl acetate (20 mL × 2). The organic layer was separated and dried over Na2SO4, filtered, and the solvent removed in vacuo. The crude product was purified by column chromatography on silica gel (petroleum/ethyl acetate = 5:1).
Catalysts 13 01193 i010
Yield: 1.94 g, 49%; 1H NMR (800 MHz, CDCl3) 7.55 (d, J = 7.5 Hz, 1H), 7.33 (t, J = 7.8 Hz, 1H), 6.98 (t, J = 7.5 Hz, 1H), 6.91 (d, J = 8.3 Hz, 1H), 6.18 (s, 1H), 4.16–4.12 (m, 2H), 4.06–4.02 (m, 2H), 3.87 (s, 3H); 13C NMR (201 MHz, CDCl3) δ 157.6, 130.2, 126.6, 125.7, 120.3, 110.6, 99.2, 65.2, 55.5; IR (KBr, ν/cm−1) 1685, 1598, 1484, 1466, 1394, 1285, 1244, 1161, 1021, 834, 756, 647; HRMS (ESI+) Calcd for C10H13O3+ ([M + H]+) 181.0859, found 181.0865.

3.2.5. Preparation of 2-heterocycle Substituted Anisole (3r and 3s) [48]

In a 100 mL round-bottom flask equipped with a reflux condenser, a mixture of o-anisidine (5.00 g, 40.6 mmol), 1,4-dibromobutane (10.5 g, 48.7 mmol), bis(2-bromoethyl)-ether (11.3 g, 48.7 mmol), potassium iodide (14.8 g, 89.3 mmol), and potassium carbonate (14.8g, 89.3 mmol) in acetonitrile (100 mL) was heated at 90 °C for 12 h. Then the reaction mixture was cooled to room temperature and filtered. The filtrate was extracted with dichloromethane (2 × 20.0 mL). The organic layer was separated and dried, and Na2SO4 was concentrated in vacuo. The crude product was purified by chromatography on silica gel (petroleum ether/ethyl acetate = 8:1) to afford an oily product.
Catalysts 13 01193 i011
1-(2-methoxyphenyl)pyrrolidine (3r)
Yield: 3.0 g, 42%; 1H NMR (800 MHz, CDCl3) 6.93 (t, J = 7.3 Hz, 1H), 6.90–6.86 (m, 2H), 6.83 (d, J = 7.8 Hz, 1H), 3.87 (s, 3H), 3.36–3.30 (m, 4H), 1.99–1.96 (m, 4H); 13C NMR (201 MHz, CDCl3) δ 150.4, 139.8, 121.0, 119.5, 115.3, 111.5, 55.4, 50.3, 24.6; IR (KBr, ν/cm−1) 1595, 1488, 1454, 1330, 1229, 1147, 1027, 956, 735; HRMS (ESI+) Calcd for C11H16NO+ ([M + H]+) 178.1226, found 178.1213.
Catalysts 13 01193 i012
4-(2-methoxyphenyl)morpholine (3s)
Yield: 2.80 g, 35%; 1H NMR (800 MHz, CDCl3) δ 7.04–7.01 (m, 1H), 6.94 (d, J = 4.6 Hz, 2H), 6.88 (d, J = 8.0 Hz, 1H), 3.90 (t, J = 4.4 Hz, 4H), 3.87 (s, 3H), 3.07 (t, J = 4.6 Hz, 4H); 13C NMR (201 MHz, CDCl3) δ 152.2, 141.0, 123.1, 121.0, 117.9, 111.2, 67.2, 55.3, 51.1; IR (KBr, ν/cm−1) 1607, 1506, 1443, 1225, 1168, 1047, 967, 874, 794, 746; HRMS (ESI+) Calcd for C11H16NO2+ ([M + H]+) 194.1176, found 194.1170.
Catalysts 13 01193 i013

3.2.6. Preparation of Para-Selective C-H Borylation of Anisole Derivatives (1a to 1x)

In a glove box, an oven-dried 10 mL sealed tube with a magnetic stir bar was charged with [Ir(OMe)(cod)]2 (3.0 mol%), L6 (6.0 mol%), B2Pin2 (0.5 equiv.), and cyclohexane (1.0 mL). The seal tube was moved to a preheated metal heating block (50 °C) for 30 min, after which the color of the mixture turned deep green. Upon cooling to room temperature, anisole substrate 3 (0.5 mmol), B(Mes)3 (1.0 equiv), and cyclohexane (1.0 mL) were added sequentially. The reaction vessel was removed from the glovebox and stirred at 40 °C. After 24 h, the reaction mixture was cooled to room temperature, volatiles were removed under reduced pressure, and the yield and the regio-isomer ratio were checked by 1H NMR using 1,1,2,2-tetrachloroethane as an internal standard. The para-borylated product was separated by GPC.
Catalysts 13 01193 i014
2-(4-methoxyphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1a)
The mixture of product (63 mg, 54% yield, para/meta = 84:16); para-borylated product 1a was obtained by further purification of the crude mixture by GPC (53 mg); 1H NMR (800 MHz, CDCl3) δ 7.77 (d, J = 8.8 Hz, 2H), 6.90 (d, J = 8.5 Hz, 2H), 3.83 (s, 3H), 1.34 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 162.1, 136.5, 113.3, 83.5, 55.0, 24.8; IR (KBr, ν/cm−1) 1419, 1354, 1313, 1143, 1072, 963, 875, 705; HRMS (ESI+) Calcd for C13H20BO3+ ([M + H]+) 235.1500, found 235.1490.
Catalysts 13 01193 i015
2-(4-methoxy-3-methylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1b)
The mixture of product (62 mg, 50% yield, para/meta = 80:20); para-borylated product 1b was obtained by further purification of the crude mixture by GPC (49 mg); 1H NMR (800 MHz, CDCl3) δ 7.67 (d, J = 9.9 Hz, 1H), 7.62 (s, 1H), 6.84 (d, J = 8.2 Hz, 1H), 3.86 (s, 3H), 2.24 (s, 3H), 1.35 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 160.4, 137.1, 134.2, 125.8, 109.4, 83.4, 55.1, 24.8, 15.9; IR (KBr, ν/cm−1) 1605, 1406, 1353, 1248, 1134, 1031, 964, 854, 669; HRMS (ESI+) Calcd for C14H22BO3+ ([M + H]+) 249.1657, found 249.1653.
Catalysts 13 01193 i016
2-(4-methoxy-3-ethylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1c)
The mixture of product (57 mg, 43% yield, para/meta = 81:19); para-borylated product 1c was obtained by further purification of the crude mixture by GPC (46 mg); 1H NMR (800 MHz, CDCl3) δ 7.66 (d, J = 6.4 Hz, 1H), 7.60 (s, 1H), 6.84 (d, J = 8.2 Hz, 1H), 3.85 (s, 3H), 2.64 (q, J = 7.6 Hz, 2H), 1.34 (s, 12H), 1.19 (t, J = 7.5 Hz, 3H); 13C NMR (201 MHz, CDCl3) δ 160.05, 135.61, 134.28, 131.89, 109.47, 83.45, 55.14, 24.83, 23.30, 14.28; IR (KBr, ν/cm−1) 1591, 1352, 963, 863, 791, 702, 667; HRMS (ESI+) Calcd for C15H24BO3+ ([M + H]+) 263.1813, found 263.1804.
Catalysts 13 01193 i017
2-(4-methoxy-3-isopropylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1d)
The mixture of product (66 mg, 48% yield, para/meta = 80:20); para-borylated product 1d was obtained by further purification of the crude mixture by GPC (53 mg); 1H NMR (800 MHz, CDCl3) δ 7.66–7.64 (m, 2H), 6.84 (d, J = 8.0 Hz, 1H), 3.85 (s, 3H), 3.30 (p, J = 6.9 Hz, 1H), 1.34 (s, 12H), 1.23 (d, J = 6.9 Hz, 6H); 13C NMR (201 MHz, CDCl3) δ 159.5, 136.1, 134.1, 132.6, 109.6, 83.4, 55.2, 26.9, 24.8, 22.6; IR (KBr, ν/cm−1) 1676, 1501, 1438, 1256, 1071, 947, 805, 720, 658; HRMS (ESI+) Calcd for C16H26BO3+ ([M + H]+) 277.1970, found 277.1980.
Catalysts 13 01193 i018
2-(4-ethoxy-3-methylphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1e)
The mixture of product (68 mg, 52% yield, para/meta = 75:25); para-borylated product 1e was obtained by further purification of the crude mixture by GPC (51 mg); 1H NMR (800 MHz, CDCl3) δ 7.64 (d, J = 9.9 Hz, 1H), 7.61 (s, 1H), 6.81 (d, J = 5.7 Hz, 1H), 4.06 (q, J = 7.0 Hz, 2H), 2.23 (s, 3H), 1.43 (t, J = 7.0 Hz, 3H), 1.34 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 159.8, 137.1, 134.1, 126.0, 110.1, 83.4, 77.2, 76.8, 63.2, 24.8, 16.0, 14.8; IR (KBr, ν/cm−1) 1605, 1353, 1285, 1247, 1133, 1046, 982, 854, 669; HRMS (ESI+) Calcd for C15H24BO3+ ([M + H]+) 263.1813, found 263.1809.
Catalysts 13 01193 i019
2-(3-fluoro-4-methoxyphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1f)
The mixture of product (55 mg, 44% yield, para/meta = 82:18); para-borylated product 1f was obtained by further purification of the crude mixture by GPC (45 mg); 1H NMR (800 MHz, CDCl3) δ 7.53 (d, J = 9.1 Hz, 1H), 7.49 (d, J = 11.8 Hz, 1H), 6.94 (t, J = 8.1 Hz, 1H), 3.90 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 152.6, 151.4, 150.2, 150.2, 131.5, 131.4, 121.7, 121.6, 112.5, 83.8, 56.0, 24.8; IR (KBr, ν/cm−1) 1615, 1422, 1354, 1292, 1265, 1130, 967, 853, 758, 692; HRMS (ESI+) Calcd for C13H19BFO3+ ([M + H]+) 253.1406, found 253.1395.
Catalysts 13 01193 i020
2-(3-chloro-4-methoxyphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1g)
The mixture of product (79 mg, 59% yield, para/meta = 80:20); para-borylated product (1g) was obtained by further purification of the crude mixture by GPC (63 mg); 1H NMR (800 MHz, CDCl3) δ 7.80 (s, 1H), 7.67 (d, J = 8.2 Hz, 1H), 6.91 (d, J = 8.1 Hz, 1H), 3.92 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 157.3, 136.5, 134.7, 122.1, 111.3, 83.9, 56.0, 24.8; IR (KBr, ν/cm−1) 1599, 1406, 1351, 1261, 1138, 1063, 963, 872, 818, 701, 669; HRMS (ESI+) Calcd for C13H19BClO+ ([M + H]+) 253.1406, found 253.1400.
Catalysts 13 01193 i021
2-(3,4-dimethoxyphenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1h)
The mixture of products (89 mg, 68% yield, para/meta = 100/0); 1H NMR (800 MHz, CDCl3) δ 7.42 (d, J = 8.0 Hz, 1H), 7.28 (d, J = 1.5 Hz, 1H), 6.88 (d, J = 7.9 Hz, 1H), 3.92 (s, 3H), 3.90 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 151.58, 148.29, 128.51, 116.50, 110.43, 83.60, 55.80, 55.69, 24.81; IR (KBr, ν/cm−1) 1408, 1352, 1296, 1220, 1027, 968, 855, 755, 682; HRMS (ESI+) Calcd for C14H22BO4+ ([M + H]+) 265.1606, found 265.1613.
Catalysts 13 01193 i022
2-(4-methoxy-3-(trifluoromethyl)phenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1i)
The mixture of product (83 mg, 55% yield, para/meta = 80:20) and para-borylated product (1i) was obtained by further purification of the crude mixture by GPC (67 mg); 1H NMR (800 MHz, CDCl3) δ 7.70 (d, J = 8.2 Hz, 1H), 7.64 (s, 1H), 6.97 (d, J = 8.2 Hz, 1H), 3.90 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 154.5, 134.9, 128.9, 121.9 (q, J = 257 Hz), 112.1, 83.9, 55.9, 24.8; IR (KBr, ν/cm−1) 1615, 1361, 1307, 1258, 1169, 1053, 824, 685; HRMS (ESI+) Calcd for C14H19BF3O3+ ([M + H]+) 303.1374, found 303.1369.
Catalysts 13 01193 i023
2-(4-methoxy-3-(trifluoromethoxy)phenyl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (1j)
The mixture of product (79 mg, 50% yield, para/meta = 79:21); para-borylated product 1j was obtained by further purification of the crude mixture by GPC (62 mg); 1H NMR (800 MHz, CDCl3) δ 7.70 (d, J = 8.2 Hz, 1H), 7.64 (s, 1H), 6.97 (d, J = 8.3 Hz, 1H), 3.90 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 154.5, 137.7, 134.9, 121.3 (q, J = 257 Hz), 112.07, 83.9, 55.9, 24.8; IR (KBr, ν/cm−1) 1609, 1418, 1328, 1245, 1132, 1028, 969, 851, 818, 699; HRMS (ESI+) Calcd for C14H19BF3O4+ ([M + H]+) 319.1323, found 319.1320.
Catalysts 13 01193 i024
2-methoxy-5-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)benzonitrile (1k)
The mixture of product (84 mg, 65% yield, para/meta = 77:23); para-borylated product 1k was obtained by further purification of the crude mixture by GPC (65 mg); 1H NMR (800 MHz, CDCl3) δ 8.01 (s, 1H), 7.95 (d, J = 8.5 Hz, 1H), 6.95 (d, J = 8.5 Hz, 1H), 3.95 (s, 3H), 1.33 (s, 12H); 13C NMR (201 MHz, CDCl3) δ 163.2, 140.9, 140.6, 116.4, 110.5, 101.6, 84.2, 56.0, 24.8; IR (KBr, ν/cm−1) 1602, 1507, 1402, 1381, 1261, 1127, 956, 850, 739, 675; HRMS (ESI+) Calcd for C14H19BNO3+ ([M + H]+) 260.1453, found 260.1448.
The NMR data of para-borylated products 1l to 1x are shown in the Supplementary Materials.

3.2.7. Preparation of PED4 Inhibitor [41]

In a 50 mL two-necked flask equipped with a reflux condenser, 1s (500 mg, 1.56 mmol), 5-bromoindole (4, 456 mg, 2.34 mmol), Pd(PPh3)4 (90.1 mg, 0.078 mmol, 5.0 mol%), K2CO3 (431 mg, 3.12 mmol, 2.0 equiv.), MeOH (30 mL), and H2O (3.0 mL) were added. Then, the mixture was heated at 100 °C for 3 h. The reaction mixture was cooled to room temperature and extracted with EtOAc (2 × 20.0 mL). The organic layer was separated and dried over Na2SO4. After filtration, the solvent was removed under vacuum, and the residue was directly used in the next step without purification. Compound 5 (200 mg, 0.649 mmol) was dissolved in 20 mL of anhydrous THF and cooled to 0 °C. NaH (29.5 mg, 0.779 mmol) was slowly added to the solution, and the reaction mixture was stirred at the same temperature for 1 h. Then, PhSO2Cl (172 mg, 0.974 mmol, 1.5 equiv.) was dropped in the mixture and stirred at room temperature for 8 h. The solvent was removed in vacuo, and the residue was purified by column chromatography on silica gel (PE/EtOAc = 5:1). Yield: 256 mg, 88%, 1H NMR (800 MHz, CDCl3) δ 8.03 (d, J = 8.6 Hz, 1H), 7.90 (d, J = 8.0 Hz, 2H), 7.67 (s, 1H), 7.58 (s, 1H), 7.56–7.49 (m, 2H), 7.45 (t, J = 7.8 Hz, 2H), 7.21–7.23 (m, 1H), 7.13 (s, 1H), 6.93 (d, J = 8.4 Hz, 1H), 6.70 (s, 1H), 3.96–3.89 (m, 7H), 3.20–3.10 (m, 4H); 13C NMR (100 MHz, CDCl3) δ 151.6, 141.3, 138.2, 136.8, 134.2, 133.9, 133.8, 131.3, 129.3, 126.8, 126.7, 124.1, 121.8, 119.4, 117.2, 113.6, 111.5, 109.4, 67.2, 55.5, 51.2; IR (KBr, ν/cm−1) 2926, 2765, 1880, 1653, 1580, 1421, 1345, 1021, 967, 855, 791; HRMS (ESI+) Calcd for C25H25N2O4S+ ([M + H])+ 449.1503, found 449.1512.

4. Conclusions

In summary, we developed an improved para-selective C-H borylation of anisole derivatives. The regioselectivity was probably controlled by the change in electron density on the aromatic ring when a Lewis acid was coordinated with anisole. Most substrates could give an acceptable [para/meta] ratio. In addition, a bioactive molecule was synthesized from the para-borylated product. Investigations into the diversified regioselectivity of aromatic compounds are ongoing in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13081193/s1, screening tables, 1H and 13C NMR spectra (1l to 1x), more detailed materials, and methods. Table S1: Reaction optimization for the amount of B(Mes)3. Table S2: Reaction optimization for different solvents.

Author Contributions

Conceptualization, H.-L.L.; methodology, D.-Y.L.; investigation, D.-Y.L., R.-M.Y., J.-P.L., and D.-F.Y.; writing original draft preparation, D.-Y.L.; writing review and editing, H.-L.L., and Q.P.; funding acquisition, H.-L.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Guangxi Natural Science Foundation (2021GXNSFBA075060 for H. L. Li); the Guangxi Science and Technology Base and Talent Project (AD21220066 for H. L. Li); the Funded Project of the Guangxi Academy of Sciences (2021YBJ701 for H. L. Li); the Talent Highland Project of the Guangxi Academy of Sciences; and the Basic Science and Research Foundation of the Guangxi Academy of Sciences (CQ-C-202302 for H. L. Li and D. F. Yang).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank the NMR Center of the Guangxi Academy of Sciences for supporting the NMR experiments in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jeong, S.; Joo, J.-M. Transoition-Metal-Catalyzed Divergent C-H Functionalization of Five-Membered Heteroarenes. Acc. Chem. Res. 2021, 54, 4158. [Google Scholar] [CrossRef] [PubMed]
  2. Niu, B.; Yang, K.; Lawrence, B.; Ge, H. Transient Ligand-Enabled Transition Metal-Catayzed C-H Functionalization. ChemSusChem 2019, 13, 2955. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Britton, L.; Docherty, J.H.; Nichol, G.S.; Dominey, A.P.; Thomas, S.P. Iron-Catalysed C(sp2)-H Borylation with Expanded Functional Group Tolerance. Chin. J. Chem. 2022, 40, 2875–2881. [Google Scholar] [CrossRef]
  4. Sauermann, N.; Meyer, T.H.; Ackermann, L. Electrochemical Cobalt-Catalyzed C-H Activation. Chem. Eur. J. 2018, 24, 16209. [Google Scholar] [CrossRef]
  5. Nakanowatari, S.; Müller, T.; Oliveira, J.; Ackermann, L. Bifurcated Nickel-Catalyzed Functionalizations: Heteroarene C-H Activation with Allenes. Angew. Chem. Int. Ed. 2017, 56, 15891. [Google Scholar] [CrossRef]
  6. Haito, A.; Yamaguchi, M.; Chatani, M. Ru3(CO)12-Catalyzed Carbonylation of C-H Bonds by Triazole-Directed C-H Activation. Asian J. Org. Chem. 2018, 7, 1315. [Google Scholar] [CrossRef]
  7. Vásquez-Céspedes, S.; Wang, X.M.; Glorius, F. Plausible Rh(V) Intermediates in Catalytic C-H Activation Reaction. ACS Catal. 2018, 8, 242. [Google Scholar] [CrossRef]
  8. Yang, X.; Jiang, M.X.; Zhou, T.; Han, Y.Q.; Xu, Y.T.; Zhang, K.; Shi, B.F. Pd(II)-Catalyzed Enantioselective Arylation of Unbiased Methylene C(sp3)-H Bonds Enabled by a 3,3’-F2-BINOL Ligand. Chem. Commun. 2021, 57, 5562–5565. [Google Scholar]
  9. Zhang, Y.F.; Wu, B.; Shi, Z.J. Ir-Catalyzed C-H Amidation of Aldehydes with Stoichiometric/Catalytic Directing Group. Chem. Eur. J. 2016, 22, 17808. [Google Scholar] [CrossRef]
  10. Marcinkowski, M.D.; Darby, M.T.; Liu, J.L.; Wimble, J.M.; Lucci, F.R.; Lee, S.; Michaelides, A.; Flytzani-Stephanopoulos, M.; Stamatakis, M.; Sykes, E. Pt/Cu Single-Atom Alloys as Coke-Resistant Catalysts for Efficent C-H Activation. Nat. Chem. 2016, 8, 531. [Google Scholar]
  11. Kalyani, D.; Deprez, N.R.; Desai, L.V.; Sanford, M.S. Oxidative C−H Activation/C−C Bond Forming Reactions:  Synthetic Scope and Mechanistic Insights. J. Am. Chem. Soc. 2005, 127, 7330. [Google Scholar] [CrossRef]
  12. Kawamorita, S.; Murakami, R.; Iwai, T.; Sawamura, M. Synthesis of Primary and Secondary Alkylboronates through Site-Selectivity C(sp3)-H Activation with Silica-Supported Monophosphine-Ir Catalysts. J. Am. Chem. Soc. 2013, 135, 2947. [Google Scholar] [CrossRef] [PubMed]
  13. Zou, X.; Zhao, H.; Li, Y.; Gao, Q.; Ke, Z.; Xu, S. Chiral Bidentate Boryl Ligand Enabled Iridium-Catalyzed Asymmetric C(sp2)-H Borylation of Diarylmethylamines. J. Am. Chem. Soc. 2019, 141, 5334. [Google Scholar] [CrossRef]
  14. Daugulis, O.; Roane, J.; Tran, L.D. Bidentate, Monoanionic Auxiliary-Directed Functionalization of Carbon-Hydrogen Bonds. Acc. Chem. Res. 2015, 48, 1053. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Mishra, N.M.; Sharma, S.; Park, J.; Han, S.; Kim, I.S. Recent Advances in Catalytic C(sp2)-H Allylation Reactions. ACS Catal. 2017, 7, 2821. [Google Scholar] [CrossRef]
  16. Liao, G.; Zhou, T.; Yao, Q.-J.; Shi, B.-F. Recent Advacnes in the Synthesis of Axially Chiral Biaryl via Transition Metal-Catalyzed Asymmetric C-H Functionalization. Chem. Commun. 2019, 55, 8514. [Google Scholar] [CrossRef] [PubMed]
  17. Yoshino, T.; Ikemoto, H.; Matsunaga, S.; Kanai, M. A Cationic High-Valent Cp*CoIII Complex for the Catalytic Generation of Nucleophilic Organometallic Species: Directed C-H Bond Activation. Angew. Chem. Int. Ed. 2013, 52, 2207. [Google Scholar] [CrossRef]
  18. Chen, X.; Goodhue, C.E.; Yu, J.-Q. Palladium-Catalyzed Alkylation of sp2 and sp3 C-H Bonds with Methylboroxine and Alkylboronic Acids: Two Distinct C-H Activation Pathways. J. Am. Chem. Soc. 2006, 128, 12634. [Google Scholar] [CrossRef]
  19. Shabashov, D.; Daugulis, O. Auxiliary-Assisted Palladium-Catalyzed Arylation and Alkylation of sp2 and sp3 Carbon-Hydrogen Bonds. J. Am. Chem. Soc. 2010, 132, 3965. [Google Scholar] [CrossRef] [Green Version]
  20. Cho, J.Y.; Tse, M.K.; Holmes, D.; Maleczka, R.E., Jr.; Smith, M.R., III. Remarkably Selective Iridium Catalysts for the Elaboration of Aromatic C-H Bonds. Science 2002, 295, 305. [Google Scholar] [CrossRef] [Green Version]
  21. Ishiyama, T.; Miyaura, N.; Hartiwg, J.F. Mild Iridium-Catalyzed Borylation of Arenes. High Turnover Numbers, Room Temperature Reactions, and Isolation of a Potential Intermediate. J. Am. Chem. Soc. 2002, 124, 390. [Google Scholar] [CrossRef]
  22. Tajuddin, H.; Harrisson, P.; Bitterlich, B.; Collings, J.C.; Sim, N.; Batsanov, A.S.; Cheung, M.S.; Kawamorita, S.; Maxwell, A.C.; Shukla, L.; et al. Iridium-Catalyzed C-H Borylation of Quinolines and Unsymmetrical 1,2-Disubstituted Benzenes: Insights into Steric and Electronic Effects on Selectivity. Chem. Sci. 2012, 3, 3505. [Google Scholar]
  23. Ishiyama, T.; Takagi, J.; Yonekawa, Y.; Hartwig, J.F.; Miyaura, N. Iridium-Catalyzed Direct Borylation of Five-Membered Heteroarenes by Bis(pinacolato)diboron: Regioselective, Stoichiometric, and Room Temperature Reactions. Adv. Synth. Catal. 2003, 345, 1103. [Google Scholar] [CrossRef]
  24. Ishiyama, T.; Nobuta, Y.; Hartwig, J.F.; Miyaura, N. Room Temperature Borylation of Arenes and Heteroarenes using Stoichiometric Amounts of Pinacolborane Catalyzed by Iridium Complexes in An Inert Solvent. Chem. Commun. 2003, 2924. [Google Scholar] [CrossRef]
  25. Saito, Y.; Segawa, Y.; Itami, K. Para-C-H Borylation of Benzene Derivatives by a Bulky Iridium. Catalyst. J. Am. Chem. Soc. 2015, 137, 5193. [Google Scholar] [CrossRef]
  26. Saito, Y.; Yamanoue, K.; Segawa, Y.; Itami., K. Selective Transformmation of Strychnine and 1,2-Disubstituted Benzenes by C-H Borylation. Chem 2020, 6, 985. [Google Scholar] [CrossRef]
  27. Yang, L.; Semba, K.; Nakao, Y. Para-Selective C-H Borylation of (Hetero) Arenes by Cooperative Iridium/Aluminum Catalysis. Angew. Chem. Int. Ed. 2017, 56, 4853. [Google Scholar] [CrossRef] [PubMed]
  28. Cheng, C.; Hartwig, J.F. Rhodium-Catalyzed Intermolecular C-H Sililation of Arenes with High Steric Control. Science 2014, 343, 853. [Google Scholar] [CrossRef]
  29. Bastidas, J.R.; Chhabra, A.; Feng, Y.; Oleskey, T.J.; Smith, M.R.; Maleczka, R.E. Steric Shielding Effects Induced by Intramolecular C-H-O Hydrogen Bonding: Remote Borylation Directed by Bpin Group. ACS Catal. 2022, 12, 2694. [Google Scholar] [CrossRef]
  30. Kuninobu, Y.; Ida, H.; Nishi, M.; Kanai, M. A Meta-Selective C–H Borylation Directed by A Secondary Interaction between Ligand and Substrate. Nat. Chem. 2015, 7, 712. [Google Scholar]
  31. Lu, X.; Yoshigoe, Y.; Ida, H.; Nishi, M.; Kanai, M.; Kuninobu, Y. Hydrogen Bond-Accelerated meta-selective C-H Borylation of Aromatic Compounds and Expression of Functional Group and Substrate Specificites. ACS Catal. 2019, 9, 1705. [Google Scholar] [CrossRef]
  32. Davis, H.J.; Mihai, M.T.; Phipps, R.J. Ion Pair-Directed Regiocontrol in Transition-Metal Catalysis: A Meta-Selective C-H Borylation of Aromatic Quaternary Ammonium Salts. J. Am. Chem. Soc. 2016, 138, 12759. [Google Scholar] [CrossRef] [PubMed]
  33. Golding, W.A.; Pearce-Higgins, R.; Phipps, R.J. Site-Selective Cross-Coupling of Remote Chorides Enabled by Electrostatically-Directed Palladium Catalysis. J. Am. Chem. Soc. 2018, 140, 13570. [Google Scholar] [CrossRef] [Green Version]
  34. Mihai, M.T.; Genov, G.R.; Phipps, R.J. Access to the Meta Position of Arenes Through Transition Metal Catalyzed C-H Bond Functionalization: A focus on metals other than palladium. Chem. Soc. Rev. 2018, 47, 149. [Google Scholar] [CrossRef] [Green Version]
  35. Chattopadhyay, B.; Dannatt, J.E.; Andujar-De Sanctis, I.L.; Gore, K.A.; Maleczka, E.E.; Singleton, D.A.; Smith, M.R., III. Ir-Catalyzed ortho-Borylation of Phenols Directed by Substrate-Ligand Electrosatic Interactions: A Combined Experimental/in Silico Strategy for Optimizing Weak Interactions. J. Am. Chem. Soc. 2017, 139, 7864. [Google Scholar] [CrossRef] [Green Version]
  36. Hoque, M.E.; Bisht, R.; Haldar, C. Chattopadhyay, B. Noncovalent Interactions in Ir-Catalyzed C–H Activation: L-Shaped Ligand for Para-Selective Borylation of Aromatic Esters. J. Am. Chem. Soc. 2017, 139, 7745. [Google Scholar] [CrossRef] [PubMed]
  37. Bisht, R.; Haldar, C.; Hassan, M.; Hoque, M.E.; Chaturvadi, J.; Chattopadhyay, B. Metal-Catalyzed C-H Bond Activation and Borylation. Chem. Soc. Rev. 2022, 51, 5042. [Google Scholar] [CrossRef]
  38. Li, H.L.; Kuninobu, Y.; Kanai, M. Lewis Acid-Base Interaction-Controlled ortho-Selective C-H Borylation of Aryl Sulfides. Angew. Chem. Int. Ed. 2017, 56, 1495. [Google Scholar] [CrossRef]
  39. Li, H.L.; Kanai, M.; Kuninobu, Y. Iridium/Bipyridine-Catalyzed ortho-Selective C-H Boylation of Phenol and Aniline Derivatives. Org. Lett. 2017, 19, 5944. [Google Scholar] [CrossRef]
  40. Wojcieszyk, M.; Knuutila, L.; Kroyan, Y.; Balsemao, M.; Tripathi, R.; Keskivali, J.; Karvo, A.; Santasalo-Aarnio, A.; Blomstedt, O.; Larmi, L. Performance of Anisole and Isobutanol as Gasoline Bio-Blendstocks for Spark Ignition Engines. Sustainability 2021, 13, 8729. [Google Scholar] [CrossRef]
  41. Prieto, M.; Zurita, E.; Rosa, E.; Munoz, L.; Lloyd-Williams, P.; Giralt, E. Arylboronic Acids and Arylpinacolboronate Esters in Suzuki Coupling Reactions Involving Indoles. Partner Role Swapping and Heterocycle Protection. J. Org. Chem. 2004, 69, 6812. [Google Scholar] [CrossRef] [PubMed]
  42. Ibrahim, P.L.; Bremer, R.E.; Gillette, S.J.; Cho, H.; Nespi, M.; Mamo, S.; Zhang, C.; Artis, D.R.; Lee, B.; Zuckerman, R.L. Bicyclic Heteroaryl PDE4B Inhibitors. WO2006026754, 22 February 2005. [Google Scholar]
  43. Ajvazi, N.; Stavber, S. Alcohols in direct carbon-carbon and carbon-heteroatom bond-forming reactions: Recent advances. Arkivoc 2018, 2018, 288. [Google Scholar] [CrossRef] [Green Version]
  44. Adamczyk, A.; Jakubczyk, M.; Jankowski, P.; Sporzynski, A.; Urbánski, P.M. Influence of the Diol Structure on the Lewis Acidity of Phenylboronates. J. Phys. Org. Chem. 2013, 26, 415. [Google Scholar] [CrossRef]
  45. Kinoshita, H.; Yaguchi, K.; Tohjima, T.; Miura, K. Diisobutylaluminum Hydrode Pomoted Cyclization of Silylated 1,3-dien-5-ynes: Application to Total Synthesis of A 20-Norabietane Derivative. Tetrahedron Lett. 2017, 58, 1607. [Google Scholar] [CrossRef]
  46. Chen, J.; Lim, J.W.; Ong, D.Y.; Chiba, S. Iterative Addition of Carbon Nucleophiles to N,N-dialkyl Carboxamides for Synthesis of α-Tertiary Amines. Chem. Sci. 2022, 13, 99. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, J.; Bao, S.H.; Yang, J.G. Synthesis of A Novel Multi-SO3H Functionalized Strong Bronsted Acidic Ionic Liquid and its Catalytic Activities for Acetalization. Chin. Sci. Bull. 2009, 54, 3958. [Google Scholar] [CrossRef]
  48. Rao, G.A.; Periasamy, M. Cycloaddition of Enamine and Iminium Ion Intermediates Formed in the Reaction of N-Arylpyrrolidines with T-HYDRO. Synth. Lett. 2015, 26, 2231. [Google Scholar] [CrossRef]
Catalysts 13 01193 g001

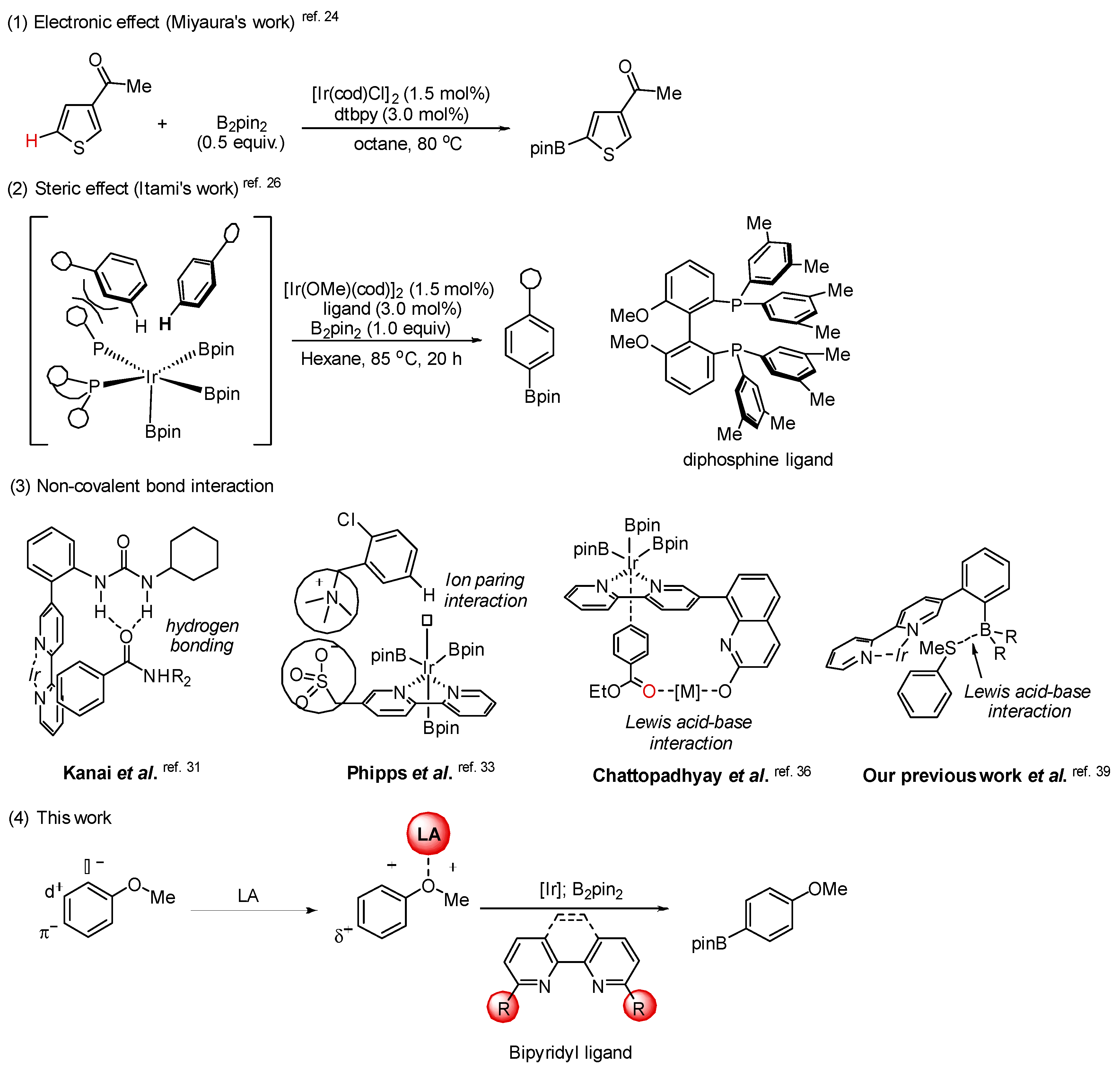

Figure 1. Some pioneering remote selective C(sp2)-H borylation reactions [30,32,35,38].
Figure 1. Some pioneering remote selective C(sp2)-H borylation reactions [30,32,35,38].
Catalysts 13 01193 g001
Catalysts 13 01193 sch001

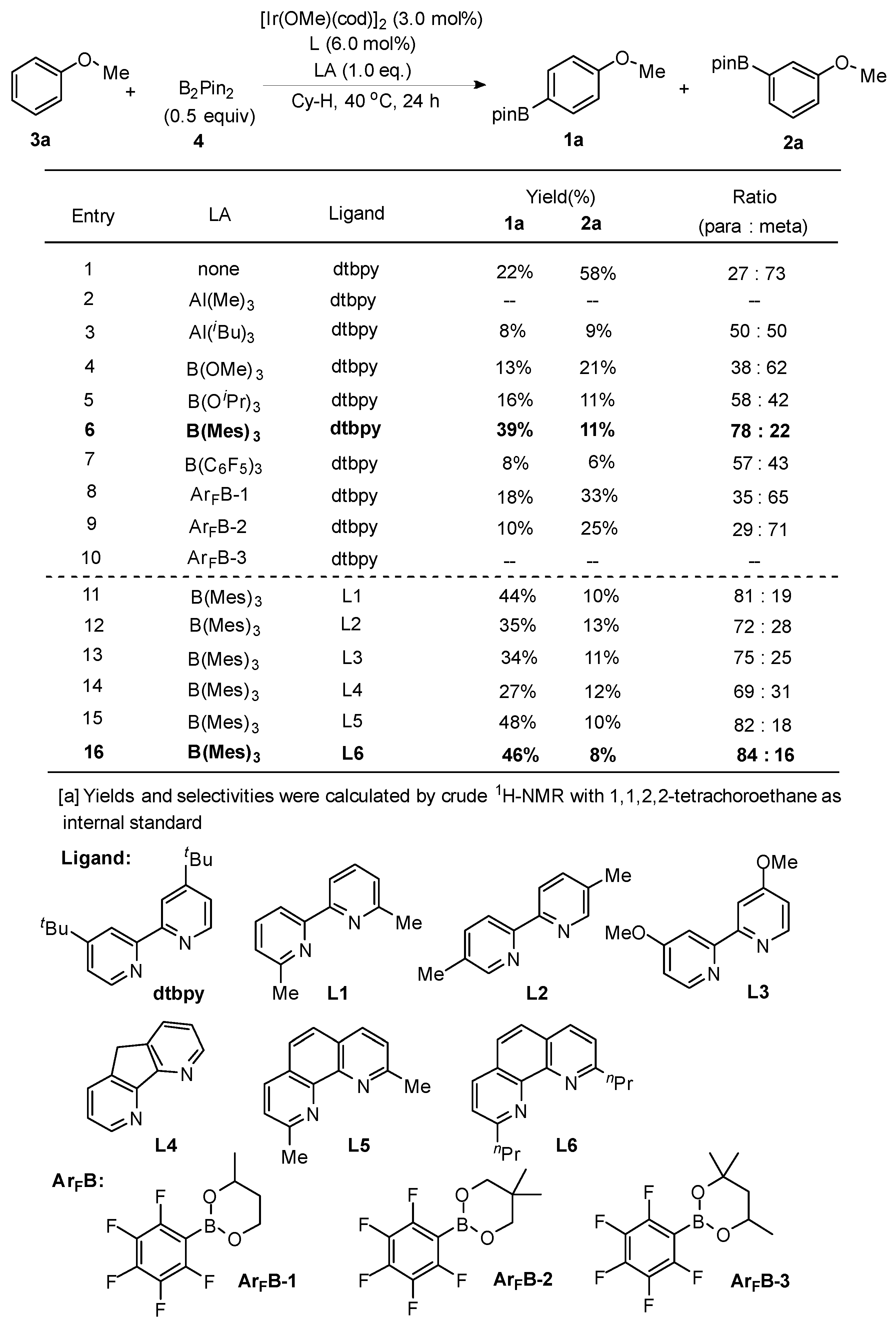

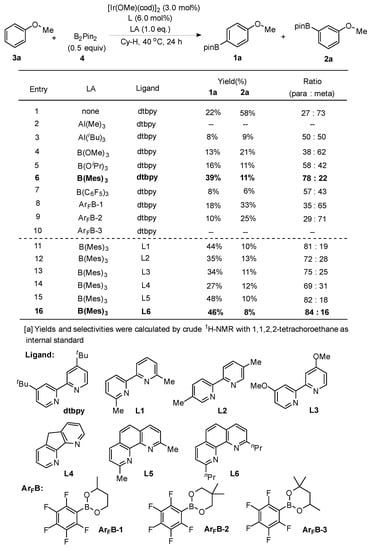

Scheme 1. Investigation of Lewis acid and bipyridyl ligands.
Scheme 1. Investigation of Lewis acid and bipyridyl ligands.
Catalysts 13 01193 sch001
Catalysts 13 01193 sch002

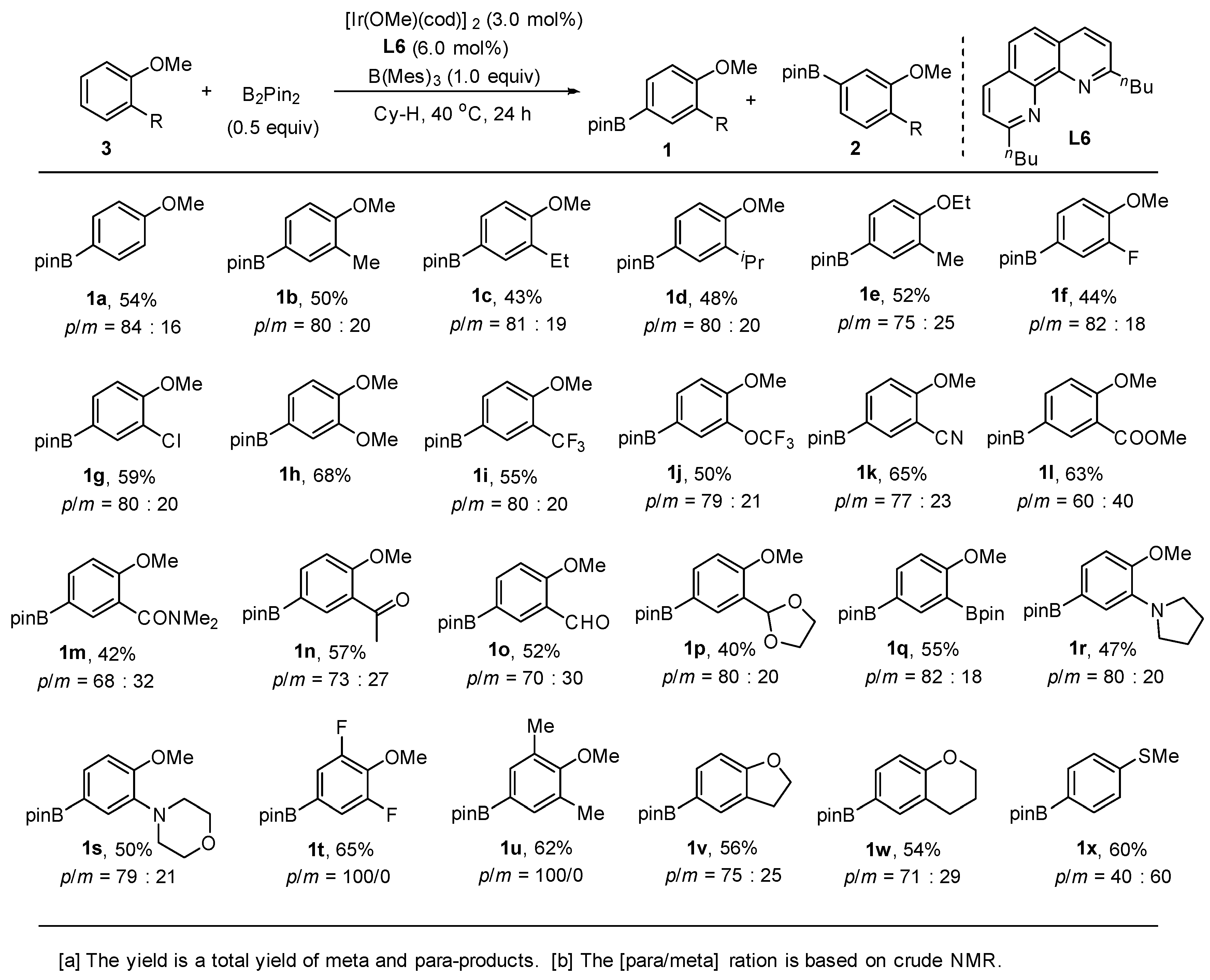

Scheme 2. Substrates scope of anisole derivatives.
Scheme 2. Substrates scope of anisole derivatives.
Catalysts 13 01193 sch002
Catalysts 13 01193 sch003

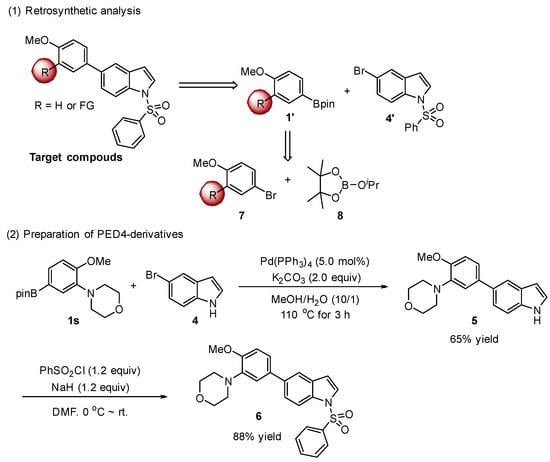

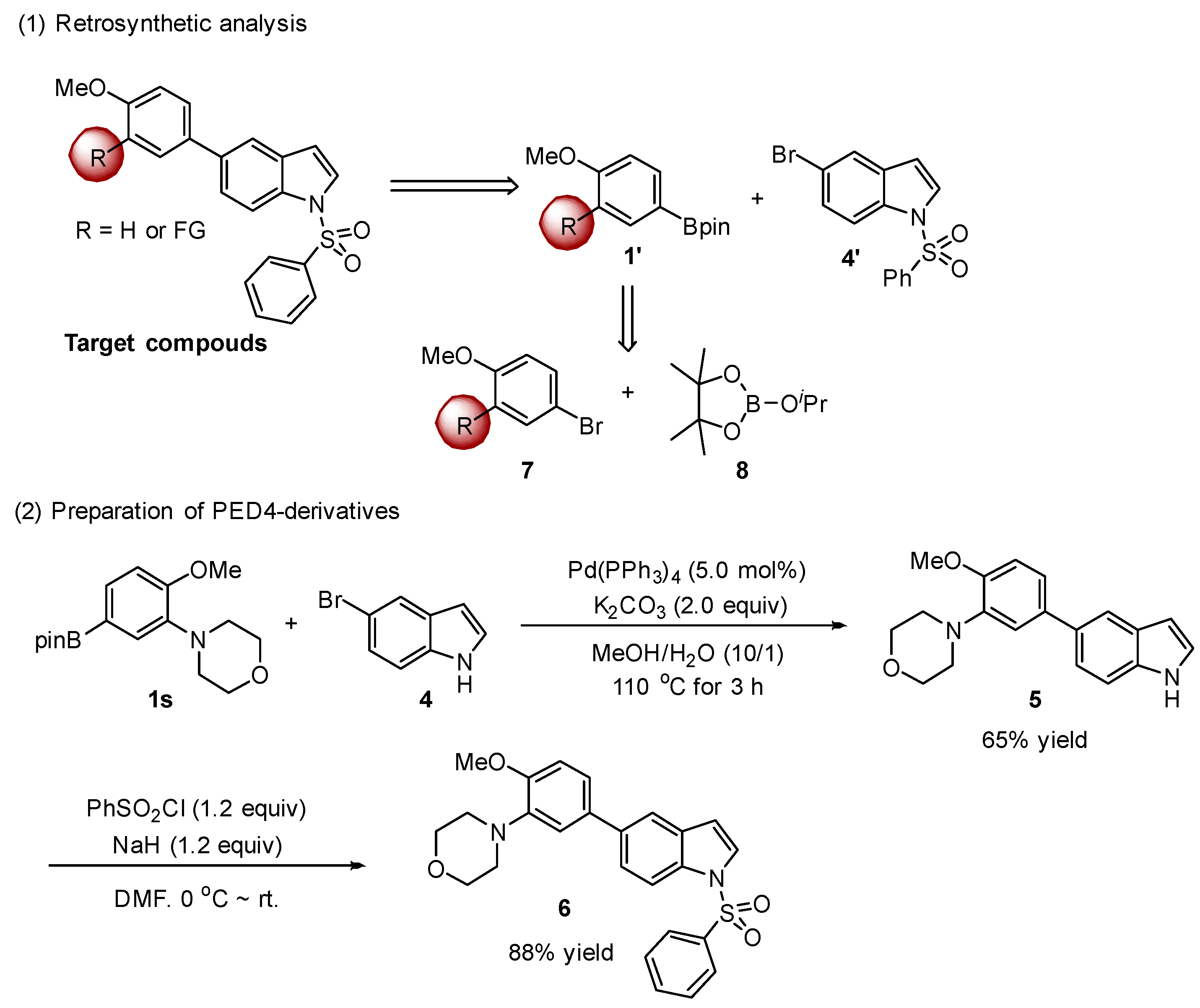

Scheme 3. Synthesis of a derivative of a PED4 inhibitor.
Scheme 3. Synthesis of a derivative of a PED4 inhibitor.
Catalysts 13 01193 sch003
Catalysts 13 01193 g002

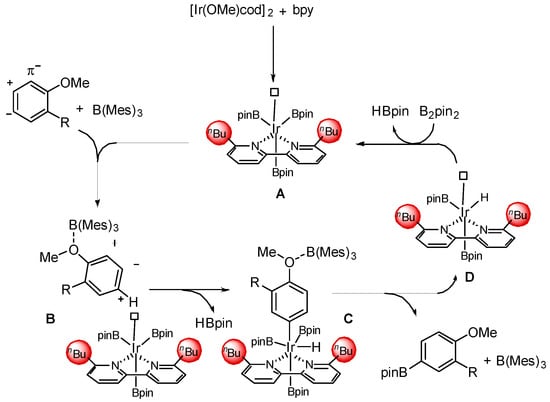

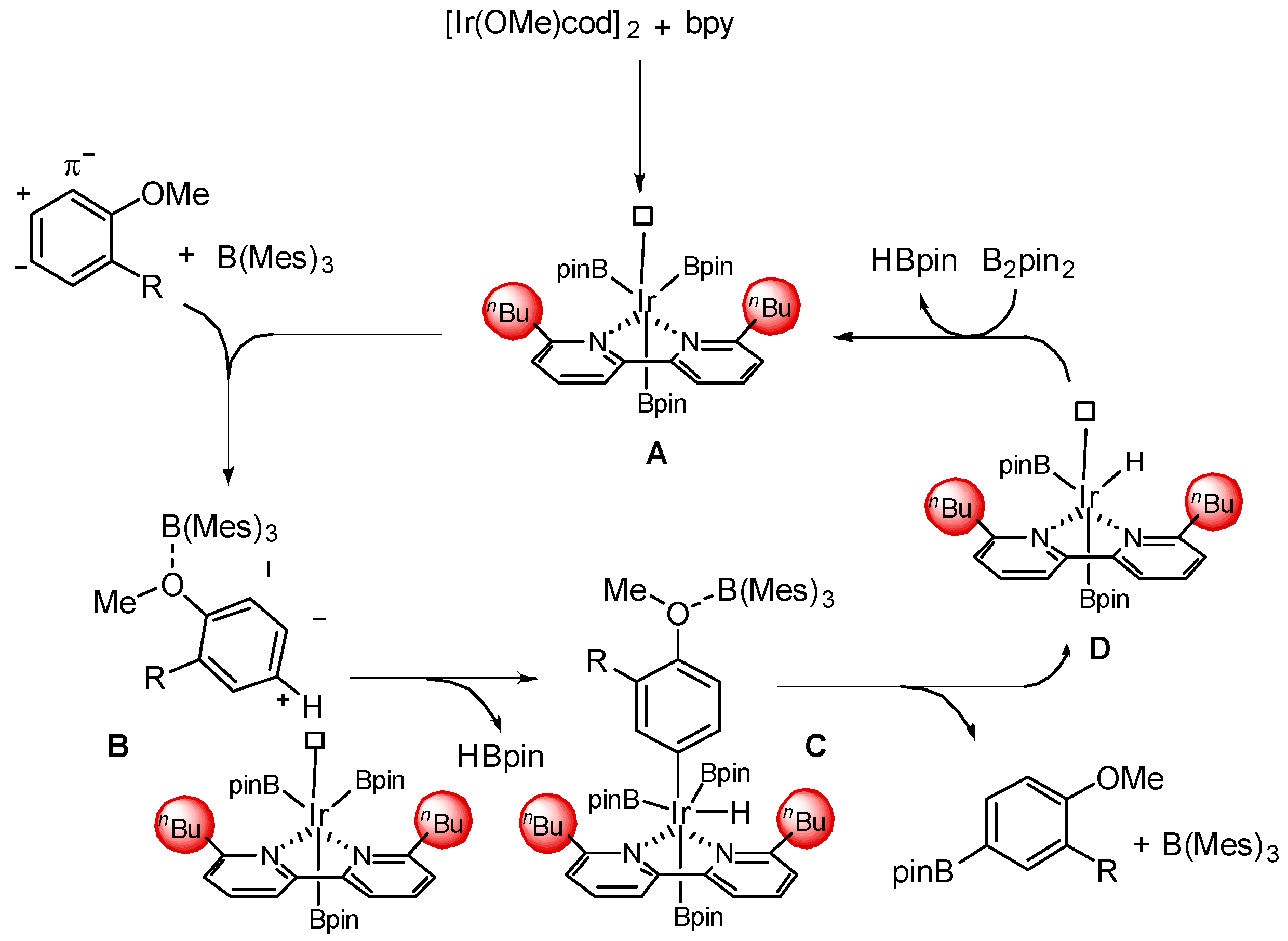

Figure 2. Proposed mechanism of the para-selective C-H borylation.
Figure 2. Proposed mechanism of the para-selective C-H borylation.
Catalysts 13 01193 g002
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, D.-Y.; Yu, R.-M.; Li, J.-P.; Yang, D.-F.; Pang, Q.; Li, H.-L. The Improved para-Selective C(sp2)-H Borylation of Anisole Derivatives Enabled by Bulky Lewis Acid. Catalysts 2023, 13, 1193. https://doi.org/10.3390/catal13081193

AMA Style

Li D-Y, Yu R-M, Li J-P, Yang D-F, Pang Q, Li H-L. The Improved para-Selective C(sp2)-H Borylation of Anisole Derivatives Enabled by Bulky Lewis Acid. Catalysts. 2023; 13(8):1193. https://doi.org/10.3390/catal13081193

Chicago/Turabian Style

Li, Dai-Yu, Rui-Mu Yu, Jin-Ping Li, Deng-Feng Yang, Qi Pang, and Hong-Liang Li. 2023. "The Improved para-Selective C(sp2)-H Borylation of Anisole Derivatives Enabled by Bulky Lewis Acid" Catalysts 13, no. 8: 1193. https://doi.org/10.3390/catal13081193

APA Style

Li, D.-Y., Yu, R.-M., Li, J.-P., Yang, D.-F., Pang, Q., & Li, H.-L. (2023). The Improved para-Selective C(sp2)-H Borylation of Anisole Derivatives Enabled by Bulky Lewis Acid. Catalysts, 13(8), 1193. https://doi.org/10.3390/catal13081193

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
