Article

Effects of Difluorophenyl Substituents on Structural, Redox, and Magnetic Properties of Blatter Radicals

by
Dmitry Gulyaev
1,
Andrey Serykh
1,2,
Evgeny Tretyakov
1,*,
Anna Akyeva
1,
Mikhail Syroeshkin
1,
Dmitry E. Gorbunov
3,
Svetlana V. Maltseva
3,4,
Nina P. Gritsan
3,*,
Galina Romanenko
5 and
Artem Bogomyakov
5
1
N. D. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, Leninsky Ave. 47, Moscow 119991, Russia
2
D. Mendeleev University of Chemical Technology of Russia, Miusskaya Pl. 9, Moscow 125047, Russia
3
V. V. Voevodsky Institute of Chemical Kinetics and Combustion, Siberian Branch of Russian Academy of Sciences, Institutskaya Str. 3, Novosibirsk 630090, Russia
4
Department of Physics, Novosibirsk State University, Pirogova Street, 1, Novosibirsk 630090, Russia
5
International Tomography Center, Siberian Branch of Russian Academy of Sciences, Institutskaya Str. 3a, Novosibirsk 630090, Russia
*
Authors to whom correspondence should be addressed.
Catalysts 2023, 13(8), 1206; https://doi.org/10.3390/catal13081206
Submission received: 29 July 2023 / Revised: 8 August 2023 / Accepted: 10 August 2023 / Published: 12 August 2023
(This article belongs to the Special Issue Free Radicals in Catalysis, Organic Synthesis, and Material Science)
Browse Figures
Versions Notes

Abstract

:
Blatter radicals 1-(3,4-difluorophenyl)-(1a) and 1-(2,4-difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1b) were prepared in good yields through oxidation of the corresponding amidrazones using MnO2 in dry CH2Cl2. Cyclic voltammetry showed that both radicals are oxidized and reduced chemically and electrochemically reversibly in accordance with −1/0 and 0/+1 processes. EPR spectroscopy indicated that spin density is mainly delocalized on the triazinyl moiety of the heterocycle. The structure of all paramagnets was unambiguously confirmed by single-crystal X-ray diffraction, and two different 1D chains of alternating radicals were identified. 3,4-difluorophenyl-derivatives 1a are packed into columns composed of two kinds of alternating centrosymmetric dimers, having comparatively short intermolecular distances. In crystals of 2,4-difluorophenyl-derivative 1b, the parallel arrangement of bicyclic moieties and phenyl rings favors the formation of 1D regular chains wherein the radicals are related by translation parallel to the crystallographic stacking axis. Magnetic susceptibility measurements in the 2–300 K region showed that in crystals of the radicals, strong antiferromagnetic interactions are dominant. Subsequent fitting of the dependence of χT on T with 12-membered looped stacks gave the following best-fit parameters: for 1a, g = 2.01 ± 0.05, J1/kB = −292 ± 10 K (according to BS-DFT calculations J2 = 0.12 × J1 and J3 = 0.61 × J1); for 1b, g = 2.04 ± 0.01 J1/kB = −222 ± 17 K. For comparison, in a nonfluorinated related radical, there are only very weak intermolecular interactions along the columns (J/kB = −2.2 ± 0.2 K). These results illustrate the magnitude of the influence of the difluorophenyl substituents introduced into Blatter radicals on their structure and magnetic properties.

1. Introduction

1,3-diphenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl, also known as the Blatter radical [1], was first prepared in 1968 and did not received much attention [2,3] until the end of the last century when F. Wudl et al. showed that a benzotriazinyl radical forms a pressure-sensitive semiconductor with tetracyanoquinodimethane [4] and Neugebauer et al. reported another paramagnetic derivative with short-range antiferromagnetic ordering [5,6]. Since the appearance of these landmark articles, there has been explosive growth of the number of publications about Blatter radicals, covering a wide range of research areas. Blatter radicals have been applied as photodetectors [7], emissive materials for OLEDs [8], and liquid crystal photoconductors [9,10] used in controllable polymerization reactions [11,12], molecular electronics [13], and molecular magnetism [14,15,16,17,18,19]. They are actively used as building blocks to construct magnetic bistable materials [17,20] and high-spin polyradicals and biradicaloids [21,22,23] or as organic paramagnetic ligands in hydride metal–radical complexes [24,25]. Moreover, Blatter-type radicals can be transferred via a vapor phase to create stable thin films (without degradation) while retaining their paramagnetic nature [26,27]. Active research is being conducted toward the creation and study of Blatter radical–inorganic “spin interfaces”, which may open up opportunities for using these radicals in spintronics devices [28,29,30]. As for comprehensive reviews, Zheng et al. summarized the synthesis, properties and specific role of Blatter radicals in devices and other technologies [31]. Coote et al. have discussed various methods to synthesize and customize Blatter radicals as well as their broad applications, including as sensors, spin labels, magnetic materials, liquid crystals and in polymer and small-molecule synthesis [32].
Owing to this broad interest in Blatter radicals, their chemistry has been systematically and successfully developed thereby considerably expanding structural diversity of Blatter radicals, bi- and polyradicals [33,34,35,36]. Special attention was given to the preparation of fluorinated derivatives of Blatter radicals [37]. For example, Koutentis et al. replaced the phenyl group at the C3 position in the Blatter heterocyclic system with a CF3-group and revealed an abrupt spin transition for the radical at 58(2) K related to the phase transition [17]. In a series of other works, a trifluoromethyl group was introduced to the C7 position of the Blatter radical to give radicals with significantly improved chemical stability [38,39]. Herein, as part of our increasing interest in “structure–property” correlations inherent in fluorinated organic radicals [40,41,42,43,44,45,46,47,48,49,50,51,52], we report synthesis, structure and complete characterization of novel difluorophenyl-substituted Blatter radicals, namely 1-(3,4-difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1a) and 1-(2,4-difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1b).

2. Results and Discussion

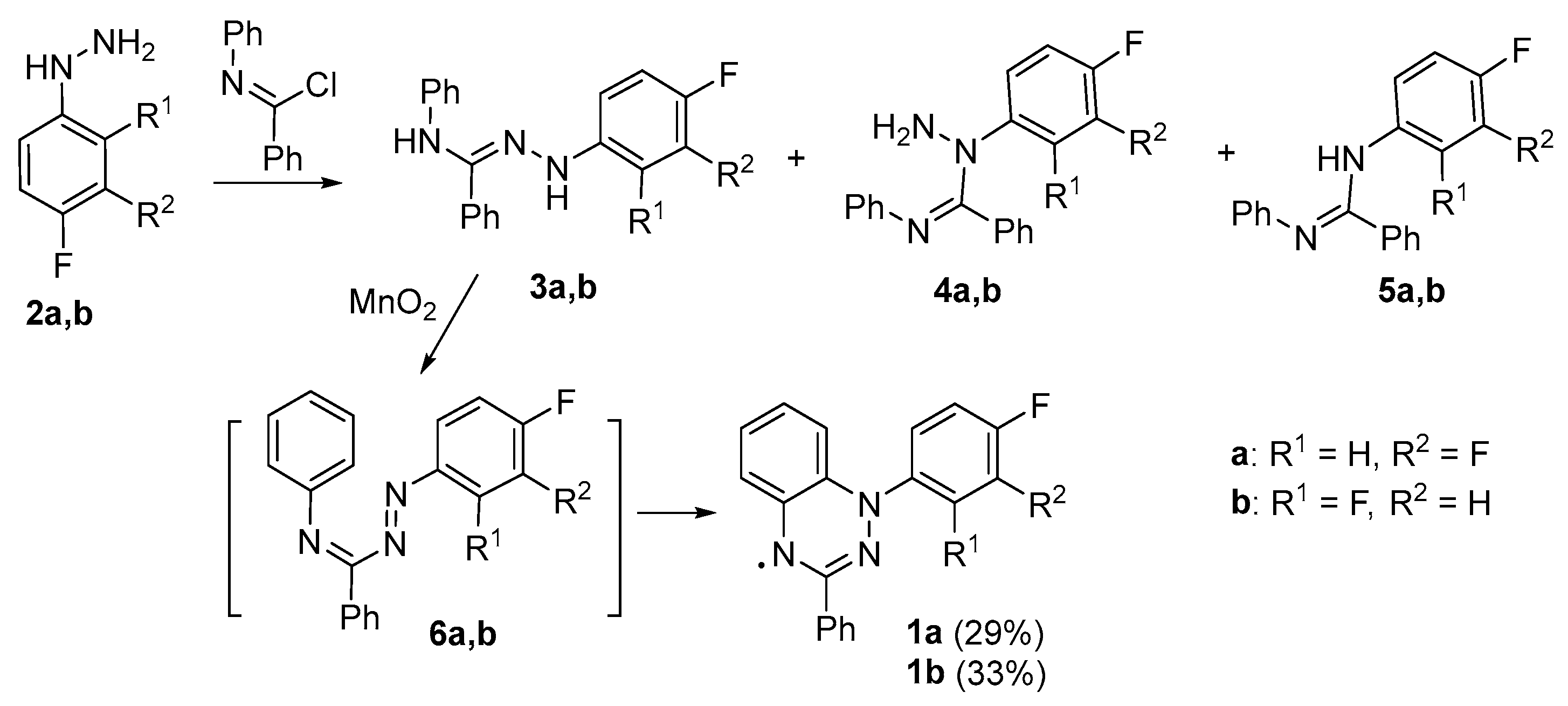

The syntheses of 1-(3,4-difluorophenyl)-(1a) and 1-(2,4-difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1b) were carried out via the classic route involving oxidation of amidrazones 3a,b in situ, giving 1,2,4-triazabutadienes 6a,b, which then underwent electrocyclic ring closure thus affording benzotriazines, which were next oxidized to the desired 1,2,4-benzotriazinyls 1a,b (Scheme 1). Initial amidrazones 3a,b were prepared by a reaction of corresponding arylhydrazines 2a,b with N-phenylbenzimidoyl chloride [53]. The amidrazones 3a,b, due to limited stability, were subjected to subsequent reactions without isolation. The yields of radicals 1a,b were moderate because the syntheses of amidrazones 3a,b were accompanied by the formation of corresponding backside products since the hydrazino group can attack via either the α or β nitrogen atom.
Analytically pure samples of 1,2,4-benzotriazinyls 1a,b were obtained by column chromatography on silica gel, followed by procedures of recrystallization from a mixture of CH2Cl2 with n-heptane. Both 1,2,4-benzotriazinyls were comprehensively studied in solution and in the solid state.

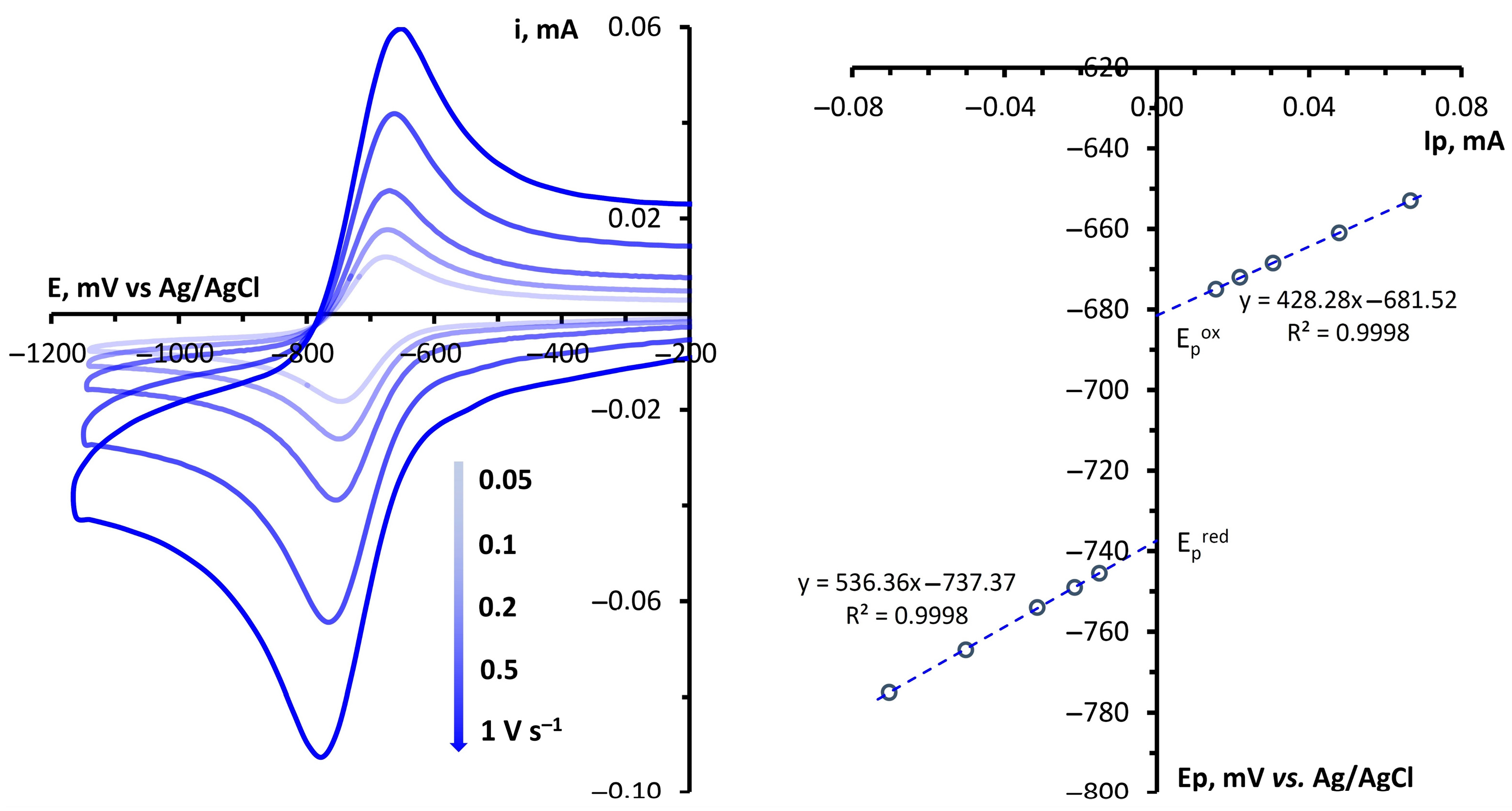

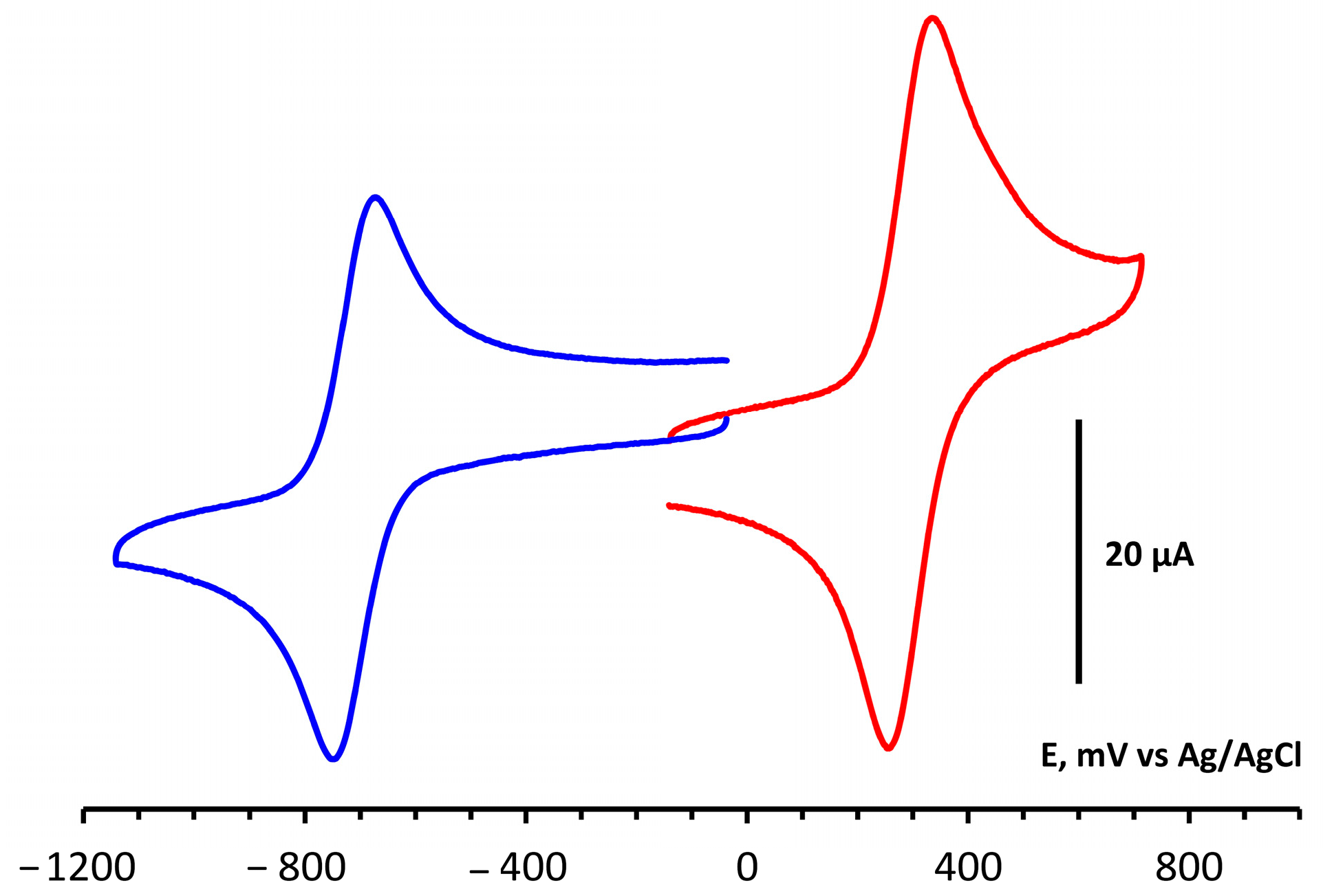

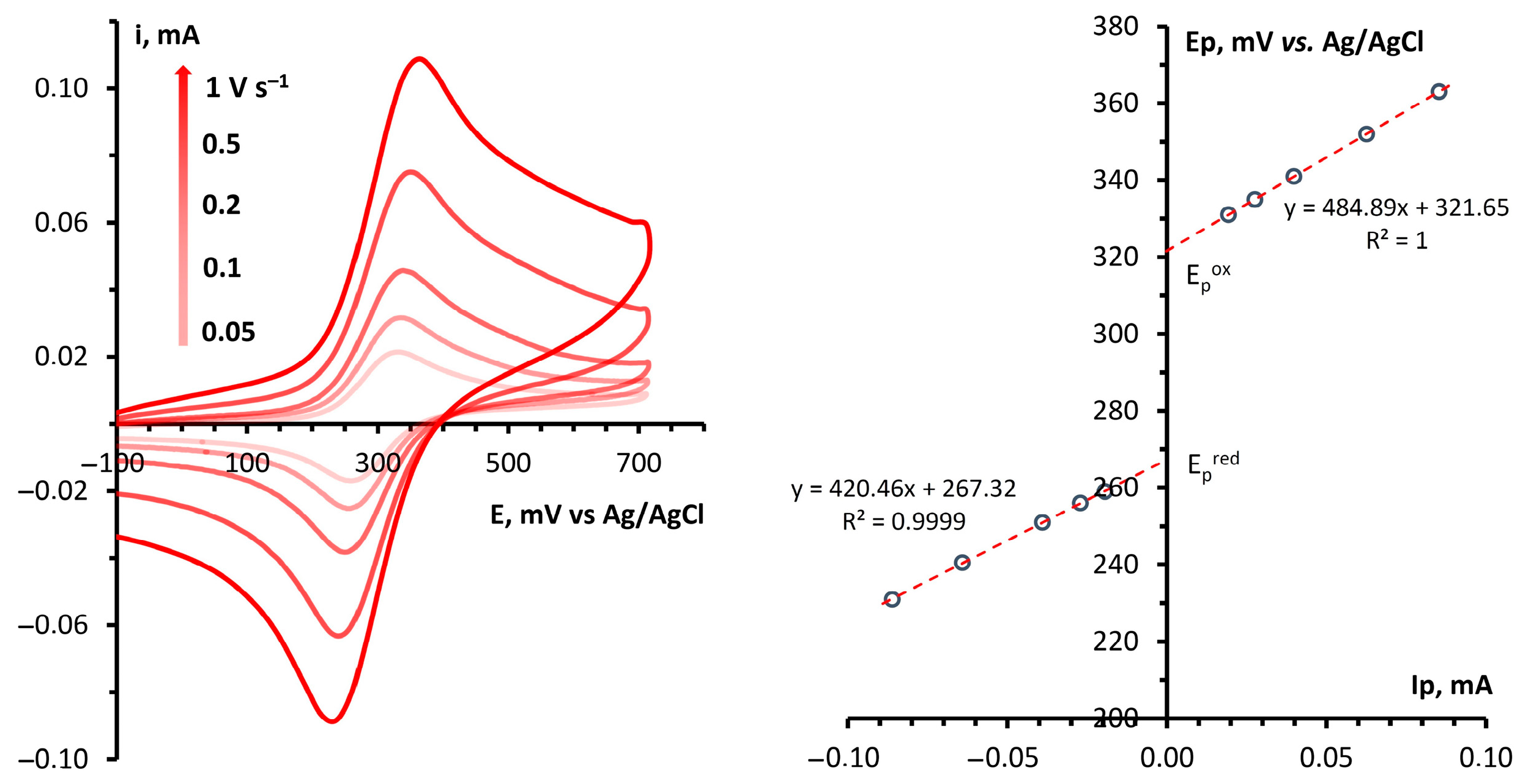

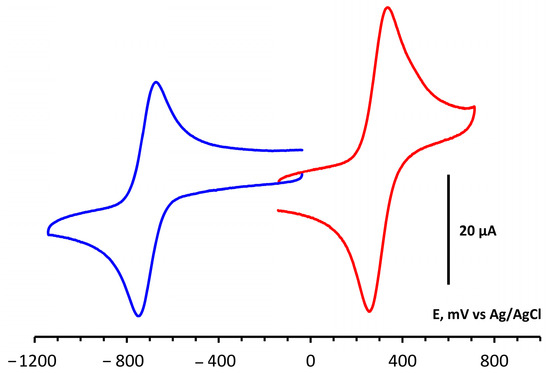

Determination of electrochemical parameters of the processes of oxidation and reduction of 1,2,4-benzotriazinyls 1a,b was carried out by cyclic voltammetry (CV) on a glassy carbon disc electrode in acetonitrile. It was found that radicals 1a,b are oxidized and reduced chemically and electrochemically reversibly (Figure 1 and Figure S1), which is typical of 1,2,4-benzotriazinyls [54,55,56,57]. This is evidenced by our analysis of the CV curves of oxidation and reduction obtained at potential sweep rates of 0.05–1.00 V/s (Figure 2, Figure 3, Figures S2 and S3). It was shown that for each process, the ratio of currents in the reverse and forward peaks does not depend on the potential sweep rate and is close to 1.0 (chemical reversibility), and that the value of the interval between the forward and reverse peaks lies in the range of 0.054–0.058 V and differs slightly from the theoretical value of 0.059 V for electrochemically reversible processes [58]. It is worth noting that 1,2,4-benzotriazinyl 1b is oxidized and reduced at higher potentials (E1/2ox = 0.336 V and E1/2red = −0.766 V) as compared with derivative 1a (0.295 and −0.709 V, respectively).

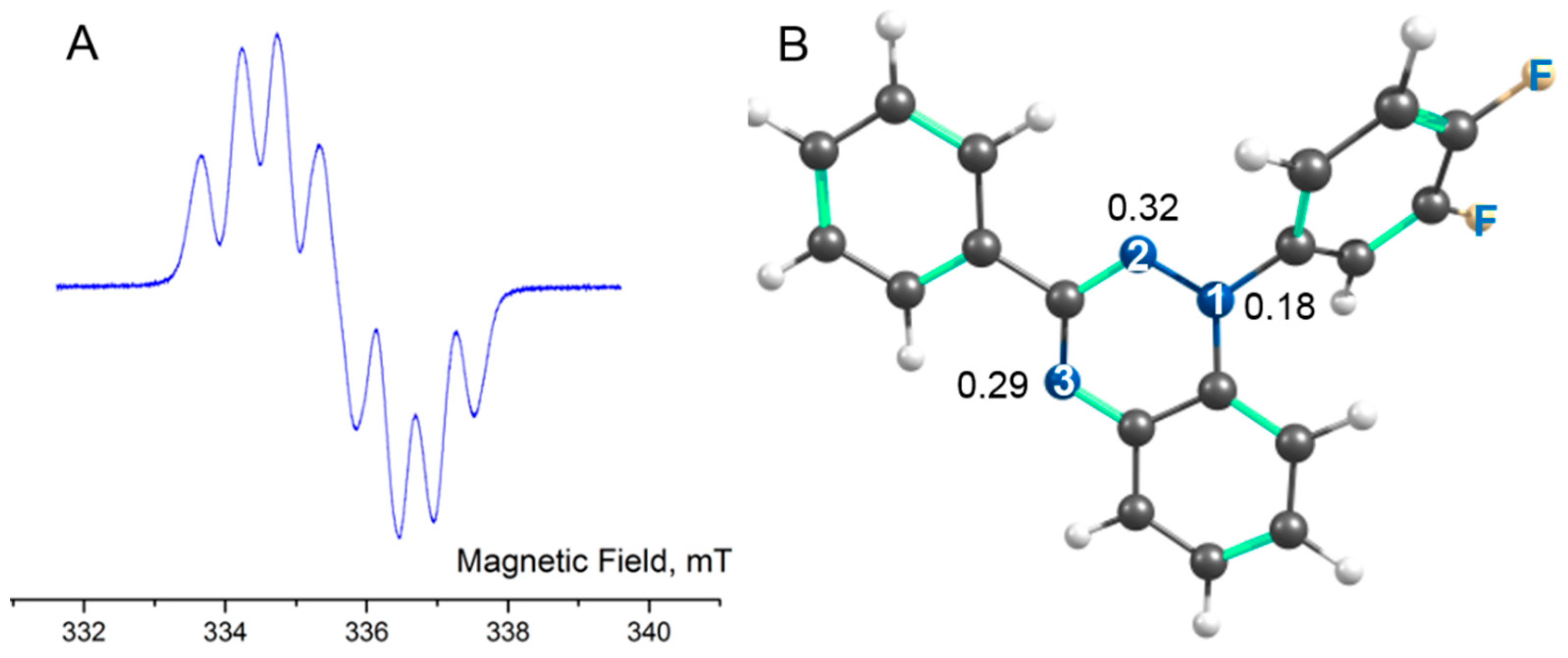

Continuous-wave ESR spectra of 1,2,4-benzotriazinyls 1a,b were recorded at room temperature in degassed toluene solutions of various concentrations. Dilute solutions of 1a,b produced EPR spectra typical of Blatter radicals (Figure 4 and Figure S5), which consist of seven-line multiplets resulting from hyperfine interactions between an unpaired electron and three similar but slightly nonequivalent 14N nuclei. The hyperfine coupling (HFC) constants and giso determined by the modeling of the EPR spectra and calculated at the UPBE0/def2-TZVP level are aN(1) = 0.73/0.57, aN(2) = 0.49/0.41, and aN(4) = 0.51/0.45 mT with g = 2.0040/2.0044 in 1a and aN(1) = 0.72/0.57, aN(2) = 0.49/0.41, and aN(4) = 0.51/0.45 mT with g = 2.0040/2.0044 in 1b. A comparison of the calculated HFC constants and Mulliken spin populations of N atoms indicated that they do not correlate, which can be explained by a slight deviation from the planarity of the triazinyl ring. The deviation leads to a small difference in the hybridization of the N atoms and therefore in populations of their s-type AOs.

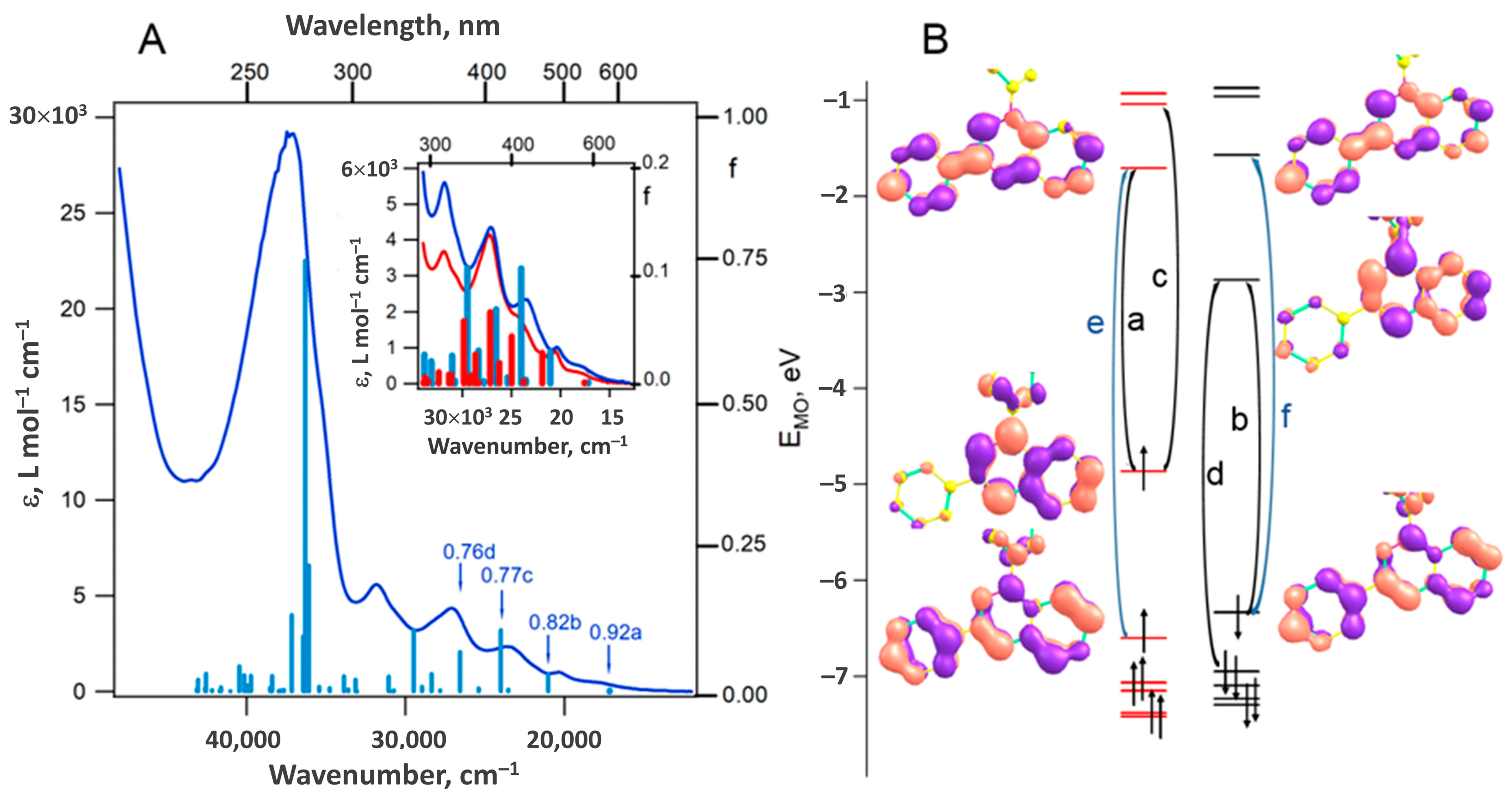

Figure 5 and Figure S6 depict electronic absorption spectra of radicals 1a,b in acetonitrile at room temperature. One can see that both paramagnets 1a,b show rather strong absorption bands in the ultraviolet region with maxima at 268 and 266 nm, respectively. Other absorption bands in the near-UV and visible regions have substantially lower intensity; in 1a, the maxima of the bands are at 314, 369, 425, and 491, and there is a shoulder (sh.) at ~540 nm; and in 1b, they are at 314, ~326 (sh.), 367, ~411 (sh.), ~454 (sh.), 486, and ~535 (sh.) nm. On the whole, the observed spectra are characteristic of related 1,2,4-benzotriazinyl radicals [59].
Figure 5A shows that the results of the time-dependent DFT calculations are in good agreement with the experiment. According to the calculations, a series of 40 electronic transitions contributes to the UV-Vis spectra of radicals 1a and 1b in the range 17,000–43,000 cm−1 (~230–600 nm). At the same time, the near-UV and visible region (17,000–34,000 cm−1 or ~295–600 nm) corresponds to excitations in approximately 20 excited states. Thus, the structure of this moderate-intensity absorption region is mainly related to the superposition of absorption bands onto different excited states. Nonetheless, the manifestation of vibrational structures of some bands could not be ruled out either.
Figure 5B displays a number of occupied and unoccupied molecular orbitals (MOs) in the ground state of 1a. All MOs related to this diagram are presented in SI (Table S1). The letters a–f denote transitions of electrons between higher occupied and lower unoccupied MOs. According to the calculations, the main contribution (92%) to the lowest-energy excited state (Figure 5A) comes from the configuration with the promotion of the α-electron from SOMO to LUMO (excitation a). The main contribution (82%) to the second excited state comes from the promotion of the β-electron from HOMO to the SOMO counterpart (Figure 5B, excitation b). A similar description was also performed for transitions to the 4th and 6th excited states with the main contributions of promotions c and d (Figure 5A,B), respectively. Of note, the most intense transition at 275 nm (f = 0.75) matches excitations to the 21st excited state, whose wavefunction is the sum of a large number of configurations, the predominant of which correspond to the promotions of both α (e, 26%) or β (f, 20%) electrons from the HOMO to the LUMO (Figure 5B, excitations e and f).

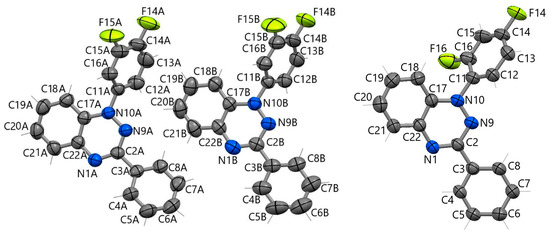

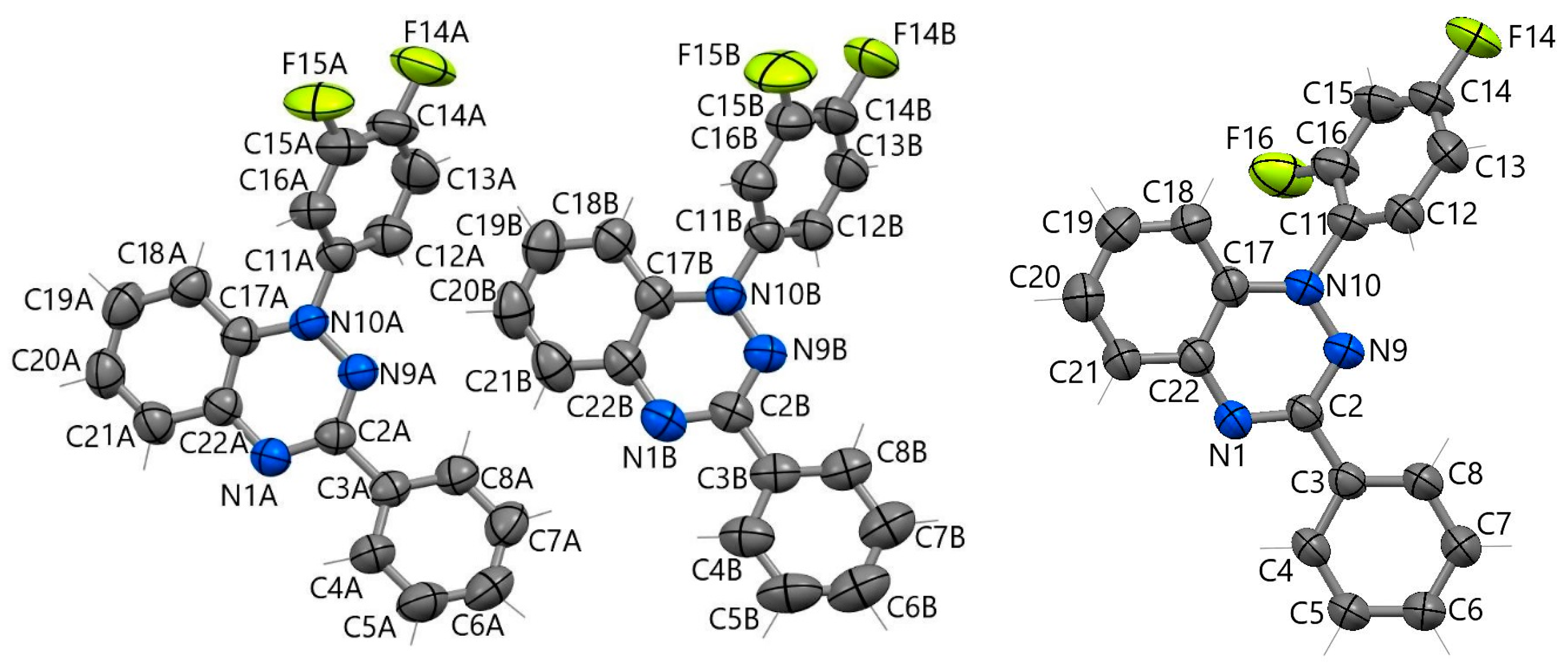

The structures of radicals 1a,b were successfully confirmed by single-crystal XRD. Figure 6 shows the structure of molecules 1a and 1b as a projection onto the plane of the bicyclic moiety. In structure 1a, two crystallographically independent molecules 1aA and 1aB are similar in bond lengths but differ in the rotation of the plane of the nonfluorinated phenyl ring relative to the bicycle plane (Table 1); in 1aA, this angle (−22.8(3)°) is much larger than that in 1aB (5.0(3)°), whereas in 1b, this angle has an intermediate value (10.5(3)°). In 1aA and 1aB, the fluorinated ring forms angles 51–52° with the heterocyclic plane. By contrast, in 1b, it is turned at almost the same angle in the opposite direction (−58.3(2)°).

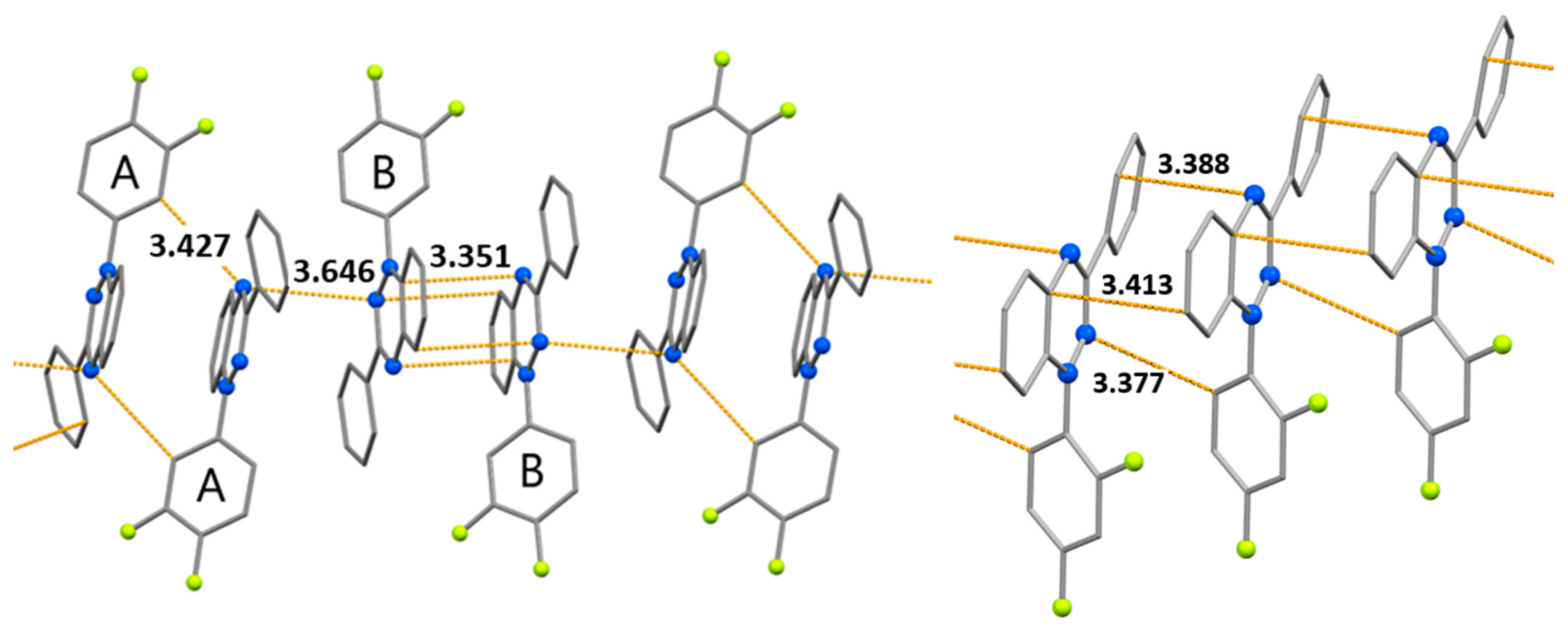

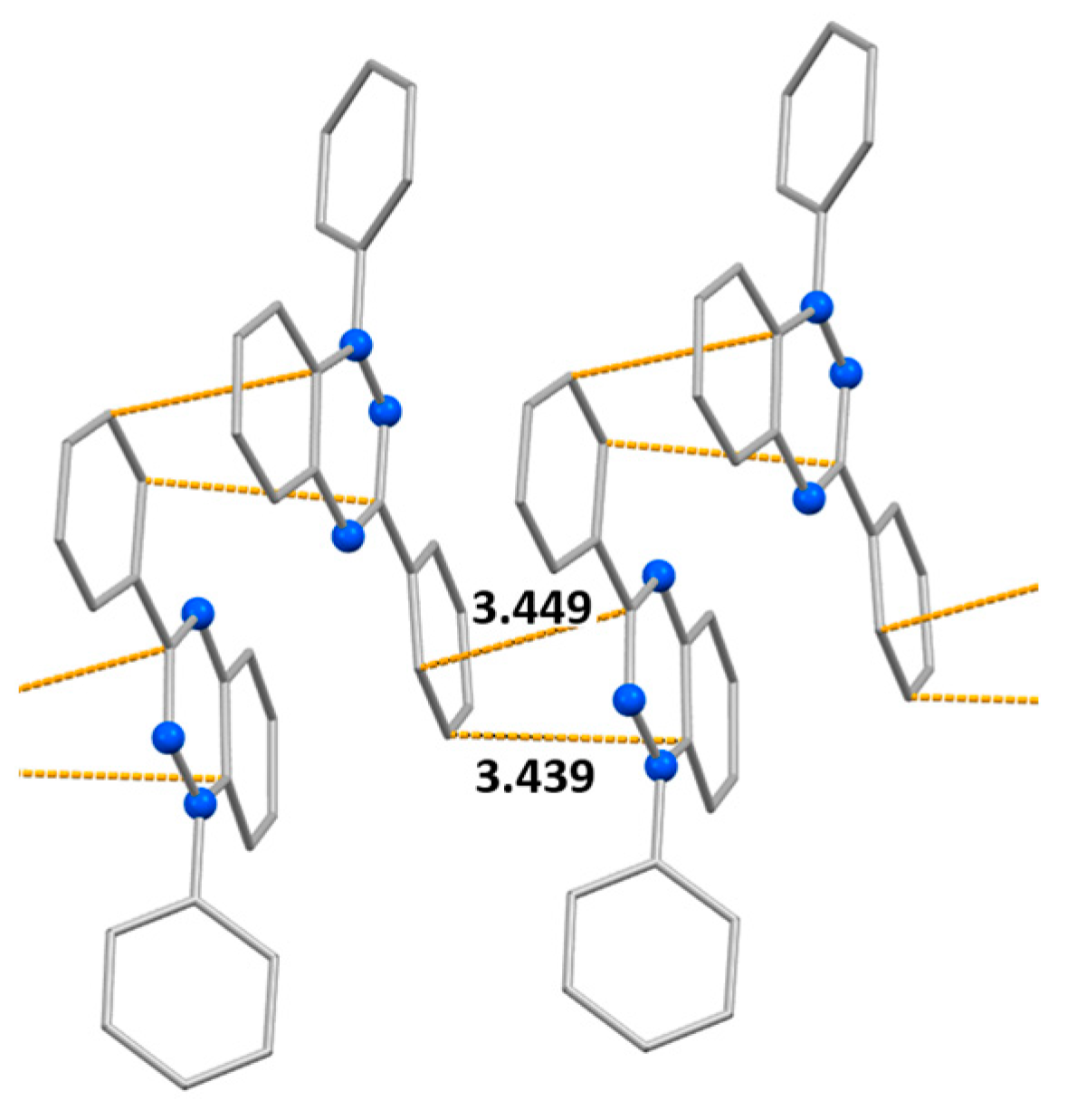

In radical 1a, the shortest intermolecular contacts in the structures (less than 3.5 Å) are shown in Figure 7. Alternating centrosymmetric dimers 1aA···1aA and 1aB···1aB form stacks in the structure. Dimers 1aA···1aA arise due to H-bonds C–H···N [C···N 3.427(3) Å]. In 1aB···1aB dimers, the shortest distances between atoms of parallel bicyclic parts are 3.351(3) and 3.444(3) Å. Short N···N contacts of 3.646(2) Å can be seen between dimers (Figure 7). In structure 1b, the parallel arrangement of bicyclic parts and phenyl rings favors the appearance of π-stacking interactions between them [the C···C and C···N distances are 3.413(3) and 3.388(2) Å, respectively], which are complemented by C–H···N hydrogen bonds [C···N 3.377(3) Å]. Considering these contacts, stacks of molecules can be distinguished in the structure of 1b (Figure 7).
To estimate the strength of exchange interactions between radicals and to select model magnetic motifs, parameters of exchange interactions within and between stacks were calculated using the spin-unrestricted broken-symmetry approach. This approach has previously been shown to work well for evaluating intermolecular exchange interactions [60,61]. In the case of 1a, the stacks consist of two types of radicals, 1aA and 1aB, with three types of contacts (···1aA···1aA···1aB···1aB···). Therefore, in the calculations for 1a, three considerably different parameters J were obtained (Table 2, J1aA···1aA, J1aA···1aB, and J1aB···1aB) at a ratio of 1.00:0.12:0.61. In the case of 1b, the structure consists of uniformly bound stacks with a single parameter, J1b···1b. Table 2 indicates that J1aA···1aA, J1aB···1aB and J1b···1b are of the same order of magnitude, while J1aA···1aB is much smaller. For both 1a and 1b, our calculations predicted negligible exchange interactions between the radicals of neighboring stacks ( J   ≤ 0.2 cm−1).

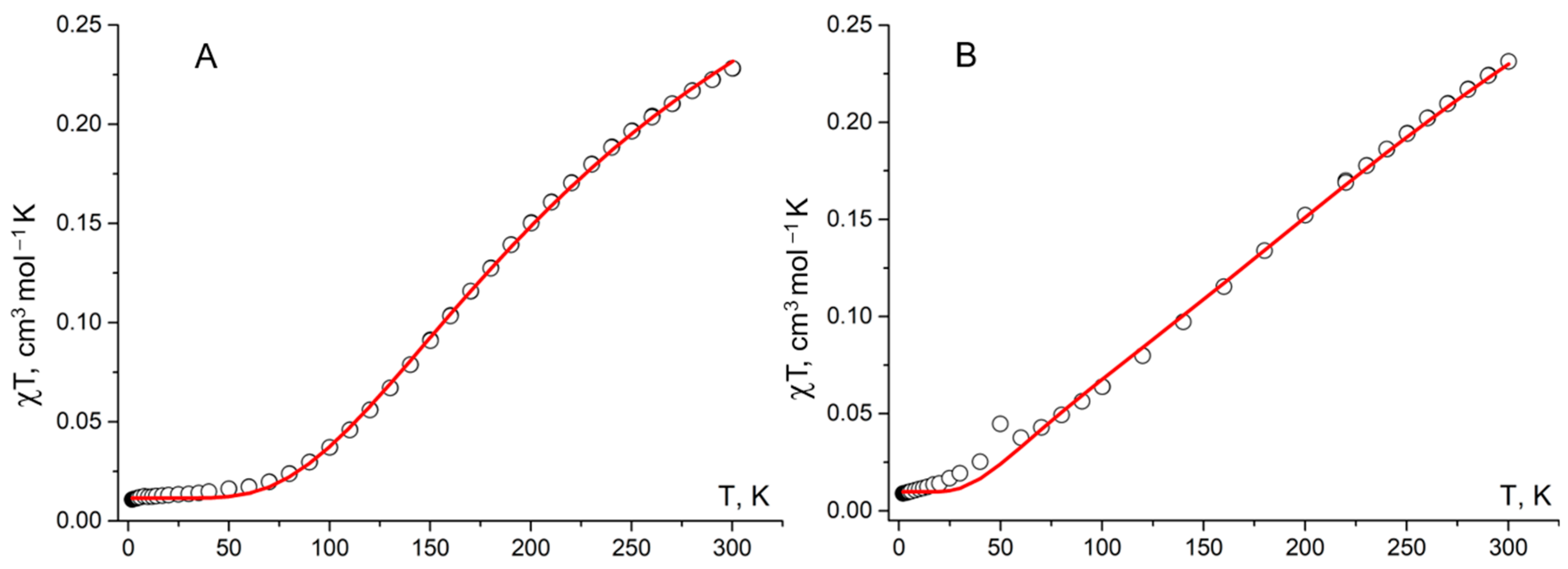

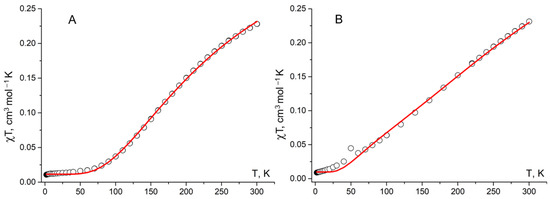

The temperature dependence of χT for radicals 1a and 1b is shown in Figure 8. For 1a, χT at 300 K is 0.23 cm3 mol−1K and decreases with lowering temperature, reaching a plateau of ~0.013 cm3 mol−1K below 60 K. The high-temperature value of χT is much lower than the theoretical spin-only value of 0.375 cm3 mol−1K for the noninteracting radicals at g = 2, and this finding indicates strong antiferromagnetic exchange interactions; the latter result is consistent with our calculations (Table 2). We simulated the dependence of χT on T by means of a magnetic motif consisting of 12-membered radical stacks rolled into rings. To avoid overparametrization, we fixed the ratio of J values (1:0.12:0.61) obtained from the calculations. The following parameters correspond to the best fit: g = 2.01 ± 0.05 and J1aA···1aA/kB = −292 ± 10 K. Most likely, the nonzero value of χT below 60 K is due to a small amount of monomeric radicals (ρ ≈ 2.0%).
For 1b, χT at 300 K is also 0.23 cm3 mol−1K and diminishes with decreasing temperature to 0.009 cm3 mol−1K at 2 K (Figure 8). Simulation of the dependence of χT on T with 12-membered looped uniform stacks yielded the following best-fit parameters: J1b···1b/kB = −222 ± 17 K, ρ ≈ 2.0%, and g = 2.04 ± 0.01.
Table 2 suggests that the results of BS-DFT calculations are in semiquantitative agreement with the parameters extracted from the simulation of the experimental temperature dependences of the molar magnetic susceptibility. This finding confirms the proposed magnetic motifs of crystals of radicals 1a and 1b.
Given that it was possible to solve crystal structures of difluoro derivatives 1a and 1b, it was reasonable to compare the structures of their solid phases (as well as magnetic properties) with those of nonfluorinated analog 1c (CSD refcode: TICMOH [6,62]). According to single-crystal X-ray analysis, radicals 1c are stacked along the b axis. In the columns, the phenyl ring at C3 and the 1,2,4-triazin-4(1H)-yl ring lie alternately one on top of the other (Figure 9). Within the array, the mean interplanar distance is 3.449 Å, which can be considered the mean distance between adjacent π systems. Nevertheless, the centers of the 1,2,4-triazin-4(1H)-yl rings, bearing most of the spin population, are 5.50 Å apart. Consequently, there are only very weak intermolecular interactions along the columns, in agreement with the results of static magnetic susceptibility measurements (J1c···1c/kB = −2.2 ± 0.2 K) [5].

3. Conclusions

Thus, targeted synthesis of two isomeric Blatter’s radicals, 1-(3,4-difluorophenyl)-(1a) and 1-(2,4-difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1b), was performed successfully. It was shown that the presence of two F atoms in the phenyl substituent has a substantial effect on the packing of radicals 1a and 1b and on their magnetic properties. Magnetic susceptibility analyses revealed that in both radicals, the radical–radical interactions are strong antiferromagnetic (J/kB = −292 ± 10 and = −222 ± 17 K, respectively) due to an effective SOMO–SOMO overlap. The latter is related to peculiarities of the packing of the radicals, which in turn is predetermined by the electrostatic potential surfaces inherent in these paramagnetic molecules. This work shows that chemically, the electrostatic potential surface can be modulated efficiently by partial fluorination of the organic radicals, without expanding the geometry too much. To some extent, in the family of Blatter radicals, this approach may be an effective way to alter their structural properties in order to obtain materials with large magnetic couplings. Another important aspect that motivates further investigation into partly fluorinated Blatter radicals is that they possess an unprecedented combination of high thermal stability, reversibility of redox processes, and magnetic properties suitable for fabrication of magnetically active films, especially of double- and multi-layered films.

4. Experimental Part and Computational Details

4.1. Reagents and General Methods

All commercial reagents were used without further purification. Solvents were freshly distilled. All reaction mixtures and column eluents were monitored by thin-layer chromatography (TLC) using commercial silica gel 60 F254 precoated aluminum TLC plates (Merck KGaA, Darmstadt, Germany). The plates were visualized under UV radiation at 254 nm. Chromatography was performed on silica gel (0.063–0.200 mm) for column chromatography. Melting points were measured by means of Stuart melting point apparatus SMP 30; solvents used for recrystallization are indicated after the melting points.
Measurement of absorption spectra in the UV and visible range was carried out on an Agilent 8453 spectrometer (Agilent, Santa Clara, CA, USA) for 10−4 M solutions of compounds in acetonitrile, using a 10 mm quartz cuvette with a Teflon cap. IR spectra of samples in KBr were recorded on a BRUKER Vertex-70 FTIR spectrometer (Bruker Corporation, Billerica, MA, USA), and strong, medium and weak peaks are labeled as s, m and w, respectively. 1H and 13C NMR spectra were acquired on a Bruker Avance 300 spectrometer (Bruker Corporation, Billerica, MA, USA) at 300 and 75 MHz, respectively. Deuterated solvents were used to achieve a homonuclear lock, and the signals are presented in reference to the deuterated solvent peaks. Masses of molecular ions were determined by high-resolution mass spectrometry (HRMS) by means of a DFS Thermo Scientific instrument at an ionization energy of 70 eV (Thermo Fisher Scientific, Waltham, MA, USA). Elemental analyses were performed using a Euro EA 3000 elemental analyzer.

4.2. Syntheses

N-Phenylbenzimidoyl chloride [63]. In a round-bottom Schlenk flask, N-phenylbenzamide (3.0 g, 15.23 mmol) and SOCl2 (8.85 mL, 8 eq.) were heated at 70 °C. After 4 h, the excess of SOCl2 was removed to obtain the corresponding imidoyl chloride as a greenish solid (3.15 g, 96% yield), which was subjected to the next step without additional purification. The NMR results are in agreement with previously reported data. 1H NMR (300 MHz, DMSO-d6) δ 7.06–7.15 (m, 1 H), 7.30–7.41 (m, 2 H), 7.49–7.64 (m, 3 H), 7.78–7.86 (m, 2 H), 7.95–8.03 (m, 2 H). 13C NMR (76 MHz, DMSO-d6) δ 120.77, 124.07, 128.16, 128.82, 129.03, 131.99, 135.41, 139.59, and 165.93.
(3,4-Difluorophenyl)hydrazine. To a solution of 3,4-difluoroaniline (2 g, 15.59 mmol) in a mixture of water (6 mL) and concentrated HCl (12 M, 10 mL), we added dropwise a solution of NaNO2 (1.18 g, 17.04 mmol) in water (2 mL) at 0–5 °C, and the reaction mixture was stirred at this temperature for 1 h. Then, a solution of SnCl2 (8.74 g, 39.73 mmol) in concentrated HCl (12 M, 7 mL) was introduced dropwise at 0–5 °C with vigorous stirring. The mixture was then allowed to warm up to room temperature and incubated for 30 min. The precipitate was filtered off, washed with Et2O (5 mL), and dried in vacuo at 40 °C for 5 h, thus giving (3,4-difluorophenyl)hydrazine hydrochloride as a pale brown solid. Next, the salt was treated with a 40% aqueous NaOH solution (10 mL), and the product was extracted with CH2Cl2 (2 × 5 mL). The combined organic layers were dried over Na2SO4 and concentrated in vacuo to obtain the desired products. Yield 1.69 g (75%), yellow crystals. The product was used at the next reaction step without purification.
(2,4-Difluorophenyl)hydrazine [64]. To a solution of aniline (2 g, 15.59 mmol) in a mixture of water (6 mL) and concentrated HCl (12 M, 10 mL), a solution of NaNO2 (1.18 g, 17.04 mmol) in water (2 mL) was added dropwise at 0–5 °C, and the reaction mixture was stirred at this temperature for 1 h. Then, a solution of SnCl2 (8.74 g, 39.73 mmol) in concentrated HCl (12 M, 7 mL) was introduced dropwise at 0–5 °C with vigorous stirring. The mixture was then warmed to room temperature and incubated for 30 min. The precipitate was filtered off, washed with Et2O (5 mL), and dried in vacuo at 40 °C for 5 h, thereby affording (2,4-difluorophenyl)hydrazine hydrochloride as a violet solid. The salt was treated with a 40% aqueous NaOH solution (10 mL), and the mixture was extracted with CH2Cl2 (2 × 5 mL) to obtain the title product. Yield 1.69 g (75%), dark yellow crystals, and mp 59–61 °C. The product was subjected to the next reaction step without purification.
N′-(3,4-Difluorophenyl)-N″-phenylbenzohydrazonamide (3a) or N′-(2,4-difluorophenyl)-N″-phenylbenzohydrazonamide (3b). N-phenylbenzimidoyl chloride (0.3 g, 0.98 mmol) was added to a stirred solution of (3,4-difluorophenyl)hydrazine or (2,4-difluorophenyl)hydrazine (0.478 g, 2.22 mmol) and Et3N (0.336 g, 3.32 mmol) in dry THF (3 mL) at −10 °C. After that, the reaction mixture was stirred at 0 °C for 8 h. The solvent was evaporated under reduced pressure, the residue was treated with a 2% aqueous acetic acid solution (10 mL), and the organic products were extracted with CH2Cl2. The combined extracts were dried with Na2SO4, and the solvent was evaporated. Crude products 3a or 3b were partially purified by flash chromatography (SiO2, hexane/CH2Cl2, 3:1), and due to limited stability, were quickly subjected to subsequent reactions. Note that in one of the experiments crystals of compound 3a were obtained by chance that allowed to solve its molecular and crystal structure (see Section 4.5).
1-(3,4-Difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1a). MnO2 (0.81 g, 9.32 mmol) was added to a stirred solution of amidrazone 3a (0.3 g, 0.93 mmol) in dry CH2Cl2 (4 mL), then the reaction mixture was stirred for 6 h at room temperature. After evaporation of the solvent, the crude product was purified by column chromatography (petroleum ether/ethyl acetate [9:1], Rf = 0.72). Yield 0.086 g (29%), crystals of dark-brown color, and mp 110.2–110.7 °C (from a mixture of CH2Cl2 with n-heptane). IR (KBr): 3447 (m), 3058 (w), 2958 (w), 2927 (w), 2857 (w), 1728 (m), 1613 (m), 1513 (s), 1484 (s), 1450 (m), 1393 (s), 1328 (m), 1268 (m), 1203 (m), and 1175 (w) cm−1. EPR (toluene): g = 2.0040; aN(1) = 0.73, aN(4) = 0.51, and aN(2) = 0.49 mT. HRMS (ESI): m/z [M]+ calcd for C19H12F2N3 320.0999, found 320.1002. Found, %: C, 71.37; H, 3.64; F, 11.39; and N, 13.07. Calcd. for C19H12F2N3, %: C, 71.24; H, 3.78; F, 11.86; and N, 13.12.
1-(2,4-Difluorophenyl)-3-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl (1b). MnO2 (0.81 g, 9.32 mmol) was added to a stirred solution of amidrazone 3b (0.3 g, 0.93 mmol) in dry CH2Cl2 (4 mL), then the reaction mixture was stirred for 6 h at room temperature. After evaporation of the solvent, the crude product was purified by column chromatography (petroleum ether/ethyl acetate [9:1], Rf = 0.68). Yield 0.098 g (33%), swamp-colored crystals, and mp 128.6–129.2 °C (from a mixture of CH2Cl2 with n-heptane). IR (KBr): 3471 (m), 3062 (w), 3030 (w), 1947 (w), 1877 (w), 1610 (s), 1508 (s), 1483 (s), 1452 (m), 1431 (m), 1395 (s), 1347 (w), 1269 (m), 1229 (m), 1203 (w), and 1141 (m) cm−1. EPR (toluene): g = 2.0040; aN(1) = 0.72, aN(4) = 0.51, and aN(2) = 0.49 mT. HRMS (ESI): m/z [M]+ calcd for C19H12F2N3 320.0999, found 320.0998. Found, %: C, 71.64; H, 3.52; F, 11.41; and N, 13.10. Calcd. for C19H12F2N3, %: C, 71.24; H, 3.78; F, 11.86; and N, 13.12.

4.3. EPR Spectroscopy

EPR measurements were carried out on a Jeol JES-FA200 X-band spectrometer (Akishima, Tokyo 196-8558, Japan) using a Jeol X-Band Microwave Unit (9.8 GHz) at 290 K in dilute (down to approximately 10−5 M) toluene solutions degassed by argon bubbling. The spectra were recorded during one slow (~1 h) scan with a modulation of 0.2 mT at 100 kHz and a power of 4 MW. Isotropic g-factor values were measured experimentally using MgO doped with Mn(II) ions as a standard placed in the resonator simultaneously with the test solution. The spectra were simulated in Winsim v.0.96 software [65]. Estimated accuracy of determination of HFS constants and of the g value was 0.005 mT and 0.0001, respectively.

4.4. CV

CV measurements were performed in a dry glove box with an argon atmosphere and humidity and oxygen levels not exceeding 1 ppm. The analyzed compounds dissolved in acetonitrile (10−4 M) were subjected to electrochemical transformations in a standard three-electrode glass cell at a potential sweep rate of 0.05–1.00 V·s−1. The working electrode was a glassy carbon disc electrode with a diameter of 2.7 mm. Before use, its surface was polished with sandpaper and then by means of chromium (III) oxide paste to achieve a mirror finish. The auxiliary electrode was a platinum wire calcined in a gas burner flame to remove oxides and other possible contaminants from the surface. Potentials of the studied processes were measured relative to a reference electrode, which was a silver wire coated with a layer of silver chloride, separated from the bulk of the electrolyte by an electrolytic bridge filled with a solution of the supporting electrolyte. The reference electrode was calibrated against a ferrocene/ferrocenium couple (E0 = 0.640 V with respect to SHE). The supporting electrolyte was a 0.1 M solution of Bu4NBF4 (99%, Sigma-Aldrich, Burlington, MA, USA) in acetonitrile, ≥99.9%, HPLC gradient grade (Fisher Chemical, Loughborough, UK) with water content not exceeding 20 ppm, according to Karl Fischer titration; Mettler-Toledo titrator C10SD was employed.

4.5. Single-Crystal X-ray Diffractometry

XRD data on single crystals of 1a, 1b, and 3a were collected on a Bruker AXS diffractometer, an Apex Duo (Cu Kα, λ = 1.54178 Å, room temperature). In addition, XRD data on a single crystal of 3a were collected at 100 K on a Bruker D8 QUEST diffractometer. Single-crystal X-ray analyses were carried out in the APEX3 software [66]. Absorption correction was applied by means of Bruker SADABS (version 2.10) [67]. The structure was solved by direct methods and refined by the full-matrix least-squares method in an anisotropic approximation for all nonhydrogen atoms. Positions of the H atoms were calculated geometrically and included in the refinement in a riding model. All calculations for structure solution and refinement were performed in SHELXL-2018/3 [68,69].
Crystallographic data were deposited with the Cambridge Crystallographic Data Centre and can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html, accessed on 28 July 2023 (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44-1223-336033; E-mail: [email protected]).
Crystallographic data for 1a: C19H12F2N3, M = 320.32, T = 296 K, triclinic space group P-1, a = 10.090(3), b = 13.144(3), c = 13.207(4) Å, α = 75.170(15), β = 89.178(15), γ = 67.551(14)°, V = 1558.0(7) Å3; Z = 4, ρcalc = 1.366 g·cm−3, μ(Cu Kα) = 0.829 mm−1, θ range 3.477–68.110°, Ihkl collected/unique 13,490/5451, Rint = 0.0582, 3797 Ihkl with I > 2σ(I), 542 refined parameters, GooF = 1.059, R1 = 0.0458, wR2 = 0.1357, and CCDC 2253805.
Crystallographic data for 1b: C19H12F2N3, M = 320.32, T = 296 K, monoclinic space group C2/c, a = 24.2137(14), b = 4.3811(3), c = 29.4449(19) Å, β = 106.403(4)°, V = 2996.5(3) Å3; Z = 8, ρcalc = 1.420 g·cm−3, μ(Cu Kα) = 0.863 mm−1, θ range 3.806–66.727°, Ihkl collected/unique 9767/2575, Rint = 0.0464, 1800 Ihkl with I > 2σ(I), 217 refined parameters, GooF = 1.030, R1 = 0.0451, wR2 = 0.1235, and CCDC 2253804.
Crystallographic data for 3a: C19H13F2N3, M = 321.32, T = 296 K, orthorhombic space group Pbca, a = 19.7195(10), b = 7.2781(4), c = 22.1358(12) Å, V = 3176.9(3) Å3; Z = 8, ρcalc = 1.344 g·cm−3, μ(Cu Kα) = 0.81 mm−1, θ range 3.994–67.832°, Ihkl collected/unique 18,569/2871, Rint = 0.0526, 2379 Ihkl with I > 2σ(I), 269 refined parameters, GooF = 1.030, R1 = 0.0572, wR2 = 0.1690, and CCDC 2285424.
Crystallographic data for 3a: C19H13F2N3, M = 320.32, T = 100 K, orthorhombic space group Pbca, a = 19.6798(5), b = 7.0705(2), c = 22.0254(6) Å, V = 3064.75(14) Å3; Z = 6, ρcalc = 1.393 g·cm−3, μ(Mo Kα) = 0.101 mm−1, θ range 2.070–30.582°, Ihkl collected/unique 19,008/4684, Rint = 0.0318, 4029 Ihkl with I > 2σ(I), 218 refined parameters, GooF = 0.918, R1 = 0.0431, wR2 = 0.1147, and CCDC 2285423.

4.6. Magnetic Measurements

Magnetic susceptibility of the polycrystalline samples was measured with a Quantum Design MPMSXL SQUID magnetometer in the temperature range 2–300 K in a magnetic field of up to 5 kOe. Diamagnetic corrections were made using the Pascal constants.

4.7. Computational Details

Parameters of exchange interactions ( H ^ = − 2 ∑ J i j S ^ ⃑ i S ^ ⃑ j ) between radicals were calculated via the spin-unrestricted broken-symmetry approach [70] and the Yamaguchi formula [71]
J = − E H S − E B S L S S 2 H S − S 2 B S L S ,
where the energies of the high-spin (HS) and low-spin (LS) states were calculated at the UB3LYP/def2-TZVP [72,73,74] level for XRD geometry of radical pairs.
Geometries of 1a and 1b optimized at the B97-D3/def2-SVP [75,76,77] level in acetonitrile and toluene were used to calculate the EPR parameters (giso and HFC constants with 14N) as well as the energies and oscillator strengths of electronic transitions in the UV-Vis spectra. The solvent was taken into account using the CPCM model [78]. The EPR parameters were computed at the PBE0/def2-TZVP level [79]. The UV/Vis spectra of radicals 1a and 1b were calculated via the time-dependent DFT approach [80] with the B3LYP functional and the def2-TZVP basis set.
All calculations were performed using the ORCA 5.0.1 software package [81].
To simulate the temperature dependence of the molar magnetic susceptibility, χ(T), in the form of product χ(T) × T, we utilized custom-designed software [82]. For both radicals, the magnetic motifs consist of stacks of exchange-coupled radicals. In the case of 1b, these are uniformly bound stacks. For 1a, the situation is more complicated: the stacks consist of two types of molecules, 1aA and 1aB, with three types of contacts (···1aA···1aA···1aB···1aB···), and consequently, there are three different J parameters (J1aA···1aA, J1aA···1aB, and J1aB···1aB). To avoid overparametrization, the ratio of these parameters was fixed based on the calculation results (Table 2).

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/catal13081206/s1, Figure S1. CV curves of oxidation and reduction of 1b (3 × 10−3 M) in 0.1 M Bu4NBF4/MeCN on a glassy carbon disk electrode at a potential sweep rate of 0.1 V/s; Figure S2. (left) CV curves of the oxidation of 1b (3 × 10−3 M) in 0.1 M Bu4NBF4/MeCN on a glassy carbon disk electrode at potential sweep rates of 0.05, 0.10, 0.20, 0.50, and 1.00 V/s. (right) Dependences of the potentials of the peaks of oxidation and reciprocal reduction on the current at the peak for the corresponding process; Figure S3. CV curves of reduction of 1b (3 × 10−3 M) in 0.1 M Bu4NBF4/MeCN on a glassy carbon disc electrode at potential sweep rates of 0.05, 0.10, 0.20, 0.50, and 1.00 V/s. (right) Plots of reduction and reciprocal oxidation peak potentials versus peak current for the respective process; Figure S4. The EPR spectrum of radical 1a (black) in toluene solution (~10−5 M) at 298 K and its modeling (red); Figure S5. The EPR spectrum of radical 1b (black) in toluene solution (~10−5 M) at 298 K and its modeling (red); Figure S6. The experimental electronic absorption spectrum of an acetonitrile solution of radical 1b (10-4 M) recorded at room temperature [the inset shows enlarged spectra of 1b]; Table S1. A series of higher occupied and lower unoccupied MOs of α and β type and their energies for radical 1a.

Author Contributions

Conceptualization, E.T. and N.P.G.; investigation, D.G., A.S., A.A., D.E.G., S.V.M., G.R. and A.B.; formal analysis, A.A., G.R. and A.B.; supervision, M.S. and E.T.; writing—original draft preparation, E.T. and N.P.G. All authors have read and agreed to the published version of the manuscript.

Funding

D.G. (Dmitry Gorbunov), S.M. and N.G. acknowledge the core funding from the Russian Federal Ministry of Science and Higher Education (FWGF-2021-0002) and the Research Resource Center “Irkutsk Supercomputer Center SB RAS” for the computational resources. The authors wish to thank A. Korlyukov (INEOS RAS) for single crystal analyses of 3a at 100 K.

Data Availability Statement

The data presented in this study are available in this article.

Conflicts of Interest

The authors declare no conflict of interest.
