Supported Inverse MnOx/Pt Catalysts Facilitate Reverse Water Gas Shift Reaction

by
Wenli Bi
1,†,
Ruoyu Zhang
1,†,
Qingfeng Ge
2 and
Xinli Zhu
1,*
1
Collaborative Innovation Center of Chemical Science and Engineering, Key Laboratory for Green Chemical Technology of Ministry of Education, School of Chemical Engineering and Technology, Tianjin University, Tianjin 300072, China
2
Department of Chemistry and Biochemistry, Southern Illinois University, Carbondale, IL 62901, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Catalysts 2024, 14(7), 456; https://doi.org/10.3390/catal14070456
Submission received: 14 June 2024 / Revised: 12 July 2024 / Accepted: 13 July 2024 / Published: 16 July 2024
(This article belongs to the Special Issue Catalysis on Stable Molecules (CO2, CO, CH4, N2, NH3) Activation and Their Transformation, 2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Catalytic conversion of CO2 to CO via the reverse water gas shift (RWGS) reaction has been identified as a promising approach for CO2 utilization and mitigation of CO2 emissions. Bare Pt shows low activity for the RWGS reaction due to its low oxophilicity, with few research works having concentrated on the inverse metal oxide/Pt catalyst for the RWGS reaction. In this work, MnOx was deposited on the Pt surface over a SiO2 support to prepare the MnOx/Pt inverse catalyst via a co-impregnation method. Addition of 0.5 wt% Mn to 1 wt% Pt/SiO2 improved the intrinsic reaction rate and turnover frequency at 400 °C by two and twelve times, respectively. Characterizations indicate that MnOx partially encapsulates the surface of the Pt particles and the coverage increases with increasing Mn content, which resembles the concept of strong metal–support interaction (SMSI). Although the surface accessible Pt sites are reduced, new MnOx/Pt interfacial perimeter sites are created, which provide both hydrogenation and C-O activation functionalities synergistically due to the close proximity between Pt and MnOx at the interface, and therefore improve the activity. Moreover, the stability is also significantly improved due to the coverage of Pt by MnOx. This work demonstrates a simple method to tune the oxide/metal interfacial sites of inverse Pt-based catalyst for the RWGS reaction.

Graphical Abstract

1. Introduction

The ever-growing CO2 emissions into the atmosphere have caused negative impacts on the global ecological environment, such as global warming, sea level rise, and ocean acidification [1]. CO2 capture followed by utilization has been identified as a necessary approach for the reduction of CO2 emissions and the mitigation of global warming. Catalytic conversion of the captured CO2 with renewable H2 to value added products, such as CO, methanol and ethanol [2,3,4], has been widely explored recently. Among these products, conversion of CO2 to CO via the reverse water gas shift (RWGS) reaction is of particular interest, as CO can be used as a feedstock for further synthesis of various chemicals. Nevertheless, the activity of CO2 conversion at low temperatures is constrained by the high thermodynamic stability of CO2 [5]. In addition, the selectivity toward CO may be influenced by the competition reaction of methanation, since the latter reaction is strongly exothermic (−164.0 kJ·mol−1) while the RWGS reaction is mildly endothermic (41.3 kJ·mol−1) [6]. Hence, catalysts with high low-temperature activity and selectivity for the RWGS reaction remain to be developed.
Catalysts of metal supported on reducible metal oxide have been widely applied for various reactions, including the RWGS reaction. For example, Pt/TiO2 and Pt/CeO2 catalysts were studied for the RWGS reaction and it was found that the oxygen vacancies on the support play a key role in CO2 activation [7,8,9,10]. During the reaction, the partially reduced (oxophilic) metal oxide activates the C-O bond, and the metal catalyzes hydrogenation, which synergistically enables the reduction of CO2 to CO accompanied with H2O formation. In this case, the metal-oxide interfacial perimeter sites are the active sites since they provide both functionalities. Similar sites are required for hydrodeoxygenation of phenolic compounds [11,12,13,14,15], which also requires C-O breakage and hydrogenation. Hence, finely tuning the interactions between metal and reducible metal oxide, as well as their interface, could be essential to improve the activity for the RWGS reaction. However, little work has been performed to tune the interface between metal and metal oxide for the RWGS reaction.
The interaction between the metal–oxide, or the metal–oxide interface, can be tuned by the phenomenon of strong metal–support interaction (SMSI), i.e., metal encapsulation by reducible oxide overlayers, which typically occurs during high-temperature reduction pretreatment [16,17,18,19,20]. Besides the reduction temperature, the SMSI can be influenced by the identity of the metal oxide, the facet of metal oxide, and the metal particle sizes [11,12,21,22,23,24]. On the other hand, the metal-oxide interface may also be tuned by deposition of metal oxide on the metal surface during catalyst preparation, i.e., the concept of inverse catalyst [25,26,27,28]. In this case, the surface of bare metal or metal supported on an inert support is modified by reducible metal oxide promoter [29]. In both cases, electronic and geometric modification of metal oxide/metal can occur and may determine catalytic performance. A number of previous reports showed that the inverse oxide/metal catalysts can effectively catalyze the water gas shift reaction [26,27,30,31], in which the H2O dissociates on the oxygen vacancies of the metal oxide and CO adsorbs on the metal. The inverse oxide/metal catalysts, such as, Cr2O3/Cu [32], ZnO/Cu [33] and Y2O3/Cu [34], have been explored for the RWGS reaction with high activity.
Pt-based catalysts have been extensively studied for the RWGS reaction owing to the hydrogenation ability [8,9,35,36,37], but the low oxophilicity of Pt renders low activity for the RWGS reaction [38]. In addition, manganese has been widely reported as a promoter in hydrogenation reactions [39,40,41,42]. MnOx readily forms oxygen vacancies under reducing conditions, which may facilitate the adsorption and activation of CO2. To the best of our knowledge, there have been few studies on inverse Pt-based catalyst for the RWGS reaction. Herein, we prepared MnOx/Pt inverse catalyst supported on SiO2 by an incipient wetness co-impregnation method. SiO2 was selected as the support, due to the following: (1) it is relatively cheap and readily available; (2) it is inert, so that one can focus on the interaction between MnOx and Pt, and exclude the influence of support. Our results indicate that the optimal coverage of Pt by MnOx results in an optimal MnOx/Pt interface, leading to improved activity and stability for the RWGS reaction.

2. Results and Discussion

2.1. Catalytic Performance

The catalytic performance of 1PtxMn catalysts (representing 1 wt% Pt − x wt% Mn/SiO2) with varying Mn content (0–5 wt%) for the RWGS reaction was evaluated at 400 °C with a gas hourly space velocity (GHSV) of 60 L·g−1·h−1 and a CO2/H2 molar ratio of 1/4. At 400 °C and H2/CO2 molar ratio of 4, the thermodynamic equilibrium CO2 conversion was 41% toward CO [5]. A high GHSV of 60 L·g−1·h−1 was selected to ensure the CO2 conversion (<11%) is distant from the thermodynamic limitation, and therefore to compare properly the activities of different catalysts. As illustrated in Figure 1, the CO2 conversion increased with increasing Mn first and then kept constant. Specifically, Pt/SiO2 exhibited a low CO2 conversion of 5.1%. The CO2 conversion increased gradually to 6.9%, 8.7%, 9.5%, and 10.0% on 1Pt0.1Mn, 1Pt0.15Mn, 1Pt0.2Mn, and 1Pt0.5Mn, respectively, and then leveled off at ~10% when Mn loading was >0.5 wt%. The selectivity towards CO was 100% without CH4 being detected in any sample. Notably, Mn/SiO2 was inactive under such reaction conditions (consistent with the literature result [39]), suggesting the Mn species acted as a promoter. Considering the high activity and moderate Mn loadings, the 1Pt0.5Mn sample was selected for further study. The mass based intrinsic reaction rate, measured under differential conditions with CO2 conversion < 10% by adjusting the GHSV, on 1Pt0.5Mn (3.01 μmol·g−1·s−1) was 2 times higher than that on Pt/SiO2 (1.54 μmol·g−1·s−1).
The effect of GHSV on the conversion of CO2 over Pt/SiO2 and 1Pt0.5Mn is plotted in Figure 2. In the case of 1Pt0.5Mn, the CO2 conversion increased from 10.0% to 27.8% when the GHSV decreased from 60 to 15 L·g−1·h−1, due to the increased residence time of reactants. Although a similar trend was observed for Pt/SiO2, the CO2 conversion on Pt/SiO2 was consistently inferior to that on 1Pt0.5Mn at the same GHSV, which verified the better catalytic performance of 1Pt0.5Mn. It is worth mentioning that CO was the only product detected over both Pt/SiO2 and 1Pt0.5Mn even at a low GHSV (or long residence time), suggesting further hydrogenation of the produced CO to CH4 did not occur.
The stability test was then performed at 400 °C (Figure 3). To achieve a similar initial CO2 conversion, the GHSVs of 15 and 60 L·g−1·h−1 were selected for Pt/SiO2 and 1Pt0.5Mn, respectively. For Pt/SiO2, continuous deactivation was observed, with the CO2 conversion dropping from the initial 13.6% to 11.5% when the reaction time was increased to 8 h. In contrast, the 1Pt0.5Mn catalyst was rather stable with conversion at ~10% throughout the 8 h test. This result suggested the stability of Pt catalyst was improved with the addition of MnOx. To further confirm the stability of 1Pt0.5Mn, the reaction was also performed at a low GHSV of 15 L·g−1·h−1. The CO2 conversion was much higher, and was indeed slightly increased from 27.8% to 31.3% during the 8 h reaction, with CO as the only product.
The Ea was derived from the Arrhenius plots of intrinsic reaction rates in the temperature range of 360 to 440 °C. Note that CO was the only product under these reaction conditions. As shown in Figure 4, the derived Ea of 1Pt0.5Mn (66.5 kJ·mol−1) is substantially lower than that of Pt/SiO2 (81.1 kJ·mol−1), indicating that the addition of Mn species to Pt may lower the barrier of the rate limiting step in the RWGS reaction. Such difference may imply different active sites in the two samples [43], i.e., bare Pt sites and interfacial perimeter sites of MnOx/Pt, respectively, as is discussed below.

2.2. Catalytic Characterization

To unveil the promotional role of Mn in the RWGS reaction on Pt/SiO2, the catalysts were characterized by various techniques. The XRD patterns of calcined 1PtxMn and Pt/SiO2 catalysts (Figure 5A) showed diffractions at 2θ of 39.8°, 46.2°, 67.6°, and 81.3°, which correspond to metallic Pt(111), (200), (220), and (311) facets (PDF-#04-0802), respectively [44]. This result indicated that most of the Pt precursors had been decomposed to metallic Pt during calcination. Interestingly, no diffractions of MnOx were present for 1PtxMn and Mn/SiO2 samples, indicating that the MnOx species were highly dispersed. To probe the structure of the MnOx species, Raman spectra of 1PtxMn were collected. As shown in Figure 6A, all samples exhibited a broad band centered at 462 cm−1, and this band was little affected by the loadings of Mn, reflecting that this band mainly originated from SiO2 [45]. For 1Pt0.1Mn, a weak band at 603 cm−1 was present, which is attributed to the vibration of Mn-O-Si or Mn-O-Pt, suggesting MnOx is below monolayer coverage at low loadings [46]. As the Mn content increased from 0.1 to 1 wt%, this band shifted gradually to 636 cm−1 and grew in intensity. Since MnO2, Mn2O3, and Mn3O4 show strong Mn-O vibration between 640 and 650 cm−1 [46,47,48], the band at 636 cm−1 likely originated from a mixture of MnOx oxides. This result also indicates that the polymerization degree of MnOx increases with Mn content and the small well-crystallized bulk MnOx particles are formed when the Mn content exceeds 0.5 wt%. Since no XRD diffractions of MnOx were detected, the particle size of MnOx should be smaller than the XRD detection limitation of 3 nm.
H2-TPR was used to analyze the reducibility of 1PtxMn samples (Figure 7). For monometallic Mn/SiO2, two peaks centered at 284 and 378 °C are present, which are typically assigned to stepwise reduction of MnO2 and/or Mn2O3 [42,49,50,51,52]. That is, reduction of MnO2 or Mn2O3 to Mn3O4 first, and then reduction of Mn3O4 to MnO. The corresponding theoretical H2 consumptions, i.e., the H2/Mn molar ratios, are 0.67 or 0.17, and 0.33, respectively. The quantified H2/Mn ratio of the peak at 284 °C is 0.25, which is much lower than 0.67 while it is slightly higher than 0.17. This difference indicates that the Mn/SiO2 sample contains a mixture of Mn2O3 and MnO2, with the former as the dominant component. Our result is also consistent with previous work, which showed the formation of a mixture of MnO2/Mn2O3 on various supports when Mn(NO3)2 was used as the precursor [53]. The H2/Mn ratio of the peak at 284 °C is 0.36, which agrees with the value of 0.33, confirming the reduction of Mn3O4 to dominantly MnO. Differently, no obvious reduction peak is observed for Pt/SiO2, which could be explained by the fact that the majority of the Pt species were reduced during the stabilization of the TCD signal at room temperature. Interestingly, neither H2 consumption peaks of PtOx nor MnOx were observed for 1PtxMn catalysts. This result could be interpreted by H spillover from the Pt surface towards vicinal MnOx species and then reduction of MnOx [35]. This result also suggests that the MnOx should be in close proximity to Pt to enable the reduction.
When the samples were reduced at 400 °C, the XRD patterns (Figure 5B) were similar to those of calcined samples, which allowed us to exclude the formation of PtMn alloy and large MnOx crystallite. The estimated Pt particle sizes using the Scherrer equation are 4.6, 5.2, 4.8, and 4.9 nm for 1Pt/SiO2, 1Pt0.05Mn, 1Pt0.5Mn, and 1Pt1Mn, respectively, indicating that the addition of MnOx has little effect on the particle size of Pt. To explore the interactions between Pt and MnOx, the samples were tested by CO chemisorption. The Pt/SiO2 shows a CO uptake of 9.52 μmol·g−1, which corresponds to a Pt dispersion of 18.6% and agrees well with the value estimated from the Pt particle size. However, no CO uptake was observed for 1Pt0.5Mn, likely due to the low sensitivity of the TCD detector. Thus, the CO adsorption was further followed by FTIR. As shown in Figure 8, no CO adsorption was observed on Mn/SiO2, reflecting CO did not adsorb on MnOx under such conditions. In contrast, a strong band of linear-bound CO at 2071 cm−1 accompanied with a weak band of bridge-bound CO at 1817 cm−1 [9,54,55,56,57] was present on Pt/SiO2. Notably, the former band was strongly reduced by 84% and the latter band was reduced to being barely observable on 1Pt0.5Mn, indicating the surface of the Pt particle was strongly covered by MnOx since the Pt particle size was similar in the two samples. In combination with the results of CO chemisorption and FTIR, the Pt dispersion was estimated to be 3.0% on 1Pt0.5Mn. Additionally, the linear CO band was blue-shifted to 2075 cm−1 on 1Pt0.5Mn relative to Pt/SiO2, which likely stemmed from the charge transfer from Pt to MnOx [6,58]. One may expect the electron deficient Pt due to vicinal MnOx to weaken the back-donation of the Pt d-orbital toward the antibonding 2π* orbital of CO, resulting in weakened Pt-C bond while strengthening the C-O bond (band blue shift) [55,59,60]. As such, the desorption of CO is more favorable on 1Pt0.5Mn.
The interactions between Pt and MnOx were further observed by TEM. Figure 9 shows the high-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) and energy dispersive spectroscopy (EDS) mapping of the 1Pt0.5Mn sample. It can be seen that the Pt aggregated into particles, while the Mn was uniformly distributed (Figure 9A–C). As highlighted in white circles (Figure 9D), the Pt and Mn elements were concentrated in the same area, confirming the direct interaction between Pt with MnOx. Consequently, MnOx may partially cover the surface of Pt and thus lower the accessible surface Pt sites.
To further study the electronic interactions between Pt and MnOx, XPS analysis was performed. As shown in Figure 10A, the reduced Pt/SiO2 exhibited two Pt valence states, Pt0 and Ptδ+, with the BE of Pt 4f7/2 at 71.2 and 72.8 eV, respectively [10,61,62]. Relative to Pt/SiO2, the BE of Pt0 for 1Pt0.5Mn is slightly higher, which reflects the decreased electron density. The intensity ratio of Ptδ+/(Pt0 + Ptδ+) is 8.7% for Pt/SiO2, whereas it increases to 15.8% for 1Pt0.5Mn. Taken together, these results reflect the charge transfer from Pt to MnOx in close proximity. As exhibited in Figure 10B, the XPS of the Mn 2p region for Mn/SiO2 can be fitted with three peaks, i.e., Mn4+, Mn3+, and Mn2+ at BE of 643.5, 641.9, and 640.1 eV, respectively [51,52,63]. The presence of Mn4+ and Mn3+ likely resulted from surface oxidation during sample transfer, which reflects the oxophilic property of MnOx which thus may activate the C-O bond of CO2. Compared with Mn/SiO2, slight shifts in BE of Mn3+ and Mn2+ to lower values were observed for 1Pt0.5Mn, indicating charge transfer from Pt to MnOx. In addition, although Mn3+ is the dominant state for both samples, the 1Pt0.5Mn has more Mn species with lower valence state than Mn/SiO2 (Table 1), indicating that the presence of Pt facilitates the reduction of MnOx. Notably, the estimated Mn/Pt atomic ratio on the catalyst surface is 3.44, which is much higher than the theoretical value of 1.78. This result indicates the accumulation of Mn species on the surface, and confirms the coverage of Pt by MnOx. Note that the O 1s spectrum was dominated by O of SiO2 due to the low loadings of Mn, which makes the analysis of O species in MnOx to be not possible.

2.3. Discussion

Based on the catalytic performance and characterization results, an inverse MnOx/Pt structure model of 1PtxMn catalysts is proposed. As shown in Figure 11, the reduced MnOx partially covers the surface of Pt particles, which reduces the number of accessible Pt sites while creating new MnOx/Pt interfacial perimeter sites. In addition, such coverage also results in charge transfer from Pt to MnOx, resulting in weakened CO adsorption. This structure resembles the phenomenon of SMSI, i.e., encapsulation of metal particles by partially reduced metal oxide, which is typically observed during high temperature reduction of metal on a reducible metal oxide support. In this work, the structure was achieved on an inert support of SiO2 with the surface Pt being partially covered by MnOx. Compared with SMSI, the coverage degree can be simply tuned by the amount of MnOx doped to avoid the usage of expensive bulk MnOx support which may reduce the cost of catalyst. In combination of Raman results (Figure 6A) and catalytic performance (Figure 1), it seems that 0.2 wt% Mn (Mn/Pt molar ratio of 0.71) is a critical point of coverage of Pt by MnOx. At low Mn loadings of <0.2 wt%, i.e., below monolayer coverage, the MnOx species is highly dispersed, which is likely in an isolated monomeric state as shown by the observation of the Si-O-Mn or Pt-O-Mn vibration band (Figure 6). In this range, the conversion of CO2 increases almost linearly with increasing Mn due to increased interactions between Pt and MnOx. When the Mn content is >0.2 wt%, bulk MnOx may start to form and most of these species may stay distant from Pt, which has little promotional effect on the RWGS activity. When the Mn loading is ≥0.5 wt%, the CO2 conversion does not change with further increase of Mn, likely due to formation of MnOx distant from Pt.
The RWGS reaction requires the breakage of one C-O bond of CO2 and formation of H2O by hydrogenation. It is well known that Pt based catalysts are very active for hydrogenation while having low oxophilicity for activation of the C-O bond of CO2, resulting in hydrogenation assisted C-O breakage (carboxyl pathway) as the dominant pathway [38]. The formation of MnOx/Pt interfacial perimeter sites in 1PtxMn catalysts may provide both the hydrogen functionality on Pt and C-O activation functionality on oxophilic MnOx in close proximity, which may synergistically facilitate the RWGS reaction (Figure 11). Although >84% surface Pt was covered by MnOx in the 1Pt0.5Mn sample, the intrinsic reaction rate is doubled compared with Pt/SiO2. Moreover, the estimated turnover frequency (TOF) in terms of accessible Pt sites on the 1Pt0.5Mn (1.97 s−1) is twelve times higher than that on Pt/SiO2 (0.16 s−1), and the Ea is substantially lowered on 1Pt0.5Mn, confirming the MnOx/Pt interfacial perimeter sites are the active sites. Collectively, these results point to the interfacial MnOx/Pt perimeter sites as being likely to be the active sites, which provide balanced hydrogenation and C-O activation functionalities due to close proximity of the two kinds of sites. Although the TOF in current work is lower than that on Pt-Re/SiO2 (3.48 s−1 at 400 °C), CH4 is formed on the latter catalyst [35]. The TOF in the current work is also comparable with K promoted Pt/zeolite catalysts (0.1–2.25 s−1 varying with K/Pt atomic ratio), on which CH4 is also formed [64]. Thus, the SiO2 supported inverse MnOx/Pt catalysts can achieve both high RWGS reaction activity and excellent CO selectivity.
More importantly, the optimal 1Pt0.5Mn appears to be very stable during the RWGS reaction (Figure 3). Despite the GHSV being four times higher for 1Pt0.5Mn, the Pt particle size estimated from XRD (Figure 5) remained almost constant (4.8 vs. 4.9 nm) after 8 h reaction. In contrast, it grew from 4.6 to 5.7 nm for Pt/SiO2. This difference indicates that the presence of adjacent MnOx prevented the sintering of Pt. In addition, the absence of D and G bands (at 1360 and 1580 cm−1, respectively) of carbon in the Raman spectra (Figure 6B) of used samples excluded the formation of obvious carbon deposition. In conclusion, we demonstrated a simple approach to generate and tune interfacial perimeter sites of MnOx/Pt, which synergistically enhance the activity and stability of the RWGS reaction with CO as the only product.

3. Experimental

3.1. Catalyst Preparation

The 1PtxMn/SiO2 catalysts with different Mn loadings were prepared by an incipient wetness co-impregnation method. The amount of Pt loading was fixed at 1 wt%, while the amount of Mn was varied from 0 to 5 wt%. SiO2 (Sigma-Aldrich, Burlington, MA, USA, 99.8%, specific surface area of 200 m2·g−1) was co-impregnated with the appropriate amount of aqueous solution of H2PtCl6·6H2O (Kermel, AR, Tianjin, China) and Mn(NO3)2 (50% in water, Damao, AR, Tianjin, China) at room temperature for 12 h. The mixture was then dried overnight at 100 °C followed by calcination in air at 450 °C for 4 h. These catalysts were denoted as 1PtxMn, where x is the mass ratio of Mn/Pt. In addition, reference samples of Pt/SiO2 (1 wt% Pt) and Mn/SiO2 (1 wt% Mn) were prepared by following the same procedure.

3.2. Catalyst Characterization

X-ray diffraction (XRD) patterns were recorded on a MiniFlex 600 diffractometer (Rigaku, Tokyo, Japan), which was operated at 40 kV and 20 mA, with a Cu Kα radiation source (λ = 1.54056 Å). The samples were scanned in the 2θ range of 10–90° at a rate of 2°·min−1. Raman spectra were recorded on a RM-1000 instrument (Renishaw, London, UK) equipped with a visible excitation of 532 nm. All samples were ground to powder and dried for 12 h prior to measurement. X-ray photoelectron spectroscopy (XPS) was conducted using a Thermo Scientific K-Alpha system (Waltham, MA, USA) with a chamber base pressure of 2 × 10−7 mbar. This system was equipped with a monochromated Al Kα (1486.6 eV) X-ray source. All spectra were calibrated with the binding energy (BE) of the adventitious C 1s peak at 284.80 eV.
Hydrogen temperature programmed reduction (H2-TPR) was performed using a Chemisorb 2750 (Micromeritics, Norcross, GA, USA) equipped with a thermal conductive detector (TCD) to monitor the consumption of H2. A sample of 100 mg was placed in a U-tube quartz reactor and pretreated by the flow of Ar (30 mL·min−1) at 300 °C for 1 h. After pretreatment, the temperature was cooled down to 30 °C and a 10% H2/Ar (30 mL·min−1) was introduced to the system. After stabilization of the TCD signal, the temperature was ramped up to 800 °C at a rate of 10 °C·min−1. CO dynamic pulse chemisorption was conducted on the same equipment. The sample (200 mg) was fixed in a U-tube quartz reactor, pre-reduced at 400 °C in flowing 10% H2/Ar for 1 h, held at the same temperature in flowing He for 1 h, and then cooled to room temperature in flowing He. Pulses of 5 vol.% CO/He (500 μL) were injected to the catalyst until saturation.
Fourier transform infrared spectroscopy (FTIR) of CO adsorption was recorded on a PerkinElmer Frontier spectrometer (Waltham, MA, USA) with an in situ transmission reaction cell (Harrick) and a DTGS detector. All spectra were recorded averaging 64 scans and a resolution of 4 cm−1. The sample wafer was reduced in situ at 400 °C for 1 h, flushed with Ar (90 mL·min−1) for another 1 h, and then cooled to room temperature, at which a background spectrum was collected. After that, a 5 vol.% CO/He stream was introduced into the cell for 40 min to saturate the surface of the catalyst. Subsequently, physically adsorbed CO was removed by flowing Ar (25 mL·min−1) for 120 min.

3.3. Catalytic Activity

The catalytic performance for reduction of CO2 was evaluated at 400 °C and atmospheric pressure. The catalyst sample (40–60 mesh) was placed in the center of a fixed bed quartz tubular reactor with an outer diameter of 6 mm, and was then reduced at 400 °C for 1 h prior to reaction. Subsequently, the reactants (50 mL·min−1, molar ratio of CO2/H2/Ar = 1/4/5) were introduced for a typical run. The outflow passed through an ice-water trap and silica gel column to remove H2O, and was then analyzed online on a gas chromatograph (Agilent 7890B, Santa Clara, CA, USA) equipped with a TCD detector and two packed columns (Porapak Q and 5A molecular sieves). To measure the intrinsic reaction rate and apparent activation energy (Ea), the reaction was conducted under differential conditions (conversion < 10%) to exclude both internal and external mass transfer by adjusting GHSV. The carbon balance was maintained at >95% for each run. The mass based intrinsic reaction rate was defined as moles of converted CO2 per second per gram catalyst. The CO2 conversion and selectivities of CO and CH4 were calculated using the following equations [35]:
CO2 conversion: XCO2 (%) = [(COout + CH4out)/(CO2out + COout + CH4out)] × 100%
CO selectivity: SCO (%) = [COout/(COout + CH4out)] × 100%
CH4 selectivity: SCH4 (%) = [CH4out/(COout + CH4out)] × 100%

4. Conclusions

In summary, a series of MnOx/Pt inverse catalysts with varying Mn content were prepared by a co-impregnation method to convert selectively CO2 to CO via the RWGS reaction. Addition of 0.5 wt% Mn to 1 wt% Pt/SiO2 improved the intrinsic reaction rate and turnover frequency by two and twelve times, respectively. Characterization results indicate that MnOx partially encapsulates the surface of the Pt particles and the coverage increases with increasing Mn content. Although the surface accessible Pt sites are reduced, new MnOx/Pt interfacial perimeter sites are created, which provide both hydrogenation and C-O activation functionalities synergistically due to close proximity between Pt and MnOx at the interface. Consequently, the apparent activation energy is lowered on the MnOx/Pt catalyst, resulting in improved activity. Moreover, the stability is also significantly improved due to the coverage of Pt by MnOx.

Author Contributions

Investigation, Data curation, Writing—original draft, W.B.; Validation, R.Z.; Validation, Q.G.; Conceptualization, Validation, Resources, Writing—review and editing, Supervision, Funding acquisition, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the National Natural Science Foundation of China (22278299) and the Fundamental Research Funds for the Central Universities.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jiang, L.-Q.; Dunne, J.; Carter, B.R.; Tjiputra, J.F.; Terhaar, J.; Sharp, J.D.; Olsen, A.; Alin, S.; Bakker, D.C.E.; Feely, R.A.; et al. Global surface ocean acidification indicators from 1750 to 2100. J. Adv. Model. Earth Syst. 2023, 15, e2022MS003563. [Google Scholar] [CrossRef]
  2. Schakel, W.; Oreggioni, G.; Singh, B.; Strømman, A.; Ramírez, A. Assessing the techno-environmental performance of CO2 utilization via dry reforming of methane for the production of dimethyl ether. J. CO2 Util. 2016, 16, 138–149. [Google Scholar] [CrossRef]
  3. Hu, B.; Guild, C.; Suib, S.L. Thermal, electrochemical, and photochemical conversion of CO2 to fuels and value-added products. J. CO2 Util. 2013, 1, 18–27. [Google Scholar] [CrossRef]
  4. Galadima, A.; Muraza, O. Catalytic thermal conversion of CO2 into fuels: Perspective and challenges. Renew. Sustain. Energy Rev. 2019, 115, 109333. [Google Scholar] [CrossRef]
  5. Su, X.; Yang, X.; Zhao, B.; Huang, Y. Designing of highly selective and high-temperature endurable RWGS heterogeneous catalysts: Recent advances and the future directions. J. Energy Chem. 2017, 26, 854–867. [Google Scholar] [CrossRef]
  6. Zhang, C.; Zhang, R.; Liu, Y.; Wu, X.; Wang, H.; Ge, Q.; Zhu, X. Blocking methanation during reverse water gas shift reaction on Ni/SiO2 catalysts by surface Ag. ChemCatChem 2023, 15, e202201284. [Google Scholar] [CrossRef]
  7. Chen, X.; Su, X.; Liang, B.; Yang, X.; Ren, X.; Duan, H.; Huang, Y.; Zhang, T. Identification of relevant active sites and a mechanism study for reverse water gas shift reaction over Pt/CeO2 catalysts. J. Energy Chem. 2016, 25, 1051–1057. [Google Scholar] [CrossRef]
  8. Chen, X.; Su, X.; Duan, H.; Liang, B.; Huang, Y.; Zhang, T. Catalytic performance of the Pt/TiO2 catalysts in reverse water gas shift reaction: Controlled product selectivity and a mechanism study. Catal. Today 2017, 281, 312–318. [Google Scholar] [CrossRef]
  9. Kim, S.S.; Lee, H.H.; Hong, S.C. A study on the effect of support’s reducibility on the reverse water-gas shift reaction over Pt catalysts. Appl. Catal. A 2012, 423–424, 100–107. [Google Scholar] [CrossRef]
  10. Chen, Z.; Liang, L.; Yuan, H.; Liu, H.; Wu, P.; Fu, M.; Wu, J.; Chen, P.; Qiu, Y.; Ye, D.; et al. Reciprocal regulation between support defects and strong metal-support interactions for highly efficient reverse water gas shift reaction over Pt/TiO2 nanosheets catalysts. Appl. Catal. B 2021, 298, 120507. [Google Scholar] [CrossRef]
  11. Wu, X.; Liu, C.-j.; Wang, H.; Ge, Q.; Zhu, X. Origin of strong metal-support interactions between Pt and anatase TiO2 facets for hydrodeoxygenation of m-cresol on Pt/TiO2 catalysts. J. Catal. 2023, 418, 203–215. [Google Scholar] [CrossRef]
  12. Cui, B.; Wang, H.; Ge, Q.; Zhu, X. Size-dependent strong metal-support interactions of rutile TiO2-supported Ni catalysts for hydrodeoxygenation of m-cresol. Catalysts 2022, 12, 955. [Google Scholar] [CrossRef]
  13. Cui, B.; Wang, H.; Han, J.; Ge, Q.; Zhu, X. Crystal-phase-depended strong metal-support interactions enhancing hydrodeoxygenation of m-cresol on Ni/TiO2 catalysts. J. Catal. 2022, 413, 880–890. [Google Scholar] [CrossRef]
  14. Zhao, X.; Wu, X.; Wang, H.; Han, J.; Ge, Q.; Zhu, X. Effect of strong metal-support interaction of Pt/TiO2 on hydrodeoxygenation of m-cresol. ChemistrySelect 2018, 3, 10364–10370. [Google Scholar] [CrossRef]
  15. Huang, R.; Kwon, O.; Lin, C.; Gorte, R.J. The effects of SMSI on m-cresol hydrodeoxygenation over Pt/Nb2O5 and Pt/TiO2. J. Catal. 2021, 398, 102–108. [Google Scholar] [CrossRef]
  16. Ro, I.; Resasco, J.; Christopher, P. Approaches for understanding and controlling interfacial effects in oxide-supported metal catalysts. ACS Catal. 2018, 8, 7368–7387. [Google Scholar] [CrossRef]
  17. Tauster, S.J.; Fung, S.C.; Garten, R.L. Strong metal-support interactions. Group 8 noble metals supported on titanium dioxide. J. Am. Chem. Soc. 1978, 100, 170–175. [Google Scholar] [CrossRef]
  18. Pesty, F.; Steinrück, H.-P.; Madey, T.E. Thermal stability of Pt films on TiO2(110): Evidence for encapsulation. Surf. Sci. 1995, 339, 83–95. [Google Scholar] [CrossRef]
  19. Zhu Chen, J.; Talpade, A.; Canning, G.A.; Probus, P.R.; Ribeiro, F.H.; Datye, A.K.; Miller, J.T. Strong metal-support interaction (SMSI) of Pt/CeO2 and its effect on propane dehydrogenation. Catal. Today 2021, 371, 4–10. [Google Scholar] [CrossRef]
  20. Han, B.; Guo, Y.; Huang, Y.; Xi, W.; Xu, J.; Luo, J.; Qi, H.; Ren, Y.; Liu, X.; Qiao, B.; et al. Strong metal-support interactions between Pt single atoms and TiO2. Angew. Chem. Int. Ed. 2020, 59, 11824–11829. [Google Scholar] [CrossRef]
  21. Liu, L.; Zhou, F.; Wang, L.; Qi, X.; Shi, F.; Deng, Y. Low-temperature CO oxidation over supported Pt, Pd catalysts: Particular role of FeOx support for oxygen supply during reactions. J. Catal. 2010, 274, 1–10. [Google Scholar] [CrossRef]
  22. Sun, Y.; Chen, L.; Bao, Y.; Zhang, Y.; Wang, J.; Fu, M.; Wu, J.; Ye, D. The applications of morphology controlled ZnO in catalysis. Catalysts 2016, 6, 188. [Google Scholar] [CrossRef]
  23. Rieboldt, F.; Helveg, S.; Bechstein, R.; Lammich, L.; Besenbacher, F.; Lauritsen, J.V.; Wendt, S. Formation and sintering of Pt nanoparticles on vicinal rutile TiO2 surfaces. Phys. Chem. Chem. Phys. 2014, 16, 21289–21299. [Google Scholar] [CrossRef] [PubMed]
  24. Ding, S.; Zhu, X. Tuning strong metal-support interactions for enhancing direct deoxygenation of biomass-lignin derived phenolics. ChemCatChem 2024, 16, e202301552. [Google Scholar] [CrossRef]
  25. Rodríguez, J.A.; Hrbek, J. Inverse oxide/metal catalysts: A versatile approach for activity tests and mechanistic studies. Surf. Sci. 2010, 604, 241–244. [Google Scholar] [CrossRef]
  26. Rodriguez, J.A.; Graciani, J.; Evans, J.; Park, J.B.; Yang, F.; Stacchiola, D.; Senanayake, S.D.; Ma, S.; Pérez, M.; Liu, P.; et al. Water-gas shift reaction on a highly active inverse CeOx/Cu(111) catalyst: Unique role of ceria nanoparticles. Angew. Chem. Int. Ed. 2009, 48, 8047–8050. [Google Scholar] [CrossRef] [PubMed]
  27. Rodriguez, J.A.; Ma, S.; Liu, P.; Hrbek, J.; Evans, J.; Pérez, M. Activity of CeOx and TiOx nanoparticles grown on Au(111) in the water-gas shift reaction. Science 2007, 318, 1757–1760. [Google Scholar] [CrossRef] [PubMed]
  28. Kapiamba, K.F.; Otor, H.O.; Viamajala, S.; Alba-Rubio, A.C. Inverse oxide/metal catalysts for CO2 hydrogenation to methanol. Energy Fuels 2022, 36, 11691–11711. [Google Scholar] [CrossRef]
  29. Marlowe, J.; Deshpande, S.; Vlachos, D.G.; Abu-Omar, M.M.; Christopher, P. Effect of dynamic and preferential decoration of Pt catalyst surfaces by WOx on hydrodeoxygenation reactions. J. Am. Chem. Soc. 2024, 146, 13862–13874. [Google Scholar] [CrossRef]
  30. Barrio, L.; Estrella, M.; Zhou, G.; Wen, W.; Hanson, J.C.; Hungría, A.B.; Hornés, A.; Fernández-García, M.; Martínez-Arias, A.; Rodriguez, J.A. Unraveling the active site in copper-ceria systems for the water-gas shift reaction: In situ characterization of an inverse powder CeO2−x/CuO-Cu catalyst. J. Phys. Chem. C 2010, 114, 3580–3587. [Google Scholar] [CrossRef]
  31. Singh Negi, S.; Kim, H.-M.; Cheon, B.-S.; Jeong, D.-W. Active nanointerfaces sites for low-temperature water-gas shift reaction over inverse configuration Nb-CeO2/Cu catalysts. Fuel 2024, 362, 130908. [Google Scholar] [CrossRef]
  32. Shen, Y.; Xiao, Z.; Liu, J.; Wang, Z. Facile preparation of inverse nanoporous Cr2O3/Cu catalysts for reverse water-gas shift reaction. ChemCatChem 2019, 11, 5439–5443. [Google Scholar] [CrossRef]
  33. Xiong, W.; Wu, Z.; Chen, X.; Ding, J.; Ye, A.; Zhang, W.; Huang, W. Active copper structures in ZnO-Cu interfacial catalysis: CO2 hydrogenation to methanol and reverse water-gas shift reactions. Sci. China Chem. 2024, 67, 715–723. [Google Scholar] [CrossRef]
  34. Li, Z.-X.; Xu, K.; Wang, W.-W.; Fu, X.-P.; Jia, C.-j. Stabilized inverse Y2O3/Cu interfaces boost the performance of the reverse water-gas shift reaction. Catal. Sci. Technol. 2024, 14, 3483–3492. [Google Scholar] [CrossRef]
  35. Liu, Y.; Li, L.; Zhang, R.; Guo, Y.; Wang, H.; Ge, Q.; Zhu, X. Synergetic enhancement of activity and selectivity for reverse water gas shift reaction on Pt-Re/SiO2 catalysts. J. CO2 Util. 2022, 63, 102128. [Google Scholar] [CrossRef]
  36. Kattel, S.; Yu, W.; Yang, X.; Yan, B.; Huang, Y.; Wan, W.; Liu, P.; Chen, J.G. CO2 hydrogenation over oxide-supported PtCo catalysts: The role of the oxide support in determining the product selectivity. Angew. Chem. Int. Ed. 2016, 55, 7968–7973. [Google Scholar] [CrossRef] [PubMed]
  37. Kobayashi, D.; Kobayashi, H.; Kusada, K.; Yamamoto, T.; Toriyama, T.; Matsumura, S.; Kawaguchi, S.; Kubota, Y.; Haneda, M.; Aspera, S.M.; et al. Boosting reverse water-gas shift reaction activity of Pt nanoparticles through light doping of W. J. Mater. Chem. A 2021, 9, 15613–15617. [Google Scholar] [CrossRef]
  38. Kattel, S.; Yan, B.; Chen, J.G.; Liu, P. CO2 hydrogenation on Pt, Pt/SiO2 and Pt/TiO2: Importance of synergy between Pt and oxide support. J. Catal. 2016, 343, 115–126. [Google Scholar] [CrossRef]
  39. Dalebout, R.; Barberis, L.; Visser, N.L.; van der Hoeven, J.E.S.; van der Eerden, A.M.J.; Stewart, J.A.; Meirer, F.; de Jong, K.P.; de Jongh, P.E. Manganese oxide as a promoter for copper catalysts in CO2 and CO hydrogenation. ChemCatChem 2022, 14, e202200451. [Google Scholar] [CrossRef]
  40. Dorner, R.W.; Hardy, D.R.; Williams, F.W.; Willauer, H.D. K and Mn doped iron-based CO2 hydrogenation catalysts: Detection of KAlH4 as part of the catalyst’s active phase. Appl. Catal. A 2010, 373, 112–121. [Google Scholar] [CrossRef]
  41. González-Arias, J.; González-Castaño, M.; Sánchez, M.E.; Cara-Jiménez, J.; Arellano-García, H. Valorization of biomass-derived CO2 residues with Cu-MnOx catalysts for RWGS reaction. Renew. Energy 2022, 182, 443–451. [Google Scholar] [CrossRef]
  42. Shadravan, V.; Bukas, V.J.; Gunasooriya, G.T.K.K.; Waleson, J.; Drewery, M.; Karibika, J.; Jones, J.; Kennedy, E.; Adesina, A.; Nørskov, J.K.; et al. Effect of manganese on the selective catalytic hydrogenation of COx in the presence of light hydrocarbons over Ni/Al2O3: An experimental and computational study. ACS Catal. 2019, 10, 1535–1547. [Google Scholar] [CrossRef]
  43. Zhukova, A.; Chuklina, S.; Fionov, Y.; Vakhrushev, N.; Sazonova, A.; Mikhalenko, I.; Zhukov, D.; Isaikina, O.; Fionov, A.; Il’Icheva, A. Enhanced ethanol dehydrogenation over Ni-containing zirconia-alumina catalysts with microwave-assisted synthesis. Res. Chem. Intermed. 2024, 50, 1331–1354. [Google Scholar] [CrossRef]
  44. Janampelli, S.; Darbha, S. Promotional effect of WOx in Pt-WOx/AlPO4-5 catalyzed deoxygenation of fatty acids. ChemistrySelect 2017, 2, 1895–1901. [Google Scholar] [CrossRef]
  45. Wu, Y.; Sourav, S.; Worrad, A.; Zhou, J.; Caratzoulas, S.; Tsilomelekis, G.; Zheng, W.; Vlachos, D.G. Dynamic formation of brønsted acid sites over supported WOx/Pt on SiO2 inverse catalysts-spectroscopy, probe chemistry, and calculations. ACS Catal. 2023, 13, 7371–7382. [Google Scholar] [CrossRef]
  46. Patcas, F.; Buciuman, F.C. Investigations on formation and structure of MnOx/SiO2 catalysts. Z. Phys. Chem. 2001, 215, 29–36. [Google Scholar] [CrossRef]
  47. Chen, Z.; Yang, Q.; Li, H.; Li, X.; Wang, L.; Chi Tsang, S. Cr-MnOx mixed-oxide catalysts for selective catalytic reduction of NO with NH3 at low temperature. J. Catal. 2010, 276, 56–65. [Google Scholar] [CrossRef]
  48. Zhang, X.; Bi, F.; Zhu, Z.; Yang, Y.; Zhao, S.; Chen, J.; Lv, X.; Wang, Y.; Xu, J.; Liu, N. The promoting effect of H2O on rod-like MnCeOx derived from MOFs for toluene oxidation: A combined experimental and theoretical investigation. Appl. Catal. B 2021, 297, 120393. [Google Scholar] [CrossRef]
  49. Delimaris, D.; Ioannides, T. VOC oxidation over MnOx-CeO2 catalysts prepared by a combustion method. Appl. Catal. B 2008, 84, 303–312. [Google Scholar] [CrossRef]
  50. Chen, J.; Chen, X.; Xu, W.; Xu, Z.; Chen, J.; Jia, H.; Chen, J. Hydrolysis driving redox reaction to synthesize Mn-Fe binary oxides as highly active catalysts for the removal of toluene. Chem. Eng. J. 2017, 330, 281–293. [Google Scholar] [CrossRef]
  51. Ru, X.; Li, W.; Wang, X.; Shi, Z.; Wen, X.; Mo, S.; Zhang, Q.; Mo, D. Regulating the surface local environment of MnO2 materials via metal-support interaction in Pt/MnO2 hetero-catalysts for boosting methanol oxidation. Chem. Eng. Sci. 2023, 281, 119079. [Google Scholar] [CrossRef]
  52. Zhang, H.; Sui, S.; Zheng, X.; Cao, R.; Zhang, P. One-pot synthesis of atomically dispersed Pt on MnO2 for efficient catalytic decomposition of toluene at low temperatures. Appl. Catal. B 2019, 257, 117878. [Google Scholar] [CrossRef]
  53. Arena, F.; Torre, T.; Raimondo, C.; Parmaliana, A. Structure and redox properties of bulk and supported manganese oxide catalysts. Phys. Chem. Chem. Phys. 2001, 3, 1911–1917. [Google Scholar] [CrossRef]
  54. Kikkawa, S.; Teramura, K.; Kato, K.; Asakura, H.; Hosokawa, S.; Tanaka, T. Formation of CH4 at the metal-support interface of Pt/Al2O3 during hydrogenation of CO2: Operando XAS-DRIFTS study. ChemCatChem 2022, 14, e202101723. [Google Scholar] [CrossRef]
  55. Bazin, P.; Saur, O.; Lavalley, J.C.; Daturi, M.; Blanchard, G. FT-IR study of CO adsorption on Pt/CeO2: Characterisation and structural rearrangement of small Pt particles. Phys. Chem. Chem. Phys. 2005, 7, 187. [Google Scholar] [CrossRef]
  56. Wu, Q.; Li, H.; Yang, G.; Cao, Y.; Wang, H.; Peng, F.; Yu, H. Surface intermediates steer the pathways of CO2 hydrogenation on Pt/γ-Al2O3: Importance of the metal-support interface. J. Catal. 2023, 425, 40–49. [Google Scholar] [CrossRef]
  57. Liu, D.; Li, Y.; Kottwitz, M.; Yan, B.; Yao, S.; Gamalski, A.; Grolimund, D.; Safonova, O.V.; Nachtegaal, M.; Chen, J.G.; et al. Identifying dynamic structural changes of active sites in Pt-Ni bimetallic catalysts using multimodal approaches. ACS Catal. 2018, 8, 4120–4131. [Google Scholar] [CrossRef]
  58. Zhang, R.; Wei, A.; Zhu, M.; Wu, X.; Wang, H.; Zhu, X.; Ge, Q. Tuning reverse water gas shift and methanation reactions during CO2 reduction on Ni catalysts via surface modification by MoOx. J. CO2 Util. 2021, 52, 101678. [Google Scholar] [CrossRef]
  59. Wang, H.; Bootharaju, M.S.; Kim, J.H.; Wang, Y.; Wang, K.; Zhao, M.; Zhang, R.; Xu, J.; Hyeon, T.; Wang, X.; et al. Synergistic interactions of neighboring platinum and iron atoms enhance reverse water-gas shift reaction performance. J. Am. Chem. Soc. 2023, 145, 2264–2270. [Google Scholar] [CrossRef]
  60. Porosoff, M.D.; Chen, J.G. Trends in the catalytic reduction of CO2 by hydrogen over supported monometallic and bimetallic catalysts. J. Catal. 2013, 301, 30–37. [Google Scholar] [CrossRef]
  61. Zhao, Z.; Wang, M.; Ma, P.; Zheng, Y.; Chen, J.; Li, H.; Zhang, X.; Zheng, K.; Kuang, Q.; Xie, Z.-X. Atomically dispersed Pt/CeO2 catalyst with superior CO selectivity in reverse water gas shift reaction. Appl. Catal. B 2021, 291, 120101. [Google Scholar] [CrossRef]
  62. Huang, Z.; Yuan, Y.; Song, M.; Hao, Z.; Xiao, J.; Cai, D.; Ibrahim, A.-R.; Zhan, G. CO2 hydrogenation over mesoporous Ni-Pt/SiO2 nanorod catalysts: Determining CH4/CO selectivity by surface ratio of Ni/Pt. Chem. Eng. Sci. 2022, 247, 117106. [Google Scholar] [CrossRef]
  63. Xu, Z.; Mo, S.; Li, Y.; Zhang, Y.; Wu, J.; Fu, M.; Niu, X.; Hu, Y.; Ye, D. Pt/MnOx for toluene mineralization via ozonation catalysis at low temperature: SMSI optimization of surface oxygen species. Chemosphere 2022, 286, 131754. [Google Scholar] [CrossRef]
  64. Yang, X.; Su, X.; Chen, X.; Duan, H.; Liang, B.; Liu, Q.; Liu, X.; Ren, Y.; Huang, Y.; Zhang, T. Promotion effects of potassium on the activity and selectivity of Pt/zeolite catalysts for reverse water gas shift reaction. Appl. Catal. B 2017, 216, 95–105. [Google Scholar] [CrossRef]
Catalysts 14 00456 g001

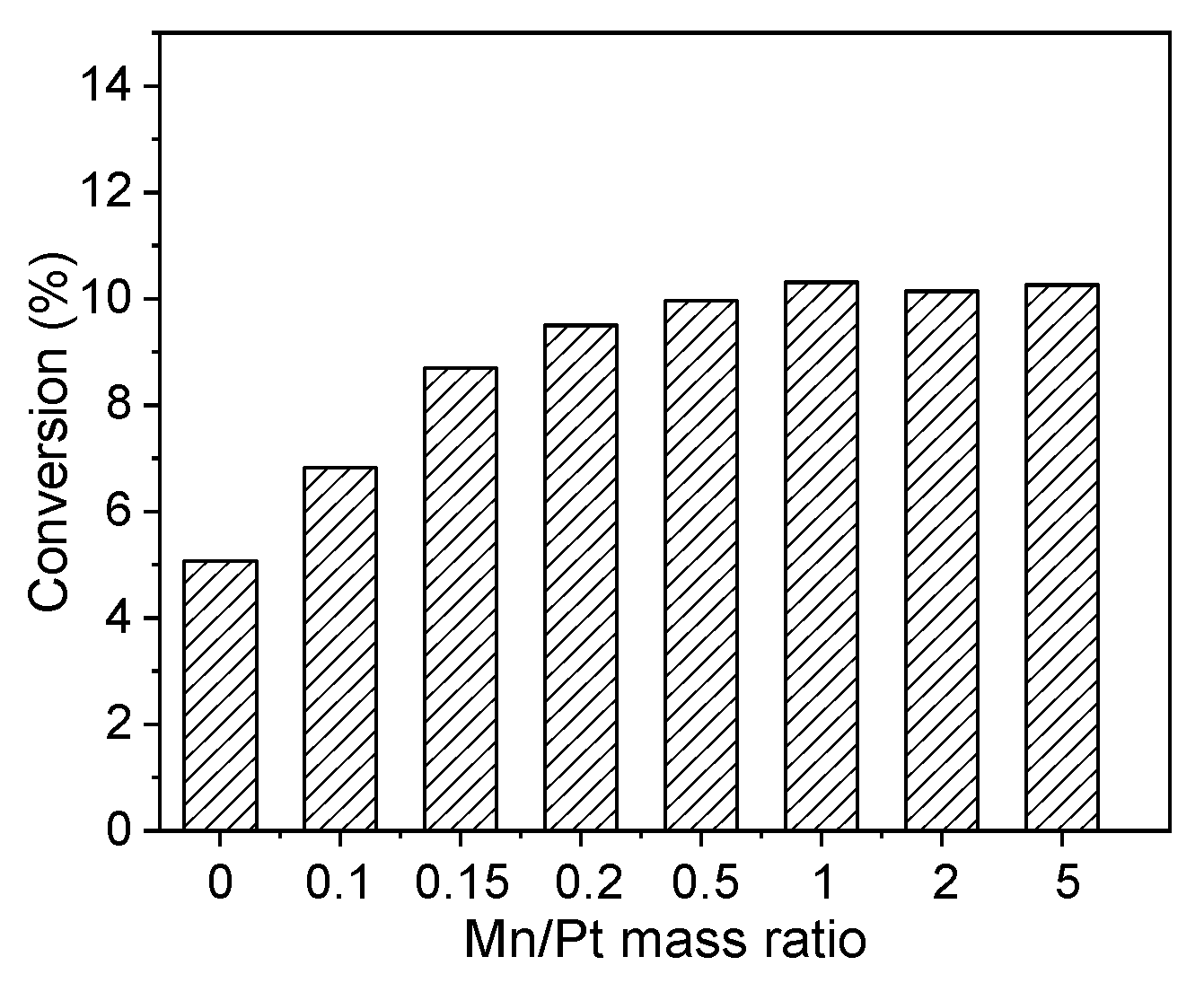

Figure 1. CO2 conversion on 1PtxMn catalysts during RWGS reaction. Reaction condition: T = 400 °C, P = 1 atm, CO2/H2/Ar = 1/4/5, GHSV = 60 L·g−1·h−1, time on stream (TOS) = 20 min.
Figure 1. CO2 conversion on 1PtxMn catalysts during RWGS reaction. Reaction condition: T = 400 °C, P = 1 atm, CO2/H2/Ar = 1/4/5, GHSV = 60 L·g−1·h−1, time on stream (TOS) = 20 min.
Catalysts 14 00456 g001
Catalysts 14 00456 g002

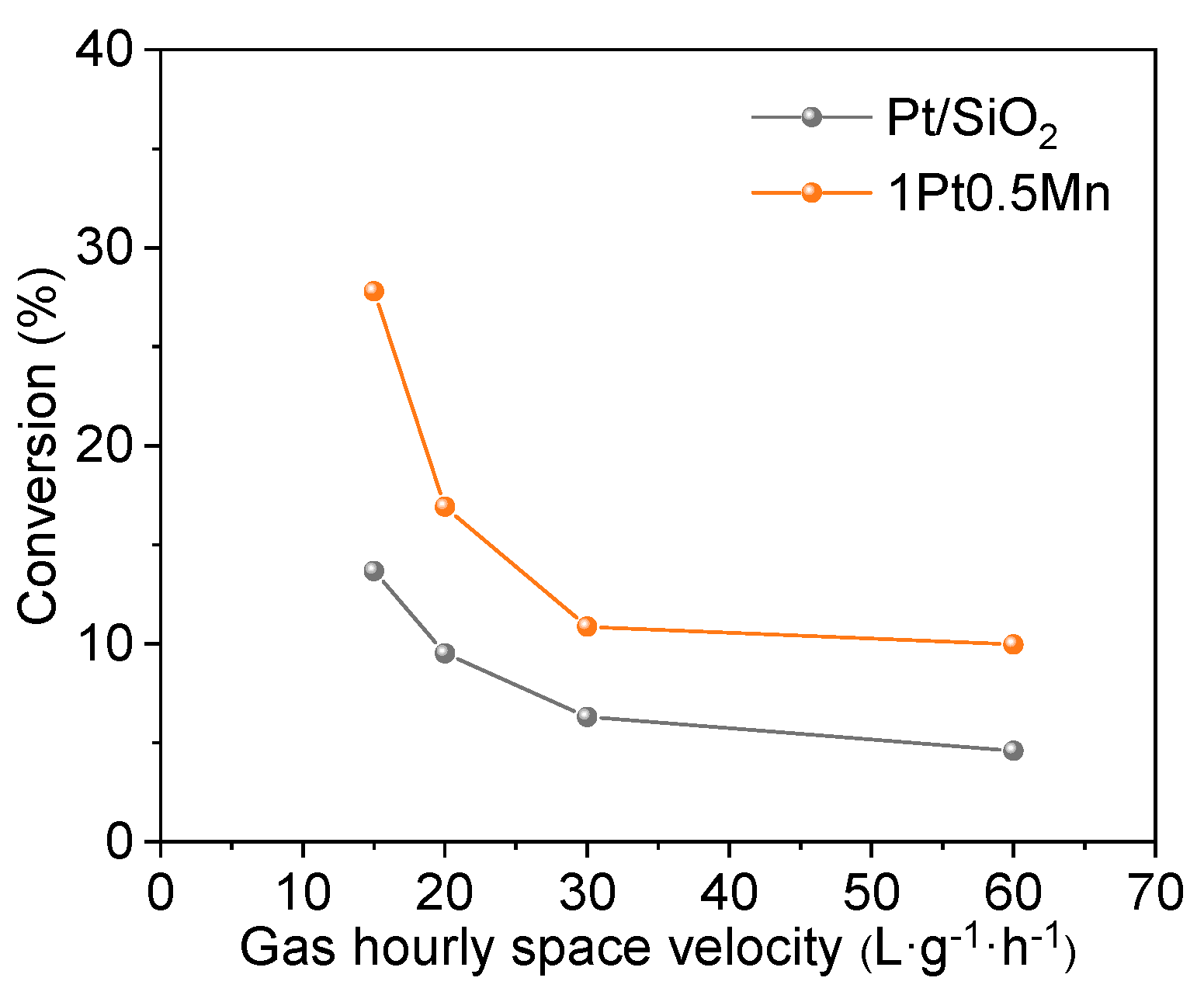

Figure 2. CO2 conversion as a function of GHSV on Pt/SiO2 and 1Pt0.5Mn. Reaction conditions: T = 400 °C, P = 1 atm, CO2/H2/Ar = 1/4/5, TOS = 20 min, GHSV = 15 L·g−1·h−1–60 L·g−1·h−1.
Figure 2. CO2 conversion as a function of GHSV on Pt/SiO2 and 1Pt0.5Mn. Reaction conditions: T = 400 °C, P = 1 atm, CO2/H2/Ar = 1/4/5, TOS = 20 min, GHSV = 15 L·g−1·h−1–60 L·g−1·h−1.
Catalysts 14 00456 g002
Catalysts 14 00456 g003

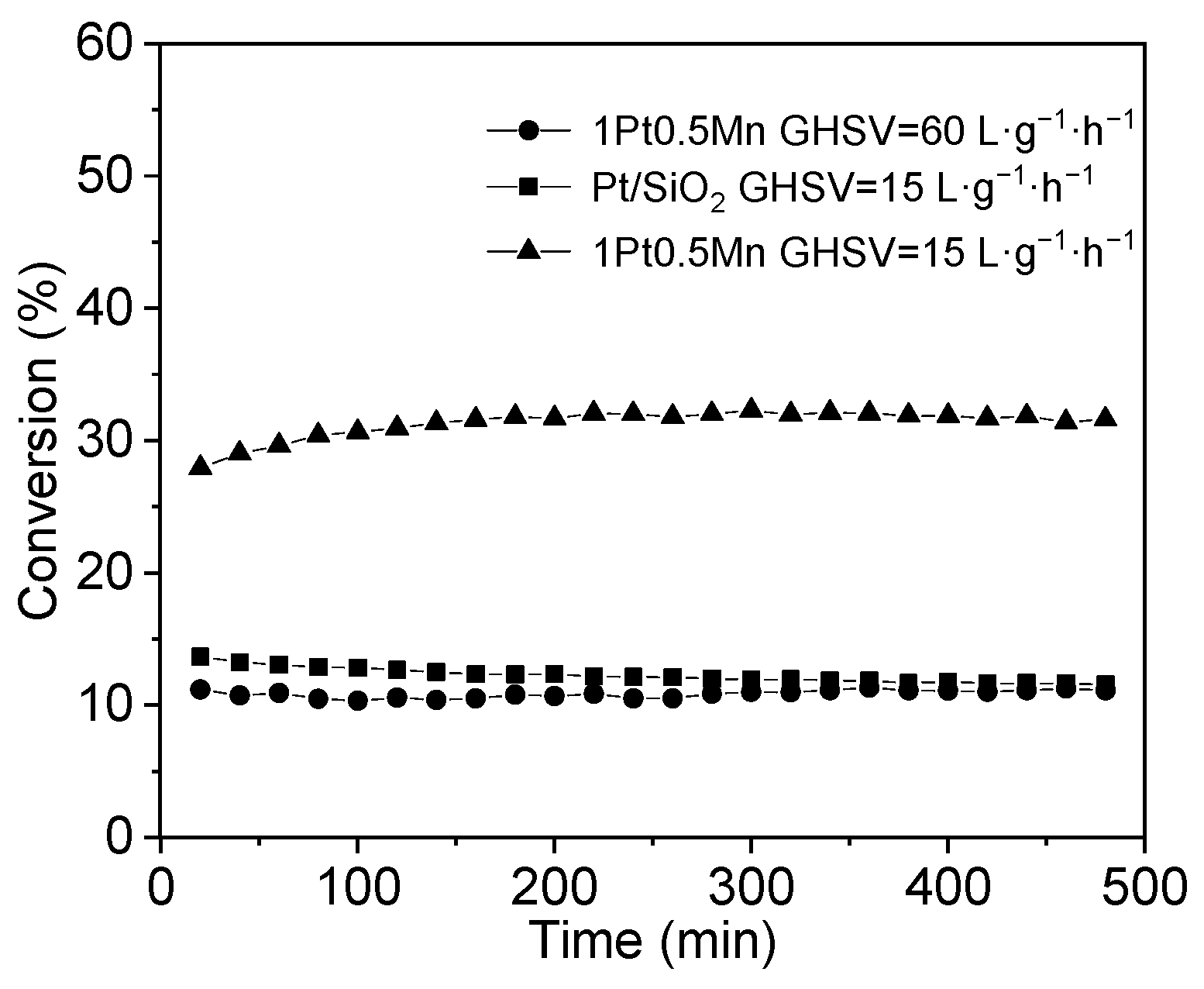

Figure 3. Stability tests of Pt/SiO2 and 1Pt0.5Mn for RWGS reaction. Reaction condition: T = 400 °C, P = 1 atm, CO2/H2/Ar = 5/20/25 mL·min−1.
Figure 3. Stability tests of Pt/SiO2 and 1Pt0.5Mn for RWGS reaction. Reaction condition: T = 400 °C, P = 1 atm, CO2/H2/Ar = 5/20/25 mL·min−1.
Catalysts 14 00456 g003
Catalysts 14 00456 g004

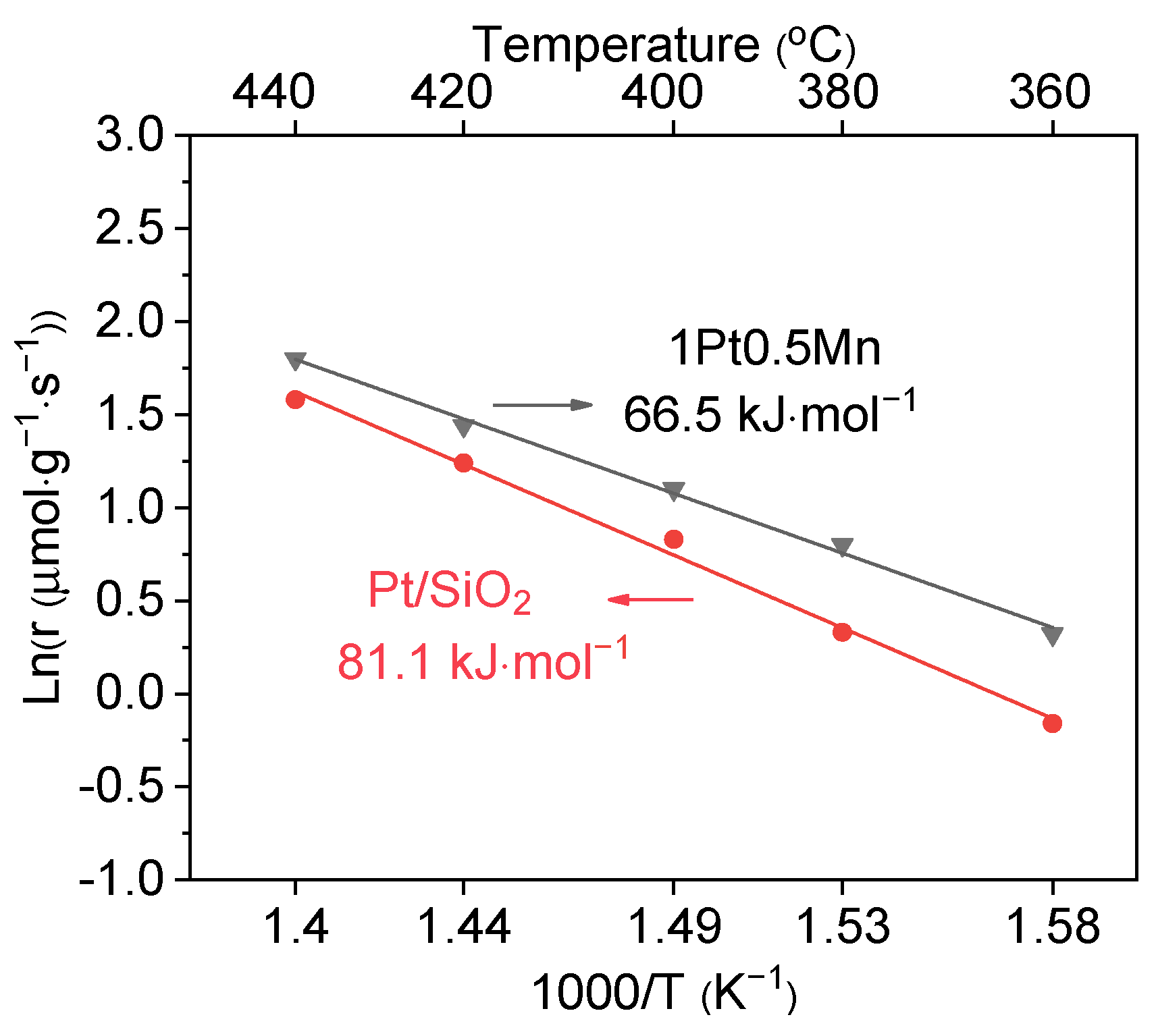

Figure 4. Arrhenius plots of CO2 conversion on Pt/SiO2 and 1Pt0.5Mn catalysts. T = 360–400 °C, GHSV varied in 100–600 L·g−1·h−1 to control CO2 conversion below 10%.
Figure 4. Arrhenius plots of CO2 conversion on Pt/SiO2 and 1Pt0.5Mn catalysts. T = 360–400 °C, GHSV varied in 100–600 L·g−1·h−1 to control CO2 conversion below 10%.
Catalysts 14 00456 g004
Catalysts 14 00456 g005

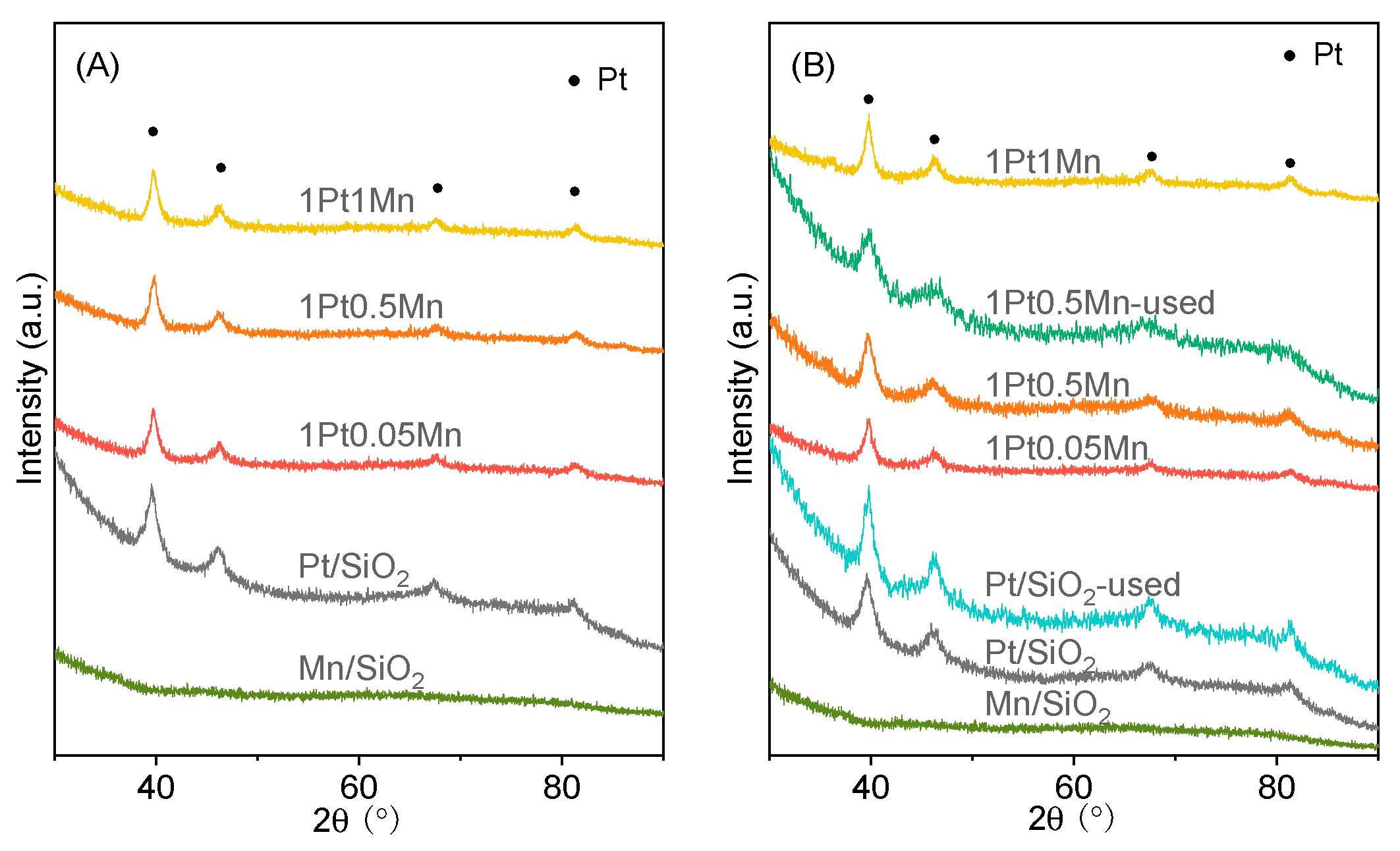

Figure 5. XRD patterns of 1PtxMn catalysts: (A) catalysts calcined at 450 °C for 4 h; (B) catalysts reduced at 400 °C for 1 h, as well as used catalysts after the RWGS reaction (see reaction condition in Figure 3).
Figure 5. XRD patterns of 1PtxMn catalysts: (A) catalysts calcined at 450 °C for 4 h; (B) catalysts reduced at 400 °C for 1 h, as well as used catalysts after the RWGS reaction (see reaction condition in Figure 3).
Catalysts 14 00456 g005
Catalysts 14 00456 g006

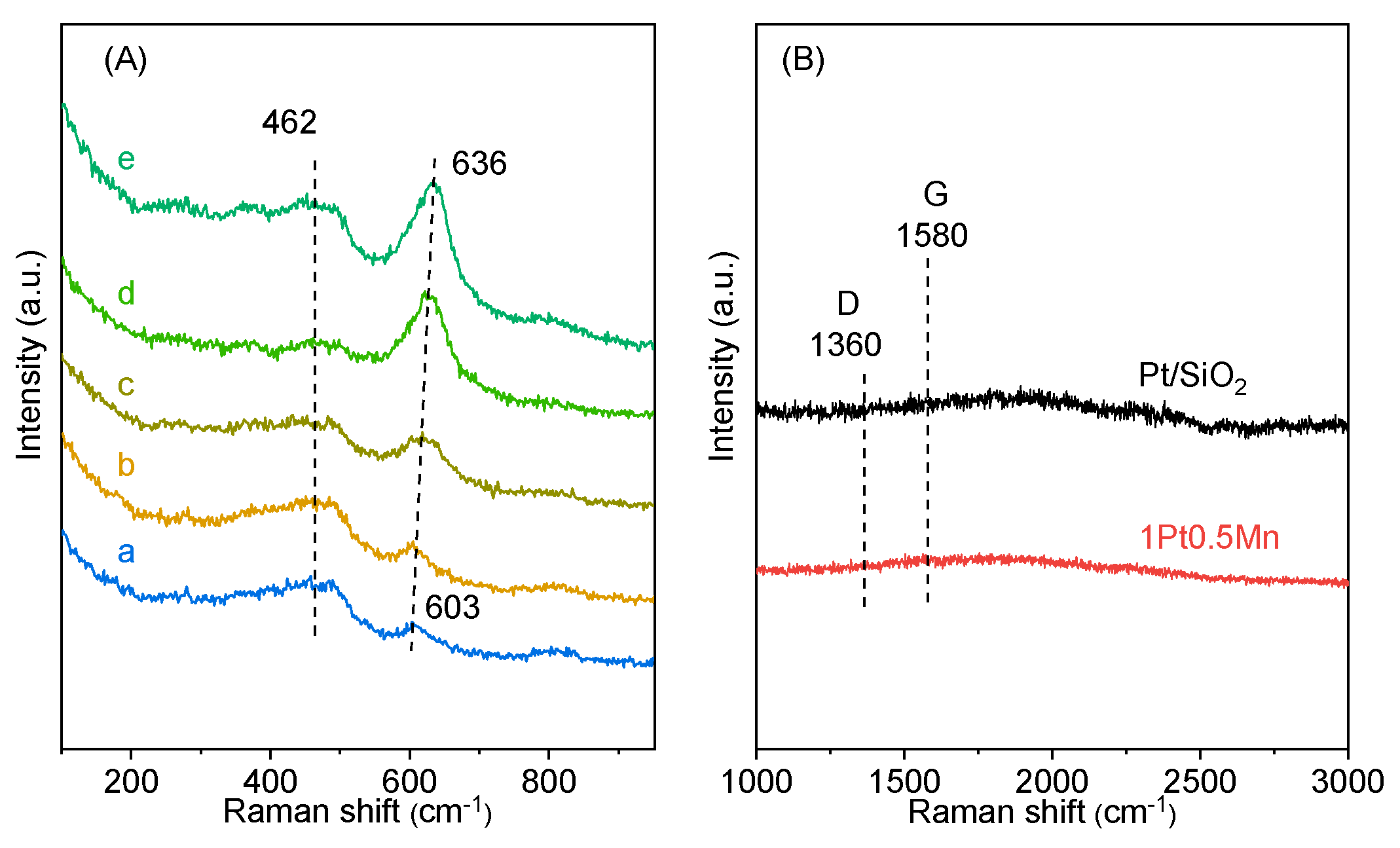

Figure 6. (A) Raman spectra of 1PtxMn: (a) 1Pt0.1Mn, (b) 1Pt0.2Mn, (c) 1Pt0.5Mn, (d) 1Pt1Mn, (e) Mn/SiO2; (B) Raman spectra of carbon region of used 1Pt0.5Mn and Pt/SiO2, see the reaction condition in Figure 3.
Figure 6. (A) Raman spectra of 1PtxMn: (a) 1Pt0.1Mn, (b) 1Pt0.2Mn, (c) 1Pt0.5Mn, (d) 1Pt1Mn, (e) Mn/SiO2; (B) Raman spectra of carbon region of used 1Pt0.5Mn and Pt/SiO2, see the reaction condition in Figure 3.
Catalysts 14 00456 g006
Catalysts 14 00456 g007

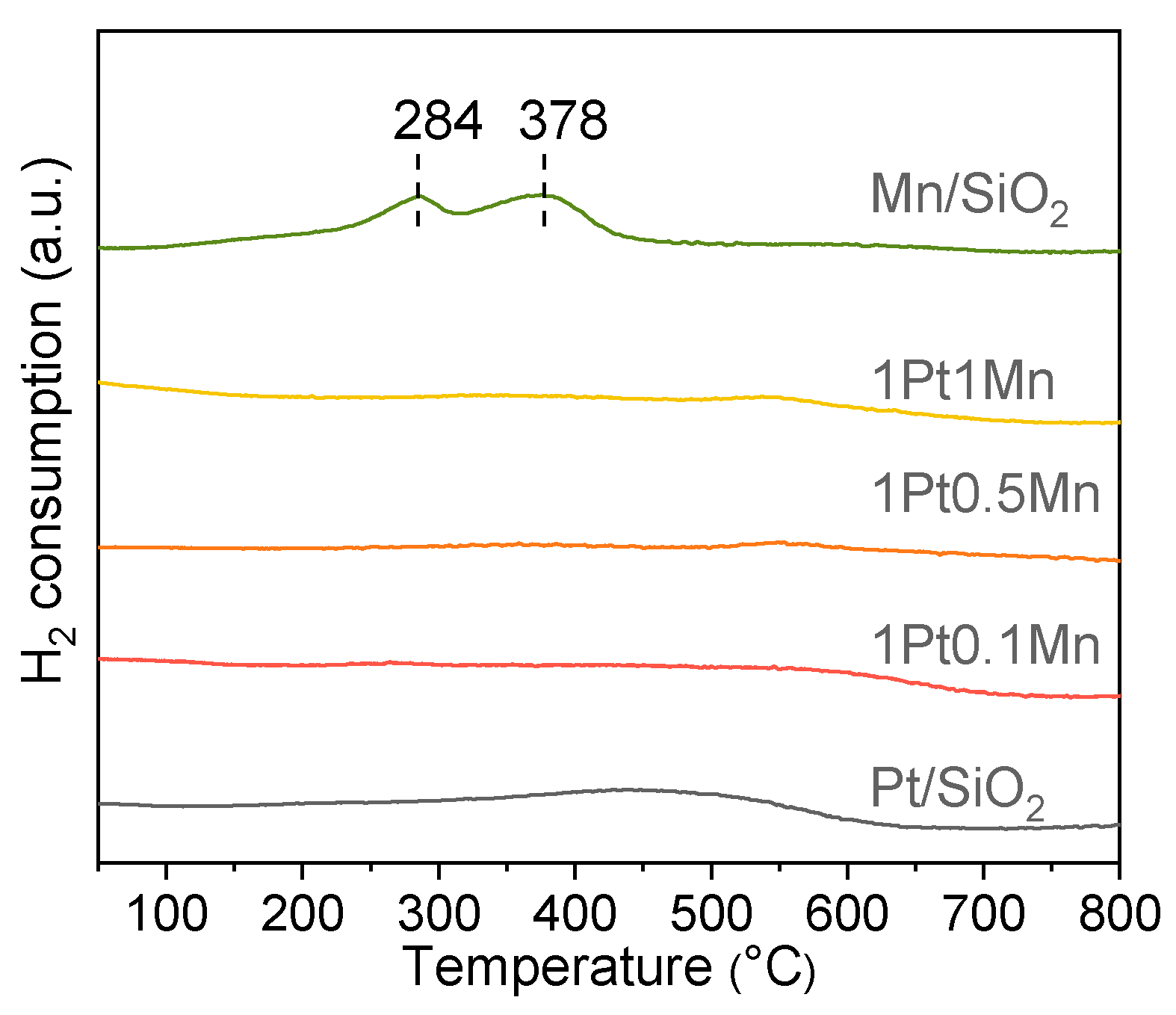

Figure 7. H2-TPR profiles of Pt/SiO2, 1PtxMn, and Mn/SiO2 catalysts.
Figure 7. H2-TPR profiles of Pt/SiO2, 1PtxMn, and Mn/SiO2 catalysts.
Catalysts 14 00456 g007
Catalysts 14 00456 g008
Figure 8. FTIR spectra of CO adsorption on Pt/SiO2, 1Pt0.5Mn, and Mn/SiO2.
Figure 8. FTIR spectra of CO adsorption on Pt/SiO2, 1Pt0.5Mn, and Mn/SiO2.
Catalysts 14 00456 g008
Catalysts 14 00456 g009

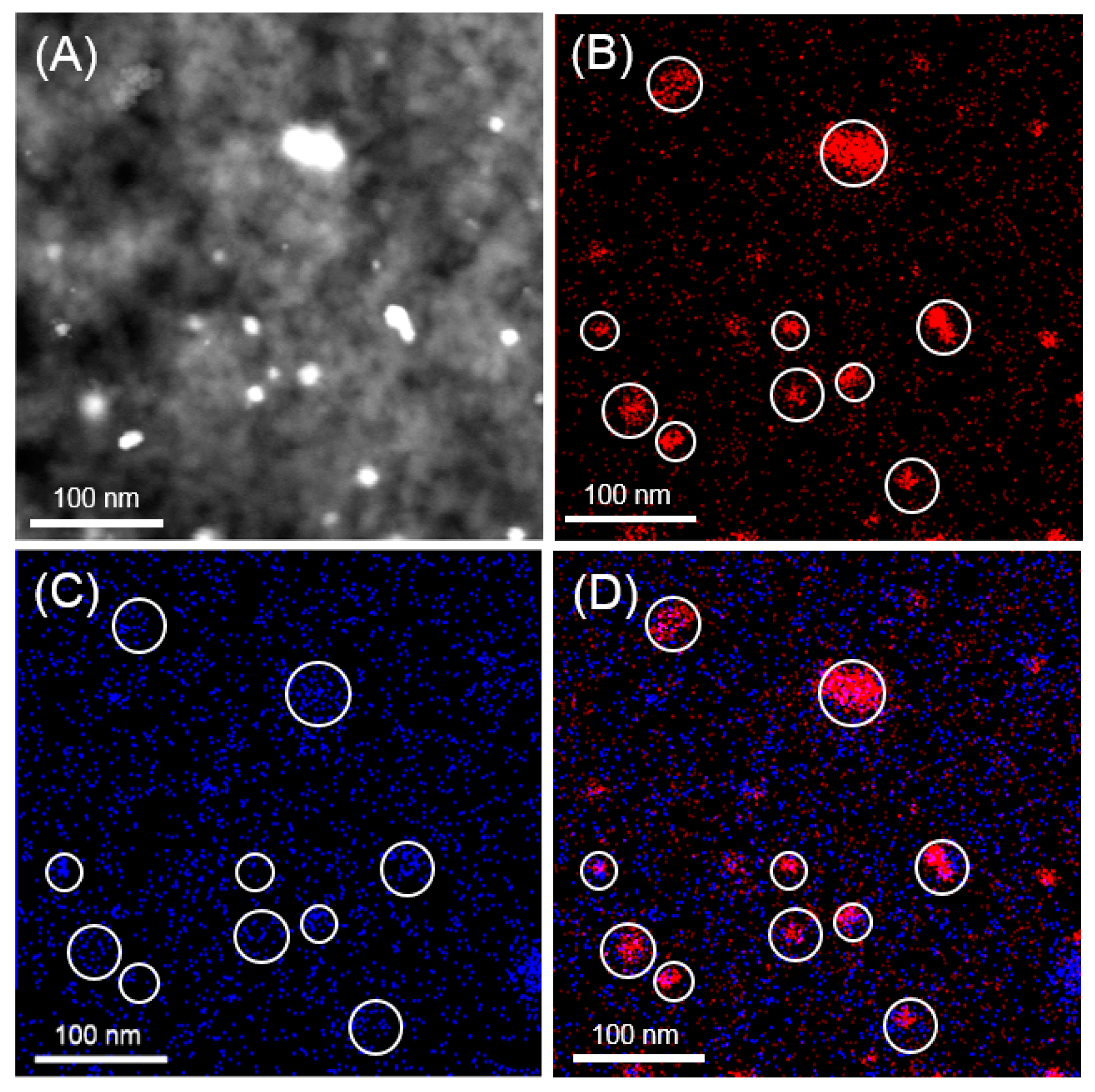

Figure 9. (A) HAADF-STEM image of Pt0.5Mn and EDS mapping of (B) Pt (red), (C) Mn (blue), and (D) Pt (red) + Mn (blue) of 1Pt0.5Mn. The sample was pre-reduced at 400 °C.
Figure 9. (A) HAADF-STEM image of Pt0.5Mn and EDS mapping of (B) Pt (red), (C) Mn (blue), and (D) Pt (red) + Mn (blue) of 1Pt0.5Mn. The sample was pre-reduced at 400 °C.
Catalysts 14 00456 g009
Catalysts 14 00456 g010

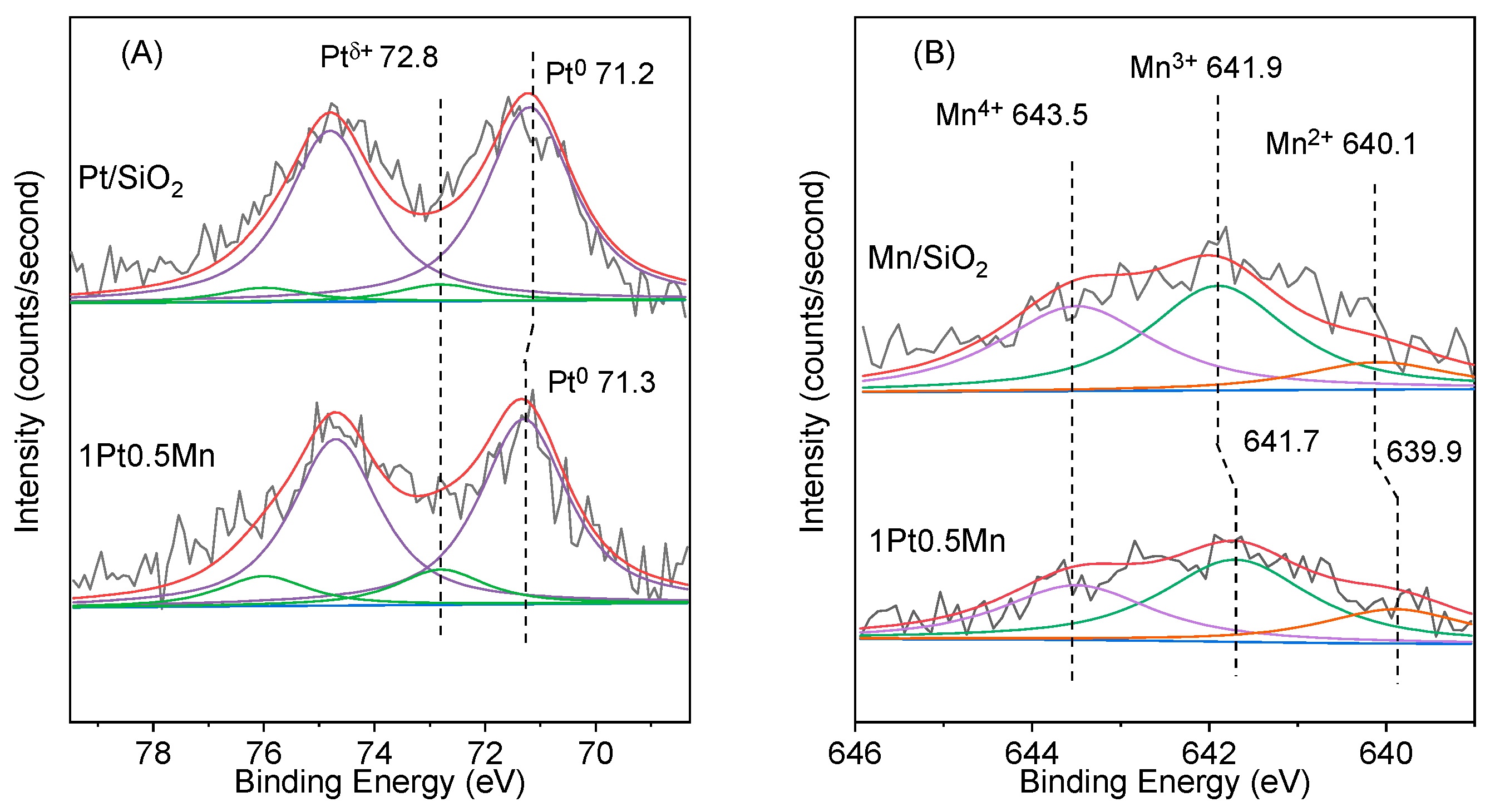

Figure 10. XPS spectra of reduced Pt/SiO2 and 1Pt0.5Mn catalysts: (A) Pt 4f, (B) Mn 2p.
Figure 10. XPS spectra of reduced Pt/SiO2 and 1Pt0.5Mn catalysts: (A) Pt 4f, (B) Mn 2p.
Catalysts 14 00456 g010
Catalysts 14 00456 g011

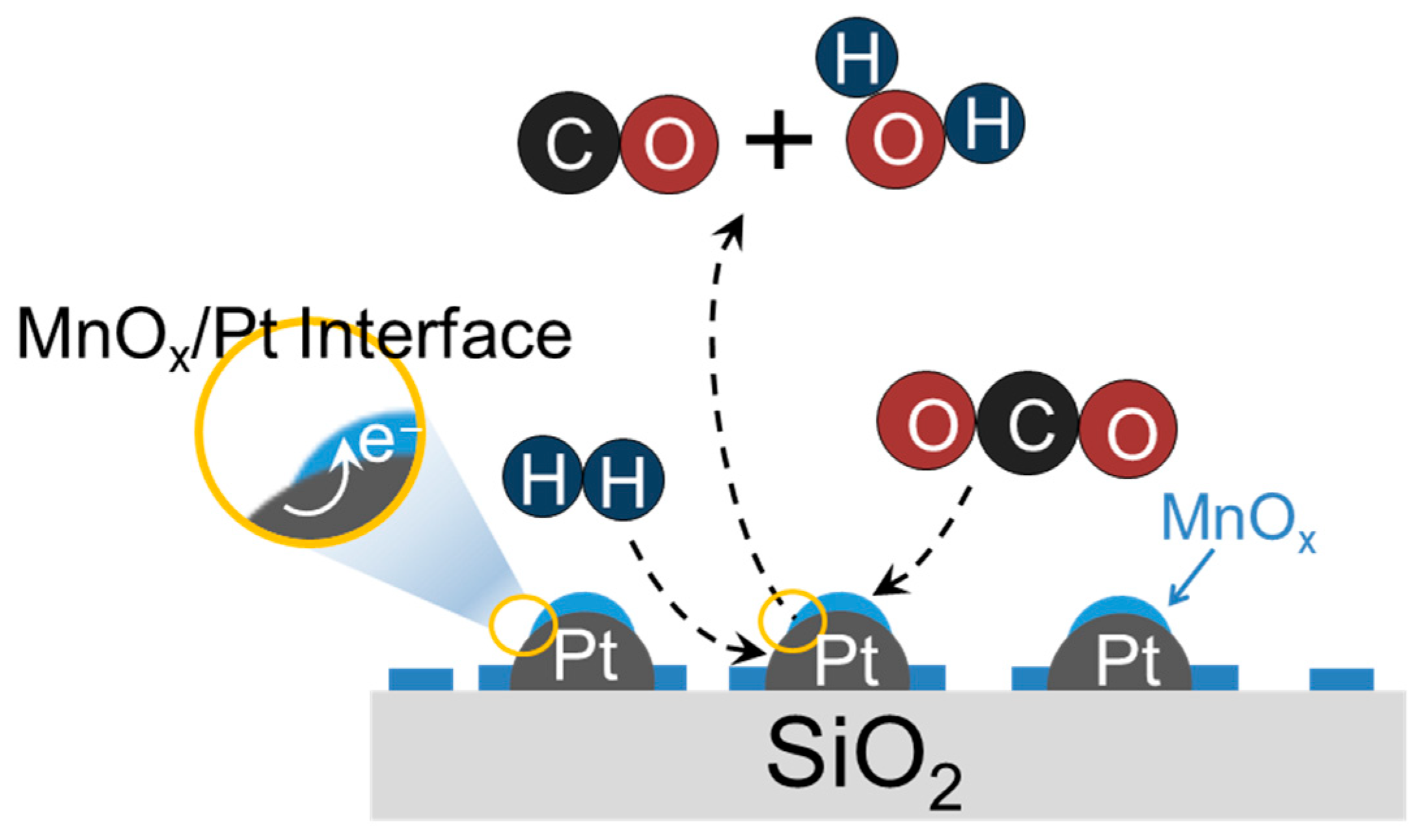

Figure 11. Schematic illustration of MnOx/Pt interface of 1PtxMn catalysts and RWGS reaction at the interface.
Figure 11. Schematic illustration of MnOx/Pt interface of 1PtxMn catalysts and RWGS reaction at the interface.
Catalysts 14 00456 g011
Table 1. Valence state distribution of Pt and Mn, as well as atomic ratios derived from XPS.
Table 1. Valence state distribution of Pt and Mn, as well as atomic ratios derived from XPS.
CatalystPtδ+/(Pt0 + Ptδ+)Mn Distribution (%)Mn/Pt Atomic Ratio
Mn4+Mn3+Mn2+
Pt/SiO20.087----
1Pt0.5Mn0.15832.148.319.63.44
Mn/SiO2-41.346.012.7-
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bi, W.; Zhang, R.; Ge, Q.; Zhu, X. Supported Inverse MnOx/Pt Catalysts Facilitate Reverse Water Gas Shift Reaction. Catalysts 2024, 14, 456. https://doi.org/10.3390/catal14070456

AMA Style

Bi W, Zhang R, Ge Q, Zhu X. Supported Inverse MnOx/Pt Catalysts Facilitate Reverse Water Gas Shift Reaction. Catalysts. 2024; 14(7):456. https://doi.org/10.3390/catal14070456

Chicago/Turabian Style

Bi, Wenli, Ruoyu Zhang, Qingfeng Ge, and Xinli Zhu. 2024. "Supported Inverse MnOx/Pt Catalysts Facilitate Reverse Water Gas Shift Reaction" Catalysts 14, no. 7: 456. https://doi.org/10.3390/catal14070456

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
