Effect of Acid Properties of Fluorinated Beta and ZSM-5 Zeolites Used as Supports of Ni Catalysts for the Catalytic Hydrodeoxygenation of Guaiacol

by
Gabriela Quintero-Arroyo
1,2,
Angie C. Rueda
1,
Judith Granados-Reyes
1,
Jayson Fals
2 and
Yolanda Cesteros
1,*
1
Departament de Química Física i Inorgànica, Universitat Rovira i Virgili, 43007 Tarragona, Spain
2
Grupo de investigación en Oxi/Hidrotratamiento Catalítico y Nuevos Materiales, Programa de Química-Ciencias Básicas, Universidad del Atlántico, Barranquilla 080003, Colombia
*
Author to whom correspondence should be addressed.
Catalysts 2024, 14(9), 586; https://doi.org/10.3390/catal14090586 (registering DOI)
Submission received: 31 July 2024 / Revised: 25 August 2024 / Accepted: 26 August 2024 / Published: 2 September 2024
(This article belongs to the Special Issue Catalytic Materials: State-of-the-Art and Perspectives in Spain)
Browse Figures
Versions Notes

Abstract

:
Commercial NH4-Beta and Na-ZSM-5 zeolites were fluorinated with different amounts of NH4F and using different procedures (room temperature, conventional refluxing, microwave refluxing). Samples were characterized by XRD, N2 physisorption, FTIR, 1H NMR, SEM-EDS, and TGA of adsorbed cyclohexylamine. An increase in the concentration of NH4F led to fluorinated zeolites with higher surface areas and slightly lower amounts of Brønsted acid sites due to some dealumination. Fluorination by conventional or microwave refluxing at shorter times did not dealuminate ZSM-5, resulting in the formation of higher particle sizes. Ni/fluorinated beta catalysts were more active than Ni/fluorinated ZSM-5 catalysts for the hydrodeoxygenation of guaiacol at 180 °C and 15 bar of H2 for 1 h due to their higher amount of acid sites. The appropriate proportion of metallic and Brønsted acid centers allowed for the selective obtention of cyclohexane (58%) for the Ni supported on beta fluorinated with NH4F 0.1 M catalyst. The combination of this fluorinated beta to a Ni/ordered mesoporous carbon catalyst significantly boosted its selectivity to cyclohexane from 0 to 65%. Fluorinated ZSM-5 samples, although having stronger Brønsted acid sites, as observed by 1H NMR, they had lower amounts, leading to higher selectivity to cyclohexanol when used as catalytic supports.

1. Introduction

The demographic and economic growth in recent decades has created a greater demand for energy, both in productive activities and among the general population seeking increased comfort. This reality is compounded by the high consumption of fossil resources, which causes significant environmental impact. This challenge motivates us to optimize production technologies for biofuels and high-value chemicals using renewable sources like biomass, offering a more sustainable and environmentally friendly alternative [1,2,3]. Lignocellulosic biomass is one of the most abundant and sustainable sources to produce biofuels. This biomass, which is mainly composed of cellulose, hemicellulose, and lignin, can be converted into liquid fuels through various fractionation and refining processes. Its abundance and ability to be transformed into high-value products position it as a promising alternative to fossil fuels, contributing significantly to the reduction in greenhouse gas emissions and the mitigation of climate change. Furthermore, the use of lignocellulosic biomass can boost the development of rural economies and create new opportunities in the agricultural and forestry sectors [4,5].
To produce sustainable liquid fuels from biomass, it is essential to transform these oxygen-rich compounds into hydrocarbons. The aromatic units present in lignin can be thermally and catalytically decomposed into various compounds of interest, including guaiacol, which is characterized by its high oxygen content, high viscosity, instability, and tendency to polymerization. The conversion of lignin model compounds such as anisole, catechol, and guaiacol through cracking or hydrodeoxygenation (HDO) reactions represents a promising route to exploit lignin in the production of biofuels and other valuable products [6,7,8].
The catalysts used in HDO reactions are mainly composed of two functional parts: a redox (metal) component and acidic sites. The redox component, usually noble metals such as Ru, Re, and Pd, and other transition metals such as Ni, plays an important role in facilitating hydrogen transfer reactions necessary to remove oxygen in organic compounds. The acidic sites, in contrast, are responsible for the activation and cleavage of chemical bonds within oxygen-containing molecules. This synergistic combination of redox and acidic functions allows efficient conversion of oxygen-rich lignocellulosic compounds into stable hydrocarbons [9].
Different metals supported on oxides or zeolites have been used for the hydrodeoxygenation of guaiacol, mostly at high temperatures (>200 °C) and H2 pressures (40–50 bar). Hellinger et al. studied the use of Pt supported on metal oxides and zeolites for this reaction [10]. They found that the deoxygenation capacity of the catalysts improved when Pt particles were deposited on the acidic zeolites. Later, Wang et al. [11] confirmed the influence of the acid support structure on the dispersion and accessibility of active sites using Pd supported on micro and mesoporous H-ZSM-5 zeolites. Studies using zeolites as supports of Ni, a low-cost metal with high hydrogenation activity, have also been reported. Gutierrez et al. [12] obtained deoxygenated compounds, mainly cyclohexane (78%) at 95% conversion of guaiacol at 220 °C with 40 bar H2 pressure using Ni2P deposited on different ZSM-5 lamellar and pillared ZSM-5 zeolites. Li et al. also tested Ni metal supported on acid hierarchical ZSM-5 zeolites, obtaining a selectivity of 90% towards cyclohexane at 100% conversion of guaiacol at 240 °C with 40 bar H2, concluding that once again, tunneling the acid and structural properties of the support could promote both deoxygenation and aromatic ring hydrogenation [13].
Several authors reported that the guaiacol HDO activity of supported metal catalysts can be improved by incorporating additional Brønsted acid sites, usually H-zeolites, through a synergetic effect between metallic and acid sites [14,15,16,17]. Wang et al. studied the hydrodeoxygenation of guaiacol to cyclohexane at lower temperatures (140 °C) over a Ni/SiO2 catalyst combined with H-β zeolite [14], resulting in a 91.7% yield of cyclohexane. The acidity of the H-β zeolite had a significant impact on the selective obtention of cyclohexane. In a previous work, we obtained 78% of selectivity to cyclohexane when combining a Ni/ordered mesoporous carbon with a H-β zeolite at 180 °C, 30 bar of H2 for 1 h [18]. The main reaction products obtained for the HDO of guaiacol at reaction temperatures below 200 °C and the type of reactions involved are indicated in Scheme 1.
Zeolites are widely used as catalyst supports due to their tunable acidity, porosity, and shape selectivity. One way to modify the acidity of the zeolites is their fluorination through the post-synthesis treatment with an aqueous solution of NH4F and later calcination [19]. The incorporation of the fluorine in the zeolite framework can increase the Brønsted acidity of the resulting H+ that are interacting with the framework [19].
This work aimed to study the effect of different fluorination techniques on the acidic properties of ZSM-5 and beta zeolites with the objective to use these fluorinated zeolites as catalytic supports of Ni catalysts or combined with a Ni/ordered mesoporous carbon for the hydrodeoxygenation of guaiacol under mild reaction conditions: 180 °C and 15 bar of H2 for 1 h.

2. Results and Discussion

2.1. Characterization of the Catalytic Supports and the Catalysts

Table 1 shows the main characterization data of the fluorinated supports. Some slight dealumination was observed for the ZSM-5 samples fluorinated at room temperature with different NH4F concentrations, 0.1 M (ZF), 0.2 M (ZF0.2), and 0.05 M (ZF0.05), for a long time (42 h) since they showed slightly higher Si/Al ratios and a shift to higher values of the IR bands assigned to symmetric and asymmetric stretching of the T-O bond (T = Si, Al) than their corresponding commercial one (Table 1). This trend was more marked for the sample fluorinated with the highest concentration of NH4F (ZF0.2). The fact that the Si-O bond is shorter than the Al-O bond, and Al has lower electronegativity than Si, explains the increase in the strength of the T-O bond (T = Si, Al) under dealumination conditions [20,21]. However, for the ZSM-5 samples fluorinated at 40 °C for 4 h by conventional refluxing (ZFR) or by microwave refluxing (ZFMwR), dealumination practically did not occur, as concluded from the XRF and IR results obtained for these samples (Table 1). This can be explained by the shorter fluorination time used.
On the other hand, fluorinated beta samples showed higher partial dealumination since all of them had higher Si/Al ratios, confirmed by the shift to higher values of the IR bands (Table 1). Again, higher concentrations of NH4F led to higher dealumination. The differences observed between these zeolites can be related to the flexibility of each zeolite framework and the accessibility of the aluminium atoms, depending on the pores’ arrangement and sizes. Thus, beta zeolites have a three-dimensional 12-ring pore system (straight channels of diameter 6.6 × 6.7 Å and sinusoidal channels of diameter 5.6 × 5.6 Å), whereas ZSM-5 zeolites have a three-dimensional 10-ring pore system with channels of diameter 5.1 × 5.5 Ǻ. These results agree with those that previously reported the lower dealumination of the ZSM-5 zeolites when compared with beta zeolites [21].
Zeolite modification by fluorination with NH4F practically did not affect the zeolite structure (Figure 1); however, some decrease in crystallinity was observed for all samples, especially for beta samples (e.g., Figure 1), due to the characteristics of its structure, as commented above. Interestingly, the ZSM-5 sample fluorinated by microwaves (ZFMwR) displayed higher crystallinity than the sample fluorinated by conventional heating prepared at the same conditions (ZFR) (Figure 1). This could be related to the effect of microwaves, which enhances the growth of crystals [22].
Nitrogen adsorption-desorption isotherm shapes of the fluorinated samples were similar to those of their corresponding commercial ones (Figure 2), identified as type I corresponding to microporous materials, according to the Brunauer, Deming, Deming, and Teller classification [23], and characteristics of this type of zeolite.
The two plateaus of the N2 adsorption-desorption isotherms of ZSM-5 samples have been attributed to two different states of the adsorbed nitrogen, a liquid-like and a solid-like phase, respectively [24,25]; however, the explanation of close packing of the nitrogen molecules at the intersections of the channels has also been suggested [26].
The surface areas of the samples fluorinated at room temperature at longer times were slightly higher than those of the commercial ZSM-5 and Beta, respectively (Table 1). This can be due to some mesoporosity generated due to the slight dealumination suffered by these fluorinated samples (Table 1). However, for the samples fluorinated with temperature at shorter times (ZFR and ZFMwR) the surface areas decreased compared to the commercial one. This could be related to the variations of crystallinity observed for these samples, which practically did not show dealumination.
Scanning electron microscopy with energy dispersive X-ray spectroscopy (SEM-EDS) allowed us to confirm the presence of fluorine in the fluorinated samples (e.g., Figure 3 left).
The FTIR spectra in the region between 3800 and 3500 cm−1 was carefully analyzed for the fluorinated beta samples to observe possible variations due to the presence of the fluorine (Figure 3, right). Two peaks were observed at 3740 and 3645 cm−1 for the non-fluorinated sample (B). The first corresponds to SiOH terminal groups and the second corresponds to SiOHAl groups; however, the presence of silanol groups related to structural defects cannot be discarded [27,28,29]. After fluorination, the position of the band at 3645 cm−1 practically did not change, while the band at 3740 cm−1 shifted to 3785 cm−1 for several samples. This has been attributed to the presence of low acidity OH groups bonded to extra-latice aluminium. The IR profile for the samples HB and HBF were very similar. This means that although fluorine is present in the sample, it probably was not incorporated in the zeolitic structure.
The SEM technique was also used to monitor the effect of the different methodologies used for the fluorination of ZSM-5 with NH4F 0.1 M on the morphologies and particle size distribution of the fluorinated samples (Figure 4). The use of temperature by refluxing during fluorination (ZFR and ZFMwR) resulted in the formation of higher particle sizes (7–12 μm), with more homogeneous distribution for the samples heated by conventional refluxing (ZFR), maintaining the geometry of the starting zeolite particles. However, the use of longer fluorination times at room temperature led to smaller particles (5–6 μm) with a loss in the definition of the geometrical aspect (Figure 4).
Table 1 depicts the amount of Brønsted acid sites determined for all samples by thermogravimetry of desorbed cyclohexylamine, while Figure 5 shows the 1H NMR spectra for several representative ZSM-5 and beta samples.
Practically all fluorinated zeolites showed higher amounts of Brønsted acid centers than their corresponding starting zeolites, as expected. In the case of commercial Na-ZSM-5, during fluorination with NH4F in addition to the incorporation of fluorine, Na+ cations were exchanged by NH4+, which after further calcination at 450 °C for 5 h, resulted in the formation of H+, compensating for the negative charge of the zeolite framework. For NH4-Beta, during the calcination step, carried out after fluorination, H+ were formed. The small differences observed in the amount of Brønsted acid centers between fluorinated zeolites could be related to the slight partial dealumination observed for these samples, since low amounts of Al in the zeolite structure involve less cations compensating for the negative framework charge and, therefore, lower amounts of H+.
The 1H NMR technique has been postulated as a useful technique to determine the presence of different kinds of hydroxyl groups in zeolites and, therefore, to evaluate their Brønsted acidity strength [30,31,32]. For commercial Na-ZSM-5 and NH4-Beta zeolites, one 1H NMR peak at 3.5 and 3.9 ppm, respectively, was observed (Figure 5). This peak can be associated to free Brønsted protons, as previously reported [32]. When ZSM-5 was fluorinated by treatment with NH4F 0.1 M using different methodologies (samples ZF, ZFR, and ZFMwR) and later calcined, a clear shift of the peak to higher ppm values was observed in all cases (Figure 5). This peak should be attributed to the Brønsted protons formed during calcination, which are interacting with the zeolite framework. This means that fluorinated ZSM-5 samples had stronger Brønsted acid sites. This can only be explained by an inductive effect by F, confirming the introduction of fluorine atoms in the zeolite framework.
The different amount of acid sites observed for ZF, ZFR, and ZFMwR (Table 1) should be related to the protons formed during calcination; however, the presence of surface-defective sites should not be discarded. An increase in the NH4F concentration slightly decreased the number of Brønsted acid sites (Table 1), as expected, due to the slightly higher zeolite dealumination detected (Table 1).
On the other hand, for fluorinated beta samples, an increase in the concentration of NH4F used during the treatment did not affect the strength of the protons, which had similar values (4.4–4.5 ppm) (Figure 5); however, the amount of acid centers decreased by increasing the NH4F concentration used due to the higher dealumination (Table 1).
XRD patterns of Ni/fluorinated ZSM-5 catalysts showed the presence of a totally reduced crystalline Ni phase in addition to the peak characteristics of the zeolite (Figure 6). In contrast, unreduced crystalline NiO together with crystalline Ni and zeolite characteristic peaks were observed in the XRD patterns of the Ni/fluorinated beta catalysts (Figure 7). This should be related to a higher interaction of NiO with the beta support.

2.2. Catalytic Activity

Figure 8 shows the catalytic activity of the Ni/fluorinated ZSM-5 for the hydrodeoxygenation of guaiacol at 180 °C, 15 bar of H2 pressure for 1 h. All catalysts were active for this reaction with low-moderate conversion values (22–48%). The main reaction product was methoxycyclohexanol (50–73%). These results indicate that these catalysts had a high hydrogenating ability since this reaction product was fully hydrogenated. However, demethoxylation and later dehydration was not totally achieved. This catalytic result agrees with the results obtained by other supported nickel catalysts for this reaction [33,34,35], especially at reaction temperatures below 200 °C [14,15,18]. Cyclohexane and cyclohexanol were obtained in low-moderate amounts, with a maximum of 18% of cyclohexane for the catalyst Ni/ZF and 25% of cyclohexanol for the catalyst Ni/ZFR. This could be explained by the higher amount and, especially, the higher strength of the Brønsted acid sites of these catalytic supports (Figure 5), which should favor demethoxylation and dehydration reactions.
To increase the accessibility of the acid sites, and then, favor the demethoxylation and dehydration reactions for the formation of higher amounts of cyclohexane and cyclohexanol, two Ni/ZF catalysts were prepared with less Ni content (10 wt% and 20 wt%). However, by decreasing the Ni content, the selectivity to cyclohexane and cyclohexanol decreased (Figure 9), mainly at the expense of the formation of higher amounts of other products. For the most part, these other products were detected at lower reaction times in the chromatograph, so this means that an increase in the accessibility of the Brønsted acid sites favored other acid-catalyzed reactions, such as the formation of cracking products.
Figure 10 shows the catalytic activity results of the Ni/fluorinated beta for the hydrodeoxygenation of guaiacol at 180 °C, 15 bar of H2 pressure for 1 h. These catalysts were more active than Ni/fluorinated ZSM-5 catalysts with conversion values between 78% and 100%. This can be explained by the higher amount of Brønsted acid sites of these catalysts (Table 1), together with the presence of additional acidity due to the unreduced NiO (Figure 7), which can also be responsible for the higher amounts of other products formed (Figure 10). Interestingly, the Ni/BF catalysts showed the appropriate proportion of metallic and Brønsted acid centers, which allowed the obtention of a high selectivity to cyclohexane (58%) for a 96% of conversion. This is the best catalytic result reported in the literature for a supported Ni catalyst at mild reaction conditions, since they usually yielded methoxycyclohexanol as the main product [14,15,16,17,18].
For this reason, there are several studies in which materials are combined with metal supported catalysts, giving additional Brønsted acid sites, usually H-zeolites, through a synergetic effect between metallic and acid sites to increase the selectivity to cyclohexane [14,15,16,17,18]. Fluorinated beta BF was combined with a Ni/ordered mesoporous carbon to study the effect of their Brønsted acidity on the selectivity to cyclohexane (Figure 11).
The combination of Ni/OMC with BF led to high selectivity to cyclohexane (61%) for a total conversion compared with the Ni/OMC catalyst in which cyclohexane was not formed. Therefore, these fluorinated materials can contribute with their Brønsted acid sites as catalytic supports or as additional Brønsted acid material to the hydrodeoxygenation of guaiacol at mild conditions.

3. Materials and Methods

3.1. Materials

Na-ZSM-5 zeolite (Si/Al = 20) was purchased from EKA chemicals (Marietta, GA, USA) and NH4-Beta zeolite (Si/Al = 12.5) from Zeoliyst international (Conshohocken, PA, USA). Ammonium fluoride (NH4F, 95%) was purchased from Panreac Quimica SA (Barcelona, Spain); nickel(II) nitrate hexahydrate (Ni(NO3)2·6H2O, 98%) was purchased from Scharlau; cyclohexylamine (98%) was purchased from Aldrich (St. Louis, MO, USA); Guaiacol 98% and n-Hexadecane (99%) were purchased from Alfa Aesar Chemicals (Haverhill, MA, USA); n-dodecane (99%) was purchased from Thermo Fisher Scientific (Waltham, MA, USA). All chemicals were used as received without further purification.

3.2. Preparation of the Fluorinated Zeolites

Table 2 shows the conditions used for the fluorination of the zeolites: 1 g of commercial Na-ZSM-5 zeolite (Z) or NH4-Beta zeolite (B) was treated with 3.5 mL of 0.05, 0.1, and 0.2 M NH4F solution under stirring at room temperature for 42 h, following the methodology reported elsewhere [19], adapted from the methodology proposed by Borade et al. [29], obtaining samples ZF0.05, ZF, ZF0.2, BF0.05, BF, and BF0.2. In order to decrease the fluorination time, two more fluorinated samples were prepared by treating 1 g of zeolite Na-ZSM-5 with 3.5 mL of the 0.1 M NH4F solution at 40 °C for 4 h by conventional refluxing (ZFR) or by microwave refluxing (ZFMwR). The microwave equipment used was a Milestone FlexiWAVE laboratory apparatus working at a frequency of 2.45 GHz and equipped with a controller temperature (ATC-400). The irradiation microwave was programmed to work at a maximum of 200 W. Finally, H-Beta zeolite (HB), previously prepared by cation exchange of Na-Beta with NH4NO3 1 M at 100 °C for 1 h and calcined at 540 °C for 5 h, was treated with 3.5 mL of the 0.1 M NH4F solution at room temperature for 42 h (HBF).
After fluorination, all the samples were washed with deionized water, dried in an oven at 80 °C, and pulverized using a mortar. They were then calcined under conditions of 450 °C for 8 h with a heating rate of 20 °C/min.

3.3. Preparation of the Catalysts

Fluorinated zeolites were used as supports of Ni catalysts. Thus, the supports were impregnated with an ethanolic solution containing the appropriate amounts of Ni(NO3)2·6H2O to obtain 28 wt% of Ni in the final catalysts. Then, the solvent was rotary evaporated. The resulting solid was dried at 80 °C overnight, calcined in air at 450 °C for 5 h, and finally reduced under H2 at 400 °C for 4 h (28Ni/support). Two more catalysts were prepared with ZF as a support with 10 and 20 Ni wt%, following the same methodology (10Ni/ZF adn 20Ni/ZF). The Ni/OMC catalyst was prepared as reported elsewhere [18].

3.4. Characterization Techniques

XRD (X-ray diffraction) patterns were obtained on a Siemens D5000 diffractometer (Aubrey, TX, USA) working in the Bragg–Brentano parafocusing geometry with a vertical θ–θ goniometer. This equipment is formed by a copper X-ray tube, which operating at 40 kV and 30 mA, generates the Cu Kα radiation applied to the samples, a curved graphite diffracted-beam mono chromator with diffracted-beam Soller slits, a 0.06° receiving slit, and a scintillation counter detector. Powdered samples were placed on a Si(510) sample holder. XRD patterns were collected between 2θ diffraction angles from 5 to 80°, using an angular step of 0.05° at 3 s per step with sample rotation. Crystalline phases were identified with the reference JCPDS files 65-2865-Nickel, syn-Ni; 047-1049-Bunsenite, syn-NiO; 57-0337-Beta zeolite; and 48-0074-ZSM-5 zeolite.
Elemental analyses of the samples were carried out on a Philips PW-2400 sequential XRF analyzer (Malvern, UK) using Philips Super Q v.5 software. Measures were performed in triplicate.
Langmuir surface areas were calculated from the nitrogen adsorption-desorption isotherms obtained at −196 °C using 3FLEX MICROMERITICS equipment (Norcross, GA, USA), considering the value of the cross-section of the nitrogen molecule of 0.164 nm2. Before measurements, samples were degassed at 300 °C.
Fourier transform infrared (FTIR) spectroscopy spectra were taken on a Jasco FT/IR-6700 spectrometer (Barcelona, Spain) with a diamond crystal in the attenuated total reflectance mode (ATR). The frequency range used was 4000–400 cm−1 with a resolution of 4 cm−1. Likewise, 32 scans were run and averaged to obtain a good signal-to-noise ratio.
Scanning electron microscopy (SEM) was applied to examine the morphology and particle sizes of the fluorinated samples using a JEOL JSM6400 microscope (Peabody, MA, USA), operating at accelerating voltage of 20 kV, work distance of 10.3 mm, and magnifications of 500–4000x. This equipment also has an EDX spectroscopy detector, which was used for mapping the elements present in the fluorinated samples.
1H MAS-NMR (magic angle spinning nuclear magnetic resonance) spectra of fluorianted samples were recorded at room temperature using an AVANCEIII HD 600 (Bruker AXS, Rheinstetten, Germany) spectrometer with a 2.5 mm triple resonance DVT probe at a spinning rate of 25 kHz, with a 14.1 T for the magnetic field strength, corresponding to a 1H resonance frequency of 600.09 MHz. The 1H analysis was conducted using the One Pulse technique. The 1H chemical shifts were referenced to adamantane. Spectra were recorded with a pulse width of 2.1 μs, a pulse power of 65.5 W, a delay time of 3 s, and by summing up 64 scans.
The acid content of commercial and fluorinated zeolites was quantified using the well-established procedure of thermal desorption of cyclohexylamine [36,37]. First, cyclohexylamine was added to the samples at room temperature and kept overnight under stirring. Then, the samples were dried in an oven at 80 °C for 2 h [19,34,35]. Cyclohexylamine desorption curves were obtained using Mettler Toledo TGA 2 equipment (Columbus, AL, USA), heating from 50 °C to 700 °C at a heating rate of 10 °C/min under nitrogen flow (25 mL/min). The weight loss attributed to the desorption of the cyclohexyalmine from acid sites was used to quantify the acid content of the fluorinated samples in mmol of cyclohexylamine per gram of sample [19,36,37].

3.5. Catalytic Activity Tests

The hydrodeoxygenation of guaiacol was carried out in a stainless-steel stirred autoclave (150 mL) at 180 °C and 15 bar of H2 pressure for 1 h. Stirring was set at 700 rpm to avoid external diffusion limitations. The reactor was loaded with 200 mg of guaiacol, 40 mL of n-dodecane, and 100 mg of catalyst. In one experiment, a 100 mg of sample BF was combined by physical mixing with 100 mg of Ni/OMC.
The reaction products were identified and quantified by gas chromatography using a Shimadzu GC-2010 instrument (Tokyo, Japan) equipped with a TRB-PETROL column (100 m × 0.25 mm × 0.50 μm) and a FID detector. Hexadecane was used as the internal standard. Calibration lines were obtained from commercial products.

Author Contributions

Conceptualization, Y.C. and J.G.-R.; methodology, G.Q.-A. and A.C.R.; validation, Y.C. and J.G.-R.; investigation, G.Q.-A. and A.C.R.; resources, Y.C.; writing—original draft preparation, J.F., J.G.-R. and Y.C.; writing—review and editing, J.F., J.G.-R. and Y.C.; supervision, J.G.-R. and Y.C.; funding acquisition, Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the project PID2019-110735RB-C22 funded by MICIU/AEI/ 10.13039/501100011033. A. Rueda thanks to Generalitat de Catalunya for the FI_B 00128 grant.

Data Availability Statement

The original contributions presented in the study are included in the article; further inquiries can be directed to the corresponding author/s.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Sheldon, R.A. Green and Sustainable Manufacture of Chemicals from Biomass: State of the Art. Green Chem. 2014, 16, 950–963. [Google Scholar] [CrossRef]
  2. Broglia, F.; Rimoldi, L.; Meroni, D.; De Vecchi, S.; Morbidelli, M.; Ardizzone, S. Guaiacol Hydrodeoxygenation as a Model for Lignin Upgrading. Role of the Support Surface Features on Ni-based Alumina-silica Catalysts. Fuel 2019, 243, 501–508. [Google Scholar] [CrossRef]
  3. Panwar, N.L.; Kaushik, S.C.; Kothari, S. Role of Renewable Energy Sources in Environmental Protection: A review. Renew. Sustain. Energy Rev. 2011, 15, 1513–1524. [Google Scholar] [CrossRef]
  4. Park, J.; Riaz, A.; Insyani, R.; Kim, J. Understanding the Relationship Between the Structure and Depolymerization Behavior of Lignin. Fuel 2018, 217, 202–210. [Google Scholar] [CrossRef]
  5. Saidi, M.; Samimi, F.; Karimipourfard, D.; Nimmanwudipong, T.; Gates, B.C.; Rahimpour, M.R. Upgrading of Lignin-derived Bio-oils by Catalytic Hydrodeoxygenation. Energy. Environ. Sci. 2014, 7, 103–129. [Google Scholar] [CrossRef]
  6. Bykova, M.; Ermakov, D.; Kaichev, V.; Bulavchenko, O.; Saraev, A.; Lebedev, M. Ni-based Sol–gel Catalysts as Promising Systems for Crude Bio-oil Upgrading: Guaiacol Hydrodeoxygenation Study. Appl. Catal. B Environ. 2012, 113, 296–307. [Google Scholar] [CrossRef]
  7. Huber, G.; Iborra, S.; Corma, A. Synthesis of Transportation Fuels from Biomass: Chemistry, Catalysts, and Engineering. Chem. Rev. 2006, 106, 4044–4098. [Google Scholar] [CrossRef]
  8. Furimsky, E. Catalytic Hydrodeoxygenation. Appl. Catal. A Gen. 2000, 199, 147–190. [Google Scholar] [CrossRef]
  9. Yan, P.; Meng-Jung, M.; Kennedy, E.; Adesina, A.; Zhao, G.; Setiawan, A.; Stockenhuber, M. The Role of Acid and Metal Sites in Hydrodeoxygenation of Guaiacol Over Ni/Beta Catalysts. Catal. Sci. Technol. 2020, 10, 810–825. [Google Scholar] [CrossRef]
  10. Hellinger, M.; Carvalho, H.; Baier, S.; Wang, D.; Kleist, W.; Grunwaldt, J.D. Catalytic Hydrodeoxygenation of Guaiacol Over Platinum Supported on Metal Oxides and Zeolites. Appl. Catal. A Gen. 2015, 490, 181–192. [Google Scholar] [CrossRef]
  11. Wang, Y.; Huang, H.; Baxter, N.; Liao, Y.; Zhao, Y.; Wang, S. Guaiacol Hydrodeoxygenation Over Pd Catalyst with Mesoporous ZSM-5 Support Synthesized by Solid-state Crystallization. Catalysis. Today 2020, 358, 60–67. [Google Scholar] [CrossRef]
  12. Gutierrez, S.; Berenguer, A.; Prech, J.; Opanasenko, M.; Ochoa, C.; Pizarro, P.; Cejka, J.; Serrano, D.; Coronado, J.; Moreno, I. Guaiacol Hydrodeoxygenation Over Ni2P Supported on 2D-Zeolites. Catalysis. Today 2020, 345, 48–58. [Google Scholar] [CrossRef]
  13. Li, W.; Wang, H.; Wu, X.; Betancourt, L.; Tu, C.; Liao, M.; Cui, X.; Li, F.; Zheng, J.; Li, R. Ni/hierarchical ZSM-5 Zeolites as Promising Systems for Phenolic Bio-oil Upgrading: Guaiacol Hydrodeoxygenation. J. Mater. Sci. 2020, 274, 117859. [Google Scholar] [CrossRef]
  14. Wang, X.; Zhu, X.; Wang, S.; He, Y.; Liu, Y.; Wang, J.; Fan, W.; Lv, Y. Low temperature hydrodeoxygenation of guaiacol into cyclohexane over Ni/SiO2 catalyst combined with Hβ zeolite. RSC Adv. 2019, 9, 3868–3876. [Google Scholar] [CrossRef] [PubMed]
  15. Qiu, S.; Xu, Y.; Weng, Y.; Ma, L.; Wang, T. Efficient Hydrogenolysis of Guaiacol over Highly Dispersed Ni/MCM-41 Catalyst Combined with HZSM-5. Catalysts 2016, 6, 134. [Google Scholar] [CrossRef]
  16. Roldugina, E.A.; Naranov, E.R.; Maximov, A.L.; Karakhanov, E.A. Hydrodeoxygenation of guaiacol as a model compound of bio-oil in methanol over mesoporous noble metal catalysts. Appl. Catal. A Gen. 2018, 553, 24–35. [Google Scholar] [CrossRef]
  17. Song, W.J.; Liu, Y.S.; Barath, E.; Zhao, C.; Lercher, J.A. Synergistic effects of Ni and acid sites for hydrogenation and C–O bond cleavage of substituted phenols. Green Chem. 2015, 17, 1204–1218. [Google Scholar] [CrossRef]
  18. Casadó, A.; Rösch, A.; Rueda, A.C.; Uribe, A.; González, M.D.; Romero, A.J.; Carvajal, J.J.; Cesteros, Y. Catalytic potential of green ordered mesoporous carbons, obtained from biomass-derived xylose, glucose, and lignin. Microporous Mesoporous Mater. 2024, 372, 113097. [Google Scholar] [CrossRef]
  19. González, M.D.; Cesteros, Y.; Salagre, P. Establishing the role of Bronsted acidity and porosity for the catalytic etherification of glycerol with tert-butanol by modifying zeolites. Appl. Catal. A. Gen. 2013, 450, 178–188. [Google Scholar] [CrossRef]
  20. Imelik, B.; Vedrine, J.C. Catalyst Characterization: Physical Techniques for Solid Materials; Plenum Press: New York, NY, USA, 1994. [Google Scholar]
  21. González, M.D.; Cesteros, Y.; Salagre, P. Comparison of Dealumination of Zeolites Beta, Mordenite and ZSM-5 by Treatment with Acid Under Microwave Irradiation. Microporous Mesoporous Mater. 2011, 144, 162–170. [Google Scholar] [CrossRef]
  22. Zeng, X.; Hu, X.; Song, H.; Xia, G.; Shen, Z.; Yu, R.; Moskovits, M. Microwave Synthesis of Zeolites and Their Related Applications. Microporous Mesoporous Mater. 2021, 323, 111262. [Google Scholar] [CrossRef]
  23. De Boer, J.H. The Structure and Properties of Porous Materials; Everett, D.H., Stone, F.S., Eds.; Butterworth: London, UK, 1958; p. 68. [Google Scholar]
  24. Kral, H.; Rouquerol, J.; Sing, K.; Unger, K.K. Characterization of Porous Solids, Studies in Surface Science and Catalysis, 1st ed.; Elsevier: Amsterdam, The Netherlands, 1988; Volume 39, p. 101. [Google Scholar]
  25. Voogd, P.; Scholten, J.J.F.; van Bekkum, H. Use of the t-plot—De Boer method in Pore Volume Determinations of ZSM-5 Type Zeolites. Colloids Surf. 1991, 55, 163–171. [Google Scholar] [CrossRef]
  26. Jacobs, P.A.; Beyer, H.K.; Valyon, J. Properties of the End Members in the Pentasil-family of Zeolites: Characterization as Adsorbents. Zeolites 1981, 1, 161–168. [Google Scholar] [CrossRef]
  27. Jentys, A.; Lercher, J.A. Chapter 8 Techniques of zeolite characterization. Stud. Surf. Sci. Catal. 2001, 137, 345–386. [Google Scholar] [CrossRef]
  28. Jacobs, P.A.; Flanigen, E.M.; Jansen, J.C.; van Bekkum, E. Introduction to Zeolite Science and Practice, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2001; Volume 137, pp. 345–386. [Google Scholar]
  29. Borade, R.; Clearfield, A. Effect of fluoride ions on the acidic and catalytic properties of beta zeolite. J. Chem. Soc. Faraday Trans. 1995, 91, 539–547. [Google Scholar] [CrossRef]
  30. Wang, W.; Xu, J.; Deng, F. Recent advances in solid-state NMR of zeolite catalysts. Natl. Sci. Rev. 2022, 9, 155. [Google Scholar] [CrossRef]
  31. Gabrienko, A.; Danilova, I.G.; Arzumanov, S.S.; Toktarev, A.V.; Freude, D.; Stepanov, A.G. Strong Acidity of Silanol Groups of Zeolite Beta: Evidence from the Studies by IR Spectroscopy of Adsorbed CO and 1H MAS NMR. Microporous Mesoporous Mater. 2010, 131, 210. [Google Scholar] [CrossRef]
  32. Müller, M.; Harvey, G.; Prins, R. Comparison of the dealumination of zeolites beta, mordenite, ZSM-5 and ferrierite by thermal treatment, leaching with oxalic acid and treatment with SiCl4 by 1H, 29Si and 27Al MAS NMR. Microporous Mesoporous Mater. 2000, 34, 135. [Google Scholar] [CrossRef]
  33. Dongil, A.B.; Pastor-Pérez, L.; Sepúlveda-Escribano, A.; García, R.; Escalona, N. Hydrodeoxygenation of Guaiacol: Tuning the Selectivity to Cyclohexene by Introducing Ni Nanoparticles Inside Carbon Nanotubes. Fuel 2016, 172, 65–69. [Google Scholar] [CrossRef]
  34. Dongil, A.B.; Ghampson, I.T.; García, R.; Fierro, J.L.G.; Escalona, N. Hydrodeoxygenation of Guaiacol Over Ni/carbon Catalysts: Effect of the Support and Ni Loading. RSC Adv. 2016, 6, 2611–2623. [Google Scholar] [CrossRef]
  35. López, M.; Palacio, R.; Royer, S.; Mamede, A.S.; Fernández, J.J. Mesostructured CMK-3 Carbon Supported Ni–ZrO2 as Catalysts for the Hydrodeoxygenation of Guaiacol. Microporous Mesoporous Mater. 2020, 292, 109694. [Google Scholar] [CrossRef]
  36. Breen, C. Thermogravimetric and Infrared Study of the Desorption of Butylamine, Cyclohexylamine and Pyridine from Ni- and Co-exchanged Montmorillonite. Clay Miner. 1991, 26, 487–496. [Google Scholar] [CrossRef]
  37. Mokaya, R.; Jones, W.; Moreno, S.; Poncelet, G. n-heptane Hydroconversion Over Aluminosilicate Mesoporous Molecular Sieves. Catal. Lett. 1997, 49, 87–94. [Google Scholar] [CrossRef]
Catalysts 14 00586 sch001
Scheme 1. Catalytic hydrodeoxygenation of guaiacol at low reaction temperatures.
Scheme 1. Catalytic hydrodeoxygenation of guaiacol at low reaction temperatures.
Catalysts 14 00586 sch001
Catalysts 14 00586 g001

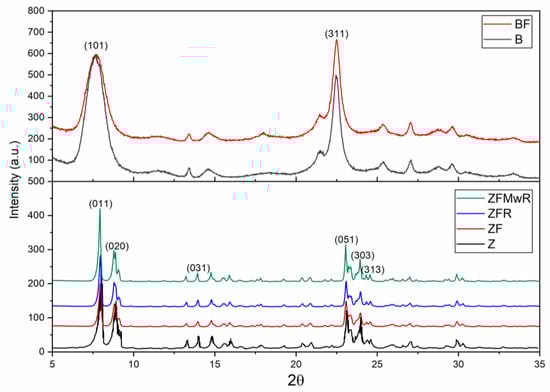

Figure 1. XRD of representative fluorinated ZSM-5 and beta samples.
Figure 1. XRD of representative fluorinated ZSM-5 and beta samples.
Catalysts 14 00586 g001
Catalysts 14 00586 g002

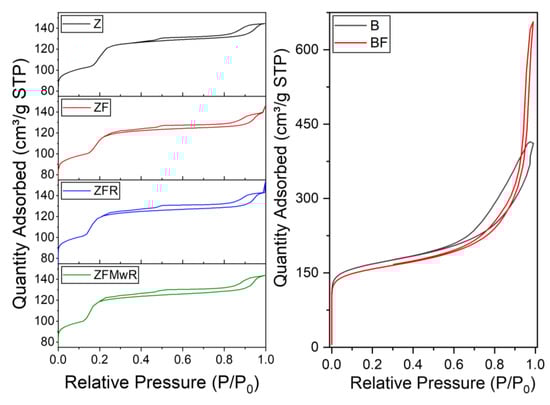

Figure 2. N2 adsorption-desorption isotherms of representative fluorinated ZSM-5 and beta samples.
Figure 2. N2 adsorption-desorption isotherms of representative fluorinated ZSM-5 and beta samples.
Catalysts 14 00586 g002
Catalysts 14 00586 g003

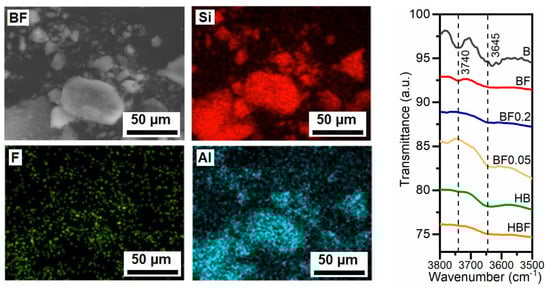

Figure 3. (Left) SEM-EDS of sample BF, and (right) infrared spectra of the fluorinated beta samples in the region 3800–3500 cm−1.
Figure 3. (Left) SEM-EDS of sample BF, and (right) infrared spectra of the fluorinated beta samples in the region 3800–3500 cm−1.
Catalysts 14 00586 g003
Catalysts 14 00586 g004

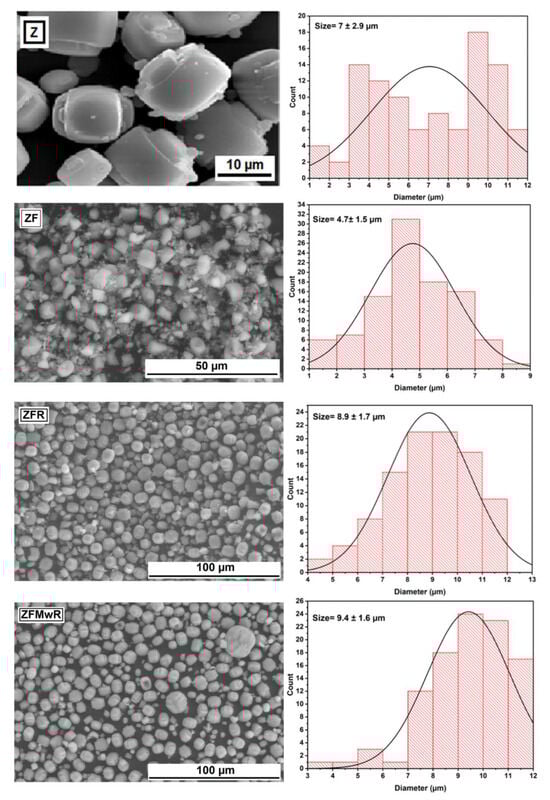

Figure 4. Scanning electron micrographs of several fluorinated ZSM-5 samples.
Figure 4. Scanning electron micrographs of several fluorinated ZSM-5 samples.
Catalysts 14 00586 g004
Catalysts 14 00586 g005
Figure 5. 1H NMR of several fluorinated ZSM-5 and beta samples.
Figure 5. 1H NMR of several fluorinated ZSM-5 and beta samples.
Catalysts 14 00586 g005
Catalysts 14 00586 g006

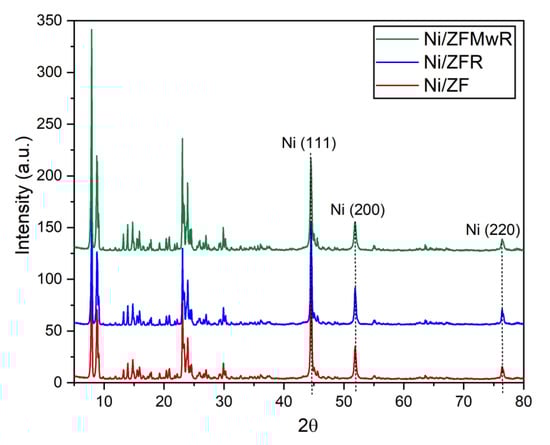

Figure 6. XRD patterns of several Ni/fluorinated ZSM-5 catalysts.
Figure 6. XRD patterns of several Ni/fluorinated ZSM-5 catalysts.
Catalysts 14 00586 g006
Catalysts 14 00586 g007

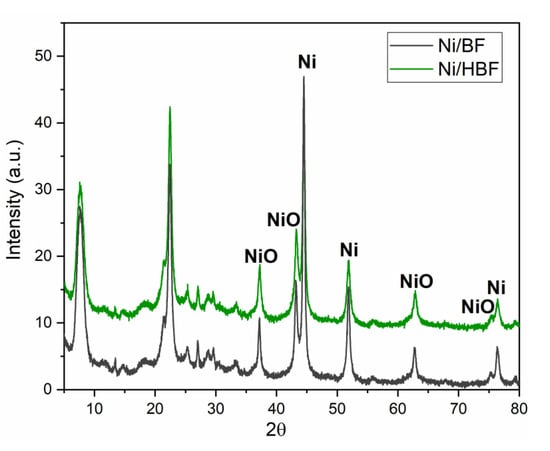

Figure 7. XRD patterns of several Ni/fluorinated beta catalysts.
Figure 7. XRD patterns of several Ni/fluorinated beta catalysts.
Catalysts 14 00586 g007
Catalysts 14 00586 g008

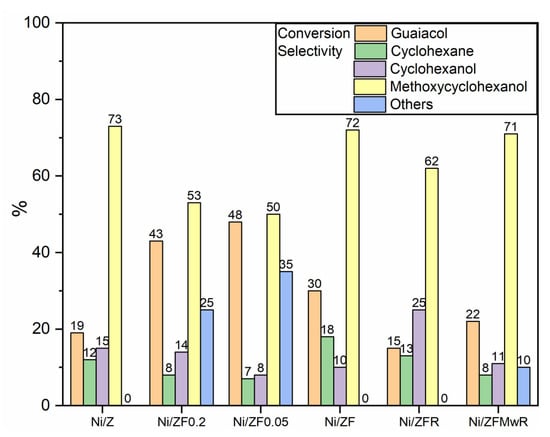

Figure 8. Catalytic activity of the Ni/fluorinated ZSM-5 catalysts. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Figure 8. Catalytic activity of the Ni/fluorinated ZSM-5 catalysts. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Catalysts 14 00586 g008
Catalysts 14 00586 g009

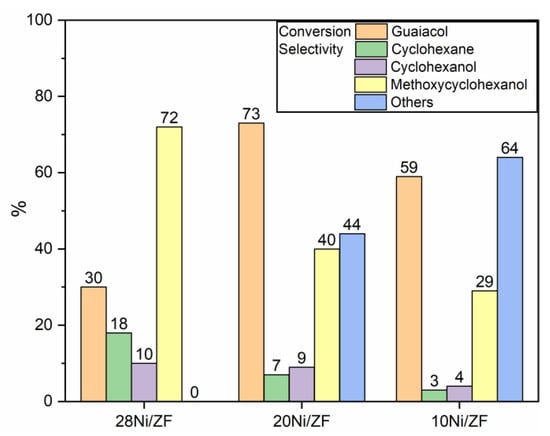

Figure 9. Catalytic activity of the Ni/ZF catalysts with different Ni contents. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Figure 9. Catalytic activity of the Ni/ZF catalysts with different Ni contents. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Catalysts 14 00586 g009
Catalysts 14 00586 g010

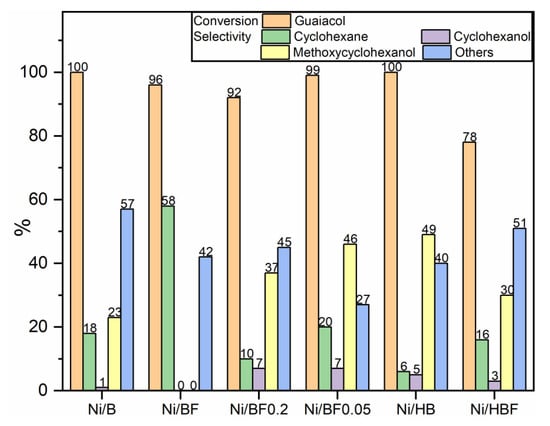

Figure 10. Catalytic activity of the Ni/fluorinated Beta catalysts. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Figure 10. Catalytic activity of the Ni/fluorinated Beta catalysts. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst; H2, 15 bar; reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Catalysts 14 00586 g010
Catalysts 14 00586 g011

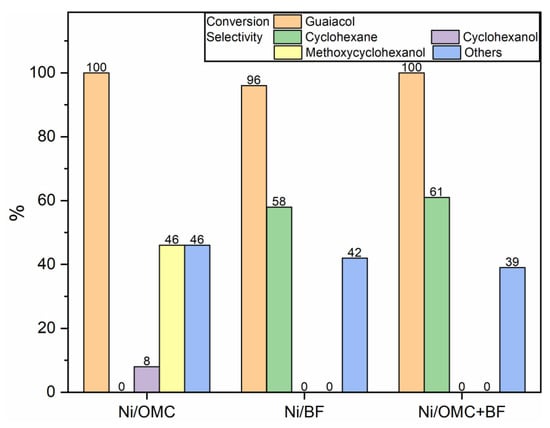

Figure 11. Catalytic activity of the Ni/OMC catalysts combined with BF. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst, for mixtures: 100 mg of Ni/OMC + 100 mg BF; H2, 15 bar reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Figure 11. Catalytic activity of the Ni/OMC catalysts combined with BF. Reaction conditions: 200 mg of guaiacol; 100 mg of catalyst, for mixtures: 100 mg of Ni/OMC + 100 mg BF; H2, 15 bar reaction time, 1 h; reaction temperature, 180 °C; solvent, dodecane.
Catalysts 14 00586 g011
Table 1. Characterization of the fluorinated zeolites.
Table 1. Characterization of the fluorinated zeolites.
SamplesSi/Al
(XRF)		IR Bands (cm−1) aLangmuir
Surface Area (m2/g) b		Acidity
(mmol H+/g) c
υ1υ2
Z20.010587955050.25
ZF20.510617955490.37
ZF0.221.610717955580.33
ZF0.0520.310607955160.27
ZFR20.110597984570.39
ZFMwR20.110537974540.45
B12.510477926300.30
BF14.610647957310.51
BF0.215.210667977670.29
BF0.0513.810507937240.48
HB13.210547956360.60
HBF14.110657987020.58
a Frequencies of the main asymmetric stretch (υ1) and the main symmetric stretch (υ2) due to the T-O bond (T = Si, Al); b from nitrogen physisorption results; c determined by TGA of desorbed cyclohexylamine.
Table 2. Fluorination conditions of the zeolites.
Table 2. Fluorination conditions of the zeolites.
Samples[NH4F]
(M)		Treatment
Temperature (°C)		Treatment Time (h)Heating
ZF0.1RT42--
ZF0.20.2RT42--
ZF0.050.05RT42--
ZFR0.1404Conventional refluxing
ZFMwR0.1404Microwave refluxing
BF0.1RT42--
BF0.20.2RT42--
BF0.050.05RT42--
HBFa0.1RT42--
RT: Room temperature. a Fluorination from HB.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Quintero-Arroyo, G.; Rueda, A.C.; Granados-Reyes, J.; Fals, J.; Cesteros, Y. Effect of Acid Properties of Fluorinated Beta and ZSM-5 Zeolites Used as Supports of Ni Catalysts for the Catalytic Hydrodeoxygenation of Guaiacol. Catalysts 2024, 14, 586. https://doi.org/10.3390/catal14090586

AMA Style

Quintero-Arroyo G, Rueda AC, Granados-Reyes J, Fals J, Cesteros Y. Effect of Acid Properties of Fluorinated Beta and ZSM-5 Zeolites Used as Supports of Ni Catalysts for the Catalytic Hydrodeoxygenation of Guaiacol. Catalysts. 2024; 14(9):586. https://doi.org/10.3390/catal14090586

Chicago/Turabian Style

Quintero-Arroyo, Gabriela, Angie C. Rueda, Judith Granados-Reyes, Jayson Fals, and Yolanda Cesteros. 2024. "Effect of Acid Properties of Fluorinated Beta and ZSM-5 Zeolites Used as Supports of Ni Catalysts for the Catalytic Hydrodeoxygenation of Guaiacol" Catalysts 14, no. 9: 586. https://doi.org/10.3390/catal14090586

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
