Improvement in the Photocatalytic Hydrogen Production of Flower-Shaped ZnIn2S4 by Surface Modification with Amino Silane

by
Xiangyu Chen
,
Benliang Liang
* and
Luting Yan
*
Department of Materials, School of Physical Science and Engineering, Beijing Jiaotong University, Beijing 100044, China
*
Authors to whom correspondence should be addressed.
Catalysts 2024, 14(9), 607; https://doi.org/10.3390/catal14090607
Submission received: 31 July 2024 / Revised: 4 September 2024 / Accepted: 5 September 2024 / Published: 10 September 2024
(This article belongs to the Section Photocatalysis)
Browse Figures
Versions Notes

Abstract

:
ZnIn2S4 has attracted extensive attention in the field of photocatalytic hydrogen production because of its suitable band gap and excellent photoelectrochemical properties. However, its lower photogenerated carrier separation efficiency and high degree of photocorrosion severely restricts its photocatalytic activity. In this work, the photocatalytic hydrogen production performance of ZnIn2S4 modified with 3-aminopropylmethoxysilane was studied. Surface modification by amino silane not only regulated the band gap and enhanced the light absorption of ZnIn2S4 but it also increased the colloidal stability of the ZnIn2S4 suspension and enhanced the adsorption of H+ on the active surface sites, thereby improving the photocatalytic hydrogen production performance. Compared with that of unmodified ZnIn2S4, the photocatalytic hydrogen production rate of surface-modified ZnIn2S4 increased by 1.46 times, and after four cycles for 12 h, the hydrogen production efficiency remained at 75.14%.

1. Introduction

Photocatalytic hydrogen production is a key research direction for future hydrogen energy generation, and the development of efficient photocatalysts is crucial to improving photocatalytic performance [1,2]. During the past few decades, tremendous efforts have been devoted to developing nontoxic, low-cost, efficient, and stable photocatalysts for water splitting, including metal oxides, sulfides, and nitrides with different structures and compositions [3,4,5,6]. To further improve the performance of semiconductors in photocatalytic hydrogen production, it is necessary not only to broaden the photoresponse range and enhance the absorption efficiency of semiconductors but also to improve the separation efficiency of photogenerated electron–hole pairs. The common techniques used include precious metal nanoparticle deposition [7,8,9], elemental doping [10,11,12], defect structure [13,14,15], heterojunctions with other semiconductors [16,17], surface modification [18,19], and composite nanostructures [20,21]. However, these strategies generally involve complex sample preparation procedures and harsh reaction conditions, which are not conducive to reducing the manufacturing cost of photocatalysts.
Owing to the effective separation and migration of photogenerated electrons and holes to different surface regions, the formation of redox-active sites, and the triggering of photocatalytic reactions, the surface characteristics of semiconductors significantly affect their photocatalytic activities. Additionally, surface modification can design functional groups on the surface of photocatalysts through covalent bonding, becoming a simple and low-energy method for regulating photocatalysts. Hu et al. [22] prepared ethylenediamine-modified TiO2, which exhibited an excellent photocatalytic hydrogen evolution rate through synchronously broadening the light absorption and increasing the conduction band position of TiO2. Wanag et al. [23] reported that APTES modification of TiO2 improved the photocatalytic decomposition of methylene blue. Lei et al. [24] studied the interfacial molecular regulation of TiO2 for enhanced photocatalytic hydrogen production. The electron-donating properties of the amine group modulated both the band gap and carrier separation efficiency of TiO2, leading to a 12-fold increase in photocatalytic hydrogen production. Shao et al. [25] applied poly(3-hexylthiophene) to modify black phosphorus (BP), and the formed built-in electric field promoted the enrichment of photogenerated electrons on the BP surface, which greatly enhanced the photocatalytic activity.
ZnIn2S4 (ZIS) has attracted great interest because of its suitable band gap, good chemical stability, simple and flexible preparation methods, and excellent light absorption. However, as a photocatalyst, its lower photogenerated carrier separation and migration efficiency, sluggish surface reaction kinetics, and high degree of photocorrosion severely restricts its photocatalytic activity [26,27,28]. Therefore, several strategies have been used to improve the photocatalytic performance of ZnIn2S4, such as morphology regulation, vacancy engineering, compounding with semiconductors, element doping, and the construction of heterojunctions [29,30,31,32]. Among them, constructing heterojunctions can effectively enhance the separation of photogenerated carriers and suppress photocorrosion. The use of multidimensional hierarchical hollow Co3O4/ZnIn2S4 tubular core–shell heterostructures resulted in a photocatalytic hydrogen production rate of 3844.12 μmol·g−1·h−1, which is 4.67 times greater than that achieved with pure ZnIn2S4 [33]. The ZIS-PyP S-scheme photocatalyst has a photocatalytic H2 evolution rate of 54 μmol·h−1, which is 2.5-fold greater than that of pure ZnIn2S4 [34]. However, the formation of high-quality heterojunctions requires precise control of the interfaces and optimization of the band alignment. In addition, there is still controversy over the migration direction of photogenerated carriers in direct Z-scheme heterojunctions [35]. Compared with constructing heterojunctions, surface modification with organic small molecules is relatively simpler and more effective. Herein, ZnIn2S4 was synthesized via a hydrothermal reaction method, followed by surface modification with 3-aminopropylmethoxysilane (APS). The purpose of surface modification is as follows: first, the band gap of ZnIn2S4 is regulated through the participation of electron-donating amino groups of APS, increasing light absorption and accelerating the separation and migration of photogenerated carriers; second, the colloidal stability of the ZnIn2S4 suspension through the spatial hindrance provided by APS, along with the increased adsorption of H+ by amino groups, synergistically improves the photocatalytic hydrogen production rate of ZnIn2S4.

2. Results

2.1. Morphology and Structure

The ZIS and surface-modified ZIS were characterized via XRD, and the corresponding results are shown in Figure 1a. Pure ZIS had characteristic diffraction peaks at 21.6°, 27.7°, 47.2°, and 52.4°, corresponding to the (006), (102), (110), and (116) crystal planes of hexagonal ZIS (JCPDS#72-0773), respectively. No significant changes in the crystalline structure of the surface-modified ZIS were observed, and APS modification did not contribute to phase transformation. The XRD patterns of ZIS-APS were essentially consistent with those of pure ZIS. Figure 1b shows the FTIR spectra of ZIS and ZIS-APS. In addition to the broad absorption bands at 3300–3500 cm−1, 1600–1650 cm−1, and 1396 cm−1, which corresponded to typical H–O–H, O–H, and C–O stretching vibrations of the absorbed H2O and atmospheric CO2, no particular functional groups existed on the ZIS surface [36,37]. During the surface modification process, silane was first hydrolyzed into silanol and then condensed with the –OH groups on the ZIS surface. –NH2 stretching vibrations had two absorption peaks at 3400–3490 cm−1. The peaks at 2900–3000 cm−1 were attributable to symmetric and asymmetric –CH2 stretching in the alkyl chain introduced by silane. The peak at approximately 1600 cm−1 could be assigned to the N–H bending vibrations of primary amines, the peak near 1450 cm−1 belonged to the in-plane bending vibration of C–H, and the peak located at 1380 cm−1 belonged to the C–N bands. The peak corresponding to Si–O–Si was found at 1160 cm−1, indicating self-condensation among the silanol groups. The FTIR spectra indicated the successful modification of ZIS by amino silane.
TEM (Figure 2a), SEM (Figure 2b,c), and EDS layered images confirmed the morphology and structure of ZIS and ZIS-APS. These results indicated that ZIS consisted of flower-shaped microspheres composed of many nanoflakes with diameters of approximately 1–2 μm. The flower-shaped microsphere structure has a larger specific surface area and more reactive sites, which is conducive to photocatalytic reactions. The EDS results revealed that the surface morphological structure of the amine-based APS modification was uniform. The images show that the obtained sample contained N, Si, S, Zn, and In. Both Si and N were homogeneously dispersed throughout the surface, indicating that the silane APS agent was modified onto the ZIS.
The surface composition and element valence states were further investigated via XPS (Figure 3). XPS survey scans (Figure 3a) revealed that In, S, Zn, N, Si, O, and C coexisted in the samples. Figure 3e–g show the specific XPS spectra of Zn 2p, In 3d, and S 2p for the prepared ZnIn2S4 and modified ZnIn2S4. The difference in binding energies between Zn 2p1/2 and 2p3/2 was approximately 23.1 eV, suggesting a typical Zn2+ in ZnIn2S4 [38,39]. The In 3d spectrum exhibited two peaks at 445.1 eV and 452.6 eV, which were attributed to the In 3d5/2 and In 3d3/2 energy levels, respectively. The S 2p peaks were located at 161.85 eV and 163.05 eV, corresponding to S 2p3/2 and S 2p1/2, respectively. The above XPS binding energies confirmed that the chemical valence states of In and S were In3+ and S2−. Affected by APS bonding, the Zn 2p, In 3d, and S 2p peaks in ZIS-APS shifted in the lower energy direction. The Si 2p peak in Figure 3c and the significantly enhanced C 1 s peak in Figure 3d further demonstrated the introduction of APS. The two N 1 s peaks at 399.7 and 401.7 eV (Figure 3b) were found in the high-resolution N 1 s spectrum, corresponding to the N–H orbitals of the primary amine and protonated amine NH3+, respectively. This indicates that the amine groups introduced by silane surface modification enhanced the adsorption of H+ in water, which is beneficial for improving the photocatalytic performance. The above results are consistent with the previous SEM and FTIR results, indicating the successful modification of ZIS with APS.

2.2. Optical Properties and Band Gap

As depicted in Figure 4a,b, the absorption properties and band gaps of ZIS and ZIS-APS were studied via UV–vis diffuse reflection spectroscopy. Pure ZnIn2S4 had high absorbance, with an absorption edge at approximately 480 nm. Compared with that of pure ZIS, the absorption performance of ZIS-APS was significantly greater in the wavelength range of 300–800 nm. Furthermore, the band gaps of ZIS and ZIS-APS were calculated according to the classical Tauc plot calculation method. The band gap energy of ZIS was 2.38 eV, whereas the band gap energy of amine-functionalized ZIS was reduced to 2.35 eV. The MS curves in Figure 4c exhibited a positive slope, indicating that ZIS is an n-type semiconductor. The inset in Figure 4c shows that the flat band potential is relatively stable at different frequencies. The flat band potentials of ZIS and ZIS-APS were −1.04 and −1.20 eV, respectively. On the basis of the Tauc plot and MS results, the energy band structures of ZIS and ZIS-APS are listed in Figure 4d. Compared with that of pristine ZIS, the conduction band position of ZIS-APS was negatively shifted by 0.16 eV, indicating an enhanced H+ reduction ability.

2.3. Photocatalytic H2 Evolution

Xenon lamps provide simulated natural light illumination, and photocatalytic hydrogen production testing was conducted by combining a photocatalytic cycling instrument with gas chromatography. The changes in photocatalytic hydrogen evolution over time for ZIS and ZIS-APS are shown in Figure 5. The amount of hydrogen produced increased linearly with time, and the hydrogen production rates of the amine-modified ZIS were substantially greater than those of pure ZIS. Pure ZIS exhibited a photocatalytic hydrogen production rate of 3.51 mmol∙g−1∙h−1, whereas the rate of H2 evolution of ZIS-APS reached 5.13 mmol∙g−1∙h−1, which was 1.46 times greater than that of pure ZIS. The cyclic test results in Figure 5c show that the ZIS-APS photocatalyst maintained a relatively stable hydrogen production ability without any substantial decrease after four cycles for 12 h, with a 75.14% initial hydrogen production rate. ZIS had a lower hydrogen production rate in the first round, reached its peak in the second round, and then decreased. However, the hydrogen production rate remained lower than that of ZIS-APS throughout the four rounds. Compared with data reported in other studies (Figure 5d, some of the data were obtained under visible light), the hydrogen production rate of ZIS-APS was further ahead, and it had excellent stability.

3. Discussion

To further explore the carrier separation and migration efficiency, the photocurrent and electrochemical impedance spectroscopy (EIS) results of ZIS and ZIS-APS were obtained via an electrochemical workstation, and the results are shown in Figure 6. Figure 6a shows the time-dependent photocurrent measurements. ZIS-APS exhibited a higher photocurrent density that correlated well with the on/off cycle of simulated sunlight, indicating that the covalently modified amino molecules increased light absorption and facilitated efficient electron–hole pair separation. The facilitated charge transfer of ZIS-APS was further confirmed by EIS (Figure 6b). Compared with pure ZIS, ZIS-APS had a smaller arc radius (the Rct values of ZIS and ZIS-APS were 10 Ω and 0.84 Ω, respectively), which indicates that surface modification of ZIS with amino silane can substantially accelerate the charge transfer of ZIS. These electron transfers generally help separate photogenerated electron–hole pairs and consequently result in higher catalytic performance than that of pure ZnIn2S4.
Figure 7 shows a schematic diagram of the increased photocatalytic hydrogen production mechanism. During the surface modification process, silane is first hydrolyzed into silanol and then condensed with the –OH groups on the ZIS surface. First, the long-chain alkyl groups introduced by surface modification enhance the colloidal stability of the ZIS suspension. Second, electron-donating amino groups participate in band gap regulation, improving light absorption and promoting the migration and separation of photogenerated carriers. Furthermore, the –NH2 groups on the surface of ZIS are positively charged owing to protonation, which promotes the adsorption of H+ on the ZIS surface. Therefore, the photocatalytic performance and stability of ZnIn2S4 were significantly improved. This is consistent with the previous UV–vis absorption, photocurrent, and impedance results.

4. Materials and Methods

Materials. Zinc chloride (ZnCl2), indium trichloride tetrahydrate (InCl3·4H2O), and thioacetamide (C2H5NS, TAA) were obtained from Beijing Inno-chem Technology Co., Ltd., Beijing, China, 3-aminopropylmethoxysilane (APS) was purchased from Acros. Sodium sulfite nonahydrate (Na2S·9H2O) and sodium sulfite (Na2SO3) were purchased from Tianjin Fuchen Chemical Reagent Factory. All chemicals were used without further purification.
Preparation of ZnIn2S4. ZnIn2S4 was prepared via hydrothermal methods. First, 1 mmol of ZnCl2, 2 mmol of InCl3·4H2O, and 4 mmol of TAA were dissolved in 80 mL of deionized water. After stirring for 30 min, the mixture was transferred to a 100 mL Teflon-lined stainless-steel autoclave and maintained at 80 °C for 12 h. The resulting powder was separated at 5000 rpm and then washed once with deionized water and 2× with ethanol to remove any residual chemicals. Finally, the powder was dried at 60 °C for 12 h. The obtained ZnIn2S4 was denoted ZIS.
Surface modification of ZnIn2S4. Two hundred milligrams of ZnIn2S4 was dispersed in 100 mL of ethanol with a 1.5 wt% concentration of APS at room temperature for 24 h. The powder was obtained after centrifugation and rinsed with distilled water and ethanol to remove residual chemicals. Finally, the obtained powder was dried at 60 °C for 12 h. The modified ZnIn2S4 was denoted ZIS-AP. Figure 8 shows a schematic diagram of the preparation process of ZIS and ZIS-APS.
Characterization. The morphology and microstructure of the obtained products were observed by scanning electron microscopy (SEM, Hitachi S4800, Hitachi Ltd., Tokyo, Japan) and transmission electron microscopy (TEM, Tecnai G2F30 S-TWIN, FEI, Atlanta, GA, USA). The phase structures were studied via X-ray diffractometry (XRD, Ultima IV, Rigaku, Tokyo, Japan). The surface elemental compositions were analyzed through X-ray photoelectron spectroscopy (XPS, Axis Supra, Kratos Analytical Ltd., Manchester, UK). The Tauc plots of the composite were constructed on the basis of UV–visible diffuse reflectance spectroscopy (DRS Cary 5000, Agilent Technologies Inc, Santa Clara, CA, USA). By combining the Mott–Schottky (MS) plot with the Tauc plot, the changes in the positions of the valence band and conduction band of the samples were determined. The photocurrent and electrochemical impedance spectroscopy (EIS) results were measured with a CHI760E workstation (Shanghai Chenhua, Shanghai, China) to explore the charge separation efficiency and transport capability of the photocatalyst.
Photocatalytic H2 production test. The photocatalytic activity of the catalyst was assessed in a 200 mL sealed quartz reactor under 300 W xenon lamp irradiation. A total of 10 mg of catalyst was added to a reactor containing 100 mL of a mixed solution containing 0.25 mol·L−1 Na2SO3 and 0.35 mol·L−1 Na2S. The reaction temperature was controlled at 20 °C by circulating cooling water, and N2 purging was maintained for 30 min to remove residual air. The generated hydrogen was detected via a gas chromatograph equipped with a TCD detector.

5. Conclusions

In summary, we prepared APS-modified ZnIn2S4 and investigated its photocatalytic hydrogen production performance. The introduction of silane alkyl chains increases steric hindrance and enhances the colloidal stability of the ZnIn2S4 suspension. The electron-donating –NH2 broadens the light absorption of ZnIn2S4 and promotes the adsorption of H+ on its surface. Under the synergistic effects of these factors, the photocatalytic performance and stability of ZnIn2S4 were significantly improved. The surface-modified ZIS-APS exhibited a photocatalytic H2 evolution rate of 5.13 mmol∙g−1∙h−1, which was 1.46 times greater than that of pure ZIS. This finding indicates that surface modification is a simple and efficient measure for enhancing the photocatalytic performance of semiconductors and can be used for other photocatalyst systems in addition to TiO2 and ZIS.

Author Contributions

X.C.: Conceptualization, Methodology, Formal analysis, Validation, Data curation, Writing—original draft. B.L.: Resources, Writing—original draft. L.Y.: Funding acquisition, project administration, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the National Natural Science Foundation of China (11475017).

Data Availability Statement

The data will be made available upon request.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Ipatieff, V.N.; Monroe, G.S.; Fischer, L.E. Low temperature hydrogen production. Ind. Eng. Chem. 1950, 42, 92–94. [Google Scholar] [CrossRef]
  2. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, M.; Shang, Q.; Wan, Y.; Cheng, Q.; Liao, G.; Pan, Z. Self-template synthesis of double-shell TiO2@ ZiF-8 hollow nanospheres via Ssonocrystallization with enhanced photocatalytic activities in hydrogen generation. Appl. Catal. B Environ. 2019, 241, 149–158. [Google Scholar] [CrossRef]
  4. Prakash, J.; Kumar, P.; Saxena, N.; Chen, Z.; Tyagi, A.; Zhang, G.; Sun, S. CdS Based 3D Nano/microarchitectures: Formation mechanism, tailoring of visible light activities and emerging applications in photocatalytic H2 production, CO2 reduction and organic pollutant degradation. J. Mater. Chem. A 2023, 11, 10015–10064. [Google Scholar] [CrossRef]
  5. Singh, R.; Dutta, S. A review on H2 production through photocatalytic reactions using TiO2/TiO2-assisted catalysts. Fuel 2018, 220, 607–620. [Google Scholar] [CrossRef]
  6. Xiao, M.; Luo, B.; Wang, S.; Wang, L. Solar energy conversion on g-C3N4 photocatalyst: Light harvesting, charge separation, and surface kinetics. J. Energy Chem. 2018, 27, 1111–1123. [Google Scholar] [CrossRef]
  7. Gogoi, D.; Namdeo, A.; Golder, A.K.; Peela, N.R. Ag-doped TiO2 photocatalysts with effective charge transfer for highly efficient hydrogen production through water splitting. Int. J. Hydrogen Energy 2020, 45, 2729–2744. [Google Scholar] [CrossRef]
  8. Bi, R.; Han, B.; Shen, Y.; Liu, J.; Wang, Z. Enhancing photocatalytic overall water splitting activity of SrTiO3 nanoparticles by a synergetic Pt/CrOx dual cocatalyst system. ACS Appl. Energy Mater. 2023, 6, 10600–10609. [Google Scholar] [CrossRef]
  9. Zheng, Z.; Xie, W.; Huang, B.; Dai, Y. Plasmon-enhanced solar water splitting on metal semiconductor photocatalysts. Chem.-A Eur. J. 2018, 24, 18322–18333. [Google Scholar] [CrossRef]
  10. Shi, R.; Ye, H.F.; Liang, F.; Wang, Z.; Li, K.; Weng, Y.; Lin, Z.; Fu, W.; Che, C.; Chen, Y. Interstitial P-doped CdS with long-lived photogenerated electrons for photocatalytic water splitting without sacrificial Agents. Adv. Mater. 2018, 30, 1705941. [Google Scholar] [CrossRef]
  11. Jia, G.; Wang, Y.; Cui, X.; Zheng, W. Highly carbon-doped TiO2 derived from mxene boosting the photocatalytic hydrogen evolution. ACS Sustain. Chem. Eng. 2018, 6, 13480–13486. [Google Scholar] [CrossRef]
  12. Zhang, L.; Jing, D.; Guo, L.; Yao, X. In situ photochemical synthesis of Zn-doped Cu2O hollow microcubes for highly efficient photocatalytic H2 production. ACS Sustain. Chem. Eng. 2014, 2, 1446–1452. [Google Scholar] [CrossRef]
  13. Sinhamahapatra, A.; Jeon, J.P.; Yu, J.S. A new approach to prepare highly active and stable black titania for visible light-assisted hydrogen production. Energy Environ. Sci. 2015, 8, 3539–3544. [Google Scholar] [CrossRef]
  14. Bai, S.; Zhang, N.; Gao, C.; Xiong, Y. Defect engineering in photocatalytic materials. Nano Energy 2018, 53, 296–336. [Google Scholar] [CrossRef]
  15. Ou, G.; Xu, Y.; Wen, B.; Lin, R.; Ge, B.; Tang, Y.; Liang, Y.; Yang, C.; Hang, K.; Zu, D. Tuning defects in oxides at room temperature by lithium reduction. Nat. Commun. 2018, 9, 1302. [Google Scholar] [CrossRef]
  16. Guan, X.; Zhang, X.; Zhang, C.; Li, R.; Liu, J.; Wang, Y.; Fan, C.; Li, Z. Original self-assembled S-Scheme BiOBr-(001)/Bi2SiO5/Bi heterojunction photocatalyst with rich oxygen vacancy for boosting CO2 reduction performance. J. Colloid Interface Sci. 2023, 644, 426–436. [Google Scholar] [CrossRef]
  17. Gao, H.; Zhang, P.; Hu, J.; Pan, J.; Fan, J.; Shao, G. One-dimensional Z-scheme TiO2/WO3/Pt heterostructures for enhanced hydrogen generation. Appl. Surf. Sci. 2017, 391, 211–217. [Google Scholar] [CrossRef]
  18. Shen, J.; Wang, R.; Liu, Q.; Yang, X.; Tang, H.; Yang, J. Accelerating photocatalytichydrogen evolution and pollutant degradation by coupling organic co-catalystswith TiO2. Chin. J. Catal. 2019, 40, 380–389. [Google Scholar] [CrossRef]
  19. Feng, C.; Wu, Z.P.; Huang, K.W.; Ye, J.; Zhang, H. surface modification of 2D photocatalysts for solar energy conversion. Adv. Mater. 2022, 34, 2200180. [Google Scholar] [CrossRef]
  20. Lin, X.; Xu, S.; Wei, Z.Q.; Hou, S.; Xiao, F.X. Selective Organic Transformation over a Self-Assembled AllSolid-State Z-Scheme Core-Shell Photoredox System. J. Mater. Chem. A 2020, 8, 20151–20161. [Google Scholar] [CrossRef]
  21. Wu, J.-W.; Wei, Y.C.; Torimoto, T.; Chien, Y.N.; Chen, C.Y.; Chang, T.M.; Sone, M.; Hsieh, P.Y.; Hsu, Y.I. Yolk@Shell Nanostructures for Water Splitting: Current Development and Future Prospects. ACS Materials Lett. 2024, 6, 4066–4089. [Google Scholar] [CrossRef]
  22. Hu, J.; Xie, J.; Jia, W.; Zhang, S.; Cao, Y. Interesting molecule adsorption strategy induced energy band tuning: Boosts 43 times photocatalytic water splitting ability for commercial TiO2. Appl. Catal. B 2020, 268, 118753. [Google Scholar] [CrossRef]
  23. Wanag, A.; Sienkiewicz, A.; Rokicka-Konieczna, P.; Kusiak-Nejman, E.; Morawski, A.W. Influence of modification of titanium dioxide by silane coupling agents on the photocatalytic activity and stability. J. Environ. Chem. Eng. 2020, 8, 103917. [Google Scholar] [CrossRef]
  24. Lei, W.; Wang, H.; Khan, S.; Suzuki, N.; Takagi, K.; Katsumata, K.; Teshima, K.; Terashima, C.; Fujishima, A. Interfacial molecular regulation of TiO2 for enhanced and stable cocatalyst-free photocatalytic hydrogen production. J. Colloid Interface Sci. 2023, 645, 219–226. [Google Scholar] [CrossRef]
  25. Shao, W.; Wang, L.; Wang, H.; Zhao, Z.; Xie, Y. Efficient exciton dissociation in heterojunction interface realizing enhanced photoresponsive performance. J. Phys. Chem. Lett. 2019, 10, 2904–2910. [Google Scholar] [CrossRef] [PubMed]
  26. Chai, B.; Peng, T.; Zeng, P.; Zhang, X.; Liu, X. Template-free hydrothermal synthesis of ZnIn2S4 floriated microsphere as an efficient photocatalyst for H2 production under visible-light irradiation. J. Phys. Chem. C 2011, 115, 6149–6155. [Google Scholar] [CrossRef]
  27. Xue, C.; An, H.; Yan, X.; Li, J.; Yang, B.; Wei, J.; Yang, G. Spatial charge separation and transfer in ultrathin CdIn2S4/rGO nanosheet arrays decorated by ZnS quantum dots for efficient visible-light-driven hydrogen evolution. Nano Energy 2017, 39, 513–523. [Google Scholar] [CrossRef]
  28. Yang, W.; Zhang, L.; Xie, J.; Zhang, X.; Liu, Q.; Yao, T.; Wei, S.; Zhang, Q.; Xie, Y. Enhanced photoexcited carrier separation in oxygen-doped ZnIn2S4 nanosheets for hydrogen evolution. Angew. Chem. Int. Ed. 2016, 55, 6716–6720. [Google Scholar] [CrossRef]
  29. Yu, M.S.; Lv, X.Y.; Idris, A.M.; Li, S.H.; Lin, J.Q.; Lin, H.; Wang, J.; Li, Z.Q. Upconversion nanoparticles coupled with hierarchical ZnIn2S4 nanorods as a near-infrared responsive photocatalyst for photocatalytic CO2 reduction. J. Colloid. Interf. Sci. 2022, 612, 782–791. [Google Scholar] [CrossRef]
  30. Sun, L.L.; Liu, X.S.; Jiang, X.H.; Feng, Y.B.; Ding, X.L.; Jiang, N.; Wang, J.G. An internal electric field and interfacial S–C bonds jointly accelerate S-scheme charge transfer achieving efficient sunlight-driven photocatalysis. J. Mater. Chem. A 2022, 10, 25279–25294. [Google Scholar] [CrossRef]
  31. Chen, H.; Wu, J.; Zhu, Y.; Yang, J.; Tang, B.; Zhang, T.; Yang, H. Cu-MOF modified ZnIn2S4 nanosheet composite catalyst for photocatalytic hydrogen production. Renew. Energy 2024, 228, 120672. [Google Scholar] [CrossRef]
  32. Zhang, H.; Cui, M.; Lv, Y.; Rao, Y.; Huang, Y. A short review on research progress of ZnIn2S4-based S-scheme heterojunction:Improvement strategies. Chin. Chem. Lett. 2024, in press. [CrossRef]
  33. Zhang, Y.; Chen, D.; Li, N.; Xu, Q.; Li, H.; Lu, J. Fabricating 1D/2D Co3O4/ZnIn2S4 core–shell heterostructures with boosted charge transfer for photocatalytic hydrogen production. Appl. Surf. Sci. 2023, 610, 155272. [Google Scholar] [CrossRef]
  34. Cai, X.; Zang, Y.; Zang, S.; Tang, S.; Jing, F.; Mo, L.; Teng, D.; Lin, W.; Zhang, G. Binary pyrene-benzene polymer/Znln2S4 S-scheme photocatalyst for enhanced hydrogen evolution and antibiotics degradation. Appl. Surf. Sci. 2023, 637, 157871. [Google Scholar] [CrossRef]
  35. Xu, Q.L.; Zhang, L.Y.; Cheng, B.; Fan, J.; Yu, J. S-Scheme Heterojunction Photocatalyst. Chem 2020, 6, 1543–1559. [Google Scholar] [CrossRef]
  36. Chai, S.Y.; Kim, Y.J.; Jung, M.H.; Chakraborty, A.K.; Jung, D.; Wang, I.L. Heterojunctioned BiOCl/Bi2O3, a new visible light photocatalyst. J. Catal. 2009, 262, 144–149. [Google Scholar] [CrossRef]
  37. Kumar, Y.; Sudhaik, A.; Sharma, K.; Sonu; Raizada, P.; Khan, A.A.P.; Nguyen, Y.H.; Ahamad, T.; Singh, P.; Asiri, A.M. Construction of magnetically separable novel arrow down dual S-scheme ZnIn2S4/BiOCl/FeVO4 heterojunction for improved photocatalytic activity. J. Photochem. Photobiol. A Chem. 2023, 435, 114326. [Google Scholar] [CrossRef]
  38. Liu, X.T.; Jiang, Z.J.; Cao, X.; Shen, Z.; Zhao, W.; Wanf, F.; Cui, M.; Liang, C. Fabrication of S-scheme g-C3N4/Zn4In2S7 heterojunction photocatalyst for enhancing selective cleavage of β-O-4 bond in lignin model compounds and lignin. ACS Sustain. Chem. Eng. 2023, 11, 14947–14959. [Google Scholar] [CrossRef]
  39. Wang, Y.J.; Sun, L.L.; Li, X.L. Ultrasonic-assistant hydrothermal synthesis of ZnIn2S4/graphene-quantum-dots nanowires and the sono-effect improved catalytic activity. J. Water Process Eng. 2024, 65, 105807. [Google Scholar] [CrossRef]
  40. Demir, R.; Göde, F.; Güneri, E.; Mehmet, E.F. The effect of nanoparticle sizes on the structural, optical and electrical properties of indium sulfide thin films consisting of In2S3 and In6S7 phases. J. Mol. Struct. 2021, 1227, 129565. [Google Scholar] [CrossRef]
  41. Duan, S.; Li, A.; Wang, Y.; Chen, X.; Liu, B.; Liang, B.; Dai, C.; Yan, L.; Guo, J. Fabrication and performance of a 3D porous graphene aerogel-supported Ni–ZnS composite photocatalyst. Colloids Surf. A Physicochem. Eng. Asp. 2024, 682, 132948. [Google Scholar] [CrossRef]
  42. Huang, W.X.; Li, Z.P.; Wu, C.; Zhang, H.J.; Sun, J.; Lin, Q. Delaminating Ti3C2 MXene by blossom of ZnIn2S4 microflowers for noble-metal-free photocatalytic hydrogen production. J. Mater. Sci. Technol. 2022, 120, 89–98. [Google Scholar] [CrossRef]
  43. Zhao, M.Y.; Liu, S.; Chen, D.M.; Zhang, S.S.; Carabineiro, S.A.C.; Lv, K.L. A novel S-scheme 3D ZnIn2S4/WO3 heterostructure for improved hydrogen production under visible light irradiation. Chin. J. Catal. 2022, 43, 2615–2624. [Google Scholar] [CrossRef]
  44. Zhou, D.X. ZnIn2S4 Photocatalysts: Structural Design, Controllable Preparation and Their Photocatalytic Hydrogen Evolution Performance. Ph.D. Thesis, Beijing University of Science and Technology, Beijing, China, 2022. [Google Scholar]
  45. Yuan, Y.J.; Tu, J.R.; Ye, Z.J.; Chen, D.Q.; Hu, B.; Huang, Y.W.; Chen, T.T.; Cao, D.P.; Yu, Z.T.; Zou, Z.G. MoS2-graphene/ZnIn2S4 hierarchical microarchitectures with an electron transport bridge between light-harvesting semiconductor and cocatalyst: A highly efficient photocatalyst for solar hydrogen generation. Appl. Catal. B Environ. 2016, 188, 13–22. [Google Scholar] [CrossRef]
  46. Wang, L.F.; Zeng, Q.R.; Gan, Y.F.; Wei, Y.Z.; Wang, X.P.; Zeng, D.Q. Insight into the role of nickel carbide nanoparticles in improving photocatalytic H2 generation over ZnIn2S4 under visible light. FlatChem 2024, 47, 100711. [Google Scholar] [CrossRef]
  47. Ji, M.X.; Wen, J.; Xu, Q.Y. Highly efficient visible-light-driven water splitting for H2 evolution and degradation of ECs using CdS/ZnIn2S4 S-scheme heterojunction with built-in electric field. Fuel 2024, 374, 132444. [Google Scholar] [CrossRef]
  48. Du, C.; Zhang, Q.; Lin, Z.Y.; Yan, B.; Xia, C.X.; Yang, G.W. Half-unit-cell ZnIn2S4 monolayer with sulfur vacancies for photocatalytic hydrogen evolution. Appl. Catal. B Environ. 2019, 248, 193–201. [Google Scholar] [CrossRef]
Catalysts 14 00607 g001
Figure 1. XRD patterns of ZIS and ZIS-APS (a) and FTIR spectra of ZIS and ZIS-APS (b).
Figure 1. XRD patterns of ZIS and ZIS-APS (a) and FTIR spectra of ZIS and ZIS-APS (b).
Catalysts 14 00607 g001
Catalysts 14 00607 g002

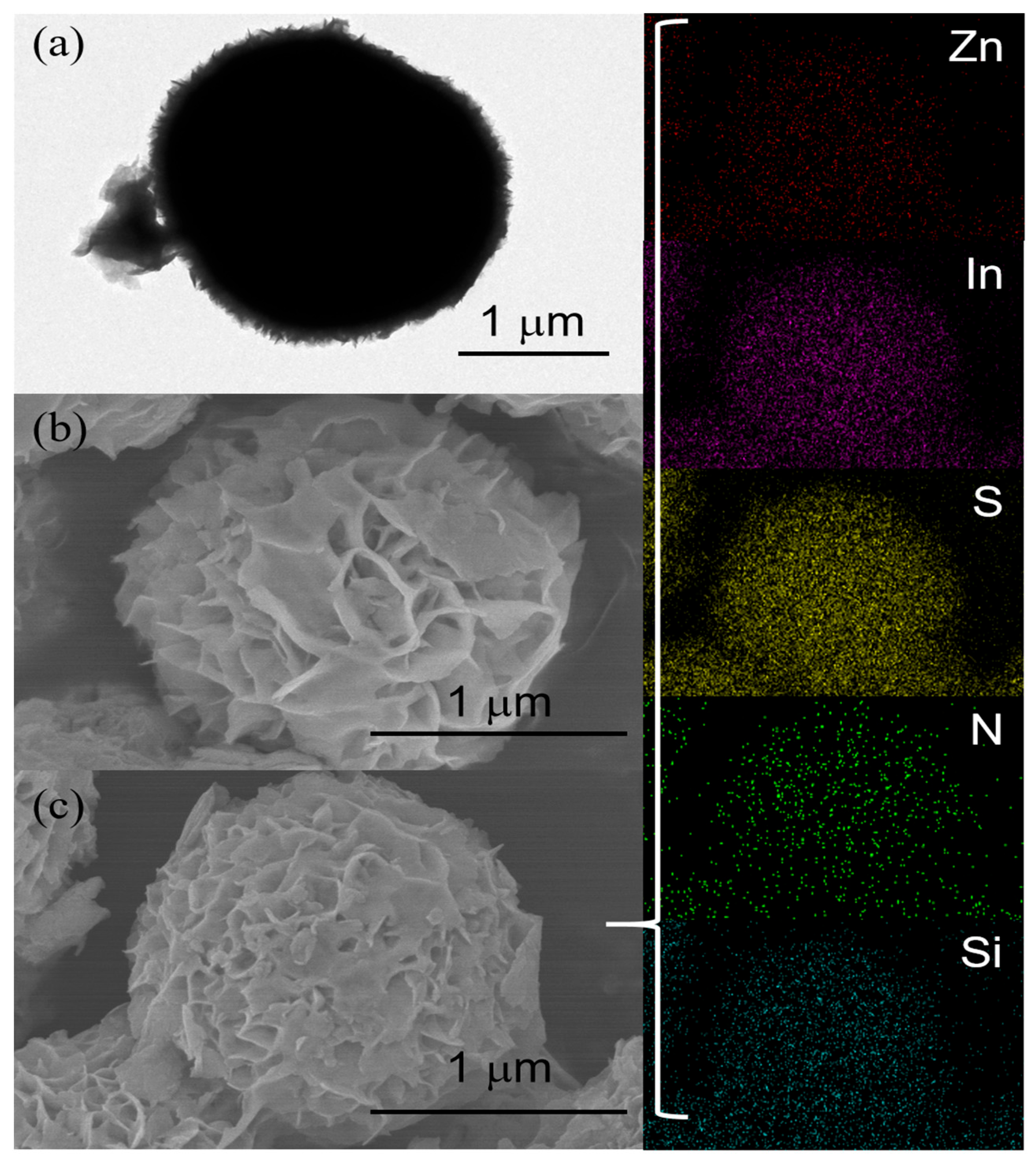

Figure 2. TEM image of ZIS (a), SEM images of ZIS (b), and SEM images of ZIS-APS (c).
Figure 2. TEM image of ZIS (a), SEM images of ZIS (b), and SEM images of ZIS-APS (c).
Catalysts 14 00607 g002
Catalysts 14 00607 g003

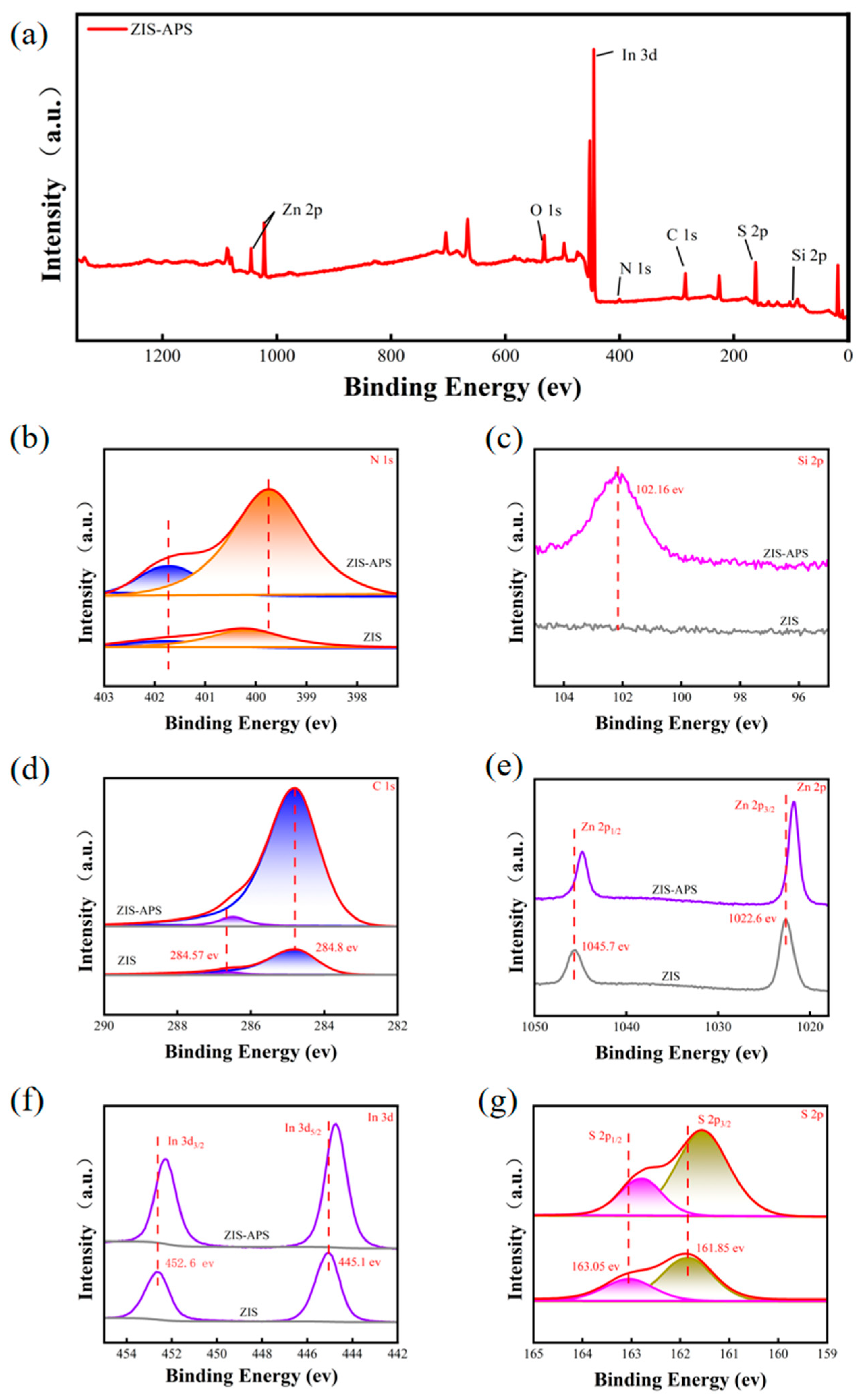

Figure 3. XPS spectra of ZIS and modified ZIS: (a) survey of ZIS-APS, (b) N 1s, (c) Si 2p, (d) C 1s, (e) Zn 2p, (f) In 3d and (g) S 2p.
Figure 3. XPS spectra of ZIS and modified ZIS: (a) survey of ZIS-APS, (b) N 1s, (c) Si 2p, (d) C 1s, (e) Zn 2p, (f) In 3d and (g) S 2p.
Catalysts 14 00607 g003
Catalysts 14 00607 g004

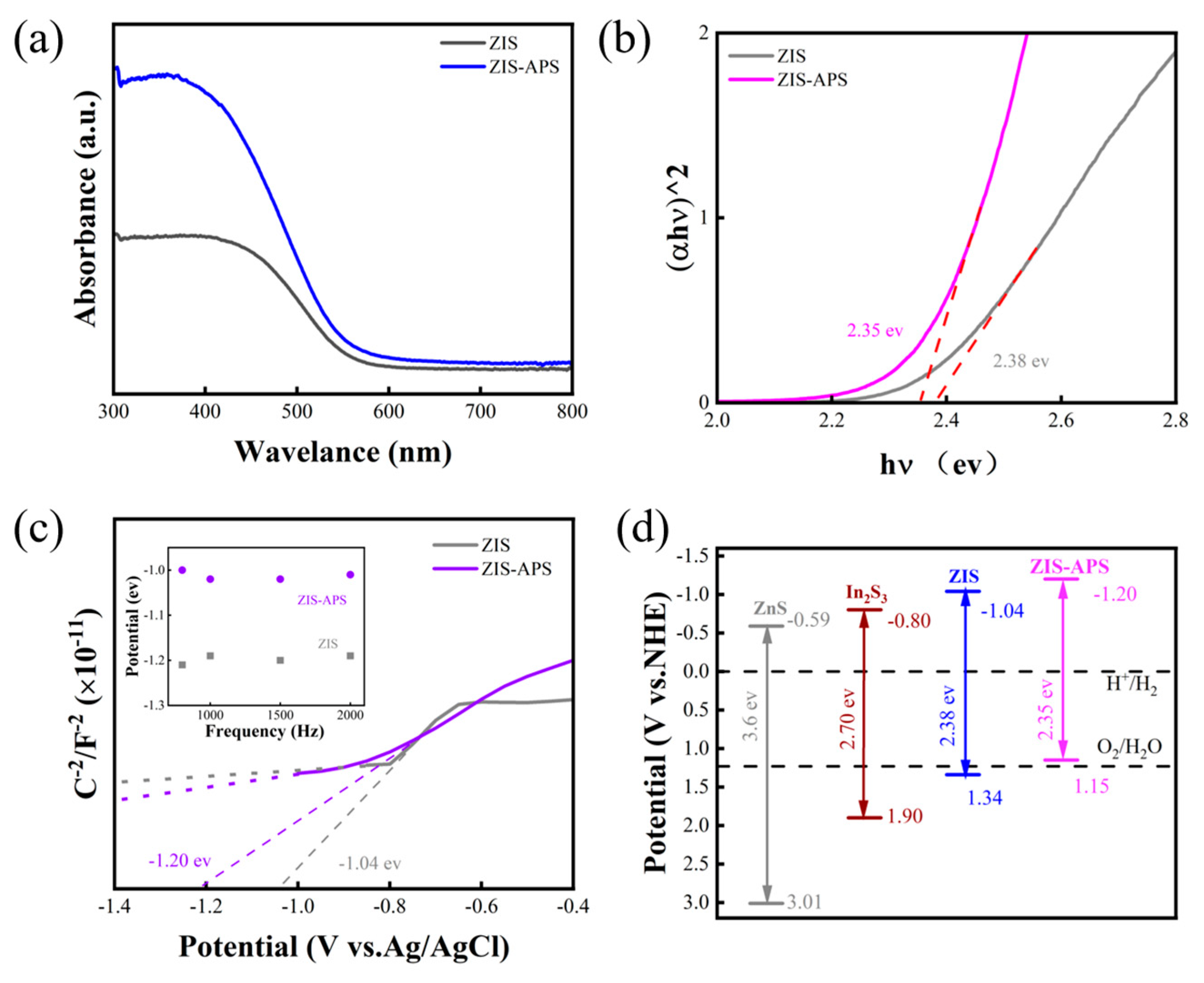

Figure 4. Optical properties of ZIS and ZIS-APS. UV–vis DRS spectra (a), Tauc energy band gap (b), MS plots, the inset shows the flat band potential at different frequencies (c) and band structure alignments (d). The band potentials for In2S3 and ZnS were obtained from Refs. [40,41].
Figure 4. Optical properties of ZIS and ZIS-APS. UV–vis DRS spectra (a), Tauc energy band gap (b), MS plots, the inset shows the flat band potential at different frequencies (c) and band structure alignments (d). The band potentials for In2S3 and ZnS were obtained from Refs. [40,41].
Catalysts 14 00607 g004
Catalysts 14 00607 g005
Figure 5. Hydrogen production curves (a), comparison of average hydrogen production rates (b), cyclic tests (c), and comparison of hydrogen production rates with data reported in other studies [28,31,42,43,44,45,46,47,48] (d).
Figure 5. Hydrogen production curves (a), comparison of average hydrogen production rates (b), cyclic tests (c), and comparison of hydrogen production rates with data reported in other studies [28,31,42,43,44,45,46,47,48] (d).
Catalysts 14 00607 g005
Catalysts 14 00607 g006

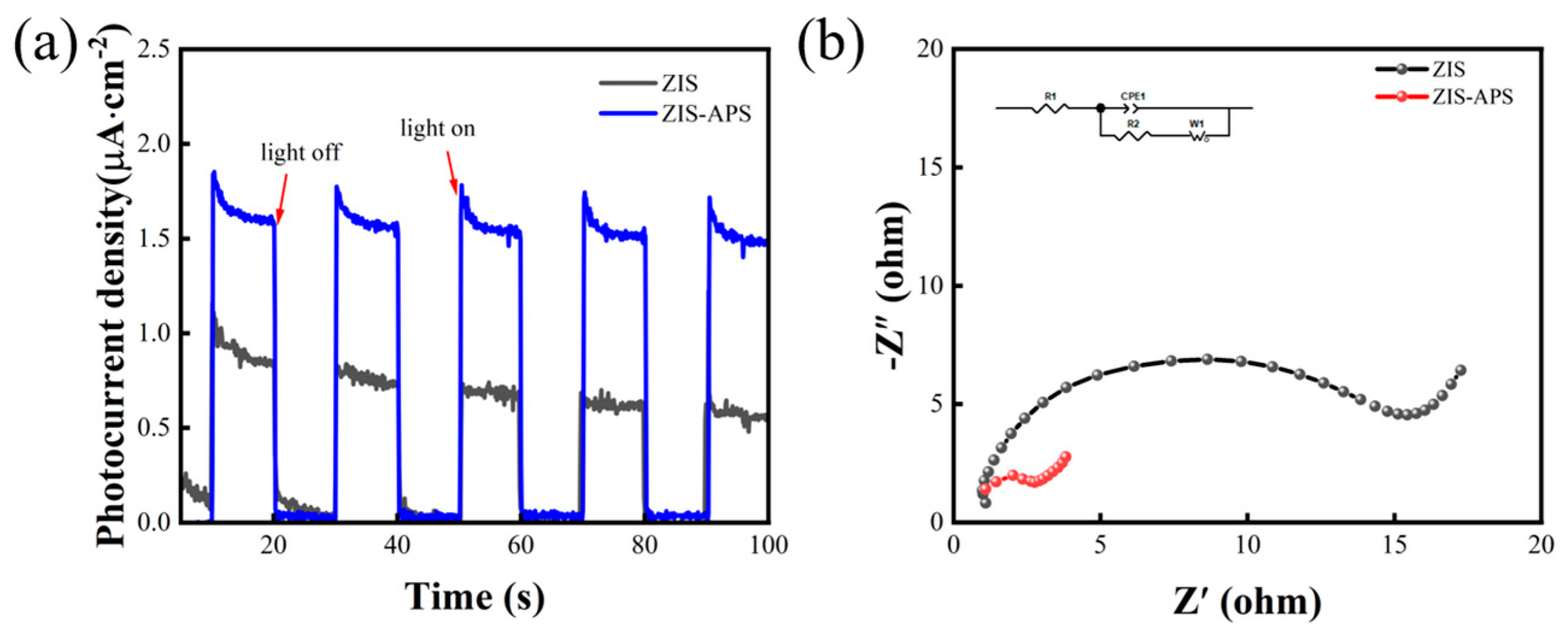

Figure 6. Photocurrent curves (a) and impedance diagram (b).
Figure 6. Photocurrent curves (a) and impedance diagram (b).
Catalysts 14 00607 g006
Catalysts 14 00607 g007

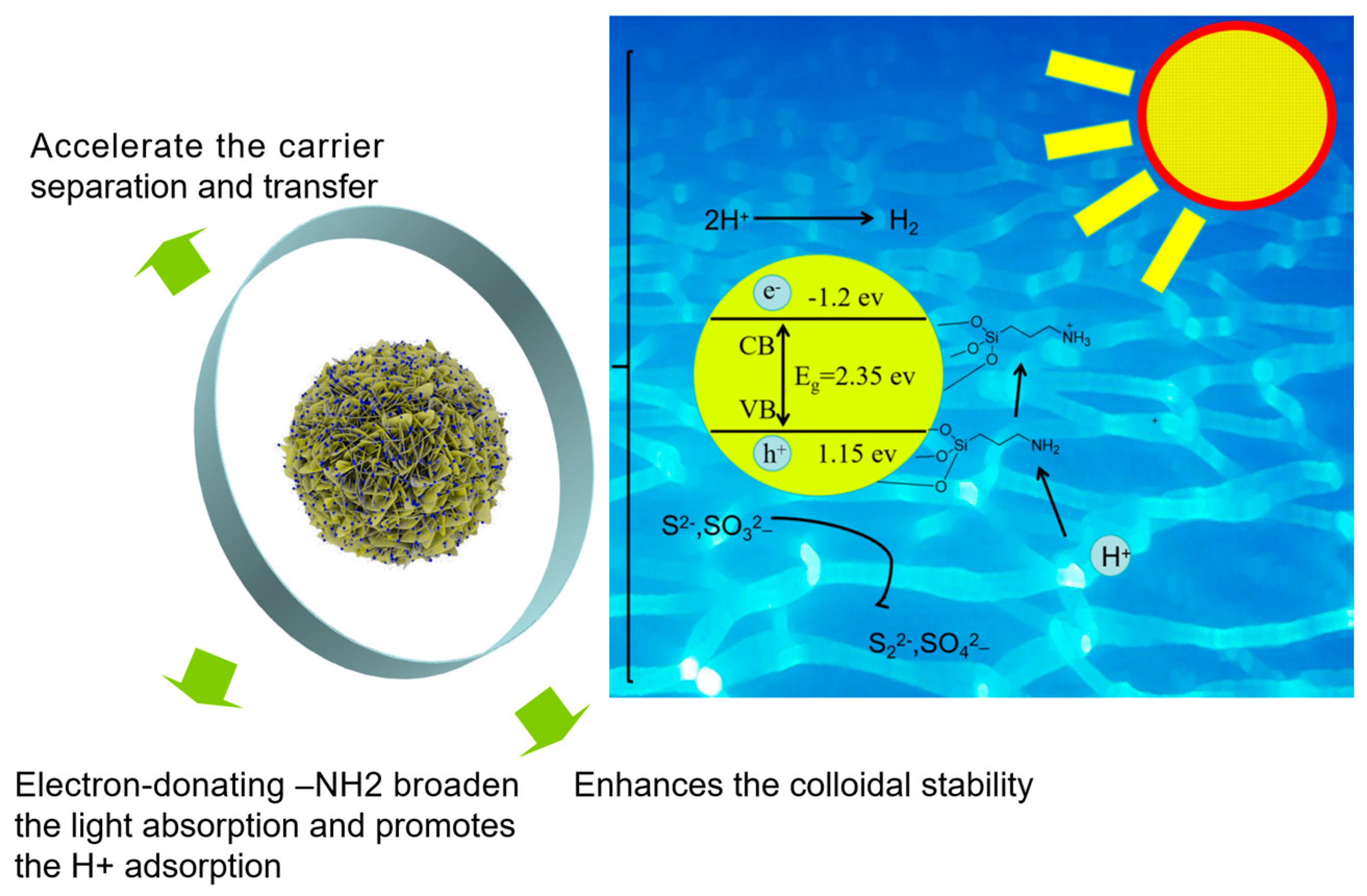

Figure 7. Schematic diagram of the photocatalytic hydrogen production mechanism.
