Prickly Pear-Like Three-Dimensional Porous MoS₂: Synthesis, Characterization and Advanced Hydrogen Evolution Reaction

Abstract

Herein, we hydrothermally synthesize a type of prickly pear-like three-dimensional (3D) porous MoS₂ (ZT-MoS₂), using a zinc oxide (ZnO) rod deposited on quartz glass substrates, as a template for an advanced hydrogen evolution reaction (HER) catalyst. Microscopic and spectroscopic tools comprehensively characterize the morphology of the ZT-MoS₂ nanostructure, which exhibits adequate edge active sites and defects, as well as a high component of active octahedral MoS₂ (1T-MoS₂). Electrochemical characterizations reveal the good HER performance of the ZT-MoS₂ that presents a good overpotential of 110 mV, and a Tafel slope of 63 mV·dec⁻¹, superior to most of the previously reported MoS₂-based HER catalysts. This work contributes to the design and fabrication of 3D MoS₂ with enhanced HER performance, which holds great promise for fuel cells and energy conversion.

1. Introduction

Nowadays, as an environmentally-friendly and abundant energy carrier, hydrogen is attracting intense interest for sustainable energy resources due to the energy crisis [1]. Hydrogen evolution from water splitting is the main strategy to generate hydrogen, and platinum (Pt)-based catalysts are generally employed to enhance hydrogen evolution reaction (HER) [2,3,4,5]. However, their high-cost, insufficient reservoir, and instability limit the widespread application of Pt-based catalysts. Thus, it is urgent to exploit efficient alternative catalysts, such as various transition metals and their derivatives, as well as metal-free catalysts [6,7,8]. Two-dimensional (2D) materials with a large specific surface area, good charge migration rate, controllable electronic properties, good stackability, and mechanical flexibility provide a unique advantage to HER catalytic activity [9]. Molybdenum sulfide (MoS₂), a type of two-dimensional layered material, has attracted much attention for its unique physical and chemical properties [10]. Increasing theoretical and experimental evidence reveals that the hydrogen adsorption energy on the edge of naturally van der Waals layered MoS₂ is calculated to be close to that of Pt, so that MoS₂ has been considered as a promising substitute for Pt-based catalysts [11,12,13]. The edge sites of MoS₂ were responsible for hydrogen evolution catalytic activity, and it possessed a lateral dimension size-dependent pattern. The deficiencies of aggregation and low conductivity of bulk MoS₂ limit its HER catalytic activity and widespread application [14,15].

Various efficient MoS₂ nanostructures with numerous active sites and good conductivity are continuously being explored. Firstly, this is an efficient strategy that introduces active edge sites into MoS₂; for example, MoS₂ nanoplates [16], MoS₂ nanoparticles [17], MoS₂ quantum dots [18], and three dimensional (3D) MoS₂ [19] with numerous edge sites were developed. Secondly, MoS₂ nanostructures can be doped with conductive elements or deposited on highly conductive matrices to improve their conductivity. For example, Se-doped MoS₂ and Au-doped MoS₂ were designed [20,21]; MoS₂ nanoparticles were conjugated on carbon nanotubes [22] and graphene [23], to form MoS₂-based heterogeneous composites. Moreover, this method offers a new avenue to improving the catalytic ability that fabricates MoS₂ with an adequate octahedral MoS₂ (1T-MoS₂) component [24].

Among these, a 3D MoS₂ nanostructure with both considerable active sites and good substrate transfer ability has received intense attention. To synthesize 3D MoS₂, efficient templates are a prerequisite to control the growth of MoS₂. Recently, zinc oxide (ZnO) is emerging as an attractive template for constructing 3D materials, since it can be easily and controllably synthesized to produce the desired morphological structures. Various complicated nanostructures, such as silica, gold, and carbon nanotubes, using a ZnO nanostructure as a template have been reported [25,26,27,28].

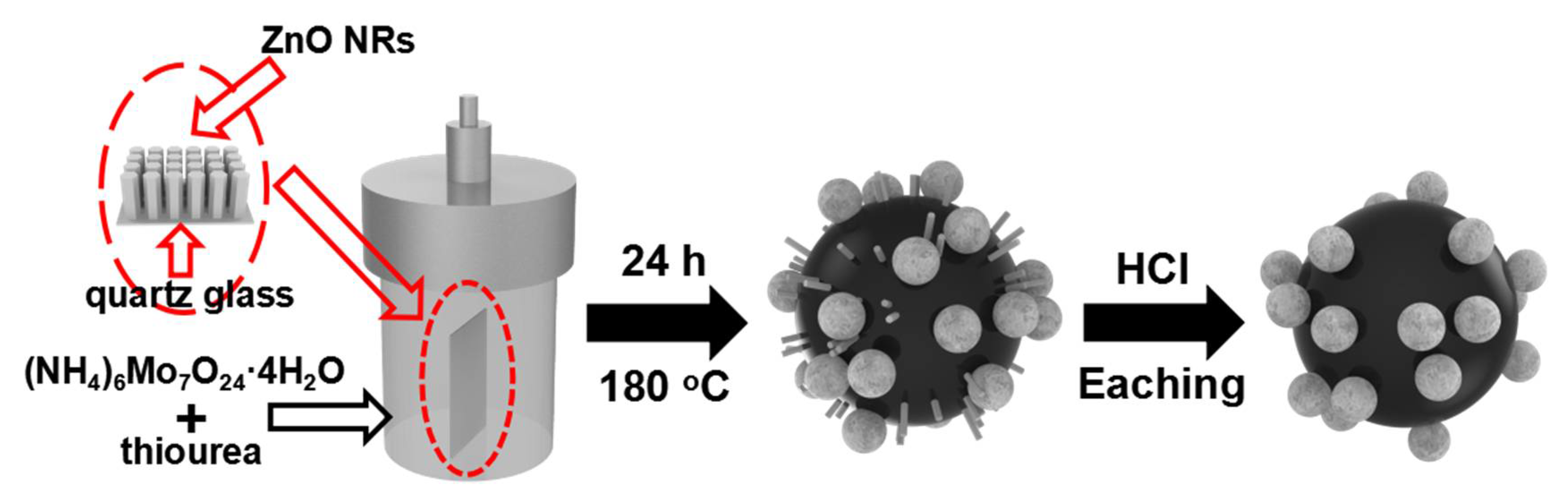

Herein, using ZnO as a template, a prickly pear-like 3D porous MoS₂ (ZT-MoS₂) was synthesized by a facile hydrothermal synthesis route (Scheme 1). The MoS₂ nanostructures were hydrothermally synthesized in the presence of the ZnO template deposited on the quartz glass substrate. Numerous small MoS₂ nanoparticles and ZnO NRs modified on the suface of big MoS₂ microbeads. The removal of the ZnO from the nanocomposites generated the prickly pear-like 3D ZT-MoS₂ nanostructure. The synthesized ZT-MoS₂ exhibited an outstanding HER performance with a good overpotential of 110 mV, and a small Tafel slope of 63 mV·dec⁻¹, as well as extraordinary stability. It was superior to pure MoS₂ without using ZnO as template (P-MoS₂), and to most previously reported MoS₂-based HER catalysts.

2. Results and Discussion

SEM, TEM, and high-resolution TEM (HRTEM) measurements (Figure 1) characterized the morphologies of the P-MoS₂ and ZT-MoS₂. The ZT-MoS₂ presented a prickly pear-like structure, with numerous small MoS₂ nanoparticles assembled on the surface of a 2.5 μm porous MoS₂ microbead (Figure 1a). The pore size of the porous microbeads in the ZT-MoS₂ was about 135 nm (inset in Figure 1a), which was similar to the diameter of the ZnO template (Figure S1). The S-to-Mo ratio was about 2:1 (Figure S2), indicating the successful synthesis of MoS₂. Zhang et al. reported that possible intergrowth would be generated between ZnO and MoS₂ [29]. However, the Energy Dispersive X-ray Spectrometer (EDS) analysis (Figure S2) showed there was no Zn element, which might be caused by the different synthesis processes. It was found that the ZnO template significantly affected the morphology of ZT-MoS₂ (Figure S3), and the HCl-mediated etching process could effectively remove the ZnO from the ZnO-MoS₂ nanostructure (Figure 1a, Figures S2 and S4). The P-MoS₂ was a nanoflower structure with rippled and corrugated leaf structures (Figure 1d). The size of surface MoS₂ nanoparticles decorated on the porous MoS₂ microbeads in ZT-MoS₂ was about 350 nm (Figure 1b) (with an average surface area of 462.1 ± 5.2 m² g⁻¹, Table S1), which was smaller than that of P-MoS₂ (450 nm) (Figure 1e). It indicated that the ZnO controllably confines the growth of the surface MoS₂ nanoparticles. Both the ZT-MoS₂ (Figure 1c) and P-MoS₂ (Figure 1f) exhibited an interplanar spacing of 6.3 Å assigned to the d spacing of (002) planes of MoS₂, suggesting that the ZnO did not influence the component of MoS₂ [30]. Compared to the smooth and regular lattice of the P-MoS₂, ZT-MoS₂ had more delaminated MoS₂ (inset in Figure 1c). The resulting defects were beneficial to HER performance.

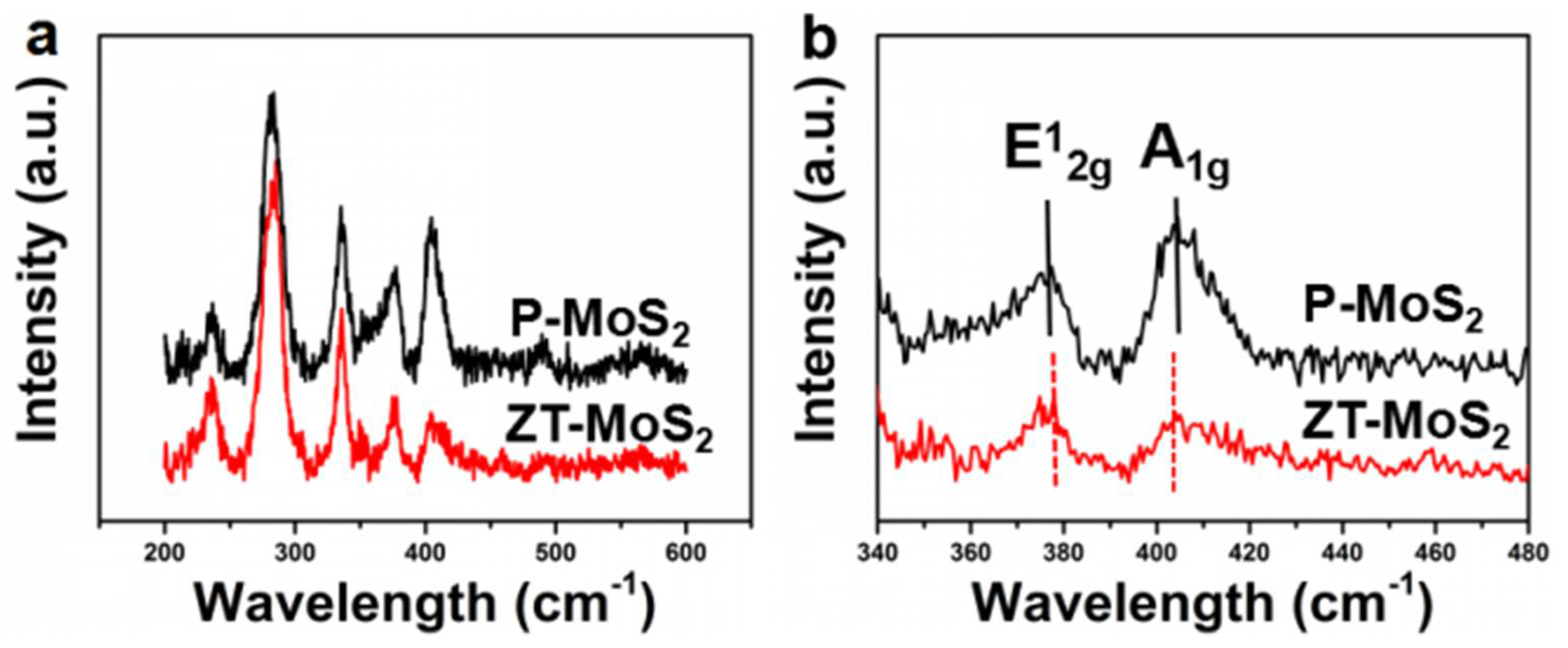

The composition and phase of the ZT-MoS₂ and P-MoS₂ were investigated by Raman spectroscopy analysis. ZT-MoS₂ presented two obvious characteristic peaks at 378 and 404 cm⁻¹, attributed to in-plane vibration E¹_2g modes and out-of-plane vibration A_1g modes, respectively (red curve in Figure 2a) [31,32]. The characteristic peaks at 284, 490, and 234 cm⁻¹ assigned to the E_1g mode forbidden in a back-scattering geometry on the surface perpendicular to the c-axis, two longitudinal acoustic (2LAM) modes, and structural-defect-induced scattering (red curve in Figure 2a) were also observed [33]. The P-MoS₂ exhibited similar characteristic peaks (black curve in Figure 2a) compared to the ZT-MoS₂. However, the ZT-MoS₂ revealed a larger E¹_2g/A_1g ratio and a wider half-wavelength of E¹_2g and A_1g peaks than that of the P-MoS₂ (Figure 2b), which indicated that more edge structures existed in ZT-MoS₂ nanostructures [29]. Additionally, ZT-MoS₂ showed a red shift of E¹_2g and a blue shift of A_1g compared to that of P-MoS₂, illustrating the thinner layered structure of ZT-MoS₂ when compared with P-MoS₂. It could be anticipated that both the larger edge structure and thinner layered structure would lead to more active sites and endow ZT-MoS₂ with better HER performance than P-MoS₂ [34,35].

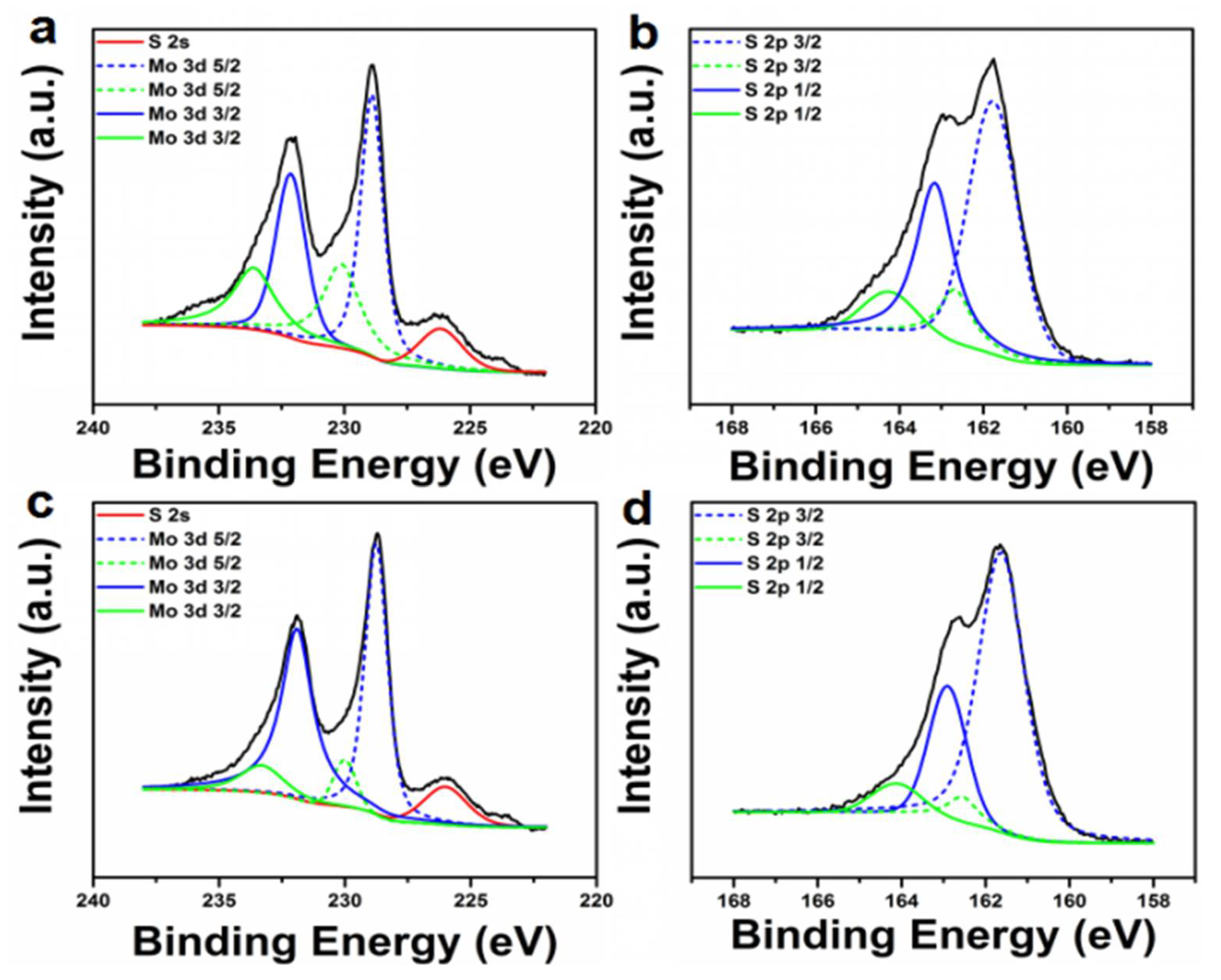

The high-resolution XPS of the Mo 3d peak and the corresponding S 2p peak of the ZT-MoS₂ and P-MoS₂ were depicted in Figure 3. The Mo 3d of ZT-MoS₂ shown in Figure 3a could be deconvoluted into four peaks of 228.9, 230.1, 232.1, and 233.6 eV assigned to Mo⁴⁺ 3d_5/2, Mo⁵⁺ 3d_5/2Mo⁴⁺ 3d_3/2, and Mo⁵⁺ 3d_3/2, respectively. The peak of 226.2 eV ascribed to S²⁻ 2s was also observed. Mo⁴⁺ 3d_5/2 and Mo⁴⁺ 3d_3/2 are related to trigonal prismatic MoS₂ (2H-MoS₂), while Mo⁵⁺ 3d_5/2 and Mo⁵⁺ 3d_3/2 are associated with the1T-MoS₂ [36,37]. These results illustrated the co-existence of 2H-MoS₂ and 1T-MoS₂ in the synthesized ZT-MoS₂. The high-resolution XPS of S 2p presented characteristic peaks at S²⁻ 2p_3/2 and S²⁻ 2p_1/2 associated with 2H-MoS₂ at 161.6 and 162.9 eV, while S²⁻ 2p_3/2 and S²⁻ 2p_1/2 related to 1T-MoS₂ at 162.5 and 164.1 eV (Figure 3b), which further confirmed the co-existence of 1T-MoS₂ and 2H-MoS₂ in ZT-MoS₂ [38]. The P-MoS₂ exhibited higher peaks of Mo⁴⁺ 3d_5/2 and Mo⁴⁺ 3d_3/2 related to 2H-MoS₂ than the ZT-MoS₂(Figure 3c), and the characteristic peaks of S²⁻ 2p_3/2 and S²⁻ 2p_1/2 assigned to 2H-MoS₂ at 161.6 and 162.9 eV were also larger than that of ZT-MoS₂ (Figure 3d)_. It was calculated that ZT-MoS₂ consisted of 60.7 ± 5.2% 2H-MoS₂ and 39.3 ± 4.3% 1T-MoS₂, while P-MoS₂ was composed of 70.5 ± 3.8% 2H-MoS₂ and 29.5 ± 4.7% 1T-MoS₂. The high 1T-MoS₂ in ZT-MoS₂ can also contribute to the advanced HER catalytic activity [39].

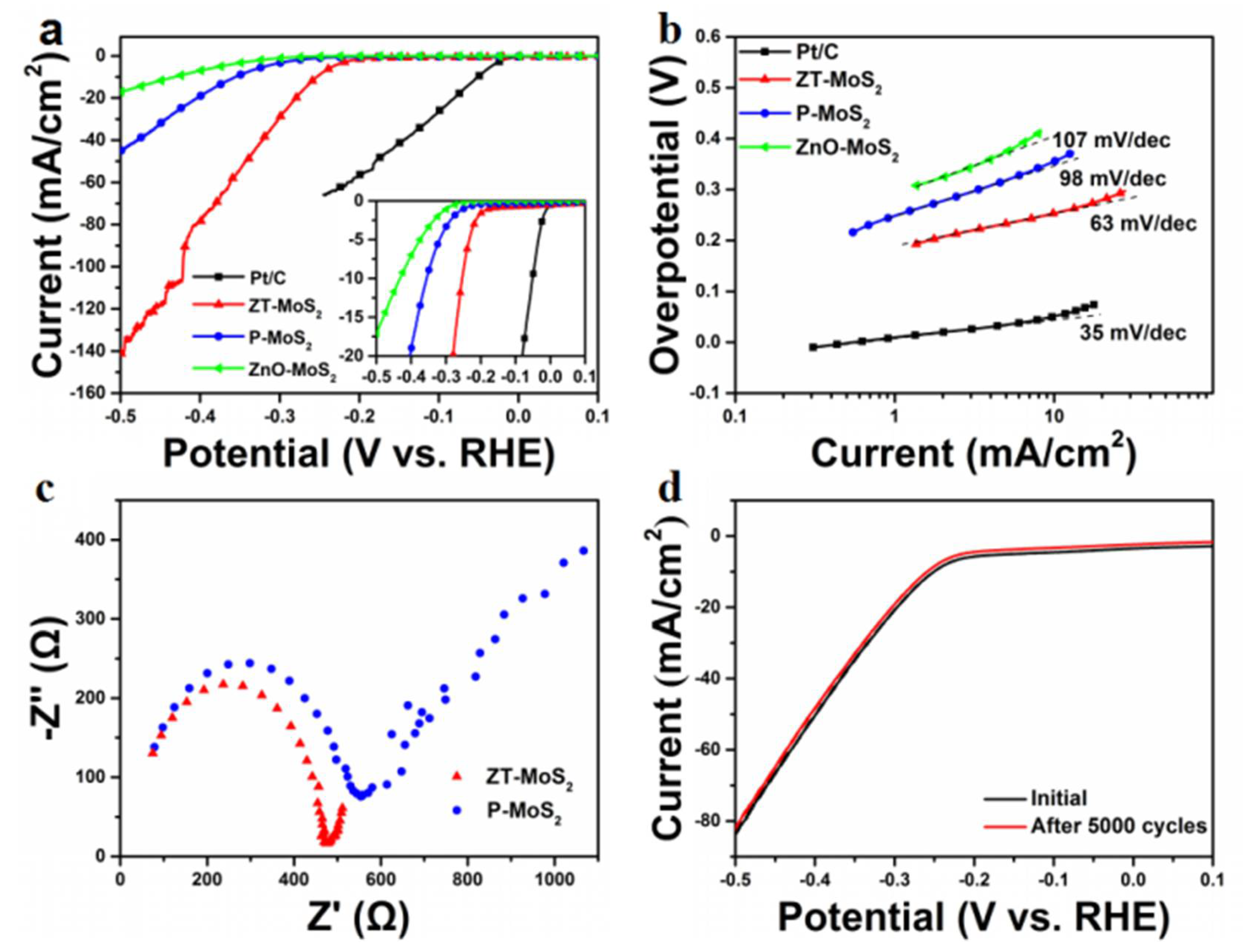

As shown in Figure 4a, the onset overpotential of ZT-MoS₂ was 110 ± 5 mV, which was smaller than that of P-MoS₂ (200 ± 4 mV) and ZnO-MoS₂ (240 ± 4 mV). The onset overpotential of ZT-MoS₂ also competed with previously reported MoS₂-based HER catalysts [29,40]. The potential of the current density reached to 10 mA·cm⁻² was further analyzed. The potential of ZT-MoS₂ was 250 mV when the current density reached 10 mA·cm⁻², which was smaller than the 370 and 435 mV of P-MoS₂ and ZnO-MoS₂. The Tafel slope of the Pt/C shown in Figure 4b was 35 mV·dec⁻¹, consistent with previous reports [20,23]. ZT-MoS₂ exhibited a Tafel slope of 63 mV·dec⁻¹, smaller than the 98 mV·dec⁻¹ of P-MoS₂ and 107 mV·dec⁻¹ of ZnO-MoS₂, suggesting that the HER reaction rate of ZnO-MoS₂ would increase faster along with the increase of the overpotential when compared with P-MoS₂ and ZnO-MoS₂ [41]. The electrochemical impedance spectroscopy (EIS) measurements (Figure 4c) revealed a smaller impedance of the ZT-MoS₂ than the P-MoS₂. It demonstrated that ZT-MoS₂ dramatically enhanced the electron transfer and reaction mass accessibility to the active sites. Furthermore, we carried out a long-term cycling test for more than 5000 cycles to investigate the stability of ZT-MoS₂. The negligible difference before and after 5000 cycles indicated the remarkable stability of ZT-MoS₂ during the long-term electrochemical catalytic process (Figure 4d). The turnover frequency (TOF) for the active sites of the ZT-MoS₂ catalyst was calculated using the roughness factor method according to the following equation [42]. The ZT-MoS₂ presented a TOF of 1.25 s⁻¹. It was 1.81-fold higher than the TOF of P-MoS₂ (0.69 s⁻¹), further indicating the advanced HER catalytic activity of ZT-MoS₂ (Figure S5).

These results revealed the superb HER catalytic ability of ZT-MoS₂, which can be explained as follows: firstly, the unique prickly pear-like 3D porous MoS₂ structures possess many edge active sites confirmed by HRTEM (Figure 1e) and Raman Spectrum analysis (Figure 2b), which contribute to the advanced HER performance (Figure 4a,b). Moreover, adequate defects (Figure 1e) and abundant 1T-MoS₂ (Figure 3a,b) were included in ZT-MoS₂, enabling the advanced HER catalytic activity. Lastly, the porous 3D structure facilitated the reaction mass transfer during the reaction, which creates the ready accessibility of active sites to the substrate, while the surface of the nanostructure also contributed to its good performance (Table S1). In comparison, both the MoS₂ microbeads without decorated MoS₂ nanoparticles and the MoS₂ microbeads decorated with crowded MoS₂ nanoparticles (Figure S3) exhibited inferior HER to ZT-MoS₂ (Figure S6). The negligible difference before and after a 5000 cycles long-term test (Figure 4d) indicated the extraordinary stability of the synthesized ZT-MoS₂. It suggested that the numerous edge active sites and the good accessibility of active sites to the reaction substrate were significant factors in the efficient HER performance.

3. Materials and Methods

3.1. Reagent

Zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O), hexamethylenetetramine (C₆H₁₂N₄), zinc acetate dihydrate (C₄H₁₀O₆Zn), thiourea (H₂NCSN₂), and hexaammonium heptamolybdate tetrahydrate ((NH₄)₆Mo₇O₂₄·4H₂O) were purchased from Sigma (St. Louis, MO, USA). Potassium hexacyanoferrate (III) (K₃Fe(CN)₆), potassium hexacyanoferrate (II) trihydrate (K₄Fe(CN)₆·3H₂O), potassium chloride (KCl), hydrochloric acid (HCl), sulfuric acid (H₂SO₄), and ethanol absolute were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). All reagents used in this study were of analytical grade.

3.2. Preparation of ZnO Nanorods (NRs)

The ZnO NRs were synthesized in accordance with a method set out in a previous report, with some modification [43]. Briefly, ZnO NRs were synthesized on quartz glass substrates with dimensions of 5.5 × 2.5 cm. Firstly, a droplet of 2 mL zinc acetate (5 mM) in ethanol was spin-coated on the quartz glass substrates three times, and then the quartz glass was annealed at 300 °C for 30 min in a tube furnace. The resulting quartz glass was kept in the aqueous solution containing zinc nitrate hexahydrate (50 mM) and hexamethylenetetramine (50 mM) at 100 °C for 10 h in a sealed Schott-Duran bottle. Following this, the substrates were then rinsed thoroughly with ultrapure water and dried overnight at 60 °C in an oven.

3.3. Fabrication of ZT-MoS₂ and P-MoS₂

(NH₄)₆Mo₇O₂₄·4H₂O (1 mmol) and thiourea (30 mmol) were dissolved in ultrapure water (40 mL) to form a homogeneous solution, and the solution was transferred to a 50 mL Teflon-lined stainless-steel autoclave. Different amounts of prepared quartz glass (0.5, 1, and 2) were immersed into the Teflon-lined stainless-steel autoclave and kept at 180 °C for 24 h to obtain different ZT-MoS₂ (termed as ZT-MoS₂-H, ZT-MoS₂ and ZT-MoS₂-T, respectively). The solution was naturally cooled down to room temperature, and 3 mL 10% HCl solution was added to etch the ZnO NRs. The resulting ZT-MoS₂ dispersed in the solution was generated by centrifuging at 8000 rpm, which was washed thoroughly in the ultrapure water, and then dried at 60 °C by a vacuum freeze dryer to obtain about 4 mg ZT-MoS₂ powder each time.

(NH₄)₆Mo₇O₂₄·4H₂O (1 mmol) and thiourea (30 mmol) were dissolved in ultrapure water (40 mL) to form a homogeneous solution and the solution was transferred to a 50 mL Teflon-lined stainless-steel autoclave. The solution was naturally cooled down to room temperature and 3 mL HCl solution was added. The resulting P-MoS₂ dispersed in the solution was generated by centrifuging at 8000 rpm, which was washed thoroughly in the ultrapure water, and then dried at 60 °C by a vacuum freeze dryer to obtain P-MoS₂ powder.

3.4. Characterization

The morphologies of these products were observed under scanning electron microscopy (SEM) (HITACHI S-4800, Tokyo, Japan) and transmission electron microscopy (TEM) (JEM-2010, JEOL Ltd., Tokyo, Japan, 200 kV). High-resolution TEM images were taken using a JEOL 2100F microscope (JEOL Ltd., Tokyo, Japan, 200 kV) with an accelerating voltage of 200 kV. X-ray photoelectron spectroscopy (XPS) measurements were performed using an AXIS ULTRADLD instrument (Kratos, Manchester, UK) equipped with an Al Kα X-ray source. Raman spectra were recorded on an InVia-Reflex Raman microscope (Renishaw, London, UK) with a laser excitation wavelength of 532 nm. The porosity was performed with a nitrogen adsorption–desorption isotherm using a surface area analyzer (QuadraSorb SI 2000-08, Quantachrome Instruments, Boynton Beach, FL, USA).

3.5. Electrochemical Measurements

Electrochemical measurements were performed using an electrochemical station (CHI 852C, Shanghai Chenhua Instrument Co., Shanghai, China) in a three-electrode system. A three-electrode system was employed, consisting of a saturated calomel electrode (SCE) as the reference electrode, a graphite rod as the counter electrode, and a glass carbon rotating disk electrode (RDE) or glassy carbon electrode (GCE) loaded on the catalyst as the working electrode. Linear sweep voltammetry (LSV) measurements were run in 0.5 M H₂SO₄ (purged with pure N₂) at a scan rate of 5 mV·s⁻¹ and at 1400 rpm [17]. For durability measurement, the LSV was performed at a scan rate of 50 mV·s⁻¹ from 0.2 to −0.6 V for 5000 cycles.

Typically, 2 mg of the catalyst was dispersed in 2 mL of ultrapure water to form homogeneous ink under sonication. Then, 20 μL of the catalyst ink was loaded onto the RDE (3 mm in diameter, loading ~0.283 mg·cm⁻²). 5μL of 1 wt % Nafion solution was dropped onto the electrode after the ink was dried. Cyclic Voltammetry (CV) measurements using GCE as the working electrode were run in 0.5 M H₂SO₄ (purged with pure N₂) at scan rates of 150, 120, 90, 60, 30, and 10 mV·s⁻¹, respectively. The EIS measurements were recorded in the same configuration using the 1 mmol·L⁻¹ K₃Fe(CN)₆, 1 mmol·L⁻¹ K₄Fe(CN)₆·3H₂O, 0.1 mol·L⁻¹ KCl as the electrolyte at η = 0.2 V from 10⁻² to 5 × 10⁵ Hz with a voltage amplitude of 5 mV.

4. Conclusions

In conclusion, a prickly pear-like 3D porous MoS₂ nanostructure with advanced HER performance was developed by using a simple and ZnO-mediated hydrothermal synthesis route. Comprehensive microscopic and spectroscopic measurements including SEM, TEM, HRTEM, Raman spectra, and XPS were employed to characterize the morphology and components of the ZT-MoS₂. The prickly pear-like 3D porous ZT-MoS₂ consisted of numerous small MoS₂ nanoparticles decorated on large porous MoS₂ microbeads. It displayed many edge active sites and defects as well as abundant 1T-MoS₂. The ZT-MoS₂ exhibited a superior HER catalytic activity compared with structures using P-MoS₂ as a template, and most of the previously reported MoS₂-based HER catalysts, such as MoS₂/MoSe₂ films [31] and Core-shell MoO₃-MoS₂ nanowires [41]. Additionally, ZT-MoS₂ presented extraordinary stability during the long-term cycling test. This work paves a new avenue for the controllable design of efficient 3D MoS₂ with advanced HER performance, which can be easily extended to other analogous materials.
