Highly Dispersed Ni Nanocatalysts Derived from NiMnAl-Hydrotalcites as High-Performing Catalyst for Low-Temperature Syngas Methanation

by
Bin Lu
1,2,
Jiahao Zhuang
1,2,
Jinping Du
1,
Fangna Gu
1,3,*,
Guangwen Xu
4,
Ziyi Zhong
5,
Qing Liu
6 and
Fabing Su
1,3,4,*
1
State Key Laboratory of Multiphase Complex Systems, Institute of Process Engineering, Chinese Academy of Sciences, Beijing 100190, China
2
School of Chemical Engineering, University of Chinese Academy of Sciences, Beijing 100049, China
3
Zhongke Langfang Institute of Process Engineering, Fenghua Road No 1, Langfang Economic & Technical Development Zone, Hebei 065001, China
4
Institute of Industrial Chemistry and Energy Technology, School of Chemical Engineering Shenyang University of Chemical Technology, Shenyang, Liaoning 110142, China
5
College of Engineering, Guangdong Technion Iarael Institute of Technology (GTIIT), 243 Daxue Road, Shantou 515063, China
6
Key Laboratory of Low Carbon Energy and Chemical Engineering, College of Chemical and Environmental Engineering, Shandong University of Science and Technology, Qingdao 266590, China
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(3), 282; https://doi.org/10.3390/catal9030282
Submission received: 15 February 2019 / Revised: 4 March 2019 / Accepted: 7 March 2019 / Published: 19 March 2019
(This article belongs to the Special Issue Ni-Containing Catalysts)
Browse Figures
Versions Notes

Abstract

:
Increasing the low-temperature performance of nickel-based catalysts in syngas methanation is critical but very challenging, because at low temperatures there is high concentration of CO on the catalyst surface, causing formation of nickel carbonyl with metallic Ni and further catalyst deactivation. Herein, we have prepared highly dispersed Ni nanocatalysts by in situ reduction of NiMnAl-layered double hydroxides (NiMnAl-LDHs) and applied them to syngas methanation. The synthesized Ni nanocatalysts maintained the nanosheet structure of the LDHs, in which Ni particles were decorated with MnOy species and embedded in the AlOx nanosheets. It was observed that the Ni nanocatalysts exhibited markedly better low-temperature performance than commercial catalysts in the syngas methanation. At 250 °C, 3.0 MPa and a high weight hourly space velocity (WHSV) of 30,000 mL·g−1·h−1, both the CO conversion and the CH4 selectivity reached 100% over the former, while those over the commercial catalyst were only 14% and 76%, respectively. Furthermore, this NiMnAl catalyst exhibited strong anti-carbon and anti-sintering properties at high temperatures. The enhanced low-temperature performance and high-temperature stability originated from the promotion effect of MnOy and the embedding effect of AlOx in the catalyst.

Graphical Abstract

1. Introduction

Over the last few decades, the preparation of synthetic natural gas (SNG) by coal gasification has attracted worldwide attention, particularly in the coal-rich regions, because of the requirements for efficient utilization of coal resources and for a secure supply of natural gas, which is a clean fuel [1,2]. The main technology of producing SNG from syngas is CO methanation [3,4,5]. Until now, all commercial methanation catalysts for SNG production have been Ni-based catalysts due to their high performance and low cost [6,7,8,9,10,11,12,13,14,15,16,17,18]. Nevertheless, the major weaknesses of nickel catalysts include agglomeration of Ni nanoparticles, formation of carbon deposits at higher temperatures, and poor activity at low temperatures (250 °C) for the complete methanation of syngas [19,20,21,22,23,24,25,26,27,28,29,30,31]. The increase in low temperature performance of the Ni catalysts in syngas methanation is critical. It is also very challenging because the high concentration of CO on the catalyst surface may lead to the formation of Ni(CO)4 and further catalyst deactivation. At present, research on low-temperature methanation is mainly focused on hydrogen-rich systems and slurry-bed reactors [32,33,34,35,36,37], while that for syngas (H2/CO = 3/1) in fixed beds has rarely been reported.
Layered double hydroxides (LDHs) are widely used as catalysts or supports due to their unique layered structure with distribution of M2+ (M = Mg, Co, Cu, Ni) and N3+ (N = Al, Fe, Co, Mn) cations that are adjustable both in ratio and in type [38,39,40,41,42,43]. Ni-based hydrotalcites have been used as precursors to obtain methanation catalysts via high temperature calcination followed by reduction [13,44]. However, high temperature calcination would destroy the layered structure of LDHs and reduce the specific surface area and pores volume, which leads to poor activity of the obtained catalysts at low temperatures [45,46]. He et al. found that the Ni nanocatalysts prepared via in situ reduction of NiAl-hydrotalcites with abundant surface defects showed excellent catalytic performance in CO2 methanation [47]. Differing from CO2 methanation, the major challenge for low temperature methanation of high concentration CO is a catalyst deactivation phenomenon due to formation of Ni(CO)4. In general, low temperature and high CO partial pressure favor formation of Ni(CO)4 at equilibrium; thus, the inlet temperature of the feed gas should be above 300 °C for SNG, at which the catalyst can convert part of CO and maintain a low CO partial pressure so that Ni(CO)4 formation is negligible. In principle, the reaction can be operated smoothly at quite low temperatures so that the catalyst can be active enough to maintain a low CO concentration on the catalyst surface. Therefore, developing highly active catalysts for low-temperature CO methanation is possible but quite challenging.
Herein, highly dispersed Ni nanocatalysts were obtained by in situ reduction of NiMnAl-LDHs precursors and applied to CO methanation for the first time. The novel catalysts showed excellent catalytic performance at low temperatures and high stability at high temperatures. According to experimental results, the Ni nanocatalysts decorated with MnOy species and embedded in the AlOx nanosheets have the application prospect for low temperature methanation.

2. Results and Discussion

2.1. Structure and Morphology of LDHs and Catalysts

The X-ray diffraction (XRD) results of the NiMnxAl10-LDHs (x = 0, 0.5, 1, 2) are shown in Figure 1a and the inset shows the displacement of the first diffraction peak. The diffraction peaks of all the samples at 2θ = 11.6°–11.9°, 23.4°, 35.1°, 39.6°, 46.8°, 61.2° and 62.5° are corresponding to the (003), (006), (009), (015), (018), (110), and (113) planes of typical hydrotalcites, respectively [41]. Table 1 shows the lattice parameters of the NiMnxAl10-LDHs. The lattice parameter “a” is related to the radius of the cation [48]. Compared with NiAl-LDH, the values of "a" for NiMnAl-LDHs do not change after adding Mn2+, because the ionic radius of Ni and Mn (0.62 Å for Ni2+, 0.66 Å for Mn2+, respectively) are relatively close, while the additive amount of Mn is low. When the Mn/Al molar ratios change from 0:10 to 1:10, the lattice constant “c” gradually increases from 2.255 to 2.286 nm until “c” reaches its maximum value, which is due to the difference in bond strength of Ni-O (372 kJ/mol) and Mn-O (402 kJ/mol). When Ni is substituted by Mn, the bond strength of M-O (M-Metal cation) is increased, resulting in the weakened interaction of the metal cations with the interlayer anions as well as the water molecules, so that the interlayer spacing is increased. These results confirm that most of the added Mn2+ entered the layered structure of the hydrotalcites and did not affect crystallinity of LDHs.
The XRD spectrums of the catalysts obtained from reducing LDHs directly are shown in Figure 1b. In comparison to Figure 1a, it can be found that the characteristic peaks of LDHs disappeared after the reduction, but some new diffraction peaks emerged at 2θ = 44.6°, 51.9°, 76.8°, attributing to (111), (200), (220) crystal planes of face-centered cube (fcc) Ni, respectively. Considering the low content of added Mn2+ that is difficult to detect, we mainly focus on the diffraction of nickel species. The weak broad diffraction peaks located at 37.1° and 63.3° are attributing to the (111) and (220) crystal planes of NiO (fcc), respectively [41]. The sizes of Ni particles in these NiAl-C, NiMn0.5Al10-C, NiMn1Al10-C, and NiMn2Al10-C catalysts were calculated to be 9.0 ± 0.5, 8.7 ± 0.5, 8.5 ± 0.5 and 8.6 ± 0.5 nm, respectively. This indicates that the adding of Mn has only a slight influence on the size of the Ni particles.
The scanning electron microscope (SEM) images of NiMnxAl10-LDHs before and after the reduction are shown in Figure 2. The hydrothermally synthesized LDHs are composed of the connected nanosheets with relatively uniform size and smooth surface (Figure 2a–d). The NiMnxAl10 catalysts obtained after reduction maintain the flake-like morphology but with a rougher surface (Figure 2e–h). The SEM results demonstrate that the incorporation of Mn has no obvious effect on the morphology of LDHs crystals, and the thin layered structure was still preserved after reduction, which is helpful to investigate the change of Ni particles before and after methanation reaction.
The physical properties of the catalysts were investigated by BET (Figure 3). As can be seen from Figure 3a, all the catalysts exhibit IV type adsorption-desorption isotherms with type H3 hysteresis loops. The specific surface areas of the catalysts are similar (shown in Table 2). Nonetheless, the pore volume of NiMn0.5Al10-C and NiMn1Al10-C are relatively larger, which is possibly caused by the formation of macropores from the packing of nanosheets (Figure 3b).
The reduction behaviors of LDHs were investigated by H2-TPR (Figure 4a). All the samples have two distinct reduction peaks: the first one located at 300–450 °C is derived from the reduction of Ni oxide species with a weak interaction with the substrate, and the second one at 450–700 °C is attributed to the reduction of Ni oxide species, having a strong interaction with the matrix. As the molar ratio of Mn/Al changes from 0:10 to 1:10, the first reduction peak shifts to low temperature range, indicating that adding a proper amount of Mn can improve the reduction of nickel species [12]. However, with further increase of Mn/Al molar ratio to 2:10, the reduction temperature of the catalyst is increased again, because of the reinforced interaction between nickle oxide species and the excess of Mn oxide species [12]. Figure 4b shows the H2-TPD curves of the NiMnxAl10 catalysts. Although MnOx is capable of adsorbing hydrogen, the amount of Mn is much lower than that of Ni in the catalyst, so we will mainly focus on the H2 uptake of Ni. In addition, there is no H2 uptake of Al2O3 [11,24,28]. Therefore, the dispersion of Ni particles can be calculated from the H2-TPD results. All catalysts have only one H2 desorption peak at the temperature interval of 100–200 °C, corresponding to desorption of H2 of highly dispersed Ni nanoparticles or Ni nanoparticles with many surface defects [12], which are benefit to the diffusion and dissociation of surface hydrogen [49]. Table 2 lists the H2 adsorption amount on a series of NiMnxAl10 (x = 0, 0.5, 1, 2) catalysts. Among them, NiMn1Al10 shows the maximum H2 uptake of 631 μmol/gcat and highest Ni distribution of 12.8 ± 0.1%, indicating that incorporating an appropriate amount of Mn can significantly improve the H2 adsorption capacity and the dispersion of Ni nanoparticles. However, excessive Mn will overlay fractional the active site of Ni particles and reduce the adsorption capacity for H2, which is very important for the performance of the catalyst.
The dispersion of Ni nanoparticles was further investigated by transmission electron microscopy (TEM) (Figure 5). As can be seen from TEM images (Figure 5a–d), the catalysts maintain the nanosheet morphology of the LDHs precursors. Additionally, Ni nanoparticles are highly dispersed and embedded in the AlOx matrix. The inserted histograms show the size distributions of the Ni nanoparticles. The average diameters of Ni in NiAl-C, NiMn0.5Al10-C, NiMn1Al10-C and NiMn2Al10-C are 12.6 ± 0.5, 12.3 ± 0.5, 10.6 ± 0.5 and 12.4 ± 0.5 nm (based on measurements of 150 particles), respectively. These results are very close to those calculated from the XRD results. The lattices and distribution of Ni and Mn species on the substrate can be observed from the high resolution transmission electron microscopy (HRTEM) images. The lattice distance of 0.20, 0.25 and 0.21 nm is attributed to the (111) plane of Ni (fcc) particles, the (211) plane of Mn3O4 and the (420) plane of Mn2O3, respectively. The reason why Mn exists in the form of oxides is that the reduction order of MnOy is first from MnO2/Mn2O3 to Mn3O4, and then to MnO, and the final reduction to elemental Mn requires a temperature higher than 800 °C [50]. The TEM image of NiAl-C demonstrates Ni particles are fixed by the poorly crystallized AlOx shell (Figure 5e), and the AlOx is formed during the reduction of the LDHs precursors [41]. For the Mn-added catalyst, Ni particles and the adjacent MnOy are collectively confined in the matrix of AlOx (Figure 5e), which is critical to improve the stability of the catalyst. The XRD, SEM, and TEM results show that the Mn incorporated LDHs maintains its structural characteristics during in situ reduction, which is beneficial to preparation Ni-based catalysts embedded in AlOx matrix with high dispersion.
Energy dispersive spectroscopy (EDS) mapping was used to characterize the spatial distribution of individual elements in the catalyst (Figure 6). Fig. 6a shows that the signal of Ni element is strong in the central part of the particles, while the Al and O elements are mainly distributed around Ni particles. The distribution of Mn element cannot be clearly seen in Figure 6a due to the small amount of Mn in the catalyst. The spatial distribution of Ni and Mn in the NiMn1Al10-C catalyst is shown in Fig. 6b. MnOy (Mn3O4 or Mn2O3) is also dispersed around the Ni particles; thus, both the AlOx and MnOy have a certain steric hindrance effect on the agglomeration of the Ni particles to increase the stability of the catalysts. In addition, it can be seen from Fig. 6b that MnOy is distributed around the Ni particles, which coincides exactly with the TEM results (Figure 5f).
The surface valence of the catalysts derived from LDHs precursors were investigated by XPS (Figure 7). The Ni 2p3/2 spectrums are shown in Figure 7A. The surface of all the catalysts is composed of a large portion of Ni2+ (855.8 eV), and a little part of Ni0 (853.1 eV), which is probably due to the samples being exposed to air prior to testing and the surface Ni species being oxidized [14,50]. After adding Mn in the catalyst, the binding energy of Ni 2p3/2 shifts from 855.6 to 855.9 eV, which can be attributed to the interaction between MnOy and Ni [51]. The spectrum of Mn 2p3/2 can be broken up into three peaks with centers at 647.7, 642.9, and 637.8 eV, which are corresponding to the Mn4+, Mn3+ and Mn2+ species, respectively [12,51,52,53]. With the increase of Mn content, the Mn4+/Mn3+ atomic ratios in the catalysts significantly increased (Figure 7B and Table 3). O1s spectra are shown in Figure 7C. All the catalysts are shown a broad peak that can be fitted into two peaks by searching for the optimal combination of Gaussian bands. The obtained two peaks center at 530.5 eV and 531.8 eV are attributed to lattice oxygen (OI) and surface adsorbed oxygen (OII), respectively [53,54]. The amounts of oxygen vacancies are positively correlated with the relative percentage of adsorbed oxygen species [50,51]. The integrated area ratios of OII/(OII + OI) are listed in Table 3, indicating that the incorporated Mn can significantly increase the oxygen vacancies in the catalyst.
Based on the above results, it is found that both MnOy and Ni particles are fixed by the AlOx matrix, and MnOy is distributed around the Ni particles. In order to further elaborate the microstructure of the catalyst, we have drawn a schematic diagram of the structure of the catalyst (Figure 8). During the reduction process, the layered structure of LDHs is collapsed to form Ni(MnAl)Ox nanosheets, and the Ni clusters decorated with MnOy species are formed, half-buried, and distributed on the nanosheets. In other words, the Ni particles are decorated with MnOy and embedded on the AlOx matrix [41]. The segregation effect of the AlOx matrix prevents the sintering of Ni particles during the methanation reaction, thereby increasing the service life of the catalyst. In summary, the nickel-based catalyst synthesized by in situ reduction of LDHs has a unique structure, which is important for enhancing the low temperature activity and high temperature stability of the catalyst.

2.2. Catalytic Activity

Generally, high pressure is used in the synthesis of SNG in the industry [14]. For the purpose of studying the low temperature activity of the catalysts for CO methanation under the industrial reaction conditions, the performance test was executed at 3.0 MPa and a WHSV of 30,000 mL·g−1·h−1 (Figure 9). For NiAl-C, the CO conversion and CH4 yield at 250 °C is 62% and 59%, respectively. After adding Mn in the catalyst, the performances of NiMnxAl10-C are significantly improved (shown in Figure 9a–b). Among them, NiMn1Al10-C exhibits the highest performance at low temperature, and both CO conversion and selectivity of CH4 achieve 100% at 250 °C, owning to the high scatter of Ni nanoparticles and H2 uptake (Table 2), and appearance of a number of oxygen vacancies in the catalyst (Table 3). However, the conversion of CO on commercial catalyst (Ni-35.3 wt%) is only 14% at the same reaction condition. To the best of our knowledge, there is no reported Ni-based catalyst that can achieve 100% conversion of CO at such low temperatures and high pressure of CO with feed gas H2:CO of 3:1 [16,24,26], at which the conventional nickel-based catalysts are susceptible to inactivation owing to the formation of Ni(CO)4. In this work, the synthesized NiMnxAl10-C can convert most of the CO even at low temperatures, so that the CO concentration on the surface of the catalysts is very low, which can avoid the formation of nickel carbonyl. Therefore, the NiMnxAl10-C catalyst is promising in industrial applications of low temperature methanation.
The durability test is indispensable for further investigation of the low temperature performance of the catalysts (Figure 10a). The conversion of CO of the Commercial-C decreased from 36% to 24% after 23 h of reaction at a low temperature. The amount of Ni of the fresh and used catalysts are determined by ICP; we found that the amount of Ni decreased from 35.3 wt% to 28.4 wt%, which is a result of the formation of a Ni(CO)4. However, the performance of the NiMn1Al10-C did not decrease, which was attributed to the fact that the added Mn increased the H2 uptake and the number of oxygen vacancies (Figure 4b and Figure 7C). Although Commercial-C has poor low temperature activity, its high temperature stability is good [9]. Furthermore, a good methanation catalyst should show high performance at low temperatures and strong resistance against sintering and coking at high temperatures. Therefore, the stability of NiMn1Al10-C was evaluated at 500 °C and 3.0 MPa with different space velocities. The NiMn1Al10-C is very stable at a high temperature with different space velocities: the CO conversion maintains at 100% for 180 h, and the selectivity of CH4 is slightly reduced when the space velocity is increased from 30,000 mL·g−1·h−1 to 60,000 mL·g−1·h−1(Figure 10b). Compared with the supported nickel-based catalyst, the NiMnXAl10-C catalyst has high low-temperature activity and strong anti-sintering performance [15,17,35,37]. The high stability of the NiMn1Al10-C at high temperatures is attributed to the confinement effect of AlOx and MnOy ( Figure 5f and Figure 6), which prevents the sintering of Ni particles during the reaction.
The XRD results of the fresh and used NiMn1Al10-C are shown in Figure 11a, and both of them display the characteristic peaks at 2θ = 44.6°, 51.9°, 76.8°, attributing to (111), (200), (220) planes of Ni (fcc), respectively. Additionally, the peak intensities of Ni for the used catalyst almost do not change compared with that of the fresh one. The average diameters of Ni particles in the fresh and used catalysts are 8.5 ± 0.5 and 8.3 ± 0.5 nm, respectively, indicating there was no agglomeration of the Ni particles after the high temperature stability test. The result proves that the NiMn1Al10-C catalyst has a high stability at high temperatures, which was due to the confinement of the AlOx substrate (Figure 5). The carbon deposit amount was investigated by thermogravimetric (TG) (Figure 11b). The weights of fresh and used catalysts increased at 200–400 °C is associated with the oxidation of the reduced Ni particles. The superposition of both TG curves indicates that there were almost no carbon deposits formed, implying that NiMn1Al10-C possesses excellent anti-coking properties due to the high H2 adsorption and catalyst containing a larger number of oxygen vacancies (Table 2 and Table 3). By contrast, with the nickel-based catalyst synthesized by traditional means [9,10,11,15,21], the NiMn1Al10-C catalyst exhibits much higher stability due to greatly improved resistance to coking and sintering. The carbon deposit amount was further investigated by Raman spectra (Figure 11c). No peak of carbon was observed, indicating that there was no carbon deposit on the used catalyst surface.

3. Materials and Methods

3.1. Chemicals

Aluminum nitrate nonahydrate (Al(NO3)3·9H2O), urea (CO(NH2)2), Nickel (II) nitrate hexahydrate (Ni(NO3)2·6H2O) and manganese nitrate (Mn(NO3)2·4H2O) were purchased from Sinopharm Chemical Reagent Co. Ltd., Shanghai, China. All reagents were of analytical grade and used without further purification.

3.2. Catalysts Preparation

The NiAl hydrotalcite was prepared by hydrothermal method. First, 1.5 mmol of Ni(NO3)2·6H2O, 0.5 mmol of Al(NO3)3·9H2O and 10 mmol of CO(NH2)2 were dissolved in 70 mL of deionized water. Then the solution was transferred into an autoclave for a hydrothermal treatment at 120 °C for 12 h. Subsequently, the product was centrifuged and washed with deionized water. The collected product was subsequently dried at 80 °C for 15 h, which was named NiAl-LDH. The synthesis of the NiMnAl ternary hydrotalcites is similar to the above process, except that a certain amount of Mn(NO3)2·4H2O was added. The synthesized NiMnAl ternary hydrotalcites with the molar ratios of Mn/Al (Mn:Al = 0.5:10, 1:10, 2:10) are denoted as NiMn0.5Al10-LDH, NiMn1Al10-LDH, and NiMn2Al10-LDH, respectively. After reduction in hydrogen at 600 °C for 2 h (10 °C/min), the methanation catalysts are marked as NiAl-C (C stands for the catalyst), NiMn0.5Al10-C, NiMn1Al10-C, and NiMn2Al10-C accordingly. The commercial catalyst (Ni-35.3 wt%) was purchased from LiaoNing HaiTai SCI-TECH Development CO., Ltd., Fushun, China. For comparison with the commercial catalyst, nickel content of the NiMnAl catalysts was diluted to 35 wt% with α-Al2O3 (commercial γ-Al2O3 (GongYi HuaYu, Zhengzhou, China) calcined at 1200 °C in air for 6 h), and the α-Al2O3 is inactive for CO methanation.

3.3. Catalysts Characterization

The X-ray diffraction (XRD) characterization was carried out on Cu-Ka radiation with a rate of 10° min−1 (40 kV, 40 mA). N2 adsorption/desorption isotherms and the specific surface area and pore size distributions of the samples were tested on the Quantachrome NOVA 3200e (FL, USA). The morphology and microscopic feature of the samples were detected by scanning electron microscope (SEM) (JSM-7001F, INCA X-MAX, Tokyo, Japan, 15 kV) and transmission electron microscopy (TEM) (JEM-2010F, JEOL, Tokyo, Japan). Hydrogen temperature programmed reduction (H2-TPR) and Hydrogen temperature programmed desorption (H2-TPD) were obtained from Quantachrome automated chemisorption analyzer. In a typical experiment of H2-TPR, the hydrotalcite precursor (30 mg) was sealed in the quartz U-tube reactor and purged in a He flow for 2 h at 150 °C (10 °C/min), and then reduced by injecting H2 and Ar (10% H2/Ar) at a given temperature. In a typical experiment of H2-TPD, the hydrotalcite precursor (100 mg) firstly in situ reduced with pure H2, then cooled down in the N2 atmosphere, and subsequently switched to Ar flow purging for 1.5 h to remove the physically adsorbed H2 on the surface of the catalysts. The H2 adsorption amounts of the catalysts were measured at a heating rate of 10 °C/min. The dispersion of Ni nanoparticles was calculated from the data of H2-TPD, and the calculation details can be found in our previous work [9]. The elements amount of the catalysts were obtained from Optima 7000 DV inductively coupled plasma optical emission spectrometer (ICP, MA, USA). The surface chemical compositions of the catalysts were measured by X-ray photoelectron spectroscopy (XPS) on an Esca Lab 250Xi with a monochromatic Al Kα radiation. The carbon deposits on the surface of the used catalyst were determined by thermogravimetric analyzer (TG/DTA 6300, Seiko Instruments, Tokyo, Japan) and Raman Spectrometer (Renishaw RM 2000, laser wavelength = 532 nm, London, UK).

3.4. Catalytic Performance Measurement

The methanation measurements are similar to what we have reported previously [11]. The CO methanation reaction was performed in a fixed bed reactor at 3.0 MPa, and the reaction data were recorded in the temperature interval of 250–500 °C; the spacing is 20 °C or 50 °C. In each case, the catalyst (200 mg) admixed with 5 g of quartz sand, then heated to the reaction temperature (250 °C) in a H2 atmosphere, and finally switched to syngas (H2:CO:N2 = 3:1:1) for methanation reaction. The mixed gas after the methanation reaction was first cooled down and then analyzed on line by Micro Gas chromatography (3000A; Agilent Technologies, CA, USA). The amount of H2, N2, CH4, and CO in the outlet gases were analyzed by a thermal conductivity detector (TCD, CA, USA) connected to a molecular sieve column. The amount of CO2, C2H4 and C2H6 in the outlet gases were detected by TCD connected to a Plot Q column (CA, USA). The stability of the catalyst is investigated at 3.0 MPa and 500 °C.

4. Conclusions

In summary, to enhance the low-temperature performance of the Ni catalysts for syngas methanation, the highly dispersed Ni nanocatalysts are successfully prepared by in situ reduction of NiMnAl-LDHs precursors, and Ni particles decorated with the promoter of MnOy are confined in the matrix of AlOx. The synthesized NiMnAl catalysts exhibit higher properties than the NiAl catalyst since the addition of Mn increases dispersion of Ni particles and H2 uptake. The NiMn1Al10 exhibits the best performance at low temperatures and the greatest resistance to sintering and coking due to the highest dispersion of Ni and the steric hindrance of AlOx and MnOy against aggregation of the Ni particles. This work demonstrates how to enhance the performance of the Ni catalysts in methanation by carefully adding promoter MnOy and by embedding the fine Ni particles on the AlOx nanosheets.

Author Contributions

Conceptualization, B.L., F.G. and F.S.; methodology, B.L. and F.G.; validation, B.L., J.Z., J.D., F.G., G.X., Z.Z., Q.L. and F.S.; investigation, B.L. and F.G.; resources, F.G. and F.S.; writing—original draft preparation, B.L., J.Z., J.D., F.G. and F.S.; writing—review and editing, B.L., F.G., G.X., Z.Z., Q.L. and F.S.; supervision, F.G. and F.S.; funding acquisition, F.G. and F.S.

Funding

This research was funded by National Key R&D Program of China (2018YFB0604501) and the National Natural Science Foundation of China (21776286).

Conflicts of Interest

There are no conflicts of interest to declare.

References

  1. Razzaq, R.; Li, C.; Zhang, S. Coke oven gas: Availability, properties, purification, and utilization in China. Fuel 2013, 113, 287–299. [Google Scholar] [CrossRef]
  2. Zhang, J.; Xin, Z.; Meng, X.; Tao, M. Synthesis, characterization and properties of anti-sintering nickel incorporated MCM-41 methanation catalysts. Fuel 2013, 109, 693–701. [Google Scholar] [CrossRef]
  3. Höhlein, B.; Menzer, R.; Range, J. High Temperature Methanation in the Long-distance Nuclear energy transport system. Appl. Catal. 1981, 1, 125–139. [Google Scholar] [CrossRef]
  4. Höhlein, B.; Niessen, J.; Schiebahn, H.J.R.; Vorwerk, M. Methane from synthesis gas and operation of high-temperature methanation. Nucl. Eng. Des. 1984, 78, 241–250. [Google Scholar] [CrossRef]
  5. Nguyen, T.T.M.; Wissing, L.; Skjøth-Rasmussen, M.S. High temperature methanation: Catalyst considerations. Catal. Today 2013, 215, 233–238. [Google Scholar] [CrossRef]
  6. Ma, S.; Tan, Y.; Han, Y. Methanation of syngas over coral reef-like Ni/Al2O3 catalysts. J. Nat. Gas. Chem. 2011, 20, 435–440. [Google Scholar] [CrossRef]
  7. Zhang, M.; Yu, F.; Li, J.; Chen, K.; Yao, Y.; Li, P.; Zhu, M.; Shi, Y.; Wang, Q.; Guo, X. High CO Methanation Performance of Two-Dimensional Ni/MgAl Layered Double Oxide with Enhanced Oxygen Vacancies via Flash Nanoprecipitation. Catalysts 2018, 8, 363. [Google Scholar] [CrossRef]
  8. Hu, D.; Gao, J.; Ping, Y.; Jia, L.; Gunawan, P.; Zhong, Z.; Xu, G.; Gu, F.; Su, F. Enhanced Investigation of CO Methanation over Ni/Al2O3Catalysts for Synthetic Natural Gas Production. Ind. Eng. Chem. Res. 2012, 51, 4875–4886. [Google Scholar] [CrossRef]
  9. Liu, Q.; Gao, J.; Zhang, M.; Li, H.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. Highly active and stable Ni/γ-Al2O3 catalysts selectively deposited with CeO2 for CO methanation. RSC Adv. 2014, 4, 16094–16103. [Google Scholar] [CrossRef]
  10. Liu, Q.; Gu, F.; Zhong, Z.; Xu, G.; Su, F. Anti-sintering ZrO2-modified Ni/α-Al2O3 catalyst for CO methanation. RSC Adv. 2016, 6, 20979–20986. [Google Scholar] [CrossRef]
  11. Liu, Q.; Gao, J.; Gu, F.; Lu, X.; Liu, Y.; Li, H.; Zhong, Z.; Liu, B.; Xu, G.; Su, F. One-pot synthesis of ordered mesoporous Ni–V–Al catalysts for CO methanation. J. Catal. 2015, 326, 127–138. [Google Scholar] [CrossRef]
  12. Lu, X.; Gu, F.; Liu, Q.; Gao, J.; Jia, L.; Xu, G.; Zhong, Z.; Su, F. Ni-MnOx Catalysts Supported on Al2O3-Modified Si Waste with Outstanding CO Methanation Catalytic Performance. Ind. Eng. Chem. Res. 2015, 54, 12516–12524. [Google Scholar] [CrossRef]
  13. Tang, H.; Li, S.; Gong, D.; Guan, Y.; Liu, Y. Bimetallic Ni-Fe catalysts derived from layered double hydroxides for CO methanation from syngas. Front. Chem. Sci. Eng. 2017, 11, 613–623. [Google Scholar] [CrossRef]
  14. Gao, J.; Jia, C.; Li, J.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. Nickel Catalysts Supported on Barium Hexaaluminate for Enhanced CO Methanation. Ind. Eng. Chem. Res. 2012, 51, 10345–10353. [Google Scholar] [CrossRef]
  15. Gao, J.; Jia, C.; Zhang, M.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. Template preparation of high-surface-area barium hexaaluminate as nickel catalyst support for improved CO methanation. RSC Adv. 2013, 3, 18156. [Google Scholar] [CrossRef]
  16. Jia, C.; Gao, J.; Li, J.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. Nickel catalysts supported on calcium titanate for enhanced CO methanation. Catal. Sci. Technol. 2013, 3, 490–499. [Google Scholar] [CrossRef]
  17. Jin, G.; Gu, F.; Liu, Q.; Wang, X.; Jia, L.; Xu, G.; Zhong, Z.; Su, F. Highly stable Ni/SiC catalyst modified by Al2O3 for CO methanation reaction. RSC Adv. 2016, 6, 9631–9639. [Google Scholar] [CrossRef]
  18. Sun, J.; Feng, Q.; Liu, Q.; Ji, S.; Fang, Y.; Peng, X.; Wang, Z.-J. An Al2O3-Coated SiC-Supported Ni Catalyst with Enhanced Activity and Improved Stability for Production of Synthetic Natural Gas. Ind. Eng. Chem. Res. 2018, 57, 14899–14909. [Google Scholar] [CrossRef]
  19. Wang, X.; Liu, Q.; Jiang, J.-X.; Jin, G.; Li, H.; Gu, F.; Xu, G.; Zhong, Z.; Su, F. SiO2-stabilized Ni/t-ZrO2 catalysts with ordered mesopores: One-pot synthesis and their superior catalytic performance in CO methanation. Catal. Sci. Technol. 2016, 6, 3529–3543. [Google Scholar] [CrossRef]
  20. Jiang, Y.; Huang, T.; Dong, L.; Su, T.; Li, B.; Luo, X.; Xie, X.; Qin, Z.; Xu, C.; Ji, H. Mn Modified Ni/Bsentonite for CO2 Methanation. Catalysts 2018, 8, 646. [Google Scholar] [CrossRef]
  21. Feng, F.; Song, G.; Xiao, J.; Shen, L.; Pisupati, S.V. Carbon deposition on Ni-based catalyst with TiO2 as additive during the syngas methanation process in a fluidized bed reactor. Fuel 2019, 235, 85–91. [Google Scholar] [CrossRef]
  22. Dai, X.; Liang, J.; Ma, D.; Zhang, X.; Zhao, H.; Zhao, B.; Guo, Z.; Kleitz, F.; Qiao, S. Large-pore mesoporous RuNi-doped TiO2–Al2O3 nanocomposites for highly efficient selective CO methanation in hydrogen-rich reformate gases. Appl. Catal. B-Environ. 2015, 165, 752–762. [Google Scholar] [CrossRef]
  23. Mebrahtu, C.; Krebs, F.; Perathoner, S.; Abate, S.; Centi, G.; Palkovits, R. Hydrotalcite based Ni-Fe/(Mg, Al)Ox catalysts for CO2 methanation-tailoring Fe content for improved CO dissociation, basicity, and particle size. Catal. Sci. Technol. 2018, 8, 1016–1027. [Google Scholar] [CrossRef]
  24. Liu, Q.; Gu, F.; Gao, J.; Li, H.; Xu, G.; Su, F. Coking-resistant Ni-ZrO2/Al2O3 catalyst for CO methanation. J. Energy. Chem. 2014, 23, 761–770. [Google Scholar] [CrossRef]
  25. Zeng, Y.; Ma, H.; Zhang, H.; Ying, W.; Fang, D. Ni-Ce-Al composite oxide catalysts synthesized by solution combustion method: Enhanced catalytic activity for CO methanation. Fuel 2015, 162, 16–22. [Google Scholar] [CrossRef]
  26. Zhao, A.; Ying, W.; Zhang, H.; Ma, H.; Fang, D. Ni-Al2O3 catalysts prepared by solution combustion method for syngas methanation. Catal. Commun. 2012, 17, 34–38. [Google Scholar] [CrossRef]
  27. Bian, L.; Zhang, L.; Zhu, Z.; Li, Z. Methanation of carbon oxides on Ni/Ce/SBA-15 pretreated with dielectric barrier discharge plasma. Mol. Catal. 2018, 446, 131–139. [Google Scholar] [CrossRef]
  28. Liu, Q.; Zhong, Z.; Gu, F.; Wang, X.; Lu, X.; Li, H.; Xu, G.; Su, F. CO methanation on ordered mesoporous Ni-Cr-Al catalysts: Effects of the catalyst structure and Cr promoter on the catalytic properties. J. Catal. 2016, 337, 221–232. [Google Scholar] [CrossRef]
  29. Liu, Q.; Qiao, Y.; Tian, Y.; Gu, F.; Zhong, Z.; Su, F. Ordered Mesoporous Ni-Fe-Al Catalysts for CO Methanation with Enhanced Activity and Resistance to Deactivation. Ind. Eng. Chem. Res. 2017, 56, 9809–9820. [Google Scholar] [CrossRef]
  30. Xu, L.; Lian, X.; Chen, M.; Cui, Y.; Wang, F.; Li, W.; Huang, B. CO2 methanation over Co-Ni bimetal-doped ordered mesoporous Al2O3 catalysts with enhanced low-temperature activities. Int. J. Hydrog. Energy 2018, 43, 17172–17184. [Google Scholar] [CrossRef]
  31. Liu, Q.; Wang, S.; Zhao, G.; Yang, H.; Yuan, M.; An, X.; Zhou, H.; Qiao, Y.; Tian, Y. CO2 methanation over ordered mesoporous NiRu-doped CaO-Al2O3 nanocomposites with enhanced catalytic performance. Int. J. Hydrog. Energy 2018, 43, 239–250. [Google Scholar] [CrossRef]
  32. Hayashi, K.; Miyao, T.; Tabira, Y.; Higashiyama, K. Low-temperature Selective CO Methanation over Unsupported Nickel Catalyst Covered by Silica Thin Layer. J. Jpn. Petrol. Inst. 2016, 59, 65–71. [Google Scholar] [CrossRef] [Green Version]
  33. Feng, X.; Dong, C.; Ping, D.; Geng, J.; Zhang, J.; Dong, X. Zr-Modified SBA-15 Supported Ni Catalysts with Excellent Catalytic Performance of CO Selective Methanation in H2-Rich Fuels. Catal. Lett. 2018, 148, 2967–2973. [Google Scholar] [CrossRef]
  34. Meng, F.; Song, Y.; Li, X.; Cheng, Y.; Li, Z. Catalytic methanation performance in a low-temperature slurry-bed reactor over Ni-ZrO2 catalyst: effect of the preparation method. J. Sol-Gel. Sci. Technol. 2016, 80, 759–768. [Google Scholar] [CrossRef]
  35. Cui, D.; Liu, J.; Yu, J.; Su, F.; Xu, G. Attrition-resistant Ni-Mg/SiO2-Al2O3 catalysts with different silica sources for fluidized bed syngas methanation. Int J Hydrog. Energy 2017, 42, 4987–4997. [Google Scholar] [CrossRef]
  36. Meng, F.; Li, Z.; Ji, F.; Li, M. Effect of ZrO2 on catalyst structure and catalytic methanation performance over Ni-based catalyst in slurry-bed reactor. Int. J. Hydrog. Energy 2015, 40, 8833–8843. [Google Scholar] [CrossRef]
  37. Liu, C.; Zhou, J.; Ma, H.; Qian, W.; Zhang, H.; Ying, W. Antisintering and High-Activity Ni Catalyst Supported on Mesoporous Silica Incorporated by Ce/Zr for CO Methanation. Ind. Eng. Chem. Res. 2018, 57, 14406–14416. [Google Scholar] [CrossRef]
  38. Chen, G.; Gao, R.; Zhao, Y.; Li, Z.; Waterhouse, G.I.N.; Shi, R.; Zhao, J.; Zhang, M.; Shang, L.; Sheng, G.; et al. Alumina-Supported CoFe Alloy Catalysts Derived from Layered-Double-Hydroxide Nanosheets for Efficient Photothermal CO2 Hydrogenation to Hydrocarbons. Adv. Mater. 2018, 30. [Google Scholar] [CrossRef]
  39. Chen, G.; Wang, T.; Zhang, J.; Liu, P.; Sun, H.; Zhuang, X.; Chen, M.; Feng, X. Accelerated Hydrogen Evolution Kinetics on NiFe-Layered Double Hydroxide Electrocatalysts by Tailoring Water Dissociation Active Sites. Adv. Mater. 2018, 30. [Google Scholar] [CrossRef]
  40. Li, P.; Zhu, M.; Tian, Z.; Han, Y.; Zhang, Y.; Zhou, T.; Kang, L.; Dan, J.; Guo, X.; Yu, F.; et al. Two-Dimensional Layered Double Hydroxide Derived from Vermiculite Waste Water Supported Highly Dispersed Ni Nanoparticles for CO Methanation. Catalysts 2017, 7, 79. [Google Scholar] [CrossRef]
  41. Fan, Q.; Li, X.; Yang, Z.; Han, J.; Xu, S.; Zhang, F. Double-Confined Nickel Nanocatalyst Derived from Layered Double Hydroxide Precursor: Atomic Scale Insight into Microstructure Evolution. Chem. Mater. 2016, 28, 6296–6304. [Google Scholar] [CrossRef]
  42. Chen, H.; He, S.; Cao, X.; Zhang, S.; Xu, M.; Pu, M.; Su, D.; Wei, M.; Evans, D.G.; Duan, X. Ru-Cluster-Modified Ni Surface Defects toward Selective Bond Breaking between C-O and C-C. Chem. Mater. 2016, 28, 4751–4761. [Google Scholar] [CrossRef]
  43. Li, C.; Chen, Y.; Zhang, S.; Xu, S.; Zhou, J.; Wang, F.; Wei, M.; Evans, D.G.; Duan, X. Ni-In Intermetallic Nanocrystals as Efficient Catalysts toward Unsaturated Aldehydes Hydrogenation. Chem. Mater. 2013, 25, 3888–3896. [Google Scholar] [CrossRef]
  44. Li, Z.; Bian, L.; Zhu, Q.; Wang, W. Ni-based catalyst derived from Ni/Mg/Al hydrotalcite–like compounds and its activity in the methanation of carbon monoxide. Kinet. Catal. 2014, 55, 217–223. [Google Scholar] [CrossRef]
  45. Kim, W.Y.; Lee, Y.H.; Park, H.; Choi, Y.H.; Lee, M.H.; Lee, J.S. Coke tolerance of Ni/Al2O3 nanosheet catalyst for dry reforming of methane. Catal. Sci. Technol. 2016, 6, 2060–2064. [Google Scholar] [CrossRef]
  46. He, S.; Li, C.; Chen, H.; Su, D.; Zhang, B.; Cao, X.; Wang, B.; Wei, M.; Evans, D.G.; Duan, X. A Surface Defect-Promoted Ni Nanocatalyst with Simultaneously Enhanced Activity and Stability. Chem. Mater. 2013, 25, 1040–1046. [Google Scholar] [CrossRef]
  47. Mitchell, R.W.; Lloyd, D.C.; van de Water, L.G.A.; Ellis, P.R.; Metcalfe, K.A.; Sibbald, C.; Davies, L.H.; Enache, D.I.; Kelly, G.J.; Boyes, E.D.; et al. Effect of Pretreatment Method on the Nanostructure and Performance of Supported Co Catalysts in Fischer-Tropsch Synthesis. ACS Catal. 2018, 8, 8816–8829. [Google Scholar] [CrossRef]
  48. Li, F.; Liu, J.; Evans, D.G.; Duan, X. Stoichiometric synthesis of pure MFe2O4 (M = Mg, Co and Ni) spinel ferrites from tailored layered double hydroxide (hydrotalcite–like) precursors. Chem. Mater. 2004, 16, 1597–1602. [Google Scholar] [CrossRef]
  49. Liu, J.; Li, C.; Wang, F.; He, S.; Chen, H.; Zhao, Y.; Wei, M.; Evans, D.G.; Duan, X. Enhanced low-temperature activity of CO2 methanation over highly-dispersed Ni/TiO2 catalyst. Catal. Sci. Technol. 2013, 3, 2627–2633. [Google Scholar] [CrossRef]
  50. Grosvenor, A.P.; Biesinger, M.C.; Smart, R.S.C.; McIntyre, N.S. New interpretations of XPS spectra of nickel metal and oxides. Surf. Sci. 2006, 600, 1771–1779. [Google Scholar] [CrossRef]
  51. Zhang, Y.; Qin, Z.; Wang, G.; Zhu, H.; Dong, M.; Li, S.; Wu, Z.; Li, Z.; Wu, Z.; Zhang, J.; et al. Catalytic performance of MnOx-NiO composite oxide in lean methane combustion at low temperature. Appl. Catal. B-Enriron. 2013, 129, 172–181. [Google Scholar] [CrossRef]
  52. Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Appl. Surf. Sci. 2011, 257, 2717–2730. [Google Scholar] [CrossRef]
  53. Mo, S.; Li, S.; Li, W.; Li, J.; Chen, J.; Chen, Y. Excellent low temperature performance for total benzene oxidation over mesoporous CoMnAl composited oxides from hydrotalcites. J. Mater. Chem. A 2016, 4, 8113–8122. [Google Scholar] [CrossRef]
  54. Hernández, W.Y.; Centeno, M.A.; Ivanova, S.; Eloy, P.; Gaigneaux, E.M.; Odriozola, J.A. Cu-modified cryptomelane oxide as active catalyst for CO oxidation reactions. Appl. Catal. B 2012, 123–124, 27–35. [Google Scholar] [CrossRef]
Catalysts 09 00282 g001 550

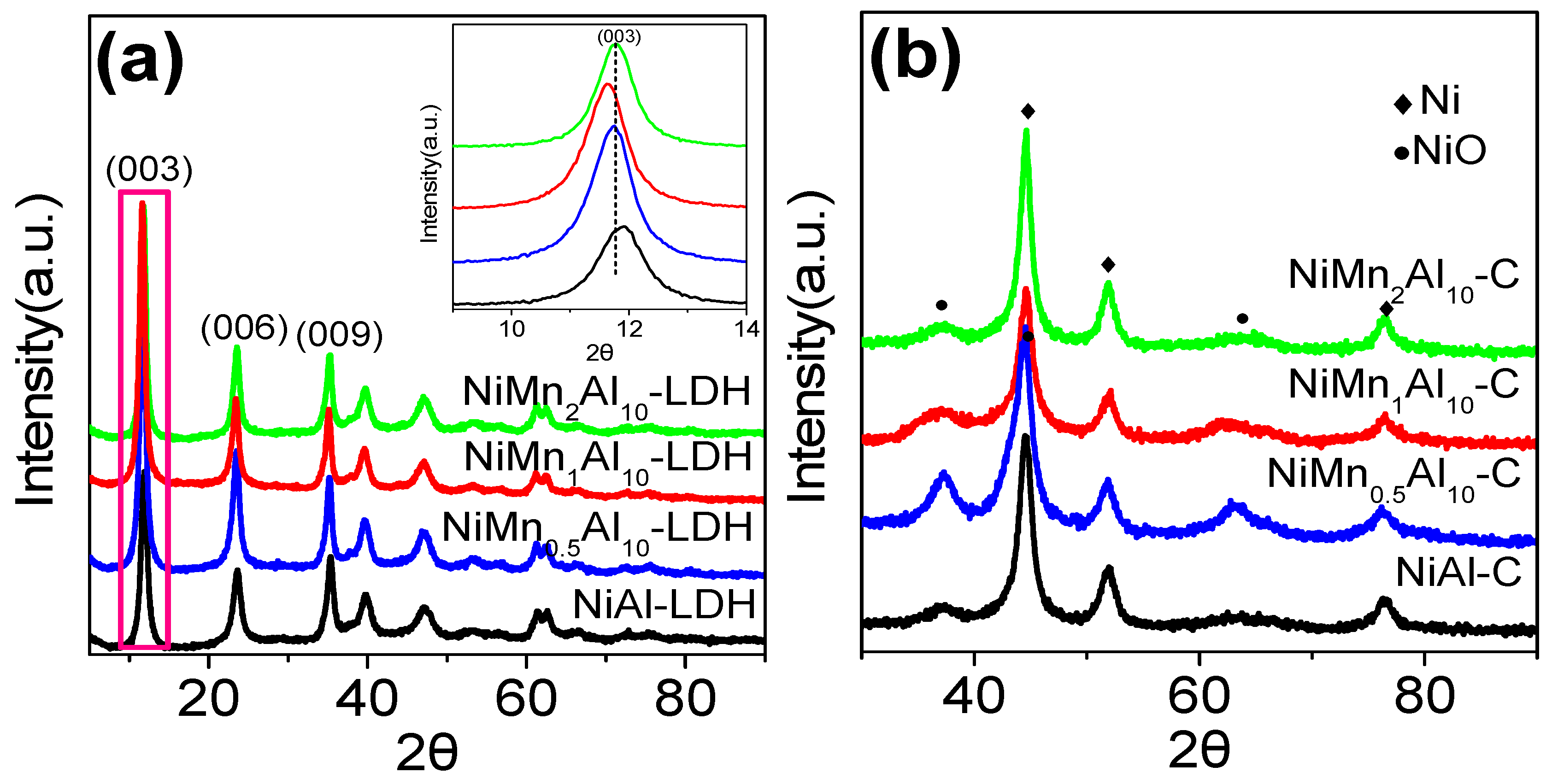

Figure 1. XRD results of LDHs precursors (a) and NiMnxAl10 catalysts (b). The inset shows the displacement of the first diffraction peak (LDH-layered double hydroxide, C-catalyst).
Figure 1. XRD results of LDHs precursors (a) and NiMnxAl10 catalysts (b). The inset shows the displacement of the first diffraction peak (LDH-layered double hydroxide, C-catalyst).
Catalysts 09 00282 g001
Catalysts 09 00282 g002 550
Figure 2. SEM images of the LDHs precursors (a–d) and the corresponding catalysts after reduction (e–h).
Figure 2. SEM images of the LDHs precursors (a–d) and the corresponding catalysts after reduction (e–h).
Catalysts 09 00282 g002
Catalysts 09 00282 g003 550

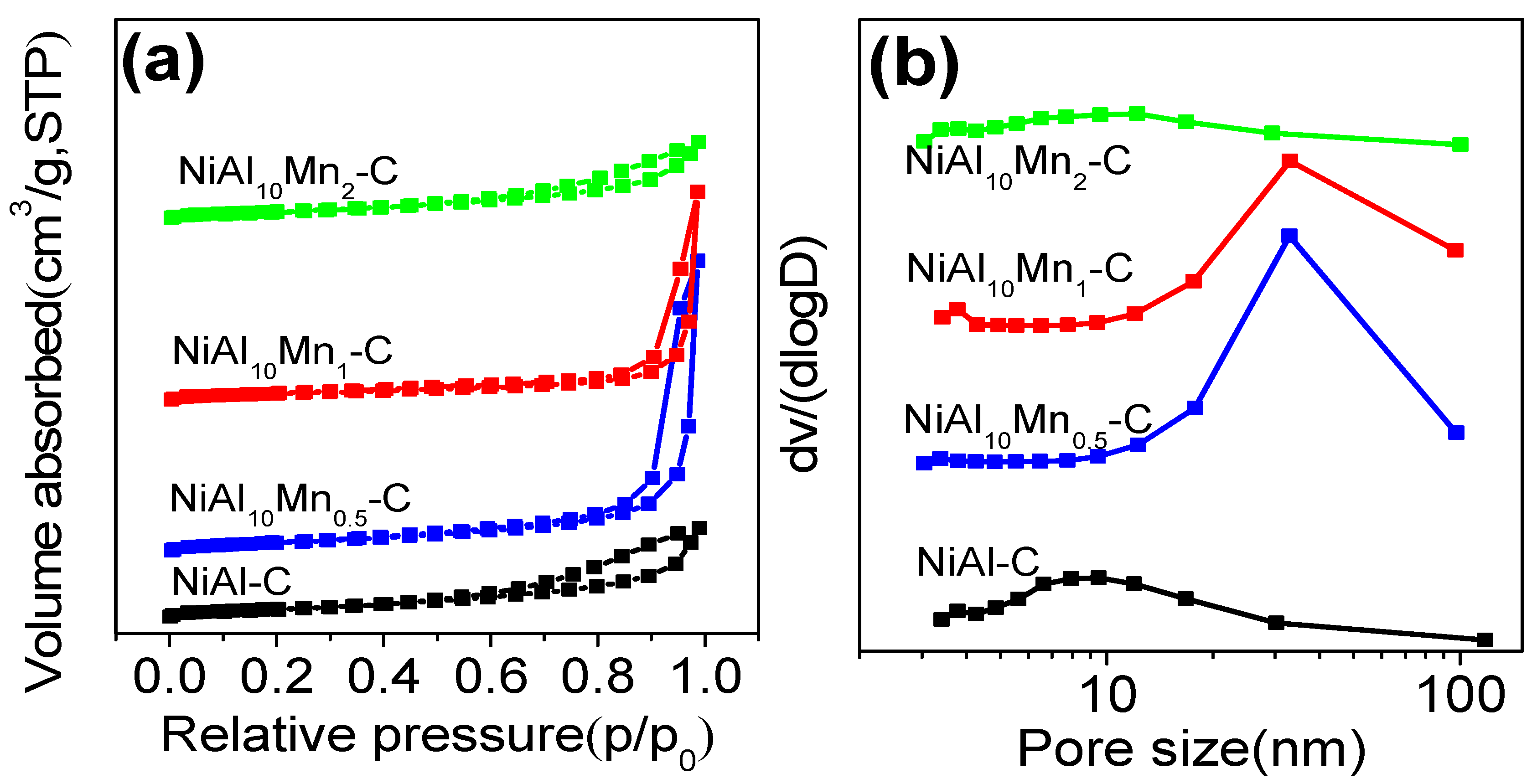

Figure 3. N2-adsorpotion/desoportion isotherms (a) and pore size distribution of catalysts (b).
Figure 3. N2-adsorpotion/desoportion isotherms (a) and pore size distribution of catalysts (b).
Catalysts 09 00282 g003
Catalysts 09 00282 g004 550
Figure 4. (A) H2-TPR curves of the LDHs: (a) NiAl-LDH, (b) NiMn0.5Al10-LDH, (c) NiMn1Al10-LDH, (d) NiMn2Al10-LDH and (B) H2-TPD results of the catalysts: (a) NiAl-C, (b) NiMn0.5Al10-C, (c) NiMn1Al10-C and (d) NiMn2Al10-C.
Figure 4. (A) H2-TPR curves of the LDHs: (a) NiAl-LDH, (b) NiMn0.5Al10-LDH, (c) NiMn1Al10-LDH, (d) NiMn2Al10-LDH and (B) H2-TPD results of the catalysts: (a) NiAl-C, (b) NiMn0.5Al10-C, (c) NiMn1Al10-C and (d) NiMn2Al10-C.
Catalysts 09 00282 g004
Catalysts 09 00282 g005 550
Figure 5. TEM pictures of the catalysts: (a–f) NiAl-C, NiMn0.5Al10-C, NiMn1Al10-C, NiMn2Al10-C, NiAl-C and NiMn1Al10-C. The insets show the size distribution of Ni nanoparticles.
Figure 5. TEM pictures of the catalysts: (a–f) NiAl-C, NiMn0.5Al10-C, NiMn1Al10-C, NiMn2Al10-C, NiAl-C and NiMn1Al10-C. The insets show the size distribution of Ni nanoparticles.
Catalysts 09 00282 g005
Catalysts 09 00282 g006 550
Figure 6. TEM-EDS mapping of the NiMn1Al10-C catalyst: (a) overlap of Ni, Al, Mn and O, (b) overlap of Ni and Mn. The scale bar is 20 nm.
Figure 6. TEM-EDS mapping of the NiMn1Al10-C catalyst: (a) overlap of Ni, Al, Mn and O, (b) overlap of Ni and Mn. The scale bar is 20 nm.
Catalysts 09 00282 g006
Catalysts 09 00282 g007 550
Figure 7. XPS spectras of the catalysts: (A) Ni 2p, (B) Mn 2p, (C) O 1s. (a) NiAl-C, (b) NiMn0.5Al10-C, (C) NiMn1Al10-C and (d) NiMn2Al10-C.
Figure 7. XPS spectras of the catalysts: (A) Ni 2p, (B) Mn 2p, (C) O 1s. (a) NiAl-C, (b) NiMn0.5Al10-C, (C) NiMn1Al10-C and (d) NiMn2Al10-C.
Catalysts 09 00282 g007
Catalysts 09 00282 g008 550
Figure 8. Schematic diagram of the structure of the catalyst.
Figure 8. Schematic diagram of the structure of the catalyst.
Catalysts 09 00282 g008
Catalysts 09 00282 g009 550
Figure 9. Catalytic activity of the catalysts for CO methanation: (a) CO conversion, (b) CH4 selectivity, (c) CH4 yield.
Figure 9. Catalytic activity of the catalysts for CO methanation: (a) CO conversion, (b) CH4 selectivity, (c) CH4 yield.
Catalysts 09 00282 g009
Catalysts 09 00282 g010 550
Figure 10. Low temperature (a) and high temperature (b) lifetime tests of the catalysts.
Figure 10. Low temperature (a) and high temperature (b) lifetime tests of the catalysts.
Catalysts 09 00282 g010
Catalysts 09 00282 g011 550

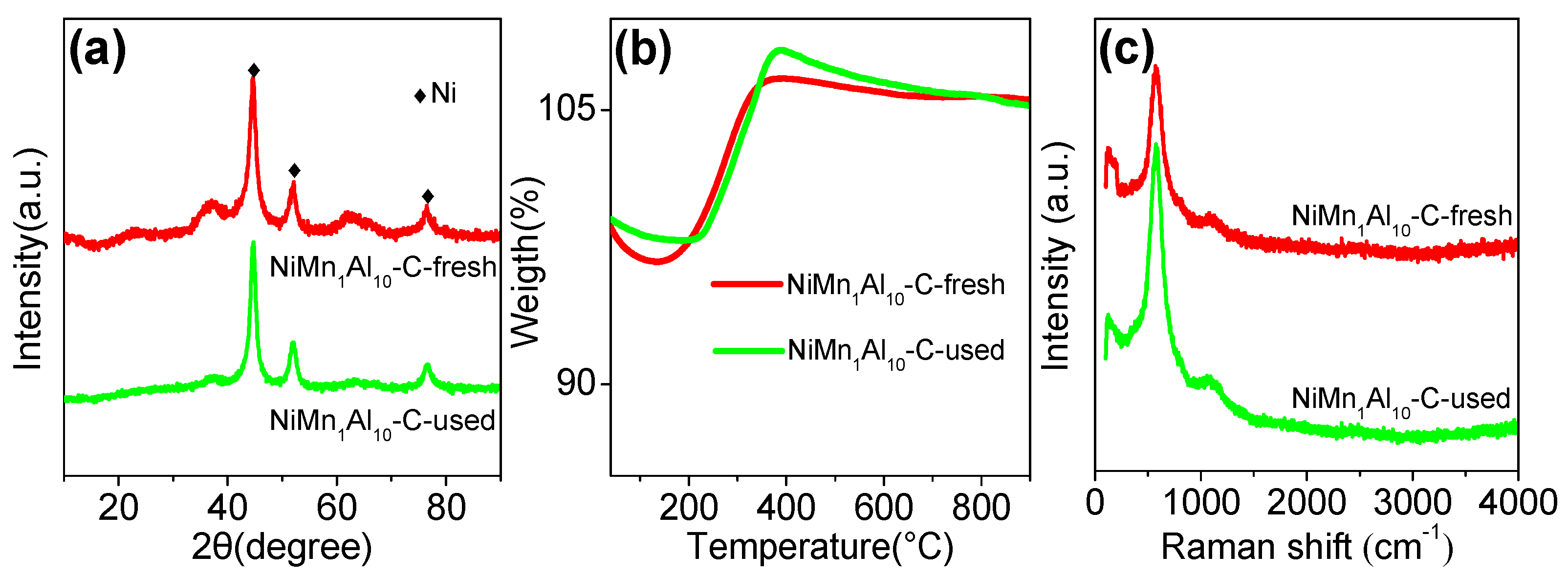

Figure 11. XRD (a), TG (b) and Raman spectrum (c) of the catalysts.
Figure 11. XRD (a), TG (b) and Raman spectrum (c) of the catalysts.
Catalysts 09 00282 g011
Table
Table 1. Lattice parameters of the LDHs.
Table 1. Lattice parameters of the LDHs.
LDHsd003/nmd006/nmd009/nmd110/nma a = 2d110/nmb c = (d003 + 2d006 + 3d009)/nm
NiAl-LDH0.7410.3780.2550.1510.3022.258
NiMn0.5Al10-LDH0.7520.3780.2550.1510.3022.269
NiMn1Al10-LDH0.7580.3780.2550.1510.3022.275
NiMn2Al10-LDH0.7520.3780.2550.1510.3022.269
a The average distance of the metal cations in the hydrotalcite layer; b Three times of the interlayer thickness.
Table
Table 2. Physicochemical property of catalysts.
Table 2. Physicochemical property of catalysts.
Catalystsa Wt% ± 0.1b SBET
(m2·g−1)		c Vp (cm3·g−1)d H2 Uptake (μmoL/g)e De (%) ± 0.1
NiAlMn
NiAl-C61.77.30760.253410.2
NiMn0.5Al10-C57.57.30.6870.555911.4
NiMn1Al10-C57.87.71.7690.763112.8
NiMn2Al10-C57.97.93.2660.255011.2
a Determined by ICP; b Calculated by BET equation; c Determined by the volume of N2 adsorbed at p/p0 = 0.97; d Calculated based on the H2-TPD data; e Calculated using the H2-TPR and H2-TPD results.
Table
Table 3. Surface valence of catalysts determined by XPS.
Table 3. Surface valence of catalysts determined by XPS.
CatalystsMn 2p2/3 Position (eV)Mn4+/Mn3+O 1s Position (eV)OII/(OII + OI)
Mn2+Mn3+Mn4+OIOII
NiAl-C----530.5531.80.41
NiMn0.5Al10-C637.8642.8647.70.33530.5531.80.49
NiMn1Al10-C637.9642.9647.60.59530.5531.80.56
NiMn2Al10-C637.9643.0647.80.48530.4531.70.50

Share and Cite

MDPI and ACS Style

Lu, B.; Zhuang, J.; Du, J.; Gu, F.; Xu, G.; Zhong, Z.; Liu, Q.; Su, F. Highly Dispersed Ni Nanocatalysts Derived from NiMnAl-Hydrotalcites as High-Performing Catalyst for Low-Temperature Syngas Methanation. Catalysts 2019, 9, 282. https://doi.org/10.3390/catal9030282

AMA Style

Lu B, Zhuang J, Du J, Gu F, Xu G, Zhong Z, Liu Q, Su F. Highly Dispersed Ni Nanocatalysts Derived from NiMnAl-Hydrotalcites as High-Performing Catalyst for Low-Temperature Syngas Methanation. Catalysts. 2019; 9(3):282. https://doi.org/10.3390/catal9030282

Chicago/Turabian Style

Lu, Bin, Jiahao Zhuang, Jinping Du, Fangna Gu, Guangwen Xu, Ziyi Zhong, Qing Liu, and Fabing Su. 2019. "Highly Dispersed Ni Nanocatalysts Derived from NiMnAl-Hydrotalcites as High-Performing Catalyst for Low-Temperature Syngas Methanation" Catalysts 9, no. 3: 282. https://doi.org/10.3390/catal9030282

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
