Article

Hydrogen Production Improvement on Water Decomposition Through Internal Interfacial Charge Transfer in M3(PO4)2-M2P2O7 Mixed-Phase Catalyst (M = Co, Ni, and Cu)

by
Junyeong Kim
,
Jun Neoung Heo
,
Jeong Yeon Do
*,
Seog Joon Yoon
,
Youngsoo Kim
and
Misook Kang
*
Department of Chemistry, College of Science, Yeungnam University, Gyeongsan, Gyeongbuk 38541, Korea
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(7), 602; https://doi.org/10.3390/catal9070602
Submission received: 7 June 2019 / Revised: 10 July 2019 / Accepted: 11 July 2019 / Published: 13 July 2019
(This article belongs to the Special Issue Photocatalysis: Activity of Nanomaterials)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study, three types of Nasicon-type materials, Co3(PO4)2-CO2P2O7, Ni3(PO4)2-Ni2P2O7, and Cu3(PO4)2-Cu2P2O7, were synthesized as mixed-phase catalysts (MPCs) for evaluating their potential as new photocatalytic candidates (called Co3(PO4)2-CO2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc herein). Based on various physical properties, it was confirmed that there are two phases, M3(PO4)2 and M2P2O7, in which a similar phase equilibrium energy coexists. These colored powders showed UV and visible light responses suitable to our aim of developing 365-nm light-response photocatalysts for overall water-splitting. The photocatalytic performance of Ni2(PO4)3-Ni2P2O7 MPC showed negligible or no activity toward H2 evolution. However, Co2(PO4)3-Co2P2O7 MPC and Cu3(PO4)2-Cu2P2O7 MPC were determined as interesting materials because of their ability to absorb visible light within a suitable band. Moreover, an internal interface charge transfer was suggested to occur that would lower the recombination rate of electrons and holes. For Cu3(PO4)2-Cu2P2O7 MPC, the charge separation between the electron and hole was advantageously achieved, a water-splitting reaction was promoted, and hydrogen generation was considerably increased. The performance of a catalyst depended on the nature of the active metal added. In addition, the performance of the catalyst was improved when electrons migrated between the inter-phases despite the lack of a heterojunction with other crystals.

1. Introduction

Since the hydrogen production performance of a TiO2 photocatalyst was first reported by Honda-Fujishima [1,2,3,4], numerous studies have been conducted to improve the performance of photocatalysts using efficient light harvesting. As a result, researchers have concluded that if electrons and holes generated by light can be advantageously separated, their recombination could be delayed to increase the frequency of participation in the oxidation-reduction reaction occurring at the interface between the catalyst and reactant [5,6]. To slow down the recombination of electrons and holes, several methods are available, including a one-step excitation system [7], a photosensitized semiconductor system [8], a two-step excitation semiconductor heterojunction system [9], and a Z-scheme system [10]. Catalysts based on such systems have achieved unexpectedly good results, and many related studies have been published [11,12,13]. Currently, various photocatalysts ranging from widely used TiO2 particles to metal-sulfide [14], metal-nitride [15], and metal-tungstate [16] with a slightly smaller bandgap have been studied.
Nasicon-type materials such as metal phosphate particles, which are relatively small with a bandgap of approximately 2–3 eV compared to TiO2, have recently attracted the interest of a few researchers [17,18]. In general, Nasicon is a crystalline solid of A1B2(PO4)3, where A is a monovalent cation and B is a single ion or a combination of tri-, tetra-, and penta-atomic ions. Here, the monovalent A ions can move within the lattice with low activation energy [19]. During the early 1980s, Susman et al. succeeded in synthesizing a compound with a formula of Na1+xZr2SixP3-xO12 (0 < x < 3) [20], and because Na, Zr, and Si ions exhibit unique ion conductivity by substituting other elements, this compound has been widely applied as a secondary battery material [21,22]. To date, many ion-exchanged derivatives and substituted Nasicon frameworks are known, e.g., AM2(PO4)3 (A = Na, Ca, Sr, Ba; M = Ti, Mo). These structural-type materials consist of a three-dimensional network made up of PO4 tetrahedra, sharing corners with MO6 octahedra and forming interconnected tunnels, where M+ (Na+, K+, Ag+) or oxygen ions have freedom of movement [23]. During a photocatalytic reaction, the transfer of electrons through the formation of interconnected tunnels or the transfer of oxygen atoms can increase the adsorption of the reactants, effectively isolating the photo-induced charge, and consequently contributing to an improved photoactivity [24]. As examples, Fu, et al. reported the photocatalytic activity of MgTi4(PO4)6 and CaTi4(PO4)6 glass-ceramics containing Nasicon-type crystals [25], and Palla et al. suggested the photocatalytic degradation of organic dyes with Sn2+- and Ag+-substituted K3Nb3WO9(PO4)2 under visible light irradiation [26]. However, this remains in the early stage of research, and has thus, not shown a remarkable catalytic activity. Thus, in this study, M3(PO4)2 particles as Nasicon-type materials were prepared by binding phosphate ions to a Co, Ni, or Cu metal in a divalent oxidation state with 7, 8, and 9 electrons in a 3d-orbit of the transition metal. These particles were used as a water-splitting catalyst to compare their hydrogen production performance.

2. Results and Discussion

Characteristics of M3(PO4)2-M2P2O7 Mixed-Phase Catalysts

Figure 1 shows X-ray diffraction (XRD) patterns of the as-synthesized catalysts. A sample of cobalt phosphate was shown to have a consistent pattern with the crystal structure of Co3(PO4)2 in a monoclinic crystal system [27], and a small XRD peak, belonging to the cobalt phosphate hydrate (monoclinic, P21/n), was also found at 33°. Nickel phosphate particles mostly show an XRD pattern of Ni3(PO4)2 in a monoclinic crystal system with a space group of P21/a, although the Ni2P2O7 phase of the monoclinic crystal system with the P21/c space group was also mixed [28]. The Cu2P2O7 phase (C2/c space group) was also mixed with the Cu3(PO4)2 monoclinic crystal (C2/c space group) [29]. From this result, we confirmed that the M3(PO4)2 and M2P2O7 crystal phases coexist because the energy phase equilibrium of the two crystals lies at approximately the same positions [30]. Jain et al. [31] observed that the mixed-phased Mx(P2O7)(PO4)2 is energetically stable and can be decomposed into MxP2O7 and Mx(PO4)3, although the overall energy of the decomposition is unfavorable by 5 meV/atom. The authors concluded that Mx(P2O7)(PO4)2 has a stable phase. Furthermore, in this study, we did not intentionally attempt to produce two separate hetero-type phases, but the two phases are instead naturally produced during synthesis.
Transmission electron microscopy (TEM) images are shown in Figure 2. In most studies [32,33], TEM images of M2P2O7 are expressed in sheet form. We also interpreted them in the same context. In the photograph showing cobalt phosphate, we can see uniform particles of an elliptical shape with a width of 300 nm and a length of 150 nm. However, it was confirmed in the images that nickel phosphate and copper phosphate were mixed with unclear particles: Ni3(PO4)2 with small particles of 50–100 nm was clustered, and a wide sheet of Ni2P2O7 particles could also be seen. In the copper phosphate image, it was confirmed that rectangular Cu3(PO4)2 particles with a width of 500 nm and a height of 300 nm were mixed with sheet-type Cu2P2O7 particles. From the XRD and TEM results, we recognized that the synthesized catalysts coexisted as two crystal phases. Herein, we refer to the M3(PO4)2-M2P2O7 mixed-phase catalysts (MPCs) as Co3(PO4)2-CO2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc.
An X-ray photoelectron spectroscopy analysis was conducted on Cu3(PO4)2-Cu2P2O7mpc as a representative catalyst, the results of which are shown in Figure 3. The peaks at binding energies of 935.7, 133.1 and 530.6 eV refer to the Cu2p3/2, P2p3/2 and O1s spectra, respectively. All core peaks in Cu3(PO4)2-Cu2P2O7mpc were recorded, and as shown in Figure 3, the core peak of Cu2p showed two main spin-orbit components at 935.7 and 955.6 eV, corresponding to Cu2p3/2 and Cu2p3/2, which confirmed the presence of Cu2+ [34]. Two peaks located at 942.5 and 962.5 eV are the “shake up” satellite peaks of Cu2p. The high-resolution spectra of P2p show two main spin-orbit components at 133.1 and 134.8 eV, corresponding to Cu2p3/2 and Cu2p3/2, respectively, thereby confirming the presence of P5+. The O1s regions for Cu3(PO4)2 located at 530.6 and 532.4 eV are assigned to the M–O–P and P–O–P bonds, respectively [35]. In particular, a peak at 532.5 eV is shown, which was assigned to the P = O of Cu2P2O7 [36]. This is similar to the XRD result, and it was concluded that Cu3(PO4)2 coexists with the Cu2P2O7 phase in Cu3(PO4)2-Cu2P2O7mpc.
Figure 4 shows the DIR-UV-visible absorbance of three M3(PO4)2-M2P2O7mpc particles. In general, according to a Sugano–Tanabe diagram [37], three absorption curves are allowed in Co2+ and Ni2+ complexes with d7- and d8-electron configurations. The first curve is observed in the UV region below 300 nm (T1g↔A2g), the second curve is shown in the visible region of 400–750 nm (T1g↔T1g), and the last curve can be seen in the IR region at above 800 nm (T1g↔T2g). In general, within the visible region, the blue Cu3(PO4)2-Cu2P2O7mpc particles absorb a red wavelength of approximately 650 nm and the yellow Ni3(PO4)2-Ni2P2O7mpc particles absorb a blue wavelength of 450 nm and a red wavelength within the vicinity of 700 nm. The purple Co3(PO4)2-Co2P2O7mpc particles absorb a yellow-green wavelength of approximately 550–600 nm. In particular, Cu3(PO4)2-Cu2P2O7mpc particles show a strong absorption band at above 650 nm. It is known that the diluted Cu2+ ions inside a glass matrix exhibit a broad optical absorption of approximately 700 nm, which is assigned to the 2B2g→2B1g transition owing to the Jahn–Teller splitting of the 3d levels of Cu2+ ions in a ligand field [38]. The broad absorption band was observed in the NIR region, which corresponds to three possible d-d electronic absorption transitions for distorted octahedral coordination rather than perfect octahedral coordination. Thus, the broadening of the absorption band observed at approximately 700 nm is attributed to the two electronic transitions in the d orbital corresponding to 2A1g→2B1g and 2B2g→2B1g [39]. In general, this means that the bandgap narrows as the longer wavelength is absorbed. In this case, it is known that the excitation of electrons easily occurs even under weak light, thereby increasing the activity of the photocatalyst. Based on the absorption peak, which is the largest among the absorption wavelengths, the bandgaps decrease in the order of Ni3(PO4)2-Ni2P2O7mpc > Co3(PO4)2-Co2P2O7mpc > Cu3(PO4)2-Cu2P2O7mpc. The wavelengths of 430, 580, and 670 nm were calculated for the Ni3(PO4)2-Ni2P2O7mpc, Co3(PO4)2-Co2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc samples using the following equation:
Eg = hc/λ
where Eg is the bandgap energy, h is Planck’s constant, c is the speed of light, and λ is the given wavelength [40]. Bandgaps of 2.88, 2.14, and 1.77 eV are then obtained. However, in the Cu3(PO4)2-Cu2P2O7mpc sample, the yellow-green color at approximately 410 nm and the dark blue color at 700 nm must be combined to obtain a light-blue colored Cu3(PO4)2-Cu2P2O7mpc compound, which we synthesized. Thus, we recognize that both absorption peaks must be considered, and the bandgap at 410 nm is approximately 3.0 eV. In the literature, it was confirmed that Cu3(PO4)2 absorbs light at wavelengths of 380 nm and 650 nm [41], and Cu2P2O7 does so at a wavelength of 700 nm or longer [42].
By contrast, electrons exciting from the valence band (VB) to the conduction band (CB) are recombined with holes, and photoluminescence (PL) is a useful method for predicting the degree of recombination. The PL results for the three samples when the electrons are excited by light with a wavelength of 365 nm are shown in Figure 5. The photoluminescence spectra observed at a 365 nm excitation were found to be dependent on both the structural type and the transition metal ions. The PL spectra of Co3(PO4)2-Co2P2O7mpc, excited at 365 nm, show only one strong broad emission band centered at approximately 440 nm. It has been fairly accepted that cobalt exists mostly in a divalent state with two coordinations, namely, octahedral and tetrahedral [43]. A Co2+ ion has a d7 electronic configuration, and in a tetrahedral crystal field, presents the splitting of energy levels of a d3 electronic configuration in an octahedral field. In octahedral coordination (Co2+), the free ion ground state 4F splits into 4T1, 4T2, and 4A2 states with the 4T1 state being the lowest. In a tetrahedral symmetry, the energy levels of Co2+ ions are 4T2(4F), 4T1(4F), 2E(2G), and 4T1(4P), with a ground state of 4A2(4F). The emission band of Co2+ ions within the region of 630–670 nm is assigned to 2E(2G) → 4A2(4F) of Co2+ ions in tetrahedral coordination [44]. The PL spectra Ni3(PO4)2-Ni2P2O7mpc show three strong broad emission bands centered at approximately 450, 465, 510, and 610 nm. Ni2+ ions (3d8) are expected to exist as octahedral and tetrahedral coordination sites. The luminescence of Ni2+ ion-doped phosphate can be associated with the d–d optical transitions. It was reported [45] that the energy levels of Ni2+ ions in an octahedral symmetry are 3A2g(F) → 4T2g(F), 3A2g(F) → 3T1g(F), and 3A2g(F) → 3T1g(P). In addition to these three spin-allowed transitions, a spin-forbidden transition 3A2g(F) → 1Eg(D) could be observed at 610 nm. Many authors have proposed that the luminescence properties of Ni-doped samples exist in two regions, namely, the green (510 nm) and red (610 nm) regions. Hence, according to the energy levels of Ni2+ ion transitions in octahedral sites, the emissions in the green and red regions are assigned to the 1T2g(D) → 3A2g(F) and 1T2g(D) → 3T2g(F) transitions. Finally, the PL spectra of Cu3(PO4)2-Cu2P2O7mpc show two strong emission bands extending from 450 to 510 nm within the visible light range. According to the octahedral crystal field, Cu2+ (3d9) loses its degeneracy and splits into 2Eg and 2T2g, with 2Eg being the lower level. The luminescence spectra of Cu3(PO4)2-Cu2P2O7mpc exhibit emission peaks at 450, 465, and 510 nm, which are assigned to 3d94s → 3d10 triplet transitions in Cu2+ ions [46]. In general, the lower the PL intensity, the smaller the number of electrons recombined. Therefore, it is expected that the photoactivity of Cu3(PO4)2-Cu2P2O7mpc and Co3(PO4)2-Co2P2O7mpc particles are good; in particular, Cu3(PO4)2-Cu2P2O7mpc particles with a high interfacial transition and defects have high photocatalytic activity. A recent study described the hetero-phase junction phenomenon in association with crystal defects [47]. That is because positive or negative ion defects are generated in crystals, they act as electron or hole capture sites, slowing the recombination rate and increasing the activity of the photocatalyst [48]. The M3(PO4)2-M2P2O7mpc catalyst synthesized in this study is expected to facilitate the separation of electrons and holes owing to an internal interfacial charge transfer between the inter-phases.
In general, effectively separated charges have shown a significant effect on the photoactivity of a catalyst [49]. If the excited electrons flow well on the surface of the catalyst without loosening (that is if the electron and hole are separated well), the reduction reaction in CB and the oxidation reaction in VB will be maintained, and the photocatalytic activity will avoid deterioration. Here, the photocurrent density of the three catalysts was measured, the results of which are shown in Figure 6. For the photocurrent density cycle, the sample to be measured was prepared as a paste and coated onto a cell-type FTO glass. This cell was used as a working electrode, and a Pt-coated FTO glass was used as a counter electrode. The two electrodes were connected to form a single system. An iodolyte electrolyte (AN-50, Solarnonix) was used and sufficiently immersed in the electrode, and a potential of 0 V was applied. The current was measured while illuminating one sunlight of a 2000 solar simulator (IVIUM STAT, ABET Technologies). After the initial 1 min stabilization period, the current was measured repeatedly after the light was applied and removed at intervals of 30 s. The cell area (0.4 cm2) was divided by the measured current, and the current density was finally calculated. The higher the current density is, the more electrons flowing through the surface of the catalyst without being coupled with the holes. The current density of the Cu3(PO4)2-Cu2P2O7mpc particles was the largest at 2.75 mA/cm2 after five cycles, followed by Co3(PO4)2-Co2P2O7mpc and Ni3(PO4)2-Ni2P2O7mpc particles. This result led us to expect that the photocatalytic activity would be best for Cu3(PO4)2-Cu2P2O7mpc, which has the highest current density. The results are also consistent with the PL results shown in Figure 5.
Figure 7 shows the hydrogen production achieved by water-splitting under 365 nm light radiation. The amount of hydrogen and oxygen generated gradually increased over time in all catalysts. As expected from the optical properties, a cumulative hydrogen production of 80 μmol/cat.g was obtained after 10 h on the Cu3(PO4)2-Cu2P2O7mpc, and hydrogen production of 30 μmol/cat.g on the Co3(PO4)2-Co2P2O7mpc catalyst was obtained. However, Ni3(PO4)2-Ni2P2O7mpc showed an extremely low hydrogen content of 5 μmol/g, which is within 10% of Cu3(PO4)2-Cu2P2O7mpc. Copper, in particular, has high reduction potential and strong electron attracting power, which accelerates the movement of electrons. Furthermore, it can easily hydrogenate protons through a redox oxidation-reduction (Cu1+/Cu2+) during the reaction. By contrast, the amount of oxygen generated in each sample was exactly half the amount of hydrogen. This result shows that the water decomposition reaction took place quite stoichiometrically on the M3(PO4)2-M2P2O7mpc catalysts.
During the water-splitting reaction, the potentials of the CB and VB of the semiconductors are essential to the electron transfer mechanism, and thus, the photocatalytic performance. To establish an energy potential diagram of Cu3(PO4)2-Cu2P2O7mpc particles, the VB spectra were obtained from an XPS analysis, the results of which are shown in Figure 8A. The VB of Cu3(PO4)2 and Cu2P2O7 was found to be 2.48 and 1.20 eV, respectively. Based on the bandgap and VB, the CB was obtained using the following equation [50]:
ECB = EVB − Eg.
Energy potential diagrams for the Cu3(PO4)2 and Cu2P2O7 particles are shown in Figure 8B. According to the photocatalytic water-splitting reaction, holes produced in a VB generate oxygen by oxidizing water. In addition, photoelectrons excited in the CB generate hydrogen through water reduction. It is well known that the energy required for a water-splitting reaction is approximately 1.23 eV or more, including both the reduction potential (H+/H2) and the oxidation potential (O2/H2O). Based on the results, the Cu3(PO4)2 particle satisfies the required energy potential for the water-splitting reaction. It is expected that Cu2P2O7 will not cause a water decomposition reaction because the CB value contains the reduction potential of water, whereas the VB value does not include the oxidation potential. However, Cu2P2O7 is thought to contribute to a reduction of protons in hydrogen by receiving electrons relaxed from Cu3(PO4)2. Furthermore, the internal electron transfer system facilitates the separation of electrons and holes, and thus, their recombination is suppressed, thereby improving the catalytic activity.
Scheme 1a,b show the expected water-splitting mechanisms based on optical properties and hydrogen production performance when the Cu2P2O7 mixed-phase in the Cu3(PO4)2 catalyst (Cu3(PO4)2-Cu2P2O7mpc) was present. According to Figure 8, the conductor band and valence band of Cu3(PO4)2 (and Cu2P2O7) had been measured to −0.52 eV (−0.57 eV) and 2.48 eV (1.20 eV), respectively. In Scheme 1a, the bandgap position of Cu2P2O7 particle does not contain the redox potential for water decomposition, and it has the reduction potential of hydrogen but has not the oxidation potential of oxygen [51]. Eventually, the Scheme 1a mechanism is undesirable in this study, even though the Cu3(PO4)2 includes the redox potential for water decomposition [52]. Thus, like Scheme 1b, excited electrons can only move. The Z-scheme mechanism is well-known and refers to when electrons are moved to the Z-type [53]. In particular, when the light of a wavelength of 365 nm is irradiated, the charge transfer can be performed like the Z-scheme system as shown in the red dotted line in Scheme 1b. In particular, when two phases are internally connected rather than heterogeneous, and electrons can move through the internal interfacial transition between these two phases. Furthermore, Wu et al. reported that an interfacial internal electric field is formed in a direct Z-scheme photocatalyst synthesized by an in situ growth method and the photocatalytic activity is enhanced by an internal charge transfer mechanism [54]. Although their catalysts are somewhat different from the catalysts in this work, it is assumed that almost similar forms of internal interfacial barriers have been formed, and thus, water can be expected to be decomposed by an interfacial charge transfer mechanism in the same context.

3. Experimental

3.1. Synthesis of Catalysts

The synthesis procedures of the M3(PO4)2-M2P2O7mpc particles are shown in Figure 9, the specific method of which is as follows: Water in the solvent was placed in an Erlenmeyer flask, and metal nitrates (99.95%, Co(NO3)2·xH2O, Ni(NO3)2·xH2O, Cu(NO3)2·xH2O, Junsei Co., Tokyo, Japan) were quantitatively added and uniformly stirred for 1 h until completely dissolved. Sodium hydrogen phosphate (99%, Na2HPO4, Junsei Co., Japan) as a phosphate source was added such that the ratio of metal to PO4 was 3:2, followed by stirring for 2 h. The chemical reaction at this time was MNO3 + Na2HPO4 → MHPO4 + Na2NO3, and the amorphous MHPO4 was precipitated. The precipitate was washed and then dried at 70 °C for 24 h. The dried powder was sintered in an electric furnace at 700 °C for 4 h under air conditions. At this time, a chemical reaction occurred as 6MHPO4 + 3/2O2 → 2M3(PO4)2 + 3H2O, and finally, we obtained the three types of crystallized Co3(PO4)2-CO2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc particles.

3.2. Characterizations

The crystal structures and shapes of the synthesized Co3(PO4)2-CO2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc particles were identified through XRD (X’Pert Pro MPD PANalytical, nickel-filtered CuKα (λ = 1.5406 Å, 30 kV, 15 mA, 2θ angle = 10–80°) and TEM images (H-7600, Hitachi, Tokyo, Japan). A diffuse-reflectance ultraviolet-visible spectrometer (wavelength of 200–800 nm, DIR-UV–Vis, Neosys-2000, Scinco Co., Seoul, Korea), photoluminescence spectroscopy (wavelength of 320 nm, PL, Perkin Elmer, He-Cd laser source), and the photocurrent (using a 2000 solar simulator, ABET Tech., Milford, CT, USA) were used to determine optical properties of the Co3(PO4)2, Ni3(PO4)2, and Cu3(PO4)2 particles.

3.3. Hydrogen Production through Water Photo Splitting

The photocatalytic decomposition of DI water was carried out using a liquid photoreactor prepared in our laboratory, as shown in Figure 10. First, the photocatalytic decomposition of an aqueous solution without scavengers using a UV light source was conducted using a Pyrex reactor. Next, 1.0 L of distilled water was placed into the reactor, and 0.5 g of synthesized Co3(PO4)2-Co2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc catalyst powder was added. The light was irradiated using a UV lamp (3 × 6 cm2 = 18 W cm2, length of 30 cm, a diameter of 2.0 cm, Shinan, Pochon, Korea) at a wavelength of 365 nm, and the reaction was conducted for a total of 10 h. To investigate the oxidation states of the Cu2p, P2p, and O1s components and the valence band values of the prepared sample, X-ray photoelectron spectroscopy (XPS) (AXIS Nov, Kratos, Inc., San Diego, CA, USA) was used. The resulting gas was analyzed through gas chromatography (GC, DS7200, Donam Co., Gwangju, Korea). For the GC conditions, a thermal conductivity detector and a Carboxen-1000 column (Bruker, Billerica, MA, USA) were applied, along with injection, oven, and detector temperatures of 423, 393 and 473 K, respectively.

4. Conclusions

This study focused on improving the performance of the catalyst by promoting the charge transfer through the internal interface without heterojunctions between other crystals. Metal (Co, Ni, and Cu) phosphates having 3d7, 3d8, and 3d9 valence electrons were prepared and their photocatalytic activities were compared during a water-splitting reaction. An XRD analysis confirmed that the monoclinic octahedral structured Co3(PO4)2, Ni3(PO4)2, and Cu3(PO4)2 partially co-exist with Co2P2O7, Ni2P2O7, and Cu2P2O7 phases (called M3(PO4)2-M2P2O7mpc) because their phase equilibrium energies are in similar locations. Absorption peaks for Co3(PO4)2-CO2P2O7mpc, Ni3(PO4)2-Ni2P2O7mpc, and Cu3(PO4)2-Cu2P2O7mpc were observed at various wavelengths depending on the d-d electron transition of the metallic components. The intensity of the PL peak related to the recombination between electrons and holes increased in the order of Cu3(PO4)2-Cu2P2O7mpc < Ni3(PO4)2-Ni2P2O7mpc < Co3(PO4)2-CO2P2O7mpc. The photocurrent density correlated with the charge separation between the electrons and the holes decreased in the order of Cu3(PO4)2-Cu2P2O7mpc > Ni3(PO4)2-Ni2P2O7mpc > Co3(PO4)2-CO2P2O7mpc. The water-splitting performance was found to be the best in Cu3(PO4)2-Cu2P2O7mpc, and cumulative hydrogen production of 80.0 μmol/g was observed during a 10 h period. This is probably attributed to Cu ions in Cu3(PO4)2-Cu2P2O7mpc with high reduction potential easily capturing electrons and decomposing H2O into H+ and OH-. In addition, it was confirmed that the performance of a catalyst can be improved through the effective separation of electrons and holes induced by electrons migrating between the internal interfaces of M3(PO4)2-M2P2O7mpc.

Author Contributions

Conceptualization—M.K.; Data curation, J.K. and J.Y.D.; Formal analysis—J.K. and J.N.H.; Investigation—S.J.Y. and Y.K.; Methodology—S.Y.J., Y.K.; Supervision—M.K.; Writing—original draft—J.Y.D.; Writing—review & editing—M.K.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (No. 2018R1A2B6004746).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium dioxide photocatalysis. J. Photochem. Photobiol. 2000, 1, 1–21. [Google Scholar] [CrossRef]
  2. Hashimoto, K.; Irie, H.; Fujishima, A. TiO2 Photocatalysis: A Historical Overview and Future Prospects. Jpn. J. Appl. Phys. 2005, 44, 8269–8285. [Google Scholar] [CrossRef]
  3. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, Y.; Hu, H.; Huang, X.; Bi, Y. Photo-controlled bond changes on Pt/TiO2 for promoting overall water splitting and restraining hydrogen–oxygen recombination. J. Mater. Chem. 2019, 7, 5938–5942. [Google Scholar] [CrossRef]
  5. Li, J.; Cai, L.; Shang, J.; Yu, Y.; Zhang, L. Giant Enhancement of Internal Electric Field Boosting Bulk Charge Separation for Photocatalysis. Adv. Mater. 2016, 28, 4059–4064. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, X.; Li, T.; Yu, R.; Yu, H.; Yu, J. Highly efficient TiO2 single-crystal photocatalyst with spatially separated Ag and F bi-cocatalysts: Orientation transfer of photogenerated charges and their rapid interfacial reaction. J. Mater. Chem. A 2016, 4, 8682–8689. [Google Scholar] [CrossRef]
  7. Wang, Z.; Li, C.; Domen, K. Recent developments in heterogeneous photocatalysts for solar-driven overall water splitting. Chem. Soc. Rev. 2019, 48, 2109–2125. [Google Scholar] [CrossRef]
  8. Wen, F.; Yang, J.; Zong, X.; Ma, B.; Wang, D.; Li, C. Photocatalytic H2 production on hybrid catalyst system composed of inorganic semiconductor and cobaloximes catalysts. J. Catal. 2011, 281, 318–324. [Google Scholar] [CrossRef]
  9. Cui, X.; Wang, Y.; Jiang, G.; Zhao, Z.; Xu, C.; Wei, Y.; Duan, A.; Liu, Z.; Gao, J. A photonic crystal-based CdS–Au–WO3 heterostructure for efficient visible-light photocatalytic hydrogen and oxygen evolution. RSC Adv. 2014, 4, 15689–15694. [Google Scholar] [CrossRef]
  10. Qiu, B.; Zhu, Q.; Du, M.; Fan, L.; Xing, M.; Zhang, J. Efficient Solar Light Harvesting CdS/Co9S8 Hollow Cubes for Z-Scheme Photocatalytic Water Splitting. Angew. Chem. Int. Ed. 2017, 56, 2684–2688. [Google Scholar] [CrossRef]
  11. Brito, J.; Tavella, F.; Genovese, C.; Ampelli, C.; Zanoni, M.; Centi, G.; Perathoner, S. Role of CuO in the modification of the photocatalytic water splitting behavior of TiO2 nanotube thin films. Appl. Catal. B Environ. 2018, 224, 136–145. [Google Scholar] [CrossRef]
  12. Scire, R.; Compagnini, L.; Bellardita, M.; Palmisano, L. Efficient H2 production by photocatalytic water splitting under UV or solar light over variously modified TiO2-based catalysts. Int. J. Hydrog. Energy 2019, 44, 14796–14807. [Google Scholar]
  13. Liu, J.; Ke, J.; Li, Y.; Liu, B.; Wang, L.; Xiao, H.; Wang, S. Co3O4 quantum dots/TiO2 nanobelt hybrids for highly efficient photocatalytic overall water splitting. Appl. Catal. B Environ. 2018, 236, 396–403. [Google Scholar] [CrossRef]
  14. Yan, X.; Yuan, K.; Lu, N.; Xu, H.; Zhang, S.; Takeuchi, N.; Kobayashi, H.; Li, R. The interplay of sulfur doping and surface hydroxyl in band gap engineering: Mesoporous sulfur-doped TiO2 coupled with magnetite as a recyclable, efficient, visible light active photocatalyst for water purification. Appl. Catal. B Environ. 2017, 218, 20–31. [Google Scholar] [CrossRef]
  15. Clatworthy, E.B.; Yick, S.; Murdock, A.T.; Allison, M.C.; Bendavid, A.; Masters, A.F.; Maschmeyer, T. Enhanced Photocatalytic Hydrogen Evolution with TiO2−TiN Nanoparticle Composites. J. Phys. Chem. C 2019, 123, 3740–3749. [Google Scholar] [CrossRef]
  16. Wang, F.; Li, W.; Gu, S.; Li, H.; Liu, X.; Wang, M. Fabrication of FeWO4@ZnWO4/ZnO Heterojunction Photocatalyst: Synergistic Effect of ZnWO4/ZnO and FeWO4@ZnWO4/ZnO Heterojunction Structure on the Enhancement of Visible-Light Photocatalytic Activity. Chem. Eng. 2016, 4, 6288–6298. [Google Scholar] [CrossRef]
  17. Zhu, M.; Han, M.; Zhu, C.; Hu, L.; Huang, H.; Liu, Y.; Kang, Z. Strong coupling effect at the interface of cobalt phosphate-carbon dots boost photocatalytic water splitting. J. Colloid Interface Sci. 2018, 530, 256–263. [Google Scholar] [CrossRef] [PubMed]
  18. Voronina, N.; Jo, J.H.; Choi, J.U.; Jo, C.-H.; Kim, J.; Myung, S.-T. Nb-Doped titanium phosphate for sodium storage: Electrochemical performance and structural insights. J. Mater. Chem. A 2019, 7, 5748–5759. [Google Scholar] [CrossRef]
  19. Anantharamulu, N.; Rao, L.; Rambabu, G.; Kumar, B.; Radha, V.; Vithal, M. A wide-ranging review on Nasicon type materials. J. Mater. Sci. 2011, 46, 2821–2837. [Google Scholar] [CrossRef]
  20. Hong, H. Crystal structures and crystal chemistry in the system Na1+xZr2SixP3−xO12. Mater. Res. Bull. 1976, 11, 173–182. [Google Scholar] [CrossRef]
  21. Guin, M.; Tietz, F.; Guillon, O. New promising NASICON material as solid electrolyte for sodium-ion batteries: Correlation between composition, crystal structure and ionic conductivity of Na3+xSc2SixP3−xO12. Solid State Ionics 2016, 293, 18–26. [Google Scholar] [CrossRef]
  22. El-Shinawi, H.; Regoutz, A.; Payne, D.; Cussen, E.; Corr, S. NASICON LiM2(PO4)3 electrolyte (M = Zr) and electrode (M = Ti) materials for all solid-state Li-ion batteries with high total conductivity and low interfacial resistance. J. Mater. Chem. A 2018, 6, 5296–5303. [Google Scholar] [CrossRef]
  23. Losilla, E.; Aranda, M.; Bruque, S. Sodium Mobility in the NASICON Series, Na1+xZr2-xInx(PO4)3. Chem. Mater. 2000, 12, 2134–2142. [Google Scholar] [CrossRef]
  24. Jing, D.; Guo, L. Efficient Hydrogen Production by a Composite CdS/Mesoporous Zirconium Titanium Phosphate Photocatalyst under Visible Light. Phys. Chem. 2007, 111, 13437–13441. [Google Scholar] [CrossRef]
  25. Fu, J. Photocatalytic activity of glass ceramics containing Nasicon-type crystals. Mater. Res. Bull. 2013, 48, 70–73. [Google Scholar] [CrossRef]
  26. Palla, S.; Ravi, G.; Velchuri, R.; Veldurthi, N.; Reddy, J.; Muga, V. Photocatalytic degradation of organic dyes with Sn2+- and Ag+-substituted K3Nb3WO9(PO4)2 under visible light irradiation. J. Sol-Gel Sci. Technol. 2015, 75, 224–234. [Google Scholar] [CrossRef]
  27. Wang, M.; Luo, H.-B.; Liu, S.-X.; Zou, Y.; Tian, Z.-F.; Li, L.; Liu, J.-L.; Ren, X.-M. Water assisted high proton conductance in a highly thermally stable and superior water-stable open-framework cobalt phosphate. Dalton Trans. 2016, 45, 19466–19472. [Google Scholar] [CrossRef] [PubMed]
  28. Onoda, H.; Mori, D.; Kojima, K.; Nariai, H. Mechanochemical Effects on the Formation and Properties of Various Nickel Phosphates. Inorg. Mater. 2005, 41, 1089–1096. [Google Scholar] [CrossRef]
  29. Yamamoto, K.; Kasuga, T.; Nogami, M. An oxygen sensor based on copper(I)- conducting CuTi2(PO4)3 glass ceramics. Appl. Phys. Lett. 1998, 73, 1–3. [Google Scholar] [CrossRef]
  30. Weimann, I.; Jahn, T.; Feller, J.; Zak, Z. Synthesis, Crystal Structure and Characterization of the Copper Iron Phosphate Cu8Fe2O5(PO4)4. Z. Anorg. Allg. Chem. 2014, 640, 219–223. [Google Scholar] [CrossRef]
  31. Jain, A.; Hautier, G.; Moore, C.; Kang, B.; Lee, J.; Chen, H.; Twu, N.; Ceder, G. A Computational Investigation of Li9M3(P2O7)3(PO4)2 (M = V, Mo) as Cathodes for Li Ion Batteries. J. Electrochem. Soc. 2012, 159, 622–633. [Google Scholar] [CrossRef]
  32. Zhang, N.; Chen, C.; Chen, Y.; Chen, G.; Liao, C.; Liang, B.; Zhang, J.; Li, A.; Yang, B.; Zheng, Z.; et al. Ni2P2O7 Nanoarrays with Decorated C3N4 Nanosheets as Efficient Electrode for Supercapacitors. ACS Appl. Energy Mater. 2018, 1, 2016–2023. [Google Scholar] [CrossRef]
  33. Khan, Z.; Senthilkumar, B.; Lim, S.; Shanker, R.; Kim, Y.; Ko, H. Redox-Additive-Enhanced High Capacitance Supercapacitors Based on Co2P2O7 Nanosheets. Adv. Mater. Interfaces 2017, 4, 1700059. [Google Scholar] [CrossRef]
  34. Chen, X.; Kuo, D.; Saragih, A.D.; Wu, Z.-Y.; Abdullah, H.; Lin, J. The effect of the Cu+/Cu2+ ratio on the redox reactions by nanoflower CuNiOS catalysts. Chem. Eng. Sci. 2019, 194, 105–115. [Google Scholar] [CrossRef]
  35. Luo, W.; Zemlyanov, D.Y.; Milligan, C.A.; Du, Y.; Yang, Y.; Wu, Y.; Ye, P.D. Surface chemistry of black phosphorus under a controlled oxidative environment. Nanotechnology 2016, 27, 434002–434011. [Google Scholar] [CrossRef]
  36. Shih, P.Y.; Yung, S.W.; Chin, T.S. FT-IR and XPS studies of P2O5-Na2O-CuO glasses. J. Non-Cryst. Solids 1999, 244, 211–222. [Google Scholar] [CrossRef]
  37. Wekliem, H.A. Optical Spectra of NiH, COH, and CUH in Tetrahedral Sites in Crystals. J. Chem. Phys. 1962, 36, 2117–2139. [Google Scholar] [CrossRef]
  38. Kaewkhao, J.; Rhianphumikarakit, S.; Udomkan, N. ESR and Optical Absorption Spectra of Copper (II) Ions in Glasses. Adv. Mater. Res. 2008, 55, 849–852. [Google Scholar] [CrossRef]
  39. Lin, A.; Kim, B.; Moon, D.; Chung, Y.; Han, W. Cu2+-doped germano-silicate glass fiber with high resonant nonlinearity. Opt. Express 2007, 15, 3665–3672. [Google Scholar] [CrossRef]
  40. Rashid, M. Electric Renewable Energy Systems; Academic Press: Cambridge, MA, USA, 2016; p. 458. [Google Scholar]
  41. He, G.; Hu, W.; Li, C. Spontaneous interfacial reaction between metallic copper and PBS to form cupric phosphate nanoflower and its enzyme hybrid with enhanced activity. Colloids Surf. B 2015, 135, 613–618. [Google Scholar] [CrossRef]
  42. Szyk, E.; Szymañska, I.; Wrzeszcz, G.; Rozpoch, F. New Polymeric Copper(II) Complexes with Triphenyl Phosphite and Perfluorinated Carboxylates. Pol. J. Chem. 2000, 74, 909–918. [Google Scholar]
  43. Bates, T. Ligand field theory and absorption spectra of transition metal ions in glasses. Mod. Asp. Vitr. State 1962, 2, 195–254. [Google Scholar]
  44. Duan, X.; Yuan, D.; Cheng, X.; Wang, Z.; Sun, Z.; Luan, C. Absorption and photoluminescence characteristics of Co2+P:MgAl2O4 nanocrystals embedded in sol–gel derived SiO2-based glass. Opt. Mater. 2004, 25, 65–69. [Google Scholar] [CrossRef]
  45. Mishra, D.; Qi, X. Energy levels and photoluminescence properties of nickel-doped bismuth ferrite. J. Alloys Compds. 2010, 504, 27–31. [Google Scholar] [CrossRef]
  46. Srinivasulu, K.; Omkaram, I.; Obeid, H.; Kumar, A.; Rao, J. Spectral studies on Cu2+ ions in sodium–lead borophosphate glasses. Phys. B 2012, 407, 4741–5474. [Google Scholar] [CrossRef]
  47. Wu, M.-C.; Chen, C.-H.; Huang, W.-K.; Hsiao, K.-C.; Lin, T.-H.; Chan, S.-H.; Wu, P.-Y.; Lu, C.-F.; Chang, Y.-H.; Lin, T.-F.; et al. Improved Solar-Driven Photocatalytic Performance of Highly Crystalline Hydrogenated TiO2 Nanofibers with Core-Shell Structure. Sci. Rep. 2017, 7, 1–12. [Google Scholar] [CrossRef]
  48. Pirzada, B.M.; Mir, N.A.; Qutub, N.; Mehraj, O.; Sabir, S.; Muneer, M. Synthesis, characterization and optimization of photocatalytic activity of TiO2/ZrO2 nanocomposite heterostructures. Mater. Sci. Eng. B 2015, 193, 137–145. [Google Scholar] [CrossRef]
  49. Lei, W.; Mi, Y.; Feng, R.; Liud, P.; Hu, S.; Yu, J.; Liu, X.; Rodriguez, J.A.; Wang, J.; Zheng, L.; et al. Hybrid 0D–2D black phosphorus quantum dots–graphitic carbon nitride nanosheets for efficient hydrogen evolution. Nano Energy 2018, 50, 552–561. [Google Scholar] [CrossRef]
  50. Abbood, H.A.; Huang, K. Photocatalysis of several organic dyes by a hierarchical Ag2V4O11 micro–nanostructures. J. Mater. Sci. Mater. Electron. 2018, 29, 8068–8077. [Google Scholar] [CrossRef]
  51. Ghiringhelli, G.; Matsubara, M.; Dallera, C.; Fracassi, F.; Gusmeroli, R.; Piazzalunga, A.; Tagliaferri, A.; Brookes, N.B.; Kotani, A.; Braicovich, L. NiO as a test case for high resolution resonant inelastic soft x-ray scattering. J. Phys. Condens. Matter 2005, 17, 5397–5412. [Google Scholar] [CrossRef]
  52. Ye, C.; Wang, M.Q.; Li, L.J.; Luo, H.Q.; Li, N.B. Fabrication of Pt/Cu3(PO4)2 ultrathin nanosheet heterostructure for photoelectrochemical microRNA sensing using novel G-wire-enhanced strategy. Nanoscale 2017, 9, 7526–7532. [Google Scholar] [CrossRef]
  53. Yu, W.; Xu, D.; Peng, T. Enhanced photocatalytic activity of g-C3N4 for selective CO2 reduction to CH3OH via facile coupling of ZnO: A direct Z-scheme mechanism. J. Mater. Chem. A 2015, 3, 19936–19947. [Google Scholar] [CrossRef]
  54. Wu, Y.; Wang, H.; Sun, Y.; Xiao, T.; Tu, W.; Yuan, X.; Zeng, G.; Li, S.; Chew, J. Photogenerated charge transfer via interfacial internal electric field for significantly improved photocatalysis in direct Z-scheme oxygen-doped carbon nitrogen/CoAl-layered double hydroxide heterojunction. Appl. Catal. B Environ. 2018, 227, 530–540. [Google Scholar] [CrossRef]
Catalysts 09 00602 g001 550

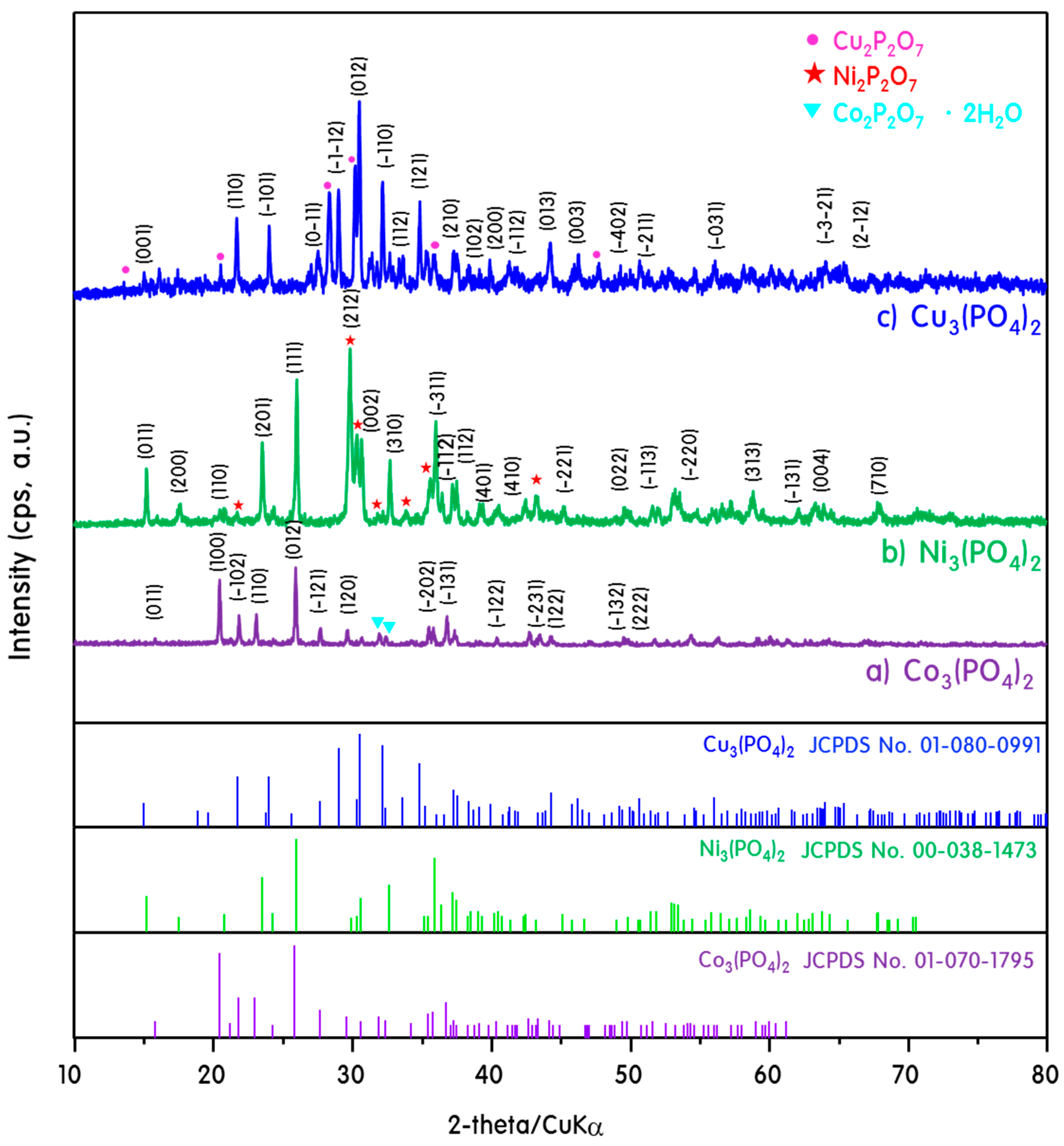

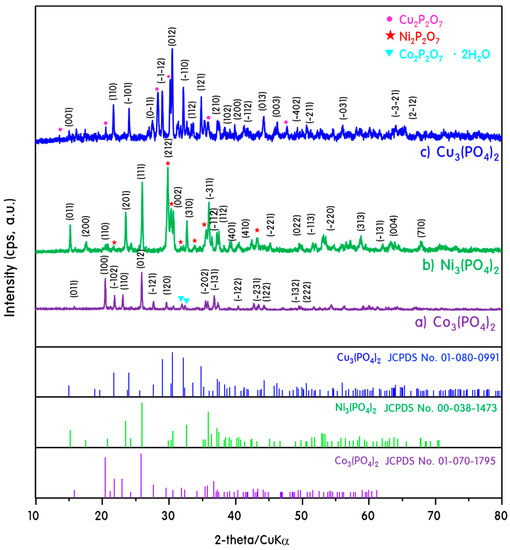

Figure 1. X-ray diffraction (XRD) patterns of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 1. X-ray diffraction (XRD) patterns of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g001
Catalysts 09 00602 g002 550

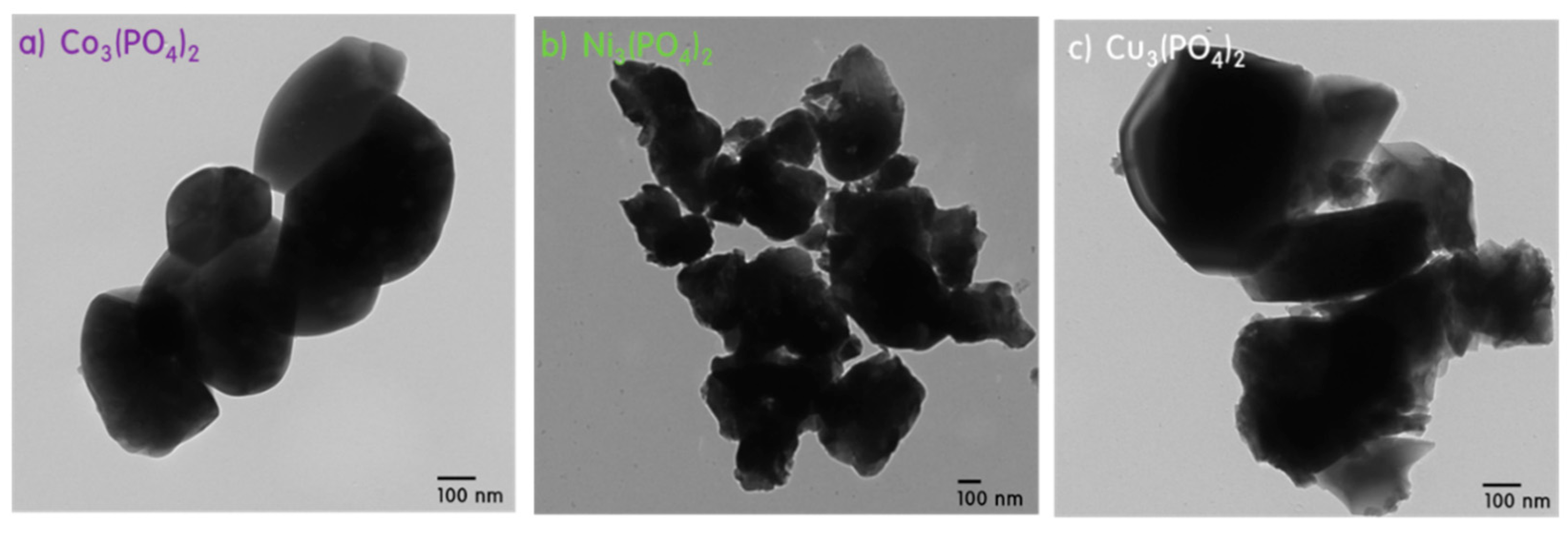

Figure 2. Transmission Electron Microscope (TEM) images of the (a) Co3(PO4)2-Co2P2O7mpc, (b) Ni3(PO4)2mpc, (c) Cu3(PO4)2-Cu2P2O7mpc.
Figure 2. Transmission Electron Microscope (TEM) images of the (a) Co3(PO4)2-Co2P2O7mpc, (b) Ni3(PO4)2mpc, (c) Cu3(PO4)2-Cu2P2O7mpc.
Catalysts 09 00602 g002
Catalysts 09 00602 g003 550

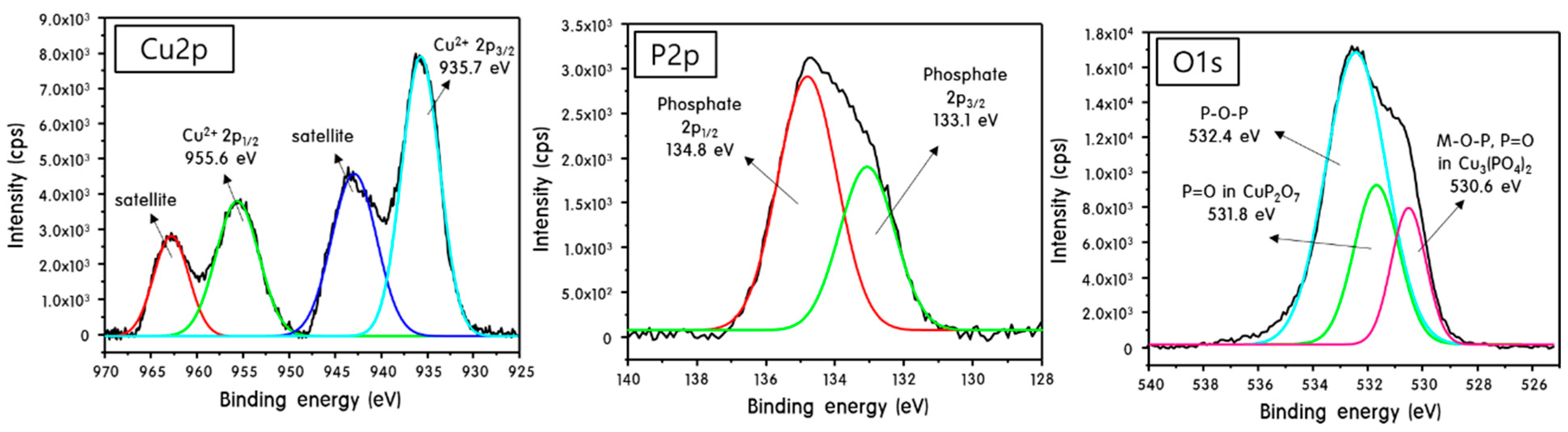

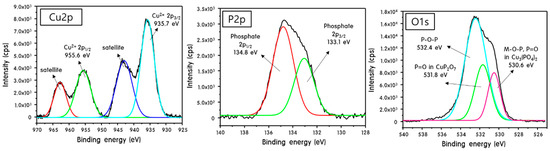

Figure 3. XPS spectra of the Cu3(PO4)2-Cu2P2O7mpc.
Figure 3. XPS spectra of the Cu3(PO4)2-Cu2P2O7mpc.
Catalysts 09 00602 g003
Catalysts 09 00602 g004 550

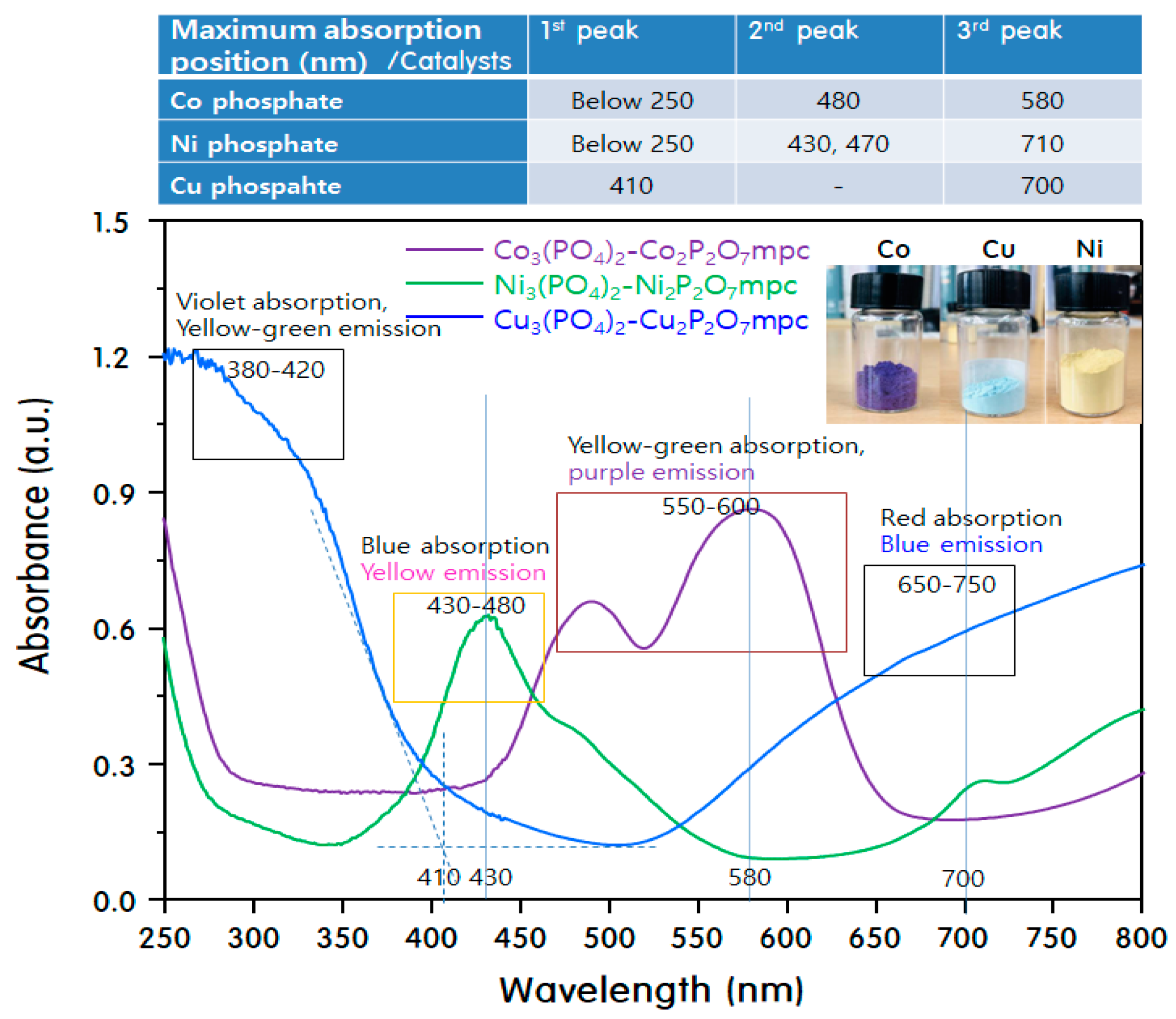

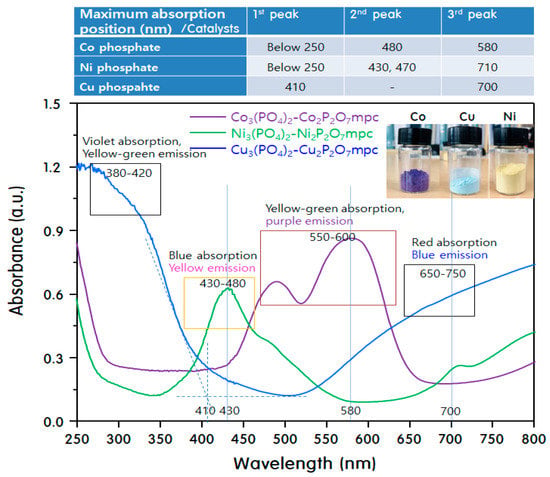

Figure 4. UV-Vis spectra of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 4. UV-Vis spectra of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g004
Catalysts 09 00602 g005 550

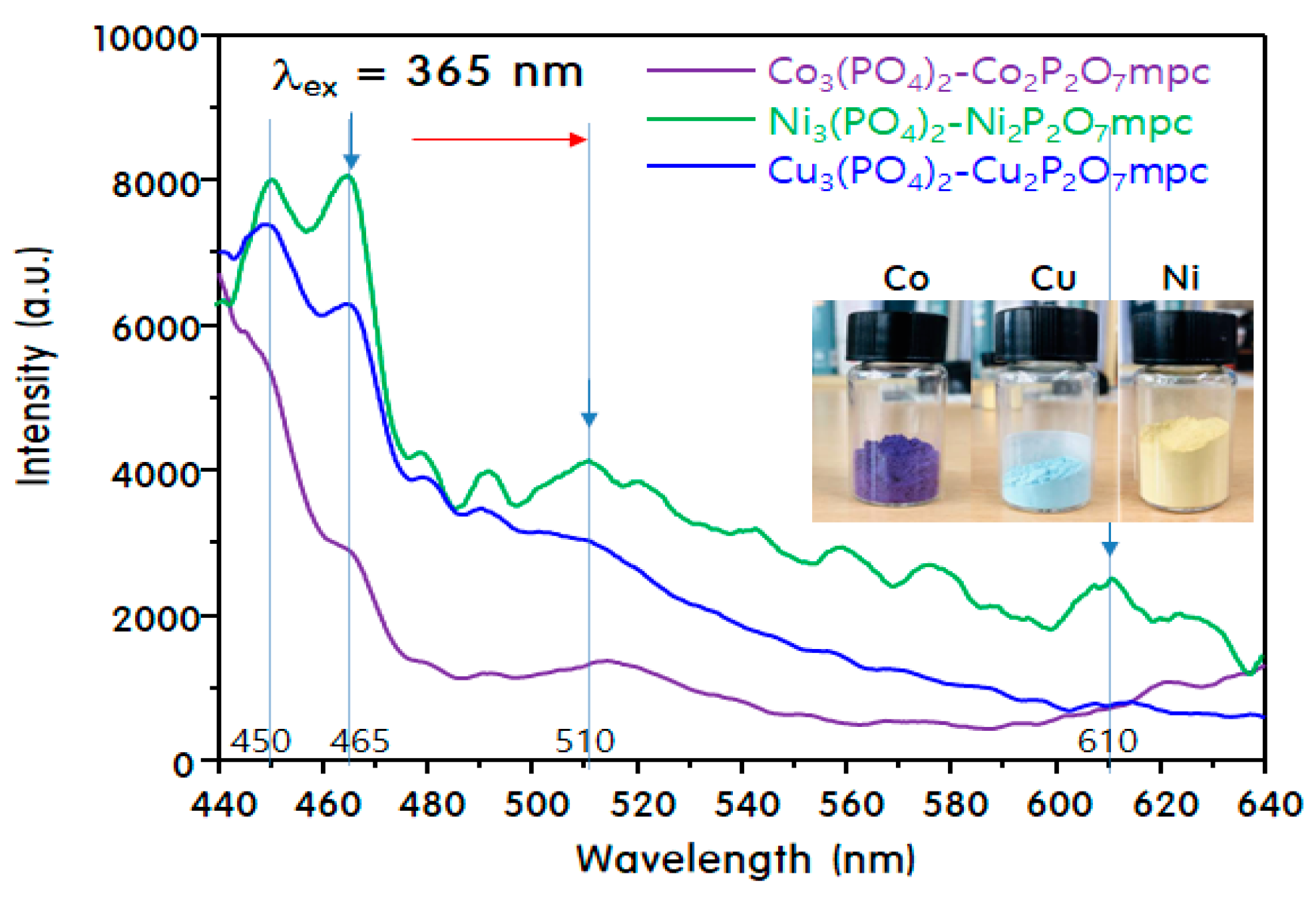

Figure 5. PL spectra of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 5. PL spectra of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g005
Catalysts 09 00602 g006 550

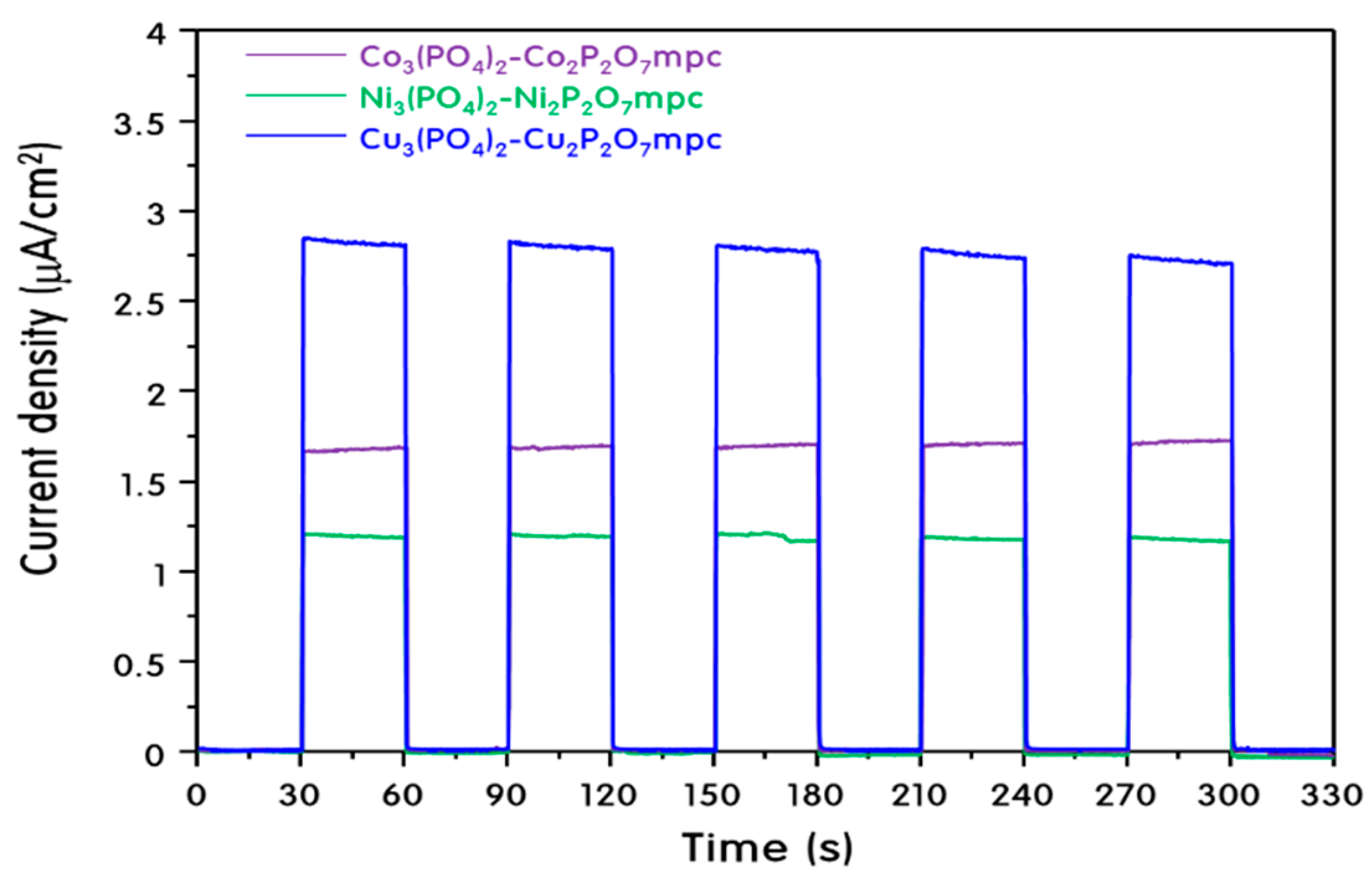

Figure 6. Photocurrent responses of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 6. Photocurrent responses of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g006
Catalysts 09 00602 g007 550

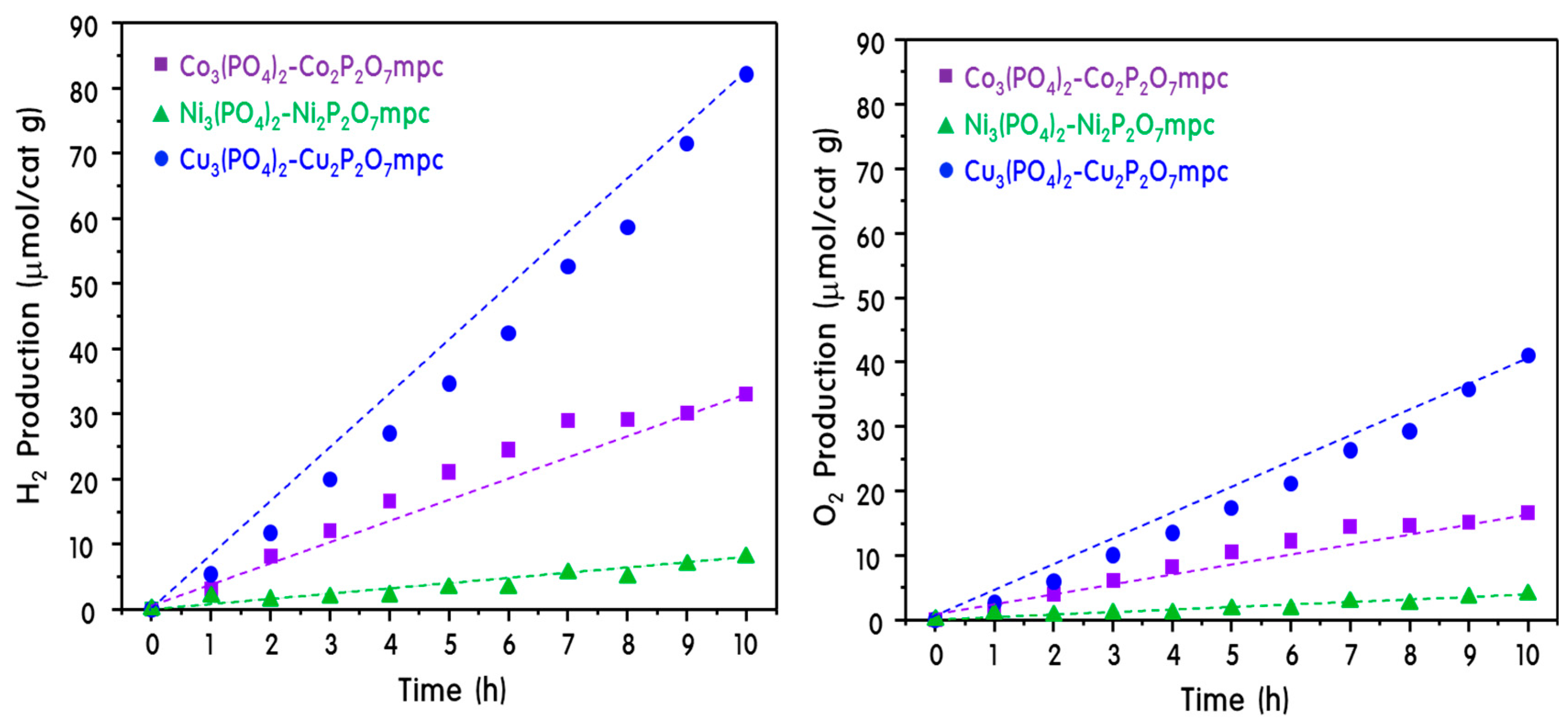

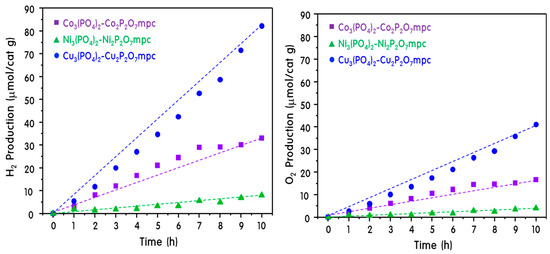

Figure 7. Evolutions of H2 and O2 over M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 7. Evolutions of H2 and O2 over M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g007
Catalysts 09 00602 g008 550

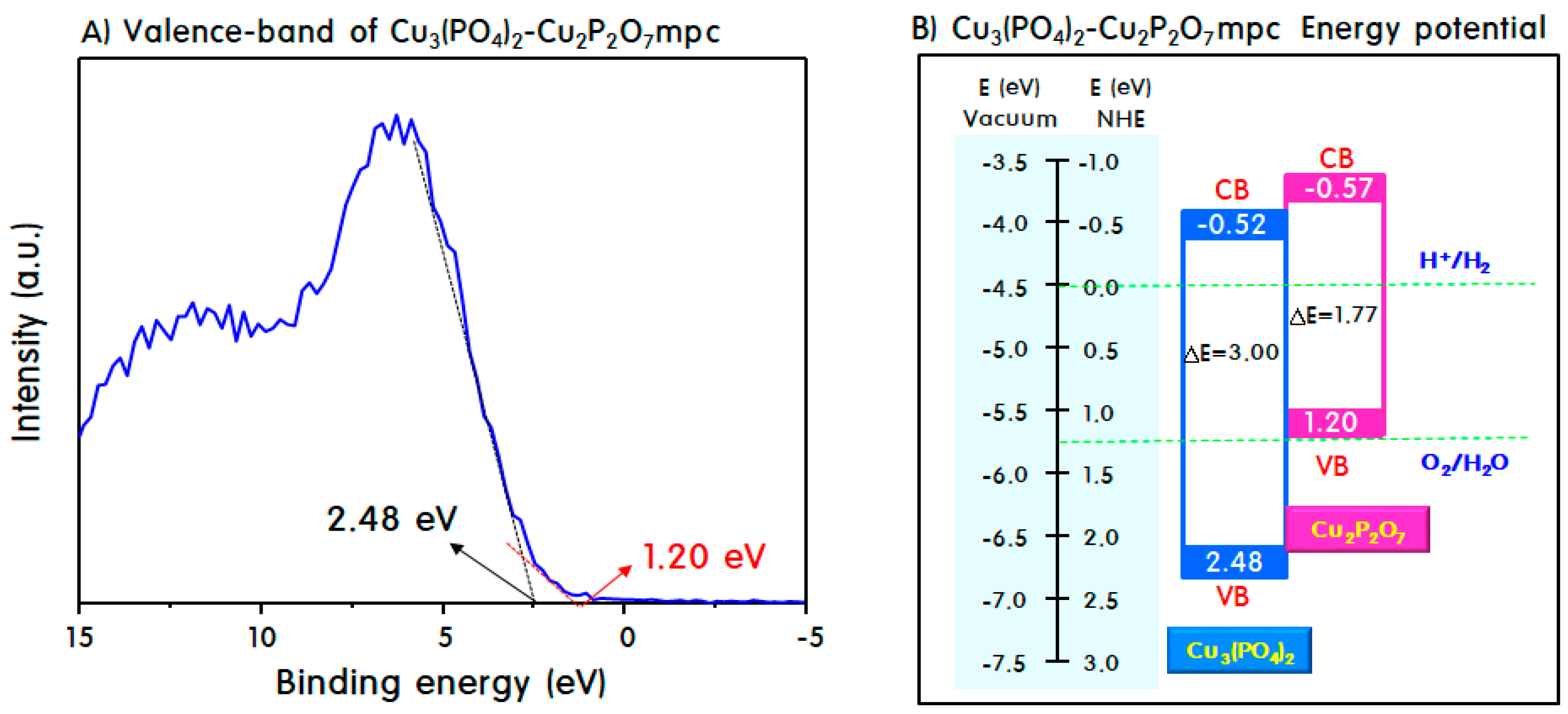

Figure 8. (A) VB spectra determined from the XPS study of H2 and O2 over M3(PO4)2-M2P2O7mpc (M = Co, Ni, Cu) and (B) electron transfer energy diagram for M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 8. (A) VB spectra determined from the XPS study of H2 and O2 over M3(PO4)2-M2P2O7mpc (M = Co, Ni, Cu) and (B) electron transfer energy diagram for M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g008
Catalysts 09 00602 sch001 550

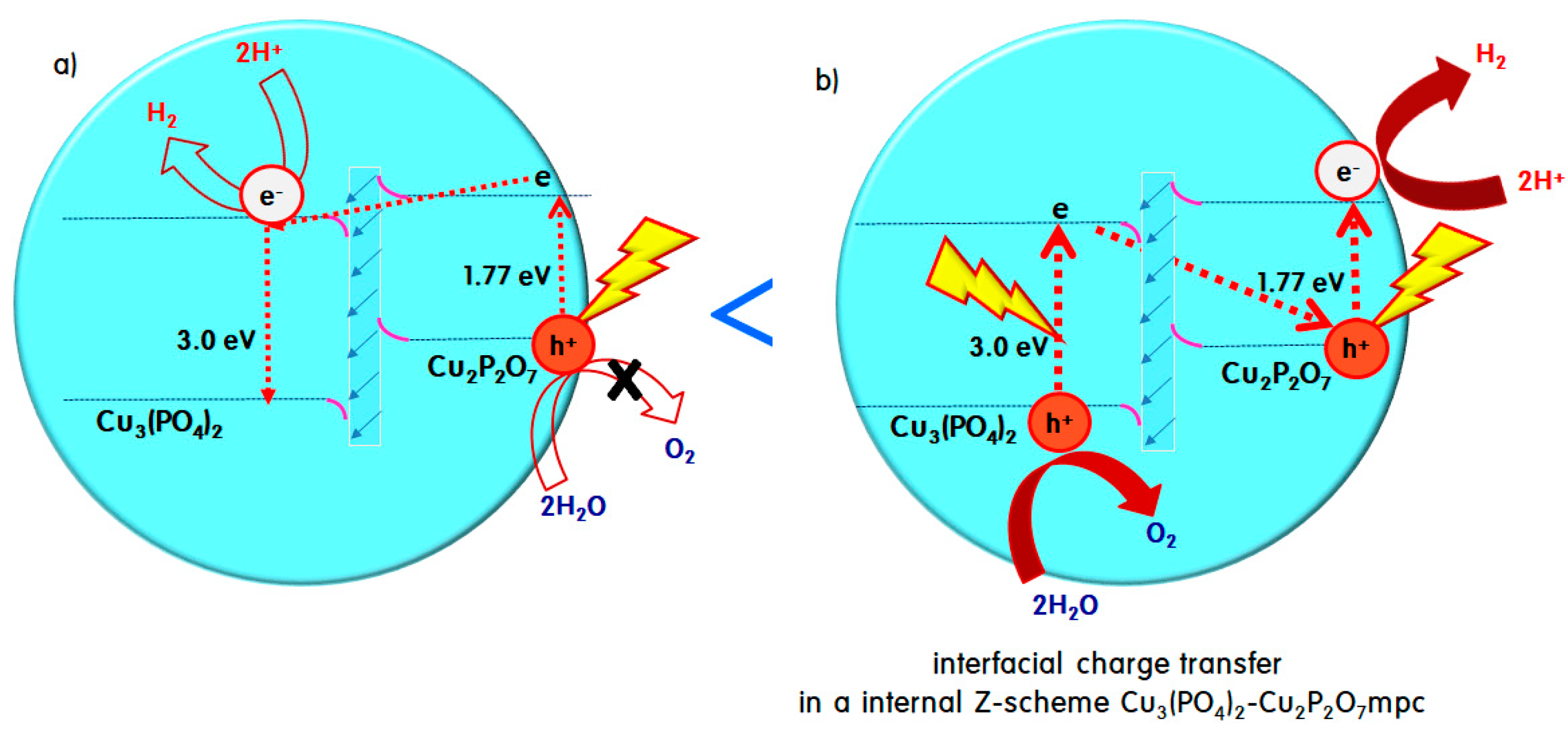

Scheme 1. The expected water degradation mechanism when the initial electron excitation occurs in the valence band of (a) Cu2P2O7 and (b) Cu3(PO4)2.
Scheme 1. The expected water degradation mechanism when the initial electron excitation occurs in the valence band of (a) Cu2P2O7 and (b) Cu3(PO4)2.
Catalysts 09 00602 sch001
Catalysts 09 00602 g009 550

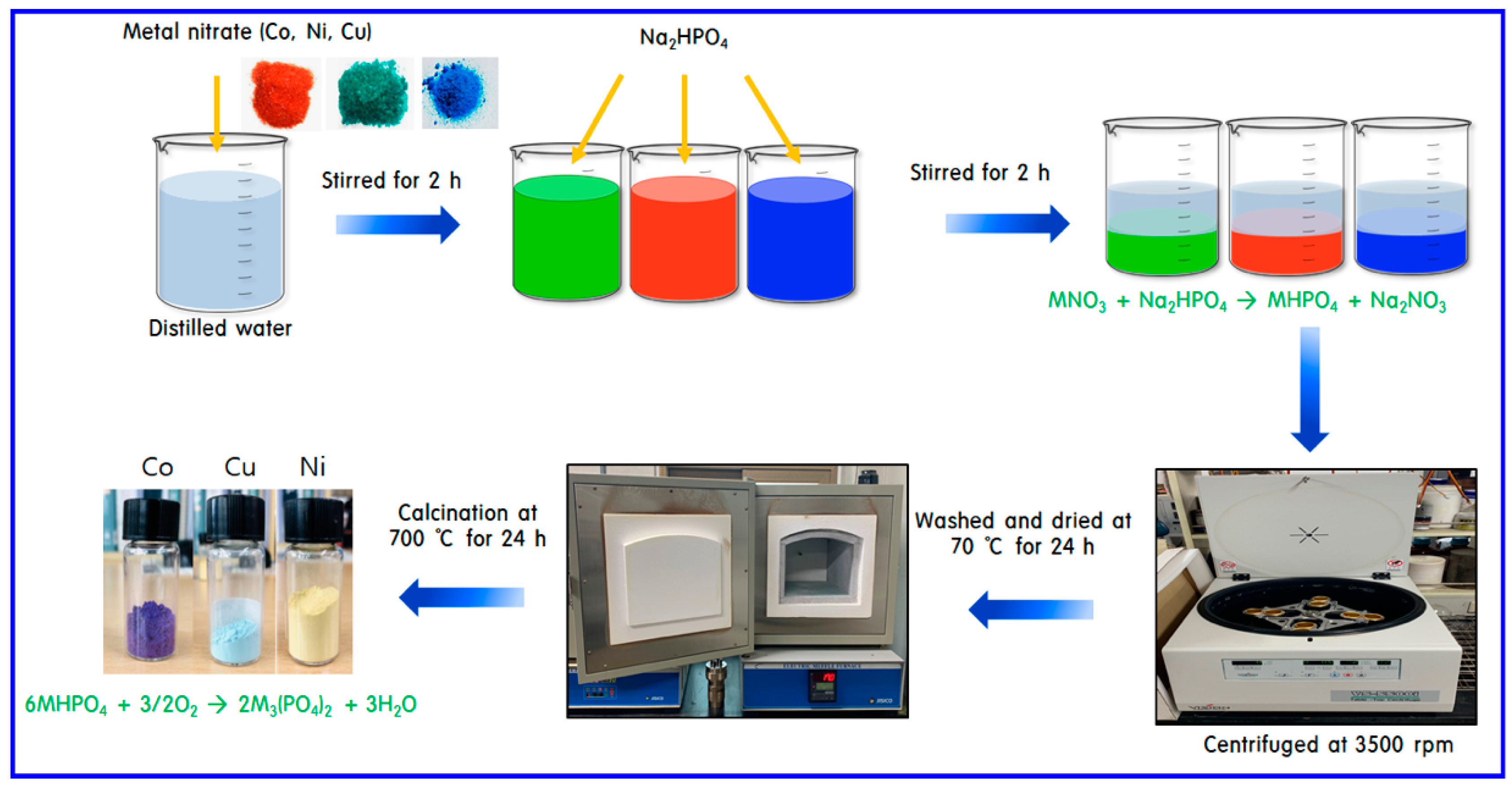

Figure 9. Overview on preparation process of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Figure 9. Overview on preparation process of the M3(PO4)2-M2P2O7mpc (M = Co, Ni, and Cu).
Catalysts 09 00602 g009
Catalysts 09 00602 g010 550

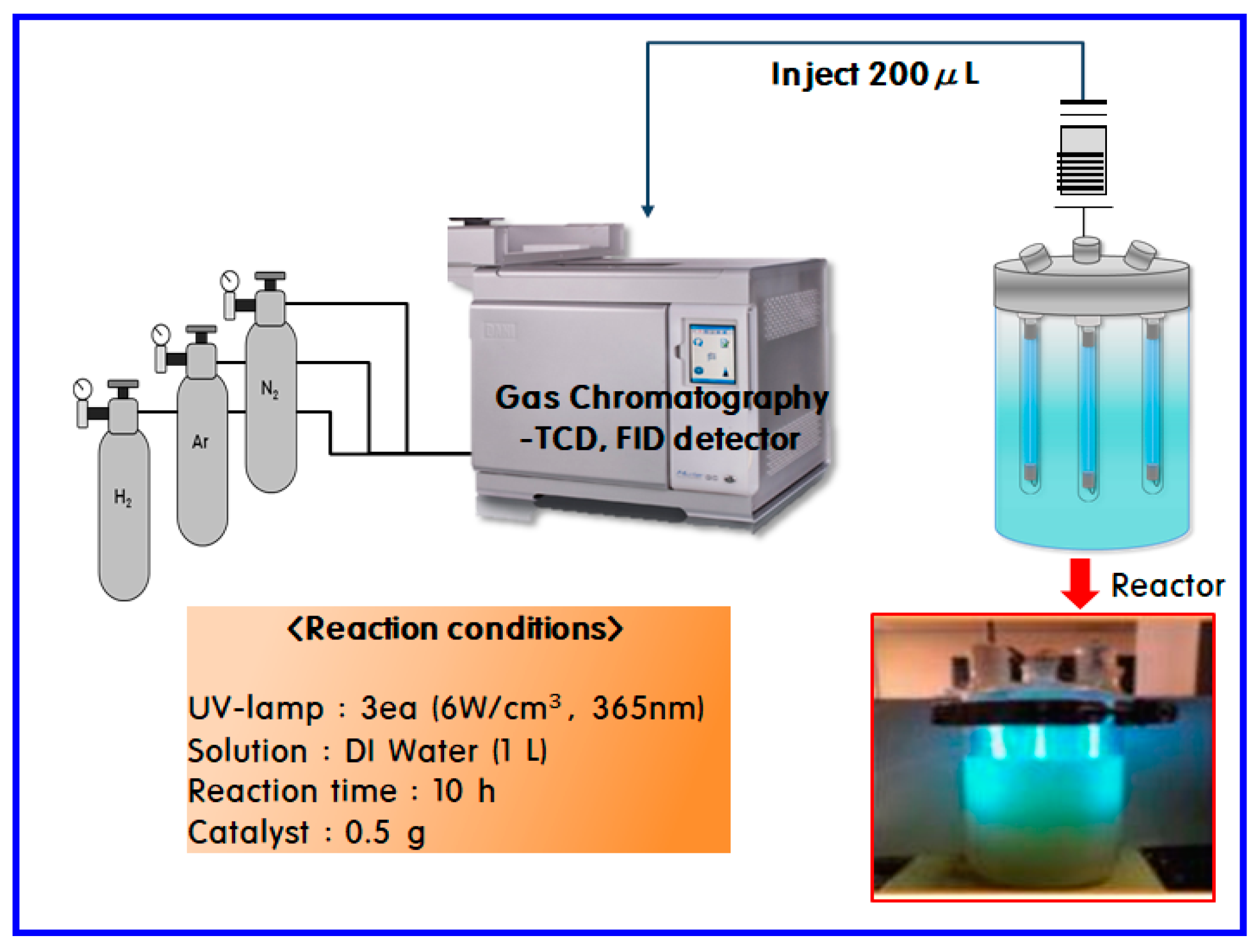

Figure 10. A liquid photoreactor designed in our laboratory for the photocatalytic splitting of water.
Figure 10. A liquid photoreactor designed in our laboratory for the photocatalytic splitting of water.
Catalysts 09 00602 g010
