Hierarchical H-MOR Zeolite Supported Vanadium Oxide for Dimethyl Ether Direct Oxidation

by
Wenfeng Wang
1,2,
Xiujuan Gao
1,2,
Ru Feng
1,2,
Qi Yang
1,2,
Tao Zhang
1,
Junfeng Zhang
1,
Qingde Zhang
1,*,
Yizhuo Han
1 and
Yisheng Tan
1,*
1
State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Catalysts 2019, 9(7), 628; https://doi.org/10.3390/catal9070628
Submission received: 27 June 2019 / Revised: 13 July 2019 / Accepted: 15 July 2019 / Published: 23 July 2019
(This article belongs to the Section Catalytic Materials)
Browse Figures
Versions Notes

Abstract

:
A series of hierarchical H-MOR zeolites with different pore structure were designed and synthesized by alkaline and alkaline-acid post-synthesis methods. The catalytic performance of hierarchical H-MOR zeolite-supported vanadium oxide was investigated for dimethyl ether (DME) direct oxidation. Different pore structures apparently affect the distribution of oxidation product distribution, especially the selectivity of DMMx and CO. The formation of mesopores for 10%V2O5/deAlmm-H-MOR markedly improved the DMMx selectivity up to 78.2% from 60.0%, and more notably, CO selectivity dropped to zero compared to that of 10%V2O5/H-MOR. The hierarchical H-MOR zeolites were confirmed to be successfully prepared by the post-synthesis method. Due to the presence of mesoporous structure, the dispersion of vanadium oxide species was enhanced, which could improve the reducibility of vanadium oxide species and also make better contact with the acid sites of zeolite to exert the synergistic effect of the bifunctional active sites. More importantly, the creation of mesopores was proved to be favorable to the mass transfer of intermediate and products to avoid the occurrence of secondary reaction, which could effectively suppress the formation of by-products. This work is helpful for us to provide a novel insight to design the catalyst with suitable pore structure to effectively synthesize diesel fuel additives from DME direct oxidation.

Graphical Abstract

1. Introduction

Dimethyl ether (DME) is a clean fuel and a potential non-petroleum route chemical material. Moreover, it can be widely synthesized by one-step method from syngas generated from coal, renewable biomass, and natural gas [1,2]. DME has a high cetane number of 55–60, which makes it an ideal fuel, but the low boiling point of DME limits its direct blending with diesel [3]. Polyoxymethylene dimethyl ethers (DMMx) have the traits of lower vapor pressure, higher viscosity and cetane number. It is considered to be promising diesel fuel additives to improve the engine combustion performance and reduce particulate matter emissions, which could significantly decrease environment pollution [4,5]. At present, the condensation of methanol and its downstream products (including formaldehyde and trioxymethylene, etc.) over acid catalysts is the main route for DMMx synthesis, and the selective oxidation of methanol or dimethyl ether has been investigated to synthesize DMM [6,7].
In comparison, oxidizing DME directly to synthesize DMMx is considered as a very competitive and environmentally friendly route for the synthesis of clean fuel additives due to the advantages of short process, low investment, low CO2 emissions, and high energy efficiency. However, the activation of the DME molecule is very difficult at lower temperature because of its high stability, while higher temperature easily leads to deep oxidation of DME along with the formation of by-products and makes product complex [8,9,10]. Especially, the synthesis of the larger DMMx molecules with longer C-O chain from small DME molecule is very complicated and difficult. Moreover, the formed products might be subjected to steric constraint over acid catalysts to undergo the secondary reaction, which easily leads to the formation of by-products and the decrease of target product selectivity (the molecular formula and structure of the mentioned reactant and products are shown in Table 1) [11]. Thus, the activation and the highly efficient conversion of DME are very challenging. The appropriate redox and acid sites have been proved to be crucial factors and investigated systemically for the synthesis of DMMx [7,8,9,10,12,13,14,15], but to date, the effect of transport constraints due to the pore structure of support on product distribution has not been investigated. Given that the H-MOR has two pore systems consisted of 12-MR channels with the dimensions of 0.65 × 0.70 nm connected via 8-MR side pocket of 0.26 × 0.57 nm as shown in Scheme 1, it is expected to be a promising model for us to investigate the catalytic performance of DME direct oxidation as a function of pore structure. Since the 8-MR channels exist in H-MOR zeolite, it may hinder the diffusion of reactant and products, resulting in the proceeding of the secondary reaction to form more by-products. Hence, fabricating the mesopores structure in the zeolite crystals is an efficient method to solve the mass transfer limitation of zeolite micropores to improve the catalytic performance [16,17]. Many effective approaches have been developed, and one of them for the formation of the mesopores in the zeolite crystals is through post-synthesis treatment of conventional zeolites [18,19,20,21]. Pastvova et al. have reported that the controlled alkaline-based treatments of the MOR framework lead to the better preservation of acid sites and the formation of well-developed secondary mesoporosity. The existence of mesopores structure results in high yields of branched isomers and limits nonselective subsequent cracking reactions [22]. Zhang et al. found that the formation of mesopores for hierarchical porous MOR used as the supports could be beneficial to the dispersion of Pt species which can improve the contact of the reactants to the active sites. Meanwhile, hierarchical porous MOR with mesopores structure could accelerate the mass transfer to exhibit superior catalytic performance for toluene combustion [23].
In this work, the hierarchical H-MOR zeolites with different pores structures are designed and successfully synthesized by controlling the treatment procedure of desilication with alkaline solution and dealumination with oxalic acid. Then, the prepared H-MOR is used to support vanadium oxide species to build bifunctional catalysts in consideration of the superior redox ability widely used in heterogeneous oxidation [24,25,26,27]. The obtained catalysts were investigated for DME direct oxidation. The experimental results show that 10%V2O5/deAlmm-H-MOR catalyst with the presence of mesopores could effectively change the oxidation products distribution. The DMMx selectivity improves up to 78.2% from 60.0%, and more obviously, the CO selectivity drops to zero. The fabrication of mesopores could accelerate the mass transport to avoid the secondary reaction of formed products, which is beneficial to the promotion of catalytic performance of catalysts. A series of characterizations were performed in detail to expound the structure and chemical property of zeolites catalysts. Up to now, there is no report about the role of pore structure in the formation of DMMx from DME direct oxidation on zeolites supported metal oxide catalyst. The work could provide an indication for the designing of catalysts to realize the optimized synthesis of the lager DMMx molecules with longer C-O chain.

2. Results and Discussion

2.1. XRD Characterization

Figure 1 shows the XRD patterns of unsupported zeolites and post-synthesis H-MOR zeolite-supported vanadium oxide catalysts. The intensity of the characteristic diffraction peaks for the supported H-MOR zeolite slightly changes, indicating that neither alkaline treatment nor subsequent acid-leached treatment decreases the crystallinity of supported catalysts, and it suggests a well-preserved MOR structure after the treatments (seen in Table 2 and Figure S1). In addition, there is no apparent diffraction peak assigning to crystalline V2O5 to be observed, which indicates the high dispersion of vanadium oxide species on the surface [28].

2.2. N2 Adsorption–Desorption Measurement

The N2 adsorption–desorption characterization was performed to evaluate the textural structure of the unsupported zeolites and post-treatment H-MOR zeolites-supported vanadium oxide catalysts and the results are shown in Figure 2. The increased mesopores volume and the enhanced hysteresis loops for parent zeolites attest that the mesopores structure has been successfully prepared after post-treatment. Upon the introduction of vanadium oxide, the BET surface area and pore volume both decrease due to the blocking of vanadium oxide species with 10% wt. For the supported catalyst, 10%V2O5/H-MOR catalyst presents a typical type I adsorption isotherm. While for 10%V2O5/mm-H-MOR and 10%V2O5/deAlmm-H-MOR catalysts, they both show typical characteristics of type I and type IV isotherm, and it could be seen that the hysteresis loops at p/p0 = 0.5–1.0 over the post-synthesis H-MOR catalysts are enlarged due to the presence of mesopores. The structural parameters calculated from N2 adsorption–desorption isotherm are listed in Table 2. As is shown in Table 2, the mesopores volume of the 10%V2O5/mm-H-MOR catalyst by alkali-treatment increases to 0.110 cm3·g-1, which is higher than that of 10%V2O5/H-MOR. The BET surface area also increases due to the formation of mesopores by desilication. Upon alkali-treatment and subsequent acid leaching treatment, an obvious increase in the mesopores volume for 10%V2O5/deAlmm-H-MOR is observed, and it evidences that alkali-treatment and subsequent acid leaching method is more favorable for the generation of mesopores structure. Furthermore, it can be clearly seen from the pore size distribution that there is a main peak centered at about 3.8 nm for all catalysts, and obviously, the intensity of the peak is further increased after post-treatments. Moreover, the peak at 12.5 nm is observed for the 10%V2O5/mm-H-MOR and 10%V2O5/deAlmm-H-MOR. In summary, the hierarchical H-MOR zeolites with micro- and mesopores have been successfully synthesized through the post-treatments. The fabricated mesopores are considered to be beneficial to the accessibility of active species to reactant and also improve the diffusion of the reactants and products in the micro-mesoporous structure, which can effectively avoid the secondary reaction of intermediate and products to accordingly suppress the formation of the by-products [23,29,30].

2.3. TEM

Figure 3 shows the HR-TEM images of 10%V2O5/H-MOR and the post-treatment H-MOR zeolites-supported vanadium oxide catalysts. For 10%V2O5/H-MOR as reference, TEM images exhibit direct evidence that the intra-crystal mesopores structure are created over 10%V2O5/mm-H-MOR and 10%V2O5/deAlmm-H-MOR catalysts, besides, it can be clearly seen that the pore size of fabricated mesopores is about 10 nm. Moreover, no lattice fringes of crystalline V2O5 are observed, which indicates the high dispersion of the supported vanadium oxide species on the surface. The result is in good agreement with the conclusion from XRD characterization.

2.4. 29Si MAS NMR and 27Al MAS NMR

29Si and 27Al MAS NMR were measured to investigate the variation of the Si and Al coordination upon the alkaline and alkaline-acid treatment. As shown in Figure 4A, the 29Si MAS NMR spectrum of 10%V2O5/H-MOR catalyst shows a broad peak, which can be deconvoluted to four peaks centered at −115.9, −113.4, −108.2, and −105.6 ppm. The chemical shifts at −115.9 and −113.4 ppm are attributed to Si(4Si, 0Al), and the latter two peaks are assigned to Si(3Si, 1Al) [31]. Upon desilication with alkaline solution, the decrease of the proportion of the Si(4Si, 0Al) unit is observed in comparison with 10%V2O5/H-MOR (Table 3), suggesting that the silicon atom preferably extracts from Si(4Si, 0Al), while the increase in the relative area of Si(3Si, 1Al) peak might have resulted from the reintegration of the part of Al. The further acid washing of mm-H-MOR can significantly remove the extra-framework Al species [22], meanwhile, the increment of Si/Al ratio calculated from chemical analysis and 29Si MAS NMR indicates that the framework Al is also extracted in acid treatment.
Figure 4B shows the 27Al MAS NMR spectra of the post-synthesis H-MOR zeolite-supported vanadium oxide catalysts. The spectrum of 27Al MAS NMR for 10%V2O5/H-MOR presents a main peak at about 55 ppm, which is ascribed to tetrahedral Al in zeolite framework, while the small band at 0 ppm is corresponding to extra-framework Al species [31], indicating that the Al species is predominant by the framework Al species, but it also has an amount of extra-framework Al species existing in the catalyst of 10%V2O5/H-MOR (Table S2). In consistent with the result of 29Si MAS NMR, the integration of Al leads to a slight increase of framework Al species, but it still consists of a number of EFAl species. After acid leaching treatment, it is found that an obvious reduction of extra-framework Al is observed in 10%V2O5/deAlmm-H-MOR due to the removal of EFAl species, which could result in the fabrication of larger mesopores volume and wider pore size.

2.5. X-ray Photoelectron Spectra (XPS)

To understand the surface compositions and surface state of V species, the XPS technique was used with the results shown in Figure 5. The peaks with binding energies (BEs) at 518.0 eV and 516.8 eV deconvoluted of V2p3/2 line are ascribed to V5+ and V4+ species, respectively [32]. The oxidation state and the relative content of vanadium species analyzed by V2p3/2 peak-fitting from XPS spectra are listed in Table 4. For all catalysts, V5+ and V4+ species both present on the catalysts and the V4+ species accounts for about 35.0%. The presence of V4+ species is thought to be devoted to the oxidation process because it could improve the number of oxygen vacancies, which could promote the mobility of oxygen and enhance the redox ability [33].
In addition, XPS as surface analysis technique can be adopted to probe the surface compositions of these catalysts with the view of analyzing the diffusion of vanadium oxide on the zeolite surface. As Table 4 shows, the obvious decrease in the surface V/(Si + Al) atomic ratios from 0.069 to 0.032 can be observed, which strongly demonstrates that vanadium oxide species have a better dispersion on hierarchical H-MOR obtained by post-synthesis treatment than that on 10%V2O5/H-MOR catalyst [34]. The enhanced dispersion of vanadium oxide might have resulted from their larger mesopores volume, which could make better contact with the acid sites of zeolite and exert the synergistic effect of the bifunctional active sites.

2.6. H2-TPR

Figure 6 shows the H2-TPR profiles of vanadium oxide supported on H-MOR zeolite after different treatments. It can be observed that there is an asymmetrical broad peak over each catalyst, where the former is attributed to the reduction of isolated vanadium species which are more easily reduced, and the latter is assigned to the reduction of polymeric VOx species [35]. As seen in Figure 6, it is noted that the reduction temperature for 10%V2O5/mm-H-MOR catalyst shifts to low temperature and the temperature of reduction peak for 10%V2O5/deAlmm-H-MOR catalyst decreases to much lower value compared with that of 10%V2O5/H-MOR catalyst, which means that the reducibility of VOx species supported on the post-synthesis H-MOR zeolite is easier than that on H-MOR. The increased mesopores volume leads to the enhanced dispersion of vanadium oxide for the catalysts of 10%V2O5/mm-H-MOR and 10%V2O5/deAlmm-H-MOR, which thus makes the reduction peak temperature shift to low value and indicates that the reducibility gets enhanced. This is consistent with the conclusion that the reducibility shows a direct relationship with the vanadia dispersion reported by Arena et al. [36]. The presence of mesopores is beneficial to the dispersion of VOx species, which therefore promotes the redox ability of supported catalysts and improves their catalytic performance of catalysts.

2.7. FT-IR

Figure 7 shows the FT-IR spectra of -OH group of the H-MOR zeolite and the supported H-MOR zeolite catalysts. It can be seen that there are four characteristic peaks of hydroxyl groups in the range of 3200–4000 cm−1: the band at 3740 cm−1 is assigned to the vibrations of the isolated Si-OH group on external crystal surface with the shoulder peak at 3727 cm−1 which belonged to the internal silanol groups; the band at 3595 cm−1 is corresponding to the bridging Al-OH-Si group; the band at 3653 cm−1 is ascribed to the Al-OH group [22]. As is presented in Figure 7, a significant increase in the intensity of the surface silanol groups accompanied with the reduction of internal Si-OH group indirectly indicates the generation of mesopores since more silanol groups can be exposed due to the increased mesopores surfaces. For the alkaline treatment mm-H-MOR zeolite, the band at 3653 cm−1 shows higher intensity than that of parent MOR, it is related to the extra-framework Al species. The extra-framework Al species easily blocks the part of the channel structure and reduces the pore volume. The subsequent acid leaching of desilicated H-MOR zeolite can effectively remove the extra-framework Al species in consistent with the 27Al MAS NMR, which further increases the volume of mesopores [22]. It can also be evidenced that the intensity of Al-OH band at 3654 cm−1 for deAlmm-MOR sample is significantly reduced. In addition, it is clearly observed that the intensity of Al-OH-Si band at 3595 cm−1 has a notable increase upon the treatment of alkaline and alkaline-acid leaching in comparison with parent H-MOR.
After the loading of vanadium oxide on these post-synthesis zeolites, the difference in the intensity of -OH group for the supported catalysts is associated with the interaction between vanadium oxide species and surface hydroxyl group. The corresponding hydroxyl groups are reduced due to the overlap of the loaded component. The intensity of hydroxyl group for deAlmm-H-MOR zeolite-supported vanadium oxide is weaker than that of supported mm-H-MOR zeolite, which may be as a result of the difference in the dispersion of vanadium oxide. The degree of dispersion changes the interaction of VOx species with surface hydroxyl groups, which can effectively modulate the number of acid sites of supported catalysts.

2.8. Acid Property

Figure 8A presents the NH3-TPD profiles of H-MOR zeolite-supported vanadium oxide after various treatments. The peak of NH3 desorption could be deconvoluted into three peaks with desorption temperature, which corresponds to weak acid, medium acid, and strong acid, respectively. As Table 5 shows, the acid concentration of 10%V2O5/mm-H-MOR after alkaline solution treatment increases obviously in comparison with the 10%V2O5/H-MOR catalyst. It results from the decrease of molar Si/Al ratio due to the selective Si atoms extraction. The pronounced increase in total acid content and strong acid sites is beneficial to the synthesis of DMMx, particularly for the longer C-O chain products according to our previous studies [37]. The subsequent acid leaching of desilicated MOR can effectively remove the extra-framework Al species formed by the alkaline solution treatment, resulting in a significant increase in the molar Si/Al ratio from 7.4 to 18.8. Due to the decrease of Al content, the 10%V2O5/deAlmm-H-MOR catalyst has a decrease in total amount of acid sites. It can be seen that the change of weak acid sites is not obvious, while the obvious decrease in medium and strong acid sites is observed.
The acid type and concentration of the supported catalyst are also measured. On account of the part of Al-OH-Si groups situating in side-pockets inaccessible to pyridine molecule [38], the NH3 adsorption infrared spectra are more effective to investigate the acid type of the catalysts and the results are shown in Figure 8B. The absorption peaks at 1430 and 1620 cm−1 are corresponding to Brønsted and Lewis acid sites, respectively [31,39]. Quantitative analysis of Brønsted and Lewis acidity was performed using OMNIC infrared software and listed in Table 5. The number of Brønsted acid sites of the 10%V2O5/mm-H-MOR catalyst increases with the decrease of Si/Al ratio and the reintegration of the part of Al in the desilication process. Meanwhile, the Lewis acidity also increases, which originates from the presence of a lot of extra-framework Al species in mm-H-MOR zeolite as measured by 27Al MAS NMR. The variations on the acid sites are in consistent with the changes of the hydroxyl groups of the catalysts. For 10%V2O5/deAlmm-H-MOR catalyst, the removal of extra-framework Al species by mild acid leaching treatment reduces the amount of Lewis acid sites, and the Brønsted acid sites also decrease concurrently with the increase of Si/Al ratio. However, the number of acid sites is both still higher than those of 10%V2O5/H-MOR, which maybe because of the newly formed hydroxyl groups or more exposed hydroxyl groups owe to the post-synthesis treatments (Figure S2). However, for the ratio of Brønsted/Lewis acid sites, it is observed to be decreased to 1.02.

2.9. Catalytic Performance

Table 6 shows the catalytic performance of vanadium oxide supported on post-synthesis H-MOR and parent H-MOR on the oxidation products distribution for DME direct oxidation. When 10%V2O5/H-MOR is used as catalyst, the conversion of DME is 14.4%, and the DMMx selectivity reaches 60.0%. However, the by-product dominated by CO is observed to be as high as 20.4%. Due to the diffusion limitations of the intermediate or products by the 8-membered ring in H-MOR zeolite, the formed DMM is thought to be suffered from the mass constraints to lead to the disproportionation reaction to synthesize DME and methyl formate (MF), and then the formed MF could possibly decompose to CO and CH3OH, which thus results in the high selectivity to CO and decreases the selectivity of target products [11].
2CH3OCH2OCH3 → 2CH3OCH3 + HCOOCH3, ΔG° = −72.3 KJ·mol−1
HCOOCH3 → CO + CH3OH, ΔG° = +0.4 KJ·mol−1
Compared with 10%V2O5/H-MOR, a larger mesopores volume and a broader pore size for 10%V2O5/mm-H-MOR is obtained, which could enhance the accessibility of bifunctional sites and exert synergistic effect. More importantly, it effectively promotes the diffusion of intermediates or products to hinder the disproportionation of DMM and the decomposition of MF. Besides, the desilication of H-MOR zeolite facilitates the increase of acid sites. On the other hand, it improves the redox ability resulted from the enhanced dispersion of vanadium oxide species. These are devoted to the improvement of DMMx selectivity to 72.5% from 60.0%. The DMM2-3 products only have a very slight increase, while an obvious drop on the selectivity to CO is observed from 20.1% to 9.4%. After the mild-acid leaching treatment of mm-MOR, a further increase in the mesopores volume due to the removal of extra-framework Al species blocking the channel structure can be achieved and the catalytic performance of 10%V2O5/deAlmm-H-MOR is further promoted as expected. The selectivity of DMMx increases from 72.5% to 78.2%, meanwhile, the DMM2-3 selectivity slightly increases to 28.1% from 22.6%. Especially, more interesting, CO selectivity drops to zero. It is considered that the superior catalytic performance for 10%V2O5/deAlmm-H-MOR catalyst is extremely associated with larger mesopores volume generated by alkaline and acid leaching treatment. The stability evaluation and regeneration of catalysts have been carried out on 10%V2O5/deAlmm-H-MOR (Figure S4). The conversion of DME shows a continuous decrease during 10 h, but the DMMx selectivity changes slightly and stabilizes at about 77%. The spent catalyst was calcined at 773 K in the atmosphere of O2 for 1 h and the catalytic performance can be recovered to that of the fresh catalyst. We infer that carbonaceous deposit may be the main reason for the catalyst deactivation.
The acid sites and redox sites are known as crucial parameters for the DMMx formation from DME oxidation. However, in this work, we find that the pore structure of support also plays an important role in products distribution for DME direct oxidation. For the 10%V2O5/H-MOR catalyst, it is considered to be favorable to the formation of DMMx due to the good redox ability and a high Brønsted/Lewis acid sites (B/L) ratio. However, the DMMx selectivity is 60.0% with high CO selectivity of 20.4%. Due to the presence of 8-MR, DMMx products formed on the acid sites located in 8-MR (Figure S3) are hindered by the diffusion constraints to lead to the occurrence of DMM disproportionation and the decomposition of formed MF, which results in the formation of more CO by-product. After the alkaline treatments, TEM characterization (Figure 2b) demonstrates directly that the mesopores structure is successfully introduced into H-MOR and the mesopores volume for 10%V2O5/mm-H-MOR reaches 0.110 cm3·g−1. The obvious decrease in the surface vanadium atomic density from 0.069 to 0.055 is observed, which indicates the better dispersion of supported vanadium oxide species on the post-synthesis H-MOR zeolites. The enhanced dispersion can effectively promote the redox ability to involve in the oxidation process, and could also make better contact with the acid sites of zeolite to exert the synergistic effect of the bifunctional active sites. In addition, 10%V2O5/mm-H-MOR has an obvious increase in the ratio of B/L and the number of acid sites due to the decrease of Si/Al ratio resulted from the extraction of silicon atom and the reintegration of the part of Al confirmed by the NMR characterizations. Upon the desilication treatment, the promotion of redox capability is beneficial to the transformation of methoxy group (derived from the dissociation of CH3OCH3) to HCHO, and the increases of acid sites and B/L ratio are advantageous for the synthesis of DMM by the acetalization of HCHO with the near methoxy species or the free methanol molecule. More importantly, the existence of mesopores can effectively shorten the length of the 12-ring main channels and open the side 8-ring channel pockets, which can increase the distance between DMM molecules and decrease the contact probability to inhibit the secondary reaction as shown in Figure 9. The DMM molecule can easily desorb to gas phase or combine CH3O groups to form DMM2 and the longer C-O chain products [7,9,37]. Thus, the DMMx selectivity improved up to 72.5% with an obvious drop of CO. For 10%V2O5/deAlmm-H-MOR catalysts, the number of acid sites and B/L ratio decreased compared with 10%V2O5/mm-H-MOR, which shows a negative effect on DMMx synthesis. However, the DMMx selectivity is increased up to 78.2% instead and no CO is formed. The experimental results further demonstrate that the transport limitation can be eliminated due to the larger mesopores volume and wider pore size. The presence of mesopores structure plays a leading role in the difference of product distribution from DME direct oxidation.

3. Experimental

3.1. Catalysts Preparation

H-MOR with Si/Al = 9.6 was provided by Nankai University Catalyst Co. Ltd. The mm-H-MOR zeolites were prepared by post-synthesis method with alkaline solutions (30 mL 0.2 M NaOH per 1 g mordenite stirred in a beaker at 358 K for 2 h), ion-exchanged with 0.5 M NH4NO3 solution at room temperature for 12 h over three times, and calcined at 823 K for 5 h. For deAlmm-H-MOR zeolite, it is first treated by alkaline solutions (30 mL 0.2 M NaOH per 1 g mordenite stirred in a beaker at 358 K for 2 h) and subsequently with acid solution (100 mL 0.5 M oxalic acid per 1 g alkaline-treated zeolite stirred in a beaker at 353 K for 20 h). Finally, the obtained zeolites were ion-exchanged with 0.5 M NH4NO3 solution at room temperature for 12 h over three times and calcined at 823 K for 5 h.
MOR in the H+ form was impregnated with an aqueous solution of NH4VO3 dissolved in oxalic acid solution and still stood at ambient temperature for 10 h, dried overnight at 383 K and finally calcined at the temperature of 773 K for 5 h in static air to obtain V2O5/H-MOR (10 wt.% V2O5).

3.2. Catalyst Characterization

X-ray diffraction (XRD) measurements were carried out on a Bruker D2 phaser X-ray Diffractometer (Bruker, Karlsruhe, Germany) in the range of 5–70° and the scan rate of 4°/min using Cu Kα radiation source.
BET surface area and pore volume of the samples were determined by N2 adsorption–desorption at 77 K in Micromeritics TriStar II 3020 equipment (Atlanta, GA, USA).
Transmission electron microscopy (TEM) was performed on a JEM-2100 electron microscope (JEOL Company, Tokyo, Japan).
Solid-state 27Al and 29Si MAS NMR experiments were carried out on the Bruker Avance III 600 MHz spectrometer (Bruker, Karlsruhe, Germany). The relaxation delay of 20 s and the rotation speed of 10 kHz were employed for measurement of the 29Si MAS NMR and 27Al MAS NMR spectra. The chemical shifts were referenced to the kaoline at −91.5 ppm and TMS at 0 ppm. The framework aluminum content (Si/AlFR) was estimated from the intensity of the 29Si NMR resonances according to the equation Si/AlFR = I/0.25I1, where I and I1 are corresponding to the intensity of Si(4Si, 0Al), Si(3Si, 1Al), respectively.
X-ray photoelectron spectra (XPS) were measured on Kratos Axis Ultra Dld spectrometer (Kratos, Manchester, UK) equipped with Al anode (Al Kα hν= 1486.6 eV) powered at 150 W.
FT-IR measurements were recorded with Bruker Tensor 27 (Bruker, Karlsruhe, Germany) in the range of 4000–600 cm−1 with a resolution of 2 cm−1 and using 64 scans. The samples were pretreated at the temperature of 673 K under the Ar atmosphere before measuring.
NH3-TPD profiles were obtained in the TP-5080 type automatic adsorption instrument from Tianjin XianQuan Co. Ltd (Tianjin, China). In all experiments, 100 mg of sample was pretreated at 673 K under N2 flow (30 mL/min) for 1 h, then cooled down to 373 K. At this temperature, NH3 was introduced into the flow system until saturation and the excess ammonia were removed with N2 at 373 K for 1 h. Finally, the NH3-TPD profiles were recorded from 373 K to 973 K at a rate of 10 K/min with a thermal conductivity detector (TCD).
NH3-Fourier transform infrared (NH3-IR) spectrometer was detected on the Nicolet 6700 instrument (Thermo scientific, USA) equipped with a MCT detector. The catalysts were pressed into thin self-supported wafers and placed in a sample cell coupled to a vacuum line and evacuated in situ at 473 K for 30 min. Then the temperature was cooled down to 313 K, NH3 molecules were absorbed on the catalysts. The excess NH3 molecules were desorbed under vacuum at 423 K for 30 min and afterwards the spectra were recorded. The extinction coefficient for the NH4+ band was 13.5 cm2·μmol−1 with 0.9 cm2·μmol−1 for NH3L band [31].
H2-temperature programmed reduction (H2-TPR) measurements were taken by using TP-5080 type automatic adsorption instrument with a thermal conductivity detector (TCD) in Tianjin XianQuan Co. Ltd. In all experiments, 50 mg of sample was first treated at 673 K under N2 flow (30 mL/min) for 1 h, then cooled down to 303 K, the TPR measurement was conducted using 10%H2/N2 mixture, and the H2-TPR profiles were recorded from 303 K to 1123 K at a rate of 10 K/min.

3.3. Catalytic Reaction

The catalytic reaction was carried out in a continuous flow type fixed-bed reactor with the feedstock of DME and O2 which the molar ratio between them was 1. The catalyst (1 mL, 20–40 mesh) was mixed with ground quartz at an identical volume to prevent overheating of the catalyst due to exothermic reaction. The catalyst was pretreated in flow of O2 (30 mL/min) before reaction. The reaction products were analyzed by GC-2014CPF/SPL (Shimadzu Co., Kyoto, Japan) equipped with flame ionization detector (60 m × 0.25 mm, DB-1, Agilent Technologies Inc., Palo Alto, IA, USA), GC-2014 (Shimadzu Co., Kyoto, Japan)with thermal conductivity detector (Porapak T column, Waters Corporation, Milford, MA, USA), and GC-4000A (TDX-01 column, East&West Analytical Instruments, Inc., Beijing, China) with thermal conductivity detectors. The carbon balances of most experiments were within 95–99%.

4. Conclusions

In summary, hierarchical H-MOR zeolites have been successfully fabricated by alkaline and alkaline-acid treatment strategy. VOx species supported on post-synthesis H-MOR zeolites are used for the direct oxidation of DME. The creation of mesopores structure for 10%V2O5/deAlmm-H-MOR catalyst can effectively increase the DMMx selectivity up to 78.2% and suppress the formation of CO. A large amount of intra-crystal mesopores could facilitate the mass transfer to avoid the secondary reaction and also promote the contact of the reactants with the active sites. Furthermore, the mesopores structure can effectively enhance the dispersion of vanadium oxide to improve the redox ability of supported catalysts. Although the decreased strong acid sites and B/L ratio for 10%V2O5/deAlmm-H-MOR catalyst present the adverse impact, it exhibits the highest catalytic performance for the synthesis of DMMx due to its largest mesopores volume compared with 10%V2O5/H-MOR and 10%V2O5/mm-H-MOR catalysts. It strongly corroborates that the mesopores structure in the zeolite is very important in the synthesis of DMMx from DME direct oxidation.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/9/7/628/s1, Figure S1: FT-IR spectra of vanadium oxide supported on post-synthesis H-MOR zeolites, Figure S2: FT-IR spectra of adsorption of NH3 on different catalysts with details of the OH region, Figure S3: FT-IR spectra of the OH stretching region of the 10% V2O5/H-MOR and H-MOR, Figure S4: Catalytic performance of DME direct oxidation to DMMx over 10%V2O5/deAlmm-H-MOR during 10 h on stream at the conditions of 503K, atmospheric pressure, O2/DME molar ratio = 1, and GHSV of 3600 h−1, Table S1: Relative peak areas determined from 27Al MAS NMR.

Author Contributions

Catalysts preparation, catalyst characterization, and catalyst evaluation were done by W.W. under the supervision of Q.Z., and Y.T. Both authors contributed to the data analysis and manuscript preparation. All authors have given approval for the final version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 21773283, 21373253), CAS Interdisciplinary Innovation Team (No. BK2018001), and the Youth Innovation Promotion Association CAS (No. 2014155).

Acknowledgments

This work was supported by the National Natural Science Foundation of China (No. 21773283, 21373253), CAS Interdisciplinary Innovation Team (No. BK2018001), and the Youth Innovation Promotion Association CAS (No. 2014155).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sánchez-Contador, M.; Ateka, A.; Aguayo, A.T.; Bilbao, J. Effects of diesel/PODE (polyoxymethylene dimethyl ethers) blends on combustion and emission characteristics in a heavy duty diesel engine. Fuel Process. Technol. 2018, 179, 258–268. [Google Scholar] [CrossRef]
  2. Song, F.; Tan, Y.; Xie, H.; Zhang, Q.; Han, Y. Direct synthesis of dimethyl ether from biomass-derived syngas over Cu-ZnO-Al2O3-ZrO2(x)/γ-Al2O3 bifunctional catalysts: Effect of Zr-loading. Fuel Process. Technol. 2014, 126, 88–94. [Google Scholar] [CrossRef]
  3. Liu, F.; Wang, T.; Zheng, Y.; Wang, J. Synergistic effect of Brønsted and Lewis acid sites for the synthesis of polyoxymethylene dimethyl ethers over highly efficient SO42-/TiO2 catalysts. J. Catal. 2017, 355, 17–25. [Google Scholar] [CrossRef]
  4. Liu, J.; Wang, H.; Li, Y.; Zheng, Z.; Xue, Z.; Shang, H.; Yao, M. Effects of diesel/PODE (polyoxymethylene dimethyl ethers) blends on combustion and emission characteristics in a heavy duty diesel engine. Fuel 2016, 177, 206–216. [Google Scholar] [CrossRef]
  5. Qi, J.G.; Hu, Y.F.; Niu, J.G.; Ma, W.T.; Jiang, S.Q.; Wang, Y.C.; Zhang, X.M.; Zhang, Y.H. Evaluation of polyoxymethylene dimethyl ethers as a new type of diesel additives. Fuel 2018, 234, 135–141. [Google Scholar] [CrossRef]
  6. Baranowski, C.J.; Bahmanpour, A.M.; Kröcher, O. Catalytic synthesis of polyoxymethylene dimethyl ethers (OME): A review. Appl. Catal. B Environ. 2017, 217, 407–420. [Google Scholar] [CrossRef]
  7. Liu, H.C.; Iglesia, E. Selective one-step synthesis of dimethoxymethane via methanol or dimethyl ether oxidation on H3+nVnMo12-nPO40 keggin structures. J. Phys. Chem. B 2003, 107, 10840–10847. [Google Scholar] [CrossRef]
  8. Tsubaki, N.; Zhang, Q.; Wang, W.; Bai, Y.; Han, Y.; Tan, Y. Application of modified CNTs with Ti(SO4) 2 in selective oxidation of dimethyl ether. Catal. Sci. Technol. 2016, 6, 7193–7202. [Google Scholar]
  9. Zhang, Q.D.; Tan, Y.S.; Liu, G.B.; Zhang, J.F.; Han, Y.Z. Rhenium oxide-modified H3PW12O40/TiO2 catalysts for selective oxidation of dimethyl ether to dimethoxy dimethyl ether. Green Chem. 2014, 16, 4708–4715. [Google Scholar] [CrossRef]
  10. Gao, X.J.; Wang, W.F.; Gu, Y.Y.; Zhang, Z.Z.; Zhang, J.F.; Zhang, Q.D.; Tsubaki, N.; Han, Y.Z.; Tan, Y.S. Synthesis of polyoxymethylene dimethyl ethers from dimethyl ether direct oxidation over carbon-based catalysts. ChemCatChem 2018, 10, 273–279. [Google Scholar] [CrossRef]
  11. Celik, F.E.; Kim, T.J.; Bell, A.T. Effect of zeolite framework type and Si/Al ratio on dimethoxymethane carbonylation. J. Catal. 2010, 270, 185–195. [Google Scholar] [CrossRef]
  12. Zhang, Q.; Wang, W.; Zhang, Z.; Han, Y.; Tan, Y. Low-Temperature Oxidation of Dimethyl Ether to Polyoxymethylene Dimethyl Ethers over CNT-Supported Rhenium Catalyst. Catalysts 2016, 6, 43. [Google Scholar] [CrossRef]
  13. Zhang, Q.D.; Tan, Y.S.; Yang, C.H.; Han, Y.Z. MnCl2 modified H4SiW12O40/SiO2 catalysts for catalytic oxidation of dimethy ether to dimethoxymethane. J. Mol. Catal. A Chem. 2007, 263, 149–155. [Google Scholar] [CrossRef]
  14. Zhang, Q.D.; Tan, Y.S.; Yang, C.H.; Han, Y.Z. Research on catalytic oxidation of dimethyl ether to dimethoxymethane over MnCl2 modified heteropolyacid catalysts. Catal. Commun. 2008, 9, 1916–1919. [Google Scholar] [CrossRef]
  15. Zhang, Q.D.; Tan, Y.S.; Yang, C.H.; Liu, Y.Q.; Han, Y.Z. Catalytic oxidation of dimethyl ether to dimethoxymethane over MnCl2-H4SiW12O40/SiO2 catalyst. Chin. J. Catal. 2006, 27, 916–920. [Google Scholar] [CrossRef]
  16. Leng, K.; Wang, Y.; Hou, C.; Lancelot, C.; Lamonier, C.; Rives, A.; Sun, Y. Enhancement of catalytic performance in the benzylation of benzene with benzyl alcohol over hierarchical mordenite. J. Catal. 2013, 306, 100–108. [Google Scholar] [CrossRef]
  17. Zhang, J.; Wang, L.; Wang, G.; Chen, F.; Zhu, J.; Wang, C.; Bian, C.; Pan, S.; Xiao, F.-S. Hierarchical Sn-Beta Zeolite Catalyst for the Conversion of Sugars to Alkyl Lactates. ACS Sustain. Chem. Eng. 2017, 5, 3123–3131. [Google Scholar] [CrossRef]
  18. Wei, X.; Smirniotis, P.G. Development and characterization of mesoporosity in ZSM-12 by desilication. Microporous Mesoporous Mater. 2006, 97, 97–106. [Google Scholar] [CrossRef]
  19. Van Laak, A.N.; Gosselink, R.W.; Sagala, S.L.; Meeldijk, J.D.; De Jongh, P.E.; De Jong, K.P. Alkaline treatment on commercially available aluminum rich mordenite. Appl. Catal. A Gen. 2010, 382, 65–72. [Google Scholar] [CrossRef]
  20. Keller, T.C.; Arras, J.; Wershofen, S.; Perez-Ramirez, J. Design of hierarchical zeolite catalysts for the manufacture of polyurethane intermediates. ACS Catal. 2015, 5, 734–743. [Google Scholar] [CrossRef]
  21. Sazama, P.; Sobalík, Z.; Dědeček, J.; Jakubec, I.; Parvulescu, V.; Bastl, Z.; Rathousky, J.; Jirglová, H. Enhancement of Activity and Selectivity in Acid-Catalyzed Reactions by Dealuminated Hierarchical Zeolites. Angew. Chem. 2013, 125, 2092–2095. [Google Scholar] [CrossRef]
  22. Pastvova, J.; Kaucky, D.; Moravkova, J.; Rathousky, J.; Sklenak, S.; Vorokhta, M.; Brabec, L.; Pilar, R.; Jakubec, I.; Tabor, E.; et al. Effect of Enhanced Accessibility of Acid Sites in Micromesoporous Mordenite Zeolites on Hydroisomerization of n-Hexane. ACS Catal. 2017, 7, 5781–5795. [Google Scholar] [CrossRef]
  23. Zhang, J.; Rao, C.; Peng, H.; Peng, C.; Zhang, L.; Xu, X.; Liu, W.; Wang, Z.; Zhang, N.; Wang, X. Enhanced toluene combustion performance over Pt loaded hierarchical porous MOR zeolite. Chem. Eng. J. 2018, 334, 10–18. [Google Scholar] [CrossRef]
  24. Zhao, H.Y.; Bennici, S.; Shen, J.Y.; Auroux, A. Nature of surface sites of catalysts and reactivity in selective oxidation of methanol to dimethoxymethane. J. Catal. 2010, 272, 176–189. [Google Scholar] [CrossRef]
  25. Chen, S.; Wang, S.; Ma, X.; Gong, J. Selective oxidation of methanol to dimethoxymethane over bifunctional VOx/TS-1 catalysts. Chem. Commun. 2011, 47, 9345. [Google Scholar] [CrossRef] [PubMed]
  26. Huang, X.M.; Li, Y.G.; Xu, Y.D.; Shen, W.J. Kinetics of selective oxidation of dimethyl ether to formaldehyde over Al2O3-supported VOx and MoOx catalysts. Catal. Lett. 2004, 97, 185–190. [Google Scholar] [CrossRef]
  27. Cheung, P.; Liu, H.; Iglesia, E. Effects of Al2O3 support modifications on MoOx and VOx catalysts for dimethyl ether oxidation to formaldehyde. Phys. Chem. Chem. Phys. 2003, 5, 3795. [Google Scholar]
  28. Zhang, W.; Meng, T.; Tang, J.; Zhuang, W.; Zhou, Y.; Wang, J. Direct Synthesis of 2, 5-Diformylfuran from Carbohydrates Using High-Silica MOR Zeolite-Supported Isolated Vanadium Species. ACS Sustain. Chem. Eng. 2017, 5, 10029–10037. [Google Scholar] [CrossRef]
  29. Kowalska-Kus, J.; Held, A.; Frankowski, M.; Nowinska, K. Solketal formation from glycerol and acetone over hierarchical zeolites of different structure as catalysts. J. Mol. Catal. A Chem. 2017, 426, 205–212. [Google Scholar] [CrossRef]
  30. Fu, W.H.; Liang, X.M.; He, M.Y.; Zhang, H.; Wang, Y.M. Shape selectivity extending to ordered supermicroporous aluminosilicates. Chem. Commun. 2015, 51, 1449–1452. [Google Scholar] [CrossRef]
  31. Góra-Marek, K.; Tarach, K.A.; Tekla, J.; Olejniczak, Z.; Kuśtrowski, P.; Cheng, L.; Martínez-Triguero, J.; Rey, F.; Liu, L. Hierarchical Mordenite Dedicated to the Fluid Catalytic Cracking Process: Catalytic Performance Regarding Textural and Acidic Properties. J. Phys. Chem. C 2014, 118, 28043–28054. [Google Scholar] [CrossRef]
  32. Harlin, M.; Niemi, V.; Krause, A. Alumina-Supported Vanadium Oxide in the Dehydrogenation of Butanes. J. Catal. 2000, 195, 67–78. [Google Scholar] [CrossRef]
  33. Meng, Y.L.; Wang, T.; Chen, S.; Zhao, Y.J.; Ma, X.B.; Gong, J.L. Selective oxidation of methanol to dimethoxymethane on V2O5-MoO3/gamma-Al2O3 catalysts. Appl. Catal. B 2014, 160, 161–172. [Google Scholar] [CrossRef]
  34. Lim, T.H.; Nam, K.; Song, I.K.; Lee, K.-Y.; Kim, D.H. Effect of Si/Al 2 ratios in Mo/H-MCM-22 on methane dehydroaromatization. Appl. Catal. A Gen. 2018, 552, 11–20. [Google Scholar] [CrossRef]
  35. Steinfeldt, N.; Muller, D.; Berndt, H. VOx species on alumina at high vanadia loadings and calcination temperature and their role in the ODP reaction. Appl. Catal. A Gen. 2004, 272, 201–213. [Google Scholar] [CrossRef]
  36. Arena, F.; Frusteri, F.; Martra, G.; Parmaliana, A.; Coluccia, S. Surface structures, reduction pattern and oxygen chemisorption of V2O5/SiO2catalysts. J. Chem. Soc. Faraday Trans. 1997, 93, 3849–3854. [Google Scholar] [CrossRef]
  37. Wang, W.; Gao, X.; Yang, Q.; Wang, X.; Song, F.; Zhang, Q.; Han, Y.; Tan, Y. Vanadium oxide modified H-beta zeolite for the synthesis of polyoxymethylene dimethyl ethers from dimethyl ether direct oxidation. Fuel 2019, 238, 289–297. [Google Scholar] [CrossRef]
  38. Ma, M.; Zhan, E.; Huang, X.; Ta, N.; Xiong, Z.; Bai, L.; Shen, W. Carbonylation of dimethyl ether over Co-HMOR. Catal. Sci. Technol. 2018, 8, 2124–2130. [Google Scholar] [CrossRef]
  39. Khandan, N.; Kazemeini, M.; Aghaziarati, M. Determining an optimum catalyst for liquid-phase dehydration of methanol to dimethyl ether. Appl. Catal. A Gen. 2008, 349, 6–12. [Google Scholar] [CrossRef]
Catalysts 09 00628 sch001 550

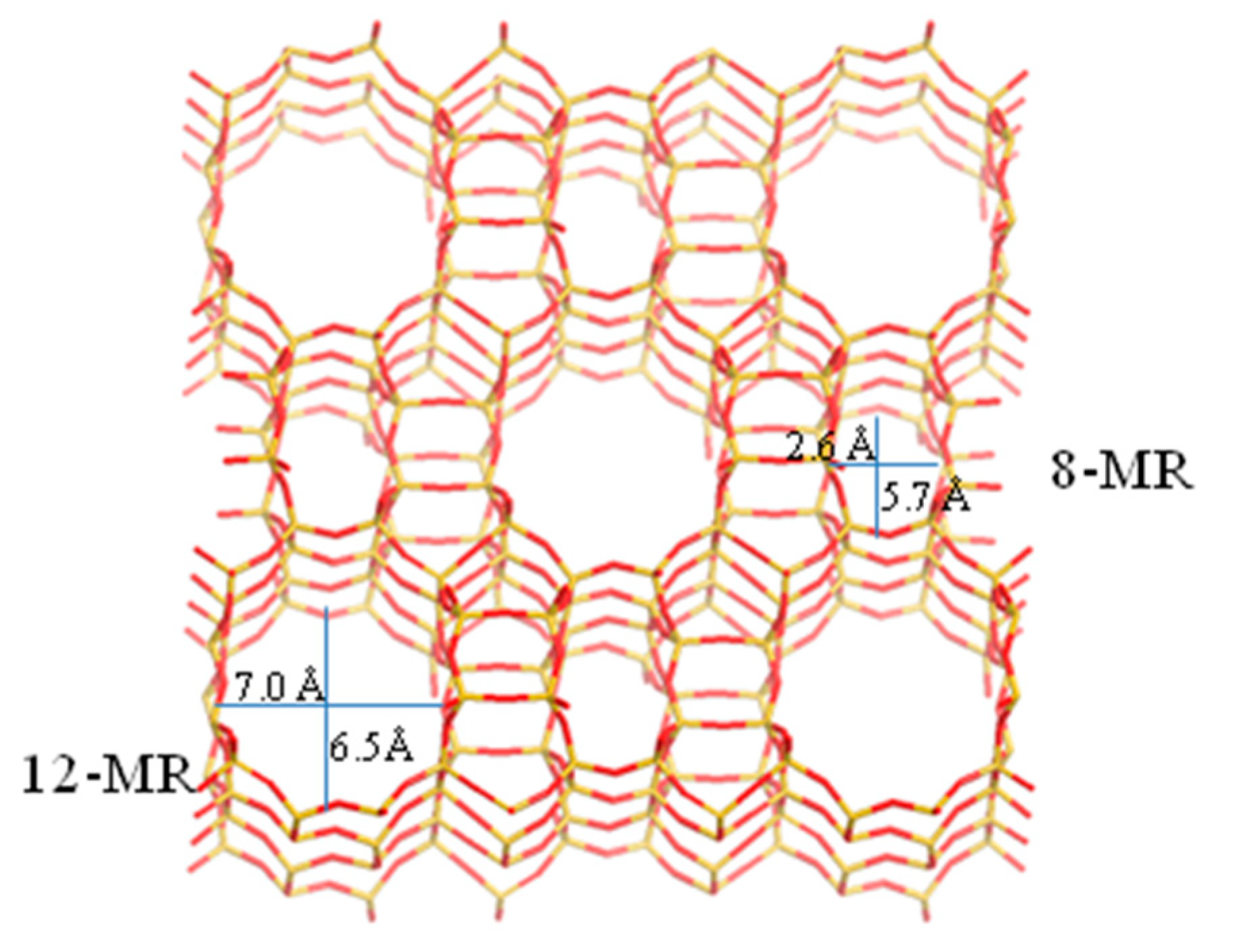

Scheme 1. Topology of H-MOR zeolite consisting of 12-ring channel and 8-ring side pockets.
Scheme 1. Topology of H-MOR zeolite consisting of 12-ring channel and 8-ring side pockets.
Catalysts 09 00628 sch001
Catalysts 09 00628 g001 550
Figure 1. XRD spectra of unsupported zeolites and post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Figure 1. XRD spectra of unsupported zeolites and post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g001
Catalysts 09 00628 g002 550

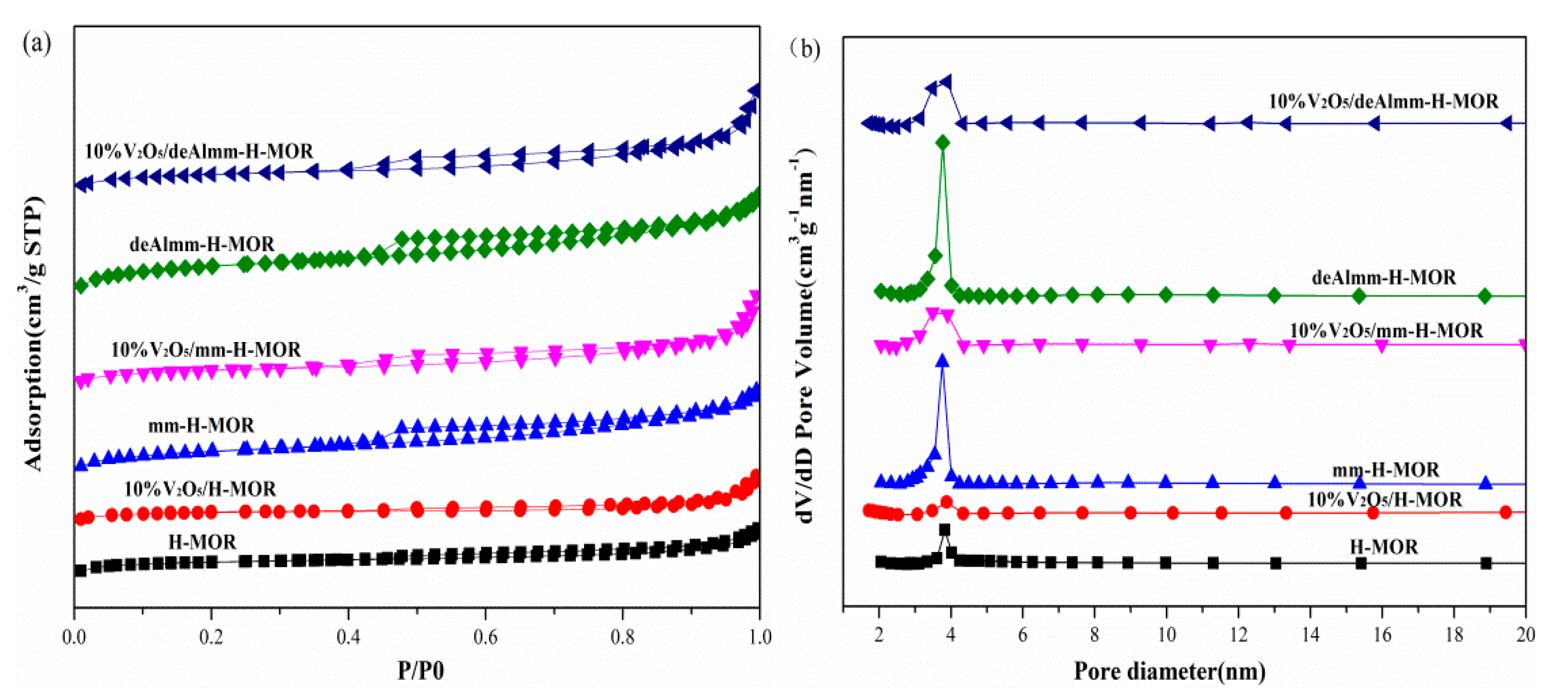

Figure 2. N2-adsorption isotherms (a) and pore size distribution (b) of unsupported zeolites and post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Figure 2. N2-adsorption isotherms (a) and pore size distribution (b) of unsupported zeolites and post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g002
Catalysts 09 00628 g003 550
Figure 3. HR-TEM images of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts (a) 10%V2O5/H-MOR, (b) 10%V2O5/mm-H-MOR, and (c) 10%V2O5/deAlmm-H-MOR.
Figure 3. HR-TEM images of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts (a) 10%V2O5/H-MOR, (b) 10%V2O5/mm-H-MOR, and (c) 10%V2O5/deAlmm-H-MOR.
Catalysts 09 00628 g003
Catalysts 09 00628 g004 550

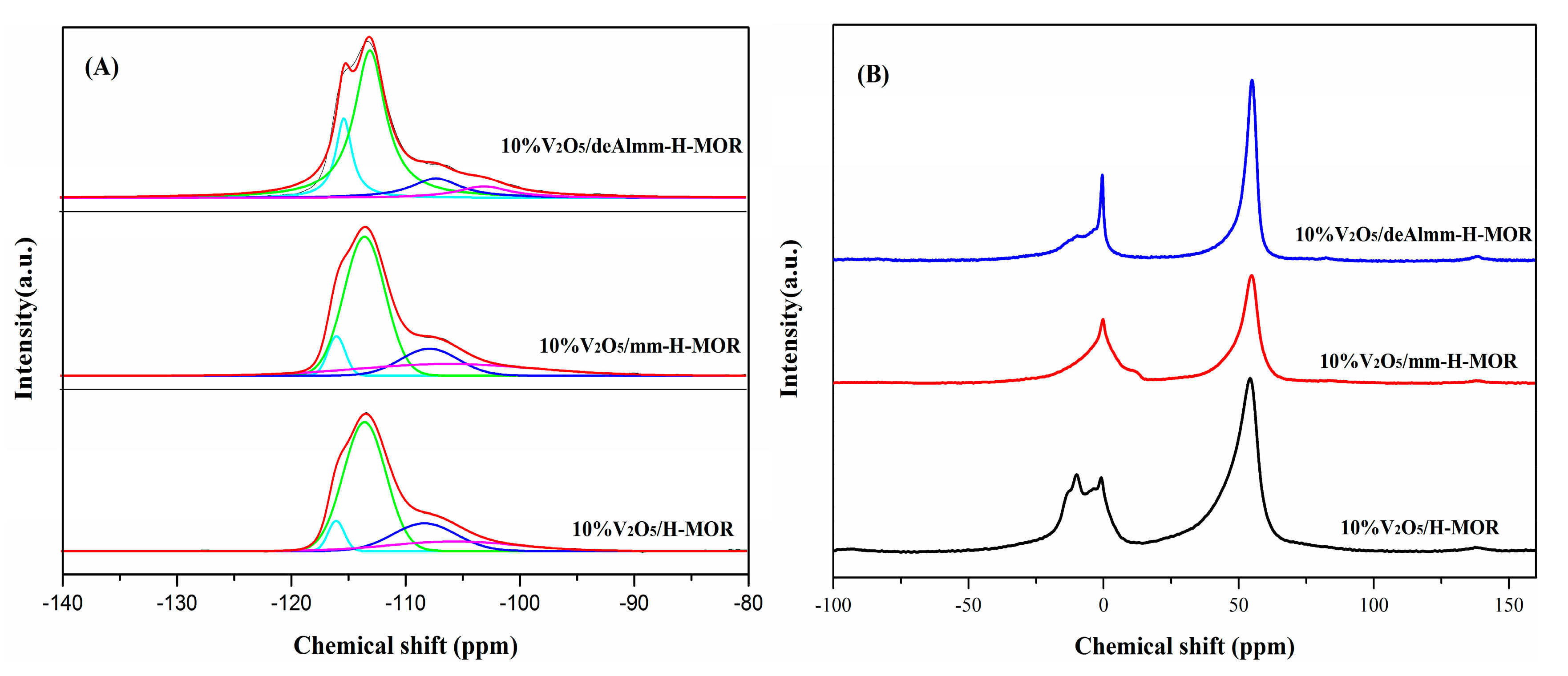

Figure 4. 29Si MAS NMR (A) and 27Al MAS NMR (B) spectra of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Figure 4. 29Si MAS NMR (A) and 27Al MAS NMR (B) spectra of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g004
Catalysts 09 00628 g005 550
Figure 5. V2p3/2 X-ray photoelectron spectra (XPS) spectra of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Figure 5. V2p3/2 X-ray photoelectron spectra (XPS) spectra of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g005
Catalysts 09 00628 g006 550
Figure 6. H2-TPR profiles for post-synthesis treatment H-MOR zeolites-supported vanadium oxide catalysts.
Figure 6. H2-TPR profiles for post-synthesis treatment H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g006
Catalysts 09 00628 g007 550

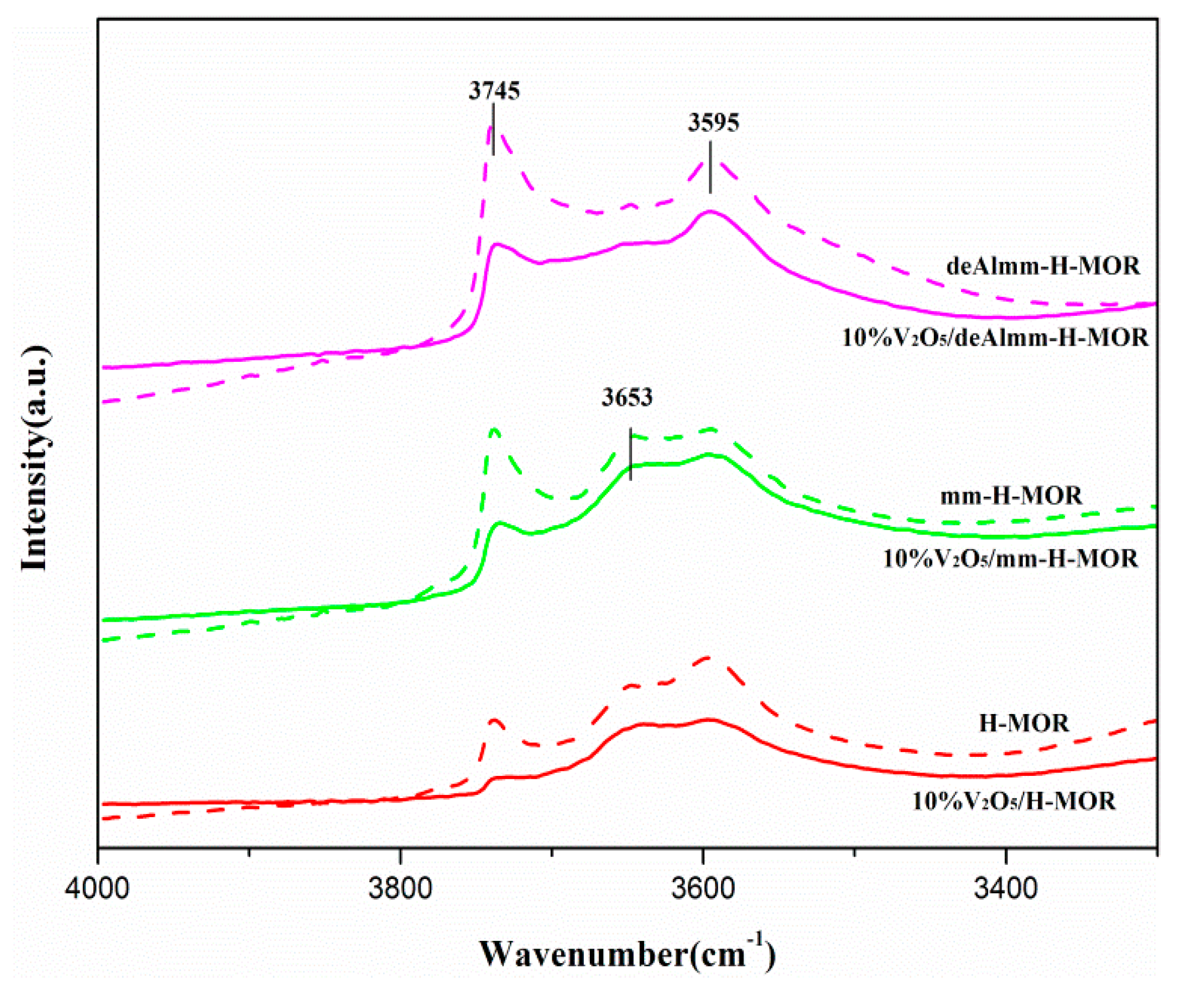

Figure 7. FT-IR spectra in the region of –OH stretching vibrations of post-synthesis treatment H-MOR zeolites-supported vanadium oxide catalysts.
Figure 7. FT-IR spectra in the region of –OH stretching vibrations of post-synthesis treatment H-MOR zeolites-supported vanadium oxide catalysts.
Catalysts 09 00628 g007
Catalysts 09 00628 g008 550

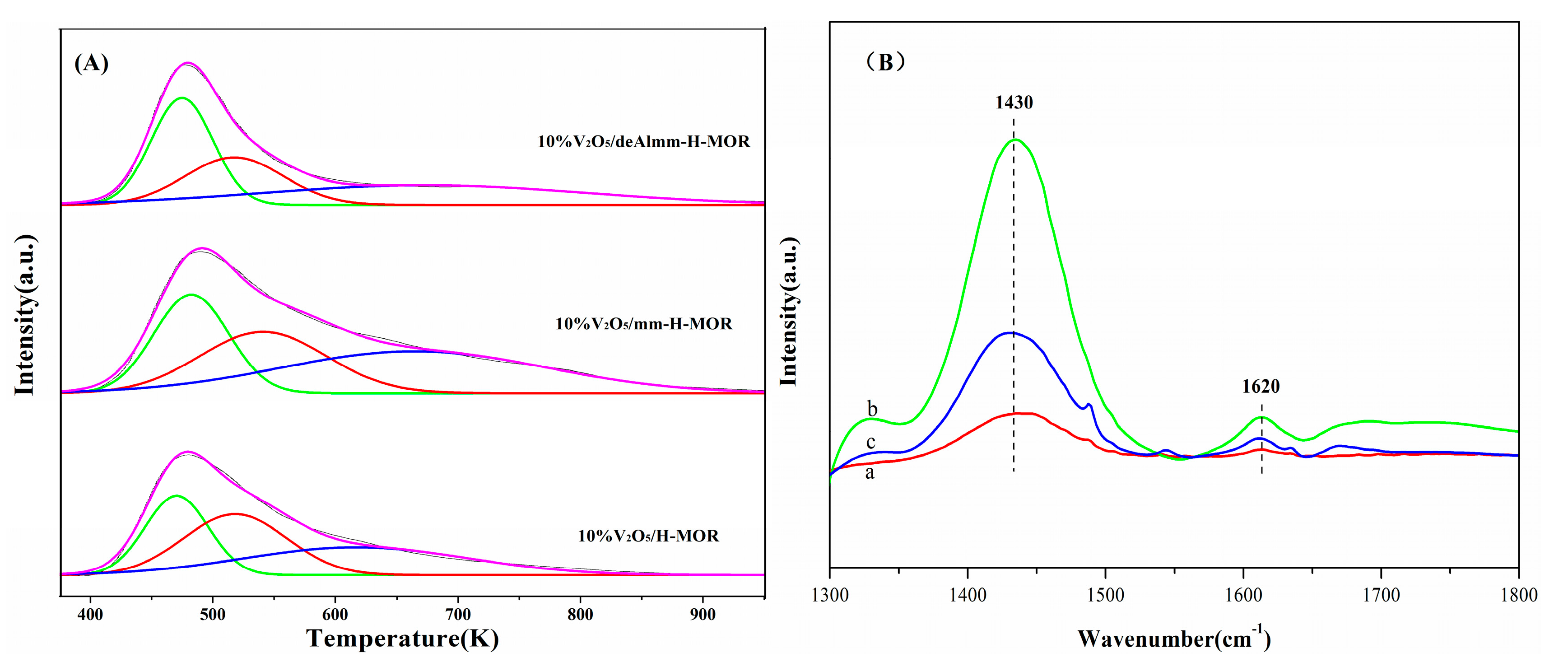

Figure 8. (A) NH3-TPD profiles of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts and (B) NH3-IR profiles of catalysts (a) 10%V2O5/H-MOR, (b) 10%V2O5/mm-H-MOR, (c) 10%V2O5/deAlmm-H-MOR.
Figure 8. (A) NH3-TPD profiles of post-synthesis H-MOR zeolites-supported vanadium oxide catalysts and (B) NH3-IR profiles of catalysts (a) 10%V2O5/H-MOR, (b) 10%V2O5/mm-H-MOR, (c) 10%V2O5/deAlmm-H-MOR.
Catalysts 09 00628 g008
Catalysts 09 00628 g009 550
Figure 9. The formation of DMMx from DME oxidation over VOx supported on H-MOR and post-synthesis H-MOR catalysts.
Figure 9. The formation of DMMx from DME oxidation over VOx supported on H-MOR and post-synthesis H-MOR catalysts.
Catalysts 09 00628 g009
Table
Table 1. The list of the molecular formula and structure of the mentioned reactant and products.
Table 1. The list of the molecular formula and structure of the mentioned reactant and products.
SubstancesMolecular FormulaMolecular StructureSubstancesMolecular FormulaMolecular Structure
DMECH3OCH3Catalysts 09 00628 i001CH3OHCH3OHCatalysts 09 00628 i002
DMMCH3OCH2OCH3Catalysts 09 00628 i003MFHCOOCH3Catalysts 09 00628 i004
DMM2CH3O(CH2O)2CH3Catalysts 09 00628 i005COCOCatalysts 09 00628 i006
DMM3CH3O(CH2O)3CH3Catalysts 09 00628 i007CO2CO2Catalysts 09 00628 i008
HCHOHCHOCatalysts 09 00628 i009CH4CH4Catalysts 09 00628 i010
Table
Table 2. Textural properties of 10% V2O5 supported on H-MOR prepared by post-synthesis treatment.
Table 2. Textural properties of 10% V2O5 supported on H-MOR prepared by post-synthesis treatment.
CatalystsCryst./% aSi/Al bSi/Al cSBET d (m2 g−1)Vtotal e (cm3 g−1)Vmicro f (cm3 g−1)Vmeso g (cm3 g−1)
H-MOR1009.68.05420.2760.1890.087
mm-H-MOR957.47.25640.3430.1760.167
deAlmm-H-MOR9518.824.55880.3780.1760.202
10%V2O5/H-MOR1009.68.03180.1980.1470.051
10%V2O5/mm-H-MOR957.47.23350.2470.1370.110
10%V2O5/deAlmm-H-MOR9418.824.53180.2510.1280.123
a Relative crystallinity values (%). b From chemical analysis. c From 29Si MAS NMR. d BET surface area. e Total pore volume. f Micropore volume estimated from t-plot method. g Vmeso = Vtotal − Vmicro.
Table
Table 3. Relative peak areas determined from 29Si MAS NMR.
Table 3. Relative peak areas determined from 29Si MAS NMR.
CatalystsCS (ppm)I (%)CS (ppm)I (%)CS (ppm)I (%)CS (ppm)I (%)
10%V2O5/H-MOR−115.95.5−113.461.3−108.219.6−105.613.7
10%V2O5/mm-H-MOR−115.86.9−113.457.3−107.715.4−106.020.4
10%V2O5/deAlmm-H-MOR−115.217.3−112.961.7−107.112.9−102.98.1
Table
Table 4. X-ray photoelectron spectroscopy analysis for the post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
Table 4. X-ray photoelectron spectroscopy analysis for the post-synthesis H-MOR zeolites-supported vanadium oxide catalysts.
SamplesV/(Si + Al)V5+ V4+
BE/evArea/%BE/evArea/%
10%V2O5/H-MOR0.069517.565.2516.834.8
10%V2O5/mm-H-MOR0.055517.964.9517.135.1
10%V2O5/deAlmm-H-MOR0.032517.865.6517.034.4
Table
Table 5. Acidity property of 10%V2O5 supported on H-MOR zeolites catalysts prepared by post-synthesis treatment.
Table 5. Acidity property of 10%V2O5 supported on H-MOR zeolites catalysts prepared by post-synthesis treatment.
CatalystsNH3-TPDNH3-IR
WAS aMAS bSAS cTotal dB eL fTotal gB/L h
10%V2O5/H-MOR0.092 (470)0.116 (518)0.113 (617)0.32164.247.5111.71.35
10%V2O5/mm-H-MOR0.127 (481)0.133 (540)0.192 (663)0.452359.2239.4598.61.50
10%V2O5/deAlmm-H-MOR0.106 (473)0.075 (516)0.103 (671)0.285173.1168.9342.01.02
a Weak acid sites (mmol/g). b Medium acid sites (mmol/g). c Strong acid sites (mmol/g). d Total acid sites. e Brønsted acid (μmol/g). f Lewis acid (μmol/g). g Total acid sites (μmol/g). h The ratio of Brønsted acid and Lewis acid.
Table
Table 6. Effects of mesopores on the catalytic performance of 10%V2O5/H-MOR and post-synthesis zeolites-supported vanadium catalysts for DME oxidation.
Table 6. Effects of mesopores on the catalytic performance of 10%V2O5/H-MOR and post-synthesis zeolites-supported vanadium catalysts for DME oxidation.
CatalystsDME Conv. (%)Selectivity (C-mol%)
DMM1-3DMMDMM2DMM3HCHOMFCH3OHCOCO2CH4
10%V2O5/H-MOR14.460.037.420.42.23.24.212.120.400
10%V2O5/mm-H-MOR11.272.549.022.01.50.86.111.39.400
10%V2O5/deAlmm-H-MOR10.678.250.126.81.30.46.814.7000
Reaction conditions: T = 503K, atmospheric pressure, GHSV = 3600 h−1, O2/DME molar ratio = 1. DMM: CH3OCH2OCH3, DMM2: CH3O(CH2O)2CH3, DMM3: CH3O(CH2O)3CH3, MF: HCOOCH3.

Share and Cite

MDPI and ACS Style

Wang, W.; Gao, X.; Feng, R.; Yang, Q.; Zhang, T.; Zhang, J.; Zhang, Q.; Han, Y.; Tan, Y. Hierarchical H-MOR Zeolite Supported Vanadium Oxide for Dimethyl Ether Direct Oxidation. Catalysts 2019, 9, 628. https://doi.org/10.3390/catal9070628

AMA Style

Wang W, Gao X, Feng R, Yang Q, Zhang T, Zhang J, Zhang Q, Han Y, Tan Y. Hierarchical H-MOR Zeolite Supported Vanadium Oxide for Dimethyl Ether Direct Oxidation. Catalysts. 2019; 9(7):628. https://doi.org/10.3390/catal9070628

Chicago/Turabian Style

Wang, Wenfeng, Xiujuan Gao, Ru Feng, Qi Yang, Tao Zhang, Junfeng Zhang, Qingde Zhang, Yizhuo Han, and Yisheng Tan. 2019. "Hierarchical H-MOR Zeolite Supported Vanadium Oxide for Dimethyl Ether Direct Oxidation" Catalysts 9, no. 7: 628. https://doi.org/10.3390/catal9070628

APA Style

Wang, W., Gao, X., Feng, R., Yang, Q., Zhang, T., Zhang, J., Zhang, Q., Han, Y., & Tan, Y. (2019). Hierarchical H-MOR Zeolite Supported Vanadium Oxide for Dimethyl Ether Direct Oxidation. Catalysts, 9(7), 628. https://doi.org/10.3390/catal9070628

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
