Application of Glow Discharge Mass Spectrometry for the Monitoring of Dopant Distribution in Optical Crystals Grown by TSSG Method

by
Anna Gubal
1,
Victoria Chuchina
1,
Ivan Trefilov
1,
Oleg Glumov
1,
Viktor Yakobson
2,
Alexander Titov
2,
Nikolay Solovyev
1,3,* and
Alexander Ganeev
1,4
1
St. Petersburg State University, Institute of Chemistry, 199034 St. Petersburg, Russia
2
Joint Stock Company “Research and Production Corporation S.I. Vavilova”, 192171 St. Petersburg, Russia
3
Institute of Technology Sligo, Ash Lane, F91 YW50 Sligo, Ireland
4
Institute of Toxicology of Federal Medico-Biological Agency, 192019 St. Petersburg, Russia
*
Author to whom correspondence should be addressed.
Crystals 2020, 10(6), 458; https://doi.org/10.3390/cryst10060458
Submission received: 27 April 2020 / Revised: 9 May 2020 / Accepted: 15 May 2020 / Published: 1 June 2020
Browse Figures
Versions Notes

Abstract

:
Direct analysis of matrix and admixture elements in non-conducting crystals is a relevant analytical task in terms of quality assurance of optical materials. The current study aimed to develop a method capable to assess the inhomogeneity of optical crystals with sufficient sensitivity. K1−xRbxTiOPO4 (x = 0.002 and 0.05) and KGd1−yNdy(WO4)2 (y = 0.05) were grown using the top-seeded solution growth method (TSSG). The samples were analyzed by microsecond direct current pulsed glow discharge time-of-flight mass spectrometry (µs-PDC TOF GDMS). The data were compared with the results obtained by scanning electron microscope-energy dispersive X-ray spectroscopy (SEM EDX) and spectrophotometry and validated by the analysis of certified reference material. Sample glow discharge sputtering and analysis were optimized and implemented in real samples. Sample coating with a silver layer and sample pressing in the metallic matrix were proposed to ensure effective sputtering for K1−xRbxTiOPO4 and KGd1−yNdy(WO4)2, respectively. Using the designed method, the inhomogeneity of the dopant’s distribution was demonstrated along the growth axis and in the case of K1−xRbxTiOPO4, also in the growth sectors of different faces. The designed method is applicable for the direct analysis of optical crystal and may be implemented in quality assurance in the manufacturing of optical materials.

Graphical Abstract

1. Introduction

Optical single crystals are widely used in laser optics as laser generators, frequency multiplier, electro-optical shutters, etc. [1]. In the growing of optical single crystals, there are different effects causing inhomogeneous distribution of matrix elements, admixtures, and dopants in the crystal volume [2,3,4]. In particular, this is the case for crystals originating from the top-seeded solution growth method (TSSG) [2]. In the current study, we considered two types of TSSG-grown crystals: K1−xRbxTiOPO4 and KGd1−yNdy(WO4)2 [5,6,7]. By varying the growth conditions and chemical composition of the initial growth charge by introducing the dopants, materials with the required properties can be obtained [8,9].
KGd1−yNdy(WO4)2 crystals are widely used as solid-state laser sources [10,11,12]. They are used for the generation and amplification of pulsed near-infrared range lasers. These crystals have effective cubic nonlinearity, low excitation threshold, high excitation cross-section, and wide absorbance spectrum [5,13]. To ensure the optimal laser properties of KGd1−yNdy(WO4)2, the mass fraction of Nd3+ doping should be maintained in the range of y = 0.03–0.08 [14]. The concentration of the dopant differs in the melt solution and the crystal; thus, the dopant may be inhomogeneously distributed in the crystal volume [2,3,4,10,15].
Pure and doped KTiOPO4 (KTP) crystals have high quadratic nonlinear susceptibility and electro-optical coefficient [9,16,17]. Currently, these crystals are mainly employed for the second-harmonics generation in laser setups. Additionally, such crystals have ferroelectric, pyroelectric, and superionic properties and high laser resistivity [16,18,19,20]. The defect mechanisms and distribution coefficient for trivalent and tetravalent ions in the family of KTP crystals were described and calculated by Morris et al. [21,22].
In multiple studies [7,14,23,24], the relations between growth rate and the direction of the crystallographic axis were considered, indicating that controlling oversaturation and growth factors yields crystals of the required quality. However, when optimizing the growth conditions of novel crystals or implementation of new dopants, the growth-affecting factors may vary significantly. Thus, the monitoring of growth and dopants’ concentration as well as the distribution of matrix and admixture components should be undertaken [2,3,4].
Nowadays, X-ray-based techniques, such as X-ray fluorescence (XRF) and scanning electron microscope-energy dispersive X-ray spectroscopy (SEM EDX) [15,25,26], are most frequently used to assess the composition of crystals. These techniques are capable of direct analysis of the crystals; however, they are limited by relatively high limits of detection (LoDs) and high matrix effects for many elements. Such techniques as electrothermal atomic absorption spectrometry (ETAAS) and the inductively coupled plasma atomic emission spectrometry (ICP-AES) can be used for the monitoring of impurities and distribution of doped components [4,27]. However, these techniques require the preliminary dissolution of the samples, which is labor-intensive and may cause uncontrollable uncertainty in the measurements. Laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS) offers prospective approaches for direct solid sample analysis [28,29]. Nevertheless, this method also may be prone to matrix effects, which complicates the calibration and reliable quantification. Instrumental neutron activation analysis (INAA) can be used to determine the content of impurities in oxide crystals [30] with sufficiently low LoDs. However, this technique has high instrumental and operational costs, which limits its routine application.
The aim of the current study was to develop a direct and sensitive method capable of the quantification of matrix and admixture elements in optical crystals, using KGd1−yNdy(WO4)2 and K1−xRbxTiOPO4 as examples.

2. Materials and Methods

2.1. Instrumentation

The stoichiometry monitoring was developed based on microsecond pulsed glow discharge time-of-flight mass spectrometry (µs-PDC TOF GDMS) using a time-of-flight mass spectrometer Lumas-30 (Lumex, St. Petersburg, Russia) with a pulsed direct current glow discharge (DC GD) ionization source. The construction and technical characteristics of the instrument were described previously [26,31]. Special features of ionization processes and ion extraction in the µs-PDC TOF GDMS system are described in ref. [32]. In brief, the sample is gradually sputtered and ionized by argon plasma, and the ion components are detected by the time-of-flight mass spectrometer. A repelling pulse following the sputtering/ionizing discharge pulse channels the ions into the mass analyzer; the repelling pulse is synchronized with the discharge pulse and initiates after a delay—a repelling pulse delay. The combined hollow cathode (CHC) was used in this study. The discharge cell consisted of a hollow metallic cylinder (auxiliary cathode) with a diameter of 6 mm and the sample under study attached to it. In the current study, auxiliary cathodes made of high purity tantalum (99.99%) and aluminum (99.999%) were considered. A mixture of high purity argon (99.9999%) with 0.3% addition of hydrogen (LindeGaz Rus, St. Petersburg, Russia) was used as the discharge gas. Quantification data were calculated from six replicate measurements (n = 6) and are presented as mean ± confidence interval (n = 6, P = 0.95)

2.2. Samples

The crystals under study were grown at the Research and Technological Institute of Optical Materials All-Russia Scientific Center “S.I. Vavilov State Optical Institute”, using the TSSG method. In total, three crystals were tested: K1−xRbxTiOPO4 with x = 0.002 and 0.05, and KGd1−yNdy(WO4)2 with y = 0.05 in the growth charge.
The K1−xRbxTiOPO4 crystals were grown from a phosphate melt solution. The procedure applied was as follows: the chemicals of 99.9% purity K2CO3, Rb2CO3, KH2PO4, and TiO2 (≥99%; Sigma Aldrich, Merck KGaA, Darmstadt, Germany) were loaded into a platinum crucible and fused at 980 °С. During the crystal growth, the temperature of the melt solution decreased about 50–70 °C, whilst the growth rate was maintained at ca. 0–3 mm/day.
To grow KGd1−yNdy(WO4)2 crystals, the growth charge was prepared by mixing Gd2O3, Nd2O3, WO3, and K2CO3 (≥99%, Sigma-Aldrich, Merck KGaA, Darmstadt, Germany) in the required proportions in a platinum crucible followed by consequent calcination. The equilibrium temperature (980–1020 °С) was achieved under constant stirring in 40% melt solution of KGd(Nd)(WO4)2 and K2W2O7. The temperature decrease rate was 1 to 5 °C per day. The total growth procedure took up to one month.

2.3. Sample Preparation

The parts of the crystals proximal to the initial crystal seeding are further referred to as the “top”; the opposite part of the crystal is referred to as the “bottom”. To study the elemental composition in the crystal faces and along different crystallographic axes, corresponding plates of 2 mm thickness were cut. K0.998Rb0.002TiOPO4 cutting is shown in Figure 1a. Diffraction shadow images of the samples, obtained using a DRSh-250 setup equipped with a mercury-arc lamp (S.I. Vavilov State Optical Institute, Saint-Petersburg, Russia), are presented in Figure 1b,c. The crystal was investigated along the growth axis on the plate N0 (shadow image is shown in Figure 1b) and on the growth sector of crystal faces (Figure 1c). For the K0.95Rb0.05TiOPO4 crystal, growth faces (201) and (100) along the growth axis as well as the fragments from the top and bottom were investigated. The plate of KGd1−yNdy(WO4)2 crystal was cut along the growth axis; additionally, the plates perpendicular to the growth axis were cut from the top and the bottom parts. The samples were polished with diamond pastes of different grain sizes. For the µs-PDC TOF GDMS analysis, the sections of 10–20 mm were used.

2.4. Calibration

A panel of powdered calibration specimens with the close matrix to the samples under study was used. For K1−xRbxTiOPO4, calibration specimens were prepared by mixing K2CO3, Rb2CO3, KH2PO4, and TiO2 (≥99%, Sigma-Aldrich, Merck KGaA, Darmstadt, Germany) with consequent fusion at 660 °C for 24 h. The polycrystalline charges with the matching matrix to K1−xRbxTiOPO4 were obtained (x in the range of 0.025–0.25). The composition of the calibration specimens is presented in Supplementary Table S1.
In the case of KGd1−yNdy(WO4)2, to calibrate for Nd (range 0.1–3 at% in the powder) and Gd (4–14 at% in the powder) the following chemicals were used: KCl (99.5%), WO3 (99.5%), Al powder (99.9%), Nd2O3 (99.9%), all purchased from Merck KGaA, Darmstadt, Germany. All required materials were thoroughly ground in an agate mortar for at least 30 min and then pressed into tablets (diameter 10 mm, thickness 2 mm) with the use of a manual hydraulic press PRG-400 (Rost, Moscow, Russia). The level of grinding and homogenization was controlled using a scanning electron microscope Zeiss Merlin (Carl Zeiss AG, Oberkochen, Germany). The composition of the calibration specimens is presented in Supplementary Table S2.

2.5. Characterisation by Other Techniques and Reference Material Analysis

The quantification of trivalent Nd in KGd1−yNdy(WO4)2 was performed using a spectrophotometer UV-3600 (Shimadzu Europa GmbH, Duisburg, Germany). A wavelength of 584 nm was used for the measurement. Spectrophotometry data were calculated from six replicate measurements (n = 6) and are presented as mean ± confidence interval (n = 6, P = 0.95).
For the colorless K1−xRbxTiOPO4 crystal elemental characterization, a scanning electronic microscope Hitachi S-3400N (Hitachi, Tokyo, Japan), equipped with energy dispersive spectrometer X-Max 20 from Oxford Instruments (Abingdon, UK) with a Si detector was used. The spectrum was acquired for 30 s under an accelerating voltage of 20 kV and probe current of 1.8 nA. The beam current was optimized using metallic titanium every 30 min. The MAC (Micro-Analysis Consultants Ltd.) reference materials were used for standardization: Nd REE Glass and Gd REE glass for Nd and Gd, respectively; potassium chloride (99.9%) for K; and anhydrous rubidium nitrate (99.99%), purchased from Novosibirsk Rare Metals Plant Russia, for Rb. For the calibration, a spectrum of the standard was acquired for 120 s in the same conditions (20 kV, 1.8 nA). Matrix effects were automatically corrected via TrueQ procedure (based on the XPP algorithm) using Oxford Aztec Energy software. The estimation of the limit of quantification (LoQ) was performed based on the measurement of pure (non-doped) KTP crystal. The LoQ value was calculated as the 10-fold value of the standard deviation obtained for 10 replicate measurements (n = 10). SEM-EDX quantification data were calculated from 10 replicate measurements (n = 10) and are presented as mean ± confidence interval (n = 10, P = 0.95)
To validate the µs-PDC TOF GDMS method, in respect of the determination of Rb/K wt% ratio, a geological state certified reference material SGD-1A Essexitic Gabbro (A.P. Vinogradov Institute of Geochemistry SB RAS, Irkutsk, Russia) was used. This reference material contains Rb = 0.0073 ± 0.0004 wt%, K= 2.46 ± 0.04 wt%, and Ti = 1.03 ± 0.02 wt%.

2.6. Electrictrical Conductivity Measurements

The conductivity of the crystals was studied by electrochemical impedance spectroscopy over 1 МHz to 0.01 Hz frequency range. For this purpose, an Autolab PGSTAT302 potentiostat/galvanostat (Metrohm AG, Herisau, Switzerland) with a quartz cell maintained in nitrogen atmosphere was used (procedure as described in ref. [33]).

3. Results and Discussion

3.1. Method Development

Direct sputtering of K1−xRbxTiOPO4 and KGd1−yNdy(WO4)2 crystals resulted in extremely low intensities in the mass spectrum. Thus, the previously employed approach with silver surface coating was used [34]. For K1−xRbxTiOPO4, effective sample sputtering was ensured with silver coating after 10–15 min from the initiation of the discharge. An example of a mass spectrum is shown in Figure 2a. However, for KGd1−yNdy(WO4)2, the silver coating was found to be ineffective, since a low sputtering rate of the bulk of the crystal was still observed. Consequently, an alternative sample preparation protocol was implemented. A small piece of a KGd1−yNdy(WO4)2 crystal (20–30 mg) was pressed into high purity aluminum to form a tablet (2 mm thick, 10 mm diameter). An aluminum auxiliary cathode was used in order to minimize the number of additional components in the mass spectrum. This protocol ensured effective sputtering of KGd1−yNdy(WO4)2 with increased sensitivity of ca. 2 orders of magnitude compared with unprepared crystal. Figure 2b demonstrates a sample mass spectrum of KGd1−yNdy(WO4)2.
The next stage of the study involved the optimization of the discharge parameters, analogously to our previous publications [26,35]. The optimal parameters for K1−xRbxTiOPO4 crystals were as follows: repelling pulse delay 4 µs, discharge duration 3 µs, discharge voltage 1300 V, and cell pressure 37 Pa. For KGd1−yNdy(WO4)2 specimens, the parameters were as follows: repelling pulse delay 200 µs, discharge duration 4 µs, discharge voltage 1300 V, and cell pressure 40 Pa.
The following linear calibration curves for K, Rb, Nd, and Gd were obtained (Figure 3).

3.2. KGd0.95Nd0.05(WO4)2 Crystals

We studied the distributions of Nd and Gd along the crystals’ growth axis using µs-PDC TOF GDMS (Table 1). The concentrations at the top and bottom of the crystals were validated using a standard spectrophotometric assay, routinely used for the quality assurance of these crystals by the manufacturer. Importantly, both techniques provided an acceptable agreement within the experimental uncertainty. SEM EDX could not be used for validation due to the low levels of Nd in the specimens. As can be seen from Table 1, there was an increase in Nd concentration in the crystal in the growth process.
According to the literature, the distribution coefficients depend on the concentration of the doping component, unstable within the bulk of the crystal, and usually vary in the range from 0.6 to 1 [2,11,36]. In our case, the distribution coefficient was found to be 0.67 at the top and 0.93 at the bottom of the crystal. This demonstrates the necessity to monitor the dopant after the crystal growth to ensure the quality.

3.3. K1−xRbxTiOPO4 Crystals

The plates of K1−xRbxTiOPO4 (x = 0.002 and 0.05) crystals were studied. SEM EDX was used for data comparison. The limits of quantification (LoQ) of SEM EDX were insufficient to quantify Rb in the K0.998Rb0.002TiOPO4 crystal but were applicable for the Rb-enriched K0.95Rb0.05TiOPO4 sample. For the latter, the results of µs-PDC TOF GDMS and SEM EDX were in adequate agreement, given the uncertainty of the measurements. The data on the inhomogeneous distribution of the dopant (Rb) was also corroborated by the resistance measurements (Table 2), which also demonstrated variability along the growth axis. The inhomogeneity of the chemical composition was observed both along the growth axis and for different growth sectors of crystal faces. We tested the distribution of the dopant along different crystallographic axes, observing much higher homogeneity compared with the growth axis. The average distribution coefficients were found to be 0.70 and 0.63 for K0.998Rb0.002TiOPO4 and K0.95Rb0.05TiOPO4, respectively. The inhomogeneity observed is related to the gradual decrease of the temperature and the enrichment of the melt solution with the dopant during the growth process.
For further study of the dopant’s distribution in the K0.998Rb0.002TiOPO4 crystal, the following crystal plates (Figure 1) were investigated at points 1 and 4, faces (100) and (−100); and points 2 and 3, faces (201) and (−201). For K0.95Rb0.05TiOPO4 we additionally studied crystal faces (201) and (100). SEM EDX was again used for data comparison. In these plates, the material was supposed to be growing simultaneously, so the dopant’s concentration may be evaluated in two growth sectors. Considerable differences in elemental composition (Table 3) were observed for faces {201} and {100} for K0.998Rb0.002TiOPO4 and K0.95Rb0.05TiOPO4. The growth centers on the face (100) are known to be related to the dislocations originating for the seeding’s regeneration or under defect growth of faces {110} and {011} [37]. On the face {201}, there are nearly no such dislocation centers; the face {201} was previously shown to grow through the edge mechanism [37].
For the validation of the method, geological state reference material SGD-1A Essexitic Gabbro (A.P. Vinogradov Institute of Geochemistry SB RAS, Irkutsk, Russia) containing Rb = 0.0073 ± 0.0004 wt% and K = 2.46 ± 0.04 wt.% was analyzed. The following concentrations were obtained using the developed method: 0.0076 ± 0.0009 and 2.43 ± 0.15 wt.% (n = 6, P = 0.95) for Rb and K, respectively. Like for the real KTP samples, titanium was used for normalization (Ti content in SGD-1A is 1.03 ± 0.02 wt%). The comparison with the certified value demonstrated reliable agreement (α < 0.05).

4. Conclusions

In the current study, a direct method of dopant distribution analysis in optical single crystals was developed based on time-of-flight mass spectrometry with pulsed glow discharge. The applicability of the method was demonstrated while determining matrix and dopant components in two types of optical crystals, K1−xRbxTiOPO4 and KGd1−yNdy(WO4)2. For KGd0.95Nd0.05(WO4)2, we were able to validate the method using spectrophotometry based on Nd3+ absorption. For non-absorbing K1−xRbxTiOPO4, we could not validate the low concentration level due to insufficient sensitivity of the reference technique, since the designed method showed higher sensitivity than the reference techniques; however, the higher concentration range was compared and showed good agreement between the techniques. For both crystal types, considerable inhomogeneity in the dopant’s distribution was observed along the growth axis, whereas for K1−xRbxTiOPO4, the difference was observed also in the growth sectors. Thus, µs-PDC TOF GDMS was demonstrated to be an effective and sensitive tool for the monitoring of the composition of optical single crystals.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/10/6/458/s1, Table S1: Composition of the specimens used for calibrating of µs-PDC TOF GDMS system for analysis of K1−xRbxTiOPO4 crystals. The preparation of the specimens is described in the main text in brief; Table S2: Composition of the specimens used for calibrating of µs-PDC TOF GDMS system for analysis of KGd1−yNdy(WO4)2 crystals. The preparation of the specimens is described in the main text in brief.

Author Contributions

Conceptualization, A.G. (Anna Gubal) and V.C.; methodology, V.C. and A.G. (Alexander Ganeev); software, O.G. and N.S.; validation, A.G. (Anna Gubal), V.C., I.T., and A.G. (Alexander Ganeev); formal analysis, A.T. and V.Y.; investigation, A.G. (Anna Gubal), V.C., O.G., and A.G. (Alexander Ganeev); resources, A.T. and V.Y.; data curation, A.G. (Anna Gubal); writing—original draft preparation, A.G. (Anna Gubal), V.C., and N.S.; writing—review and editing, A.G. (Anna Gubal), V.C., N.S., and A.G. (Alexander Ganeev); visualization, V.C.; supervision, A.G. (Anna Gubal) and A.G. (Alexander Ganeev); project administration, N.S.; funding acquisition, A.G. (Anna Gubal). All authors have read and agree to the published version of the manuscript.

Funding

The research was funded by the Russian Science Foundation (Grant No. 17-73-20089).

Acknowledgments

The authors are grateful to the St. Petersburg State University Research Park (St. Petersburg State University, St. Petersburg, Russia): Interdisciplinary Resource Centers for Nanotechnology, Chemical Analysis and Materials and “Geomodel”, for providing access to their facilities.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Luo, X.; Li, Z.; Guo, Y.; Yao, J.; Wu, Y. Recent progress on new infrared nonlinear optical materials with application prospect. J. Solid State Chem. 2019, 270, 674–687. [Google Scholar] [CrossRef]
  2. Solé, R.; Nikolov, V.; Ruiz, X.; Gavaldà, J.; Solans, X.; Aguiló, M.; Díaz, F. Growth of β-KGd1−xNdx(WO4)2 single crystals in K2W2O7 solvents. J. Cryst. Growth 1996, 169, 600–603. [Google Scholar] [CrossRef]
  3. Han, J.; Guo, H.; Zhang, M.; Song, N.; Xu, C. Characterization of large-sized Nd:YAG single crystals grown by horizontal directional solidification. Cryst. Res. Technol. 2012, 47, 485–490. [Google Scholar] [CrossRef]
  4. Zhang, M.; Guo, H.; Han, J.; Zhang, H.; Xu, C. Distribution of Neodymium and properties of Nd:YAG crystal by horizontal directional solidification. J. Cryst. Growth 2012, 340, 130–134. [Google Scholar] [CrossRef]
  5. Kumaran, A.; Chandru, A.; Moorthy Babu, S.; Bhaumik, I.; Ganesamoorthy, S.; Karnal, A.K.; Wadhawan, V.; Ichimura, M. Crystal growth of pure and doped-KGd(WO4)2 and their characterization for laser applications. J. Cryst. Growth 2005, 275, e2117–e2121. [Google Scholar] [CrossRef]
  6. Michalski, E.; Zmija, J.; Mierczyk, Z.; Majchrowski, A.; Kopczynski, K.; Cichowski, S.; Wojtanowski, J. Optical properties of doped potassium gadolinium tungstate single crystals. In Proceedings of the International Conference on Solid State Crystals 2000: Growth, Characterization, and Applications of Single Crystals, Zakopane, Poland, 10 August 2001. [Google Scholar] [CrossRef] [Green Version]
  7. Guretskii, S.A.; Luginets, A.M.; Kolesova, I.M.; Kravtsov, A.V.; Malyutin, V.B.; Ermolaev, A.A.; Karpenko, S.A. Features of the KGd(WO4)2:Nd3+ single-crystal growth control. J. Cryst. Growth 2009, 311, 1529–1532. [Google Scholar] [CrossRef]
  8. Tseitlin, M.; Mojaev, E.; Roth, M. Growth of high resistivity RbTiOPO4 crystals. J. Cryst. Growth 2008, 310, 1929–1933. [Google Scholar] [CrossRef]
  9. Roth, M.; Tseitlin, M.; Angert, N. Composition-dependent electro-optic and nonlinear optical properties of KTP-family crystals. Opt. Mater. 2006, 28, 71–76. [Google Scholar] [CrossRef]
  10. Kushawaha, V.; Michael, A.; Major, L. Effect of Nd concentration on the Nd:KGW laser. Appl. Phys. B 1994, 58, 533–535. [Google Scholar] [CrossRef]
  11. Pujol, M.C.; Solé, R.; Gavaldà, J.; Massons, J.; Aguiló, M.; Díaz, F.; Nikolov, V.; Zaldo, C. Growth and ultraviolet optical properties of KGd1–xREx(WO4)2 single crystals. J. Mater. Res. 1999, 14, 3739–3745. [Google Scholar] [CrossRef]
  12. Antsygin, V.D.; Mamrashev, A.A.; Nikolaev, N.A. Optical properties of Nd:KGW crystal in the range of 0.2–2.1 THz. Results Phys. 2020, 16, 102842. [Google Scholar] [CrossRef]
  13. Senthil Kumaran, A.; Moorthy Babu, S.; Ganesamoorthy, S.; Bhaumik, I.; Karnal, A.K. Crystal growth and characterization of KY(WO4)2 and KGd(WO4)2 for laser applications. J. Cryst. Growth 2006, 292, 368–372. [Google Scholar] [CrossRef]
  14. Tu, C.; Luo, Z.; Chen, G.; Zhao, T. Crystal growth of KGd(WO4)2:Nd3+. J. Cryst. Growth 1995, 152, 235–237. [Google Scholar] [CrossRef]
  15. Azrakantsyan, M.; Albach, D.; Ananyan, N.; Gevorgyan, V.; Chanteloup, J.C. Yb3+: YAG crystal growth with controlled doping distribution. Opt. Mater. Express 2012, 2, 20–30. [Google Scholar] [CrossRef]
  16. Shaldin, Y.V.; Matyjasik, S.; Tseitlin, M.; Roth, M. Specific features of the pyroelectric properties of actual RbTiOPO4 single crystals in the temperature range 4.2–300 K. Phys. Solid State 2008, 50, 1315. [Google Scholar] [CrossRef]
  17. Wang, C.-R.; Pan, Q.-K.; Chen, F.; Lanskii, G.; Nikolaev, N.; Mamrashev, A.; Andreev, Y.; Meshalkin, A. Phase-matching in KTP crystal for THz wave generation at room temperature and 81 K. Infrared Phys. Technol. 2019, 97, 1–5. [Google Scholar] [CrossRef]
  18. Shaldin, Y.V.; Matyjasik, S.; Rabadanov, M.K.; Angert, N.; Roth, M.; Tseitlin, M. Pyroelectric properties of high-resistant KTiOPO4 crystals in the temperature range 4.2–300 K. Phys. Solid State 2006, 48, 912–918. [Google Scholar] [CrossRef]
  19. Sorokina, N.; Voronkova, V. Structure and properties of crystals in the potassium titanyl phosphate family: A review. Crystallogr. Rep. 2007, 52, 80–93. [Google Scholar] [CrossRef]
  20. Bach, F.; Mero, M.; Pasiskevicius, V.; Zukauskas, A.; Petrov, V. High repetition rate, femtosecond and picosecond laser induced damage thresholds of Rb:KTiOPO4 at 1.03 µm. Opt. Mater. Express 2017, 7, 744–750. [Google Scholar] [CrossRef]
  21. Morris, P.A.; Crawford, M.K.; Ferretti, A.; French, R.H.; Roelofs, M.G.; Bierlein, J.D.; Brown, J.B.; Loiacono, G.M.; Gashurov, G. Defects in KTiOPO4. MRS Proc. 1989, 152, 95. [Google Scholar] [CrossRef]
  22. Morris, P.A.; Ferretti, A.; Bierlein, J.D.; Loiacono, G. Reduction of the ionic conductivity of flux grown KTiOPO4 crystals. J. Cryst. Growth 1991, 109, 361–366. [Google Scholar] [CrossRef]
  23. Vekilov, P.; Vekilov, P.G. Two-step mechanism for the nucleation of crystals from solution. J. Cryst. Growth 2005, 275, 65–76. [Google Scholar] [CrossRef]
  24. Tang, L.; Lin, Z.; Hu, Z.; Wang, G. Growth and spectral properties of Nd3+: KLu(WO4)2 crystal. J. Cryst. Growth 2005, 277, 228–232. [Google Scholar] [CrossRef]
  25. Sadhasivam, S.; Perumal, R.N. High temperature molten flux growth, structural and optical characteristics of KTiOPO4:Ho and KTiOPO4:Er single crystals. J. Cryst. Growth 2019, 512, 152–158. [Google Scholar] [CrossRef]
  26. Gubal, A.; Ganeev, A.; Bodnar, V.; Solovyev, N.; Lyalkin, Y.; Glumov, O.; Yakobson, V. Direct determination of oxygen and other elements in non-conducting crystal materials by pulsed glow discharge time-of-flight mass spectrometry with potassium titanyl phosphate as an example. Vacuum 2018, 153, 248–253. [Google Scholar] [CrossRef]
  27. Detcheva, A.; Gentscheva, G.; Havezov, I.; Ivanova, E. Slurry sampling ETAAS determination of sodium impurities in optical crystals of potassium titanyl phosphate and potassium gadolinium tungstate. Talanta 2002, 58, 489–495. [Google Scholar] [CrossRef]
  28. Hao, X.; Jin, C. Nonstoichiometry in KTP and Nb: KTP crystals by high-temperature solutions method. J. Nonlinear Opt. Phys. Mater. 2015, 24, 1550043. [Google Scholar] [CrossRef]
  29. Ke, Y.; Sun, Y.; Lin, P.; Zhou, J.; Xu, Z.; Cao, C.; Yang, Y.; Hu, S. Quantitative determination of rare earth elements in scheelite via LA-ICP-MS using REE-doped tungstate single crystals as calibration standards. Microchem. J. 2019, 145, 642–647. [Google Scholar] [CrossRef]
  30. Riekstina, D.; Skvortsova, V.; Veveris, O. Application of INAA for investigation of magnesium and aluminium oxide materials. J. Radioanal. Nucl. Chem. 2013, 298, 1907–1911. [Google Scholar] [CrossRef]
  31. Ganeev, A.; Gubal, A.; Korotetski, B.; Bogdanova, O.; Burakov, B.; Titova, A.; Solovyev, N.; Ivanenko, N.; Drobyshev, E.; Iakovleva, E.; et al. Direct isotope analysis of Chernobyl microparticles using time-of-flight mass spectrometry with pulsed glow discharge. Microchem. J. 2017, 132, 286–292. [Google Scholar] [CrossRef]
  32. Ganeev, A.; Gubal, A.; Chuchina, V.; Lyalkin, Y.; Glumov, O.; Yakobson, V.; Solovyev, N. Neon plasma for effective ionisation of oxygen and fluorine in pulsed glow discharge-high ionisation energy elements’ quantification in potassium titanyl phosphate single crystals. J. Anal. Atom. Spectrom. 2019, 34, 588–597. [Google Scholar] [CrossRef]
  33. Glumov, O.V.; Bodnar, V.A.; Mel’nikova, N.A.; Yakobson, V.E.; Murin, I.V. Electrical conductivity of potassium titanyl phosphate KTiOPO4 pure crystals and those doped with Na+, Rb+, and F− ions. Russ. J. Electrochem. 2017, 53, 846–851. [Google Scholar] [CrossRef]
  34. Chuchina, V.; Gubal, A.; Lyalkin, Y.; Glumov, O.; Trefilov, I.; Sorokina, A.; Savinov, S.; Solovyev, N.; Ganeev, A. A study of matrix and admixture elements in fluorine-rich ionic conductors by pulsed glow discharge mass spectrometry. Rapid Commun. Mass Spectrom. 2020, 34, e8786. [Google Scholar] [CrossRef] [PubMed]
  35. Bodnar, V.; Ganeev, A.; Gubal, A.; Solovyev, N.; Glumov, O.; Yakobson, V.; Murin, I. Pulsed glow discharge enables direct mass spectrometric measurement of fluorine in crystal materials—Fluorine quantification and depth profiling in fluorine doped potassium titanyl phosphate. Spectrochim. Acta Part B At. Spectrosc. 2018, 145, 20–28. [Google Scholar] [CrossRef]
  36. Pujol, C.; Aguiló, M.; Dı́az, F.; Zaldo, C. Growth and characterisation of monoclinic KGd1−xREx(WO4)2 single crystals. Opt. Mater. 1999, 13, 33–40. [Google Scholar] [CrossRef]
  37. Yakobson, V.E.; Voĭtsekhovskiĭ, V.N. Morphology of {100} and {201} faces and the optical quality of KTiOPO4 crystals. Crystallogr. Rep. 2009, 54, 675–682. [Google Scholar] [CrossRef]
Crystals 10 00458 g001 550

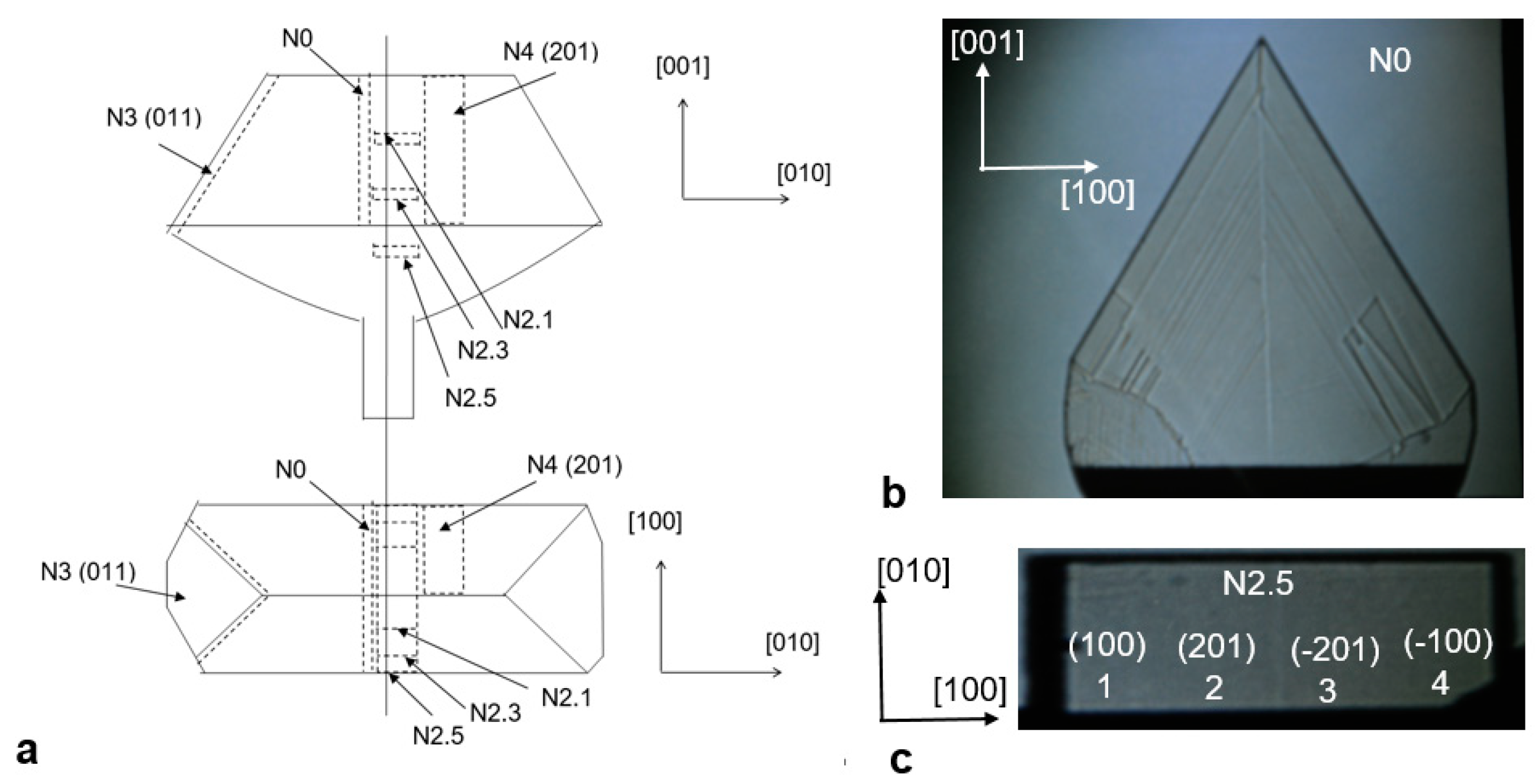

Figure 1. Scheme of the K0.998Rb0.002TiOPO4 crystal (a) and diffraction shadow images of samples N0 (b) and N2.5 (c) indicating growth sectors of different faces. Sample N0 was used for measurements of Rb distribution along the growth axis [001].
Figure 1. Scheme of the K0.998Rb0.002TiOPO4 crystal (a) and diffraction shadow images of samples N0 (b) and N2.5 (c) indicating growth sectors of different faces. Sample N0 was used for measurements of Rb distribution along the growth axis [001].
Crystals 10 00458 g001
Crystals 10 00458 g002 550

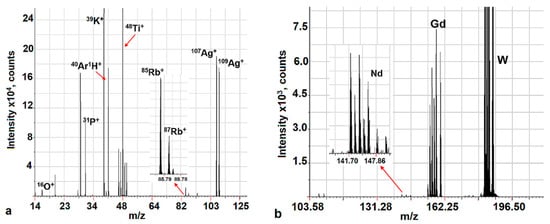

Figure 2. A mass spectrum range of K0.95Rb0.05TiOPO4 (a) and KGd0.95Nd0.05(WO4)2 (b) crystals. Both mass spectra were acquired using optimal parameters.
Figure 2. A mass spectrum range of K0.95Rb0.05TiOPO4 (a) and KGd0.95Nd0.05(WO4)2 (b) crystals. Both mass spectra were acquired using optimal parameters.
Crystals 10 00458 g002
Crystals 10 00458 g003 550

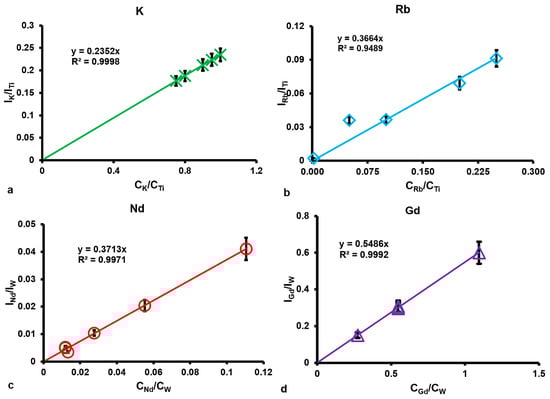

Figure 3. Calibration curves for K (a), Rb (b), Nd (c), and Gd (d); K and Rb were calibrated using the specimens presented in supplementary Table S1. Nd and Gd were calibrated using the specimens presented in supplementary Table S2 (K: 0.235x, R2 = 0.9998; Rb: 0.366x, R2 = 0.9489; Nd: 0.371x, R2 = 0.9971; Gd: 0.549x, R2 = 0.9992).
