Incorporation of Iron(II) and (III) in Hydroxyapatite—A Theoretical Study

Abstract

Hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂, HAp) doped with various transition metals has generated great interest in view of its potential application in a wide variety of fields, including in catalysis as a support with a series of attractive properties. Despite a large number of experimental works devoted to the synthesis and application of iron-substituted hydroxyapatites, problems concerning the location, introduced defects, and charge compensation schemes for Fe²⁺ and/or Fe³⁺ cations in the crystal structure of HAp remain unclear. This paper is devoted to the comprehensive analysis of iron (II) and (III) introduction into the HAp lattice by density functional theory (DFT) calculations. We show that the inclusion of Fe²⁺ in the Ca(1) and Ca(2) positions of HAp is energetically comparable. For the Fe³⁺, there is a clear preference to be included in the Ca(2) position. The inclusion of iron results in cell contraction, which is more pronounced in the case of Fe³⁺. In addition, Fe³⁺ may form a shorter linkage to oxygen atoms. The incorporation of both Fe²⁺ and Fe³⁺ leads to notable local reorganization in the HAp cell.

1. Introduction

Transition metal catalysts are of particular interest in a wide variety of fields. They are used in pharmaceuticals, in the production of natural products, chemistry, the hydrogenation of aromatic hydrocarbons, etc. An essential property of such catalysts is environmental friendliness and the possibility of repeated use. Metals such as rhodium, palladium, ruthenium, copper, and nickel are most commonly used as transition catalyst metals. Recently, iron has been added to this list [1,2,3]. The development of new catalytic systems with iron that meet environmental friendliness, efficiency, and reuse is a modern trend.

Iron compounds are widely used in catalysis in a heterogeneous and homogeneous form. For example, in alkylation reactions, iron compounds are highly active and can be superior in efficiency to catalysts based on other metals. The radical cation mechanism of benzylation with the intermediate formation of Fe²⁺ has been proposed for iron chloride supported on aluminum oxide [4]. The critical role of the simultaneous presence and ratio of Fe³⁺/Fe²⁺ ions in ensuring the activity of iron-containing alkylation catalysts is shown in ref. [5]. Catalysts based on γ-Fe₂O₃ nanoparticles supported on silicas have proven to be effective catalysts for many chlorolefin conversions, including isomerization of allyl chloro-olefins and alkylation of benzene with allyl chloride and benzyl chloride [6].

Iron oxides are widely used as catalysts in Fischer–Tropsch reactions, dehydrogenation, alkylation and other processes. They are also active in catalytic reactions with the participation of halogenated hydrocarbons, in which the catalytic properties of bulk and nanosized iron oxides differ significantly [7,8]. Iron-containing oxide catalysts are highly effective in hydrogenation reactions of highly condensed organic matter [9] and aquathermolysis of heavy oil [10,11].

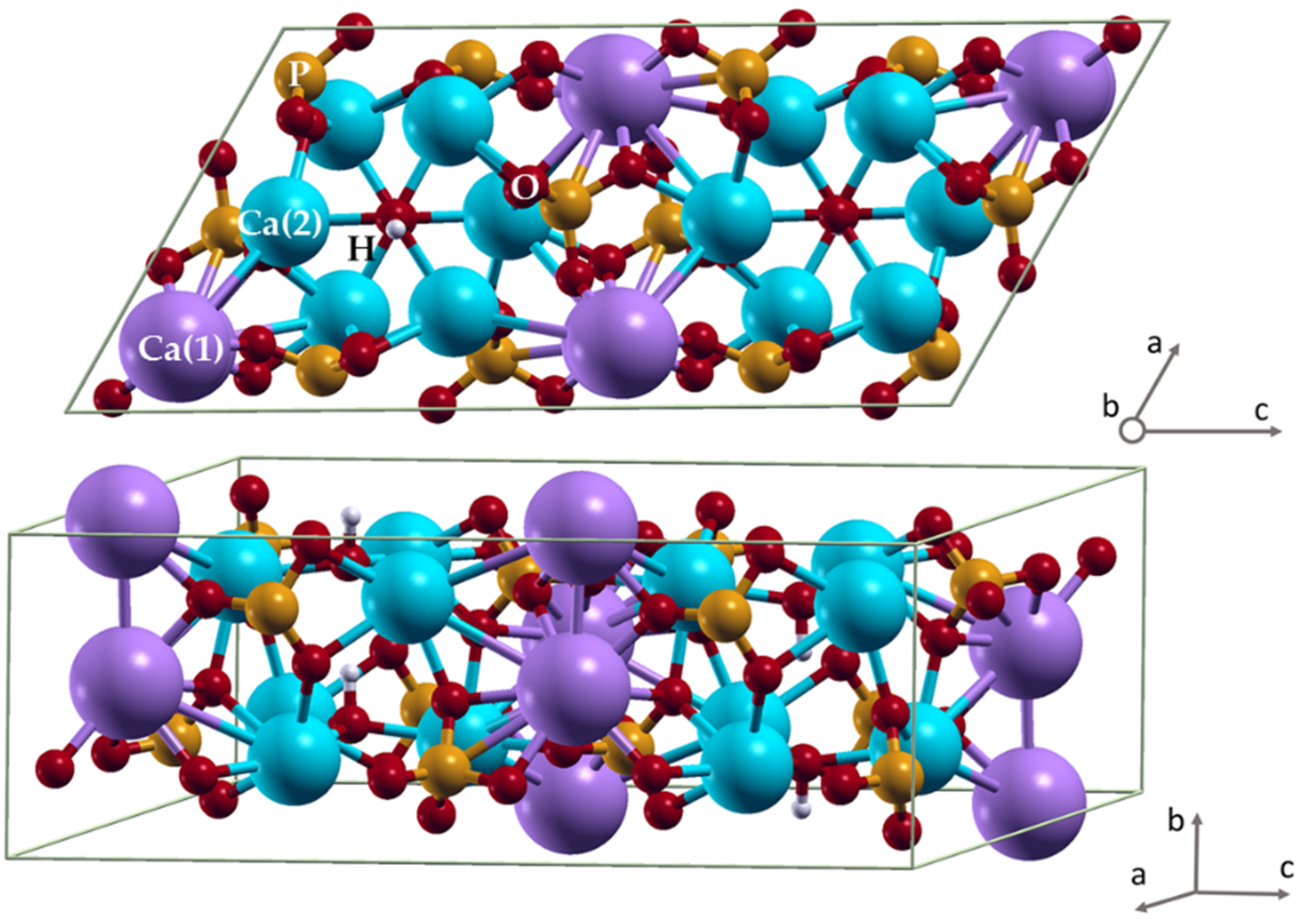

Hydroxyapatite (Ca₁₀(PO₄)₆(OH)₂, HAp) is an attractive material for use in various fields, including catalysis applications [1,2,3,12,13,14,15]. Hydroxyapatite is a material well-known for cationic and anionic substitutions [16,17]. In the crystalline cell, calcium ions adopt two types of positions with different coordination. In the Ca(1) position, six oxygen atoms belonging to four orthophosphates are coordinated with one calcium ion (Figure 1). It forms CaO₆ prism geometry, a polyhedron intermediate between an octahedron and a trigonal prism. In position Ca(2), calcium ion has seven oxygen atoms in the first coordination shell; six of them are from four orthophosphate groups and one from a hydroxyl. It forms a CaO₇ distorted pentagonal bipyramid.

The adsorption capacity, high ion exchange capacity, lack of structural porosity, and low surface acidity are important properties of HAp when used as a catalyst [18,19]. The transition from micro-sized particles to nano-sized ones makes it possible to increase the external surface area and the number of catalytically active centers, and reduce the restrictions on mass transfer, thereby augmenting the catalytic activity [1]. Additionally, the cooperative catalytic effect between the active metal species of the HAp structure and the exchanges species, which are integrated into the HAp structure and immobilized on the surface, was noticed and explained in ref. [20], thereby making exchanged HAp efficient catalytic systems. Accordingly, the synthesis and study of HAp-based catalytic systems with iron impurities have attracted great interest in recent years [21,22,23,24,25,26].

As reviewed by Goldberg et al. [27,28], Fe-HAp and Fe oxide nanoparticles demonstrated high efficiency as a catalyst in the field of heavy oil purification via oxidative desulfurization and aquathermolysis methods, oil asphaltene extraction, etc. Besides catalytic applications, Fe-HAp nanoparticles are promising for cancer monitoring [29], as well as magnetic resonance imaging [30], targeted delivery of drugs, and for the treatment of cancer by a hyperthermic method [31].

It is a fact that the replacement of calcium with iron ions in the crystal structure affects its physicochemical properties [32]. The introduction of Fe³⁺ improves bactericidal and mineralizing properties of nanosized HAp [33]. Iron has a positive impact on osteoblast-like behavior [34]. The effect of iron ions on structural changes in HAp is reported by Morrissey et al. [35]. The effect of heat treatment and the concentration of iron oxide on the microhardness of HAp was described in the work of Filho et al. [36]. The paramagnetic properties of HAp appear upon the addition of Fe³⁺ ions, and with an increase in the concentration of iron ions, the magnetic susceptibility increases [37]. Goldberg et al. [27,28] demonstrated that Fe³⁺ introduction leads to an increase in surface area of nanohydroxyapatite particles, improving their catalytic properties for desulfurization of the model heavy oil.

Despite the large number of experimental works devoted to the synthesis and application of iron-substituted hydroxyapatites, the aspects of location-introduced defects and charge compensation schemes for Fe²⁺–Fe³⁺ cations in the crystal structure of HAp remain unclear. This paper is devoted to comprehensively analyzing iron (II) and (III) introduction into the HAp lattice by DFT calculations.

2. Methods

Density Functional Theory with the plane-wave basis and Vanderbilt ultrasoft pseudopotentials [38] were carried out using the Quantum ESPRESSO program [39]. The Perdew–Burke–Ernzerhof version of the generalized gradient approximation of the exchange-correlation functional (GGA-PBE) [38] was used. The use of PBE functional revealed the good agreement of the theoretical cell parameters with the experiment [40]. The kinetic energy cutoffs of 45 Ry for the smooth part of the electron wave functions and of 300 Ry for the augmented electron density were set up (in agreement with previously denoted [41]).

The unit cell parameters and initial geometry for HAp were taken from [42,43]. The present results have been calculated for a 1 × 1 × 1 monoclinic supercell, space group P2₁/m with 88 atoms in the cell, which was previously proven to be sufficient to reproduce spectra of doped HAp crystals [43]. Simulation of HAp within the P6₃/m space group (44 atoms per unit cell) leads to unphysical duplication of each OH group by the m-mirror. The crystal structure with antiparallel hydroxyl groups (to compensate the electric polarization) in a double unit cell compared to the original hexagonal structure is monoclinic with the P2₁/m space group [42,43]. The difference in the notations of principal axes for the hexagonal and monoclinic modifications should not lead to confusion.

Optimization of the geometry was performed in two steps: 1. the atomic positions were relaxed, keeping the cell parameter fixed, and 2. both the coordinates and cell dimensions were fully relaxed. The convergence condition on forces was 10⁻³ Ry/Bohr. The Brillouin Zone integration was performed on a Monkhorst-Pack 2 × 2 × 1 k-point mesh [44].

3. Results

Due to the difference in the degree of ionization, ferrous cation (Fe²⁺) and ferric cation (Fe³⁺) demonstrate a distinguished influence on hydroxyapatite cell parameters and local ion reorganization upon inclusion. Fe²⁺ has six electrons in 3d orbital, but Fe³⁺ has only five. Such a variation results in their different capacity to interact with their surrounding and to be of different ionic radius. The latter is about 70 pm for the ferrous cation and about 60 pm for the ferric cation. The inclusion of one cation of each iron type into the monoclinic HAp supercell of 88 atoms in Ca(1) or Ca(2) position has been calculated. Overall, four types of positions can be occupied.

The introduction of cations in hydroxyapatite may occur at both the Ca(1) and Ca(2) position. Therefore, the inclusion of Fe²⁺, which leads to the Ca_9.5Fe²⁺_0.5(PO₄)₆(OH)₂ formula, may potentially occur at each of the two positions and does not require any additional charge compensation. In contrast, the substitution of Ca²⁺ by Fe³⁺, leading to the Ca_9.5Fe³⁺_0.5(PO₄)₆O₂H_1.5 formula, is accompanied by element perturbation, which can be a vacancy formation in the H⁺ position or in the Ca²⁺ position (provided that two trivalent cations are included). The release of one Ca²⁺ on every two calcium ions substituted by the trivalent cations leads to a major local perturbation, as was shown for Al³⁺ doping [39]. Therefore, to diminish the influence of the charge compensation scheme on the cell contraction, the release of H⁺ from OH^- was considered to bring the overall charge of the system to zero. The OH^- are located within the anion channel, surrounded by calcium ions, and do not largely influence the overall packing and the density of the cell. A similar scheme of charge compensation has been previously considered in Refs [27,28,45].

The inclusion of Fe²⁺ into the HAp cell in the Ca(1) position results in the decrease in cell volume from 1073.7 ų in pure HAp down to 1060.7 ų in the iron substituted one. The significant contraction, by 0.7%, occurs along the a and c axes. Upon the inclusion of Fe²⁺ in the Ca(2) position, the cell contraction is less pronounced, and the cell volume reaches the value of 1067.1 ų. These two types of substitution in terms of energy gain are pretty similar, and the difference is 0.2 eV in slight favor of iron inclusion in the Ca(2) position.

The inclusion of Fe³⁺ in the HAp cell gives more pronounced contraction of the cell than the Fe²⁺ inclusion, namely 1060.2 ų and 1064.7 ų in the Ca(1) and Ca(2) position, respectively (

Table 1. Some calculated parameters of the HAp supercell for Ca_9.5Fe²⁺_0.5(PO₄)₆(OH)₂ with ferrous cation (Fe²⁺) and Ca_9.5Fe³⁺_0.5(PO₄)₆O₂H_1.5 with ferric cation (Fe³⁺). The length of the Ca–O bonds is given for pure HAp.

Iron	Substitution	Energy, Ry	Cell Volume, Å3	Fe–O, Å	Ca–O, Å
Fe2+	Ca(1)	−3514.79383	1060.7	2.347	2.386
				2.360	2.417
				2.389	2.444
				2.459	2.467
				2.523	2.499
				2.743	2.595
Fe2+	Ca(2)	−3514.80879	1067.1	1.994	2.329
				2.042	2.354
				2.051	2.373
				2.216	2.405
				2.814	2.595
					2.689
Fe3+	Ca(1)	−3513.64081	1067.1	2.056	2.386
				2.058	2.417
				2.111	2.444
				2.124	2.467
				2.132	2.499
					2.595
Fe3+	Ca(2)	−3513.7161776	1064.7	1.803	2.373
				2.107	2.595
				2.068	2.689
				2.240	2.329
				2.259	2.354
					2.405

). Therefore, the density of the cell is larger in Ca(1), 3.17 g/cm³, than in Ca(2), 3.15 g/cm³. Interestingly, the inclusion of Fe³⁺ in the Ca(2) position occurs notably more favorable, by 1.03 eV, than in the Ca(1) position, which is distinct from the Fe²⁺ insertion. Such a favorability agrees with the short bond formation. When Fe³⁺ is located in the Ca(2) position, a short bond with the distance Fe³⁺–O of 1.803 Å is formed. Such a bond, as we previously reported, is of a partly covalent nature [27]. Coordination with other O atoms, closest to iron, occurs at distances of 2.068, 2.107, 2.24, and 2.259 Å. To compare, the Ca²⁺–O distances are within 2.3–2.5 Å. The shift of Fe³⁺ in respect to the original position of Ca²⁺ is 0.404 Å. The most pronounced shift of the oxygen atom from the anion channel is 0.513 Å. Notably, the coordination at distances less than 2.1 Å results in the P-O bond length change. The P-O bond interacting with Fe³⁺ becomes stretched up to 1.594 Å, while the other three P-O bonds remained within 1.55 Å, as in non-perturbed molecules, or shortened down to 1.53 Å. Such stretching is less for Fe²⁺ incorporation, reaching 1.581 Å. The shortest distance Fe²⁺–O is 1.980 Å (Table 1).

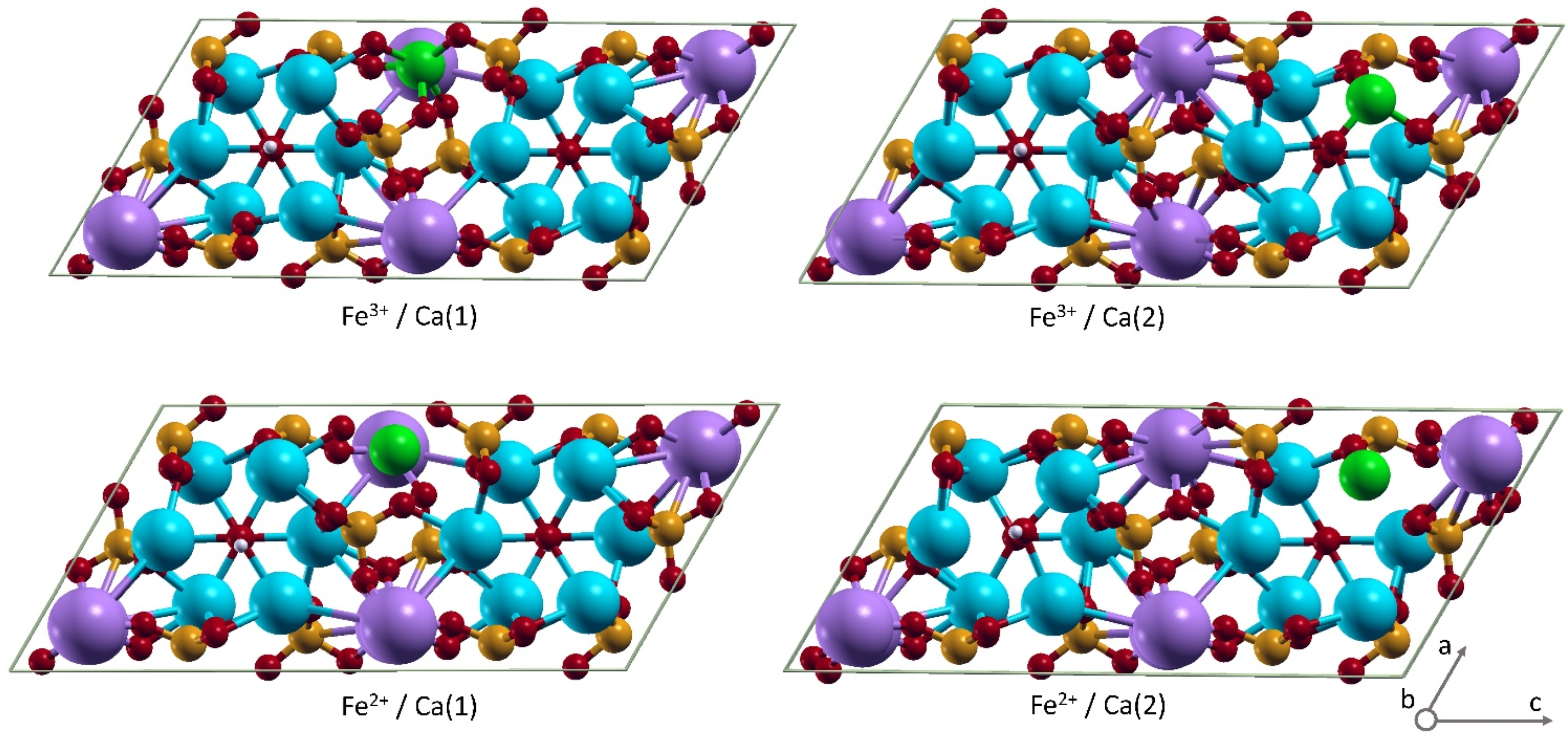

Thus, the results of DFT calculations demonstrate that Fe³⁺ is more reactive in terms of interactions with surroundings, forming shorter contacts to oxygen atoms than Fe²⁺. The inclusion of Fe³⁺ into the Ca(1) or Ca(2) positions results in more pronounced cell contraction than what occurs upon Fe²⁺ inclusion. Strikingly, Fe³⁺ shows a clear preference to substitute Ca(2) than Ca(1) (Figure 2).

4. Conclusions

Since iron (III) inserted into the HAp matrix has been proven to be an efficient catalyst, it is vital to obtain details of its binding sites and interactions with its surrounding. Experimentally, it is challenging to provide an atomistic picture, since the iron impurity is distributed quite randomly over the HAp sample, and the mixture of positional states and population Fe²⁺/Fe³⁺ can take place. These theoretical studies provide an indispensable tool to probe several isolated states to further compare with experimental data. In this work, we show that the inclusion of Fe²⁺ in the Ca(1) and Ca(2) positions is energetically comparable. For the Fe³⁺, there is a clear preference to be included in the Ca(2) position. The inclusion of iron results in cell contraction, which is more pronounced in the case of Fe³⁺. In addition, Fe³⁺ may form a shorter linkage to oxygen atoms. The incorporation of both Fe²⁺ and Fe³⁺ leads to significant local reorganization in the HAp cell. Furthermore, the ratio Ca(1)/Ca(2), which is 2/3 in pure HAp, varies upon iron inclusion, which may influence the catalytic properties of the complex material.
