Basaltic Glass Fibers from Industrial Wastes: A Laboratory-Scale Technical Feasibility Study

Abstract

This study demonstrated the physical–chemical and technical feasibility of recycling EAF slag granulated by rapid cooling with gas to produce continuous glass fibers with a basalt-like composition. To adjust the chemical composition, a silica fume-based secondary raw material was used, together with other additives. Different compositions were tested: 50% EAF slag and 50% silica fume (sample C1); 40% EAF slag, 50% silica fume and 10% Na₂O (sample C2); 40% EAF slag, 50% silica fume, 5% Na₂O and 5% K₂O (sample C3); 20% EAF slag, 57% silica fume, 10% Na₂O and 13% alkali earth oxides (sample C4); 26% EAF slag, 35% silica fume, 7% CaO and 12% Na₂O (sample C5); 26% EAF slag, 35% silica fume, 4% CaO and 15% Na₂O (sample C6). The last composition allowed obtaining fibers up to 5–6 m long, with a diameter between 60 and 180 µm. The process involved using a refractory material crucible with a calibrated bottom orifice as a single nozzle bushing. The optimal temperature range for fiber forming was between 1115 and 1125 °C, with a linear drawing speed of about 2 m/s. Preliminary mechanical tests were performed. Based on these results, potential further recycling applications of granulated EAF slag in the production of basalt-like glass for noncontinuous fiber production for mechanical reinforcement or for thermal–acoustic insulation can also be foreseen.

1. Introduction

The circular economy concept responds to the demand for a more sustainable consumption of natural resources [1]. The circular economy changes focus on reusing, adjusting, renewing and recycling materials and products at the end of their service life. From this new perspective, electric arc furnace (EAF) slags that were typically considered “waste” must now be transformed into a resource, for example through innovative technological solutions that fully enhance their positive features and transform them into valuable secondary raw materials for a different production process [2,3,4,5,6,7]. Several successful initiatives in the transformation of the steel industrial sector from a linear economy to a circular one have already been reported for slags, dusts, iron scale and spent refractories [8,9,10]. The steel industry has long held a strategic place in the EU economy, fostering innovation, growth and employment. To face the downturn in steel demand after the economic crisis and ensure an environmentally and economically sustainable future for the sector, the European Commission is actively promoting and supporting technological research and development initiatives. Steel is closely linked to numerous industrial sectors such as automotive, construction, electronics and renewable industries [11]. The Italian steel industry is among the strongest in Europe, boasting several quality excellences and occupying the second place (after Germany) for production volume. Combining competitiveness on the global market and environmental sustainability is the primary challenge that the steel industry must face today, representing a fundamental milestone for the economy [12].

The quantity of by-products in steel production is remarkable, close to 15% of the total steel production output [13]. These materials are often suitable to be valued as secondary raw materials, constituting a valid alternative to primary natural or synthetic raw materials in many applications [2,3,4,5,6,14]. Today, their uses are mainly limited to road paving and construction industry, and about 25% are landfilled, a solution that in the future is bound to become less and less sustainable, both from the environmental and economic points of view.

Many projects address the challenge posed by exploiting the EAF slags, proposing new eco-innovative industrial application alternatives, potentially opening new essential markets for steelworks by-products. Our research primary objective is to ensure a new value for the slags by using them in several innovative applications, such as ceramic coatings, composites and 3D printing. This matches the research strategies to promote the circular economy in steel production, with a cross-cutting approach to value-added.

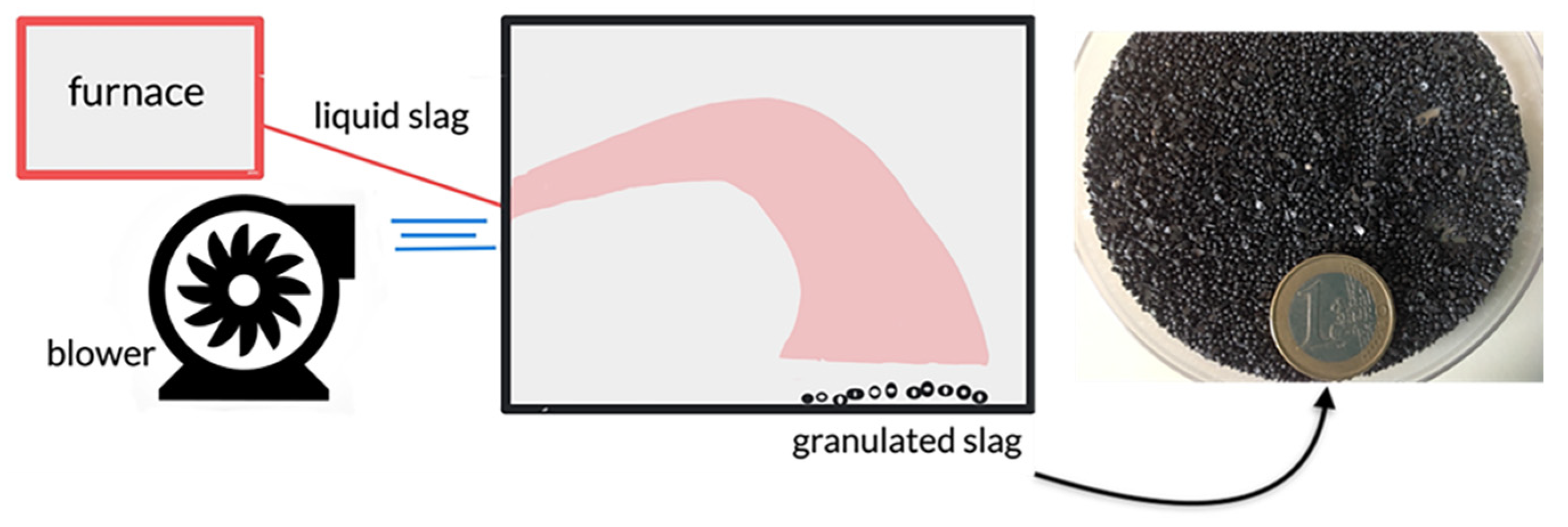

A recent production method is based on fast cooling of the slag with high-pressure cold air [15]. As a result, slag particles instantly form spherical shapes and are deposited in the air-cooled area. Slag particles thus formed are finer in size (<4.75mm), as shown in Figure 1. This fine aggregate of spheric slags is a promising and advantageous alternative to natural sand, also in terms of workability, water content and cement mechanical requirements [6,16,17].

Moreover, its composition makes it a potential ingredient for producing basalt-like materials.

Basalt is a dark-colored, fine-grained, igneous rock composed mainly of plagioclase and pyroxene minerals. It most commonly forms as an extrusive rock, such as a lava flow, but can also form in small intrusive bodies, such as an igneous dike or a thin sill [18].

Fiber-reinforced composites are becoming more and more relevant for applications including automotive, aerospace, marine and building applications. Carbon footprint and sustainability are the key factors in today’s world, and composites are often an optimized solution for these problems [19].

Basalt fiber has properties that are far superior to glass fiber. Basalt fibers resist flame, continuous temperatures of up to 815 °C and chemicals (both acids and bases); are excellent acoustic and electrical insulators; and have good mechanical properties. Because basalt remains functional down to −260 °C, it can be used also for cryogenic applications [20,21]. For these reasons, UE has recently granted EUR 3 million to a company for the development of a technology to use basalt fibers in 3D printing. In addition, NASA proposed a 3D-printed basalt fiber composite structure intended for Mars habitation.

Basalt fiber products are used in the automotive sector as building materials in nonwoven needled felts or as insulation materials for exhaust pipes, such as sheaths and strips. Moreover, basalt fiber is the most environmentally friendly, high-temperature resistant material when it comes to both manufacturing and recycling. Basalt is mainly used to produce two types of fiber-based products: rock wool for thermo-acoustic insulation applications and continuous fiber for applications such as reinforcement yarn for composites.

For both products, natural basaltic rock is melted at temperatures of about 1500 °C together with other raw materials, needed to adjust the final chemical composition, and the two processes leading to rock wool or continuous fiber differ mainly in the specific forming modes by which the melt is transformed into thin filaments with a diameter of a few tens of microns.

Rock wool is produced using a rotating centrifuge that radially projects thin jets of molten glass, accompanied by the melt’s cooling and solidification; then, the resulting fibers are collected and fixed by polymer resin as a disordered mat. Continuous fiber is produced by forcing glass to pass through multinozzle bushings that produce several thin filaments of molten glass that are then rapidly cooled and protected with a polymer-based thin coating called “sizing” by means of nebulization of an aqueous suspension; the continuous fibers are then spun and wound around a reel/spool for further processing.

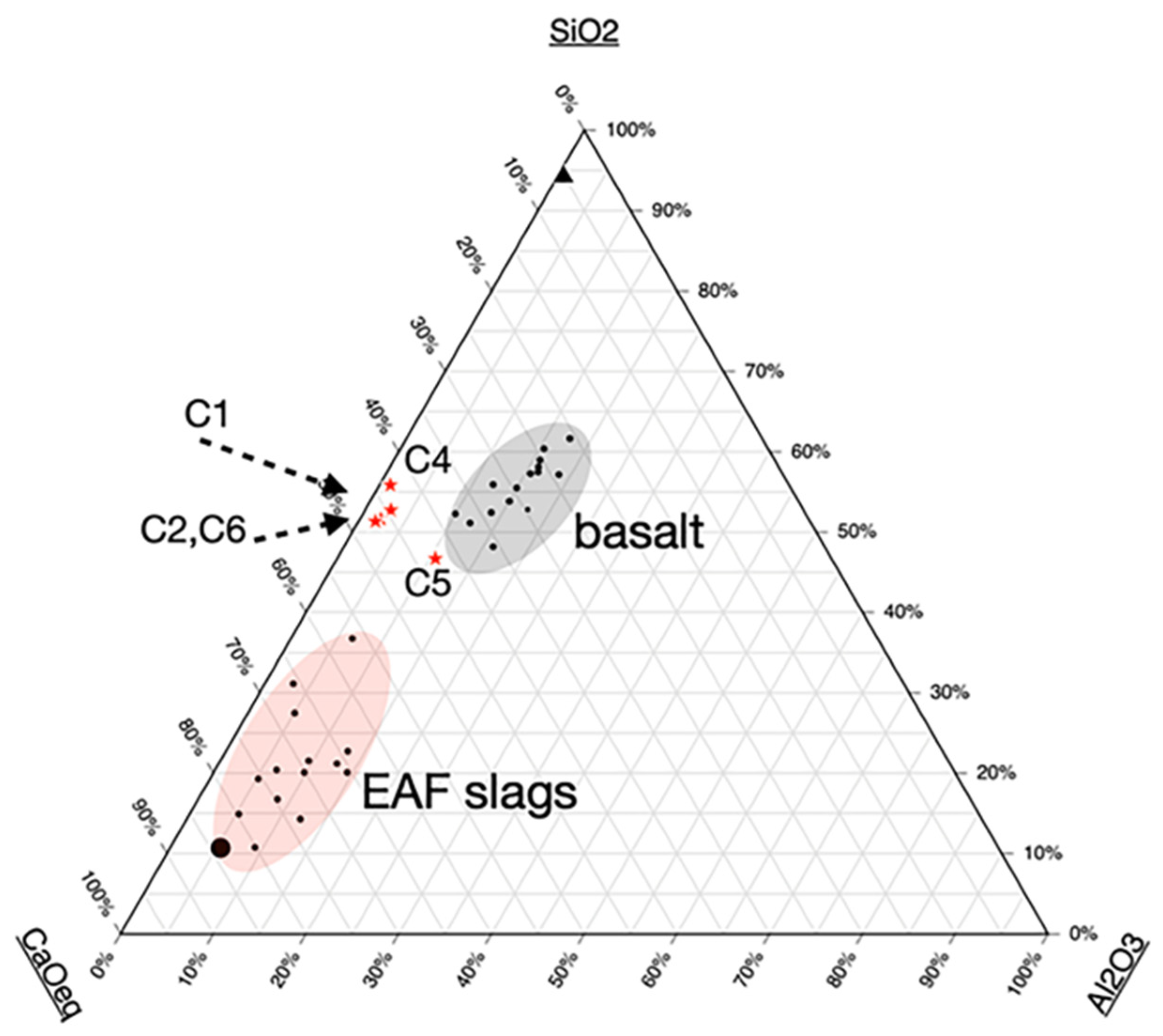

EAF slags are mainly composed of oxides: FeO/Fe₂O₃, CaO, MgO, SiO₂, MnO and Al₂O₃. The phase diagram (Figure 2) shows that the composition of the EAF slag must be principally enriched in SiO₂ to obtain materials with a composition similar to that of effusive stones such as basalt [22].

The use of EAF slags to produce rock wool has been already reported. The results showed that the use of slags does not affect the main qualities of rock wool (i.e., thermal insulation and fire resistance) [24].

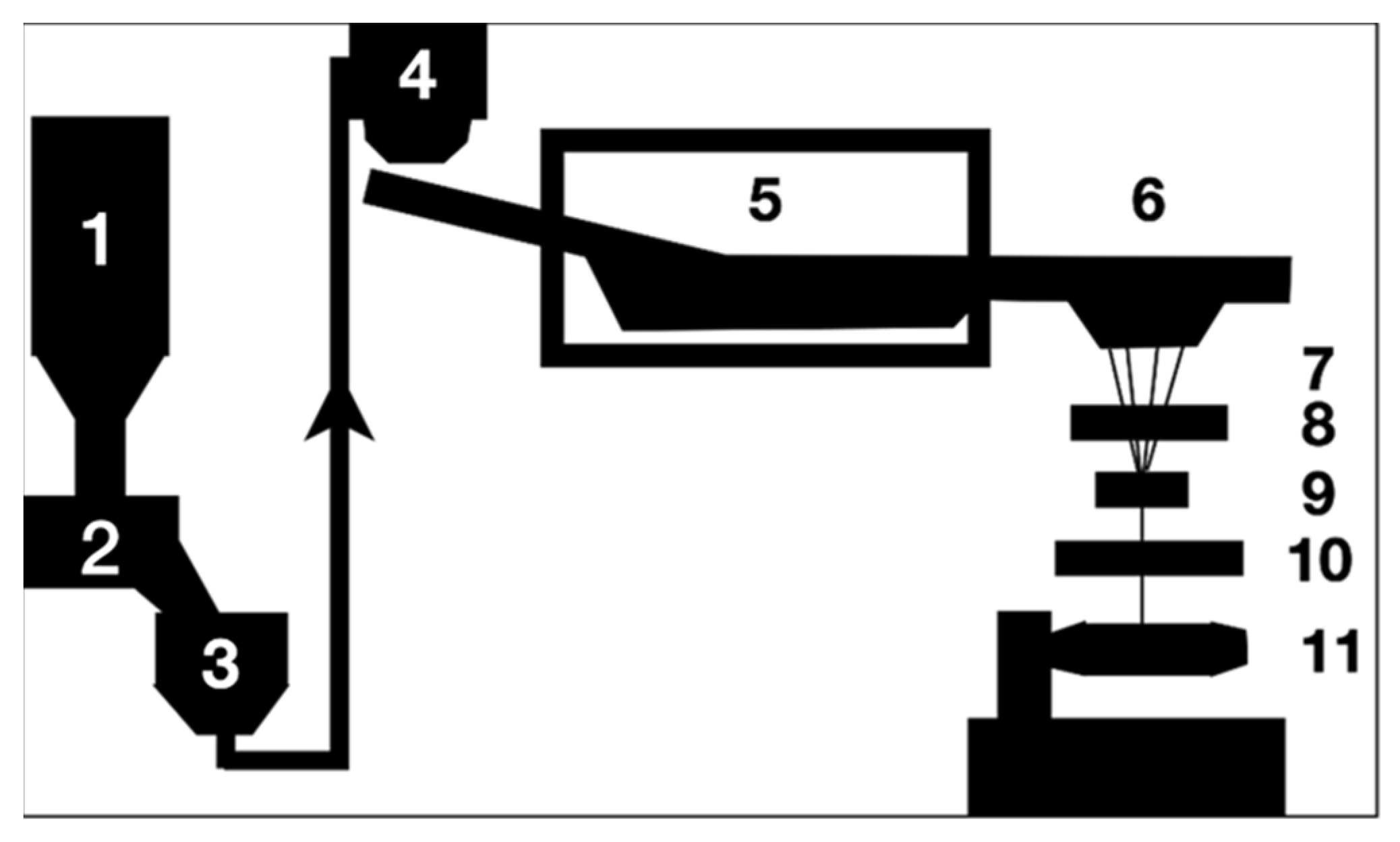

Figure 3 shows the continuous basalt fiber production process [25]: the crushed rock is transported from the silos to the melting furnace, at the exit of which the channels convey the molten glass to the bushings. The fibers are sized, twisted and finally wound in coils or transformed into different finished products [26]. Thanks to this process, it is possible to obtain a fiber with high mechanical and chemical resistance, especially in acid and basic environments, particularly suitable for reinforcing composite materials not only with polymer matrix but also with cement (impossible for common glass fibers, which would be dissolved by the alkaline environment).

Our research faces the challenge posed by the exploitation of steel slag and the need to find new alternative and eco-innovative industrial applications potentially capable of opening up new important markets for steel waste. The aim is to guarantee new value for steel mill slag, using it as a raw material in various innovative applications, in line with the search for strategies to promote the circular economy in the steel sector, with a transversal approach to added value.

In particular, in this paper, we report the production of basalt-like fibers that are a promising substitute for raw materials.

2. Materials and Methods

ORI Martin (Brescia, Italy) and Metalleghe (Flero, Italy) provided the EAF slags and the silica fume, respectively.

SEM images were obtained with an FEI Helios Nanolab 600 FEI dual-beam SEM-FIB instrument.

XRD measures were performed by means of X’Pert Pro MPD diffractometer, PANalytical, Almelo, The Netherlands (anode material: Cu; generator settings: 40 mA, 40 kV). Crystallography Open Database (COD) was used for crystalline phase identification.

XRF analysis was realized following ISO 12677:2011 with a Thermo ARL Advant’XP instrument, Thermo Scientific, Waltham, MA, USA.

The furnace used for laboratory-scale melting tests was an electrically heated 30 × 30 × 30 cm Carbolite furnace with radiating heating elements, capable of reaching a maximum temperature of 1550 °C, with a maximum controlled heating rate of 5 °C/min, designed to withstand severe thermal shocks (possibility of opening the loading door even at maximum temperature).

The laboratory-scale continuous fiber drawing preliminary trials were performed using a bespoke testing rig built in-house by Stazione Sperimentale del Vetro; the system features an electrically heated vertically oriented 20 cm diameter tubular furnace, reaching a maximum temperature of approximately 1300 ± 1 °C, with a 4 cm diameter hole on the bottom running through the whole insulation layer.

A series of refractory inserts allows safely positioning and homogeneously heating a small refractory crucible (of max. 7–8 cm diameter) with a calibrated orifice on the bottom (e.g., 8 mm), containing the glass sample. The piloting thermocouple is placed at approximately the same height as the orifice to ensure precise control of drawing temperature.

Below the furnace, a variable-speed electric motor drives a pair of metal counter-rotating rollers that are used to pull the fiber.

By adjusting the interplay between the furnace temperature and the drawing speed, it is possible to control the final diameter of the fibers: too high furnace temperatures lead to excessive diameter fibers (still incandescent when in contact with the traction rollers); fine tuning the drawing temperature to lower values yields smaller diameter fibers.

For tensile strength measures, an appropriate system was assembled. The fibers were fixed to a support and an increasing weight was applied to the opposite end. The tensile strength of each fiber was calculated by dividing the applied force by the area of the resistant fiber section.

Physical–Chemical Characterization of the Raw Materials

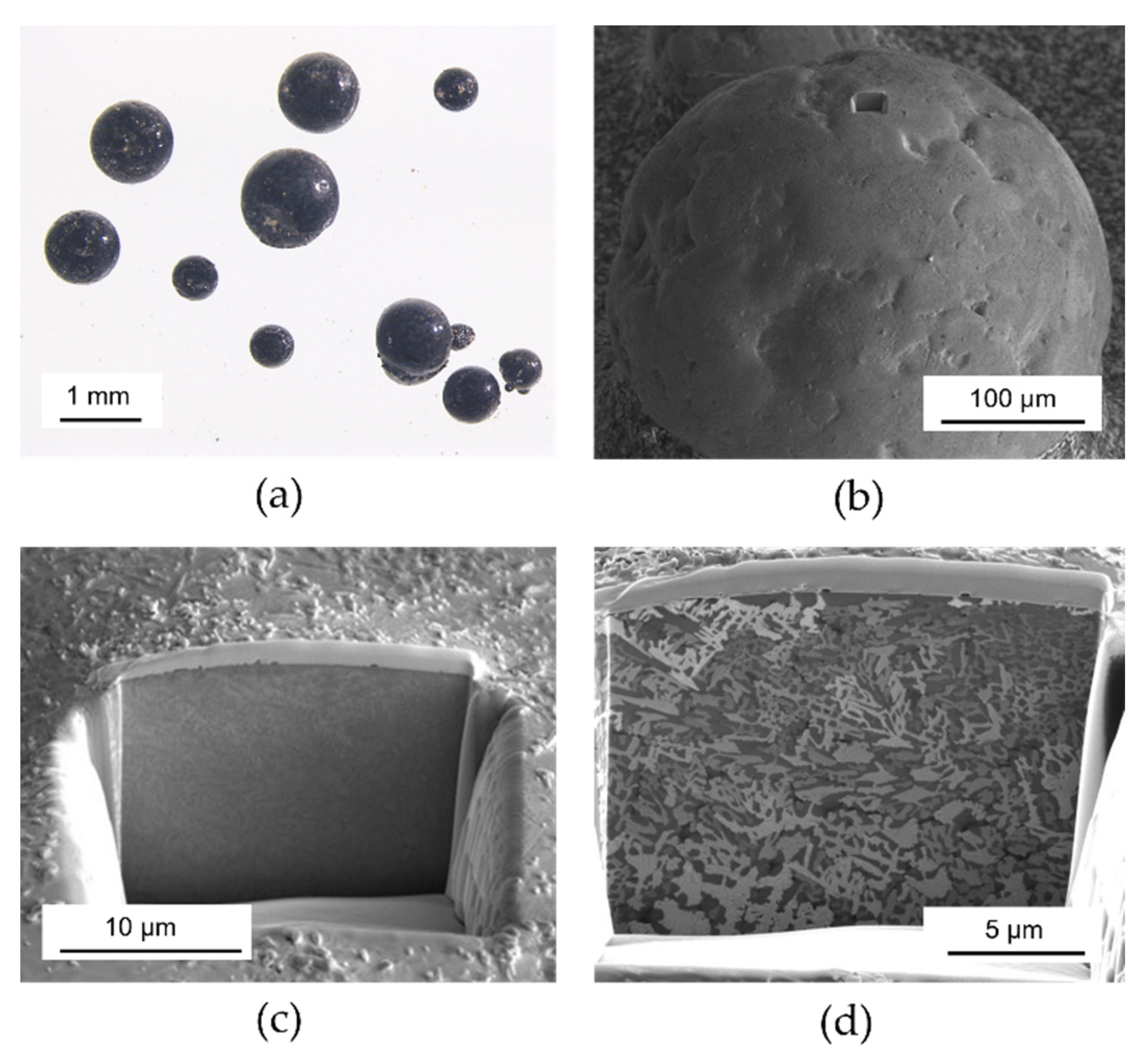

The EAF slag used in the test was obtained by rapid cooling with a gas jet. The product has a granular form with grain size d < 10 mm (see Figure 4). The granulated slag is spherical and compact. There are mainly three phases. The prevailing phases show evident, differently branched dendritic formations consisting of Fe, O, Ca, Al, Si and Mn. The minority phase has a globular morphology consisting of magnesium oxide with thickening of Fe on the surface.

Diffraction patterns of SBS were compared with those of slags produced by the same plant with the conventional water-cooling process. The results suggest that SBS can have different structural features showing a high percentage of amorphous material and of spinel phases.

The chemical composition of raw materials is reported in

Table 1. Sample compositions.

	Basalt Rock	EAF Slag	Silica Fume	Sample C1	Sample C2-3	Sample C4	Sample C5	Sample C6-7-8
SiO2	52.80	10.60	91.41	52.44	51.38	55.74	46.63	46.55
FeO3	10.30	43.29	0.10	21.70	17.37	8.72	11.33	11.29
CaO	8.59	22.05	0.19	11.12	8.92	11.14	12.84	9.80
MgO	4.63	8.46	0.85	4.67	3.82	8.81	2.51	2.51
MnO	0.16	6.21	0.04	3.12	2.50	1.26	1.63	1.63
Al2O3	17.50	5.39	0.18	2.79	2.25	1.18	10.59	1.66
Cr2O3	0.06	2.74	0.00	1.37	1.10	0.55	0.71	0.71
K2O	1.46	0.00	2.54	1.31	1.31	1.49	0.92	0.92
Na2O	3.34	0.09	1.44	0.79	10.78	10.86	12.59	15.54
P2O5	0.28	0.31	0.22	0.27	0.24	0.19	0.16	0.16
TiO2	1.38	0.29	0.00	0.15	0.12	0.06	0.08	0.08

. The granulated slag has an iron content of more than 43% by weight, expressed as Fe₂O₃; CaO (22%); and about 10% SiO₂. In the silica fume, the SiO₂ content is about 91%, with alkali and alkaline earth oxides and traces of other elements accounting for 5%. These data allow us to define the first mixture and the needed additives to obtain a composition similar to basaltic rocks suitable to produce fibers.

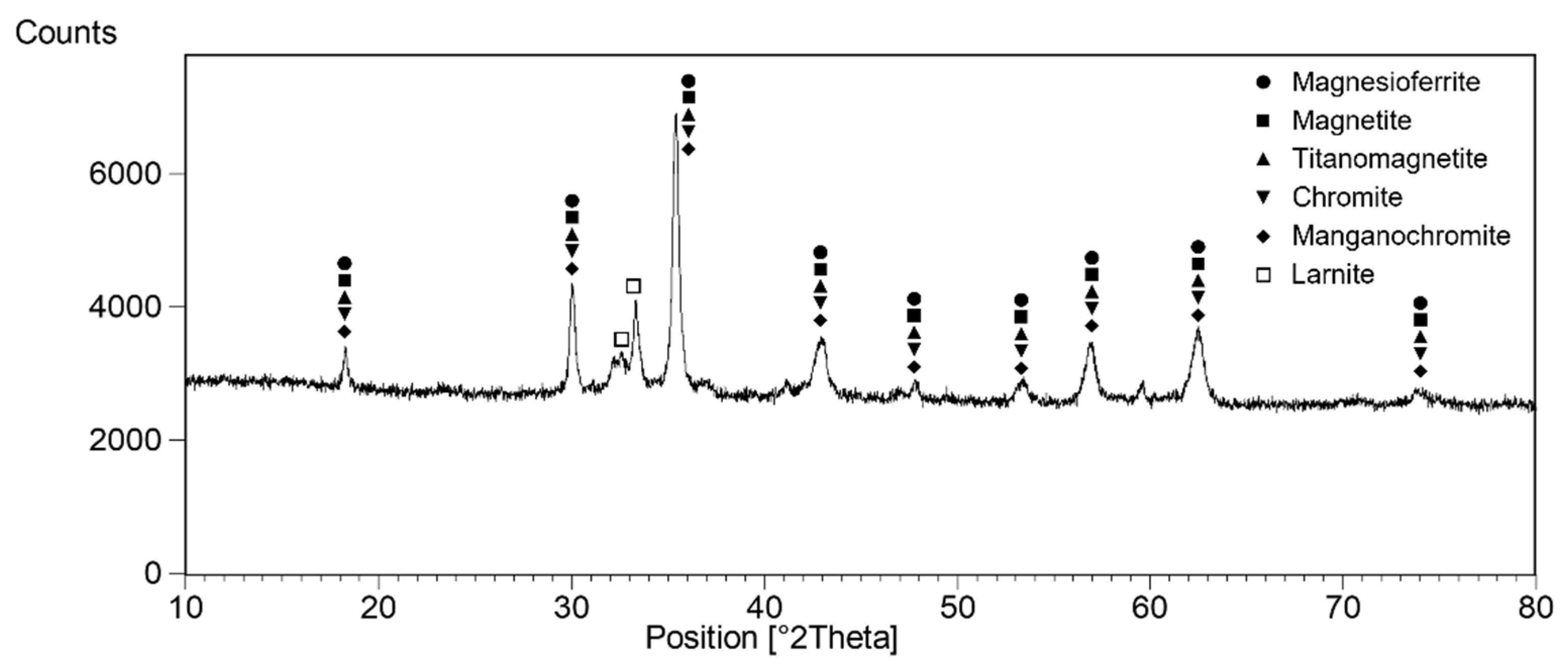

The EAF slag phases were identified by XRD (Figure 5). Different pseudo-magnetite phases (Fe₃O₄) and dicalcium silicate (larnite (Ca₂SiO₄)) were identified. Magnetite (Fe₃O₄), magnesioferrite (Fe₂MgO₄), titanomagnetite (Fe_2.75Ti_0.25O₄), chromite (FeCr₂O₄) and manganocromite (MnCr₂O₄) have a similar crystalline structure with only slightly different cell parameters; therefore, their peaks and diffraction intensities are overlapped, except for the highest angles. The peaks not highlighted in Figure 5 belong to the larnite phase. None of the identified phases contains aluminum, which is likely in the amorphous or solid solutions.

The silica fume is almost completely in the amorphous phase.

EAF slags differ in chemical composition, and in general, a significant inhomogeneity may be found. However, in view of the process adopted for slag production in this research, a very good homogeneity of the composition is obtained. As far as the potential difference in the composition due to the raw materials used in the EAF process, the variability is not expected to be larger than that found in basalt rocks (see Figure 2).

3. Results and Discussion

3.1. Design of the Basaltic Glass Composition, Laboratory-Scale Melting and Fiber Drawing Tests and Fine Tuning of the Batch Formulation

The first batch formulation was a mixture of 50% EAF slag and 50% silica fume, named C1. The melting process was carried out in a refractory crucible within an electric furnace at the operating temperature of 1400 °C; the melt was mechanically homogenized and then cast. The melt was viscous, and, after solidification, the sample was annealed for one hour at 600 °C, during which crystals formed both on the surfaces and in the bulk of the glass (Figure 6).

The chemical composition of sample C1 (Table 1), though having percentages of silica and most other oxides similar to basaltic rocks, contained much less alumina, which is a critical constituent in determining the final glass viscosity and thus the technical feasibility of fiber production.

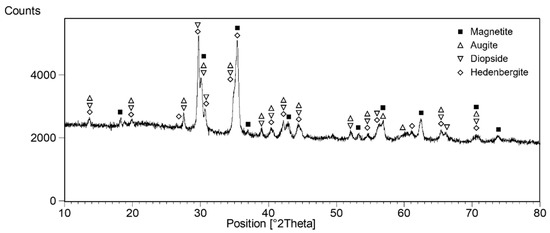

The crystalline phases formed during cooling were different from those found in the EAF slag, and peaks in agreement with pyroxene species were identified: calcium silicates rich in magnesium and/or iron, and possibly aluminum and titanium (Figure 7). The main pyroxenes are augite, diopside and hedenbergite, all containing about 50 mol% calcium. Augite can contain up to 25 mol% alumina, while in diopside and hedenbergite the maximum is 1.5%. While augite and magnetite were recognized, diopside (MgCaSi₂O₆) and hedenbergite cannot be distinguished in the XRD pattern.

Based on the elemental composition, the identified crystalline phases and the phase diagrams, we estimated that after annealing the sample consists of about 40% in weight of amorphous and 60% crystalline phases. This percentage of crystallinity is too high for fiber production; therefore, additives were added to the batch formulation to reduce its devitrification propensity.

Different vitrifiable mixtures were tested with the aim of approaching the composition of basalt rocks and obtaining a glassy material suitable for drawing continuous fibers at temperatures below 1400 °C. Alkaline oxides were added to decrease the viscosity of the glass and reduce the devitrification phenomena, representing a critical issue for the production of the fibers. In fact, crystal phases could lead to the occlusion of the nozzles and may determine fiber breakage.

Two new compositions, C2 and C3, were tested at first. In these samples we reduced EAF slag to 40 wt%, maintaining 50% silica fume and adding 10% Na₂O in sample C2 and 5% Na₂O and 5% K₂O in sample C3, with both alkali oxides being added into the mix as carbonates (see Table 1).

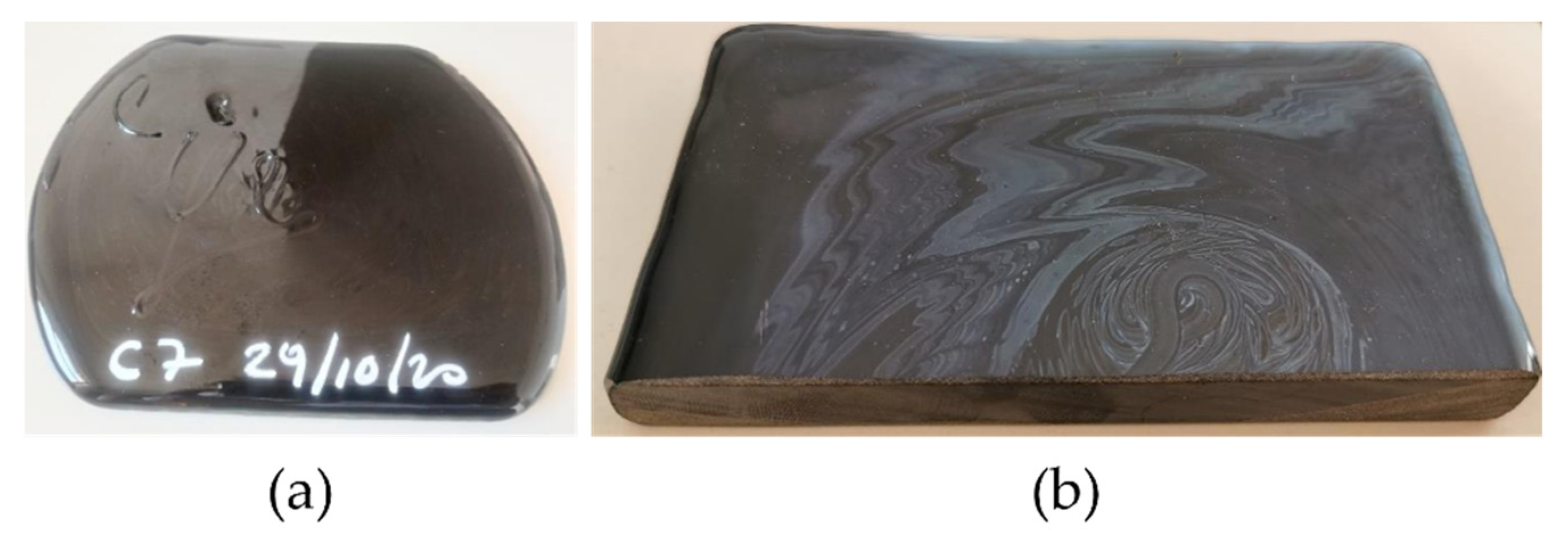

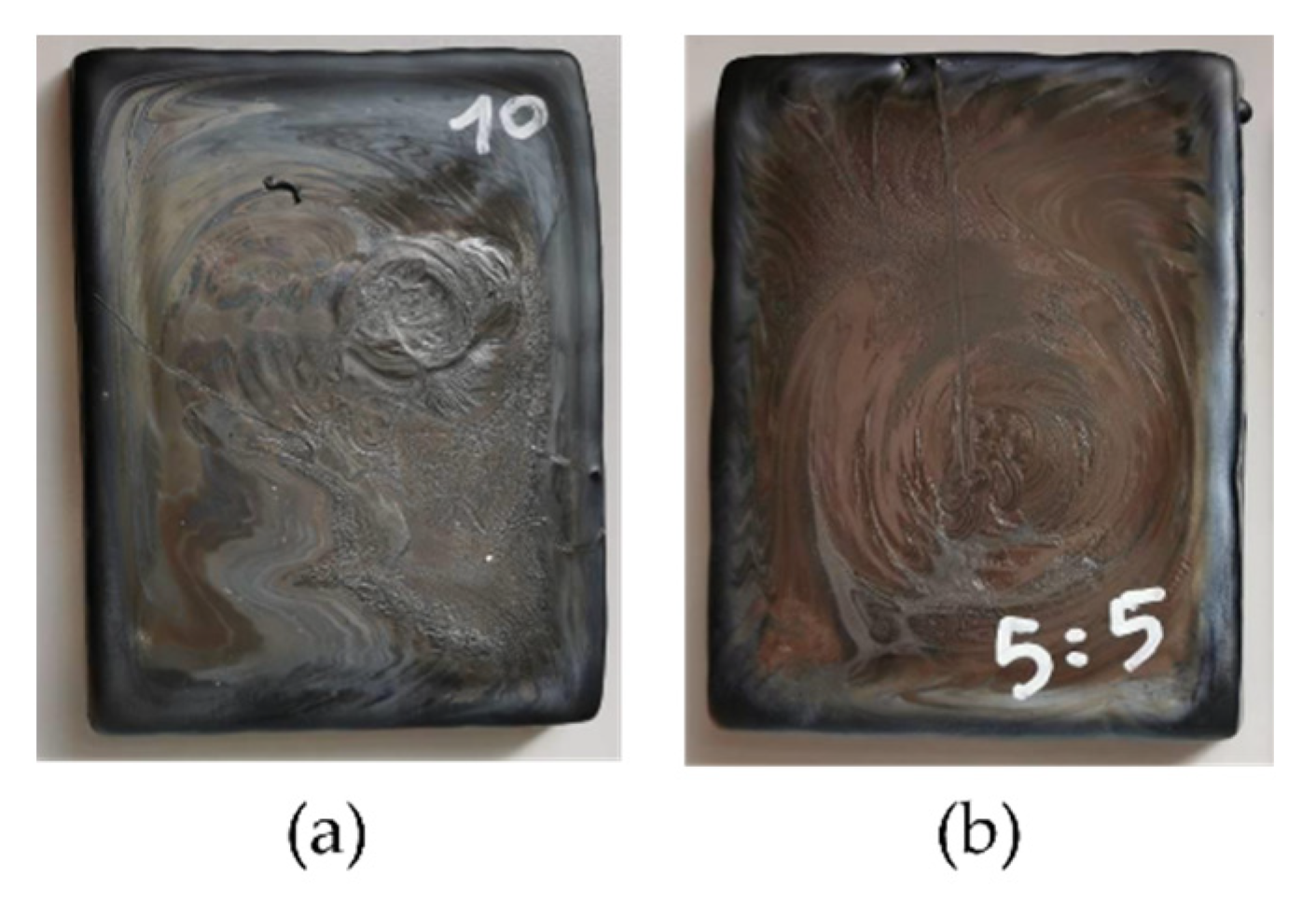

The mixtures were fused in silico-aluminous crucibles for 3 h at 1400 °C and cast onto a cold metal plate to form thick glass plates (about 15 × 10 × 2 cm³) that were subsequently annealed at 580 °C for 1 h, yielding the specimens shown in Figure 8.

Despite the relevant devitrification observed, a first fiber drawing trial was performed with sample C2 to investigate its behavior: part of the thick glass plate produced by the experimental casting was roughly crushed, and some shards were loaded into a silico-aluminous refractory crucible with a height of 10 cm and a mouth diameter of 7 cm, with a small 8 mm diameter orifice on the bottom.

We observed two concurring phenomena:

• The development of Fe-rich crystalline phases at the interface with the refractory material in the nozzle/hole area at the bottom of the crucible;
• The air-mediated oxidation of the Fe²⁺ of the melt to Fe³⁺ in the same area, resulting in a local increase in glass viscosity (Fe²⁺ acts as a fluxing network modifier, while Fe³⁺ is much less effective as a flux than Fe²⁺).

Both these phenomena concurred to form a semirigid shell around the melt flowing down from the crucible hole (see Figure 9b), which hindered further material flow towards the bottom of the test rig, causing in the end the periodic fall of large glass drops with semirigid outer shell, instead of the formation of a continuous fiber.

Despite the content of alkaline modifiers being around 10%, sample C2 was found to be quite “short”, characterized by strong variations in viscosity in correspondence to modest temperature changes. The pouring of glass drops stopped completely decreasing the temperature by less than 5 °C.

Sample C3 was not tested, since it would have likely exhibited the same issues.

To reduce the formation of crystalline phases within the melt and minimize the changes in viscosity corresponding to local variations in the redox equilibrium, three new batch formulations (C4, C5 and C6) were developed. The alkaline content was increased, and the slag was reduced to lower the Fe₂O₃ percentage. The composition of the samples is reported in Table 1.

The C4 glass was melted at 1400 °C for 3 h in a small refractory crucible directly suitable for fiber drawing trials in the lab-scale testing rig; no casting was performed, but the crucible was rapidly cooled in air to minimize crystal formation. The final product had a glossy and smooth surface, a sign of minimum devitrification upon cooling.

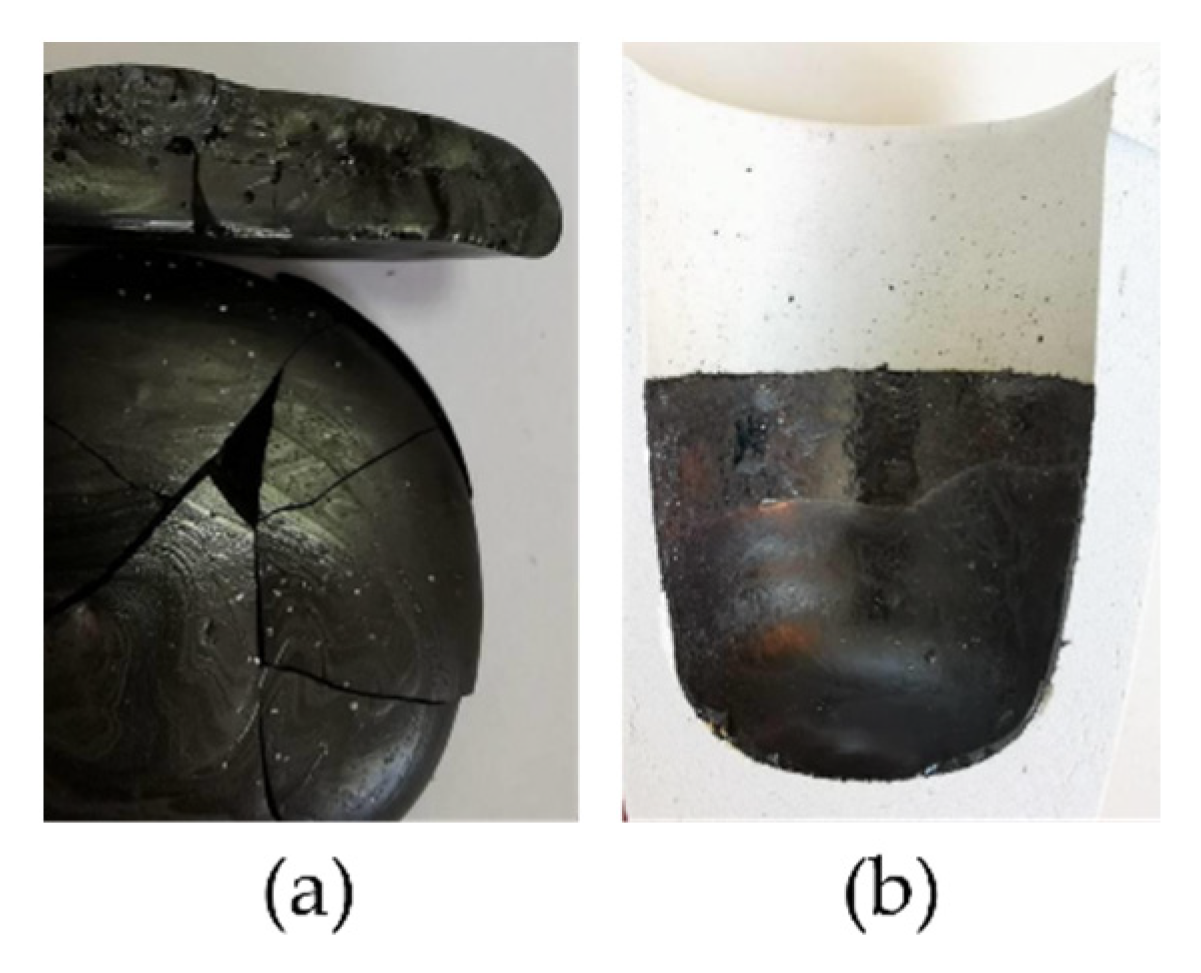

However, when the sample was placed in the fiber-drawing system and heated, at temperatures of around 800 °C, the glass gave rise to strong devitrification phenomena, rapidly increasing its volume and breaking the crucible.

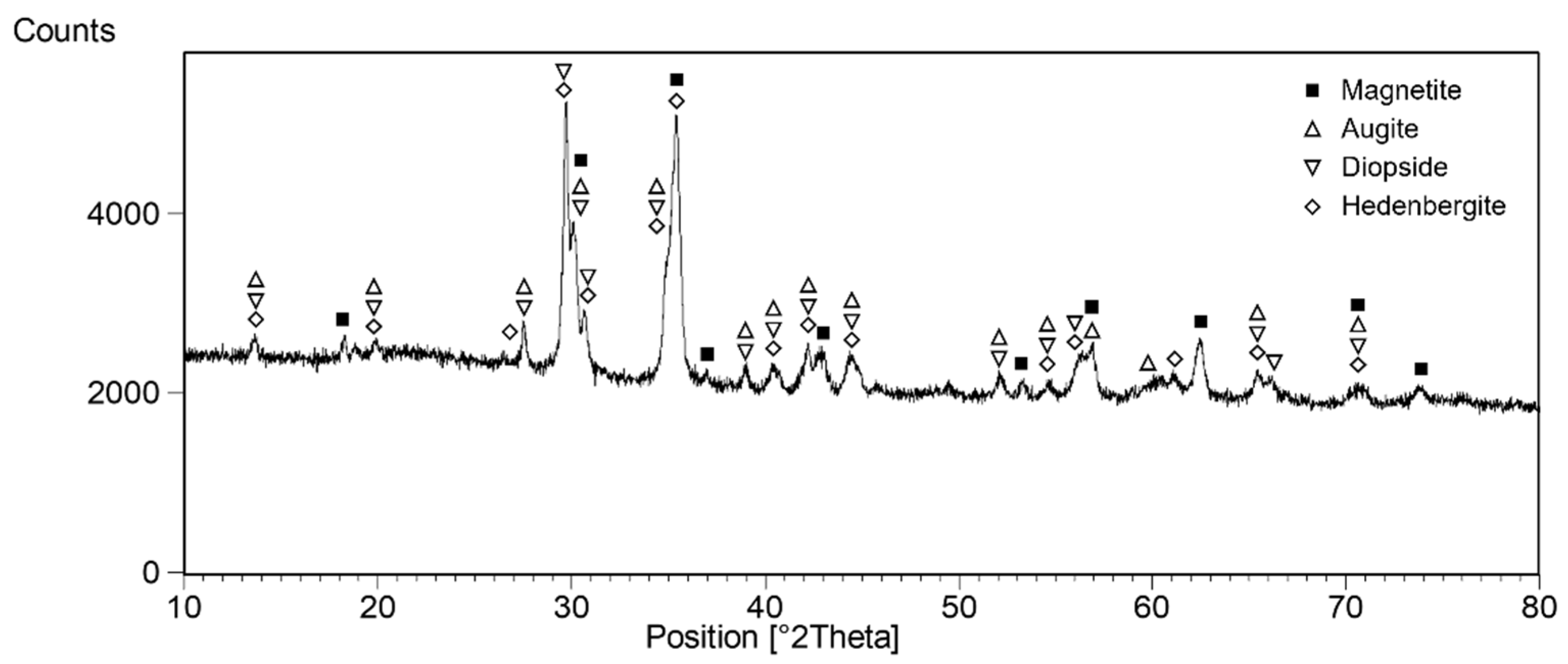

The XRD analysis of the crystallized sample showed 40% amorphous phase and 60% diopside (MgCaSi₂O₆). Close to the upper surface, hedenbergite (CaFeSi₂O₆) was also identified. The reason for this behavior is probably related to the fact that the sample’s composition is close to that of diopside, and Fe could favor the formation of Hedenbergite at the surface.

In samples C5 and C6, we did not add magnesium-bearing raw materials (e.g., dolomite), and, instead, we increased the Al content by adding kaolin (Al₂Si₂O₅(OH)₄) in sample C5 and metakaolin (precalcined kaolin: Al₂O₃ · 2 SiO₂) in C6. The two formulations mainly differed in the percentages of calcium and sodium oxides: 7% CaO (introduced as calcium carbonate) and 12% Na₂O for sample C5 and 4% CaO and 15% Na₂O for sample C6.

In both samples, the viscosity behavior was significantly shifted towards higher temperatures, allowing the optimal drawing temperature to be reached in a range unfavorable to crystal formation.

Samples C5 and C6 were melted in small crucibles at 1400 °C for 3 h and left to cool quickly in calm air. Both glasses were then tested in the laboratory-scale fiber drawing rig.

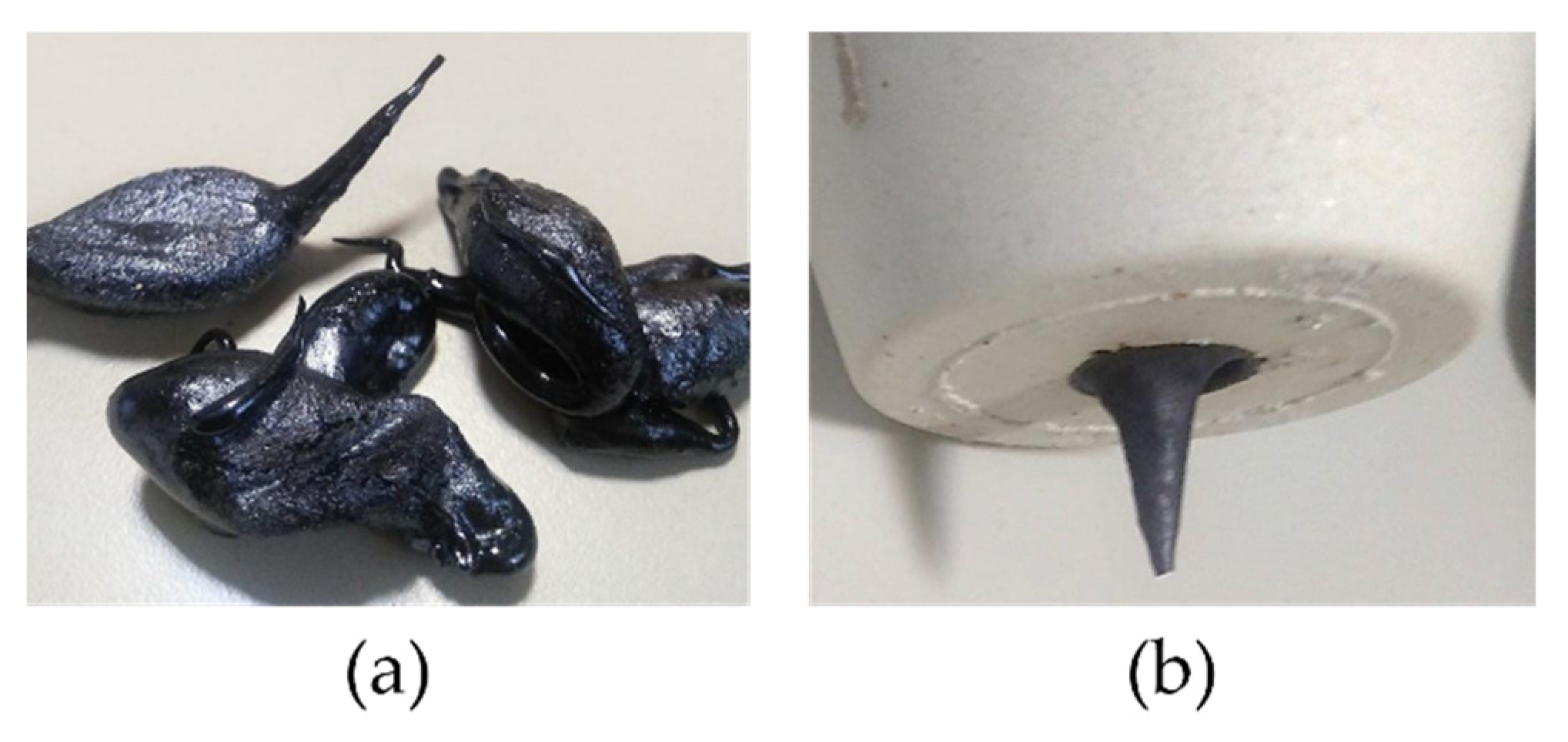

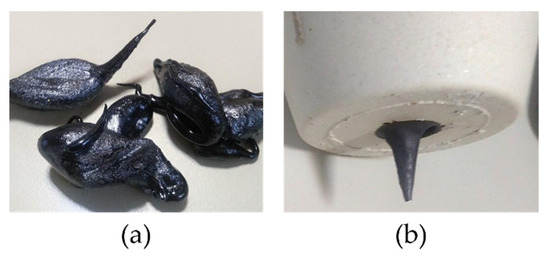

At about 1120 °C, sample C5 began to flow from the crucible in the form of a thin filament. However, in the end, the thermal inertia of the furnace brought the glass up to about 1126 °C, and due to the “short” viscosity behavior of the melt, the crucible started to pour larger and larger amounts of molten glass, basically emptying itself in less than 2 min. The product appeared vitreous and glossy, so presumably there was no devitrification during the fiber production.

From this evidence, it is possible to state that the C5 composition is suitable for fiber production, even though it is characterized by significant viscosity variations at 1120 °C, likely due to the high alkaline earth content, so drawing fibers from it could require a very tight control on melt temperatures in the bushing.

C6 composition was subsequently tested following the same procedure, eventually demonstrating much better fiber drawing aptitude: the sample began to produce a thin thread of glass at about 1115 °C, and the viscosity remained perfectly suitable for fiber drawing up to 1120 °C; no excessive flow of glass (like in the C5 test) was encountered for temperatures slightly exceeding the optimal drawing interval. The laboratory-scale system produced fibers about 2.5 m long, with a diameter of 150–180 microns.

Thus, the C6 sample, containing 26 wt% black granulated EAF slag, 35% silica fume, 20% metakaolin, 15% sodium oxide (added as Na₂CO₃) and 4% calcium oxide (added as CaCO₃), proved to be suitable to produce thin fibers, demonstrating the chemical–physical and technical feasibility of producing basaltic glass fibers from granulated black slag.

Further melting and fiber drawing tests were carried out with the C6 batch formulation to confirm the mixture’s fusibility and fiber formation potential, as well as to produce samples for preliminary mechanical characterizations.

Two additional samples with the same composition of C6, named C7 and C8, were produced in larger crucibles (approx. 1 kg of molten material) following the same protocol. However, sample C7 was cast on a cold metal plate and cooled in air, while C8 was cast and then annealed for 1 h at 580 °C. As shown in Figure 10, the samples were found to be smooth and shiny, even if the C8 sample showed some surface crystallization.

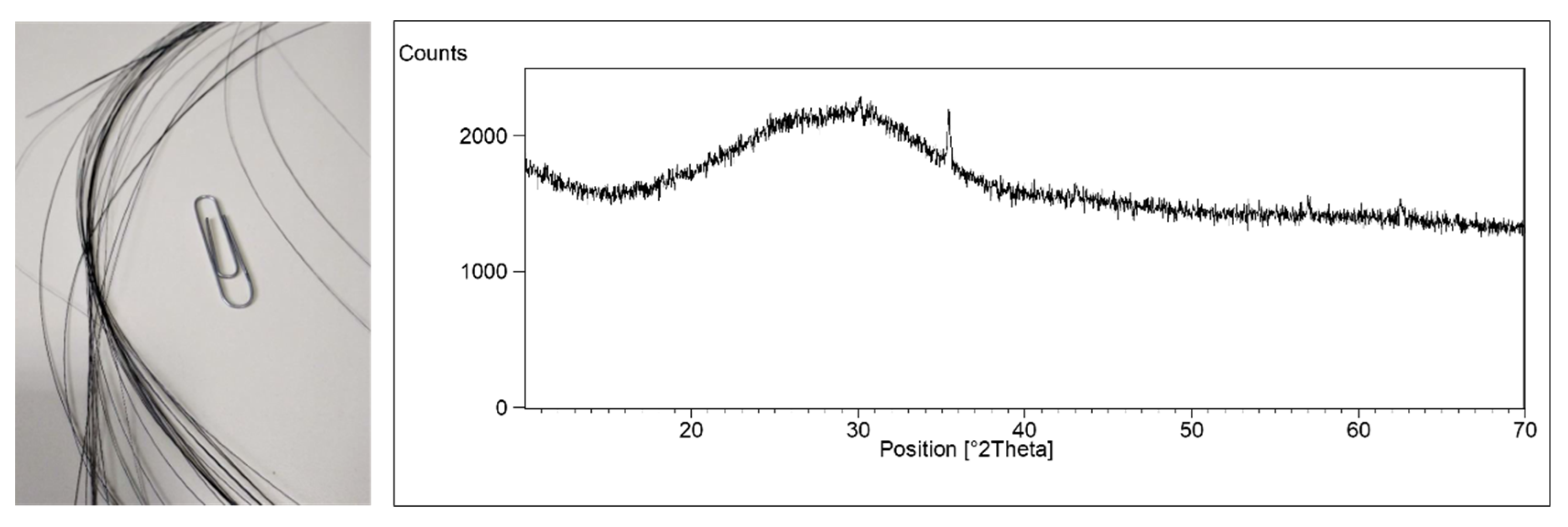

After coarse crushing, the C8 glass underwent fiber drawing tests, yielding very positive results and thus confirming the possibility of fiber production with the bespoke laboratory-scale testing rig in an optimal temperature interval ranging from 1115 to 1125 °C, at linear drawing speeds of about 2–3 m/s. Fibers 5–6 m long with a 60–180 µm diameter were produced, as shown in Figure 11.

3.2. Preliminary Tensile Strength Tests

Fibers produced from samples C6 and C8 were mechanically tested to draw a first approximate estimate of their tensile strength.

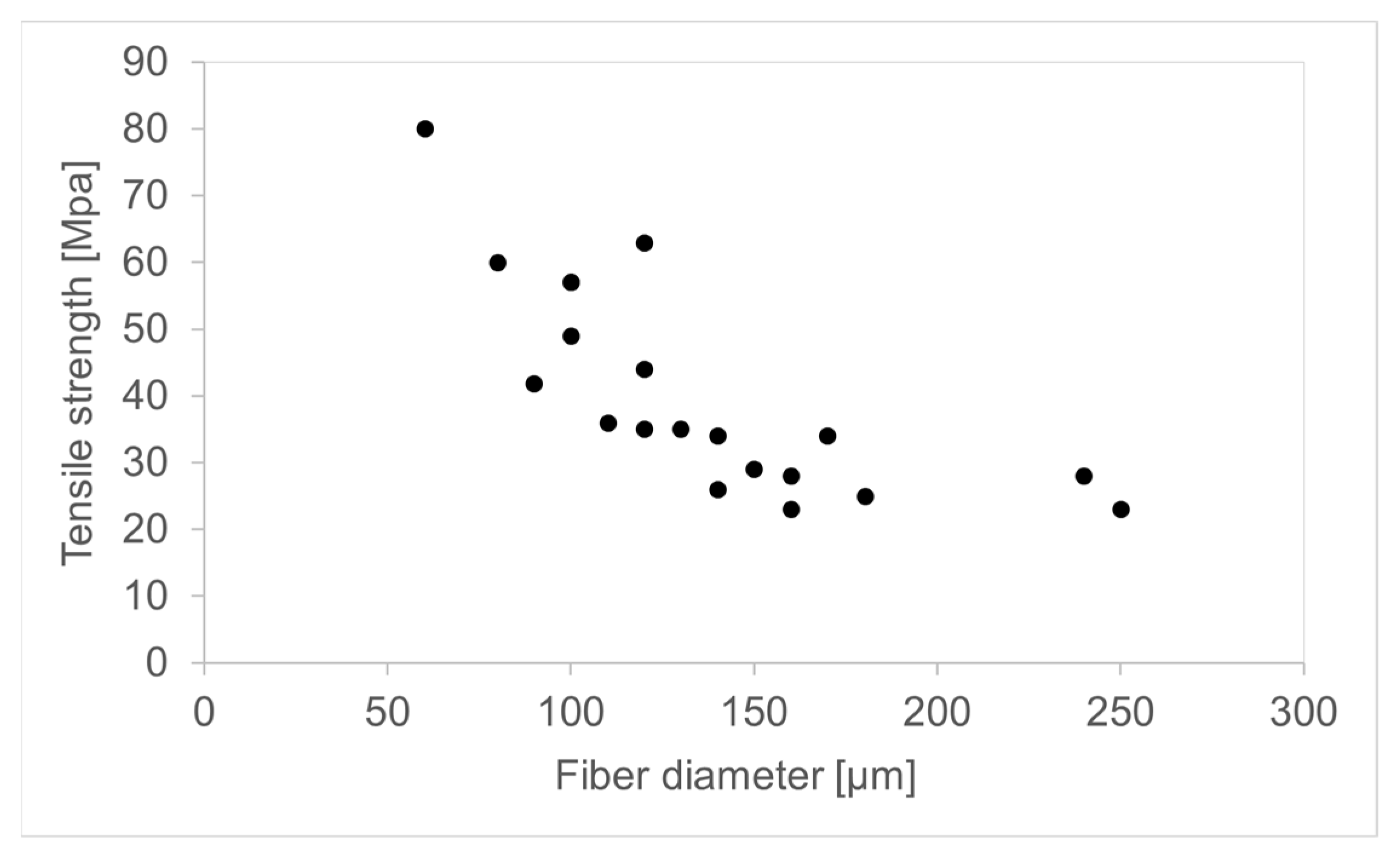

The experimental tensile test was carried out on 20 fibers about 20 cm long, carefully selected for their good uniformity of thickness; the measurement was performed by fixing one of the fiber ends to a sample holder and applying an increasing weight to the opposite one. The tensile strength of each fiber (in megapascals) was determined by measuring the weight (in newtons) necessary to break the fiber and dividing it by the area of the fiber’s cross-section (in square millimeters). The results are shown in Figure 12.

The acquired results are much lower than those expected from commercial basaltic fibers or from reinforcement glass fibers in general [27] and are much closer to the tensile strength performances of standard glass articles (e.g., annealed flat glass under bending stress, bottles under hydrostatic bursting pressure).

It is crucial to outline that the results thus obtained are strongly affected by the defects produced on the surfaces of the fibers by the not-optimized laboratory process exploited for their drawing. In particular, the impossibility of applying a protective sizing to the fibers in the testing rig before their contact with the drawing rollers and with other fibers (as is commonly done in industrial-scale production) led to relevant mechanical damage (scratches and cracks) of their surfaces.

Therefore, the experimental results reported above represent a drastic underestimate of the performance the fibers will be able to reach once their production process is upscaled, optimized and industrialized.

4. Conclusions

This study demonstrated the physical–chemical and technical feasibility of exploiting EAF granulated slag to produce continuous glass fibers with a basaltic-like composition.

The process could employ, as additives, other by-product materials, such as silica fume, feldspars and clays, minimizing the primary raw materials required for fiber production.

Using a custom-made, in-house built fiber drawing testing rig, we produced at the laboratory scale fibers up to 5–6 m long, with a diameter between 60 and 180 µm. The process involved using a small crucible in refractory material with a calibrated diameter bottom orifice, with the function of single nozzle bushing. The optimal temperature range for fiber forming operations in laboratory testing rig conditions was found to be between 1115 and 1125 °C, with a linear drawing speed of about 2 m/s.

Further research and laboratory testing must be carried out to assess the maximum EAF slag percentage that can be added to the basalt-like glass formulation without incurring devitrification or other issues potentially disruptive for fiber production. Moreover, the primary raw material additives preliminarily used in this study, namely sodium carbonate, calcium carbonate and meta-kaolinite, could be substituted with other industrial by-products to render the process fully integrated into the circular economic paradigm.

The optimization of the final chemical composition of basaltic glass on the one hand and the development of the formulation of the vitrifiable mixture of secondary raw materials on the other are, however, tightly connected to the specific melting and industrial fiber forming technology adopted.

Finally, having demonstrated the possibility of obtaining continuous basalt-like glass fibers from granulated EAF slag, we can foresee that another industrial opportunity to “close the recycling loop” might arise from less technically challenging processes, such as the production of noncontinuous fibers for mechanical reinforcement or the production of nonwoven felts and mats for thermal–acoustic insulation (e.g., akin to rock wool and glass wool). Indeed, the production of these materials would be technically and technologically less complicated, and there would be no requirements for high mechanical strength.
