O-Vacancy-Rich ε-MnO2 Synthesized at Hydrophobic Interface: An Efficient Fenton-like Catalyst for Removing Ciprofloxacin from Water

by
Yulong Chen
†,
Yuan Chi
†,
Xiao Wu
*,
Cong Lin
,
Tengfei Lin
,
Min Gao
,
Chunlin Zhao
and
Baisheng Sa
*
College of Materials Science and Engineering, Fuzhou University, Fuzhou 350108, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to the work.
Crystals 2023, 13(12), 1664; https://doi.org/10.3390/cryst13121664
Submission received: 17 November 2023 / Revised: 30 November 2023 / Accepted: 3 December 2023 / Published: 6 December 2023
(This article belongs to the Section Inorganic Crystalline Materials)
Browse Figures
Versions Notes

Abstract

:
The widespread use of pharmaceuticals and personal care products (PPCPs) in many fields has brought convenience to human lives but has also caused unavoidable environmental pollution issues. In particular, the resistance gene problem resulting from accumulating antibiotics that cannot be fully absorbed by biological individuals has been a concern; thus, it is urgent to find efficient technologies to boost the degradation efficiency of antibiotics in the environment. Here, an ε-MnO2 catalyst was prepared by a novel droplet-interface-drying method and utilized as a Fenton-like catalyst for efficiently degrading ciprofloxacin (CIP). The ε-MnO2 shell was formed preferentially at the gas–liquid interface and then continued to decompose into ε-MnO2 with abundant O vacancies in the air-insulated microcavity. The XPS result confirms that this particular preparation method can regulate the content of O vacancies in the material. Compared with ε-MnO2 samples obtained by the direct drying method (ε-MnO2-B), the catalytic performance of ε-MnO2 prepared by the droplet-interface-drying method (ε-MnO2-P) is significantly improved. By activating peroxymonosulfate (PMS) with the ε-MnO2-P catalyst, the CIP degradation efficiency can reach 84.1%. The detection and analysis of reactive oxygen species (ROS) in the ε-MnO2-P/PMS oxidation system confirms that ·OH, SO4·− and 1O2 are the main ROS for CIP degradation. This study highlights the creation of miniature hypoxic space to regulate the content of O vacancies in ε-MnO2, providing a new idea for the synthesis of other O-vacancy-rich materials.

1. Introduction

The rising living standard of people has led to an increasing focus on health issues, so the usage of pharmaceuticals and personal care products (PPCPs) is increasing year by year. The pollution of the water environment caused by the resulting organic residues began to attract the attention of numerous experts [1,2]. Antibiotics are widely used in various fields because of their excellent antibacterial performance. Ciprofloxacin (CIP), as a broad-spectrum antibiotic, is used in large quantities, but it is difficult for it to be fully absorbed by humans or animals and it is degraded with traditional wastewater treatment methods [3]. CIP tends to accumulate in the natural environment with sewage, resulting in unavoidable biotoxicity that harms humans and other organisms, even with low levels of CIP [4,5,6]. In the worst-case scenario, antibiotic-resistant bacteria (ARB) along with antibiotic resistance genes (ARGs) are produced and spread in the water column. Therefore, a simple and efficient wastewater treatment technology to remove CIP residue from the effluent is urgently needed.
Advanced oxidation processes (AOPs) are commonly used sewage treatment technologies that mainly rely on the activation of H2O2 or peroxymonosulfate (PMS) to generate different radicals (e.g., hydroxyl radicals (·OH) and sulphate radicals (SO4·−)) to degrade organic pollutants to purify water [7,8]. In addition, compared to ·OH, SO4·− has caused extensive concern on account of its higher redox potential (E0 = 2.8~3.1 eV), wider pH range and lower cost [9,10,11]. Therefore, the production of reactive oxygen species (ROS) by activating PMS is very promising and is also known as sulphate radical-based advanced oxidation processes (SR-AOPs).
There are many studies using various methods to activate PMS, such as transition metal catalysts [12], UV light irradiation [13], and heating [14]. Therein, transition metal catalysts have been widely studied because of the presence of metal centres, which can provide more catalytically active sites, and the reaction conditions are mild and convenient [15,16]. Cobalt (Co) is considered to be one of the most efficient transition metals for the activation of PMS, but its practical use has yet to be explored due to shortcomings such as toxicity and a tendency to cause secondary contamination [17,18]. Equally, the adjacent metal manganese (Mn) has been widely used in AOPs due to its low cost, abundance in nature and relatively low toxicity. Many studies have illustrated and explained the effectiveness of different manganese oxides for activating PMS, such as α-, β-, and γ-MnO2 [19], Mn2O3 [20] and Mn3O4 [21]. These results indicate that the different crystalline manganese oxides have various degradation effects on pollutants.
As is known to all, the structural defects of catalyst materials display a positive effect on catalytic performance. ε-MnO2 is a promising Fenton-like catalyst material because it has more abundant defects and higher disorder than other crystalline manganese oxides. Its internal structure is a disordered cross-combination of pyrolusite structure (1 × 1 tunnel) and rhombohedral manganese structure (1 × 2 tunnel). This special highly disordered structure makes ε-MnO2 a prospective catalyst material [22,23,24]. In this work, a very simple method was used, and two kinds of ε-MnO2 samples were obtained by varying the reaction interface. Both samples were used as Fenton-like catalysts for the removal of CIP from water, and the adsorption capacity of CIP and activation performance of PMS were assessed by UV spectroscopy. The influence of factors such as the initial pH value of solution and catalysts or the PMS dosage on the CIP removal efficiency were also investigated. In addition, the main ROS in the ε-MnO2/PMS oxidation system, the stability of the ε-MnO2 catalyst and the removal mechanism of CIP were also systematically demonstrated. This study displays a simple and special fabrication method of ε-MnO2, which provides a novel design strategy for the preparation of efficient SR-AOP catalysts.

2. Experimental Procedure

2.1. Materials and Chemicals

Barium chlorate monohydrate (Ba(ClO3)2·H2O) was purchased from Advanced Technology & Industrial Co., Ltd (Hong Kong, China). Manganese sulphate (MnSO4·H2O), potassium monopersulate triple salt (PMS, KHSO5·0.5KHSO4·0.5K2SO4), 5,5-dimethyl-1-pyrroline N-oxide (DMPO), 2,2,6,6-tetramethylpiperidine (TEMP), tert-butanol (TBA) and ciprofloxacin hydrochloride (CIP) were purchased from Shanghai Aladdin Biochemical Co., Ltd. (Shanghai, China). Hydrochloric acid (HCl) was obtained from Fujian Chemical Glass Scientific and Educational Instrument Co., Ltd. (Fuzhou, China). Sodium hydroxide (NaOH) was purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Isopropyl alcohol (IPA) was obtained from Shanghai Titan Technology Co., Ltd. (Shanghai, China). All reagents were directly used without further purification. In addition, deionized water (DI) was used as experimental water in all procedures.

2.2. Synthesis of ε-MnO2 Catalysts

A total of 13.42 g Ba(ClO3)2·H2O was dissolved in DI water (50 mL), and 7.72 g MnSO4·H2O was dissolved in 30 mL DI water. Then, the above two solutions were mixed and stirred to obtain a uniform suspension after 10 min. Soon afterwards, the mixture was centrifuged at 8000 r/min to obtain a Mn(ClO3)2 solution. A similar synthetic process of Mn(ClO3)2 solution has been recorded in previous literature [22]. The prepared solution was sealed and stored under refrigeration away from light and used for subsequent experiments. A certain amount of Mn(ClO3)2 solution was subsequently dried with a hydrophilic interface to obtain ε-MnO2-B powders (in a beaker), or with a hydrophobic interface to acquire ε-MnO2-P powders (on a PTFE plate). Then, the products were ground, washed and stored in sealed containers.

2.3. Characterizations

The surface morphology of the ε-MnO2 samples was observed by a field emission scanning electron microscope (FESEM, SUPRA 55, Carl Zeiss, Jena, Germany). Transmission electron microscopy images were obtained through a transmission electron microscope (TEM, F200i, FEI, Hillsboro, OR, USA). The crystalline phases of the materials were measured with powder X-ray diffraction (XRD, ULTIMA III, Rigaku, Tokyo, Japan) using a Cu Kα target. The chemical states of Mn and O were analysed by X-ray photoelectron spectrometry (XPS, K-Alpha+, Thermo Fisher Scientific, Waltham, MA, USA). N2 adsorption–desorption isotherms and specific surface area measurements were performed using an adsorption apparatus (BET, 2460, Micromeritics Instrument, Norcross, GA, USA). Raman spectra were characterized with a spectrometer (Raman, DXR2xi, Thermo Fisher Scientific, USA) with an excitation wavelength of 532 nm.

2.4. Degradation Procedure and Analytical Methods

To investigate the PMS activation ability of the prepared ε-MnO2, batch experiments were carried out with a shaker at 240 rpm. For the typical experiment, 0.2 g/L catalysts were added into the CIP solution. Before the reaction started, adsorption–desorption equilibrium was reached by shaking for 60 min. The Fenton-like reaction was triggered after instilling 1 mM PMS. The initial pH was adjusted by 0.1 M HCl and NaOH. After reaching a predetermined time, 10 mL of CIP was filtered through a membrane (with a pore size of 0.22 μm) to remove the catalyst powder, which was then immediately detected using a Metash UV-6000 spectrophotometer. To explore the ROS in the reaction, the contribution of different ROS to the reaction was confirmed by UV–vis analysis after bursting of ·OH and SO4·− by adding IPA and TBA to the solution. To further bear out the ROS, DMPO and TEMP were added to capture different ROS, and their signals were detected by Bruker EMXnano electron paramagnetic resonance (EPR).

3. Results and Discussion

The surface morphology and grain sizes of the ε-MnO2-P and ε-MnO2-B samples were observed by both SEM and TEM images. As can be seen in Figure 1a, ε-MnO2-B exhibits non-uniform spherical grains on the micron scale with severe agglomeration. Figure 1b displays the enlarged image, and the spherical particles are composed of numerous tiny interwoven burrs exhibiting a porous structure. The micromorphology of ε-MnO2-B was further observed by TEM, and, from Figure 1c, it can be clearly observed that the burrs on the surface of ε-MnO2-B are formed by closely interwoven and stacked rod-like particles, which is consistent with the SEM result. Compared to ε-MnO2-B, the ε-MnO2-P sample demonstrates completely different morphological characteristics. As seen in Figure 1d,e, the ε-MnO2-P particles present an irregular nanospherical morphology, which is obviously smaller than that of ε-MnO2-B particles. The TEM image (Figure 1f) reveals that ε-MnO2-P is composed of nanorods and nanoparticles. The results demonstrate that ε-MnO2-B generated by direct heating decomposition at the hydrophilic interface easily forms large spherical particles, and the surface of the particles is composed of a rod-like interlocking burr structure. However, the large particles with severe agglomeration are not conducive to the activation reaction of the catalyst. While the droplet drying method designed at the hydrophobic interface is propitious to forming a cavity shell at the gas–liquid interface, the subsequent decomposition reaction can be carried out in a microcavity that is isolated from air. As a consequence, ε-MnO2-P nanoparticles with completely different morphologies were obtained. This method opens up a new route for the preparation of nanomaterials in the future. In addition, the agglomeration phenomena of ε-MnO2-B and ε-MnO2-P particles were serious and inevitable, so the samples were subjected to ultrasonic treatment for 30 s before subsequent degradation experiments.
The crystal structures of ε-MnO2-B and ε-MnO2-P before and after CIP removal were analysed by means of XRD. As depicted in Figure 2a, the XRD patterns of both ε-MnO2-B and ε-MnO2-P are found to be in agreement by comparison with the standard card of ε-MnO2 (JCPDS No. 30-0820). The characteristic peaks at 21.0°, 37.1°, 42.4°, 56.0° and 66.8° correspond to the (001), (100), (101), (102) and (110) crystalline planes of ε-MnO2, respectively. There are no extra peaks present in the XRD pattern of ε-MnO2-P after the oxidation reaction. This indicates that the crystalline phase structure of ε-MnO2-P did not change either before or after the reaction, proving that the prepared ε-MnO2-P displayed relatively good chemical stability. Moreover, ε-MnO2-B has higher crystallinity than ε-MnO2-P, and materials with lower crystallinity usually have more active sites, e.g., oxygen vacancies [25]. The presence of oxygen vacancies can reduce the charge transfer resistance and then enhance the charge transfer rate, thus accelerating the mobility of electrons, which ultimately affects the result of Fenton-like reactions [25,26].
The adsorption performance of the catalyst is also an important indicator for the Fenton-like oxidation process, and the specific surface area and pore distribution of the catalyst are closely related to the adsorption capacity. The adsorption performance of both ε-MnO2-P and ε-MnO2-B can be obtained by analysing the nitrogen adsorption and desorption isotherm curves. As shown in Figure 2b, the occurrence times of adsorption and desorption are different within the range of relative pressures of 0.4 and 1, and ε-MnO2-P and ε-MnO2-B both exhibit an IV isotherm type with an H3-type hysteresis loop, belonging to a typical mesoporous structure [27,28]. The calculated specific surface areas for ε-MnO2-P and ε-MnO2-B are 99.24 m2/g and 29.84 m2/g, respectively. The specific surface area of ε-MnO2-P is 3.3 times larger than that of ε-MnO2-B, implying that ε-MnO2-P has a stronger adsorption capacity. As shown in the inset illustration in Figure 2b, the average pore sizes of ε-MnO2-P and ε-MnO2-B are 4.9 and 3.6 nm, respectively. ε-MnO2-P possesses a relatively higher specific surface area because the closed microcavity space formed at the hydrophobic interface limits the inside grain growth. A higher specific surface area generally endows ε-MnO2-P with a strong adsorption capacity, making it able to attract more CIP and PMS molecules.
The degradation rate of CIP was analysed by UV–Vis spectrophotometry, yielding the results in Figure 2c. After reaching the adsorption–desorption equilibrium, the adsorption of CIP for ε-MnO2-P can reach 26.2%, while the adsorption capacity of ε-MnO2-B is only 4.68%, consistent with the results of previous specific surface areas (Figure 2b). After adding 1 mM PMS to initiate the oxidation reaction, the removal efficiency of CIP can reach 84.1% within 120 min, indicating that the prepared ε-MnO2-P can effectively activate PMS to generate ROS for CIP decomposition. In the system without catalyst, the CIP removal efficiency of pure PMS is 40.8%, which is only slightly higher than the CIP adsorption efficiency of ε-MnO2-P. Similarly, the CIP removal efficiency of ε-MnO2-B within 120 min is 43.5%, which is not much different from that of the pure PMS system and much lower than that of ε-MnO2-P for CIP. And the comparison of catalytic activities for CIP degradation of different ε-MnO2 is listed in Table 1. The results show that ε-MnO2-B can hardly adsorb CIP or activate PMS to promote the Fenton-like reaction, probably due to the block structure and serious agglomeration, as well as the small specific surface area and minute quantity of active sites exposed.
Figure 2d displays the degradation kinetics of CIP in different MnO2 materials. The rate constant can be calculated by means of the pseudo-first-order kinetic equation ln(C/C0) = −kt, where C is the CIP concentration at the specified time (mg/L), C0 is the initial CIP concentration (mg/L), t is the reaction time (min) and k is the rate constant (min−1). According to the above equation, the k values of ε-MnO2-P, ε-MnO2-B and PMS are 0.0299, 0.0058 and 0.0042, respectively. The k value of ε-MnO2-P is 5.2 and 7.1 times higher than that of ε-MnO2-B and PMS, respectively. This result indicates that ε-MnO2-P can bring more active sites and adsorb more PMS and CIP molecules, thus activating PMS more efficiently to achieve the desired removal effect. Therefore, ε-MnO2-P was selected as the main Fenton-like catalyst in the subsequent experiments.
The recyclability measurement of ε-MnO2-P is displayed in Figure 3a. The removal efficiency of ε-MnO2-P to CIP remained almost unchanged after the second cycle, while the removal efficiency significantly decreased from 81.8% to 69.1% after the third recycling cycle. This may be because some of the CIP residues covered the ε-MnO2-P surface after experiencing multiple cycles; thus, the number of exposed active sites reduced. Meanwhile, with the extension of reaction time, the concentration of oxygen vacancies and the valence of Mn altered significantly (which will be verified in the following section), thus weakening the final removal effect.
To further study the influence of different environmental factors on the catalytic performance of ε-MnO2-P, the effects of different catalyst dosages, PMS concentrations, solution pH values and initial CIP concentrations on the CIP removal efficiency are compared. Figure 3b expresses the impact of catalyst dosage and PMS concentration on CIP removal efficiency. It can be clearly observed that, as the catalyst dosage increases from 0.05 to 0.3 g/L, the removal efficiency of CIP significantly increases, and the maximum removal efficiency reaches 91.5% within 60 min. It is worth noting that the increase in catalyst dosage from 0.2 g/L to 0.3 g/L results in only a slight change in the CIP removal efficiency. This phenomenon should be due to excess active sites not being effectively utilized as the amount of PMS is limited or the agglomeration of active sites occurring at high catalyst concentrations. In addition, increasing the PMS concentration alone can only slightly enhance the removal effect, indicating that a PMS concentration that is too high is not conducive to CIP removal.
The influence of initial pH values (i.e., pH = 3, 5, 7, 9) on CIP removal efficiency is likewise discussed, yielding the results in Figure 3c. Normally, pH value is a key influencer of the free radical pathway (·OH/SO4·−). Consistent with many previous studies, the highest CIP removal efficiency of 81.7% was observed at pH = 3. The degradation rate was slightly higher in acidic environments, probably because the pKa of PMS is 9.4, and when pH < 9.4, the main form of PMS is HSO5−, which can react with Mn to generate a Fenton-like reaction. In an alkaline environment, PMS is unstable and easy to react, and HSO5− combines with hydroxide ions (OH−) to form SO42− (2HSO5− + 2OH− → 2SO42− + O2 + 2H2O). Notably, the CIP removal efficiency of the ε-MnO2-P/PMS oxidation system also reached over 60% under neutral and alkaline conditions, demonstrating that ε-MnO2-P can be used in an environment with a wide pH range.
Figure 3d shows the removal performance of the ε-MnO2-P/PMS system on CIP at different pollutant concentrations. With increasing initial CIP concentrations (from 5, 10, 15 and 20 ppm), the removal efficiency of CIP decreases by 80.3%, 75.3%, 64.1% and 61.6%, respectively. Since the active sites provided by the catalyst for CIP adsorption and PMS activation are limited, PMS is insufficient to remove excessive amounts of contaminants.
XPS measurement was carried out to analyse the elemental composition and corresponding chemical state on the surface of ε-MnO2. Figure 4a–d show the full and fine spectra of ε-MnO2-P before and after the reaction. According to the full spectrum presented in Figure 4a, Mn, O and C are mainly present in ε-MnO2-P whether before or after the reaction, and no obvious impurity peaks can be observed. The change in the chemical states of Mn can usually be obtained from the Mn 3s spectrum (Figure 4b) and the Mn 2p spectrum (Figure 4c). It can be seen from Figure 4b that the spin separation energy (ΔE) of ε-MnO2-P is 4.96 eV before the reaction and then drops to 4.80 eV after the reaction. On the basis of the equation AOS = 8.956 − 1.126ΔE [23,29], it is easy to calculate that the average oxidation state (AOS) of Mn increases from 3.37 to 3.55, suggesting that the average valence of Mn increased after the reaction. Mn with lower valence participated in the activation reaction of PMS and was oxidized, which ultimately reflected the increase in AOS in the analysis of the XPS results. As depicted in Figure 4c, two main peaks representing Mn3+ (641.92 eV) and Mn4+ (643.84 eV) can be obtained [30,31]. Before the reaction, the proportions of Mn3+ and Mn4+ are 69.9% and 30.1%, respectively. After the reaction, the proportion of Mn3+ decreases and that of Mn4+ increases. This result is consistent with the Mn 3s spectrum, further indicating that Mn3+ was consumed more rapidly and played a major role in the reaction.
Commonly, sufficiently charged oxygen vacancies on the material surface can act as Lewis dot sites and be attractive to electrophilic molecules (e.g., O2 and H2O2), facilitating the charge transfer process. The O-O bonds in PMS are much weaker than those in both O2 and H2O2, so the PMS molecules adsorbed on the ε-MnO2-P surface are easily activated by electrons induced by oxygen vacancies to produce the required ROS [28]. The O 1s spectra can be fitted to three peaks at 529.7, 531.2 and 532.4 eV, corresponding to lattice oxygen (Olat), adsorbed oxygen (Oabs) and surface oxygen (Osurf), respectively. Among them, Oabs is generally considered to be a parameter that can indirectly represent the oxygen vacancy concentration [32]. As shown in Figure 4d, the percentage of oxygen vacancies decreased from 31.7% to 23.9% after the reaction, indicating that approximately 7.8% of oxygen vacancies were involved in the degradation of CIP. In contrast, the XPS results of Mn 2p and O 1s for ε-MnO2-B (Figure 4e,f) indicate that the initial ε-MnO2-B has a lower low-valent Mn content and smaller ratio of oxygen vacancies than ε-MnO2-P, which can be responsible for the lower CIP removal efficiency in previous experiments.
To investigate which ROS contributed to the removal of CIP, EPR was used to characterize the ε-MnO2-P/PMS oxidation system, as shown in Figure 5a,b. After adding DMPO (5,5-dimethyl-1-pyrroline N-oxide) and TEMP (2,2,6,6-tetramethylpiperidine) to capture, ·OH, SO4·− and 1O2, DMPO-OH/SO4·− and TEMP-1O2 were obtained, whose signals could be collected to form the characteristic spectra. There are seven peaks (1:2:1:2:1:2:1) belonging to DMPOX (5,5-dimethylpyrroline-(2)-oxyl-(1)), the oxidation of DMPO [33]. It should be pointed out that the presence of DMPOX does not indicate that ·OH and SO4·− did not exist in the system. In contrast, DMPOX is formed because the rate of radicals captured by DMPO is lower than that of oxidation by radicals [34]. Moreover, the short and unstable half-life of DMPO-SO4·− is easily converted to DMPOX, and thus the signal belonging to DMPOX will be reflected in the EPR result [23,35]. Moreover, three peaks for 1O2 (1:1:1) were clearly visible after the addition of TEMP, confirming the presence of 1O2. The appearance of 1O2 can effectively avoid the generation of byproducts caused by the combination of ·OH and SO4·− with anions in water (such as Cl−), which reduces the oxidizability of the system and may increase the toxicity.
Furthermore, quenching experiments were carried out to confirm the contribution of different ROS to the reaction. It is known that the addition of excess isopropanol (IPA, for ·OH and SO4·−, k·OH = 2.8 × 109, kSO4·− = 8.3 × 107) and tert-butanol (TBA, k·OH = (3.8–7.6) × 108, kSO4·− = (4.0–9.1) × 105) can consume ·OH and SO4·− [36]. The removal efficiency of CIP after adding IPA is a bit lower than that after adding TBA, probably because both ·OH and SO4·− were captured by IPA, while only ·OH was captured by TBA. In addition, it can be observed from the magnitude of decrement that the CIP removal efficiency with IPA only decreased by 5.4% compared to the capture effect with TBA, indicating that ·OH contributed more to the reaction than SO4·−. However, after trapping two free radicals, the removal efficiency of CIP can still be maintained at ~60%, indirectly indicating that 1O2 also plays a notable role in the reaction and is one of the main ROS.
The content difference of oxygen vacancies in ε-MnO2-B and ε-MnO2-P can be further confirmed by Raman spectroscopy. As shown in Figure 5d, three main peaks can be observed at 512 cm−1 (subsequently referred to as ν1), 581 cm−1 (ν2) and 620 cm−1 (ν3). Therein, ν1 represents the metal–oxygen chain of Mn-O-Mn in the octahedral lattice of MnO2, ν2 represents the Mn-O stretching vibration in the manganese oxide lattice, and ν3 represents the Mn-O in the [MnO6] group of the symmetric stretching vibration. It can be clearly seen that ν3 of ε-MnO2-P shows a blueshift compared to ε-MnO2-B (marked by the pink dashed line), indicating that the Mn-O vibration in the MnO2 lattice is enhanced in virtue of lattice distortion induced by the introduction of oxygen vacancies. Based on the above results, the microcavity space designed by changing the synthetic interface can introduce more oxygen vacancies for ε-MnO2-P, thus promoting the degradation of organic pollutants by Fenton-like reactions.
Taken together, the conclusions regarding the influencing factors of SR-AOPs for the removal of CIP have been discussed and validated. Since the catalytic activity of the two ε-MnO2 materials differs considerably, the preparation process of the material is shown to explain the synthesis mechanism. As shown in Figure 5e, when Mn(ClO3)2 solution was added to the hydrophobic PTFE plate in the form of liquid droplets, as drying proceeded, the surface of the droplet and the air contact preferentially decomposed to produce a MnO2 barrier layer. The decomposition process proceeded according to the equation Mn(ClO3)2 → MnO2 + 2ClO2↑. With continuous drying, a microcavity anoxic space was generated inside the isolation layer; ultimately, the oxygen vacancies in the prepared ε-MnO2-P increased, resulting in high catalytic activity. According to the abovementioned results, we hypothesized the mechanism of ε-MnO2-P removing CIP, and the diagram is shown in Figure 6. First, Mn3+ and Mn4+ formed a unique redox cycle, and the electron transfer generated during the cycling process promoted the conversion of HSO5− to ·OH, SO4·− and SO5·− through Equations (1)–(3). Of these, SO5·− was only produced when high-valent manganese reacts with HSO5−, which is one of the reasons why ε-MnO2-P with a higher proportion of low-valent manganese exhibits a better removal effect. In addition, SO4·− also reacted with water to form ·OH via a free radical chain reaction, which revealed a slight effect on the overall pH range of the reaction [37]. Meanwhile, 1O2 was produced through the interaction of ·OH and ·OH, or the combination of HSO5− with SO52− (another form of PMS) [19,38].
Mn3+ + HSO5− → Mn4+ + SO4·− + OH−
Mn3+ + HSO5− → Mn4+ + SO42− + ·OH
Mn4+ + HSO5− → Mn3+ + SO5·− + H+
SO4·− + H2O → ·OH + SO42−
HSO5− + SO52− → 1O2 + SO42− + HSO4−
Mn4+ + S2O82− → S2O8·− + Mn3+

4. Conclusions

In summary, a new route for the preparation of ε-MnO2-P using a special interface was proposed to improve its catalytic performance as a Fenton-like catalyst. The content of oxygen vacancies in ε-MnO2-P was regulated by the innovative construction of a microanoxic space to improve its catalytic activity by activating PMS. The ε-MnO2-P obtained by drying on a hydrophobic surface exhibited the characteristics of low crystallinity, large specific surface area and high Mn3+ ratio. The ε-MnO2-P/PMS oxidation system could achieve rapid degradation of CIP in water under a wide pH range, and ε-MnO2-P acting as a catalyst exhibited good reusability. EPR and quenching experiments confirmed that ·OH, SO4·− and 1O2 were the main ROS affecting the reaction, of which 1O2 contributed more. This synthesis method provides a strategy for the preparation of other O-vacancy-rich materials and promotes the development of Fenton-like reactions for wastewater treatment.

Author Contributions

Y.C. (Yulong Chen): conceptualization, methodology, writing—reviewing and editing; Y.C. (Yuan Chi): investigation, data curation, and writing—original draft; X.W.: investigation, writing—reviewing and editing; C.L.: validation; T.L.: formal analysis; M.G.: investigation; C.Z.: resources; B.S.: supervision, investigation. All authors have read and agreed to the published version of the manuscript.

Funding

The authors appreciate the support of the National Natural Science Foundation of China (No. 52072075, 52102126 and 12104093), the Natural Science Foundation of Fujian Province (No. 2021J05122, 2021J05123, 2022J01087, 2022J01552, 2023J01259), the undergraduate education teaching research project of Fujian Province (No. FBJY20230036) and the Qishan Scholar Financial Support from Fuzhou University (GXRC-20099).

Data Availability Statement

All data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yao, Z.; Jiao, W.; Shao, F.; Song, H.; Zhang, H.; Zhou, Q.; Li, A. Fabrication and characterization of amphiphilic magnetic water purification materials for efficient PPCPs removal. Chem. Eng. J. 2019, 360, 511–518. [Google Scholar] [CrossRef]
  2. Yang, H.; Wang, W.; Wu, X.; Siddique, M.S.; Su, Z.; Liu, M.; Yu, W. Reducing ROS generation and accelerating the photocatalytic degradation rate of PPCPs at neutral pH by doping Fe-N-C to g-C3N4. Appl. Catal. B 2022, 301, 120790. [Google Scholar] [CrossRef]
  3. Dang, V.D.; Adorna, J.; Annadurai, T.; Bui, T.A.N.; Tran, H.L.; Lin, L.; Doong, R. Indirect Z-scheme nitrogen-doped carbon dot decorated Bi2MoO6/g-C3N4 photocatalyst for enhanced visible-light-driven degradation of ciprofloxacin. Chem. Eng. J. 2021, 422, 130103. [Google Scholar] [CrossRef]
  4. Chen, M.; Niu, H.; Niu, C.; Guo, H.; Liang, S.; Yang, Y. Metal-organic framework-derived CuCo/carbon as an efficient magnetic heterogeneous catalyst for persulfate activation and ciprofloxacin degradation. J. Hazard. Mater. 2022, 424, 127196. [Google Scholar] [CrossRef] [PubMed]
  5. Xu, X.; Ding, X.; Yang, X.; Wang, P.; Li, S.; Lu, Z.; Chen, H. Oxygen vacancy boosted photocatalytic decomposition of ciprofloxacin over Bi2MoO6: Oxygen vacancy engineering, biotoxicity evaluation and mechanism study. J. Hazard. Mater. 2019, 364, 691–699. [Google Scholar] [CrossRef]
  6. Ding, J.; Dai, Z.; Qin, F.; Zhao, H.; Zhao, S.; Chen, R. Z-scheme BiO1−xBr/Bi2O2CO3 photocatalyst with rich oxygen vacancy as electron mediator for highly efficient degradation of antibiotics. Appl. Catal. B 2017, 205, 281–291. [Google Scholar] [CrossRef]
  7. Zhou, Y.; Gao, Y.; Pang, S.; Jiang, J.; Yang, Y.; Ma, J.; Yang, Y.; Duan, J.; Guo, Q. Oxidation of fluoroquinolone antibiotics by peroxymonosulfate without activation: Kinetics, products, and antibacterial deactivation. Water Res. 2018, 145, 210–219. [Google Scholar] [CrossRef]
  8. Wang, A.; Chen, Z.; Zheng, Z.; Xu, H.; Wang, H.; Hu, K.; Yan, K. Remarkably enhanced sulfate radical-based photo-fenton-like degradation of levofloxacin using the reduced mesoporous MnO@MnOx microspheres. Chem. Eng. J. 2020, 379, 122340. [Google Scholar] [CrossRef]
  9. Li, X.; Huang, X.; Xi, S.; Miao, S.; Ding, J.; Cai, W.; Liu, S.; Yang, X.; Yang, H.; Gao, J.; et al. Single cobalt atoms anchored on porous N-doped graphene with dual reaction sites for efficient fenton-like catalysis. J. Am. Chem. Soc. 2018, 140, 12469–12475. [Google Scholar] [CrossRef]
  10. Ghanbari, F.; Moradi, M. Application of peroxymonosulfate and its activation methods for degradation of environmental organic pollutants: Review. Chem. Eng. J. 2017, 310, 41–62. [Google Scholar] [CrossRef]
  11. Oh, W.; Dong, Z.; Lim, T. Generation of sulfate radical through heterogeneous catalysis for organic contaminants removal: Current development, challenges and prospects. Appl. Catal. B 2016, 194, 169–201. [Google Scholar] [CrossRef]
  12. Liu, Y.; Qu, R.; Li, X.; Wei, Y.; Feng, L. A bifunctional β-MnO2 mesh for expeditious and ambient degradation of dyes in activation of peroxymonosulfate (PMS) and simultaneous oil removal from water. J. Colloid Interface Sci. 2020, 579, 412–424. [Google Scholar] [CrossRef] [PubMed]
  13. Milh, H.; Yu, X.; Cabooter, D.; Dewil, R. Degradation of ciprofloxacin using UV-based advanced removal processes: Comparison of persulfate-based advanced oxidation and sulfite-based advanced reduction processes. Sci. Total Environ. 2021, 764, 144510. [Google Scholar] [CrossRef] [PubMed]
  14. Ahn, Y.; Choi, J.; Kim, M.; Kim, M.S.; Lee, D.; Bang, W.H.; Yun, E.; Lee, H.; Lee, J.; Lee, C.; et al. Chloride-mediated enhancement in heat-induced activation of peroxymonosulfate: New reaction pathways for oxidizing radical production. Environ. Sci. Technol. 2021, 55, 5382–5392. [Google Scholar] [CrossRef]
  15. Wang, X.; Jiang, J.; Ma, Y.; Song, Y.; Li, T.; Dong, S. Tetracycline hydrochloride degradation over manganese cobaltate (MnCo2O4) modified ultrathin graphitic carbon nitride (g-C3N4) nanosheet through the highly efficient activation of peroxymonosulfate under visible light irradiation. J. Colloid Interface Sci. 2021, 600, 449–462. [Google Scholar] [CrossRef] [PubMed]
  16. Guo, Z.; Li, C.; Gao, M.; Han, X.; Zhang, Y.; Zhang, W.; Li, W. Mn−O covalency governs the intrinsic activity of Co-Mn spinel oxides for boosted peroxymonosulfate activation. Angew. Chem. Int. Ed. 2020, 60, 274–280. [Google Scholar] [CrossRef] [PubMed]
  17. Hu, P.; Long, M. Cobalt-catalyzed sulfate radical-based advanced oxidation: A review on heterogeneous catalysts and applications. Appl. Catal. B 2016, 181, 103–117. [Google Scholar] [CrossRef]
  18. Zhang, Q.; He, D.; Li, X.; Feng, W.; Lyu, C.; Zhang, Y. Mechanism and performance of singlet oxygen dominated peroxymonosulfate activation on CoOOH nanoparticles for 2,4-dichlorophenol degradation in water. J. Hazard. Mater. 2020, 384, 121350. [Google Scholar] [CrossRef]
  19. Huang, J.; Dai, Y.; Singewald, K.; Liu, C.; Saxena, S.; Zhang, H. Effects of MnO2 of different structures on activation of peroxymonosulfate for bisphenol A degradation under acidic conditions. Chem. Eng. J. 2019, 370, 906–915. [Google Scholar] [CrossRef]
  20. Tao, P.; Shao, M.; Song, C.; Li, C.; Yin, Y.; Wu, S.; Cheng, M.; Cui, Z. Morphologically controlled synthesis of porous Mn2O3 microspheres and their catalytic applications on the degradation of methylene blue. Desalin. Water Treat. 2015, 57, 7079–7084. [Google Scholar] [CrossRef]
  21. Wang, F.; Xiao, M.; Ma, X.; Wu, S.; Ge, M.; Yu, X. Insights into the transformations of Mn species for peroxymonosulfate activation by tuning the Mn3O4 shapes. Chem. Eng. J. 2021, 404, 127097. [Google Scholar] [CrossRef]
  22. Lin, M.; Chen, Z. A facile one-step synthesized epsilon-MnO2 nanoflowers for effective removal of lead ions from wastewater. Chemosphere 2020, 250, 126329. [Google Scholar] [CrossRef] [PubMed]
  23. Nawaz, F.; Cao, H.; Xie, Y.; Xiao, J.; Chen, Y.; Ghazi, Z.A. Selection of active phase of MnO2 for catalytic ozonation of 4-nitrophenol. Chemosphere 2017, 168, 1457–1466. [Google Scholar] [CrossRef]
  24. Wang, H.; Yin, F.; Chen, B.; Li, G. Synthesis of an ε-MnO2/metal–organic-framework composite and its electrocatalysis towards oxygen reduction reaction in an alkaline electrolyte. J. Mater. Chem. A 2015, 3, 16168–16176. [Google Scholar] [CrossRef]
  25. Zhao, J.; Wang, Y.; Li, N.; Wang, S.; Yu, J.; Li, X. Efficient degradation of ciprofloxacin by magnetic γ-Fe2O3-MnO2 with oxygen vacancy in visible-light/peroxymonosulfate system. Chemosphere 2021, 276, 130257. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, L.; Zhang, Q.; Hong, J.; Dong, Z.; Wang, J. Degradation of bisphenol A by persulfate activation via oxygen vacancy-rich CoFe2O4–x. Chemosphere 2019, 221, 412–422. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, A.; Zheng, Z.; Wang, H.; Chen, Y.; Luo, C.; Liang, D.; Hu, B.; Qiu, R.; Yan, K. 3D hierarchical H2-reduced Mn-doped CeO2 microflowers assembled from nanotubes as a high-performance Fenton-like photocatalyst for tetracycline antibiotics degradation. Appl. Catal. B 2020, 277, 119171. [Google Scholar] [CrossRef]
  28. Yu, J.; Zeng, T.; Wang, H.; Zhang, H.; Sun, Y.; Chen, L.; Song, S.; Li, L.; Shi, H. Oxygen-defective MnO2-x rattle-type microspheres mediated singlet oxygen oxidation of organics by peroxymonosulfate activation. Chem. Eng. J. 2020, 394, 124458. [Google Scholar] [CrossRef]
  29. Hong, W.; Shao, M.; Zhu, T.; Wang, H.; Sun, Y.; Shen, F.; Li, X. To promote ozone catalytic decomposition by fabricating manganese vacancies in ε-MnO2 catalyst via selective dissolution of Mn-Li precursors. Appl. Catal. B 2020, 274, 119088. [Google Scholar] [CrossRef]
  30. Xiao, Y.; Huo, W.; Yin, S.; Jiang, D.; Zhang, Y.; Zhang, Z.; Liu, X.; Dong, F.; Wang, J.; Li, G.; et al. One-step hydrothermal synthesis of Cu-doped MnO2 coated diatomite for degradation of methylene blue in Fenton-like system. J. Colloid Interface Sci. 2019, 556, 466–475. [Google Scholar] [CrossRef]
  31. Huang, Y.; Tian, X.; Nie, Y.; Yang, C.; Wang, Y. Enhanced peroxymonosulfate activation for phenol degradation over MnO2 at pH 3.5–9.0 via Cu(II) substitution. J. Hazard. Mater. 2018, 360, 303–310. [Google Scholar] [CrossRef] [PubMed]
  32. Lim, J.; Yang, Y.; Hoffmann, M.R. Activation of peroxymonosulfate by oxygen vacancies-enriched cobalt-doped black TiO2 nanotubes for the removal of organic pollutants. Environ. Sci. Technol. 2019, 53, 6972–6980. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, J.; An, F.; Zhu, C.; Zhou, D. Efficient transformation of DDT with peroxymonosulfate activation by different crystallographic MnO2. Sci. Total Environ. 2021, 759, 142864. [Google Scholar] [CrossRef]
  34. Xie, M.; Tang, J.; Kong, L.; Lu, W.; Natarajan, V.; Zhu, F.; Zhan, J. Cobalt doped g-C3N4 activation of peroxymonosulfate for monochlorophenols degradation. Chem. Eng. J. 2019, 360, 1213–1222. [Google Scholar] [CrossRef]
  35. Du, J.; Bao, J.; Liu, Y.; Kim, S.H.; Dionysiou, D.D. Facile preparation of porous Mn/Fe3O4 cubes as peroxymonosulfate activating catalyst for effective bisphenol A degradation. Chem. Eng. J. 2019, 376, 119193. [Google Scholar] [CrossRef]
  36. Wang, L.; Lan, X.; Peng, W.; Wang, Z. Uncertainty and misinterpretation over identification, quantification and transformation of reactive species generated in catalytic oxidation processes: A review. J. Hazard. Mater. 2021, 408, 124436. [Google Scholar] [CrossRef]
  37. Pan, F.; Ji, H.; Du, P.; Huang, T.; Wang, C.; Liu, W. Insights into catalytic activation of peroxymonosulfate for carbamazepine degradation by MnO2 nanoparticles in-situ anchored titanate nanotubes: Mechanism, ecotoxicity and DFT study. J. Hazard. Mater. 2021, 402, 123779. [Google Scholar] [CrossRef]
  38. Liu, Y.; Guo, H.; Zhang, Y.; Cheng, X.; Zhou, P.; Wang, J.; Li, W. Fe@C carbonized resin for peroxymonosulfate activation and bisphenol S degradation. Environ. Pollut. 2019, 252, 1042–1050. [Google Scholar] [CrossRef]
Crystals 13 01664 g001

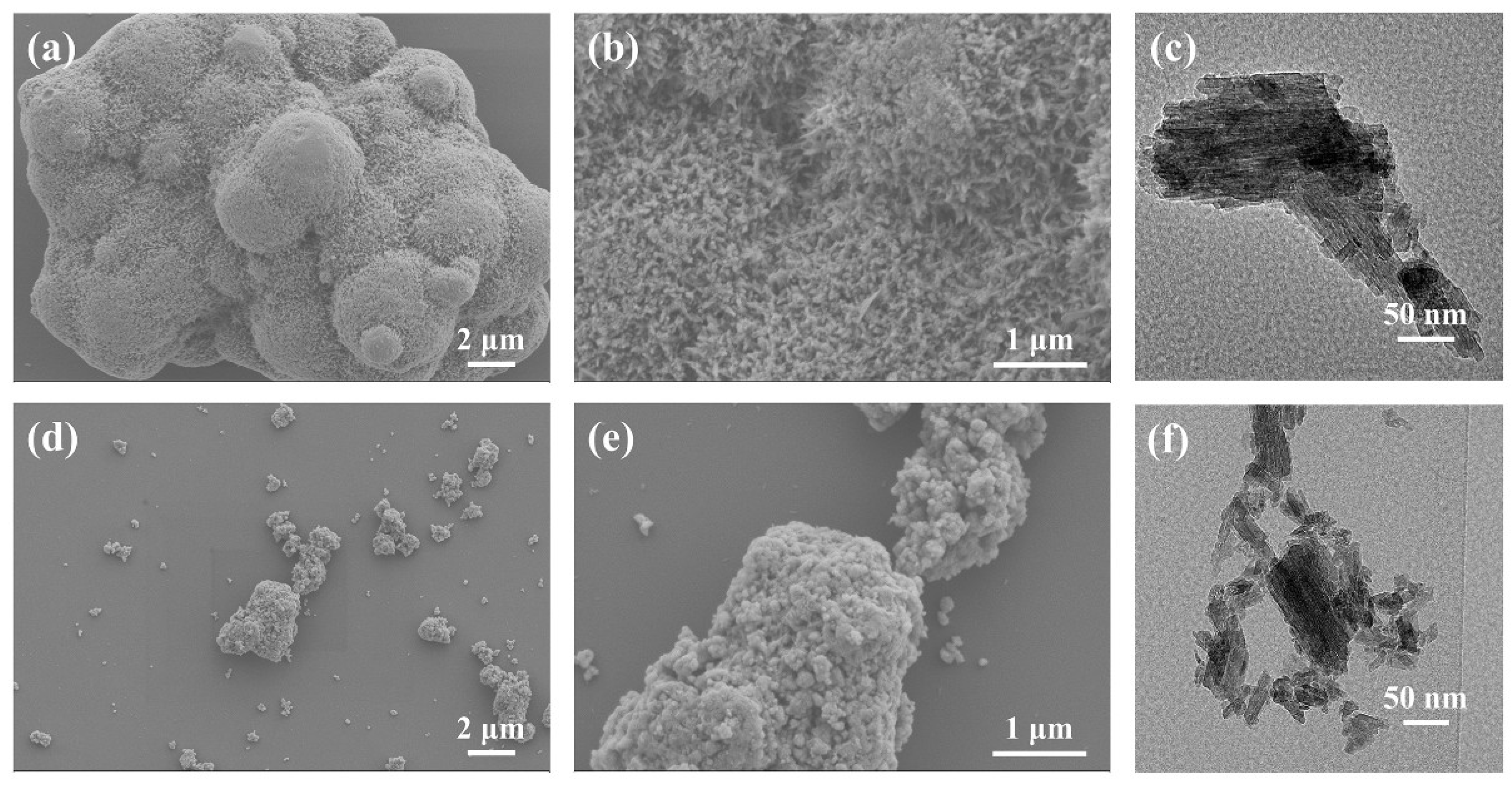

Figure 1. SEM images of ε-MnO2-B (a,b) and ε-MnO2-P (d,e); TEM images of ε-MnO2-B (c) and ε-MnO2-P (f).
Figure 1. SEM images of ε-MnO2-B (a,b) and ε-MnO2-P (d,e); TEM images of ε-MnO2-B (c) and ε-MnO2-P (f).
Crystals 13 01664 g001
Crystals 13 01664 g002

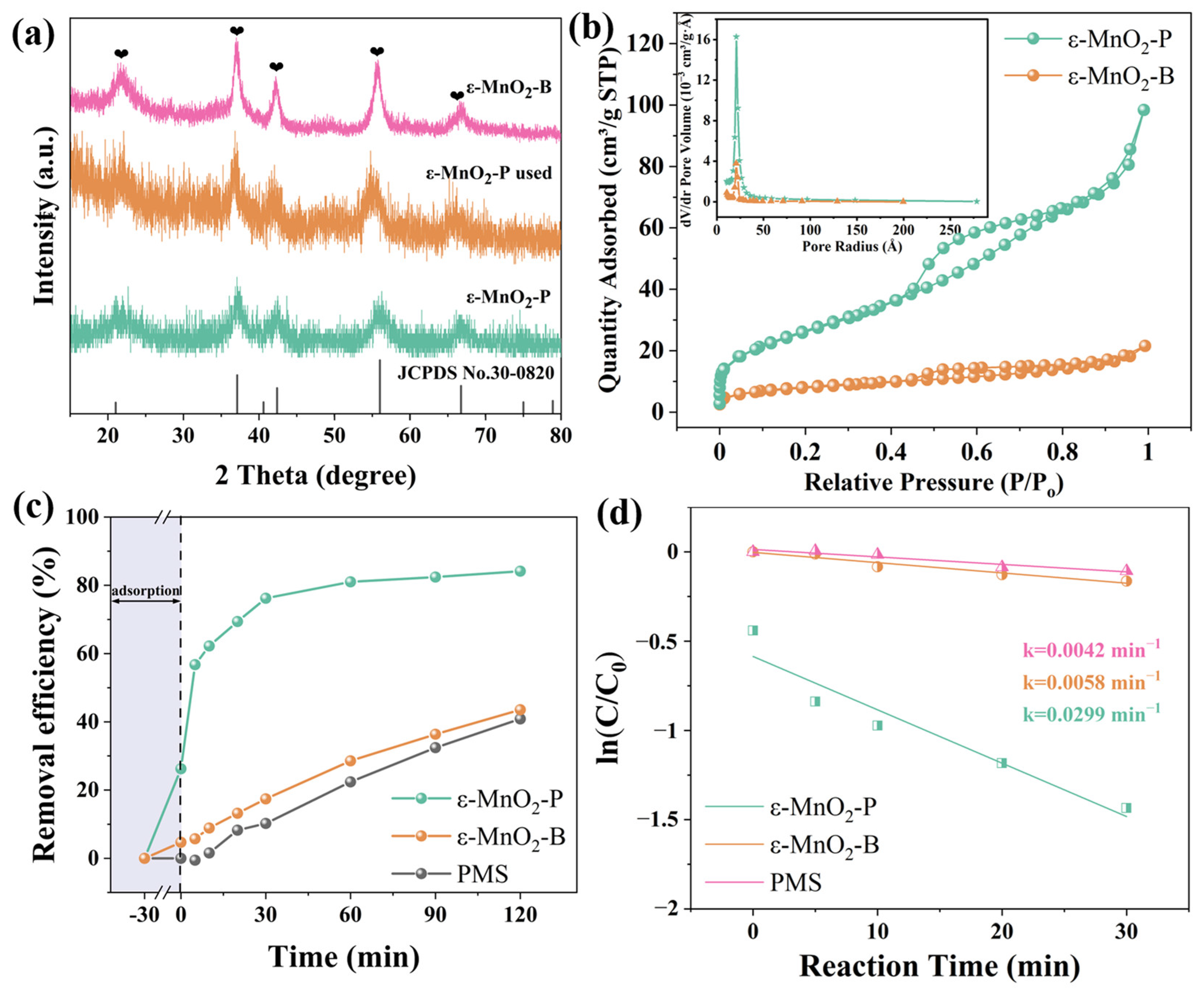

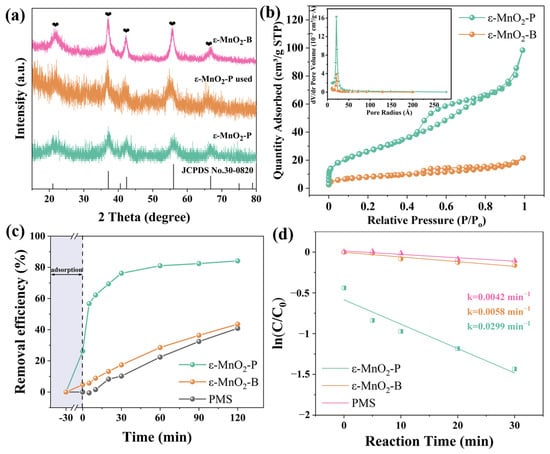

Figure 2. (a) XRD patterns of ε-MnO2-B and ε-MnO2-P (before and after reaction), (b) N2 adsorption–desorption isotherms of ε-MnO2-B and ε-MnO2-P, (c) CIP removal efficiency in different oxidation systems, and (d) the pseudo-first-order kinetic linear fitting plots. Reaction conditions: [CIP] = 10 ppm, [Catalyst] = 0.2 g/L, [PMS] = 1 mM, without pH adjustment.
Figure 2. (a) XRD patterns of ε-MnO2-B and ε-MnO2-P (before and after reaction), (b) N2 adsorption–desorption isotherms of ε-MnO2-B and ε-MnO2-P, (c) CIP removal efficiency in different oxidation systems, and (d) the pseudo-first-order kinetic linear fitting plots. Reaction conditions: [CIP] = 10 ppm, [Catalyst] = 0.2 g/L, [PMS] = 1 mM, without pH adjustment.
Crystals 13 01664 g002
Crystals 13 01664 g003

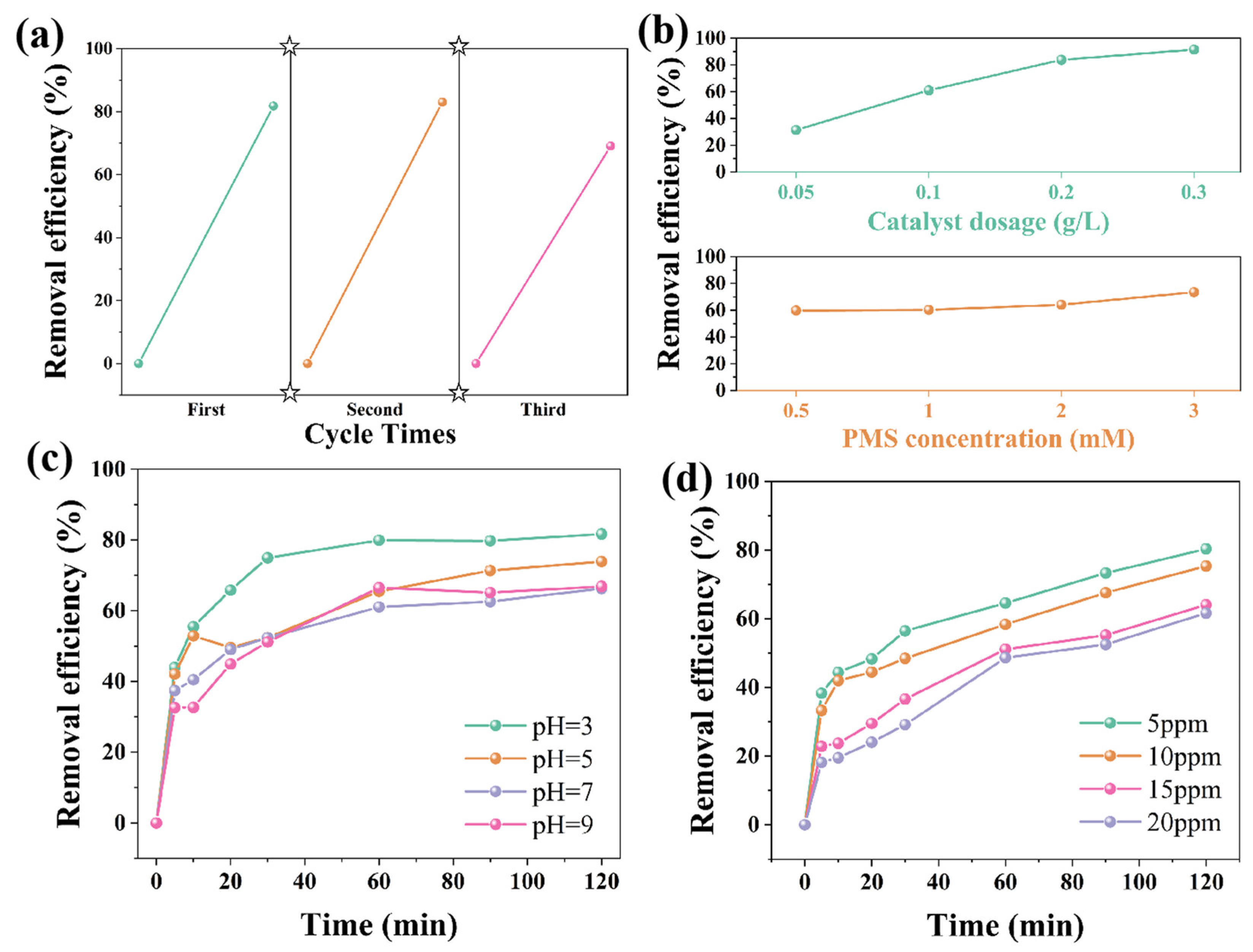

Figure 3. (a) Cycling Fenton-like reaction of ε-MnO2-P. Effects of (b) different catalyst dosages and PMS concentrations, (c) different initial pH values and (d) different initial CIP concentrations.
Figure 3. (a) Cycling Fenton-like reaction of ε-MnO2-P. Effects of (b) different catalyst dosages and PMS concentrations, (c) different initial pH values and (d) different initial CIP concentrations.
Crystals 13 01664 g003
Crystals 13 01664 g004

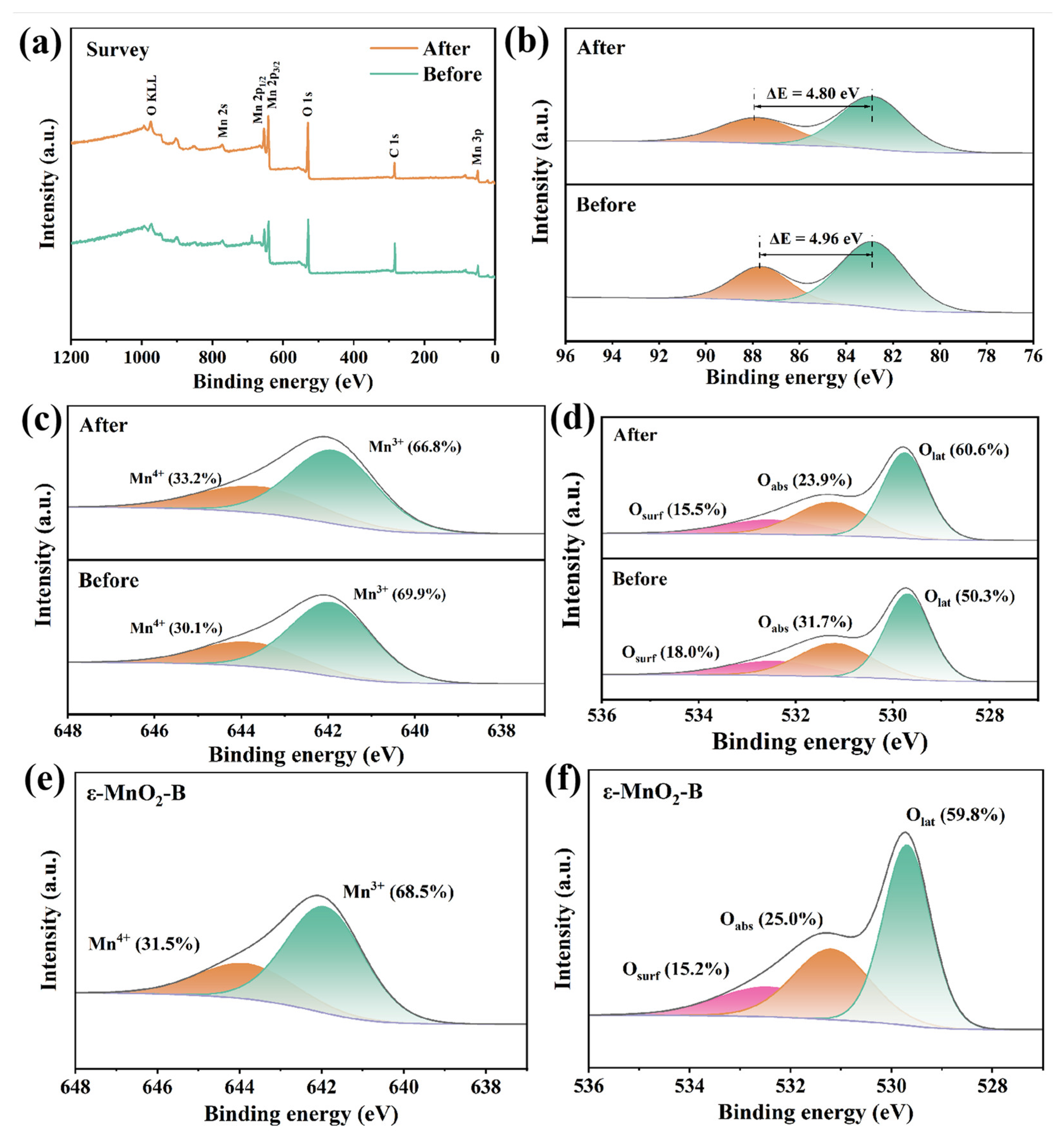

Figure 4. XPS spectra of ε-MnO2-P: (a) survey (full spectrum), (b) Mn 3s, (c) Mn 2p, and (d) O 1s. XPS spectra of ε-MnO2-B, (e) Mn 2p, (f) O 1s.
Figure 4. XPS spectra of ε-MnO2-P: (a) survey (full spectrum), (b) Mn 3s, (c) Mn 2p, and (d) O 1s. XPS spectra of ε-MnO2-B, (e) Mn 2p, (f) O 1s.
Crystals 13 01664 g004
Crystals 13 01664 g005

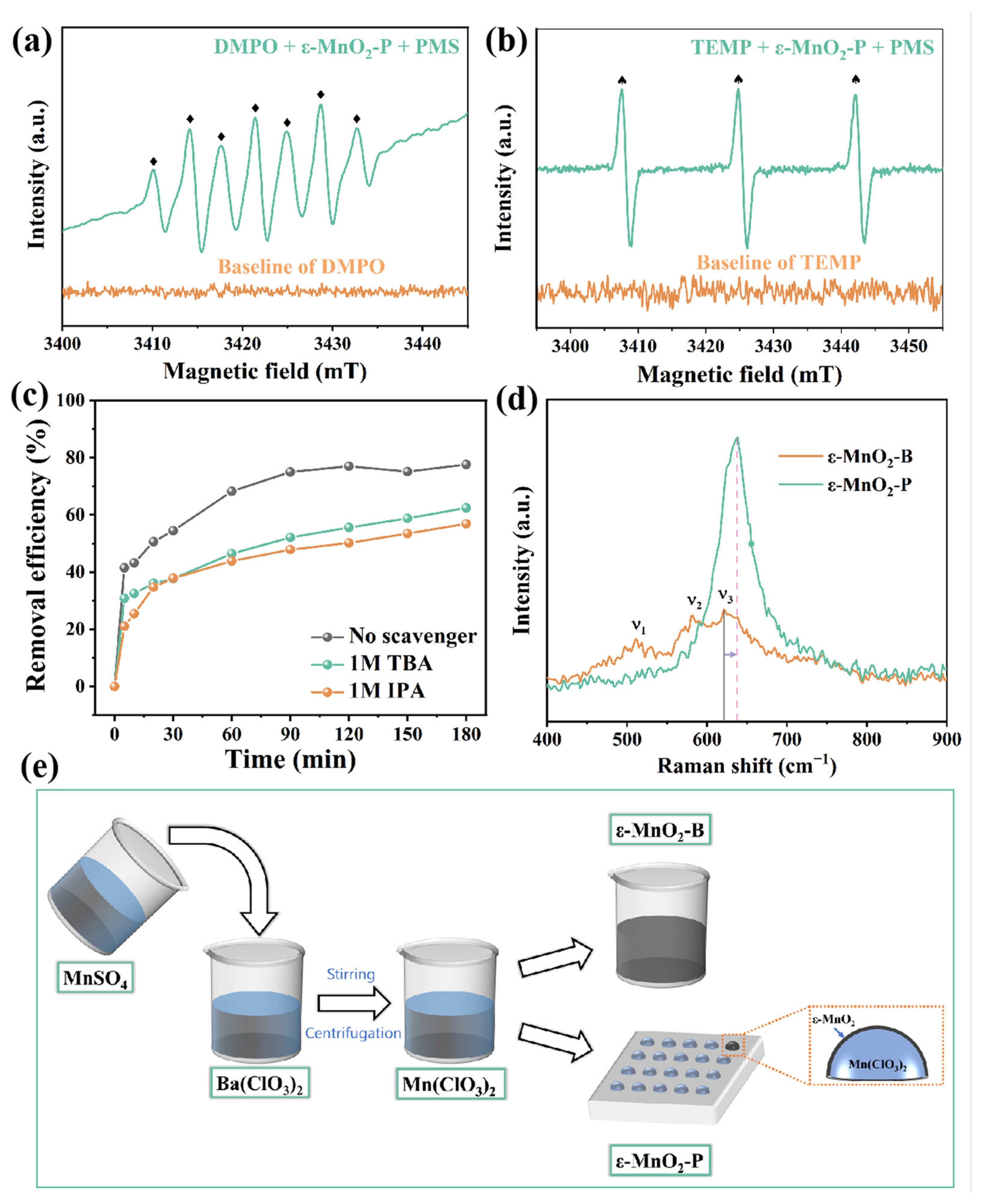

Figure 5. EPR spectra of ε-MnO2-P in the presence of different trapping agents: (a) DMPO and (b) TEMP. (c) Plots of CIP removal efficiency after the addition of different trapping agents. (d) Raman spectra of ε-MnO2-P and ε-MnO2-B. (e) Schematic diagram of the preparation process of ε-MnO2-B and ε-MnO2-P.
Figure 5. EPR spectra of ε-MnO2-P in the presence of different trapping agents: (a) DMPO and (b) TEMP. (c) Plots of CIP removal efficiency after the addition of different trapping agents. (d) Raman spectra of ε-MnO2-P and ε-MnO2-B. (e) Schematic diagram of the preparation process of ε-MnO2-B and ε-MnO2-P.
Crystals 13 01664 g005
Crystals 13 01664 g006

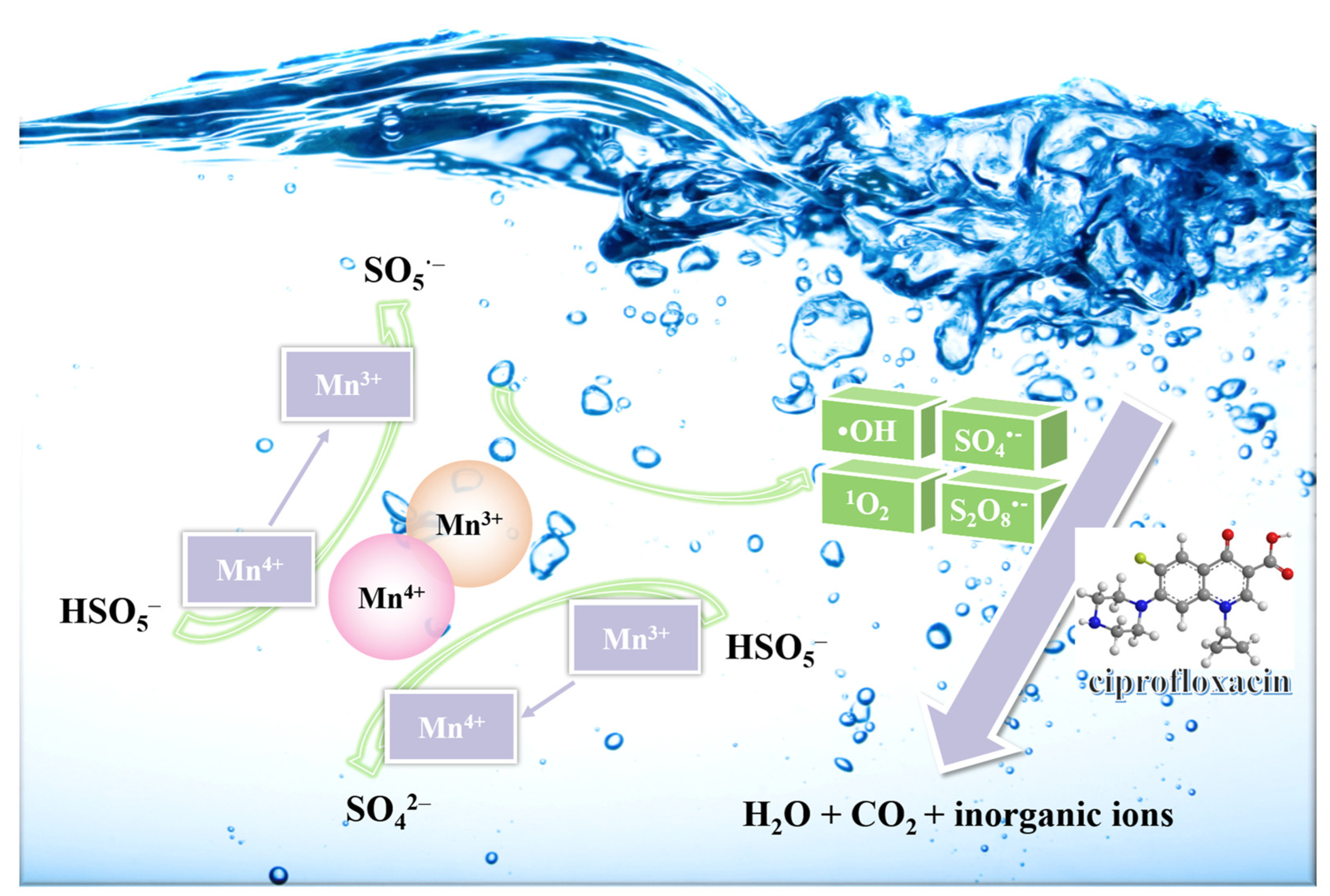

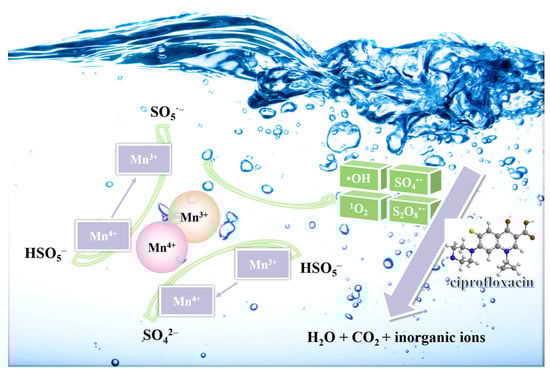

Figure 6. Schematic diagram of the mechanism of CIP degradation by the ε-MnO2-P/PMS system.
Figure 6. Schematic diagram of the mechanism of CIP degradation by the ε-MnO2-P/PMS system.
Crystals 13 01664 g006
Table 1. Comparison of catalytic activities for CIP degradation of ε-MnO2-P or ε-MnO2-B by activating PMS.
Table 1. Comparison of catalytic activities for CIP degradation of ε-MnO2-P or ε-MnO2-B by activating PMS.
SampleReaction ConditionAdsorption
(within 30 min)		Removal Efficiency (within 120 min)
ε-MnO2-P + PMSDried with a hydrophobic interface26.2%84.1%
ε-MnO2-B + PMSDried with a hydrophilic interface4.68%43.5%
