1. Introduction
Ultra-wide bandgap semiconductors have captured the attention of researchers and scientists due to their exceptional properties and promising applications across various fields. Their wide energy bandgap, high breakdown voltage, remarkable thermal stability, and high carrier mobility make them ideal candidates for power electronics, optoelectronics, and high-frequency devices. As ongoing research advances the understanding and fabrication techniques of UWBG materials, their widespread integration into numerous technologies is expected, revolutionizing industries and shaping the future of electronics. Continued exploration of UWBG semiconductors will undoubtedly unlock their full potential and pave the way for exciting technological advancements.
Ultra-wide bandgap semiconductors, such as gallium nitride (GaN), aluminum nitride (AlN), and diamond, are attracting considerable attention in current scientific research. These materials possess energy bandgaps larger than 3 eV, distinguishing them from conventional wide bandgap semiconductors like silicon carbide (SiC) and gallium arsenide (GaAs). The unique properties of UWBG semiconductors make them highly desirable for applications where extreme performance is required. This article elucidates the reasons for the surge in scientific interest and potential applications of UWBG semiconductors.
Ultra-wide bandgap semiconductors exhibit extraordinary material characteristics that set them apart from traditional semiconductors. Their wide energy bandgap ensures minimal leakage currents, higher breakdown voltages, and superior thermal stability, making them suitable for high-temperature and high-power applications. Additionally, UWBG semiconductors possess exceptional carrier mobility, enabling fast switching speeds and high-frequency operation.
One significant area where UWBG semiconductors are gaining attention is power electronics. The high breakdown voltage and low on-resistance of UWBG materials make them ideal for power devices, such as transistors and diodes, capable of handling high voltages and currents. Their ability to operate at higher temperatures further enhances their utility in power electronic systems, where efficient and compact solutions are essential.
The unique material properties of UWBG semiconductors also make them well-suited for optoelectronic applications. The wide bandgap enables the emission and detection of light in the ultraviolet (UV) and deep UV regions, expanding the potential for advanced UV-light-emitting diodes (LEDs), photodetectors, and sensors. These devices find applications in areas such as water purification, sterilization, and biological analysis.
Ultra-wide bandgap semiconductors exhibit exceptional carrier mobility, enabling high-frequency operation in electronic devices. This property makes them attractive for applications in high-frequency and high-power electronics, such as radio frequency amplifiers, wireless communication systems, and radar technology. The potential for faster switching speeds and reduced energy losses in these devices paves the way for enhanced efficiency and performance.
The ultra-wide-bandgap semiconductor, Ga
2O
3, has advantages over Si electronics in terms of the ability to achieve higher breakdown voltage and lower on-state resistance [
1,
2,
3,
4,
5,
6,
7,
8,
9]. Recent demonstrations of the ability of NiO/β-Ga
2O
3 vertical geometry rectifiers to achieve excellent performance [
9,
10,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20,
21,
22,
23,
24] and breakdown voltages in excess of 8 kV [
7,
25,
26,
27] has revitalized interest in the heterojunction approach to overcome the lack of a practical p-type doping capability for β-Ga
2O
3. Several groups have now demonstrated devices with breakdown voltage and on-state resistance beyond the 1D limit of both GaN and SiC, showing the increasing maturity of Ga
2O
3 power device technology [
7,
25]. These devices are intended for power conversion applications in the 1.2–20 kV range such as electric vehicles, solid-state transformers, data centers, motor control, photovoltaic inverters, other renewable energy conversion, and electric grid protection [
1,
3,
4,
6].
The advancement of ultra-wide bandgap power electronics based on Ga2O3 relies heavily on the integration of modelling and simulation techniques. These tools provide valuable insights into the material properties, device characteristics, and system-level performance, ultimately guiding the optimization of Ga2O3-based power devices. Through enhanced scientific understanding and technological implementation, Ga2O3-based power electronics hold great promise for revolutionizing various industries and enabling more efficient and sustainable power conversion systems. However, the realization of efficient Ga2O3-based power devices requires a comprehensive understanding of the material’s electrical, thermal, and structural properties, as well as the optimization of device designs. Modelling and simulation serve as indispensable tools in this endeavor.
Modelling and simulation aid in characterizing the fundamental material properties of Ga2O3, such as band structure, carrier transport mechanisms, and defect states. By employing quantum mechanical simulations, researchers can investigate the electronic structure and energy band alignment, elucidating the impact of various dopants and crystal orientations on device performance. These insights guide material engineering efforts to enhance the electrical and thermal properties of Ga2O3.
Modelling and simulation enable the exploration and optimization of device structures for Ga2O3-based power electronics. Through finite element analysis and computational electromagnetics, researchers can simulate the electrical and thermal behavior of devices under various operating conditions. This enables the evaluation of device performance metrics such as breakdown voltage, on-resistance, switching speed, and thermal management. Moreover, simulations help identify potential failure modes and design strategies to mitigate them, enhancing device reliability. To further advance the scientific understanding and technological implementation of Ga2O3-based power devices, the integration of modelling and simulation techniques becomes crucial. This article highlights the importance of modelling and simulation in unraveling the intricate characteristics and optimizing the performance of UWBG power devices, thus accelerating their deployment in numerous applications.
Modelling and simulation aid in identifying and mitigating performance limitations in Ga2O3-based power devices. By incorporating physical models, such as carrier scattering and trapping, researchers can accurately predict device characteristics, including dynamic behavior, transient response, and switching losses. These simulations facilitate the optimization of device architectures, material compositions, and fabrication techniques to achieve higher efficiency, power density, and reliability.
Modelling and simulation play a vital role in the integration and scaling of Ga2O3-based power devices. Through simulations, researchers can study the impact of parasitic capacitances, inductances, and resistances, enabling the design of optimal circuit layouts and packaging configurations. Furthermore, simulations aid in predicting the behavior of Ga2O3 devices in complex power system scenarios, allowing for seamless integration into practical applications, such as renewable energy systems, electric vehicles, and aerospace electronics.
The application of modelling and simulation expedites the development cycle of Ga2O3-based power devices. By reducing the reliance on iterative experimental prototypes, simulations help in narrowing down the design space and guiding researchers towards optimal device architectures, material choices, and process parameters. Consequently, this accelerates the time-to-market for Ga2O3-based power electronics, fostering their commercial adoption and facilitating technological advancements.
An optimized edge termination design is required to achieve the full potential of Ga
2O

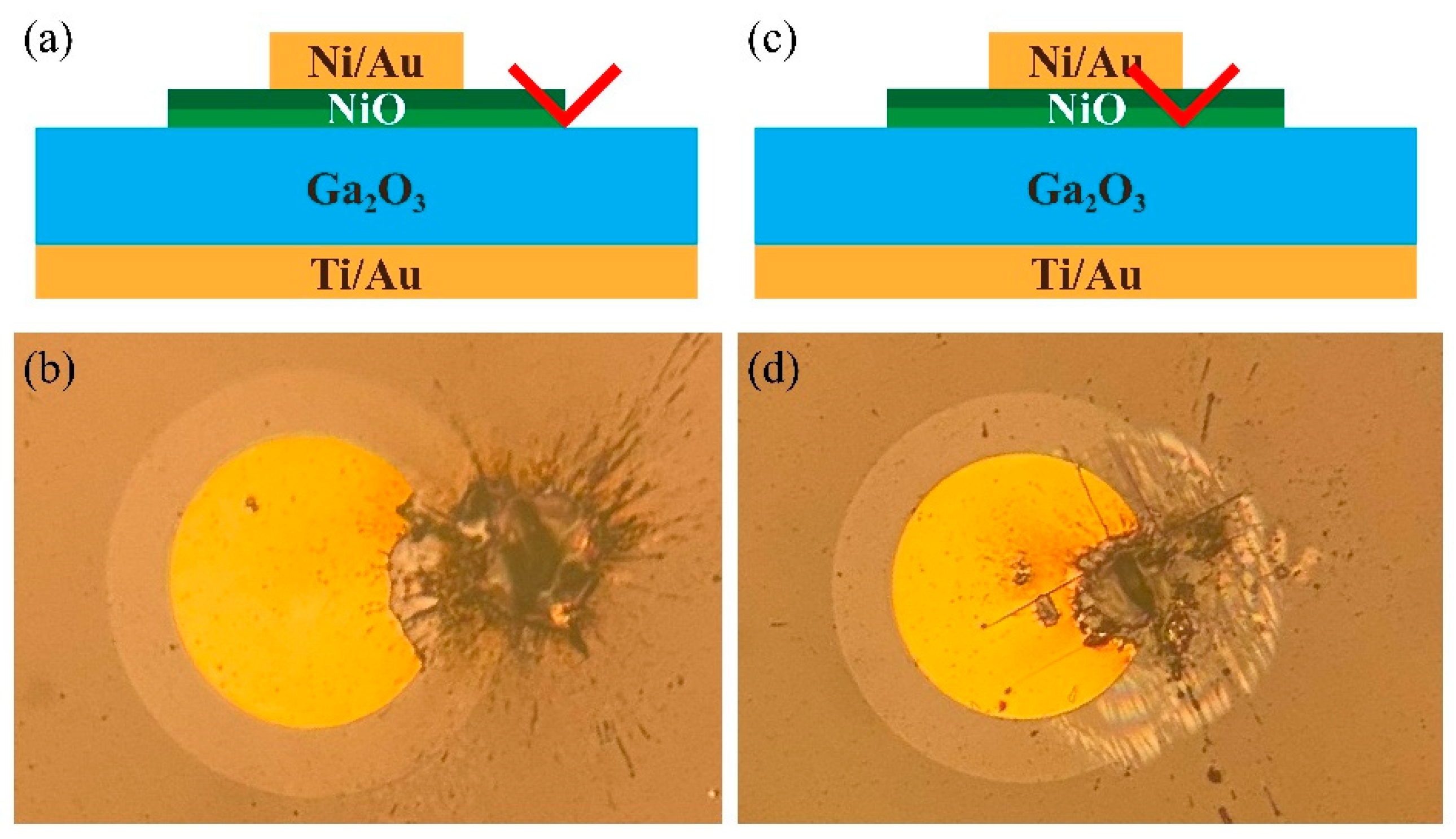

3 and obtain breakdown voltages near its theoretical limit by avoiding field crowding and early breakdown. For example, the rectifiers fail at contact edges under high reverse bias voltages via the formation of deep pits, while under forward bias, there is the introduction of cracking along crystallographic directions and even de-lamination of the epitaxial layer from the substrate via the high thermal and mechanical stresses developed at high forward current [
28,
29,
30]. Transmission electron microscopy showed that the preferred direction of cracking was along (200) lattice planes. In addition, crack propagation and stacking faults lay on the same lattice planes, suggesting that the existence of stacking faults might help initiate cracking under mechanical loading. The critical field, E
C, is defined as the maximum electric field that leads to avalanche breakdown in a 1D analytical model. The breakdown voltage of a rectifier, V
B, is given by the relation:
where ε is the permittivity, e is the electronic charge, and N
D is the doping density in the drift region. Previous simulations have found that the wider the total width of the p-NiO, the larger the on-state resistance, and the lower the reverse leakage current will be under a constant doping concentration in the NiO [
8]. At a constant total width of the NiO, optimized p-type doping can enhance the breakdown voltage. However, there is still much to understand in terms of optimizing the design of NiO/Ga
2O
3 heterojunction rectifiers to take full advantage of the role of the NiO in providing a p-type layer but also to be used for edge termination.
In this paper, we present an optimized design for the edge termination with a strong agreement between theoretical and experimental data using the proper choices of the parameters in the NiO layers forming the p-side of the heterojunction, which is also utilized as a guard ring. Without this edge termination, early breakdown will occur at the edge of the anode due to field crowding at high blocking voltages. The thickness, doping concentration, and extension beyond the anode are varied within the simulation and compared to experimental data. We calibrated the basis of the simulations with real experimental data [
15,
25,
26,
27], as shown below, but the main part of the manuscript is on the simulations themselves, which are designed to allow for the design and optimization of the next generation of rectifiers with an even higher performance.
3. Results and Discussion
The first simulation was to calculate the field distribution and breakdown voltage as a function of the top NiO layer thickness while holding the bottom layer constant at 10 nm.

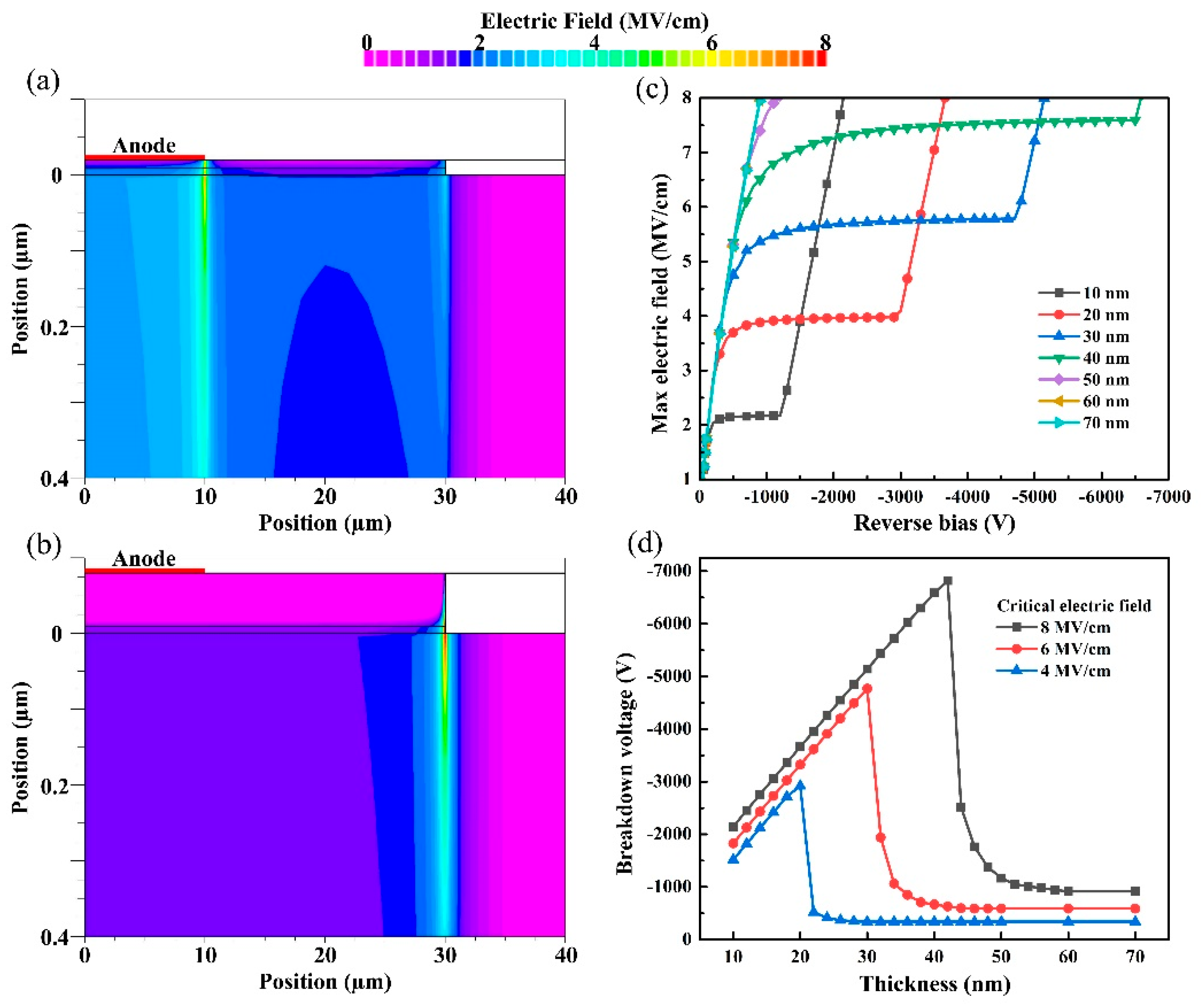

Figure 2a,b show the field distribution for two different NiO top layer thicknesses, demonstrating how the high field region can shift from the edge of the Ni/Au anode contact to the edge of the NiO extension. The 10 nm case has a better breakdown since the electric field was more effectively spread. The maximum electric field profile as a function of reverse bias for different top layer thicknesses is shown in
Figure 2c. The maximum electric field in Ga
2O
3 does not fully increase with reverse bias. Instead, there is a flat region where the peak electric field shift from the edge of the guard ring to the edge of the metal contact. The device is considered to break down as soon as the peak electric field reaches its critical value (usually in the range of 4–8 MV/cm), which is determined by the crystal quality. As shown in
Figure 2d, the breakdown voltage increases linearly with a thickness of up to 40 nm under a critical electric field of 8 MV/cm, and the breakdown was located at the edge of the NiO extension. However, at higher thicknesses, the maximum field location shifts back to the edge of the Ni/Au contact and occurs at a much lower reverse bias voltage. If the critical electric field is less than the commonly reported value of 8 MV/cm, the breakdown voltage becomes worse, and the best-performed thickness of the top NiO layer would also decrease. It should also be noted that the critical field is not precisely known for this material, and is based on theory, with most calculations implicitly assuming breakdown occurs when the applied electric field and depletion width are sufficiently high to create infinite charge multiplication. This analysis assumes that impact ionization is the breakdown mechanism, but this has never been experimentally verified in Ga
2O
3 and in any case, the impact ionization coefficients have not been measured either.
Next, we examined how the breakdown region shifted with reverse bias, with all other conditions held constant.

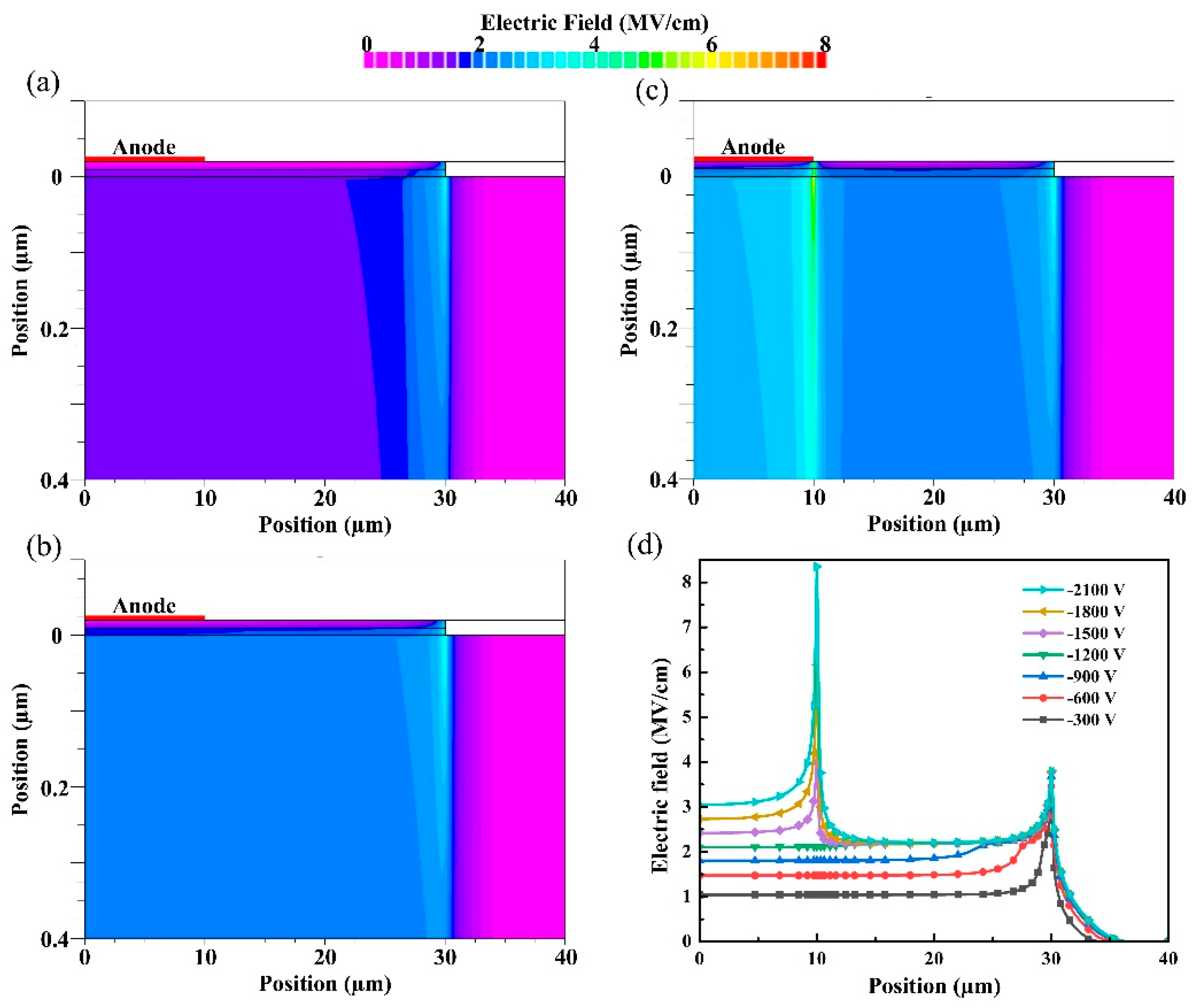

Figure 3a–c shows the electric field distributions under three different biases, while
Figure 3d shows the spatial location of the peak electric field as a function of reverse bias. Although the peak electric field in
Figure 3a,b has the same value and is at the same location, the field spreads back to the edge of the anode as the bias voltage increases. There exists a maximum electric field between the edge of the NiO and the edge of the anode which is determined by the thickness of the NiO (the flat region in
Figure 2c). When this region is reached, the peak electric field will no longer increase at the edge of the NiO. Instead, the back-spreading peak electric field will fill out the space between the two edges and only when that space is saturated, the peak electric field will then start to ramp up at the edge of the metal contact. A video showing this transition of the electric field distribution as a function of time is shown in
Figure S1 in the Supplemental File. In addition, the temporal change in the depletion region of the top NiO layer is also shown in
Figure S2. The depletion width expands along with the reverse bias until the layer is fully depleted, at the exact same bias where the peak electric field starts to grow on the edge of the contact metal.
Besides the thickness of the top NiO layer, the extension width of the guard ring is also a key component with regard to the device’s breakdown performance.

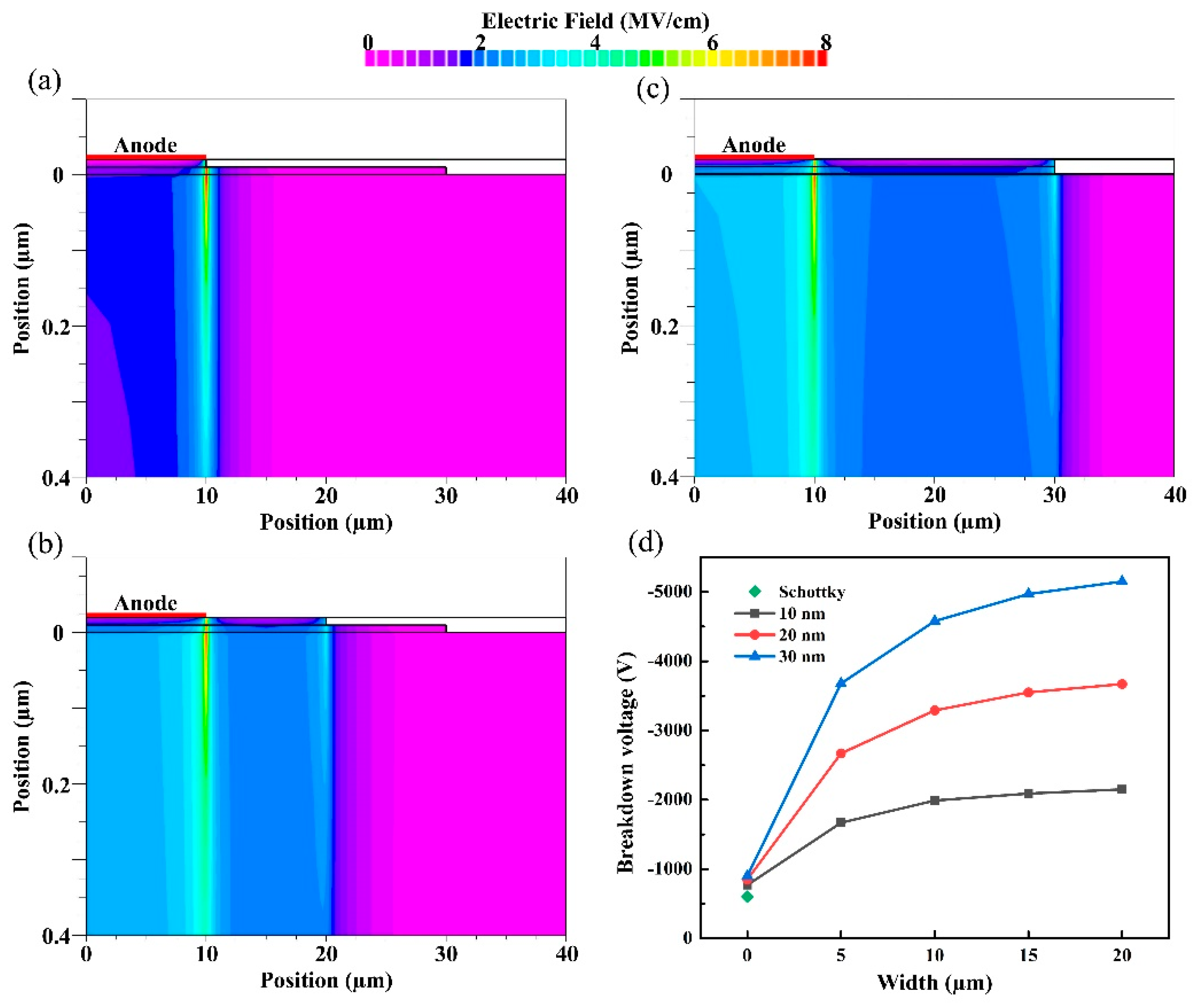

Figure 4a–c shows the electric field distribution at breakdown spreads out more as the top high-doped NiO layer extends away from the diode center. These three devices all have a fully depleted p-type layer when at breakdown, i.e., the peak electric field and breakdown are located at the edge of the anode metal contact. Moreover, there exists an optimized extension width considering the tradeoff between device area and breakdown performance, since
Figure 4d shows that the breakdown voltage becomes saturated once the width of the top NiO layer extends further away, from 0 to 20 µm. In addition, the difference in breakdown voltage compared to a Schottky rectifier without the NiO contact is small when the guard ring is absent for these PN rectifiers.
The effect of varying the bottom low-doped layer of NiO on the device breakdown performance is also evaluated. In

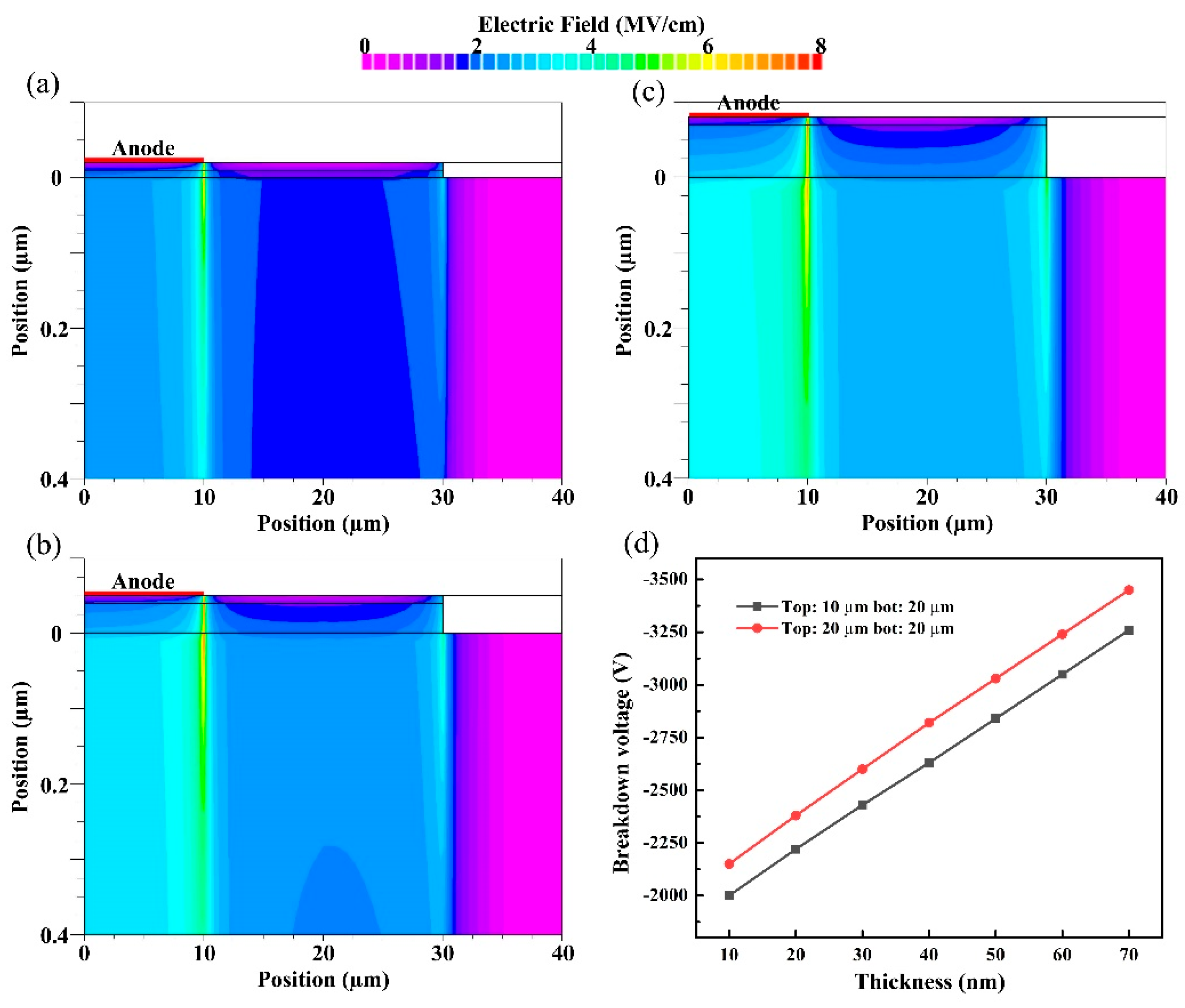

Figure 5a–c, the simulation results show that the electric field spreads out more as the low-doped bottom NiO layer thickness increases, a similar trend to the first region of varying the high-doped top NiO layer thickness.
Figure 5d shows that the increase in breakdown voltage due to the bottom NiO thickness is irrelevant to the extension width of the top layer since the red and black curves have the same gap across the whole
x-axis. Instead of varying the top layer of the NiO, the breakdown voltage is less “sensitive” when varying low-doped layer thickness. Compared with
Figure 2d, we can see 70 nm of low-doped NiO has the same breakdown voltage as 20 nm of high-doped NiO. If we keep increasing the thickness of the bottom layer, a similar trend of a sudden drop in breakdown voltage as in the second region of
Figure 2d is also seen.
The doping concentration of the NiO layer at the PN junction also played a significant role in device breakdown performances.

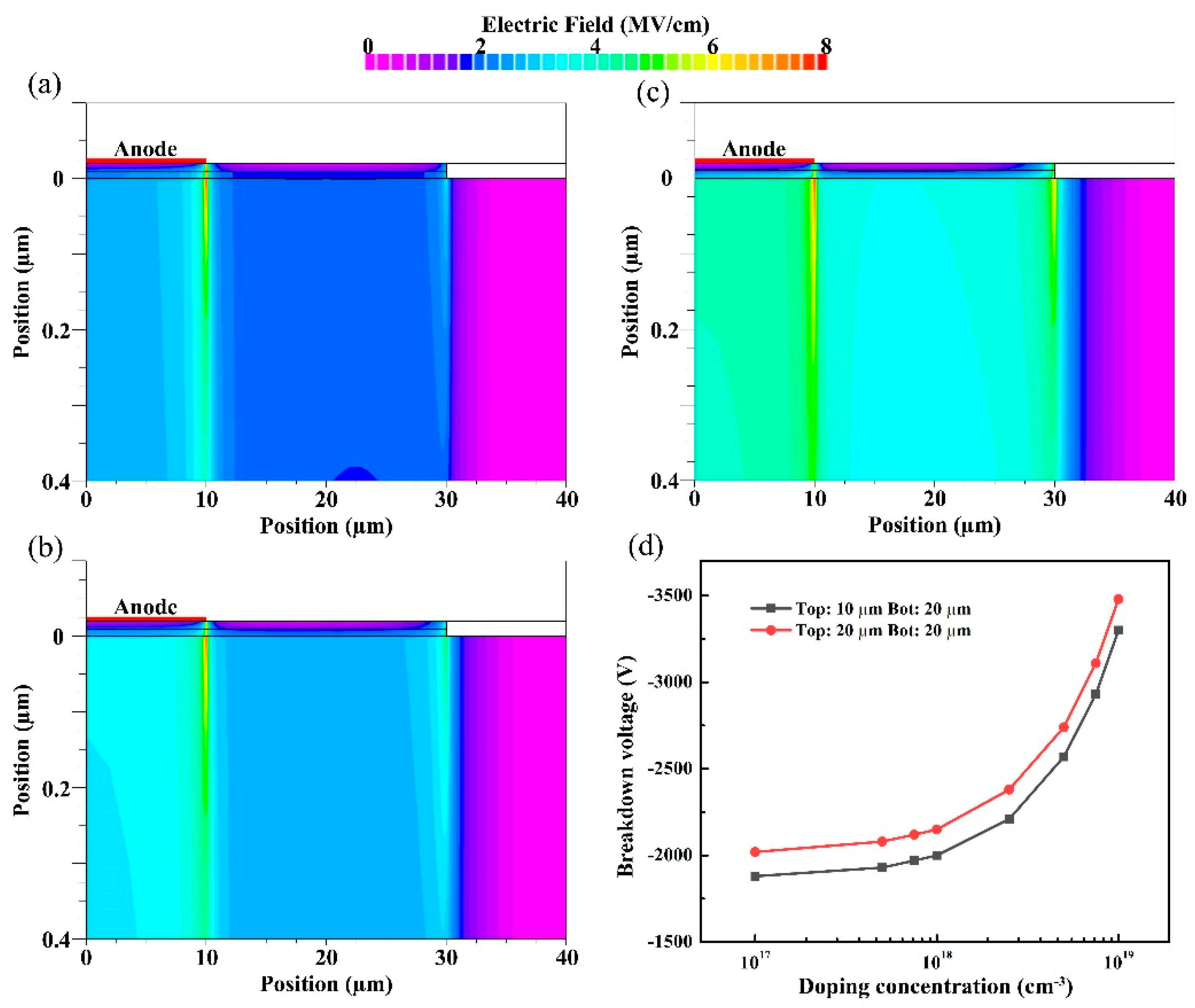

Figure 6a–c shows that a higher doping concentration in the bottom layer of NiO leads to a higher breakdown voltage due to the more spread-out electric field distribution. This is consistent with the experimental result that higher-doped NiO layers have a higher breakdown field. Again,
Figure 6d shows that the increase in breakdown voltage due to the bottom NiO doping concentration is irrelevant to the extension width of the top layer, since the red and black curves have the same gap across the whole
x-axis.
Since all the conditions in
Figure 6 indicate a peak electric field at the edge of the anode contact, i.e., with a fully depleted NiO layer, a more detailed view of the electric field versus reverse bias voltage with a higher thickness of the bottom layer NiO should be further investigated. The simulated devices in

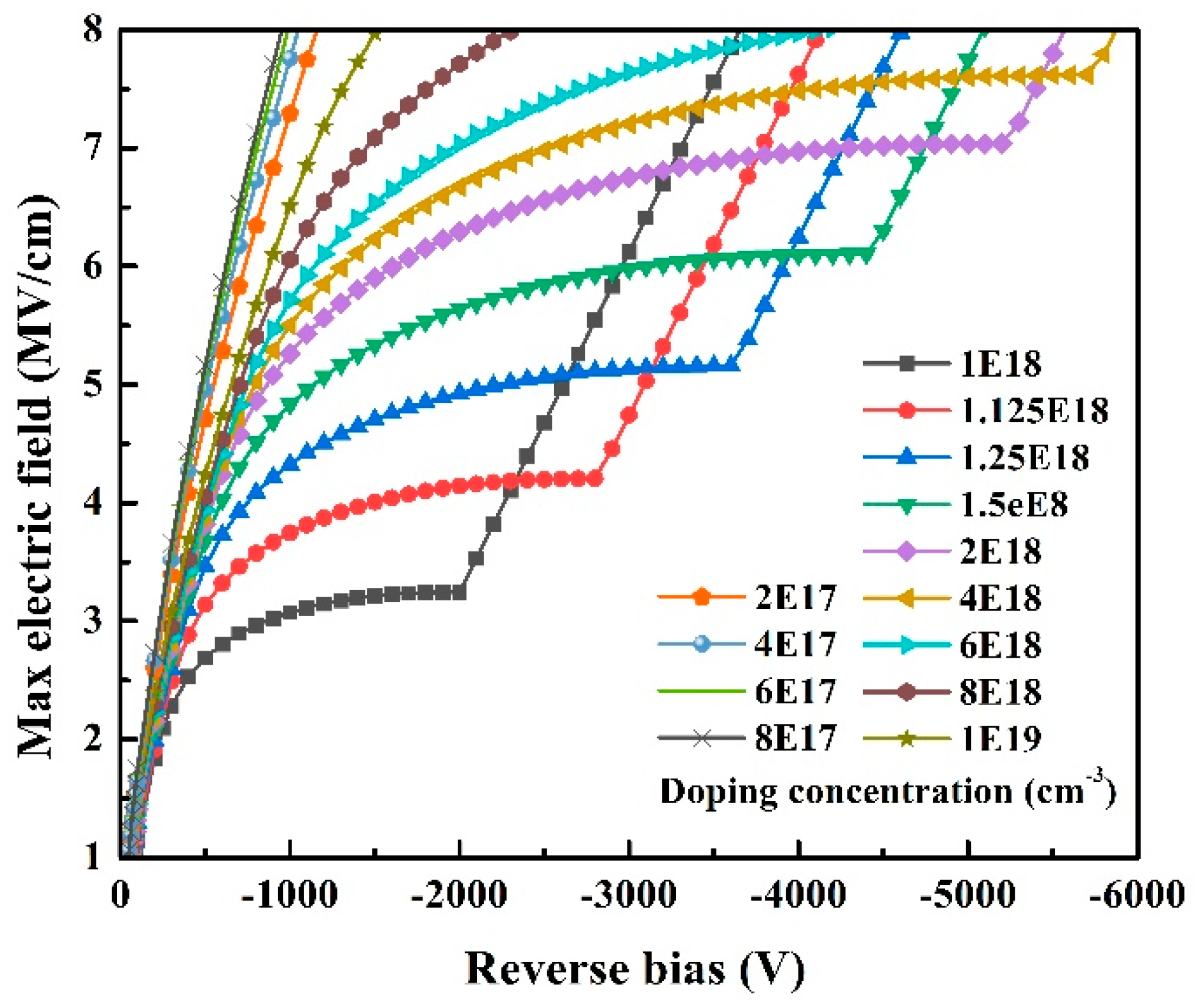

Figure 7 all have structures with a bottom NiO layer of 200 nm. They show a similar trend as
Figure 2c, which consists of two regions, one with a curve and one with a straight line. The correlation shown in

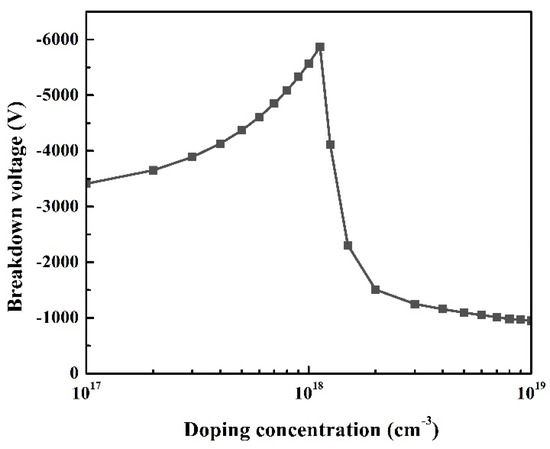

Figure 6d is depicted again in

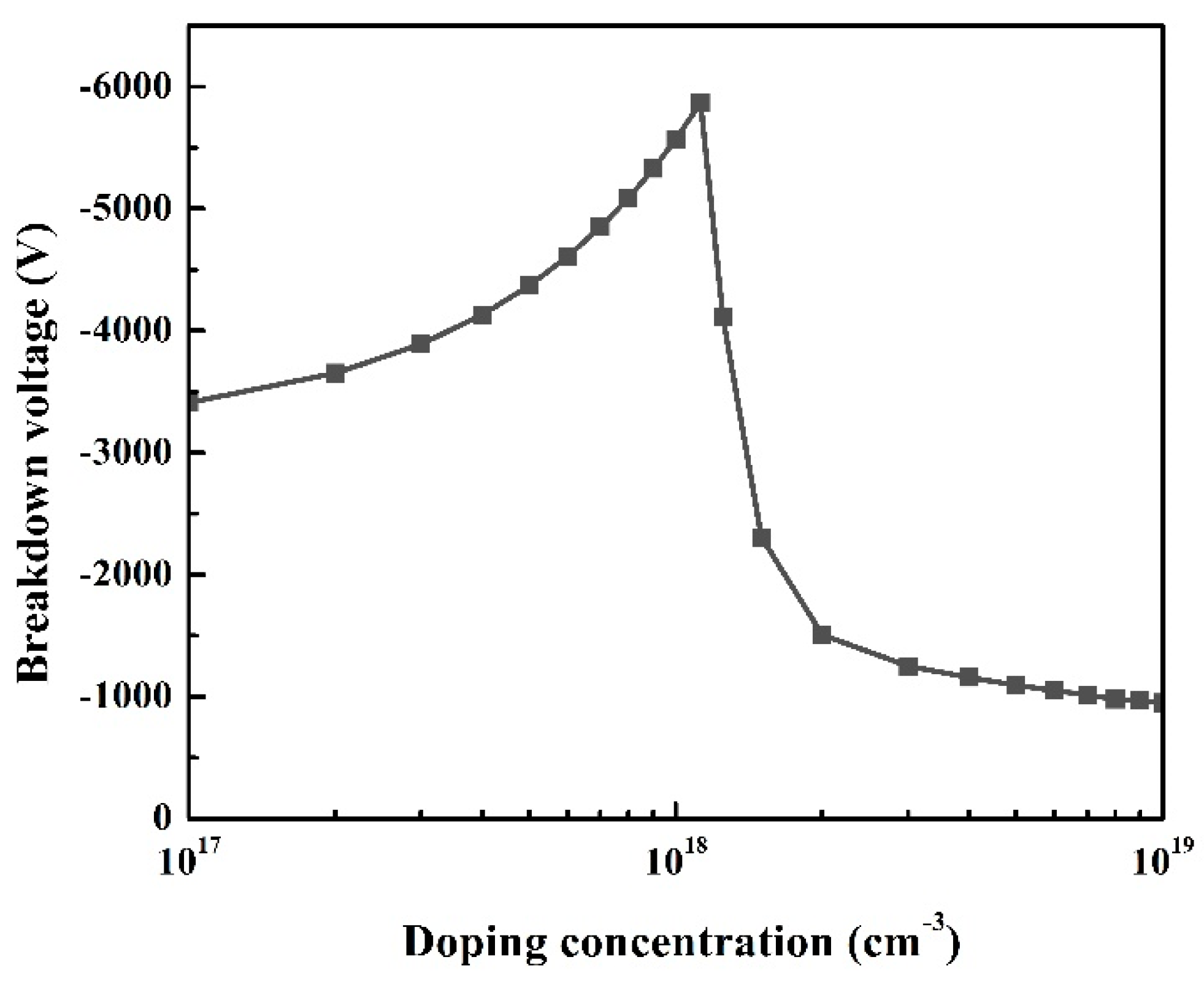

Figure 8 with this thick bottom layer structure. This time, when the doping concentration is increased, there is a maximum in the curve at around 10
18 cm
−3. When the doping concentration is less than 10
18 cm
−3, the whole NiO layer is depleted at the breakdown voltage. Above 10
18 cm
−3, the depletion width at breakdown starts to decrease along with the increasing concentration. The
Supplemental File also contains an animation showing the depletion edges at breakdown while varying the doping concentration (
Figure S3). When the device is in the first curved region of
Figure 7, the depletion width is growing with the increasing reverse bias. And, if it breaks down at this moment due to any reason such as a low critical electric field, the breakdown location will be at the edge of the NiO. On the other hand, when the device is in the second linear region, the whole NiO is fully depleted and it would break down at the edge of the anode contact metal. Nonetheless, the final breakdown voltages depend on various parameters like the geometry (thickness/extension width), the doping concentration of the NiO layer, or the critical electric field of the Ga
2O
3.
