On the Polymorphism of Cu2V2O7: Synthesis and Crystal Structure of δ-Cu2V2O7, a New Polymorph

by
Ilya V. Kornyakov
1,2 and
Sergey V. Krivovichev
1,2,*
1
Department of Crystallography, Institute of Earth Sciences, St. Petersburg State University, University Emb. 7/9, 199034 St. Petersburg, Russia
2
Nanomaterials Research Centre, Kola Science Centre, Russian Academy of Sciences, Fersmana 14, 184209 Apatity, Russia
*
Author to whom correspondence should be addressed.
Crystals 2024, 14(10), 857; https://doi.org/10.3390/cryst14100857 (registering DOI)
Submission received: 4 September 2024 / Revised: 25 September 2024 / Accepted: 27 September 2024 / Published: 29 September 2024
(This article belongs to the Section Inorganic Crystalline Materials)
Browse Figures
Versions Notes

Abstract

:
Single crystals of the new modification of copper pyrovanadate, δ-Cu2V2O7, were prepared using the chemical vapor transport reaction method. The crystal structure (monoclinic, P21/n, a = 5.0679(3), b = 11.4222(7), c = 9.4462(6) Å, β = 97.100(6)°, V = 542.61(6) Å3, Z = 4) was solved by direct methods and refined to R1 = 0.029 for 1818 independent observed reflections. The crystal structure contains two Cu sites: the Cu1 site in [4 + 2]-octahedral coordination and the Cu2 site in [4 + 1]-tetragonal pyramidal coordination. There are two V5+ sites, both tetrahedrally coordinated by O atoms. Two adjacent V1O4 and V2O4 tetrahedra share the O4 atom to form a V2O7 dimer. The crystal structure of δ-Cu2V2O7 can be described as based upon layers of V2O7 dimers of tetrahedra parallel to the (001) plane and interlined by chains of the edge-sharing Cu1O6 and Cu2O5 polyhedra running parallel to the a axis and arranged in the layers parallel to the (001) plane. The crystal chemical analysis of the three other known Cu2V2O7 polymorphs indicates that, by analogy with δ-Cu2V2O7, they are based upon layers of V2O7 groups interlinked by layers consisting of chains of CuOn coordination polyhedra (n = 5, 6). The crystal structures of the Cu2V2O7 polymorphs can be classified according to the mutual relations between the Cu-O chains, on the one hand, and the V2O7 groups, on the other hand. The analysis of the literature data and physical density values suggests that, at ambient pressure, α- and β-Cu2V2O7 are the low- and high-temperature polymorphs, respectively, with the phase transition point at 706–710 °C. The β-phase (ziesite) may form metastably under temperatures below 560 °C and, under heating, transform into the stable α-phase (blossite) at 605 °C. The δ- and γ-polymorphs have the highest densities and most probably are the high-pressure phases. The structural complexity relations among the polymorphs correspond to the sequence α = β < γ < δ; i.e., the δ phase described herein possesses the highest complexity, which supports the hypothesis about its stability under high-pressure conditions.

1. Introduction

Copper pyrovanadate (Cu2V2O7) attracts considerable attention due to its photocatalytic properties, with possible applications in photoelectrochemical water oxidation, size-tunable photoconversion efficiency, chemical sensors, etc. [1,2,3,4,5,6,7,8,9,10,11,12,13]. The magnetic properties of α- and β-Cu2V2O7 have been the subject of numerous theoretical and experimental studies [14,15,16,17,18,19,20,21,22,23,24]. The α-Cu2V2O7 phase is noncentrosymmetric with remarkable multiferroic properties [25,26,27]. Both the α- and β-modifications of copper pyrovanadate display negative thermal expansion (NTE), which is rarely observed for orthorhombic and monoclinic crystals, respectively [28,29]. Last but not least, α- and β-Cu2V2O7 are known as the mineral species blossite and ziesite, respectively, discovered in fumaroles of the Isalco Volcano, Salvador [30,31,32].
The polymorphism of Cu2V2O7 is currently a rather confused issue. The CuO-V2O5 system was studied in [33,34,35] and it was established that the low-temperature α-modification transforms slowly into the β-modification at 712 °C. The subsequent crystal chemical studies revealed basic structural features of both polymorphs, either of synthetic or natural origin [32,36,37,38]. It was established that the high-temperature β-phase may form metastably if crystallized fast below the α → β transition temperature, which is considered a major reason for its occurrence as a mineral species in nature. Clark and Garlick [39] reported that, upon heating, the metastable β-phase at 605 °C transforms into the α-phase, which, at 705 °C, transforms into the third phase, γ-Cu2V2O7. The same sequence of phase transformations was reported by Petrova et al. [40], who demonstrated that the high-temperature phase at 740 °C is also monoclinic, C2/c, with unit cell parameters similar to those of the β-phase, which prompted the authors to identify this phase as β’-modification. There are almost no doubts that the β’-phase reported by Petrova et al. [40] is identical to the γ-modification described in [39]. The nomenclature by Clark and Garlick [39] was used in subsequent works [41,42].
Using chemical vapor transport techniques, Krivovichev et al. [43] synthesized another polymorph of Cu2V2O7 and determined its crystal structure, which appears to be triclinic and structurally different from those of the α- and β-phases. This triclinic phase was identified as a γ-polymorph, thereby creating the possibility of its confusion with the high-temperature phase reported by Clark and Garlick [39]. The thermodynamic nature of the triclinic polymorph was unclear until 2022, when Turnbull et al. [44] reported the β → γ phase transition induced by rather low pressures (< 0.4 GPa). This observation explained the formation of γ-Cu2V2O7 in chemical vapor transport experiments in evacuated silica tubes, where additional pressure may be created by the small amount of water vapor present in the starting chemicals (see, e.g., [45]).
The aim of the present work is threefold. First, we report on the synthesis and crystal structure determination of a novel Cu2V2O7 polymorph (termed δ-modification; the phase was synthesized accidentally in a small amount when studying the K-Cu-V-O-Cl system). Second, we analyze the crystal chemical relations between the known Cu2V2O7 modifications with particular attention paid to their structural complexity. Third, we attempt to identify the proper relations between the known Cu2V2O7 polymorphs, their relative stability, and the recommended nomenclature.

2. Materials and Methods

2.1. Synthesis

Single crystals of δ-Cu2V2O7 were prepared using the chemical vapor transport reaction method. Stoichiometric quantities of copper oxide (0.08 g, CuO, 99%, Vekton, St. Petersburg, Russia), vanadium oxide (0.182 g, V2O5, 99%, Vekton) and potassium chloride (0.075 g, KCl, 99%, Vekton) were ground together in an agate mortar and the resulting mixture was heated at 250 °C for 24 h in air. The sample was further loaded into a fused quartz ampoule (~12 cm long, a ~0.8 cm inner diameter and a 0.1 cm wall thickness), which was evacuated to a pressure of 10–2 mbar and sealed. The ampoule was placed horizontally into a two-zone furnace and heated to 650 °C over 4 h, with a temperature difference of ~50 °C between the source and deposition zones. After 72 h, the ampoule was slowly cooled to 200 °C over the course of 99 h, and then the furnace was turned off. The inner walls of the ampoule were covered by fine crystals of α- and β-Cu2V2O7. The source zone contained single crystals of a synthetic analogue of stoiberite, Cu5O2(VO4)2. The walls between the center of the ampoule and the deposition zone contained small and rare, thin, black needles of K(V3O8). Additional phases from the K-Cu-V-O-Cl system were discovered via a powder X-ray diffraction study (see below). The end of the ampoule was cracked but unbroken and filled with a mixture of different Cu2V2O7 polymorphs, both α- and β- Cu2V2O7, with the addition of the γ-polymorph. After close examination under an optical microscope, small, laminar, orange-red crystals were found as intergrowths with crystals of different Cu2V2O7 polymorphs. The single-crystal X-ray diffraction analysis was conducted, which confirmed the novelty of the phase.

2.2. Powder X-ray Diffraction

In order to verify the phase composition of the sample, the crystals from the inner walls of the ampoule were ground in an agate mortar. The resulting polycrystalline powder was then studied using powder X-ray diffraction using a Rigaku Miniflex II diffractometer equipped with a CoKα1+2 X-ray tube (λ(CoKα1) = 1.78896 Å; λ(CoKα2) = 1.79285 Å). The diffractogram was recorded over a 2θ range of 3–80o with a 0.02o step size and a scan speed of 2 °/min. The sample was rotated during the data collection at a speed of 20 RPM. A phase identification procedure was performed using PDXL 2 software [46] with the implemented ICDD’s PDF-2 (release 2020) powder database [47]. The presence of each phase was confirmed by fitting its structural data, imported from ICSD ver. 4.8.0 using the TOPAS 5 software via the Whole Powder Pattern Fitting method [48,49]. The final profile fitting (Figure 1; Rwp = 5.55%) included all four polymorphs of Cu2V2O7, K0.5V2O5 [50], K4CuV5O15 [51] and VOCl [52]. It should be noted that several peaks were not indexed (asterisks in Figure 1) and, therefore, the proper quantitative powder X-ray diffraction analysis could not be carried out. The presence of the new polymorph of Cu2V2O7 in the mixture was therefore confirmed by the powder X-ray diffraction study.

2.3. Single-Crystal X-ray Diffraction

A single crystal of δ-Cu2V2O7 was selected for the data collection under an optical microscope. For the diffraction experiment, the crystal was coated with an oil-based cryoprotectant and mounted on a cryoloop. The X-ray diffraction study was conducted using a Rigaku XtaLAB Synergy-S X-ray diffractometer operated with a monochromatic micro-focus MoKα tube PhotoJet-S at 50 kV and 1.0 mA and equipped with a CCD HyPix 6000HE hybrid photon-counting detector. CrysAlisPro software [53] was used for the integration and correction of the diffraction data for polarization, for background and Lorentz effects, for a numerical absorption correction based on Gaussian integration over a multifaceted crystal model, and for an empirical absorption correction based on spherical harmonics implemented in the SCALE3 ABSPACK algorithm. The unit cell parameters were refined using a least-squares technique. The structure was solved by a dual-space algorithm and refined using SHELX programs [54] incorporated in the OLEX2 program package [55]. Crystal data, data collection information and structure refinement details are given in Table 1, and atom coordinates and selected interatomic distances are given in Table 2 and Table 3, respectively. Table 4 provides the results of the bond valence analysis that shows that all atoms have bond valence sums according to their expected oxidation states.

3. Results

3.1. Cation Coordination

The crystal structure of δ-Cu2V2O7 contains two Cu sites (Figure 2a). The Cu1 site is in [4 + 2]-octahedral coordination with four short (1.913–1.962 Å) and two long (2.452 and 2.705 Å) Cu1-O bonds. This kind of distortion is typical for Cu2+ ions coordinated by oxygen and is due to the Jahn–Teller effect [57,58,59]. The Cu2 site forms four short (1.909–1.990 Å) Cu2-O bonds and one longer (2.480 Å) Cu2-O bond, thereby forming a CuO5 [4 + 1]-tetragonal pyramid. There is one longer Cu2-O2 contact of 3.121 Å, which complements the pyramid toward the [4 + 1 + 1]-distorted Cu2O6 octahedron. However, the bond valence of the Cu2-O2 bond is rather low (0.02 v.u.), which is below the limit of 0.05 v.u. outlined for meaningful cation–anion bonds [60]. Therefore, this bond is not considered as important for the crystal structure organization.
There are two V5+ sites in the crystal structure, both tetrahedrally coordinated by O atoms. Two adjacent V1O4 and V2O4 tetrahedra share the O4 atom to form a V2O7 dimer (Figure 2b). The VO4 tetrahedra are considerably distorted; the degree of distortion is different for the two symmetrically independent tetrahedra, which is quite remarkable. The V1O4 tetrahedron has three shorter V1-O bonds (1.665–1.692 Å) and one longer V1-O bond (1.825 Å), with the longer bond being the O4 atom bridging the V1 and V2 sites. In contrast, the V2O4 contains three comparable V2-O bonds of 1.722–1.763 Å (with the longest bond to the bridging O4 site) and one short V2-O7 bond (1.650 Å). It is of interest to compare the observed distortion of vanadate tetrahedra with those in other Cu2V2O7 polymorphs. In blossite, α-Cu2V2O7 [38], there is one symmetrically independent VO4 tetrahedron that has the same type of distortion as the one observed for the V2 site in δ-Cu2V2O7: there are three comparable V-O bonds (1.709–1.743 Å) (with the longest to the bridging O atom) and one shorter V-O bond (1.648 Å). The crystal structure of β-Cu2V2O7 (ziesite [32]) also contains one V site. The V-O bonds are separated into two groups: two longer bonds (1.774 Å (to the bridging O atom) and 1.745 Å) and two shorter bonds (1.646 and 1.687 Å). The situation in the crystal structure of γ-Cu2V2O7 is very similar to that observed in the δ-polymorph: there are two V sites that have different degrees of distortion: the V1O4 group contains three short V1-O bonds (1.665–1.705 Å) and one longV1-O bond (1.837 Å), whereas the V2O4 group contains one short V2-O bond (1.648 Å) and three longer V2-O bonds (1.727–1.779 Å), with the longest one to the bridging O atom.

3.2. Structure Description

The polyhedral representation of the crystal structure of δ-Cu2V2O7 is shown in Figure 3a. The crystal structure is based upon layers of V2O7 dimers of tetrahedra parallel to the (001) plane and interlinked by chains of edge-sharing Cu1O6 and Cu2O5 polyhedra. The chains are parallel to the a axis and are arranged into layers also parallel to the (001) plane. Figure 3b shows the arrangement of the chains in a ball-and-stick representation. The CuO4 squares formed by short (<2.0 Å) Cu-O bonds share O-O edges to form the [Cu2O6] dimers that are further linked by sharing O-O edges that involve apical O atoms in both Cu1O6 octahedral and Cu2O5 tetragonal pyramids. The adjacent chains are linked by long and weak Cu2-O2 interactions (3.121 Å), so that double chains or ribbons are formed. The formation of dimers of strongly bonded CuO4 squares is an important feature of δ-Cu2V2O7, which is also shared by the β- and γ-polymorphs, but not by the α-polymorph (see below).

4. Discussion

4.1. Structure Comparison of the Cu2V2O7 Polymorphs

The crystal structure of δ-Cu2V2O7 is closely related to those of three other polymorphs. The general feature of the four crystal structures is that they are based upon layers of V2O7 groups interlinked by chains of CuOn coordination polyhedra (n = 5, 6). However, the details of the interlinkage differ from structure to structure. Below, we outline the basic principles underlying the structural architectures of the three other Cu2V2O7 polymorphs in their comparison with δ-Cu2V2O7.
In the crystal structure of blossite, α-Cu2V2O7 [38], there is one independent Cu site that forms four strong (1.880–1.971 Å) Cu-O bonds complemented by a longer (2.542 Å) Cu-O bond (Figure 4a). The CuO4 configuration consisting of short Cu-O bonds is a strongly compressed tetrahedron with the O-Cu-O angles between the opposite Cu-O bonds equal to 146 and 159o (the ideal tetrahedron assumes the value of 109.5°). The [4 + 1] coordination polyhedron is intermediate between a tetragonal pyramid and a trigonal bipyramid and has another long Cu-O contact of 3.025 Å. In blossite, the CuO5 polyhedra share edges to form chains arranged in layers parallel to the (100) plane (Figure 4b). The chains in the adjacent layers run parallel to [011] and [01 1 ¯ ] (i.e., the chains in the adjacent layers are oriented crosswise) (Figure 4c). Within the chains, the strong CuO4 tetrahedral configurations share corners so that the Cu⋯Cu distances are all equal to 3.146 Å.
By analogy with blossite, the crystal structure of ziesite, β-Cu2V2O7, contains one independent Cu site coordinated by five O atoms to form a [4 + 1]-distorted CuO5 tetragonal pyramid (Figure 5a) consisting of CuO4 squares complemented by a longer (2.265 Å) Cu-O bond. Two CuO4 squares share an O-O edge to form [Cu2O6] dimers, similar to those observed in δ-Cu2V2O7. The dimers are further linked by sharing O-O edges involving apical O atoms of the CuO5 pyramid to form chains arranged into layers parallel to the (001) plane (Figure 5b). As in blossite, the Cu-O chains in the adjacent layers are oriented crosswise and run parallel to [110] and [1 1 ¯ 0 ] (Figure 5c). Within the chains, the Cu⋯Cu distances are equal to 2.955 and 3.255 Å, and the shorter and longer contacts alternate.
The crystal structure of γ-Cu2V2O7 contains two Cu sites. The Cu1 site is coordinated [4 + 2]-octahedrally with the seventh Cu⋯O contact equal to 3.182 Å (Figure 6a), whereas the Cu2 coordination is a [4 + 1]-distorted tetragonal pyramid (Figure 6b). There are two symmetrically independent layers of Cu-O chains based upon Cu1O6 and Cu2O5 coordination polyhedra (Figure 6c,d). In both layers, the chains are parallel to the a axis. Within the chains, the CuO4 squares formed by short Cu-O bonds share edges to form [Cu2O6] dimers in the same fashion as observed in β- and δ-polymorphs. The linkage of dimers occurs via O-O edges that involve apical O atoms of the CuOn polyhedra (n = 5, 6). As a result, the Cu⋯Cu distances are split into two groups: shorter (2.986 and 2.969 Å for Cu1 and Cu2, respectively) and longer (3.200 and 3.113 Å for Cu1 and Cu2, respectively) ones.
The structural classification of Cu2V2O7 polymorphs can be obtained by considering the mutual orientations of the Cu-O chains in the structure, on the one hand, and the mutual orientations of the V2O7 groups, on the other hand. Figure 7 shows a representation of the Cu2V2O7 crystal structures in terms of Cu-Cu and V-V graphs, where the vertices correspond to the positions of Cu and V atoms, respectively. The two adjacent Cu atoms are linked by dual-banded cylinder and single lines if the Cu⋯Cu distances are in the ranges 2.9–3.0 and 3.1–3.2 Å, respectively. The V-V links correspond to the V⋯V distances in the pyrovanadate V2O7 groups, which are in the range of 3.2–3.4 Å.
In all four polymorphs, the Cu-Cu chains are zigzag-like. Their relative orientations are either parallel (all chains are parallel to one direction (δ- and γ-polymorphs)) or cross-wise (the chains run in two different directions (α- and β-polymorphs)). The same type of relations are observed for the V-V dimers: they are either all parallel to each other (β- and γ-polymorphs) or non-parallel (oriented in two different directions (α- and δ-polymorphs)). The two possible orientations of the Cu-Cu and V-V graphs create four different possible combinations. Figure 8 demonstrates that all four possibilities are realized in the crystal structures of the Cu2V2O7 modifications.
The relations between the crystal structures of the γ- and δ-polymorphs can be rationalized in terms of unit cell relations. The unit cell of the δ-phase can be obtained from that of the γ-phase through the application of the [100/020/001] matrix with the subsequent transformation of the resulting triclinic cell into a monoclinic one. Thus, the b parameter of the δ-modification is approximately doubled compared to that of the γ-modification. The doubling can be explained by the different orientations of the V2O7 groups in the δ-phase versus their parallel orientations in the γ-phase. Hypothetically, the structure of the δ-phase can be obtained from that of the γ-phase by stacking together unit cells of the latter with adjacent unit cells rotated relative to each other by 180° around the c axis. Note that the different stackings of the V2O7 groups in the two polymorphs result in different coordination environments of the Cu2+ cations.

4.2. Stability and Nomenclature of the Cu2V2O7 Polymorphs

The earlier study of the CuO-V2O5 system by Brisi and Molinari [33] identified α- and β-Cu2V2O7 as low- and high-temperature polymorphs, respectively, with the phase transition point at 710 °C. This conclusion was supported by subsequent structural investigations [36,37,38] and the discovery of ziesite in nature as a metastable phase [30]. The α ↔ β phase transition is reversible, but relatively slow (especially in cooling), due to its reconstructive character that can also be deduced from the crystal chemical analysis given above. Table 5 contains crystallographic information on the reported Cu2V2O7 polymorphs and their calculated densities. The low- and high-temperature natures of the α- and β-phases, respectively, are fully supported by their density values, since, in the vast majority of cases, the physical density of the high-temperature phase is lower than that of the low-temperature phase. The metastable character of the β-polymorph was also confirmed by Rotermel’ et al. [61].
Clark and Garlick [39] observed the formation of β-Cu2V2O7 from a stoichiometric mixture of CuO and V2O5 at 500 °C, whereas synthesis at higher temperatures results in the formation of α-Cu2V2O7. These observations led Clark and Garlick [39] to conclude that β-Cu2V2O7 and not α-Cu2V2O7 is a low-temperature modification. The β → α transition was observed at 605 °C with the subsequent transition to the so-called ‘γ-phase’ (not identical to the γ-phase reported in [43]) at 705 °C. The crystal structure of this ‘γ-phase’ or β’-Cu2V2O7 was reported by Petrova et al. [40] from the powder diffraction data collected at 740 °C as crystallizing in the same space group (C2/c) as the β-polymorph. In some aspects, the crystal structure refinement quality for β’-Cu2V2O7 is questionable, but its general features coincide with those of the β-modification (ziesite). Slobodin et al. [41] performed differential scanning calorimetry studies and followed the conclusions made in [39] with regard to the nature of the α- and β-phases. However, it is well known that high-temperature phases may form metastably under certain kinetic crystallization regimes, since their lower densities (Table 5) result in lower surface energies and lower energy nucleation barriers in comparison with the thermodynamically stable phases [62]. The β’-phase observed above 712 °C is in fact the high-temperature form of the β-polymorph and therefore should not be considered as a separate Cu2V2O7 polymorph.
Thus, we suggest that the temperature stability fields of the Cu2V2O7 polymorphs at ambient pressures are the same as suggested previously [33,34,35,36,37,38]: the α- and β-phases are the low- and high-temperature modifications, respectively.
On the basis of the density values of the δ- and γ-polymorphs (Table 5), it can be proposed that both these phases are high-pressure Cu2V2O7 modifications. The formation of γ-Cu2V2O7 was observed under the compression of β-Cu2V2O7 to 0.40 GPa [44], which supports this conclusion. The nature of the δ-polymorph remains unclear. However, it can be hypothesized that it may form under higher pressures than γ-Cu2V2O7, or through other pathways (e.g., by the compression of the α-polymorph).

4.3. Structural Complexity

The structural complexity parameters for different Cu2V2O7 polymorphs were studied using the information theoretical approach introduced in [63,64]. The two basic complexity parameters are the Shannon information amounts per atom (strIG) and per unit cell (strIG,total) that were calculated using the following equations:
I G str = − ∑ i = 1 k p i   log 2   p i   ( bit / atom ) ,
I G , total str = − v ∑ i = 1 k p i   log 2   p i   ( bit / cell ) ,
where k is the number of different crystallographic orbits (Wyckoff sites) in the structure and pi is the random choice probability for an atom from the ith crystallographic orbit; that is,
pi = mi/v,
where mi is a multiplicity of a crystallographic orbit (i.e., the number of atoms of a specific Wyckoff site in the reduced unit cell) and v is the total number of atoms in the reduced unit cell. The complexity parameters are provided in Table 6.
There is a tendency of decreasing structural complexity with increasing temperature [64,65]. In the case of the Cu2V2O7 polymorphs, the structural information is identical for the low- and high- temperature phases (α- and β-phases, respectively). Note that the overall symmetry at the critical point decreases from orthorhombic (Fdd2) to monoclinic (C2/c), despite the general tendency of increasing symmetry under increasing temperature [66]. However, the structural complexity remains constant, which points out that the information-based parameters are more sensitive symmetry indicators than point-group symmetry.
The δ- and γ-polymorphs are more complex than the ambient-pressure α- and β-polymorphs, which also corresponds to the general tendency of increasing order under increasing pressure [67]. The δ-phase first reported herein is the most complex among the known Cu2V2O7 polymorphs, providing additional support for the hypothesis about its high-pressure nature.

5. Conclusions

In conclusion, we report the synthesis and crystal structure of the new Cu2V2O7 polymorph, the δ-phase, obtained by chemical vapor transport reactions. Its crystal structure has many similarities to those of the known modifications of copper divanadate, but it is generally new. The crystal chemical analysis of the four known Cu2V2O7 phases indicates that they are based upon layers of V2O7 groups interlinked by layers consisting of chains of CuOn coordination polyhedra (n = 5, 6). The crystal structures can be classified according to mutual relations between the Cu-O chains, on the one hand, and the V2O7 groups, on the other hand. The analysis of the literature data and physical density values suggests that, at ambient pressure, α- and β-Cu2V2O7 are the low- and high-temperature polymorphs, respectively, with the phase transition point at 705–710 °C. The β-phase may form metastably under temperatures below 560 °C and, under heating, transform into the stable α-phase at 605 °C. The δ- and γ-polymorphs have the highest densities and most probably are the high-pressure phases. The structural complexity relations among the polymorphs correspond to the sequence α = β < γ < δ; i.e., the δ phase described herein possesses the highest complexity, which supports the hypothesis about its stability under high-pressure conditions.

Author Contributions

Conceptualization, S.V.K.; methodology, I.V.K. and S.V.K.; formal analysis, I.V.K. and S.V.K.; investigation, I.V.K. and S.V.K.; writing—original draft preparation, S.V.K.; writing—review and editing, S.V.K. and I.V.K.; funding acquisition, S.V.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant 24-17-00083.

Data Availability Statement

The original contributions presented in the study are included in the article, further inquiries can be directed to the corresponding author.

Acknowledgments

The X-ray diffraction measurements were performed at the Centre for the Collective Use of Equipment of the Kola Science Centre, Russian Academy of Sciences.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Guo, W.; Chemelewski, W.D.; Mabayoje, O.; Xiao, P.; Zhang, Y.; Mullins, C.B. Synthesis and Characterization of CuV2O6 and Cu2V2O7: Two Photoanode Candidates for Photoelectrochemical Water Oxidation. J. Phys. Chem. C 2015, 119, 27220–27227. [Google Scholar] [CrossRef]
  2. Kim, M.; Joshi, B.; Yoon, H.; Ohm, T.Y.; Kim, K.; Al-Deyab, S.S.; Yoon, S.S. Electrosprayed Copper Hexaoxodivanadate (CuV2O6) and Pyrovanadate (Cu2V2O7) Photoanodes for Efficient Solar Water Splitting. J. Alloys Compds 2017, 708, 444–450. [Google Scholar] [CrossRef]
  3. Gadiyar, C.; Strach, M.; Schouwink, P.; Loiudice, A.; Buonsanti, R. Chemical Transformations at the Nanoscale: Nanocrystal-Seeded Synthesis of β-Cu2V2O7 with Enhanced Photoconversion Efficiencies. Chem. Sci. 2018, 9, 5658–5665. [Google Scholar] [CrossRef] [PubMed]
  4. Wiktor, J.; Reshetnyak, I.; Strach, M.; Scarongella, M.; Buonsanti, R.; Pasquarello, A. Sizable Excitonic Effects Undermining the Photocatalytic Efficiency of β-Cu2V2O7. J. Phys. Chem. Lett. 2018, 9, 5698–5703. [Google Scholar] [CrossRef] [PubMed]
  5. Hassan, A.; Iqbal, T.; Tahir, M.B.; Afsheen, S. A Review on Copper Vanadate-Based Nanostructures for Photocatalysis Energy Production. Int. J. Energy Res. 2019, 43, 9–28. [Google Scholar] [CrossRef]
  6. Rao, M.P.; Akhila, A.K.; Wu, J.J.; Asiri, A.M.; Anandan, S. Synthesis, Characterization and Adsorption Properties of Cu2V2O7 Nanoparticles. Solid State Sci. 2019, 92, 13–23. [Google Scholar] [CrossRef]
  7. Guo, W.; Lian, X.; Nie, Y.; Hu, M.; Wu, L.; Gao, H.; Wang, T. Facile Growth of β-Cu2V2O7 Thin Films and Characterization for Photoelectrochemical Water Oxidation. Mater. Lett. 2020, 258, 126842. [Google Scholar] [CrossRef]
  8. Camargo, L.P.; Lucilha, A.C.; Gomes, G.A.B.; Liberatti, V.R.; Andrello, A.C.; da Silva, P.R.C.; Dall’Antonia, L.H. Copper Pyrovanadate Electrodes Prepared by Combustion Synthesis: Evaluation of Photoelectroactivity. J. Solid State Electrochem. 2020, 24, 1935–1950. [Google Scholar] [CrossRef]
  9. Song, A.; Chemseddine, A.; Ahmet, I.Y.; Bogdanoff, P.; Friedrich, D.; Abdi, F.F.; Berglund, S.P.; van de Krol, R. Evaluation of Copper Vanadate (β-Cu2V2O7) as a Photoanode Material for Photoelectrochemical Water Oxidation. Chem. Mater. 2020, 32, 2408–2419. [Google Scholar] [CrossRef]
  10. Muthamizh, S.; Yesuraj, J.; Jayavel, R.; Contreras, D.; Arul Varman, K.; Mangalaraja, R.V. Microwave Synthesis of β-Cu2V2O7 Nanorods: Structural, Electrochemical Supercapacitance, and Photocatalytic Properties. J. Mater. Sci.: Mater. Electr. 2021, 32, 2744–2756. [Google Scholar] [CrossRef]
  11. Keerthana, S.P.; Yuvakkumar, R.; Kumar, P.S.; Ravi, G.; Velauthapillai, D. Surfactant Induced Copper Vanadate (β-Cu2V2O7, Cu3V2O8) for Different Textile Dyes Degradation. Environ. Res. 2022, 211, 112964. [Google Scholar] [CrossRef] [PubMed]
  12. Moussaid, D.; Khallouk, K.; El Khalfaouy, R.; Tagnaouti Moumnani, F.; Kherbeche, A.; Barakat, A. Solution Combustion Synthesis of β-Cu2V2O7 Nanoparticles: Photocatalytic Degradation of Crystal Violet under UV and Visible Light Illumination. React. Kin. Mech. Catal. 2022, 135, 2797–2812. [Google Scholar] [CrossRef]
  13. Musuvadhi Babulal, S.; Anupriya, J.; Chen, S.M. Self Assembled Three Dimensional β-Cu2V2O7 Hierarchical Flower Decorated Porous Carbon: An Efficient Electrocatalyst for Flutamide Detection in Biological and Environmental Samples. Chemosphere 2022, 303, 135203. [Google Scholar] [CrossRef] [PubMed]
  14. Ponomarenko, L.A.; Vasil’ev, A.N.; Antipov, E.V.; Velikodny, Y.A. Magnetic Properties of Cu2V2O7. Physica B: Cond. Mat. 2000, 284–288, 1459–1460. [Google Scholar] [CrossRef]
  15. Yashima, M.; Suzuki, R.O. Electronic Structure and Magnetic Properties of Monoclinic β-Cu2V2O7: A GGA+U Study. Phys. Rev. B 2009, 79, 125201. [Google Scholar] [CrossRef]
  16. Tsirlin, A.A.; Janson, O.; Rosner, H. β-Cu2V2O7: A Spin-1/2 Honeycomb Lattice System. Phys. Rev. B 2010, 82, 144416. [Google Scholar] [CrossRef]
  17. Janson, O.; Tsirlin, A.A.; Sichelschmidt, J.; Skourski, Y.; Weickert, F.; Rosner, H. Long-Range Superexchange in Cu2A2O7 (A = P, As, V) as a Key Element of the Microscopic Magnetic Model. Phys. Rev. B 2011, 83, 094435. [Google Scholar] [CrossRef]
  18. Sánchez-Andújar, M.; Yáñez-Vilar, S.; Mira, J.; Biskup, N.; Rivas, J.; Castro-García, S.; Señarís-Rodríguez, M.A. Role of the Magnetic Ordering on the Dielectric Response of M2V2O7 (M = Co and Cu) Divanadates. J. Appl. Phys. 2011, 109, 054106. [Google Scholar] [CrossRef]
  19. Gitgeatpong, G.; Zhao, Y.; Avdeev, M.; Piltz, R.O.; Sato, T.J.; Matan, K. Magnetic Structure and Dzyaloshinskii-Moriya Interaction in the S = 1/2 Helical-Honeycomb Antiferromagnet a-Cu2V2O7. Phys. Rev. B 2015, 92, 024423. [Google Scholar] [CrossRef]
  20. Banerjee, A.; Sannigrahi, J.; Bhowal, S.; Dasgupta, I.; Majumdar, S.; Walker, H.C.; Bhattacharyya, A.; Adroja, D.T. Spin Wave Excitations in the Pyrovanadate a-Cu2V2O7. Phys. Rev. B 2016, 94, 144426. [Google Scholar] [CrossRef]
  21. Bhowal, S.; Sannigrahi, J.; Majumdar, S.; Dasgupta, I. A Comparative Study of Electronic, Structural, and Magnetic Properties of α-, β-, and γ- Cu2V2O7. Phys. Rev. B 2017, 95, 075110. [Google Scholar] [CrossRef]
  22. Gitgeatpong, G.; Suewattana, M.; Zhang, S.; Miyake, A.; Tokunaga, M.; Chanlert, P.; Kurita, N.; Tanaka, H.; Sato, T.J.; Zhao, Y.; et al. High-Field Magnetization and Magnetic Phase Diagram of a-Cu2V2O7. Phys. Rev. B 2017, 95, 245119. [Google Scholar] [CrossRef]
  23. Ruan, M.Y.; Ouyang, Z.W.; Sun, Y.C.; Xia, Z.C.; Rao, G.H.; Chen, H.S. Examining Magnetic Models and Anisotropies in β-Cu2V2O7 by High-Frequency ESR. Appl. Magn. Res. 2017, 48, 423–433. [Google Scholar] [CrossRef]
  24. Kunwar, H.S.; Isha; Yogi, A.K.; De, B.K.; Dwij, V.; Gupta, M.K.; Mittal, R.; Venkatesh, R.; Chaudhary, R.J.; Vedpathak, M.; et al. Raman Scattering of Spin-1/2 Mixed-Dimensionality Antiferromagnetic a-Cu2V2O7. Phys. Rev. B 2024, 109, 054310. [Google Scholar] [CrossRef]
  25. Sannigrahi, J.; Bhowal, S.; Giri, S.; Majumdar, S.; Dasgupta, I. Exchange-Striction Induced Giant Ferroelectric Polarization in Copper-Based Multiferroic Material a-Cu2V2O7. Phys. Rev. B 2015, 91, 220407. [Google Scholar] [CrossRef]
  26. Shiomi, Y.; Takashima, R.; Okuyama, D.; Gitgeatpong, G.; Piyawongwatthana, P.; Matan, K.; Sato, T.J.; Saitoh, E. Spin Seebeck Effect in the Polar Antiferromagnet a-Cu2V2O7. Phys. Rev. B 2017, 96, 180414. [Google Scholar] [CrossRef]
  27. Zhang, J.T.; Wang, J.L.; Ji, C.; Guo, B.X.; Xia, W.S.; Lu, X.M.; Zhu, J.S. Magnetism and Spin-Driven Ferroelectricity in the Multiferroic Material a-Cu2V2O7. Phys. Rev. B 2017, 96, 165132. [Google Scholar] [CrossRef]
  28. Zhang, N.; Li, L.; Wu, M.; Li, Y.; Feng, D.; Liu, C.; Mao, Y.; Guo, J.; Chao, M.; Liang, E. Negative Thermal Expansion and Electrical Properties of α-Cu2V2O7. J. Eur. Ceram. Soc. 2016, 36, 2761–2766. [Google Scholar] [CrossRef]
  29. Wang, H.; Yang, M.; Chao, M.; Guo, J.; Gao, Q.; Jiao, Y.; Tang, X.; Liang, E. Negative Thermal Expansion Property of β-Cu2V2O7. Solid State Ionics 2019, 343, 115086. [Google Scholar] [CrossRef]
  30. Hughes, J.M.; Birnie, R.W. Ziesite, β-Cu2V2O7, a New Copper Vanadate and Fumarole Temperature Indicator. Amer. Miner. 1980, 65, 1146–1149. [Google Scholar]
  31. Robinson, P.D.; Hughes, J.M.; Malinconico, M.L. Blossite, Alpha -Cu2+2V5+2O7, a New Fumarolic Sublimate from Izalco Volcano, El Salvador. Amer. Miner. 1987, 72, 397–400. [Google Scholar]
  32. Hughes, J.M.; Brown, M.A. The crystal structure of ziesite, β-Cu2V2O7, a thortveitite-type structure with a non-linear X-O-X inter-tetrahedral bond. N. Jb. Miner. Mh. 1989, 1989, 41–47. [Google Scholar]
  33. Brisi, C.; Molinari, A. Il sistema ossido ramicoanidride vanadica. Ann. Chim. 1958, 48, 263–269. [Google Scholar]
  34. Fleury, P. Sur le systéme CuO-V2O5. C.R Acad. Sci. Paris Ser. C 1966, 263, 1375–1377. [Google Scholar]
  35. Fleury, P. Etudes sur les systémes V2O5-CuO ou Ag2O ou Tl2O3 et sur les combinaisons interoxydes comespondantes. Rev. Chim. Mineral. 1969, 6, 819–851. [Google Scholar]
  36. Mercurio-Lavaud, D.; Frit, B. Structure cristalline de la variété basse température du pyrovanadate de cuivre: Cu2V2O7 α. Acta Crystallogr. B 1973, 29, 2737–2741. [Google Scholar] [CrossRef]
  37. Mercurio-Lavaud, D.; Frit, M.B. Structure cristalline de la variété haute température du pyrovanadate de cuivre: Cu2V2O7. C. R. Acad. Sci. Paris 1973, 277C, 1101–1104. [Google Scholar]
  38. Calvo, C.; Faggiani, R. α Cupric Divanadate. Acta Crystallogr. B 1975, 31, 603–605. [Google Scholar] [CrossRef]
  39. Clark, G.M.; Garlick, R. Formation and Properties of Copper(II) Divanadate(V). J. Inorg. Nucl. Chem. 1978, 40, 1347–1349. [Google Scholar] [CrossRef]
  40. Petrova, S.A.; Zakharov, R.G.; Rotermel’, M.V.; Krasnenko, T.I.; Vatolin, N.A. A New High-Temperature Modification of Copper Pyrovanadate. Dokl. Chem. 2005, 400, 30–33. [Google Scholar] [CrossRef]
  41. Slobodin, B.V.; Surat, L.L.; Samigullina, R.F. Polymorphism in Copper Pyrovanadate. Russ. J. Inorg. Chem. 2009, 54, 797–802. [Google Scholar] [CrossRef]
  42. Slobodin, B.V.; Samigullina, R.F. Thermoanalytical Study of the Polymorphism and Melting Behavior of Cu2V2O7. Inorg. Mater. 2010, 46, 196–200. [Google Scholar] [CrossRef]
  43. Krivovichev, S.V.; Filatov, S.K.; Cherepansky, P.N.; Armbruster, T.; Pankratova, O.Y. Crystal structure of γ-Cu2V2O7 and its comparison to blossite (α-Cu2V2O7) and ziesite (β-Cu2V2O7). Can. Miner. 2005, 43, 671–677. [Google Scholar] [CrossRef]
  44. Turnbull, R.; González-Platas, J.; Rodríguez, F.; Liang, A.; Popescu, C.; He, Z.; Santamaría-Pérez, D.; Rodríguez-Hernández, P.; Muñoz, A.; Errandonea, D. Pressure-Induced Phase Transition and Band Gap Decrease in Semiconducting β-Cu2V2O7. Inorg. Chem. 2022, 61, 3697–3707. [Google Scholar] [CrossRef] [PubMed]
  45. Kornyakov, I.V.; Krivovichev, S.V.; Gurzhiy, V.V.; Leoni, M. ε-RbCuCl3, a new polymorph of rubidium copper trichloride: Synthesis, structure and structural complexity. Acta Crystallogr. C 2018, 74, 529–533. [Google Scholar] [CrossRef] [PubMed]
  46. Rigaku, C. Integrated X-ray Powder Diffraction Software PDXL. Rigaku J. 2010, 26, 23–27. [Google Scholar]
  47. Gates-Rector, S.; Blanton, T. The Powder Diffraction File: A Quality Materials Characterization Database. Powder Diffr. 2019, 34, 352–360. [Google Scholar] [CrossRef]
  48. Zagorac, D.; Müller, H.; Ruehl, S.; Zagorac, J.; Rehme, S. Recent developments in Inorganic Crystal Structure Database: Theoretical crystal structure data and related features. J. Appl. Crystallogr. 2019, 52, 918–925. [Google Scholar] [CrossRef]
  49. Coelho, A.A. TOPAS and TOPAS-Academic: An optimization program integrating computer algebra and crystallographic objects written in C++. J. Appl. Crystallogr. 2018, 51, 210–218. [Google Scholar] [CrossRef]
  50. Savariault, J.-M.; Galy, J. Synthesis and structural investigation of a new potassium vanadium oxide bronze: ρ-K0.50V2O5. J. Solid State Chem. 1992, 101, 119–127. [Google Scholar] [CrossRef]
  51. Martin, F.-D.; Müller-Buschbaum, H. Zur Kenntnis von K4CuV5O15Cl. Zeitschrift Naturforschung B. 1994, 49, 1459–1462. [Google Scholar] [CrossRef]
  52. Haase, A.; Brauer, G. Vanadium oxychloride. Acta Cryst. 1975, B31, 2521–2522. [Google Scholar] [CrossRef]
  53. Agilent Technologies. CrysAlisPro; Version 1.171.36.20; Agilent Technologies: Santa Clara, CA, USA, 2012. [Google Scholar]
  54. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–116. [Google Scholar] [CrossRef] [PubMed]
  55. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  56. Gagné, O.C.; Hawthorne, F.C. Comprehensive Derivation of Bond-Valence Parameters for Ion Pairs Involving Oxygen. Acta Crystallogr. B 2015, 71, 562–578. [Google Scholar] [CrossRef]
  57. Jahn, H.A.; Teller, E. Stability of polyatomic molecules in degenerate electronic states. Proc. Roy. Soc. Ser. A. 1937, 161, 220–235. [Google Scholar]
  58. Hathaway, B.J. A new look at the stereochemistry and electronic properties of complexes of the copper(II) ion. In Complex Chemistry. Structure and Bonding; Emsley, J., Ernst, R.D., Hathaway, B.J., Warren, K.D., Eds.; Springer: Berlin/Heidelberg, Germany, 1984; Volume 57, pp. 55–118. [Google Scholar]
  59. Burns, P.C.; Hawthorne, F.C. Static and dynamic Jahn-Teller effects in Cu2+ oxysalt minerals. Can. Mineral. 1996, 34, 1089–1105. [Google Scholar]
  60. Brown, I.D. The Chemical Bond in Inorganic Chemistry. The Bond-Valence Model; Oxford University Press: Oxford, UK, 2016. [Google Scholar]
  61. Rotermel’, M.V.; Krasnenko, T.I.; Petrova, S.A.; Zakharov, R.G. Thermally Activated Transformations in Stable and Metastable Copper(II) Pyrovanadate Polymorphs. Russ. J. Inorg. Chem. 2009, 54, 22–26. [Google Scholar] [CrossRef]
  62. Krivovichev, S.V. Metastable Crystallization and Structural Complexity of Minerals. Dokl. Earth Sci. 2022, 507, 1040–1043. [Google Scholar] [CrossRef]
  63. Krivovichev, S.V. Topological complexity of crystal structures: Quantitative approach. Acta Crystallogr. 2012, A68, 393–398. [Google Scholar] [CrossRef]
  64. Krivovichev, S.V. Structural complexity of minerals: Information storage and processing in the mineral world. Miner. Mag. 2013, 77, 275–326. [Google Scholar] [CrossRef]
  65. Krivovichev, S.V.; Krivovichev, V.G.; Hazen, R.M.; Aksenov, S.M.; Avdontceva, M.S.; Banaru, A.M.; Gorelova, L.A.; Ismagilova, R.M.; Kornyakov, I.V.; Kuporev, I.V.; et al. Structural and chemical complexity of minerals: An update. Mineral. Mag. 2022, 86, 183–204. [Google Scholar] [CrossRef]
  66. Filatov, S.K. General Concept of Increasing Crystal Symmetry with an Increase in Temperature. Crystallogr. Rep. 2011, 56, 953–961. [Google Scholar] [CrossRef]
  67. Hazen, R.M.; Navrotsky, A. Effects of Pressure on Order-Disorder Reactions. Amer. Miner. 1996, 81, 1021–1035. [Google Scholar] [CrossRef]
Crystals 14 00857 g001

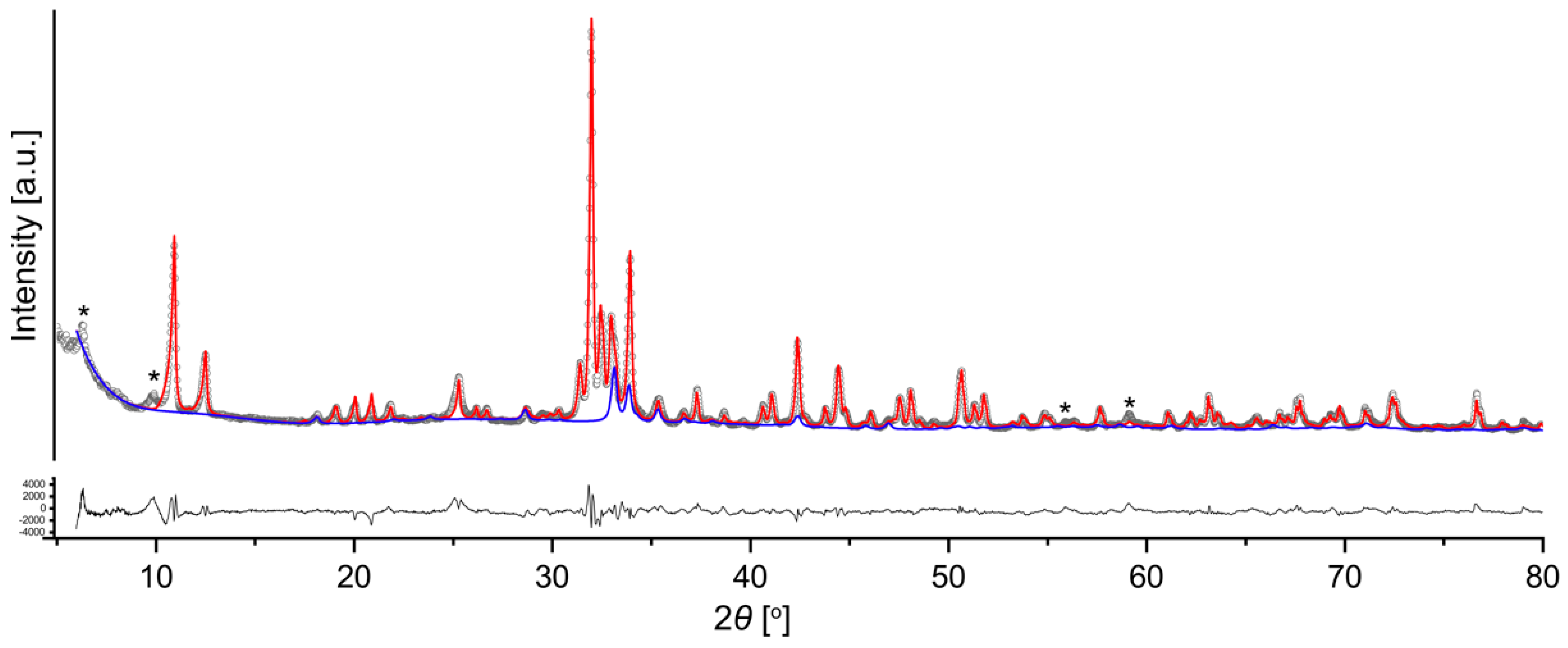

Figure 1. X-ray powder diffraction pattern of the synthesis mixture consisting of all four polymorphs of Cu2V2O7, K0.5V2O5, K4CuV5O15 and VOCl. The red line shows calculated X-ray diffraction pattern of the whole mixture; the contribution from δ-Cu2V2O7 is shown by the blue line; open black circles indicate experimentally measured pattern; asterisks shows peaks of unidentified phases.
Figure 1. X-ray powder diffraction pattern of the synthesis mixture consisting of all four polymorphs of Cu2V2O7, K0.5V2O5, K4CuV5O15 and VOCl. The red line shows calculated X-ray diffraction pattern of the whole mixture; the contribution from δ-Cu2V2O7 is shown by the blue line; open black circles indicate experimentally measured pattern; asterisks shows peaks of unidentified phases.
Crystals 14 00857 g001
Crystals 14 00857 g002
Figure 2. Coordination of Cu2+ cations (a) and configuration of the V2O7 group (b) in the crystal structure of δ-Cu2V2O7. Legend: Cu: green; V: orange; O: red. The Cu-O bonds with the Cu-O distances in the ranges of <2.2, 2.2–3.0 and 3.0–3.2 Å are shown as dual-band cylinders, single lines and dashed lines, respectively.
Figure 2. Coordination of Cu2+ cations (a) and configuration of the V2O7 group (b) in the crystal structure of δ-Cu2V2O7. Legend: Cu: green; V: orange; O: red. The Cu-O bonds with the Cu-O distances in the ranges of <2.2, 2.2–3.0 and 3.0–3.2 Å are shown as dual-band cylinders, single lines and dashed lines, respectively.
Crystals 14 00857 g002
Crystals 14 00857 g003

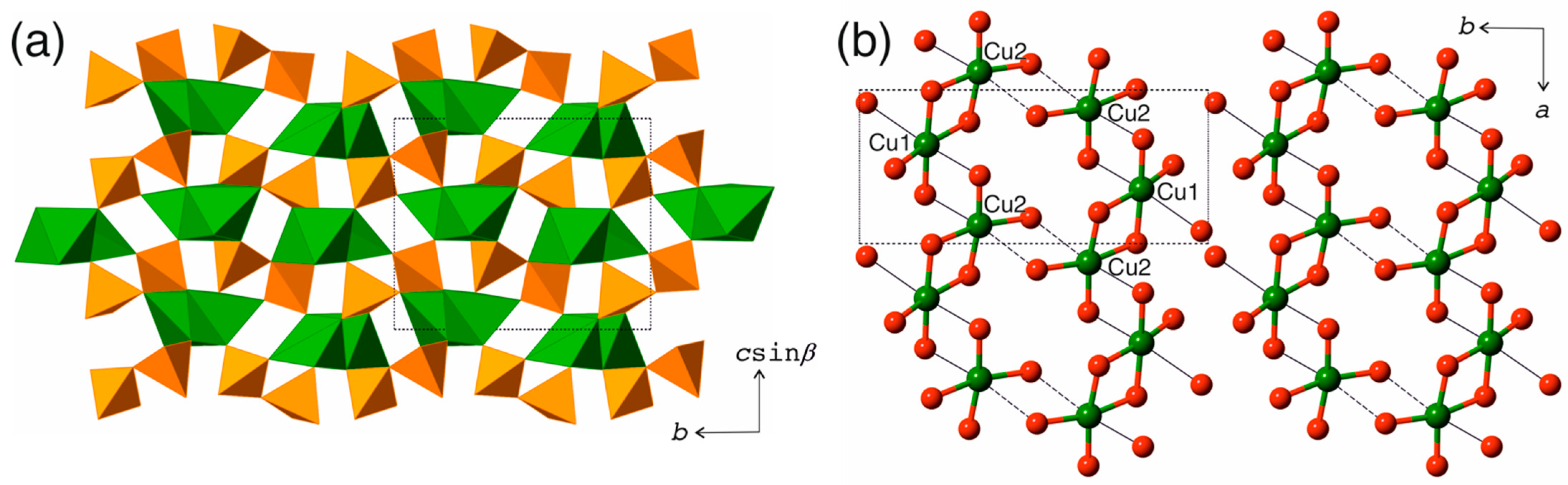

Figure 3. The crystal structure of δ-Cu2V2O7 in polyhedral representation (a) and the arrangement of the chains of Cu1O6 and Cu2O5 polyhedra within the (001) plane (b). Legend as in Figure 2.
Figure 3. The crystal structure of δ-Cu2V2O7 in polyhedral representation (a) and the arrangement of the chains of Cu1O6 and Cu2O5 polyhedra within the (001) plane (b). Legend as in Figure 2.
Crystals 14 00857 g003
Crystals 14 00857 g004
Figure 4. The crystal structure of blossite, α-Cu2V2O7: the Cu coordination (a), the layer of Cu-O chains (b), and the projection of the crystal structure along [01 1 ¯ ] (c). Legend as in Figure 2.
Figure 4. The crystal structure of blossite, α-Cu2V2O7: the Cu coordination (a), the layer of Cu-O chains (b), and the projection of the crystal structure along [01 1 ¯ ] (c). Legend as in Figure 2.
Crystals 14 00857 g004
Crystals 14 00857 g005

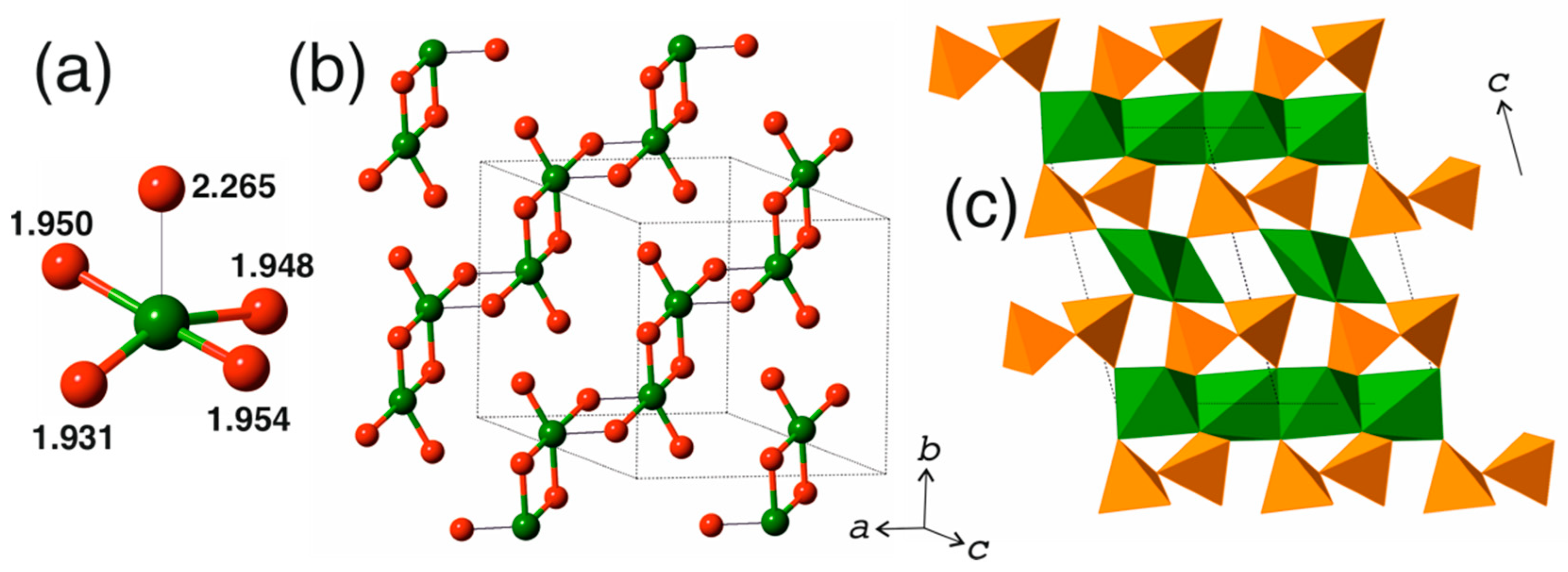

Figure 5. The crystal structure of ziesite, β-Cu2V2O7: the Cu coordination (a), the layer of Cu-O chains (b), and the projection of the crystal structure along [1 1 ¯ 0 ] (c). Legend as in Figure 2.
Figure 5. The crystal structure of ziesite, β-Cu2V2O7: the Cu coordination (a), the layer of Cu-O chains (b), and the projection of the crystal structure along [1 1 ¯ 0 ] (c). Legend as in Figure 2.
Crystals 14 00857 g005
Crystals 14 00857 g006

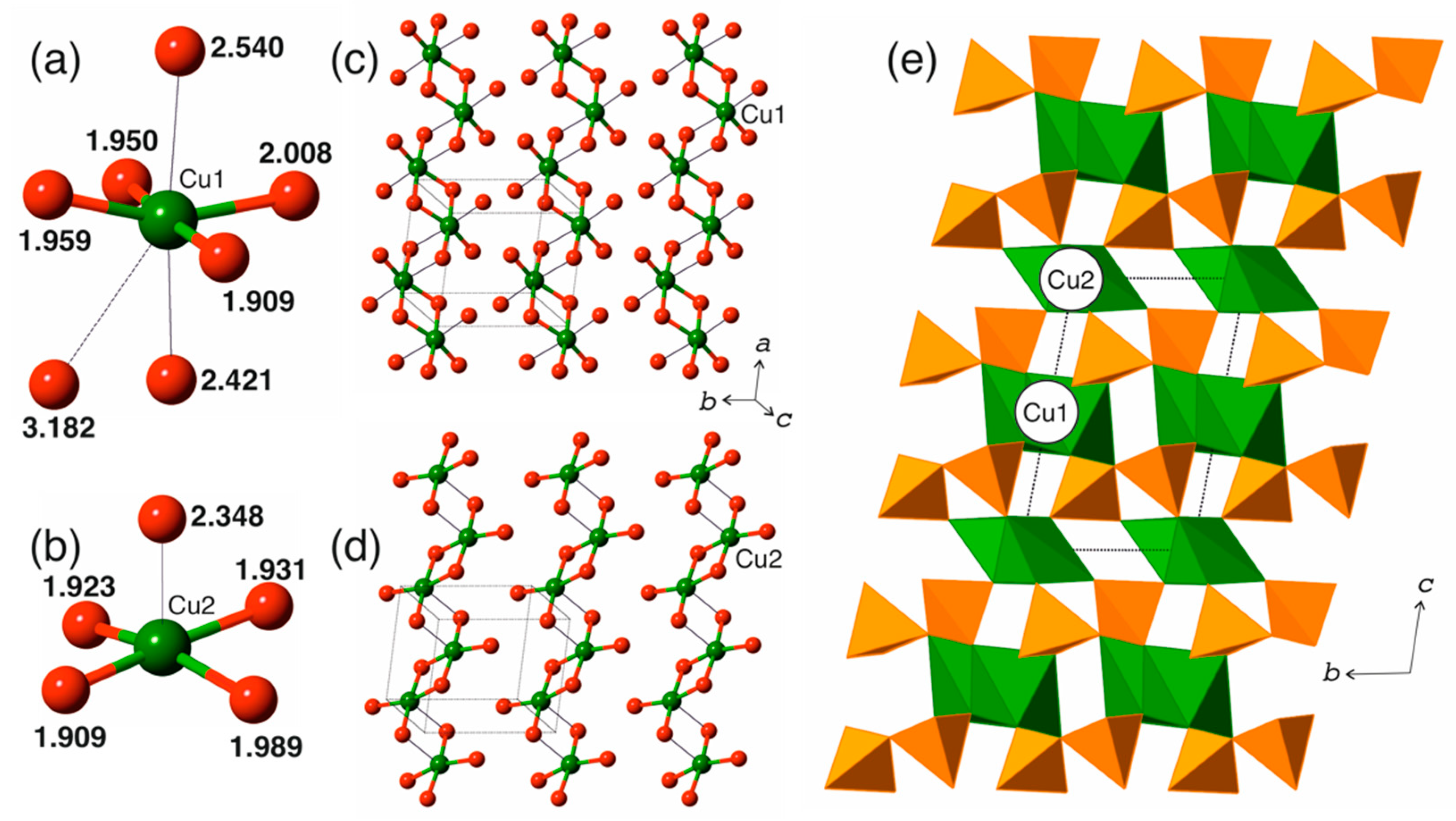

Figure 6. The crystal structure of γ-Cu2V2O7: the Cu coordination polyhedra (a,b), the layers of Cu-O chains (c,d), and the projection of the crystal structure along the a axis (e). Legend as in Figure 2.
Figure 6. The crystal structure of γ-Cu2V2O7: the Cu coordination polyhedra (a,b), the layers of Cu-O chains (c,d), and the projection of the crystal structure along the a axis (e). Legend as in Figure 2.
Crystals 14 00857 g006
Crystals 14 00857 g007

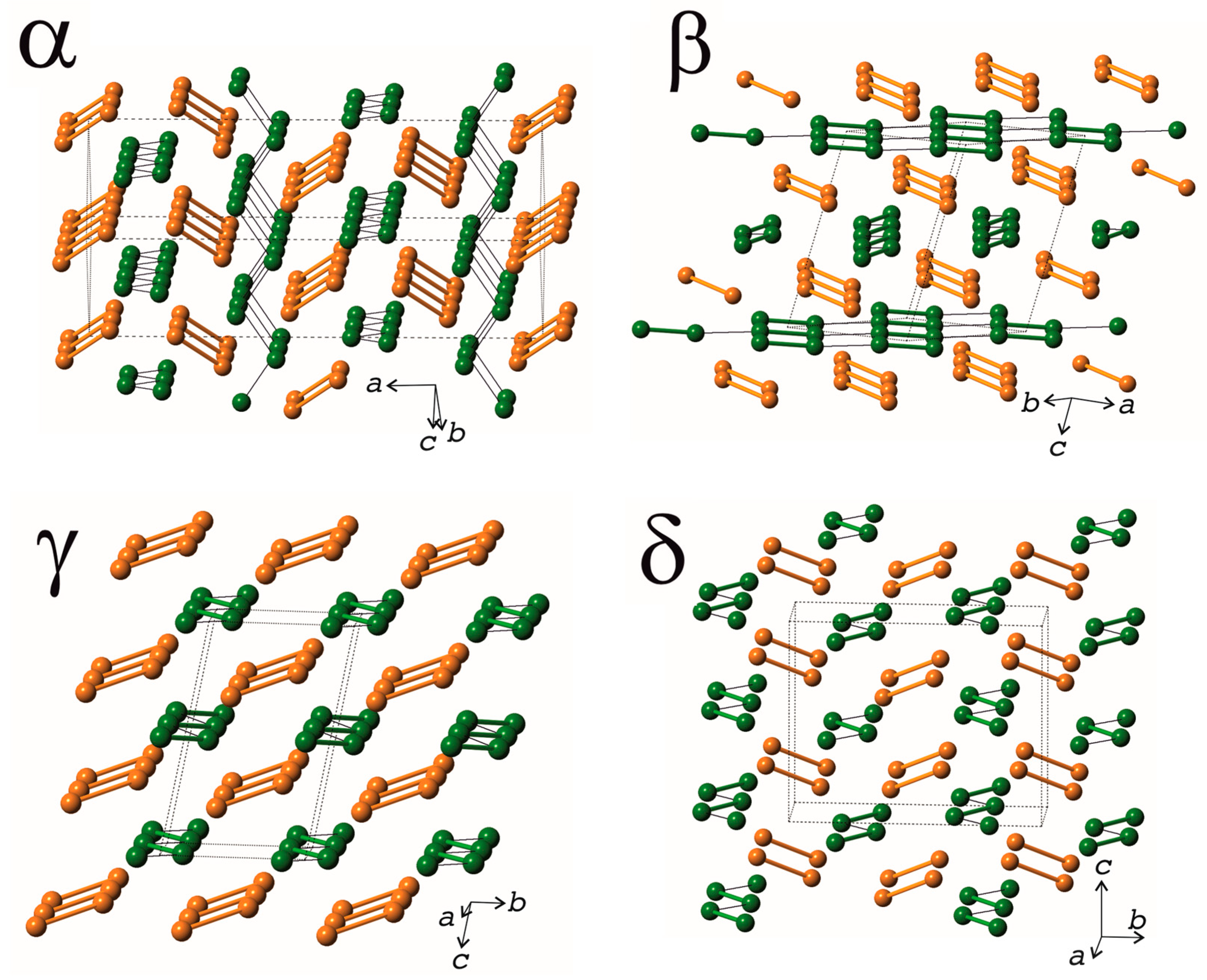

Figure 7. The crystal structures of the four Cu2V2O7 polymorphs viewed as consisting of the Cu-Cu and V-V graphs. Legend as in Figure 1. The two adjacent Cu atoms are linked by dual-banded cylinders and single lines if the Cu⋯Cu distances are in the ranges 2.9–3.0 and 3.1–3.2 Å, respectively. The V-V links correspond to the V⋯V distances in the divanadate V2O7 groups.
Figure 7. The crystal structures of the four Cu2V2O7 polymorphs viewed as consisting of the Cu-Cu and V-V graphs. Legend as in Figure 1. The two adjacent Cu atoms are linked by dual-banded cylinders and single lines if the Cu⋯Cu distances are in the ranges 2.9–3.0 and 3.1–3.2 Å, respectively. The V-V links correspond to the V⋯V distances in the divanadate V2O7 groups.
Crystals 14 00857 g007
Crystals 14 00857 g008

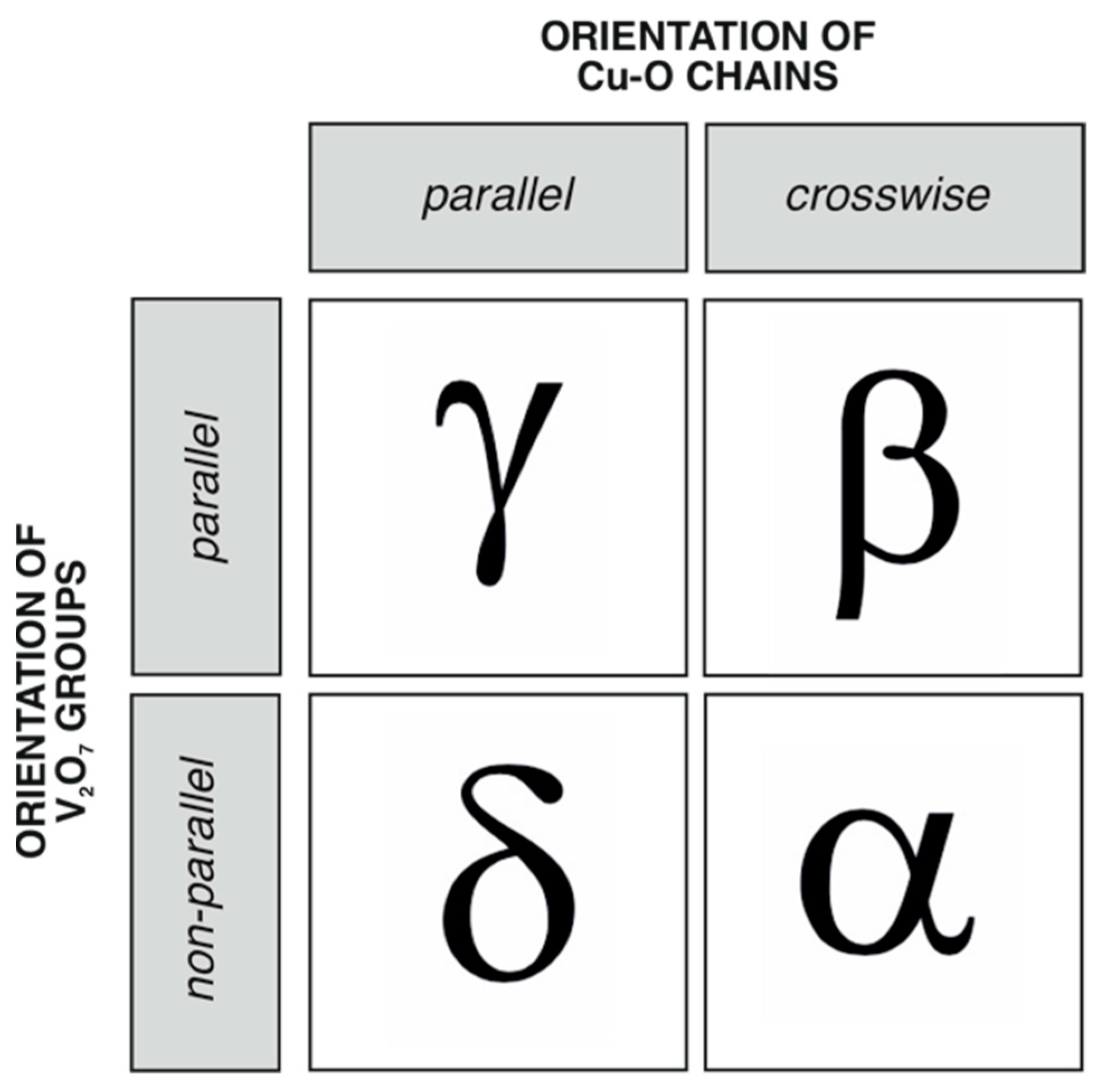

Figure 8. The structural classification scheme for the four Cu2V2O7 polymorphs according to the mutual orientations of Cu-O chains and V2O7 groups.
Figure 8. The structural classification scheme for the four Cu2V2O7 polymorphs according to the mutual orientations of Cu-O chains and V2O7 groups.
Crystals 14 00857 g008
Table 1. Crystal data and structure refinement for δ-Cu2V2O7.
Table 1. Crystal data and structure refinement for δ-Cu2V2O7.
Crystal Data
Chemical formulaCu2V2O7
Mr340.96
Crystal system, space groupMonoclinic, P21/n
Temperature (K)296 (2)
a, b, c (Å)5.0679 (3), 11.4222 (7), 9.4462 (6)
β (°)97.100 (6)
V (Å3)542.61 (6)
Z4
µ (mm−1)11.05
Crystal size (mm3)0.04 × 0.03 × 0.01
Data collection parameters
DiffractometerRigaku XtaLAB Synergy-S
Radiation typeMoKα
Absorption correctionGaussian
Tmin, Tmax0.856, 0.943
Nos. of measured, independent and
observed [I > 2σ(I)] reflections		5290, 1818, 1472
Rint0.037
(sin θ/λ)max (Å−1)0.777
Refinement parameters
R1 [F2 > 2σ(F2)], wR(F2), S0.029, 0.059, 1.03
No. of reflections1818
No. of parameters100
Δρmax, Δρmin (e Å−3)0.80, −0.85
Table 2. Atomic coordinates and equivalent isotropic displacement parameters (10−4 Å2) for δ-Cu2V2O7.
Table 2. Atomic coordinates and equivalent isotropic displacement parameters (10−4 Å2) for δ-Cu2V2O7.
Atomx/ay/bz/cUiso
Cu10.14483 (7)0.30752 (3)0.43693 (4)0.01026 (10)
Cu20.87981 (7)0.65745 (3)0.05332 (4)0.01229 (10)
V10.63692 (9)0.41149 (4)0.20780 (5)0.00787 (11)
V20.28194 (9)0.62031 (4)0.34339 (5)0.00739 (11)
O10.8207 (4)0.31193 (17)0.3096 (2)0.0114 (4)
O20.8307 (5)0.50883 (19)0.1396 (3)0.0215 (5)
O30.4445 (4)0.34412 (17)0.0733 (2)0.0140 (4)
O40.4170 (4)0.48002 (18)0.3227 (3)0.0164 (5)
O50.5059 (4)0.70625 (16)0.4489 (2)0.0114 (4)
O60.2050 (4)0.68621 (16)0.1763 (2)0.0107 (4)
O70.0105 (4)0.60076 (16)0.4206 (2)0.0112 (4)
Table 3. Selected interatomic distances (Å) for the crystal structure of δ-Cu2V2O7.
Table 3. Selected interatomic distances (Å) for the crystal structure of δ-Cu2V2O7.
Cu1—O11.913 (2)V1—O11.692 (2)
Cu1—O51.962 (2)V1—O21.665 (2)
Cu1—O61.961 (2)V1—O31.689 (2)
Cu1—O71.947 (2)V1—O41.825 (2)
Cu1—O32.452 (2)<V1—O>1.718
Cu1—O42.705 (2)
<Cu1—O>2.157V2—O41.763 (2)
V2—O51.722 (2)
Cu2—O21.913 (2)V2—O61.748 (2)
Cu2—O31.909 (2)V2—O71.650 (2)
Cu2—O51.990 (2)<V2—O>1.721
Cu2—O61.924 (2)
Cu2—O12.480 (2)
<Cu2—O>2.043
Table 4. Bond valence analysis (v.u.: valence units) for the crystal structure of δ-Cu2V2O7 *.
Table 4. Bond valence analysis (v.u.: valence units) for the crystal structure of δ-Cu2V2O7 *.
AtomO1O2O3O4O5O6O7S
Cu10.53 0.120.060.460.460.482.11
Cu20.110.530.54 0.430.51 2.11
V11.321.411.330.94 4.99
V2 1.101.221.141.474.93
S1.961.942.092.102.112.111.95
* Calculated using bond valence parameters from [56].
Table 5. Crystallographic parameters of the Cu2V2O7 polymorphs.
Table 5. Crystallographic parameters of the Cu2V2O7 polymorphs.
PhaseSpace Groupa, Åb, Åc, Åα, degβ, degγ, degV/Z, Å3ρcalc, g·cm−3Reference
αFdd220.6768.3926.446909090139.84.049[31]
20.6808.4116.448909090140.24.038[36]
20.6458.3836.442909090139.44.062[38]
βC2/c7.6868.03410.12190110.3990146.53.865[44]
7.6898.02910.10790110.2590146.43.868[32]
7.6988.03110.11390110.2990146.63.861[29]
β’C2/c7.325 *8.214 *10.190 *90 *111.78 *90 *142.4 *3.997 *[40]
γ P 1 ¯ 5.080 **5.810 **9.380 **100.00 **97.20 **97.18 **133.7 **4.234 **[44]
5.0875.8239.40299.7897.2597.20134.64.206[43]
δP21/n5.06811.4229.4469097.1090135.74.173This work
* Data at 740 °C. ** Data at 0.40 GPa.
Table 6. Information-based structural complexity parameters for Cu2V2O7 polymorphs.
Table 6. Information-based structural complexity parameters for Cu2V2O7 polymorphs.
PolymorphSystemSpace GroupstrIG, Bit/AtomstrIG,total, Bit/Cell
αOrthorhombicFdd22.55056.107
βMonoclinicC2/c2.55056.107
γTriclinic P 1 ¯ 3.45976.107
δMonoclinicP21/n3.459152.215
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kornyakov, I.V.; Krivovichev, S.V. On the Polymorphism of Cu2V2O7: Synthesis and Crystal Structure of δ-Cu2V2O7, a New Polymorph. Crystals 2024, 14, 857. https://doi.org/10.3390/cryst14100857

AMA Style

Kornyakov IV, Krivovichev SV. On the Polymorphism of Cu2V2O7: Synthesis and Crystal Structure of δ-Cu2V2O7, a New Polymorph. Crystals. 2024; 14(10):857. https://doi.org/10.3390/cryst14100857

Chicago/Turabian Style

Kornyakov, Ilya V., and Sergey V. Krivovichev. 2024. "On the Polymorphism of Cu2V2O7: Synthesis and Crystal Structure of δ-Cu2V2O7, a New Polymorph" Crystals 14, no. 10: 857. https://doi.org/10.3390/cryst14100857

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
