Mechanical, Tribological, and Corrosion Resistance Properties of (TiAl_ₓCrNbY)N_y High-Entropy Coatings Synthesized Through Hybrid Reactive Magnetron Sputtering

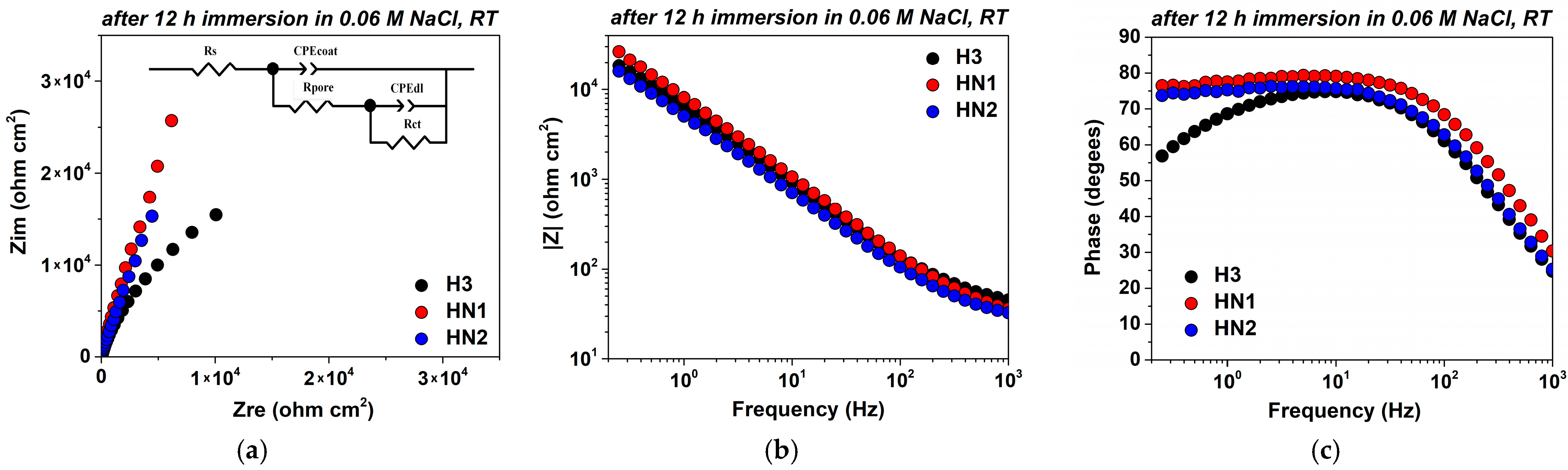

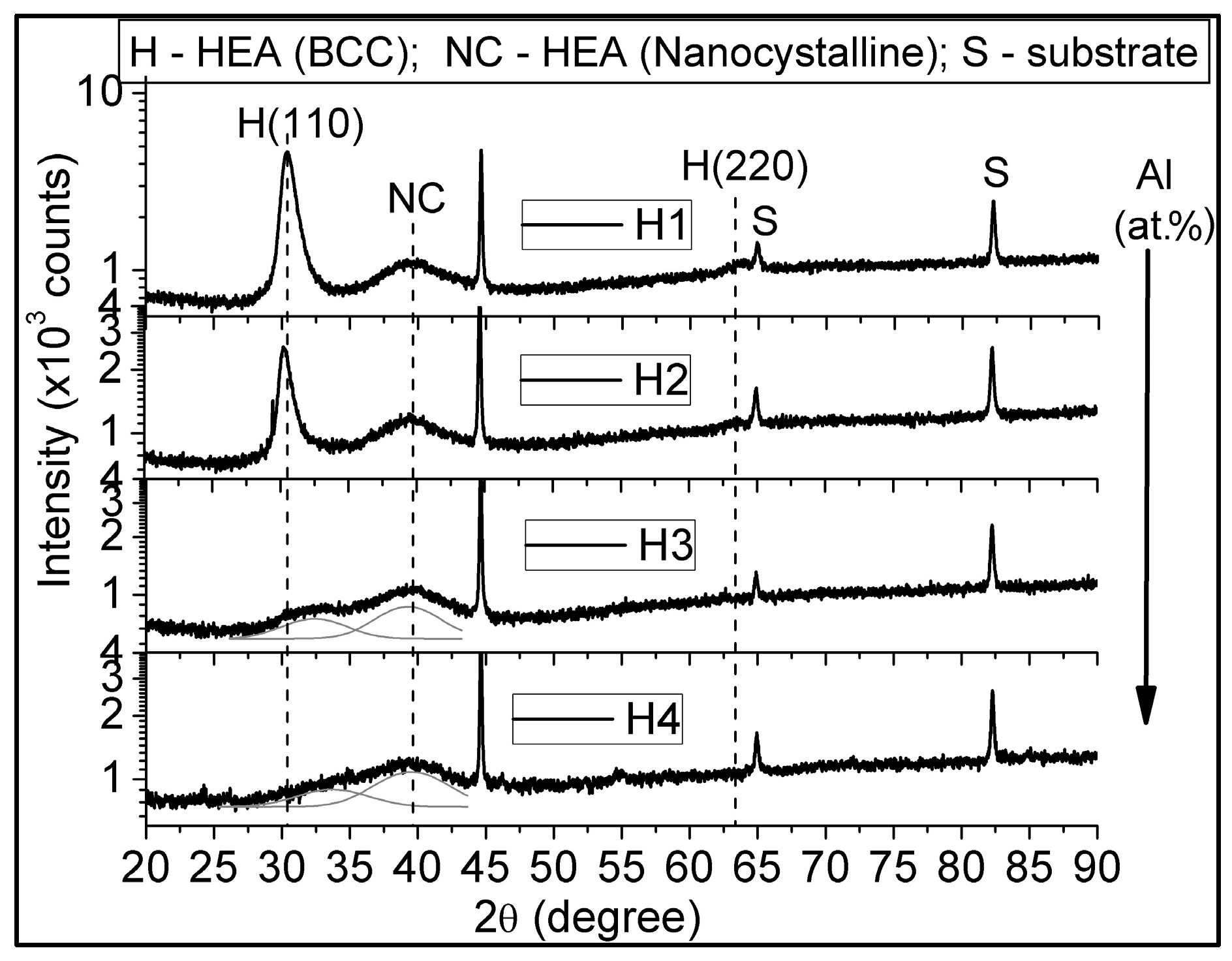

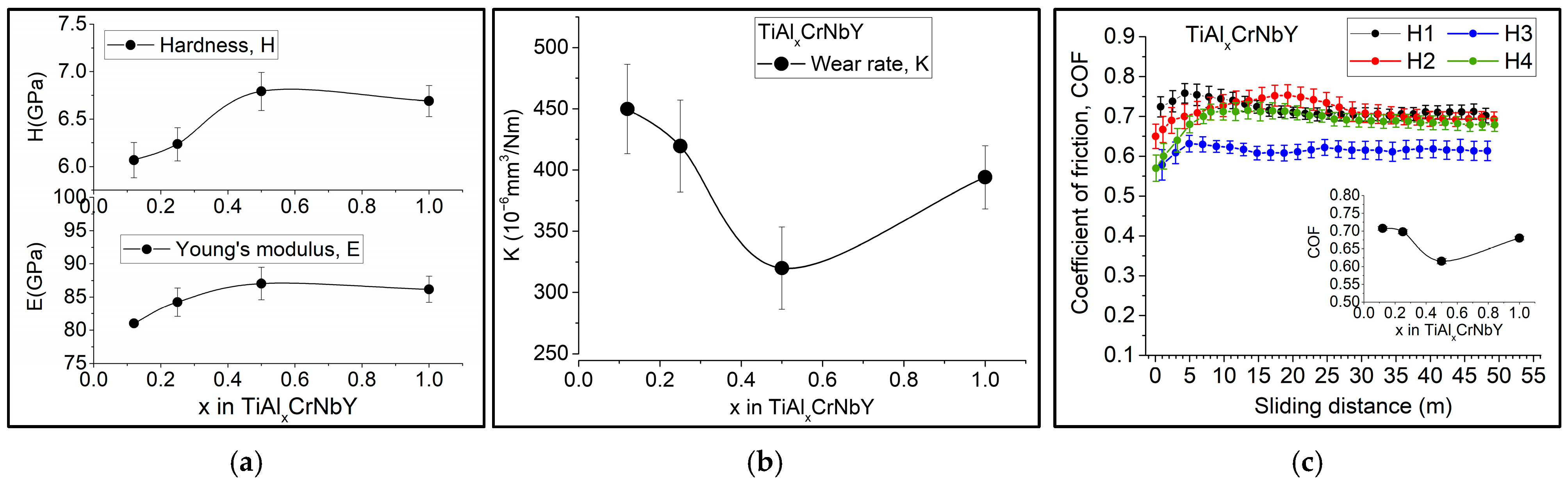

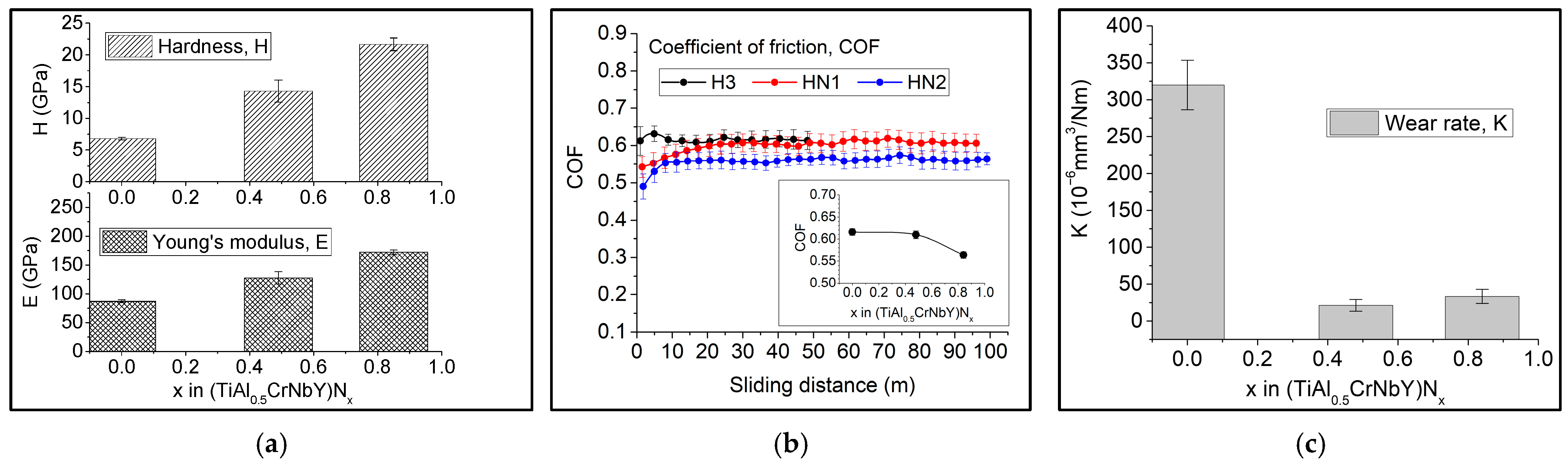

This study investigates the effects of aluminum and nitrogen content on the microstructure, mechanical properties, and tribological performance of high-entropy coatings based on (TiCrAl_ₓNbY)N_y systems. Using a hybrid magnetron sputtering technique, both metallic and nitride coatings were synthesized and evaluated. Increasing the aluminum concentration led to a transition from a crystalline to a nanocrystalline and nearly amorphous (NC/A) structure, with the TiAl_0.5CrNbY sample (11.8% Al) exhibiting the best balance of hardness (6.8 GPa), elastic modulus (87.1 GPa), and coefficient of friction (0.64). The addition of nitrogen further enhanced these properties, transitioning the coatings to a denser fine-grained FCC structure. The HN2 sample (45.8% nitrogen) displayed the highest hardness (21.8 GPa) but increased brittleness, while the HN1 sample (32.9% nitrogen) provided an optimal balance of hardness (14.3 GPa), elastic modulus (127.5 GPa), coefficient of friction (0.60), and wear resistance (21.2 × 10⁻⁶ mm³/Nm). Electrochemical impedance spectroscopy revealed improved corrosion resistance for the HN1 sample due to its dense microstructure. Overall, the (TiAl_0.5CrNbY)N_0.5 coating achieved the best performance for friction applications, such as break and clutch systems, requiring high coefficients of friction, high wear resistance, and durability.
