Article

Site Occupancy Preference and Magnetic Properties in Nd2(Fe,Co)14B

by
Xubo Liu
* and
Ikenna C. Nlebedim
Critical Materials Innovation Hub, Division of Critical Materials, Ames National Laboratory US DOE, Ames, IA 50011, USA
*
Author to whom correspondence should be addressed.
Crystals 2024, 14(4), 370; https://doi.org/10.3390/cryst14040370
Submission received: 22 March 2024 / Revised: 8 April 2024 / Accepted: 9 April 2024 / Published: 16 April 2024
(This article belongs to the Special Issue First Principles Calculation for Crystalline Materials)
Browse Figures
Versions Notes

Abstract

:
Partial replacement of Fe by Co is an effective method to increase Curie temperature (TC), which improves the thermal stability of magnetic properties in Nd2Fe14B-based permanent magnets. The correlation between Fe substitution and magnetic properties has been studied in Nd2(Fe,Co)14B via a first-principles calculation. The calculated Fe substitution energies indicate that the Co atoms avoid the 8j2 site, which agrees with the experiments. The Co atoms are ferromagnetically coupled with Fe sublattice and show magnetic moments of about 1.2 to 1.7 μB at different crystallographic sites, less than that of Fe (2.1–2.7 μB), resulting in the decrease in total magnetization at ground state (0 K) with increasing Co content. The effective exchange interaction parameter, derived from the energy difference between varied magnetic structures, increases from 7.8 meV to 17.0 meV with increasing Co content from x = 0 to x = 14 in Nd2Fe14−xCoxB. This change in the effective exchange interaction parameter is responsible for the enhancement of TC in Nd2(Fe,Co)14B. The total magnetization at 300 K, derived from mean-field theory, shows a peak maximum value at x = 1 in Nd2Fe14−xCoxB. The phenomenon results from the interplay between the reduction of the magnetic moment in the Fe(Co) sublattice and the enhancement of TC with increasing Co content.

1. Introduction

Nd-Fe-B (Nd2Fe14B) permanent magnets have been widely applied in green energy fields such as wind generators and electric vehicles [1,2,3,4,5]. Although the Nd-Fe-B magnet is the strongest magnet at room temperature, the extrinsic magnetic properties, such as coercivity and maximum energy product, decrease rapidly above 100 °C because of its relatively low Curie temperature (TC = 312 °C) [5,6]. One approach to enable the magnets to operate above 150 °C is to enhance magnetocrystalline anisotropy (MCA), hence the high-temperature coercivity, by the partial substitution of Nd with heavy rare earth elements (HRE) such as Dy or Tb, i.e., (Nd1−xHREx)2Fe14B (2:14:1) [3,7,8,9,10,11,12]. The strong MCA originates from the interaction between the crystal field and the spin–orbit coupling of rare earth 4f electrons [13,14]. The enhancement of the MCA field by Dy or Tb is related to the special 4f electron structure and the exchange coupling with the Fe sublattice in Nd2Fe14B [14,15]. Upon the partial replacement of Nd by Dy or Tb, the coercivity can increase from about 12 kOe to 30 kOe. The replacement of Nd by Dy or Tb also reduces the saturation magnetization of the 2:14:1 phase, decreasing the maximum energy product. Further, the resource scarcity and high cost of Dy and Tb limit their application. To reduce the use of Dy and Tb in Nd-Fe-B magnet, researchers developed the grain boundary diffusion processing (GBDP) approach to enhance the coercivity [16,17,18]. A straightforward approach to GBDP is dip-coating DyF3 or TbF3 on the surface of the Nd-Fe-B magnet plus the subsequent heat treatment above the Nd-rich grain boundary phase (GBP) melting point [18]. In GBDP-treated NdFeB magnet, the Dy or Tb-rich layer on the 2:14:1 surface suppresses the nucleation of the reverse magnetic domain during the demagnetization process, enhancing the coercivity [18]. The partial replacement of Nd by Dy or Tb can effectively increase the absolute value of coercivity, but the temperature coefficients of coercivity (i.e., the rate of decrease with temperature) are still high. A small amount of Co is often added to improve the TC and enhance the thermal stability of magnetic properties in Nd-Fe-B [6,19]. The partial replacement of Fe by Co will reduce the temperature coefficient of magnetic remanence and coercivity. However, the absolute value of MCA also decreases with increasing Co content. In high-performance Nd-Fe-B magnet manufacturing, both Co and Dy or Tb are used to maximize the performance. In addition, some elements, such as Al, Si, Ga, and Cu, have limited solubility in the 2:14:1 phase but will modify the Nd-rich grain boundary phase (GBP) to enhance coercivity [20,21,22,23].
Since the Nd-Fe-B magnet’s discovery, much research has been conducted on the elemental substitutions in Nd2Fe14B [6,19]. One interesting phenomenon is that the Fe substitution by other elements in Nd2Fe14B shows strong site preferences that are intimately related to the changes in magnetic properties. To determine the element substitution scheme in 2:14:1 and its effect on magnetic properties, scientists can perform experiments such as neutron diffraction, Mössbauer spectroscopy, and magnetic measurements. For example, Moze et al. reported that chromium and manganese are preferred substitutes for iron at the 8j2 sites in Y2Fe14B [24]. The remaining Fe sites have a fractional occupation of Mn or Cr at a concentration below the overall stoichiometry. Neutron diffraction has been used to show that Co avoids the 8j2 site and slightly favors the 4e site in 2:14:1 [25]. van Noort and Buschow [26] found that Fe atoms strongly prefer occupying the 8j2 and 16k2 sites from Mössbauer spectroscopy. Similarly, using Mössbauer spectroscopy, Ryan et al. [27] concluded that Fe prefers the 8j2 sites, the other sites being randomly occupied by Co in Nd2Fe14−xCoxB. Eslava et al. reported that the Co occupancy preference depends on the Co content in Nd2Fe14−xCoxB [28]. Despite these labor-, time-, and cost-intensive experimental approaches, the first-principles DFT (density function theory) calculations can predict the site occupancy and its effect on magnetic properties in intermetallic compounds such as the 2:14:1 system. It was reported [29,30,31] that the predictions from DFT calculations agree well with the experiments for the Fe substitution scheme in Nd2(Fe, M)14B with M = Al, Si, Ga, etc.
Nd2Fe14−xCoxB forms solid solutions in all the compositional ranges [32,33]. Theoretically, understanding the role of doping Co into the 2:14:1 system at the atomic level can help develop high-performance Nd-Fe-B magnets. The knowledge gained from the 2:14:1 system and the methods developed can be applied to study other novel rare earth (RE) transition metal magnets, such as Sm(Fe, Co, Ti)12 with a tetragonal ThMn12 type structure [34,35,36]. In this work, we studied the role of Co in Nd2(Fe,Co)14B from the first principle DFT calculations. We report the Co and Fe occupancy schemes at different crystallographic sites and their effect on magnetic properties in Nd2(Fe,Co)14B. The magnetization of Nd2Fe14−xCoxB at the finite temperature was also derived from the DFT calculation and mean-field theory.

2. Method and Computational Details

The substitution energy of the Co atom in Nd2(Fe,Co)14B (Esub) is calculated as the change in the cohesive energy of Nd2(Fe,Co)14B to Nd2Fe14B. Esub is derived from the DFT total energy calculations. In the calculation, the unit cell size and atomic position are relaxed. The calculation details of Esub were reported previously [37]. Here, we perform the DFT modeling using a linear combination of pseudo-atomic orbital (LCPAO) methods implemented in OpenMX code [38,39]. Exchange and correlation effects are approximated with a generalized gradient approximation (GGA) given by Perdew et al. [40]. The relativistic effects are included by solving a scalar relativistic wave equation. Due to the strong on-site correlation effects, the Nd 4f electrons are localized as atomic-like states [41]. The 4f electrons of Nd are treated as an open-core state in the calculation. The open core pseudopotential is generated by assuming that the 4f-states are part of the core states. The basis sets are s3p2d1f1, s3p2d1, s2p2d1, and s3p2d1 for Nd, Fe, B, and Co with cutoff radii of 8.0, 6.0, 7.0, and 6.0 atomic units (a.u.), respectively.
Following Hund’s rules, the atomic magnetic moment of Nd, from the 4f electrons, is 3.27 µB [42]. The contribution of Nd 4f electrons is taken as 3.27 µB for the total magnetic moment calculation. The Nd 5d, 6s, and 6p contribution is directly derived from the DFT calculation. The calculated orbital moments of Fe and Co are small, ranging from about 0.03 to 0.1 µB.
Based on the Maxwell–Boltzmann distribution [43], the occupation probability of Co at each Fe site in Nd2(Fe,Co)14B can be expressed as
P i = g i e x p   ( − ∆ E i k B T ) ∑ i g i e x p   ( − ∆ E i k B T )
where gi, ∆Ei, T, and kB are the multiplicity of the crystallographic site i, internal energy change (i.e., Esub), temperature, and Boltzmann’s constant, respectively.
To mimic the random distribution of Co at a specific crystallographic site of Fe, we adopt a virtual crystal approximation (VCA), implemented in the Questaal, which is an all-electron full-potential Linear Muffin-Tin Orbital (LMTO) DFT code [44,45]. Again, the Nd 4f electrons are treated as open-core states in the DFT calculation. The k-space integrations were performed with the tetrahedron method [46,47]. The effective exchange interaction parameters of Nd2(Fe,Co)14B are derived from the energy difference between the different magnetic structures of 2:14:1. The Curie temperature is estimated from the calculated effective exchange parameter based on Weiss molecular field model and Brillouin theory—the first mean-field theory for the magnetic transition [42,48]. The magnetization at finite temperature is also calculated based on the general Brillouin theory of localized magnetic moments system (i.e., mean-field theory). The temperature dependence of magnetization is described using a Brillouin function [42].

3. Results and Discussion

3.1. Substitution Energy and Site Preference of Co in Nd2(Fe,Co)14B

Nd2Fe14B crystallizes in a tetragonal structure with a space group P42/mnm. In the unit cell, there are four formula units of Nd2Fe14B, i.e., 68 atoms (Nd8Fe56B4). To evaluate the effect of the Fe substitution by Co in Fe-rich Nd2(Fe,Co)14B compound, one Co atom is doped at a specific Fe site in a single unit cell of 2:14:1. In other words, it has a nominal composition of Nd2Fe13.75Co0.25B or 1.7% of Fe replaced with Co in the super-cell. Since 2:14:1 has six crystallographically inequivalent Fe sites in the unit cell, there are six geometrically different patterns for doping Co into the unit cell. Similarly, to understand the site occupancy scheme of Fe in Co-rich Nd2(Fe,Co)14B phase, one Fe atom is set at a specific Co site in the 2:14:1 unit cell, i.e., a nominal composition of Nd2Co13.75Fe0.25B.
The calculated lattice constants of Nd2Fe14B (a = 8.7764 Å, c = 12.1640 Å) are comparable to the experimental values (a = 8.8 Å, c = 12.2 Å) [6]. The difference in the calculated lattice constants between Nd2Fe14B and Nd2Fe13.75Co0.25B is less than 0.02 Å. The results indicate that a small substitution of Fe content with Co (1.7%) has almost no effect on the lattice constants in 2:14:1. As shown in Table 1, the Esub values for Co are positive at the 8j2 site (0.16 eV/atom). At the same time, the values are negative at all other Fe sites in Nd2Fe13.75Co0.25B. The results reveal that the Co atoms prefer to avoid the 8j2 site in Fe-rich Nd2(Fe,Co)14B phase. Esub has a relatively lower value at the 8j1 site (comparable with the 4c site), implying a moderate occupation preference of Co at those sites in Nd2Fe13.75Co0.25B. On the other hand, the Esub values for Fe are negative at all the six Co crystallographic sites in Nd2Co13.75Fe0.25B. Esub has the lowest value at the 8j2 site (−0.40 eV) but the highest value at the 4e site (−0.13 eV) in Nd2Co13.75Fe0.25B. This indicates that in the Co-rich Nd2(Fe,Co)14B phase, Fe prefers to enter the 8j2 site and has the least preference for the 4e site. The result agrees with the experimental reports that in Nd2(Fe,Co)14B, Co and Fe prefer to avoid and occupy the 8j2 site, respectively [25,26,27,28].
The phase stability of the 2:14:1 system is less affected by doping with Co. The difference of the calculated cohesive energy between Nd2Fe14B and Nd2Fe13.75Co0.25B is about 0.6–4.4 meV/atom, comparable to 7–50 K thermal energy. This small thermal energy has almost no effect on the phase stability of Nd2Fe14B, which has a melting point of 1433 K [49]. This agrees with the fact that Nd2Fe14−xCoxB forms solid solutions across the entire compositional range [33]. The Esub values and signs depend on the volume of a specific crystallographic site and structural and chemical environments. We calculated the Wigner–Seitz volume and listed the neighboring atoms of the six different crystallographic Fe sites using the software DIDO95 [50]. As shown in Table 1, the 8j2 site has the largest site volume (12.8 Å3). The metallic atomic radii are 1.26 Å and 1.25 Å for Fe and Co, respectively [51]. To reduce the local strain and lower the Esub value, the small-sized Co atoms avoid the 8j2 site, while large-sized Fe atoms prefer to enter the 8j2 site. The distribution of Fe and Co at other sites is not completely random, as the values of Esub vary from site to site. For example, the Esub values for Co at the 8j1 site is much lower than that at the other sites in Nd2Fe13.75Co0.25B. In addition to the different site volumes, the chemical environment varies from site to site. For example, the 4c site has many Nd (four Nd atoms) neighbors, while the 4e site has more boron nearest neighbors (three boron atoms). The magnitude of Esub depends on the interplay between the volume and the chemical affinity effects.
The site occupancy preferences of Fe and Co also depend on temperature. Figure 1a displays the temperature dependence of the site occupancy of Co in Nd2Fe13.75Co0.25B over the six Fe(Co) crystallographic sites. The Co atoms prefer to enter the 8j1 site but avoid the 8j2 site. With increasing temperature, the occupancy fraction of Co at the 8j1 site decreases slightly while the occupancies of Co atoms at other sites increase (Figure 1a), which is driven by thermal energy. To highlight the site occupancy preferences, we normalize them to those expected for random distribution, which can be expressed as
R e l a t . P i = 56   exp ( − ∆ E i / k B T )   ∑ i g i   e x p ( − ∆ E / k B T )
The difference between Formulas (1) and (2) is the normalization factor gi/56, where gi is the multiplicity of the crystallographic site i, and the total number of Fe(Co) atoms is 56 in the unit cell. Following this normalization, the relative occupancy Pi will be 1 for a random distribution. If the Co atom strongly prefers a specific crystallographic site i, the relative occupancy Pi will be much higher than 1. Similarly, the value will be much lower than one if the Co atom prefers to avoid the site. A similar method was applied to analyze the site occupancy preference from neutron diffraction data in the 2:14:1 system [28]. As shown in Figure 1b, the relative occupancy Pi for the 8j1 site has the largest value (2.8 at 1400 K), while that at the 8j2 site has the lowest value (0.03 at 1400 K). The results highlight that the Co atoms prefer the 8j1 site and avoid the 8j2 site in Nd2Fe13.75Co0.25B. Co also has a moderate preference for the 4c site. These results are in good agreement with the experiments [28].
Figure 2 displays the temperature dependence of the site occupancy of Fe in Nd2Co13.75Fe0.25B. Fe strongly prefers to enter the 8j2 site due to its larger atomic size. Interestingly, Fe has a moderate preference at the 4c site in Co-rich Nd2(Fe,Co)14B. As discussed above, Co also moderately prefers to occupy the 4c site in the Fe-rich Nd2(Fe,Co)14B. One possible explanation is that the Fe(Co) at the 4c site is preferred to the neighbors of Co(Fe) as the mixing heating of Fe-Co is lower than Fe-Fe and Co-Co alloys based on the Miedema model [52]. The results indicated that the Co(Fe) occupancy scheme is sensitive to the composition of Nd2Fe14−xCoxB.

3.2. Atomic Resolved Magnetic Moments in Nd2(Fe,Co)14B

Fe (Co) atoms exhibit different magnetic moments depending on the specific crystallographic site. Table 2 shows the atomic magnetic moments of Co and Fe at various crystallographic sites in Nd2Fe13.75Co0.25B. The Co atoms show positive magnetic moments and are ferromagnetically coupled with the Fe sublattice. The Co magnetic moments range from 1.23 to 1.70 µB (Table 2). Cobalt has the smallest magnetic moment of 1.23 µB at the 4e site and the largest magnetic moment of 1.7 µB at the 8j2 site. Similarly, Fe has the largest (2.68 µB) and the smallest (2.11 µB) magnetic moments at the 8j2 and 4e sites, respectively. This behavior is ascribed to the largest site volume of the 8j2 site (12.8 Å3) and the largest amount of boron nearest neighbor of the 4e site in 2:14:1. As the magnetic moment of Co is much less than that of Fe, it is expected that the magnetization of Nd2Fe14−xCoxB would decrease with Co content.
Table 3 displays the site-resolved magnetic moments in Nd2Fe14−xCoxB. For x = 0.25 and 13.75, we assume that Co and Fe occupy 8j1 and 8j2 sites, respectively. The reason is that Co at the 8j1 site and Fe at the 8j2 site have their respective minimum Esub values at x = 0.25 and x = 13.75. It should be noted that the crystallographic symmetry of the unit cell is reduced, and each site will be split into several sub-sites upon doping Co(Fe) in the unit cell. To facilitate the comparison, we use the original site notations and list the average magnetic moment for each site. As expected, the partial replacement of Fe by Co reduces the site-resolved magnetic moment while having little effect on the magnetic moment at other sites. Again, the atoms of Fe or Co have the largest atomic magnetic moment at the 8j2 site. The magnitude of magnetic moment at the different site decreases following the order from 8j2 to 4c, 16k2, 8j1, 16k1, and 4e.

3.3. Exchange Interaction and Curie Temperature in Nd2(Fe,Co)14B

The partial substitution of Fe by Co effectively enhances TC in Nd2(Fe,Co)14B. To understand the mechanism of the enhancement of TC induced by doping Co, we estimate the effective exchange interaction parameter in the 2:14:1 system by comparing the energy difference between different magnetic ordering structures. Figure 3 displays a ferromagnetic (FM) structure (a) and an antiferromagnetic (AFM) structure (b) of 2:14:1, which is created using the VESTA package [53]. According to the Heisenberg model, the exchange interaction parameter, J, can be expressed as [42]
H = − J S 1 ^ . S 2 ^
where S1 and S2 are dimensionless unit spin operators, and H is the Heisenberg Hamiltonian. The effective value of J can be estimated as follows:
J = − 1 2 n 2 ( E A F M − E F M )
where n, EAFM, and EFM are the average number of Bohr magnetons for each magnetic atom and the total energy for the AFM and FM structure, respectively.
As discussed above, Co atoms prefer to avoid the 8j2 site in Nd2(Fe,Co)14B. We ignore the small preferential occupancy over other Fe(Co) crystallographic sites and assume a random distribution of Co at the other five sites, i.e., 16k1, 16k2, 8j1, 4e, and 4c. To mimic the partial replacement of Fe by Co, we adopt a VCA approach in DFT calculation [41]. The magnetization and total energies for the FM and AFM structures were calculated using a full-potential LMTO method as a function of Co content. More details are described in the Method and Computational Details section above.
Figure 4a shows the Co content dependence of the average magnetic moment of Fe(Co) atoms in Nd2Fe14−xCoxB. The average magnetic moment slightly decreases with increasing Co content for x < 3. Any further increase in the Co content decreases the magnetic moment almost linearly. The effective exchange interaction parameter J was derived based on Equation (3) and is shown in Figure 4b. The values of J increase almost linearly from 7.8 meV at x = 0 to 17.0 meV at x = 16, in agreement with the fact that TC can be substantially enhanced by doping Co in the 2:14:1 phase [6].
The Curie temperature was also estimated using the calculated effective exchange interaction parameter J. The 2:14:1 system has two magnetic sublattices: Nd- and Fe(Co)-sublattice. The exchange interaction in the Fe(Co) sublattice is much stronger than that of the Nd sublattice and the inter-lattice exchange interaction between Nd and Fe(Co) [6]. The Fe(Co) sublattice mainly determines TC. We estimate TC in Nd2Fe14−xCoxB based on the mean-field theory [42,48].
T c = 2 Z J 3 k B
where TC, Z, J, and kB are Curie temperature, the average number of the nearest neighbor of magnetic atoms, and Boltzmann’s constant, respectively. Here, Z is taken as 12 (see Table 1).
As shown in Figure 5, the calculated TC values increase with Co content in qualitative agreement with the experimental results [25,32]. The mechanism responsible for the concomitant increase in TC with Co content is the enhancement of the effective exchange interaction parameter. The results imply that a mean-field model can successfully estimate the Curie temperature of rare earth Fe (Co) intermetallic compounds. This was confirmed in many other rare earth-3d transition metal compounds [54,55].

3.4. Magnetization of Nd2(Fe,Co)14B at Finite Temperature

The measured saturation magnetization displays a maximum at x = 1–2 in Nd2Fe14−xCoxB at 77 K and 293 K. However, the maximum is less pronounced at low temperatures [32]. In our calculations, the magnetization at the ground state continuously decreases with increasing Co content (Figure 6). To understand the peak value of saturation magnetization at finite temperature, we calculated the temperature dependence of magnetization based on the general Brillouin theory of localized magnetic moments (i.e., a mean-field theory), which is expressed using a Brillouin function BJ with J = 1/2 [42].
M T = M S B 1 / 2 ;   B 1 / 2 = 2 coth 2 x − c o t h ( x ) ;   x = M ( T ) · T C / T
The calculated magnetization at 300 K was also plotted as a function of Co content in Figure 6. It displays a peak value round x = 1, which is qualitatively in agreement with the experiments [33]. The formation of a weak maximum of total magnetization results from the interplay between the reduction of magnetic moment and the sharp increase in TC in Nd2Fe14−xCoxB.

4. Summary

The Fe and Co substitution scheme in Nd2(Fe,Co)14B depends on the Co content from the DFT calculations. The calculated substitution energies indicate that the Co atoms avoid the 8j2 site. In addition, Co atoms prefer the 8j1 and 4c sites in Nd2Fe13.75Co0.25B, while Fe atoms prefer the 8j2 and 4c sites in Nd2Co13.75Fe0.25B. The Co atoms show magnetic moments of about 1.2 to 1.7 μB at different crystallographic sites, less than Fe (2.1–2.7 μB). Increasing Co content reduces total magnetization at the ground state (0 K). The effective exchange interaction parameter is also enhanced from 7.8 meV to 17.0 meV with increasing Co content from x = 0 to 14, which is responsible for the TC enhancement in Nd2(Fe,Co)14B. The calculated total magnetization at 300 K shows a peak value at x = 1 in Nd2Fe14−xCoxB. This is ascribed to the interplay between the reduced magnetic moment of the Fe(Co) sublattice and the TC enhancement with increasing Co content.

Author Contributions

Conceptualization, X.L. and I.C.N.; methodology, X.L. and I.C.N.; software, X.L.; validation, X.L. and I.C.N.; formal analysis, X.L. and I.C.N.; investigation, X.L.; resources, I.C.N.; data curation, X.L.; writing—original draft preparation, X.L.; writing—review and editing, I.C.N.; visualization, X.L.; supervision, I.C.N.; project administration, X.L. and I.C.N.; funding acquisition, I.C.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Critical Materials Innovation Hub funded by the U.S. Department of Energy, Office of Energy Efficiency and Renewable Energy, Advanced Materials and Manufacturing Technologies Office (AMMTO). The work was performed in Ames National Laboratory, operated for the U.S. Department of Energy by Iowa State University of Science and Technology under Contract No. DE-AC02-07CH11358.

Data Availability Statement

The data presented in this study are available on request from the corresponding author due to legal.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sagawa, M.; Fujimura, S.; Togawa, N.; Yamamoto, H.; Matsuura, Y. New Material for Permanent Magnets on a Base of Nd and Fe (Invited). J. Appl. Phys. 1984, 55, 2083–2087. [Google Scholar] [CrossRef]
  2. Croat, J.J.; Herbst, J.F.; Lee, R.W.; Pinkerton, F.E. Pr-Fe and Nd-Fe-Based Materials: A New Class of High-Performance Permanent Magnets (Invited). J. Appl. Phys. 1984, 55, 2078–2082. [Google Scholar] [CrossRef]
  3. Sugimoto, S. Current Status and Recent Topics of Rare-Earth Permanent Magnets. J. Phys. D Appl. Phys. 2011, 44, 064001. [Google Scholar] [CrossRef]
  4. McCallum, R.W.; Lewis, L.; Skomski, R.; Kramer, M.J.; Anderson, I.E. Practical Aspects of Modern and Future Permanent Magnets. Annu. Rev. Mater. Res. 2014, 44, 451–477. [Google Scholar] [CrossRef]
  5. Gutfleisch, O.; Willard, M.A.; Brück, E.; Chen, C.H.; Sankar, S.G.; Liu, J.P. Magnetic Materials and Devices for the 21st Century: Stronger, Lighter, and More Energy Efficient. Adv. Mater. 2011, 23, 821–842. [Google Scholar] [CrossRef]
  6. Herbst, J.F. R2Fe14B Materials: Intrinsic Properties and Technological Aspects. Rev. Mod. Phys. 1991, 63, 819–898. [Google Scholar] [CrossRef]
  7. Sepehri-Amin, H.; Ohkubo, T.; Hono, K. Grain Boundary Structure and Chemistry of Dy-Diffusion Processed Nd–Fe–B Sintered Magnets. J. Appl. Phys. 2010, 107, 09A745. [Google Scholar] [CrossRef]
  8. Gabay, A.M.; Marinescu, M.; Li, W.F.; Liu, J.F.; Hadjipanayis, G.C. Dysprosium-Saving Improvement of Coercivity in Nd-Fe-B Sintered Magnets by Dy2S3 Additions. J. Appl. Phys. 2011, 109. [Google Scholar] [CrossRef]
  9. Yue, M.; Liu, W.Q.; Zhang, D.T.; Jian, Z.G.; Cao, A.L.; Zhang, J.X. Tb Nanoparticles Doped Nd-Fe-B Sintered Permanent Magnet with Enhanced Coercivity. Appl. Phys. Lett. 2009, 94, 092501. [Google Scholar] [CrossRef]
  10. Cao, X.; Chen, L.; Guo, S.; Chen, R.; Yan, G.; Yan, A. Magnetic and Microstructural Properties of DyF3-Coated Sintered Nd-Fe-B Magnets by Electrophoretic Deposition. IEEE Trans. Magn. 2015, 51, 2101804. [Google Scholar] [CrossRef]
  11. Liu, X.; Wang, X.; Liang, L.; Zhang, P.; Jin, J.; Zhang, Y.; Ma, T.; Yan, M. Rapid Coercivity Increment of Nd-Fe-B Sintered Magnets by Dy69Ni31 Grain Boundary Restructuring. J. Magn. Magn. Mater. 2014, 370, 76–80. [Google Scholar] [CrossRef]
  12. Liu, X.B.; Altounian, Z. The Partitioning of Dy and Tb in NdFeB Magnets: A First-Principles Study. J. Appl. Phys. 2012, 111, 07A701. [Google Scholar] [CrossRef]
  13. Yosida, K.; Okiji, K.; Chikazumi, S. Magnetic Anisotropy of Localized State in Metals. Prog. Theor. Phys. 1965, 33, 559. [Google Scholar] [CrossRef]
  14. Delange, P.; Biermann, S.; Miyake, T.; Pourovskii, L. Crystal-Field Splittings in Rare-Earth-Based Hard Magnets: An Ab Initio Approach. Phys. Rev. B 2017, 96, 155132. [Google Scholar] [CrossRef]
  15. Gimaev, R.; Komlev, A.; Davydov, A.; Kovalev, B.; Zverev, V. Magnetic and Electronic Properties of Heavy Lanthanides (Gd, Tb, Dy, Er, Ho, Tm). Crystals 2021, 11, 82. [Google Scholar] [CrossRef]
  16. Lv, M.; Kong, T.; Zhang, W.; Zhu, M.; Jin, H.; Li, W.; Li, Y. Progress on Modification of Microstructures and Magnetic Properties of Nd-Fe-B Magnets by the Grain Boundary Diffusion Engineering. J. Magn. Magn. Mater. 2021, 517, 167278. [Google Scholar] [CrossRef]
  17. Chen, F. Recent Progress of Grain Boundary Diffusion Process of Nd-Fe-B Magnets. J. Magn. Magn. Mater. 2020, 514, 167227. [Google Scholar] [CrossRef]
  18. Liu, Z.; He, J.; Ramanujan, R.V. Significant Progress of Grain Boundary Diffusion Process for Cost-Effective Rare Earth Permanent Magnets: A Review. Mater. Des. 2021, 209, 110004. [Google Scholar] [CrossRef]
  19. Burzo, E. Permanent Magnets Based on R-Fe-B and R-Fe-C Alloys. Rep. Prog. Phys. 1998, 61, 1099–1266. [Google Scholar] [CrossRef]
  20. Li, W.F.; Ohkubo, T.; Akiya, T.; Kato, H.; Hono, K. The Role of Cu Addition in the Coercivity Enhancement of Sintered Nd-Fe-B Permanent Magnets. J. Mater. Res. 2009, 24, 413–420. [Google Scholar] [CrossRef]
  21. Liu, X.B.; Altounian, Z. The Role of Cu in Sintered Nd-Fe-b Magnets: Ab Initio Study. IEEE Trans. Magn. 2012, 48, 3144–3146. [Google Scholar] [CrossRef]
  22. Sepehri-Amin, H.; Li, W.F.; Ohkubo, T.; Nishiuchi, T.; Hirosawa, S.; Hono, K. Effect of Ga Addition on the Microstructure and Magnetic Properties of Hydrogenation-Disproportionation-Desorption-Recombination Processed Nd-Fe-B Powder. Acta Mater. 2010, 58, 1309–1316. [Google Scholar] [CrossRef]
  23. Liu, Y.; He, J.; Yu, H.; Liu, Z.; Zhang, G. Restoring and Enhancing the Coercivity of Waste Sintered (Nd,Ce,Gd)FeB Magnets by Direct Pr–Tb–Cu Grain Boundary Diffusion. Appl. Phys. A 2020, 126, 657. [Google Scholar] [CrossRef]
  24. Moze, O.; Pareti, L.; Solzi, M.; Bolzoni, F.; David, W.I.F.; Harrison, W.T.A.; Hewat, A.W. Magnetic Structure and Preferential Site Occupation in Manganese- and Chromium-Substituted Y2Fe14B Compounds. J. Less Common Met. 1988, 136, 375–383. [Google Scholar] [CrossRef]
  25. Herbst, J.F.; Yelon, W.B. Preferential Site Occupation and Magnetic Structure of Nd2(CoxFe1−x) 14B Systems. J. Appl. Phys. 1986, 60, 4224–4229. [Google Scholar] [CrossRef]
  26. van Noort, H.M.; Buschow, K.H.J. On the Site Preference of 3d Atoms in Compounds of the R2(Co1−xFex)14B Type. J. Less Common Met. 1985, 113, L9–L12. [Google Scholar] [CrossRef]
  27. Ryan, D.H.; Altounian, Z.; Liao, L.X.; Ström-Olsen, J.O.; Muir, W.B. Direct Determination of Cobalt Site Preferences at Infinite Dilution in Iron-Based Intermetallic Compounds (Invited). J. Appl. Phys. 1990, 67, 4742–4746. [Google Scholar] [CrossRef]
  28. Eslava, G.G.; Ito, M.; Colin, C.V.; Yano, M.; Shoji, T.; Kato, A.; Suard, E.; Dempsey, N.M.; Givord, D. Preferential Co and Fe Atom Occupancy in R2(Fe1−XCo)14B Intermetallic Compounds (R = Nd, Y and Ce). J. Alloys Compd. 2021, 851, 156168. [Google Scholar] [CrossRef]
  29. Liu, X.B.; Ma, Y.; Altounian, Z.; Zhang, Q.; Ping Liu, J. First-Principles Survey on the Doping of Ga in Nd2Fe14B. J. Appl. Phys. 2014, 115, 17A702. [Google Scholar] [CrossRef]
  30. Liu, X.B.; Nlebedim, I.C. Segregation of Al and Its Effect on Coercivity in Nd-Fe-B. AIP Adv. 2024, 14, 015030. [Google Scholar] [CrossRef]
  31. Tatetsu, Y.; Tsuneyuki, S.; Gohda, Y. First-Principles Study on Substitution Effects in Nd2(Fe, X)14B. Materialia 2018, 4, 388–394. [Google Scholar] [CrossRef]
  32. Girgis, K.; Kraft, M.; Weis, U.; Fischer, P.; Sostarich, M. Crystal and Magnetic Structure of the Permanent Magnet Materials Nd2Fe14−xCoxB (x = 0–14). J. Less Common Met. 1990, 162, 335–342. [Google Scholar] [CrossRef]
  33. Fuerst, C.D.; Herbst, J.F.; Alson, E.A. Magnetic Properties of Nd2(CoxFe1−x)14B Alloys. J. Magn. Magn. Mater. 1986, 54–57, 567–569. [Google Scholar] [CrossRef]
  34. Hu, B.P.; Li, H.S.; Gavigan, J.P.; Coey, J.M.D. Intrinsic Magnetic Properties of the Iron-Rich ThMn12-Structure Alloys R(Fe11Ti); R=Y, Nd, Sm, Gd, Tb, Dy, Ho, Er, Tm and Lu. J. Phys. Condens. Matter 1989, 1, 755. [Google Scholar] [CrossRef]
  35. Srinithi, A.K.; Sepehri-Amin, H.; Tang, X.; Tozman, P.; Li, J.; Zhang, J.; Kobayashi, S.; Ohkubo, T.; Nakamura, T.; Hono, K. Phase Relations and Extrinsic Magnetic Properties of Sm–(Fe,Co)–Ti–(Ga)-Based Alloys for ThMn12-Type Permanent Magnets. J. Magn. Magn. Mater. 2021, 529, 167866. [Google Scholar] [CrossRef]
  36. Hirayama, Y.; Takahashi, Y.K.; Hirosawa, S.; Hono, K. Intrinsic Hard Magnetic Properties of Sm(Fe1−xCox)12 Compound with the ThMn12 Structure. Scr. Mater. 2017, 138, 62. [Google Scholar] [CrossRef]
  37. Liu, X.B.; Ping Liu, J.; Zhang, Q.; Altounian, Z. The Fe Substitution in Nd2(Fe,M)14B (M = Si, Ge and Sn): A First-Principles Study. Comput. Mater. Sci. 2014, 85, 186–192. [Google Scholar] [CrossRef]
  38. Ozaki, T. Variationally Optimized Atomic Orbitals for Large-Scale Electronic Structures. Phys. Rev. B 2003, 67, 155108. [Google Scholar] [CrossRef]
  39. Ozaki, T.; Kino, H. Numerical Atomic Basis Orbitals from H to Kr. Phys. Rev. B 2004, 69, 195113. [Google Scholar] [CrossRef]
  40. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef]
  41. Richter, M. Band Structure Theory of Magnetism in 3d-4f Compounds. J. Phys. D Appl. Phys. 1998, 31, 1017–1048. [Google Scholar] [CrossRef]
  42. Coey, J. Magnetism and Magnetic Materials; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  43. Tolman, R.C. The Principles of Statistical Mechanics; Dover Pub. Inc.: New York, NY, USA, 1979. [Google Scholar]
  44. Pashov, D.; Acharya, S.; Lambrecht, W.R.L.; Jackson, J.; Belashchenko, K.D.; Chantis, A.; Jamet, F.; van Schilfgaarde, M. Questaal: A Package of Electronic Structure Methods Based on the Linear Muffin-Tin Orbital Technique. Comput. Phys. Commun. 2020, 249, 107065. [Google Scholar] [CrossRef]
  45. Andersen, O.K. Linear Methods in Band Theory. Phys. Rev. B 1975, 12, 3060–3083. [Google Scholar] [CrossRef]
  46. Jepsen, O.; Andersen, O.K. The Electronic Structure of h.c.p. Ytterbium. Solid State Commun. 1971, 9, 1763–1767. [Google Scholar] [CrossRef]
  47. Blöchl, P.E.; Jepsen, O.; Andersen, O.K. Improved Tetrahedron Method for Brillouin-Zone Integrations. Phys. Rev. B 1994, 49, 16223–16233. [Google Scholar] [CrossRef] [PubMed]
  48. van Schilfgaarde, M.; Antropov, V.P. First-Principles Exchange Interactions in Fe, Ni, and Co. J. Appl. Phys. 1999, 85, 4827–4829. [Google Scholar] [CrossRef]
  49. Matsuura, Y.; Hirosawa, S.; Yamamoto, H.; Fujimura, S.; Sagawa, M.; Osamura, K. Phase Diagram of the Nd-Fe-b Ternary System. Jpn. J. Appl. Phys. 1985, 24, 635–637. [Google Scholar] [CrossRef]
  50. Koch, E.; Fischem, W. DIDO95 and VOID95—Programs for the Calculation of Dirichlet Domains and Coordination Polyhedra. Z. Für Krist.-Cryst. Mater. 1996, 211, 251–253. [Google Scholar] [CrossRef]
  51. Kittel, C. Introduction to Solid State Physics, 8th ed.; John Wiley & Sons: Chicago, IL, USA, 2004. [Google Scholar]
  52. Miedema, A.R. Energy Effects and Charge Transfer in Metal Physics; Modelling in Real Space. Phys. B Condens. Matter 1992, 182, 1–17. [Google Scholar] [CrossRef]
  53. Momma, K.; Izumi, F. VESTA 3 for Three-Dimensional Visualization of Crystal, Volumetric and Morphology Data. J. Appl. Crystallogr. 2011, 44, 1272–1276. [Google Scholar] [CrossRef]
  54. Liu, X.B.; Altounian, Z. First-Principles Calculation on the Curie Temperature of GdFeSi. J. Appl. Phys. 2010, 107. [Google Scholar] [CrossRef]
  55. Liu, X.B.; Altounian, Z. Magnetic Moments and Exchange Interaction in Sm(Co, Fe)5 from First-Principles. Comput. Mater. Sci. 2011, 50, 841–846. [Google Scholar] [CrossRef]
Crystals 14 00370 g001

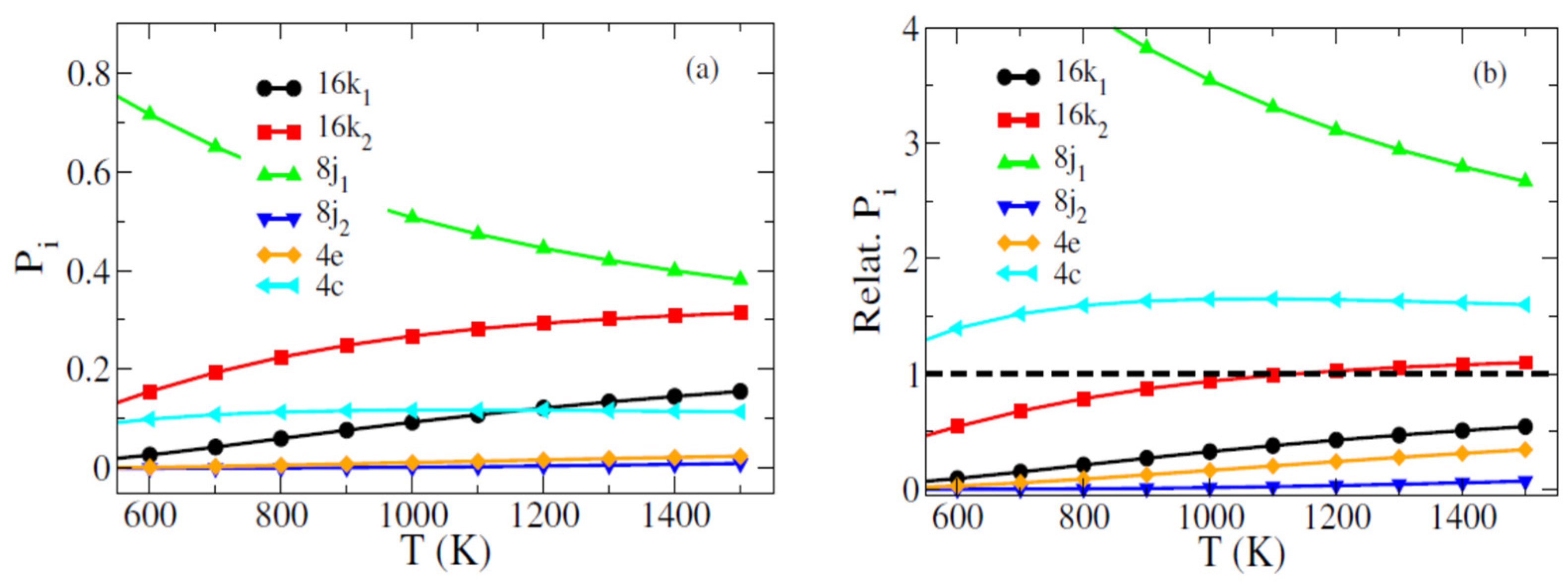

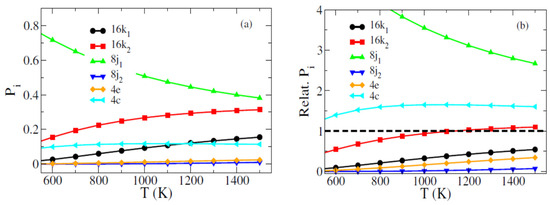

Figure 1. (Online color) Temperature dependence of the site occupancy fraction (a) and the normalized relative occupancy (b) of Co in Nd2Fe13.75Co0.25B.
Figure 1. (Online color) Temperature dependence of the site occupancy fraction (a) and the normalized relative occupancy (b) of Co in Nd2Fe13.75Co0.25B.
Crystals 14 00370 g001
Crystals 14 00370 g002

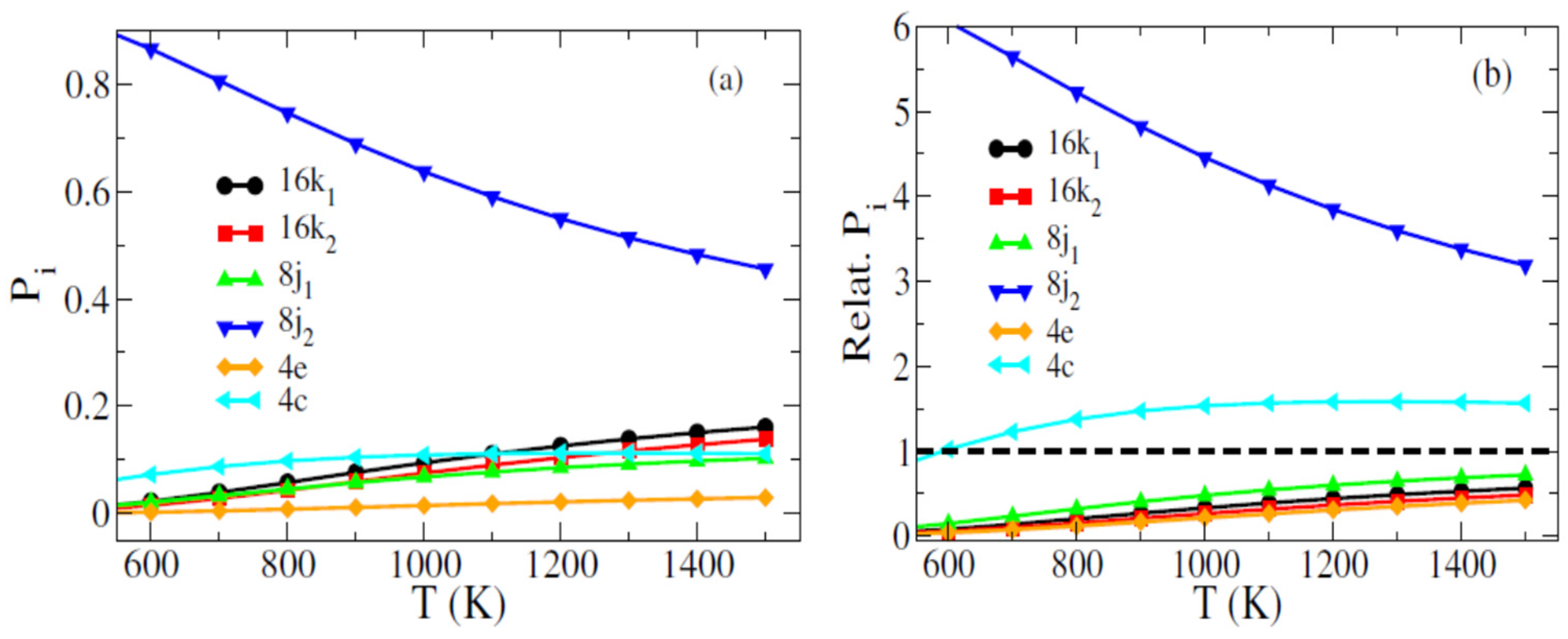

Figure 2. (Online color) Temperature dependence of the site occupancy fraction (a) and the normalized relative occupancy (b) of Fe in Nd2Co13.75Fe0.25B.
Figure 2. (Online color) Temperature dependence of the site occupancy fraction (a) and the normalized relative occupancy (b) of Fe in Nd2Co13.75Fe0.25B.
Crystals 14 00370 g002
Crystals 14 00370 g003

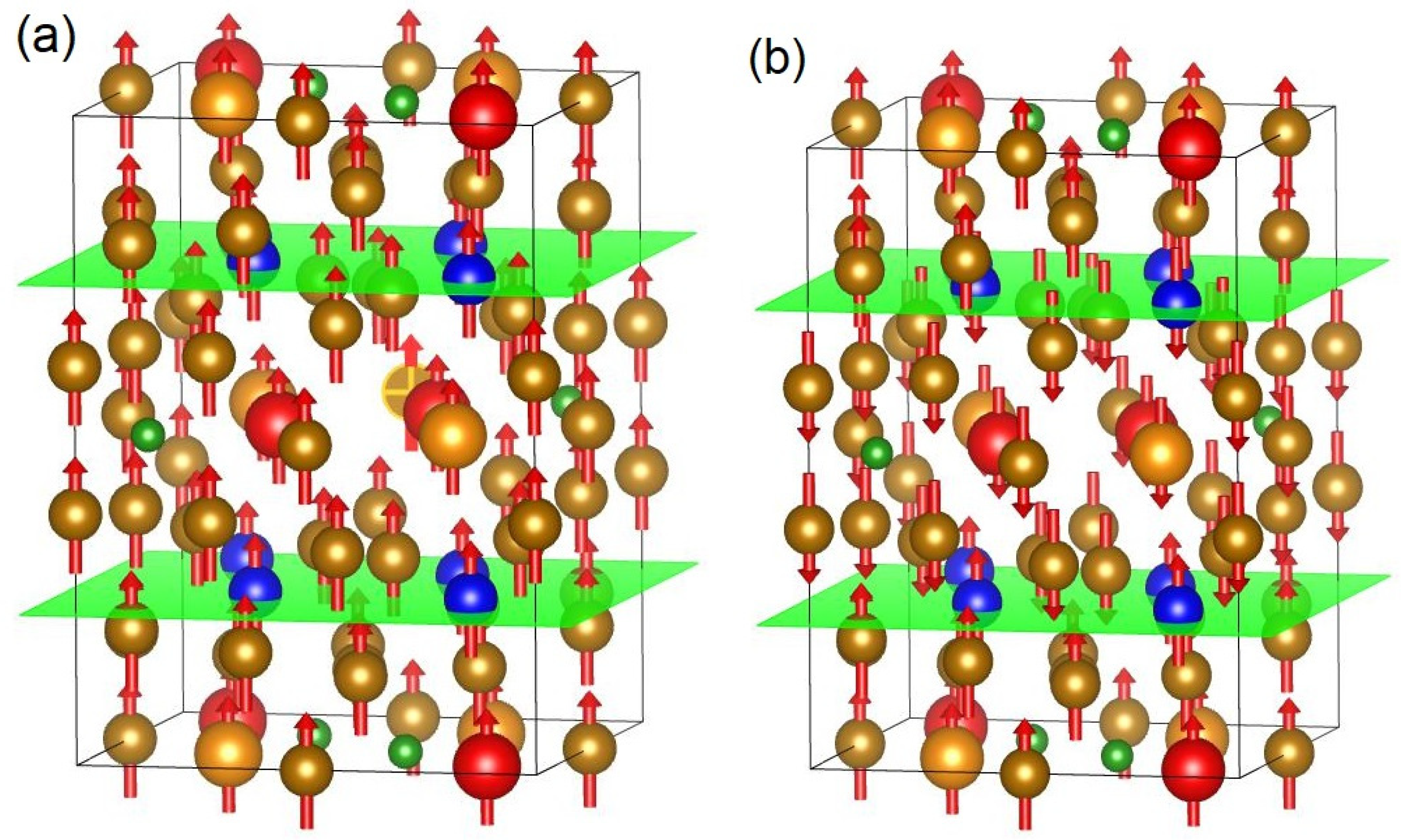

Figure 3. Unit cell of 2:14:1 with a ferromagnetic (FM) structure (a) and an antiferromagnetic (AFM) structure (b). The large red and light gold balls represent Nd atoms at 4f and 4g, respectively. The small green ball is for B. The moderate-sized blue and deep gold balls are for Fe(Co) at the 8j2 and the other sites, respectively. The arrows represent the magnetic moment direction of each magnetic atom. The green area highlights the position of the crystal plane with Fe(Co) 8j2 atoms perpendicular to the c-axis. All the images are generated using the VESTA package [53].
Figure 3. Unit cell of 2:14:1 with a ferromagnetic (FM) structure (a) and an antiferromagnetic (AFM) structure (b). The large red and light gold balls represent Nd atoms at 4f and 4g, respectively. The small green ball is for B. The moderate-sized blue and deep gold balls are for Fe(Co) at the 8j2 and the other sites, respectively. The arrows represent the magnetic moment direction of each magnetic atom. The green area highlights the position of the crystal plane with Fe(Co) 8j2 atoms perpendicular to the c-axis. All the images are generated using the VESTA package [53].
Crystals 14 00370 g003
Crystals 14 00370 g004

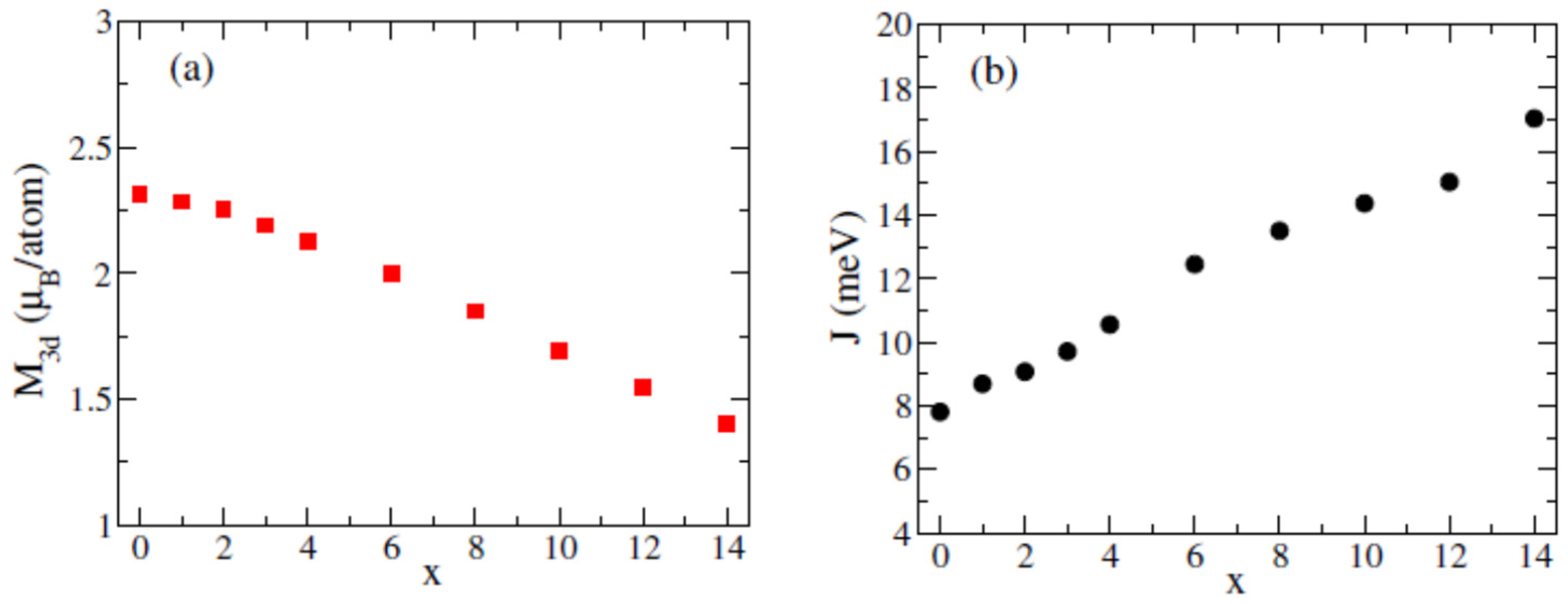

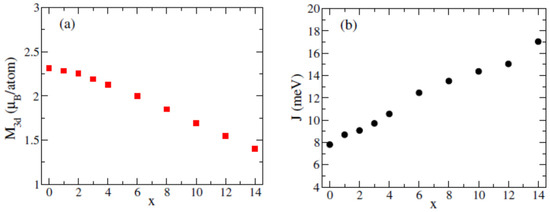

Figure 4. Calculated average magnetic moment of Fe(Co) atoms (a) and effective exchange interaction parameter (b) as a function of Co content in Nd2Fe14−xCoxB.
Figure 4. Calculated average magnetic moment of Fe(Co) atoms (a) and effective exchange interaction parameter (b) as a function of Co content in Nd2Fe14−xCoxB.
Crystals 14 00370 g004
Crystals 14 00370 g005

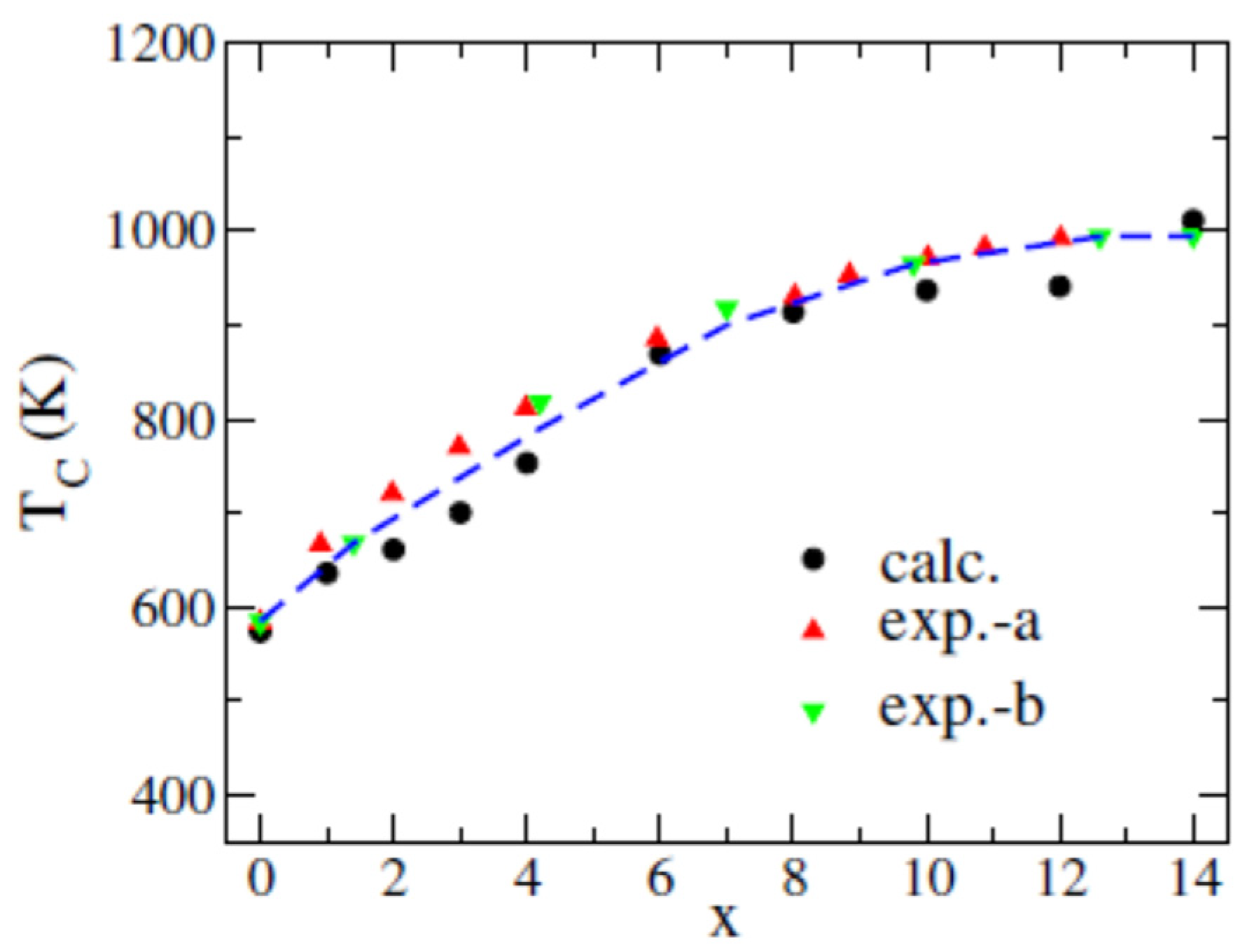

Figure 5. Calculated Curie temperature TC (solid circle) as a function of Co content in Nd2Fe14−xCoxB. The experimental values of TC [25,32] are also plotted (up- and down-triangle). The blue dotted line is only as a guide for eyes.
Figure 5. Calculated Curie temperature TC (solid circle) as a function of Co content in Nd2Fe14−xCoxB. The experimental values of TC [25,32] are also plotted (up- and down-triangle). The blue dotted line is only as a guide for eyes.
Crystals 14 00370 g005
Crystals 14 00370 g006

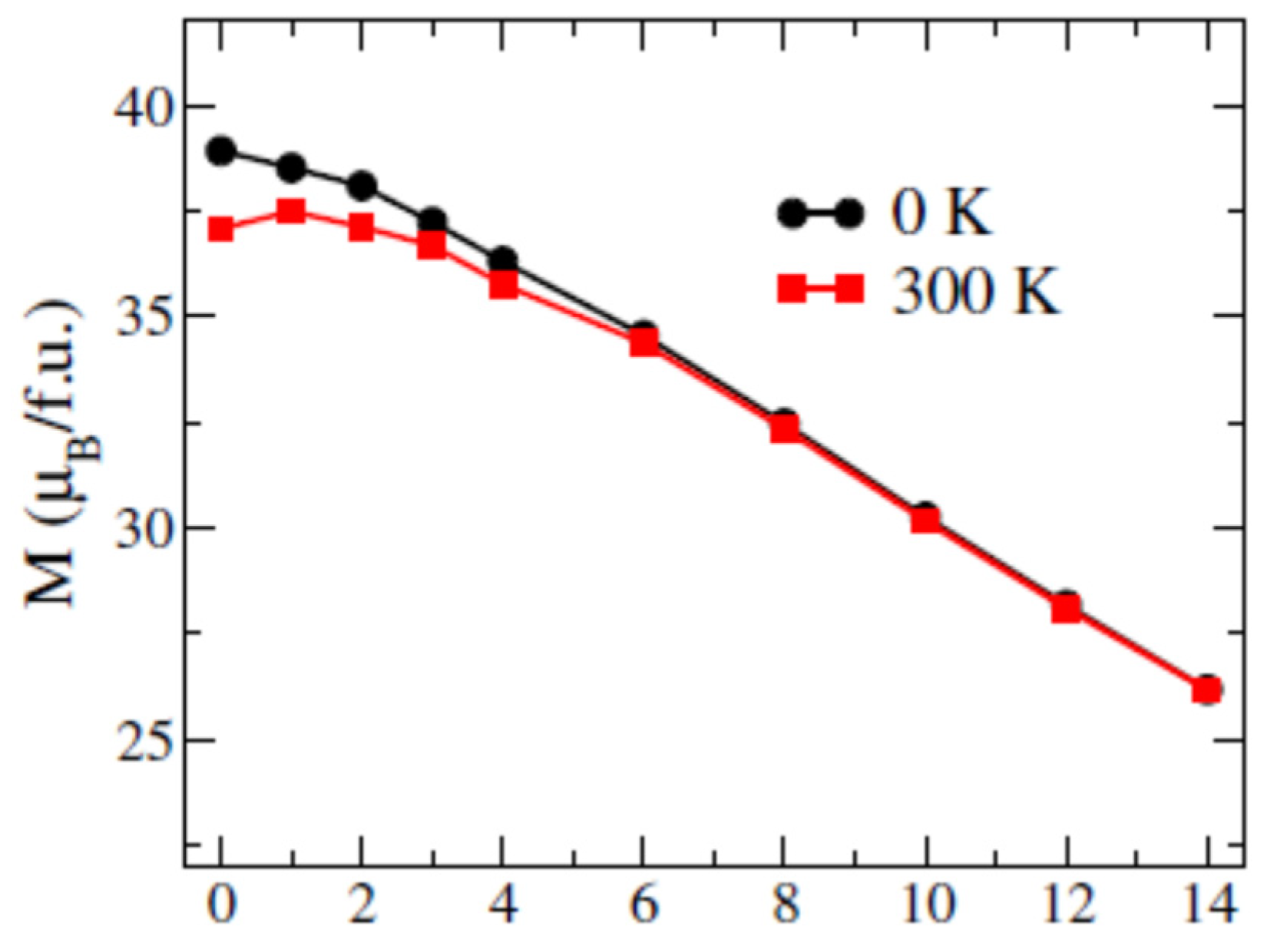

Figure 6. Calculated magnetization in Nd2Fe14−xCoxB at ground state (0 K) and 300 K.
