Modification of LaB₆ with ZrO₂-Al₂O₃-TiO₂ for Improvement of Density and Mechanical and Electrical Properties

Abstract

Pure lanthanum hexaboride (LaB₆) ceramics were prepared using powders of different grain sizes. The ceramics could reach a relative density of 98.2% at high temperatures and pressures, but had a low flexural strength (136.9 MPa). LaB₆ ceramics were synthesized using ZrO₂-Al₂O₃-TiO₂ (ZAT) as sintering additives. The ceramics demonstrate high density and excellent mechanical properties. The hot pressure sintering (HPS) method was utilized in the synthesis of the ceramics. Investigations were conducted on the effects of ZAT content, as well as the effects of the sintering temperature and pressure on the sintering behavior, microstructure, and mechanical and electrical properties of LaB₆ ceramics. LaB₆ ceramics fabricated with a ZAT addition of 6 wt.%, at a sintering temperature of 1700 °C, and under a pressure of 50 MPa, exhibited superior sintering and electrical properties, including a relative density of 97%, a conductivity of 7.2 MS/m, a flexural strength of 281.5 MPa, and a Vickers hardness of 21.2 GPa. The LaB₆ ceramics synthesized in this research exhibit promising potential as electron-emitting cathodes for field emission applications.

1. Introduction

In 1951, Lafferty identified that LaB₆ possesses excellent hot electron emission properties [1]. Since then, rare earth hexaborides have attracted significant attention from researchers [2,3]. LaB₆ is regarded as an ideal material for electron-emitting cathodes owing to its low work function, high mechanical strength, and chemical stability [4,5,6,7].

The magnitude of the work function is primarily dependent on the electronic structure of the atoms in the solid’s near-surface layer [8]. The work function varies naturally with the phase of matter. Even within the same phase, the density of atoms and the density of the ‘electron cloud’ may vary across different crystalline surfaces. The polar moments of the dipole layers as well as the work function vary. Furthermore, foreign adsorbed atoms exert a significant effect on the work function. Research has shown that the low work function of LaB₆ results from the formation of a La-B dipole layer on the surface [9].

Compared to the LaB₆ single crystal, polycrystalline blocks (LaB₆ ceramics) offer more straightforward preparation methods and larger sizes, making them suitable for a wide range of applications [10,11]. However, their poorer mechanical properties (Vickers hardness: 5~15 GPa; flexural strength: 80~150 MPa) and lower conductivity (3.3~10 MS/m) as well as high work function (>2.8 eV) limit their use. To overcome these limitations, current research on LaB₆ polycrystalline materials mainly focuses on three aspects: enhancing densification, achieving fine crystallization [12], and developing multiphase compositions [5,13,14,15].

The mechanical properties and electron emission properties of LaB₆ ceramics deteriorate as densities decrease. Common strategies for promoting the high densification of LaB₆ ceramics include employing high-temperature and high-pressure process conditions, along with finer nanopowders.

Zhou et al. [12] found that the mechanical properties and the thermoelectric emission properties of LaB₆ polycrystalline material could match those of LaB₆ single-crystal material when the grain size was reduced to the nanoscale. The nanocrystal LaB₆ hardness was 22.3 GPa, the flexural strength was 271.2 MPa, and the maximum emission current density was 56.81 A·cm⁻² at a cathode temperature of 1600 °C. Research into high densification and fine crystallization includes the use of nanomaterials and spark plasma sintering (SPS) for preparing high-density ceramics to investigate their thermoelectric emission properties. However, SPS produces samples with limited size, presenting complexities and high operational costs that preclude industrial production. In contrast, the HPS method enables the industrial production of larger samples. Research on multiphase composition predominantly focuses on adding rare earth elements to synthesize binary or polyhexaborides, as well as preparing high-entropy hexaborides to explore their functional and electron emission properties. Furthermore, researchers have explored the addition of ZrB₂ and other borides to enhance the physical properties of LaB₆, such as strength and toughness [16,17]. However, these raw materials are not only expensive and challenging to prepare, but the resulting performance enhancement is also limited.

Compared to diborides like ZrB₂, oxides typically exhibit lower melting points, which leads to the formation of liquid phases or other reactions that facilitate sintering. For example, Si₃N₄ ceramic sintering frequently utilizes Y₂O₃ and Yb₂O₃ as sintering additives, while also occasionally including Al₂O₃ and MgO [18,19,20]. SiC presents challenges in sintering for densification due to its high covalent bond ratio. Typically, sintering additives comprise oxides such as Al₂O₃, Y₂O₃, CeO₂, and Er₂O₃ [21,22,23]. While promoting sintering, the addition of oxides also enhances the mechanical strength of the material.

TiB₂ and ZrB₂ are commonly used for LaB₆ modification [16,17]. The corresponding oxides TiO₂ and ZrO₂ were selected, followed by the addition of Al₂O₃ as a sintering aid, named as ZAT. By utilizing the properties of polyoxides with a low eutectic point and applying additional pressure during the sintering process to increase mobility, it is possible to eliminate pores and enhance the material’s density. In our application scenario, cold-field emission is involved, indicating that low temperatures prevail and the inclusion of oxides does not result in the poisoning of the LaB₆ cathode or the degradation of mechanical properties to the point of being unusable. Polycrystalline LaB₆ contains a small amount of oxide as a second phase, which is located at the grain boundaries. This second phase may absorb energy during fracture, thereby increasing the flexural strength of LaB₆ ceramics. Given that oxides diminish the thermal conductivity of Si₃N₄, it warrants investigation into whether this impacts the exceptional electrical conductivity of LaB₆ itself. This study examines the relative density, electrical conductivity, and flexural strength of LaB₆ ceramics.

2. Materials and Methods

2.1. Materials

LaB₆ powder (with an average particle size of 20 μm and 10 μm) was provided by Shanghai Yao Tian Nano Material Co., Ltd. (99.5%, Shanghai, China); ZrO₂ was purchased from Kermel (99.0%, Tianjin, China); Al₂O₃ was purchased from Heowns (99.0%, Tianjin, China); and TiO₂ was purchased from Aladdin (99.0%, Shanghai, China).

2.2. Preparation

In the experiment, ZrO₂, Al₂O₃, and TiO₂ were combined in a mass ratio of 46%: 34%: 20%, and then thoroughly mixed with deionized water using a planetary ball mill at 300 r/min for 6 h. Following the ball milling process, the mixed powder was dried in an oven at 120 °C before being passed through a 100-mesh sieve. The powder obtained was designated ZAT.

LaB₆ powders with varying amounts of ZAT (3–8 wt.%) were comprehensively mixed with deionized water using a planetary ball mill at 300 r/min for 6 h. Following the ball milling, the mixed powder was dried in an oven at 120 °C and subsequently passed through a sieve. The obtained powder was termed LaB₆-ZAT.

To fabricate LaB₆-ZAT ceramics, the LaB₆-ZAT mixed powder was placed in a 30 mm diameter split graphite mold and then into a vacuum hot press sintering furnace. A temperature increase rate of 6 °C/min and an initial pressure of 7–8 MPa to 600 °C were first used. It was then heated to 1500–1900 °C in an argon atmosphere at a rate of 20 °C/min. Subsequently, it was maintained at this temperature for 1 h before being sintered through hot pressing at a uniaxial pressure of 30–60 MPa.

2.3. Characterization

The physical phase composition of the samples was analyzed using an X-ray diffractometer (XRD, D8 advanced, Bruker, Germany) which utilized Cu K_α radiation with a 2theta test range of 20–80°. The samples’ micro-morphology was characterized using a scanning electron microscope (SEM, S-4800, Hitachi, Tokyo, Japan). The median particle size of the powders was determined using a laser particle sizer (Mastersizer 2000, Malvern Ins, Malvern, UK).

The conductivity of the samples was assessed at a frequency of 60 kHz using an eddy current conductivity meter (Sigma 2008A, Tian Yan, Xiamen, China). The flexural strength was determined by a three-point bending test on an electronic universal testing machine (CMT4303, Meister Industrial Systems, Shenzhen, China). The size of the sample after machining was 20 × 2 × 2 mm. In the bending test, the span was selected as 16 mm, and the flexural strength (${\sigma }_b$) was calculated according to Formula (1). The samples’ hardness was tested using a Vickers hardness tester (HMAS-010, Yan Run, Shanghai, China) on a grinding and polishing machine (MP-2B, Wei Yi, Laizhou, China) after polishing. The density of the ceramic was ascertained using the Archimedes method, with deionized water as the liquid medium, at room temperature. The theoretical density of LaB₆-ZAT ceramics was computed based on the content of ZAT, with Formulas (2) and (3):

$${\sigma }_b=\frac{3PL}{{2bh}^2}$$

(1)

$${\rho }_{{LaB}_6-ZAT}=\frac{100+n}{\frac{100}{{\rho }_{{LaB}_6}}+\frac{n}{{\rho }_{ZAT}}}$$

(2)

$${\rho }_r=\frac{\rho }{{\rho }_{{LaB}_6-ZAT}}\times 100\%$$

(3)

In Formula (1), ${\sigma }_b$ is the flexural strength, P is the maximum bending force, L is the span, b is the breadth, and h is the height.

In Formulas (2) and (3), ${\rho }_{ZAT}$ is the theoretical density of the ZAT powder, which can be calculated from the mass ratio of the oxides; ${\rho }_{{LaB}_6-ZAT}$ is the theoretical density of the LaB₆-ZAT ceramic; n is the content of the ZAT powder; ${\rho }_{{LaB}_6}$ is the theoretical density of the LaB₆ ceramic; ${\rho }_r$ is the relative density of the LaB₆-ZAT ceramic; and $\rho$ is the volume density of the LaB₆-ZAT ceramic.

3. Results

This section investigates the effects of the raw material particle size, ZAT content, temperature, and pressure on the densification, mechanical properties, and electrical properties of LaB₆ ceramics.

3.1. Effect of Particle Size

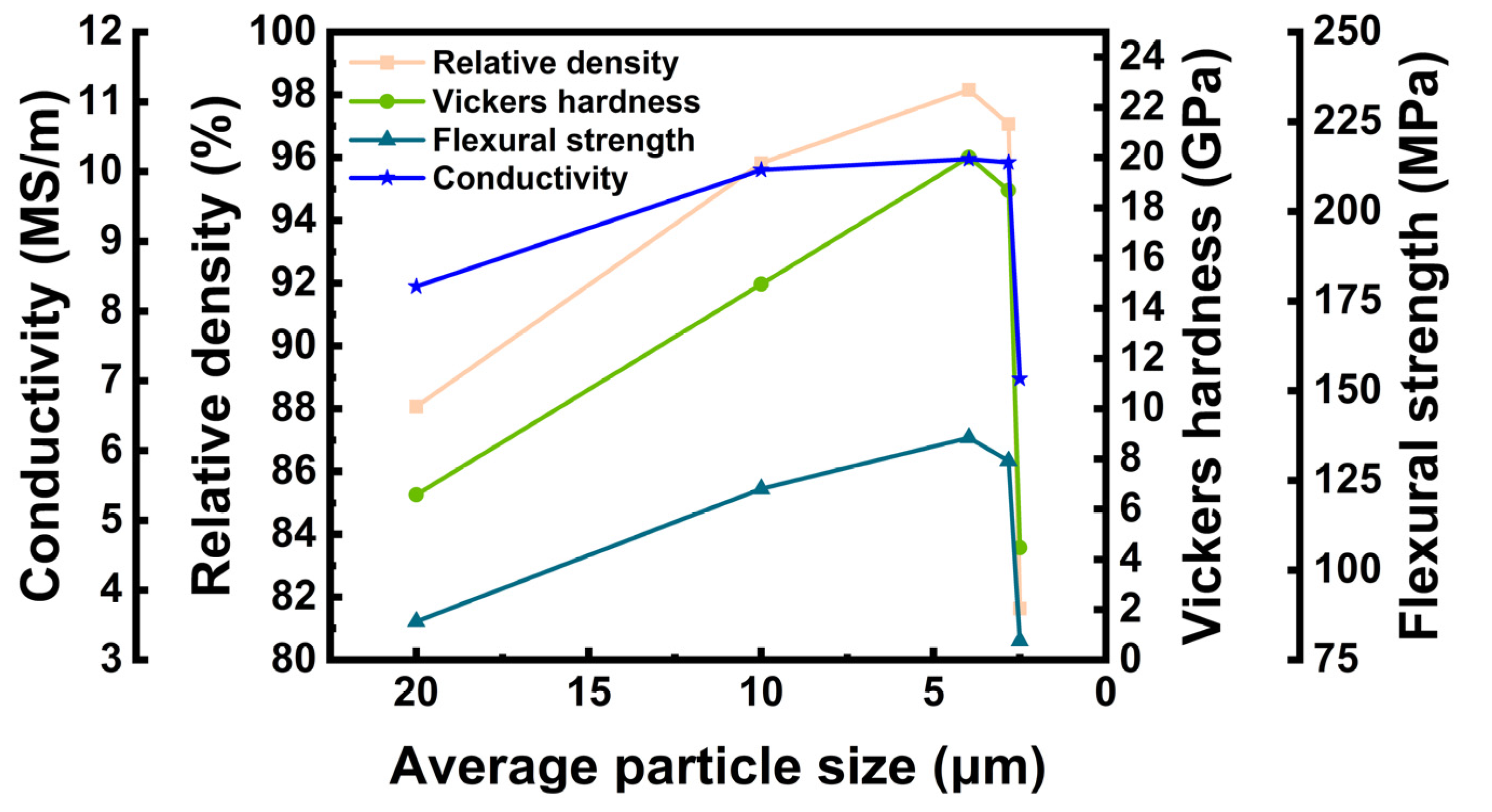

According to the theory of ceramic sintering, the powder particle size significantly impacts sintering. Consequently, raw powders with varying average particle sizes were selected for hot pressure sintering to compare the density of pure LaB₆ polycrystalline materials. The raw materials comprised commercial powders with average particle sizes of 20 μm and 10 μm, in addition to powders of various sizes that underwent ball milling. Figure 1 displays the variation in the cross-section morphology of ceramics prepared by hot-pressing LaB₆ powders with different particle sizes at 2000 °C and 40 MPa. Figure 2 shows the variation in the relative density, electrical conductivity, Vickers hardness, and flexural strength with particle size.

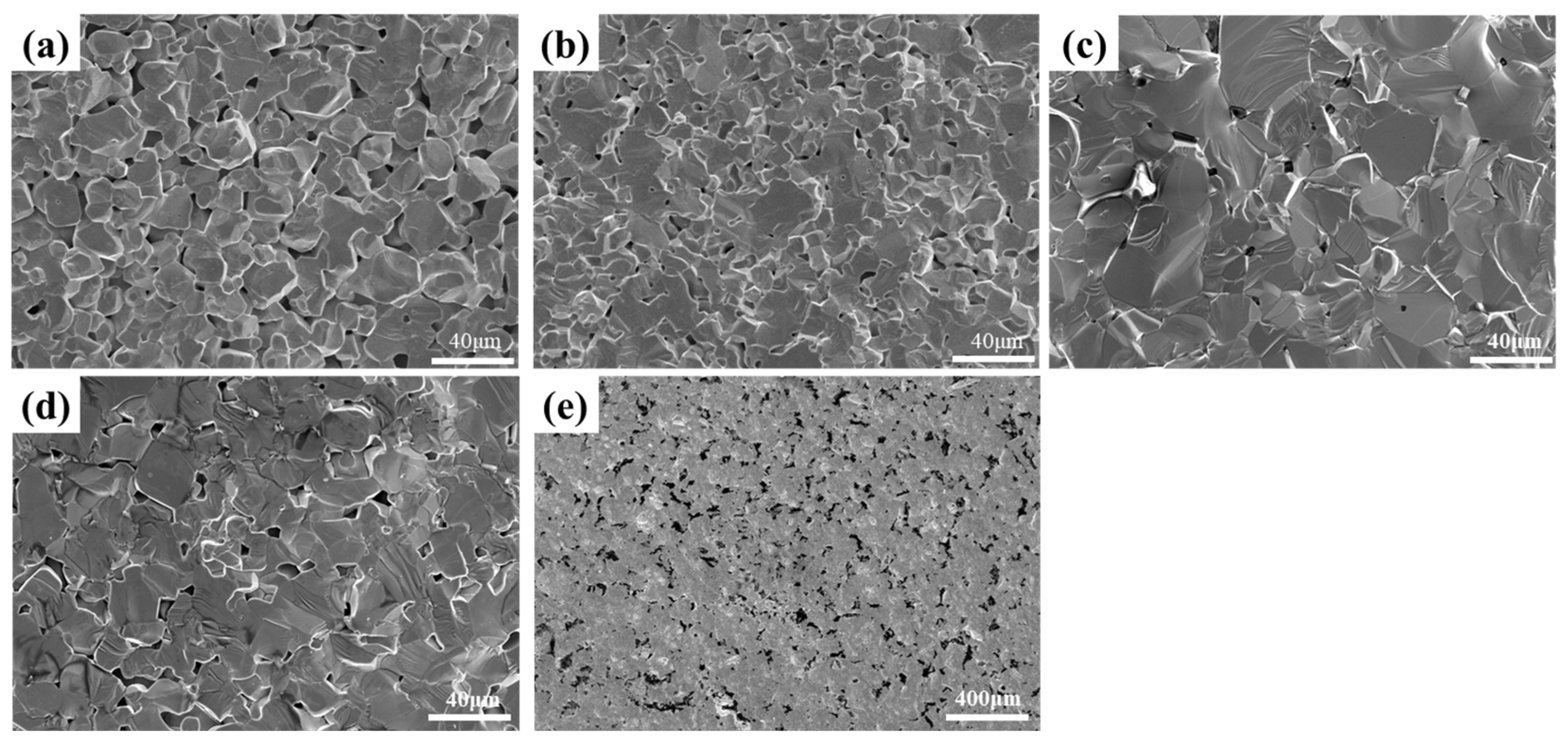

Figure 1a–e showcases the cross-sectional morphology and pore distribution in LaB₆ ceramics prepared via hot pressing with raw materials of diverse particle sizes. With identical sintering conditions, a notable reduction in pores at the grain boundaries of LaB₆ ceramics occurs as the particle size of the raw materials diminishes. With increasing density, fractal-type cracks began to gradually emerge in the samples’ cross-sectional morphology. This indicates the occurrence of transgranular fractures. Sections of ceramics, prepared by HPS of powders with an average grain size of 20 μm, demonstrate that the grains are only slightly connected to each other at the neck. When the average grain size is reduced to 10 μm, the cross-section shows tighter necking between grains. The pores consist of small closed pores within grains and open pores between grains. Figure 1c,d show fewer pores at trident grain boundaries. However, for particle sizes as small as 2.496 μm, the cross-section reveals numerous air holes between unsintered agglomerates. The changes in the number of pores in the sections are in line with the changes in relative density shown in Figure 2. For LaB₆ ceramics, higher densities and fewer pores lead to better mechanical properties and electrical conductivity. As demonstrated in Figure 2, there is a positive correlation between Vickers hardness, flexural strength, and conductivity with density. LaB₆ ceramics prepared with an average particle size of 3.974 µm exhibited the highest relative density (98.16%), as well as the best Vickers hardness (20.02 GPa), flexural strength (136.95 MPa), and conductivity (10.18 MS/m). This performance is high compared to other LaB₆ polycrystalline materials.

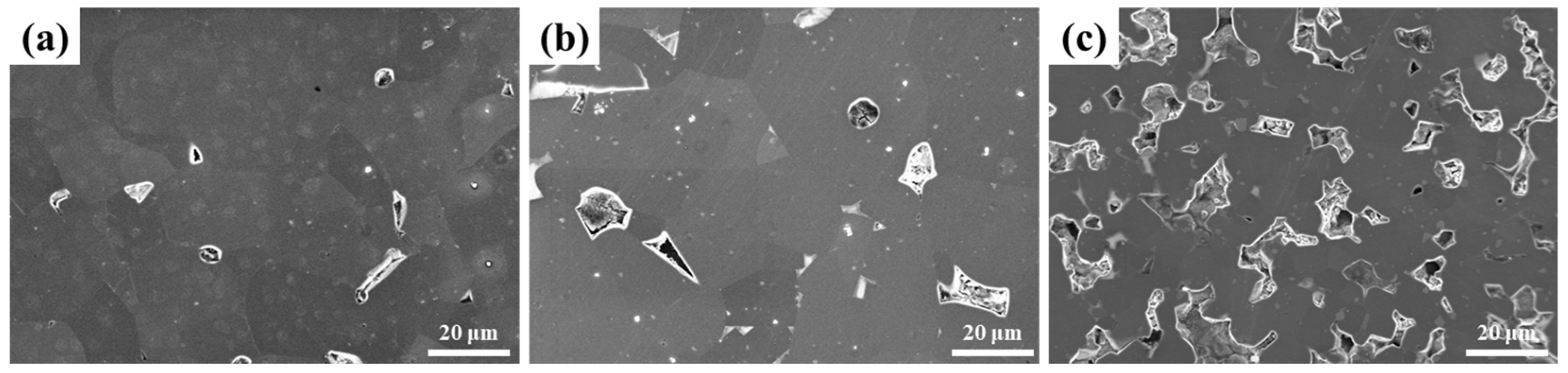

The change in density is also demonstrated by the variation in the number of pores at the same multiplicity on the polished surface of LaB₆ ceramics, as depicted in Figure 3. It is evident that LaB₆ ceramics prepared using HPS have larger grains, which is the reason why their mechanical properties are inferior to those of LaB₆ nanocrystals.

High-energy ball milling effectively reduces the particle size of the raw material powder, enhancing its surface activity and promoting denser sintering. However, further reductions in particle size intensify the effect of powder agglomeration. Sintering particles within agglomerates demands a higher temperature than that required for sintering the agglomerates themselves. This leads to suboptimal powder densification during the sintering process.

3.2. Effect of ZAT Content

At present, the reported melting point of LaB₆ is about 2700 °C, and its sintering temperature is generally in the temperature range of 1800–2100 °C. ZAT has the effect of reducing the sintering temperature, so 1700–1800 °C is chosen by us. The influence of ZAT contents, ranging from 3 to 8 wt.%, on the density of LaB₆-ZAT ceramics underwent investigation via HPS at temperatures of 1700–1800 °C and a pressure of 50 MPa. Figure 4 illustrates how the relative density of LaB₆-ZAT ceramics varies with differing ZAT contents at temperatures of 1700–1800 °C and a pressure of 50 MPa.

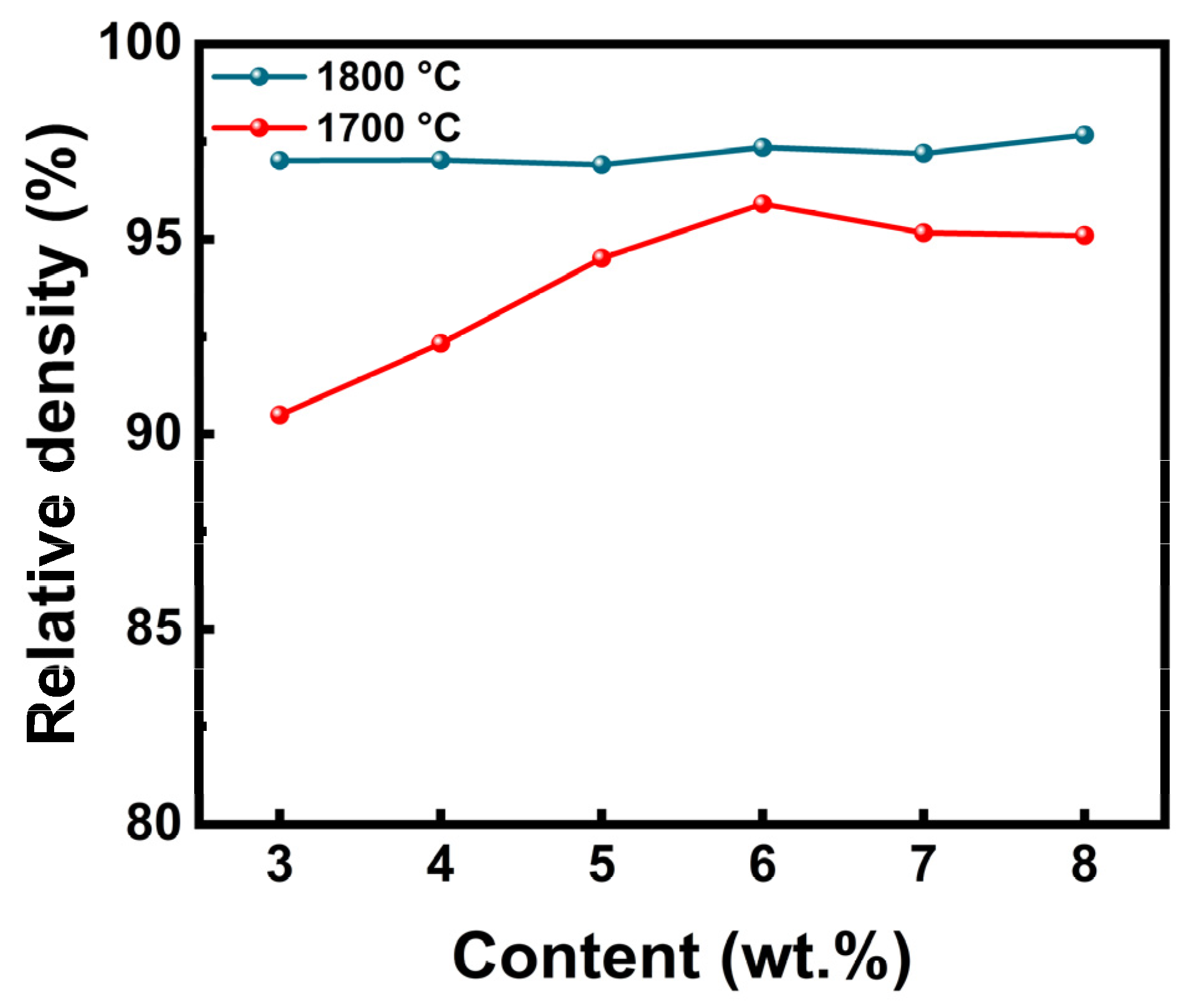

The data indicate that the relative density of LaB₆-ZAT ceramics increases and then slightly decreases with the increase in ZAT content. Nevertheless, the influence of content on density is modulated by the sintering temperature. For example, the graph demonstrates that the relative density of LaB₆-ZAT ceramics experiences significant variation with ZAT content at 1700 °C, while it stabilizes at 1800 °C. The reason for this is that the sintering temperature of LaB₆ is approximately 1800 °C, and the sintering aid effect of ZAT is not significant. At a temperature of 1700 °C, the sintering aid has a significant effect on improving density. The maximum relative densities of 95.9% and 97.4% were achieved at sintering temperatures of 1700 °C and 1800 °C, respectively, with a ZAT content of 6 wt.%. Figure 5 shows the fracture surface of LaB₆-ZAT ceramics prepared with different ZAT contents at 1700 °C. As the content increases, the pores at the grain boundaries are eliminated and gradually reduced. Figure 6 shows the fracture surface of LaB₆-ZAT ceramics prepared with different ZAT contents at 1800 °C. Compared to the change in the number of pores in the cross-section of the samples at 1700 °C, the change in the number of pores in the cross-section of the samples at 1800 °C is minimal, which is consistent with the trend of the change in relative density.

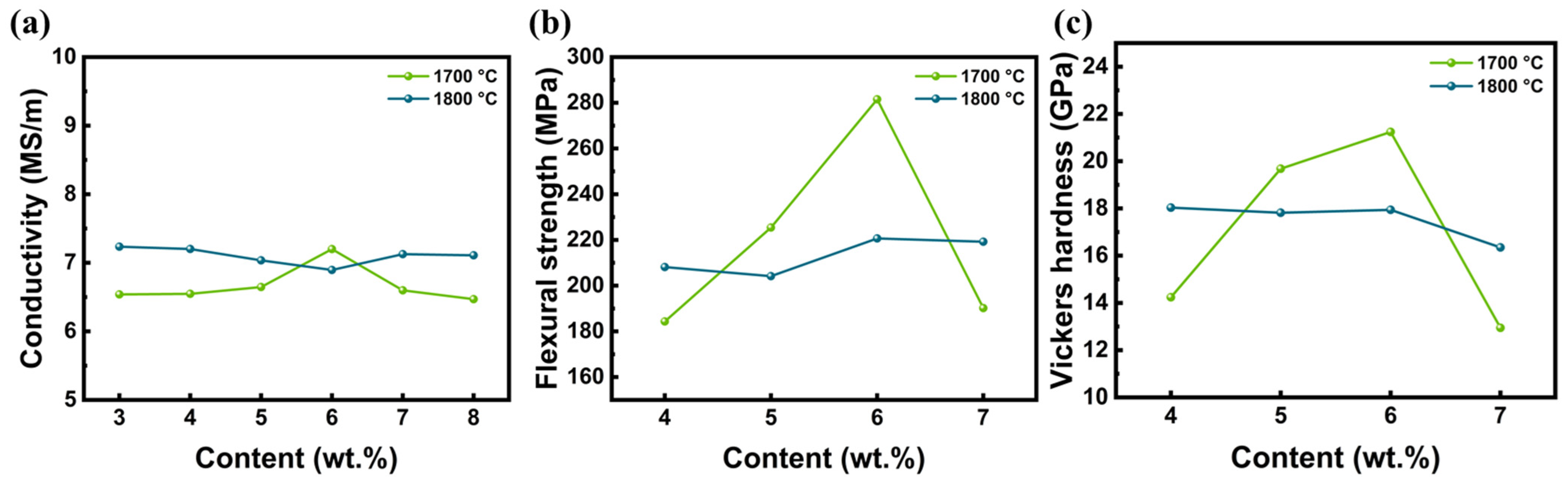

Figure 7 shows the variation curve of the conductivity, flexural strength, and Vickers hardness of LaB₆ ceramics with ZAT contents at different temperatures. At a sintering temperature of 1700 °C, the change in ZAT content has a greater impact on the ceramic properties compared to a sintering temperature of 1800 °C. The flexural strength and Vickers hardness of the ceramics at 1700 °C increased and then decreased with increasing ZAT content, as did the electrical conductivity. The mechanical and electrical properties of the ceramics prepared at 1800 °C show a weaker trend. Changes in the density of the ZAT content are closely related to these modifications, while the oxides have a direct impact on the mechanical and electrical properties of the ceramic, giving it less Vickers hardness and less conductivity.

In particular, the ceramic has the highest flexural strength of 281.5 MPa, the highest Vickers hardness of 21.2 GPa, and the highest conductivity of 7.2 MS/m at 6 wt.%. Based on this result, the ZAT content of the powders used in the subsequent experiments on the effect of temperature and pressure on properties was 6 wt.%.

3.3. Effect of Temperature

Based on the outcomes of preceding experiments, we determined optimal ball milling conditions to generate powder with an approximate average particle size of 4 μm for hot pressure sintering and chose a ZAT addition of 6 wt.%. Prior research has indicated that the factors influencing sintering by hot pressing, ranked in descending order of importance, are sintering temperature, pressure, and holding time [24]. According to Tammann’s Law, the temperature at which a solid’s lattice undergoes plastic deformation and flow approximates to two-thirds of its melting point. The melting point of LaB₆ is reported to be approximately 2700 °C, with the sintering temperature typically ranging between 1800 and 2100 °C.

3.3.1. Low-Temperature Sintering

Depending on the experimental conditions and ZAT addition, a sintering temperature range of 1500 to 1900 °C was selected. This temperature range falls below that required for sintering pure LaB₆ powder. Based on the outcomes of previous experiments, the holding time was established at 1 h, and the pressure was set between 30 and 60 MPa. [25].

Pure LaB₆ powders and LaB₆-ZAT powders underwent hot pressure sintering at 50 MPa and different temperatures.

Table 1. Relative densities of ceramics.

Temperature (°C)	LaB6 Ceramics	LaB6-ZAT Ceramics
1500	78.17%	82.63%
1700	93.75%	95.91%
1900	97.08%	97.36%

displays the results and relative densities. Clearly, at the same temperature, LaB₆-ZAT ceramics exhibit a higher relative density. Similarly, using LaB₆-ZAT powder allows for a reduction in sintering temperature to achieve the same density.

3.3.2. Density and Properties of LaB₆-ZAT Ceramics

Table 2. Relative density and properties of LaB₆ ceramics at different sintering temperatures.

Temperature (°C)	Relative Density (%)	Conductivity (MS/m)	Flexural Strength (MPa)	Vickers Hardness (GPa)
1500	82.63	4.42	214.85	6.33
1600	92.74	5.76	273.69	16.53
1700	95.91	7.20	281.54	21.24
1800	97.35	6.90	220.68	17.94
1900	97.36	-	-	-

illustrates that the relative density and mechanical and electrical properties of LaB₆-ZAT ceramics varies with temperature at 50 MPa and 6 wt.% ZAT content. The data suggest that the relative density initially increases rapidly before decelerating as the sintering temperature rises. As the temperature increases (1500 to 1800 °C), the activity of LaB₆ powders increases so that more atoms overcome the diffusion barrier, and therefore, the diffusion coefficient increases. Moreover, with increasing temperatures, the degree of softening creep in the ZAT powders intensifies, positively affecting porosity reduction. Upon reaching temperatures of 1800 to 1900 °C, the relative density ceases to increase significantly. This can be attributed to the ideal sintering temperature for the raw material falling within this range.

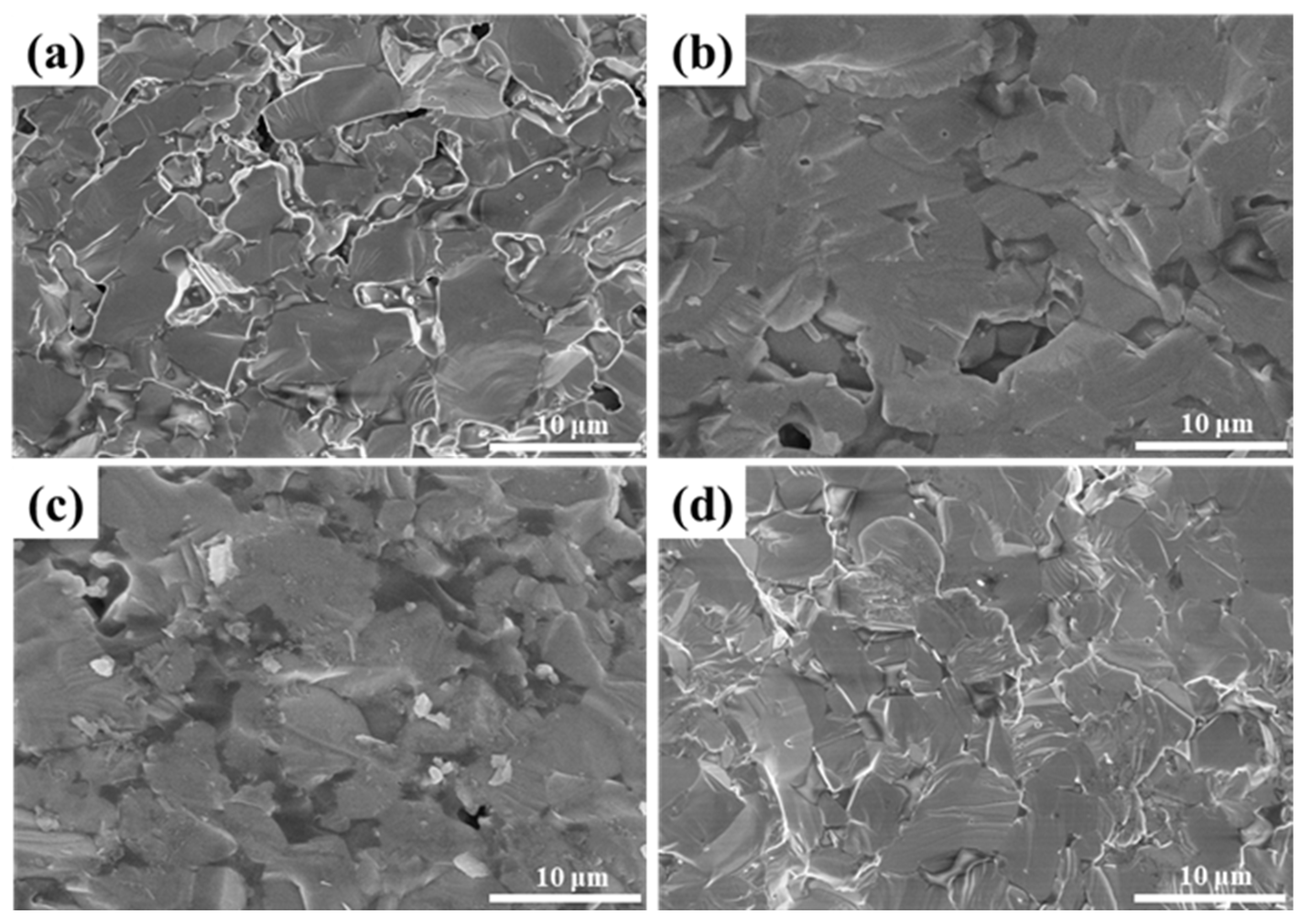

Figure 8 displays the fracture surface of LaB₆-ZAT ceramics prepared at various sintering temperatures. With increasing temperatures, pores at the grain boundaries are progressively eliminated and reduced. This observation indicates that the sintering temperature facilitates the densification process. Figure 9 displays the polished surface of LaB₆ ceramics at different temperatures. ZAT is located at the grain boundaries and can inhibit grain growth, resulting in improved mechanical properties. At a temperature of 1800 °C, the grain size of the ceramics increases, and the enhancement of ceramic flexural strength by ZAT at grain boundaries decreases.

3.4. Effect of Sintering Pressure

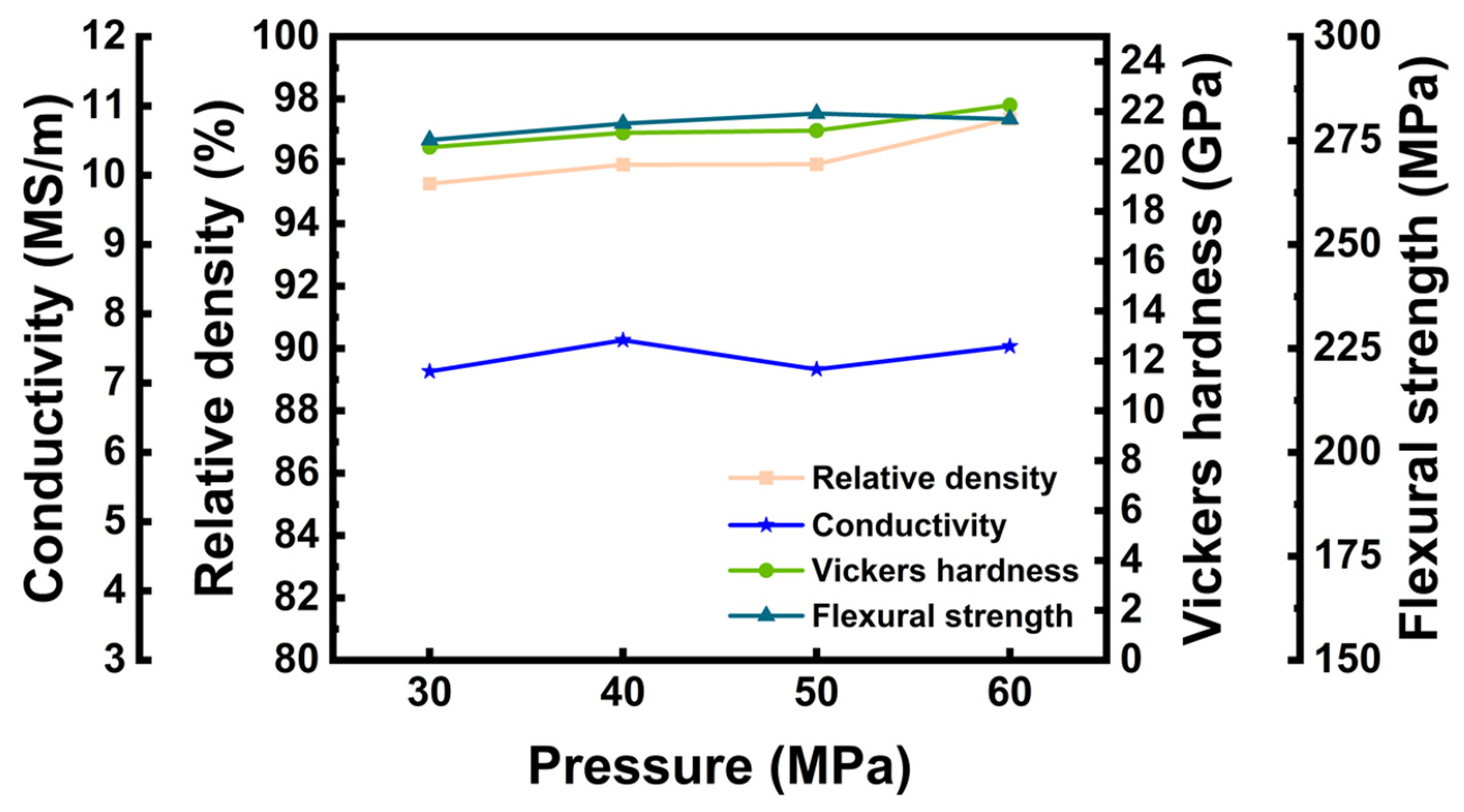

Figure 10 illustrates how the relative density and properties of LaB₆-ZAT ceramics vary with pressure at 1700 °C and 6 wt.% ZAT content. At 1700 °C, the relative density of ceramics tends to increase slightly with increasing pressure. This suggests that pressure has a minimal effect on ceramic sintering. Again, the mechanical and electrical properties of LaB₆-ZAT ceramics are essentially flat with increasing pressure.

Figure 11 displays the fracture surface of LaB₆-ZAT ceramics prepared at various pressures at 1700 °C. With increasing pressure, pores at the grain boundaries are progressively eliminated and reduced, although the changes are not significant, aligning with the relative density data. This is because increased pressure brings the particles closer together, resulting in diffusion over shorter distances. Furthermore, increasing pressure provides additional energy, thereby accelerating diffusion. Overall, pressure exerts minimal impact on the relative density of LaB₆ ceramics, significantly less than the impact of temperature.

4. Discussion

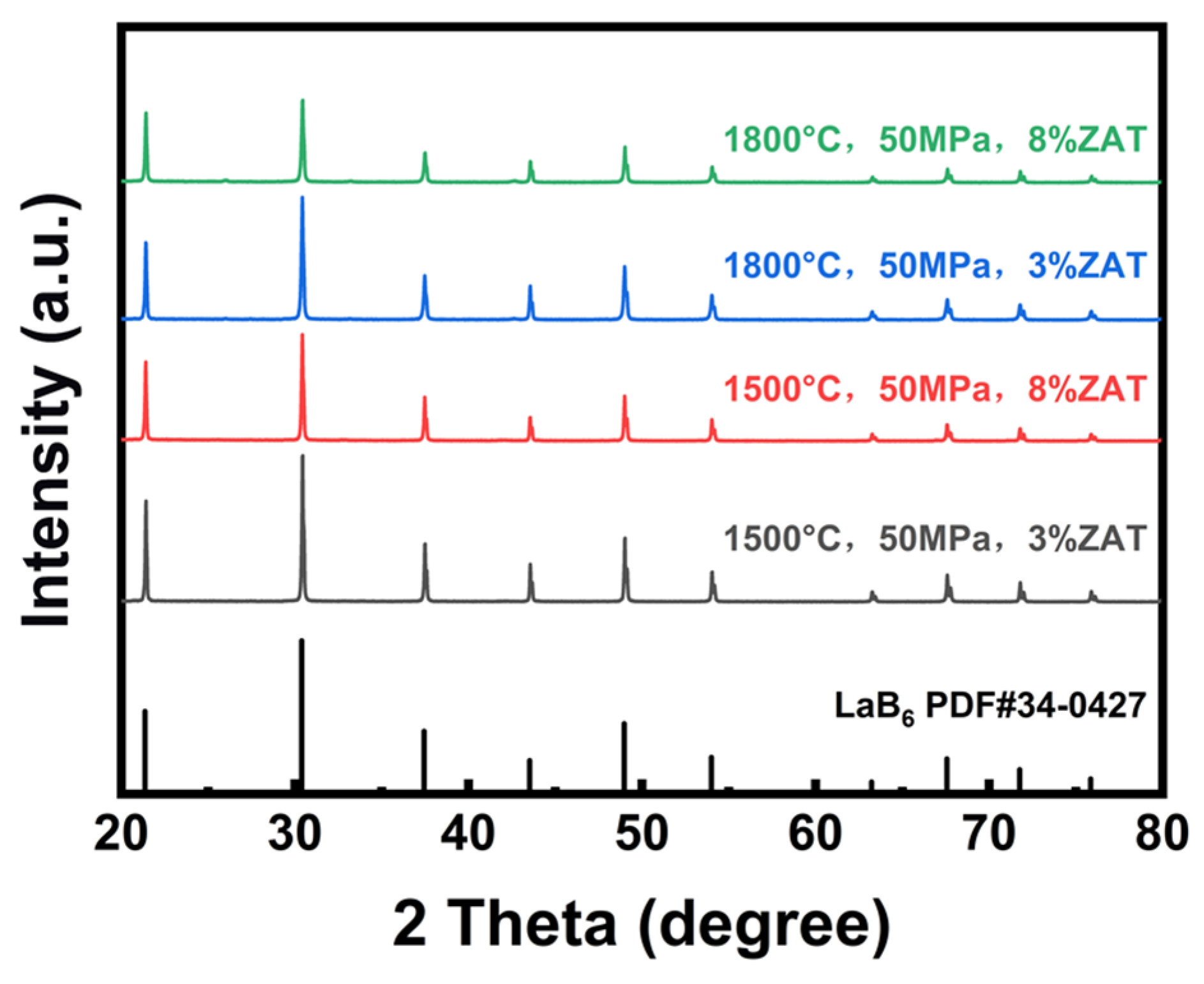

The ceramics underwent X-ray diffraction tests to ascertain whether the addition of ZAT influenced the physical phase. Figure 12 illustrates the X-ray diffractograms of LaB₆-ZAT ceramics produced through hot pressure sintering. We tested LaB₆-ZAT ceramics prepared at various temperatures and with varying ZAT contents. The physical phases of these ceramics correspond well to the standard powder diffraction files of LaB₆, with no heterogeneous phase generation. The LaB₆-ZAT ceramics still have LaB₆ as the main crystalline phase. The results show that the addition of ZAT has no effect on the primary phase. There are two reasons for this phenomenon. Firstly, the content is too small to be detected. Secondly, the raw material has a low degree of crystallinity and is likely to form an amorphous phase when cooled.

Figure 13 presents the elemental mapping of the LaB₆-ZAT ceramic. The LaB₆-ZAT ceramic was prepared at 1700 °C and 50 MPa and the ZAT content was 6 wt.%, and it can be characterized as a representative sample. The distribution of ZAT at the grain boundaries is evident from the polished surface, indicated by the darker colored areas. The distributions of the B and La elements have almost identical shapes, with the La distribution showing greater abundance due to the heavier La element and the signals that can be collected at greater depths. The distribution of the elements (O, Zr, Al, Ti) is the same and complements the distribution of the B and La elements.

ZAT is located at the grain boundaries, inhibiting grain growth during sintering. The resulting LaB₆-ZAT ceramics have smaller grains, similar in size to the original powder grains. It is obvious from the red arrow in Figure 14 that the grain size of the ceramic after adding ZAT is smaller than that of pure LaB₆ ceramics.

During the three-point flexural experiment, the ZAT amorphous phase at the grain boundary before fracture absorbed some energy. Furthermore, the cross-sectional morphology shown in Figure 15 indicates the presence of crystal-penetrating fractures (red arrow), which results in a higher flexural strength of the ceramic compared to pure LaB₆ ceramics.

Excellent electrical conductivity is a unique electrical property of LaB₆ ceramics. The high electrical conductivity of LaB₆ ceramics stems from the presence of free electrons within their crystal structure, making it comparable to metals. Excellent electrical conductivity is guaranteed, which allows the cathode material to be replenished with electrons for field emission applications.

Typically, oxides are insulators, possessing very low conductivity. The presence of ZAT at the grain boundaries may hinder electron transport in LaB₆-ZAT ceramics. However, as the density increases, the pores significantly reduce and the LaB₆ grains come into direct contact with each other, despite the presence of ZAT at the grain boundaries. This results in an increase in the electron free range and conductivity. Of course, the conductivity of LaB₆-ZAT ceramics (4~7 MS/m) is lower than that of the pure LaB₆ ceramics (7~10 MS/m) prepared by us. However, the conductivity of the LaB₆-ZAT ceramics falls within the range of conductivity observed for overall LaB₆ polycrystalline or monocrystalline materials (3.3~10 MS/m). This is significant for practical applications.

5. Conclusions

This study reports pure LaB₆ ceramics that were prepared using powders with an average particle size of 4 μm under hot-pressing and sintering conditions at 2000 °C and 40 MPa for 1 h. The ceramics exhibited a relative density of 98.2%, a Vickers hardness of 20 GPa, a flexural strength of 136.9 MPa, and a conductivity of 10.2 MS/m. LaB₆-ZAT ceramics were prepared under hot-pressing and sintering conditions at 1700 °C and 50 MPa for 1 h. The first use of ZAT-composite LaB₆ lowered the sintering temperature and, at the same time, resulted in a relative density of 97%. The dense LaB₆-ZAT ceramics exhibited a flexural strength of 281.5 MPa and a Vickers hardness of 21.2 GPa, and the conductivity was measured at 7.2 MS/m. Our LaB₆-ZAT ceramics, synthesized at 1700 °C, exhibit superior mechanical properties compared to pure LaB₆ ceramics hot-pressed at 2000 °C. Additionally, the electrical properties of our ceramics are highly promising for future applications.
