Reconfigurable Shape Memory and Self-Welding Properties of Epoxy Phenolic Novolac/Cashew Nut Shell Liquid Composites Reinforced with Carbon Nanotubes
Abstract
:1. Introduction
2. Experimental Section
2.1. Materials
2.2. Measurements

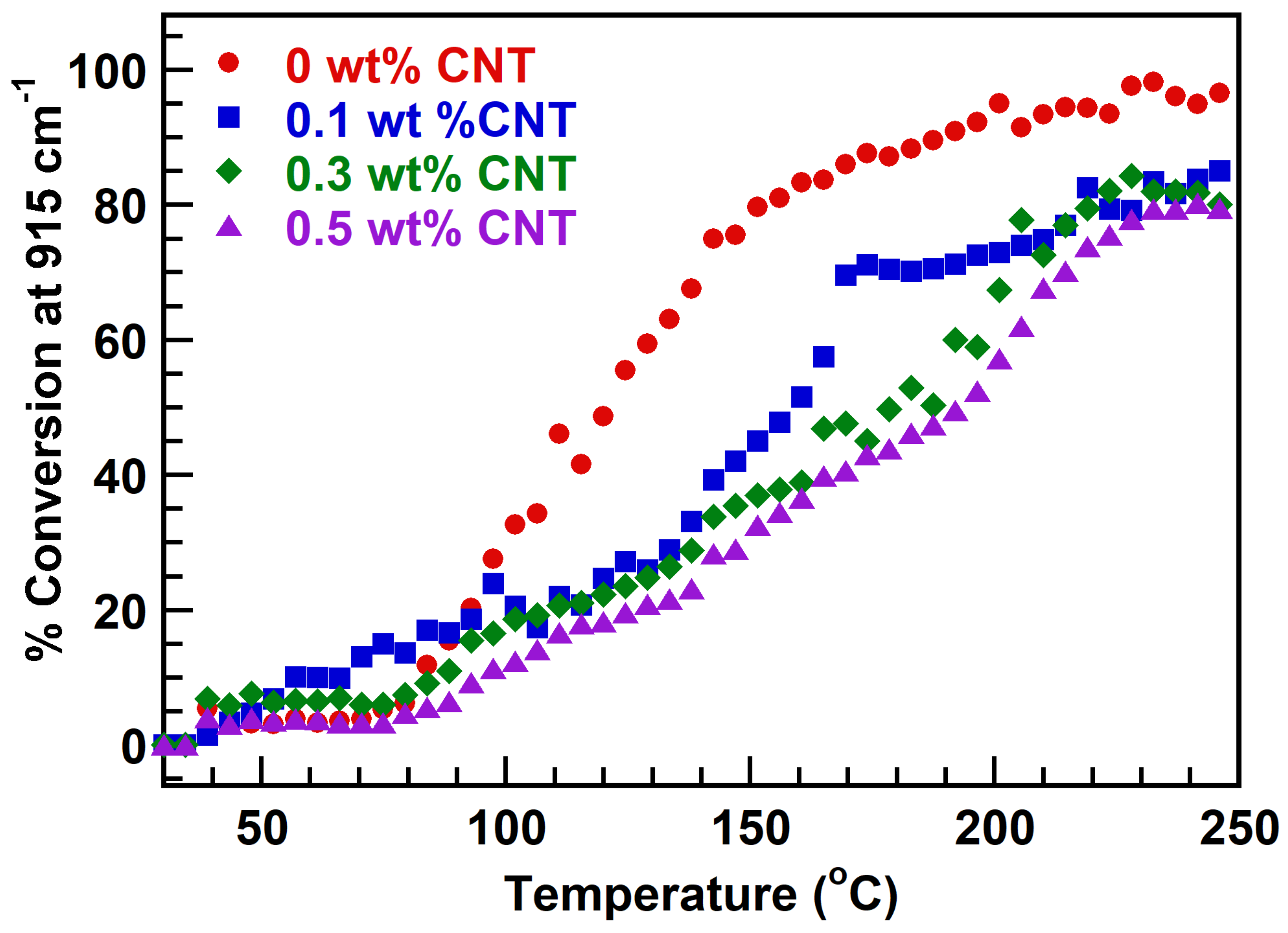

2.2.1. Evaluation of Curing Reaction

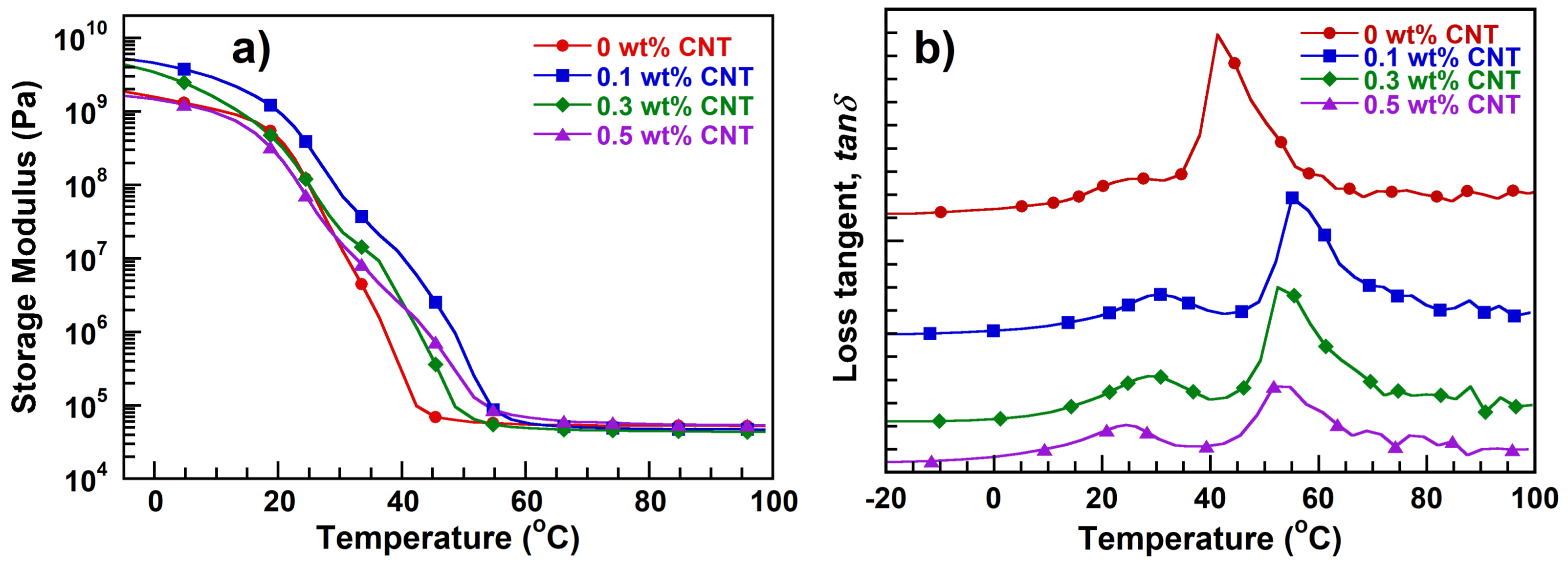

2.2.2. Analysis of Thermomechanical Properties

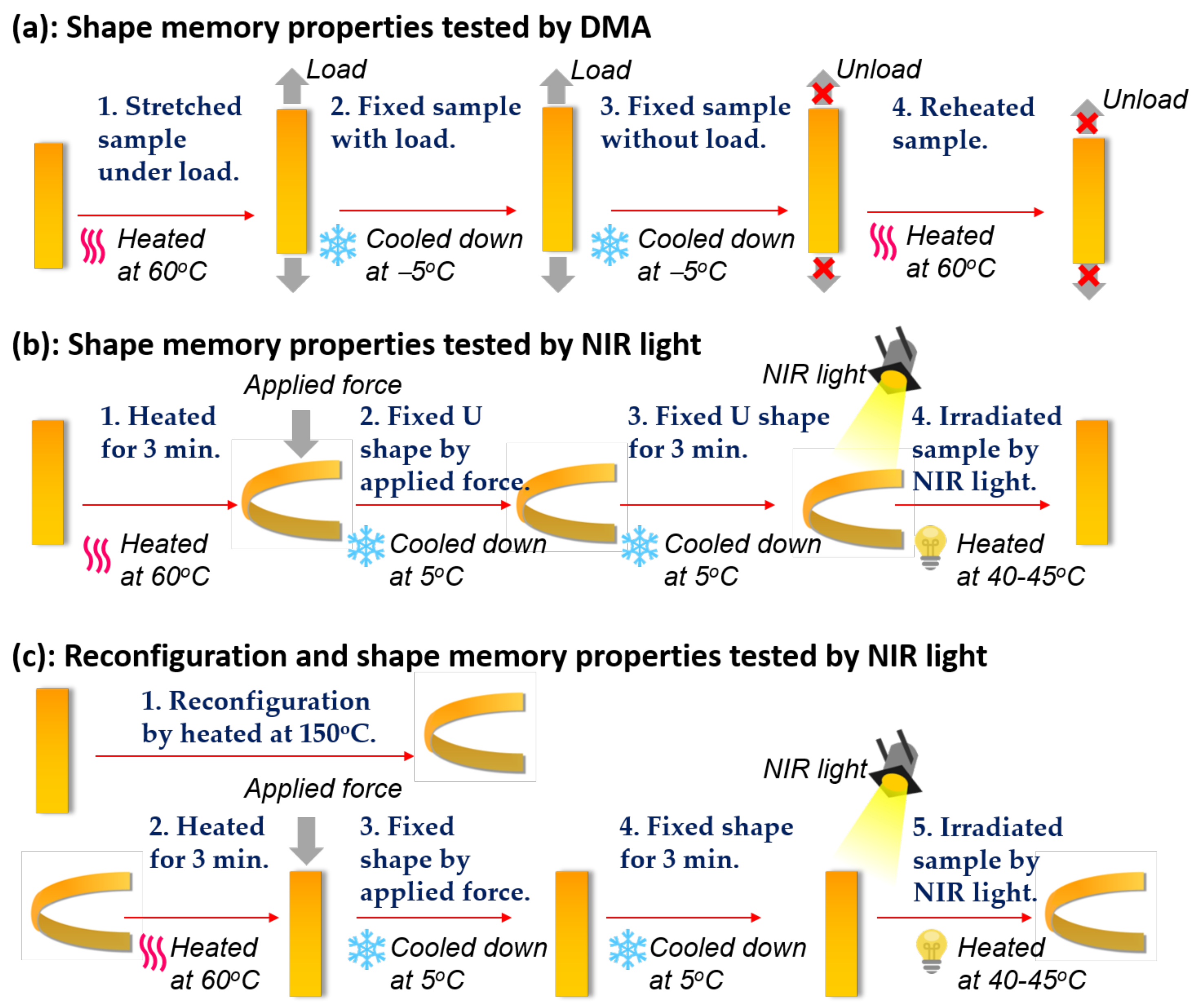

2.2.3. Shape Memory Phenomena Induced by NIR
2.2.4. Stress Relaxation Behavior
2.2.5. Self-Welding Properties
2.2.6. Scanning Electron Microscopy (SEM) Observation
3. Results and Discussion

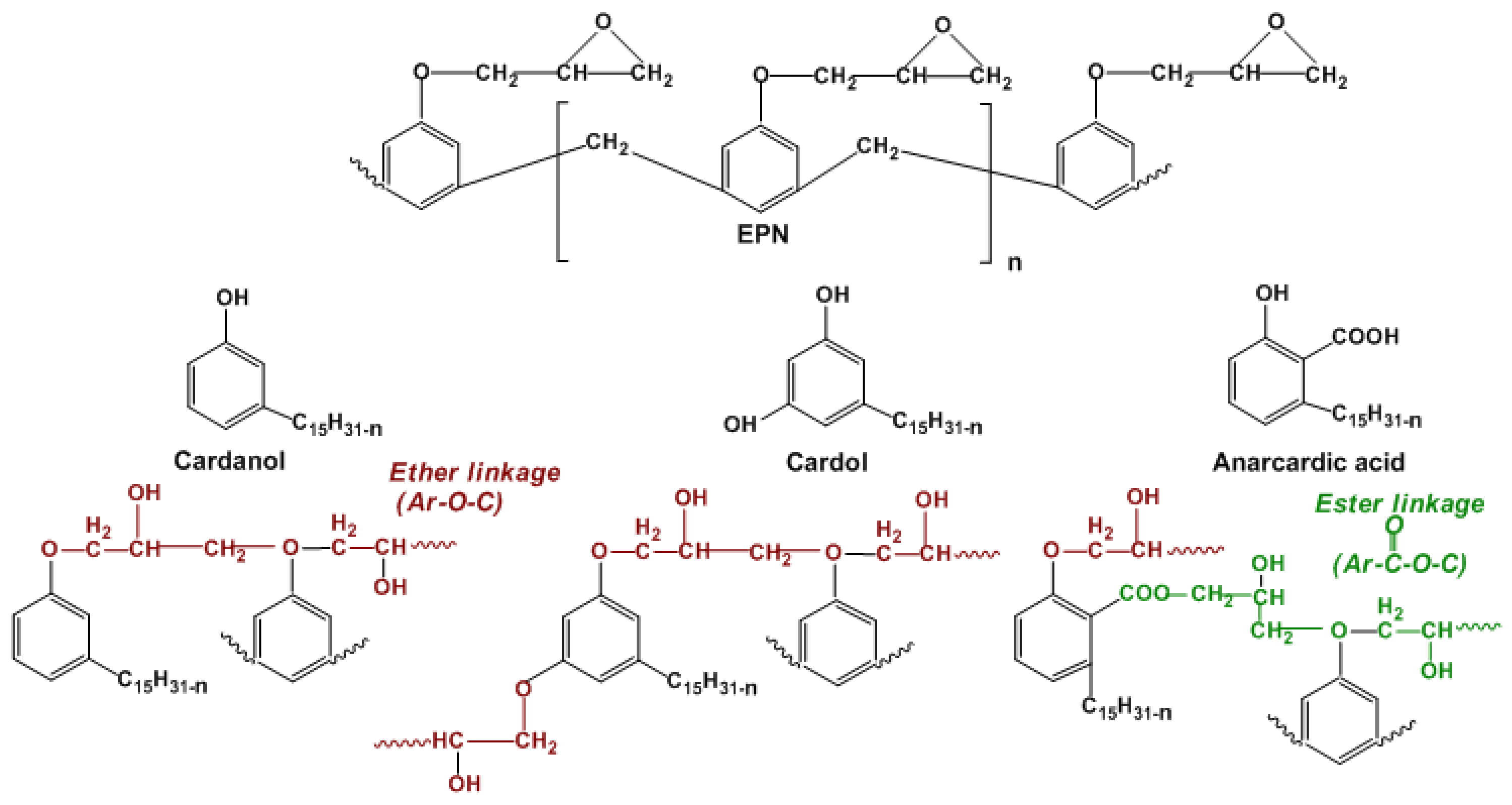

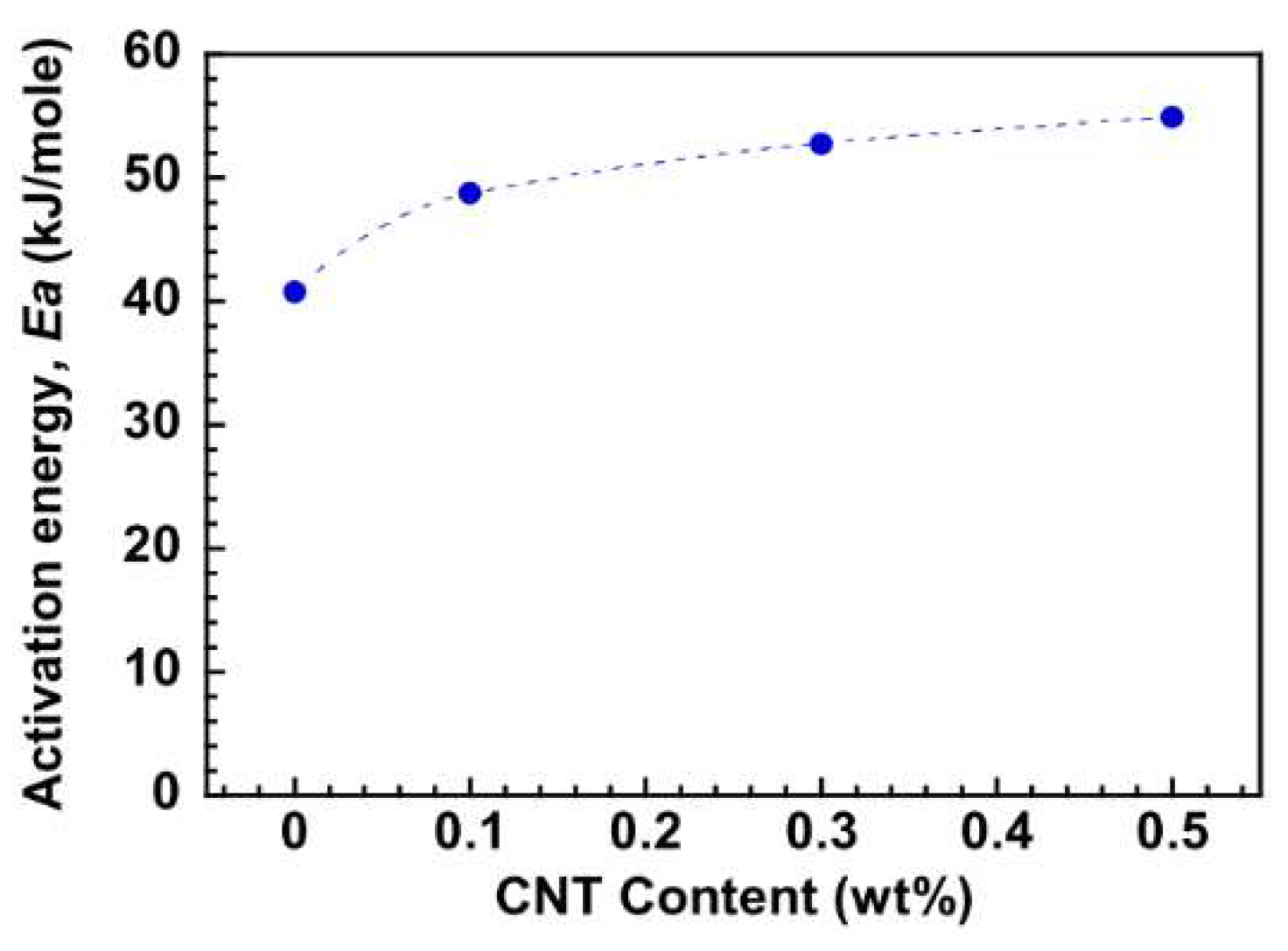

3.1. Curing Reaction of EPN/CNSL Composites
3.2. Thermomechanical Properties of EPN/CNSL Film Composites
3.3. Shape Memory Effect of EPN/CNSL Composites
3.4. Shape Memory Behavior of EPN/CNSL Composites Induced by NIR Irradiation
3.5. Stress Relaxation of EPN/CNSL Composites
3.6. Reconfiguration and Shape Memory of EPN/CNSL Composites
3.7. Self-Welding of EPN/CNSL Composites
4. Conclusions
