Article

Rheological Properties and Thermal Conductivity of Epoxy Resins Filled with a Mixture of Alumina and Boron Nitride

by
Van-Dung Mai
1,†,
Dae-Il Lee
1,†,
Jun-Hong Park
2,* and
Dai-Soo Lee
1,*
1
Division of Semiconductor and Chemical Engineering, Chonbuk National University, Baekjedaero 567, Deokjin-gu, Jeonju, Chonbuk 54896, Korea
2
R & D Center, Lotte Advanced Materials, Sandan-ro 334-27, Yeosu 59616, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2019, 11(4), 597; https://doi.org/10.3390/polym11040597
Submission received: 9 March 2019 / Revised: 25 March 2019 / Accepted: 26 March 2019 / Published: 2 April 2019
(This article belongs to the Special Issue Polymer Hybrid Composites)
Browse Figures
Versions Notes

Abstract

:
Electronic packaging materials with high thermal conductivity and suitable viscosity are necessary in the manufacturing of highly integrated electronic devices for efficient heat dissipation during operation. This study looked at the effect of boron nitride (BN) platelets on the rheology and thermal conductivity of composites based on alumina (Al2O3) and epoxy resin (EP) for the potential application as electronic packaging. The viscosity and thermal conductivity of the composite were increased upon increasing filler content. Furthermore, thermal conductivity of the BN/Al2O3/EP was much higher than that of Al2O3/EP at almost the same filler loadings. These unique properties resulted from the high thermal conductivity of the BN and the synergistic effect of the spherical and plate shapes of these two fillers. The orientation of BN platelets can be controlled by adjusting their loading to facilitate the formation of higher thermally conductive pathways. The optimal content of the BN in the Al2O3/EP composites was confirmed to be 5.3 vol %, along with the maximum thermal conductivity of 4.4 W/(m·K).

Graphical Abstract

1. Introduction

In electronic systems, packaging materials serve as a key component to protect the device with improved mechanical properties and controlled structural profiles, thereby offering thermal conductive and dissipative pathways, as well as guarding the electronic circuits against environment effects, including humidity, heat, chemicals, and radiation. Therefore, the development of electronic packaging materials with good mechanical properties, high thermal conductivity, high electrical resistance, and a low coefficient of thermal expansion is necessary to produce efficient electronic devices. Currently, epoxy (EP) resins are widely used for packaging of electronic devices because of their excellent electrical insulation properties and heat resistance [1,2,3,4]. However, because of its low thermal conductivity and high thermal expansion, the applications of EP resin are limited. In order to improve the thermal conductivity and lower the thermal expansion of the EP resin, various solutions were studied recently. In this context, the addition of an inorganic filler into an EP matrix to form effective composites is a potential route to improve the performance of the final product. For this purpose, many types of inorganic or metallic fillers with high thermal conductivity, low thermal expansion coefficient, and low electrical conductivity, such as silica [5,6,7,8,9,10], alumina (Al2O3) [11,12,13,14], aluminum nitride [15,16,17,18], and hexagonal boron nitride (BN) [19,20,21,22,23,24,25] were studied. Model predictions of and experimental studies on the effects of graphite or graphene oxide on EP resins were also reported [26,27,28].
With the rapid development of the electronics industry, electronic devices are becoming smaller with higher output power, which releases much heat that needs to be dissipated. Therefore, thermal conductivity is one of the most important issues of electronic packaging materials. Normally, the high thermal conductivity of electronic packaging material can be achieved using a high loading of inorganic filler. However, composites with high filler content are usually hard to process. To further increase the thermal conductive properties with satisfactory processing of electronic packaging materials, the combination of different fillers to obtain a perfect thermal conductive network attracted much interest [29,30,31,32,33,34,35,36,37,38]. The use of Al2O3 particles to reinforce the EP matrix is principally preferred because of its low cost, good thermal stability, corrosive resistance, low thermal expansion, and non-electrical conductivity [11,12,13,14,31,32]. Recently, BN platelets emerged as an outstanding candidate for application to EP-based packaging composite materials because of their unique thermal conductive properties [39]. However, because the boron nitride (BN) filler is anisotropic, with an intrinsic conductivity of 2 W/(m·K) for the through-plane [36] and 400 W/(m·K) for the in-plane [36], the orientation of BN platelets significantly affects the thermal conductivities of the composites. Therefore, many efforts were devoted to control the orientation of BN platelets, including a special preparation process [40], applying the shear force with a doctor blading [41] or a two-roll mill [42], and application of a magnetic field after modifying BN platelets with iron oxides [43,44,45,46]. However, the orientation or alignment of BN platelets in hybrid fillers system is yet to be investigated.
In this paper, the rheological properties and thermal conductivity of EP resin containing two fillers, Al2O3 particles and BN platelets, were investigated. The combination of the Al2O3 and the BN into EP resin can have a synergistic effect on the thermal conductivity of the final composite material, because the planar shape of the BN can form the connecting pathway of spherical Al2O3 particles, thereby improving the thermal conductivity of the composite material. The effect of various amounts of BN on the morphology, rheological properties, and thermal conductivity of the Al2O3/EP system was carefully studied. It was found that, by adjusting the amount of BN platelets, their orientation can be controlled to facilitate the formation of higher thermally conductive pathways without sacrificing the processability.

2. Materials and Methods

2.1. Materials

Bisphenol A type epoxy resin, YD-128, was obtained from Kukdo Chemical (Seoul, Korea). Hexahydro-4-methylphthalic anhydride (HMPA), as the hardener for epoxy resin, and 2-ethyl-4-methylimidazole (EMI), as the catalyst, were purchased from Sigma-Aldrich (Yong-In, Korea). Furthermore, 2-(3,4-epoxycyclohexyl)ethyltrimethoxysilane (KBM-303), a coupling agent, was provided by Shln-Etsu Chemical Co., Ltd. (Tokyo, Japan). Aluminum oxides of spherical shapes with a median diameter of 14.4 μm (Al2O3, DAB-10SI) were purchased from Denki Kagaku Kogyo Kabushiki Kasisha (Tokyo, Japan). Boron nitride filler in the shape of a single-crystal platelet, with a mean particle size of ~45 μm and a surface area of 0.6 m2·g−1, was purchased from Momentive Performance Materials, Inc. (Waterford, NY, USA). All materials were directly used without purification or modification.

2.2. Preparation of the Composite Materials

The composite materials of the epoxy resin filled with alumina and different amounts of BN were prepared by simple mixing with a paste mixer. In a typical procedure, 1.20 g of YD-128, 1.06 g of HMPA, 0.12 g of KBM-303, and 21.60 g of Al2O3 were mixed together using a paste mixer for 3 min. Subsequently, BN was added to the mixture under continuous mixing for a further 2 min. The cured composites were prepared by adding EMI as a catalyst to the mixture, followed by mixing, molding on a glass mold, and curing at 100 °C for 1 h, with a post cure at 140 °C for 2 h. Table 1 shows the formulated mixtures with different contents of raw material by volume fraction. The numbers in sample codes denote contents of fillers by part per hundred of epoxy resin.

2.3. Characterizations of the Composite Materials

The rheological properties of uncured composite materials without catalyst were evaluated using a rheometer, AR2000 (TA Instrument Co., New Castle, DE, USA), equipped with parallel plates having a diameter of 40 mm at 90 °C. In a particular procedure, the dynamic rheological measurement was firstly conducted in an oscillation mode at a constant strain of 5% and a frequency range from 0.1 to 10 Hz. The steady shear measurement was then evaluated with a shear rate range from 0.01 to 10 s−1. The stress relaxation was conducted by applying a stress (δmax) to attain a strain of 5%; then, the stress was removed, and the relaxation stress versus the time was recorded. Relaxation times were defined on the basis of Maxwell’s model for viscoelastic materials as the time required to relax to 1/e of the initial stress.
The fractured morphology of the composite samples was characterized using a scanning electron microscope (SEM), JEOL JSM-6400 (Akishima, Tokyo, Japan). The composite sample was fractured, and the fractured surface was coated with Pt before observation.
Thermal conductivities of the composite film samples were obtained by multiplying the corresponding thermal diffusivity and volumetric heat capacity. The thermal diffusivity was measured in the direction perpendicular to the flat plane of the film using a Netzsch LFA 447 (Selb Deutschland, Germany) at room temperature. The volumetric heat capacity was calculated by multiplying the material density and specific heat capacity. The density was identified based on the Archimedes principle, and the specific heat capacity of the composite materials was obtained using a differential scanning calorimeter Netzsch DSC 214 (Selb Deutschland, Germany) with a temperature range from 0 to 50 °C and a heating rate of 10 °C/min.

3. Results and Discussion

3.1. Characteristics of Fillers

The morphological features of the Al2O3 spheres and crystalline BN platelets were investigated employing SEM, as shown in Figure 1. A spherical shape and a broad particle-size distribution of the Al2O3 (from nanometers to several micrometers) were observed (Figure 1a). It is speculated that the broad particle-size distribution of alumina is favorable for the improvement of the flow ability and filler packing in the composite materials. In this context, the small particles can fill in the gaps between the larger particles and increase the maximum packing volume fractions of the particles, thereby reducing the overall viscosity via the Farris effect [47]. Moreover, the Al2O3 filler is isotropic, with an intrinsic conductivity value of 33 W/(m·K). Figure 1b shows the two-dimensional structure of the BN with side dimensions from several to one hundred micrometers. As mentioned above, due to the anisotropic nature of the BN platelets, their orientation in a polymer matrix significantly affects the thermal conductivity of the composite material.

3.2. Rheological Properties of the Composite Materials before Cure

In order to control and optimize process conditions, the rheological study plays an important role. However, rheological behaviors of suspension systems are complex, depending on not only size, shape, and fraction of fillers, but also filler–filler interactions and filler–matrix interactions [48].
The flowability of the packaging material is an important factor to evaluate whether it is a suitable candidate to use for packaging electronic devices. As seen in Figure 2a, the viscosities of the composites decrease upon increasing the rate of shear. This is the shear-thinning behavior of non-Newtonian fluids due to the redistribution of fillers and their orientation. The viscosities of the BN/Al2O3/EP composites strongly depend on the fraction of the BN and Al2O3. Figure 2b compares the viscosities of the Al2O3/EP and the BN/Al2O3/EP composites at the shear rate of 1 s−1. The viscosity of the BN/Al2O3/EP composite increases as the amount of the total filler increases from 73.72 vol % to 74.14 vol %, corresponding to an addition of 3.63 to 5.32 vol % into the Al2O3/EP mixture. The viscosity of the composite based on the BN/Al2O3/EP is much higher than that of the composite based on the Al2O3/EP, because the presence of the BN platelets lowers the flowability of the Al2O3/EP. However, the orientation of the BN platelets changes from being in a random state to being parallel with the flow of Al2O3/EP, as shown below in the SEM images, when the total filler content increases from 74.47 to 75.98 vol %, resulting in a slight reduction in viscosity.
Figure 3 shows typical dynamic modulus curves of the composite based on the Al2O3/EP and the BN/Al2O3/EP. The storage modulus represents the elastic deformation, whereas the loss modulus represents the viscous component. It shows that the storage modulus of the composite based on Al2O3/EP or BN/Al2O3/EP is lower than loss modulus, showing that the composite behaves like a liquid; that is, the composite materials still flow at an elevated temperature for processing. The modulus of the composites increases upon increasing the amount of BN in the mixture. The slopes of the modulus curves decrease when there is more BN, indicating that the flow ability of the composites decreases and, finally, solid-like behaviors are observed. In particular, when the total filler exceeds 74.47 vol % (BN90DAB1800), the slopes of both G’ and G” sharply decrease, indicating a large reduction in flow ability. This result is consistent with the viscosity measurement.
The viscoelasticity of polymeric materials was investigated by measuring the stress relaxation. A material with a shorter relaxation time is consistent with viscous fluid behavior. The relaxation modulus data of the BN/Al2O3/EP are shown in Figure 4a. The relaxation time was calculated based on relaxation modulus data, and the relaxation time versus total filler fraction is shown in Figure 4b. It can be seen that the relaxation time also increases with an increased amount of BN; in particular, when the amount of BN increases from 3.63 vol % (BN50DAB1800) to 5.32 vol % (BN75DAB1800), the relaxation time sharply increases. In this surveyed range of BN content, the direction of the BN platelets was random, thereby preventing the flow of the alumina particles and resin mixture. Therefore, the addition of the BN into Al2O3/EP causes an increase in relaxation time, implying lower flow ability. However, the relaxation time slightly decreases at a high concentration of BN. It seems that the orientation of the BN in the Al2O3/EP matrix makes the flow easier and reduces the relaxation time. The orientation of the BN platelets at this concentration is confirmed by the SEM images shown below.

3.3. Morphology of the Composite Materials

The SEM images of the Al2O3/EP composite without and with the addition of the BN filler are shown in Figure 5 and Figure 6, respectively. It is clearly seen that the Al2O3 spheres are well dispersed within the polymer matrix (Figure 5). Interestingly, the larger Al2O3 spheres are surrounded by the smaller ones, because the broad size distribution of the Al2O3 spheres minimizes the distance between particles. Meanwhile, the thermal conductivity of the composite mainly results from the EP resin contribution with low thermal conductivity; the closer distances between the filler particles can reduce the thickness of the EP resin layer, leading to easily conductive pathways for the composite samples.
The addition of fillers with different shapes into an EP matrix can increase the packing of the obtained composites by making it easier to form various conductive pathways. Therefore, the morphology of the Al2O3/EP composite sample with the addition of BN was investigated, as shown in Figure 6. The distribution and orientation of the BN are shown as red bars. At a low concentration of BN, the BN platelets are randomly dispersed into the Al2O3/EP matrix without orientation (Figure 6a–c). Therefore, thermal conductivity pathways of BN platelets are in-plane (Scheme 1a). However, the BN platelets prefer a parallel arrangement with the surface of the composite film to facilitate their movement between the spherical Al2O3 particles as the BN amount increases (Figure 6d); hence, thermal conductivity pathways are through-plane (Scheme 1b). The change in the orientation of BN platelets results in a reduction in the thermal conductivity of the composite films, as well as in the viscosity of the composites.

3.4. Thermal Conductivity of the Composite Materials

The thermal conductivity of the composites strongly depends on the filler concentration, because of the high conductivity of the filler. However, the viscosity of the composite increases as the amount of filler increases; thus, the materials cannot be processed. The simultaneous use of two types of fillers, including Al2O3 and BN, in the EP matrix is believed to further improve the thermal conductivity of the composite materials. Figure 7a clearly shows the strong effect of BN content on the thermal conductivity of the composite. The thermal conductivity of the BN/Al2O3/EP composite is higher than that of the Al2O3/EP composite. The thermal conductivity increases from 2.77 W/(m·K) for the composite without BN (BN0DAB1800) to 3.35 W/(m·K) for the composite with 3.63 vol % (BN50DAB1800) BN loading. When the BN amount increases from 3.63 (BN50DAB1800) to 5.32 vol % (BN75DAB1800), the thermal conductivity increases sharply, from 3.35 W/(m·K) to 4.44 W/(m·K), that is, 1.6 times higher than that of the composite film without BN. However, the thermal conductivity is then reduced to 4.05 W/m·K when the BN concentration increases to 6.32 vol % (BN90DAB1800), probably because the high BN content in the BN90DAB1800 composite samples alters the BN orientation from being random to being parallel, thereby changing of the thermal conductive pathways of BN platelets from in-plane into through-plane (Scheme 1). In this case, the thermal conduction pathways of the BN platelets mainly happen through-plane, which has a low intrinsic conductivity, thus reducing the overall conductivity of the composite. The orientation of the BN platelets is clearly shown in the SEM images (Figure 6).
Lewis and Nielson modified the Halpin–Tsai equation for transport properties, such as the thermal conductivity of polymer composites [49].
k c = k m ( 1 + A B ∅ 1 − B ∅ ψ ) ,
B = k f k m − 1 k f k m + A ,
ψ = 1 + ( 1 − ϕ m ϕ m 2 ) ϕ ,
where k c , k m , and k f represent the thermal conductivity of the composite, polymer matrix, and filler, respectively, and ∅ is the volume fraction of filler. The value of A in Equation (1) is a function of the orientation and shape of the filler, and ∅ m is the maximum packing fraction of the filler. According to Corcione and Maffezzoli, the prediction by Equation (1) showed reasonably good agreement with the experimental data of composites filled with platelet fillers such as graphene [27]. In order to study the model predictions on the effects of BN in the hybrid composites, the thermal conductivity of Al2O3/EP (BN0DAB1800) was used as the value of k m in Equation (1) and parameters of BN were employed to investigate the prediction by the model on the effects of BN. Due to the anisotropic nature of BN platelets, k f = 400 W/(m·K) and A = 10 were used for the model prediction of the in-plane thermal conduction, while k f = 2 (W/(m·K) and A = 0.5 were used for the model prediction of the through-plane conduction by BNs [49]. The maximum packing fraction ( ϕ m ) of thin platelets was assumed as 0.85 [50]. Based on these considerations, the experimentally determined thermal conductivity data and the predictions by the model for the in-plane thermal conduction and that for the through-plane conduction by BN are given in Figure 7b. It is observed that, as the BN content increases from 3.63 to 5.32 vol %, the experimentally determined thermal conductivities of the composites closely follow the model prediction based on the in-plane thermal conduction (red line). However, with increasing BN content further, the experimental data begin deviating from the prediction based on the in-plane thermal conduction due to the change of the thermal conduction pathway by BN from in-plane to through-plane, as shown in Scheme 1.

4. Conclusions

This study investigated the morphology and properties of an Al2O3/EP composite film filled with different amounts of BN filler. The viscosity of the obtained composites slightly increased with incorporation of the BN filler. The obtained flow properties of the composites were demonstrated to be suitable for applicable processing. The thermal conductivity of the BN/Al2O3/EP composites was significantly improved by adding a small amount of the BN up to 5.32 vol % without a significant effect on the flow ability for processing. The use of a higher BN amount reduced the thermal conductivity of the composite because of the alteration of the thermal conductive pathway of BN platelets from in-plane to through-plane. The orientation of BN platelets can be controlled by adjusting their loading to facilitate the formation of higher thermally conductive pathways.

Author Contributions

Conceptualization, D.-S.L.; methodology, V.-D.M. and D.-I.L.; validation, D.-S.L. and J.-H.P.; writing—original draft preparation, V.-D.M.; writing—review and editing, D.-S.L.; project administration, D.-S.L.; funding acquisition, D.-S.L.

Funding

This work was supported by the ATC project of KEIT funded by the Ministry of Trade, Industry, and Energy (Project No. ATC-10048672) in Korea.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ho, T.H.; Wang, C.S. Modification of epoxy resin with siloxane containing phenol aralkyl epoxy resin for electronic encapsulation application. Eur. Polym. J. 2001, 37, 267–274. [Google Scholar] [CrossRef]
  2. Rimdusit, S.; Ishida, H. Development of new class of electronic packaging materials based on ternary systems of benzoxazine, epoxy, and phenolic resins. Polymer 2000, 41, 7941–7949. [Google Scholar] [CrossRef]
  3. Tai, H.J.; Wang, J.B.; Chen, J.H.; Chou, H.L. Synthesis and properties of vinyl siloxane modified cresol novolac epoxy for electronic encapsulation. J. Appl. Polym. Sci. 2001, 79, 652–661. [Google Scholar] [CrossRef]
  4. Wang, C.S.; Mendoza, A. 2,6-dibromo-3,5-dimethyl-4-hydroxybenzyl ether and epoxy systems—Their application in electronic packaging. Polym. Bull. 1991, 25, 279–286. [Google Scholar] [CrossRef]
  5. Dueramae, I.; Jubsilp, C.; Takeichi, T.; Rimdusit, S. High thermal and mechanical properties enhancement obtained in highly filled polybenzoxazine nanocomposites with fumed silica. Compos. Part B Eng. 2014, 56, 197–206. [Google Scholar] [CrossRef]
  6. Heo, G.Y.; Park, S.J. Effect of coupling agents on thermal, flow, and adhesion properties of epoxy/silica compounds for capillary underfill applications. Powder Technol. 2012, 230, 145–150. [Google Scholar] [CrossRef]
  7. Ng, F.C.; Abas, A.; Gan, Z.L.; Abdullah, M.Z.; Ani, F.C.; Ali, M.Y.T. Discrete phase method study of ball grid array underfill process using nano-silica filler-reinforced composite-encapsulant with varying filler loadings. Microelectron. Reliab. 2017, 72, 45–64. [Google Scholar] [CrossRef]
  8. Weltevreden, E.R.; Tesarski, S.J.; Wymyslowski, A.; Erinc, M.; Gielen, A.W.J. A multi-scale approach of the thermo-mechanical properties of silica-filled epoxies used in electronic packaging. Microelectron. Reliab. 2012, 52, 1300–1305. [Google Scholar] [CrossRef]
  9. Sun, Y.Y.; Zhang, Z.Q.; Wong, C.P. Study and characterization on the nanocomposite underfill for flip chip applications. IEEE Trans. Compon. Packag. Technol. 2006, 29, 190–197. [Google Scholar] [CrossRef]
  10. Teh, P.L.; Mariatti, M.; Wagiman, A.N.R.; Beh, K.S. Effect of curing agent on the properties of mineral silica filled epoxy composites. Polym. Compos. 2008, 29, 27–36. [Google Scholar] [CrossRef]
  11. Agrawal, A.; Satapathy, A. Effect of Al2O3 addition on thermo-electrical properties of polymer composites: An experimental investigation. Polym. Compos. 2015, 36, 102–112. [Google Scholar] [CrossRef]
  12. Jeong, U.S.; Lee, Y.J.; Shin, D.G.; Lim, H.M.; Mun, S.Y.; Kwon, W.T.; Kim, S.R.; Kim, Y.H.; Shim, K.B. Highly thermal conductive alumina plate/epoxy composite for electronic packaging. Trans. Electr. Electron. Mater. 2015, 16, 351–354. [Google Scholar] [CrossRef]
  13. Kim, D.J.; Kang, P.H.; Nho, Y.C. Characterization of mechanical properties of gamma Al2O3 dispersed epoxy resin cured by gamma-ray radiation. J. Appl. Polym. Sci. 2004, 91, 1898–1903. [Google Scholar]
  14. McGrath, L.M.; Parnas, R.S.; King, S.H.; Schroeder, J.L.; Fischer, D.A.; Lenhart, J.L. Investigation of the thermal, mechanical, and fracture properties of alumina-epoxy composites. Polymer 2008, 49, 999–1014. [Google Scholar] [CrossRef]
  15. Lee, E.S.; Lee, S.M.; Shanefield, D.J.; Cannon, W.R. Enhanced thermal conductivity of polymer matrix composite via high solids loading of aluminum nitride in epoxy resin. J. Am. Ceram. Soc. 2008, 91, 1169–1174. [Google Scholar] [CrossRef]
  16. Yu, S.Z.; Hing, P.; Hu, X. Thermal conductivity of polystyrene-aluminum nitride composite. Compos. Part A Appl. Sci. Manuf. 2002, 33, 289–292. [Google Scholar] [CrossRef]
  17. Xu, Y.S.; Chung, D.D.L.; Mroz, C. Thermally conducting aluminum nitride polymer-matrix composites. Compos. Part A Appl. Sci. Manuf. 2001, 32, 1749–1757. [Google Scholar] [CrossRef]
  18. Zhou, Y.C.; Wang, H.; Wang, L.; Yu, K.; Lin, Z.D.; He, L.; Bai, Y.Y. Fabrication and characterization of aluminum nitride polymer matrix composites with high thermal conductivity and low dielectric constant for electronic packaging. Mater. Sci. Eng. B 2012, 177, 892–896. [Google Scholar] [CrossRef]
  19. Isarn, I.; Massagues, L.; Ramis, X.; Serra, A.; Ferrando, F. New BN-epoxy composites obtained by thermal latent cationic curing with enhanced thermal conductivity. Compos. Part A Appl. Sci. Manuf. 2017, 103, 35–47. [Google Scholar] [CrossRef]
  20. Donnay, M.; Tzavalas, S.; Logakis, E. Boron nitride filled epoxy with improved thermal conductivity and dielectric breakdown strength. Compos. Sci. Technol. 2015, 110, 152–158. [Google Scholar] [CrossRef]
  21. Du, B.X.; Xiao, M.; Zhang, J.W. Effect of thermal conductivity on tracking failure of epoxy/BN composite under pulse strength. In Proceedings of the IEEE International Conference on Solid Dielectrics, Bologna, Italy, 30 June–4 July 2013; pp. 607–610. [Google Scholar] [CrossRef]
  22. Wang, Z.B.; Iizuka, T.; Kozako, M.; Ohki, Y.; Tanaka, T. Development of epoxy/BN composites with high thermal conductivity and sufficient dielectric breakdown strength part I -Sample Preparations and Thermal Conductivity. IEEE Trans. Dielectr. Electr. Insul. 2011, 18, 1963–1972. [Google Scholar] [CrossRef]
  23. Xiao, M.; Du, B.X. Effects of high thermal conductivity on temperature rise of epoxy cast windings for power transformer. IEEE Trans. Dielectr. Electr. Insul. 2016, 23, 2413–2420. [Google Scholar] [CrossRef]
  24. Lin, Z.Y.; Mcnamara, A.; Liu, Y.; Moon, K.S.; Wong, C.P. Exfoliated hexagonal boron nitride-based polymer nanocomposite with enhanced thermal conductivity for electronic encapsulation. Compos. Sci. Technol. 2014, 90, 123–128. [Google Scholar] [CrossRef]
  25. Wattanakul, K.; Manuspiya, H.; Yanumet, N. Effective surface treatments for enhancing the thermal conductivity of bn-filled epoxy composite. J. Appl. Polym. Sci. 2011, 119, 3234–3243. [Google Scholar] [CrossRef]
  26. Acocella, M.R.; Corcione, C.E.; Giuri, A.; Maggio, M.; Guerra, G.; Maffezzoli, A. Catalytic activity of oxidized carbon black and graphene oxide for the crosslinking of epoxy resins. Polymers 2017, 9, 133. [Google Scholar] [CrossRef]
  27. Corcione, C.E.; Maffezzoli, A. Transport properties of graphite/epoxy composites: Thermal, permeability and dielectric characterization. Polym. Test. 2013, 32, 880–888. [Google Scholar] [CrossRef]
  28. Acocella, M.R.; Corcione, C.E.; Giuri, A.; Maggio, M.; Maffezzoli, A.; Guerra, G. Graphene oxide as a catalyst for ring opening reactions in amine crosslinking of epoxy resins. RSC Adv. 2016, 6, 23858–23865. [Google Scholar] [CrossRef]
  29. Chen, C.; Tang, Y.J.; Ye, Y.S.; Xue, Z.G.; Xue, Y.; Xie, X.L.; Mai, Y.W. High-performance epoxy/silica coated silver nanowire composites as underfill material for electronic packaging. Compos. Sci. Technol. 2014, 105, 80–85. [Google Scholar] [CrossRef]
  30. Zha, J.W.; Zhu, T.X.; Wu, Y.H.; Wang, S.J.; Li, R.K.Y.; Dang, Z.M. Tuning of thermal and dielectric properties for epoxy composites filled with electrospun alumina fibers and graphene nanoplatelets through hybridization. J. Mater. Chem. C 2015, 3, 7195–7202. [Google Scholar] [CrossRef]
  31. Choi, S.; Kim, J. Thermal conductivity of epoxy composites with a binary-particle system of aluminum oxide and aluminum nitride fillers. Compos. Part B Eng. 2013, 51, 140–147. [Google Scholar] [CrossRef]
  32. Sanada, K.; Tada, Y.; Shindo, Y. Thermal conductivity of polymer composites with close-packed structure of nano and micro fillers. Compos. Part A Appl. Sci. Manuf. 2009, 40, 724–730. [Google Scholar] [CrossRef]
  33. Wetzel, B.; Haupert, F.; Zhang, M.Q. Epoxy nanocomposites with high mechanical and tribological performance. Compos. Sci. Technol. 2003, 63, 2055–2067. [Google Scholar] [CrossRef]
  34. Hong, J.P.; Yoon, S.W.; Hwang, T.; Oh, J.S.; Hong, S.C.; Lee, Y.; Nam, J.D. High thermal conductivity epoxy composites with bimodal distribution of aluminum nitride and boron nitride fillers. Thermochim. Acta 2012, 537, 70–75. [Google Scholar] [CrossRef]
  35. Kumari, L.; Zhang, T.; Du, G.H.; Li, W.Z.; Wang, Q.W.; Datye, A.; Wu, K.H. Thermal properties of CNT-Alumina nanocomposites. Compos. Sci. Technol. 2008, 68, 2178–2183. [Google Scholar] [CrossRef]
  36. Lee, G.W.; Park, M.; Kim, J.; Lee, J.I.; Yoon, H.G. Enhanced thermal conductivity of polymer composites filled with hybrid filler. Compos. Part A Appl. Sci. Manuf. 2006, 37, 727–734. [Google Scholar] [CrossRef]
  37. Yu, W.; Xie, H.Q.; Yin, L.Q.; Zhao, J.C.; Xia, L.G.; Chen, L.F. Exceptionally high thermal conductivity of thermal grease: Synergistic effects of graphene and alumina. Int. J. Therm. Sci. 2015, 91, 76–82. [Google Scholar] [CrossRef]
  38. Su, J.L.; Xiao, Y.; Ren, M. Enhanced thermal conductivity in epoxy nanocomposites with hybrid boron nitride nanotubes and nanosheets. Phys. Status Solidi A 2013, 210, 2699–2705. [Google Scholar] [CrossRef]
  39. Sichel, E.K.; Miller, R.E.; Abrahams, M.S.; Buiocchi, C.J. Heat-capacity and thermal-conductivity of hexagonal pyrolytic boron-nitride. Phys. Rev. B 1976, 13, 4607–4611. [Google Scholar] [CrossRef]
  40. Yu, C.P.; Zhang, J.; Li, Z.; Tian, W.; Wang, L.J.; Luo, J.; Li, Q.L.; Fan, X.D.; Yao, Y.G. Enhanced through-plane thermal conductivity of boron nitride/epoxy composites. Compos. Part A Appl. Sci. Manuf. 2017, 98, 25–31. [Google Scholar] [CrossRef]
  41. Shen, H.; Guo, J.; Wang, H.; Zhao, N.; Xu, J. Bioinspired modification of h-BN for high thermal conductive composite films with aligned structure. ACS Appl. Mater. Interfaces 2015, 7, 5701–5708. [Google Scholar] [CrossRef]
  42. Kuang, Z.Q.; Chen, Y.L.; Lu, Y.L.; Liu, L.; Hu, S.; Wen, S.P.; Mao, Y.Y.; Zhang, L.Q. Fabrication of highly oriented hexagonal boron nitride nanosheet/elastomer nanocomposites with high thermal conductivity. Small 2015, 11, 1655–1659. [Google Scholar] [CrossRef]
  43. Cho, H.B.; Tokoi, Y.; Tanaka, S.; Suematsu, H.; Suzuki, T.; Jiang, W.H.; Niihara, K.; Nakayama, T. Modification of BN nanosheets and their thermal conducting properties in nanocomposite film with polysiloxane according to the orientation of BN. Compos. Sci. Technol. 2011, 71, 1046–1052. [Google Scholar] [CrossRef]
  44. Lim, H.S.; Oh, J.W.; Kim, S.Y.; Yoo, M.J.; Park, S.D.; Lee, W.S. Anisotropically alignable magnetic boron nitride platelets decorated with iron oxide nanoparticles. Chem. Mater. 2013, 25, 3315–3319. [Google Scholar] [CrossRef]
  45. Yuan, C.; Duan, B.; Li, L.; Xie, B.; Huang, M.Y.; Luo, X.B. Thermal conductivity of polymer-based composites with magnetic aligned hexagonal boron nitride platelets. ACS Appl. Mater. Interfaces 2015, 7, 13000–13006. [Google Scholar] [CrossRef]
  46. Lin, Z.Y.; Liu, Y.; Raghavan, S.; Moon, K.S.; Sitaraman, S.K.; Wong, C.P. Magnetic alignment of hexagonal boron nitride platelets in polymer matrix: Toward high performance anisotropic polymer composites for electronic encapsulation. ACS Appl. Mater. Interfaces 2013, 5, 7633–7640. [Google Scholar] [CrossRef]
  47. Farris, R.J. Prediction of the viscosity of multimodal suspensions from unimodal viscosity data. Trans. Soc. Rheol. 1968, 12, 281–301. [Google Scholar] [CrossRef]
  48. Han, C.D. Rheology and Processing of Polymeric Materials; Oxford University Press: Oxford, UK, 2007. [Google Scholar]
  49. Kumlutas, D.; Tavman, I.H.; Coban, M.T. Thermal conductivity of particle filled polyethylene composite materials. Compos. Sci. Technol. 2003, 63, 113–117. [Google Scholar] [CrossRef]
  50. Hill, R.F.; Supancic, P.H. Thermal conductivity of platelet-filled polymer composites. J. Am. Ceram. Soc. 2002, 85, 851–857. [Google Scholar] [CrossRef]
Polymers 11 00597 g001 550
Figure 1. SEM images of alumina (a) and crystalline boron nitride (b) investigated in this study.
Figure 1. SEM images of alumina (a) and crystalline boron nitride (b) investigated in this study.
Polymers 11 00597 g001
Polymers 11 00597 g002 550

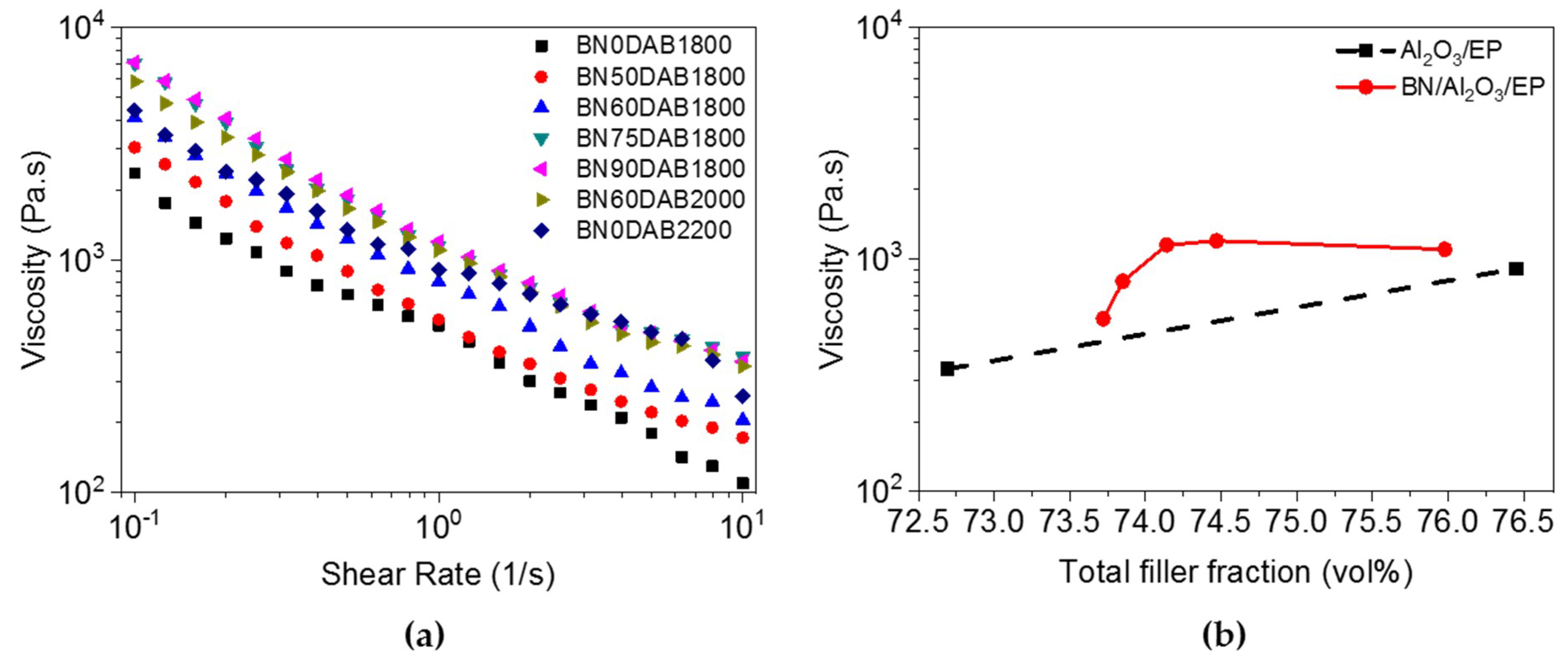

Figure 2. Steady shear viscosities (a) and viscosity at a shear rate of 1 s−1 vs. total filler fraction of Al2O3/epoxy resin (EP) and boron nitride (BN)/Al2O3/EP (b).
Figure 2. Steady shear viscosities (a) and viscosity at a shear rate of 1 s−1 vs. total filler fraction of Al2O3/epoxy resin (EP) and boron nitride (BN)/Al2O3/EP (b).
Polymers 11 00597 g002
Polymers 11 00597 g003 550

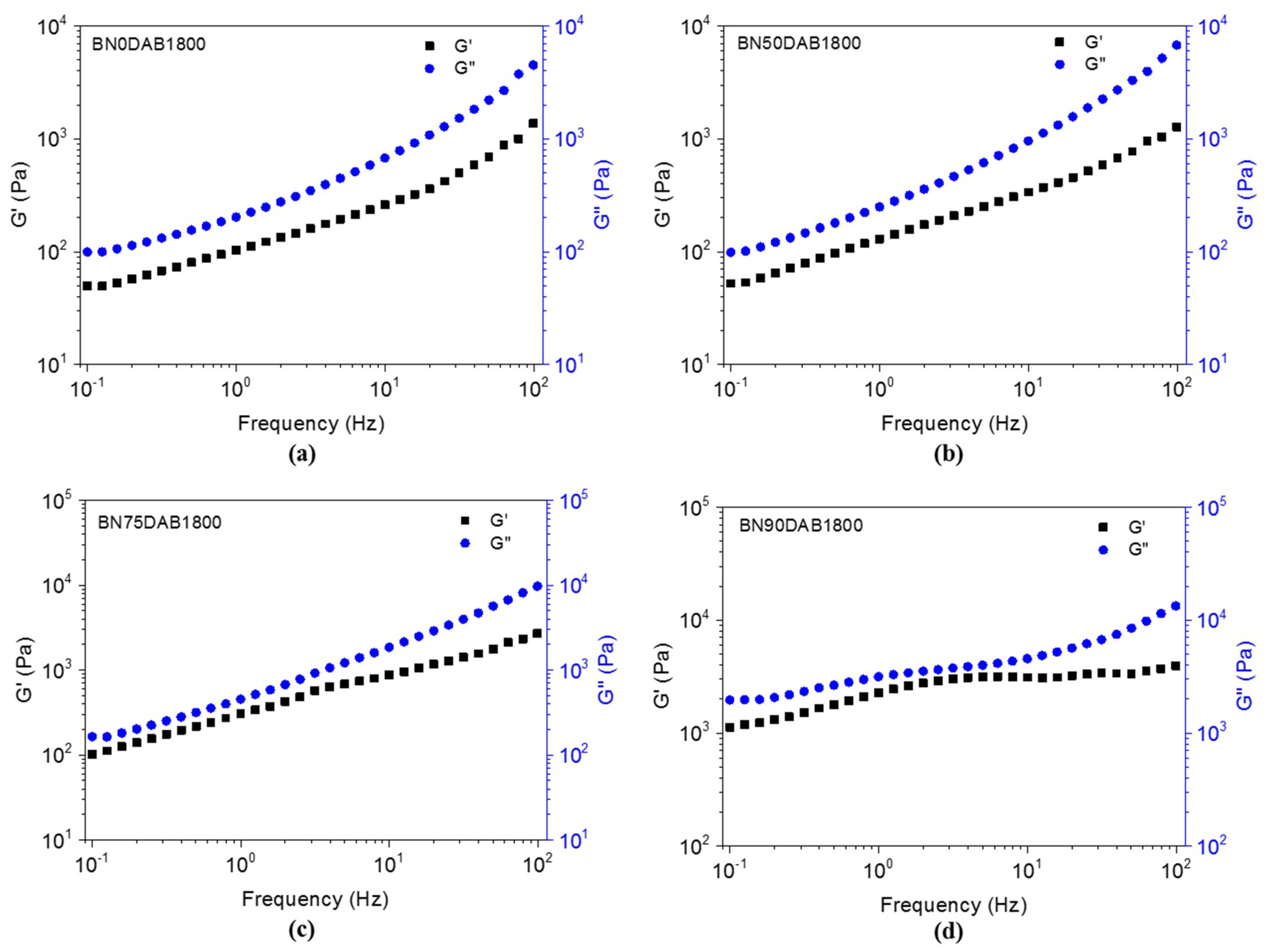

Figure 3. Dynamic modulus versus frequency of (a) BN0DAB1800, (b) BN50DAB1800, (c) BN75DAB1800, and (d) BN90DAB1800. See Table 1 for descriptions of composites.
Figure 3. Dynamic modulus versus frequency of (a) BN0DAB1800, (b) BN50DAB1800, (c) BN75DAB1800, and (d) BN90DAB1800. See Table 1 for descriptions of composites.
Polymers 11 00597 g003
Polymers 11 00597 g004 550

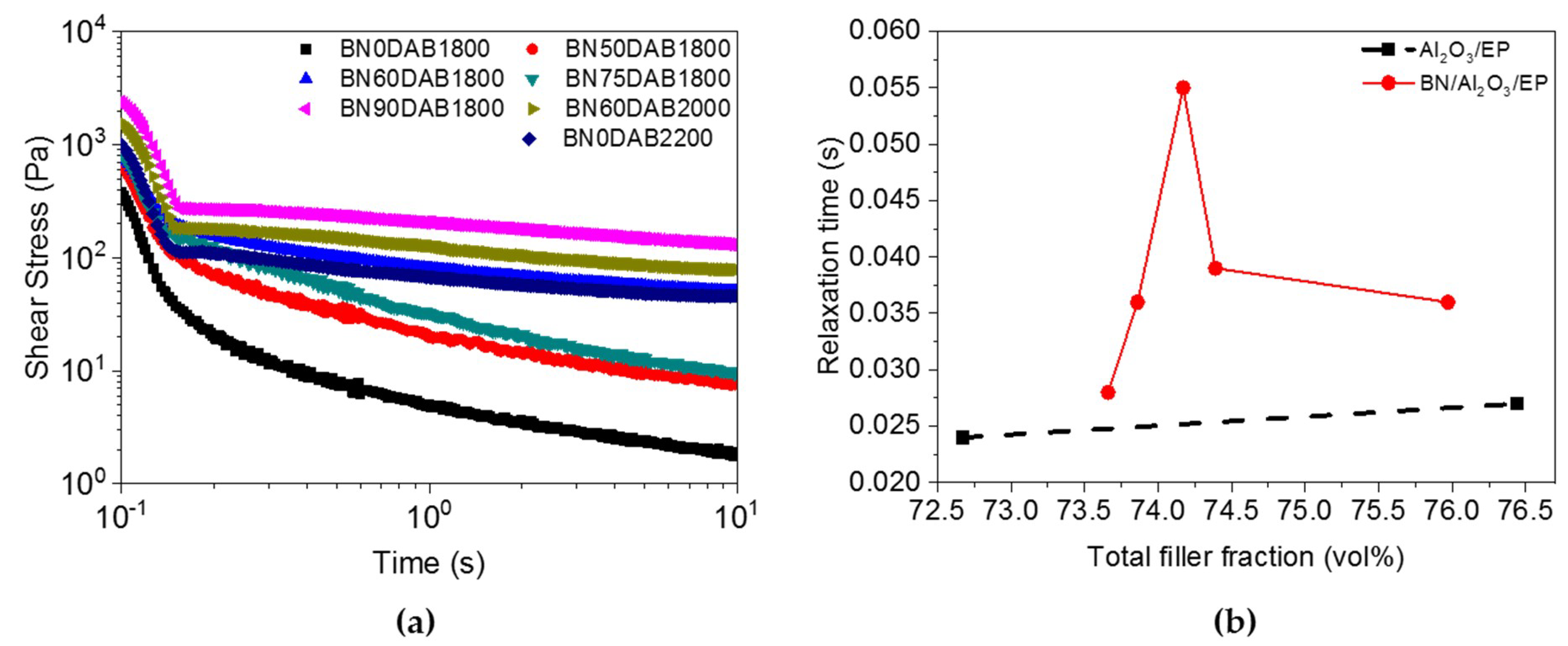

Figure 4. Stress relaxation data (a) and relaxation time versus total filler volume fraction of Al2O3/EP and BN/Al2O3/EP (b).
Figure 4. Stress relaxation data (a) and relaxation time versus total filler volume fraction of Al2O3/EP and BN/Al2O3/EP (b).
Polymers 11 00597 g004
Polymers 11 00597 g005 550
Figure 5. SEM images of Al2O3/EP without BN: (a) BN0DAB1800 and (b) BN0DAB2200.
Figure 5. SEM images of Al2O3/EP without BN: (a) BN0DAB1800 and (b) BN0DAB2200.
Polymers 11 00597 g005
Polymers 11 00597 g006 550
Figure 6. SEM images of Al2O3/EP filled with (a) 3.63 vol %, (b) 4.30 vol %, (c) 5.32 vol %, and (d) 6.32 vol % boron nitride.
Figure 6. SEM images of Al2O3/EP filled with (a) 3.63 vol %, (b) 4.30 vol %, (c) 5.32 vol %, and (d) 6.32 vol % boron nitride.
Polymers 11 00597 g006
Polymers 11 00597 sch001 550
Scheme 1. Orientation of the BN platelets in the polymer matrix at (a) low content and (b) high content of BN.
Scheme 1. Orientation of the BN platelets in the polymer matrix at (a) low content and (b) high content of BN.
Polymers 11 00597 sch001
Polymers 11 00597 g007 550

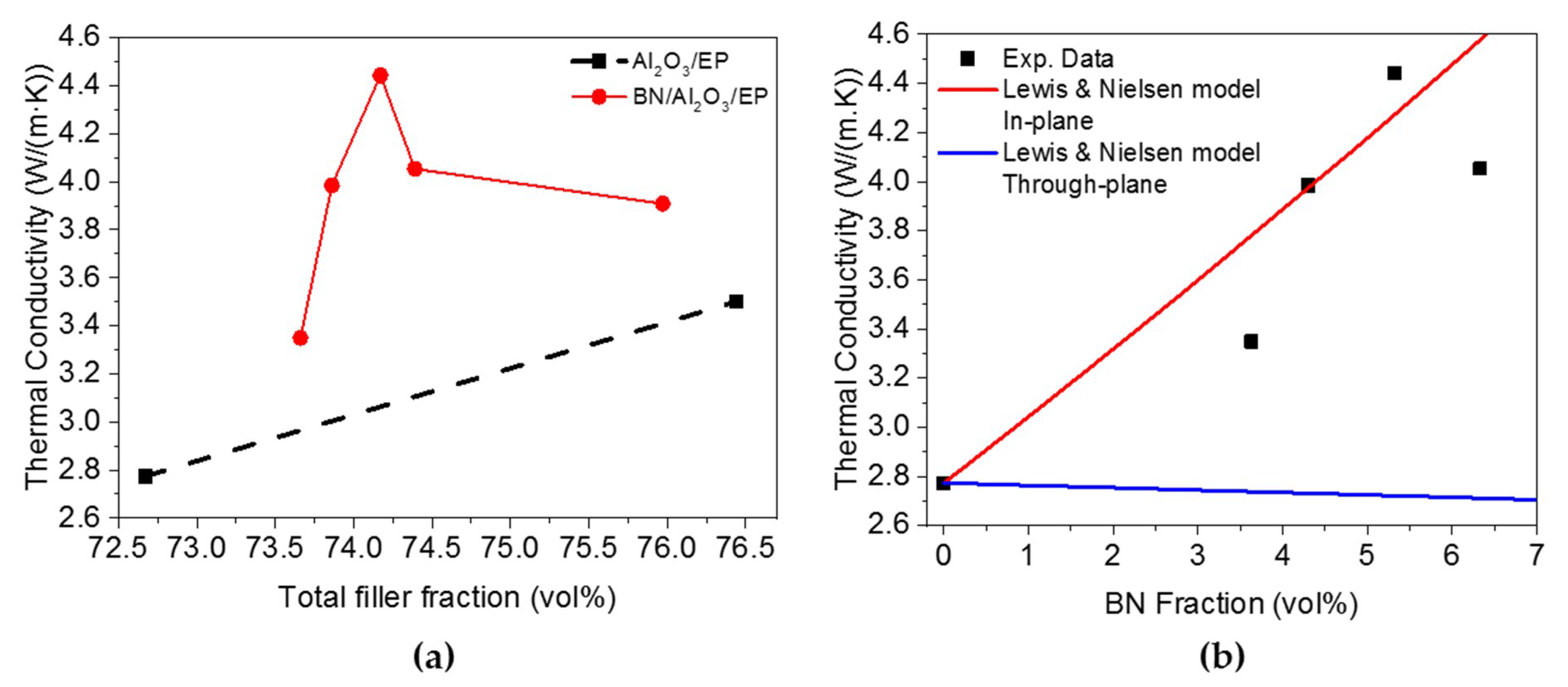

Figure 7. Thermal conductivity of the composite materials versus total filler fraction (a), and comparison of experimental data and the model predictions as a function of BN fraction (b).
Figure 7. Thermal conductivity of the composite materials versus total filler fraction (a), and comparison of experimental data and the model predictions as a function of BN fraction (b).
Polymers 11 00597 g007
Table
Table 1. Sample codes and formulation of epoxy resins filled with alumina and boron nitride (BN) (by volume). YD-128—bisphenol A epoxy resin; HMPA—hexahydro-4-methylphthalic anhydride; KBM-303—2-(3,4-epoxycyclohexyl)ethyltrimethoxysilane; EMI—2-ethyl-4-methylimidazole.
Table 1. Sample codes and formulation of epoxy resins filled with alumina and boron nitride (BN) (by volume). YD-128—bisphenol A epoxy resin; HMPA—hexahydro-4-methylphthalic anhydride; KBM-303—2-(3,4-epoxycyclohexyl)ethyltrimethoxysilane; EMI—2-ethyl-4-methylimidazole.
Sample CodesYD-128HMPAKBM-303EMIAluminaBNTotal Filler
BN0DAB180013.3412.181.500.2972.69072.69
BN50DAB180012.8611.711.430.2870.093.6373.72
BN60DAB180012.7611.671.440.2869.554.3073.85
BN75DAB180012.6111.521.450.2868.825.3274.14
BN90DAB180012.5011.371.400.2768.146.3374.47
BN60DAB200011.8910.821.320.2571.964.0275.98
BN0DAB220011.4810.521.300.2576.45076.45
