Synthesis and Photovoltaic Effect of Electron-Withdrawing Units for Low Band Gap Conjugated Polymers Bearing Bi(thienylenevinylene) Side Chains

by
Jianfeng Li
1,*,
Yufei Wang
1,
Ningning Wang
1,
Zezhou Liang
1,2,
Xu Wang
1,
Yichun Peng
3,
Junfeng Tong
1,
Chunyan Yang
1 and
Yangjun Xia
1,*
1
School of Materials and Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2
CAS Key Laboratory of Bio-Based Materials, Qingdao Institute of Bioenergy and Bioprocess Technology, Chinese Academy of Sciences, Qingdao 266101, China
3
School of Civil Engineering, Lanzhou Institute of Technology, Lanzhou 730070, China
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(9), 1461; https://doi.org/10.3390/polym11091461
Submission received: 22 August 2019 / Revised: 30 August 2019 / Accepted: 2 September 2019 / Published: 6 September 2019
(This article belongs to the Special Issue Polymer-Based Solar Cells)
Browse Figures
Versions Notes

Abstract

:
A novel (E)-5-(2-(5-alkylthiothiophen-2-yl)vinyl)thien-2-yl (TVT)-comprising benzo[1,2-b:4,5-b’]dithiophene (BDT) derivative (BDT-TVT) was designed and synthetized to compose two donor-acceptor (D-A) typed copolymers (PBDT-TVT-ID and PBDT-TVT-DTNT) with the electron-withdrawing unit isoindigo (ID) and naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole (NT), respectively. PBDT-TVT-ID and PBDT-TVT-DTNT showed good thermal stability (360 °C), an absorption spectrum from 300 nm to 760 nm and a relatively low lying energy level of Highest Occupied Molecular Orbital (EHOMO) (−5.36 to –5.45 eV), which could obtain a large open-circuit voltage (Voc) from photovoltaic devices with PBDT-TVT-ID or PBDT-TVT-DTNT. The photovoltaic devices with ITO/PFN/polymers: PC71BM/MoO3/Ag structure were assembled and exhibited a good photovoltaic performance with a power conversion efficiency (PCE) of 4.09% (PBDT-TVT-ID) and 5.44% (PBDT-TVT-DTNT), respectively. The best PCE of a PBDT-TVT-DTNT/PC71BM-based device mainly originated from its wider absorption, higher hole mobility and favorable photoactive layer morphology.

Graphical Abstract

1. Introduction

Polymer solar cells (PSCs) have laid special interest owing to promising qualities such as manual flexibility, being light weight, and having the potential of a large-area device prepared and developed with low-cost solution processing [1,2,3,4]. To date, the PSCs using copolymers have been researched extensively and their power conversion efficiencies (PCEs) has exceeded 14%, resulting from the development of donor-acceptor (D-A) copolymers [5,6]. However, the performances and stabilities of the PSCs still needed to be elevated to meet the practical application requirements. Among the various approaches to improve the performance and durability of PSCs, implementation of new electron donor/acceptor materials and exploration of new device architectures are required to further boost the performance and stability of PSCs. For ideal donor or acceptor materials, the energy levels arrangement, carrier mobility and absorption spectrum are important, which is correlated with the photovoltaic performance.
Due to the large planar structure of the electron-donating group benzo [1,2-b:4,5-b’] dithiophene (BDT), it has received extensive attention in constructing a D-A polymer of high performance PSCs [7,8,9,10,11,12,13,14,15,16]. Applying two-dimensional (2D)-conjugated BDT units (alkylthienyl- and alkylthio-thienyl-substituted BDT) and multifarious chemical moieties (para-alkylphenyl, metaalkoxylphenyl and 2-alkyl-3-fluorothienyl) play an important role in boosting the performance of the material and photovoltaic device, such as the adjustments of the absorption characteristic and energy levels, backbone conformation, charge transport performance, etc. [17,18,19,20,21,22,23]. Thienylenevinylene (TVT) was a strong electron donating functional group owing to the presence of an electron-rich vinyl linkage. TVT-based materials exhibited a large charge mobility due to the high planarity of the vinylidene (double bond) groups between the two thiophene units [24,25,26]. Two polymers containing an alkyl-substituted TV unit between 3-dodecylthiophenes were synthesized by Kim et al., and had a charge mobility of more than 1 cm2 V−1 s−1 [27]. Hou et al. introduced the TVT functional group into 4- and 8-positions of the BDT group to construct a polymer, named as PBT-TVT, and an encouraging result of 8.13% was obtained from PC71BM as acceptor in bulk heterojunction (BHJ) devices. Due to the prolonged conjugation of the BDT conjugated side groups, the absorption characteristic was improved distinctly and resulted in a stronger interchain π−π interaction, thus a larger hole mobility was obtained [28]. Chung et al. found that the absorption characteristic, charge mobility, energy levels and photovoltaic performance of PBDTVT-DTTPD was affected by TVT side chain groups [29]. The TVT conjugated group was introduced into the BDT-based A-D-A by Guo et al. to form BDT(TVT-SR)2, and the PCE of BDT(TVT-SR)2:IDIC photovoltaic devices reached 11.1%. Besides, the TVT-SR conjugated side chain could reduce the thermally induced phase aggregation and boost the BHJ morphological stability [30].
The electron-deficient dye Isoindigo (ID) that contained two lactam rings has a good π-conjugated planar structure and a strong electron-withdrawing ability, and thus is an ideal monomer for synthesizing a low bandgap conjugated polymer for PSCs [31,32]. Naphtho[1,2-c:5,6-c′]bis[2–4] thiadiazole (NT), a receptor structure comprised of two BT fused heterocycles, is one of the potential materials with a low band gap and high carrier mobility for solar cell receptor unit [33,34,35,36]. Because of the high π-extension structure of NT and the strong electron affinity of double heterocycles, the binding of NT and donor units to the main chain of the polymer leads to a smaller band gap (Eg) and deeper Highest Occupied Molecular Orbital (HOMO) energy level. Meanwhile, the center-symmetric rigid structure of NT can enhance the interaction between NT-based polymer molecules, promote the π−π stacking effect of the polymer framework and enhance the structure order of NT-based polymer films and further improve its mobility. NT is therefore one of the potential materials with a low band gap and high carrier mobility for a solar cell receptor unit [37,38].
Considering the excellent characteristics of the above-mentioned 2D BDT-based conjugated copolymers (CPs), herein, two low band gap alternating CPs, namely PBDT-TVT-ID and PBDT-TVT-DTNT, utilizing 2D BDT-TVT as donor moiety and ID and/or 4,9-bis(4-hexylthien-2-yl)naphtho[1,2-c:5,6-c]bis[2–4]-thiadiazole (DTNT) as acceptor units, were designed and prepared. Besides, the effect on absorption characteristic, energy level, charge mobility, morphology and photovoltaic performance was researched. The resulting polymers exhibited a good thermal stability, a broad absorption spectrum (300–760 nm) and a deep HOMO energy level (−5.3 to −5.6 eV). The PSCs using PBDT-TVT-ID or PBDT-TVT-DTNT as donor and [7,7]-phenyl C71-butyric acid methyl ester (PC71BM) as acceptor obtained a PCE of 4.09% and 5.44%, respectively. The PCE based on the PBDB-TVT-ID photovoltaic device was slightly lower than that found by Ma et al., but achieved a higher Voc (0.91 V) [30]. Compared to Chung et al., the device based on PBDB-TVT-DTNT obtained a small PCE but a larger Jsc (12.21 mA cm−2) [32].

2. Materials and Methods

2.1. Materials and Characteriazation

All reagents were obtained from TCI Chemical Co., Acros and Aldrich. All the solvents were further purified using a flow of nitrogen. Bistin 2,6-bis(trimethyltin)-4,8-bis[5-((E)-2-(4,5-di-decylthiophen-2-yl)vinyl)thien-2-yl]benzo[1,2-b:4,5-b’]dithiophene (BDT-TVTSn), dibromide N,N-di(2-butyloctyl)-6,6′-dibromoisoindigo (ID) (ID-BOBr2) and 4,9-bis(5-bromo-4-(2-octyl)thien-2-yl)naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole (DTNT-C8Br2) were obtained on the basis of the reported references [38,39], and related chemical structures were determined by NMR test (Figures S4–S7).
1H NMR and 13C NMR spectra were recorded on a Bruker DRX 400 spectrometer (Rheinstetten, Germany) operating at 400 MHz and was referred to tetramethylsilane (TMS). Splitting patterns were designed as s (singlet), d (doublet), t (triplet), m (multiplet), and br(broaden). Melting points were measured by the use of a microscopic melting point apparatus (Beijing Taike, Beijing, China), and the thermometer was uncorrected, and TGA was conducted on a TGA 2050 thermal analysis system (New Castle, DE, USA) under a heating rate of 10 °C min−1 and a N2 flow rate of 20 mL min−1. The average molecular weights of PBDT-TVT-ID and PBDT-TVT-DTNT were determined by gel permeation chromatography (GPC) using a polystyrene standard in a tetrahydrofuran (THF) eluting solvent. Elemental analyses were performed on a Vario EL Elemental Analysis Instrument (Elementar Co.). UV-Vis absorption spectra were measured on a UV-1800 spectrophotometer (Shimadzu, Kyoto, Japan). Cyclic voltammetry (CV) was measured on a CHI600D electro-chemical workstation (Shanghai Chenhua, Shanghai, China) at a scan rate of 100 mV s−1 with a nitrogen-saturated solution of 0.1 M tetrabutylammonium hexafluorophosphate (Bu4NPF6) in CH3CN solution. A three-electrode cell was used in all experimental, wherein polymer coated glassy carbon electrode, platinum wire and Ag/AgNO3 (0.01 M of AgNO3 in CH3CN) electrode were employed as the working electrode, counter electrode and reference electrode, respectively. The reference electrode was calibrated using a ferrocene/ferrocenium redox couple as an external standard, whose oxidation potential is set at −4.80 eV with respect to zero vacuum level. Polymer thin films were prepared by dropcasting 1 μL polymer chloroform solution with the concentration of 1 mg mL−1 onto the working electrode, and then dried in the air. The surface roughness and morphology of the thin films were characterized by atomic force microscopy on an MFP-3D-SA (Asylum Research, Santa Barbara, CA, USA) in tapping mode.1H NMR spectra, thermal gravimetric analysis (TGA), UV-visible absorption spectra, cyclic voltammetry (CV), transmission electron microscopy (TEM) images measurement and atomic force microscopy (AFM) were done the same as per our previous work [35,40].

2.2. Preparation of Photovoltaic Devices

The PSC preparation processes with a ITO/PFN/polymer:PC71BM/MoO3/Ag structure was according to Reference [35]. Noted that the active layer polymer:PC71BM (w/w; 1:1, 1:1.5 and 1:2) were dissolved in a chlorobenzene (CB) solution with 0.5% diphenyl sulfide (DPS) as solvent additives. A detailed description is provided in the Supporting Information.

2.3. Synthesis of PBDT-TVT-ID and PBDT-TVT-DTNT

2.3.1. Synthesis of PBDT-TVT-ID

BDT-TVTSn (163.8 mg, 0.11 mmol) and ID-BOBr2 (83.3 mg, 0.11 mmol) were dissolved in a mixed solvent of freshly distilled toluene (6 mL) and anhydrous N,N-dimethylformamide (DMF) (0.7 mL). The mixture was purged with argon for 10 min, and then Pd2(dba)3 (1.5 mg) and P(o-tol)3 (3.0 mg) were added into the flask as a catalyst. After being purged for another 20 min, the reaction mixture was heated to 105 °C for 48 h under an argon atmosphere. At the end of polymerization, the polymer was end-capped with 2-tributylstannylthiophene and 2-bromo-thiophene to remove bromo and trimethystannyl end groups. The mixture was then poured into methanol. The precipitated material was collected and extracted with ethanol, acetone, hexane and toluene in a Soxhlet extractor. The solution of the copolymer in toluene was condensed to 8 mL and then poured into methanol (200 mL). The precipitation was collected and dried under vacuum overnight as a greenish-black solid (yield = 65.2%) (1H NMR (500 MHz, CDCl3), δ (ppm), 9.02 (br, ArH), 7.60−6.3 (m, ArH and CH2=CH2), 3.70 (t, CH2 directly linked to N), 2.75 (br, CH2, directly linked to thiophene), 2.47 (br, CH2, directly linked to thiophene), 1.80−0.80 (m, CH, CH2 and CH3) (Figure S8)). Elemental analysis calculated for C110H152N2O2S6: C, 76.51%; H, 8.87%; N, 1.62%. Found C, 76.40%; H, 8.69%; and N, 1.68%. Mn = 13.9 KDa with polydispersity index (PDI) of 1.69.

2.3.2. Synthesis of PBDT-TVT-DTNT

BDT-TVTSn (163.8 mg, 0.11 mmol), DTNT-C8Br2 (87.0 mg, 0.11 mmol), Pd2(dba)3 (1.5 mg) and P(o-tol)3 (3.0 mg) were used to synthesize PBDT-TVT-DTNT. The other experimental processes were just as the preparation of the polymer PBDT-TVT-ID described above. The target polymer PBDT-TVT-DTNT was obtained as greenish-black solid (yield = 70.3%) (1H NMR (500 MHz, CDCl3), δ (ppm), 9.03 (br, ArH), 8.14 (br, ArH), 7.80−6.60 (m, ArH and CH2=CH2), 3.00−2.40 (t, CH2 directly linked to N and thiophene), 1.80−0.80 (m, CH2 and CH3) (Figure S9)). Elemental analysis calculated for C105H135N4S10:C, 71.09%; H, 7.67%; N, 3.16%. Found, C, 71.00%; H, 7.60%; N, 3.25%. Mn = 22.1 KDa with PDI of 2.34.

3. Results

3.1. Synthesis and Characterization

The synthetic routes of PBDT-TVT-ID and PBDT-TVT-DTNT are outlined in Scheme 1. The resultant copolymers were prepared by Stille-coupling polymerization with distannyl BDT-TVTSn and dibromide monomers ID-BOBr2/DTNT-C8Br2 using Pd2(dba)3 and P(o-tol)3 as a catalyst. PBDT-TVT-DTNT is soluble in a normal organic solvent such as toluene, chlorobenzene and o-dichlorobenzene. However, the solubility of PBDB-TVT-ID is not as good as that of PBDB-TVT-DTNT, but they all dissolve well in chlorobenzene.
TGA characteristics of the PBDT-TVT-ID and PBDT-TVT-DTNT were displayed in Figure 1. The TGA measurement indicated that the two polymers showed good thermal stability and the decomposition temperatures (5% weight loss) of PBDT-TVT-ID and PBDT-TVT-DTNT were 365 and 376 °C, respectively. Besides, differential scanning calorimetry (DSC) measurements (shown in Figure S10) of the two polymers found no significant thermal transitions, which imply the two polymers have an amorphous state.

3.2. Optical and Electrochemical Performance

The absorption characteristic curves of PBDT-TVT-ID and PBDT-TVT-DTNT in toluene solution and thin films were exhibited in Figure 2. The related calculation results are listed in Table 1. The absorption range of PBDT-TVT-ID was from 300 to 743 nm and the maximum absorption peak (λmax) located in 687 nm. However, PBDT-TVT-DTNT exhibited a broader spectrum than PBDT-TVT-ID and red-shifted to a long wavelength region of 780 nm, which was attributed to the produced stronger ICT interaction between bilateral thiophene and the NT unit as result of introducing DTNT [41]. Compared to the solution state, the absorption curves of PBDT-TVT-ID and PBDT-TVT-DTNT film hardly changed, but the absorption edges were broadened to 760 nm and 817 nm, respectively [42]. Particularly, PBDT-TVT-DTNT-based film showed a notable increase in intramolecular charge transfer (ICT) absorption band than PBDT-TVT-ID, suggesting PBDT-TVT-DTNT having a stronger aggregation tendency and more ordered microstructure in the solid film. According to Eg = 1240/λonset, the optical bandgaps (Eg) of the PBDT-TVT-ID and PBDT-TVT-DTNT obtained from film absorption edges were 1.63 and 1.52 eV, respectively.
The HOMO energy level (EHOMO) of the polymer could be determined by CV testing and the related condition was the same as in Reference [31]. From Figure 3, the onset potentials of PBDT-TVT-ID and PBDT-TVT-DTNT were located in 0.72/−1.02 V and 0.65/−1.11 V, respectively. The corresponding EHOMO/ELUMO levels were calculated to be −5.42/−3.68 eV and −5.35/−3.59 eV using a formula EHOMO = −e(φox + 4.70) (eV) and ELUMO = −e(φred + 4.70) (eV), respectively (Table 1). Remarkably, the EHOMO of PBDT-TVT-ID is deeper than the EHOMO of PBDT-TVT-DTNT, and a higher VOC can be achieved in a PBDT-TVT-ID-based PSC.

3.3. Hole Mobility

To determine the influence of the polymer on charge transport, the hole-only devices with the structure ITO/PEDOT:PSS/polymer:PC71BM/MoO3/Ag (using the best polymer:PC71BM ratio) were prepared. The dark J-V curves of PBDT-TVT-ID and PBDT-TVT-DTNT are displayed in Figure 4, and the thicknesses were 98 nm and 104 nm for PBDT-TVT-ID:PC71BM and PBDT-TVT-DTNT:PC71BM blend films, respectively. The hole mobilities of the polymers could be estimated by the equation [43,44,45]:
J = 9 8 ε 0 ε r μ V 2 d 3 .
Therefore, the hole mobilities were calculated to be 2.96 × 10−5 cm2 V−1 s−1 and 6.73 × 10−5 cm2 V−1 s−1 for PBDT-TVT-ID and PBDT-TVT-DTNT, respectively. PBDT-TVT-DTNT has a higher hole mobility, which was in accordance with a higher polymer backbone coplanarity obtained from the latter density functional theory (DFT) calculation. The higher hole mobility of PBDT-TVT-DTNT facilitates the achievement of high JSC and FF, and thus a high PCE.

3.4. Theoretical Calculations

To further explore the electronic properties of PBDT-TVT-ID and PBDT-TVT-DTNT, density functional theory (DFT) was used to simulate the molecular geometry and electron density state distribution of the two polymers. The DFT calculations were carried on the B3LYP-D3(BJ)/6-31G(d) level by Gaussian 09, and two repeating units as the calculation model [46,47]. Note that the long side chain (2-butyloctyl, octyl and decyl) is replaced by a methyl group to simplify the calculation. The optimized geometries and frontier orbitals (HOMO and Lowest Unoccupied Molecular Orbital (LUMO)) of PBDT-TVT-ID and PBDT-TVT-DTNT are displayed in Figure 5 and Table 1, respectively. As shown in Figure 5, the HOMO orbital of (BDT-TVT-ID)2 is mainly delocalized on the BDT-TVT moiety and one (BDT-TVT-DTNT)2 is preferentially delocalized across the conjugated main chain, whereas the LUMO orbitals of both copolymers are preferentially localized on the electron-deficient ID and/or the DTNT segment. In addition, the DFT calculated HOMO, LUMO and Eg as –4.808, –2.856 and 1.95 eV for PBDT-TVT-ID and –4.677, –2.946 and 1.73 eV for PBDT-TVT-DTNT, respectively. Remarkably, when DYNT is replaced by ID, HOMO shows a slight deepening, which is agreement with the results of the CV test. Furthermore, as shown in Figure S11, the torsional angles between the subunits (20.92°, 22.35° and 19.16°) in PBDT-TVT-ID was slightly larger than the ones (9.62°, 12.02° and 9.70°) in PBDT-TVT-DTNT; that is to say, PBDT-TVT-DTNT showed a higher coplanarity which was beneficial for enhancing the backbone π–π stacking in the solid state and charge mobility, as well as having a higher photovoltaic performance.

3.5. Photovoltaic Performance

To have insight into the photovoltaic performance of PBDT-TVT-ID and PBDT-TVT-DTNT, the PSCs device with ITO/PFN/active layers/MoO3/Ag were assembled. The photoactive layers using an electron donor (PBDT-TVT-ID or PBDT-TVT-DTNT) and an electron acceptor (PC71BM) were dissolved in CB. The weight ratios of copolymers were: PC71BM of 1:1 to 1:1.5 and then up to 1:2 with 0.5% DPS as solvent additives were configured to an initial optimization. The J-V characteristics and related calculation result are shown in Figure 6 and Table 2, respectively. Notably, the photovoltaic devices based on PBDT-TVT-ID showed the best PCE (4.09%), with a VOC of 0.91 V, a JSC of 8.72 mA cm−2 and an FF of 51.49%, while the devices with PBDT-TVT-DTNT obtained a larger PCE of 5.44%, with a VOC of 0.74 V, a JSC of 12.21 mA cm−2 and an FF of 60.26% mA·cm−2, as well as an FF of 45.8%. Note that the PBDT-TVT-ID photovoltaic devices exhibited a higher VOC (0.91 V) than the PBDT-TVT-DTNT-based device. Regardless of the effect of the recombination process and shunt resistance, the difference between the polymer HOMO and PC71BM LUMO plays an important role in affecting VOC. Compared to PBDT-TVT-DTNT, the deeper HOMO energy level of PBDT-TVT-ID can achieve a higher VOC in PSCs. But, the devices with PBDT-TVT-ID exhibited a poorer FF of 51.49%, which resulted from the rougher surface morphology and larger phase separation of PBDT-TVT-ID. Meanwhile, the PSC of PBDT-TVT-DTNT possess a broader spectral response range and can capture more photons, which may be considered as an important factor to enhance the JSC of PBDT-TVT-DTNT.

3.6. Morphology Study

The performances of BHJ PSCs are strongly associated with the morphologies of their active layer [40,48]. Therefore, the real space morphologies on the surface and in the bulk of the photoactive layer films under the best ratio conditions were researched by AFM and TEM. The root-mean-square (RMS) roughness values obtained from the height image were 13.5 nm and 10.3 nm for the blends of PBDT-TVT-ID and PBDT-TVT-DTNT, respectively (Figure 7). It can be seen that there is a serious phase separation between PBDT-TVT-ID and PC71BM. Meanwhile, from the TEM, some PC71BM exhibit severe aggregations over 150 nm, indicating that a good interpenetrating network structure cannot be formed. Under the above circumstances, photogenerated excitons are unable to achieve effective dissociation and charge collection in the PSC, resulting in loss of photocurrent. This explains why the devices based on PBDT-TVT-ID have a low FF and JSC. In contrast, the PBDT-TVT-DTNT:PC71BM blended film exhibits a better bicontinuous interpenetrating network and smooth interface, which can boost charge transport, and thus a larger FF and JSC are obtained.

4. Conclusions

Two new solution-processed low band gap copolymers, named PBDT-TVT-ID and PBDT-TVT-DTNT, were designed and synthesized by copolymerizing between bistin BDT-TVTSn and dibromide ID-BOBr2 and/or DTNT-C8Br2, respectively. Both polymers exhibited good thermal stability, broad absorption spectra and relatively low HOMO energy levels. The device with PBDT-TVT-ID/PC71BM and PBDT-TVT-DTNT/PC71BM exhibited good photovoltaic performance with PCEs of 4.09% and 5.44%, respectively. The results demonstrated that a BDT unit containing TVT conjugated side chains may be a promising electron-donor building block for high performance solution-processed PSCs. The device efficiency based on this kind of polymer can be further improved by controlling the film morphology and energy level of the polymer by side chain engineering and a fluorination strategy.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/11/9/1461/s1, Figure S1 1H-NMR spectrum of Compound 1 in CDCl3 solution; Figure S2 1H-NMR spectrum of Compound 3 in CDCl3 solution; Figure S3 1H-NMR spectrum of Compound 4 in CDCl3 solution; Figure S4 1H-NMR spectrum of BDT-TVTSn in CDCl3 solution; Figure S5 13C-NMR spectrum of BDT-TVTSn in CDCl3 solution; Figure S6 1H-NMR spectrum of M2 in CDCl3 solution; Figure S7 1H-NMR spectrum of M3 in CDCl3 solution; Figure S8 1H-NMR spectrum of PBDT-TVT-ID; Figure S9 1H-NMR spectrum of PBDT-TVT-DTNT; Figure S10 DSC scan curves of polymer; Figure S11 Dihedral angles for model compound (BDT-TVT-ID)2 and (BDT-TVT-DTNT)2.

Author Contributions

J.L. and Y.W. wrote the paper, analyzed the data and discussed the results; X.W. and J.T. prepared the conjugated polymers; N.W., Y.P. and C.Y. contributed to the measurements of solar cell and corresponding analysis; Z.L. finished the DFT calculation; Y.X. revised the manuscript; and all authors read and approved the final manuscript.

Funding

This research was funded by The National Natural Science Foundation of China 51602139 and 61964010.

Acknowledgments

The authors thank to the National Natural Science Foundation of China (No. 51602139, No. 51463011), the Natural Science Foundation of Gansu Province (No.18JR3RA108), Excellent Team of Scientific Research (201705), the Foundation of A Hundred Youth Talents Training, and the Instrument Analysis Center of Lanzhou Jiaotong University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gao, K.; Li, L.; Lai, T.; Xiao, L.; Huang, Y.; Huang, F.; Peng, J.; Cao, Y.; Liu, F.; Russell, T.P.; et al. Deep Absorbing Porphyrin Small Molecule for High-Performance Organic Solar Cells with Very Low Energy Losses. J. Am. Chem. Soc. 2015, 137, 7282–7285. [Google Scholar] [CrossRef]
  2. Kang, Q.; Yang, B.; Xu, Y.; Xu, B.; Hou, J. Printable MoOx Anode Interlayers for Organic Solar Cells. Adv. Mater. 2018, 30, 1801718. [Google Scholar] [CrossRef]
  3. Kang, Q.; Ye, L.; Xu, B.; An, C.; Stuard, S.J.; Zhang, S.; Yao, H.; Ade, H.; Hou, J. A Printable Organic Cathode Interlayer Enables over 13% Efficiencyfor 1-cm2 Organic Solar Cells. Joule 2019, 3, 227–239. [Google Scholar] [CrossRef]
  4. Han, L.; Uranbileg, N.; Jiang, S.; Xie, Y.; Jiang, H.; Lan, Z.; Yu, D.; Bao, X.; Yang, R. An Extraordinary Cyclohexylmethyl Side Chain Dominating Polymeric Donor Packing Patterns and Energy Levels for Efficient Non-Fullerene Polymer Solar Cells. J. Mater. Chem. A 2019, 7, 10505–10513. [Google Scholar] [CrossRef]
  5. Gao, K.; Miao, J.; Xiao, L.; Deng, W.; Kan, Y.; Liang, T.; Wang, C.; Huang, F.; Peng, J.; Cao, Y.; et al. Multi-Length-Scale Morphologies Driven by Mixed Additives in Porphyrin-Based Organic Photovoltaics. Adv. Mater. 2016, 28, 4727–4733. [Google Scholar] [CrossRef]
  6. Liu, T.; Luo, Z.; Fan, Q.; Zhang, G.; Gao, W.; Guo, X.; Ma, W.; Zhang, M.; Yang, C.; Li, Y.; et al. Use of two structurally similar small molecular acceptors enabling ternary organic solar cells with high efficiencies and fill factors. Energy Environ. Sci. 2018, 11, 3275–3282. [Google Scholar] [CrossRef]
  7. Gao, K.; Zhu, Z.; Xu, B.; Jo, S.B.; Kan, Y.; Peng, X.; Jen, A.K.Y. Highly Effcient Porphyrin-Based OPV/Perovskite Hybrid Solar Cells with Extended Photoresponse and High Fill Factor. Adv. Mater. 2017, 29, 1703980. [Google Scholar] [CrossRef]
  8. Li, X.; Huang, G.; Zheng, N.; Li, Y.; Kang, X.; Qiao, S.; Jiang, H.; Chen, W.; Yang, R. High-Efficiency Polymer Solar Cells Over 13.9% With a High VOC Beyond 1.0 V by Synergistic Effect of Fluorine and Sulfur. Sol. RRL 2019, 3, 1900005. [Google Scholar] [CrossRef]
  9. Liu, T.; Huo, L.; Chandrabose, S.; Chen, K.; Han, G.; Qi, F.; Meng, X.; Xie, D.; Ma, W.; Yi, Y.; et al. Optimized Fibril Network Morphology by Precise Side-Chain Engineering to Achieve High-Performance Bulk-Heterojunction Organic Solar Cells. Adv. Mater. 2018, 30, 1707353. [Google Scholar] [CrossRef]
  10. Chen, W.; Huang, G.; Li, X.; Li, Y.; Wang, H.; Jiang, H.; Zhao, Z.; Yu, D.; Wang, E.; Yang, R. Revealing the Position Effect of an Alkylthio Side Chain in Phenyl Substituted Benzodithiophene-Based Donor-Polymers on Photovoltaic Performance of Non-Fullerene Organic Solar Cells. ACS Appl. Mater. Interfaces 2019. [Google Scholar] [CrossRef]
  11. Chen, W.; Shen, W.; Wang, H.; Liu, F.; Duan, L.; Xu, X.; Zhu, D.; Qiu, M.; Wang, E.; Yang, R. Enhanced Efficiency of Polymer Solar Cells by Improving Molecular Aggregation and Broadening the Absorption Spectra. Dyes Pigments 2019, 166, 42–48. [Google Scholar] [CrossRef]
  12. Li, J.; Liang, Z.; Wang, Y.; Li, H.; Tong, J.; Bao, X.; Xia, Y. Enhanced Efficiency of Polymer Solar Cellsthrough Synergistic Optimization of Mobilityand Tuning Donor Alloys by Adding High-Mobility Conjugated Polymers. J. Mater. Chem. C 2018, 6, 11015–11022. [Google Scholar] [CrossRef]
  13. Wang, Y.; Liang, Z.; Li, X.; Qin, J.; Ren, M.; Yang, C.; Bao, X.; Xia, Y.; Li, J. Self-Doping n-type Polymer as Cathode Interface Layer Enables Efficient Organic Solar Cells by Increasing Built-in Electric Field and Boosting Interface Contact. J. Mater. Chem. C 2019. [Google Scholar] [CrossRef]
  14. Gao, K.; Jo, S.B.; Shi, X.; Nian, L.; Zhang, M.; Kan, Y.; Lin, F.; Kan, B.; Xu, B.; Rong, Q. Over 12% Effciency Nonfullerene All-Small-MoleculeOrganic Solar Cells with Sequentially Evolved Multilength Scale Morphologies. Adv. Mater. 2019, 31, 1807842. [Google Scholar] [CrossRef]
  15. Li, M.; Gao, K.; Wan, X.; Zhang, Q.; Kan, B.; Xia, R.; Liu, F.; Yang, X.; Feng, H.; Ni, W.; et al. Solution-Processed Organic Tandem Solar Cells with Power Conversion Efficiencies >12%. Nat. Photon. 2017, 11, 85–90. [Google Scholar] [CrossRef]
  16. Liang, Z.; Tong, J.; Li, H.; Wang, Y.; Wang, N.; Li, J.; Yang, C.; Xia, Y. The Comprehensive Utilization of the Synergistic Effect of Fullerene and Non-Fullerene Acceptors to Achieve Highly Efficient Polymer Solar Cells. J. Mater. Chem. A 2019, 7, 15841–15850. [Google Scholar] [CrossRef]
  17. Huo, L.; Zhang, S.; Guo, X.; Xu, F.; Li, Y.; Hou, J. Replacing Alkoxy Groups with Alkylthienyl Groups: A Feasible Approach to Improve the Properties of Photovoltaic Polymers. Angew. Chem. Int. Ed. 2011, 50, 9697–9702. [Google Scholar] [CrossRef]
  18. Zhang, M.; Gu, Y.; Guo, X.; Liu, F.; Zhang, S.; Huo, L.; Russell, T.P.; Hou, J. Efficient Polymer Solar Cells Based on Benzothiadiazole and Alkylphenyl Substituted Benzodithiophene with a Power Conversion Efficiency over 8%. Adv. Mater. 2013, 25, 4944–4949. [Google Scholar] [CrossRef]
  19. Dou, L.; Gao, J.; Richard, E.; You, J.; Chen, C.; Cha, K.C.; He, Y.; Li, G.; Yang, Y. Systematic Investigation of Benzodithiophene- and Diketopyrrolopyrrole-Based Low-Bandgap Polymers Designed for Single Junction and Tandem Polymer Solar Cells. J. Am. Chem. Soc. 2012, 134, 10071–10079. [Google Scholar] [CrossRef]
  20. Zhang, M.; Guo, X.; Ma, W.; Zhang, S.; Huo, L.; Ade, H.; Hou, J. An Easy and Effective Method to Modulate Molecular Energy Level of the Polymer Based on Benzodithiophene for the Application in Polymer Solar Cells. Adv. Mater. 2014, 26, 2089–2095. [Google Scholar] [CrossRef]
  21. Zhu, D.; Bao, X.; Ouyang, D.; Wang, J.; Yuan, X.; Wang, Q.; Zhou, D.; Wen, S.; Yang, R. Single-Junction Fullerene Solar Cells with 10% Efficiency and High Open-Circuit Voltage Approaching 1 V. Nano Energy 2017, 40, 495–503. [Google Scholar] [CrossRef]
  22. Hwang, M.C.; Kang, H.; Yu, K.; Yun, H.; Kwon, S.K.; Lee, K.; Kim, Y.H. New Polybenzo[1,2-b: 4,5-b′] Dithiophene Derivative with an Alkoxyphenyl Side Chain: Applications in Organic Photovoltaic Cells and Organic Semiconductors. Sol. Energy Mater. Sol. Cells 2014, 125, 39–46. [Google Scholar] [CrossRef]
  23. Han, L.; Bao, X.; Hu, T.; Du, Z.; Chen, W.; Zhu, D.; Liu, Q.; Sun, M.; Yang, R. Novel Donor-Acceptor Polymer Containing 4,7-Bis(thiophen-2-yl)benzo[c][2–4]thiadiazole for Polymer Solar Cells with Power Conversion Efficiency of 6.21%. Macromol. Rapid Commun. 2014, 35, 1153–1157. [Google Scholar] [CrossRef]
  24. Sonar, P.; Zhuo, J.; Zhao, L.; Lim, K.M.; Chen, J.; Rondinone, A.J.; Singh, S.P.; Chua, L.L.; Ho, P.K.H.; Dodabalapur, A. Furan Substituted Diketopyrrolopyrrole and Thienylenevinylene Based Low Band Gap Copolymer for High Mobility Organic Thin Film Transistors. J. Mater. Chem. 2012, 22, 17284–17292. [Google Scholar] [CrossRef]
  25. Lim, B.; Yeo, J.S.; Khim, D.; Kim, D.Y. Synthesis and Photovoltaic Properties of a Thienylenevinylene and Diketopyrrolopyrrole Copolymer with High Mobility. Macromol. Rapid Commun. 2011, 32, 1551–1556. [Google Scholar] [CrossRef]
  26. Lim, B.; Baeg, K.J.; Jeong, H.G.; Jo, J.; Kim, H.; Park, J.W.; Noh, Y.Y.; Vak, D.; Park, J.H.; Park, J.W.; et al. A New Poly(thienylenevinylene) Derivative with High Mobility and Oxidative Stability for Organic Thin-Film Transistors and Solar Cells. Adv. Mater. 2009, 21, 2808–2814. [Google Scholar] [CrossRef]
  27. Kim, J.; Lim, B.; Baeg, K.; Baeg, K.J.; Noh, Y.Y.; Khim, D.; Jeong, H.G.; Yun, J.M.; Kim, D.Y. Highly Soluble Poly(thienylenevinylene) Derivatives with Charge-Carrier Mobility Exceeding 1 cm2 V−1 s−1. Chem. Mater. 2011, 23, 4663–4665. [Google Scholar] [CrossRef]
  28. Yao, H.; Zhang, H.; Ye, L.; Zhao, W.; Zhang, S.; Hou, J. Molecular Design and Application of a Photovoltaic Polymer with Improve Optical Properties and molecular energy levels. Macromolecules 2015, 48, 3493–3499. [Google Scholar] [CrossRef]
  29. Chung, H.S.; Lee, W.H.; Song, C.E.; Shin, Y.; Kim, J.; Lee, S.K.; Shin, W.S.; Moon, S.J.; Kang, I.N. Highly Conjugated Side-Chain-Substituted Benzo[1,2-b:4,5-b’]dithiophene-Based Conjugated Polymers for Use in Polymer. Macromolecules 2014, 47, 97–105. [Google Scholar] [CrossRef]
  30. Guo, J.; Bin, H.; Wang, W.; Chen, B.; Guo, J.; Sun, R.; Zhang, Z.; Jiao, X.; Li, Y.; Min, J. All-Small Molecule Solar Cells Based on Donor Molecular Optimization with Highly Enhanced Efficiency and Stability. J. Mater. Chem. A 2018, 6, 15675–15683. [Google Scholar] [CrossRef]
  31. Ma, Z.; Wang, E.; Jarvid, M.E.; Henriksson, P.; Inganas, O.; Zhang, F.; Andersson, M.R. Synthesis and Characterization of Benzodithiophene–Isoindigo Polymers for Solar Cells. J. Mater. Chem. 2012, 22, 2306–2314. [Google Scholar] [CrossRef]
  32. Ma, Z.; Sun, W.; Himmelberger, S.; Vandewal, K.; Tang, Z.; Bergqvist, J.; Salleo, A.; Andreasen, J.W.; Inganas, O.; Andersson, M.R.; et al. Structure-Property Relationships of Oligothiophene–Isoindigo Polymers for Efficient Bulk-Heterojunction Solar Cells. Energy Environ. Sci. 2014, 7, 361–369. [Google Scholar] [CrossRef]
  33. Yang, T.; Wang, M.; Duan, C.; Hu, X.; Huang, L.; Peng, J.; Huang, F.; Gong, X. Inverted Polymer Solar Cells with 8.4% Efficiency by Conjugated Polyelectrolyte. Energy Environ. Sci. 2012, 5, 8208–8214. [Google Scholar] [CrossRef]
  34. Liu, Y.; Zhao, J.; Li, Z.; Mu, C.; Ma, W.; Hu, H.; Jiang, K.; Lin, H.; Ade, H.; Yan, H. Aggregation and Morphology Control Enables Multiple Cases of High-Efficiency Polymer Solar Cells. Nat. Commun. 2014, 5, 5293. [Google Scholar] [CrossRef]
  35. Tong, J.; Li, J.; Zhang, P.; Ma, X.; Wang, M.; An, L.; Sun, J.; Guo, P.; Yang, G.; Xia, Y. Naphtho[1,2-c:5,6-c’]bis[2–4]thiadiazole-based Conjugated Polymers Consisting of Oligothiophenes for Efficient Polymer Solar Cells. Polymer 2017, 121, 183–195. [Google Scholar] [CrossRef]
  36. Xu, T.; Yu, L. How to design low bandgap polymers for highly efficient organic solar cells. Mater. Today 2014, 17, 11–15. [Google Scholar] [CrossRef]
  37. Osaka, I.; Shimawaki, M.; Mori, H.; Doi, I.; Miyazaki, E.; Koganezawa, T.; Takimiya, K. Synthesis, Characterization, and Transistor and Solar Cell Applications of a Naphthobisthiadiazole-Based Semiconducting Polymer. J. Am. Chem. Soc. 2012, 134, 3498–3507. [Google Scholar] [CrossRef]
  38. Wang, M.; Hu, X.; Liu, P.; Li, W.; Gong, X.; Huang, F.; Cao, Y. Donor-Acceptor Conjugated Polymer Based on Naphtho[1,2-c:5,6-c]bis[2–4]thiadiazole for High-Performance Polymer Solar Cells. J. Am. Chem. Soc. 2011, 133, 9638–9641. [Google Scholar] [CrossRef]
  39. Lei, T.; Wang, J.; Pei, J. Design, Synthesis, and Structure–Property Relationships of Isoindigo-Bed Conjugated Polymers. Acc. Chem. Res. 2014, 47, 1117–1126. [Google Scholar] [CrossRef]
  40. Li, J.; Wang, Y.; Liang, Z.; Wang, N.; Tong, J.; Yang, C.; Bao, X.; Xia, Y. Enhanced Organic Photovoltaic Performance through Modulating Vertical Composition Distribution and Promoting Crystallinity of the Photoactive Layer by Diphenyl Sulfide Additives. ACS Appl. Mater. Interfaces 2019, 11, 7022–7029. [Google Scholar] [CrossRef]
  41. Tong, J.; An, L.; Li, J.; Zhang, P.; Guo, P.; Yang, C.; Su, Q.; Wang, X.; Xia, Y. Large Branched Alkylthienyl Bridged Naphtho[1,2-c:5,6-c’]bis[2–4]thiadiazole-Containing Low Bandgap Copolymers: Synthesis and Photovoltaic Application. J. Macromol. Sci. Part A Pure Appl. Chem. 2017, 54, 176–185. [Google Scholar] [CrossRef]
  42. Li, Y.; Zhang, H.; Wang, X.; Wang, F.; Xia, Y. Synthesis and Photovoltaic Properties of Silole-Containing Conjugated Polymers. Acta Chim. Sin. 2015, 73, 1055–1060. [Google Scholar]
  43. Chen, W.; Jiang, H.; Huang, G.; Zhang, J.; Cai, M.; Wan, X.; Yang, R. High-Efficiency Ternary Polymer Solar Cells Based on Intense FRET Energy Transfer Process. Sol. RRL 2018, 2, 1800101. [Google Scholar] [CrossRef]
  44. Bao, X.; Zhang, Y.; Wang, J.; Zhu, D.; Yang, C.; Li, Y.; Yang, C.; Xu, J.; Yang, R. High Extinction Coefficient Thieno[3,4-b]thiophene-Based Copolymer for Efficient Fullerene-Free Solar Cells with Large Current Density. Chem. Mater. 2017, 29, 6766–6771. [Google Scholar] [CrossRef]
  45. Du, Z.; Bao, X.; Li, Y.; Liu, D.; Wang, J.; Yang, C.; Wimmer, R.; Stade, L.W.; Yang, R.; Yu, D. Balancing High Open Circuit Voltage over 1.0 V and High Short Circuit Current in Benzodithiophene-Based Polymer Solar Cells with Low Energy Loss: A Synergistic Effect of Fluorination and Alkylthiolation. Adv. Energy Mater. 2017, 8, 1701471. [Google Scholar] [CrossRef]
  46. Smith, D.G.A.; Burns, L.A.; Patkowski, K.; Sherrill, C.D. Revised Damping Parameters for the D3 Dispersion Correction to Density Functional Theory. J. Phys. Chem. Lett. 2016, 7, 2197–2203. [Google Scholar] [CrossRef]
  47. Moellmann, J.; Grimme, S. DFT-D3 Study of Some Molecular Crystals. J. Phys. Chem. C. 2014, 118, 7615–7621. [Google Scholar] [CrossRef]
  48. Chen, W.; Huang, G.; Li, X.; Wang, H.; Li, Y.; Jiang, H.; Zheng, N.; Yang, R. Side-Chain-Promoted Benzodithiophene-based Conjugated Polymers toward Striking Enhancement of Photovoltaic Properties for Polymer Solar Cells. ACS Appl. Mater. Interfaces 2018, 10, 42747–42755. [Google Scholar] [CrossRef]
Polymers 11 01461 sch001 550

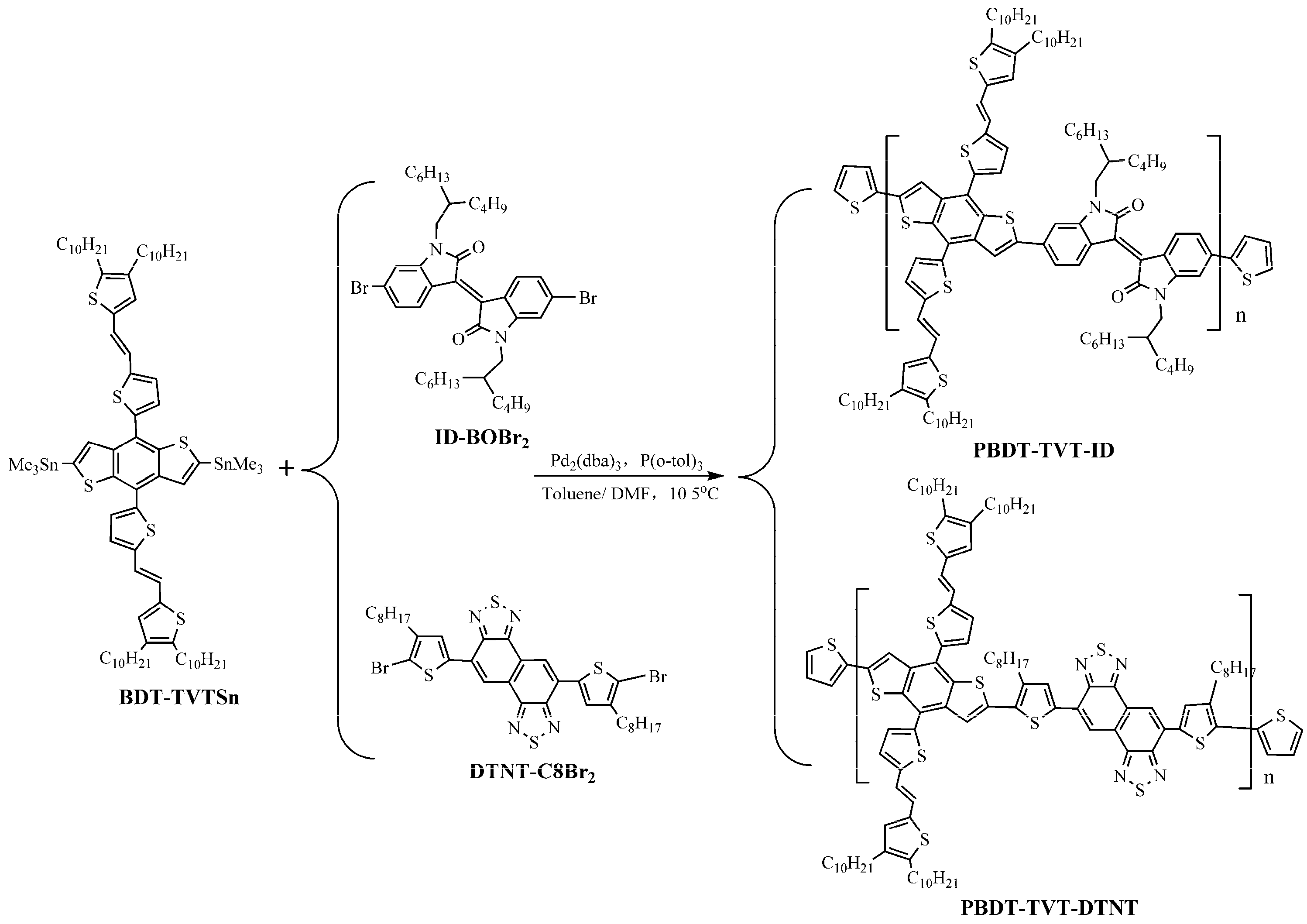

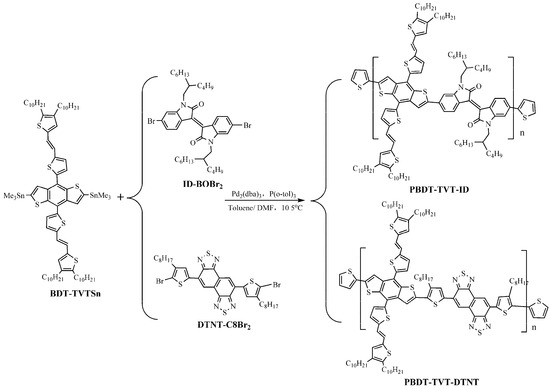

Scheme 1. Synthetic routes for the polymers PBDT-TVT-ID and PBDT-TVT-DTNT.
Scheme 1. Synthetic routes for the polymers PBDT-TVT-ID and PBDT-TVT-DTNT.
Polymers 11 01461 sch001
Polymers 11 01461 g001 550

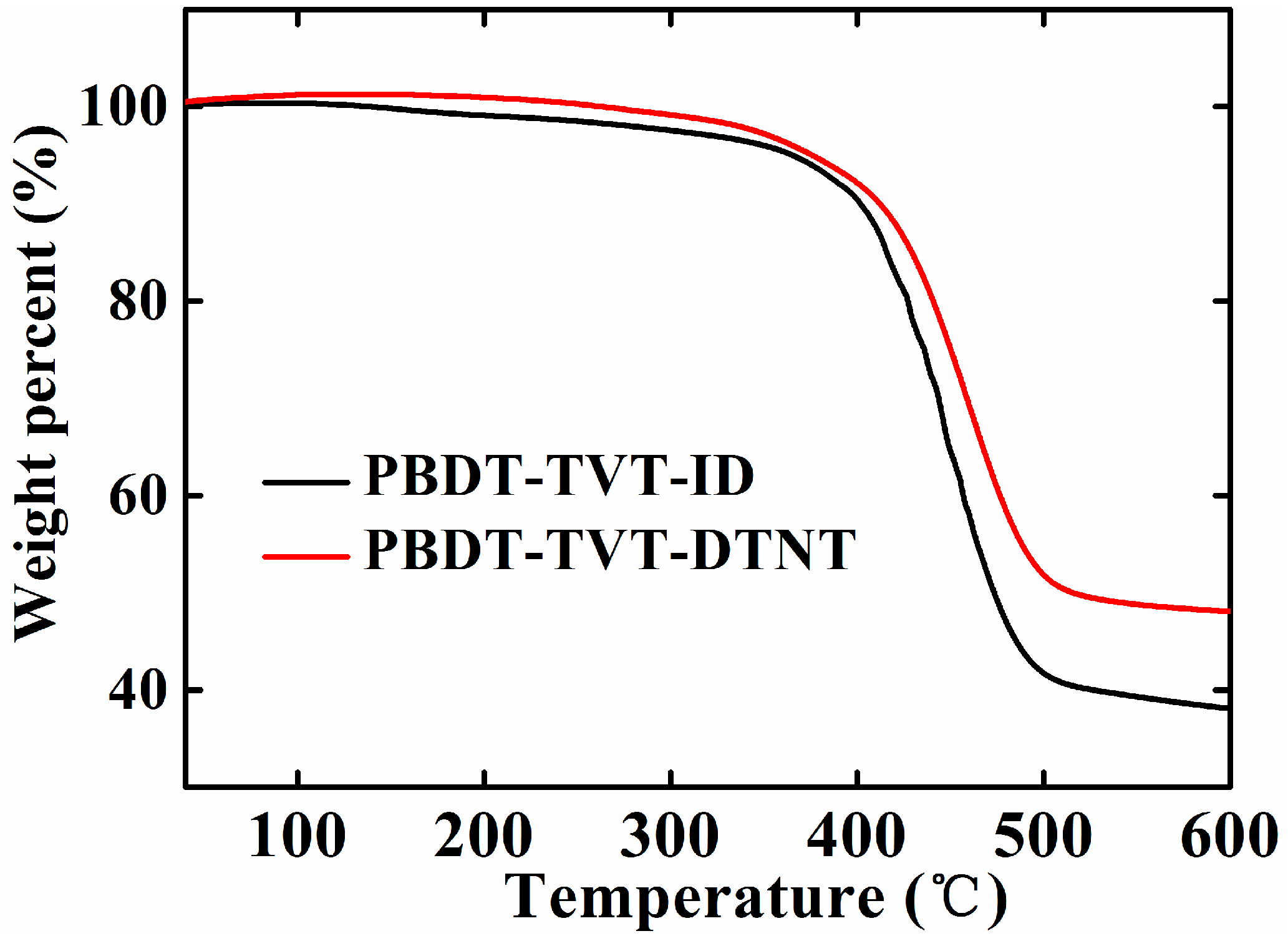

Figure 1. Thermal gravimetric analysis (TGA) characteristics of PBDT-TVT-ID and PBDT-TVT-DTNT.
Figure 1. Thermal gravimetric analysis (TGA) characteristics of PBDT-TVT-ID and PBDT-TVT-DTNT.
Polymers 11 01461 g001
Polymers 11 01461 g002 550

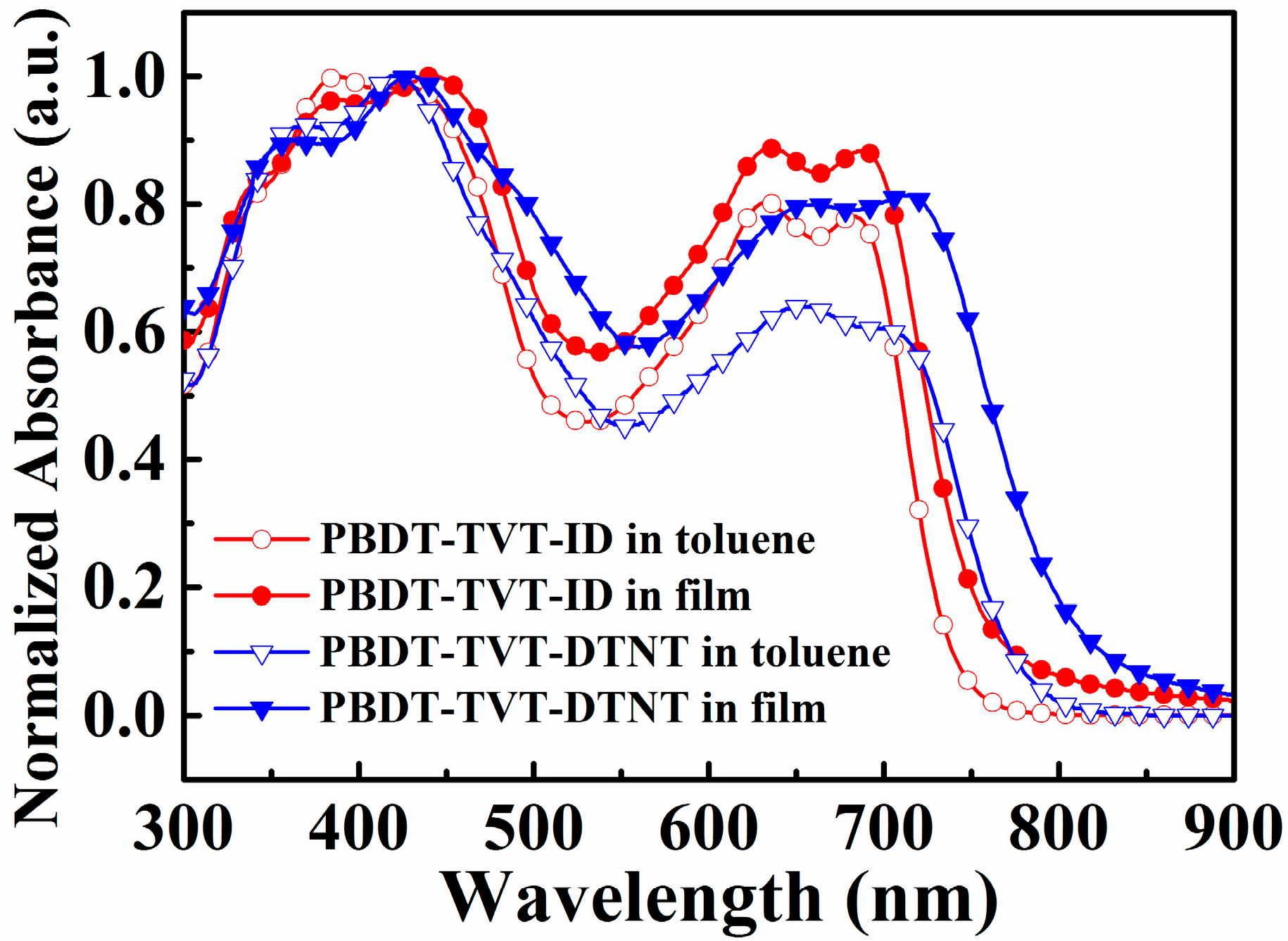

Figure 2. Normalized UV-visible absorption spectra of the polymers in toluene solution and thin films.
Figure 2. Normalized UV-visible absorption spectra of the polymers in toluene solution and thin films.
Polymers 11 01461 g002
Polymers 11 01461 g003 550

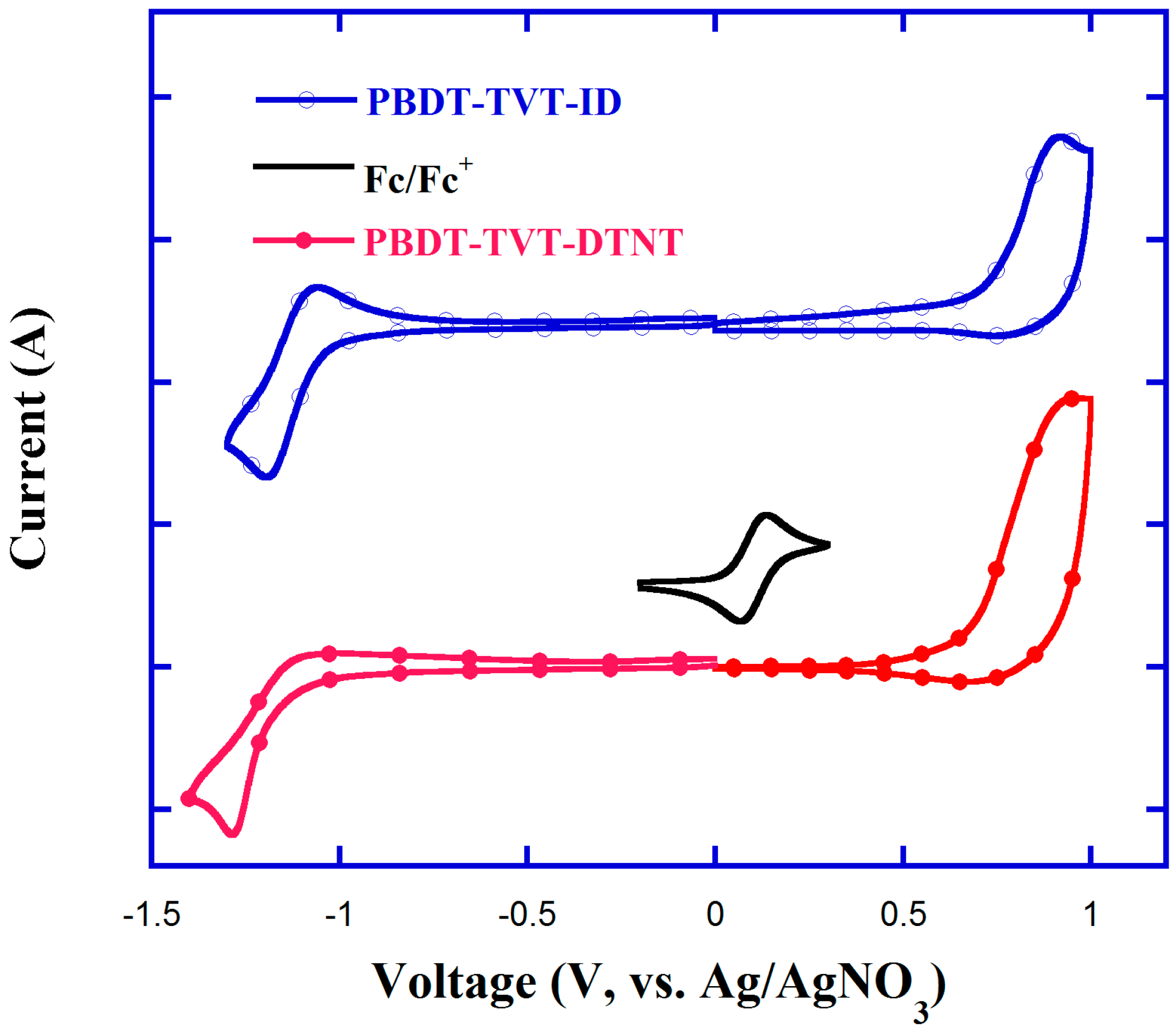

Figure 3. CV curves of PBDT-TVT-ID and PBDT-TVT-DTNT.
Figure 3. CV curves of PBDT-TVT-ID and PBDT-TVT-DTNT.
Polymers 11 01461 g003
Polymers 11 01461 g004 550

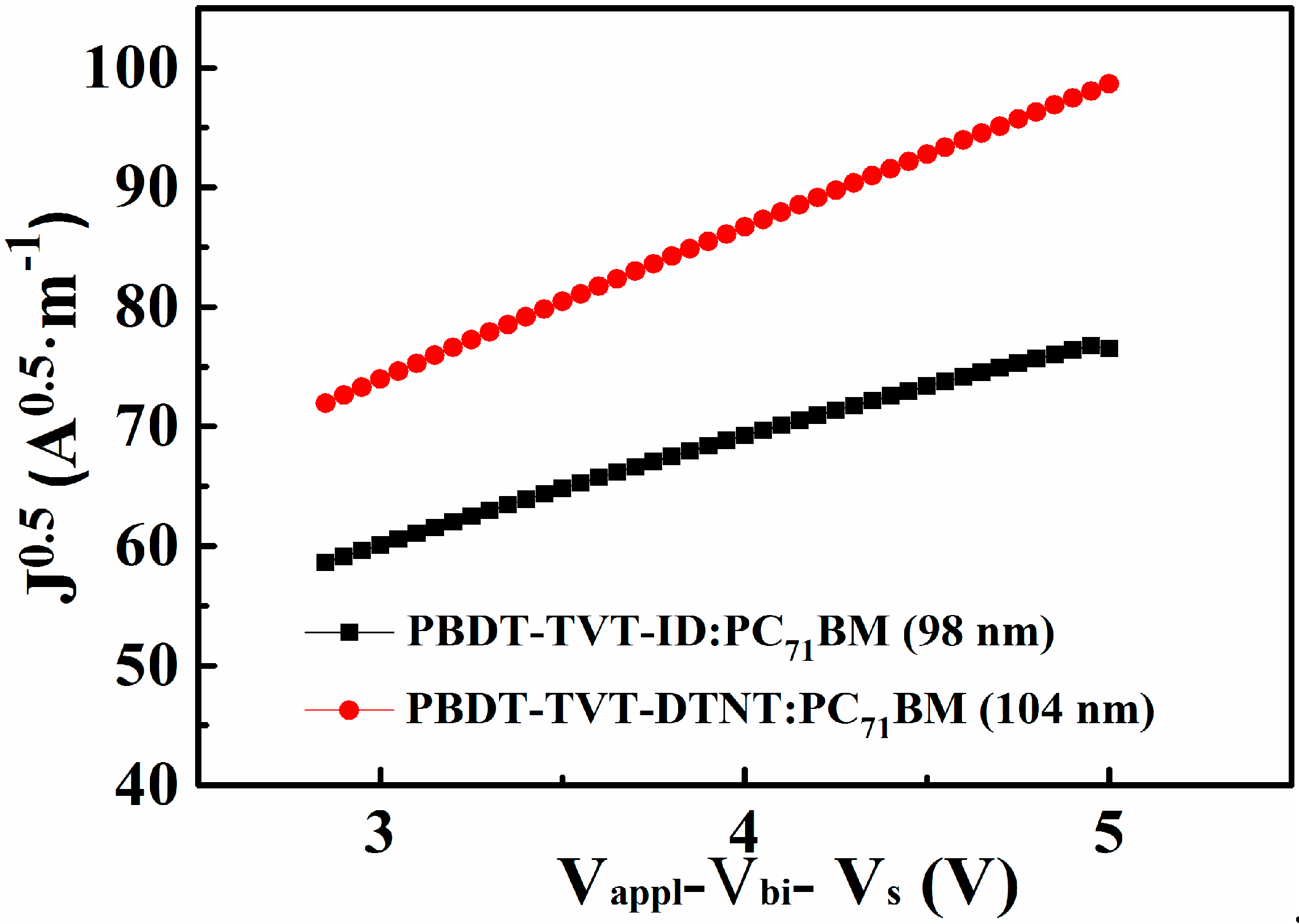

Figure 4. J-V characteristics of hole-only devices.
Figure 4. J-V characteristics of hole-only devices.
Polymers 11 01461 g004
Polymers 11 01461 g005 550

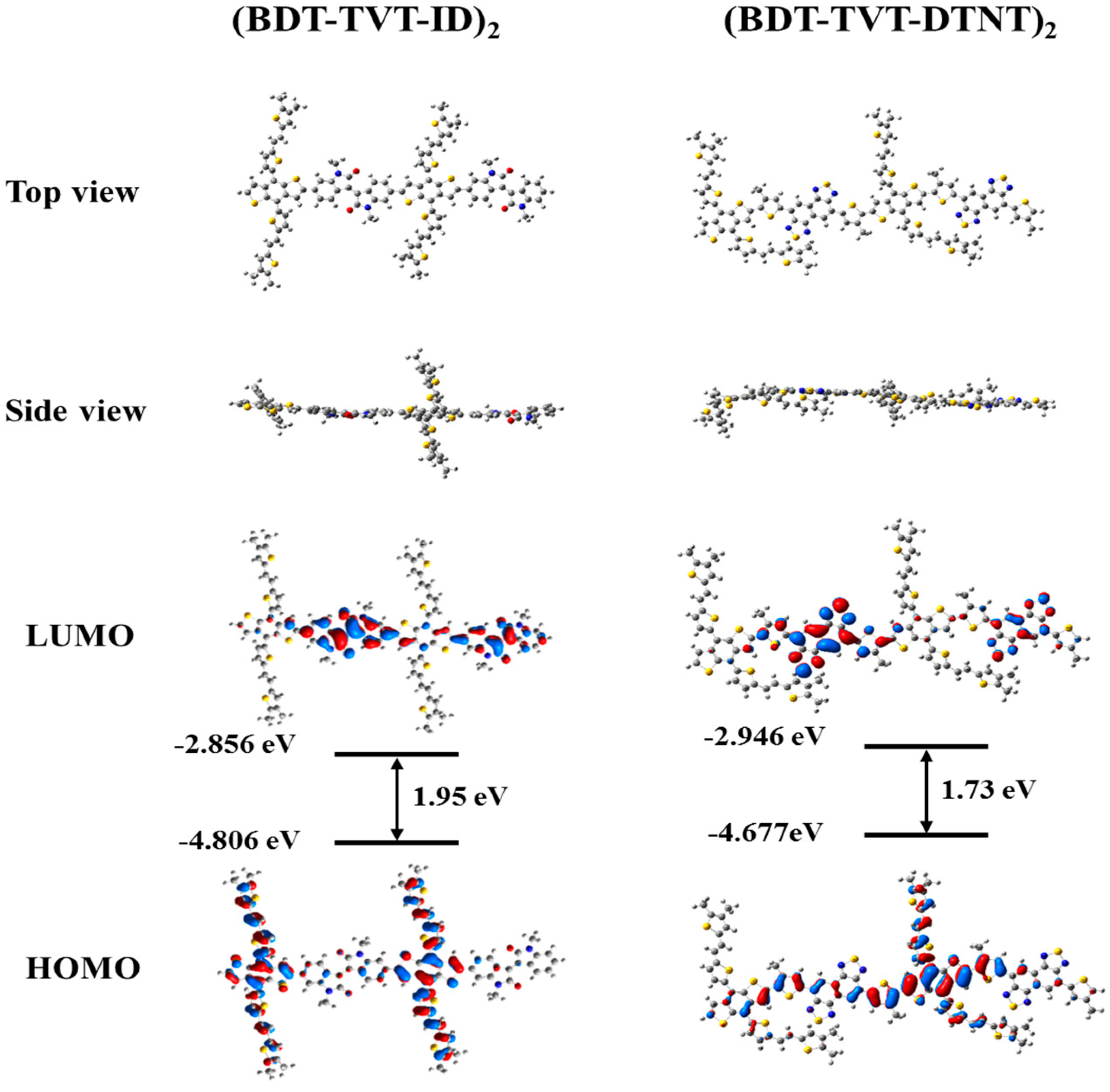

Figure 5. Optimized molecular geometries and molecular orbital of the Highest Occupied Molecular Orbital (HOMO) and Lowest Unoccupied Molecular Orbital (LUMO) for polymers.
Figure 5. Optimized molecular geometries and molecular orbital of the Highest Occupied Molecular Orbital (HOMO) and Lowest Unoccupied Molecular Orbital (LUMO) for polymers.
Polymers 11 01461 g005
Polymers 11 01461 g006 550

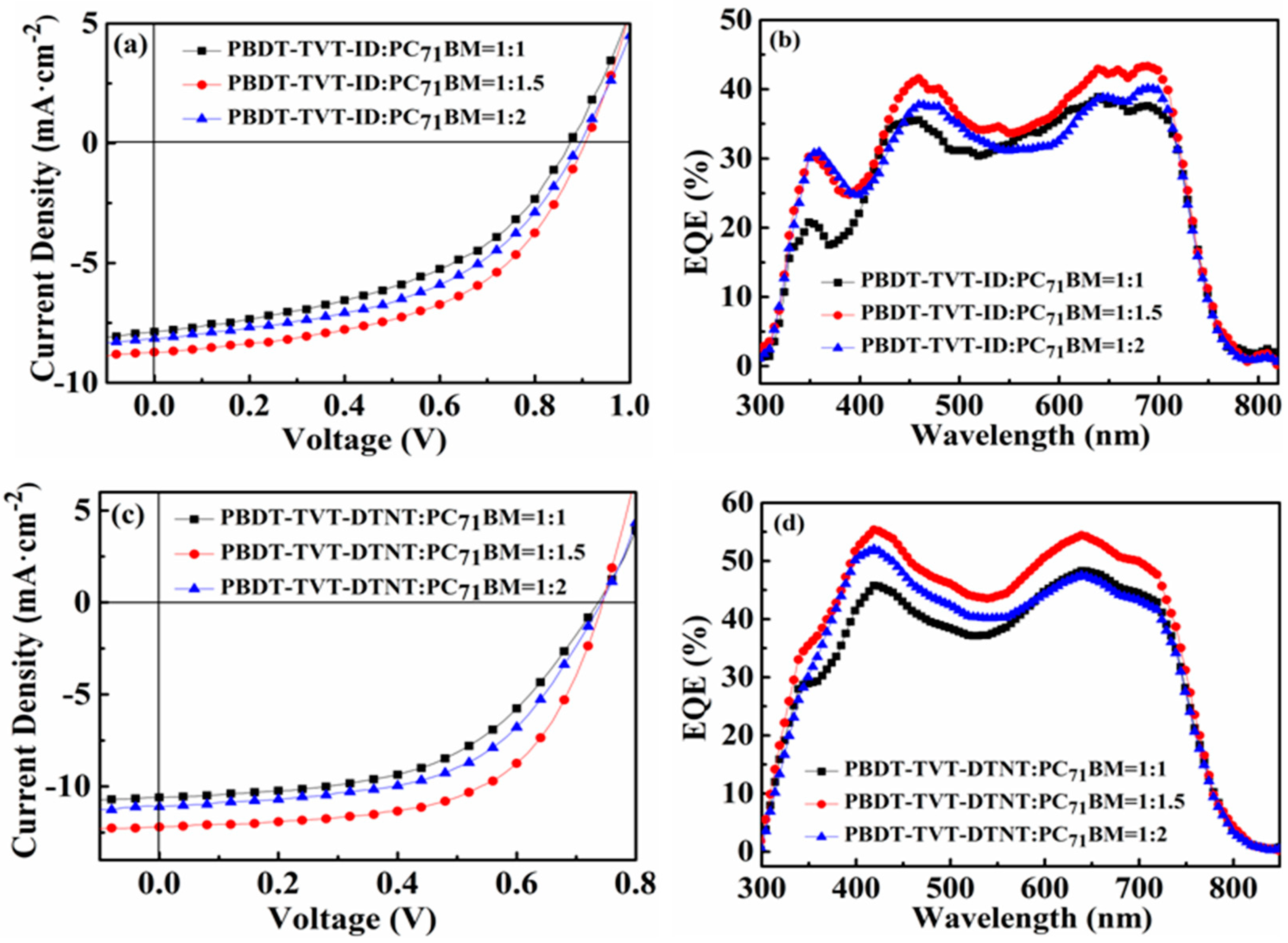

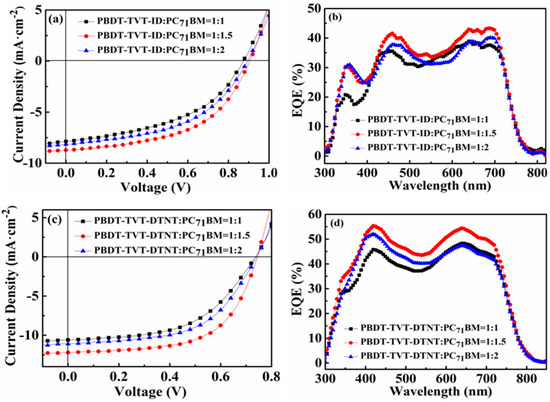

Figure 6. (a,c) J-V curves of the PSCs based on PBDT-TVT-ID and PBDT-TVT-DTNT; (b,d) EQE spectrums of the related PSCs.
Figure 6. (a,c) J-V curves of the PSCs based on PBDT-TVT-ID and PBDT-TVT-DTNT; (b,d) EQE spectrums of the related PSCs.
Polymers 11 01461 g006
Polymers 11 01461 g007 550

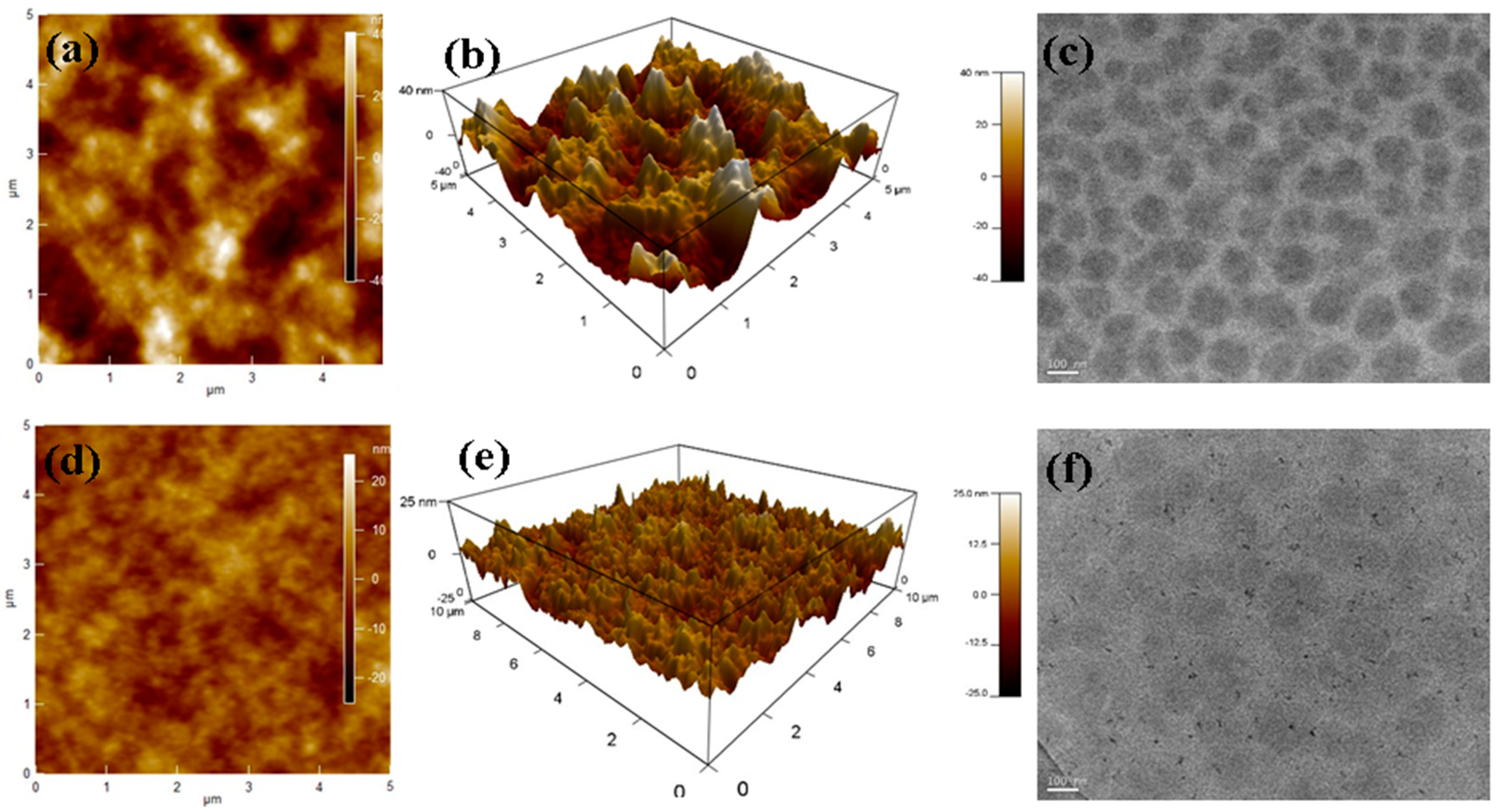

Figure 7. AFM and TEM images of polymer/PC71BM blend films: (a,d) AFM height; (b,e) 3D height; (c,f) TEM; (a–c) PBDT-TVT-ID; and (d–f) PBDT-TVT-DTNT.
Figure 7. AFM and TEM images of polymer/PC71BM blend films: (a,d) AFM height; (b,e) 3D height; (c,f) TEM; (a–c) PBDT-TVT-ID; and (d–f) PBDT-TVT-DTNT.
Polymers 11 01461 g007
Table
Table 1. Absorption characteristic and cyclic voltammetry (CV) parameters.
Table 1. Absorption characteristic and cyclic voltammetry (CV) parameters.
Polymerλonset (nm)Eg1 (eV)EgelectHOMO 2 (eV)LUMO 3 (eV)HOMO 4 (eV)LUMO 4 (eV)
PBDT-TVT-ID7601.631.74−5.42−3.68−4.81−2.86
PBDT-TVT-DTNT8171.521.76−5.35−3.59−4.68−2.95
1 Calculated from the empirical equation: Eg = 1240/λonset; 2 EHOMO = −e (φox + 4.70) (eV); 3 ELUMO = −e (φred + 4.70) (eV); 4 DFT data calculated from dimer model compound.
Table
Table 2. The photovoltaic parameters of the polymer solar cells (PSCs) with PBDT-TVT-ID or PBDT-TVT-DTNT.
Table 2. The photovoltaic parameters of the polymer solar cells (PSCs) with PBDT-TVT-ID or PBDT-TVT-DTNT.
Active LayerAdditiveVOC (V)JSC
(mA cm−2)		FF (%)PCE (%) BestPCE (%) Average a
PBDT-TVT-ID:PC71BM=1:10.5% DPS0.907.8244.603.163.10
PBDT-TVT-ID:PC71BM=1:1.50.5% DPS0.918.72 51.494.093.89
PBDT-TVT-ID:PC71BM=1:20.5% DPS0.908.16 48.383.553.42
PBDT-TVT-DTNT:PC71BM=1:10.5% DPS0.7410.60 52.004.083.91
PBDT-TVT-DTNT:PC71BM=1:1.50.5% DPS0.7412.21 60.255.445.26
PBDT-TVT-DTNT:PC71BM=1:2.0.5% DPS0.7411.09 55.114.534.34
a More than 15 solar cell samples were evaluated.
