Fluorene-Based Donor-Acceptor Copolymers Containing Functionalized Benzotriazole Units: Tunable Emission and their Electrical Properties †

by
Iván Torres-Moya
1,
Rebeca Vázquez-Guilló
2,
Sara Fernández-Palacios
3,
José Ramón Carrillo
1,
Ángel Díaz-Ortiz
1,
Juan Teodomiro López Navarrete
3,
Rocío Ponce Ortiz
3,
Mari Carmen Ruiz Delgado
3,*,
Ricardo Mallavia
2,* and
Pilar Prieto
1,*
1
Department of Organic Chemistry, Faculty of Chemical Sciences and Technologies-IRICA, University of Castilla-La Mancha, 13071 Ciudad Real, Spain
2
Instituto de Investigación Desarrollo e innovación en Biotecnología Sanitaria de Elche (IDiBE), University of Miguel Hernández, 03202 Elche, Spain
3
Department of Physical Chemistry, Faculty of Sciences, University of Málaga, 29071 Málaga, Spain
*
Authors to whom correspondence should be addressed.
†
Dedicated to Professor José Ignacio Garcia Laureiro.
Polymers 2020, 12(2), 256; https://doi.org/10.3390/polym12020256
Submission received: 18 November 2019 / Revised: 15 January 2020 / Accepted: 18 January 2020 / Published: 22 January 2020
Browse Figures
Versions Notes

Abstract

:
Monomers 4,7-dibromo-2H-benzo[d]1,2,3-triazole (m1) and 4,7-(bis(4-bromophenyl)ethynyl)-2H-benzo[d]1,2,3-triazole (m2) have been synthesized in good yields using different procedures. Monomers m1 and m2 have been employed for building new copolymers of fluorene derivatives by a Suzuki reaction under microwave irradiation using the same conditions. In each case different chain lengths have been achieved, while m1 gives rise to polymers for m2 oligomers have been obtained (with a number of monomer units lower than 7). Special interest has been paid to their photophysical properties due to excited state properties of these D-A units alternates, which have been investigated by density functional theory (DFT) calculations using two methods: (i) An oligomer approach and (ii) by periodic boundary conditions (PBC). It is highly remarkable the tunability of the photophysical properties as a function of the different monomer functionalization derived from 2H-benzo[d]1,2,3-triazole units. In fact, a strong modulation of the absorption and emission properties have been found by functionalizing the nitrogen N-2 of the benzotriazole units or by elongation of the π-conjugated core with the introduction of alkynylphenyl groups. Furthermore, the charge transport properties of these newly synthesized macromolecules have been approached by their implementation in organic field-effect transistors (OFETs) in order to assess their potential as active materials in organic optoelectronics.

Graphical Abstract

1. Introduction

The semiconductive nature of conjugated polymers makes them attractive candidates as alternatives to inorganic materials in electronics and photonics, principally due to their promise for low cost and large-scale processing of devices such as light-emitting diodes [1], solar cells [2,3,4,5,6], and organic field-effect transistors (OFETs) [7,8,9,10,11,12]. In addition, synthetic chemistry is a powerful tool to create new routes for the design and synthesis of new conjugated materials and device architectures, allowing modification of chemical structures and the development of new polymeric formulations, thus allowing the control of their optical and electronic properties. Molecular and device designs inspired in modified polymers, either at the backbone or at lateral chains, have been used to achieve blue or red-shifted absorptions, water solubility, photo and electroluminescence, interaction or coupling to active agents, etc. [13,14,15,16]. All of these facts lead to the achievement of higher performances and more stable devices.
Among the possible synthetic tools, modulation of conjugation length is feasible by modifying the degree of coplanarity in the polymer backbone. In the same way, the introduction of acceptor (A) and donor groups (D) or extending the conjugation causes hypsochromic or bathochromic shifts in luminescence spectrum [17]. One of the best, easiest, and most effective approaches to extend the absorption range is to design random D-A copolymers consisting of three or more monomers with complementary absorptions or the blending of two or more different polymers containing mono-acceptor and mono-donor with complementary absorption [18,19,20,21]. For example, full color displays can be formulated using classical structures like homopoly(9,9-di-n-octylfluoren-2,7-diyl) (PFO, λemax = 417 nm), poly[(9,9-di-n-octylfluoren-2,7-diyl)-alt-(benzo[2,1,3]thiadiazol-4,8-diyl)] (F8BT, λemax = 515 nm), and poly[2-methoxy-5-(2-ethylhexyloxy)-alt-1,4-phenylenevinylene] (MEH-PPV, λemax = 554 nm) due to the variety of band gaps that can be realized through chemical modification.
The variation of the Highest Occupied Molecular Orbital (HOMO) and the Lowest Unoccupied Molecular Orbital (LUMO) energy levels by a synthetic approach is also interesting to modulate the semiconductor ability to act as p-type, n-type, or ambipolar semiconductors [22,23,24]. Due to its easy modification, benzotriazole unit has been widely used as an electron-acceptor unit to build medium or wide band-gap D-A conjugated polymers in organic electronics [25,26,27]. Recently, dramatic development has been achieved in organic solar cells and in other electronic devices by using the benzotriazole-based polymers as the electron acceptor with small band-gap donor groups [28].
On the other hand, benzotriazole unit is a multitask skeleton which has been used in other areas, for example, as organic waveguides [29], in organogels [30], as semiconductors in OFETs [31], and as fluorescence sensors in biomedicine [32]. Previously in our groups, we have described the use of 4,7-dialkynyl-2H-benzo[d]1,2,3-triazole derivatives as semiconductors in OFETs [31].
In this work, we propose a series of macromolecules based on fluorene and different 2H-benzo[d]1,2,3-triazole derivatives with four different groups in order to modulate their acceptor character, aiming at studying their photophysical properties and improving the semiconductor character of the alkynyl-2H-benzo[d]1,2,3-triazole moieties (Scheme 1) for applications in optoelectronics.

2. Materials and Methods

Reagents were used as purchased. All the reactions which are air-sensitive were carried out under an argon atmosphere. A CEM (Matthews, NC, USA) Discover microwave reactor with magnetic stirring was used for the synthesis under microwave irradiation. This equipment comprises a pressure sensor (IntelliVent) and an infrared (IR) sensor allows to monitor and control the temperature. The reactions were performed in standard Pyrex® tubes of 10 mL. The method employed was SPS (solid phase synthesis) with a pulse of 150 W applied maintaining the sample at a temperature of 135 ± 5 °C for 22 min.
A Varian Unity 500 (1H: 500 MHz; 13C: 125 MHz) spectrometer (Illinois, US) at 298 K was employed to record the NMR spectra employing deuterated solvents and all the signals were internally referenced against the TMS (trimethylsilane) solvent signal. Coupling constants (J) are denoted in Hz and chemical shifts (δ) in ppm. Multiplicities are denoted as follows: s = singlet, d = doublet, t = triplet, m = multiplet, brs = broad singlet. A Varian Cary model 5000 UV-Vis-NIR spectrophotometer (Agilent, Santa Clara, US) was employed to record the UV-vis spectra, using standard quartz cells of 1 cm width and solvents of high spectroscopic grade. IR spectra were registered on an IR Shimadzu, FTIR Affinity 1S WL C/Labsolution system (Shimadzu, Tokio, Japón), with a zinc selenide crystal and ATR device. An FT Raman accessory kit (RamIl) on a Bruker Vertex 70 FT-IR interferometer (Bruker, Billerica, US) and a continuous-wave Nd:YAG laser were employed to perform the FT-Raman spectra with an excitation at 1064 nm. In addition, a germanium detector operating at liquid-nitrogen temperature was performed and the Raman scattering radiation was collected in a back-scattering configuration with a 4 cm−1 spectral resolution. In the reported spectra, an average of 1000 scans was employed.
Size exclusion chromatographic (SEC) analysis was performed on a Shimadzu LC-20AD (Shimadzu, Tokio, Japón), index refraction detector RID-10A (Shimadzu, Kyoto, Japón) and on an evaporative light scattering detector (ELSD 3300, Alltech Associates, Inc., (Deerfield, IL, USA). The procedure employed was the following one: 20 μL of samples was injected on a column PLgel 5 μm MIXED-C; 2 × (300 × 7.5 mm) from Polymer Laboratories Ltd. (Salop, UK). Between 3–5 mg of each sample was dissolved in 1 mL of THF (as eluent) and were filtered through a 0.45 μm nylon syringe filter. In order to calculate the number-average (Mn) and weight-average (Mw) molecular weights Polymer Laboratories EasiCal Polystyrene standards for an accurate calibration were used.
Synthesis of monomers:
4,7-dibromo-2-hexyl-2H-benzo[d]1,2,3-triazole (m1a): Bromination of benzotriazole 2 (5 g, 42.02 mmol) employing the procedure described by Ekiz [33] afforded a transparent liquid identified as m1a (6.23 g, 73%). 1H-NMR (CDCl3, ppm) δ: 7.48 (s, 2H, HBTz), 4.83–4.80 (t, 2H, J = 7.4 Hz, N-CH2), 2.18–2.17 (t, 2H, J = 7.4 Hz, –CH2), 1.37–1.35 (m, 6H, 3 × –CH2), 0.93–0.91 (t, 3H, J = 6.8 Hz, –CH3). 13C-NMR (CDCl3, ppm) δ: 143.7, 129.5, 110.0, 57.5, 31.1, 31.0, 26.2, 22.4, 13.9. IR (neat, cm−1): 2939.76, 1462.35, 1321.54, 741.72, 670.93. MS calculated for (C12H15Br2N3) M+ 358.96, found 359.15. Anal. calcd. for (C12H15Br2N3): C, 39.92; H, 4.19; Br, 44.26; N, 11.64. Found: C, 39.91; H, 4.20; Br, 44.25; N, 11.64.
4,7-dibromo-2-phenyl-2H-benzo[d]1,2,3-triazole (m1b): Bromination of benzotriazole 3b (1 g, 5.13 mmol) according to the procedure described by Höger [34] afforded a pale brown solid identified as m1b (1.67 g, 92%). m.p.: 131–132 °C. 1H-NMR (CDCl3, ppm) δ: 8.40–8.38 (m, 2H, o-N-Ph), 7.64–7.54 (m 3H, m, p-N-Ph), 7.51 (s, 2H, HBTz). 13C-NMR (CDCl3, ppm) δ: 144.2, 139.9, 130.5, 130.0, 129.6, 120.9, 110.4. IR (neat, cm−1): 3067.01, 1490.96, 1201.05, 954.07, 812.5, 748.49, 664.16. MS calculated for (C12H7Br2N3) M+ 350.90, found 351.02. Anal. calcd. for (C12H7Br2N3): C, 40.83; H, 2.00; Br, 45.27; N = 11.90. Found: C, 40.81; H, 2.02; Br, 45.25; N = 11.92.
2-(3,5-bis(trifluoromethyl)phenyl)-4,7-dibromo-2H-benzo[d]1,2,3-triazole (m1c): Bromination of benzotriazole 6c (1.2 g, 3.62 mmol) according to the procedure described by Höger [34] afforded a brown solid identified as m1c (1.31 g, 74%). m.p.: 99–100 °C. 1H-NMR (CDCl3, ppm) δ: 8.93 (s, 2H, o-N-Ph), 8.02 (s, 1H, p-N-Ph), 7.56 (s, 2H, HBTz). 13C-NMR (CDCl3, ppm) δ: 144.9, 140.6, 133.6, 133.5, 131.5, 123.1, 121.1, 110.6. IR (neat, cm−1): 3088.10, 1469.88, 1271.84, 1102.41, 939.76, 875.75, 826.81, 678.47. MS calculated for (C14H5Br2F6N3) M+ 486.88, found 486.62. Anal. calcd. for (C14H5Br2F6N3): C, 34.39; H, 1.03; Br, 32.68; F, 23.3; N, 8.59. Found C, 34.39; H, 1.01; Br, 32.70; F, 23.32; N, 8.58.
2-([1,1′-biphenyl]-4-yl)-4,7-dibromo-2H-benzo[d]1,2,3-triazole) (m1d): Bromination of benzotriazole 3c (0.5 g, 1.84 mmol) according to the procedure described by Höger [34] afforded a grey solid identified as m1d (0.59 g, 76%). m.p.: 142–144 °C. 1H-NMR (CDCl3, ppm) δ: 8.50 (d, J = 8.8 Hz, 2H, o-N-Ph), 7.74 (d, J = 8.8 Hz, 2H, m-N-Ph), 7.61 (d, J = 7.3 Hz, 2H, o-Ph), 7.56–7.53 (m, 5H, HBTz, m-Ph, p-Ph). 13C-NMR (CDCl3, ppm) δ: 144.5, 141.5, 139.1, 138.5, 132.1, 130.4, 128.7, 127.8, 122.5, 121.5, 110.4. IR (neat, cm−1): 3378.01, 1469.88, 1194.28, 1067.02, 954.07, 805.72. MS calculated for (C18H11Br2N3) M+ 426.93, found 426.65. Anal. calcd. for (C18H11Br2N3): C, 50.36; H, 2.60; Br, 37.24; N, 9.79. Found: C, 50.38; H, 2.58; Br, 37.25; N, 9.78.
4,7-bis((4-bromophenyl)ethynyl)-2-phenyl-2H-benzo[d]1,2,3-triazole (m2b): The reaction between benzotriazole 4 [35] (0.100 g, 0.41 mmol) and 4-iodo-1-bromobenzene (0.232 g, 0.82 mmol) gave a yellow solid that was identified as m2b (0.157 g, 71%). m.p.: 166–168 °C. 1H-NMR (CDCl3, ppm) δ: 8.53 (d, 2H, J = 8.8 Hz, o-N-Ph), 7.64–7.55 (m, 13H). 13C-NMR (CDCl3, ppm) δ: 145.0, 140.1, 133.3, 131.8, 130.7, 129.5, 129.4, 123.2, 121.8, 121.1, 114.1, 95.7, 86.3. IR (neat, cm−1): 3067.01, 2310.99, 1476.66, 1292.92, 1059.49, 1003.01, 805.72, 748.49, 656.63. MS calculated for (C28H15Br2N3) M+ 550.96, found 550.22. Anal. calcd. for (C28H15Br2N3): C, 60.79; H, 2.73; Br, 28.88; N, 7.60. Found: C, 60.7; H, 2.74; Br, 28.92; N, 7.56.
2-(3,5-bis(trifluoromethyl)phenyl)-4,7-bis((4-bromophenyl)ethynyl)-2H-benzo[d]1,2,3-triazole (m2c): The reaction between benzotriazole 4 [35] (0. 100 g, 0.26 mmol) and 4-iodo-1-bromobenzene (0.148 g, 0.52 mmol) gave a yellow solid that was identified as m2c (0.101 g, 56%) m.p.: 193–194 °C. 1H-NMR (CDCl3, ppm) δ: 8.93 (s, 2H, o-N-Ph), 8.00–7.98 (m, 5H, p-N-Ph and m-Ph), 7.54–7.52 (m, 6H, HBTz and o-Ph). 13C-NMR (CDCl3, ppm) δ: 145.5, 140.8, 133.1, 131.9, 131.8, 128.4, 123.6, 121.5, 121.1, 120.6, 118.6, 114.4, 96.4, 85.8. IR (neat, cm−1): 3073.70, 2925.45, 1462.35, 1363.71, 1265.06, 1161.72, 989.46, 904.36, 798.19. MS calculated for (C30H13Br2F6N3) M+ 686.94, found 686.52. Anal. calcd. for (C30H13Br2F6N3): C, 52.29; H, 1.90; Br, 23.19; F, 16.54; N, 6.10. Found: C, 52.28; H, 1.91; Br, 23.17; F, 16.56; N, 6.08.
Polymerization procedure: Monomers (m1–m2) (0.3 mmol), 9,9-dihexylfluorene-2,7-diboronic acid bis(1,3-propanediol)ester (m3) (0.3 mmol, 150.69 mg), Pd(PPh3)4 (0.005 mmol, 5.8 mg), 1.5M K2CO3 in water (3 mmol, 2 mL), toluene (4 mL), and Aliquat (1 mL) were charged under argon to a microwave vessel. The vessel was closed and irradiated at 135 degrees for 22 min. The final mixture was cooled to room temperature and the concentrated resultant co-oligomers were precipitated in 200 mL of methanol and filtered off.
Poly-4-(9,9-dihexyl-9H-fluoren-2-yl)-7-(9,9-dihexyl-9H-fluoren-3-yl)-2-hexyl-2H-benzo[d]1,2,3-triazole (P1a): From 4,7-dibromo-2-hexyl-2H-benzo[d]1,2,3-triazole (m1a) (107.7 mg). After filtration the co-oligomer was obtained as a pale yellow solid (127 mg,79%). 1H-NMR (CDCl3, ppm) δ: 8.22–8.16 (brs, 2H, o-Phfluorene), 8.15–8.09 (brs, 2H, m-Phfluorene), 7.96–7.91 (brs, 2H, m-Phfluorene), 7.82–7.74 (brs, 2H, HBTz), 4.89–4.85 (t, 2H, N-CH2), 2.29–2.20 (t, 2H, –CH2), 2.18–2.11 (t, 2H, –CH2), 1.52–1.47 (t, 2H, –CH2), 1.46–1.36 (t, 6H, 3 × –CH2), 1.21–1.06 (t, 12H, 6 × –CH2), 0.99–0.85 (m, 6H, 3 × –CH2), 0.81–0.74 (t, 9H, –CH3 × 3). IR (neat, cm−1): 2960.84, 2911.14, 2847.89, 2367.47, 2317.77, 1455.57, 1271.84, 819.27, 748.49.
Poly-4-(9,9-dihexyl-9H-fluoren-2-yl)-7-(9,9-dihexyl-9H-fluoren-3-yl)-2-phenyl-2H-benzo[d]1,2,3-triazole (P1b): From 4,7-dibromo-2-phenyl-2H-benzo[d]1,2,3-triazole (105.27 mg) (m1b). After filtration the co-oligomer was obtained as a yellow solid (61 mg, 39%) 1H-NMR (CDCl3, ppm) δ: 8.58–8.50 (brs, 2H, N-Ph), 8.33–8.27 (brs, 2H, o-Phfluorene), 8.24–8.18 (brs, 2H, m-Phfluorene), 8.02–7.96 (brs, 2H, m-Phfluorene), 7.90–7.81 (brs, 2H, HBTz), 7.63–7.55 (brs, 2H, m-Ph), 7.54–7.47 (brs, 1H, p-Ph), 2.26–2.18 (brs, 4H, 2 × –CH2), 1.28–0.98 (brs, 16H, 8 × –CH2), 0.82–0.71 (brs, 6H, 2 × –CH3). IR (neat, cm−1): 2960.84, 2918.67, 2847.89, 2353.16, 2310.99, 1462.35, 1265.06, 805.72, 748.49.
Poly-2-(3,5-bis(trifluoromethyl)phenyl)-4-(9,9-dihexyl-9H-fluoren-2-yl)-7-(9,9-dihexyl-9H-fluoren-3-yl)-2H-benzo[d][1,2,3]triazole (P1c): From 2-(3,5-bis(trifluoromethyl)phenyl)-4,7-dibromo-2H-benzo[d]1,2,3-triazole (146.1 mg) (m1c). After filtration the co-oligomer was obtained as a brown solid (33 mg, 25%). 1H-NMR (CDCl3, ppm) δ: 9.03 (s, 2H, p-N-Ph), 8.32–8.28 (brs, 2H, o-Phfluorene), 8.26–8.20 (br, 2H, m-Phfluorene), 8.06–7.97 (brs, 3H, m-Phfluorene and p-N-Ph), 7.96–7.89 (brs, 2H, HBTz), 2.29–2.18 (brs, 4H, 2 × –CH2), 1.21–1.01 (brs, 12H, 6 × –CH2), 0.96–0.86 (brs, 4H, 2 × –CH2), 0.80–0.67 (brs, 6H, 2 × –CH3). IR (neat, cm−1): 2968.37, 2918.67, 2854.67, 2367.47, 2310.99, 1469.88, 1370.48, 1271.84, 1130.27, 897.59, 812.50.
Poly-2-([1,1′-biphenyl]-4-yl)-4-(9,9-dihexyl-9H-fluoren-2-yl)-7-(9,9-dihexyl-9H-fluoren-3-yl)-2H-benzo[d] [1,2,3]triazole (P1d): From 2-([1,1′-biphenyl]-4-yl)-4,7-dibromo-2H-benzo[d]1,2,3-triazole (128.07 mg) (m1d). After filtration the co-oligomer was obtained as a yellow solid (41 mg, 23%). 1H-NMR (CDCl3, ppm) δ: 8.64–8.50 (m, 2H, o-N-Ph), 8.24–8.10 (m, 4H), 7.91–7.61 (m, 8H), 7.44–7.29 (m, 3H), 2.17–2.04 (m, 8H, 4 × –CH2), 1.25–1.13 (m, 12H, 6 × –CH2), 0.88–0.84 (t, 6H, 2 × –CH3). IR (neat, cm−1): 3045.93, 2960.84, 2925.45, 2854.67, 2346.39, 2318.47, 1462.35, 1335.09, 812.50, 741.71.
Poly-4-((4-(9,9-dihexyl-9H-fluoren-2-yl)phenyl)ethynyl)-7-((4-(9,9-dihexyl-9H-fluoren-3-yl)phenyl)ethynyl)-2-phenyl-2H-benzo[d]1,2,3-triazole (P2b): From 4,7-bis((4-bromophenyl)ethynyl)-2-phenyl-2H-benzo[d]1,2,3-triazole (165.30 mg) (m2b). After filtration the co-oligomer was obtained as an orange solid in (75 mg, 35%). 1H-NMR (CDCl3, ppm) δ: 8.57–8.49 (d, 2H, N-Ph), 7.84–7.36 (m, 19H), 2.13–1.92 (brs, 8H, 4 × –CH2), 1.43–1.20 (brs, 12H, 6 × –CH2), 0.91–0.83 (brs, 6H, 2 × –CH3). IR (neat, cm−1): 2954.07, 2919.67, 2847.89, 2359.94, 2317.77, 2204.82, 1462.35, 1370.48, 1271.84, 812.50, 748.49.
Poly-2-(3,5-bis(trifluoromethyl)phenyl)-4-((4-(9,9-dihexyl-9H-fluoren-2-yl)phenyl)-ethynyl)-7-((4-(9,9-dihexyl-9H-fluoren-3-yl)phenyl)ethynyl)-2H-benzo[d]1,2,3-triazole (P2c): From 2-(3,5-bis(trifluoro-methyl)phenyl)-4,7-bis((4-bromophenyl)ethynyl)-2H-benzo[d]1,2,3-triazole (206.08 mg) (m2c). After filtration the co-oligomer was obtained as a brown solid (67 mg,26%). 1H-NMR (CDCl3, ppm) δ: 9.03 (s, 2H, o-N-Ph), 8.00 (s, 1H, p-N-Ph), 7.82–7.30 (m, 16H), 2.08–2.04 (m, 8H, 4 × –CH2), 1.17–1.04 (m, 12H, 6 × –CH3), 0.80–0.73 (t, 6H, 2 × –CH3). IR (neat, cm−1): 3094.88, 2946.57, 2911.14, 3847.89, 2211.60, 1469.88, 1370.48, 1271.84, 1165.66, 1130.27, 1003.01, 805.72, 720.63.

3. Results and Discussion

3.1. Monomer Synthesis

The corresponding monomers for 2H-benzo[d]1,2,3-triazole derivatives were synthesized by three different procedures.
Procedure 1: Benzotriazole m1a was prepared by alkylation of commercially available benzotriazole 1 with hexylbromide in the presence of tBuOK and methanol to afford compound 2 (65%) [33]. Compound 2 was brominated with Br2 in the presence of HBr and acetic acid to give m1a in 73% yield (Scheme 2).
Procedure 2: Benzotriazoles m1b–d were prepared from 1-nitro-2-nitrosobenzene and the corresponding aniline, according to the synthetic method described by Höger [34], to give derivatives 3. Bromination of 3 afforded the dibromobenzotriazoles m1b–d in excellent yields (Scheme 3).
Procedure 3: Monomers m2b and m2c were synthesized by two consecutive Sonogashira C–C cross-coupling reactions. The first reaction was between dibromobenzotriazoles m1b and m1c and ethynyltrimethylsilane (TMS) followed by deprotection with potassium carbonate [35] (Scheme 4). The second Sonogashira reaction between bis-ethynyl derivatives (4) and 4-iodobromobenzene using reusable Pd-EnCat TPP30, 1,5-diazabicyclo[5.4.0]undecene-5-ene (DBU), CuI and MW irradiation as the energy source afforded compounds m2b and m2c in good yields within 20 min at 130 °C (Scheme 4). This methodology has been commonly employed in our research group to prepare other benzoazole derivatives [36,37]. All the compounds gave satisfactory spectroscopic and analytical data.

3.2. Polymers Synthesis

Dibromo benzotriazole derivatives m1, m2 (Scheme 2, Scheme 3 and Scheme 4), and 9,9-dihexylfluorene-2,7-diboronic acid bis(1,3-propanediol) ester (m3) reacted in presence of tetrakis(triphenylphosphine)palladium catalyst following Suzuki reaction under microwave conditions (Scheme 1) [38,39]. All compounds, designed as P1 or P2, were soluble in common organic solvents such as tetrahydrofuran (THF), chloroform and dichloromethane (>1 mg/mL). Their structures were confirmed by 1H-NMR and IR spectroscopy, while molecular weights of each batch were determined by SEC-LS with polystyrene calibration [40], and collected in Table 1. P1a–c exhibit longer molecular lengths (n > 7 units) and thus showing a good correspondence with polymeric materials. However, P1d and P2b,c display shorter molecular lengths (n < 7 units) corresponding to oligomers; for instance, note that P1b,c present higher molecular weights than the corresponding P2b,c. This fact could be explained through the different reactivity of these monomers in the oxidative step, due to the larger distance of the bromide to the benzotriazole core [40,41], as the ratio of single and double alternated bonds (N#) in P2 is double when compared to corresponding P1.

3.3. Photophysical Characterizacion

3.3.1. Optical Spectroscopy Study

The electronic absorption and emission spectra of P1–P2 were experimentally measured in CHCl3 solutions at a concentration of 10−5 M. The photoluminescence (PL) behavior was explored by exciting the molecules at their absorption maxima. In Figure 1 and Figure 2 and in Table 2, the most relevant data are collected.
The UV-visible spectra of all of the studied compounds have common features. It was observed that all D-A co-polymers showed two distinct absorption bands. The band in the low-energy region can be assigned to the intramolecular charge transfer (ICT) from the electron-donating (fluorene) unit to the benzotriazole (BTz) electron-withdrawing group. As a result of the ICT effect between the donor and acceptor moieties, all derivatives had a lower experimental optical band gap than the homopolymer poly(9,9-dihexylfluorene) (Egap = 2.92 eV) [42]. On the other hand, the high-energy absorption band corresponds to different transitions with a mixed ICT and π−π* character along the linear conjugated backbone (see Supporting Information).
TD-DFT calculations predict that the absorption band in the low-energy region is described by the transition from the ground state (S0) to the first excited state (S1), which is mainly described by a HOMO→LUMO excitation (see Tables S1–S4 in the Supporting Information). For the monomers, denoted as M1a–M1d and M2b–M2c, the HOMO is mostly delocalized over the π-conjugated backbone with a strong contribution from the electron-rich fluorene units, while the LUMO is mainly located on the electron-deficient BTz units (see Figure 2A). It is interesting to note that the incorporation of aryl groups on the N-2 atom of BTz results in a larger electron density localization over the BTz unit in the LUMO while slightly affecting the electron delocalization in the HOMOs (see topologies of monomers M1a vs. M1b). On the other hand, the insertion of alkynylphenyl groups between the donor and acceptor units results in more delocalized electron density over the alkynyl and BTz groups in the LUMOs whereas the HOMO is largely delocalized over the whole conjugated backbone (see topologies of M1b vs. M2b).
However, the MO topologies change significantly for longer oligomers. Whereas the LUMO is delocalized over both fluorene and BTz units in the P1a tetramer (see Figure 2B), the insertion of pendant aryl groups on the benzotriazole units results in a localised LUMO on the acceptor units while the HOMO is largely delocalized over the conjugated backbone core (see the MO topologies of P1b in Figure 2B). This situation explains the red-shift of the absorption maxima in P1b–P1d when compared to P1a due to the increased ICT character. On the other hand, the extension of the conjugated backbone with alkynylphenyl groups between the donor and acceptor units results in more localized HOMO and LUMO orbitals (see the MO topologies of P2b in Figure 2C). This situation is consistent with the observed blue-shifted absorption bands upon elongation of the conjugated backbones in P2b–P2c because of a decreased ICT character. The high electron density confinement in the HOMOs of P2b and P2c despite their more extended conjugated cores can be explained by the presence of phenyl groups. The strong aromatic character of these groups, together with their distorted structures, tends to disrupt the conjugation through the backbone. This results in larger band gaps than those found for homologous structures when only an alkynyl group connects the fluorene and BTz units (see Figures S5 and S6).
We next decide to investigate the optical properties at the polymer limit by using an oligomer approach, i.e., by extrapolation of the oligomer results from the monomer to the tetramer by a simple two-parameter model proposed by Kuhn [43]. As seen in Figure 3A, the B3LYP S0→S1 energies extrapolated to the polymer limit are set too low in comparison with the experimental values. The underestimation by B3LYP is ascribed to the common over-delocalization description of the wave functions in π-conjugated materials [44]. The M06HF extrapolated polymer values feature, as expected, a strong hypsochromic offset when compared to experimental values. Note that it was recently demonstrated that M06HF provides a consistent evolution with chain length for low bandgap copolymers in comparison with experimental results [45]. Since the shift is similar for all P1–P2 derivatives, in this work we used the offset correction (OC) of −0.75 eV proposed earlier to compare the M06HF results with experimental data in low bandgap co-polymers [46]. It can be seen from Figure 3B that OC-M06HF extrapolated macromolecules values for the P1–P2 series are in very good agreement with the experimental data.
Note that a comparison study of the optical properties of P1–P2 might be feasible despite their molecular weight differences. As seen in Figure 3B, the saturation of the optical properties for P2b–P2c (with shorter chain lengths) is reached earlier as a result of the flatter curvature when compared to P1a–P1d (with higher chain lengths). This indicates that the saturation of the optical properties for systems P2b–P2c requires a lower number of repeating units when compared with systems P1a–P1d as a consequence of their backbone extension. On the other hand, for systems P1a-P1d similar values are found for the DFT-calculated S0→S1 energies extrapolated to the polymer limit either when using the oligomer approach from the monomer up to the tetramer, pentamer, or hexamer (see Table S5 and Figures S8–S9 in the Supporting Information). Therefore, these DFT results support that the experimental optical properties recorded for P1a-P1d might have reached saturation with a number of repeating units larger than 5, which is the case for all the P1 polymers.
We also compared the experimental band gaps with those obtained theoretically by using the oligomer approach and periodic boundary conditions (PBC) method, respectively (see Figure S10 in Supporting Information). The two methods correlate well with the experimental data, thus demonstrating the ability to tune the polymer band gap as a function of the chemical structure.
The emission properties of the macromolecules were also studied. All the PL curves of the D-A chromophores contain only one resolved ICT emission band (see Figure 1). It is worth mentioning the variation in the photophysical properties as a function of the different chemical functionalization, with a bathochromic displacement observed in the following order: P1a < P1b < P1d < P1c < P2b < P2c. Thus, compounds P2b and P2c, with the more extended conjugated backbone, show maximum emission peaks at the highest wavelengths, oscillating between 500 and 600 nm. The luminescence photographs of all systems upon excitation at 254 and 365 nm are depicted in Figure 4. Compound P1a, with a less extended conjugated backbone, exhibits a blue color. Compounds P1b and P1d (with N-phenyl and N-biphenyl groups, respectively) show a green color. Finally, the increased ICT character upon insertion of the two CF3 groups in the benzotriazole core (P1c) or within the backbone extension (P2b, P2c) induces an extra bathochromic shift. Consequently, polymer P1c is yellow, P2b is orange and P2c is red. These results are in line with the theoretical bandgap predicted for the tetramers, as shown in Table 2. It is also interesting to note that all of the macromolecules are highly emissive with fluorescence quantum yields surpassing 0.50.
With the aim of explaining the emission properties, we performed geometry optimization of the S1 state for M1–M2 monomers and their emission at the TD-DFT level (see Tables S6 and S7). Our calculations support the experimental emission spectral data with more red-shifted emission found for P2 respect to P1 derivatives. Note that the red-shifted transition energy found for P2b and P2c can be explained by the more extended conjugation path of the monomer in its excited state due to the presence of the alkynyl phenyl groups, which adopt a planar quinoid configuration in the S1 excited state thus allowing a better conjugation (see Table S6 and Figure S11).
Furthermore, in order to study their potential application in optoelectronic devices, emission spectra of copolymers P1 as thin films were registered. The films were deposited by spin coating solutions of 2–5 mg/mL in chloroform on glass substrates. As shown in Figure S15, the emission spectral profiles are shifted towards lower energies but follow the same trend of those recorded in solution, indicating that fluorescence emission is not quenched by aggregation and thus supporting their potential application in solid state devices.

3.3.2. Raman Spectroscopy Study

FT-Raman spectra were recorded to provide information about the degree of π-conjugation and intramolecular charge transfer based on the effective conjugation coordinate (ECC) theory [47,48]. This theory states that the Raman spectra of conjugated systems are dominated by a small number of vibrational modes associated with the collective C–C/C=C stretching vibrations on the conjugated backbone [49]. The Raman spectrum of compound P2b taken as an example (the rest of the experimental spectra are shown in the Supporting Information) is shown in Figure 5. It can be seen that the Raman spectra contain a number of clear peaks, which are assigned to particular vibrational modes with the help of density functional theory (DFT) calculations.
Specifically, we focus our discussion on the analysis of two characteristic bands collected in Table 3: The C=C/C–C stretching modes delocalized over the whole conjugated backbone involving both the fluorene and the benzotriazole groups (observed at around 1580 cm−1), and the C≡C stretching modes (observed at ~2200 cm−1) of the alkynyl groups connecting the BTz units with the donor fragments in P2b and P2c. It can be observed from the results in Table 3 that a small displacement of the C=C/C–C stretching modes located on the fluorene and benzotriazole unit is found within the P1 polymer series. This change is associated with a moderate modulation of the electron delocalization of the π-conjugated backbones upon functionalization of the BTz units. In contrast, compounds P2b and P2c, which have a larger backbone extension, show lower wavenumber values for the aforementioned vibration, especially for P2c. In addition, another interesting characteristic in the P2 series is the shift to lower frequencies of the C≡C stretching mode found in P2c when compared to P2b. This is a result of the stronger intramolecular charge transfer towards the BTz unit upon the insertion of two electron-withdrawing CF3 groups.

3.4. Fabrication and Characterization of OFETs

The evaluation of the charge transport properties of semiconducting materials is interesting to assess their potential as active materials in organic optoelectronic devices. In this section, the charge-transport properties of P1 and P2 were evaluated by the fabrication of top-contact/bottom-gate OFETs employing spin-coating deposition of the macromolecules solutions in chloroform on either bare Si/SiO2 substrates or substrates treated with an octadecyltrichlorosilane (OTS) or a hexamethyldisilazane (HMDS) self-assembled monolayer. After that, a thermal treatment called annealing was performed following by thermal gold deposition employing shadow masks in order to define the source and drain electrodes. The parameters needed to determine the electrical properties can be extracted from the I-V response plots in the saturation regime by using the assumptions of conventional transistor formalisms (Equation (1)).
The efficiency and the properties of the OFETs can be determined by the drain current in the saturation regime ((ID)sat) (Equation (1)), where W is the channel width, L the channel length, C the capacitance per unit area of the insulator layer, and VG the gate voltage. The obtained parameters are field-effect mobility (µ), ION/IOFF ratio, and threshold voltage (VT) [50,51].
(ID)sat = (W/2L)µC(VG − VT)2
The average OFET parameter data for films of P1–P2 macromolecules are summarized in Table 4. These parameters were calculated using transfer plots of (ID)sat vs. VG to determine the saturation mobility, ION/IOFF ratio and threshold voltage for at least five devices for each sample. The parameters were calculated with VD = −100 V to guarantee saturation conditions. Some representative output and transfer plots for P1a are shown in Figure 6.
In view of the results, it can be concluded that semiconductors P1a, P1b, P1c, and P1d show similar p-type mobilities (~10−4 cm2·V−1·s−1) after high temperature annealing treatment of the deposited films at either 180 or 240 °C. P2b is inactive while P2c shows mobilities one order of magnitude lower. This result may be ascribed to the stronger electron localization found in P2 when compared to polymers P1 as a result of the insertion of the alkynyl-phenyl groups between the fluorene and BTz groups. This results in deactivation of the donor and acceptor coupling within the π-conjugated core, thus hindering charge delocalization.
The active or best-performing polymer thin films were characterized by X-ray diffraction (XRD) and atomic force microscopy (AFM) techniques, which provide information about microstructural regularity and allow a good estimation of the molecular orientation with respect to the gate insulator surface. Normally the most efficient orientation between source and drain electrodes takes place when the cofacial π-conjugated molecular planes are aligned perpendicular to the dielectric substrate surface. This fact increases charge transport [52].

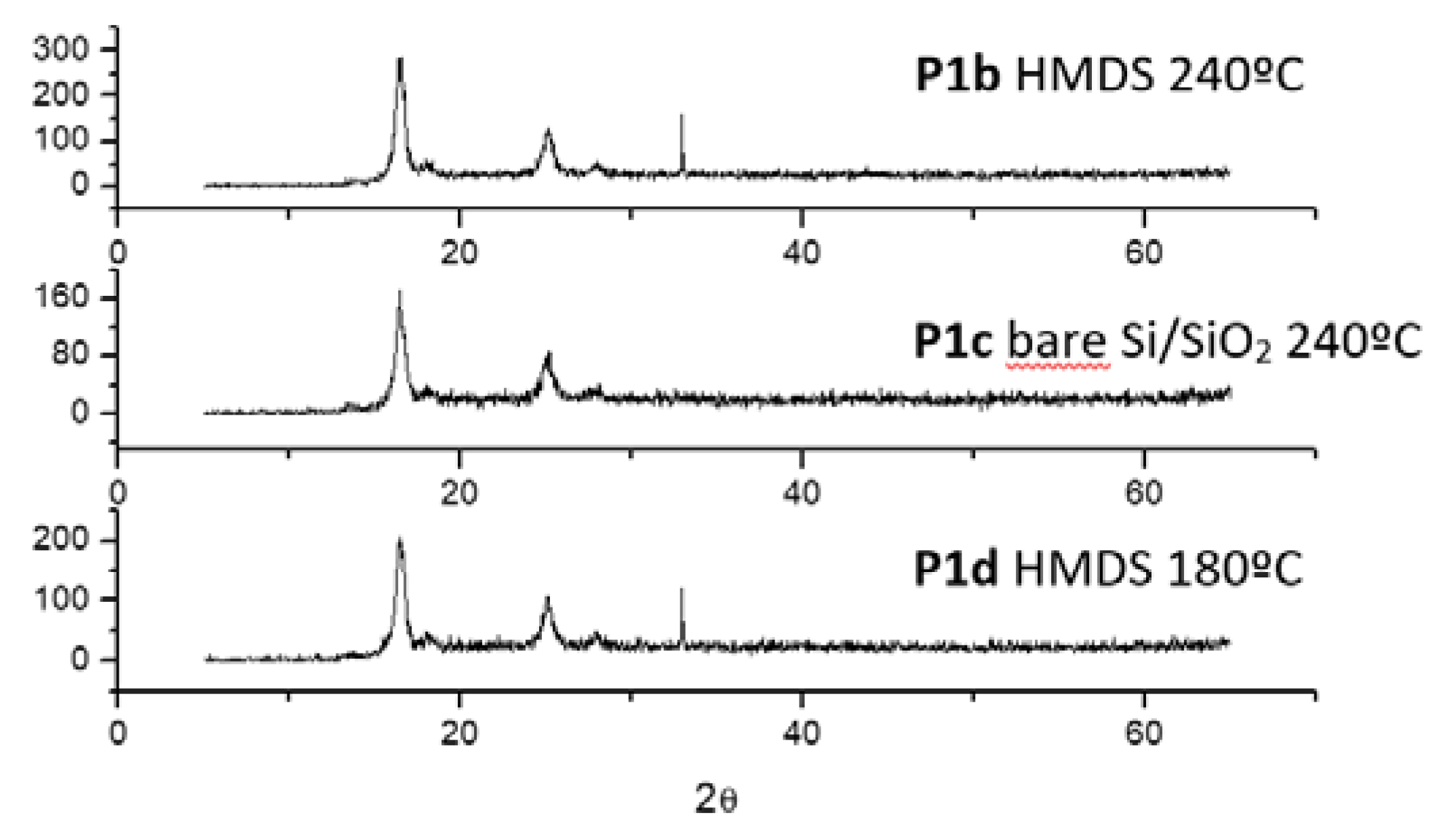

An XRD pattern of the thin films used for the OFETs is shown in Figure 7. Note that P1b, P1c, and P1d, in which the N-2 nitrogen atom of the benzotriazole is substituted by a phenyl derivative, show similar crystallinity patterns, with the presence of two peaks at around 17 and 25 degrees, respectively. However, substitution with phenyl groups in P1b polymer renders slightly most crystalline films, as the recorded XRD intensities of the peaks are larger compared to the rest of the samples. On the other hand, functionalization of the N-2 nitrogen atom of the benzotriazole with an alkyl chain, namely P1a, gives rise to a completely amorphous film. Nevertheless, for all of the studied polymers, the X-ray diffraction peaks are quite weak, and this indicates poorly crystalline thin film morphologies, which could be one of the reasons accounting for the recorded low electrical performances.
Thin films were also characterized by tapping mode AFM. The buried dielectric-semiconductor interface, in which charge transport takes place, is the most crucial interface in a field-effect transistor. Although AFM is a superficial technique, AFM images can be used to correlate film microstructures with charge transport in the aforementioned active region. AFM images of the studied films are shown in Figure 8, showing ordered assemblies in the cases of P1a and P1b, while smaller features are recorded for the rest of the studied samples. However, as previously evidenced by X-ray studies, these aggregates differ depending on the nature of the substituent on the N-2 atom of the benzotriazole. Thus, while fibers are observed for P1a films, P1b films show well-defined round grains. Note however that the rugosity of P1a and P1b thin film samples is quite high, indicating film inhomogeneities which are detrimental for efficient charge transport. On the contrary, although less crystalline than P1b, more homogeneous and smoother films are observed for P1c and P1d thin film samples. Therefore, an equilibrium between film crystallinities and film homogeneities could be the reason behind the similar field-effect mobilities recorded for the P1 series.

4. Conclusions

Different D-A building block of 2H-benzo[d]1,2,3-triazole and 9,9-dihexylfluorene were synthesized by a Suzuki reaction under microwave irradiation. All macromolecules obtained are highly emissive, with fluorescence quantum yields surpassing 0.50, showing color tunability from blue to red. The functionalization of the nitrogen in position 2 of the benzotriazole units or the elongation of the π-conjugated backbone through the introduction of alkynyl-phenyl groups induces a modification in the HOMO-LUMO energy and a strong modulation of the absorption and emission properties. The increased ICT character upon insertion of the two CF3 groups in the benzotriazole core (P1c) or extension of the backbone (P2b, P2c) induces an extra bathochromic shift.
DFT-calculations helped to rationalize the photophysical properties of the P1 and P2 derivatives. Our study demonstrates that appropriate functionalization of the benzotriazole groups in fluorene-based derivatives opens the pathway to design new D-A oligomers and polymers with color-tunable electroluminescent properties.
In addition, the studied systems were tested in OFETs in order to assess their charge transport properties for their applications in optoelectronic devices. P1-based polymers showed similar p-type mobilities of around 10−4 cm2·V−1·s−1. A combination of FT-Raman, AFM, and XRD studies showed that π-conjugation, planarity, packing, and film homogeneity are crucial factors that dictate the resulting electrical performances. It was also found that P2 shows lower mobilities than P1. This result can be ascribed to the stronger electron localization found in oligomers P2 when compared to P1 as a result of the insertion of the alkynyl-phenyl groups between the fluorene and BTz groups. Furthermore, the basically amorphous polymer thin film morphologies could be one of the reasons for the moderate electrical performances shown by these systems. We hope that our results can guide the design of new benzotriazole-derived materials with potential applications in optoelectronic devices.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/2/256/s1, Theoretical Methods; Figures S1–S5: Illustrations of the frontier molecular orbitals, Figure S6: Energy levels of the frontier molecular orbitals, Figures S7–S9: Evolution of the S0→S1, Figure S10: Theoretical band gaps, Figure S11: DFT-B3LYP/6-31G** calculated bond-length modifications, Figure S12: DFT-calculated vertical excited state transitions at the B3LYP/6-31G** level. Figure S13: TD-DFT excitation energies. Figure S14: Theoretical FT-Raman spectra, Figure S15: Thin film emission spectra, Figures S16–S27: IR Spectra monomers and polymers, Figures S28–S45: 1H-NMR and 13C-NMR Spectra of monomers and co-oligomers. Spectra, Figures S46–S50: Experimental Raman spectra, Tables S1–S4, S7: Calculated absorption energies, Table S5: Simulated S0→S1 energies, Table S6: DFT-calculated dihedrals angles.

Author Contributions

I.T.-M. synthetized all the compounds reported in this work, P.P. planned and coordinated the work of the different groups and supervised and also wrote part of the manuscript. J.R.C. performed DFT calculations, Á.D.-O. helped with the interpretation of the synthetic results. S.F.-P. performed the DFT calculations, J.T.L.N. helped with the interpretation of the theoretical results, R.P.O. supervised the fabrication and characterization of OFETs and wrote the manuscript, M.C.R.D. supervised all the DFT calculations and wrote the manuscript linking all the theoretical data with the experimental results. R.M. helped with the conceptualization, writing, review, supervision of polymerization, project administration and funding acquisition, R.V.-G. performed the methodology oligomerization and characterization and formal analysis. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by JCCM-FEDER (project SBPLY/17/180501/000189) and MINECO (project CTQ2017-88158-R, project RED2018-102331-T) at University of Castilla-La Mancha, by MINECO (CTQ2015-66897) and Junta de Andalucía (P09-FQM-4708, UMA18-FEDERJA-080) projects at University of Málaga and, also, by MINECO (MAT-2017-86805R) at University Miguel Hernández of Elche.

Acknowledgments

I. Torres-Moya is indebted to the MEC for an FPU studentship and Junta de Comunidades de Castilla-La Mancha for a post-doctoral grant. Technical support from the High Performance Computing Service of the University of Castilla-La Mancha and the computer resources, technical expertise and assistance provided by the SCBI (Supercomputing and Bioinformatics) centre of the University of Málaga are gratefully acknowledged. The Molecular and Cellular of Biology Institute (now IDiBE) at the University Miguel Hernández of Elche is also acknowledged.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Wong, M.Y.J. Recent Advances in Polymer Organic Light-Emitting Diodes (PLED) Using Non-conjugated Polymers as the Emitting Layer and Contrasting Them with Conjugated Counterparts. J. Electron. Mater. 2017, 46, 6246–6281. [Google Scholar] [CrossRef] [Green Version]
  2. Hou, W.; Xiao, Y.; Han, G.; Lin, Y.J. The Applications of Polymers in Solar Cells: A Review. Polymers 2019, 11, 143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kang, H.; Lee, W.; Oh, J.; Kim, T.; Lee, C.; Kim, B.J. From Fullerene–Polymer to All-Polymer Solar Cells: The Importance of Molecular Packing, Orientation, and Morphology Control. Acc. Chem. Res. 2016, 49, 2424–2434. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, X.; Zhang, C.; Li, M.; Hu, Z.; Wang, J.; Liu, F.; Li, N.; Brabec, C.; Janssen, R.; Bazan, G.; et al. Morphology Optimization via Side Chain Engineering Enables All-Polymer Solar Cells with Excellent Fill Factor and Stability. J. Am. Chem. Soc. 2018, 140, 8934–8943. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Dang, D.; Yu, D.; Wang, E. Conjugated Donor–Acceptor Terpolymers Toward High-Efficiency Polymer Solar Cells. Adv. Mater. 2019, 31, 1807019. [Google Scholar] [CrossRef] [PubMed]
  6. Genene, Z.; Mammo, W.; Wang, E.; Andersson, M.R. Recent Advances in n-Type Polymers for All-Polymer Solar Cells. Adv. Mater. 2019, 31, 1807275. [Google Scholar] [CrossRef] [PubMed]
  7. Shi, W.; Zheng, Y.; Yu, J. Polymer Dielectric in Organic Field-Effect Transistor. Prop. Appl. Polym. Dielectr. 2017. [Google Scholar] [CrossRef] [Green Version]
  8. Pandey, M.; Kumari, N.; Nagamatsu, S.; Pandey, S. Recent Advances in Orientation of Conjugated Polymers for Organic Field-Effect Transistors. J. Mate. Chem. C 2019, 7, 13323–13351. [Google Scholar] [CrossRef]
  9. Gobalasingham, N.; Thompson, B. Direct arylation polymerization: A guide to optimal conditions for effective conjugated polymers. Prog. Polym. Sci. 2018, 83, 135–201. [Google Scholar] [CrossRef]
  10. Osaka, I.; Abe, T.; Shimawaki, M.; Koganezawa, T.; Takimiya, K. Naphthodithiophene-Based Donor–Acceptor Polymers: Versatile Semiconductors for OFETs and OPVs. ACS Macro Lett. 2012, 1, 437–440. [Google Scholar] [CrossRef]
  11. Paterson, A.; Singh, S.; Fallon, K.J.; Hodsden, T.; Han, Y.; Schroeder, B.C.; Bronstein, H.; Heeney, M.; McCulloch, I.; Anthopoulos, T.D. Recent Progress in High-Mobility Organic Transistors: A Reality Check. Adv. Mater. 2018, 30, 1801079. [Google Scholar] [CrossRef] [PubMed]
  12. Root, S.E.; Sagavatrup, S.; Printz, A.D.; Rodriquez, D.; Lipomi, D. Mechanical Properties of Organic Semiconductors for Stretchable, Highly Flexible, and Mechanically Robust Electronics. Chem. Rev. 2017, 117, 6467–6499. [Google Scholar] [CrossRef] [PubMed]
  13. Swager, T.M. 50th Anniversary Perspective: Conducting/Semiconducting Conjugated Polymers. A Personal Perspective on the Past and the Future. Macromolecules 2017, 50, 4867–4886. [Google Scholar] [CrossRef]
  14. Dou, L.; Liu, Y.; Hang, Z.; Li, G.; Yang, Y. Low-Bandgap Near-IR Conjugated Polymers/Molecules for Organic Electronics. Chem. Rev. 2015, 115, 12633–12665. [Google Scholar]
  15. Mei, J.; Bao, Z. Side Chain Engineering in Solution-Processable Conjugated Polymers. Chem. Mater. 2014, 26, 604–615. [Google Scholar] [CrossRef]
  16. Rochat, S.; Swager, T.M. Conjugated Amplifying Polymers for Optical Sensing Applications. ACS Appl. Mater. Interfaces 2013, 5, 4488–4502. [Google Scholar] [CrossRef]
  17. Grimsdale, A.C.; Chan, K.L.; Martin, R.E.; Jokisz, P.G.; Holmes, A.B. Synthesis of light-emitting conjugated polymers for applications in electroluminescent devices. Chem. Rev. 2009, 109, 897–1091. [Google Scholar] [CrossRef]
  18. Nielsen, C.B.; Ashraf, R.S.; Schroeder, P.; Angelo, P.D.; Watkins, S.E.; Song, K.; Anthopoulos, T.D.; McCulloch, I. Random benzotrithiophene-based donor–acceptor copolymers for efficient organic photovoltaic devices. Chem. Commun. 2012, 48, 5832–5834. [Google Scholar] [CrossRef] [Green Version]
  19. Burkhart, B.; Khylabich, P.P.; Thompson, B.C. Influence of the Acceptor Composition on Physical Properties and Solar Cell Performance in Semi-Random Two-Acceptor Copolymers. ACS Macro Lett. 2012, 1, 660–666. [Google Scholar] [CrossRef]
  20. Jung, J.W.; Liu, F.; Russell, T.P.; Jo, W.H. Semi-crystalline random conjugated copolymers with panchromatic absorption for highly efficient polymer solar cells. Energy Environ. Sci. 2013, 6, 3301–3307. [Google Scholar] [CrossRef]
  21. Sun, W.; Ma, Z.; Dang, D.; Zhu, W.; Andersson, M.R.; Zhang, F.; Wang, E. An alternating D–A1–D–A2 copolymer containing two electron-deficient moieties for efficient polymer solar cells. J. Mater. Chem. 2013, 1, 11141–11144. [Google Scholar] [CrossRef]
  22. Yuen, J.D.; Kumar, R.; Zakhidov, D.; Seifter, J.; Lim, B.; Heeger, A.J.; Wudl, F. Ambipolarity in Benzobisthiadiazole-Based Donor–Acceptor Conjugated Polymers. Adv. Mater. 2011, 23, 3780–3785. [Google Scholar] [CrossRef]
  23. Bijleveld, J.C.; Zoombelt, A.P.; Mathijssen, S.G.J.; Wienk, M.M.; Turbiez, M.; de Leeuw, D.M.; Janssen, R.A.J. Poly(diketopyrrolopyrrole−terthiophene) for Ambipolar Logic and Photovoltaics. J. Am. Chem. Soc. 2009, 131, 16616–16617. [Google Scholar] [CrossRef] [PubMed]
  24. Anthopoulos, T.D.; Setayesh, S.; Smits, E.; Cölle, M.; Cantatore, E.; de Boer, B.; de Leeuw, D.M. Air-Stable Complementary-like Circuits Based on Organic Ambipolar Transistors. Adv. Mater. 2006, 18, 1900–1904. [Google Scholar] [CrossRef]
  25. Price, S.C.; Stuart, A.C.; Yang, L.; Zhou, H.; You, W. Fluorine Substituted Conjugated Polymer of Medium Band Gap Yields 7% Efficiency in Polymer−Fullerene Solar Cells. J. Am. Chem. Soc. 2011, 133, 4625–4631. [Google Scholar] [CrossRef] [PubMed]
  26. Min, J.; Zhang, Z.G.; Li, Y. Synthesis and applications of difluorobenzothiadiazole based conjugated polymers for organic photovoltaics. J. Am. Chem. Soc. 2011, 21, 3226–3233. [Google Scholar]
  27. Li, W.; Yan, L.; Zhou, H.; You, W. High Thermoelectric Performance and Enhanced Mechanical Stability of p-type Ge1–xSbxTe. Chem. Matter. 2015, 27, 6470–6476. [Google Scholar] [CrossRef]
  28. Casey, A.; Green, J.P.; Tuladhar, P.S.; Kirkus, M.; Han, Y.; Anthopoulos, T.D.; Heeney, M. Cyano substituted benzotriazole based polymers for use in organic solar cells. J. Mater. Chem. A 2017, 5, 6465–6470. [Google Scholar] [CrossRef] [Green Version]
  29. Torres-Moya, I.; Díaz-Ortiz, A.; Sánchez, L.; Orduna, J.; Blesa, M.J.; Carrillo, J.R.; Prieto, P. Tunable emission in aggregated T-Shaped 2H-Benzo[d][1,2,3]triazoles with waveguide behaviour. Dyes Pigments 2017, 142, 212–225. [Google Scholar] [CrossRef] [Green Version]
  30. Torres-Moya, I.; Saikia, B.; Carrillo, J.R.; Prieto, P.; Steed, J.W. High thermal stability, pH responsive organogels of 2H-benzo[d]1,2,3-triazole derivatives as pharmaceutical crystallization media. CrystEngComm 2018, 21, 2135–2143. [Google Scholar] [CrossRef] [Green Version]
  31. Torres-Moya, I.; Arrechea-Marcos, I.; Tardío, C.; Carrillo, J.R.; Díaz-Ortiz, A.; López Navarrete, J.T.; Ruiz Delgado, M.C.; Prieto, P.; Ponce, R. D–A–D 2H-benzo[d][1,2,3]triazole derivatives as p-type semiconductors in organic field-effect transistors. RSC Adv. 2018, 8, 21879–21888. [Google Scholar] [CrossRef] [Green Version]
  32. Vázquez-Guilló, R.; Martínez-Tomé, M.J.; Kahveci, Z.; Torres, I.; Falco, A.; Mallavia, R.; Mateo, C.R. Synthesis and Characterization of a Novel Green Cationic Polyfluorene and Its Potential Use as a Fluorescent Membrane Probe. Polymers 2018, 10, 938. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Ekiz, F.; Rende, E.; Timur, S.; Toppare, L. A novel functional conducting polymer: Synthesis and application to biomolecule immobilization. J. Mater. Chem. 2012, 22, 22517–22525. [Google Scholar]
  34. Wettach, H.; Pasker, F.; Höger, S. Fluorescent Conjugated Polymers That Incorporate Substituted 2,1,3-Benzooxadiazole and 2,1,3-Benzothiadiazole Units. Macromolecules 2008, 41, 9513–9515. [Google Scholar] [CrossRef]
  35. Ma, C.; Pisula, W.; Weber, E.; Freng, X.; Müllen, K.; Bäverle, P. Dendritic Oligothiophenes Terminated with Tris(alkyloxy)phenylethynyl Tails: Synthesis, Physical Properties, and Self-Assembly. Chem. Eur. J. 2011, 17, 1507–1518. [Google Scholar] [CrossRef]
  36. Torres, I.; Carrillo, J.R.; Díaz-Ortiz, A.; Martín, R.; Gómez, M.V.; Stegemann, L.; Strassert, C.A.; Orduna, J.; Buendía, J.; Greciano, E.E.; et al. Self-assembly of T-shape 2H-benzo[d][1,2,3]-triazoles. Optical waveguide and photophysical properties. RSC Adv. 2016, 6, 36544–36553. [Google Scholar] [CrossRef]
  37. Pastor, M.J.; Torres, I.; Cebrián, C.; Carrillo, J.R.; Díaz-Ortiz, A.; Matesanz, E.; Buendía, J.; García, F.; Barberá, J.; Prieto, P.; et al. 4-Aryl-3,5-bis(arylethynyl)aryl-4H-1,2,4-triazoles: Multitasking Skeleton as a Self-Assembling Unit. Chem. Eur. J. 2015, 21, 1795–1802. [Google Scholar] [CrossRef]
  38. Vázquez-Guilló, R.; Falco, A.; Martínez-Tomé, M.J.; Mateo, C.R.; Herrero, M.A.; Vázquez, E.; Mallavia, R. Advantageous Microwave-Assisted Suzuki Polycondensation for the Synthesis of Aniline-Fluorene Alternate Copolymers as Molecular Model with Solvent Sensing Properties. Polymers 2018, 10, 215–235. [Google Scholar]
  39. Liu, B.; Bazan, G.C. Synthesis of cationic conjugated polymers for use in label-free DNA microarrays. Nat. Protoc. 2006, 1, 1698–1702. [Google Scholar] [CrossRef]
  40. Molina, R.; Gómez-Ruiz, S.; Montilla, F.; Salinas-Castillo, A.; Fernández-Arroyo, S.; del Mar Ramos, M.; Micol, V.; Mallavia, R. Progress in the Synthesis of Poly(2,7-Fluorene-alt-1,4-Phenylene), PFP, via Suzuki Coupling. Macromolecules 2009, 42, 5471–5477. [Google Scholar] [CrossRef]
  41. Neves, A.C.B.; Pinto, S.M.A.; Henriques, C.A.; Rosado, M.T.S.; Mallavia, R.; Burrows, H.D.; Pereira, M.M.; Calvete, M.J.F. Routes to synthesis of porphyrins covalently bound to poly(carbazole)s and poly(fluorene)s: Structural and computational studies on oligomers. J. Mol. Struct. 2012, 1029, 199–208. [Google Scholar] [CrossRef]
  42. Klaerner, G.; Mullen, R.D. Polyfluorene Derivatives:  Effective Conjugation Lengths from Well-Defined Oligomers. Macromolecules 1998, 31, 2007–2009. [Google Scholar] [CrossRef]
  43. Kuhn, H. Uber das Absorptionsspektrum der Polyenel. Chim. Acta 1948, 31, 1780–1799. [Google Scholar] [CrossRef] [PubMed]
  44. Mori-Sanchez, P.; Cohen, A.J.; Yang, W. Localization and Delocalization Errors in Density Functional Theory and Implications for Band-Gap Prediction. Phys. Rev. Lett. 2008, 100, 14601. [Google Scholar] [CrossRef] [Green Version]
  45. Oliveira, E.F.; Roldao, J.C.; Medina, B.B.; Lavarda, F.C.; Gierschner, J. Calculation of low bandgap homopolymers: Comparison of TD-DFT methods with experimental oligomer series. Chem. Phys. Lett. 2016, 645, 169–173. [Google Scholar] [CrossRef] [Green Version]
  46. Wykes, M.; Milián Medina, B.; Gierschner, J. Computational engineering of low bandgap copolymers. Front. Chem. 2013, 1, 35. [Google Scholar] [CrossRef]
  47. Ponce, R.; Casado, J.; Hernández, V.; López, J.T.; Viruela, P.M.; Orti, E.; Takimiya, K.; Otsubo, T. On the biradicaloid nature of long quinoidal oligothiophenes: Experimental evidence guided by theoretical studies. Angew. Chem. Int. Ed. 2007, 46, 9057–9061. [Google Scholar] [CrossRef]
  48. Zerbi, G.; Veronelli, M.; Martina, S.; Schlüter, A.D.; Wegner, G. π-Electron delocalization in conformationally distorted oligopyrroles and ploypyrrole. Adv. Mater. 1994, 6, 385–388. [Google Scholar] [CrossRef]
  49. Castiglioni, C.; Tommasini, M.; Zerbi, G. Raman spectroscopy of polyconjugated molecules and materials: Confinement effect in one and two dimensions. Math. Phys. Eng. Sci. 2004, 362, 2425–2459. [Google Scholar] [CrossRef]
  50. Size, S.M.; Lee, M.K. Semiconductor Devices: Physics and Technology, 3rd ed.; Wiley: New York, NY, USA, 2012. [Google Scholar]
  51. Ponce, R.; Facchetti, A.; Marks, T.J. High-k Organic, Inorganic, and Hybrid Dielectrics for Low-Voltage Organic Field-Effect Transistors. Chem. Rev. 2010, 110, 205–239. [Google Scholar]
  52. Sun, Y.; Liu, Y.; Zhu, D. Advances in organic field-effect transistors. J. Mater. Chem. 2005, 15, 53–65. [Google Scholar] [CrossRef]
Polymers 12 00256 sch001 550

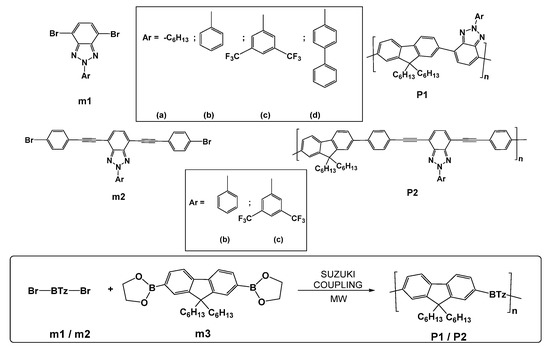

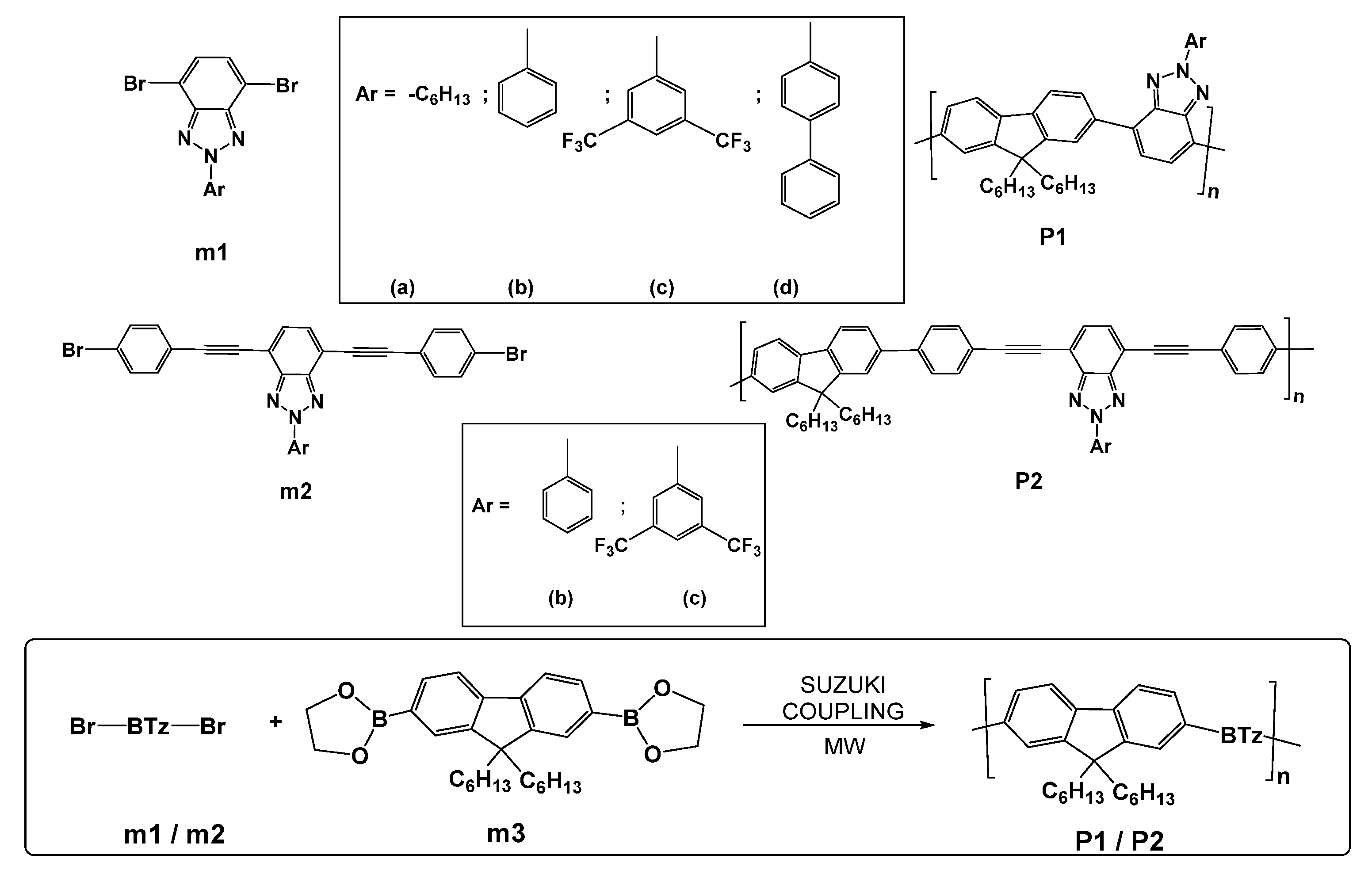

Scheme 1. General scheme for the synthesis of P1 and P2 derived from 2H-benzo[d]1,2,3-triazoles by a Suzuki polycondensation reaction between dibromo benzotriazole derivatives m1, m2, and 9,9-dihexylfluorene-2,7-diboronic acid bis(1,3-propanediol) ester (m3).
Scheme 1. General scheme for the synthesis of P1 and P2 derived from 2H-benzo[d]1,2,3-triazoles by a Suzuki polycondensation reaction between dibromo benzotriazole derivatives m1, m2, and 9,9-dihexylfluorene-2,7-diboronic acid bis(1,3-propanediol) ester (m3).
Polymers 12 00256 sch001
Polymers 12 00256 sch002 550

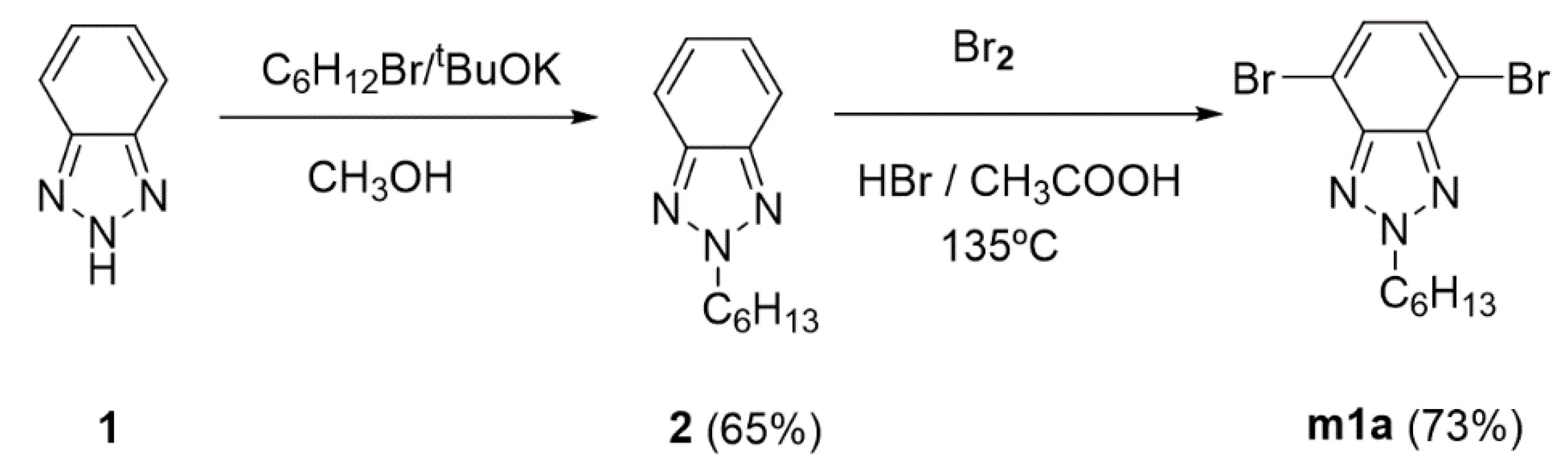

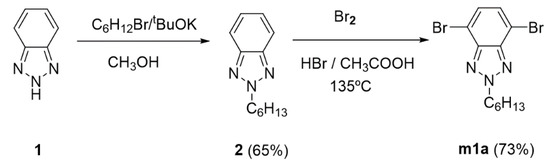

Scheme 2. Synthetic procedure for the formation of monomer m1a.
Scheme 2. Synthetic procedure for the formation of monomer m1a.
Polymers 12 00256 sch002
Polymers 12 00256 sch003 550

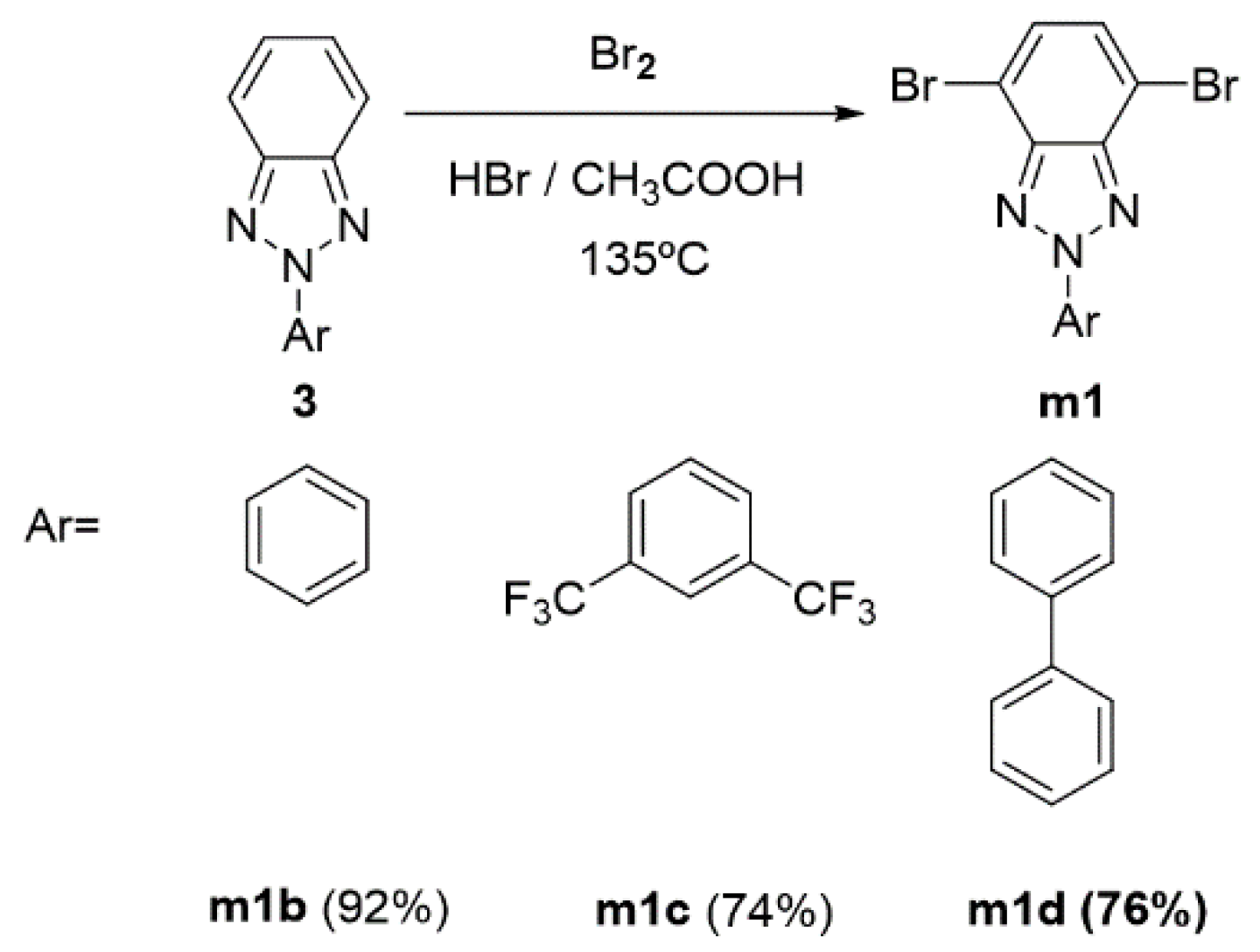

Scheme 3. Synthetic procedure for the formation of monomers m1b, m1c, and m1d.
Scheme 3. Synthetic procedure for the formation of monomers m1b, m1c, and m1d.
Polymers 12 00256 sch003
Polymers 12 00256 sch004 550

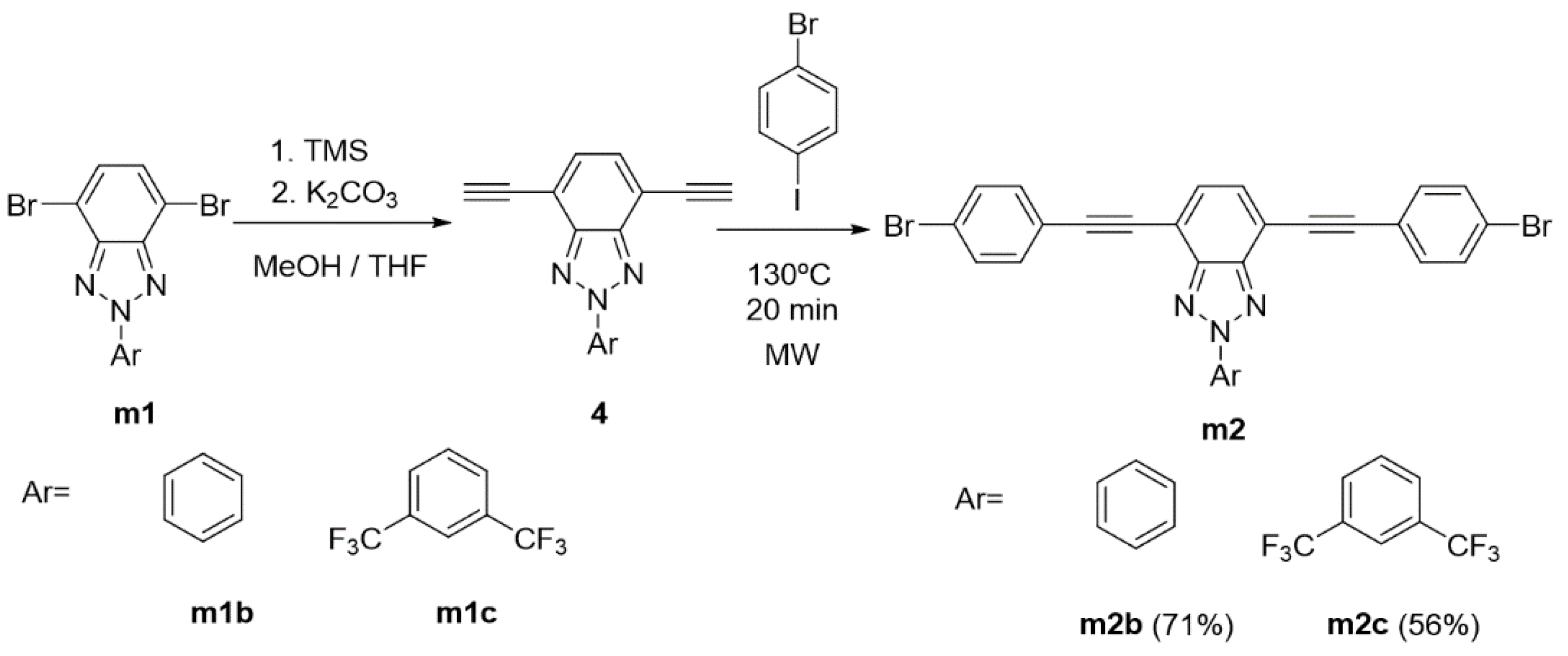

Scheme 4. Synthetic procedure for the formation of monomers m2b and m2c.
Scheme 4. Synthetic procedure for the formation of monomers m2b and m2c.
Polymers 12 00256 sch004
Polymers 12 00256 g001 550

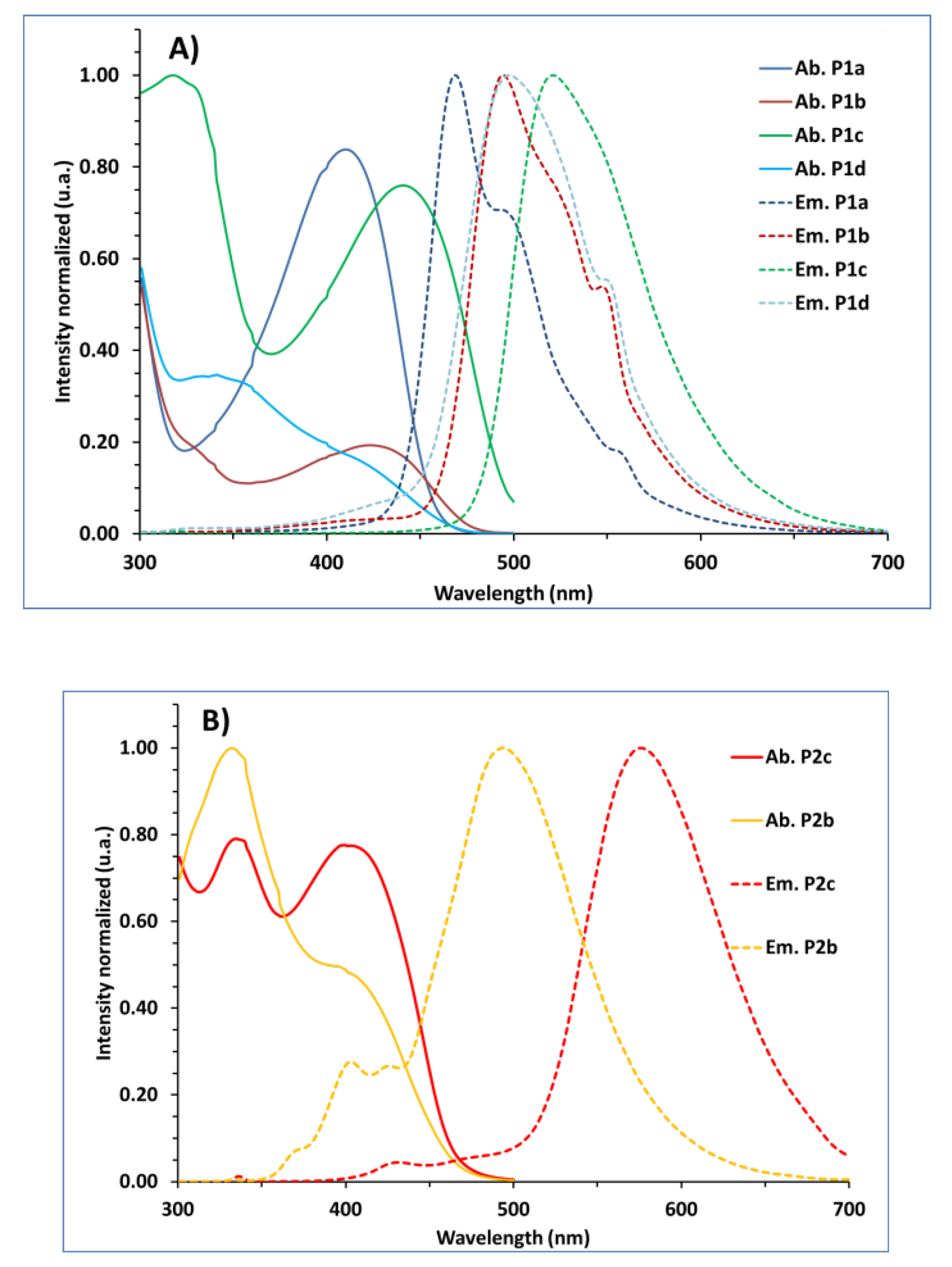

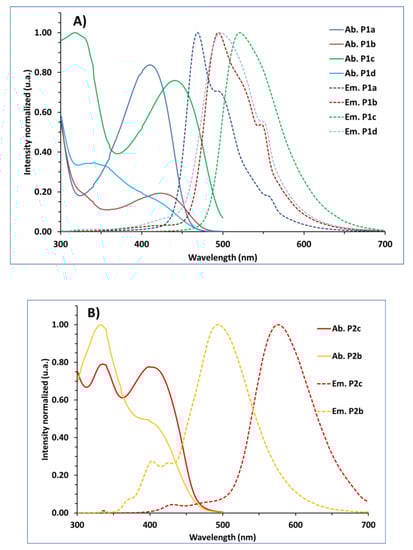

Figure 1. Normalized absorption (solid line) and emission (dashed line) spectra of P1 and P2 series at 298 K in chloroform, for (A): P1a–d and (B): P2b,c. All photoluminescence spectra were measured at maximum absorption peak of the compounds.
Figure 1. Normalized absorption (solid line) and emission (dashed line) spectra of P1 and P2 series at 298 K in chloroform, for (A): P1a–d and (B): P2b,c. All photoluminescence spectra were measured at maximum absorption peak of the compounds.
Polymers 12 00256 g001
Polymers 12 00256 g002 550

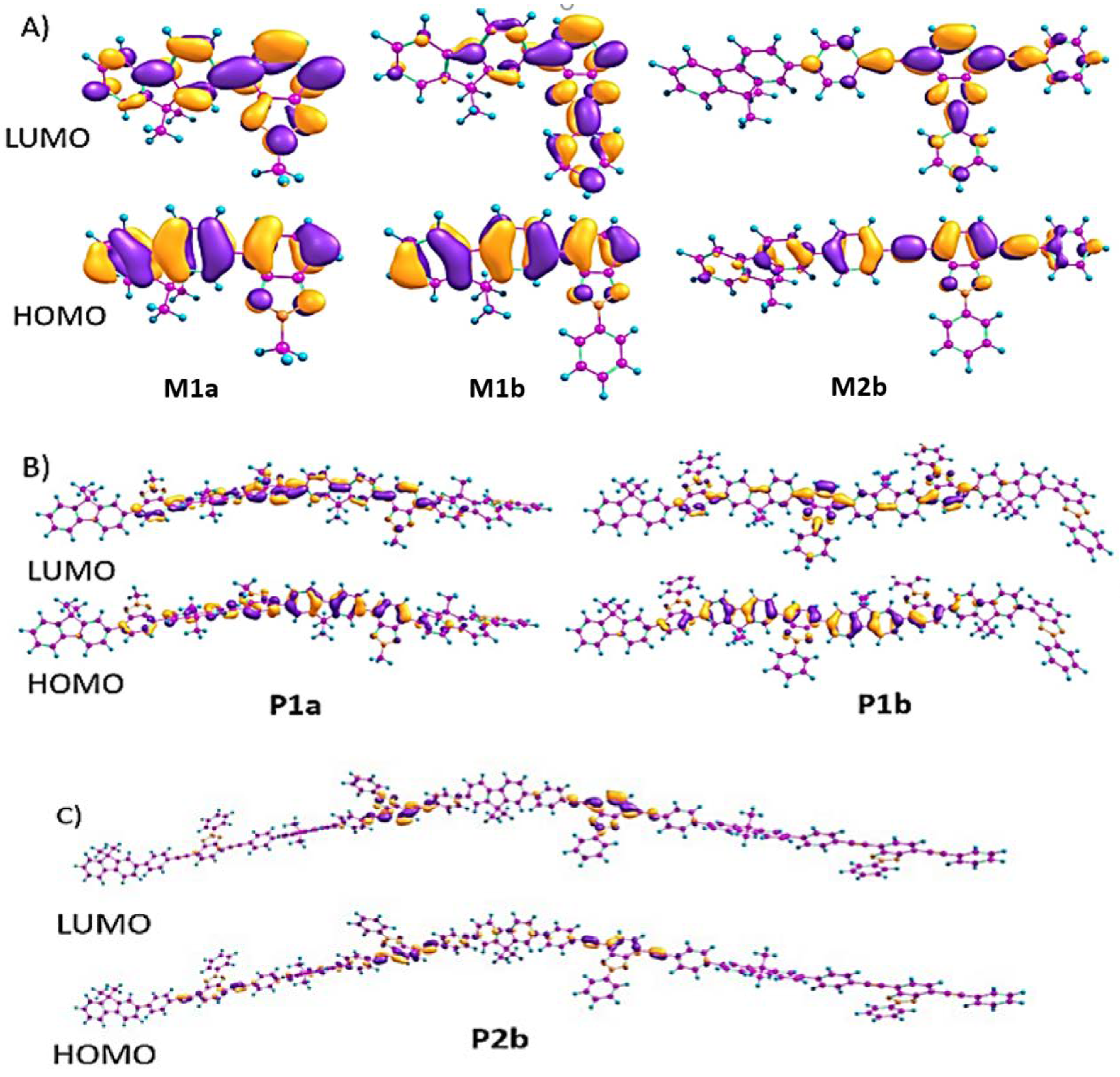

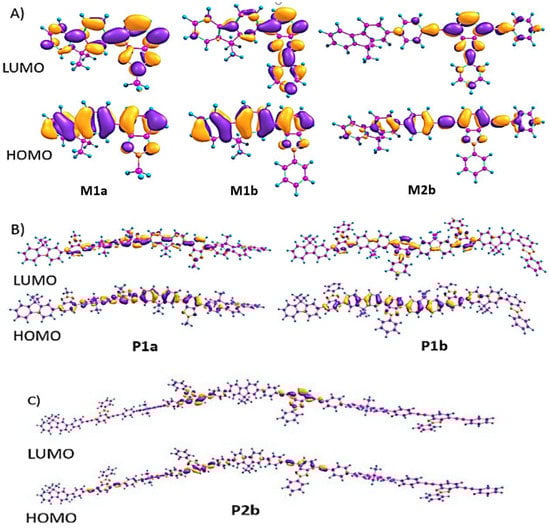

Figure 2. Density functional theory (DFT)-calculated frontier molecular orbitals (M06HF/6-31G** level) for M1a, M1b, and M2b monomers (A) and P1a and P1b tetramers (B), P2b tetramers (C). The molecular orbitals for the rest of the copolymers are given in the supporting information.
Figure 2. Density functional theory (DFT)-calculated frontier molecular orbitals (M06HF/6-31G** level) for M1a, M1b, and M2b monomers (A) and P1a and P1b tetramers (B), P2b tetramers (C). The molecular orbitals for the rest of the copolymers are given in the supporting information.
Polymers 12 00256 g002
Polymers 12 00256 g003 550

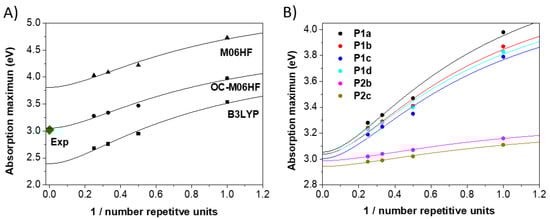

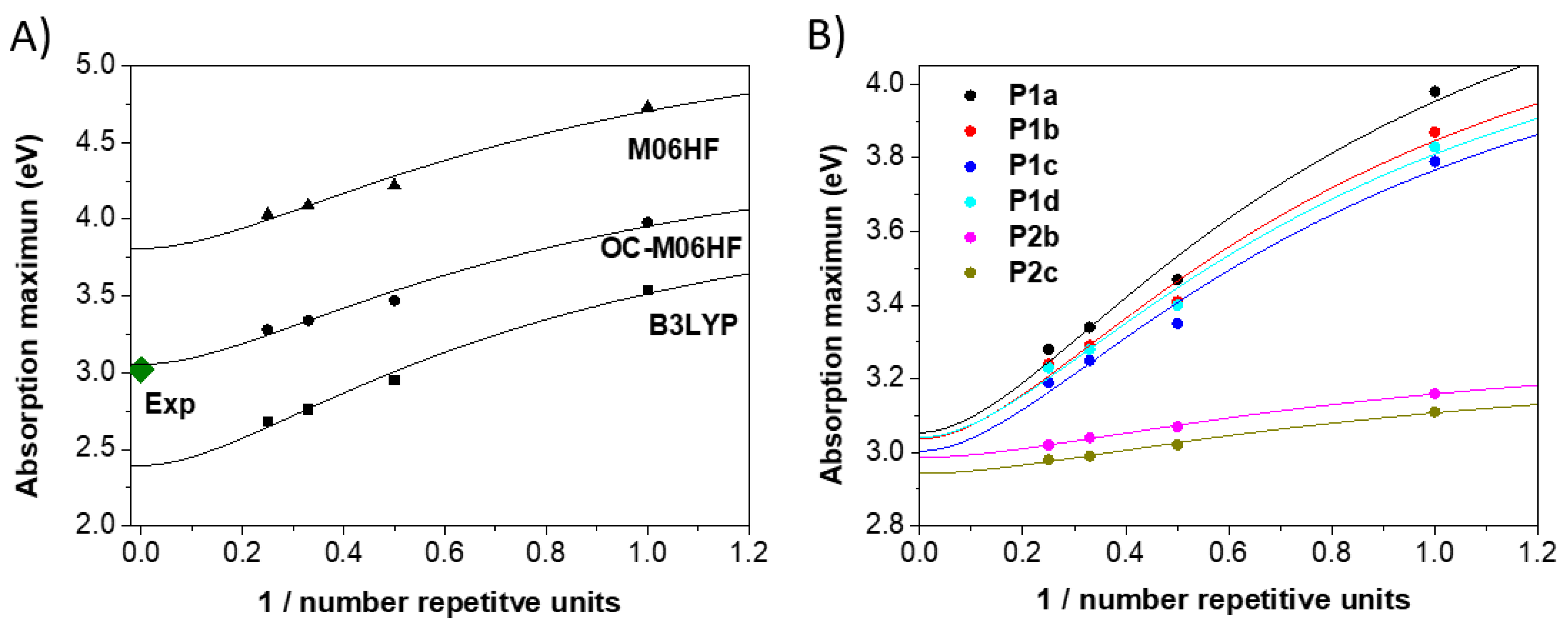

Figure 3. (A) Evolution of the S0→S1 vertical transition energy with respect to the inverse number of repeat units (1/n) at the TD-DFT level using the M06HF and B3LYP functionals for P1a. The OC-M06HF values with an offset correction (OC) of −0.75 are also shown. Solid lines are fitted according to the Kuhn equation. The experimental Evert value, taken as the absorption band maximum of the lowest-energy transition, is shown as a green square. For the rest of the polymers, see Figure S7 in Supporting Information. (B) Evolution of the S0→S1 vertical transition energy with respect to the inverse number of repeat units (1/n) at the TD-DFT level using the OC-M06HF functional for P1–P2.
Figure 3. (A) Evolution of the S0→S1 vertical transition energy with respect to the inverse number of repeat units (1/n) at the TD-DFT level using the M06HF and B3LYP functionals for P1a. The OC-M06HF values with an offset correction (OC) of −0.75 are also shown. Solid lines are fitted according to the Kuhn equation. The experimental Evert value, taken as the absorption band maximum of the lowest-energy transition, is shown as a green square. For the rest of the polymers, see Figure S7 in Supporting Information. (B) Evolution of the S0→S1 vertical transition energy with respect to the inverse number of repeat units (1/n) at the TD-DFT level using the OC-M06HF functional for P1–P2.
Polymers 12 00256 g003
Polymers 12 00256 g004 550
Figure 4. Luminescence photographs of P1–P2 in CHCl3, upon excitation at 254 nm (A) and 365 nm (B). From left to right, the order of the compounds in the photograph is: P1a, P1b, P1d, P1c, P2b, and P2c.
Figure 4. Luminescence photographs of P1–P2 in CHCl3, upon excitation at 254 nm (A) and 365 nm (B). From left to right, the order of the compounds in the photograph is: P1a, P1b, P1d, P1c, P2b, and P2c.
Polymers 12 00256 g004
Polymers 12 00256 g005 550

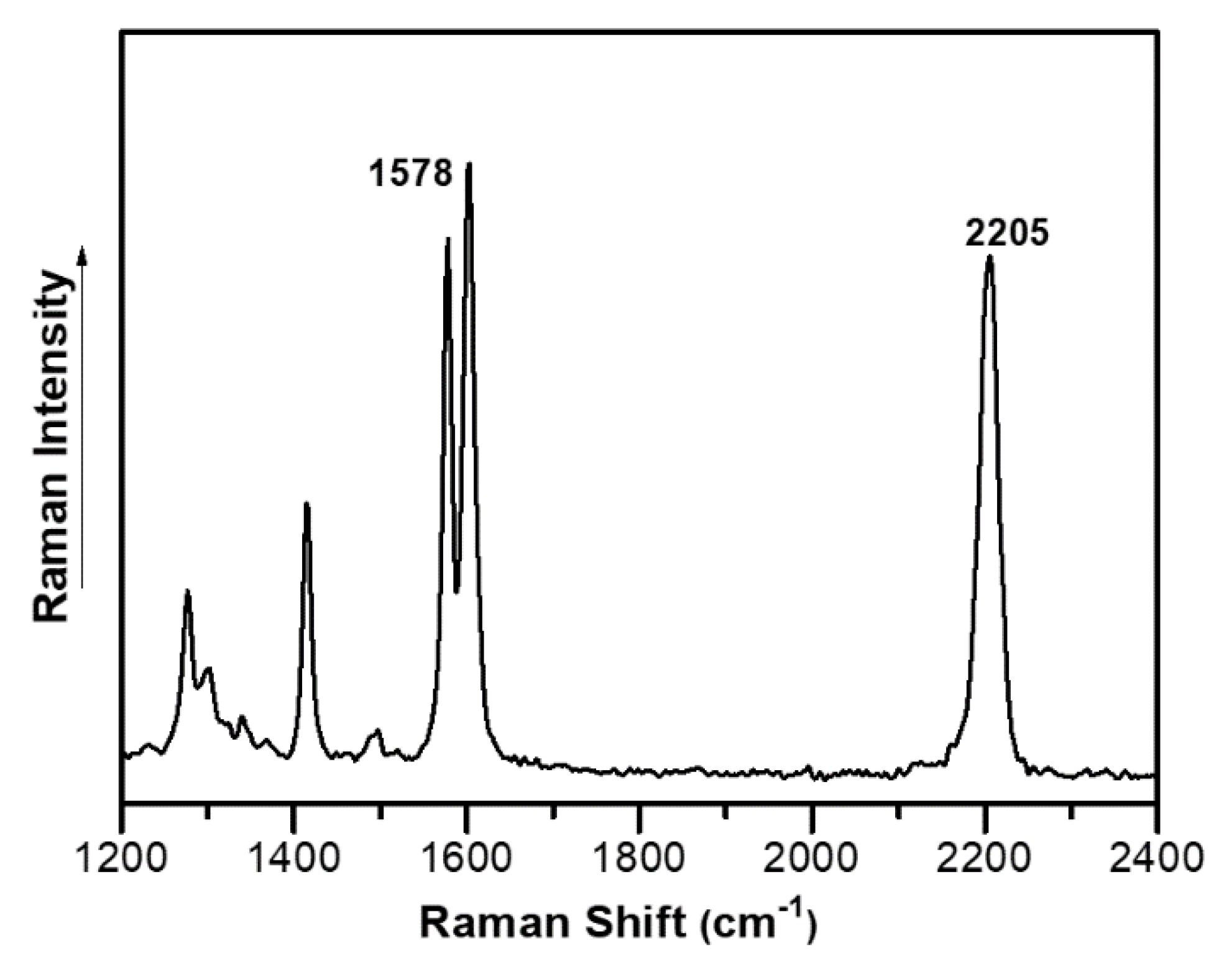

Figure 5. Experimental FT-Raman spectrum for P2b.
Figure 5. Experimental FT-Raman spectrum for P2b.
Polymers 12 00256 g005
Polymers 12 00256 g006 550

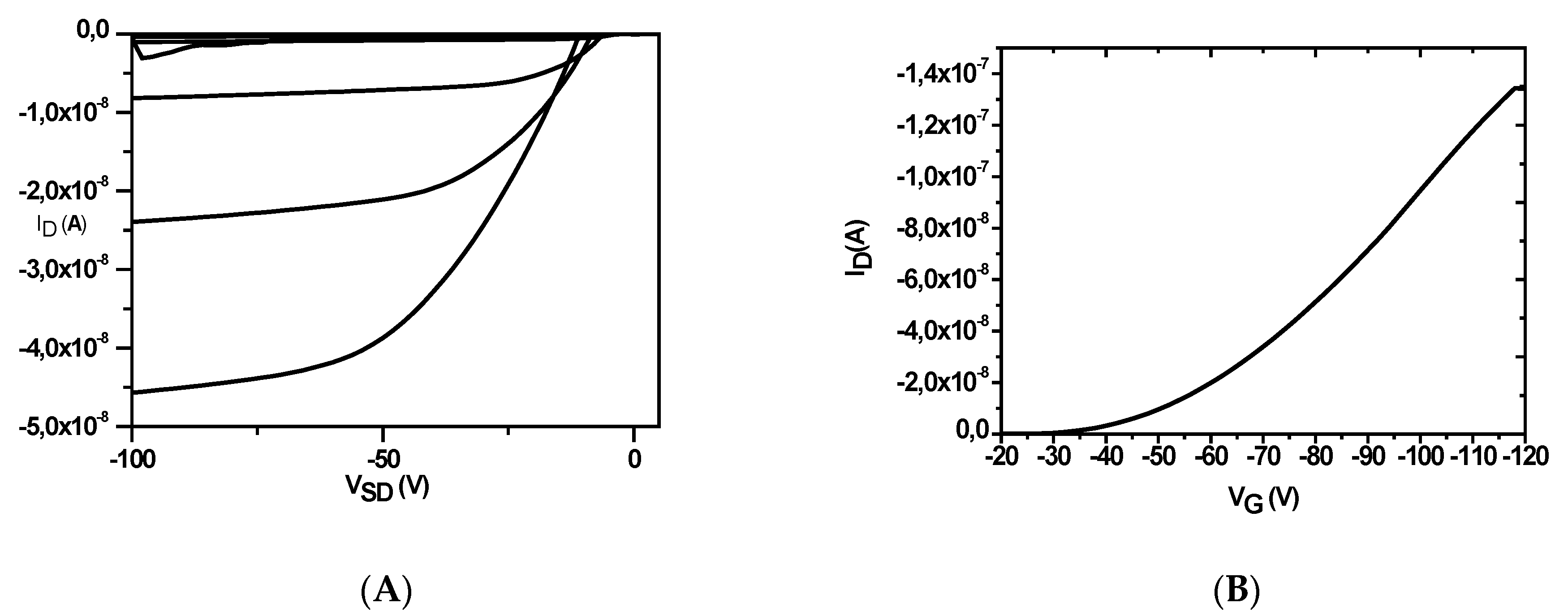

Figure 6. Output (A) and transfer (B) plots for P1a. VG varies from 20 to −100 V (in 20 V steps).
Figure 6. Output (A) and transfer (B) plots for P1a. VG varies from 20 to −100 V (in 20 V steps).
Polymers 12 00256 g006
Polymers 12 00256 g007 550
Figure 7. X-ray diffraction scans of vapor-deposited P1b, P1c, and P1d thin films. Optimal deposition conditions are indicated in the graph.
Figure 7. X-ray diffraction scans of vapor-deposited P1b, P1c, and P1d thin films. Optimal deposition conditions are indicated in the graph.
Polymers 12 00256 g007
Polymers 12 00256 g008 550

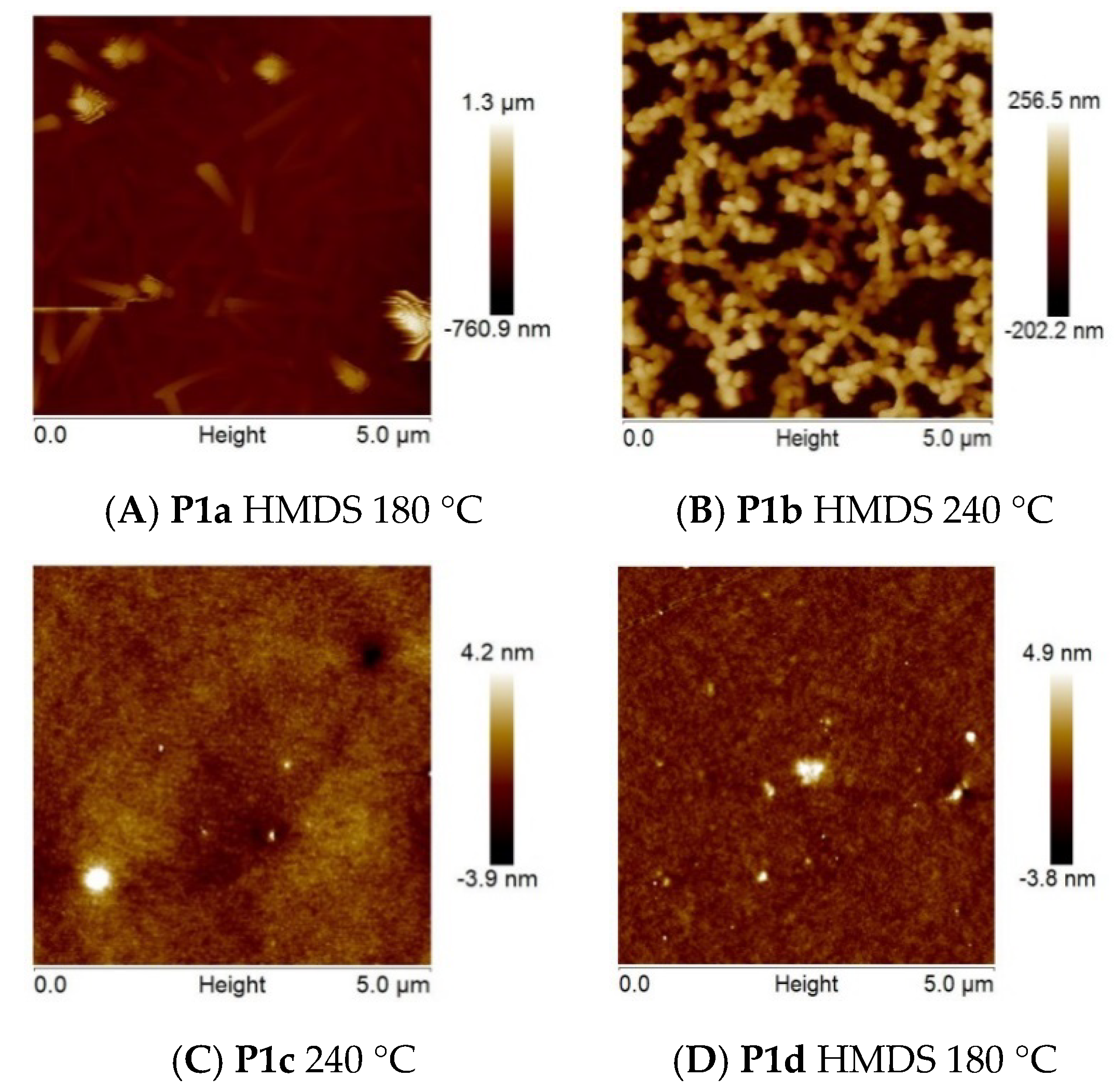

Figure 8. AFM images of P1a, P1b, P1c, and P1d. Image size: 5 × 5 µm.
Figure 8. AFM images of P1a, P1b, P1c, and P1d. Image size: 5 × 5 µm.
Polymers 12 00256 g008
Table
Table 1. Molecular weights distribution of co-oligomers P1 and P2 obtained by SEC-LS.
Table 1. Molecular weights distribution of co-oligomers P1 and P2 obtained by SEC-LS.
CompoundMuaN# bMwcMndnePDI f
P1a536610,771369972.91
P1b526619,4427333142.65
P1c66269505500181.90
P1d6026623932985.51.89
P2b72612645516052.54.02
P2c86212737738794.51.90
a. Mu = molecular weight unity (g/mol). b. N#: Number of double bonds in the alternate backbone by monomer unity. c. Mw = weight-average molecular weight (g/mol), estimated by GPC in THF on basis polystyrene calibration. d. Mn = number-average molecular weight (g/mol), estimated by GPC in THF on basis polystyrene calibration. e. n (number of monomer unities) = Mn/Mu. f. PDI. Polydispersity = Mw/Mn.
Table
Table 2. Photophysical measurement and theoretical data obtained for P1 and P2.
Table 2. Photophysical measurement and theoretical data obtained for P1 and P2.
CompoundAbs aEmΦ bEgap cHOMOLUMOEgapd
λmax1λmax2λonsetλmax (eV) (eV)
P1a2794104624680.642.69−4.85−1.962.93
P1b2754234604930.622.70−4.94−2.122.82
P1c3184415034970.532.46−5.20−2.492.71
P1d3414294614930.542.69−4.94−2.192.75
P2b3353994695200.582.64−5.07−2.382.69
P2c33240104815740.512.58−5.21−2.682.53
a.λ in nm. b. Φ was measured in CHCl3 using quinine sulfate in 1M H2SO4 (Φ = 0.54) and 9,10-diphenylanthracene in cyclohexane (Φ = 0.90) as internal standards. c. The optical band gap (Egap) was determined from the experimental absorption onset. d. The theoretical band gap (Egap) was calculated for tetramers of P1–P2 at the B3LPY/6-31g(d,p) theory level.
Table
Table 3. Experimental Raman data for P1–P2.
Table 3. Experimental Raman data for P1–P2.
CompoundC=C/C-C Stretching (cm−1)C≡C Stretching (cm−1)
P1a1582-
P1b1580-
P1c1579-
P1d1580-
P2b15782205
P2c15722201
Table
Table 4. Summary of the organic field-effect transistors (OFET) parameters for the studied polymers.
Table 4. Summary of the organic field-effect transistors (OFET) parameters for the studied polymers.
CompoundTreatmentAnnealing (°C)ION/IOFFVT (V)µ (cm2·V−1·s−1)
P1aHMDS1803.94 × 103−472.23 × 10−4
P1bHMDS2401.11 × 101−323.11 × 10−4
P1cNone2401.57 × 102−102.38 × 10−4
P1dHMDS1803.36 × 102−502.15 × 10−4
P2cOTS1006.79 × 102−851.79 × 10−5

Share and Cite

MDPI and ACS Style

Torres-Moya, I.; Vázquez-Guilló, R.; Fernández-Palacios, S.; Carrillo, J.R.; Díaz-Ortiz, Á.; López Navarrete, J.T.; Ponce Ortiz, R.; Ruiz Delgado, M.C.; Mallavia, R.; Prieto, P. Fluorene-Based Donor-Acceptor Copolymers Containing Functionalized Benzotriazole Units: Tunable Emission and their Electrical Properties. Polymers 2020, 12, 256. https://doi.org/10.3390/polym12020256

AMA Style

Torres-Moya I, Vázquez-Guilló R, Fernández-Palacios S, Carrillo JR, Díaz-Ortiz Á, López Navarrete JT, Ponce Ortiz R, Ruiz Delgado MC, Mallavia R, Prieto P. Fluorene-Based Donor-Acceptor Copolymers Containing Functionalized Benzotriazole Units: Tunable Emission and their Electrical Properties. Polymers. 2020; 12(2):256. https://doi.org/10.3390/polym12020256

Chicago/Turabian Style

Torres-Moya, Iván, Rebeca Vázquez-Guilló, Sara Fernández-Palacios, José Ramón Carrillo, Ángel Díaz-Ortiz, Juan Teodomiro López Navarrete, Rocío Ponce Ortiz, Mari Carmen Ruiz Delgado, Ricardo Mallavia, and Pilar Prieto. 2020. "Fluorene-Based Donor-Acceptor Copolymers Containing Functionalized Benzotriazole Units: Tunable Emission and their Electrical Properties" Polymers 12, no. 2: 256. https://doi.org/10.3390/polym12020256

APA Style

Torres-Moya, I., Vázquez-Guilló, R., Fernández-Palacios, S., Carrillo, J. R., Díaz-Ortiz, Á., López Navarrete, J. T., Ponce Ortiz, R., Ruiz Delgado, M. C., Mallavia, R., & Prieto, P. (2020). Fluorene-Based Donor-Acceptor Copolymers Containing Functionalized Benzotriazole Units: Tunable Emission and their Electrical Properties. Polymers, 12(2), 256. https://doi.org/10.3390/polym12020256

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
