Plasticization Effect of Poly(Lactic Acid) in the Poly(Butylene Adipate–co–Terephthalate) Blown Film for Tear Resistance Improvement

by
Do Young Kim
,
Jae Bin Lee
,
Dong Yun Lee
* and
Kwan Ho Seo
*
Department of Polymer Science and Engineering, Kyungpook National University, Daegu 41566, Korea
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(9), 1904; https://doi.org/10.3390/polym12091904
Submission received: 4 August 2020 / Revised: 20 August 2020 / Accepted: 21 August 2020 / Published: 24 August 2020
(This article belongs to the Section Polymer Processing and Engineering)
Browse Figures
Versions Notes

Abstract

:
The mechanical properties and tear resistance of an ecofriendly flexible packaging film, i.e., poly(lactic acid) (PLA)/poly (butylene adipate–co–terephthalate) (PBAT) film, were investigated via a blown film extrusion process. The application of PLA and PBAT in product packaging is limited due to the high brittleness, low stiffness, and incompatibility of the materials. In this study, the effects of various plasticizers, such as adipate, adipic acid, glycerol ester, and adipic acid ester, on the plasticization of PLA and fabrication of the PLA/PBAT blown film were comprehensively evaluated. It was determined that the plasticizer containing ether and ester functionalities (i.e., adipic acid ester) improved the flexibility of PLA as well as its compatibility with PBAT. It was found that the addition of the plasticizer effectively promoted chain mobility of the PLA matrix. Moreover, the interfacial adhesion between the plasticized PLA domain and PBAT matrix was enhanced. The results of the present study demonstrated that the plasticized PLA/PBAT blown film prepared utilizing a blown film extrusion process exhibited improved tear resistance, which increased from 4.63 to 8.67 N/mm in machine direction and from 13.19 to 16.16 N/mm in the transverse direction.

Graphical Abstract

1. Introduction

Poly(lactic acid) (PLA) is a well-known biodegradable polymer, which has attracted significant attention as a possible solution to alleviate environmental pollution and waste accumulation. PLA is derived from renewable resources, e.g., from sugars in corn starch or cassava. Moreover, after consumption, it completely decomposes into water and carbon dioxide via composting [1,2,3]. PLA is inexpensive and exhibits remarkable mechanical strength and biocompatibility [4,5]. Nevertheless, its applications have been limited due to some unfavorable characteristics, including low fracture toughness and flexibility, high brittleness, slow crystallization, and narrow processing window. Consequently, the use of PLA in blown film extrusion and foam processes is restricted [6,7]. To improve these properties and enable simple processability in the packaging industry, PLA has been modified by the addition of compatibilizers, such as plasticizers [8,9,10], reactive coupling agents [11,12,13], and fillers [14,15,16]. In addition, blending with other polymers [17,18,19,20], including copolymers and functionalized polymers, has also been reported.
Poly(butylene adipate–co–terephthalate) (PBAT) is another commonly known biodegradable polymer. It is derived from petroleum-based resources and exhibits high elongation at break and good ductility. Similarly to thermoplastic elastomers, it also displays low modulus of elasticity [21,22]. However, PBAT is associated with several unfavorable properties, which limit its application. In addition to high cost, the material shows low stiffness and weak tensile strength [23,24]. Thus, a blend of PBAT and PLA with complementary properties has been proposed as one of possible solutions to solve the aforementioned issues. Numerous studies have investigated PLA/PBAT blends [25,26,27,28]. Considering the difference in their solubility parameters, the materials were found to be immiscible and phase separation of their blends is often required [29,30,31]. Hence, the use of PLA/PBAT blends in the film packaging industry is limited because of the undesirable mechanical properties, including poor tear strength due to brittleness of PLA as well as its incompatibility with PBAT. However, these drawbacks could be resolved by the addition of plasticizers to PLA.
Plasticization is a widely employed process to improve the processing behaviors of polymeric materials. Furthermore, plasticization is often used to enhance the original characteristics of polymers, including their flexibility and mechanical and thermal properties, by inducing favorable interactions between the polymer and plasticizer [32]. This method also involves the modification of the intermolecular bonds between the polymer chains, promoting interfacial adhesion and resulting in increased compatibility [33]. Several PLA plasticizers, such as acetyl tributyl citrate [34,35,36], diethyl adipate [37,38], lactides [8,39], and polyethylene glycol [40,41], have been studied. These results have successfully demonstrated the plasticization of PLA by blending with other polymers such as starch and PBAT. However, these studies were focused on a reduced glass transition temperature and the improved elongation at break of PLA.
In this study, we focused on the preparation of plasticized PLA/PBAT blown films utilizing suitable plasticizers to improve tear resistance. The thermal, mechanical, and tear resistance properties as well as the morphology of the plasticized PLA/PBAT blends and films were comprehensively evaluated. Plasticization was carried out to determine the most appropriate plasticizer for PLA. In addition, the effects of the type and content of plasticizers were investigated. It was found that the PBAT blown film containing PLA plasticized by adipic acid ester, which was obtained via a blown process, exhibited improved mechanical and tear resistance properties compared to the PLA/PBAT blown film without any plasticizers.

2. Materials and Methods

2.1. Materials

PLA (Ingeo™ Biopolymer 4032D) was obtained from NatureWorks LLC (Minnetonka, MN, USA). The melt flow index (MFI) of PLA was determined at 6.0 g/10 min at 190 °C. The load was 2.16 kg and the d-lactic acid content was estimated at 2%. PBAT (EnPol PBG7070) was supplied by Lotte Fine Chemical (Seoul, Korea). Adipate (bis[2–(2–butoxyethoxy)ethyl] adipate) was obtained from Sigma-Aldrich (St. Louis, MO, USA). Adipic acid (EDENOL® 1208) and glycerol ester (LOXIOL® P1141) were purchased from Emery Oleochemicals (Telok Panglima Garang, Malaysia). Adipic acid ester (DAIFATTY®-101) was obtained from Daihachi Chemical Industry Co., Ltd. (Osaka, Japan). The aforementioned reagents were used as plasticizers for PLA and their properties are summarized in Table 1. Talc (KCM-6300, KOCH, Seocheon, Korea) and ethylene bis-stearamide wax (HI-LUBETM bead, Sinwon Chemical, Siheung, Korea) were employed as commercial-grade processing aids to reduce the surface friction of films and promote the usage of antiblocking and nucleating agents.

2.2. Preparation of Plasticized PLA Samples

The preliminary experiments were carried out to evaluate the effects of plasticizers on the flexibility of PLA. The PLA pellets were dried in a vacuum oven at 50 °C for 24 h to remove moisture. The weight ratios of the compounds composed of PLA and the plasticizers are summarized in Table 2. The materials were prepared utilizing a Plasti-Corder Lab-Station with a W 50 EHT mixer (Brabender, Duisburg, Germany) equipped with a counter-rotating twin-screw compounder with a bowl volume of 55 cm3 and roller blades. The plasticized PLA materials were produced at a barrel temperature of 170 °C with a rotation speed of 50 rpm and residence time of 1 min. After the torque was stabilized, a plasticizer was added at the same temperature and rotation speed, with a residence time of 5 min. The as-prepared compounds were cut into small pieces and shaped into 140 mm × 120 mm rectangles with a thickness of 1 mm using a hydraulic laboratory press (Model 3851, Fred S. Carver Inc., Menomonee Falls, WI, USA). The molding was performed at 170 °C using a preheating time of 4 min at a pressure of 2000 psi for 2 min. The samples were subsequently cooled.

2.3. Preparation of Plasticized PLA and PBAT Materials

Based on the results of the preliminary experiments, to plasticize PLA independently, the extrusion was carried out in a counter-rotating twin-screw extruder (TEK 30 MHS, SM Platek, Ansan, Korea) with a 31.6 mm screw diameter (length (L)/diameter (D) = 40) and liquid feeder (SF3141, In Feed Corp., Hwaseong, Korea). Prior to the extrusion, the materials were dried in an oven at 50 °C for 24 h. The extrusion was performed at a screw speed of 300 rpm. The barrel temperatures were set at a profile of 110/160/170/170/160/160/160/160/160 °C with the die temperature set at 160 °C. The extruded strand was cooled in a water bath at room temperature and then dried for 24 h after pelletizing. Prior to extrusion of the plasticized PLA/PBAT blend samples, the components were weighted and mixed mechanically at room temperature. Subsequently, the extrusion was carried out utilizing the same conditions. The components used for the preparation of plasticized PLA and plasticized PLA/PBAT are summarized in Table 3.

2.4. Blown Film Process

The samples were prepared using a blown film machine (SJ45-MFG500, Seojin Industry, Incheon, Korea) with a 45 mm single screw and an L/D ratio of 30. The barrel temperatures were set at a profile of 145/145/145/140 °C and the annular die temperature was set at 140 °C. To compare the mechanical properties of the materials, the blown film process conditions were fixed at a blow up ratio of 2.8 and film thickness of 30 µm. Concurrently, the annular die diameter of 80 mm and die gap of 1.2 mm were employed.

2.5. Instrumentation and Equipment

Validation of the plasticized PLA samples was performed using an MFI tester (MFI 10, Davenport, Hampshire, UK). The MFI tester was employed to measure the processability of plasticized PLA at 190 °C with a 2.16 kg load. The samples were cut every 30 s, and average values of five measurements were used. The glass transition temperature (Tg), crystallization temperature (Tc), cold crystallization temperature (Tcc), melting temperature (Tm), heat flow of crystallization (ΔHc), cold crystallization (ΔHcc), change in enthalpy of melting (ΔHm), and degree of crystallinity (Xc) of the samples were determined by differential scanning calorimetry (DSC; Q2000, TA instruments, New Castle, DE, USA). The samples were first heated to 200 °C at a rate of 10 °C/min and then kept for 3 min under a nitrogen atmosphere to eliminate the effects of previous thermal history. Subsequently, the samples were cooled and heated again from 20 to 200 °C at the rate of 10 °C/min. The value of Xc was calculated according to Equation (1):
X c ( % ) = Δ H m − Δ H c c Δ H m , 100   ×   100 ,
where ΔHm,100 denotes the heat of melting of 100% crystalline PLA (93.7 J/g) [42].
The dynamic mechanical analysis (DMA) of the samples was conducted employing a dynamic mechanical analyzer (N535, Perkin-Elmer, Boston, MA, USA). The measurements were performed at temperatures from −10 to 100 °C at a heating rate of 5 °C/min and a frequency of 1 Hz under nitrogen atmosphere. The samples with dimensions of 30 mm × 10 mm × 1 mm were prepared utilizing a hydraulic laboratory press.
The morphologies of the film samples were investigated using field-emission scanning electron microscopy (FE-SEM; SU8220, Hitachi, Tokyo, Japan) with an acceleration voltage of 5 kV. The samples were cryogenically fractured in liquid nitrogen and sputtered with Pt for 60 s.
Subsequently, the mechanical properties and tear strength of the blown film samples were evaluated using a universal testing machine (UTM; LR5K Plus, Lloyd Instruments, West Sussex, UK) with a load cell of 500 N and an Elmendorf tear tester (ElmaTear 855, James H. Heal & Co. Ltd., Halifax, UK). Furthermore, the tensile properties and tear strength were analyzed according to the ASTM D882 and ASTM D1922 standards. To obtain an average value, five overlapped film samples were prepared and tested in the machine direction (MD) and transverse direction (TD) for each group.

3. Results

3.1. Effects of PLA Plasticizer Type and Content on Processability

The flow behavior of melted polymers is important in polymer manufacture and processing, including the production of blown and cast films as well as foaming extrusion. The flow behavior of polymers is influenced by various factors, such as the temperature, molecular weight, molecular weight distribution, and addition of fillers and plasticizers [43,44]. The flow behavior can be evaluated by observing the MFI [45]. As a single point test, MFI is a remarkably sensitive technique for distinguishing a change in polymer additives. In the present study, MFI measurements were conducted to investigate the effects of plasticizers on the shear viscosity of PLA. Figure 1 shows the variation of MFI for the plasticized PLA samples with increasing plasticizer content. Evidently, the value of MFI increased with increasing plasticizer amount. It is noteworthy that glycerol ester also acted as a lubricant, which was demonstrated by a sharp increase in MFI (up to 67) compared to other plasticizers. In addition, the sharp increase in MFI could be ascribed to the decomposition of PLA as well as the incompatibility between PLA and the plasticizer. These results showed that glycerol ester was not an adequate plasticizer for the blown film process. Furthermore, an increase in the content of adipate, adipic acid, and adipic acid ester resulted in a gradual increase in the MFI values of the plasticizers. This result was attributed to the molecules permeating the intermolecular spaces between the PLA chains, increasing the mobility of the chain segment and facilitating the flow of PLA [46,47]. Thus, the materials could be effectively applied in blown film processes by controlling their content and type.

3.2. Effects of PLA Plasticization on the Thermal Properties

We subsequently investigated the effects of the plasticizer type and content by DSC to confirm the thermal behavior of the plasticized PLA. Figure 2 shows the secondary heating DSC curves for the plasticized PLA samples, depending on the type of plasticizer with 20 phr. Moreover, the results of DSC measurements for all samples are summarized in Table 4 and Figure S1. As shown in Figure 2, the neat PLA (P100) sample exhibited a transition curve (Tg), cold crystallization peak (Tcc), and a double melting peak (Tm); however, no obvious crystallization peak (Tc) was detected. This is because PLA is a semicrystalline polymer with a slow rate of crystallization. It arises from a semirigid backbone and displays low chain mobility due to the short length of the repeating unit [48,49]. Notably, Tg and Tcc of all plasticized PLA samples decreased upon the addition of the plasticizer. In particular, the addition of adipate and adipic acid ester resulted in lower peaks than those observed for other plasticizers because adipate and adipic acid ester exhibit lower molecular weights and contain ether and ester moieties, which are compatible with the ester functionalities in the PLA structure. In addition, the presence of one melting peak and the increase of Xc for all analyzed samples correlated with the increase in the adipate and adipic acid ester content. Particularly, the Xc value for AAE-20 increased from 2.38% to 31.59%. This could be related to the increased crystallization rate of PLA, which was a consequence of enhanced chain mobility owing to good compatibility between the plasticizer and PLA [50,51]. Hence, the plasticizers assisted free movement of the chains, which led to more ordered chain packing in the crystalline lattices of PLA. Accordingly, the formation of the crystallization peaks (Tc) of AP-15, AP-20, AAE-15, and AAE-20 was observed in the first cooling curves (Figure S2).

3.3. Dynamic Mechanical Properties of Plasticized PLA

To further investigate the plasticization of PLA, we subsequently conducted DMA. The results of the analysis for PLA with various plasticizer types and content are presented in Figure 3 and Figure S3, and Table S1. The tanδ peak, defined as the ratio of the loss modulus to the storage modulus with temperature, was related to the Tg of polymer [52]. The value of the tanδ peak, which was indicated by the Tg of P100, was observed at 68.8 °C. Notably, tanδ gradually shifted to a lower temperature upon the addition of plasticizers. For the adipic acid ester, tanδ shifted with increasing content of the plasticizer until 31.3 °C. Moreover, similar tendency was observed for adipate. On the other hand, the remaining plasticizers did not cause a significant change in tanδ. This result was in good agreement with previous findings on PLA plasticized by adipate and adipic acid ester. Furthermore, as it can be observed in Figure S3 and Table S1, the decrease in the tanδ values was a consequence of the increase in the free volume and chain mobility of PLA with the increasing plasticizer content. As previously discussed, we confirmed that the plasticization effects of adipic acid ester resulted in improvement of the PLA brittleness. Thus, this plasticizer was deemed as the most suitable for plasticization of PLA. The plasticizer content was appropriated up to 10 phr in consideration of the processability and plasticization of PLA.

3.4. Effects of the Plasticized PLA on the Morphology of the Blends with PBAT

Generally, polymer blends can be classified as one phase or phase-separated structures, such as sea-island and co-continuous morphologies. The sea-island morphology is associated with poor mechanical properties, which arise from weak interfacial adhesion between the phases as well as stress at the interface boundaries [53,54]. To improve the phase-separated structures and enhance the mechanical properties of PLA/PBAT blends, SEM was used to investigate the morphology of plasticized PLA in a PBAT matrix. Figure 4 shows the SEM images of the fracture surfaces of PLA/PBAT as well as PLA/PBAT blends plasticized using adipic acid ester. As it can be seen, a sea-island structure containing spherical particles of PLA was observed for P35. Non-uniform dispersion in the PBAT matrix with spherical PLA particles was also observed. Moreover, interfacial debonding between the spherical particles and the matrix were noted. On the other hand, the PLA/PBAT blends plasticized by the addition of adipic acid ester exhibited a smooth surface morphology. It was also found that the voids between the interfaces faded. Notably, the disappearance of the voids between PLA and PBAT increased with increasing plasticizer content. The interfacial adhesion between the PLA domain and the PBAT matrix improved and formed a continuous phase when plasticized PLA was used. The obtained results indicated that adipic acid ester acted as a plasticizer and modified the interfacial adhesion at the phase boundaries. Hence, the plasticizer could affect the tear resistance of the film.

3.5. Effects of the Plasticized PLA on the Mechanical Properties of the PBAT Blown Film

In a blown film process, the biaxial stretching in MD and TD occurs simultaneously, orienting the polymer chains of the blown film toward the plane of the film. In the present study, the blown films were quenched by cool air, which led to the crystallization and immobilization of the biaxial oriented chains [55,56]. Hence, the biaxial stretching and quenching processes could affect the mechanical properties, such as tensile strength and flexibility, as well as tear resistance. The changes in the tensile strength, elongation at break, and Young’s modulus of the PBAT blown film containing plasticized PLA are summarized in Figure 5 and Table 5. Overall, the tensile strength, elongation at break, and Young’s modulus in MD were higher than those in TD due to more oriented structures resulting from high stresses during the take-up winder process in MD. It is noteworthy that the tensile strength of the PBAT blown film containing plasticized PLA decreased with increasing content of the adipic acid ester plasticizer. In contrast, the elongation at break increased in both MD and TD. In particular, the tensile strength in MD decreased more than in TD. On the other hand, the change in the Young’s modulus showed a different tendency, i.e., it decreased in MD and increased in TD. These results could be attributed to reducing the intermolecular interactions as well as the increase in the chain mobility of PLA because, the orientations of the PLA structures were modified due to the permeation of the adipic acid ester plasticizer into the PLA chains. In addition, the different tendency in the Young’s modulus of MD and TD could be attributed to increase in the crystallinity. The Young’s modulus in high-oriented MD direction is decreased by restricting the orientation of the film, whereas the Young’s modulus in low-oriented TD direction is increased by increasing the crystallinity [57,58,59]. Consequently, the addition of the adipic acid ester plasticizer in the PLA/PBAT blown film affected lower tensile strength, higher elongation at break and the different tendency in the Young’s modulus of MD and TD.

3.6. Influence of Plasticized PLA in the PBAT Blown Film of Tear Resistance

In the polymer fracture mechanism, the voids and interfacial debonding are affected by the non-linearity in the stress–strain relations of the polymer composites. In particular, the interfaces in the polymer blends result in easy fracturing at the interface rather than in the matrix, resulting in low fracture energy [60,61,62]. Figure 6 and Table 5 show the tear strength results obtained for the PBAT blown film with neat PLA and plasticized PLA in MD and TD. The tear strength was considerably higher in TD than in MD as a consequence of the high-orientation of the film. The outcomes revealed that the tear strength of the PBAT film containing plasticized PLA was higher than the pure PLA/PBAT film. Specifically, the tear strength increased from 4.63 to 8.67 N/mm in MD (187%) and from 13.19 to 16.16 N/mm in TD (122%). As mentioned earlier, the presence of plasticized PLA enhanced the interfacial adhesion with PBAT, resulting in the reduction of defects such as voids. In addition, the plasticized PLA/PBAT blend has more homogeneous, because the plasticizer was preferentially located in amorphous phases than crystalline phases and increased the free volume [63,64,65]. Thus, this improvement can be attributed to disperse and absorb the energy required to propagate a crack or a tear. In other words, this indicates that tear resistance improvement is considerably affected by the change in the morphology of the interface than crystallinity. However, the change in the tear resistance of MD and TD revealed a different tendency, because the increase in crystallinity restricted the MD orientation of the film [66]. As can be seen from Figure 6, the change in the tear resistance of MD, which is considerably stretched by the take-up winder, is large.

4. Conclusions

In this study, plasticizers with various chemical structures, including adipate, adipic acid, glycerol ester, and adipic acid ester, were used for plasticization of PLA to improve the tear resistance of a PLA/PBAT blown film. The thermal and dynamic mechanical properties of plasticized PLA were comprehensively investigated. We demonstrated that adipic acid ester effectively promoted the chain mobility of the PLA matrix. Thus adipic acid ester containing ether and ester functionalities and exhibiting low molecular weight was deemed as the most suitable plasticizer for PLA. Furthermore, a blend of plasticized PLA and PBAT was prepared by twin-screw extrusion, affording a plasticized PLA/PBAT blown film. Plasticized PLA was found to have a remarkable effect on the morphology, mechanical properties, and tear resistance of the film. The plasticized PLA/PBAT film displayed improved tear resistance of approximately 187% (MD) and 122% (TD) compared to neat PLA/PBAT films. The presence of plasticized PLA in PBAT resulted in the formation of a continuous phase by improving the interfacial adhesion between the PLA domain and the PBAT matrix. In conclusion, we demonstrated that the plasticizer type and content affects the thermal and mechanical properties as well as the processability of PLA. Importantly, the tear resistance of the plasticized PLA/PBAT blown films was significantly influenced by the plasticization of PLA. The results of the present study provide a platform for application of PLA/PBAT blow films as potential biopolymers for the development of ecofriendly packaging films.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/9/1904/s1, Figure S1: DSC thermograms of neat PLA and PLA plasticized with different plasticizer types and contents: (a) AP, (b) AA, (c) GE, and (d) AAE, Figure S2: DSC cooling curves of P100, AA-15, AA-20, AAE-15, and AAE-20, Figure S3: Variation of tanδ with varying plasticizer types and contents for neat PLA and PLA plasticized with (a) AP, (b) AA, (c) GE, and (d) AAE, Table S1. DMA data of neat PLA and PLA plasticized with different plasticizer types and contents.

Author Contributions

Conceptualization, D.Y.L. and K.H.S.; methodology, D.Y.K.; validation, D.Y.K.; formal analysis, D.Y.K. and J.B.L.; investigation, D.Y.K. and J.B.L.; writing—original draft preparation, D.Y.K. and J.B.L.; writing—review and editing, D.Y.K.; project administration, D.Y.L. and K.H.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea (NRF) grant funded by the Ministry of Science and ICT for First-Mover Program for Accelerating Disruptive Technology Development (2018M3C1B9069743).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chandra, R.; Rustgi, R. Biodegradable polymers. Prog. Polym. Sci. 1998, 23, 1273–1335. [Google Scholar] [CrossRef]
  2. Dorgan, J.R.; Lehermeier, H.; Mang, M. Thermal and rheological properties of commercial-grade poly (lactic acid) s. J. Polym. Environ. 2000, 8, 1–9. [Google Scholar] [CrossRef]
  3. Vink, E.T.; Rabago, K.R.; Glassner, D.A.; Gruber, P.R. Applications of life cycle assessment to NatureWorks™ polylactide (PLA) production. Polym. Degrad. Stab. 2003, 80, 403–419. [Google Scholar] [CrossRef]
  4. Avérous, L. Polylactic acid: Synthesis, properties and applications. In Monomers, Polymers and Composites from Renewable Resources; Elsevier: Amsterdam, The Netherlands, 2008; pp. 433–450. [Google Scholar]
  5. Lopes, M.S.; Jardini, A.; Maciel Filho, R. Poly (lactic acid) production for tissue engineering applications. Procedia Eng. 2012, 42, 1402–1413. [Google Scholar] [CrossRef] [Green Version]
  6. Auras, R.; Harte, B.; Selke, S. An overview of polylactides as packaging materials. Macromol. Biosci. 2004, 4, 835–864. [Google Scholar] [CrossRef]
  7. Farah, S.; Anderson, D.G.; Langer, R. Physical and mechanical properties of PLA, and their functions in widespread applications—A comprehensive review. Adv. Drug Deliv. Rev. 2016, 107, 367–392. [Google Scholar] [CrossRef] [Green Version]
  8. Martin, O.; Avérous, L. Poly (lactic acid): Plasticization and properties of biodegradable multiphase systems. Polymer 2001, 42, 6209–6219. [Google Scholar] [CrossRef]
  9. Awale, R.J.; Ali, F.B.; Azmi, A.S.; Puad, N.I.M.; Anuar, H.; Hassan, A. Enhanced flexibility of biodegradable polylactic acid/starch blends using epoxidized palm oil as plasticizer. Polymers 2018, 10, 977. [Google Scholar] [CrossRef] [Green Version]
  10. Aliotta, L.; Vannozzi, A.; Panariello, L.; Gigante, V.; Coltelli, M.-B.; Lazzeri, A. Sustainable micro and nano additives for controlling the migration of a biobased plasticizer from PLA-based flexible films. Polymers 2020, 12, 1366. [Google Scholar] [CrossRef]
  11. Wang, L.; Ma, W.; Gross, R.; McCarthy, S. Reactive compatibilization of biodegradable blends of poly (lactic acid) and poly (ε-caprolactone). Polym. Degrad. Stab. 1998, 59, 161–168. [Google Scholar] [CrossRef]
  12. Lee, S.-H.; Wang, S. Biodegradable polymers/bamboo fiber biocomposite with bio-based coupling agent. Compos. Part. A Appl. Sci. Manuf. 2006, 37, 80–91. [Google Scholar] [CrossRef]
  13. González-López, M.; Robledo-Ortíz, J.; Manríquez-González, R.; Silva-Guzmán, J.; Pérez-Fonseca, A. Polylactic acid functionalization with maleic anhydride and its use as coupling agent in natural fiber biocomposites: A review. Compos. Interfaces 2018, 25, 515–538. [Google Scholar] [CrossRef]
  14. Jonoobi, M.; Harun, J.; Mathew, A.P.; Oksman, K. Mechanical properties of cellulose nanofiber (CNF) reinforced polylactic acid (PLA) prepared by twin screw extrusion. Compos. Sci. Technol. 2010, 70, 1742–1747. [Google Scholar] [CrossRef]
  15. Shakoor, A.; Thomas, N.L. Talc as a nucleating agent and reinforcing filler in poly (lactic acid) composites. Polym. Eng. Sci. 2014, 54, 64–70. [Google Scholar] [CrossRef] [Green Version]
  16. Lee, M.; Jung, B.N.; Kim, G.H.; Kang, D.; Park, H.J.; Shim, J.K.; Hwang, S.W. The effect of triethyl citrate on the dispersibility and water vapor sorption behavior of polylactic acid/zeolite composites. Polym. Test. 2020, 89, 106571. [Google Scholar] [CrossRef]
  17. Bhatia, A.; Gupta, R.; Bhattacharya, S.; Choi, H. Compatibility of biodegradable poly (lactic acid)(PLA) and poly (butylene succinate)(PBS) blends for packaging application. Korea-Aust. Rheol. J. 2007, 19, 125–131. [Google Scholar]
  18. Ma, P.; Cai, X.; Zhang, Y.; Wang, S.; Dong, W.; Chen, M.; Lemstra, P. In-situ compatibilization of poly (lactic acid) and poly (butylene adipate–co–terephthalate) blends by using dicumyl peroxide as a free-radical initiator. Polym. Degrad. Stab. 2014, 102, 145–151. [Google Scholar] [CrossRef]
  19. Csikós, Á.; Faludi, G.; Domján, A.; Renner, K.; Móczó, J.; Pukánszky, B. Modification of interfacial adhesion with a functionalized polymer in PLA/wood composites. Eur. Polym. J. 2015, 68, 592–600. [Google Scholar] [CrossRef] [Green Version]
  20. Akrami, M.; Ghasemi, I.; Azizi, H.; Karrabi, M.; Seyedabadi, M. A new approach in compatibilization of the poly (lactic acid)/thermoplastic starch (PLA/TPS) blends. Carbohydr. Polym. 2016, 144, 254–262. [Google Scholar] [CrossRef]
  21. Herrera, R.; Franco, L.; Rodríguez-Galán, A.; Puiggalí, J. Characterization and degradation behavior of poly (butylene adipate–co–terephthalate) s. J. Polym. Sci. Part. A Polym. Chem. 2002, 40, 4141–4157. [Google Scholar] [CrossRef]
  22. Kijchavengkul, T.; Auras, R.; Rubino, M.; Selke, S.; Ngouajio, M.; Fernandez, R.T. Biodegradation and hydrolysis rate of aliphatic aromatic polyester. Polym. Degrad. Stab. 2010, 95, 2641–2647. [Google Scholar] [CrossRef]
  23. Jiang, L.; Liu, B.; Zhang, J. Properties of poly (lactic acid)/poly (butylene adipate–co–terephthalate)/nanoparticle ternary composites. Ind. Eng. Chem. Res. 2009, 48, 7594–7602. [Google Scholar] [CrossRef]
  24. Rodrigues, B.V.; Silva, A.S.; Melo, G.F.; Vasconscellos, L.M.; Marciano, F.R.; Lobo, A.O. Influence of low contents of superhydrophilic MWCNT on the properties and cell viability of electrospun poly (butylene adipate–co–terephthalate) fibers. Mater. Sci. Eng. C 2016, 59, 782–791. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gu, S.-Y.; Zhang, K.; Ren, J.; Zhan, H. Melt rheology of polylactide/poly (butylene adipate–co–terephthalate) blends. Carbohydr. Polym. 2008, 74, 79–85. [Google Scholar] [CrossRef]
  26. Signori, F.; Coltelli, M.-B.; Bronco, S. Thermal degradation of poly (lactic acid)(PLA) and poly (butylene adipate–co–terephthalate)(PBAT) and their blends upon melt processing. Polym. Degrad. Stab. 2009, 94, 74–82. [Google Scholar] [CrossRef]
  27. Lu, X.; Zhao, J.; Yang, X.; Xiao, P. Morphology and properties of biodegradable poly (lactic acid)/poly (butylene adipate–co–terephthalate) blends with different viscosity ratio. Polym. Test. 2017, 60, 58–67. [Google Scholar] [CrossRef]
  28. Wang, X.; Peng, S.; Chen, H.; Yu, X.; Zhao, X. Mechanical properties, rheological behaviors, and phase morphologies of high-toughness PLA/PBAT blends by in-situ reactive compatibilization. Compos. Part. B Eng. 2019, 173, 107028. [Google Scholar] [CrossRef]
  29. Schott, H. Solubility parameter, specific molar cohesion, and the solubility of ethylene oxide in polymers. Biomaterials 1982, 3, 195–198. [Google Scholar] [CrossRef]
  30. Siemann, U. The solubility parameter of poly (DL-lactic acid). Eur. Polym. J. 1992, 28, 293–297. [Google Scholar] [CrossRef]
  31. Zhou, J.; Zheng, Y.; Shan, G.; Bao, Y.; Wang, W.-J.; Pan, P. Stretch-induced crystalline structural evolution and cavitation of poly (butylene adipate-ran-butylene terephthalate)/poly (lactic acid) immiscible blends. Polymer 2020, 188, 122121. [Google Scholar] [CrossRef]
  32. Wypych, G. Handbook of Plasticizers; ChemTec Publishing: Toronto, ON, Canada, 2004. [Google Scholar]
  33. Imre, B.; Pukánszky, B. Compatibilization in bio-based and biodegradable polymer blends. Eur. Polym. J. 2013, 49, 1215–1233. [Google Scholar] [CrossRef] [Green Version]
  34. Labrecque, L.; Kumar, R.; Dave, V.; Gross, R.; McCarthy, S. Citrate esters as plasticizers for poly (lactic acid). J. Appl. Polym. Sci. 1997, 66, 1507–1513. [Google Scholar] [CrossRef]
  35. Coltelli, M.B.; Maggiore, I.D.; Bertoldo, M.; Signori, F.; Bronco, S.; Ciardelli, F. Poly (lactic acid) properties as a consequence of poly (butylene adipate-co-terephthalate) blending and acetyl tributyl citrate plasticization. J. Appl. Polym. Sci. 2008, 110, 1250–1262. [Google Scholar] [CrossRef]
  36. Tsou, C.-H.; Suen, M.-C.; Yao, W.-H.; Yeh, J.-T.; Wu, C.-S.; Tsou, C.-Y.; Chiu, S.-H.; Chen, J.-C.; Wang, R.Y.; Lin, S.-M. Preparation and characterization of bioplastic-based green renewable composites from tapioca with acetyl tributyl citrate as a plasticizer. Materials 2014, 7, 5617–5632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Shirai, M.; Grossmann, M.; Mali, S.; Yamashita, F.; Garcia, P.; Müller, C. Development of biodegradable flexible films of starch and poly (lactic acid) plasticized with adipate or citrate esters. Carbohydr. Polym. 2013, 92, 19–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Shirai, M.A.; Müller, C.M.O.; Grossmann, M.V.E.; Yamashita, F. Adipate and citrate esters as plasticizers for poly (lactic acid)/thermoplastic starch sheets. J. Polym. Environ. 2015, 23, 54–61. [Google Scholar] [CrossRef]
  39. Jacobsen, S.; Fritz, H.-G. Plasticizing polylactide—The effect of different plasticizers on the mechanical properties. Polym. Eng. Sci. 1999, 39, 1303–1310. [Google Scholar] [CrossRef]
  40. Taib, R.M.; Ramarad, S.; Ishak, Z.A.M.; Todo, M. Properties of kenaf fiber/polylactic acid biocomposites plasticized with polyethylene glycol. Polym. Compos. 2010, 31, 1213–1222. [Google Scholar] [CrossRef]
  41. Gui, Z.; Xu, Y.; Gao, Y.; Lu, C.; Cheng, S. Novel polyethylene glycol-based polyester-toughened polylactide. Mater. Lett. 2012, 71, 63–65. [Google Scholar] [CrossRef]
  42. Tsuji, H.; Ikada, Y. Properties and morphologies of poly (L-lactide): 1. Annealing condition effects on properties and morphologies of poly (L-lactide). Polymer 1995, 36, 2709–2716. [Google Scholar] [CrossRef]
  43. Vinogradov, G.; Malkin, A.Y. Rheological properties of polymer melts. J. Polym. Sci. Part. A-2 Polym. Phys. 1966, 4, 135–154. [Google Scholar] [CrossRef]
  44. Lim, L.; Tsuji, H. Poly (Lactic Acid): Synthesis, Structures, Properties, Processing, and Applications; Wiley Online Library: Hoboken, NJ, USA, 2010. [Google Scholar]
  45. Cogswell, F.N. Polymer Melt Rheology: A Guide for Industrial Practice; Elsevier: Amsterdam, The Netherlands, 1981. [Google Scholar]
  46. Pillin, I.; Montrelay, N.; Grohens, Y. Thermo-mechanical characterization of plasticized PLA: Is the miscibility the only significant factor? Polymer 2006, 47, 4676–4682. [Google Scholar] [CrossRef]
  47. Abdelwahab, M.A.; Flynn, A.; Chiou, B.-S.; Imam, S.; Orts, W.; Chiellini, E. Thermal, mechanical and morphological characterization of plasticized PLA–PHB blends. Polym. Degrad. Stab. 2012, 97, 1822–1828. [Google Scholar] [CrossRef]
  48. Xu, H.; Xie, L.; Chen, Y.-H.; Huang, H.-D.; Xu, J.-Z.; Zhong, G.-J.; Hsiao, B.S.; Li, Z.-M. Strong shear flow-driven simultaneous formation of classic shish-kebab, hybrid shish-kebab, and transcrystallinity in poly (lactic acid)/natural fiber biocomposites. ACS Sustain. Chem. Eng. 2013, 1, 1619–1629. [Google Scholar] [CrossRef]
  49. Fang, H.; Zhang, Y.; Bai, J.; Wang, Z. Shear-induced nucleation and morphological evolution for bimodal long chain branched polylactide. Macromolecules 2013, 46, 6555–6565. [Google Scholar] [CrossRef]
  50. Xiao, H.; Lu, W.; Yeh, J.T. Effect of plasticizer on the crystallization behavior of poly (lactic acid). J. Appl. Polym. Sci. 2009, 113, 112–121. [Google Scholar] [CrossRef]
  51. Saeidlou, S.; Huneault, M.A.; Li, H.; Park, C.B. Poly (lactic acid) crystallization. Prog. Polym. Sci. 2012, 37, 1657–1677. [Google Scholar] [CrossRef]
  52. Young, R.J.; Lovell, P.A. Introduction to Polymers; CRC Press: Boca Raton, FL, USA, 2011. [Google Scholar]
  53. Utracki, L.A.; Wilkie, C.A. Polymer Blends Handbook; Springer: Berlin/Heidelberg, Germany, 2002; Volume 1. [Google Scholar]
  54. Fenni, S.E.; Cavallo, D.; Müller, A.J. Nucleation and crystallization in bio-based immiscible polyester blends. In Thermal Properties of Bio-Based Polymers; Di Lorenzo, M.L., Androsch, R., Eds.; Springer International Publishing: Cham, Switzerland, 2019; pp. 219–256. [Google Scholar]
  55. Hanschen, T.P. Films, orientation. In Encyclopedia of Polymer Science and Technology; John Wiley & Sons: Hoboken, NJ, USA, 2002; Volume 2. [Google Scholar]
  56. Morris, B.A. The Science and Technology of Flexible Packaging: Multilayer Films from Resin and Process to End Use; William Andrew: Norwich, NY, USA, 2016. [Google Scholar]
  57. Tsuji, H. Autocatalytic hydrolysis of amorphous-made polylactides: Effects of L-lactide content, tacticity, and enantiomeric polymer blending. Polymer 2002, 43, 1789–1796. [Google Scholar] [CrossRef]
  58. Saha, S.K.; Tsuji, H. Effects of rapid crystallization on hydrolytic degradation and mechanical properties of poly (l-lactide-co-ε-caprolactone). React. Funct. Polym. 2006, 66, 1362–1372. [Google Scholar] [CrossRef]
  59. Zhou, C.; Guo, H.; Li, J.; Huang, S.; Li, H.; Meng, Y.; Yu, D.; de Claville Christiansen, J.; Jiang, S. Temperature dependence of poly (lactic acid) mechanical properties. Rsc Adv. 2016, 6, 113762–113772. [Google Scholar] [CrossRef]
  60. Ghassemieh, E.; Naseehi, V. Prediction of failure and fracture mechanisms of polymeric composites using finite element analysis. Part 1: Particulate filled composites. Polym. Compos. 2001, 22, 528–541. [Google Scholar] [CrossRef]
  61. Cheng, L.; Guo, T. Void interaction and coalescence in polymeric materials. Int. J. Solids Struct. 2007, 44, 1787–1808. [Google Scholar] [CrossRef] [Green Version]
  62. Manson, J.A. Polymer Blends and Composites; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2012. [Google Scholar]
  63. Kulinski, B.; Piorkowska, E. Crystallization, structure and properties of plasticized poly (L-lactide). Polymer 2005, 46, 10290–10300. [Google Scholar] [CrossRef]
  64. Rozanski, A.; Galeski, A. Controlling cavitation of semicrystalline polymers during tensile drawing. Macromolecules 2011, 44, 7273–7287. [Google Scholar] [CrossRef]
  65. Rozanski, A.; Galeski, A. Crystalline lamellae fragmentation during drawing of polypropylene. Macromolecules 2015, 48, 5310–5322. [Google Scholar] [CrossRef]
  66. Robertson, G.L. Food Packaging: Principles and Practice, 3rd ed.; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
Polymers 12 01904 g001 550

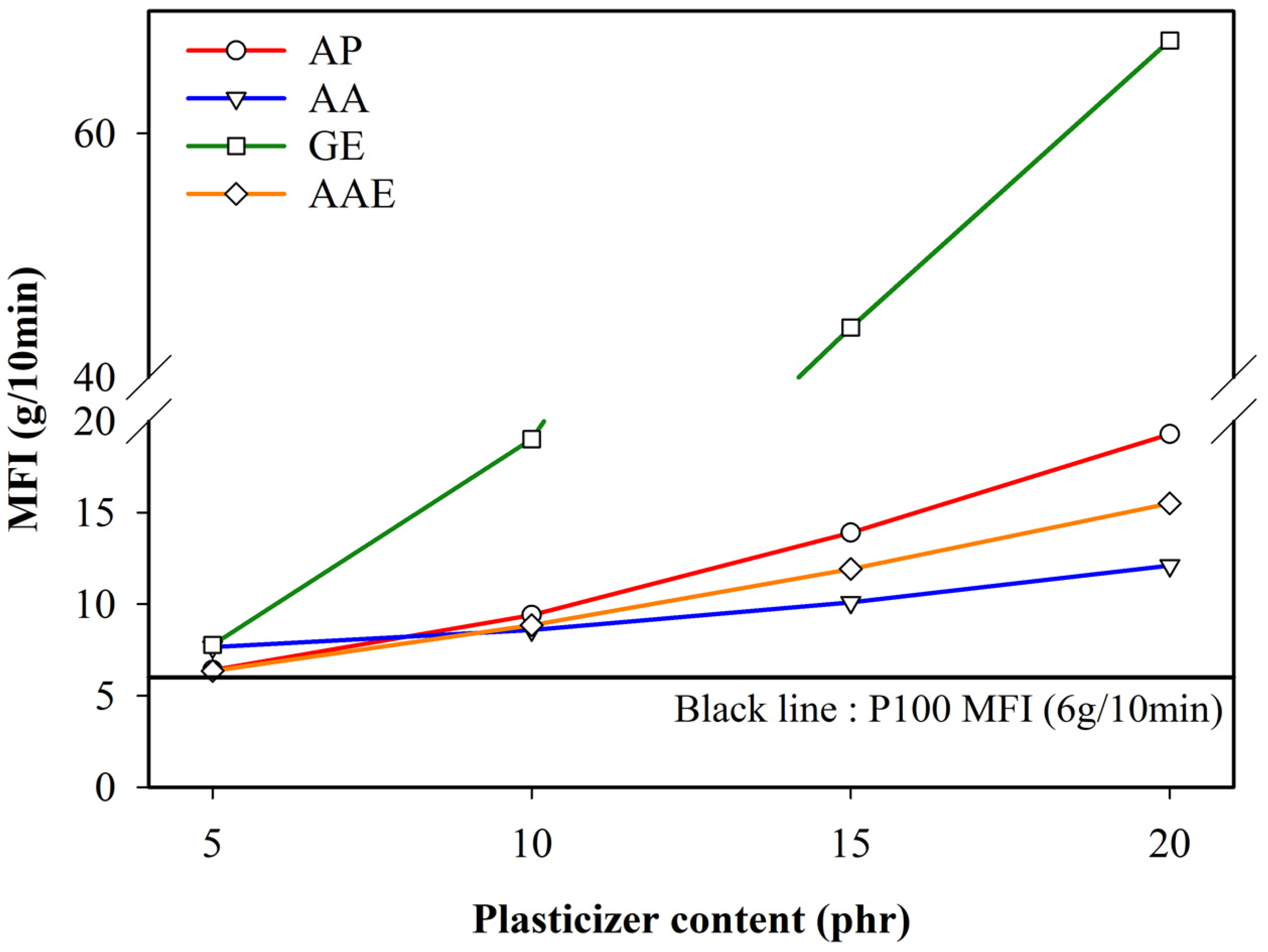

Figure 1. Variation of melt flow index (MFI) for neat PLA and PLA plasticized with varying plasticizer types and contents.
Figure 1. Variation of melt flow index (MFI) for neat PLA and PLA plasticized with varying plasticizer types and contents.
Polymers 12 01904 g001
Polymers 12 01904 g002 550

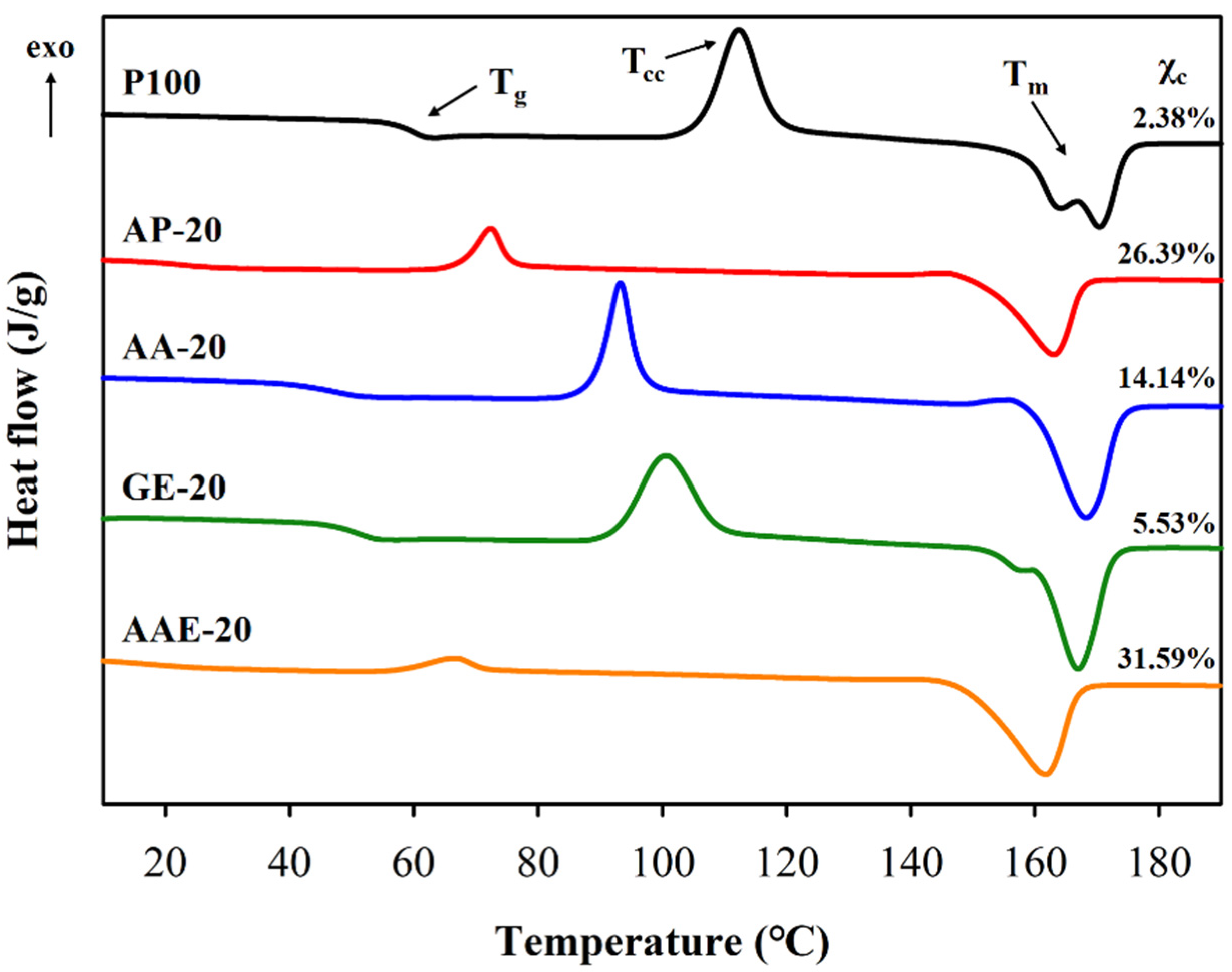

Figure 2. Differential scanning calorimetry (DSC) curves for neat PLA and PLA plasticized with varying plasticizer types and 20 phr.
Figure 2. Differential scanning calorimetry (DSC) curves for neat PLA and PLA plasticized with varying plasticizer types and 20 phr.
Polymers 12 01904 g002
Polymers 12 01904 g003 550

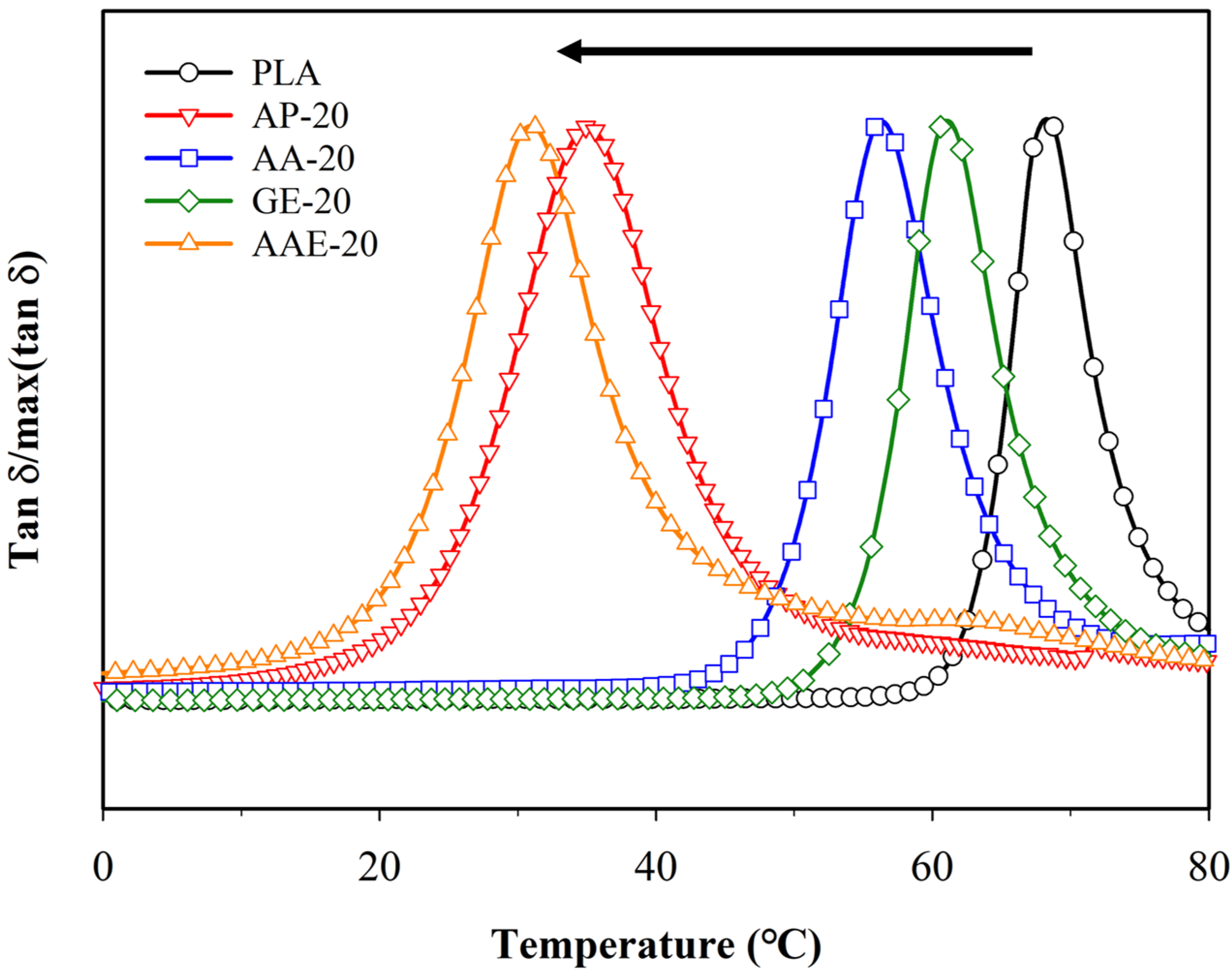

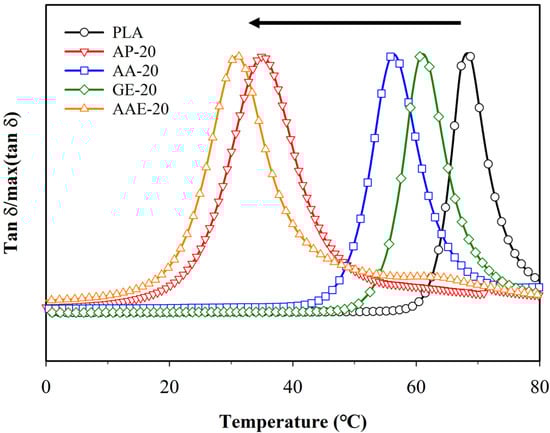

Figure 3. Variation of tanδ with temperature for neat PLA and PLA plasticized with varying plasticizer types and 20 phr.
Figure 3. Variation of tanδ with temperature for neat PLA and PLA plasticized with varying plasticizer types and 20 phr.
Polymers 12 01904 g003
Polymers 12 01904 g004 550
Figure 4. SEM micrographs of the fractured surfaces of the PLA/PBAT and plasticized PLA/PBAT blends at low (upper, scale bar: 10 µm) and high (lower, scale bar: 50 µm) magnifications: (a,d) P35, (b,e) P35AAE-05, and (c,f) P35AAE-10.
Figure 4. SEM micrographs of the fractured surfaces of the PLA/PBAT and plasticized PLA/PBAT blends at low (upper, scale bar: 10 µm) and high (lower, scale bar: 50 µm) magnifications: (a,d) P35, (b,e) P35AAE-05, and (c,f) P35AAE-10.
Polymers 12 01904 g004
Polymers 12 01904 g005 550

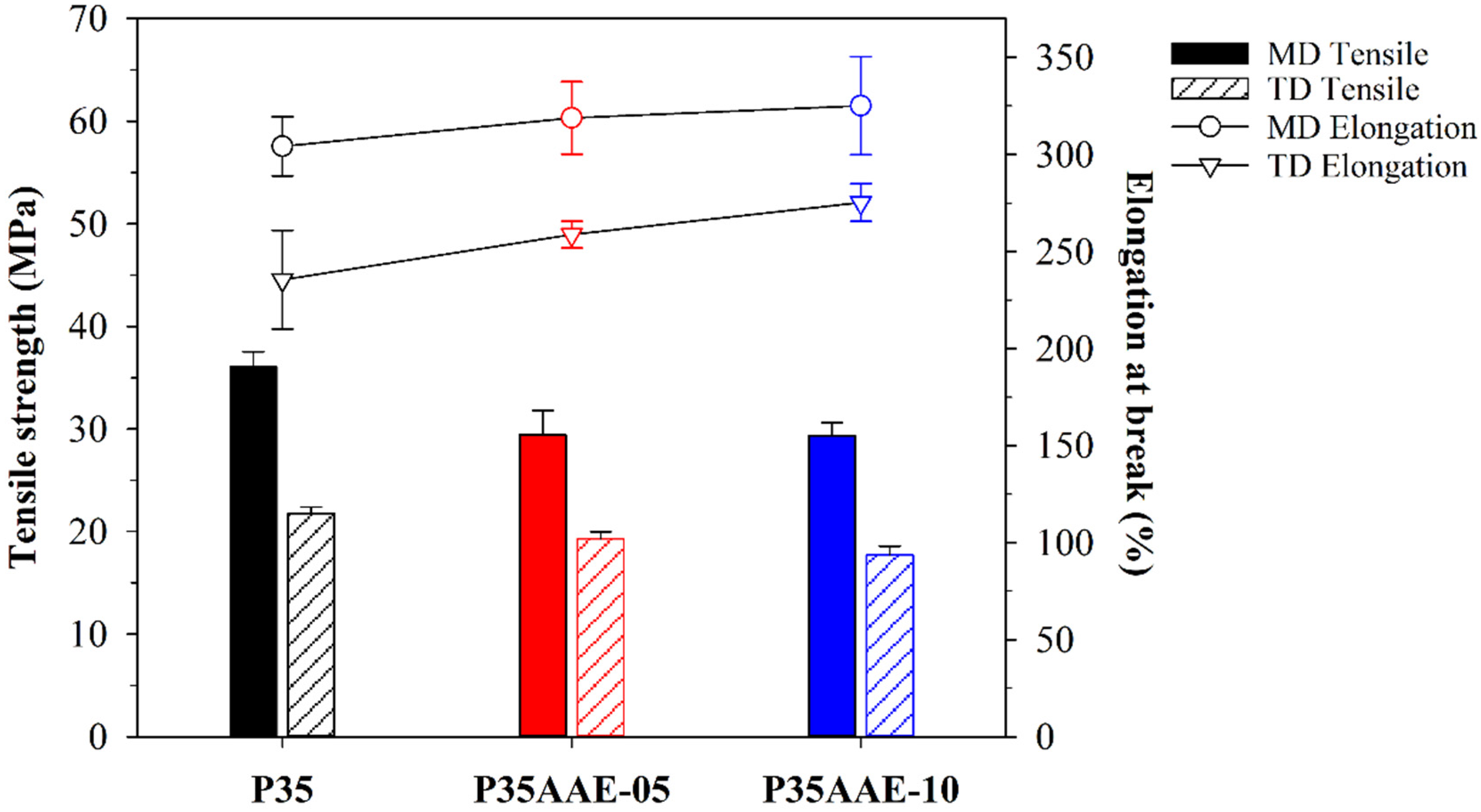

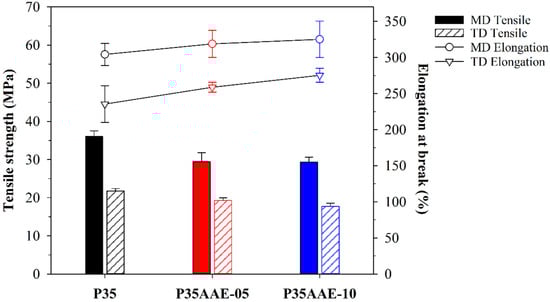

Figure 5. Mechanical properties of the neat PLA/PBAT and plasticized PLA/PBAT blown film.
Figure 5. Mechanical properties of the neat PLA/PBAT and plasticized PLA/PBAT blown film.
Polymers 12 01904 g005
Polymers 12 01904 g006 550

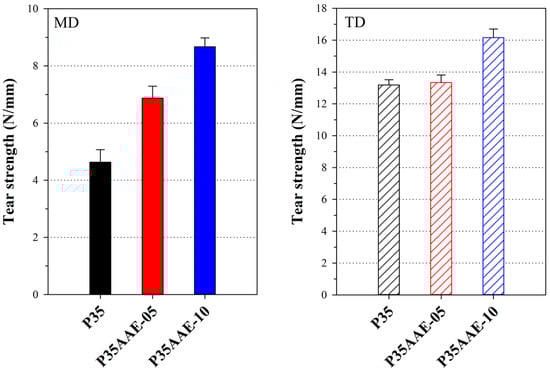

Figure 6. Tear strength of the neat PLA/PBAT and the plasticized PLA/PBAT blown film.
Figure 6. Tear strength of the neat PLA/PBAT and the plasticized PLA/PBAT blown film.
Polymers 12 01904 g006
Table
Table 1. Basic properties of the plasticizers used in this study.
Table 1. Basic properties of the plasticizers used in this study.
Type (Description)Product NameMolecular Weight (g/mol)Density (g/cm3)Viscosity (mPa·s)Supplier
Adipate (AP)Bis[2–(2–butoxyethoxy) ethyl] adipate434.61.0120.5Sigma-Aldrich
Adipic acid (AA)EDENOL® 1208-1.03650–750Emery Oleochemicals
Glycerol ester (GE)LOXIOL® P 1141-0.9390–110Emery Oleochemicals
Adipic acid ester (AAE)DAIFATTY®-1013381.1019Daihachi Chemical Industry
Table
Table 2. Compositions of the plasticized PLA compounds.
Table 2. Compositions of the plasticized PLA compounds.
DescriptionPLA (wt %)AP (phr)AA (phr)GE (phr)AAE (phr)
P100100----
AP-051005---
AP-1010010---
AP-1510015---
AP-2010020---
AA-05100-5--
AA-10100-10--
AA-15100-15--
AA-20100-20--
GE-05100--5-
GE-10100--10-
GE-15100--15-
GE-20100--20-
AAE-05100---5
AAE-10100---10
AAE-15100---15
AAE-20100---20
Table
Table 3. Compositions of the plasticized PLA/PBAT compounds.
Table 3. Compositions of the plasticized PLA/PBAT compounds.
DescriptionPLA (wt %)AAE-05 (wt %)AAE-10 (wt %)PBAT (wt %)Talc (phr)Wax (phr)
P3535--6530.3
P35AAE-05-35-6530.3
P35AAE-10--356530.3
Table
Table 4. DSC data for neat PLA and PLA plasticized with varying plasticizer types and contents.
Table 4. DSC data for neat PLA and PLA plasticized with varying plasticizer types and contents.
DescriptionTg (°C)Tc (°C)Tcc (°C)Tm (°C)ΔHc (J/g)ΔHcc (J/g)ΔHm (J/g)Xc (%)
P10060.18-112.32170.43-33.5635.792.38
AP-0550.04-96.81168.34-27.2533.967.16
AP-1039.48-86.15165.84-21.6336.5415.91
AP-1528.8678.7177.04164.633.5112.6735.2724.12
AP-20-76.2372.34163.065.089.2733.9726.39
AA-0552.96-102.19169.86-27.2931.764.77
AA-1046.49-104.68169.67-26.0634.078.55
AA-1545.30-90.54167.95-21.5935.2114.54
AA-2047.70-93.21168.34-20.6833.9314.14
GE-0555.01-101.90168.74-26.8531.534.99
GE-1052.98-100.84168.11-23.8228.645.14
GE-1552.30-103.18167.76-29.1733.734.87
GE-2051.28-100.58166.94-25.5530.735.53
AAE-0549.43-95.98167.84-24.8332.838.54
AAE-1042.55-89.09165.83-21.4832.8312.11
AAE-1532.9881.1081.43163.783.1515.8833.0118.28
AAE-20-74.2666.92161.8012.403.8333.0731.59
Table
Table 5. Mechanical properties and tear strength of the neat PLA/PBAT and plasticized PLA/PBAT blown film.
Table 5. Mechanical properties and tear strength of the neat PLA/PBAT and plasticized PLA/PBAT blown film.
DescriptionDirectionTensile Strength (MPa)Elongation at Break (%)Young’s Modulus (MPa)Tear Strength (N/mm)
P35MD36.08 ± 1.44304 ± 15.21782 ± 7524.63 ± 0.44
TD21.77 ± 0.63235 ± 25.4528 ± 14013.19 ± 0.33
P35AAE-05MD29.40 ± 2.42318 ± 18.61411 ± 5776.87 ± 0.42
TD19.29 ± 0.67258 ± 6.9635 ± 26813.34 ± 0.47
P35AAE-10MD29.32 ± 1.31325 ± 25.21332 ± 5208.67 ± 0.31
TD17.74 ± 0.84275 ± 9.7829 ± 16716.16 ± 0.54

Share and Cite

MDPI and ACS Style

Kim, D.Y.; Lee, J.B.; Lee, D.Y.; Seo, K.H. Plasticization Effect of Poly(Lactic Acid) in the Poly(Butylene Adipate–co–Terephthalate) Blown Film for Tear Resistance Improvement. Polymers 2020, 12, 1904. https://doi.org/10.3390/polym12091904

AMA Style

Kim DY, Lee JB, Lee DY, Seo KH. Plasticization Effect of Poly(Lactic Acid) in the Poly(Butylene Adipate–co–Terephthalate) Blown Film for Tear Resistance Improvement. Polymers. 2020; 12(9):1904. https://doi.org/10.3390/polym12091904

Chicago/Turabian Style

Kim, Do Young, Jae Bin Lee, Dong Yun Lee, and Kwan Ho Seo. 2020. "Plasticization Effect of Poly(Lactic Acid) in the Poly(Butylene Adipate–co–Terephthalate) Blown Film for Tear Resistance Improvement" Polymers 12, no. 9: 1904. https://doi.org/10.3390/polym12091904

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
