Article

Synthesis of Poly(methacrylic acid-co-butyl acrylate) Grafted onto Functionalized Carbon Nanotube Nanocomposites for Drug Delivery

by
Josué A. Torres-Ávalos
1,
Leonardo R. Cajero-Zul
1,
Milton Vázquez-Lepe
2,
Fernando A. López-Dellamary
3,
Antonio Martínez-Richa
4,
Karla A. Barrera-Rivera
4,
Francisco López-Serrano
5 and
Sergio M. Nuño-Donlucas
1,*
1
Departamento de Ingeniería Química, Universidad de Guadalajara, Guadalajara 44100, Mexico
2
Departamento de Ingeniería de Proyectos, Universidad de Guadalajara, Zapopan 45100, Mexico
3
Departamento de Madera, Celulosa y Papel, Universidad de Guadalajara, Zapopan 45220, Mexico
4
Departamento de Química, Universidad de Guanajuato, Guanajuato 36050, Mexico
5
Departamento de Ingeniería Química, Universidad Nacional Autónoma de Mexico, Ciudad de Mexico 04510, Mexico
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(4), 533; https://doi.org/10.3390/polym13040533
Submission received: 1 January 2021 / Revised: 4 February 2021 / Accepted: 7 February 2021 / Published: 11 February 2021
(This article belongs to the Special Issue Advances in Polymer Composites)
Browse Figures
Review Reports Versions Notes

Abstract

:
Design of a smart drug delivery system is a topic of current interest. Under this perspective, polymer nanocomposites (PNs) of butyl acrylate (BA), methacrylic acid (MAA), and functionalized carbon nanotubes (CNTsf) were synthesized by in situ emulsion polymerization (IEP). Carbon nanotubes were synthesized by chemical vapor deposition (CVD) and purified with steam. Purified CNTs were analyzed by FE-SEM and HR-TEM. CNTsf contain acyl chloride groups attached to their surface. Purified and functionalized CNTs were studied by FT-IR and Raman spectroscopies. The synthesized nanocomposites were studied by XPS, 13C-NMR, and DSC. Anhydride groups link CNTsf to MAA–BA polymeric chains. The potentiality of the prepared nanocomposites, and of their pure polymer matrices to deliver hydrocortisone, was evaluated in vitro by UV–VIS spectroscopy. The relationship between the chemical structure of the synthesized nanocomposites, or their pure polymeric matrices, and their ability to release hydrocortisone was studied by FT-IR spectroscopy. The hydrocortisone release profile of some of the studied nanocomposites is driven by a change in the inter-associated to self-associated hydrogen bonds balance. The CNTsf used to prepare the studied nanocomposites act as hydrocortisone reservoirs.

Graphical Abstract

1. Introduction

In recent years, polymer nanocomposites (PNs) have encompassed several growing fields of research. PNs can be applied in multiple areas such as medicine, aerospace, packaging, electronics, agriculture, and the automotive industry, among others [1,2]. In contrast to composite materials, PNs are characterized by at least one of their phases having a size in the order of the nanometer range. Typically, this fact has had a positive influence on the outstanding properties that these materials exhibit.
Among other nanomaterials used as nanofillers to prepare PNs, carbon nanotubes (CNTs) are a desirable option due to their exceptional properties. Although CNTs can be used in medicine, optics, electronics, and other diverse fields, they show drawbacks (such as insolubility, potential toxicity, and complicated manipulation) that should be overcome before their full application to an industrial level [3]. In this sense, the preparation of CNT-based PNs is a simple way to surpass these inherent difficulties.
As a consequence of their large area, CNTs have a high aspect ratio (>1000), which favors their self-association. This fact complicates obtaining a homogeneous dispersion of CNTs in a polymer matrix. The challenge is not only to achieve the CNTs’ exfoliation, but it is also necessary to avoid a secondary CNTs agglomeration after they are added to the polymer used as PNs’ matrix. Several techniques have been developed in order to make the optimal dispersion of the CNTs possible [4].
Since it is necessary to prepare sufficient quantities of PNs (with a high grade of homogenization) for their commercial exploitation, there is a high level of interest to design a synthetic route that combines an optimal CNTs dispersion and a desirable amount of PNs produced. Chemical functionalization of CNTs, in situ polymerization, and emulsion polymerization are three techniques that can be used together in order to achieve this goal.
Chemical functionalization of CNTs is based on the attaching of a functional chemical group onto CNTs’ surface by covalent bonds. This is developed on sites of the CNTs prone to react, either at their end caps or on their sidewalls. The functionalization reactions carried out specifically in sp3-hybridized defects, pentagon–heptagon pairs (Stone–Wales defects), and vacancies in the CNTs lattice [5]. Among the known methods to graft polymers onto CNTs, the “grafting from” method stands out. This is a consequence of their easy control and availability for conjugating a wide type of polymers onto CNTs, such as poly(acrylates), polystyrene, or hyperbranched polymers, to mention a few [6].
In situ polymerization is an adequate technique for synthesizing structured high-performance CNT-based PNs. In this technique, a monomer is polymerized in the presence of CNTs. In some cases, the combination of functionalized CNTs and an in situ polymerization method have made it possible to prepare well-dispersed nanocomposites [7].
Emulsion polymerization is the industrial technique most often used to synthesize polymers and is also one of the available techniques for preparing CNT-based PNs. However, up to now, there are few references in the literature that focus on the preparation of nanocomposites using this technique [8,9,10]. CNT-based PNs prepared by emulsion polymerization usually have better mechanical properties, high UV resistance, strong interfacial forces, and a better surface appearance than the ones observed in polymers synthesized by the same polymerization technique [9]. In situ emulsion polymerization (IEP) is an interesting approach for synthesizing CNT-based PNs. This is because several issues associated with the nanocomposites synthesis can be addressed simultaneously. The main advantage of preparing PNs by IEP (where water is the continuous phase) is the presence of water surrounding every forming polymer particle. Hence, heat is easily dissipated, there is no viscosity increase, and very importantly, there is a suitable condition for CNTs’ exfoliation without causing any extensive thermal damage to polymer particles [10]. If a high grade of CNTs’ exfoliation is achieved, the interfacial attachment between the CNTs and the polymeric matrix chains can be improved [11]. The key issue to overcome the problems associated with the synthesis of CNT-based PNs by IEP is to minimize the tendency of the CNTs to agglomerate. As CNTs have a natural propensity to self-agglomerate forming physical entanglements, achieving homogeneous CNT-based PNs is a difficult challenge [12]. The most successful strategy to avoid the CNTs’ self-association by van der Waals forces is to achieve its chemical functionalization. This fact makes the synthesis of nanocomposites with functionalized CNTs by IEP very attractive from the chemical viewpoint.
To prepare CNT-based PNs with a specific chemical architecture following the “grafting from” strategy, the free-radical polymerization is a simple chemical route to exploit. An advantage of this technique is that it can be used to polymerize a large variety of monomers. Therefore, hydrophilic or hydrophobic polymers can be prepared by combining free-radical polymerization and IEP.
Poly(methacrylic acid) (PMAA) is a pH-sensitive polymer with a simple structure in contrast to other polymers, which have a complex structure and similar sensitivity [13]. The carboxylic acid groups contained in the methacrylic acid (MAA) units, in acidic conditions at pH lower than the pKa (pH < 4), are no ionized. Therefore, these moieties are able to form hydrogen bonds inwardly in the bulk of this ionic polymer. As a consequence, PMAA forms a collapsed structure. However, as the medium pH rises, the PMAA structure changes. In the range of a pH between 5 and 7, carboxylic acid groups are deprotonated. When the pH reaches values in the alkaline region (pH > 7), PMAA chains attain an elongated rod-like conformation. These changes are reversible [14]. Therefore, PMAA is hydrophilic at pH 7.4 (typical pH of the human blood) and hydrophobic at low pH (around 1–2). Based on its properties, PMAA can be used to create an oral drug delivery system [15]. CNTs functionalized with PMAA can be used as interesting drug delivery nanocomposites sensitive to the pH of the surrounding medium. The protonated/deprotonated behavior of PMAA implies a strong change in polarity. This fact, along with the repulsive Coulomb interactions, is of high relevance. Due to the formation of deprotonated structure, if the PMAA is mixed or attached to a hydrophobic polymer, the preparation of a drug delivery system can be favored.
Butyl acrylate (BA) is a hydrophobic monomer and is used as a “soft monomer.” Some of its copolymers have been reported as biocompatible [16]. The low-temperature properties and toughness of copolymers prepared with BA can be improved, based on the soft nature of this monomer. The BA copolymers’ properties can be tailored to meet specific requirements.
Although the synthesis of the MAA–BA copolymer has been reported elsewhere [17], its practical applications have not been studied extensively. In this respect, its possible use as a drug delivery system is of special interest.
The development of new drug delivery systems seeks to enhance drug targeting. At the same time, improving drug efficiency and reducing the toxic effects is a desirable goal. For this, the design of drug transporters is a crucial factor, because they have a decisive influence on drug delivery and drug interaction [18]. CNTs grafted onto biopolymers have a high potential for use in the drug delivery field [19]. However, its possible toxicity is an unsolved problem. On the one hand, there are reports that point out that CNTs produce adverse effects on living tissues [20,21]. On the other hand, reports regarding the safe use of CNTs for humans have been presented elsewhere [22]; in particular, it is reported that functionalized CNTs have shown minor toxicity [23]. PMAA was the first polymethacrylate used in oral dosage form for drug delivery [24]. Two copolymers of PMAA have been applied with gastrointestinal (GI) tract targeting for drug delivery: (i) poly(methacrylic acid-co-ethyl acrylate) dissolved in duodenum at pH > 5.5, and (ii) poly(methacrylic acid-co-methyl methacrylate) dissolved in jejunum at pH > 6.0 or in colon at pH > 7.0 [25]. These copolymers are supplied under the trade name Eudragit for pharmaceutical applications. Broad release capabilities can be achieved if the ratio of monomers used to prepare MAA-based copolymers is changed.
Among other drugs, hydrocortisone (11β,17α,21-trihydroxypregn-4-ene-3,20-dione) is of particular interest due to its anti-inflammatory action. Hydrocortisone is an anti-inflammatory and hydrophobic drug that can be administered orally, topically, or by injection. This drug is widely used for the treatment of various diseases, such as certain types of allergies, arthritis, and asthma [26]. In addition, hydrocortisone has been used as treatment for several types of cancers, such as adrenocortical cancer [27], prostate cancer [28], leukemia [29], or lymphoma [30], among others.
The aim of this work is to prepare a pH-sensitivity novel drug delivery system synthesized from PNs with functionalized carbon nanotubes (CNTsf) as a reinforcing agent, and an MAA–BA copolymer as a polymeric matrix. To the best of our knowledge, the synthesis of the nanocomposites mentioned, following the chemical route presented here, has not been previously explored. The synthesis was carried out by IEP, under free-radical polymerization using water as continuous media, through a “grafting from” approach. In contrast to previously published in other works for drug delivery systems prepared with PMAA [24,25], in this work, BA co-monomer and functionalized CNTs were used in the preparation. It is expected that the last two components of the studied PNs increase their capacity to deliver drugs. The prepared nanocomposites contain a pH-sensitive copolymer (poly(MAA-co-BA)) attached to functionalized CNTs by a hydrolytically cleavable bond (anhydride groups). The morphology of the studied nanocomposites depends on the BA/MAA wt.% ratio, as well as the type and content of CNTsf used. As a model for drug delivery study, their capacity to deliver hydrocortisone was evaluated. The presence of CNTs is a crucial factor in the ability of studied PNs to release hydrocortisone. The synthesized PNs could be used as smart nano-carriers with a targeted drugs’ release capast.

2. Experimental

2.1. Materials and Methods

Alumina boat was acquired from Alfa Aesar. Potassium persulfate (KPS) (reagent grade), hydrochloric acid ACS reagent 37%, and nitric acid ACS reagent 70% were purchased from Fermont México. Iron(III) nitrate nonahydrate Fe(NO3)3·9H2O > 98%, dichloromethane ACS reagent > 99%, acetone ACS reagent > 99%, methanol ACS reagent > 99%, sodium carbonate 0.1 N, hydrochloric acid 0.1 N, and sodium hydroxide 0.1 N were purchased from Golden Bell México. Oxalyl chloride 98%, triethylamine (Et3N) 99.5%, ethyl alcohol absolute 99.8%, potassium bromide FT-IR grade > 99%, tetrahydrofuran (THF) anhydrous > 99%, lithium hydride 95%, aluminum 99.9%, butyl acrylate > 99%, sodium dodecyl sulfate 98%, methacrylic acid 99%, and hydrocortisone 98% were purchased from Aldrich. Nitrogen gas and argon gas were acquired from Praxair México. Double-distilled water was purchased from “Productos Selectropura” México. Potassium biphthalate buffer pH 5 was purchased from Jalmek and used as received.

2.2. Synthesis and Purification of CNTs

CNTs were prepared via chemical vapor deposition (CVD) following an experimental procedure reported by our group elsewhere [31]. CNTs were purified with overheated steam. For this, 2 g of unpurified CNTs, wrapped in steel mesh, were placed in a quartz tube (1.3 cm i.d. and 25.4 cm long). Then, the overheated steam (at 873.15 K and 85.3 MPa) was fed for 3 h. This procedure was repeated twice. Purified CNTs were named CNTsp.

2.3. Functionalization of CNTs

CNTsp were functionalized to insert methacrylic acid (MAA) molecules onto its surface before their use in the nanocomposites preparation, following an experimental procedure of several steps (the sequence is depicted in Scheme 1): (i) CNTsp were partially oxidized to insert hydroxyl, carboxyl, and carbonyl groups onto their walls. The product, partially oxidized CNTs, was named CNTso. (ii) To increase the amount of hydroxyl groups, a reduction of carboxyl groups was carried out through a treatment of CNTso, with lithium aluminum hydride. The product was named CNTsr. (iii) CNTso and CNTsr were functionalized separately to insert acyl chloride groups onto their walls. For this, both types of CNTs were treated with oxalyl chloride (OxCl). The products were named CNTso-OCl and CNTsr-OCl. (iv) CNTso-OCl and CNTsr-OCl reacted separately with MAA molecules. Two types of products were obtained separately and named CNTso-OCl-MAA and CNTsr-OCl-MAA.
A brief description of the aforementioned chemical route is described next. Step 1: Three grams of the CNTsp was placed into a 250 cm3 glass Soxhlet apparatus. Then, 150 cm3 of 8 M nitric acid solution was added. The dispersion was kept under reflux for 4 h. The obtained CNTso were purified by separating them from the liquid phase by centrifugation, washed several times with distilled water, and dried at room temperature until constant weight. Step 2: Due to the fact that OxCl preferentially reacts with hydroxyl groups, a certain amount of the CNTso carboxyl groups was reduced to hydroxyl groups. For this, 25 cm3 of anhydrous THF, 0.50 g of lithium aluminum hydride, and 0.7 g of CNTso were placed in a perfectly dry 50 cm3 flask. The reaction was carried out during 3 h at room temperature, under vigorous stirring. Next, 50 cm3 of methanol was slowly added. Then, 10 cm3 of a 0.1% HCl aqueous solution was added. Later, 10 cm3 of a 1% HCl aqueous solution was also added to achieve a complete neutralization of the original dispersion. The mixture was filtered out and the obtained CNTsr were purified by repeated washing with distilled water and dried at room temperature until achieving constant weight. Step 3: A functionalization reaction between CNTso and CNTsr with OxCl was carried out separately. For this, 0.1 g of CNTso or 0.1 g of CNTsr was placed separately in a 200 cm3 flask, immersed in a water bath at 313.15 K. A mixture of 90 μdm3 of Et3N and 5 cm3 of dichloromethane was added with a syringe. The mixture was kept under agitation for 15 min. After this, a mixture of 60 μdm3 of OxCl and 5 cm3 of dichloromethane was added with a syringe, drop by drop. The reaction was carried out under agitation and N2 bubbling for 3 h. The product (CNTso-OCl or CNTsr-OCl) was used immediately after having been obtained. In order to analyze the obtained CNTso-OCl or CNTsr-OCl, a small amount was withdrawn from the flask and dried completely in a vacuum oven at 298.15 K for 24 h, to eliminate the residual mixture of OxCl and dichloromethane. Step 4: In the same flask where CNTso-OCl or CNTsr-OCl was prepared, the necessary amount of MAA to produce the nanocomposites was added. The mixture was kept at room temperature under stirring for 30 min. Two types of products were obtained separately and named CNTso-OCl-MAA and CNTsr-OCl-MAA. Each type of product, as prepared, was used immediately to synthesize the nanocomposites, independently. To analyze the obtained CNTso-OCl-MAA and CNTsr-OCl-MAA, a sample of these products was withdrawn from the flask and heated for 1 h at 353.15 K to eliminate the excess of the MAA by evaporation.
The content of hydroxyl groups created onto CNTso and CNTsr surface was determined by the indirect back titration method, based on the total acid groups titratable with NaOH. For this, an excess of OxCl was reacted with the CNTso and CNTsr surface hydroxyl groups. Then, 0.1 g of CNTso-OCl or CNTsr-OCl was mixed with 30 cm3 of NaOH 0.1 N. The mixture was reacted for 1 h. After this, the excess NaOH was determined by titration with a 0.1 N HCl solution.
The content of carboxyl groups grafted onto CNTso and onto CNTsr surface was also determined by the indirect back titration method, using a weaker base (sodium bicarbonate). The method was previously reported [32]. Briefly, a specific amount of CNTso and CNTsr was reacted with an excess of sodium bicarbonate. Carboxylic acid groups should react forming CNTso–COO−Na+ and CNTsr–COO−Na+. The sodium bicarbonate excess was titrated with an HCl (0.1 N) solution.

2.4. Synthesis and Purification of CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA Nanocomposites and Their Pure Polymeric Matrix: MAA–BA Copolymer

The CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites were prepared by IEP. For this, immediately after CNTso-OCl-MAA and CNTsr-OCl-MAA were prepared, the reagents necessary to prepare the nanocomposites were added in the same flask previously used. Specifically, a solution of 0.5 g of sodium dodecyl sulfate (SDS), dissolved in 95 g of water, was used. The mixture was stirred by immersion in an ultrasonic bath for 5 min. The flask was submerged in a water bath at 333.15 K and N2 gas was bubbled. After 30 min, the necessary amount of BA and a 0.1 g of KPS solution in 5 g of water were added. At this point, the reaction was started.
In order to perform an adequate comparison, MAA–BA copolymers were also synthesized. For this, a similar route to the one described to prepare the CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites was followed. Now, in a 200 cm3 glass flask, a solution of 0.5 g of SDS and 95 g of water was added. The flask was submerged in a water bath at 333.15 K and N2 gas was bubbled. After 30 min, the necessary mass of MAA, BA, and a solution of 0.1 g of KPS in 5 g of water was added, initiating the reaction.
Table 1 lists the contents of MAA and BA used to prepare the MAA–BA copolymers, as well as of these co-monomers and CNTso or CNTsr to prepare CNTso-OCl-MAA–BA or CNTsr-OCl-MAA–BA nanocomposites.

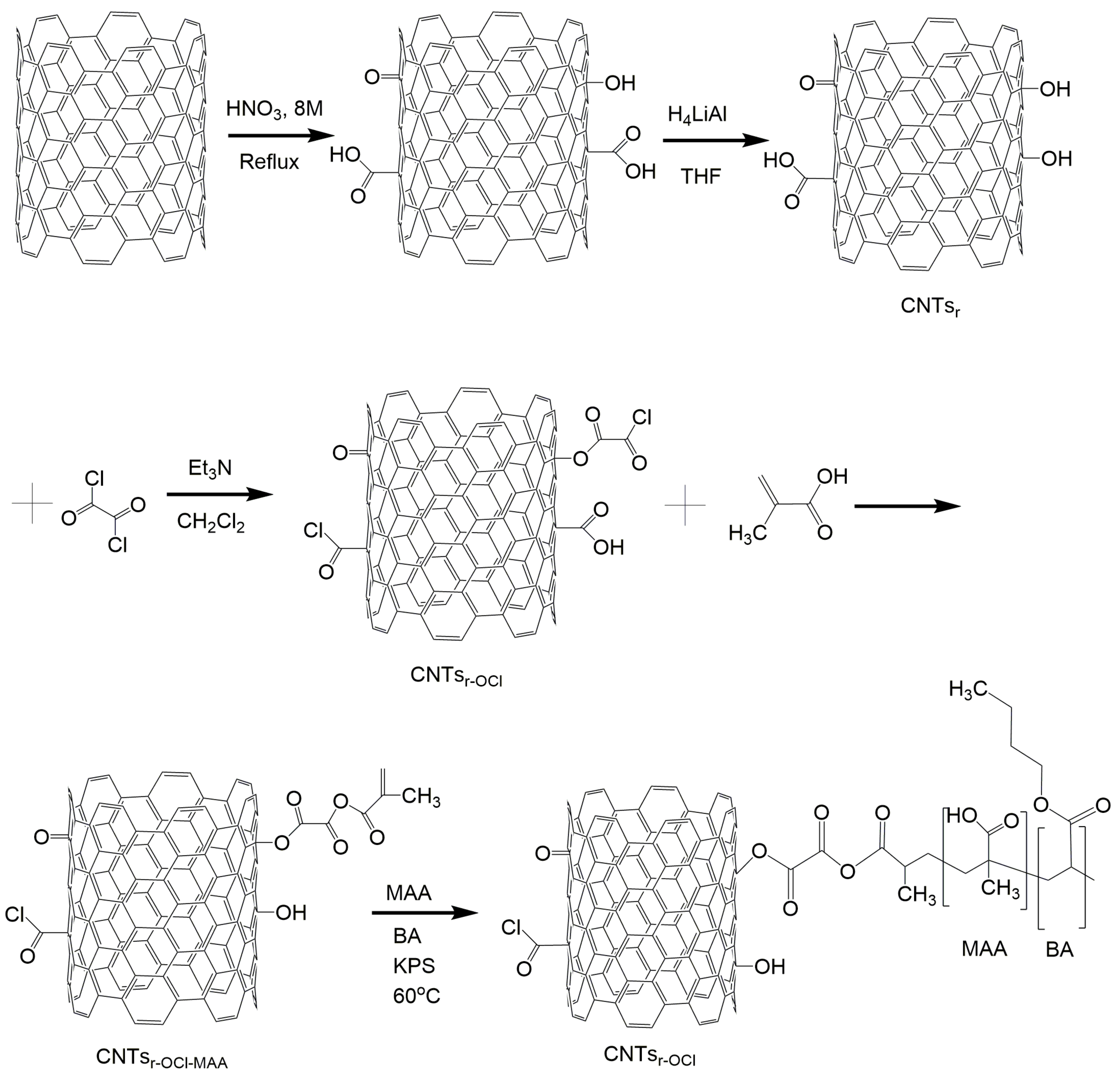

Scheme 1 shows the chemical route used to prepare CNTsr-OCl-MAA–BA nanocomposites. A similar chemical path was used to prepare CNTso-OCl-MAA–BA nanocomposites, but without the step that produces the reduction of carboxyl groups.
After synthesizing the CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites and the MAA–BA copolymers, these materials were purified. For this, the obtained latex was frozen to obtain a solid material. To dissolve the solid latex, a volume of acetone equivalent to the volume of latex was added. Then, the mixture was allowed to thaw-out. A precipitate formation was produced. The solid–liquid mixture was filtered, washed, and water-dialyzed at 343.15 K for 72 h to eliminate the residual SDS. The pH of the washing water was close to 7. Finally, the purified product was dried in an oven at 323.15 K until achieving a constant weight. The purified samples of the MAA–BA copolymers and of the CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites were studied by FT-IR, XPS, NMR, DSC, and UV–VIS techniques.

2.5. Characterization of MAA–BA Copolymers and Their CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA Nanocomposites

A battery of techniques was used to characterize synthesized and functionalized CNTs, MAA–BA copolymers, and their nanocomposites. There is special interest in verifying whether the functionalized CNTs were bonded chemically to the polymeric macromolecules of nanocomposites studied.
CNTs were examined with a field emission scanning electron microscope (FE-SEM), model MIRA 3LU of Tescan (Brno, Czech Republic). Samples were prepared by mixing ca. 0.02 g of CNTs with 2 cm3 of acetone, at room temperature. An aliquot of this dispersion was taken with a Pasteur pipette and poured onto a Cu grid. After solvent evaporation, the samples were analyzed in the FE-SEM microscope.
CNTs were also examined with a high-resolution JEOL (Tokyo, Japan) transmission electron microscope (model 2010 HRTEM operated at 200 kV). Here, the samples were prepared by mixing ca. 0.007 g of CNTs with 2 cm3 of acetone, at room temperature. The obtained mixture was sonicated for 5 min. After this, an aliquot of this dispersion was poured onto a Cu grid, using a Pasteur pipette. With a 60 W solar lamp, the solvent was evaporated for 15 min. After this, the sample was placed into the HR-TEM microscope for analysis.
Raman spectroscopy was used to analyze samples of functionalized CNTs. For this, a Dilor (Villeneuve-d’Ascq, France) spectrometer model Lab Raman II was used. This device is equipped with a HeNe laser, which was operated at 20 mW and at an excitation wavelength of 632.8 nm. The measurements were made using a 50× objective with an area spot of 2 mm and 2 cm−1 errors.
Structural characterization of CNTsp, CNTsf, CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites, and MAA–BA copolymers was performed by Fourier-transform infrared spectroscopy (FT-IR spectrophotometer, Spectrum One of Perkin Elmer, Waltham, Massachusetts, USA). For this, pellets formed with KBr and dry samples were prepared (at a ratio of 1 mg of the sample to 300 mg of KBr) by compression at room temperature. Reported spectra were obtained and analyzed from an average of 64 scans, to reduce the signal/noise ratio, and a resolution of 4 cm−1.
Nanocomposites of CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA and their pure copolymer matrix were analyzed by the X-ray photoelectron spectroscopy (XPS) technique. XPS was carried out using an XR50 M monochromatic Al Kα1 (hν = 1486.7 eV) X-ray source and a Phoibos 150 spectrometer. This equipment has a one-dimensional detector 1D-DLD, provided by SPECS (Berlin, Germany). A set of experiments was mounted on a steel sample holder using double-sided copper tape. Prior to the measurements, the samples were dried in a vacuum oven, at a temperature of 333.15 K for 48 h. After this, they were introduced into the pre-chamber. All measurements were recorded at 150 W and takeoff angle of 90°, setting the pass energy at 10 eV and a step size of 0.1 eV. The flood gun device was used for charge neutralization on samples. Moreover, spectra were shifted, using the C–C position on binding energy.
Solution 1H spectra in DMSO-d6 of the pure MAA–BA copolymers were recorded at room temperature on a Bruker (Billerica, Massachusetts, USA) Avance 500 spectrometer using tetramethylsilane (TMS) as an internal standard.
Solid-state 13C NMR spectra, of the nanocomposites, and of their pure copolymer matrices, were recorded under proton decoupling on a Bruker (Billerica, Massachusetts, USA) Avance 400, operating at 100.613 MHz for 13C. A Bruker probe equipped with 4 mm rotors was used. CP-MAS spectra were obtained under Hartmann-Hahn matching conditions and a spinning rate of 6.0 kHz was used. A contact time of 2.5 ms and a repetition time of 4 s were used. The measurements were made using spin-lock power in radiofrequency units of 60 kHz and 4000 transients were typically recorded. Chemical shifts were externally referenced to tetramethylsilane (TMS), using adamantane.
DSC thermograms of the prepared nanocomposites and of their pure polymer matrices were obtained on a TA-Instruments (New Castle, Delaware, USA) calorimeter model Q-100. DSC thermograms were recorded following a heating program from 183.15 to 453.15 K at a heating rate of 10 K/min, using a flow rate of 50 cm3/min of nitrogen to maintain an inert atmosphere. Two scans were carried out and the second scan is reported.
A study of hydrocortisone release was carried out in vitro by UV–VIS spectroscopy. For this, tablets containing hydrocortisone were prepared previously. To prepare the tablets, samples of the nanocomposites or of their pure polymer matrix were mixed with 1% (w/w) of hydrocortisone at room temperature. Then, they were placed in a 7 mm diameter mold and pressed to obtain tablets with 1.5 mm of thickness. Tablets’ final weights were in the range of 35 to 55 mg. After tablets preparation, they were placed in 3 cm3 of potassium biphthalate buffer at pH 5 in a quartz cell. The hydrocortisone concentration was determined by the variation of absorbance as a function of time on a Perkin-Elmer (Waltham, Massachusetts, USA) UV–VIS spectrometer Lambda 25, at 248 nm. In addition, the swelling degree of the nanocomposites, and of their polymeric matrix, was measured at room temperature. This was carried out by preparing tablets of pure nanocomposites or MAA–BA copolymers with the same size and weights as those already described above. All tablets were dried until observing constant weight. Then, they were place in a vial with 10 cm3 of potassium biphthalate buffer at pH 5 for 24 h. After this, at certain times, the swollen tablets were then taken out of the vial, wiped with a filter paper, and weighed. The swelling degree (Sw) was calculated with the following equation:
S w = W w − W d W d
where Wd is the weight of dried tablet and Ww is the weight of the swollen tablet.

3. Results and Discussion

Figure 1A depicts a CNTsp micrograph, obtained by FE-SEM. It is evident that the population of CNTsp is formed mainly by helical carbon nanotubes (HCNTs). The length of some of them exceeds 2 μm. Due to the microscope resolution capability, superficial imperfections cannot be detected. The HCNTs’ coil-shaped geometry favors their mechanical entanglement with a polymeric matrix. However, to assure a homogeneous dispersion of these nanostructures, it is highly recommended that their surface be previously functionalized. Due to the helical configuration of HCNTs, in which pentagonal/heptagonal carbon rings are periodically repeated, forming superficial defects, the chemical HCNTs’ functionalization differs from that used for neat CNTs [33]. Therefore, HCNTs’ functionalization requires suitable chemical conditions [34]. In this sense, the chemical modification method to be used can take advantage of the high surface energy state of the HCNTs, induced by their tensile strength, caused by their helical structure [35].
Figure 1B shows an HR-TEM micrograph of the CNTsp, including a 20 nm bar scale, where multiple walls for the structure of CNTsp can be observed. Based on this micrograph, it is evident that the synthesized and purified CNTs here are helical multiwalled carbon nanotubes (HMWCNTs). In addition, it can be observed that 39 carbon sheets form the walls of the CNTsp sample analyzed. Their inner diameter is 13.8 nm, while the outer diameter is 41.6 nm. The synthesis of HMWCNTs following a catalytic chemical vapor deposition method with Fe nanoparticles as catalysts was reported previously. Nonetheless, in this work, we use a different experimental approach to achieve the HMWCNTs’ synthesis, regarding a previously reported approach [36]. HMWCNTs have interesting properties; for example, they can act as an efficient material for the dispersive solid-phase extraction of low and high molecular weight polycyclic aromatic hydrocarbons, from aqueous solutions [37]. In this work, we report the use of synthesized HMWCNTs to prepare CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA PNs nanocomposites.
The functionalization of prepared CNTs was assessed by various techniques. Initially, the presence of hydroxyl and carboxyl groups on CNTs’ walls was evaluated. The amount of hydroxyl and carboxyl groups was quantified following the procedure previously described in the Experimental section. It was found that the amount of hydroxyl groups was 2.3 mmol per gram in CNTso and 7.6 mmol per gram in CNTsr, while the amount of carboxyl groups was 2.8 mmol per gram of CNTso and 1.3 mmol per gram in CNTsr. These results confirm that the transformation of carboxyl groups attached to CNTso walls to hydroxyl groups inserted on CNTsr walls was successfully achieved.

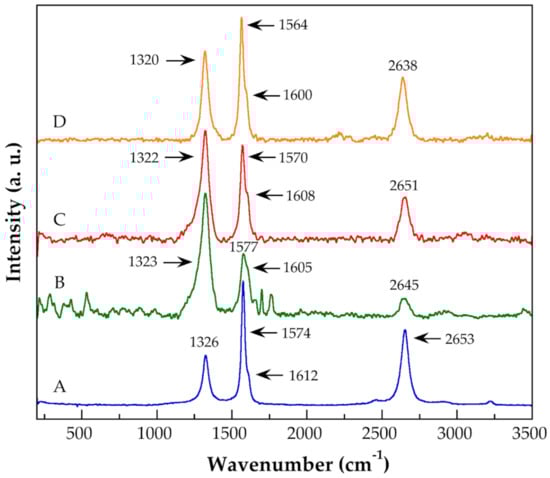

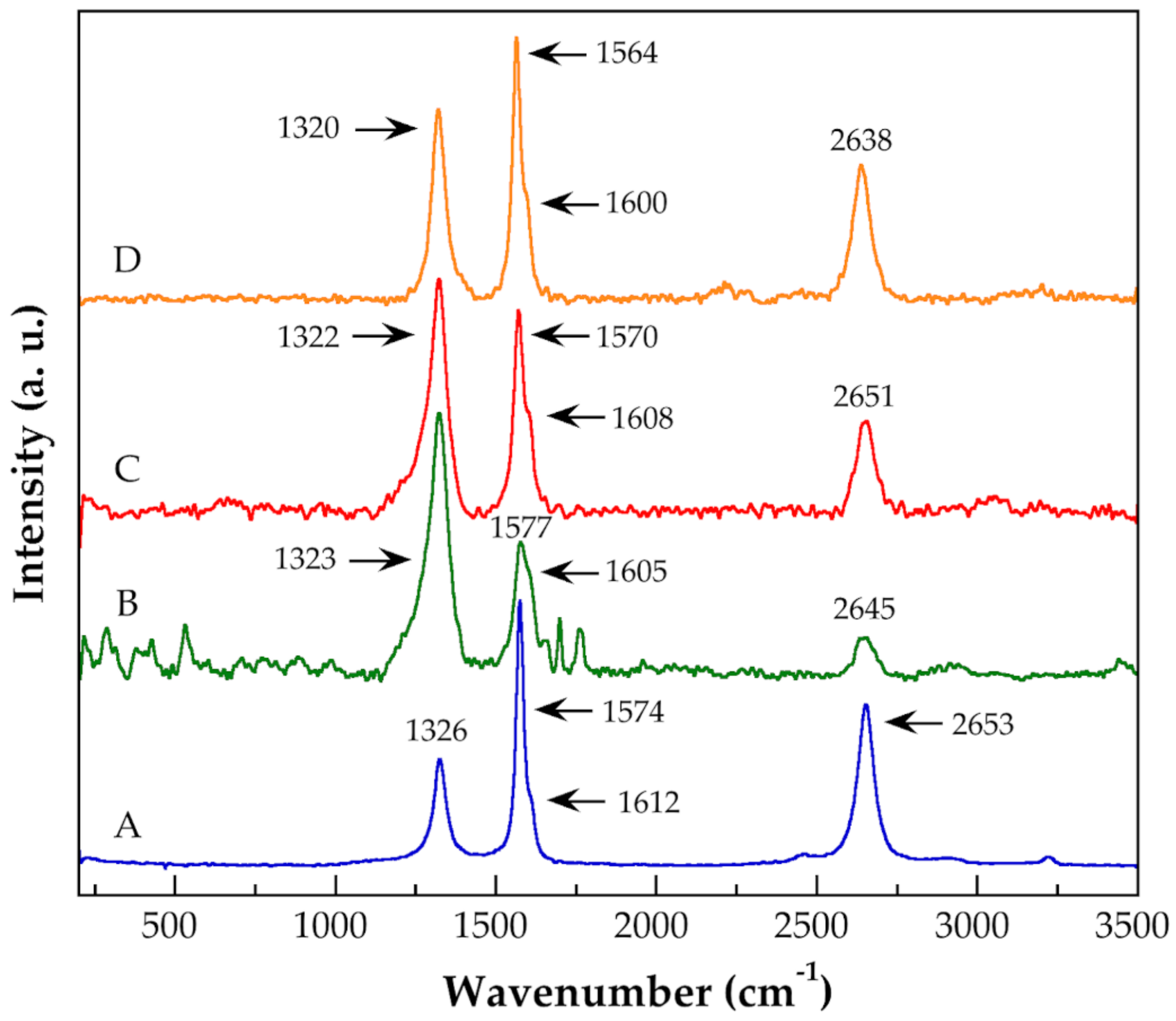

Figure 2 shows the functionalized CNTs’ Raman spectra. The four Raman spectra show a similar pattern: three peaks are clearly resolved. In the CNTsr spectrum, other Raman contributions of minor intensity are detected. Table 2 lists the frequencies of the three mentioned bands. The graphite band (G-band) is detected at ca. 1574 cm−1. This is a first-order Raman band, and is related to the tangential vibration of two carbon atoms, in one graphene unit cell. This cell is the basic structure of graphene sheets that rolled-up to form the CNTs’ walls. G-band is associated with the crystallinity degree of graphene sheets. In addition, it is considered to be due to the highly ordered carbon structures, like those that form the nanotube walls. As a shoulder of the G-band, the G*-band, at around 1612 cm−1, was detected. The G*-band is a lesser-known disorder-induced band [38]. The results listed in Table 2 reveal that the G-band of HMWCNTs, functionalized with acyl chloride functionality (CNTso-OCl and CNTsr-OCl), shifts at lower frequencies, with respect to their precursors (CNTso and CNTsr). This is because the CNTs’ vibrational response is modified by the introduction of guest molecules, with donor or acceptor electronic characteristics [39,40]. This behavior confirms that the chemical groups attached to the walls of CNTso-OCl and CNTsr-OCl have a different chemical structure, as compared to those attached to CNTso and CNTsr. At lower frequencies, a disorder-induced mode, called D-band (at ca. 1323 cm−1), was detected. This band originates from a double-resonance process, in which an elastic scattering and an inelastic scattering caused by a defect and by a phonon, respectively, is developed [41]. In a fashion similar to the one observed for the G-band, the D-band on the samples of the CNTso-OCl and CNTsr-OCl was detected at a lower frequency, with respect to that of their CNTso and CNTsr precursors. Table 2 also lists two ratios, calculated from integrated areas of the D and G bands (ID/IG) or the G* and G bands (IG*/IG). These ratios are typically used to evaluate the disorder degree on CNTs’ walls. This disorder is related to the amount of functional groups covalently attached to the CNTs’ surface. It is evident that both ratios increase for CNTso-OCl with respect to CNTso, but decrease for the CNTsr-OCl compared to CNTsr. This result indicates that a reordering within the carbon nanotubes CNTsr-OCl has taken place. As the amount of hydroxyl groups in CNTsr is larger than that in CNTso, it is likely that the hydrogen bonds of carbon nanotubes of CNTsr-OCl increase with respect to the ones present in CNTso-OCl. This factor would influence the creation of a more ordered assembly of carbon nanotubes in CNTsr-OCl. At higher frequencies, a D-band overtone called “G’-band” was observed. The G’-band is caused by a double-resonance process. The G’-band, for the different types of functionalized CNTs studied in this work, shows a different intensity. This is caused by the different structural arrangements of CNTs.

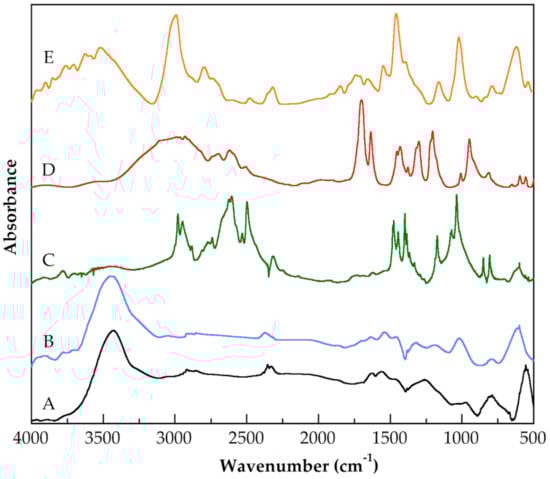

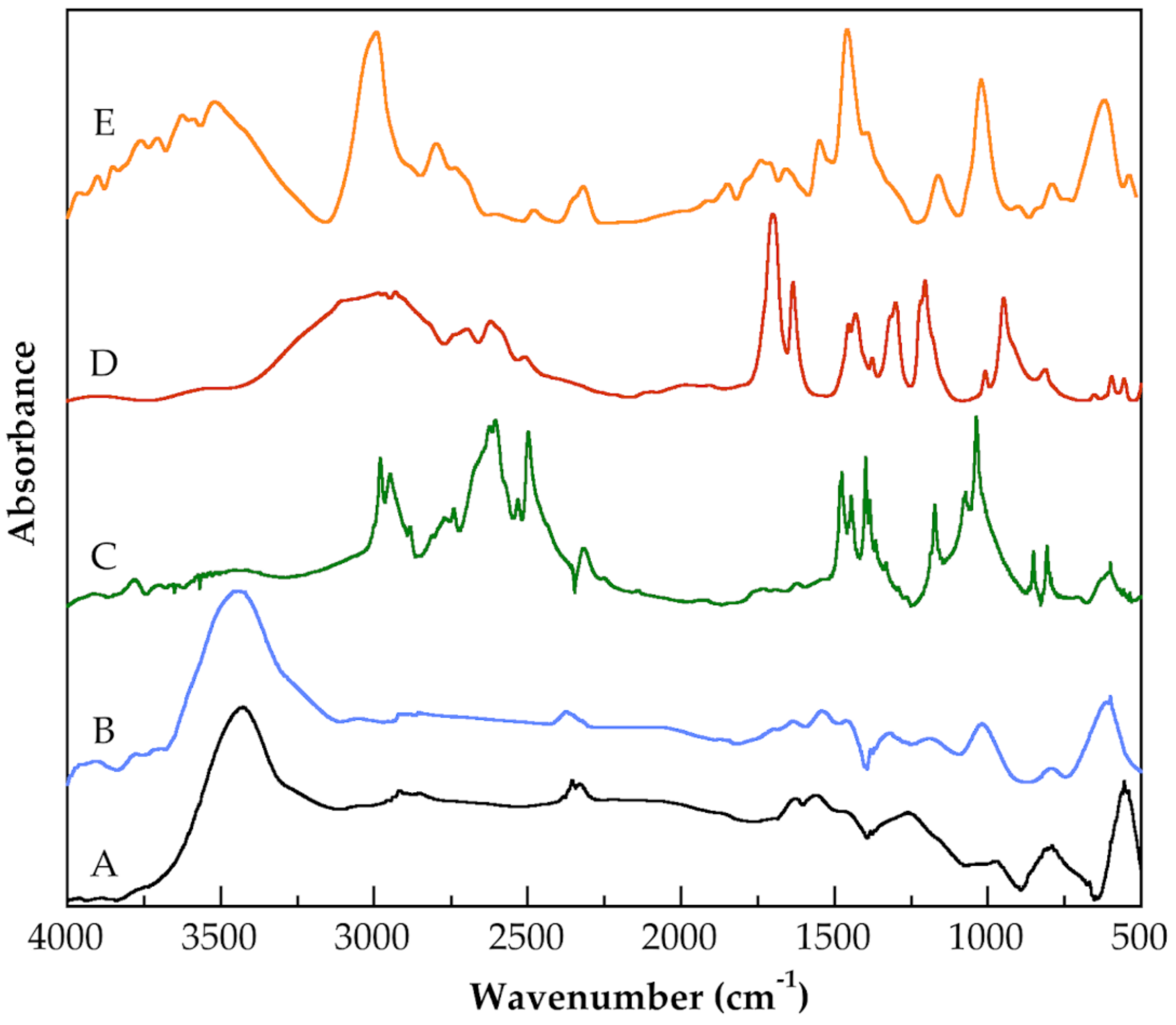

Figure 3 shows the FT-IR spectra of purified and functionalized CNTs. For comparison, the FT-IR spectrum of pure MAA monomer was included (Figure 3D). The CNTsp FT-IR spectrum (Figure 3A) shows an intense wide band at 3430 cm−1, due to the hydroxyl groups’ stretching vibration, and a weak band at 798 cm−1, caused by out-of-plane bending vibration of the C–H bond. In the FT-IR spectrum of CNTso (Figure 3B), other spectral contributions appear. At 1020 cm−1, a band due to stretching vibration of the C–O bond was detected. The weak and wide band detected at 612 cm−1 is assigned to vibrations of the C–OH torsional band. Moreover, it is evident that the band, due to hydroxyl groups’ stretching vibration, becomes wider than the one detected in the CNTsp spectrum (Figure 3A). This fact provides evidence that the population of hydroxyl groups increases in the CNTso. The FT-IR spectrum of CNTso-OCl (Figure 3C) shows spectral contributions that indicate acyl chloride groups are attached to the CNTso-OCl’ walls. Thus, the stretching vibration of the C–Cl bond appears at 807 cm−1, and the harmonic band of this vibration was detected at 1480 cm−1. The last band appears as a shoulder of the band detected at 1475 cm−1. This last peak is assigned to C–H bending vibration bonds, created near holes and imperfections in CNTs’ walls, due to the functionalization process. At 1764 cm−1, a weak band appears due to the stretching vibration of the carbonyl group that forms part of acyl chloride functionality. At 1037 cm−1, the band with a stronger intensity of this spectrum emerges. This band is assigned to vibration stretching of the C–O functionality of an ether group, which includes an aryl group. Due to the fact that CNTs have walls, typically formed by hexagonal carbon rings, they have an aromatic nature like that of the aryl group; therefore, this band confirms that the C–O functionality is attached to CNTso-OCl walls. Furthermore, the hydroxyl groups’ band detected at ca. 3500 cm−1 practically disappears (when compared with the observed in Figure 3A,B). This fact strongly suggests that the hydroxyl groups of the precursor CNTso have reacted. The FT-IR spectrum of the pure monomer MAA (Figure 3D) shows that their carboxyl groups are grouped forming dimers. This is because at 1701 cm−1, a band appears due to the stretching vibration of carboxyl groups self-associated by hydrogen bonding. Besides, the stretching of the C=C bond produces the band observed at 1634 cm−1. Regarding the CNTso-OCl-MAA FT-IR spectrum (Figure 3E), it was analyzed whether a chemical reaction between MAA and CNTso-OCl was performed. In this spectrum, a weak band at 1848 cm−1 appears. This band is due to the symmetric stretching vibration of the anhydride group. In addition, the antisymmetric stretching vibration of the anhydride group was detected by another weak band, appearing at 1785 cm−1 as a shoulder of the 1740 cm−1 band. The last signal is assigned to the stretching vibration of a carbonyl group of ketone functionality. The detection of IR bands characteristic of vibrations of anhydride groups indicates that a grafting reaction did occur between the superficial acyl chloride groups of CNTso-OCl and the MAA hydroxyl groups. The stretching vibration of the C–O bond of an ether functionality causes the band detected at 1021 cm−1, while the stretching vibrations of C–H bonds of methyl groups and hydroxyl groups produce the intense and broad signal, detected at 2991 cm−1 [42]. The last groups are associated via hydrogen bonds with carbonyl groups. The spectral behavior described above confirms that MAA molecules reacted with acyl chloride groups, present in the walls of CNTso-OCl, to form the product that we called CNTso-OCl-MAA. Similar behavior was observed in the CNTsr-OCl-MAA FT-IR spectrum.
1H spectra of Mat 1 and Mat 2 were obtained (shown in the Supporting Information). In these spectra, the typical signals of MAA and BA co-monomers were identified. Both co-monomers did react to form the pure polymer matrix of the nanocomposites studied. The spectral contributions observed in these spectra confirm that the MAA–BA copolymer was synthesized successfully following the chemical route reported here. Unfortunately, overlapping of the signals of MAA and BA prevents calculating the composition of MAA–BA copolymer.

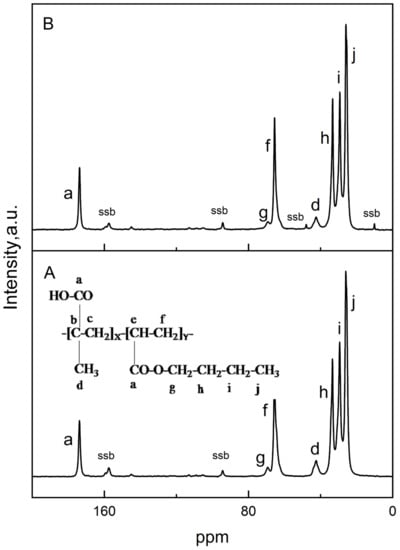

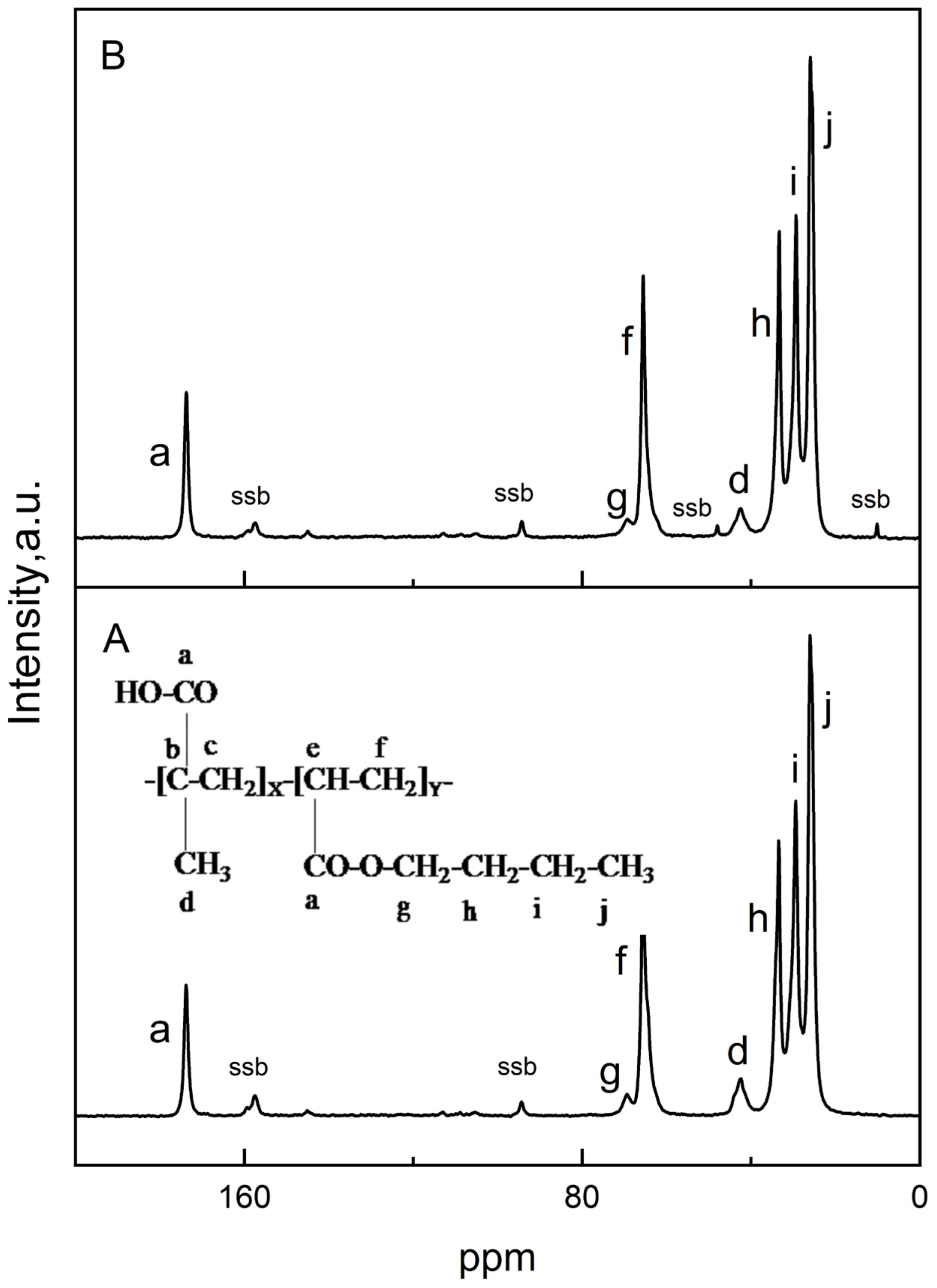

Figure 4 depicts the 13C NMR CP-MAS spectra of Mat 2 (Figure 4A) and Nano 6 (Figure 4B). The chemical structure of the MAA–BA copolymer has been inserted in Figure 4A. The following peaks can be observed: at 173.8 ppm, a carbonyl group signal a; at 65.6 ppm, a peak (identified as signal g) of the methylene carbon of the O=C–O–CH2– ester functionality [43]. Further, at 42.8 ppm, the signal f of the methylene groups of the BA units and signal c for the MAA moiety can be observed, as well as the signal e at 33.3 ppm corresponding to –CH–C=O functionality. The signal h at 29.4 ppm corresponds to the carbon of methylene groups of the –CH2–CH2– functionality. Finally, at 26.0 ppm, the signals j, i of the carbon of methylene and methyl groups (–CH2–CH3 functionalities) of BA units were detected. The methyl group, signal d, can contribute to the intensity of the signal detected at 26.0 ppm. These signals confirm the synthesis of an MAA–BA copolymer.
The 13C NMR CP-MAS spectra shown in Figure 4 are alike. The only differences emerge in the aliphatic carbons’ sidebands that appear at 48 and 10 ppm in the Nano 6 spectrum, which were absent in the Mat 2 spectrum. Both samples were rotated at the same rate. In a CP-MAS experiment, the purpose of rotation about the magic angle is the isotropic average of the chemical shift anisotropy (CSA) shielding tensor to a single peak [44,45]. The appearance of spinning sidebands is because the magic angle spinning (MAS) rate is less than the CSA frequency range. It is expected that the presence of the nanofiller (CNTsr-OCl-MAA) induces a different pattern in the sidebands of the nanocomposite. This is due to the fact that nanofillers induce the formation of ordered domains in their vicinity, not present in the amorphous MMA–BA copolymer. In the ordered domains, chemical shift anisotropy of polymeric backbone cannot be completely eliminated at the spinning rate used.

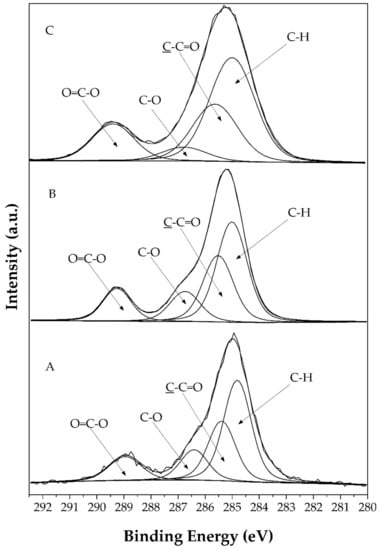

Figure 5 shows the normalized C1s core level spectra of Mat 2 (Figure 5A), Nano 6 (Figure 5B), and Nano 8 (Figure 5C). To fit the obtained data, we used the active background approach, which is accomplished by the software AAnalyzer 1.42 [46]. All spectra were adjusted to their respective shifts, according to the C–C/C–H bonds position at 284.8 eV. The normalized C1s core level spectrum of Mat 2 (Figure 5A) shows four components: at 284.8 eV, a contribution due to C–C/C–H bonds [47], at 285.5 eV this contribution is assigned to C–C=O functionality [48], the contribution observed at 286.4 eV is due to ether (C–O) bond [47,48], while the contribution that appears at 288.9 eV is due to ester (O=C–O) functionality [47,48]. The calculated atomic concentrations of these groups are 33.7%, 17.7%, 9.0%, and 8.2%, respectively. In the normalized C1s core level spectra of the Nano 6 (Figure 5C) and Nano 8 (Figure 5B), the same contributions were found at the same positions. Specifically, for the Nano 6, the components and their atomic concentrations are 284.8 eV (C–C/C–H) 36.3%, 285.4 eV (C–C=O) 20.7%, 286.4 eV (C–O) 5.1%, and 288.9 eV (O=C–O) 12.7%. For Nano 8, the components and their atomic concentrations are 284.8 eV (C–C/C–H) 33.6%, 285.4 eV (C–C=O) 22.3%, 286.4 eV (C–O) 10.1%, and 288.9 eV (O=C–O) 10.3%. For both nanocomposites, the more significant change was that the atomic concentration of functionalities containing carbonyl group increases. In particular, this highlights the changes detected corresponding to the O=C–O functionality contribution. Thus, for Mat 2, the concentration of this functionality was 8.2%, while Nano 6 was 12.7% and Nano 8 was 10.3%. For the anhydride functionality (R1–(C=O)–O–(C=O)–R2), it has been reported that the signal for the anhydride group is observed at 289.42 or 289.36 eV [48]. The integration for the contribution mentioned was made from 287.83 to 290.23 eV. Therefore, the change observed in the XPS spectra of the nanocomposites Nano 6 and Nano 8 indicates that anhydride groups were created as a consequence of the chemical route used for their preparation.
Table 3 lists the areas of two types of signals: (i) carbonyl bond found by 13C-NMR and (ii) O–C=O functionality detected by XPS. The ratio of the carbonyl group to methyl group areas (the stronger signal of 13C NMR CP-MAS spectra) is reported. In a similar way, the ratio of the signals of O–C=O functionality to C–H bonds (the stronger signal of XPS spectra) was also recorded. Consequently, both ratios are normalized signals. It is evident that there is a close similarity in these ratios. Although the levels of analysis for XPS (over the surface) and NMR (the complete mass of the sample) techniques are different, these results show that more carbonyl groups were created in the nanocomposites, with respect to those detected on pure MAA–BA copolymers. Therefore, because O–C=O functionality is part of the anhydride groups, it is evident that these results support the previous FT-IR analysis. The anhydride groups are the result of the reaction between acyl chloride groups, attached to CNTs’ wall, and hydroxyl groups of MAA monomer. The chemical reaction between acyl chloride groups and hydroxyl groups, to form anhydride groups, has been previously documented for other systems [49]. The formation of MAA–BA chains was carried out from CNTs’ walls, where hydroxyl groups of MAA reacted with acyl chloride groups attached to CNTso-OCl’ walls or to CNTsr-OCl’ walls, forming anhydride groups in CNTso-OCl-MAA or in CNTsr-OCl-MAA, and allowing a C=C bond being available to polymerize by radical polymerization under IEP process. Therefore, it can be stated that MAA–BA chains were grafted onto the surface of the functionalized CNTs. It is expected that the grafting efficiency of this reaction is not total.

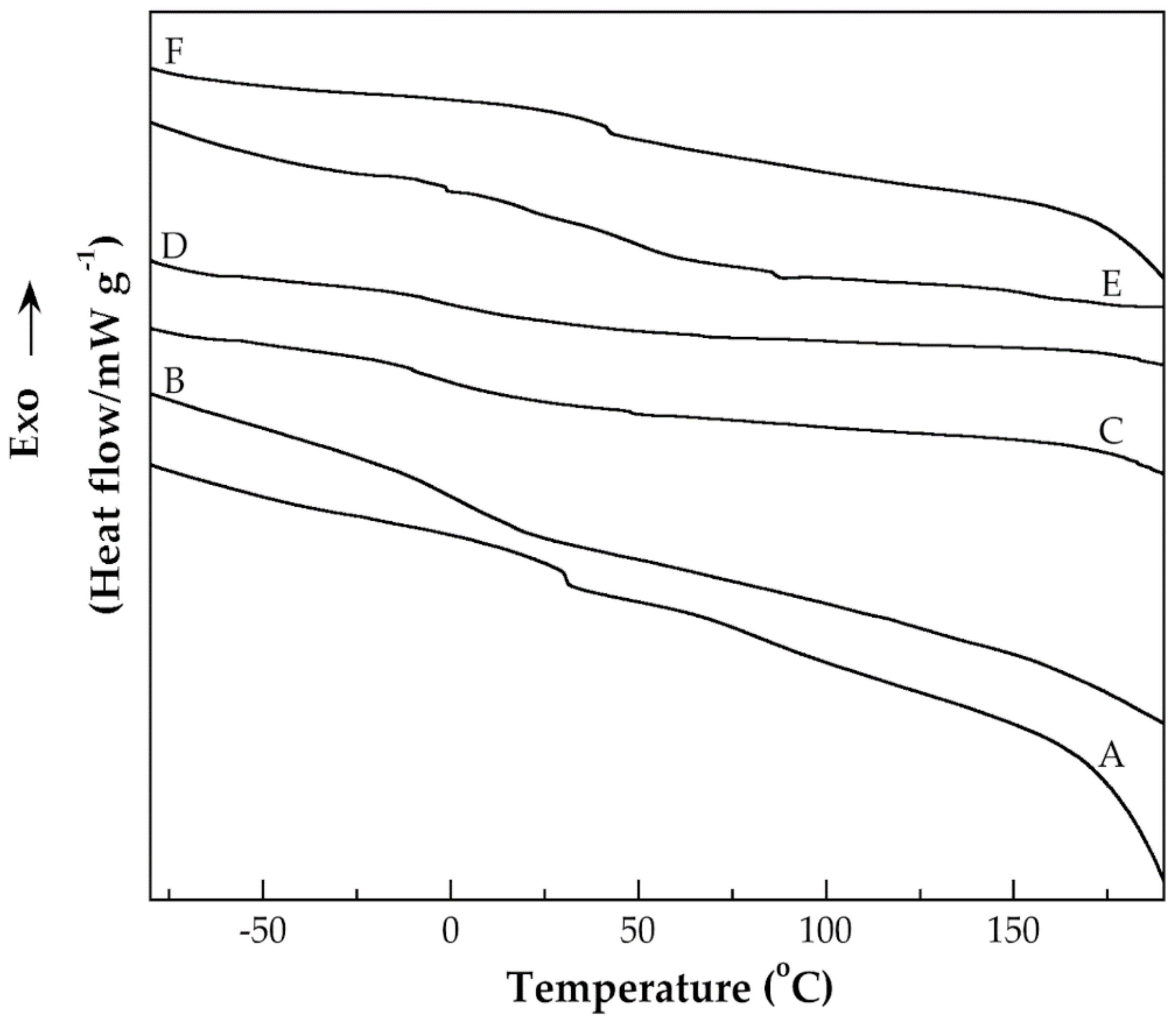

Figure 6 shows DSC thermograms of the pure MAA–BA copolymer matrix and the ones of the nanocomposites prepared with 0.5 wt.% of CNTso or CNTsr. Table 4 shows the thermal transition detected on the corresponding thermograms. This thermal transition is a glass transition temperature. Both poly(methacrylic acid) (PMAA) and poly(butyl acrylate) (PBA) are amorphous polymers. The reported glass transition temperature (Tg) of PMAA is 501.15 K [50], while the Tg of PBA is 221.15 K [51]. The Mat 1 and Mat 2 DSC thermograms show only one Tg in each case. The Tg of Mat 1 is 6 279.15 K, while the Tg of Mat 2 is 304.15 K. As expected, as more MAA monomer is used to prepare the MAA–BA copolymer, the Tg of MAA–BA copolymer is detected at higher temperatures. The fact that the amorphous phase of Mat 1 and Mat 2 has only one thermal relaxation (one Tg) indicates that both copolymers have a random structure, which is the typical structure of copolymers, prepared following a free-radical polymerization. For the nanocomposites, one or two thermal transitions were detected: (i) in the DSC thermograms of Nano 1, Nano 5, Nano 6, and Nano 8, only one Tg was detected, while (ii) the DSC thermograms of Nano 2, Nano 3, Nano 4, and Nano 7 nanocomposites show two Tgs. Since in general, for nanocomposites prepared with a high amount of BA and a low amount of CNTso-OCl or CNTsr-OCl, two glass transition temperatures are observed, we consider that both factors facilitate the segregation of BA and MAA domains, which, in turn, is confirmed by the two observed Tgs. In this respect, a low amount of CNTso or CNTsr favors the homogeneous dispersion of both types of CNTsf. In addition, a higher amount of BA favors that, even though the polymerization process is carried out by free radicals, domains rich in BA are present in the MAA–BA chains. This statement can be supported by the results reported by Kulikov et al. [52], which show that the reactivity of MAA in emulsion polymerization is higher, by a factor of at least 4, than the reactivity of BAA. In emulsion copolymerization, the initiation can be carried out in the aqueous phase, or inside the micelles. Thus, the solubility and concentration of the co-monomers play a key factor in defining the locus where initiation reactions are mainly developed. Since MAA is highly soluble in water, it is very probable that at low reaction times, MAA oligomers created in the aqueous phase react with CNTso-OCl-MAA or CNTsr-OCl-MAA. However, as the reaction time proceeds, the BA units react preferentially. This would explain how MAA-rich domains and BA-rich domains were formed. A homogeneous dispersion of CNTso-OCl-MAA or CNTsr-OCl-MAA aids in carrying out this process performance. On the contrary, when the co-monomeric formulation is richer in MAA, both MAA and BA molecules react during the entire IEP process. In this situation, the formation of segregation domains rich in BA or MAA is more difficult. As a consequence, a random structure is formed in MAA–BA chains, which was detected by the appearance of a single glass transition temperature, as was detected in the DSC thermograms of Nano 1, Nano 5, Nano 6, and Nano 8.
The morphology of the studied nanocomposites has crucial importance in their possible use as a drug delivery system sensitive to the medium pH. In this sense, a particular drug can be preferentially adsorbed in their hydrophilic or hydrophobic domains and, as has been reported for other stimuli-responsive polymers, used as smart nano-carriers [53]. The pH-responsive behavior of the MAA would facilitate the controlled delivery of drugs. This is highly desirable because different tissues and cells have varied pH values [54].

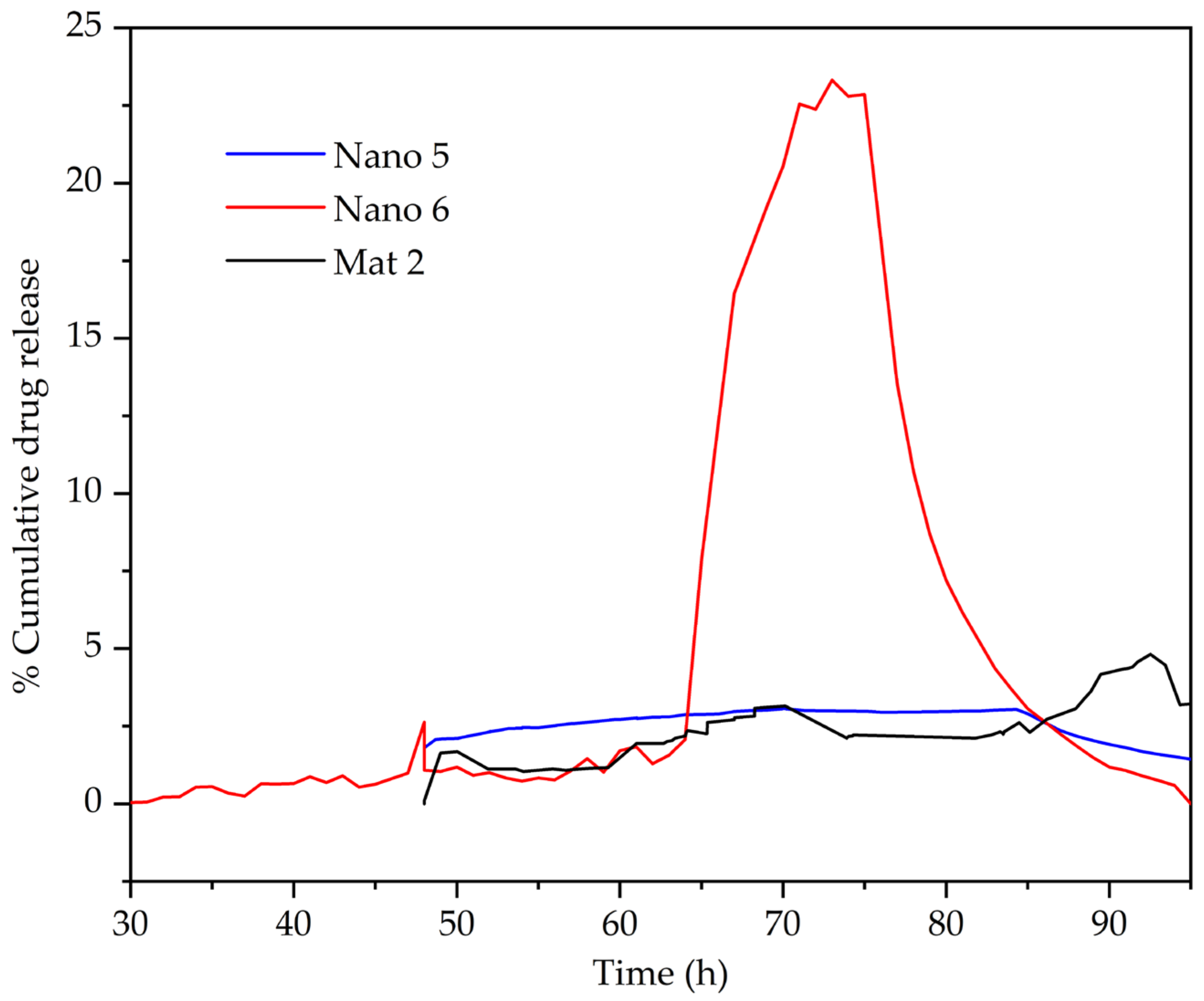

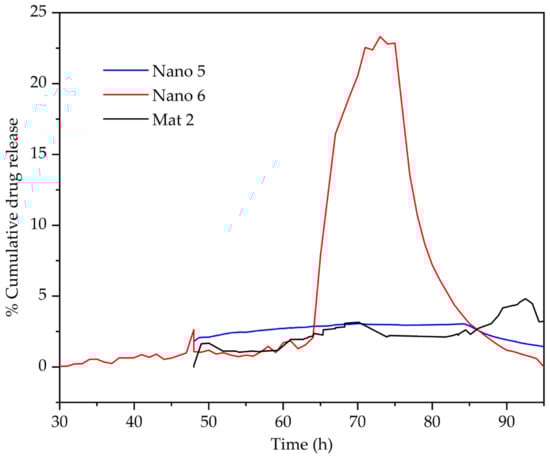

Figure 7 shows the hydrocortisone release profiles for pure MAA–BA copolymer Mat 2 and for the nanocomposites Nano 5 and Nano 6 obtained at pH 5. These nanocomposites, and their pure polymer matrix, were prepared with the same initial content of MAA (40 wt.%) and in the same way, they have a random chemical structure. It is evident that the amount of hydrocortisone released from Nano 6 is higher than those observed for the other two materials. At 73 h, Nano 6 releases 23% of hydrocortisone. These results contrast with the ones observed for Mat 2 and Nano 5. In this regard, the poor hydrocortisone release from Mat 2 indicates that this MAA–BA copolymer has little capability to act as a hydrocortisone carrier. These results mean that the type of CNTsf used to prepare the nanocomposites (CNTso for Nano 5 or CNTsr for Nano 6) has a crucial effect on the behavior of hydrocortisone release observed. In this regard, Table 3 shows that the ratios of C=O/CH3 signals, measured by 13C-NMR and O–C=O/C–H signals, evaluated by XPS, are higher for Nano 6 than Nano 5. These results also suggest that the content of CNTsr in Nano 6 is higher than the CNTso content in Nano 5. Therefore, there is a direct relationship between the hydrocortisone release capability and the content of CNTsf in the polymer matrix of the nanocomposites studied. Our results confirm that it is possible to fill the internal cavity of CNTs with a drug to create drug reservoirs, as reported by Hampel et al., who used carboplatin as a filling drug of oxidized MWCNTs [55]. At pH 5, the collapsed structure of PMAA starts to change because their carboxylic groups (completely self-associated by hydrogen bonds at pH < 4) now can be deprotonated. A change in the balance from inter-associated to self-associate hydrogen bonds can be the driving force to the release of hydrocortisone charged into the CNTsf. With respect to the swelling degree of the nanocomposites and of their polymer matrix, after 48 h of the swell-test at pH 5, the swelling could not be calculated. Two factors explain these results: (i) the nanocomposites and their polymeric matrix are mainly hydrophobic, and (ii) at pH 5, the MAA units inserted in the two materials mentioned are self-associated by hydrogen bonding. This means that there is no interaction with water and, as a consequence, no swelling was detected.

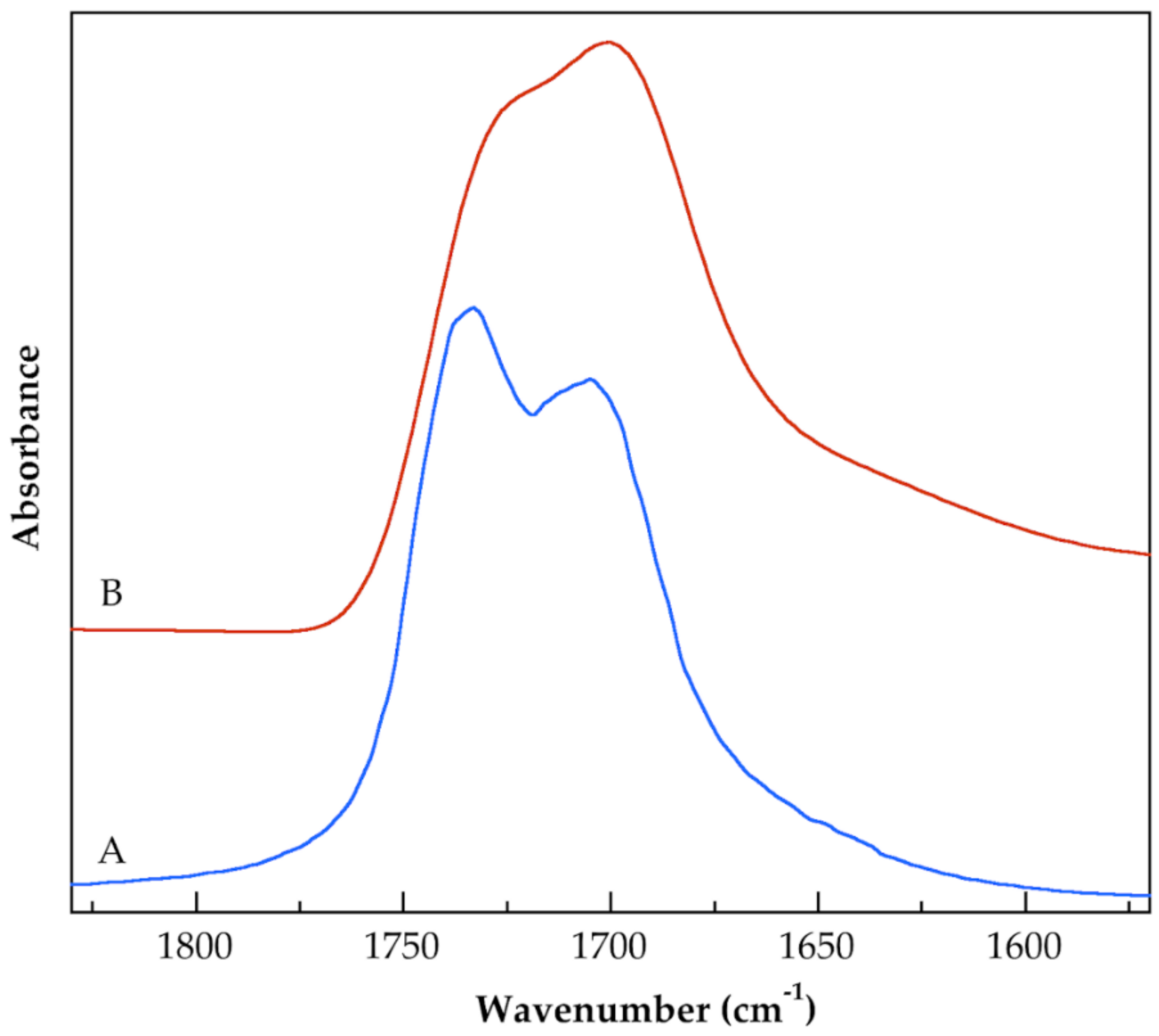

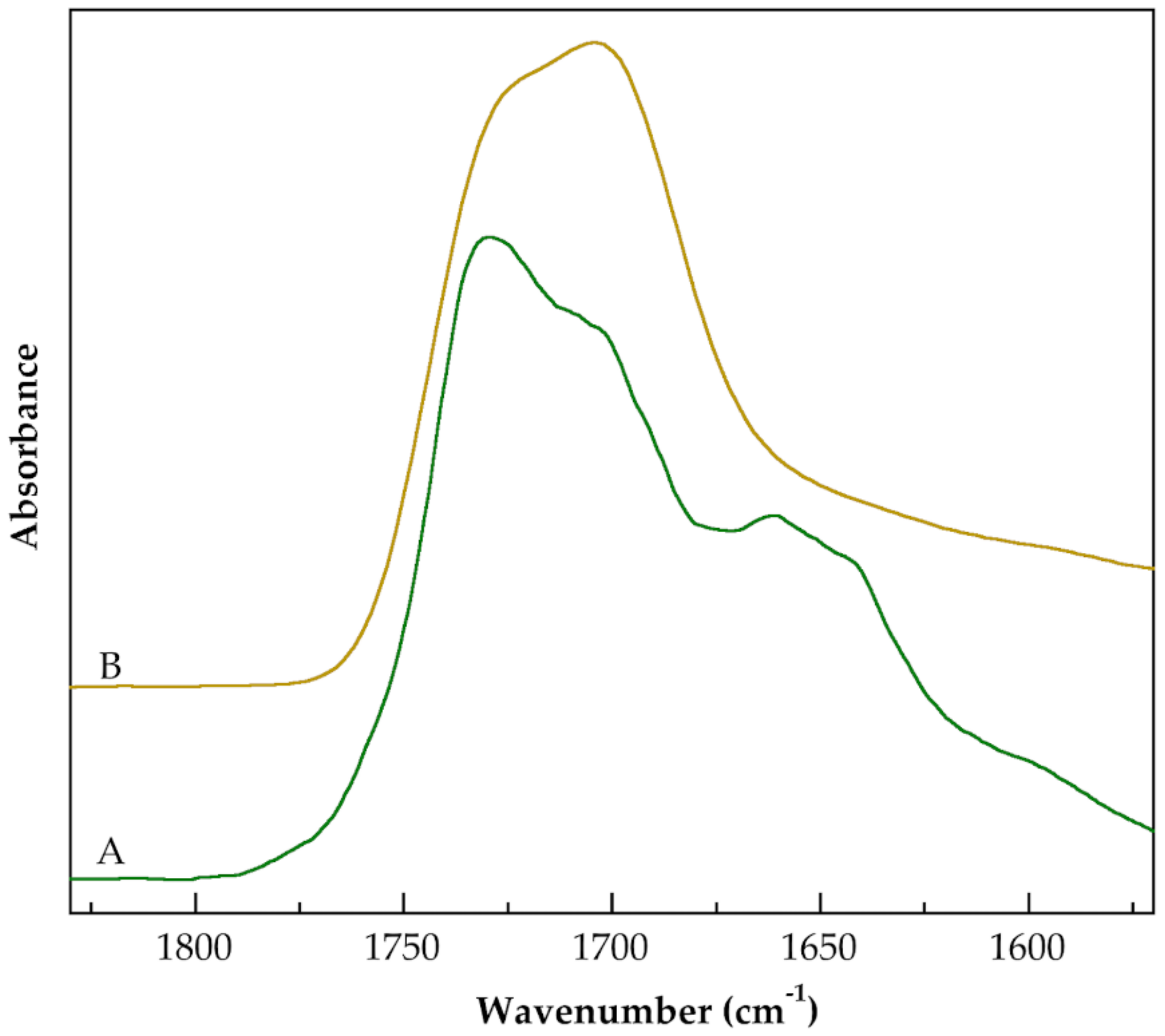

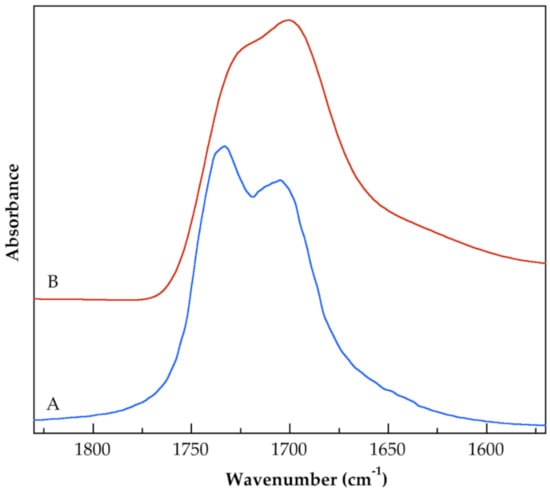

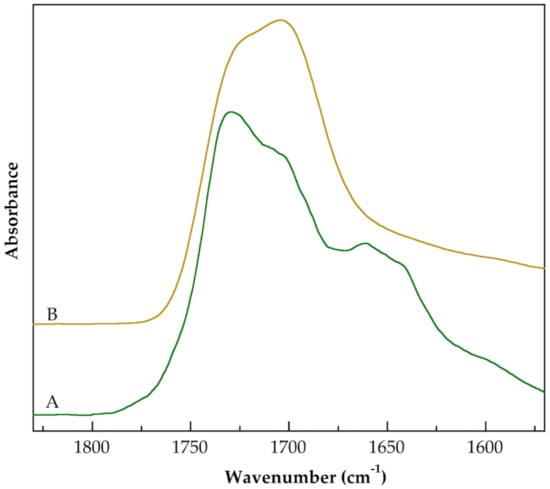

Figure 8 and Figure 9 show FT-IR partial spectra centered in the range from 1570 to 1830 cm−1 for Mat 2 and Nano 6 samples, respectively. Spectra presented in Figure 8A and Figure 9A correspond to purified Mat 2 and Nano 6, respectively, while spectra 8B and 9B are also of Mat 2 and Nano 6, respectively, but now after hydrocortisone release finished. Both spectra in each figure were normalized taking the absorbance of the most intense band as the unit. In this region, the spectral contributions due to the stretching vibration of carboxyl groups were resolved. It is evident the similarity between the peak spectral patterns shown on these figures. Thus, the Figure 8A and Figure 9A spectra show that the most intense band was detected at 1733 cm−1 in the spectrum of Mat 2 and at 1729 cm−1 in the spectrum of Nano 6, respectively. Stretching vibrations of carboxyl groups linked by inter-associated hydrogen bonding cause these spectral features [56]. For Mat 2, these hydrogen bonds are formed through an association between carbonyl groups, of BA and carboxyl groups of MAA, while for Nano 6, besides this association, the participation of free hydroxyl and carboxyl groups inserted on the walls of CNTsr to form hydrogen bonds must be considered. In this last case, formation of hydrogen bonds with either carbonyl groups of BA or carboxyl groups of MAA is possible. This spectral behavior is induced by the pH (close to 7). Due to the fact that hydrocortisone has three hydroxyl groups and two carbonyl groups, it is expected that these functional groups can form hydrogen bonds with the corresponding functional groups of Mat 2 and Nano 6. After the hydrocortisone release ended, the complex balance of inter-associated or self-associated hydrogen bonds has changed. The Figure 8B and Figure 9B spectra show that now the most intense band was detected at 1700 cm−1 (Figure 8B) or at 1703 cm−1 (Figure 9B). Stretching vibrations of self-associated carboxyl groups linked by hydrogen bonds forming dimers that caused these bands [57]. This result means that now prevalence of hydrogen bonds by self-association over inter-association is occurring. Therefore, we consider that the behavior observed in the hydrocortisone release profile of Nano 6 is caused by the change in the balance of carboxyl groups (both in MAA units and in CNTsr) inter-associated with respect to self-associated by hydrogen bonds. In other words, the breaking of the hydrogen bonds, that kept it physically attached to the CNTsr, drives the release of hydrocortisone. This is due to the influence that pH has on the amount and nature of the hydrogen bonds formed by carboxylic acid groups.
For nanocomposites and MAA–BA copolymer (Mat 1) prepared from an initial formulation richest in BA, we did not obtain adequate specimens to make an appropriate hydrocortisone release study.
The other possibility for hydrocortisone release is the hydrolysis of anhydride groups (very sensitive to pH) [58] is ruled out, at least at pH 5, because there is no evidence of hydrolysis in the FT-IR spectra of the series of nanocomposites synthesized.

4. Conclusions

In this work, a smart drug delivery system was synthesized successfully. This system consists of nanocomposites of CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA that were synthesized by IEP. An analysis of FE-SEM and HR-TEM microscopies made it possible to observe that the CNTs synthesized by CVD have a structure of HMWCNTs. To achieve the synthesis of the aforementioned nanocomposites, HMWCNTs were previously functionalized chemically to attach the acyl chloride functionality onto their walls. This reactive functional group of the CNTso-OCl and CNTsr-OCl reacted with the hydroxyl group of the methacrylic acid, creating an anhydride group, but keeping the C=C bond unchanged. Through radical polymerization of MAA and BA monomers on the substrate (CNTso-OCl-MAA or CNTsr-OCl-MAA), CNTso-OCl-MAA–BA and CNTsr-OCl-MAA–BA nanocomposites were synthesized. Raman and FT-IR spectroscopies confirmed that the functionalization of the purified CNTs was carried out as shown in Scheme 1. XPS and 13C-NRM spectroscopies show that the MAA–BA chains are attached to CNTso-OCl-MAA or CNTsr-OCl-MAA substrates. DSC thermograms evidenced that the co-monomer formulation and the amount of CNTso-OCl or CNTsr-OCl used in the nanocomposites preparation determine the morphology of the synthesized nanocomposites. In general, nanocomposites synthesized with a higher amount of BA show two glass transition temperatures, while nanocomposites prepared with a higher amount of MAA show one glass transition temperature. There is no evidence that nanocomposites morphology influences their ability to release hydrocortisone. In the synthesized nanocomposites the CNTsf, incorporated in their structure, act as hydrocortisone reservoirs. Of the all nanocomposites studied, Nano 6 shows the best ability to release hydrocortisone. The hydrocortisone release of Nano 6 carried out at pH 5 starts after 73 h after having initiated the release test at room temperature. The hydrocortisone release profile that shows the Nano 6 is driven by a change in the inter-associated to self-associated hydrogen bonds balance. The polymeric pure matrix of the synthesized nanocomposites does not show a significant ability to release hydrocortisone. Therefore, the presence of the CNTsr in the Nano 6 plays a crucial role in obtaining a smart drug delivery system.
Although the prepared nanocomposites in this work have a convenient ability to release hydrocortisone, the decisive role that the functionalized CNTs have in the drug delivery performance of nanocomposites urges the necessity to evaluate CNTs’ toxicity. The unresolved problem of toxicity of the CNTs must be overcome before their practical use can be explored. The toxicity of the CNTs is a risk that limit the possible use of the nanocomposites studied. This risk must be thoroughly evaluated to avoid undesirable health problems. Therefore, the possible impact of the studied nanocomposites on human health, by their use in a drug delivery system at pH 5, depends upon their evaluation as a potential threat to living tissues.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/13/4/533/s1, Figure S1: The 1H-NMR spectrum of the Mat 2.

Author Contributions

Conceptualization, F.L.-S. and S.M.N.-D.; methodology, J.A.T.-Á., F.A.L.-D. and L.R.C.-Z.; validation, S.M.N.-D., A.M.-R. and F.L.-S.; formal analysis, J.A.T.-Á., L.R.C.-Z., M.V.-L. and K.A.B.-R.; investigation, J.A.T.-Á.; resources, A.M.-R., F.L.-S. and S.M.N.-D.; data curation, L.R.C.-Z.; writing—original draft preparation, S.M.N.-D.; writing—review and editing, K.A.B.-R., F.L.-S., A.M.-R. and S.M.N.-D.; visualization, J.A.T.-Á. and L.R.C.-Z.; supervision, S.M.N.-D.; project administration, F.L.-S. and S.M.N.-D.; funding acquisition, A.M.-R., F.L-S. and S.M.N.-D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Consejo Nacional de Ciencia y Tecnología (CONACyT), grant number 123732 and 101369. Also, the research was funded by Universidad Nacional Autónoma de México (UNAM), grant number DGAPA-PAPIIT-IN114018 and PAIP-FQ 5000-9080.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors are indebted to Engr. Francisco Rodríguez Melgarejo (CINVESTAV, Unidad Querétaro) for obtaining the Raman spectra. Also, the authors kindly acknowledge The National Laboratory for Characterization of Physicochemical Properties and Molecular structure UG for NMR studies.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Feldman, D. Polymer Nanocomposites in medicine. J. Macromol. Sci. Part A 2016, 53, 55–62. [Google Scholar] [CrossRef]
  2. Chaurasia, A.; Suzhu, Y.; Henry, C.K.F.; Mogal, V.T.; Saha, S. Properties and Applications of Polymer Nanocomposites. In Handbook of Manufacturing Engineering and Technology, 1st ed.; Nee, A.Y.C., Ed.; Springer-Verlag: London, UK, 2015; pp. 43–98. [Google Scholar]
  3. Khan, M.U.; Gomes, V.G.; Altarawneh, I.S. Synthesizing polystyrene/carbon nanotube composites by emulsion polymerization with non-covalent and covalent functionalization. Carbon 2010, 48, 2925–2933. [Google Scholar] [CrossRef]
  4. Ma, P.-C.; Siddiqui, N.A.; Marom, G.; Kim, J.-K. Dispersion and functionalization of carbon nanotubes for polymer-based Nanocomposites: A review. Compos. Part A 2010, 41, 1345–1367. [Google Scholar] [CrossRef]
  5. Jeon, I.-Y.; Chang, D.W.; Nanjundan, A.K.; Baek, J.-B. Functionalization of carbon nanotubes. In Carbon Nanotubes Polymer Nanocomposites, 1st ed.; Yellampalli, S., Ed.; Intech: Rijeka, Croatia, 2011; pp. 91–110. [Google Scholar]
  6. Adeli, M.; Bahari, A.; Hekmatara, H. Carbon nanotube-graft-poly(citric acid) nanocomposites. NANO 2008, 3, 37–44. [Google Scholar] [CrossRef]
  7. Saeed, K.; Park, S.-Y.; Haider, S.; Baek, J.-B. In situ polymerization of multi-walled carbon nanotube/nylon-6 nanocomposites and their electrospun nanofibers. Nanoscale Res. Lett. 2009, 4, 39–46. [Google Scholar] [CrossRef] [Green Version]
  8. Xia, H.; Wang, Q.; Qiu, G. Polymer-encapsulated carbon nanotubes prepared through ultrasonically initiated in situ emulsion polymerization. Chem. Mater. 2003, 15, 3879–3886. [Google Scholar] [CrossRef]
  9. Xia, H.; Qiu, G.; Wang, Q. Polymer/carbon nanotube composite emulsion prepared through ultrasonically assisted in situ emulsion polymerization. J. Appl. Polym. Sci. 2006, 100, 3123–3130. [Google Scholar] [CrossRef]
  10. Mittal, V. Polymer Nanocomposites in emulsion and suspension: An overview. In Polymer Nanocomposites by Emulsion and Suspension Polymerization, 1st ed.; Mittal, V., Ed.; Royal Society of Chemistry: London, UK, 2011; pp. 1–31. [Google Scholar]
  11. Khan, M.U.; Reddy, K.R.; Snguanwongchai, T.; Haque, E.; Gomes, V.G. Polymer brush synthesis on surface modified carbon nanotubes via in situ emulsion polymerization. Colloid. Polym. Sci. 2016, 294, 1599–1610. [Google Scholar] [CrossRef]
  12. Massoumi, B.; Ramezani, M.; Jaymand, M.; Ahmadinejad, M. Multi-walled carbon nanotubes-g-[poly(ethylene glycol)-b-poly(e-caprolactone)]: Synthesis, characterization, and properties. J. Polym. Res. 2015, 22, 214. [Google Scholar] [CrossRef]
  13. Du, W.; Slany, M.; Wang, X.; Chen, G.; Zhang, J. The inhibition property and mechanism of a novel low molecular weight zwitterionic copolymer for improving wellbore stability. Polymers 2020, 12, 708. [Google Scholar] [CrossRef] [Green Version]
  14. Lowman, A.M.; Peppas, N.A. Molecular analysis of interpolymer complexation in graft copolymer networks. Polymer 2000, 41, 73–80. [Google Scholar] [CrossRef]
  15. Thakral, S.; Thakral, N.K.; Majumdar, D.K. Eudragit®: A technology evaluation. Expert. Opin. Drug. Deliv. 2013, 10, 131–149. [Google Scholar] [CrossRef] [PubMed]
  16. Cui, J.; Kratz, K.; Hiebl, B.; Jung, F.; Lendlein, A. Soft poly(n-butyl acrylate) networks with tailored mechanical properties designed as substrates for in vitro models. Polym. Adv. Technol. 2011, 22, 126–132. [Google Scholar] [CrossRef]
  17. Guo, L.; Jiang, Y.; Chen, S.; Qiu, T.; Li, X. Self-assembly of poly(methacrylic acid)-b-poly(butyl acrylate) amphiphilic block copolymers in methanol via RAFT polymerization and during film formation for wrinkly surface pattern. Macromolecules 2014, 47, 165–174. [Google Scholar] [CrossRef]
  18. Peng, Y.; Chen, L.; Ye, S.; Kang, Y.; Liu, J.; Zeng, S.; Yu, L. Research and development of drug delivery systems based on drug transporter and nano-formulation. Asian J. Pharm. Sci. 2020, 15, 220–236. [Google Scholar] [CrossRef]
  19. Kumar, N.A.; Ganapathy, H.S.; Kim, J.S.; Jeong, Y.S.; Jeong, Y.T. Preparation of poly 2-hydroxyethyl methacrylate functionalized carbon nanotubes as novel biomaterial nanocomposites. Eur. Polym. J. 2008, 44, 579–586. [Google Scholar] [CrossRef]
  20. Boyles, M.S.P.; Young, L.; Brown, D.M.; MacCalman, L.; Cowie, H.; Moisala, A.; Smail, F.; Smith, P.J.W.; Proudfoot, L.; Windle, A.H.; et al. Multi-walled carbon nanotube induced frustrated phagocytosis conditions in macrophages are length dependent and greater than that of asbestos. Toxicol. Vitro 2015, 29, 1513–1528. [Google Scholar] [CrossRef]
  21. Rahman, L.; Jacobsen, N.R.; Aziz, S.A.; Wu, D.; Williams, A.; Yauk, C.L.; White, P.; Wallin, H.; Vogel, U.; Halappanavar, S. Multi-walled carbon nanotube-induced genotoxic, inflammatory and pro-fibrotic responses in mice: Investigating the mechanisms of pulmonary carcinogenesis. Mutat. Res. 2017, 823, 28–44. [Google Scholar] [CrossRef] [Green Version]
  22. Jafar, A.; Alshatti, Y.; Ahmad, A. Carbon nanotube toxicity: The smallest biggest debate in medical care. Cogent Med. 2016, 3, 1217970. [Google Scholar] [CrossRef]
  23. Fisher, C.; Rider, A.E.; Han, Z.J.; Kumar, S.; Levchenko, I.; Ostrikov, K. Applications and nanotoxicity of carbon nanotubes and graphene in biomedicine. J. Nanomater. 2012, 2012, 315185. [Google Scholar] [CrossRef] [Green Version]
  24. Holmes, P.F.; Bohrer, M.; Kohn, J. Exploration of polymethacrylate structure-property correlations: Advances towards combinatorial and high-throughput methods for biomaterials discovery. Prog. Polym. Sci. 2008, 33, 787–796. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Mastropietro, D.; Park, K.; Omidian, H. Polymers in oral drug delivery. In Comprehensive Biomaterials II, 1st ed.; Ducheyne, P., Healy, K., Hutmacher, D.W., Grainger, D.W., Kirkpatrick, C.J., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; Volume 4, pp. 430–444. [Google Scholar]
  26. Barrera-Rivera, K.A.; Martínez-Richa, A. L-Lysine-modified poly(ester-urethane) based on polycaprolactone for controlled release of hydrocortisone. In Green Polymer Chemistry: New Products, Processes, and Applications, 1st ed.; Cheng, H.N., Gross, R.A., Smith, P.B., Eds.; ACS Symposium Series 1310; American Chemical Society: Washington, DC, USA, 2018; pp. 163–175. [Google Scholar]
  27. Weigel, M.; Hahnert, S.; Sherlock, M.; Agha, A.; Behan, L.A.; Stewart, P.M.; Arlt, W.; Beier, D.; Freyt, K.; Zopf, K.; et al. Immediate versus modified release hydrocortisone in mitotane-treated patients with adrenocortical cancer. Clin. Endocrinol. 2017, 86, 499–505. [Google Scholar] [CrossRef]
  28. Dorff, T.B.; Crawford, E.D. Management and challenges of corticosteroid therapy in men with metastatic castrate-resistant prostate cancer. Ann. Oncol. 2013, 24, 31–38. [Google Scholar] [CrossRef] [PubMed]
  29. Warris, L.T.; van den Heuvel-Eibrink, M.M.; Aarsen, F.K.; Pluijm, S.M.F.; Bierings, M.B.; van den Bos, C.; Zwaan, C.M.; Thygesen, H.H.; Tissing, W.J.E.; Veening, M.A.; et al. Hydrocortisone as an intervention for dexamethasone-induced adverse effects in pediatric patients with acute lymphoblastic leukemia: Results of a double-blind, randomized controlled trial. J. Clin. Oncol. 2016, 34, 2287–2293. [Google Scholar] [CrossRef]
  30. Das, A.; Kundu, R.; Agarwal, R.; Ghose, A. CNS Prophylaxis in diffuse large B cell Lymphoma. J. Cancer Prev. Curr. Res. 2016, 5, 00177. [Google Scholar] [CrossRef]
  31. Rúan-Esparza, L.; Soto, V.; Gómez-Salazar, S.; Rabelero, M.; Ávalos-Borja, M.; Luna-Bárcenas, G.; Prokhorov, E.; Nuño-Donlucas, S.M. Poly[ethylene-co-(acrylic acid)]-based nanocomposites: Thermal and mechanical properties and their structural characteristics studied by Raman spectroscopy. Polym. Compos. 2011, 32, 1181–1189. [Google Scholar] [CrossRef]
  32. Xia, R.; Li, M.; Zhang, Y.; Qian, J.; Yuan, X. Surface modification of MWNTs with BA-MMA-GMA terpolymer by single-step grafting technique. J. Appl. Polym. Sci. 2011, 119, 282–289. [Google Scholar] [CrossRef]
  33. Taklimi, S.R.; Ghazinezami, A.; Askari, D. Chemical functionalization of helical carbon nanotubes: Influence of sonication time and concentration of sulfuric and nitric acids with 3:1 mixing ratio. J. Nanomater. 2019, 2019, 2836372. [Google Scholar] [CrossRef]
  34. Taklimi, S.R. Effects of Different Processing Parameters on Covalent Functionalization of Straight and Helical Carbon Nanotubes for Nanocomposite Applications. Ph.D. Thesis, Wichita State University, Wichita, KS, USA, 2017. [Google Scholar]
  35. Shen, Q.; Liu, M.; Lü, Y.; Zhang, D.; Cheng, Z.; Liu, Y.; Gao, H.; Jin, Z. Label-free electrochemical immunosensor based on a functionalized ionic liquid and helical carbon nanotubes for the determination of cardiac troponin I. ACS Omega 2019, 4, 11888–11892. [Google Scholar] [CrossRef] [Green Version]
  36. Tang, N.; Wen, J.; Zhang, Y.; Liu, F.; Lin, K.; Du, Y. Helical carbon nanotubes: Catalytic particle size-dependent growth and magnetic properties. ACS Nano 2010, 4, 241–250. [Google Scholar] [CrossRef] [PubMed]
  37. Paszkiewicz, M.; Sikorska, C.; Leszczynska, D.; Stepnowski, P. Helical multi-walled carbon nanotubes as an efficient material for the dispersive solid-phase extraction of low and high molecular weight polycyclic aromatic hydrocarbons from water samples: Theoretical study. Water Air Soil Pollut. 2018, 229, 253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Pelletier, M.J. Raman scattering in carbon materials. In Analytical Applications of Raman Spectroscopy, 1st ed.; Wiley-Blackwell Science: Malden, MA, USA, 1999; pp. 367–431. [Google Scholar]
  39. Chen, G.; Bandow, S.; Margine, E.R.; Nisoli, C.; Kolmogorov, A.N.; Crespi, V.H.; Gupta, R.; Sumanasekera, G.U.; Iijima, S.; Eklund, P.C. Chemically doped double-walled carbon nanotubes: Cylindrical molecular capacitors. Phys. Rev. Lett. 2003, 90, 257403. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Costa, S.; Borowiak-Palen, E. Raman study on doped multiwalled carbon nanotubes. Acta Phys. Pol. A 2009, 116, 32–35. [Google Scholar] [CrossRef]
  41. Thomsen, C.; Reich, S. Double resonant Raman scattering in graphite. Phys. Rev. Lett. 2000, 85, 5214. [Google Scholar] [CrossRef]
  42. Slany, M.; Jankovic, L.; Madejova, J. Structural characterization of organo-montmorillonites prepared from a series of primary salts: Mid-IR and near-IR study. App. Clay Sci. 2019, 176, 11–20. [Google Scholar] [CrossRef]
  43. Iizuka, Y.; Yamamoto, Y.; Kawahara, S. Latex-state 13C-NMR spectroscopy for poly(butyl acrylate). Colloid Polym. Sci. 2019, 297, 133–139. [Google Scholar] [CrossRef]
  44. Andrew, E.R.; Eades, R.G. Possibilities for high-resolution nuclear magnetic resonance spectra of crystals. Discuss. Faraday Soc. 1962, 34, 38–42. [Google Scholar] [CrossRef]
  45. Koenig, J.L. Spectroscopy of Polymers, 2nd ed.; Elsevier: New York, NY, USA, 1999; p. 368. [Google Scholar]
  46. Herrera-Gómez, A.; Bravo-Sánchez, M.; Ceballos-Sánchez, O.; Vázquez-Lepe, M.O. Practical methods for background substraction in photoemission spectra. Surf. Interface Anal. 2014, 46, 897–905. [Google Scholar] [CrossRef]
  47. Ratner, B.D.; Castner, D.G. Electron spectroscopy for chemical analysis. In Surface Analysis: The Principal Techniques, 2nd ed.; Vickerman, J.C., Gilmore, I.S., Eds.; Wiley: Chichester, UK, 2009; pp. 53–79. [Google Scholar]
  48. Beamson, G.; Briggs, D. High Resolution XPS of Organic Polymers: The Scienta ESCA300 Database, 1st ed.; Wiley: Chichester, UK, 1992; pp. 110–117. [Google Scholar]
  49. Montalbetti, C.A.G.N.; Falque, V. Amide bond formation and peptide coupling. Tetrahedron 2005, 61, 10827–10852. [Google Scholar] [CrossRef]
  50. Zhang, X.; Takegoshi, K.; Hikichi, K. Phase separation and thermal degradation of poly(vinyl alcohol)/poly(methacrylic acid) and poly(vinyl alcohol)/poly(acrylic acid) systemas by 13C c.p./m.a.s. n.m.r. Polymer 1992, 33, 718–724. [Google Scholar] [CrossRef]
  51. Fernández-García, M.; Cuervo-Rodríguez, R.; Madruga, E.L. Glass transition of butyl acrylate-methyl methacrylate copolymers. J. Polym. Sci. Part B Polym. Phys. 1999, 37, 2512–2520. [Google Scholar] [CrossRef]
  52. Kulikov, S.A.; Yablokova, N.V.; Nikolayeva, T.V.; Aleksandrov, Y.A. Emulsion copolymerization of butyl acrylate with methacrylic acid. Polym. Sci. USSR 1989, 31, 2542–2548. [Google Scholar] [CrossRef]
  53. Sang, X.; Yang, Q.; Shi, G.; Zhang, L.; Wang, D.; Ni, C. Preparation of pH/redox dual responsive polymeric micelles with enhanced stability and drug controlled release. Mater. Sci. Eng. C 2018, 91, 727–733. [Google Scholar] [CrossRef]
  54. Zhang, L.; Ding, Y.; Wen, Q.; Ni, C. Synthesis of core-crosslinked zwitterionic polymer nano aggregates and pH/Redox responsiveness in drug controlled release. Mater. Sci. Eng. C 2020, 106, 110288. [Google Scholar] [CrossRef]
  55. Hampel, S.; Kunze, D.; Haase, D.; Krämer, K.; Rauschenbach, M.; Ritschel, M.; Leonhardt, A.; Thomas, J.; Oswald, S.; Hoffmann, V.; et al. Carbon nanotubes filled with a chemotherapeutic agent: A nanocarrier mediates inhibition of tumor cell growth. Nanomedicine 2008, 3, 175–182. [Google Scholar] [CrossRef] [PubMed]
  56. Lee, J.Y.; Painter, P.C.; Coleman, M.M. Hydrogen bonding in polymer blends. 3. Blends involving polymers containing methacrylic acid and ether groups. Macromolecules 1988, 21, 346–354. [Google Scholar] [CrossRef]
  57. Katime, I.; Parada, L.; Meaurio, E.; Cesteros, L. Recent research developments in hydrogen bonding in polymer blends by Fourier transform infrared spectroscopy (FTIR) and calorimetry. Recent Res. Devel. Polym. Sci. 1997, 1, 91–107. [Google Scholar]
  58. Andrés, G.O.; Granados, A.M.; de Rossi, R.H. Kinetic study of the hydrolysis of phthalic anhydride and aryl hydrogen phthalates. J. Org. Chem. 2001, 66, 7653–7657. [Google Scholar] [CrossRef] [PubMed]
Polymers 13 00533 sch001 550
Scheme 1. Chemical route followed to prepare poly(methacrylic acid-co-butyl acrylate) carbon nanotubes (CNTsr-OCl-MAA–BA) nanocomposites.
Scheme 1. Chemical route followed to prepare poly(methacrylic acid-co-butyl acrylate) carbon nanotubes (CNTsr-OCl-MAA–BA) nanocomposites.
Polymers 13 00533 sch001
Polymers 13 00533 g001 550

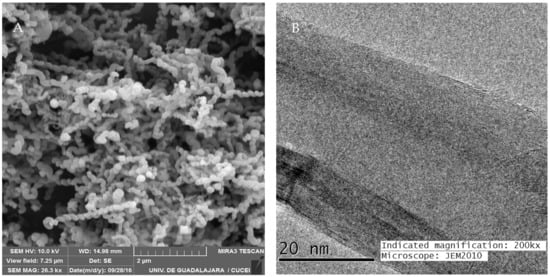

Figure 1. Micrograph of the CNTsp obtained by FE-SEM (A) and micrograph of the CNTsp obtained by HR-TEM (B).
Figure 1. Micrograph of the CNTsp obtained by FE-SEM (A) and micrograph of the CNTsp obtained by HR-TEM (B).
Polymers 13 00533 g001
Polymers 13 00533 g002 550
Figure 2. Raman spectra of CNTso (A), CNTsr (B), CNTso-OCl (C), and CNTsr-OCl (D).
Figure 2. Raman spectra of CNTso (A), CNTsr (B), CNTso-OCl (C), and CNTsr-OCl (D).
Polymers 13 00533 g002
Polymers 13 00533 g003 550
Figure 3. FT-IR spectra of CNTsp (A), CNTso (B), CNTso-OCl (C), pure MAA (D), and CNTso-OCl-MAA (E).
Figure 3. FT-IR spectra of CNTsp (A), CNTso (B), CNTso-OCl (C), pure MAA (D), and CNTso-OCl-MAA (E).
Polymers 13 00533 g003
Polymers 13 00533 g004 550
Figure 4. Solid-state 13C NMR CP-MAS spectra of Mat 2 (A) and Nano 6 (B), in which ssb = spinning sidebands.
Figure 4. Solid-state 13C NMR CP-MAS spectra of Mat 2 (A) and Nano 6 (B), in which ssb = spinning sidebands.
Polymers 13 00533 g004
Polymers 13 00533 g005 550
Figure 5. The C1s core level spectra of Mat 2 (A), Nano 8 (B), and Nano 6 (C).
Figure 5. The C1s core level spectra of Mat 2 (A), Nano 8 (B), and Nano 6 (C).
Polymers 13 00533 g005
Polymers 13 00533 g006 550
Figure 6. DSC thermograms of Mat 2 (A), Mat 1 (B), Nano 3 (C), Nano 4 (D), Nano 7 (E), and Nano 8 (F).
Figure 6. DSC thermograms of Mat 2 (A), Mat 1 (B), Nano 3 (C), Nano 4 (D), Nano 7 (E), and Nano 8 (F).
Polymers 13 00533 g006
Polymers 13 00533 g007 550
Figure 7. Hydrocortisone release profiles at pH 5 for Mat 2, Nano 5, and Nano 6.
Figure 7. Hydrocortisone release profiles at pH 5 for Mat 2, Nano 5, and Nano 6.
Polymers 13 00533 g007
Polymers 13 00533 g008 550
Figure 8. Partial FT-IR spectra in the 1570–1830 cm−1 region of the purified Mat 2 (A) and of the Mat 2 after hydrocortisone release finished (B).
Figure 8. Partial FT-IR spectra in the 1570–1830 cm−1 region of the purified Mat 2 (A) and of the Mat 2 after hydrocortisone release finished (B).
Polymers 13 00533 g008
Polymers 13 00533 g009 550
Figure 9. Partial FT-IR spectra centered in 1570–1830 cm−1 region of the purified Nano 6 (A) and of the Nano 6 at the end of hydrocortisone release (B).
Figure 9. Partial FT-IR spectra centered in 1570–1830 cm−1 region of the purified Nano 6 (A) and of the Nano 6 at the end of hydrocortisone release (B).
Polymers 13 00533 g009
Table
Table 1. Content of MAA, BA, CNTso, or CNTsr used for the preparation of pure MAA–BA copolymers, as well as the CNTso-OCl-MAA–BA or CNTsr-OCl-MAA–BA nanocomposites.
Table 1. Content of MAA, BA, CNTso, or CNTsr used for the preparation of pure MAA–BA copolymers, as well as the CNTso-OCl-MAA–BA or CNTsr-OCl-MAA–BA nanocomposites.
CodeMAA
(wt.%)		BA
(wt.%)		CNTso 1
(wt.%)		CNTsr 2
(wt.%)
Mat 1208000
Mat 2406000
Nano 120801-
Nano 22080-1
Nano 320800.5-
Nano 42080-0.5
Nano 540601-
Nano 64060-1
Nano 740600.5-
Nano 84060-0.5
1 CNTso, 2 CNTsr: The amount of CNTs was calculated with respect to the mass of MAA added to reaction mixture.
Table
Table 2. Wavenumbers of the D, G, G*, and G’ Raman bands, and scattering intensities ratios (ID/IG and IG*/IG) of CNTso, CNTsr, CNTso-OCl, and CNTsr-OCl.
Table 2. Wavenumbers of the D, G, G*, and G’ Raman bands, and scattering intensities ratios (ID/IG and IG*/IG) of CNTso, CNTsr, CNTso-OCl, and CNTsr-OCl.
SampleD-Band
(cm−1)		G-Band
(cm−1)		G*-Band
(cm−1) 		G’-Band
(cm−1)		ID/IGIG*/IG
CNTso13261574161226531.160.176
CNTsr13231577160526456.080.354
CNTso-OCl13221570160826515.160.274
CNTsr-OCl13201564160026381.890.246
Table
Table 3. Comparison of copolymer and nanocomposites materials’ areas obtained by 13C-NMR and XPS techniques.
Table 3. Comparison of copolymer and nanocomposites materials’ areas obtained by 13C-NMR and XPS techniques.
CodeArea of C=O Signal Detected by
13C NMR		Area of
O–C=O Signal Observed by XPS		Ratio of C=O/CH3 Signals Measured by
13C NMR		Ratio of
O–C=O/C–H Signals Evaluated by XPS
Mat 10.06128.80.190.20
Mat 20.0693.80.200.17
Nano 10.07182.80.210.20
Nano 20.07989.90.230.18
Nano 30.07146.40.210.20
Nano 40.07972.90.230.23
Nano 50.071661.40.210.21
Nano 60.07150.20.230.22
Nano 70.0721190.210.20
Nano 80.07143.20.230.17
Table
Table 4. Glass transition temperatures of the pure MAA–BA copolymers and the CNTso-OCl-MAA–BA or CNTsr-OCl-MAA–BA nanocomposites.
Table 4. Glass transition temperatures of the pure MAA–BA copolymers and the CNTso-OCl-MAA–BA or CNTsr-OCl-MAA–BA nanocomposites.
CodeTg1
(K)		Tg2
(K)
Mat 1279.15-
Mat 2304.15-
Nano 1322.15-
Nano 2300.15362.15
Nano 3264.15324.15
Nano 4271.15351.15
Nano 5302.15-
Nano 6303.15-
Nano 7271.15351.15
Nano 8315.15-
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Torres-Ávalos, J.A.; Cajero-Zul, L.R.; Vázquez-Lepe, M.; López-Dellamary, F.A.; Martínez-Richa, A.; Barrera-Rivera, K.A.; López-Serrano, F.; Nuño-Donlucas, S.M. Synthesis of Poly(methacrylic acid-co-butyl acrylate) Grafted onto Functionalized Carbon Nanotube Nanocomposites for Drug Delivery. Polymers 2021, 13, 533. https://doi.org/10.3390/polym13040533

AMA Style

Torres-Ávalos JA, Cajero-Zul LR, Vázquez-Lepe M, López-Dellamary FA, Martínez-Richa A, Barrera-Rivera KA, López-Serrano F, Nuño-Donlucas SM. Synthesis of Poly(methacrylic acid-co-butyl acrylate) Grafted onto Functionalized Carbon Nanotube Nanocomposites for Drug Delivery. Polymers. 2021; 13(4):533. https://doi.org/10.3390/polym13040533

Chicago/Turabian Style

Torres-Ávalos, Josué A., Leonardo R. Cajero-Zul, Milton Vázquez-Lepe, Fernando A. López-Dellamary, Antonio Martínez-Richa, Karla A. Barrera-Rivera, Francisco López-Serrano, and Sergio M. Nuño-Donlucas. 2021. "Synthesis of Poly(methacrylic acid-co-butyl acrylate) Grafted onto Functionalized Carbon Nanotube Nanocomposites for Drug Delivery" Polymers 13, no. 4: 533. https://doi.org/10.3390/polym13040533

APA Style

Torres-Ávalos, J. A., Cajero-Zul, L. R., Vázquez-Lepe, M., López-Dellamary, F. A., Martínez-Richa, A., Barrera-Rivera, K. A., López-Serrano, F., & Nuño-Donlucas, S. M. (2021). Synthesis of Poly(methacrylic acid-co-butyl acrylate) Grafted onto Functionalized Carbon Nanotube Nanocomposites for Drug Delivery. Polymers, 13(4), 533. https://doi.org/10.3390/polym13040533

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
