Preparation and Tribological Properties of Bismaleimide Matrix Composites Reinforced with Covalent Organic Framework Coated Graphene Nanosheets

by
Chao Liu
1,2,*,
Xin Xue
3,
Qiming Yuan
3,
Yang Lin
3,
Yan Bao
2,
Yinkun He
3 and
Wenbo Zhang
1
1
Key Laboratory of Auxiliary Chemistry and Technology for Chemical Industry, Ministry of Education, Shaanxi Collaborative Innovation Center of Industrial Auxiliary Chemistry and Technology, Shaanxi University of Science and Technology, Xi’an 710021, China
2
College of Bioresources Chemical and Materials Engineering, Shaanxi University of Science and Technology, Xi’an 710021, China
3
College of Chemistry and Chemical Engineering, Shaanxi University of Science and Technology, Xi’an 710021, China
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(16), 3289; https://doi.org/10.3390/polym14163289
Submission received: 20 July 2022 / Revised: 6 August 2022 / Accepted: 7 August 2022 / Published: 12 August 2022
(This article belongs to the Special Issue Development of Functional Polymer Composites)
Browse Figures
Review Reports Versions Notes

Abstract

:
The poor compatibility between the polymer matrix and complex modification processes greatly affects the excellent tribological properties of graphene in the polymer matrix. In this study, a covalent organic framework (COF)-coated graphene hybrid lubricating filler (G/COFs) was synthesized in situ using a sample one-step mechanochemical synthesis process. This was used to improve the tribological properties of bismaleimide (BMI) resin. The morphology and microstructure of the G/COFs hybrid were characterized, and the effect of the added amount on the tribological properties of the G/COFs/BMI composites was studied. The results showed that the G/COFs hybrid could improve the stability of the friction coefficient and decrease the volume wear rate of BMI composites. Compared to the neat BMI, the 0.6 wt% G/COFs/BMI composites showed optimal tribological performance, with the friction coefficient and volume wear rate decreasing from 0.35 to 0.14 and from 48 × 10−6 to 10.6 × 10−6 mm3/(N‧m), respectively. In addition, the G/COFs/BMI composites showed lower friction coefficient fluctuations and volume wear rates than G/BMI composites. This is mainly attributed to the fact that the deposition of COFs can not only effectively prevent the aggregation of graphene nanosheets, but can also significantly improve the compatibility and interfacial bond between the graphene and BMI matrix. Moreover, the good synergistic effect between the lamellar COFs and graphene nanosheets can generate high-quality self-lubricating transfer films during the friction process. The excellent dispersibility, efficient chemical functionalization, better friction reduction and wear-resistance properties, and facile preparation method make graphene/COFs hybrid nanoparticles promising as an excellent lubricating filler.

1. Introduction

Due to their significant mechanical strength and high-temperature resistance, polymer materials are widely applied in aerospace, army facilities, healthcare equipment, automatic processing, and other fields [1]. Zhou et al. [2] designed and synthesized a novel eugenol-functionalized cage-like polyhedral oligomeric silsesquioxane (EG-POSS) that exhibits excellent solubility and reactivity with BD-type bismaleimide resin. Thus, when 4 wt% EG-POSS is incorporated and uniformly dispersed in the resin matrix, the resultant hybrid (BDEP-0.04) shows outstanding comprehensive performance, especially in terms of dielectric, mechanical, and thermal properties. However, polymeric materials exhibit poor self-lubricating properties due to their terrible operating environments, reducing the life of these materials [3,4]. It has been demonstrated by many researchers that the employment of self-lubricating admixtures as lubricants in polymer matrix composites improves the lubricating environment, thus reducing frictional force and improving wear life. Some typical two-dimensional nanoparticles such as graphene, molybdenum disulfide, MXene, etc., exhibit excellent friction reduction and wear resistance [5,6,7].
Graphene (G) has been widely introduced into the polymer matrix as a lubricant nanofiller to improve friction reduction and the wear-resistance of composites due to its high thermal conductivity, significant mechanical properties, and superior friction and abrasion properties [5,8]. However, the π-π bonding interaction between graphene nanosheets may result in the agglomeration and sinkage of graphene in the polymer matrix, which significantly limits its strengthening and lubricating performance [9,10]. Researchers have found that modifying graphene is regarded as an effective method to solve its dispersion in the polymer matrix [11]. To date, the most common modification strategies for this aim have involved covalent and non-covalent modifications [12,13,14]. To improve graphene dispersion in bismaleimide (BMI) resin and the interfacial interaction between them, our group has reported on polytriazine surface-modified graphene. We found significant improvements in the compatibility and interfacial strength between graphene and BMI substrates through effective surface modifications [15]. Although the covalent modifications solve the problem of poor dispersion in the matrix, the conjugation of the graphene nanosheets was destroyed, reducing its tribological properties. In contrast to covalent modification, the advantage of non-covalent modification is that it improves dispersion without destroying the structure or the excellent properties of graphene or graphene oxide [12,16,17]. Nobile et al. [17] prepared modified graphene (G-py) based on a non-covalent π-π reaction between graphene (G) and a pyrene-based molecule (py). Compared to the unmodified graphene, the G-py showed good dispersibility in epoxy resin.
Covalent organic frameworks (COFs) [18,19,20,21] have attracted extensive attention due to their advantages of high surface area, adjustable structure, abundant active sites, and excellent crystallinity. In particular, the abundance of active sites conducive to modification and that have an interatomic layer with weak shear strength makes COFs an ideal choice for adding lubricants to reduce friction and wear [22,23,24,25]. Zhang et al. [26] obtained DDP@TD-COF via an amine–aldehyde condensation reaction of the triazine compound and vinyl-functionalized monomers through a solvothermal process to form a vinyl-functionalized COF (TD-COF). This was followed by the covalent bonding of commercial lubricating molecules (DDP) via the UV-induced thiol-ene “click” reaction. By adding 0.05 wt% of the DDP@TD-COF to the 500SN base oil, the compound lubricating oil showed excellent friction reduction and anti-wear ability. However, the process of preparing COFs using a solvothermal process is harsh (120 °C, 72 h). Mechanical synthesis has the advantage of simple operation and solves the complex problem of its preparation technology [27,28,29]. However, COF-based composites have been widely reported. As far as we know, graphene/COFs are mostly used in adsorption [30,31], oil/water separation [32], and energy storage [33]; they are rarely reported in the field of friction.
In the present work, with graphene oxide, p-Phenylenediamine, and 1,3,5-Benzenetricarbonyl trichloride as raw materials, a composite lubricating filler (G/COFs) was synthesized via a one-step mechanochemical synthesis. Following, the G/COFs hybrid was introduced into bismaleimide (BMI) resin and G/COFs/BMI composites were cast. The morphology and microstructure of the G/COFs were characterized by FT-IR, XRD, and TEM, and the effects of the added amount on the tribological properties of the BMI composite were studied. The results revealed that the tribological properties of the BMI composite were significantly improved by introducing the G/COFs hybrid. The use of COF-modified G not only avoids graphene nanosheet agglomeration, but the lamellar COFs and graphene nanosheets also have a good synergistic effect, resulting in the composites being able to generate high-quality self-lubricating transfer films during the friction process.

2. Materials and Methods

2.1. Materials

Concentrated sulfuric acid (H2SO4, 98%) and concentrated hydrochloric acid (HCl, 98%) were obtained from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Potassium persulfate (K2S2O8, 99.5%), phosphorus pentoxide (P2O5, 98%), and anhydrous ethanol (99.7%) were sourced from Tianjin Fuyu Fine Chemical Co (Tianjin, China). Natural graphite flakes (325 mesh) were obtained from Qingdao Hensen Graphite Co., Ltd. (Qingdao, China). Sodium hydroxide (NaOH, 95%), p-Phenylenediamine (97%), and 1,3,5-Benzenetricarbonyl trichloride (98%) were obtained from Shanghai Macklin Biochemical Co. (Shanghai, China). 4,4′-Bismaleimidodiphenylmethane (BDM, industrial grade) and diallyl bisphenol A (DBA, industrial grade) were purchased from Wuhan Zhisheng Technology Co. (Wuhan, China). All reagents were applied without further purification.

2.2. Preparation of Graphene Oxide

K2S2O8 (5 g) and P2O5 (5 g) were mixed and dissolved in H2SO4; then, the graphite was added to an oil bath at 80 °C and stirred and kept for 6 h. After cooling to room temperature, the mixture was rinsed with deionized water to neutralize it, and the powder was dried at 60 °C for 12 h to obtain a black powder.

2.3. Preparation of G/COFs

Firstly, graphene oxide (100 mg), p-Phenylenediamine (140 mg), and 1,3,5-Benzenetricarbonyl trichloride (160 mg) were added to a grinding pot with a certain number of agate balls and ground in a low-temperature planetary ball mill at 500 r/min for 90 min. Next, the pot was filled with 80 mL of 5% aqueous sodium hydroxide solution, and milling was maintained for 30 min. Finally, the product was filtered through a filter membrane and washed with deionized solution and ethanol, and it was finally dried under vacuum at 70 °C for 12 h. The black powder obtained was the prepared G/COFs.

2.4. Preparation of G/COFs/BMI

The G/COFs/BMI composites were prepared by mixing pre-weighed quantities of G/COFs, DBA, and BDM (DBA and BDM with a mass ratio of 3:4). Then, the mixture was heated to 135 °C until the mixture had totally melted and the G/COFs had uniformly dispersed. Finally, the mixture was cured following the schedule of 150 °C/2 h + 180 °C/2 h + 220 °C/4 h. The post-curing process was 250 °C/4 h. The composites based on BMI, including neat BMI and G/BMI composites with different filler contents [16,34], were obtained following the methods described in our previous work. The fabrication process of the G/COFs hybrid and its BMI composite is presented in Scheme 1.

2.5. Characterization

The Fourier transform infrared (FT-IR, VECTOR-22, Bruker, Karlsruhe, Germany) spectra of samples were characterized. The sample phases were determined by an X-ray diffractometer (XRD, Smart Lab 9Kw, Rigaku, Tokyo, Japan). The sample morphology was recorded by a transmission electron microscope (TEM, G2 TF20 S-TWIN, FEI, Hillsboro, OR, USA). A small amount of the sample was dispersed into ethanol and sonicated to make it uniformly dispersed. The sample was dropped onto a 230-mesh carbon support film to obtain a transmission electron microscope sample. The surface morphology of the samples was observed using a scanning electron microscope (SEM, S-4800, Hitachi, Tokyo, Japan). The tribological properties of the samples were examined using a tribological test machine (MMUD-1B, Jinan Hengxu Testing Machine Technology Co., Ltd., Jinan, China). The experiments were conducted with end-face friction sub-materials made of 45# steel, and friction and abrasion tests were performed on a testing machine under dry conditions. The hardness properties of the composite materials were tested by a microhardness tester (Micro Vicker HV30, Maga Instruments (Suzhou) Co., Ltd., Suzhou, China). The thermal properties of the composites were analyzed using a thermogravimetric analyzer (TGA, Q500, TA, New Castle, DE, USA) in a N2 atmosphere at a heating rate of 10 °C/min.

3. Results and Discussion

3.1. Structural Analysis of G/COFs

FT-IR was used to study the chemical structures of p-Phenylenediamine, 1,3,5-Benzenetricarbonyl trichloride, graphene oxide, COFs, and G/COFs. As shown in Figure 1, 1,3,5-Benzenetricarbonyl trichloride exhibits two clear absorption peaks at 1752 and 704 cm−1, which belong to the C=O stretching vibrations and C−Cl stretching vibrations in the acyl chloride groups, respectively [29]. In the spectrum of p-Phenylenediamine, the peaks at 3380 and 3302 cm−1 belong to the anti-symmetric and symmetric stretching vibration peaks of −NH2, respectively. In the spectrum of the COFs, the peaks at 3051 cm−1 and 1514 cm−1 belong to the C−H and C=C stretching vibrations of the benzene ring, respectively. The peaks at 824 cm−1 and 708 cm−1 belong to the characteristic substitution peaks on the benzene rings [27,28]. In addition, it can be noted that there was a disappearance of the −NH2 stretching band (3202 and 3380 cm−1) in p-Phenylenediamine and the C−Cl stretching (704 cm−1) in 1,3,5-Benzenetricarbonyl trichloride. Meanwhile, two new peaks occurred at 1253 cm−1 and 1660 cm−1, which were assigned to the absorption III (C=N) and Ⅰ (C=O) bands of −CONH− [35,36]. These measurements indicate that the COFs were successfully prepared. Graphene oxide exhibits three clear absorption peaks at 1062, 1315, and 3600 cm−1, which belong to the C−O−C stretching vibrations, C−H bending vibration, and −OH stretching vibrations, respectively [16,34]. The FT-IR peak positions of the G/COFs are almost identical to those of the COFs, which indicates that the loading of G has less influence on the structure of the COFs.
XRD analysis was used to study the structure of the sample. Figure 2 describes the XRD patterns of the graphene oxide, G, COFs, and G/COFs. The XRD pattern of graphene oxide shows a wrapper peak at 11.3°, corresponding to the (001) crystal surface of graphene oxide [37,38]. Compared to graphene oxide, the XRD spectrum of G shows a wrapper peak at 24.3°, which corresponds to the (002) crystal plane of graphene. This shows that the functional groups on the surface of graphene oxide were removed and that the graphene was successfully prepared [39]. For the XRD pattern of the COFs, the strongest diffraction peak at 2θ = 26.2° corresponds to the (001) crystallographic surface of the COFs [27,29]. As the COFs are coated to the graphene surface, the characteristic diffraction peak at 26.2° becomes weaker, as evidenced by the XRD spectra of G/COFs [30,32]. This may be because the COFs growth on the surface of the graphene can restrict the number of graphene layers by preventing the stacking of graphene sheets to some extent. Because graphene’s layer-to-layer interactions are weak, the distinctive diffraction peak weakens.

3.2. Microstructure of G/COFs Hybrid

To identify the successful fabrication of COFs and G/COFs, the morphological structure of the samples was analyzed by TEM. As shown in Figure 3a, the G surface shows many wrinkles with a typical peeling muslin morphology [16,34,40,41]. Figure 3b shows that COFs have lamellar structures [28,42,43,44]. Compared to the COFs, the G/COFs show a wrinkled lamellar structure, which is mainly due to the difference in morphology under shear force during graphene ball milling, and the change further confirms the growth of COFs on the surface of G. These layers are composed of numerous layers of nanoscale lamellar planes, allowing the relative sliding between layers to be easier to achieve under frictional shear stresses (Figure 3a–c). The energy dispersive spectrometer mapping of the G/COFs (Figure 3e–g) shows a uniform distribution of the elements C, N, and O, indicating that the COFs molecules have successfully coated on G, with coating being uniformly distributed along the organic carbon backbone.

3.3. Tribological Properties of G/COFs/BMI Composites

The friction coefficient and volume wear rate of composites with various filler contents are shown in Figure 4a. As shown, the friction coefficient and volume wear rate of the composites fall at first and then rise as the number of fillers increases. When the filler addition is 0.6 wt%, the friction and volume wear rate coefficients of the G/COFs/BMI composites reach their lowest values of 0.14 and 10.6 × 10−6 mm3/(N·m). Compared to neat BMI (0.35 and 48 × 10−6 mm3/(N·m)), they decreased by 60% and 77.9%, respectively. The reduction of the friction coefficient of the G/COFs compared to BMI is significantly better than similar reductions seen in the literature [16,45]. However, when the addition amount is more than 0.6 wt%, the friction coefficient and volume wear rate of G/COFs/BMI composites increase. However, they are still lower than those of neat BMI. The reason for this phenomenon is that the fillers occupy too large a proportion in the resin matrix, forming inhomogeneous aggregates that make it difficult to form a continuous and uniform self-lubricating transfer film on the surface of the metal counterpart ring [46].
To obtain the tribological mechanism of G/COFs, the tribological properties of neat BMI, 0.6 wt% G/BMI composites, and 0.6 wt% G/COF/BMI composites were studied, as shown in Figure 4b. After the addition of 0.6 wt% G into BMI, the friction coefficient was 0.27. Compared to the neat BMI, the friction coefficient could be reduced by 20.5%. The addition of the same amount of G/COFs resulted in a composite material with excellent stability and good friction reduction properties [34,47]. Meanwhile, the preparation process for G/COFs is straightforward and can be mass produced. Therefore, G/COFs hybrid nanoparticles are promising as a new lubricating filler and have been applied to the field of friction.
To further investigate the tribological suitability of G/COFs/BMI composites, the tribological properties of G/COFs/BMI composites under different loads and rotational speeds were studied at 0.6 wt% filling. Figure 5a shows the effect of the applied load on the friction coefficient and volume wear rate of 0.6 wt% G/COFs/BMI composites. It can be observed that the friction coefficient and volume wear rate of the composite decrease gradually as the load gradually increases from 50 N to 200 N. This is mainly because as the load increases, the contact area between the metal counterpart ring and the composite becomes more extensive, thus enabling the formation of a large self−lubricating transfer film in the friction contact area. This prevents direct exposure between the composite and metal counterpart ring. However, when the applied load force exceeds 200 N, the friction coefficient and volume wear rate of the composite material show an increasing trend. The main cause of this phenomenon is that the wear surface of the composite is cracks easily under high loading conditions, which leads to an increase in the number of fractured resin fragments [48].
Figure 5b shows the effect of rotational speed on the tribological properties of 0.6 wt% G/COFs/BMI composites under a load of 200 N. The friction coefficient and volume wear rate of the composites show a decreasing and then increasing trend as the rotational speed improves (See Figure 5b). This is because it is difficult for the composite material to form a self-lubricating transfer film on the metal counterpart ring at a low rotational speed. The rough metal counterpart ring directly wears against the composite material; thus, its tribological properties are poor [49]. When increasing the rotational speed, the self-lubricating transfer film gradually forms on the surface of the metal counterpart ring, and its friction coefficient is steadily reduced. When the rotational speed is 200 r/min, the friction coefficient and volume wear rate of the composite materials are reduced to their lowest values. However, when the speed of rotation exceeds 200 r/min, the frictional coefficient and volume wear rate of the composites material gradually increase. The main reason for this phenomenon is that the frictional heat accumulation leads to a sharp rise in the surface temperature of the composite material, and thus, adhesive wear occurs, increasing the frictional coefficient and volume wear rate of the composite [50].

3.4. Friction and Wear Mechanism Analysis

To study the wear mechanism of G/COFs/BMI composites, SEM was adopted to analyze the worn surface of the composites. Figure 6a shows that the worn surface of the neat BMI is very uneven, with plastic deformation and a large number of resin fragments. Its wear mechanism is mainly adhesive abrasion. The worn surface of the 0.6 wt% G/BMI composites is rougher than that of neat BMI, showing a scale-like morphology with broad and deep abrasion marks. This is a typical characteristic of the simultaneous existence of adhesive wear and abrasive particle wear. The worn surface without a large number of resin fragments indicates that the introduction of G can improve the load-bearing capacity of the BMI matrix. As shown in Figure 6c, the 0.6 wt% G/COFs/BMI composites show a smooth worn surface with shallow abrasion marks and small abrasive grains, which are typical abrasive grain wear characteristics. This is mainly explained by the fact that the introduction of G/COFs composite particles can form a dense and flat self-lubricating transfer film on the metal counterpart ring surface, avoiding direct contact between the rough metal counterpart ring and the BMI composite. These are consistent with the characterization tribological performance results [51,52]. The outstanding tribological properties of the G/COFs/BMI composites are mainly attributed to two aspects. Firstly, graphene has excellent reinforcement efficiency and self-lubricity, so the introduction of graphene into the polymer matrix can effectively improve the mechanical strength of the composite, thereby improving the wear resistance of the composite (See Figure S1). Secondly, the deposition of COFs can not only effectively prevent the aggregation of graphene nanosheets, but can also significantly improve the compatibility and interfacial bond between the graphene and polymer matrix. Therefore, the G/COFs/BMI can form a more uniform and continuous high-quality self-lubricating transfer film during the friction process to effectively improve the tribological properties of the composites.

3.5. Thermal Stability of G/COFs/BMI Composites

Because of the enormous amount of heat generated during the friction process, the thermal stability of the composites is critical for their tribological qualities. Figure 7 shows the TGA results for neat BMI, 0.6 wt% G/BMI, and 0.6 wt% G/COFs/BMI composites. Compared to neat BMI, the addition of G and G/COFs hybrid nanoparticles increases the thermal decomposition temperature of BMI in the primary stage. This is mainly attributable to the ability to prevent G stacking and to increase the volume share of G when COFs are loaded on the G surface. Large graphene nanosheets can form physical barriers to block the chain movement and delay the thermal decomposition of the resin matrix. It is suggested that the addition of G/COFs can improve the thermal stability of their compounds. Meanwhile, the introduction of fillers can significantly improve the final residual carbon yield of their composites because of the excellent catalytic carbon production ability of graphene [53].

3.6. Hardness Performance of G/COFs/BMI Composites

Hardness is a parameter that resists various permanent shape changes when subjected to forces, and the hardness of a material is strongly correlated with its frictional properties. The correlation between the hardness of G/COFs/BMI composites and the G/COFs content is shown in Figure 8. The hardness of G/COFs/BMI composites increases continuously with the addition of G/COFs, reaching a maximum value (45.6) at 0.6 wt% G/COFs. This indicates the filling with G/COFs can effectively improve the hardness of their composites. However, when the filler content is further increased, the hardness of the composites is reduced but is still better than that of neat BMI (34.8). This may be ascribed to the increase in the number of fillers, as more graphene accumulates in the resin, resulting in lower voids in the material, which reduces the hardness of the material [54].

4. Conclusions

In summary, novel G/COFs hybrid nanoparticles were synthesized in one step via mechanochemical synthesis. This method not only avoids the use of harmful solvents, but can also realize the scaled-up production of composite nanomaterials. The G/COFs/BMI composites show superior tribological characteristics compared to neat BMI and G /BMI composites. When the G/COFs addition is merely 0.6 wt%, the frictional coefficient and volume wear rate of their BMI composites are decreased to 0.14 and 10.6 × 10−6 mm3/(N‧m). These are lowered by 60% and 77.9% compared to neat BMI, respectively. Even in harsh friction environments, the tribological characteristics of the G/COFs/BMI composites are still superior to those of neat BMI. This is mainly attributed to the fact that COF-coated graphene can not only effectively improve compatibility with the polymer matrix, but can also effectively play a role in friction reduction and wear resistance, thus synergistically improving the tribological properties of their composites. We believe that these novel G/COFs hybrid nanoparticles have the potential to become the lubricating filler for large-scale production applications, such as for the production of various automotive parts. However, this method is limited to G/COFs hybrid nanoparticles that need to be synthesized at a high temperature.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14163289/s1, Figure S1: Relationship between mechanical properties and fillers content: flexural strength (a) and impact strength (b) of the composites, respectively. References [15, 47, 55] are cited in the supplementary materials.

Author Contributions

Conceptualization, methodology, review and editing, C.L.; writing and original draft preparation, X.X.; investigation, validation, Q.Y.; data curation, validation, Y.L.; funding acquisition, Y.B.; investigation, Y.H.; characterization, W.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No: 22008145 and 22078188); the project was funded by the China Postdoctoral Science Foundation (No. 2021M692861); the scientific research program was funded by the Shaanxi Provincial Education Department (No. 21JY004); the Open Foundation of Key Laboratory of Auxiliary Chemistry and Technology for Chemical Industry, Ministry of Education, Shaanxi University of Science and Technology (No. KFKT2022-14) and Shaanxi Collaborative Innovation Center of Industrial Auxiliary Chemistry and Technology, Shaanxi University of Science and Technology (No. KFKT2022-14).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhou, X.; Qiu, S.; Chu, F.K.; Xu, Z.M.; Hu, Y. An integrated intumescent flame retardant of bismaleimide from novel maleimide-functionalized triazine-rich polyphosphazene microspheres. Chem. Eng. J. 2022, 45, 138083. [Google Scholar] [CrossRef]
  2. Zhang, Z.W.; Zhou, Y.J.; Cai, L.F.; Xuan, L.X.; Wu, X.; Ma, X.Y. Synthesis of eugenol-functionalized polyhedral oligomer silsesquioxane for low-k bismaleimide resin combined with excellent mechanical and thermal properties as well as its composite reinforced by silicon fiber. Chem. Eng. J. 2022, 439, 135740. [Google Scholar] [CrossRef]
  3. Jopen, M.; Degen, P.; Henzler, S.; Grabe, B.; Hiller, W.; Weberskirch, R. Polyurea thickened lubricating grease—The effect of degree of polymerization on rheological and tribological properties. Polymers 2022, 14, 795. [Google Scholar] [CrossRef]
  4. Panin, S.V.; Alexenko, V.O.; Buslovich, D.G. High performance polymer composites: A role of transfer films in ensuring tribological properties—A review. Polymers 2022, 14, 975. [Google Scholar] [CrossRef]
  5. Zhang, D.; Li, Z.; Klausen, L.H.; Li, Q.; Dong, M.D. Friction behaviors of two-dimensional materials at the nanoscale. Mater. Today Phys. 2022, 27, 100771. [Google Scholar] [CrossRef]
  6. Li, J.F.; Li, J.J.; Yi, S.; Wang, K.Q. Boundary slip of oil molecules at MoS2 homojunctions governing superlubricity. ACS Appl. Mater. Interfaces 2022, 14, 8644–8653. [Google Scholar] [CrossRef]
  7. Serles, P.; Hamidinejad, M.; Demingos, P.G.; Ma, L.; Barri, N.; Taylor, H.; Singh, C.V.; Park, C.B.; Filleter, T. Friction of Ti3C2Tx MXenes. Nano Lett. 2022, 22, 3356–3363. [Google Scholar] [CrossRef]
  8. Guo, Y.B.; Zhou, X.L.; Lee, K.J.; Yoon, H.C.; Xu, Q.; Wang, D.G. Recent development in friction of 2D materials: From mechanisms to applications. Nanotechnology 2021, 32, 312002. [Google Scholar] [CrossRef]
  9. Roy, A.; Mu, L.W.; Shi, Y.J. Tribological properties of polyimide-graphene composite coatings at elevated temperatures. Prog. Org. Coat. 2020, 142, 105602. [Google Scholar] [CrossRef]
  10. Shahin, M.; Munir, K.; Wen, C.; Li, Y.C. Nano-tribological behavior of graphene nanoplatelet–reinforced magnesium matrix nanocomposites. J. Magnes. Alloys 2021, 9, 895–909. [Google Scholar] [CrossRef]
  11. Zhou, Q.; Luo, D.; Ye, W.; Li, S.; Huang, Z.B.; Ma, B.; Wang, H.F. Mechanical and tribological behaviors of metallic glass/graphene film with a laminated structure. Compos. Part A Appl. Sci. Manuf. 2022, 155, 106851. [Google Scholar] [CrossRef]
  12. Wang, H.; Zhang, H.; Zhang, J.H.; Zhao, Y.F. Improving tribological performance of fluoroether rubber composites by ionic liquid modified graphene. Compos. Sci. Technol. 2019, 170, 109–115. [Google Scholar] [CrossRef]
  13. Río, J.M.L.; López, E.R.; García, F.; Fernández, J. Tribological synergies among chemical-modified graphene oxide nanomaterials and a phosphonium ionic liquid as additives of a biolubricant. J. Mol. Liq. 2021, 336, 116885. [Google Scholar]
  14. Li, X.P.; Gan, C.L.; Han, Z.Y.; Yan, H.; Chen, D.L.; Li, W.; Li, H.; Fan, X.Q.; Li, D.S.; Zhu, M.H. High dispersivity and excellent tribological performance of titanate coupling agent modified graphene oxide in hydraulic oil. Carbon 2020, 165, 238–250. [Google Scholar] [CrossRef]
  15. Liu, C.; Dong, Y.F.; Lin, Y.; Yan, H.X.; Zhang, W.B.; Yan, B.; Ma, J.Z. Enhanced mechanical and tribological properties of gra-phene/bismaleimide composites by using reduced graphene oxide with non-covalent functionalization. Compos. Part B Eng. 2019, 165, 491–499. [Google Scholar] [CrossRef]
  16. Liu, C.; Li, X.; Lin, Y.; Xue, X.; Yuan, Q.Y.; Zhang, W.B.; Bao, Y.; Ma, J.Z. Tribological properties of bismaleimide-based self-lubricating composite enhanced by MoS2 quantum dots/graphene hybrid. Compos. Commun. 2021, 28, 100922. [Google Scholar] [CrossRef]
  17. Nobile, M.R.; Raimondo, M.; Naddeo, C.; Guadagno, L. Rheological and morphological properties of non-covalently function-alized graphene-based structural epoxy resins with intrinsic electrical conductivity and thermal stability. Nanomaterials 2020, 10, 1310. [Google Scholar] [CrossRef]
  18. Zhu, D.Y.; Xu, G.Y.; Barnes, M.; Li, Y.L.; Tseng, C.P.; Zhang, Z.Q.; Zhang, J.J.; Zhu, Y.F.; Khalil, S.; Rahman, M.M.; et al. Covalent organic frameworks for batteries. Adv. Funct. Mater. 2021, 31, 2100505. [Google Scholar] [CrossRef]
  19. Diercks, C.S.; Yaghi, O.M. The atom, the molecule, and the covalent organic framework. Science 2017, 355, l1585. [Google Scholar] [CrossRef]
  20. Song, Y.P.; Sun, Q.; Aguila, B.; Ma, S.Q. Covalent organic frameworks: Opportunities of covalent organic frameworks for ad-vanced applications. Adv. Sci. 2019, 6, 1970011. [Google Scholar] [CrossRef]
  21. Wen, P.; Zhang, C.Y.; Yang, Z.G.; Dong, R.; Wang, D.M.; Fan, M.J.; Wang, J.Q. Triazine-based covalent-organic frameworks: A novel lubricant additive with excellent tribological performances. Tribol. Int. 2017, 111, 57–65. [Google Scholar] [CrossRef]
  22. Wen, P.; Lei, Y.Z.; Li, W.Q.; Fan, M.J. Synergy between covalent organic frameworks and surfactants to promote water-based lubrication and corrosion resistance. ACS Appl. Nano Mater. 2020, 3, 1400–1411. [Google Scholar] [CrossRef]
  23. Wen, P.; Lei, Y.Z.; Yan, Q.Q.; Han, Y.Y.; Fan, M.J. Multilayer tribofilm: An unique structure to strengthen interface tribological behaviors. ACS Appl. Mater. Interfaces 2021, 13, 11524–11534. [Google Scholar] [CrossRef] [PubMed]
  24. Tao, Y.; Ji, W.Y.; Ding, X.S.; Han, B.H. Exfoliated covalent organic framework nanosheets. J. Mater. Chem. A 2021, 9, 7336–7365. [Google Scholar] [CrossRef]
  25. Wen, P.; Lei, Y.Z.; Li, W.Q.; Fan, M.J. Two-dimension layered nanomaterial as lubricant additives: Covalent organic frameworks beyond oxide graphene and reduced oxide graphene. Tribol. Int. 2020, 143, 106051. [Google Scholar] [CrossRef]
  26. Zhang, T.T.; Liu, S.; Zhang, X.Z.; Gao, J.D.; Yu, H.; Ye, Q.; Liu, S.J.; Liu, W.M. Fabrication of two-dimensional functional covalent organic frameworksviathe thiol-ene “click “reaction as lubricant additives for antiwear and friction reduction. ACS Appl. Mater. Interfaces 2021, 13, 36213–36220. [Google Scholar] [CrossRef]
  27. Shinde, D.B.; Aiyappa, H.B.; Bhadra, M.; Biswal, B.P.; Wadge, P.; Kandambeth, S.; Garai, B.; Kundu, T.; Kurungot, S.; Banerjee, R. A mechanochemically synthesized covalent organic framework as a proton-conducting solid electrolyte. J. Mater. Chem. A 2016, 4, 2682–2690. [Google Scholar] [CrossRef]
  28. Li, W.; Zhang, X.Y.; Zhang, C.Y.; Yu, M.Y.; Ren, J.F.; Wang, W.; Chen, S.G. Exploring the corrosion resistance of epoxy coated steel by integrating mechanochemical synthesized 2D covalent organic framework. Prog. Org. Coat. 2021, 157, 106299. [Google Scholar] [CrossRef]
  29. Wang, X.L.; Ma, R.Y.; Hao, L.; Wu, Q.H.; Wang, C.; Wang, Z. Mechanochemical synthesis of covalent organic framework for the efficient extraction of benzoylurea insecticides. J. Chromatog. A 2018, 1551, 1–9. [Google Scholar] [CrossRef]
  30. Liang, L.; Chen, J.; Chen, X.W.; Wang, J.H.; Qiu, H.D. In-situ synthesis of GO/COFs composite to enhance the adsorption per-formance of organic pollutants in water. Environ. Sci. Nano 2022, 9, 554–567. [Google Scholar] [CrossRef]
  31. Wang, Q.M.; Wang, D.N.; Liao, Q.B.; Ke, C.; Zhang, Y.Y.; Han, Q.W.; Zhang, Y.F.; Jiang, D.C.; Xi, K. Preparation of functional material layers of TT-COFs with built-in formyl groups for efficient dyes removal. J. Colloid Interf. Sci. 2022, 612, 608–616. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, H.; Wang, M.K.; Wang, Y.L.; Wang, J.; Men, X.H.; Zhang, Z.Z.; Singh, V. Synergistic effects of COF and GO on high flux oil/water separation performance of superhydrophobic composites. Sep. Purif. Technol. 2021, 276, 119268. [Google Scholar] [CrossRef]
  33. Yao, M.Y.; Guo, C.F.; Geng, Q.H.; Zhang, Y.F.; Zhao, X.; Xin Zhao, X.; Wan, Y. Construction of anthraquinone-containing co-valent organic frameworks/graphene hybrid films for a flexible high-performance microsupercapacitor. Ind. Eng. Chem. Res. 2022, 61, 7480–7488. [Google Scholar] [CrossRef]
  34. Liu, C.; Yin, Q.; Zhang, W.B.; Bao, Y.; Li, P.P.; Hao, L.F. Tribological properties of graphene-modified with ionic liquids and carbon quantum dots/bismaleimide composites. Carbon 2021, 183, 504–514. [Google Scholar] [CrossRef]
  35. Wu, S.; Ding, N.; Jiang, P.W.; Wu, L.; Feng, Q.L.; Zhao, L.B.; Wang, Y.B.; Su, Q.; Zhang, H.; Yang, Q.L. A two-dimensional am-ide-linked covalent organic framework anchored Pd catalyst for Suzuki-Miyaura coupling reaction in the aqueous phase at room temperature. Tetrahedron Lett. 2020, 61, 152656. [Google Scholar] [CrossRef]
  36. Yin, C.C.; Fang, S.Y.; Shi, X.S.; Zhang, Z.; Wang, Y. Pressure-modulated synthesis of self-repairing covalent organic frameworks (COFs) for high-flux nanofiltration. J. Membr. Sci. 2021, 618, 118727. [Google Scholar] [CrossRef]
  37. Bychko, I.; Abakumov, A.; Didenko, O.; Chen, M.Y.; Tang, J.G.; Strizhak, P. Differences in the structure and functionalities of graphene oxide and reduced graphene oxide obtained from graphite with various degrees of graphitization. J. Phys. Chem. Solids 2022, 164, 110614. [Google Scholar] [CrossRef]
  38. Garcia, J.L.; Miyao, T.; Inukai, J.; Tongol, B.J.V. Graphitic carbon nitride on reduced graphene oxide prepared via semi-closed pyrolysis as electrocatalyst for oxygen reduction reaction. Mater. Chem. Phys. 2022, 288, 126415. [Google Scholar] [CrossRef]
  39. Liu, Y.; Shin, D.G.; Xu, S.; Kim, C.L.; Kim, D.E. Understanding of the lubrication mechanism of reduced graphene oxide coating via dual in-situ monitoring of the chemical and topographic structural evolution. Carbon 2021, 173, 941–952. [Google Scholar] [CrossRef]
  40. Chouhan, A.; Kumari, S.; Sarkar, T.K.; Rawat, S.S.; Khatri, O.P. Graphene-based aqueous lubricants: Dispersion stability to the enhancement of tribological properties. ACS Appl. Mater. Interfaces 2020, 12, 51785–51796. [Google Scholar] [CrossRef]
  41. Li, L.H.; Yang, L.; Zou, R.; Lan, J.W.; Shang, J.J.; Dou, B.J.; Liu, H.Y.; Lin, S.J. Facile and scalable preparation of ZIF-67 decorated cotton fibers as recoverable and efficient adsorbents for removal of malachite green. J. Leather Sci. Eng. 2021, 33, 28. [Google Scholar] [CrossRef]
  42. Lv, H.Z.; Zhao, X.L.; Niu, H.Y.; He, S.J.; Tang, Z.; Wu, F.C.; Giesy, J.P. Ball milling synthesis of covalent organic framework as a highly active photocatalyst for degradation of organic contaminants. J. Hazard. Mater. 2019, 369, 494–502. [Google Scholar] [CrossRef] [PubMed]
  43. Weare, B.L.; Lodge, R.W.; Zyk, N.; Weilhard, A.; Housley, C.L.; Strutyński, K.; Melle-Franco, M.; Mateo-Alonso, A.; Khlobystov, A.N. Imaging and analysis of covalent organic framework crystallites on a carbon surface: A nanocrystalline scaly COF/nanotube hybrid. Nanoscale 2021, 13, 6834–6845. [Google Scholar] [CrossRef] [PubMed]
  44. Verma, R.; Sharma, S.; Mukherjee, B.; Singh, P.; Islam, A.; Keshri, A.K. Microstructural, mechanical and marine water tribological properties of plasma-sprayed graphene nanoplatelets reinforced Al2O3-40 wt% TiO2` coating. J. Eur. Ceram. Soc. 2022, 42, 2892–2904. [Google Scholar] [CrossRef]
  45. Liu, Y.; Liu, X.B.; Zhang, X.Y.; Chen, X.; Zhang, J.F.; Jing, L.; Wu, Y.X.; Yu, S.W. Tribological properties and self-lubrication mechanism of in-situ grown graphene reinforced nickel matrix composites in ambient air. Wear 2022, 496, 204308. [Google Scholar] [CrossRef]
  46. Lee, P.C.; Kim, S.Y.; Ko, Y.K.; Ha, J.U.; Jeoung, S.K.; Shin, D.; Kim, J.H.; Kim, M. Tribological properties of polyamide 46/graphene nanocomposites. Polymers 2022, 14, 1139. [Google Scholar] [CrossRef] [PubMed]
  47. Chan, J.X.; Wong, J.F.; Petrů, M.; Hassan, A.; Nirmal, U.; Othman, N.; Ilyas, R.A. Effect of nanofillers on tribological properties of polymer nanocomposites: A review on recent development. Polymers 2021, 13, 2867. [Google Scholar]
  48. Zhang, J.; Gao, X.; Xu, Q.; Ma, T.B.; Hu, Y.Z.; Luo, J.B. Atomistic insights into friction and wear mechanisms of graphene oxide. Appl. Surf. Sci. 2021, 546, 149130. [Google Scholar] [CrossRef]
  49. Guo, L.L.; Yan, H.X.; Chen, Z.Y.; Lv, Q.; Bai, T.; Zhang, Y.B. Graphene oxide grafted by hyperbranched polysiloxane to enhance mechanical and frictional properties of epoxy resin. SN Appl. Sci. 2020, 2, 473. [Google Scholar] [CrossRef]
  50. Chen, X.B.; Lu, S.L.; Sun, C.F.; Song, Z.B.; Jian Kang, J.; Ya Cao, Y. Exploring impacts of hyper-branched polyester surface modification of graphene oxide on the mechanical performances of acrylonitrile-butadiene-styrene. Polymers 2021, 13, 2614. [Google Scholar] [CrossRef]
  51. Zhang, Z.Y.; Du, Y.F.; Zhu, C.H.; Guo, L.C.; Lu, Y.; Yu, J.H.; Parkin, I.P.; Zhao, J.H.; Guo, D.M. Unprecedented enhancement of wear resistance for epoxy-resin graphene composites. Nanoscale 2021, 13, 2855–2867. [Google Scholar] [CrossRef] [PubMed]
  52. Eayal Awwad, K.Y.; Yousif, B.F.; Fallahnezhad, K.; Saleh, K.; Zeng, X.S. Influence of graphene nanoplatelets on mechanical properties and adhesive wear performance of epoxy-based composite. Friction 2020, 9, 856–875. [Google Scholar] [CrossRef]
  53. Wang, L.; Shi, X.T.; Zhang, J.L.; Zhang, Y.L.; Gu, J.W. Lightweight and robust rGO/sugarcane derived hybrid carbon foams with outstanding EMI shielding performance. J. Mater. Sci. Technol. 2020, 52, 119–126. [Google Scholar] [CrossRef]
  54. Yehia, H.M.; Abu-Oqail, A.; Elmaghraby, M.A.; Elkady, O.A. Microstructure, hardness, and tribology properties of the (Cu/MoS2)/graphene nanocomposite via the electroless deposition and powder metallurgy technique. J. Compos. Mater. 2020, 54, 3435–3446. [Google Scholar] [CrossRef]
  55. Zhang, Y.B.; Yan, H.X.; Xu, P.L.; Guo, L.L.; Yang, K.M.; Liu, R.; Feng, W.X. A novel POSS-containing polyimide: Synthesis and its composite coating with graphene-like MoS2 for outstanding tribological performance. Prog. Org. Coat. 2021, 151, 106013. [Google Scholar] [CrossRef]
Polymers 14 03289 sch001 550

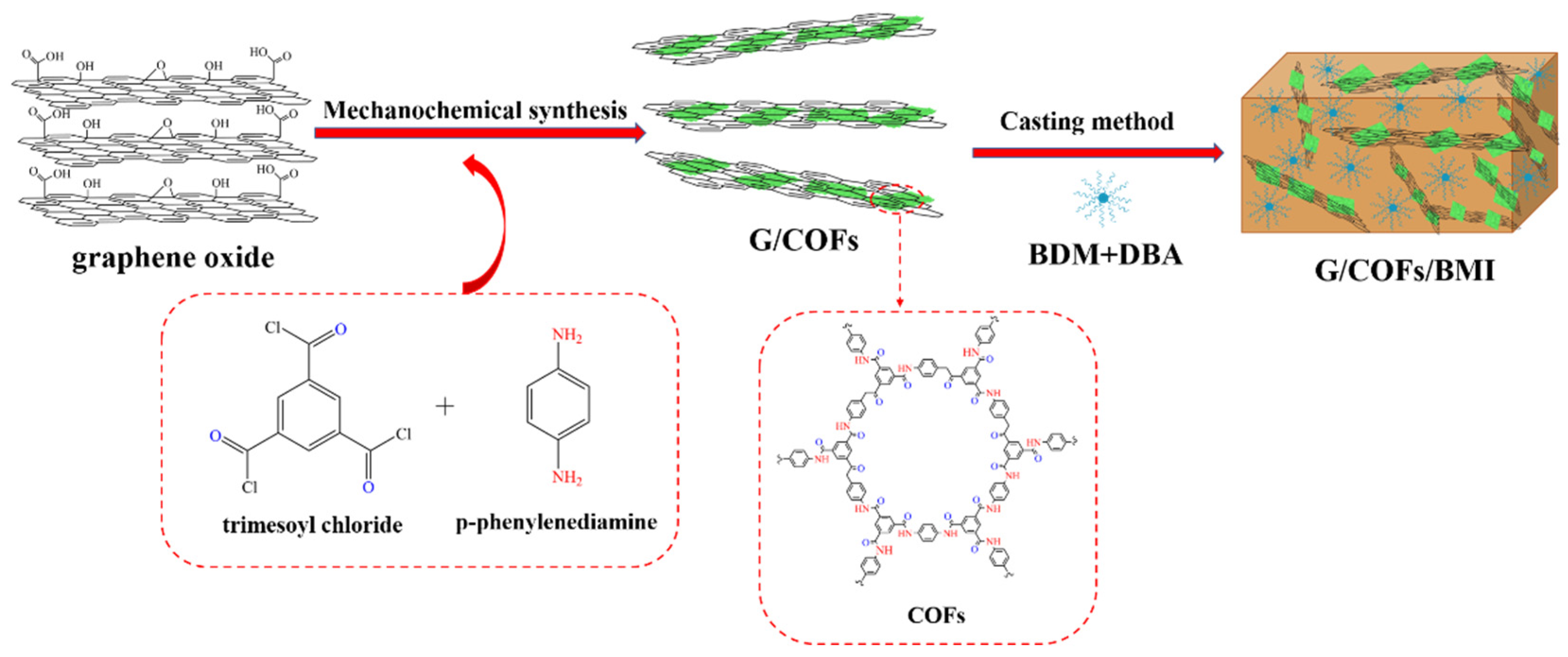

Scheme 1. Schematic diagram of the fabrication process of G/COFs hybrid and G/COFs/BMI composites.
Scheme 1. Schematic diagram of the fabrication process of G/COFs hybrid and G/COFs/BMI composites.
Polymers 14 03289 sch001
Polymers 14 03289 g001 550

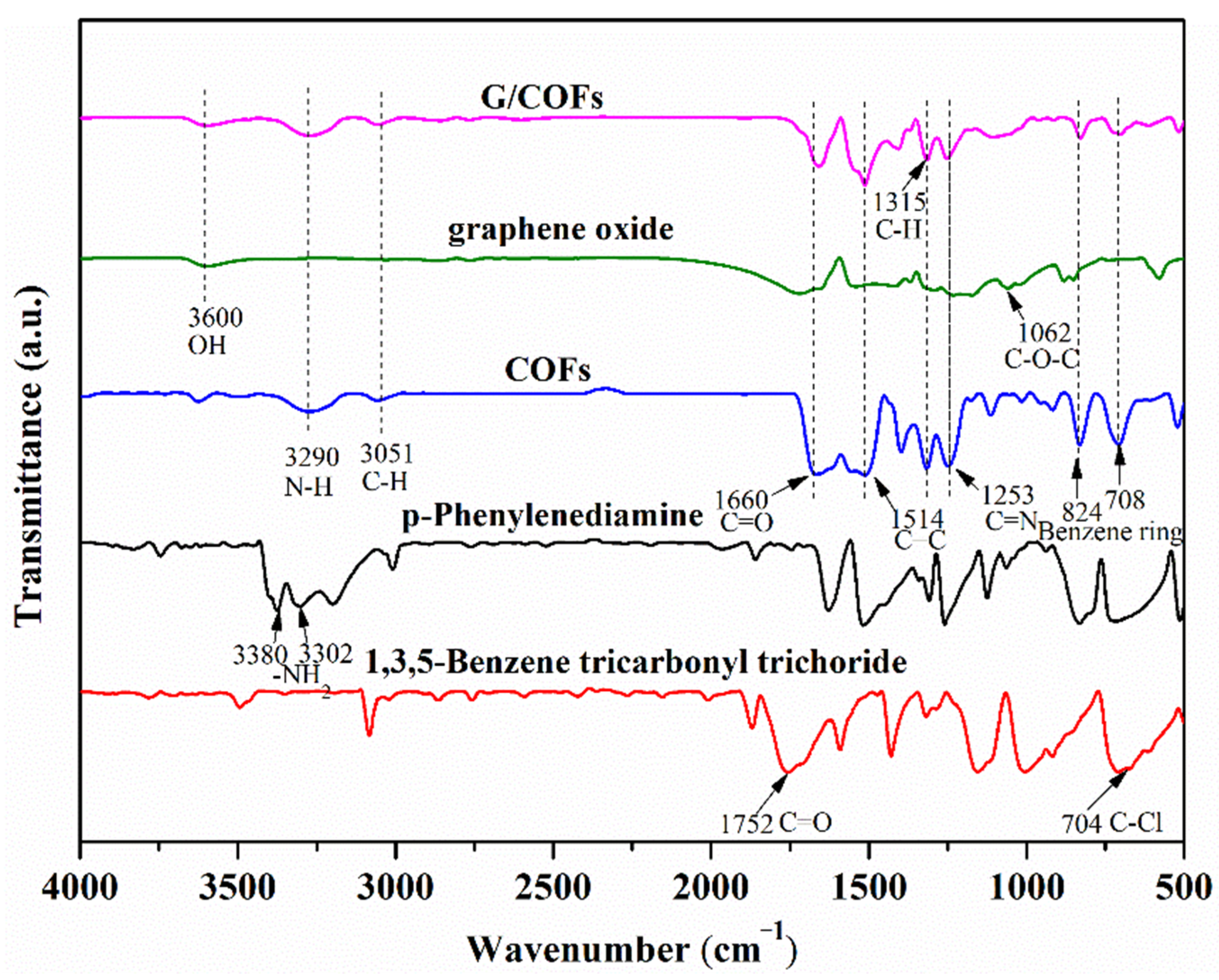

Figure 1. FT-IR spectra of p-Phenylenediamine, 1,3,5-Benzenetricarbonyl trichloride, graphene oxide, COFs, and G/COFs.
Figure 1. FT-IR spectra of p-Phenylenediamine, 1,3,5-Benzenetricarbonyl trichloride, graphene oxide, COFs, and G/COFs.
Polymers 14 03289 g001
Polymers 14 03289 g002 550

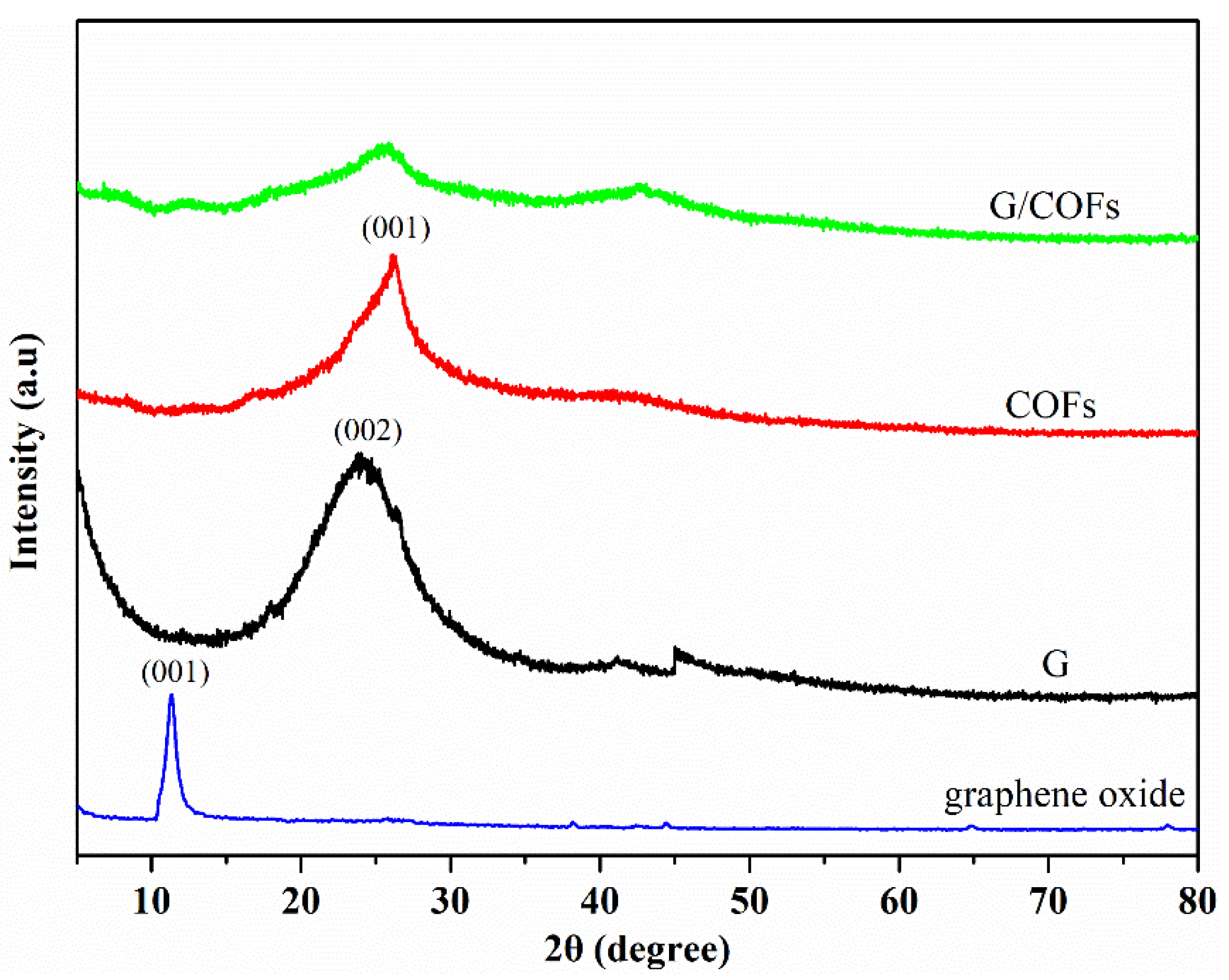

Figure 2. XRD patterns of graphene oxide, G, COFs, and G/COFs.
Figure 2. XRD patterns of graphene oxide, G, COFs, and G/COFs.
Polymers 14 03289 g002
Polymers 14 03289 g003 550

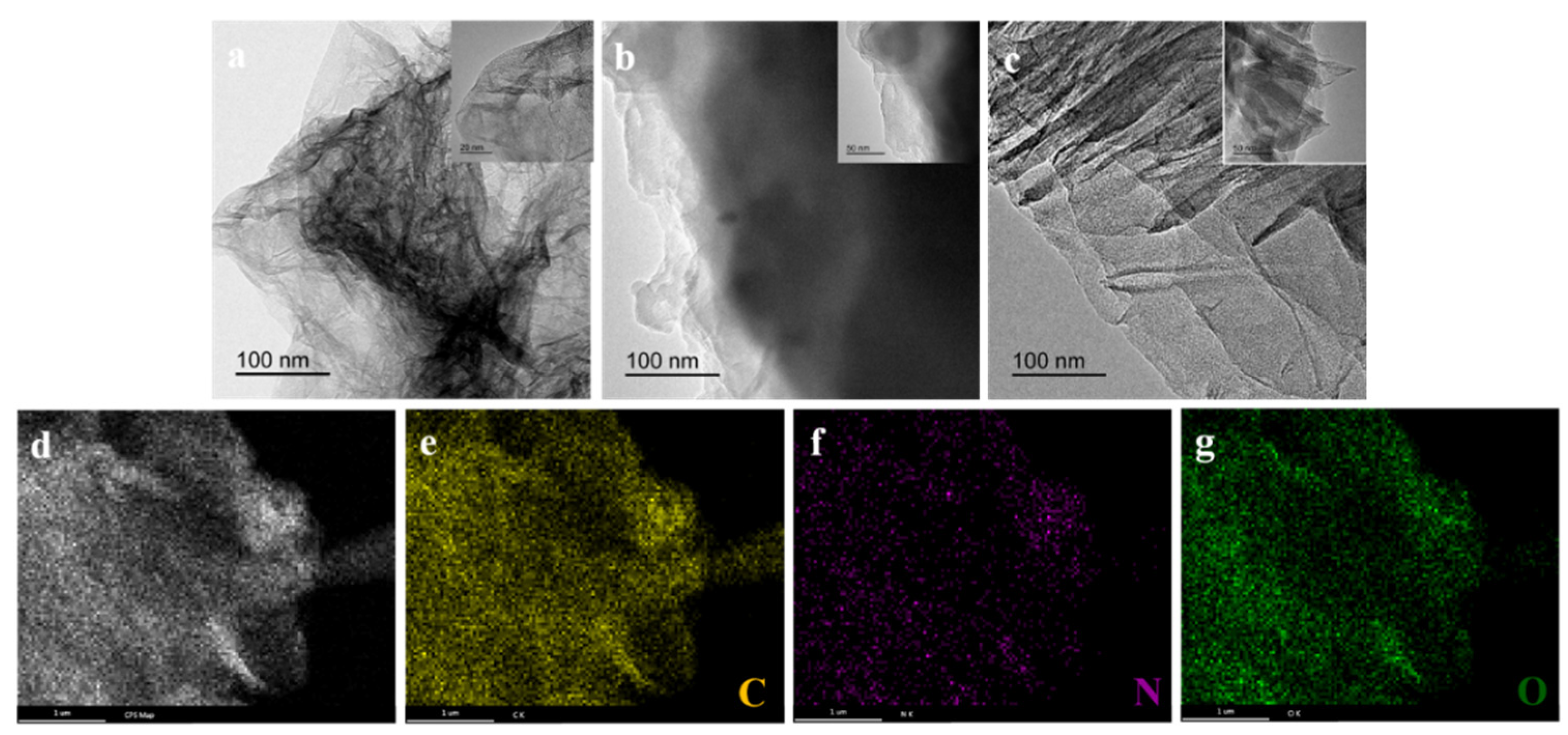

Figure 3. TEM images of G (a), COFs (b), G/COFs (c); the HAADF image of G/COFs (d); and the corresponding EDX area mapping (e–g).
Figure 3. TEM images of G (a), COFs (b), G/COFs (c); the HAADF image of G/COFs (d); and the corresponding EDX area mapping (e–g).
Polymers 14 03289 g003
Polymers 14 03289 g004 550

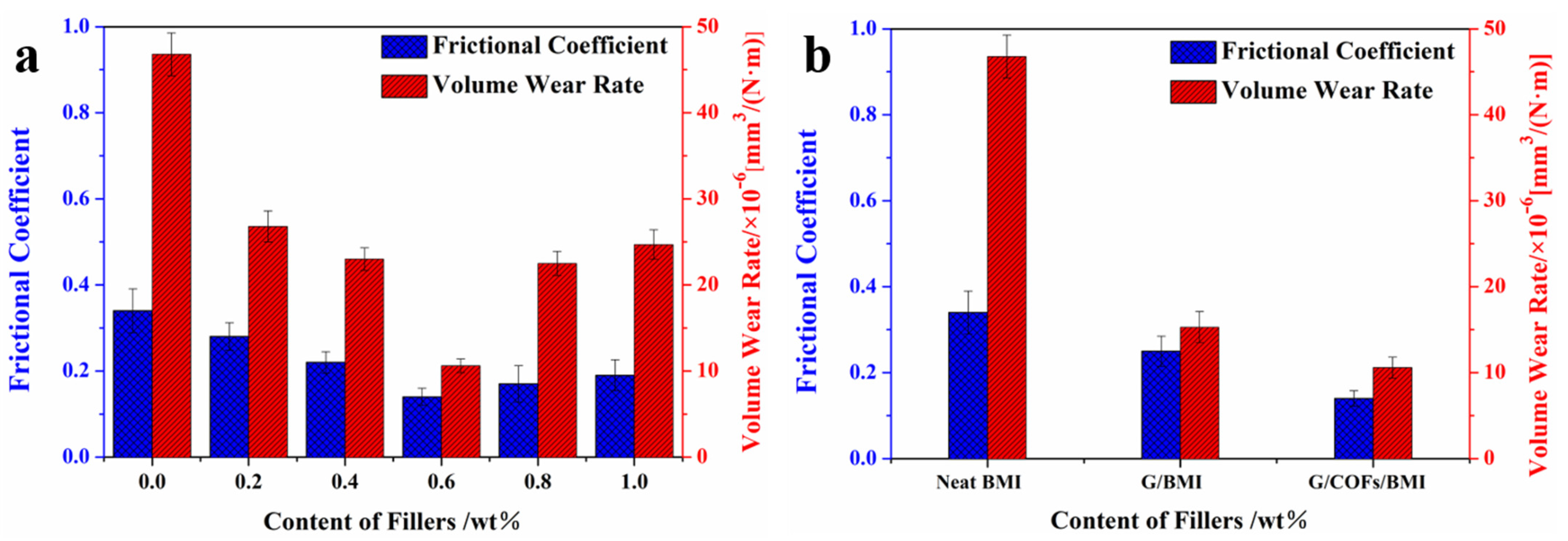

Figure 4. Effects of the addition of G/COFs hybrid nanoparticles (a) and different fillers (0.6 wt%) on the friction coefficient and volume wear rate of BMI composites (b).
Figure 4. Effects of the addition of G/COFs hybrid nanoparticles (a) and different fillers (0.6 wt%) on the friction coefficient and volume wear rate of BMI composites (b).
Polymers 14 03289 g004
Polymers 14 03289 g005 550

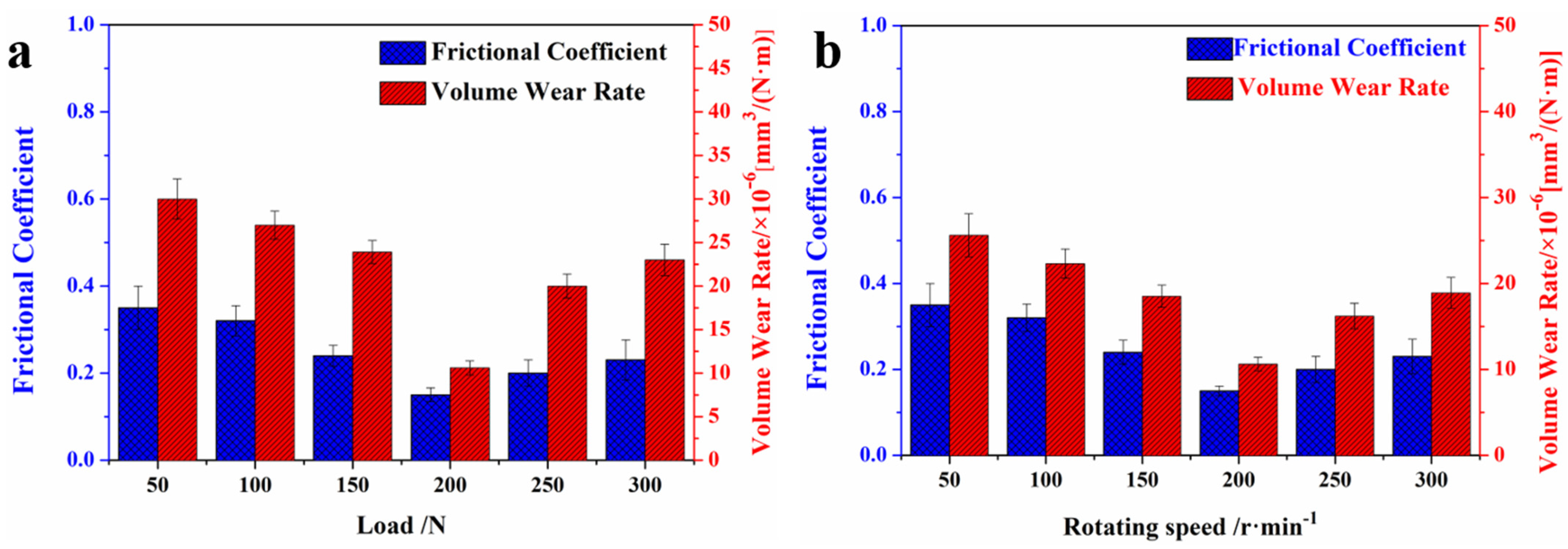

Figure 5. The frictional coefficient and volume wear rate of 0.6 wt% G/COFs/BMI composites with different applied loads (a) and rotating speeds (b).
Figure 5. The frictional coefficient and volume wear rate of 0.6 wt% G/COFs/BMI composites with different applied loads (a) and rotating speeds (b).
Polymers 14 03289 g005
Polymers 14 03289 g006 550

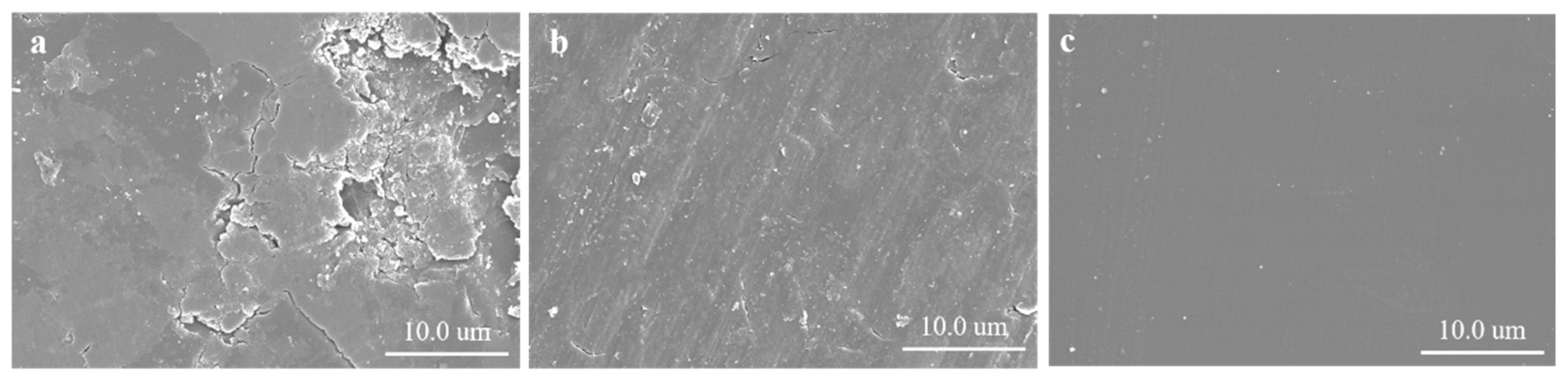

Figure 6. SEM images of the worn surfaces of neat BMI (a), 0.6 wt% G/BMI (b), and 0.6 wt% G/COFs/BMI (c).
Figure 6. SEM images of the worn surfaces of neat BMI (a), 0.6 wt% G/BMI (b), and 0.6 wt% G/COFs/BMI (c).
Polymers 14 03289 g006
Polymers 14 03289 g007 550

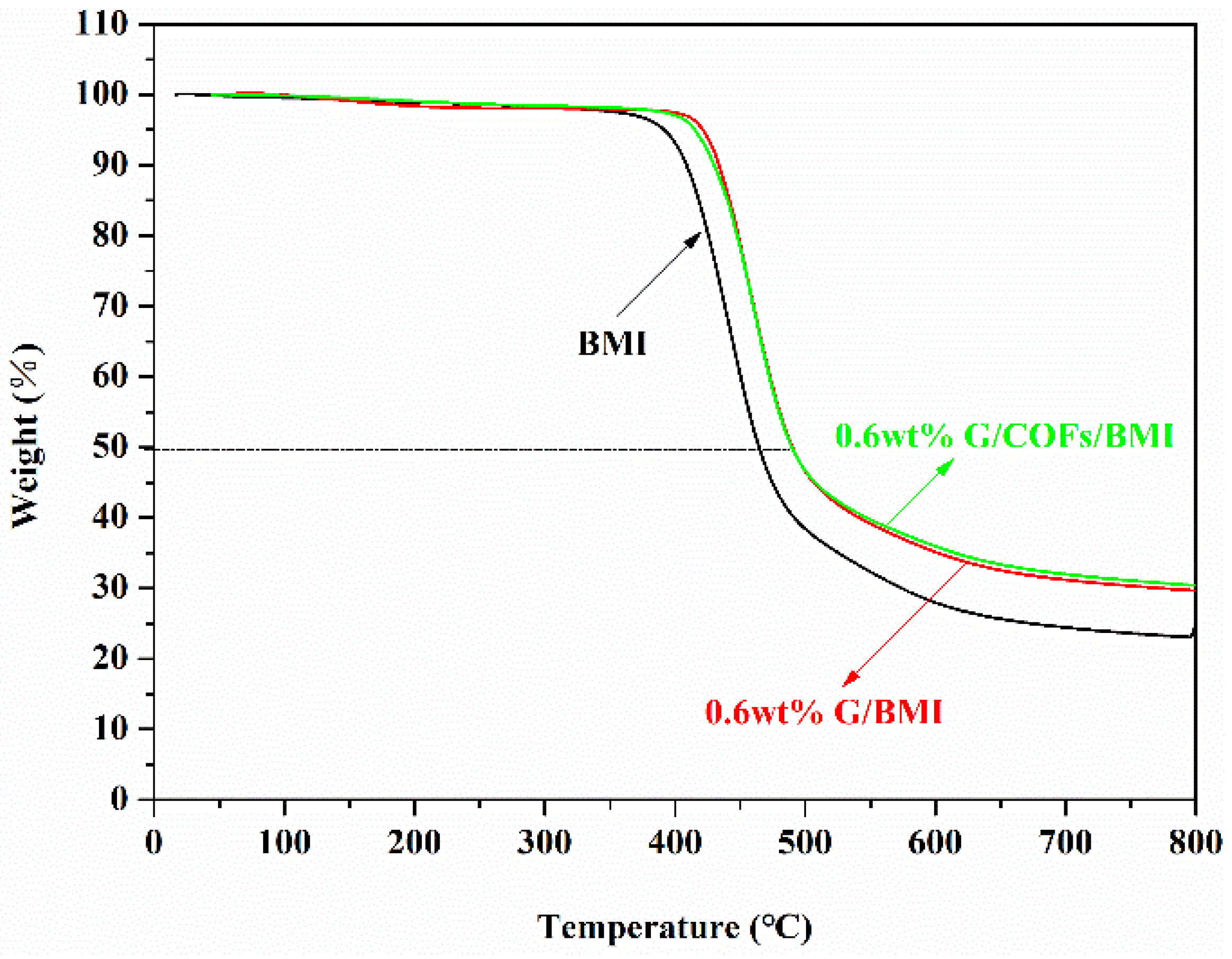

Figure 7. TGA analysis curves of G/COFs/BMI, COFs/BMI, and G/BMI.
Figure 7. TGA analysis curves of G/COFs/BMI, COFs/BMI, and G/BMI.
Polymers 14 03289 g007
Polymers 14 03289 g008 550

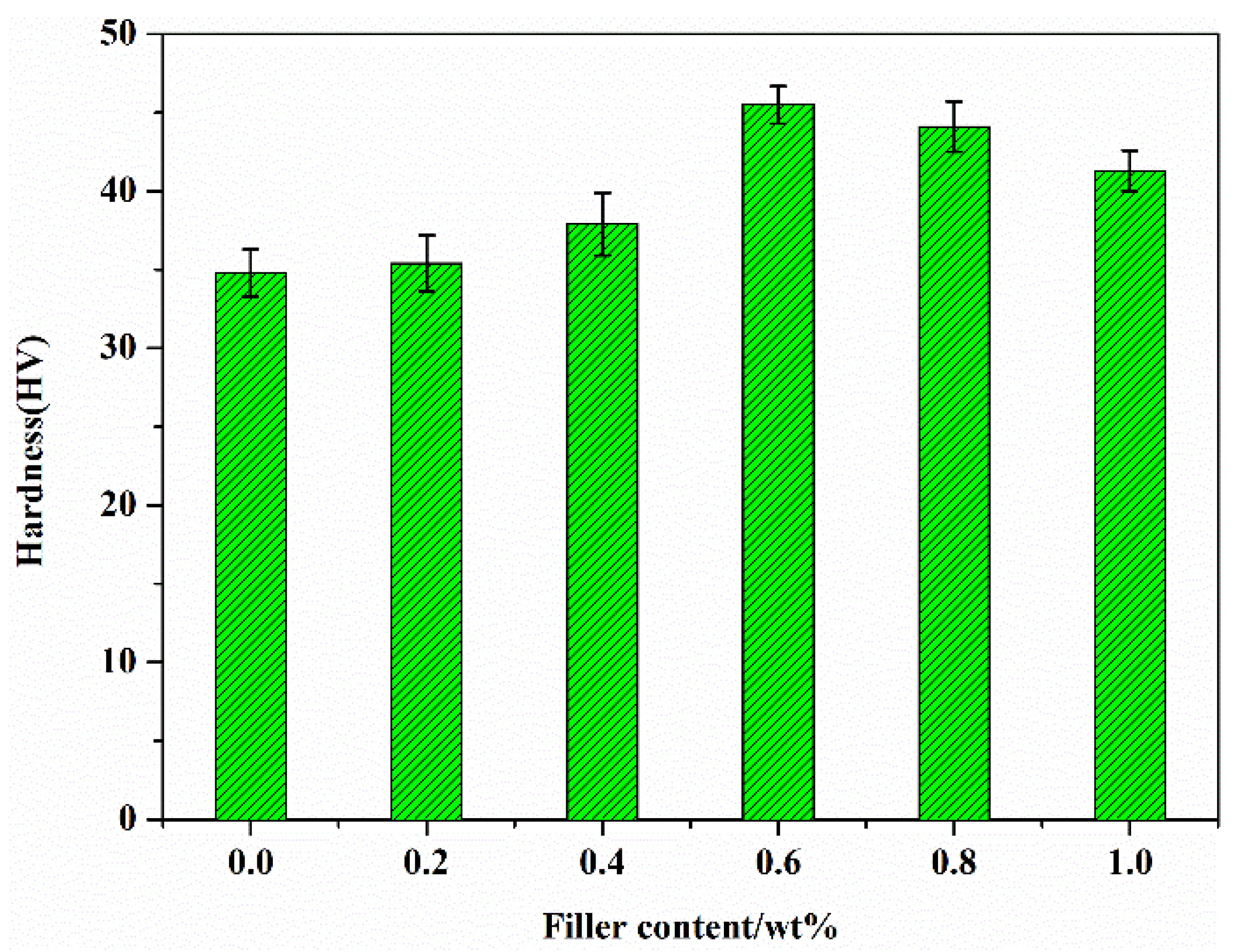

Figure 8. The hardness of the G/COFs/BMI composites containing different filler contents.
Figure 8. The hardness of the G/COFs/BMI composites containing different filler contents.
Polymers 14 03289 g008
