1. Introduction
Synthetic organic plastics have witnessed rapid growth in the consumer marketplace after their initial development between the 1930s and 1940s [
1,
2]. In 2015, the global production yield of primary plastics was reported to be over 400 million metric tons (Mt/year), quadrupled over 30 years. This number has been expected to be further increased to about 12,000 Mt by 2050 [
3]. To date, 59% of primary plastics have been discarded and disposed directly into natural environments, and merely 7.2% of them have been recycled and reused. The vast majority of plastics are derived from fossil hydrocarbons. Their intrinsic inertness and resistance makes them difficult or impossible for nature to assimilate. Thereby, these plastics have accumulated across all major terrestrial and aquatic ecosystems and will remain for an extremely long-lasting time [
4]. For instance, the average lasting time of a plastic bottle is 800 years [
5,
6]. It is estimated that the cumulated plastic waste of primary and secondary (recycled) plastic on the planet amounted to 6300 Mt in the range from 1950 to 2015.
Most of this abandoned plastics waste ends its life in the marine environment via landfills, inland waterways, wastewater outflows and/or transport by wind or tides [
7,
8,
9]. Quantitatively, 4.8 to 12.7 Mt/year of plastic waste entered the ocean from coastal landside in 2010 [
10]. This number was predicted to increase by one order of magnitude in 2025, assuming such production and waste management trends continued. Long-term weathering of plastic causes fragmentation into small bits of plastic with diameters < 5 mm (referred to as microplastics) [
11,
12]. The principal form of microplastics is fiber (84–85%) [
13,
14]. Once these microplastics are ingested by marine species/seabirds, they are then transported through the food chain/web via the bioaccumulation process (i.e., the accumulation of a substance in an organism’s tissue due to a greater intake rate than excretion or metabolic rate) [
15]. This imposes a great threat to marine wildlife, food safety, public health, tourism and the fishing industry. Increasingly, microplastics pollution has emerged as a looming catastrophe because of their persistent hazards for marine ecosystems [
16,
17].
To address the plastic pollution problem, one effective and economically feasible resolution is to explore bio-plastics as an alternative to the non-degradable plastics [
18]. For example, these kinds of bio-plastics include poly(butylene succinate) (PBS), polyhydroxyalkanoate (PHA), poly(ε-caprolactone) (PCL), poly(butylene adipate-co-teraphthalate (PBAT), etc. Among them, poly(lactide acid) (PLA) and other biopolymers from bacterial fermentation, e.g., poly(hydroxybutyrate) (PHB), have attracted tremendous attention and exhibit great potential in both conventional durable goods and disposable products due to their acceptable thermal and mechanical properties [
19,
20,
21].
In addition, the marine degradation behavior of bio-plastics is highly affected by the local environmental parameters. The degradability might change or even be lost once the environment factors or application status change. For example, the lifetime required for complete degradation of a plastics product and the range of uncertainty increases with its physical dimension. Textiles are among the most common items used in in our daily life, including clothing, bags, bed linen, towels, furniture upholstery, etc. Currently, there is still no effective recycling strategy for recovering synthetic fibers. Thus, it is assumed that all disposed textiles at the end of usage are either placed in landfill or incinerated together with all other municipal solid waste. These discarded textiles have become one of the major sources of microplastic fibers accumulated in the oceans. It is of environmental significance to develop bio-plastics textiles to replace the petrochemical ones. In reality, there have been few but controversial studies on the actual degradation behavior of bio-plastics that have been made into thin film samples, although these bio-plastics have been assumed to have 100% biodegradation rate [
22]. For example, Tsuji et al. studied the degradation of PCL, PLA and PHB films at 25 °C for predetermined periods in the water of the Pacific Ocean [
23]. The degradation rate of PHB was 9%, but the degradation of the PLA films was insignificant after immersion in the seawater for 10 weeks. Moreover, Bagheri et al. also reported that PCL and PLA did not degrade at all, but approximately 8% degradation was observed for PHB in 365 days [
24]. However, to our best knowledge, there is no public literature report on the degradation of PLA-based yarns or fabrics on the end products level up to date.
Herein, the natural degradation behavior of poly(lactide acid)/poly(hydroxybutyrate) (PLA/PHB) fabrics, manufactured from novel bio-based and degradable PLA/PHB multi-filament yarns, in the marine water environment was studied in this work for the first time. It was postulated by the authors that PLA/PHB fabrics are degradable in the marine environment, therefore being likely to reduce the future net input of plastics waste into the marine environment after their large-scale application. The degradation behavior of PLA/PHB fabrics in seawater from the Kowloon Bay was evaluated by their mass loss and mechanical properties of PLA/PHB fabrics/yarns. Furthermore, the degradation mechanism was studied by using molecular spectroscopy, thermal analysis and surface morphology of the PLA/PHB fabrics before and after the degradation process immersed in the seawater.
2. Experimental
The PLA/PHB multi-filament yarns were obtained from Ningbo Hesu Fibers Co., Ltd. (Ningbo, China). The polymer blend ratio of PLA/PHB is 70/30 for the melt spinning process to produce fully drawn filament yarns (FDY). The linear density of the filament is 75D/48F, where D is Denier (mass density as gram per 9000 m); F is the number of filaments in an FDY yarn. The knitted fabrics were made by using a circular knitting machine (WUXI ERVA Knitted Fashion Co., Ltd. (Wuxi, China)). The fabrics were used for most of assessment tests. A gauge of 28 needles per inch was adopted for producing single jersey knitted fabrics from the PLA/PHB filament yarns. The filament yarns were fed into the knitting machine directly, and the pretension used was 2–3 cN. The surface area of the PLA/PHB fabric was 3554.78 cm
2/g, which was calculated according to the following equation:
where
S is the surface area of the PLA/PHB fabric per gram,
r is the radius of the filament, which was obtained on an optical microscope, and
L is the length of total filament per gram.
Attenuated total-reflectance Fourier-transform infrared (ATR-IR) spectra were obtained using a ZnSe prism on a Tensor 27 spectrometer (Bruker, Germany). The experimental conditions employed were as follows: 45 angle of incidence of the internal reflection radiation; wavenumber from 4000 cm−1 to 650 cm−1; and 32 scans at 4 cm−1 resolution were obtained and averaged. The non-isothermal crystallization behaviors of PLA/PHB samples were investigated on a PerkinElmer DSC 8000 differential scanning calorimeter (DSC). The prepared sample was sealed in an aluminum pan and placed alongside an empty aluminum reference pan in the DSC furnace. The sample and the reference pan were heated under nitrogen atmosphere at the same rate by a heating element in the furnace. The samples were undergoing a heating process with heating rate of 20 °C min−1 from 60 to 200 °C using nitrogen gas at 50 mL min−1.
The tenacity, elongation, Young’s modulus and extension energy of PLA/PHB multi-filament yarns were obtained by the single-strand method on an Instron 5566 universal testing machine. According to ASTM D2256 / D2256M-10 (2015) standard, the gauge length was fixed to 250 ± 3 mm (10 ± 0.1 in.), and the tensile tests were performed at a constant extension rate V = 125 mm/min under the ambient condition. At least three samples of each yarn were prepared for measuring yarn tensile properties. All the specimen were examined under a pretension of 0.5 ± 0.1 cN/tex. Before measurement, all yarn samples were conditioned in vacuum oven for 24 h at 60 °C. Tenacity at break and percent elongation at break were calculated automatically from tension data.
Accelerated degradation tests of PLA/PHB yarns and fabrics were carried out in separated natural seawater baths (500 mL). The degradation tests were performed under five unique conditions: immersion in (i) static natural seawater, (ii) aerobic natural seawater (the air flow rate was set to be 4.3 ± 1.0 SLPM) under dark box, (iii) aerobic natural seawater under sunlight (Philips Lifemax 18W × 3), (iv) static natural seawater under ultra-violet light (low-pressure mercury-vapor fluorescent lamps, Philips TL-D 18W × 3, 370 nm) in a specific home-made UV chamber and (v) aerobic natural seawater under ultra-violet light in the same UV chamber. All the seawater was renewed every week.
3. Results and Discussion
The experimental seawater was primarily collected from fresh coastal surface seawater of the South China Sea between November and December using a bucket. The seawater sampling site was located in the Kowloon Bay within the Victoria Harbor WCZ (Central Waters), in the middle of the central (VM5) and eastern (VM1) long-term monitoring areas, which were fixed at the east of the Kowloon Peninsula and north of Hong Kong Island, respectively (
Figure 1). The seawater was directly used without any further purification. All the physicochemical properties of the seawater were monitored by experienced analysts in a comprehensive marine water quality monitoring system as listed in
Table 1. The average water temperature was 24.3 °C, and the average pH was 8.0, slightly alkaline.

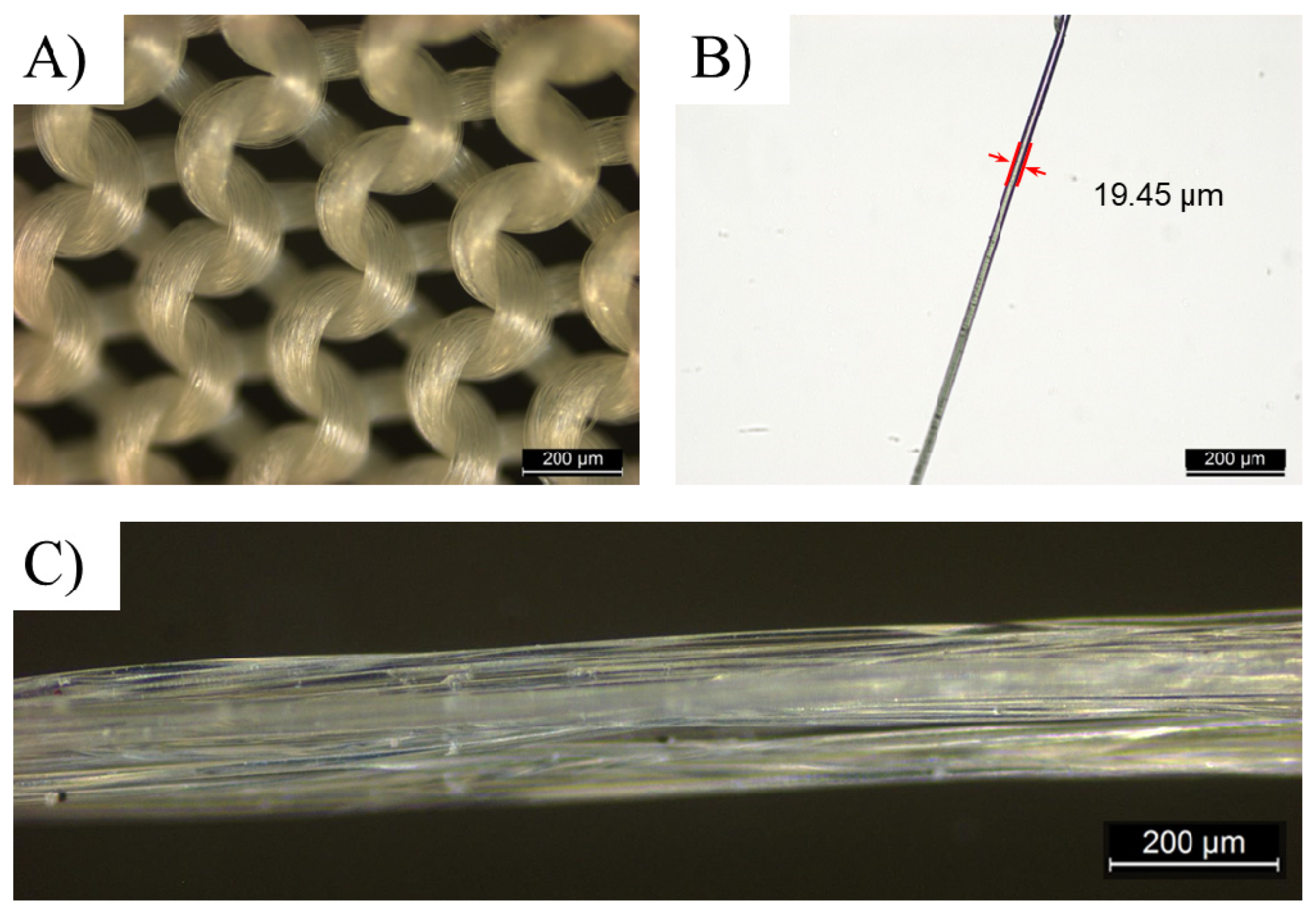

Figure 2 shows the apparent geometry of fibers and yarns of the sustainable PLA/PHB fabrics. It clearly shows the integrity of greige-type PLA/PHB fabrics made by the single jersey knitting manufacturing processes, which are light-weight (fabric areal density: 105.17 ± 1.43 g/m²) and commonly applied for producing sportswear and T-shirts in the textile industry. Such a textile fabric has a high surface area in relation to its thickness (0.32 ± 2.76 mm). The PLA/PHB fabrics were made from weaving multi-filament yarns together. The diameter of the yarns was measured in the range from 190 µm to 210 µm. The greater part of fibers displayed a cylindrical structure with an average diameter of 19.45 µm. The yarns were made from multiple long fibers, which were the smallest and fundamental components of this PLA/PHB fabric. These fibers were held together without adhesive to construct yarn in a twistless process, where all the filaments were straight and parallel to each other. An enlarged optical microscope image of the virgin PLA/PHB textile displayed an open knitted structure with loose loops (
Figure 2A). The PLA/PHB yarn exhibited a tight structure (
Figure 2C). In this case, the PLA/PHB fibers were accessible by sea water in the filament form like most synthetic fibers, which were functionally infinite continuous strands.
A simple and quick method was adopted to determine the degradation percentage and degradation rate of fabrics by measuring the gravimetric mass loss according to the following two equations. The dry mass loss reflected a loss of polymer integrity after the dehydration of the absorbed water. Multiple samples were weighed with a precise five-digit balance and average values were reported here.
where
mn is the weight value of the PLA/PHB fabrics after n days immersion in seawater, and
m0 is the initial weight value of the PLA/PHB fabrics before immersion in seawater.
where
mn is the weight of after n days immersion in seawater, and
A is the specific surface area of the PLA/PHB fabrics.

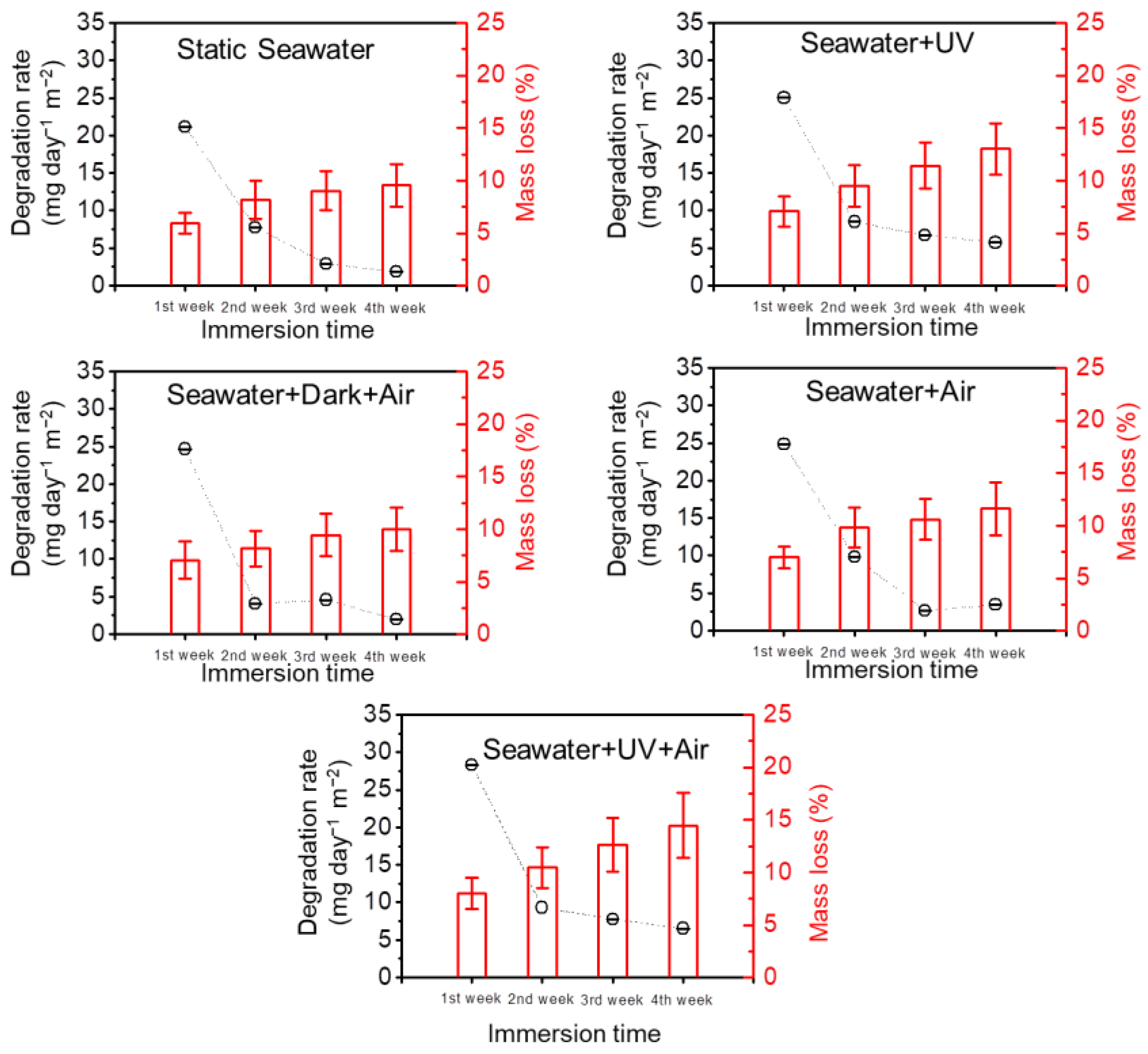

As shown in
Figure 3, all PLA/PHB samples went through an obvious mass loss after immersion, and the degradation rate varied over time. In a typical fulltime experimental period (28 days), the degradation process of all cases could be divided into two stages. In the initial stage (0–14 days), the mass loss rate of the PLA/PHB fabrics was fast. This is because some water-soluble components (~10 wt.%) including some small molecular oligomers, polymer modifiers and/or additives of the PLA/PHB fabrics diffused into the seawater, resulting in such an early-stage reduction of mass. In the following stage (>14 days), the degradation rate of the PLA/PHB fabrics slowed down, and the mass loss was mainly induced by the hydrolysis degradation effect of seawater. The total mass loss of the PLA/PHB fabrics was attributed to the diffusion of soluble molecules and the hydrolysis of seawater. This comparative experiment reveals that the degradation rates of different conditions follow the order: case (UV + Air) > case (UV) > case (Air) > case (Dark + Air) > case (Static seawater). The degradation rates of all the five samples fall in the range from 4.0 mg day
−1 m
−2 to 28.5 mg day
−1 m
−2. The UV + Air case almost maintained the highest degradation rate, and 14.48% mass loss of the PLA/PHB fabric was achieved within 28 days under ambient conditions in the presence of both UV and DO. In contrast, the mass loss of the PLA/PHB fabric in the static seawater without extra UV and DO was 9.57 wt.%, and the according degradation rate was lowest among the five cases. By comparison, this result indicates that the presence of either UV light or dissolved oxygen (DO) could accelerate such a degradation reaction of PLA/PHB fabrics. Both UV light and dissolved oxygen (DO) play a vital role in the accelerated degradation reaction of the PLA/PHB fabrics. Moreover, there is a synergistic interaction between UV and DO. This is because the mass loss percentage of the UV + Air case was much larger than that of either the UV case or the Air case.

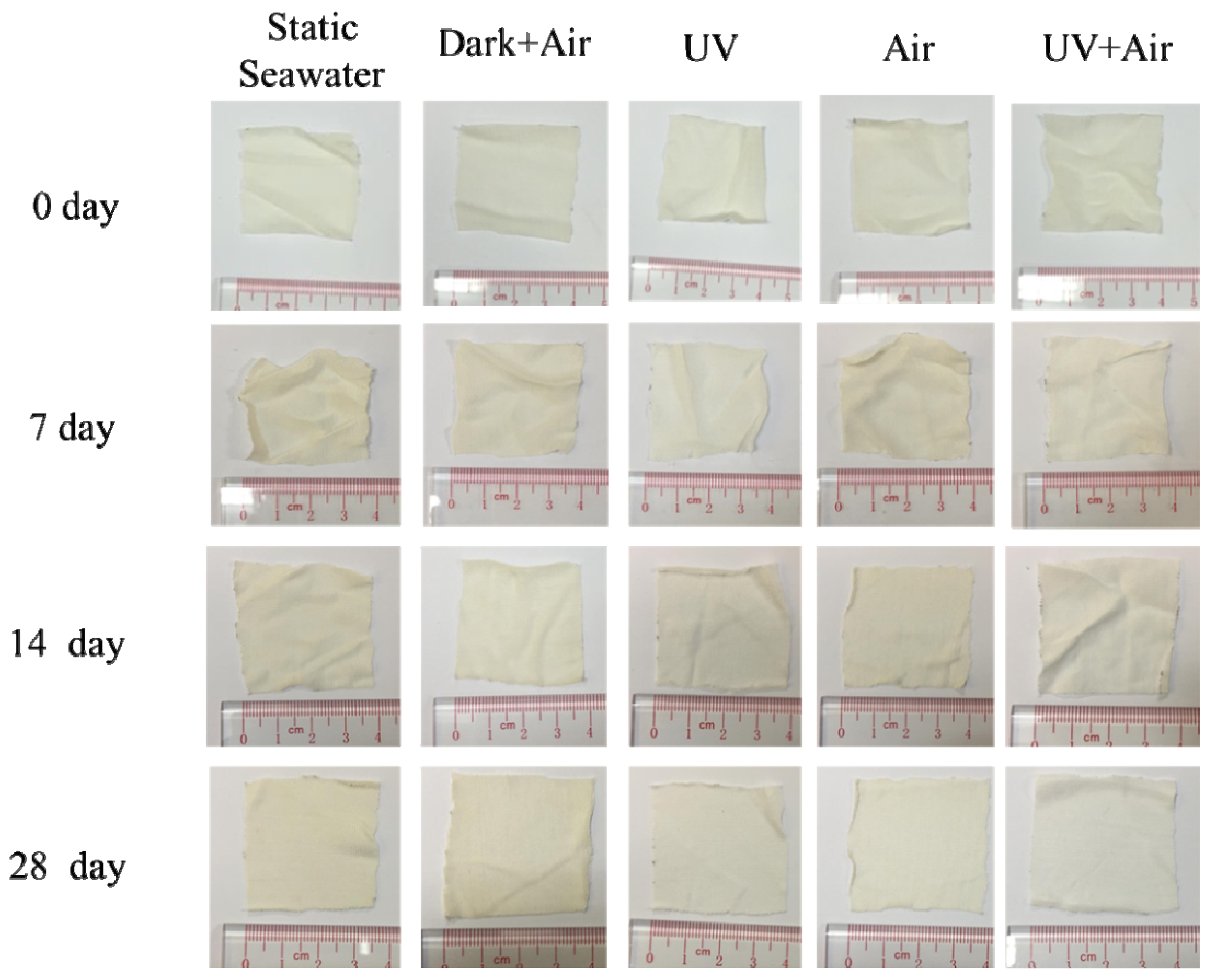

Figure 4 shows the optical photographs of the PLA/PHB fabrics before and after the immersion in seawater under different conditions for 1–4 weeks. All the samples kept their structural integrity even after immersion for 4 weeks. No obvious hole or crack has been identified by visual observation, and the structural integrity at the fabric level has been maintained. There is no significant change in the apparel color of the PLA/PHB fabrics. However, the fabrics after exposure to UV radiations appear much whiter after immersion as a result of the UV bleaching effect. This result shows good agreement with Yu et al.’s report on the degradation behavior of the transparent PLA films [
25]. Such an appearance change might be induced by the variety of the internal crystal structure (e.g., crystallinity) of PLA/PHB and/or the change of chemical bond (e.g., the so-called “five-fingered” character in ester compounds [
26]), since PLA exhibits slight to broad medium UV absorption bands below 400 nm through n-π* transition of carboxyl groups [
27,
28].
The understanding of how different marine environmental aging factors affect the mechanical behavior of PLA/PHB fabrics remains highly fragmented and incoherent. As shown in

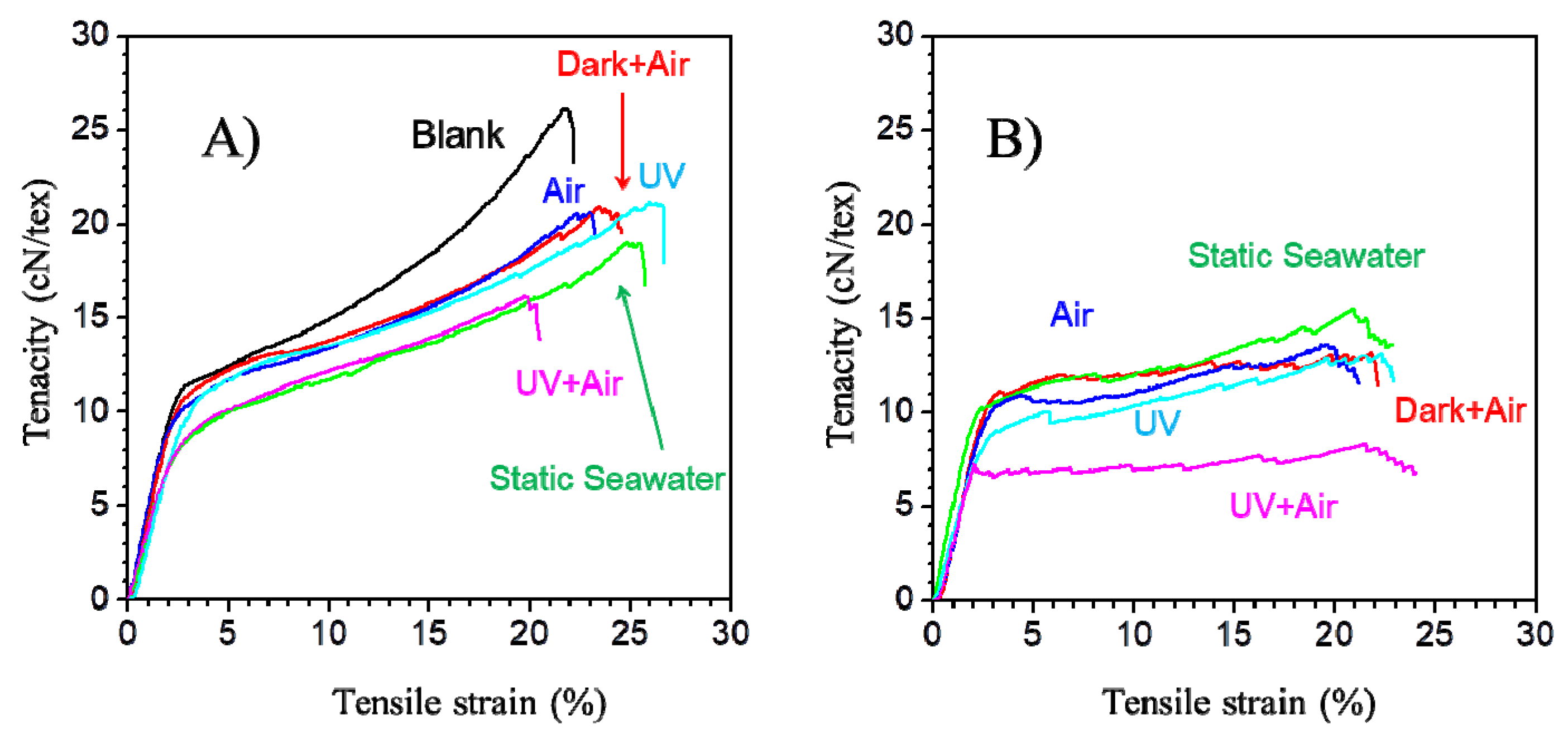

Figure 5, the typical tactile curves of the PLA/PHB yarn under continuously tensile load show that the applied force initially increases rapidly and linearly up to a certain extension, after which further extension requires smaller increases in the applied force. Thus, this tensile curve can be divided into two distinct zones: (i) the linear zone (elastic area) and (ii) the postelastic zone (plastic area) [
29]. The experimental results have also been derived from the experimental curves and summarized in
Table 2. After one week’s immersion, all the PLA/PHB yarns showed similar rigidity as well as yield strength, and no significant variation was found in the linear zone. The Young’s modulus was calculated as a slope of such a linear portion of experimental curve, whose value remained in the range from 455.97 ± 79.53 cN/tex to 523.17 ± 31.46 cN/tex. It is obvious that the cohesion between fibers without twistiness was low, in that the friction of the fibers was negligible. However, the degradation had significant influence on their plastic behavior, and the tenacity decreased drastically from 2.62 ± 0.02 cN/dtex to 1.56 ± 0.15 cN/dtex in the UV + Air case. After 2 weeks’ immersion, such a tendency went on continuously, and the PLA/PHB yarns became much softer. The force–deformation curve remained steady in the nonlinear zone, and the PLA/PHB yarns kept a constant stress strength value until break at higher strains, which also meant that there was a critical breaking strength value during the stretching process. The tensile strength of PLA/PHB yarns dropped by 38.5% (Static seawater), 46.2% (Dark + Air), 42.7% (Air), 45.8% (UV) and 68.7% (UV + Air), respectively. After 3 weeks or more, the PLA/PHB yarns lost their plastic behavior and exhibited a brittle fracture with a low extension (<10%) due to lack of energy-absorbing characteristics leading to catastrophic fracture. Generally, the non-crystalline, highly deformable amorphous phase of PLA/PHB blends affects their ductility [
30]. Thus, the hydrolysis degradation predominantly deteriorated the amorphous phase of PLA/PHB blends, making them fragile and susceptible to rupture. Olga Mysiukiewicz et al. evidenced that water penetration was higher in PLA composites and hydrolytic degradation occurred not only in the surface but also throughout the entire body [
31]. However, the higher crystalline region, coupled with lower mobility of long polymer chains, hindered water diffusing into the gaps between polymer chains [
32]. Thus, the Young’s modulus values have been maintained after aging.
Meanwhile, the tensile strength at break of the PLA/PHB yarns decreased from 2.62 ± 0.02 cN/detex to 0.82 ± 0.03 cN/detex after 2 weeks’ exposure in the presence of UV and O

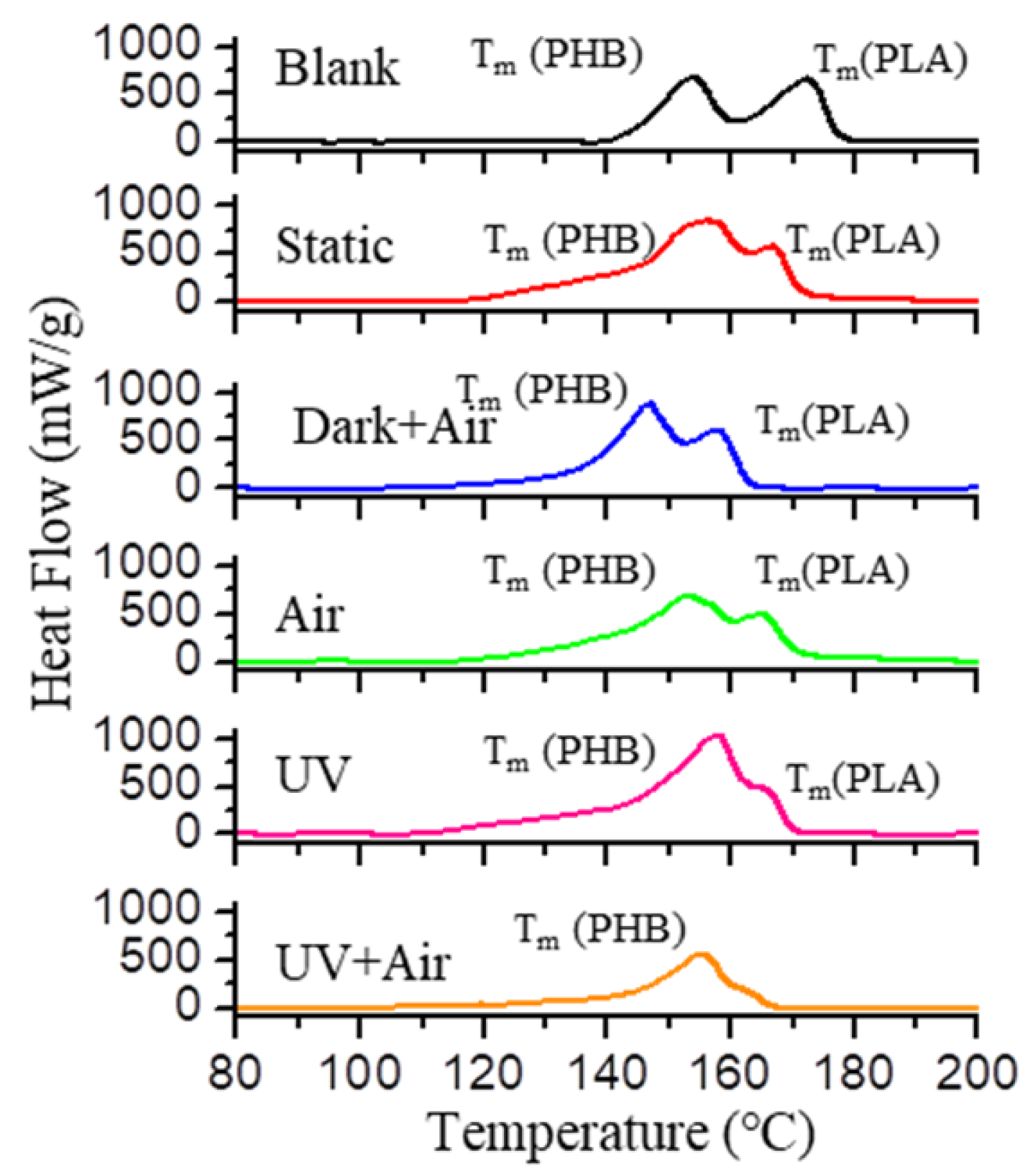

2. Generally, such decrement in the tensile strength at break and tensile strength at yield was correlated to the decrease in the crystallinity of polymers and their blends. This was also indicated by the change of apparel color, as mentioned previously. Thereafter, DSC was carried out to measure the variety of crystallinity of PLA/PHB fabrics after aging process, as shown in
Figure 6. There were two distinct endothermic peaks observed in the heating process from 60 °C to 200 °C. The lower one of them was attributed to the melting temperature range of PHB (
Tm PHB), and the higher one was the melting temperature range of PLA (
Tm PLA). By comparison, the size of the endothermic peak of PHB was maintained after aging, whereas the size of the endothermic peak of PLA decreased gradually to almost zero. The integrated area of the endothermic peak in the DSC curves was applied to calculate the melting enthalpy of polymers (Δ
Hm). The degree of crystallinity (
Xc) was calculated using the following equation:
where Δ
H0m represents theorical melting enthalpy of 100% crystalline PLA and PHB, which are 93 J/g and 146 J/g, respectively. The crystallization degree (
Xc) values of PHB and PLA before aging were calculated to be 15% and 12%, respectively. Obviously, there was significant reduction in the crystallization degree of PLA after aging process. However, there are two possible reasons to explain this phenomenon; that is, the degree of crystallinity of PLA component decreased, and/or the weight content of PLA in this binary blend decreased.

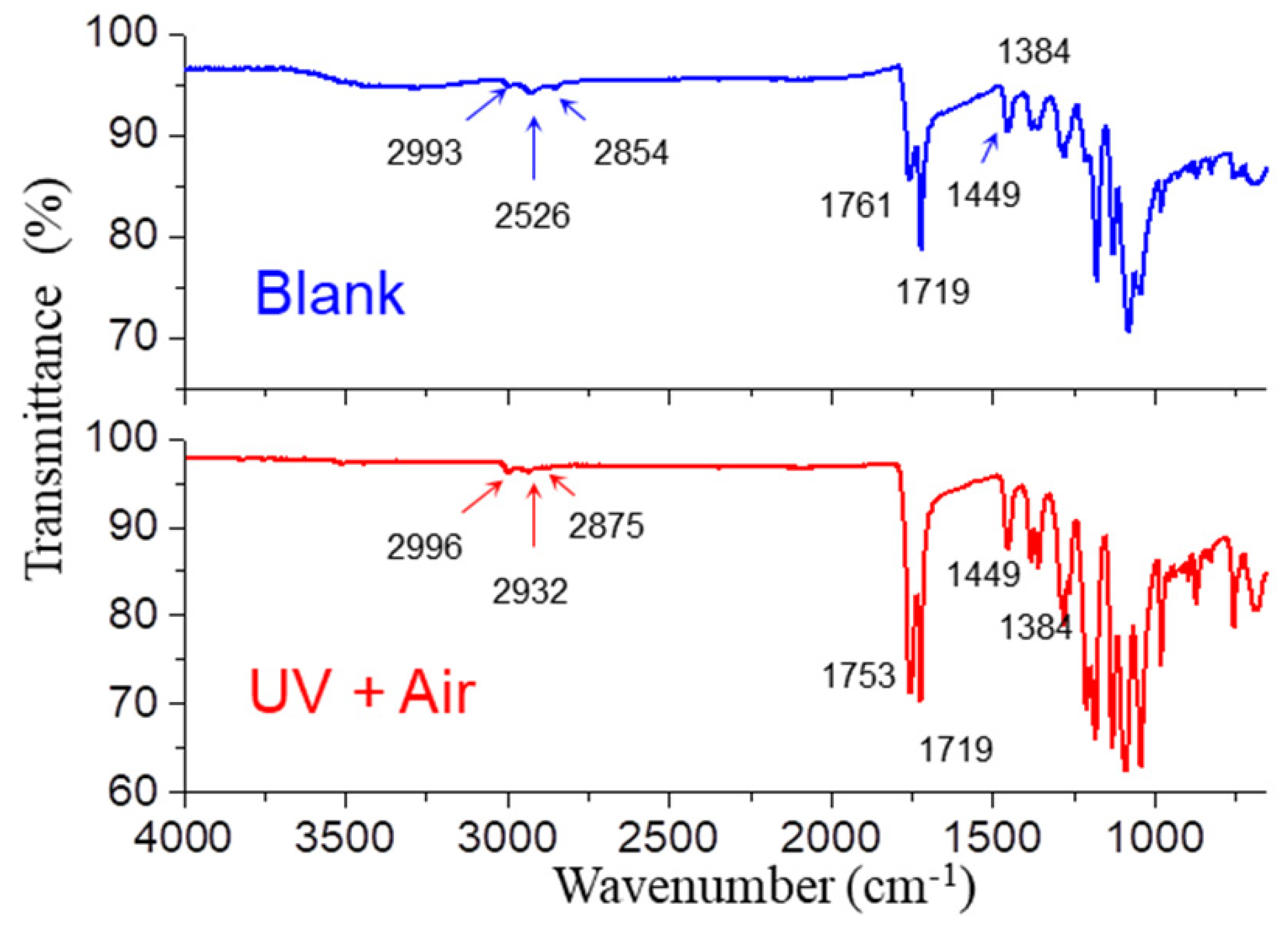

The PLA/PHB multifilament fabrics after two weeks’ aging were also characterized and compared by non-destructive ATR-IR analysis, as shown in
Figure 7. In the ATR-IR spectra of PLA/PHB, the typical stretching vibration peak of O–H of hydroxyl groups was evident at 3287 cm
−1. The (anti)symmetric C–H of primary (–CH
3), secondary (–CH
2–) and tertiary alkyl groups were observed in the range from 3033 cm
−1 to 2812 cm
−1. The symmetric stretching (ν
s) and antisymmetric stretching (ν
as) vibrations of C=O (–COOR) were observed at 1761/1753 cm
−1 and 1719 cm
−1, respectively. The most distinguishing variation after aging process occurred in the carbonyl bonds of the ester bonds, which were most susceptible to hydrolysis. This is because the hydrolysis reactions of ester bonds in the aqueous solution were usually consistent with mechanisms involving cooperative catalysis by autoionization-generated hydroxide and hydronium, a process known to have an activation free energy of 23.8 kcal/mol; thus, the total activation barriers were reduced, and the rate of the ester hydrolysis process was accelerated, as revealed by molecular dynamics simulations [
33]. The variation of two absorption peaks located within the region 1600–1800 cm
−1 might be induced by carboxylate–metal ion interactions (–COOMe) after the formation of an inner-sphere complex [
34]. The slight polarity made PLA much more vulnerable to both hydrolysis and photolysis degradation compared with PHB. Generally, an increase in polymerization degree would induce an increase in the peak density of ν
as as well as a slight peak shift of ν
s from a higher wavenumber (1761 cm
−1) to a lower one (1753 cm
−1). It is impossible that the polymerization degree of PLA/PHB has been increased in such conditions. However, it is rational that some PLA/PHB polymers with low polymerization degree dissolved into seawater. This is also supported by the fact that the broad and slight adsorption of –OH groups ascribed to the end groups of PLA/PHB polymers located in the range of 3683–3033 cm
−1 almost disappeared after aging process. Three peaks located at 1449 cm
−1, 1384 cm
−1 and 1357 cm
−1 were ascribed to the C–H bends of saturated alkyl groups such as –CH
3 and –CH
2–. Typical C–O and O–C(O)–C stretching vibrations at 1278 cm
−1 and 1081 cm
−1 were also found in the ATR-IR spectra of PLA/PHB blend. All the aged PLA/PHB multifilament fabrics after two weeks or more exhibited similar ATR-IR spectra of PLA/PHB fabrics under both UV and air exposure.

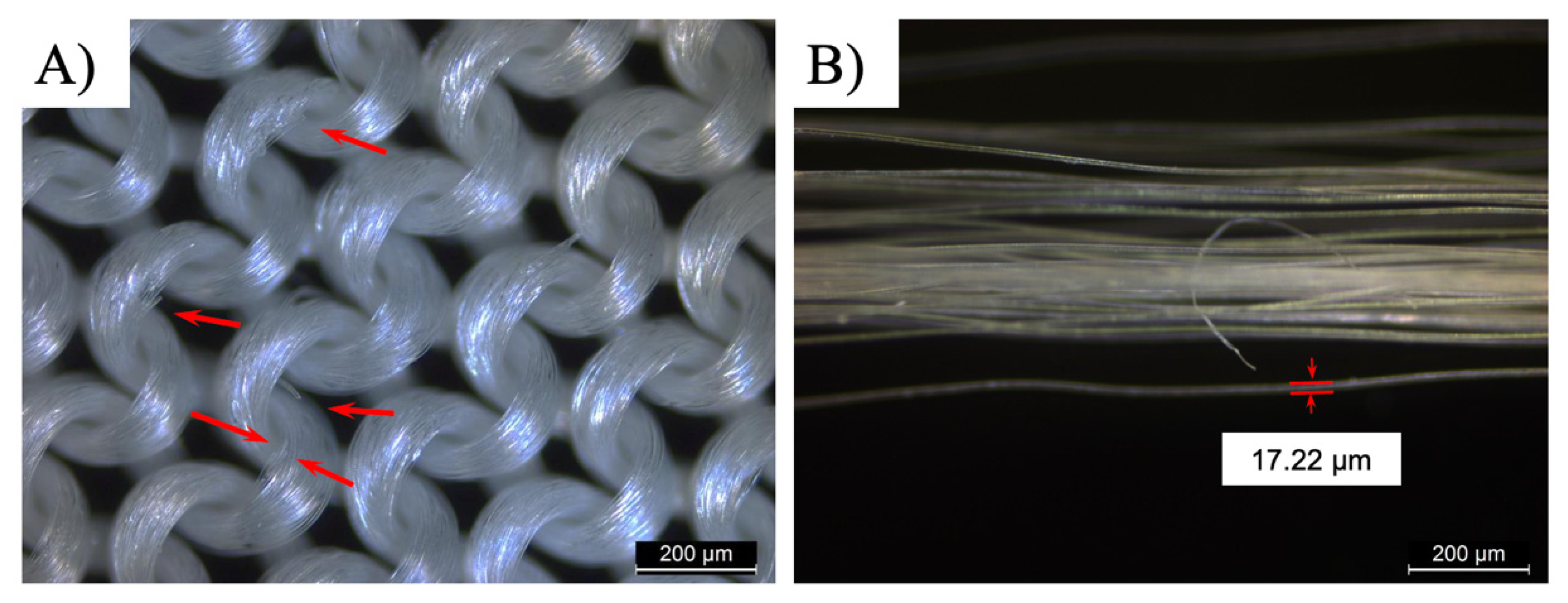

As the microscopic observation shows in
Figure 8, severe damages were found in the PLA/PHB multifilament fabrics after aging process, although the physical appearance still looked intact. Some continuous PLA/PHB fibers in the warp yarns broke off entirely in the stress concentrated area of the multifilament fabrics, in particular the max convex part of the knitted structure. Persistent UV exposure and dissolved oxygen attacks produced extensive damages under the photolysis and hydrolysis effects. The neighboring fiber in the fiber bundle became estranged due to the lack of effective inter-fiber bonding, making the PLA/PHB yarns collapse. Meanwhile, the average diameter of each fiber shrunk to be 17.22 ± 1.57 µm from the original 19.45 ± 0.06 µm.

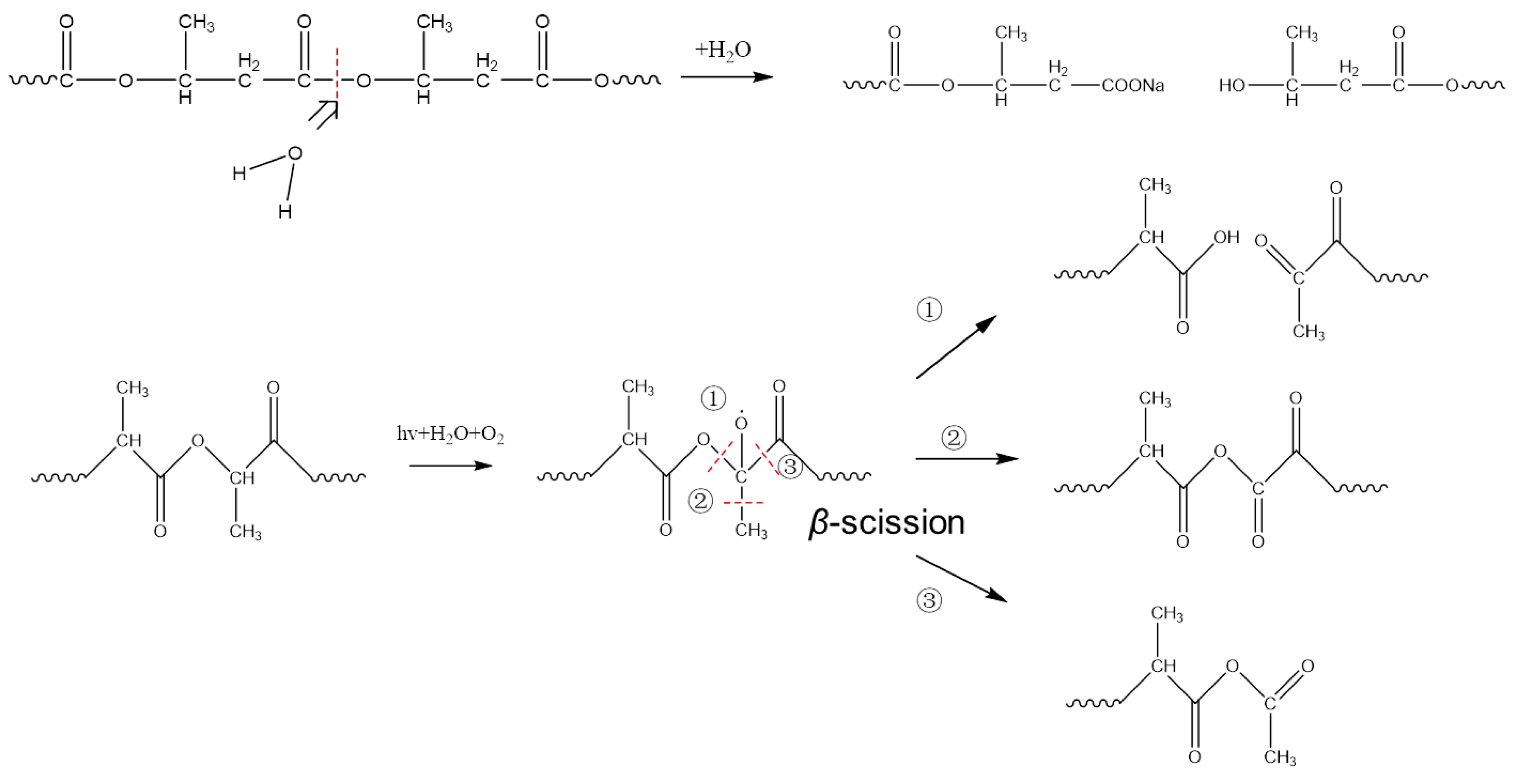

As shown in
Figure 9, alkaline hydrolysis in aqueous solution mainly leads to chain scission in the C–O bonds of the ester structure of PLA and/or PHB via a two-step B
AC2 mode, which leads to a decrease in molecular weight and mechanical properties [
35,
36]. Ikada et al. previously reported UV irradiation deteriorated the structure of PLA via a “Norrish type II” photodegradation mechanism, which formed more carboxylic acid and a new group of C=C [
37,
38]. However, there is no distinct new absorbance of C=C vibration at ≈1600 cm
−1 in this work. On the other hand, PLA was susceptible to UV photodegradation, making the degradation of PLA polymer accelerated. Thereafter, two photo-degradation mechanisms have been proposed to explain the anaerobic photodegradation of PLA [
39,
40]. Firstly, as the PLA-based materials were exposed to UV-light in the range 300–400 nm, the tertiary hydrogen was abstracted from the PLA chain. The tertiary carbon radicals were formed in the
α-position of the ester bond, and then reacted with oxygen to generate macroradicals or macroradical alkoxy after a series of photolysis processes. These intermediate macroradicals were unstable to undergo the so-called “
beta-scission” to decompose into three different fragments. The third reaction route dominated the
beta-scission reaction, which induced the formation of anhydride-groups-based fragments. This could give a reasonable explanation of the ATR-IR results as well as the formation of intermediate radicals during the degradation process, as revealed by EPR imaging [
40].
