Hierarchical Co(OH)2 Dendrite Enriched with Oxygen Vacancies for Promoted Electrocatalytic Oxygen Evolution Reaction

by
Tingting Zhou
1,
Zhen Cao
1,*,
Xishi Tai
1,*,
Lei Yu
1,
Jian Ouyang
2,
Yunfei Li
2 and
Jitao Lu
1,*
1
College of Chemical Engineering and Environmental Chemistry, Weifang University, Weifang 261061, China
2
Shenzhen Kohodo Hydrogen Energy Co., Ltd., Shenzhen 518109, China
*
Authors to whom correspondence should be addressed.
Polymers 2022, 14(8), 1510; https://doi.org/10.3390/polym14081510
Submission received: 22 February 2022 / Revised: 27 March 2022 / Accepted: 4 April 2022 / Published: 8 April 2022
(This article belongs to the Special Issue Functional Polymeric Systems for Advanced Industrial Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
It is critical to develop efficient oxygen evolution reaction (OER) catalysts with high catalytic properties for overall water splitting. Electrocatalysts with enriched vacancies are crucial for enhancing the catalytic activity of OER through defect engineering. We demonstrated the dealloying method in a reducing alkaline solution using the Co5Al95 alloy foil as a precursor to produce a new oxygen-vacancy-rich cobalt hydroxide (OV−Co(OH)2) hierarchical dendrite. The as-synthesised OV−Co(OH)2 showed superior electrocatalytic activities toward OER when compared to pristine cobalt hydroxide (p–Co(OH)2), which had a low onset overpotential of only 242 mV and a small Tafel slope of 64.9 mV dec−1. Additionally, for the high surface area provided by the hierarchical dendrite, both p–Co(OH)2 and OV−Co(OH)2 showed a superior activity as compared to commercial catalysts. Furthermore, they retained good catalytic properties without remarkably decaying at an overpotential of 350 mV for 12 h. The as-made OV−Co(OH)2 has prospective applications as an anode electrocatalyst in electrochemical water-splitting technologies with the advantages of superior OER performances, large surface area and ease of preparation.

1. Introduction

Hydrogen (H2), a prospective clean energy source, can be easily generated through electrochemical water splitting with zero greenhouse gas emissions, hence enhancing clean energy sustainability [1]. However, because electrocatalytic processes involve oxygen atoms, the oxidative half-reaction–oxygen evolution reaction (OER) is considered a bottleneck process in electrochemical water splitting due to its slow kinetics and high overpotential, which results in a significant decrease in energy utilisation efficiency [2,3,4]. The key to resolving this issue is to explore efficient catalysts for reaction acceleration.
While noble metal catalysts, such as Ir/Ru or their oxides, are now viable electrocatalysts for OER, their scarcity, high cost and poor operating stability obstruct their scale-up application [5,6]. As a result, great strides have been made in utilising earth-abundant transition metal elements as prospective OER electrocatalysts because of their promising activity and durability [7]. Among various potential materials, Co-based materials possess the appropriable valence states, and structural flexibility has been proposed as a new generation of highly effective OER electrocatalysts [7,8]. Generally, when developing high-efficiency catalysts, the number of exposed active sites and intrinsic activities should be considered [9]. However, most Co-based materials fell short of meeting actual application requirements because of their inadequate intrinsic activities and limited surface area. Additionally, as the intrinsic activity of cobalt hydroxides is largely determined by the electronic structures of the Co atoms, a variety of strategies have been used to modify the surface oxidation states, including introducing defect sites [10,11] and hybridisation [12,13]. An oxygen vacancy (Ov) is a type of inherent defect found in Co-based materials. Xiao et al. investigated the effect of an oxygen vacancy on Co3O4 with a high oxygen-vacancy concentration during the OER process by various operando characterizations, demonstrating that the oxygen vacancy facilitated the formation of surface CoOOH, which is valuable for boosting the OER activity [14]. Generally, the CoOOH is considered the active site for OER [15,16]. Theoretical calculations show that decreasing binding energy for the formation of intermediates can significantly increase the reactivity of the active site [17]. Apart from the intrinsic activity of active sites, the number of active sites connected with the structures and morphology of nanomaterials is also important for the OER process. Previous studies have established that hierarchical architecture can provide several benefits, such as a larger surface area, increased permeability and higher porosity, resulting in a considerable improvement in electrochemical catalysis [18,19,20].
According to the above considerations, it is necessary to design a strategy for simultaneously creating oxygen vacancies and a hierarchical structure in cobalt hydroxide to intrinsically improve the intrinsic OER activity and the number of active sites. In this study, we described the facile reduction–dealloying synthesis of oxygen-vacancy-rich cobalt hydroxide (OV−Co(OH)2) with a hierarchical dendrite structure. Although both of the OV−Co(OH)2 and pristine cobalt hydroxide (p–Co(OH)2) have similar nano-structures, the OV−Co(OH)2 NCAs possessed a lower onset potential and Tafel slope, showing that OV had a positive effect on intrinsic activity. Significantly, both OV−Co(OH)2 and p–Co(OH)2 showed a superior activity in comparison to commercial electrocatalysts, which can be attributed to the unique hierarchical dendrite structure, which provides a larger surface area and is convenient for the penetration of electrolytes.

2. Experimental Section

2.1. Chemical Reagents

Sodium borohydride (NaBH4), sodium hydroxide (NaOH), potassium hydroxide (KOH) and ethanol (CH3CH2OH) were supplied by Sinopharm Chemical Reagent Co. Ltd, Shanghai, China. Nafion (5 wt.%) was supplied by Shanghai Branch, Du Pont China Holding Co., Ltd., Shanghai, China. The XC-72 was supplied by Shanghai Hesen Electric Co. Ltd., Shanghai, China. The commercial IrOx and Pt/C were supplied by Alfa Aesar, Ward Hill, MA, United States.

2.2. Synthesis of OV−Co(OH)2 and p−Co(OH)2

The Co5Al95 alloy foil was prepared using the melt-spinning technique in a controlled argon-protected atmosphere. The reduction–dealloying procedure was performed in 100 mL of 2 M NaOH solution containing NaBH4 at 30 °C until no visible bubbles emerged (about 12 h), then soaked in 100 mL of 0.1 M NaOH solution to remove residual Al; OV−Co(OH)2 was then obtained. Finally, thorough washing with distilled water many times and drying under a vacuum were carried out. The p–Co(OH)2 was prepared in 2 M NaOH solution without adding NaBH4 with other factors fixed.

2.3. Materials Characterisation

The crystal phases were characterised using a SmartLab diffractometer equipped with CuKα radiation. The morphology was studied using scanning electron microscopy (SEM), ZEISS MERLIN. The microstructure investigations were performed using transmission electron microscopy (TEM, FEI Tecnai G2 T20, Stanford Nano Shared Facilities, Stanford, CA, USA). The electron spin resonance (ESR) spectra were obtained via Bruker EMXplus. The X-ray photoelectron spectroscopy (XPS) measurements were performed on a PHI 5000 VersaProbe. The porous structural parameters were determined using Brunauer–Emmett–Teller (BET, ASAP 2460).

2.4. Electrochemical Measurements

Electrochemical experiments were performed in a three-electrode cell using a CHI 760E electrochemical workstation (CH Instruments, Inc., Shanghai, China) at 25 °C in an O2-saturated 1 M KOH solution. A Hg/HgO electrode and graphite rod were used as the reference and counter electrodes, respectively. The working electrode was prepared as follows: 4.0 mg electrocatalyst powder and 3.0 mg XC-72 were dispersed in 420 µL ethanol, 500 µL water and 80 μL Nafion solution (5 wt.%), then sonicated for 30 min. On the glassy carbon surface of a revolving disc electrode (RDE), 10 μL catalyst suspension was placed. Except for XC-72, all commercial catalyst electrode samples were prepared using the same method. All scanning cyclic voltammogram (CV) and linear sweep voltammetry (LSV) measurements except for CVs of electrochemical surface area (ECSA) were performed at a sweep rate of 5 mV s−1 with a 75% iR-compensation. Durability was assessed using the controlled potential electrolysis method. Electrochemical impedance spectroscopy (EIS) was performed at 1.55 V with an amplitude of 5 mV over a frequency range of 10−1–105 Hz. The values of the double-layer capacitance (Cdl) were determined by scanning CV curves at various scan rates in the range of 0–0.05 V vs. Hg/HgO. All potential values were calibrated in terms of a reversible hydrogen electrode vs. a non-reversible hydrogen electrode (RHE).

3. Results and Discussion

Oxygen vacancies enriched OV−Co(OH)2 with hierarchical dendrite structure were synthesised through a reduction-dealloying method, as shown in Figure 1. The p–Co(OH)2 was performed in the same concentration of NaOH solution without NaBH4. The addition of NaBH4 significantly regulated the dealloying process and had an impact on the crystal structures and morphologies of the final sample during this process. The OV−Co(OH)2 demonstrated a hierarchical structure of the dendrite nano-structure tightly packed with tiny flakes, as shown in the SEM images (Figure 1) whereas the p–Co(OH)2 showed a similar hierarchical structure, but the number of nanoflakes was significantly increased. The large number of flakes generated during the pristine dealloying process was partially agglomerated into nanoflake clusters due to the high activity of Co endowed by the pristine alkaline solution with a higher oxidative capacity. Unlike pristine alkalines that are highly oxidative, reduction alkalines containing NaBH4 could provide an in situ reduction micro-environment throughout the corrosion process. Although NaBH4 could not entirely impede the oxidation of Co in the Co5Al95 alloy foil, it acted as an auxiliary and resulted in just a few flakes tightly packed on a dendrite nano-structure in OV−Co(OH)2. It is worth noting that the latter morphology not only improved the external surface area but also prevented excess flakes from blocking the pores, impeding electron transportation.
The structural features of the Co5Al95 alloy foil and dealloying products were detected using X-ray diffraction (XRD). The XRD patterns of the Co5Al95 alloy foil corresponded to those of Al9Co2 (JCPDS No. 65-6460) and Al (JCPDS No. 65-2869), as shown in Figure S1a. As shown in Figure 2a, after dealloying, the XRD patterns of p–Co(OH)2 could be indexed to Co(OH)2 (JCPDS No. 45-0031) and a trace of Co6CO3(OH)16·4H2O (JCPDS No. 51-0045), showing that Co formed into Co(OH)2. By comparing the XRD patterns of Ov−Co(OH)2 and p–Co(OH)2, it could be seen that the degree of crystallisation of the Ov−Co(OH)2 clearly decreased relative to the p–Co(OH)2 as shown by the weakened intensity of the diffraction peaks in the Figure 2a, which might be due to the introduction of NaBH4. The peaks corresponding to Co(OH)2 (JCPDS No. 45-0031) were almost invisible and only a few peaks corresponding to Co6CO3(OH)16·4H2O (JCPDS No. 51-0045) were partially retained. The tiny amounts of Co6CO3(OH)16·4H2O in these samples were probably derived from atmospheric carbon dioxide (Figure S1b). The low-magnification TEM images in Figure 2b,c confirm that a branch of dendrite had an average length of 3–4 μm and a width of 1–2 μm. More importantly, the high-resolution transmission electron microscopy images (HRTEM) in Figure 2d,e clearly show the presence of a nanoporous structure with pore sizes ranging from 3 to 5 nm in the dendrite section, as well as covered nanoflakes with a thickness of ~3 nm. The unique dendrite hierarchical structure is beneficial for the exposure of active sites and transportation of electrolytes, resulting in a superior electrochemical performance. The lattice fringes of nanoporous dendrite structure are clearly visible, showing that the interplanar distances of 0.24 and 0.23 nm correspond to the (101) and (002) plane of the Co(OH)2 phase(JCPDS No. 45-0031), respectively (inset 1, 2 of Figure 2d). The lattice spacing of nanoflakes shows an interplanar distance of 0.28 nm, which is consistent with the (110) plane of typical Co(OH)2 (JCPDS No. 45-0031, inset 1 of Figure 2e).
The surface area and mesoporous characteristics of the material were determined using BET surface area measurements (Figure 2f). The OV−Co(OH)2 show a larger BET specific surface area (215.6 m2/g) than p–Co(OH)2 (176.1 m2/g) and a similar pore size of ~3 nm, which is consistent with the TEM results. This comparison confirms that introducing NaBH4 during the dealloying process increases the surface area of Co(OH)2, resulting in an increase in active sites and abundant channels for the electrocatalytic process [10]. Additionally, a distinct hysteresis loop with a typical type-IV adsorption–desorption isotherm was observed, showing the presence of a nanosheet structure [21]. To gain an insight into the ECSA, the CV curves at various scan rates were used to determine the electrochemical double-layer capacitance (Cdl) (Figure S3). It was worth noting that the Cdl value of OV−Co(OH)2 was 3.38 mF cm−2, which was greater than that of p–Co(OH)2 (2.05 mF cm−2). The superior BET surface area and ECSA values show that the unique dendrite nano-structure packed with small flakes, as well as the resulting abundant active sites, are likely another important factor for promoting OER electrochemical activity.
XPS was used to investigate the electronic states of Co and O on the surface of various materials (Figure 3a,b). For p–Co(OH)2, the Co 2p XPS spectra showed that the peaks of 2p1/2 and 2p3/2 were located at 796.8 and 780.7 eV, respectively. A peak fitting analysis showed that the Co oxidation state was primarily Co2+ with a small quantity of Co3+ [22]. In addition, the XPS spectra of Ov−Co(OH)2 were similar to those of p–Co(OH)2. However, the binding energy of Co 2p was ~0.6 eV higher in OV−Co(OH)2 than in p–Co(OH)2. Specifically, the splitting peaks of 781.4 and 780.6 eV were derived from Co 2p3/2 and attributed to Co3+ and Co2+, and the peaks of 797.5 and 796.0 eV were derived from Co 2p1/2 [20,23,24]. In order to clarify the state of Co, we also analysed the XPS spectra of C 1s (Figure S6). The spectra of C 1s could also be split into peaks at binding energies of 288.8, 285.6 and 284.7 eV corresponding to satellite peak, C–OH and C–O bonds [25]. Herein, the chemical states were further understood by XRD and XPS; Ov−Co(OH)2 and p–Co(OH)2 was a mixture of hydroxide and carbonate. It should be mentioned that the two samples exhibited comprehensive performances of the mixture they contained when performing OER. As shown in the O 1s spectra of these two samples (Figure 3b), three typical peaks at 533.0, 531.3 and 530.5 eV could be fitted, corresponding to H2O adsorbed on the surface, hydroxide oxygen/carbonate and oxygen vacancies [24,26,27]. Additionally, the OV−Co(OH)2 had a substantially higher surface oxygen vacancies ratio than p–Co(OH)2. Moreover, enhanced O−vacancy could result in hybridisation between the Co 3d and O 2p orbitals [28]. Electron spin resonance (ESR) spectra were employed to confirm their electronic structures (Figure 3c). Both produced a symmetrical signal at g = 2.003, showing that the electrons were trapped in oxygen vacancies [29]. We can conclude from the XPS and ESR results that the introduction of NaBH4 during the dealloying process results in a sharp increase in oxygen vacancies and Co2+, which may significantly improve the electronic structures, and thus OER activity.
The electrocatalytic behaviours were investigated using CV curves, as shown in Figure 4a. Two redox couples were assigned to the Co3+/Co2+ and Co4+/Co3+ redox in the CV curves of p–Co(OH)2 and OV−Co(OH)2, respectively, at 1.08 and 1.42 V vs. RHE [30]. The broadened double-layer and negatively-shifted redox couplings showed that the OV−Co(OH)2 possessed a larger capacity area, which was not only due to the increase of specific surface, but also likely related to the existence of oxygen vacancy [31]. The presence of vacancies had a specific oxidation effect on Co−based materials, which favoured OER [14]. The electrocatalytic activity towards OER was determined by the LSV curves, as shown in Figure 4b. The OV−Co(OH)2 had a lower onset overpotential of 242 mV for OER than the OV−Co(OH)2 (250 mV), as well as a significantly faster increase in current density. As a result, the OV−Co(OH)2 required a lower overpotential of 350 mV than the p–Co(OH)2 (375 mV) to achieve a current density of 10 mA cm−2. These results showed that the introduction of OV significantly improved the electrocatalytic performance of OER. Commercial Pt/C did not show an OER catalytic activity, but commercial IrOx showed a benchmarking level of OER activity. Kinetic analyses of OER were performed using Tafel plots and EIS. The Tafel slope of the OV−Co(OH)2 (64.9 mV dec−1) was smaller than those of p–Co(OH)2 (66.1 mV dec−1) and IrOx (81.1 mV dec−1), as shown in Figure 4c, the introduction of OV enhances the reaction rate and electrocatalytic kinetics. Surprisingly, both OV−Co(OH)2 and p–Co(OH)2 showed superior electrocatalytic activities and kinetics when compared to commercial IrOx, which should be attributed to the similar dendrite hierarchical structure providing an abundance of active sites. Simultaneously, as shown in the Nyquist plots of EIS (Figure 4e), a lower charge-transfer resistance is observed for OV−Co(OH)2, showing a more efficient charge transport of the OV−Co(OH)2 during the electrocatalytic process. These results showed that the kinetics of OER were enhanced by the introduction of oxygen vacancies and the formation of a dendrite hierarchical structure. The stability of OV−Co(OH)2 was further determined using chronopotentiometry, as shown in Figure 4f. After 12 h of testing at 350 mV overpotential, the current attenuation was less than 4%, supporting the stability of the OV−Co(OH)2. Altogether, these results showed that the OV−Co(OH)2-containing oxygen vacancies had an effective and stable OER performance.

4. Conclusions

A simple but efficient reduction-dealloying method was used to successfully synthesise OV−Co(OH)2 with a hierarchical dendrite structure. The superior catalytic efficiency of OV−Co(OH)2 for OER generated a low-onset overpotential of only 242 mV and a small Tafel slope of 64.9 mV dec−1. The excellent activity could be attributed to two factors: first, the oxygen vacancy in the OV−Co(OH)2 increased the intrinsic activity of the Co−active sites; second, the dendrite’s hierarchical nano-structure resulted in an abundance of specific surface area that was convenient for electrolyte penetration. Thus, the reduction-dealloying method enabled the simultaneous realisation of these two merits, making it a potential approach for the fabrication of other hierarchical nanostructures for the next generation of oxygen-related materials.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14081510/s1, Figure S1: The XRD patterns of (a) CoAl alloy ribbon precursors; (b) dealloying products with and without stirring; Figure S2: The linear sweep voltammogram curves of dealloying products with and without stirring; Figure S3: Cyclic voltammogram curves of (a) OV−Co(OH)2 and (b) p–Co(OH)2 at the different scan rates from 10 to 50 mV s−1 in the potential range of 0.90–0.95 V versus RHE; (c) Capacitive currents at 0.93 V versus RHE as a function of scan rate for OV−Co(OH)2 and p–Co(OH)2; Figure S4: X-ray photoelectron spectroscopy survey spectra of p-Co(OH)2; Figure S5: X-ray photoelectron spectroscopy survey spectra of OV−Co(OH)2; Figure S6. C 1s XPS spectra of (a) p–Co(OH)2 and (b) OV−Co(OH)2; Table S1. Atomic percentage of Al measured by XPS.

Author Contributions

Conceptualization, T.Z. and Z.C.; Data curation, T.Z., Z.C. and X.T.; Formal analysis, T.Z., J.O. and Y.L.; Funding acquisition, X.T.; Methodology, T.Z., Z.C. and X.T.; Resources, T.Z., Z.C. and J.L.; Supervision, X.T.; Visualization, Z.C. and L.Y.; Writing—original draft, T.Z. and Z.C. All authors have read and agreed to the published version of the manuscript.

Funding

We gratefully thank the financial support of Shandong Provincial Natural Science Foundation (ZR2019BEM017 and ZR2019QB011) and Science Foundation of Weifang (2020ZJ1054).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pan, Q.; Wang, L. Recent perspectives on the structure and oxygen evolution activity for non-noble metal-based catalysts. J. Power Sources 2021, 485, 229335. [Google Scholar] [CrossRef]
  2. Zhang, K.; Zou, R. Advanced transition metal-based OER electrocatalysts: Current status, opportunities, and challenges. Small 2021, 17, e2100129. [Google Scholar] [PubMed]
  3. Zhang, N.; Chai, Y. Lattice oxygen redox chemistry in solid-state electrocatalysts for water oxidation. Energy Environ. Sci. 2021, 14, 4647–4671. [Google Scholar]
  4. Gao, L.; Cui, X.; Sewell, C.D.; Li, J.; Lin, Z. Recent advances in activating surface reconstruction for the high-efficiency oxygen evolution reaction. Chem. Soc. Rev. 2021, 50, 8428–8469. [Google Scholar] [CrossRef] [PubMed]
  5. Abbott, D.F.; Pittkowski, R.K.; Macounova, K.; Nebel, R.; Marelli, E.; Fabbri, E.; Castelli, I.E.; Krtil, P.; Schmidt, T.J. Design and Synthesis of Ir/Ru Pyrochlore Catalysts for the Oxygen Evolution Reaction Based on Their Bulk Thermodynamic Properties. ACS Appl. Mater. Interfaces 2019, 11, 37748–37760. [Google Scholar]
  6. Reier, T.; Oezaslan, M.; Strasser, P. Electrocatalytic oxygen evolution reaction (OER) on Ru, Ir, and Pt Catalysts: A comparative study of nanoparticles and bulk materials. ACS Catal. 2012, 2, 1765–1772. [Google Scholar]
  7. Yu, M.; Budiyanto, E.; Tuysuz, H. Principles of water electrolysis and recent progress in cobalt-, nickel-, and iron-based oxides for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2021, 61, e202103824. [Google Scholar]
  8. Zhang, S.L.; Guan, B.Y.; Lu, X.F.; Xi, S.; Du, Y.; Lou, X.W.D. Metal atom-doped Co3O4 hierarchical nanoplates for electrocatalytic oxygen evolution. Adv. Mater. 2020, 32, e2002235. [Google Scholar]
  9. Seh, Z.W.; Kibsgaard, J.; Dickens, C.F.; Chorkendorff, I.; Norskov, J.K.; Jaramillo, T.F. Combining theory and experiment in electrocatalysis: Insights into materials design. Science 2017, 355, eaad4998. [Google Scholar]
  10. Xu, L.; Jiang, Q.; Xiao, Z.; Li, X.; Huo, J.; Wang, S.; Dai, L. Plasma-engraved Co3O4 nanosheets with oxygen vacancies and high surface area for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2016, 55, 5277–5281. [Google Scholar]
  11. Zhou, X.; Yue, X.; Dong, Y.; Zheng, Q.; Lin, D.; Du, X.; Qu, G. Enhancing electrochemical performance of electrode material via combining defect and heterojunction engineering for supercapacitors. J. Colloid Interface Sci. 2021, 599, 68–78. [Google Scholar] [CrossRef] [PubMed]
  12. Li, W.; Zhao, L.; Wang, C.; Lu, X.; Chen, W. Interface Engineering of Heterogeneous CeO2-CoO Nanofibers with Rich Oxygen Vacancies for Enhanced Electrocatalytic Oxygen Evolution Performance. ACS Appl. Mater. Interfaces 2021, 13, 46998–47009. [Google Scholar] [CrossRef] [PubMed]
  13. Feng, J.X.; Xu, H.; Dong, Y.T.; Ye, S.H.; Tong, Y.X.; Li, G.R. FeOOH/Co/FeOOH hybrid nanotube arrays as high-performance electrocatalysts for the oxygen evolution reaction. Angew. Chem. Int. Ed. 2016, 55, 3694–3698. [Google Scholar] [CrossRef] [PubMed]
  14. Xiao, Z.; Huang, Y.C.; Dong, C.L.; Xie, C.; Liu, Z.; Du, S.; Chen, W.; Yan, D.; Tao, L.; Shu, Z.; et al. Operando Identification of the Dynamic Behavior of Oxygen Vacancy-Rich Co3O4 for Oxygen Evolution Reaction. J. Am. Chem. Soc. 2020, 142, 12087–12095. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, H.Y.; Hung, S.F.; Chen, H.Y.; Chan, T.S.; Chen, H.M.; Liu, B. In Operando Identification of Geometrical-Site-Dependent Water Oxidation Activity of Spinel Co3O4. J. Am. Chem. Soc. 2016, 138, 36–39. [Google Scholar] [CrossRef]
  16. Zhang, G.; Li, J.-H. Tailoring oxygen vacancy on Co3O4 nanosheets with high surface area for oxygen evolution reaction. Chin. J. Chem. Phys. 2018, 31, 517–522. [Google Scholar] [CrossRef] [Green Version]
  17. Peng, S.; Gong, F.; Li, L.; Yu, D.; Ji, D.; Zhang, T.; Hu, Z.; Zhang, Z.; Chou, S.; Du, Y.; et al. Necklace-like Multishelled Hollow Spinel Oxides with Oxygen Vacancies for Efficient Water Electrolysis. J. Am. Chem. Soc. 2018, 140, 13644–13653. [Google Scholar] [CrossRef]
  18. Xu, W.; Lu, Z.; Lei, X.; Li, Y.; Sun, X. A hierarchical Ni–Co–O@Ni–Co–S nanoarray as an advanced OER electrode. Phys. Chem. Chem. Phys. 2014, 16, 20402–20405. [Google Scholar] [CrossRef]
  19. Liu, X.; Chang, Z.; Luo, L.; Xu, T.; Lei, X.; Liu, J.; Sun, X. Hierarchical ZnxCo3–xO4 nanoarrays with high activity for electrocatalytic oxygen evolution. Chem. Mater. 2014, 26, 1889–1895. [Google Scholar] [CrossRef]
  20. Cao, Z.; Zhou, T.; Chen, Y.L.; Liu, J.; Wang, D.; Zhang, W.; Pang, S.S.; Zhao, Y. A trimodal porous cobalt-based electrocatalyst for enhanced oxygen evolution. Adv. Mater. Interfaces 2019, 6, 1900381. [Google Scholar] [CrossRef]
  21. Zhou, T.; Cao, Z.; Zhang, P.; Ma, H.; Gao, Z.; Wang, H.; Lu, Y.; He, J.; Zhao, Y. Transition metal ions regulated oxygen evolution reaction performance of Ni-based hydroxides hierarchical nanoarrays. Sci. Rep. 2017, 7, 46154. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, L.W.M.; Gerson, A.R.; Smart, R.S.C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni. Appl. Surf. Sci. 2011, 257, 2717–2730. [Google Scholar] [CrossRef]
  23. Aljabour, A. Long-lasting electrospun Co3O4 nanofibers for electrocatalytic oxygen evolution reaction. ChemistrySelect 2020, 5, 7482–7487. [Google Scholar] [CrossRef]
  24. Li, X.; Zhu, Y.T.J.; Lv, H.; Zhao, L.; Wang, W.; Zhi, C.; Li, H. Boosting the Cycling Stability of Aqueous Flexible Zn Batteries via F Doping in Nickel-Cobalt Carbonate Hydroxide Cathode. Small 2020, 16, e2001935. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, J.; Li, H.; Cai, J.; Liu, J.; Liu, Y.; Sun, Z.; He, X.; Qu, D.; Li, X. Enhanced oxygen evolution performance by the partial phase transformation of cobalt/nickel carbonate hydroxide nanosheet arrays in an Fe-containing alkaline electrolyte. Inorg. Chem. Front. 2022. [Google Scholar] [CrossRef]
  26. Shu, C.; Liang, Y.; Zhang, Z.; Fang, B. Synthesis and Electrochemical Properties of Hierarchical Porous (Nickel/Cobalt)-Carbonate-Hydroxide Structures. Eur. J. Inorg. Chem. 2021, 2021, 1659–1669. [Google Scholar] [CrossRef]
  27. Lv, J.; Wang, L.; Li, R.; Zhang, K.; Zhao, D.; Li, Y.; Li, X.; Huang, X.; Wang, G. Constructing a Hetero-interface Composed of Oxygen Vacancy-Enriched Co3O4 and Crystalline–Amorphous NiFe-LDH for Oxygen Evolution Reaction. ACS Catal. 2021, 11, 14338–14351. [Google Scholar] [CrossRef]
  28. Liu, H.; Li, X.; Peng, C.; Zhu, L.; Zhang, Y.; Cheng, H.; Cui, J.; Wu, Q.; Zhang, Y.; Chen, Z.; et al. Activating the lattice oxygen in (Bi0.5Co0.5)2O3 by vacancy modulation for efficient electrochemical water oxidation. J. Mater. Chem. A 2020, 8, 13150–13159. [Google Scholar] [CrossRef]
  29. Lu, J.; Zhang, H.; Li, S.; Guo, S.; Shen, L.; Zhou, T.; Zhong, H.; Wu, L.; Meng, Q.; Zhang, Y. Oxygen-Vacancy-Enhanced Peroxidase-like Activity of Reduced Co3O4 Nanocomposites for the Colorimetric Detection of H2O2 and Glucose. Inorg. Chem. 2020, 59, 3152–3159. [Google Scholar] [CrossRef]
  30. Li, Y.; Hasin, P.; Wu, Y. NixCo3-xO4 nanowire arrays for electrocatalytic oxygen evolution. Adv. Mater. 2010, 22, 1926–1929. [Google Scholar] [CrossRef]
  31. Wang, Y.; Zhou, T.; Jiang, K.; Da, P.; Peng, Z.; Tang, J.; Kong, B.; Cai, W.-B.; Yang, Z.; Zheng, G. Reduced Mesoporous Co3O4 Nanowires as Efficient Water Oxidation Electrocatalysts and Supercapacitor Electrodes. Adv. Energy Mater. 2014, 4, 1400696. [Google Scholar] [CrossRef]
Polymers 14 01510 g001 550

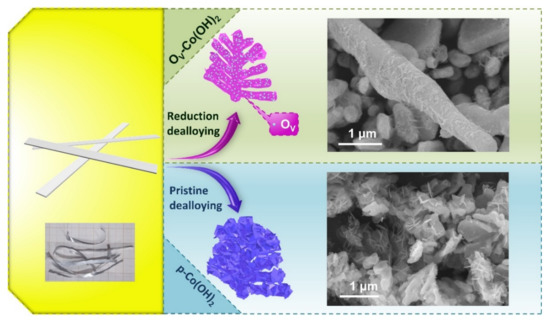

Figure 1. Schematic illustration and scanning electron microscopy images of the synthetic strategy of OV−Co(OH)2 and p–Co(OH)2.
Figure 1. Schematic illustration and scanning electron microscopy images of the synthetic strategy of OV−Co(OH)2 and p–Co(OH)2.
Polymers 14 01510 g001
Polymers 14 01510 g002 550

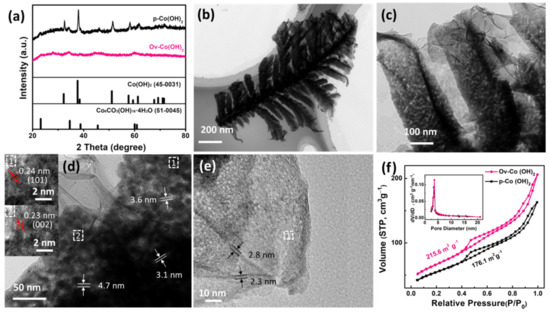

Figure 2. (a) X-ray diffraction patterns of p–Co(OH)2 and OV−Co(OH)2; (b,c) transmission electron microscopy images of OV−Co(OH)2; (d) high-resolution transmission electron microscopy (HRTEM) images of the dendrite section of OV−Co(OH)2; (e) HRTEM images of the covered nanoflakes of OV−Co(OH)2; (f) N2 adsorption and desorption isotherms and the corresponding pore size distribution (inset) of OV−Co(OH)2 and p−Co(OH)2.
Figure 2. (a) X-ray diffraction patterns of p–Co(OH)2 and OV−Co(OH)2; (b,c) transmission electron microscopy images of OV−Co(OH)2; (d) high-resolution transmission electron microscopy (HRTEM) images of the dendrite section of OV−Co(OH)2; (e) HRTEM images of the covered nanoflakes of OV−Co(OH)2; (f) N2 adsorption and desorption isotherms and the corresponding pore size distribution (inset) of OV−Co(OH)2 and p−Co(OH)2.
Polymers 14 01510 g002
Polymers 14 01510 g003 550

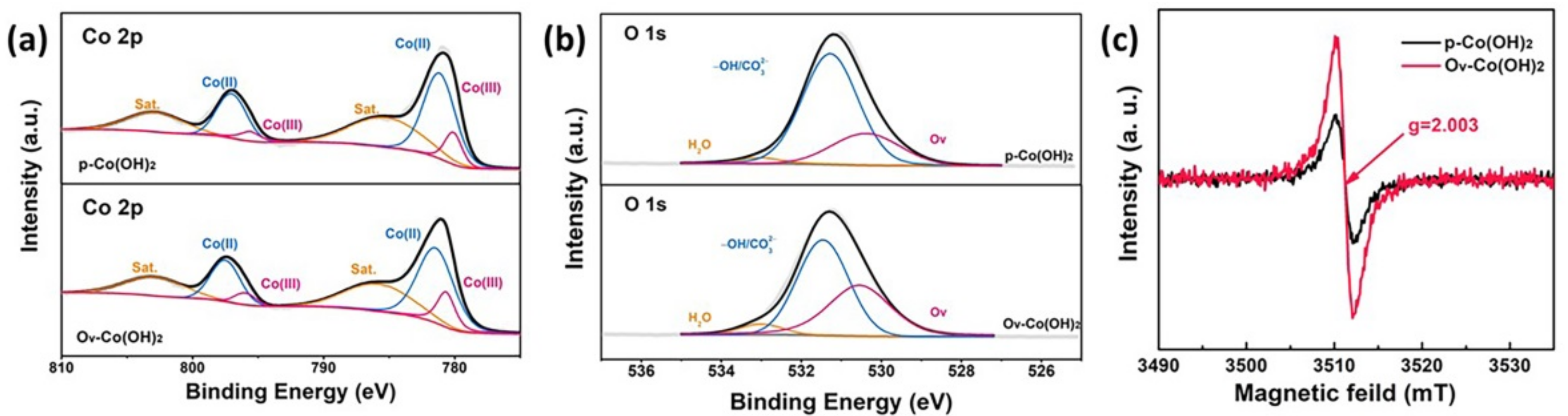

Figure 3. X-ray photoelectron spectra of Co 2p (a) and O1s (b) for p–Co(OH)2 and OV–Co(OH)2; (c) electron spin resonance spectra of OV–Co(OH)2 and p–Co(OH)2.
Figure 3. X-ray photoelectron spectra of Co 2p (a) and O1s (b) for p–Co(OH)2 and OV–Co(OH)2; (c) electron spin resonance spectra of OV–Co(OH)2 and p–Co(OH)2.
Polymers 14 01510 g003
Polymers 14 01510 g004 550

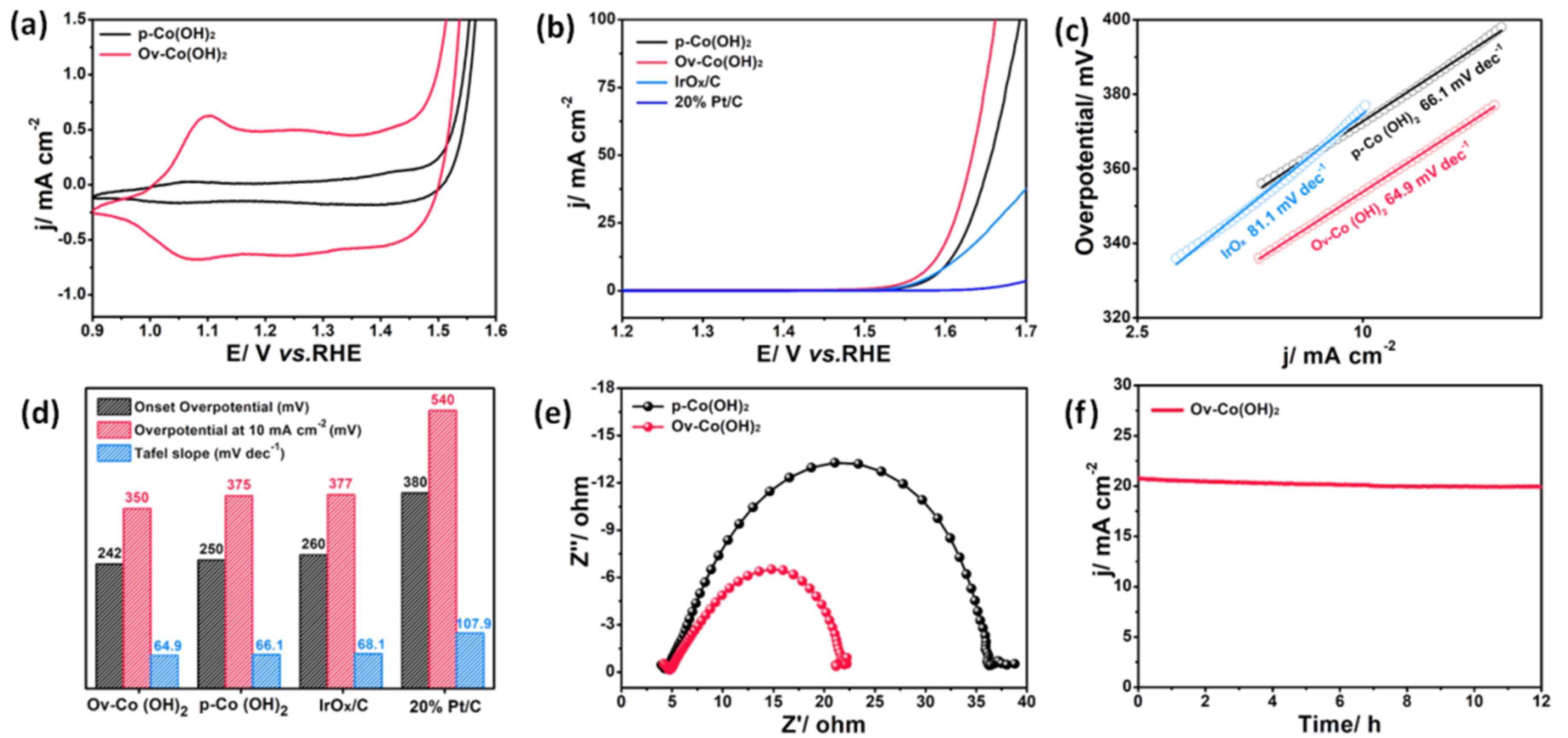

Figure 4. (a) Cyclic voltammetry curves of OV−Co(OH)2 and p–Co(OH)2; (b) linear sweep voltammetry curves of OV−Co(OH)2, p–Co(OH)2, IrOx and Pt/C; (c) corresponding Tafel slopes of OV−Co(OH)2, p–Co(OH)2 and IrOx; (d) comparison of oxygen evolution reaction catalytic parameters OV−Co(OH)2, p–Co(OH)2, IrOx and Pt/C; (e) Nyquist plots of OV−Co(OH)2 and p–Co(OH)2; (f) chronopotentiometric curve at the overpotential of 350 mV for OV−Co(OH)2.
Figure 4. (a) Cyclic voltammetry curves of OV−Co(OH)2 and p–Co(OH)2; (b) linear sweep voltammetry curves of OV−Co(OH)2, p–Co(OH)2, IrOx and Pt/C; (c) corresponding Tafel slopes of OV−Co(OH)2, p–Co(OH)2 and IrOx; (d) comparison of oxygen evolution reaction catalytic parameters OV−Co(OH)2, p–Co(OH)2, IrOx and Pt/C; (e) Nyquist plots of OV−Co(OH)2 and p–Co(OH)2; (f) chronopotentiometric curve at the overpotential of 350 mV for OV−Co(OH)2.
Polymers 14 01510 g004
