Hybrid Macrocyclic Polymers: Self-Assembly Containing Cucurbit[m]uril-pillar[n]arene

by
Zhaona Liu
1,†,
Zhizheng Li
2,†,
Bing Li
2,†,
Le Zhou
2,
Huacheng Zhang
2,* and
Jie Han
3,*
1
Medical School, Xi’an Peihua University, Xi’an 710125, China
2
School of Chemical Engineering and Technology, Xi’an Jiaotong University, Xi’an 710049, China
3
Key Laboratory of Advanced Energy Materials Chemistry (Ministry of Education), College of Chemistry, Nankai University, Tianjin 300071, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Polymers 2022, 14(9), 1777; https://doi.org/10.3390/polym14091777
Submission received: 8 April 2022 / Revised: 23 April 2022 / Accepted: 26 April 2022 / Published: 27 April 2022
(This article belongs to the Special Issue Functional Polymeric Systems for Advanced Industrial Applications)
Browse Figures
Versions Notes

Abstract

:
Supramolecular self-assembly by hybrid macrocycles containing both cucurbit[m]uril (CB[m]) and pillar[n]arene was discussed and summarized in this review. Due to different solubility, diverse-sized cavities, and various driving forces in recognizing guests, the role of CB[m] and pillar[n]arene in such hybrid macrocyclic systems could switch between competitor in capturing specialized guests, and cooperator for building advanced hybridized macrocycles, by controlling their characteristics in host–guest inclusions. Furthermore, both CB[m] and pillar[n]arene were employed for fabricating advanced supramolecular self-assemblies such as mechanically interlocked molecules and supramolecular polymers. In those self-assemblies, CB[m] and pillar[n]arene played significant roles in, e.g., microreactor for catalyzing particular reactions to bridge different small pieces together, molecular “joint” to connect different monomers into larger assemblies, and “stabilizer” in accommodating the guest molecules to adopt a favorite structure geometry ready for assembling.

Graphical Abstract

1. Introduction

With an origin derived from the mimic of natural and biological process [1,2,3,4], supramolecular self-assembly [5,6,7], especially supramolecular polymers [8,9], has provided an interesting research focus [10,11] in recent decades for designing and fabricating marvelous smart materials [12,13,14] via noncovalent interactions [15,16]. Self-assembly, as an important supplementary method to classic organic synthesis and polymerization, has aroused much research interest [17,18]. Particularly, choosing the significant building blocks during preparation has not only affected the functions of supramolecular polymeric self-assembly [19,20], but also has decided the procedure/progress of building such supramolecular architectures [21,22,23]. As one type of important building blocks [22], macrocycles [24,25] and their host–guest inclusions [26] have frequently participated in the procedure of building complicated hierarchical supramolecular polymeric self-assembled materials [27]. Interestingly, to achieve the particular target in function and application [28,29,30], several different kinds of macrocycles [24] have been simultaneously employed in fabricating supramolecular polymeric self-assemblies, leading to the formation of the significant hybrid macrocyclic system [31,32,33].
Actually, the fabrication of a proper hybrid macrocyclic system by diverse macrocycles was not easy [32,34,35]. There were several difficulties in the design strategy and experimental procedure [36]. For example, the modification and functionalization of various macrocycles were usually challenging [37], in addition to coupling them together. If not adopting the proper design and efficient synthesis methods, the building of hybridized macrocycles might become not only overdesigned, but also time-consuming [38,39]. In addition, during the construction, different behaviors of diverse macrocycles in molecular recognition should be controlled and balanced in order to achieve the purpose of function and application [40,41]. For example, the different-sized host cavities [26] and various driving forces [42,43] capturing guests should be paid attention during molecular recognition. Furthermore, the role of diverse macrocycles in a hybrid system should be fully considered and taken advantage of. For example, some macrocycles could promote the solubility of the integrated system [44,45,46,47], while other macrocycles could contribute to catalyzing particular reactions during the process of self-assembly [48,49,50].

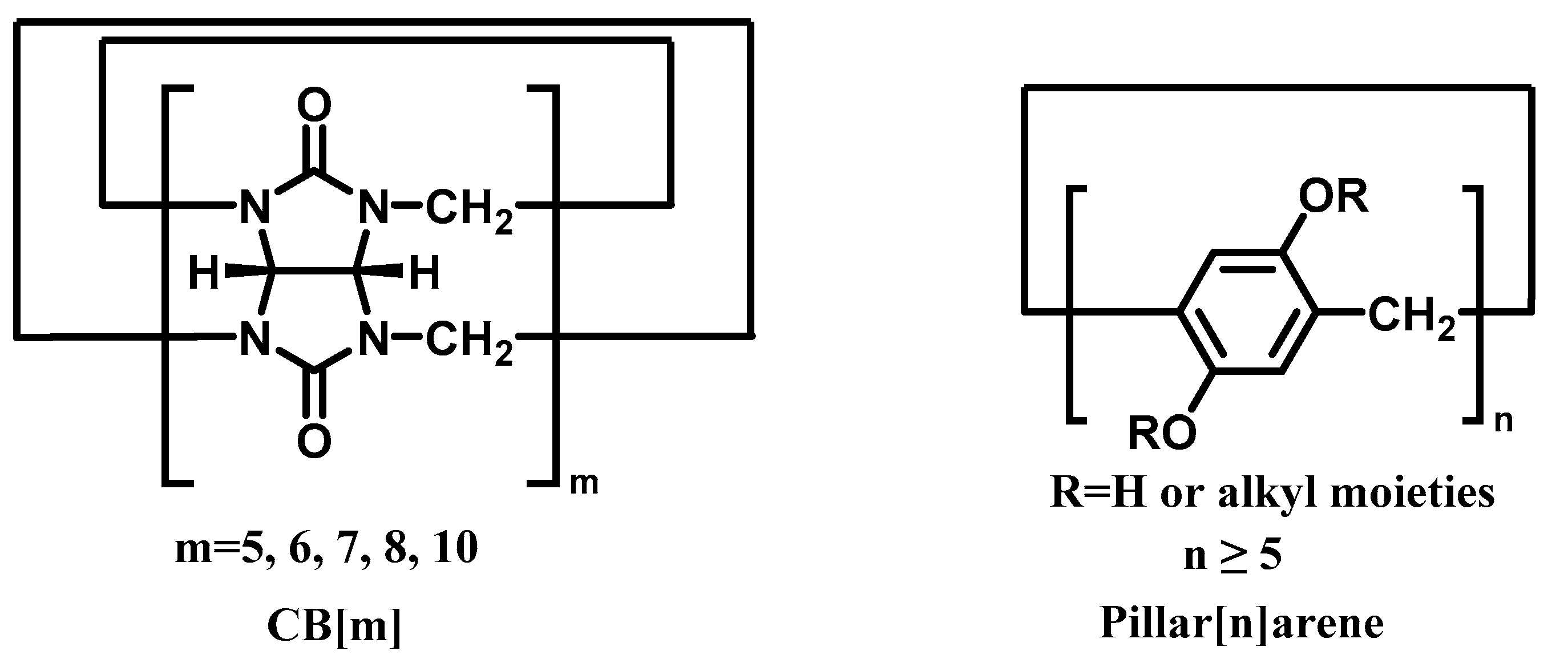

Pillar[n]arene [51,52] (Chart 1) was discovered in 2008 and has been widely used in the process of supramolecular self-assembly [53,54]. Due to its unique physiochemical properties and symmetric structures, pillar[n]arene usually has poor solubility in aqueous solutions [55]. Thus, such a macrocycle requires particular modification to possess the ability of solubilizing in aqueous solutions [56,57,58]. Several functional groups have been involved including carboxylate and ammonium salts [59,60,61,62]. However, the method and choice of dissolving pillar[n]arene in aqueous solutions were limited. It will be interesting to investigate whether other water-soluble macrocycles could integrate with pillar[n]arene in a hybrid system and promote its solubility in aqueous solution or not. One favorite candidate is cucurbit[m]uril (CB[m], Chart 1) [63,64], composing cyclic repeating glycoluril. Furthermore, it will be fantastic to learn whether the addition of CB[m] will play other roles in the hybrid system, or not. It is already known that the hydrophobic cavity of CB[m] can show similar molecular recognition as that of pillar[n]arene towards various guests, and CB[m] is commercially available with different-sized cavities, which can enrich the host–guest interaction in the possible integrated hybrid macrocyclic system [65,66].
In this review, we will discuss and summarize the recent progress in building self-assembly containing both CB[m] and pillar[n]arene. Due to the possession of similar cavities, both present in the integrated hybrid system could show competition in including similar/same guests. Thus, a valuable synthesis/preparation strategy was employed in the hybridized system to balance and control their different molecular recognition. Except for competition, the relationship between them in an integrated system also shows cooperation in accommodating diverse guests, in addition to providing the possibility of bridging smaller pieces together for hierarchical self-assemblies such as mechanically interlocked molecules [67,68,69,70,71] and supramolecular polymers [72,73,74,75]. Interestingly, due to the particular structure and physiochemical properties, CB[m] could play diverse roles in the CB[m]-pillar[n]arene hybrid macrocyclic system such as acting as “microreactor” and molecular “joint” [76,77,78]. Finally, because the self-assembly containing CB[m]-pillar[n]arene hybrid macrocyclic system is still under development, we will try to raise some scientific and technical issues in this review, and propose considerable challenges for future research.

2. The Competition and Cooperation between CB[m] and Pillar[n]arene as the Host

As significant hosts, both CB[m] and pillar[n]arene could show different characteristics in host–guest complexation, due to diverse-sized cavities and various driving forces in recognizing guests. Interestingly, both could exhibit very strong capacity in molecular recognition towards the same guest. Thus, if placed under specialized conditions, they could definitely show competition in efficiently capturing those particular guests. Further effort has been made in controlling and balancing their diverse performances in molecular recognition by building integrated self-assemblies, i.e., hybrid macrocyclic systems.
Due to the lock-and-key principle in supramolecular chemistry [79,80], CB[m] and pillar[n]arene usually exhibit different behaviors in recognizing guest molecules with diverse associate constants, (Ka). Thus, CB[m] could be used as an extra tool to control the physiochemical properties of self-assembled pillar[n]arene and its host–guest complexes. For example, Ref. [79], in comparison with the monomer M1 (Scheme 1) and short ethylene oxide chains-bearing pillar[5]arene (P1, Scheme 1), pillar[5]arene perfunctionalized with ten outer triethylene oxide groups (P2, Scheme 1) could not only have improved solubility in water, but also exhibited the lower critical solution temperature (LCST) behavior [81], i.e., sharp transition and narrow hysteresis (2 °C), due to the possession of both longer oligomeric ethylene oxides and macrocyclic skeletons [79]. Additionally, instead of shorter viologen salts such as G1 (Scheme 1), P2 could include the didecylviologen salt (G2, Scheme 1) in the stoichiometry of 1/1 with the Ka as (4.3 ± 0.5) × 103 M−1 at 25 °C, due to stronger hydrophobic and charge transfer interactions. Interestingly, the clouding point (Tcloud) of P2 could be controlled by the concentration and amount of G2, changing from 25 to 60 °C. Particularly, due to that cucurbit[7]uril (CB[7], Scheme 1) could include viologen salts also in 1/1 molar ratio but with the stronger Ka as high as 105 × M−1, CB[7] was used a competitive host to exclude G2 from P2 (Table 1), leading to the decrease of Tcloud in the system containing G2 and P2 to 47 °C [79]. Furthermore, the host–guest inclusion controlled reversible turbid-to-clear/clear-to-turbid transition could be achieved by the subsequent addition of G2 and CB[7] in the solution of P2 (Figure 1). Actually, both CB[m] and pillar[n]arene could fully utilize their capacities of capturing guests to further affect the morphologies of guests-based self-assemblies [82].
Because of the different-sized cavities, CB[m] and pillar[n]arene could also adjust their own cavities with proper sizes, i.e., choose the pair of hosts with proper sized cavities, to present the similar Ka towards the specialized guest. However, they might have different types of host–guest inclusions in accordance with diverse driving forces. For example, with the similar Ka of around 104 × M−1, CB[7] (Scheme 1) could form inclusion with the guest of hemicyanine dyes (G3, Scheme 2) in the stoichiometry of 1/1 due to the ion–polar interaction, while pillar[6]arene P3 (Scheme 2) could interact with G3 in 2/1 molar ratio with a sandwiched binding model due to the intermolecular interaction with the electron donor–acceptor, i.e., exo-wall complexation, where the guest was not included into the cavity of P3 [83].
Thus, by taking advantage of their own characteristics such as various Ka and binding model in recognizing guests, CB[m] and pillar[n]arene could cooperate together to interact with guest molecules in an integrated hybrid macrocyclic system. For example, ref [84], due to the ion-dipole and CH…O interactions as indicated by computational studies [85] using a semi-empirical tight binding method, the ring-on-ring hybrid macrocyclic host systems were just prepared by integrating CB[10] and polycationic perfunctionalized pillar[5]arene P4 (Scheme 3) together, where the complex ratio could be tuned from 1/2 to 1/1 (Figure 2), as confirmed by 1H NMR titration. Interestingly, the weaker interaction between P4 and CB[8] (Scheme 3) further revealed that the size match between pillar[n]arene and CB[m] was also vital for successfully building a hybrid macrocyclic composite. Particularly, characteristics in recognizing various guests by both cavities of CB[10] and pillar[5]arene could be further controlled and balanced, leading to either the formation of complicated multiple complexes or the damage of the hybrid macrocyclic host systems (Table 1). Due to the possession of two independent hybrid cavities (Figure 2), both 1-pentanesulfonate (G4, Scheme 3) and 9,9′-spirobifluorene (G6, Scheme 3) could be included by the hybrid macrocycles via the cavities of pillar[5]arene and CB[10], exhibiting strong Ka as (3.8 ± 0.4) × 106 and (3.3 ± 0.7) × 105 M−1, respectively. However, the butane-1,4-disulfonate (G5, Scheme 3) could trigger the disassembly of hybrid macrocycles P4•CB[10], and precipitate CB[10] in the solution phase (Figure 2).

3. The Preparation of Mechanically Interlocked Molecules Containing CB[m] and Pillar[n]arene

Except for utilizing their diverse characteristics for promoting competition and cooperation in molecular recognitions, both CB[m] and pillar[n]arene were further employed for fabricating advanced mechanically interlocked molecules (MIM) by fully considering the CB[m]-catalyzed alkyne-azide 1,3-dipolar cycloaddition, namely, “click” reaction [86,87], in addition to the strong capacity of pillar[n]arene in accommodating and stabilizing specialized linear cationic substrates [88]. In other words, the molecular “rod” in building MIM could be captured by enough pillar[n]arene moieties with an expected rigid and linear geometry, while CB[m] could hold the molecular “stoppers” and promote the formation of the “bridge” between the “rod” and “stoppers” by “click” reactions. Finally, both CB[m] and pillar[n]arene acted as the “wheel” in the obtained MIM.

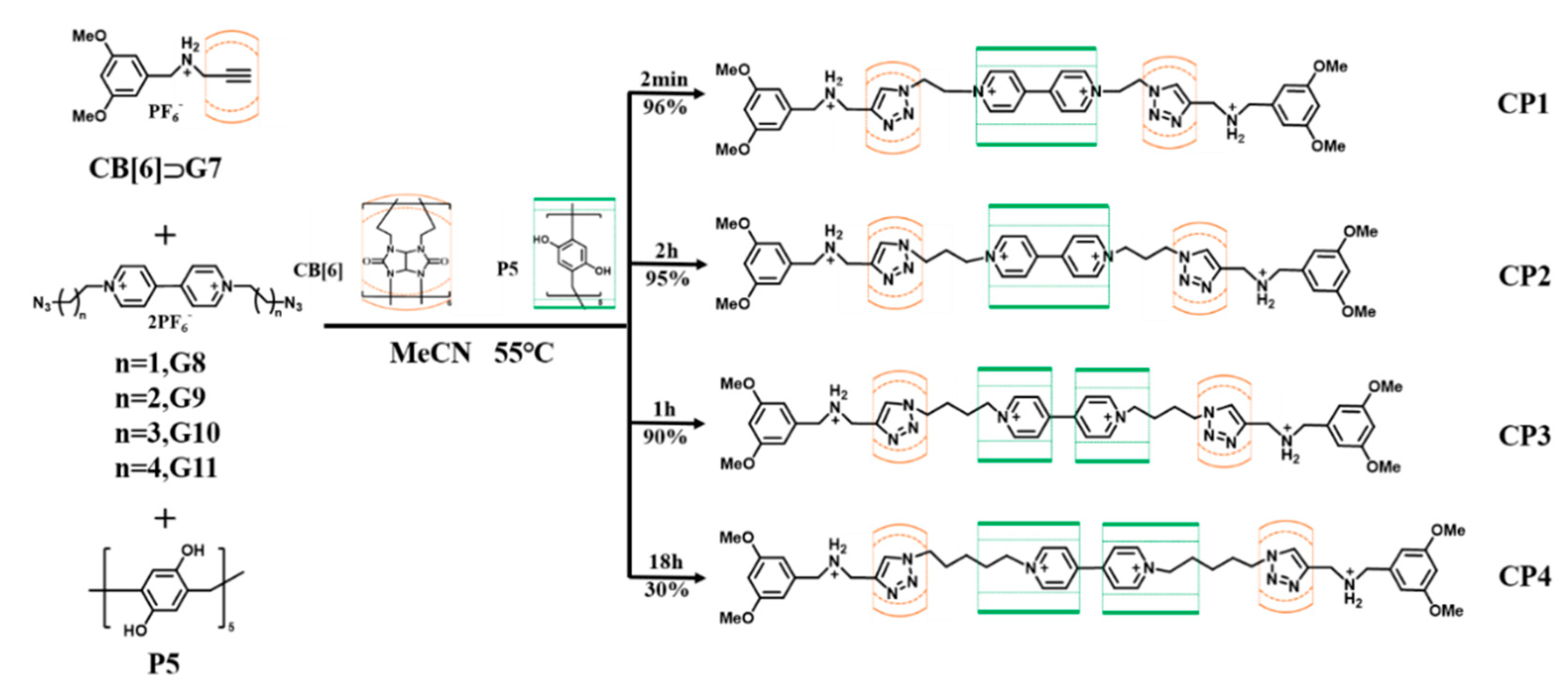

For example, Ref. [89], two [4]rotaxanes such as CP1 and CP2 and two [5]rotaxane CP3 and CP4 (Table 2) were cooperatively prepared in the presence of the host–guest inclusion of CB[6]⸧N-(3,5-dimethoxybenzyl)propargylammonium chloride (G7, Scheme 4), pillar[5]arene (P5, Scheme 4) and linear azidoalkyl-modified bipyridinium dications such as G8-G11 (Scheme 4) via CB[6]-catalyzed “click” reaction at 55 °C in acetonitrile with the yield ranging from 30–96%. With similar design strategy and synthesis methods by using the stopper with CB[m] as the catalyst—CB[6]⸧G7, in addition to the “rod” of G8, G9 and G12 [88], pillar[5]arene moiety was further substituted by pillar[6]arene (P6, Scheme 5), leading to the synthesis of different dumbbell compounds including CP5-CP7 (Scheme 5 and Table 2) in the yield of 39–68% [90]. Interestingly, due to the lock of pillar[5]arene and pillar[6]arene in those space limited dumbbell compounds, in addition to the particular functional groups such as carbonyl and hydroxyl moieties rooted in CB[m] and pillar[n]arene, respectively, [4]rotaxane possessed various interesting conformational isomers with the assistance of forming intermolecular hydrogen bonds (Figure 3) [88,89,90,91,92].

4. The Preparation of Supramolecular Polymer containing CB[m] and pillar[n]arene

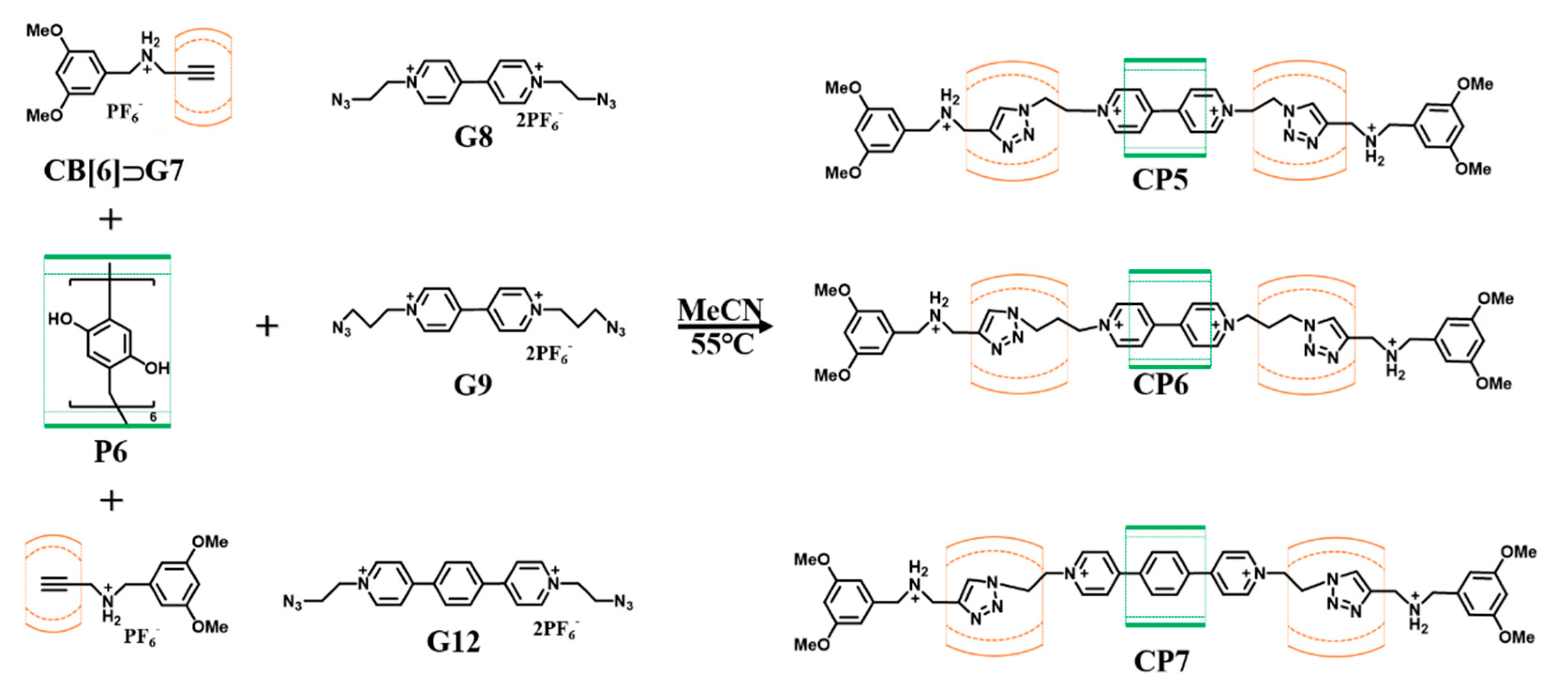

As shown in the above examples, the CB[m]-catalyzed “click” reactions were able to produce the “angular” chemical structures, acting as the “stopper” in fabricating the space-limited self-assemblies such as MIM. If preparing infinite polymeric structures, both CB[m] and pillar[n]arene mainly performed as the molecular “joint” to accommodate linear guests and direct the structural geometry of larger supramolecular assemblies.
For example, water soluble carboxylate perfunctionalized pillar[6]arene (P7, Scheme 6) exhibited selected molecular recognition towards imidazolium salt G14 and G15 bearing different groups with different Ka of 1.31 × 106 and 6.39 × 105 M−1, respectively. Thus, P7 could further complex with imidazolium subunits on a specialized guest with naphthalene moieties on both ends (G13, Scheme 6), leaving the naphthalene subunits to be captured by CB[8]. Due to the enhancement of π-π stacking interactions of two nearby naphthalene groups by CB[8], supramolecular polymers P7⸧G13⊂CB[8] (Figure 4 and Table 2) could be prepared by those ternary components [93].

5. Overview and Outlook

In conclusion, supramolecular self-assembly based on hybrid macrocyclic systems containing pillar[n]arene and CB[m] were summarized in this review. Both CB[m] and pillar[n]arene are significant hosts in the formation of host–guest complexation. Their behaviors in molecular recognition could be greatly affected by several issues such as solubility in various solutions, various cavities and different driving forces in complexing guests. Both could exhibit strong competition in complexing the same/similar favorite guest molecules. Except for competition, the capacity of CB[m] and pillar[n]arene in host–guest inclusion could be integrated into the hybrid macrocyclic system in order to enhance their performance in recognizing specialized guests. Furthermore, the structural skeletons of CB[m] and pillar[n]arene were employed for fabricating advanced supramolecular self-assemblies such as MIM and supramolecular polymers. In those self-assembled systems, hybrid hosts served as: 1) the molecular “joint” to connect different small molecular moieties together into larger assemblies; 2) the “microreactor” to catalyze specialized reactions which could further covalently couple building blocks into rigid architectures; and, 3) the “stabilizer” to accommodate and stabilize guest molecules to adopt favorite molecular geometry for advanced and complicated self-assembly.
Although much important work has been conducted in this area, several issues should be paid attention in future studies, for example:
(1) More hybrid macrocyclic systems should be prepared in order to accomplish advanced chemical structures in addition to applicable functions, such as with new design strategy and new components. To date, pillar[n]arene derivatives have rarely been used as a type of effective supplement [94] for controlling CB[m]-based supramolecular systems by taking advantage of the particular external stimuli responsiveness of pillar[n]arene. In addition, several types of CB[m] have been used in preparation procedures, but only pillar[5/6]arene has been employed in the construction of a CB[m]-pillar[n]arene hybrid macrocyclic system. Actually, the performance of pillar[n]arene with larger cavities has more interesting behavior in host–guest complexes [95,96,97]. If they could be involved in the fabrication, the hybrid system will definitely possess different functions and “selling” points.
(2) Advanced and more complicated self-assemblies such as micelles and vesicles could be further prepared by taking advantage of different models such as self-assembled amphiphiles [98], which could be of interest in exploring the functions of cargo-delivering [99,100,101]. Furthermore, except for rotaxane, catenane [102,103,104,105] could also be prepared by integrating both pillar[n]arene and CB[m], enriching the family of MIM with mechanical bonds.
(3) Applications of CB[m] and pillar[n]arene-containing hybrid macrocyclic systems should be explored further. Currently, after forming inclusions in building self-assemblies such as MIM and supramolecular polymers, the cavities of pillar[n]arene and CB[m] will be fully occupied and have no further function. If those cavities in self-assembled systems could be freed, they might, accordingly, accomplish more interesting applications, such as for biomedicines, in addition to adsorption and separation in specialized industry [106,107,108].

Author Contributions

Writing—original draft preparation, Z.L. (Zhaona Liu), Z.L. (Zhizheng Li) and B.L.; writing—review and editing, L.Z., H.Z. and J.H.; visualization, H.Z. and J.H.; supervision, H.Z. and J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Shaanxi, grant number 2021JM-006, Natural Science Foundation of Tianjin, grant number 18JCYBJC20700, “Young Talent Support Plan” of Xi’an Jiaotong Fundamental Research Funds for the Central Universities, grant number 010600-02913000000080, 010600-31222000000029 and 050700-71240000000046.

Data Availability Statement

Not applicable.

Acknowledgments

H.Z. and J.H. would like to thank Nathan L. Strutt for his kind help and patient guide to pillararene chemistry during their academic visit to Northwestern University. H.Z. acknowledges the financial support from the “Young Talent Support Plan” (No. 010600-02913000000080, 010600-31222000000029 and 050700-71240000000046) of Xi’an Jiaotong University and Natural Science Foundation of Shaanxi Province (No. 2021JM-006 and No.2021JQ-863). J.H. would like to thank the financial support by the Natural Science Foundation of Tianjin (No. 18JCYBJC20700).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CB[m]Cucurbit[m]uril
KaAssociate constants
LCSTLower critical solution temperature
MIMMechanically interlocked molecules
TcloudClouding point

References

  1. Ji, T.; Li, Y.; Deng, X.; Rwei, A.Y.; Offen, A.; Hall, S.; Zhang, W.; Zhao, C.; Mehta, M.; Kohane, D.S. Delivery of local anaesthetics by a self-assembled supramolecular system mimicking their interactions with a sodium channel. Nat. Biomed. Eng. 2021, 5, 1099–1109. [Google Scholar] [CrossRef] [PubMed]
  2. Zhou, W.L.; Lin, W.; Chen, Y.; Dai, X.Y.; Liu, Z.; Liu, Y. Multivalent supramolecular assembly with ultralong organic room temperature phosphorescence, high transfer efficiency and ultrahigh antenna effect in water. Chem. Sci. 2022, 13, 573–579. [Google Scholar] [CrossRef] [PubMed]
  3. Khmelinskaia, A.; Wargacki, A.; King, N.P. Structure-based design of novel polyhedral protein nanomaterials. Curr. Opin. Microbiol. 2021, 61, 51–57. [Google Scholar] [CrossRef]
  4. Hendrikse, S.I.S.; Wijnands, S.P.W.; Lafleur, R.P.M.; Pouderoijen, M.J.; Janssen, H.M.; Dankers, P.Y.W.; Meijer, E.W. Controlling and tuning the dynamic nature of supramolecular polymers in aqueous solutions. Chem. Commun. 2017, 53, 2279–2282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Yin, G.Q.; Wang, H.; Wang, X.Q.; Song, B.; Chen, L.J.; Wang, L.; Hao, X.Q.; Yang, H.B.; Li, X. Self-assembly of emissive supramolecular rosettes with increasing complexity using multitopic terpyridine ligands. Nat. Commun. 2018, 9, 567. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Thosar, A.U.; Patel, A.J. Hydration determines anion accumulation. Nat. Chem. 2022, 14, 8–10. [Google Scholar] [CrossRef] [PubMed]
  7. Guillemeney, L.; Lermusiaux, L.; Landaburu, G.; Wagnon, B.; Abécassis, B. Curvature and self-assembly of semi-conducting nanoplatelets. Commun. Chem. 2022, 5, 7. [Google Scholar] [CrossRef]
  8. Dong, S.; Zheng, B.; Wang, F.; Huang, F. Supramolecular polymers constructed from macrocycle-based host-guest molecular recognition motifs. Acc. Chem. Res. 2014, 47, 1982–1994. [Google Scholar] [CrossRef]
  9. Kakuta, T.; Yamagishi, T.a.; Ogoshi, T. Stimuli-responsive supramolecular assemblies constructed from pillar[n]arenes. Acc. Chem. Res. 2018, 51, 1656–1666. [Google Scholar] [CrossRef]
  10. Liu, Y.; Liu, T.; Yan, X.Y.; Guo, Q.Y.; Lei, H.; Huang, Z.; Zhang, R.; Wang, Y.; Wang, J.; Liu, F.; et al. Expanding quasiperiodicity in soft matter: Supramolecular decagonal quasicrystals by binary giant molecule blends. Proc. Natl. Acad. Sci. USA 2022, 119, e2115304119. [Google Scholar] [CrossRef]
  11. Deng, J.H.; Luo, J.; Mao, Y.L.; Lai, S.; Gong, Y.N.; Zhong, D.C.; Lu, T.B. π-π Stacking interactions: Non-negligible forces for stabilizing porous supramolecular frameworks. Sci. Adv. 2020, 6, eaax9976. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Li, X.; Bai, H.; Yang, Y.; Yoon, J.; Wang, S.; Zhang, X. Supramolecular antibacterial materials for combatting antibiotic resistance. Adv. Mater. 2019, 31, 1805092. [Google Scholar] [CrossRef] [PubMed]
  13. Smith, R.M.S.; Amiri, M.; Martin, N.P.; Lulich, A.; Palys, L.N.; Zhu, G.; De Yoreo, J.J.; Nyman, M. Solvent-driven transformation of Zn/Cd2+-deoxycholate assemblies. Inorg. Chem. 2022, 61, 1275–1286. [Google Scholar] [CrossRef] [PubMed]
  14. He, A.; Jiang, Z.; Wu, Y.; Hussain, H.; Rawle, J.; Briggs, M.E.; Little, M.A.; Livingston, A.G.; Cooper, A.I. A smart and responsive crystalline porous organic cage membrane with switchable pore apertures for graded molecular sieving. Nat. Mater. 2022, 21, 463–470. [Google Scholar] [CrossRef]
  15. Wang, S.; Lee, S.; Du, J.S.; Partridge, B.E.; Cheng, H.F.; Zhou, W.; Dravid, V.P.; Lee, B.; Glotzer, S.C.; Mirkin, C.A. The emergence of valency in colloidal crystals through electron equivalents. Nat. Mater. 2022, 1–8. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, G.; Jiang, M. Cyclodextrin-based inclusion complexation bridging supramolecular chemistry and macromolecular self-assembly. Chem. Soc. Rev. 2011, 40, 2254–2266. [Google Scholar] [CrossRef]
  17. Resconi, L.; Cavallo, L.; Fait, A.; Piemontesi, F. Selectivity in propene polymerization with metallocene catalysts. Chem. Rev. 2000, 100, 1253–1346. [Google Scholar] [CrossRef]
  18. Zhang, J.; Pesak, D.J.; Ludwick, J.L.; Moore, J.S. Geometrically-controlled and site-specifically-functionalized phenylacetylene macrocycles. J. Am. Chem. Soc. 1994, 116, 4227–4239. [Google Scholar] [CrossRef]
  19. Lehn, J.M. Constitutional dynamic chemistry: Bridge from supramolecular chemistry to adaptive chemistry. In Constitutional Dynamic Chemistry; Barboiu, M., Ed.; Springer: Berlin/Heidelberg Germany, 2012; pp. 1–32. [Google Scholar]
  20. Zhang, H.; Zhao, Y. Pillararene-based assemblies: Design principle, preparation and applications. Chem. Eur. J. 2013, 19, 16862–16879. [Google Scholar] [CrossRef]
  21. Lehn, J.M. Toward complex matter: Supramolecular chemistry and self-organization. Proc. Natl. Acad. Sci. USA 2002, 99, 4763–4768. [Google Scholar] [CrossRef] [Green Version]
  22. Liu, Z.; Qiao, J.; Niu, Z.; Wang, Q. Natural supramolecular building blocks: From virus coat proteins to viral nanoparticles. Chem. Soc. Rev. 2012, 41, 6178–6194. [Google Scholar] [CrossRef] [PubMed]
  23. Sieber, J.J.; Willig, K.I.; Kutzner, C.; Reimers, C.G.; Harke, B.; Donnert, G.; Rammner, B.; Eggeling, C.; Hell, S.W.; Grubmüller, H.; et al. Anatomy and dynamics of a supramolecular membrane protein cluster. Science 2007, 317, 1072–1076. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Liu, Z.; Nalluri, S.K.M.; Stoddart, J.F. Surveying macrocyclic chemistry: From flexible crown ethers to rigid cyclophanes. Chem. Soc. Rev. 2017, 46, 2459–2478. [Google Scholar] [CrossRef] [PubMed]
  25. Girvin, Z.C.; Andrews, M.K.; Liu, X.; Gellman, S.H. Foldamer-templated catalysis of macrocycle formation. Science 2019, 366, 1528–1531. [Google Scholar] [CrossRef]
  26. Park, J.; Park, J.; Lee, J.; Lim, C.; Lee, D.W. Size compatibility and concentration dependent supramolecular host-guest interactions at interfaces. Nat. Commun. 2022, 13, 112. [Google Scholar] [CrossRef] [PubMed]
  27. Nguyen, S.T.; Gin, D.L.; Hupp, J.T.; Zhang, X. Supramolecular chemistry: Functional structures on the mesoscale. Proc. Natl. Acad. Sci. USA 2001, 98, 11849–11850. [Google Scholar] [CrossRef] [Green Version]
  28. Yudin, A.K. Macrocycles: Lessons from the distant past, recent developments, and future directions. Chem. Sci. 2015, 6, 30–49. [Google Scholar] [CrossRef] [Green Version]
  29. Chen, W.; Chen, P.; Zhang, G.; Xing, G.; Feng, Y.; Yang, Y.W.; Chen, L. Macrocycle-derived hierarchical porous organic polymers: Synthesis and applications. Chem. Soc. Rev. 2021, 50, 11684–11714. [Google Scholar] [CrossRef]
  30. Surur, A.S.; Sun, D. Macrocycle-antibiotic hybrids: A path to clinical candidates. Front. Chem. 2021, 9, 659845. [Google Scholar] [CrossRef]
  31. Smith, J.M.; Fasan, R. Synthesis of macrocyclic organo-peptide hybrids from ribosomal polypeptide precursors via CuAAC-/hydrazide-mediated cyclization. In Peptide Libraries: Methods and Protocols; Derda, R., Ed.; Springer: New York, NY, USA, 2015; pp. 23–38. [Google Scholar]
  32. Liu, Z.; Zhang, H.; Han, J. Crown ether-pillararene hybrid macrocyclic systems. Org. Biomol. Chem. 2021, 19, 3287–3302. [Google Scholar] [CrossRef]
  33. Boehm, M.; Beaumont, K.; Jones, R.; Kalgutkar, A.S.; Zhang, L.; Atkinson, K.; Bai, G.; Brown, J.A.; Eng, H.; Goetz, G.H.; et al. Discovery of potent and orally bioavailable macrocyclic peptide-peptoid hybrid CXCR7 modulators. J. Med. Chem. 2017, 60, 9653–9663. [Google Scholar] [CrossRef] [PubMed]
  34. Kumar, A.; Rajeswara Rao, M.; Lee, W.Z.; Ravikanth, M. Hybrid macrocycles of subporphyrins and triphyrins. Org. Lett. 2017, 19, 5924–5927. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, J.H.; Zhang, Y.; Liu, M.; Gao, G.K.; Ji, W.; Jiang, C.; Huang, X.; Chen, Y.; Li, S.L.; Lan, Y.Q. Single-metal site-embedded conjugated macrocyclic hybrid catalysts enable boosted CO2 reduction and evolution kinetics in Li-CO2 batteries. Cell Rep. Phys. Sci. 2021, 2, 100583. [Google Scholar] [CrossRef]
  36. Frost, J.R.; Fasan, R. Macrocyclic organo-peptide hybrids by intein-mediated ligation: Synthesis and applications. In Chemical Ligation; Wiley: New York, NY, USA, 2017; pp. 391–419. [Google Scholar]
  37. Strutt, N.L.; Zhang, H.; Schneebeli, S.T.; Stoddart, J.F. Functionalizing pillar[n]arenes. Acc. Chem. Res. 2014, 47, 2631–2642. [Google Scholar] [CrossRef]
  38. Sessler, J.L.; Zimmerman, R.S.; Bucher, C.; Král, V.; Andrioletti, B. Calixphyrins. Hybrid macrocycles at the structural crossroads between porphyrins and calixpyrroles. Pure Appl. Chem. 2001, 73, 1041–1057. [Google Scholar] [CrossRef]
  39. Zhang, H.; Han, J. The synthesis and applications of porphyrin-containing pillararenes. Org. Biomol. Chem. 2020, 18, 4894–4905. [Google Scholar] [CrossRef]
  40. Sun, H.; Ren, J.; Qu, X. Carbon nanomaterials and DNA: From molecular recognition to applications. Acc. Chem. Res. 2016, 49, 461–470. [Google Scholar] [CrossRef]
  41. Whyte, G.F.; Vilar, R.; Woscholski, R. Molecular recognition with boronic acids-applications in chemical biology. J. Chem. Biol. 2013, 6, 161–174. [Google Scholar] [CrossRef] [Green Version]
  42. Marsh, D. Thermodynamics of phospholipid self-assembly. Biophys. J. 2012, 102, 1079–1087. [Google Scholar] [CrossRef] [Green Version]
  43. Kirschner, J.; Wang, Z.; Eigler, S.; Steinrück, H.P.; Jäger, C.M.; Clark, T.; Hirsch, A.; Halik, M. Driving forces for the self-assembly of graphene oxide on organic monolayers. Nanoscale 2014, 6, 11344–11350. [Google Scholar] [CrossRef] [Green Version]
  44. Sherje, A.P.; Dravyakar, B.R.; Kadam, D.; Jadhav, M. Cyclodextrin-based nanosponges: A critical review. Carbohydr. Polym. 2017, 173, 37–49. [Google Scholar] [CrossRef] [PubMed]
  45. Gidwani, B.; Vyas, A. A comprehensive review on cyclodextrin-based carriers for delivery of chemotherapeutic cytotoxic anticancer drugs. BioMed Res. Int. 2015, 2015, 198268. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Challa, R.; Ahuja, A.; Ali, J.; Khar, R.K. Cyclodextrins in drug delivery: An updated review. AAPS PharmSciTech. 2005, 6, E329–E357. [Google Scholar] [CrossRef] [PubMed]
  47. Del Valle, E.M.M. Cyclodextrins and their uses: A review. Process Biochem. 2004, 39, 1033–1046. [Google Scholar] [CrossRef]
  48. Shang, J.; Liu, Y.; Pan, T. Macrocycles in bioinspired catalysis: From molecules to materials. Front. Chem. 2021, 9. [Google Scholar] [CrossRef]
  49. Jökel, J.; Schwer, F.; von Delius, M.; Apfel, U.P. A dinuclear porphyrin-macrocycle as efficient catalyst for the hydrogen evolution reaction. Chem. Commun. 2020, 56, 14179–14182. [Google Scholar] [CrossRef]
  50. Ning, R.; Ao, Y.F.; Wang, D.X.; Wang, Q.Q. Macrocycle-enabled counteranion trapping for improved catalytic efficiency. Chemistry 2018, 24, 4268–4272. [Google Scholar] [CrossRef]
  51. Ogoshi, T.; Kanai, S.; Fujinami, S.; Yamagishi, T.A.; Nakamoto, Y. Para-bridged symmetrical pillar[5]arenes: Their lewis acid catalyzed synthesis and host-guest property. J. Am. Chem. Soc. 2008, 130, 5022–5023. [Google Scholar] [CrossRef]
  52. Cao, D.; Kou, Y.; Liang, J.; Chen, Z.; Wang, L.; Meier, H. A facile and efficient preparation of pillararenes and a pillarquinone. Angew. Chem. Int. Ed. 2009, 48, 9721–9723. [Google Scholar] [CrossRef]
  53. Li, H.; Yang, Y.; Xu, F.; Liang, T.; Wen, H.; Tian, W. Pillararene-based supramolecular polymers. Chem. Commun. 2019, 55, 271–285. [Google Scholar] [CrossRef]
  54. Cao, S.; Zhang, H.; Zhao, Y.; Zhao, Y. Pillararene/Calixarene-based systems for battery and supercapacitor applications. eScience 2021, 1, 28. [Google Scholar] [CrossRef]
  55. Chen, L.; Cai, Y.; Feng, W.; Yuan, L. Pillararenes as macrocyclic hosts: A rising star in metal ion separation. Chem. Commun. 2019, 55, 7883–7898. [Google Scholar] [CrossRef] [PubMed]
  56. Li, M.H.; Lou, X.Y.; Yang, Y.W. Pillararene-based molecular-scale porous materials. Chem. Commun. 2021, 57, 13429–13447. [Google Scholar] [CrossRef] [PubMed]
  57. Wu, X.; Wang, P.; Turner, P.; Lewis, W.; Catal, O.; Thomas, D.S.; Gale, P.A. Tetraurea macrocycles: Aggregation-driven binding of chloride in aqueous solutions. Chemistry 2019, 5, 1210–1222. [Google Scholar] [CrossRef]
  58. Shang, J.; Li, B.; Shen, X.; Pan, T.; Cui, Z.; Wang, Y.; Ge, Y.; Qi, Z. Selenacrown macrocycle in aqueous medium: Synthesis, redox-responsive self-assembly, and enhanced disulfide formation reaction. J. Org. Chem. 2021, 86, 1430–1436. [Google Scholar] [CrossRef] [PubMed]
  59. Liu, Y.; Zhou, F.; Yang, F.; Ma, D. Carboxylated pillar[n]arene (n = 5–7) host molecules: High affinity and selective binding in water. Org. Biomol. Chem. 2019, 17, 5106–5111. [Google Scholar] [CrossRef] [PubMed]
  60. Kosiorek, S.; Rad, N.; Sashuk, V. Supramolecular catalysis by carboxylated pillar[n]arenes. Chem. Cat. Chem. 2020, 12, 2776–2782. [Google Scholar] [CrossRef]
  61. Chen, J.F.; Lin, Q.; Yao, H.; Zhang, Y.M.; Wei, T.B. Pillar[5] arene-based multifunctional supramolecular hydrogel: Multistimuli responsiveness, self-healing, fluorescence sensing, and conductivity. Mater. Chem. Front. 2018, 2, 999–1003. [Google Scholar] [CrossRef]
  62. Xue, M.; Yang, Y.; Chi, X.; Zhang, Z.; Huang, F. Pillararenes, a new class of macrocycles for supramolecular chemistry. Acc. Chem. Res. 2012, 45, 1294–1308. [Google Scholar] [CrossRef]
  63. Freeman, W.A.; Mock, W.L.; Shih, N.Y. Cucurbituril. J. Am. Chem. Soc. 1981, 103, 7367–7368. [Google Scholar] [CrossRef]
  64. Lü, J.; Lin, J.X.; Cao, M.N.; Cao, R. Cucurbituril: A promising organic building block for the design of coordination compounds and beyond. Coord. Chem. Rev. 2013, 257, 1334–1356. [Google Scholar] [CrossRef]
  65. Zhang, H.; Li, C. Pillararene-functionalised graphene nanomaterials. RSC Adv. 2020, 10, 18502–18511. [Google Scholar] [CrossRef]
  66. Gürbüz, S.; Idris, M.; Tuncel, D. Cucurbituril-based supramolecular engineered nanostructured materials. Org. Biomol. Chem. 2015, 13, 330–347. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Stoddart, J.F. Mechanically interlocked molecules (mims)-molecular shuttles, switches, and machines (nobel lecture). Angew. Chem. Int. Ed. 2017, 56, 11094–11125. [Google Scholar] [CrossRef]
  68. Schröder, H.V.; Zhang, Y.; Link, A.J. Dynamic covalent self-assembly of mechanically interlocked molecules solely made from peptides. Nat. Chem. 2021, 13, 850–857. [Google Scholar] [CrossRef]
  69. Sluysmans, D.; Stoddart, J.F. The burgeoning of mechanically interlocked molecules in chemistry. Trends Chem. 2019, 1, 185–197. [Google Scholar] [CrossRef]
  70. Davis, J.J.; Orlowski, G.A.; Rahman, H.; Beer, P.D. Mechanically interlocked and switchable molecules at surfaces. Chem. Commun. 2010, 46, 54–63. [Google Scholar] [CrossRef]
  71. Riebe, J.; Niemeyer, J. Mechanically interlocked molecules for biomedical applications. Eur. J. Org. Chem. 2021, 2021, 5106–5116. [Google Scholar] [CrossRef]
  72. Weyandt, E.; Leanza, L.; Capelli, R.; Pavan, G.M.; Vantomme, G.; Meijer, E.W. Controlling the length of porphyrin supramolecular polymers via coupled equilibria and dilution-induced supramolecular polymerization. Nat. Commun. 2022, 13, 248. [Google Scholar] [CrossRef]
  73. Qin, B.; Yin, Z.; Tang, X.; Zhang, S.; Wu, Y.; Xu, J.F.; Zhang, X. Supramolecular polymer chemistry: From structural control to functional assembly. Prog. Polym. Sci. 2020, 100, 101167. [Google Scholar] [CrossRef]
  74. Brunsveld, L.; Folmer, B.J.B.; Meijer, E.W.; Sijbesma, R.P. Supramolecular polymers. Chem. Rev. 2001, 101, 4071–4098. [Google Scholar] [CrossRef] [PubMed]
  75. de Greef, T.F.A.; Meijer, E.W. Supramolecular polymers. Nature 2008, 453, 171–173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Klöck, C.; Dsouza, R.N.; Nau, W.M. Cucurbituril-mediated supramolecular acid catalysis. Org. Lett. 2009, 11, 2595–2598. [Google Scholar] [CrossRef] [PubMed]
  77. Masoud, S.N. Nanodimensional microreactor-encapsulation of 18-membered decaaza macrocycle copper(ii) complexes. Chem. Lett. 2005, 34, 244–245. [Google Scholar]
  78. Ohto, K.; Kim, J.; Morisada, S.; Maeki, M.; Yamashita, K.; Miyazaki, M. Microreactor extraction system with macrocyclic host compounds for rare metal recovery. Int. J. Soc. Mater. Eng. Resour. 2014, 20, 92–96. [Google Scholar] [CrossRef] [Green Version]
  79. Ogoshi, T.; Shiga, R.; Yamagishi, T.A. Reversibly tunable lower critical solution temperature utilizing host-guest complexation of pillar[5] arene with triethylene oxide substituents. J. Am. Chem. Soc. 2012, 134, 4577–4580. [Google Scholar] [CrossRef]
  80. Behr, J.P. Perspectives in Supramolecular Chemistry: The Lock-and-Key Principle; John Wiley & Sons, Ltd.: Chichester, UK, 2007; Volume 1. [Google Scholar]
  81. Wei, P.; Cook, T.R.; Yan, X.; Huang, F.; Stang, P.J. A discrete amphiphilic organoplatinum(ii) metallacycle with tunable lower critical solution temperature behavior. J. Am. Chem. Soc. 2014, 136, 15497–15500. [Google Scholar] [CrossRef]
  82. Zhang, W.; Zhang, Y.M.; Li, S.H.; Cui, Y.L.; Yu, J.; Liu, Y. Tunable nanosupramolecular aggregates mediated by host-guest complexation. Angew. Chem. Int. Ed. 2016, 55, 11452–11456. [Google Scholar] [CrossRef]
  83. Cao, M.; Hu, F.; Han, X.; Zhang, Y.; Wu, D.; Liu, S.H.; Yin, J. Aggregation control of hemicyanine fluorescent dye by using of cucurbit[7] uril and pillar[6] arene. Chin. J. Chem. 2015, 33, 351–355. [Google Scholar] [CrossRef]
  84. Zhang, D.; Tang, H.; Zhang, G.; Wang, L.; Cao, D. A cucurbituril-pillararene ring-on-ring complex. Chem. Commun. 2021, 57, 6562–6565. [Google Scholar] [CrossRef]
  85. Ling, S.; Chen, W.; Fan, Y.; Zheng, K.; Jin, K.; Yu, H.; Buehler, M.J.; Kaplan, D.L. Biopolymer nanofibrils: Structure, modeling, preparation, and applications. Prog. Polym. Sci. 2018, 85, 1–56. [Google Scholar] [CrossRef] [PubMed]
  86. Bew, S.P.; Brimage, R.A.; L’Hermit, N.; Sharma, S.V. Upper rim appended hybrid calixarenes via click chemistry. Org. Lett. 2007, 9, 3713–3716. [Google Scholar] [CrossRef] [PubMed]
  87. Ogoshi, T.; Yamafuji, D.; Kotera, D.; Aoki, T.; Fujinami, S.; Yamagishi, T.A. Clickable di- and tetrafunctionalized pillar[n] arenes (n = 5,6) by oxidation-reduction of pillar[n]arene units. J. Org. Chem. 2012, 77, 11146–11152. [Google Scholar] [CrossRef] [PubMed]
  88. Hou, X.; Ke, C.; Fraser Stoddart, J. Cooperative capture synthesis: Yet another playground for copper-free click chemistry. Chem. Soc. Rev. 2016, 45, 3766–3780. [Google Scholar] [CrossRef]
  89. Ke, C.; Strutt, N.L.; Li, H.; Hou, X.; Hartlieb, K.J.; McGonigal, P.R.; Ma, Z.; Iehl, J.; Stern, C.L.; Cheng, C.; et al. Pillar[5] arene as a Co-factor in templating rotaxane formation. J. Am. Chem. Soc. 2013, 135, 17019–17030. [Google Scholar] [CrossRef]
  90. Hou, X.; Ke, C.; Cheng, C.; Song, N.; Blackburn, A.K.; Sarjeant, A.A.; Botros, Y.Y.; Yang, Y.W.; Stoddart, J.F. Efficient syntheses of pillar[6]arene-based hetero[4]rotaxanes using a cooperative capture strategy. Chem. Commun. 2014, 50, 6196–6199. [Google Scholar] [CrossRef]
  91. Chen, J.F.; Ding, J.D.; Wei, T.B. Pillararenes: Fascinating planar chiral macrocyclic arenes. Chem. Commun. 2021, 57, 9029–9039. [Google Scholar] [CrossRef]
  92. Zhu, H.; Li, Q.; Gao, Z.; Wang, H.; Shi, B.; Wu, Y.; Shangguan, L.; Hong, X.; Wang, F.; Huang, F. Pillararene host-guest complexation induced chirality amplification: A new way to detect cryptochiral compounds. Angew. Chem. Int. Ed. 2020, 59, 10868–10872. [Google Scholar] [CrossRef]
  93. Yang, J.; Shao, L.; Yuan, J.; Huang, F. Construction of a pillar[6] arene based water-soluble supramolecular pseudopolyrotaxane driven by cucurbit[8] uril-enhanced π-π interaction. Chem. Commun. 2016, 52, 12510–12512. [Google Scholar] [CrossRef]
  94. Ding, J.D.; Jin, W.J.; Pei, Z.; Pei, Y. Morphology transformation of pillararene-based supramolecular nanostructures. Chem. Commun. 2020, 56, 10113–10126. [Google Scholar] [CrossRef]
  95. Chen, Y.; Tao, H.Q.; Kou, Y.H.; Meier, H.; Fu, J.L.; Cao, D.R. Synthesis of pillar[7] arene. Chin. Chem. Lett. 2012, 23, 509–511. [Google Scholar] [CrossRef]
  96. Zhang, Z.; Shao, L.; Li, Z.; Yu, G.; Yang, J. A cationic water-soluble pillar[7] arene: Synthesis and its fluorescent host-guest complex in water. Tetrahedron Lett. 2017, 58, 2736–2739. [Google Scholar] [CrossRef]
  97. Shao, L.; Hua, B.; Yang, J.; Yu, G. Pillar[7] arene-based host-guest complex in water: Dual-responsiveness and application in controllable self-assembly. RSC Adv. 2016, 6, 60029–60033. [Google Scholar] [CrossRef]
  98. Zhang, H.; Liu, Z.; Zhao, Y. Pillararene-based self-assembled amphiphiles. Chem. Soc. Rev. 2018, 47, 5491–5528. [Google Scholar] [CrossRef]
  99. Zhang, H.; Liu, Z.; Xin, F.; Zhao, Y. Metal-ligated pillararene materials: From chemosensors to multidimensional self-assembled architectures. Coord. Chem. Rev. 2020, 420, 213425. [Google Scholar] [CrossRef]
  100. Feng, W.; Jin, M.; Yang, K.; Pei, Y.; Pei, Z. Supramolecular delivery systems based on pillararenes. Chem. Commun. 2018, 54, 13626–13640. [Google Scholar] [CrossRef]
  101. Yu, G.; Yu, W.; Mao, Z.; Gao, C.; Huang, F. A pillararene-based ternary drug-delivery system with photocontrolled anticancer drug release. Small 2015, 11, 919–925. [Google Scholar] [CrossRef]
  102. Collier, C.P.; Mattersteig, G.; Wong, E.W.; Luo, Y.; Beverly, K.; Sampaio, J.; Raymo, F.M.; Stoddart, J.F.; Heath, J.R. A[2]catenane-based solid state electronically reconfigurable switch. Science 2000, 289, 1172–1175. [Google Scholar] [CrossRef]
  103. Gil-Ramírez, G.; Leigh, D.A.; Stephens, A.J. Catenanes: Fifty years of molecular links. Angew. Chem. Int. Ed. 2015, 54, 6110–6150. [Google Scholar] [CrossRef] [Green Version]
  104. Evans, N.H. Chiral catenanes and rotaxanes: Fundamentals and emerging applications. Chem. Eur. J. 2018, 24, 3101–3112. [Google Scholar] [CrossRef]
  105. Wu, Q.; Rauscher, P.M.; Lang, X.; Wojtecki, R.J.; Pablo, J.J.d.; Hore, M.J.A.; Rowan, S.J. Poly[n] catenanes: Synthesis of molecular interlocked chains. Science 2017, 358, 1434–1439. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Cao, S.; Zhou, L.; Liu, C.; Zhang, H.; Zhao, Y.; Zhao, Y. Pillararene-based self-assemblies for electrochemical biosensors. Biosens. Bioelectron. 2021, 181, 113164. [Google Scholar] [CrossRef] [PubMed]
  107. Li, Q.; Zhu, H.; Huang, F. Pillararene-based supramolecular functional materials. Trends Chem. 2020, 2, 850–864. [Google Scholar] [CrossRef]
  108. Liang, J.; Gvilava, V.; Jansen, C.; Öztürk, S.; Spieß, A.; Lin, J.; Xing, S.; Sun, Y.; Wang, H.; Janiak, C. Cucurbituril-encapsulating metal-organic framework via mechanochemistry: Adsorbents with enhanced performance. Angew. Chem. Int. Ed. 2021, 60, 15365–15370. [Google Scholar] [CrossRef] [PubMed]
Polymers 14 01777 ch001 550
Chart 1. Illustration of chemical structures of CB[m] and pillar[n]arene.
Chart 1. Illustration of chemical structures of CB[m] and pillar[n]arene.
Polymers 14 01777 ch001
Polymers 14 01777 sch001 550

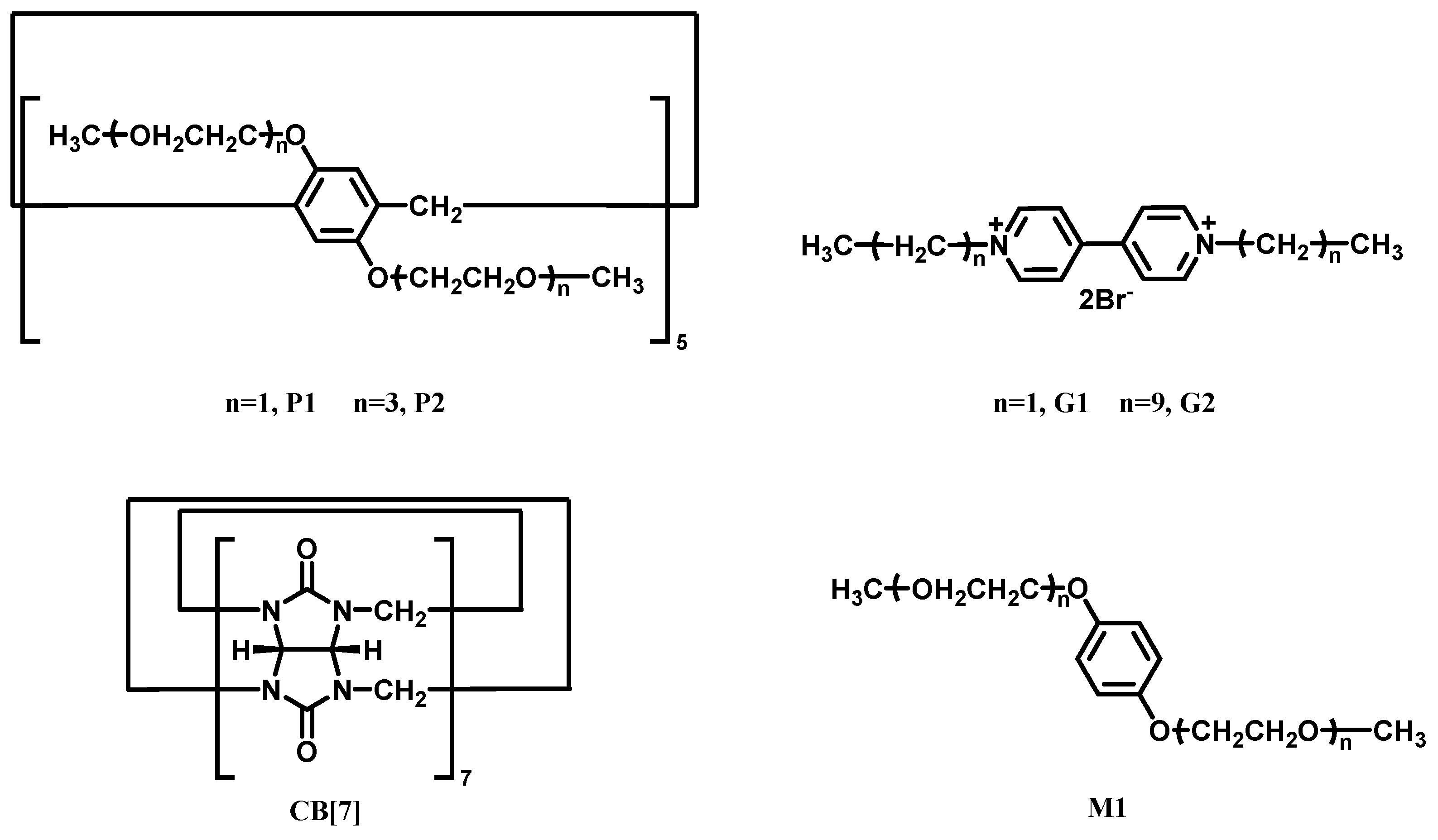

Scheme 1. Chemical structures of pillar[5]arene P1 and P2, CB[7], guest molecules G1 and G2, and monomer M1.
Scheme 1. Chemical structures of pillar[5]arene P1 and P2, CB[7], guest molecules G1 and G2, and monomer M1.
Polymers 14 01777 sch001
Polymers 14 01777 g001 550

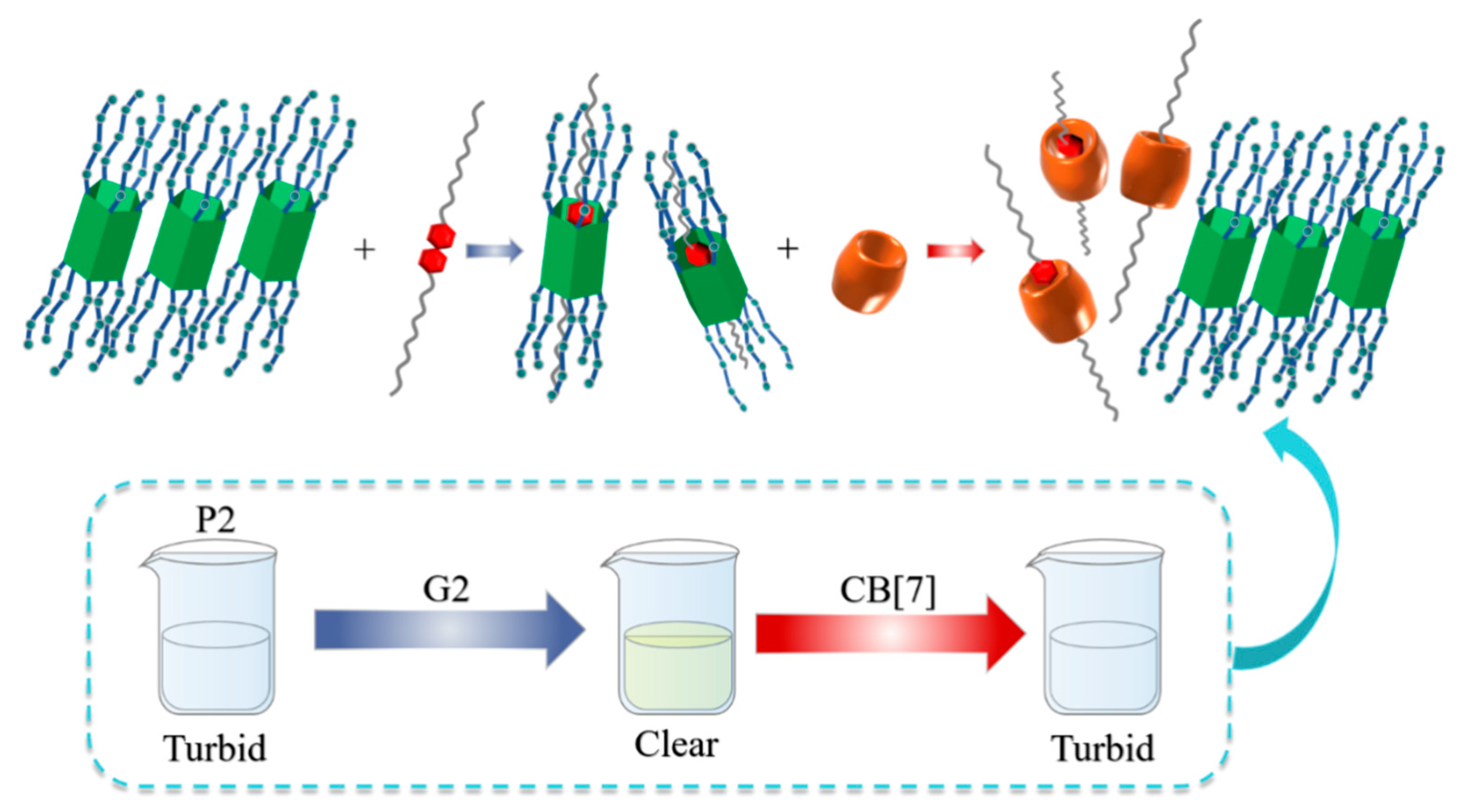

Figure 1. The host–guest inclusion controlled reversible turbid-to-clear/clear-to-turbid transition could be obtained by subsequently adding G2 (b, 1 equiv.) and CB[7] (c, 2.5 equiv.) into the aqueous solution containing P2 (a, 1 equiv.) at 55 °C. Adapted from [79].
Figure 1. The host–guest inclusion controlled reversible turbid-to-clear/clear-to-turbid transition could be obtained by subsequently adding G2 (b, 1 equiv.) and CB[7] (c, 2.5 equiv.) into the aqueous solution containing P2 (a, 1 equiv.) at 55 °C. Adapted from [79].
Polymers 14 01777 g001
Polymers 14 01777 sch002 550
Scheme 2. Chemical structures of pillar[6]arene P3 and G3.
Scheme 2. Chemical structures of pillar[6]arene P3 and G3.
Polymers 14 01777 sch002
Polymers 14 01777 sch003 550

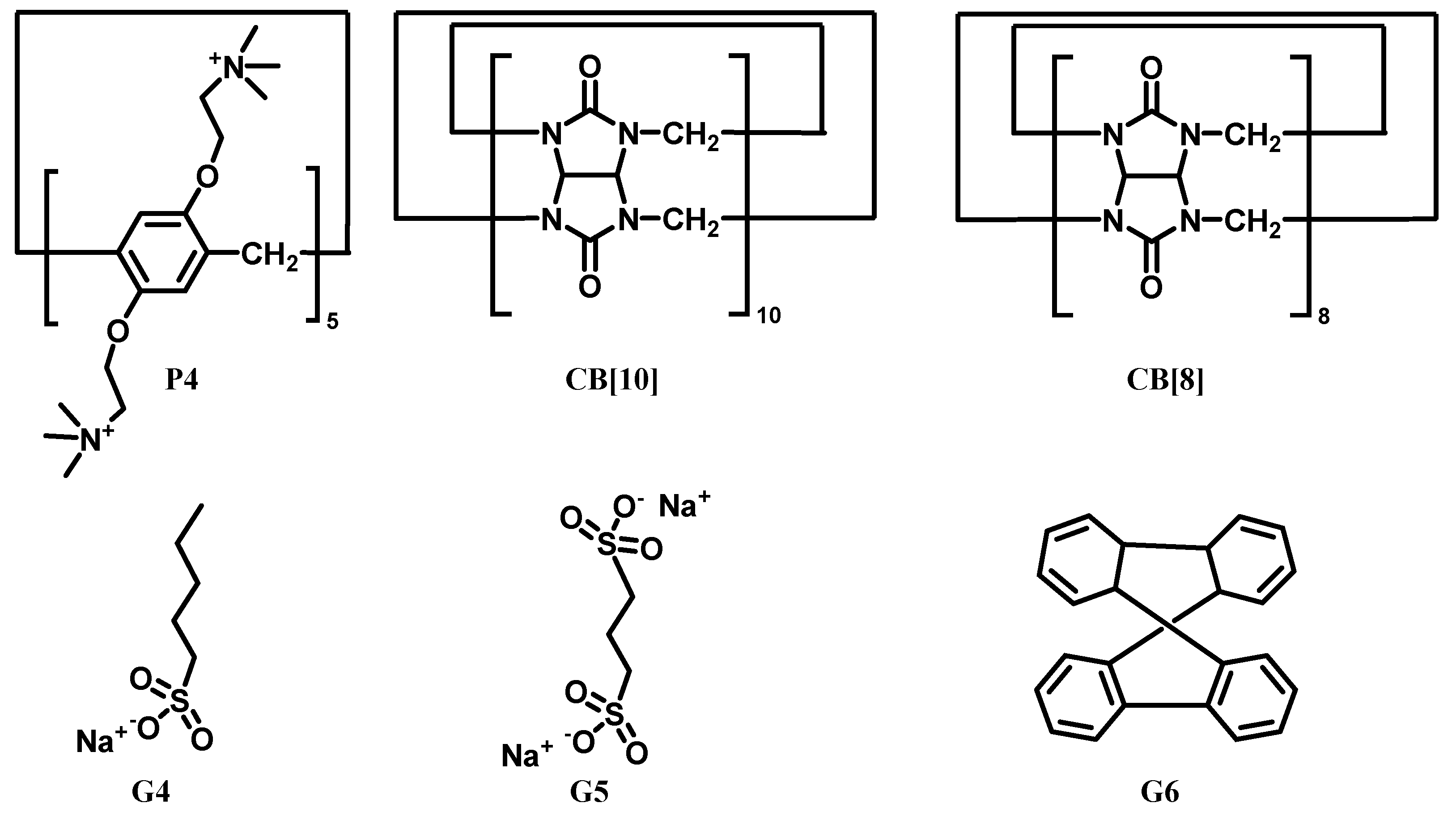

Scheme 3. Chemical structures of pillar[5]arene P4, CB[10] and CB[8], and G4-G6.
Scheme 3. Chemical structures of pillar[5]arene P4, CB[10] and CB[8], and G4-G6.
Polymers 14 01777 sch003
Polymers 14 01777 g002 550
Figure 2. Hybrid macrocyclic systems P4•CB[10] were prepared in diverse molar ratios of 1/2 and 1/1, and the different performances of 1/1 P4•CB[10] in recognizing G4 and G5.
Figure 2. Hybrid macrocyclic systems P4•CB[10] were prepared in diverse molar ratios of 1/2 and 1/1, and the different performances of 1/1 P4•CB[10] in recognizing G4 and G5.
Polymers 14 01777 g002
Polymers 14 01777 sch004 550
Scheme 4. The synthesis of dumbbell compounds CP1-CP4 by using G7-G11, P5 and CB[6].
Scheme 4. The synthesis of dumbbell compounds CP1-CP4 by using G7-G11, P5 and CB[6].
Polymers 14 01777 sch004
Polymers 14 01777 sch005 550
Scheme 5. The synthesis of dumbbell compounds CP5-CP7 by using G8, G9 and G12, P6 and CB[6].
Scheme 5. The synthesis of dumbbell compounds CP5-CP7 by using G8, G9 and G12, P6 and CB[6].
Polymers 14 01777 sch005
Polymers 14 01777 g003 550
Figure 3. X-ray single crystalline structures of CP7 in solid state. The important intermolecular hydrogen bonds are highlighted by using green dash lines. All hydrogen atoms not used in the formation of hydrogen bonding were omitted for clarity [90]. (Adapted and reprinted with permission from [90] © 2014, Chemical Communications).
Figure 3. X-ray single crystalline structures of CP7 in solid state. The important intermolecular hydrogen bonds are highlighted by using green dash lines. All hydrogen atoms not used in the formation of hydrogen bonding were omitted for clarity [90]. (Adapted and reprinted with permission from [90] © 2014, Chemical Communications).
Polymers 14 01777 g003
Polymers 14 01777 sch006 550

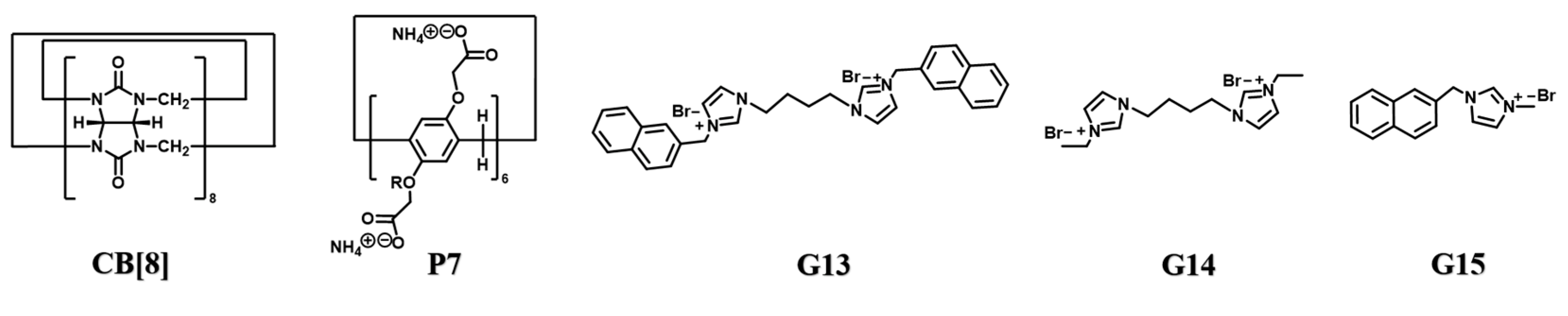

Scheme 6. Chemical structures of pillar[6]arene P7, and guests including G13–G15.
Scheme 6. Chemical structures of pillar[6]arene P7, and guests including G13–G15.
Polymers 14 01777 sch006
Polymers 14 01777 g004 550

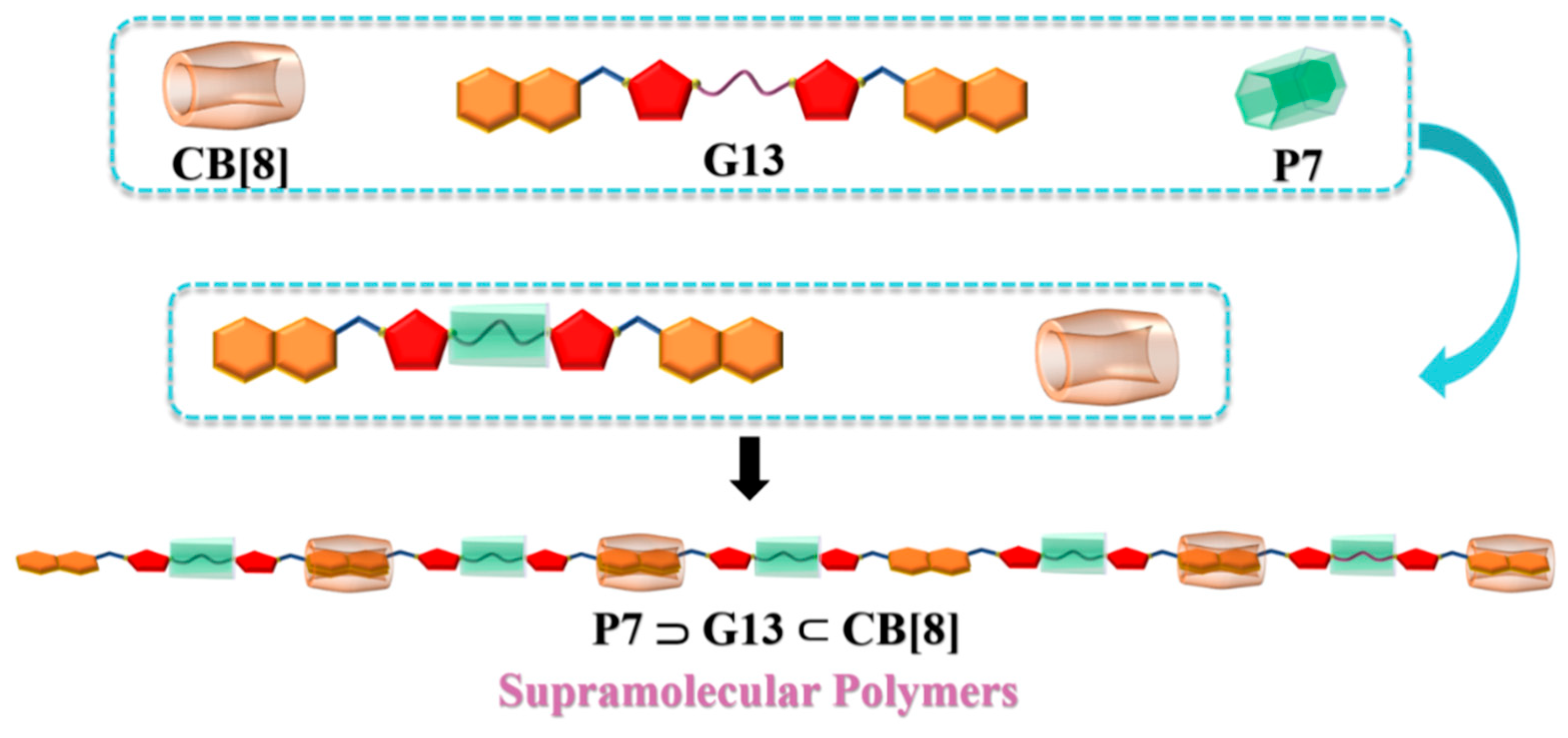

Figure 4. The formation of supramolecular polymers P7⸧G13⊂CB[8]. Adapted from [93].
Figure 4. The formation of supramolecular polymers P7⸧G13⊂CB[8]. Adapted from [93].
Polymers 14 01777 g004
Table
Table 1. The relationship between CB[m] (CB[7] and CB[10]) and pillar[n]arene (P2 and P4) including competition in acting as the host towards guests such as G2, and cooperation in building hybrid macrocyclic system to include guests such as G4-G6.
Table 1. The relationship between CB[m] (CB[7] and CB[10]) and pillar[n]arene (P2 and P4) including competition in acting as the host towards guests such as G2, and cooperation in building hybrid macrocyclic system to include guests such as G4-G6.
CB[m]Pillar[n]areneRelationshipGuestsRef
CB[7]Pillar[5]arene
P2		Competition of hosts (Ka of P2⸧G2 ~103 M−1) vs. (Ka of CB[7]⸧G2 ~105 M−1)G2[79]
CB[10]Pillar[5]arene
P4		Forming hybrid macrocyclic system CB[10]•P4 presenting integrated Ka towards G4 and G6 as ~106 and ~105 M−1G4-G6[84]
Table
Table 2. Self-assembled hybrid macrocyclic systems such as [n]rotaxane CP1-CP7 and supramolecular polymer P7⸧G13⊂CB[8] by different CB[m] such as CB[6] and CB[8], pillar[n]arene including P5-P7, and guests including G7-G13, as the important building blocks.
Table 2. Self-assembled hybrid macrocyclic systems such as [n]rotaxane CP1-CP7 and supramolecular polymer P7⸧G13⊂CB[8] by different CB[m] such as CB[6] and CB[8], pillar[n]arene including P5-P7, and guests including G7-G13, as the important building blocks.
CB[m]Pillar[n]areneSelf-AssemblyGuests as Building BlocksRef
CB[6]Pillar[5]arene
P5		n]Rotaxane CP1-CP4G7-G11[89]
CB[6]Pillar[6]arene
P6		[n]Rotaxane CP5-CP7G8, G9 and G12[90]
CB[8]Pillar[6]arene
P7		Supramolecular polymer P7⸧G13⊂CB[8]G13[93]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, Z.; Li, Z.; Li, B.; Zhou, L.; Zhang, H.; Han, J. Hybrid Macrocyclic Polymers: Self-Assembly Containing Cucurbit[m]uril-pillar[n]arene. Polymers 2022, 14, 1777. https://doi.org/10.3390/polym14091777

AMA Style

Liu Z, Li Z, Li B, Zhou L, Zhang H, Han J. Hybrid Macrocyclic Polymers: Self-Assembly Containing Cucurbit[m]uril-pillar[n]arene. Polymers. 2022; 14(9):1777. https://doi.org/10.3390/polym14091777

Chicago/Turabian Style

Liu, Zhaona, Zhizheng Li, Bing Li, Le Zhou, Huacheng Zhang, and Jie Han. 2022. "Hybrid Macrocyclic Polymers: Self-Assembly Containing Cucurbit[m]uril-pillar[n]arene" Polymers 14, no. 9: 1777. https://doi.org/10.3390/polym14091777

APA Style

Liu, Z., Li, Z., Li, B., Zhou, L., Zhang, H., & Han, J. (2022). Hybrid Macrocyclic Polymers: Self-Assembly Containing Cucurbit[m]uril-pillar[n]arene. Polymers, 14(9), 1777. https://doi.org/10.3390/polym14091777

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
