Article

Regeneration Approach to Enhance the Antimicrobial and Antioxidant Activities of Chitosan for Biomedical Applications

by
Pradeep Kumar Panda
,
Kambiz Sadeghi
,
Kitae Park
and
Jongchul Seo
*
Department of Packaging & Logistics, Yonsei University, Wonju-si 26493, Gangwon-do, Republic of Korea
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(1), 132; https://doi.org/10.3390/polym15010132
Submission received: 14 November 2022 / Revised: 23 December 2022 / Accepted: 26 December 2022 / Published: 28 December 2022
(This article belongs to the Section Polymer Applications)
Browse Figures
Versions Notes

Abstract

:
Owing to its biodegradability, non-toxicity, and biocompatibility, chitosan (Cs) is a ubiquitous biopolymer. However, applications of Cs are limited owing to the existence of strong inter- and intra-molecular hydrogen bonds within its network. To address this issue, we regenerated medium-molecular-weight Cs to enhance the physico-chemical and functional properties using a cationic approach. Accordingly, alkaline modification was employed to introduce an additional positive charge to the amine functional groups of Cs and moderately disintegrate the inter- and intra-hydrogen bonds. The chemical structure of Cs and regenerated chitosan (RCs) was confirmed through Fourier transform infrared and 1H-NMR spectroscopy. RCs showed higher zeta potential value compared to Cs. Additionally, using X-ray diffraction, RCs exhibited low crystallinity, which can be attributed to the repulsive force caused by the positive surface charge and the destruction of hydrogen bonds. The RCs exhibited stronger antioxidant activity than Cs. Furthermore, the minimum inhibition concentrations (MICs) of RCs against Escherichia coli and Staphylococcus aureus were reduced by almost four times compared with those of Cs. The superior functional properties of RCs can be attributed to the formation of a polycationic structure after alkaline modification. Thus, RCs can be introduced as potent agents for various biomedical purposes.

1. Introduction

Chitosan (Cs) is the second most abundant natural linear polysaccharide and multifunctional biopolymer that contains β-(1–4) glucoside bond linkages between d-glucosamine and N-acetyl-d-glucosamine [1,2]. Cs has been utilized for a variety of applications in various industries [3,4,5]. It is derived from chitin via a deacetylation (DD) process [6,7]. Accordingly, depending on the DD and purification processes, Cs can be synthesized with varying molecular weights and degrees of DD. The applications of Cs are significantly dependent upon on its DD and molecular weight (Mw), which determine its physical characteristics, chemical properties, and functional activities [8,9,10]. Cs is hydrophilic in nature owing to the presence of an amino group at the 2-carbon position, a secondary hydroxyl group at the 3-carbon position, and a primary hydroxyl group at the 6-carbon position [11,12,13] (Figure 1); therefore, Cs is polyatomic in nature. Cs is biodegradable, biocompatible, biologically renewable, nontoxic, non-antigenic, and bio-functional, rendering it attractive for various applications, including drug delivery, tissue engineering, antimicrobial systems, and antibacterial treatments [14,15,16,17,18]. Cs has also been widely used in polymer science as a nanoparticle, especially in the fields of nanomedicine, packaging, and cancer therapy [19,20,21]. Therefore, Cs is a promising natural polymer for application in multidisciplinary fields.
Although Cs has received considerable attention for biological applications, its applicability is still limited owing to the existence of strong inter- and intra-molecular hydrogen bonds within its network and poor solubility in solvents used in the biomedical field, such as water. Recently, numerous studies have focused on improving the water solubility of Cs via chemical modifications [22,23,24]. Nevertheless, chemical modification processes are expensive, time consuming, environmentally unfriendly, and complicated, and present difficulties due to the formation of byproducts [25]. To overcome these challenges, it is necessary to develop a suitable method for improving the functional properties of Cs. For example, the direct addition of natural polysaccharides, such as Cs, into other polymers does not yield a good miscible blend owing to the presence of a strong molecular hydrogen bonding network [26,27]. In this context, Cs can be regenerated via a simple method to improve its physico-chemical properties, including its functional properties. Accordingly, many researchers have tried to synthesize regenerated chitosan using different methods. Generally, an additional hydrogen ion (H+) is generated in a Cs solution during the regeneration process, leading to the weakening of the inter- and intra-molecular hydrogen bonds in the Cs macromolecule. Yu et al. fabricated a rubber/regenerated chitin composite system in an aqueous medium. Subsequently, they prepared a composite from the regenerated materials, which demonstrated enhanced functional properties and potential industrial applications [28]. Furthermore, Cs can be regenerated using the ionic liquid method; however, the process is unsafe owing to the formation of byproducts, as well as being expensive and involving complicated purification processes [29]. Regenerated chitosan (RCs) can be applied in many biomedical applications such as drug delivery and tissue engineering. In addition, it has been reported that polycation polymers possess good biocompatibility and bacteriostatic properties, and that, as a result, they could be used as biomaterials [30]. Nonetheless, few studies have focused on increasing the positive charge on the surface of Cs to enhance its biological properties in the quaternized state [31,32,33,34]. However, modifying Cs using this approach is complicated, especially for medium and high molecular Cs. Cs can be modified to its quaternary ammonium salt to enhance its water solubility and, therefore, its functional properties, including antibacterial properties. Ke et al. prepared a quaternary ammonium salt modified Cs microsphere by an emulsion crosslinking reaction for dyeing wastewater treatment [35]. The maintenance of cell viability is important for any application of biomaterials. Hu et al. studied the effect of Cs quaternary ammonium salt on the growth and release of Microcystis aeruginosa, showing that it acts as a safe inhibitor [36]. Moreover, some studies have shown that quaternary ammonium salt of Cs has excellent mechanical properties and a homogenous 3D structure [30,37].
To date, only a few studies have focused on regenerating Cs, with special attention dedicated to the improvement of its antioxidant and antimicrobial properties. Therefore, we synthesized regenerated Cs using a simple co-precipitation method with alkaline cationic modification. A positive surface charge was introduced onto the amine functional groups by modifying the inter- and intra-molecular bonds. The chemical structures of Cs and regenerated Cs (RCs) were determined through proton nuclear magnetic resonance and Fourier transform infrared spectroscopy. In addition, the in vitro antibacterial and antioxidant properties were investigated to assess the functional properties of RCs. The crystallinity and thermal stability of the samples were also evaluated.

2. Materials and Methods

2.1. Materials

A Cs powder with a medium molecular weight (degree of deacetylation: approximately 85%; Mw = 190–310 kDa), agar, deuterated acetic acid (CD3COOD), potassium ferricyanide, and deuterated water (D2O) were purchased from Sigma-Aldrich (Saint Louis, MO, USA). Sodium hydroxide (NaOH) was also purchased from Sigma-Aldrich (Tokyo, Japan). A nutrient broth was obtained from Becton, Dickinson and Company (Franklin Lakes, NJ, USA). Escherichia coli (E. coli, DH5α) and Staphylococcus aureus (S. aureus, ATCC29213) were procured from the Korea Culture Center of Microorganisms (Seoul, South Korea). Phosphate buffer solution (PBS, pH = 7.4), tricholroacetic acid, and ferric chloride were bought from Daejung (Gyeongg-do, South Korea). Furthermore, 2, 2-diphenyl-1-picrylhydrazyl (DPPH) was obtained from Alfa Aesar (Ward Hill, MA, USA). Ethanol, methanol, and acetic acid were obtained from a local vendor in the Republic of South Korea. All reagents and chemicals not listed above were used as received. Deionized (DI) water was used throughout the experiment.

2.2. Synthesis of RCs

Cs powder (2 wt%) was dissolved in aqueous acetic acid (1.5 wt%) and stirred at room temperature (23 °C) for 8 h. Subsequently, the sample was completely precipitated using aqueous NaOH (1 wt%). The precipitate was collected using a centrifuge (4500 rpm) for 15 min at room temperature. The sample was rinsed multiple times using a mixture of ethanol and water (1:1 v/v). Thereafter, the sample was dried in a freeze-dryer (TFD8501, ilShinbiobase Co. Ltd., Dongducheon, South Korea) at −87 °C for 18 h. The dried samples were gently ground using a mortar and pestle and kept in a desiccator cabinet for further analysis.

2.3. Characterization

2.3.1. Fourier Transform Infrared (FTIR) Spectroscopy Analysis

The chemical structures of the samples were analyzed using a FTIR (PerkinElmer, Waltham, MA, USA) spectrometer in the attenuated total reflection (ATR) mode. All spectra were collected in the transmission mode (T) within a wavenumber range of 4000–400 cm−1 with 32 scans. Air was used as a reference during the analysis.

2.3.2. Proton Nuclear Magnetic Resonance (1H-NMR) Analysis

The chemical structures of the samples were further investigated using a 1H-NMR spectrometer (Avance II 400 MHz; Bruker, MA, USA). The samples (5 mg mL−1) were initially dissolved in a mixture of CD3COOD and D2O (1% v/v). The analysis was performed at ambient temperature, and tetramethylsilane was used as an internal standard. The 1H-NMR spectra were recorded, and the chemical shifts were measured in parts per million (ppm).

2.3.3. X-ray Diffraction (XRD) Analysis

The XRD patterns of the samples were measured using a multipurpose X-ray diffractometer (SmartLab 9 kW system, Rigaku Co., Tokyo, Japan) in a 2 θ range of 5–80°. During the analysis, the operating voltage and current were 40 kV and 40 mA, respectively, and the wavelength was 0.154 nm. The degree of crystallinity is the ratio of the sum of the deconvoluted crystalline peak area over the sum of the crystalline and amorphous deconvoluted peak area.
Crystallinity (%) = [Acr/(Acr + Aam)] × 100
where Acr and Aam are the integrated area of the crystalline and amorphous peaks, respectively. The integrated areas were calculated using the Origin Software (Origin Lab Co., Northampton, MA, USA).

2.3.4. Analysis of Thermal Properties

The thermal properties of the samples were determined using thermogravimetric analysis (TGA 4000, PerkinElmer Inc., Waltham, MA, USA) and differential scanning calorimetry (DSC Q-20, TA Instrument Co., DE., New Castle, USA). The thermal stabilities of the samples were investigated using TGA. For this, samples (10–11 mg) were heated from 30 °C to 800 °C at a rate of 10 °C min−1. Nitrogen was continuously supplied for purging during the analysis at a rate of 20 mL min−1. Graphs were plotted between the weight percentage and temperature (TGA) and derived weight percentage and temperature (DTG). A DSC analysis was conducted as follows: all samples (5–6 mg) were packed into a thermal analysis (TA) aluminum pan and heated from 40 °C to 250 °C at a rate of 10 °C min−1 under a continuous flow of nitrogen gas (50 mL min−1). Data obtained from the DSC were analyzed using the TA 2000 software.

2.3.5. Zeta Potential Analysis

The zeta potentials of the Cs and RCs were determined using an ELS-1000ZS Nano Zeta sizer instrument (Otsuka Electronics, Osaka, Japan). The samples were dispersed in DI water at a concentration of 100 ppm. The zeta potentials of the samples were analyzed at room temperature.

2.3.6. Antibacterial Activity Analysis

The antimicrobial activity of the samples was evaluated against E. coli (gram-negative) and S. aureus (gram-positive) based on the minimum inhibitory concentration (MIC), using the agar plate method. The RCs and Cs solutions (1 wt% w/v) were prepared using aqueous hydrochloric acid (0.3% v/v) and autoclaved at 121 °C for 15 min. Samples were prepared with different concentrations (0.1, 0.05, 0.025, 0.0125, 0.00625, 0.00313, and 0.0015625%). Aqueous hydrochloric acid (0.3% v/v) and zinc oxide (ZnO) were used as the negative and positive controls, respectively. E. coli and S. aureus suspensions were prepared by transferring a single colony of each microbe into a nutrient broth and tryptic soy broth (10 mL), respectively. The microbial suspensions were incubated at 37 °C for 24 h. Subsequently, an aliquot (1 mL) of each suspension was transferred into each Cs or RCs sample (9 mL) to identify the MIC against bacteria. Sterile distilled water was used to dilute the culture of each bacterium. The number of colonies forming units (CFUs) was calculated per mL; the value was 4.12 × 105. All tests were done at least three times. Bacterial counts were taken by spreading each microbe on an agar plate [38].

2.3.7. Antioxidant Activity Analysis

A DPPH assay was employed to evaluate the antioxidant activity of the samples, with certain modifications [39]. Briefly, DPPH (100 µM) was dissolved in methanol (99.8%). Subsequently, 1 mL of RCs or Cs (1 mg mL−1) was incubated with a DPPH solution (1 mL) for 30 min in the dark. The absorbance of the samples was measured using ultraviolet–visible spectroscopy (UV–vis UV-2600i, Shimadzu, Kyoto, Japan) at a wavelength of 517 nm [40,41]. The DPPH scavenging activity (%) was calculated using the following equation:
DPPH   scavenging   activity   ( % ) = ( 1 − A s a m p l e /   A c o n t r o l ) × 100
where Acontrol and Asample are the absorbance values of the control (without sample) and sample (with DPPH solution), respectively. Each test was performed at least three times.
Ferric reducing power assay was done as per a previous study [2,42]. One milligram of sample was added to a mixture of PBS (2.5 mL) and 1 wt% of aqueous potassium ferricyanide (2.5 mL). The above mixture was heated at 50 °C for 20 min. After cooling to room temperature, 10 wt% of aqueous tricholoroacetic acid (2.5 mL) was added and the mixture was centrifuged at 3000 rpm for 10 min. The upper layer of the mixture (2.5 mL) was mixed with DI water and 0.1 wt% aqueous ferric chloride solution and kept for 10 min. Then, the absorbance at 700 nm was measured. Each experiment was done at least three times.

3. Results and Discussion

3.1. FTIR Spectroscopy Analysis

A FTIR spectroscopy analysis was conducted to identify the chemical structure of the samples. As illustrated in Figure 2, the Cs and RCs spectra exhibited different peaks related to the chemistry of the samples, as summarized in Table 1. The FTIR spectrum of Cs exhibited several major characteristic bands. The bands at 3570–3000 cm−1 correspond to the stretching vibrations of O–H and N–H, and those at 2950–2840 cm−1 can be assigned to C–H symmetric and asymmetric stretching [43]. The bands at 1648, 1562, and 1384 cm−1 can be attributed to amide I, amide II, and amide III, respectively [44]. Furthermore, C–O stretching and pyranose ring bands were observed at 1064 and 892 cm−1, respectively [2]. The peaks corresponding to Cs and RCs were similar, and no new peaks or peak shifts were detected. However, all major bands were slightly shifted to lower wavenumbers. This can be attributed to the disintegration of the inter- and intra-molecular hydrogen bonds in Cs [9]. In addition, chemical changes in the amine functional groups were limited to the surface charges rather than the backbone modifications. The RCs spectrum indicated that the peak intensity was reduced, and the peaks were broadened owing to the destruction of hydrogen bonds within the molecule [1].

3.2. 1H-NMR Analysis

The chemical structure was further analyzed using 1H-NMR spectroscopy. The 1H-NMR spectra of Cs and RCs are depicted in Figure 3. As illustrated in Figure 3a, the chemical shifts at 3.187, 3.710–4.579, and 5.263 ppm can be assigned to H-2, H-3 to H-6, and H-1, respectively, thereby confirming the molecular structure of Cs [1,45]. In addition, the chemical shifts corresponding to RCs were mostly similar to those corresponding to Cs (Figure 3b). A new peak was observed at approximately 1.0 ppm, which might have been due to the residue of the reaction. A possible mechanism behind the chemical reaction is provided in Figure 4. During the chemical reaction, hydrogen ions were formed when the Cs solution was precipitated with NaOH. A hydrogen ion (positive charge) was attached to the amine functional group of the Cs molecule which was difficult to identify using proton NMR spectroscopy. This difficulty might also have been the result of various factors such as the NMR solvent type, reaction conditions, or determination of the exact amount of protonation during the chemical reaction. Moreover, the degree of deacetylation (DD) of the samples was not calculated because the reaction approach was not drastic enough to achieve a deacetylation reaction [46]. It is important to note that no additional peaks were detected in the 1H-NMR and FTIR spectra, indicating that the regeneration process employed in this study did not alter the backbone of Cs. The regeneration process was performed to improve the surface charge, which would greatly improve the functional properties of Cs [32,47].

3.3. XRD Analysis

The XRD pattern of the polymeric sample, depicted in Figure 5, was used to analyze the crystallinity of the sample. The crystallinity of the samples was measured according to the procedure reported in a previous study [48,49], and the results are summarized in Table 2. In both samples, the spectral pattern was similar to the variation in peak intensity (Table 2). Both the samples exhibited main characteristic peaks at approximately 2 θ = 20.4°. However, the degree of crystallinity for the samples varied, which could be ascribed to the relative intensity. The relative intensity of Cs was higher than that of RCs, indicating a reduction in the crystallinity. Generally, a polymeric sample exhibiting a sharp peak is considered to be a crystalline material [50]. From this perspective, it can be concluded that the destruction of inter- and intra-molecular bonds tends to reduce the crystallinity of RCs. In addition, the introduction of surface charge might lead to a repulsive force in the materials, interfering with the chain ordering in the crystalline segments of the RCs. Therefore, regeneration in this study led to a reduction in crystallinity, which could enhance the interaction of RCs owing to the higher mobility in the change and functional groups.

3.4. Thermogravimetric Analysis (TGA)

The TGA was employed to determine the thermal stability of the polymeric samples and identify unwanted byproducts produced during regeneration process. The thermal stabilities of the samples are presented in Figure 6. The maximum thermal decomposition temperature was accurately obtained from the DTG curve (Figure 6, inset), and the results are listed in Table 3. As illustrated in Figure 6, both the samples exhibit a similar trend of weight loss at different temperatures. Accordingly, two weight loss stages were found in the samples. The first weight loss stage was found approximately at 50–100 °C owing to the water evaporation. The second weight loss stage at approximately 250–350 °C can be attributed to the decomposition of the Cs backbone. Notably, the second weight loss stage was prominent, which can be observed in the DTG curve. The maximum decomposition temperatures of RCs and Cs were 287 and 302 °C, respectively, confirming the lower thermal stability of RCs than that of Cs. This can be explained by the destruction of inter- and intra-molecular hydrogen bonds in the RCs. In addition, this could be because materials with higher crystallinity are known to exhibit higher thermal stability. Moreover, Table 3 indicates that Td10% (temperature at 10% weight loss) and Td40% (temperature at 40% weight loss) of Cs were significantly higher than those of RCs, which is in agreement with the XRD data. It is worth noting that the decomposition peaks in both the samples were similar, indicating that the regeneration process did not lead to the formation of by-products or unwanted residues, which is consistent with the 1H-NMR results.

3.5. DSC Analysis

The thermal properties of the samples were investigated via DSC to further confirm the thermal stability of RCs. As depicted in Figure 7, the melting temperature of RCs (174.14 °C) is lower than that of Cs (182.35 °C). Additionally, the melting enthalpies (ΔHm) of the samples were compared using the results obtained by integrating the area under the melting peak. Accordingly, ΔHm of RCs (16.32 J/g) was lower than that of Cs (24.89 J/g), indicating a lower crystallinity. The decrease in the melting point and ΔHm of RCs is consistent with their lower crystallinity and change in the molecular bonding, indicating the successful regeneration of Cs. The endothermic peak of RCs was found to be formed at a lower temperature than that of the Cs sample [51].

3.6. Zeta Potential Analysis

The exact surface charge of the samples was confirmed using the zeta potential analysis. The zeta potential of Cs was 42.81 mV, whereas that of RCs was 56.61 mV, which is significantly higher. The higher zeta potential of RCs indicates the formation of additional positive surface charges during the chemical reaction. It is known that during the chemical reaction, hydrogen ions dissociate during precipitation and directly attach to the surface of the amine functional group of the Cs molecule, which makes it a polycation. Consequently, the inter- and intra-molecular hydrogen bonds disintegrated completely. Therefore, the functional properties of the RCs were enhanced.

3.7. Antibacterial Activity

The antibacterial activities of the samples, according to the MIC reported in wt%, are presented in Table 4. It was concluded that RCs exhibited higher antimicrobial activities against the microorganisms (E. coli and S. aureus) used in the study. Additionally, all the samples exhibited a better antimicrobial activity against E. coli. ZnO (as a well-known antibacterial agent) [52] and HCl were used as the positive and negative controls, respectively. Notably, the synthesized RCs exhibited a higher antibacterial activity against both microorganisms compared with ZnO.
Generally, polycationic materials exhibit better antibacterial activities than corresponding virgin polyatomic materials [53]. Cs is a macromolecule that can’t easily pass through the outer membrane of bacteria [54]. Therefore, a direct access to Cs to the intracellular parts of the cell is unlikely. Accordingly, the antibacterial mechanisms of Cs have been suggested. The positive charge of the amino group at C-2 in the polycationic structure can interact with the anionic components (lipopolysaccharides and proteins) present predominantly on the surface of the microorganism. The interaction results in an intense deformation at the outer membrane structure, resulting in a leakage of proteinaceous cells [37]. The regeneration of Cs into RCs introduces additional positive charges on the amino groups of the RCs. Consequently, RCs further interacts with the anionic components of the cell surface and inhibits bacterial growth at a lower concentration. The antibacterial potency of RCs against E. coli was different from that for S. aureus owing to differences in the cell wall structure. Gram-positive bacteria (e.g., S. aureus) possess higher peptidoglycans (thicker cell walls) than gram-negative bacteria (e.g., E. coli). Therefore, RCs exhibited stronger antimicrobial properties than Cs [55]. Apart from the above reasons, antibacterial activity of Cs highly depends upon its molecular weight, concentration, and number of moles of the amino group [56].

3.8. Antioxidant Activity

The DPPH and reducing power assay were used to evaluate the antioxidant activity of the samples. DPPH is a stable free radical that accepts an electron or hydrogen atom. The radical scavenging activity (%) of the samples was evaluated by measuring the absorbance of the samples at a wavelength of 517 nm. The results are presented in Table 5. Gallic acid was used as the positive control, as it is a well-known antioxidant. The radical scavenging activities (%) of Cs, RCs, and gallic acid were 45.26, 87.32, and 95.44%, respectively. The RCs demonstrated potent antioxidant activity, comparable to that of the positive control (Gallic acid) in the same condition. Additionally, the RCs exhibited a significant increase in the radical scavenging activity (87.32%), indicating higher antioxidant effects. The radical scavenging activity of Cs might be related to the reaction of free radicals with the hydroxyl group at the C-6 position through H-abstraction and the reaction of free radicals with the amino group at the C-2 position to form a stable macromolecule [2,57]. Cs is known to possess a compact structure owing to the presence of stronger inter- and intra-molecular hydrogen bonds inside the macromolecule. Therefore, it exhibits a high viscosity and low mobility for interactions with radical species. Conversely, RCs, with a higher positive charge (additional hydrogen), lower inter- and intra-molecular hydrogen bonding, low viscosity, and higher mobility, tends to readily donate a hydrogen atom to each DPPH radical molecule and stabilize the radical species. Therefore, RCs was found to exhibit higher antioxidant activities, enabling its use as a strong antioxidant.
A reducing power assay was performed; the data are shown in Table 5. In this assay, Fe3+ is converted to Fe2+, which reacts with ferric chloride solution, forming a ferrous complex. The maximum absorption value of ferrous complex is 700 nm. The more absorbance of the reaction mixture showed more reducing power. In Table 5, Cs has an absorption of 0.36, whereas RCs has a value of 88.21, which is significantly higher. RCs donates electrons more readily than Cs due to its enhanced reducing power, which accelerates the formation of Fe2+. The above results show that RCs has more antioxidant activity than Cs, comparable with the positive control (Gallic acid). This result is in agreement with the DPPH assay.

4. Conclusions

In this study, medium molecular weight Cs was regenerated to RCs with a polycationic structure using a facile alkaline cationic treatment process. FTIR spectra and 1H-NMR spectroscopy confirmed that the backbone of Cs had remained unaltered, indicating that the regeneration was restricted to the functional groups present on the amine group. In addition, a decrease in the melting point, ΔHm, (34.43% decrease) and thermal decomposition confirmed the lower crystallinity of RCs owing to the introduction of a positive surface (repulsive force) and the destruction of hydrogen bonds. Alkaline regeneration resulted in the formation of a polycationic structure on the amine functional groups of RCs, strengthening the interaction of this material with radical species and bacteria. The simple cationic regeneration process yielded enhanced antimicrobial properties against representative bacteria (MICs of RCs were reduced almost four-fold more compared to those of Cs) and a higher antioxidant activity (42.06% enhanced in DPPH assay and 52% enhanced in FRAP assay). The results for functional properties tests were comparable with those of the positive controls, indicating the strong functionality of RCs. The modification of Cs using NaOH might be varied depending on the NaOH concentration. As a result, a lower or higher concentration of NaOH might lead to Cs with different properties, although this needs to be studied. Therefore, the RCs prepared using this new facile strategy could be used as an antimicrobial and antioxidant compound in biomedical applications.

Author Contributions

Conceptualization, P.K.P. and J.S.; methodology, P.K.P.; software, P.K.P., K.S. and K.P.; validation, P.K.P., K.S., K.P. and J.S.; formal analysis, P.K.P., K.S. and J.S.; investigation, P.K.P.; resources, J.S. and P.K.P.; data curation, P.K.P. and K.S.; writing—original draft preparation, P.K.P.; writing—review and editing, P.K.P., K.S. and J.S.; visualization, P.K.P. and K.P., supervision, J.S.; project administration, J.S. and P.K.P.; funding acquisition, J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Technology Development Program funded the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIP) (grant number 2020R1A2B5B010017970). This work also supported by Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, Forestry and Fisheries (IPET) through (High value-added Food Technology Development Program), funded by Ministry of Agriculture, Food and Rural Affairs (MAFRA) (grant number 321048041HD030).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the support of Yonsei Research Center for Research Facilities for excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Panda, P.K.; Yang, J.M.; Chang, Y.H. Water-induced shape memory behavior of poly (vinyl alcohol) and p-coumaric acid-modified water-soluble chitosan blended membrane. Carbohydr. Polym. 2021, 257, 117633. [Google Scholar] [CrossRef] [PubMed]
  2. Panda, P.K.; Yang, J.M.; Chang, Y.H.; Su, W.W. Modification of different molecular weights of chitosan by p-Coumaric acid: Preparation, characterization and effect of molecular weight on its water solubility and antioxidant property. Int. J. Biol. Macromol. 2019, 136, 661–667. [Google Scholar] [CrossRef] [PubMed]
  3. Aider, M. Chitosan application for active bio-based films production and potential in the food industry. LWT-Food Sci. Techonol. 2010, 43, 837–842. [Google Scholar] [CrossRef]
  4. Pokharel, S.; Yadav, P.N.; Adhikari, R. Applications of chitin and chitosan in industry and medical science: A review. Nepal. J. Sci. Technol. 2015, 16, 99–104. [Google Scholar] [CrossRef] [Green Version]
  5. Song, Z.; Li, G.; Guan, F.; Liu, W. Application of chitin/chitosan and their derivatives in the papermaking industry. Polymer 2018, 10, 389. [Google Scholar] [CrossRef] [Green Version]
  6. Honary, S.; Ghajar, K.; Khazaeli, P.; Shalchian, P. Preparation, characterization and antibacterial properties of silver-chitosan nanocomposites using different molecular weight grades of chitosan. Trop J. Pharm. Res. 2011, 10, 69–74. [Google Scholar] [CrossRef]
  7. Kumar, M.N.R. A review of chitin and chitosan applications. React. Funct. Polym. 2000, 46, 1–27. [Google Scholar] [CrossRef]
  8. Bof, M.J.; Bordagaray, V.C.; Locaso, D.E.; García, M.A. Chitosan molecular weight effect on starch-composite film properties. Food Hydrocoll. 2015, 51, 281–294. [Google Scholar] [CrossRef]
  9. Panda, P.K.; Dash, P.; Chang, Y.H.; Yang, J.M. Improvement of chitosan water solubility by fumaric acid modification. Mater. Lett. 2022, 316, 132046. [Google Scholar] [CrossRef]
  10. Liu, Z.; Ge, X.; Lu, Y.; Dong, S.; Zhao, Y.; Zeng, M. Effects of chitosan molecular weight and degree of deacetylation on the properties of gelatine-based films. Food Hydrocoll. 2012, 26, 311–317. [Google Scholar] [CrossRef]
  11. Luan, F.; Wei, L.; Zhang, J.; Mi, Y.; Dong, F.; Li, Q.; Guo, Z. Antioxidant activity and antifungal activity of chitosan derivatives with propane sulfonate groups. Polymers 2018, 10, 395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Panda, P.K.; Yang, J.M.; Chang, Y.H. Preparation and characterization of ferulic acid-modified water-soluble chitosan and poly (gamma-glutamic acid) polyelectrolyte films through layer-by-layer assembly towards protein adsorption. Int. J. Biol. Macromol. 2021, 171, 457–464. [Google Scholar] [CrossRef] [PubMed]
  13. Yang, J.M.; Panda, P.K.; Jie, C.J.; Dash, P.; Chang, Y.H. Poly (vinyl alcohol)/chitosan/sodium alginate composite blended membrane: Preparation, characterization, and water-induced shape memory phenomenon. Polym. Eng. Sci. 2022, 62, 1526. [Google Scholar] [CrossRef]
  14. Mi, F.L.; Tan, Y.C.; Liang, H.F.; Sung, H.W. In vivo bicompatibility and degradability of a novel injectable-chitosan-based implant. Biomaterials 2022, 23, 181–191. [Google Scholar] [CrossRef] [PubMed]
  15. Panda, P.K.; Dash, P.; Yang, J.M.; Chang, Y.H. Development of chitosan, graphene oxide, and cerium oxide composite blended films: Structural, physical, and functional properties. Cellulose 2022, 29, 2399–2411. [Google Scholar] [CrossRef]
  16. Tamer, T.M.; Valachová, K.; Hassan, M.A.; Omer, A.M.; El-Shafeey, M.; EldinŠoltés, M.S.M. Chitosan/hyaluronan/edaravone membranes for anti-inflammatory wound dressing: In vitro and in vivo evaluation studies. Mater. Sci. Eng. C 2018, 90, 227–235. [Google Scholar] [CrossRef]
  17. Tamer, T.M.; Collins, M.N.; Valachová, K.; Hassan, M.A.; Omer, A.M.; Mohy-Eldin, M.S.; Švík, K.; Jurčík, R.; Ondruška, Ľ.; Biró, C. MitoQ loaded chitosan-hyaluronan composite membranes for wound healing. Materials 2018, 11, 569. [Google Scholar] [CrossRef] [Green Version]
  18. Yildirim-Aksoy, M.; Beck, B. Antimicrobial activity of chitosan and a chitosan oligomer against bacterial pathogens of warmwater fish. J. Appl. Microbiol. 2017, 122, 1570–1578. [Google Scholar] [CrossRef]
  19. Ahmad, M.Z.; Rizwanullah, M.; Ahmad, J.; Alasmary, M.Y.; Akhter, M.H.; Abdel-Wahab, B.A.; Warsi, M.H.; Haque, A. Progress in nanomedicine-based drug delivery in designing of chitosan nanoparticles for cancer therapy. Int. J. Polym. Mater. Polym. Biomater. 2022, 71, 602–623. [Google Scholar] [CrossRef]
  20. Kim, D.S.; Dhand, V.; Rhee, K.Y.; Park, S.J. Study on the effect of silanization and improvement in the tensile behavior of graphene-chitosan-composite. Polymers 2015, 7, 527–551. [Google Scholar] [CrossRef]
  21. Azizian, S.; Hadjizadeh, A.; Niknejad, H. Chitosan-gelatin porous scaffold incorporated with Chitosan nanoparticles for growth factor delivery in tissue engineering. Carbohydr. Polym. 2022, 202, 315–322. [Google Scholar] [CrossRef] [PubMed]
  22. Gomez-Maldonado, D.; Filpponen, I.; Hernandez-Diaz, J.A.; Waters, M.N.; Auad, M.L.; Johansson, L.S.; Peresin, M.S. Simple functionalization of cellulose beads with pre-propargylated chitosan for clickable scaffold substrates. Cellulose 2021, 28, 6073–6087. [Google Scholar] [CrossRef]
  23. Huaytragul, J.; Chalitangkoon, J.; Monvisade, P.; Chotsaeng, N. Enhancing chitosan solubility in alcohol: Water mixtures for film-forming systems releasing with turmeric extracts. J. Taiwan Inst. Chem. Eng. 2021, 123, 293–301. [Google Scholar] [CrossRef]
  24. Kandile, N.G.; Mohamed, M.I.; Zaky, H.T.; Nasr, A.S.; Ali, A.G. Quinoline anhydride derivatives cross-linked chitosan hydrogels for potential use in biomedical and metal ions adsorption. Polym. Bull. 2022, 79, 2461–2486. [Google Scholar] [CrossRef]
  25. Abdelhamid, H.N. Chitosan-Based Nancarriers for Gene Delivery. Nanoeng. Biomater. 2022, 91–105. [Google Scholar]
  26. Huang, B.; He, H.; Liu, H.; Zhang, Y.; Chen, H.; Ma, Y. Co-precipitated poly (vinyl alcohol)/chitosan composites with excellent mechanical properties and tunable water-induced shape memory. Carbohydr. Polym. 2020, 245, 116445. [Google Scholar] [CrossRef]
  27. Huang, B.; He, H.; Liu, H.; Wu, W.; Ma, Y.; Zhao, Z. Mechanically strong, heat-resistant, water-induced shape memory poly (vinyl alcohol)/regenerated cellulose biocomposites via a facile co-precipitation method. Biomacromolecules 2019, 20, 3969–3979. [Google Scholar] [CrossRef]
  28. Yu, P.; He, H.; Luo, Y.; Jia, D.; Dufresne, A. Elastomer reinforced with regenerated chitin from alkaline/urea aqueous system. ACS Appl. Mater. Interfaces 2017, 9, 26460–26467. [Google Scholar] [CrossRef]
  29. Sun, X.; Huang, C.; Xue, Z.; Mu, T. An environmentally benign cycle to regenerate chitosan and capture carbon dioxide by ionic liquids. Energy Fuels 2015, 29, 1923–1930. [Google Scholar] [CrossRef]
  30. Geng, Z.; Ji, Y.; Yu, S.; Liu, Q.; Zhou, Z.; Guo, C.; Pei, D. Preparation and characterization of a dual cross-linking injectable hydrogel based on sodium alginate and chitosan quaternary ammonium salt. Carbohydr. Res. 2021, 507, 108389. [Google Scholar] [CrossRef]
  31. Guo, Z.; Xing, R.; Liu, S.; Zhong, Z.; Ji, X.; Wang, L.; Li, P. Antifungal properties of Schiff bases of chitosan, N-substituted chitosan and quaternized chitosan. Carbohydr. Res. 2007, 342, 1329–1332. [Google Scholar] [CrossRef] [PubMed]
  32. Martins, A.F.; Facchi, S.P.; Follmann, H.D.; Pereira, A.G.; Rubira, A.F.; Muniz, E.C. Antimicrobial activity of chitosan derivatives containing N-quaternized moieties in its backbone: A review. Int. J. Mol. Sci. 2014, 15, 20800–20832. [Google Scholar] [CrossRef] [PubMed]
  33. Pasquina-Lemonche, L.; Burns, J.; Turner, R.D.; Kumar, S.; Tank, R.; Mullin, N.; Hobbs, J.K. The architecture of the Gram-positive bacterial cell wall. Nature 2020, 582, 294–297. [Google Scholar] [CrossRef]
  34. Wang, C.H.; Liu, W.S.; Sun, J.F.; Hou, G.G.; Chen, Q.; Cong, W.; Zhao, F. Non-toxic O-quaternized chitosan materials with better water solubility and antimicrobial function. Int. J. Biol. Macromol. 2016, 84, 418–427. [Google Scholar] [CrossRef] [PubMed]
  35. Ke, P.; Zeng, D.; Xu, K.; Cui, J.; Li, X.; Wang, G. Preparation of quaternary ammonium salt-modified chitosan microspheres and their application in dyeing wastewater treatment. ACS Omega 2020, 5, 24700–24707. [Google Scholar] [CrossRef]
  36. Zhu, Y.; Pei, H.; Hu, W.; Jin, Y.; Xu, H.; Ren, Y.; Xue, D. Effect of chitosan quaternary ammonium salt on the growth and microcystins release of Microcystis aeruginosa. RSC Adv. 2016, 6, 81028–81036. [Google Scholar] [CrossRef]
  37. Jiang, S.; Wang, L.; Yu, H.; Chen, Y. Preparation of crosslinked polystyrenes with quaternary ammonium and their antibacterial behavior. React. Funct. Polym. 2005, 62, 209–213. [Google Scholar] [CrossRef]
  38. Speciale, A.; Musumeci, R.; Blandino, G.; Milazzo, I.; Caccamo, F.; Nicoletti, G. Minimal inhibitory concentrations and time-kill determination of moxifloxacin against aerobic and anaerobic isolates. Int. J. Antimicrob. Agents 2002, 19, 111–118. [Google Scholar] [CrossRef]
  39. Woranuch, S.; Yoksan, R. Preparation, characterization and antioxidant property of water-soluble ferulic acid grafted chitosan. Carbohy Polym. 2013, 96, 495–502. [Google Scholar] [CrossRef]
  40. Kim, H.; Panda, P.K.; Sadeghi, K.; Lee, S.; Chung, C.; Park, Y.; Seo, J. Facile thermal and hydrolytic conversion of tannic acid: Enhancement of antimicrobial activity and biocompatibility for biomedical applications. Mater. Chem. Phys. 2022, 285, 126141. [Google Scholar] [CrossRef]
  41. Kim, H.; Panda, P.K.; Sadeghi, K.; Seo, J. Poly (vinyl alcohol)/hydrothermally treated tannic acid composite films as sustainable antioxidant and barrier packaging materials. Prog. Org. Coat. 2023, 174, 107305. [Google Scholar] [CrossRef]
  42. Oyaizu, M. Studies on products of browning reaction antioxidative activities of products of browning reaction prepared from glucosamine. Japan. J. Nutri. Dietei. 1986, 44, 307–315. [Google Scholar] [CrossRef] [Green Version]
  43. Liu, J.; Lu, J.F.; Kan, J.; Tang, Y.Q.; Jin, C.H. Preparation, characterization and antioxidant activity of phenolic acids grafted carboxymethyl chitosan. Int. J. Biol. Macromol. 2013, 62, 85–93. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, C.; Ping, Q.; Zhang, H.; Shen, J. Synthesis and characterization of water-soluble O-succinyl-chitosan. Euro. Polym. J. 2003, 39, 1629–1634. [Google Scholar] [CrossRef]
  45. Wiessler, M.; Waldeck, W.; Kliem, C.; Pipkorn, R.; Braun, K. The Diels-Alder-reaction with inverse-electron-demand, a very efficient versatile click-reaction concept for proper ligation of variable molecular partners. Int. J. Med. Sci. 2010, 7, 19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Hsu, C.H.; Chen, S.K.; Chen, W.Y.; Tsai, M.L.; Chen, R.H. Effect of the characters of chitosans used and regeneration conditions on the yield and physicochemical characteristics of regenerated products. Int. J. Mol. Sci. 2015, 16, 8621–8634. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Li, C.; Han, Q.; Guan, Y.; Zhang, Y. Thermal gelation of chitosan in an aqueous alkali–urea solution. Soft Matter. 2014, 10, 8245–8253. [Google Scholar] [CrossRef]
  48. Ioelovich, M. Crystallinity and hydrophility of chitin and chitosan. J. Chem. 2014, 3, 7–14. [Google Scholar]
  49. Park, K.; Sadeghi, K.; Panda, P.K.; Seo, J.; Seo, J. Ethylene vinyl acetate/low-density polyethylene/oyster shell powder composite films: Preparation, characterization, and antimicrobial properties for biomedical applications. J. Taiwan Inst. Chem. Eng. 2022, 134, 104301. [Google Scholar] [CrossRef]
  50. Panda, P.K.; Dash, P.; Biswal, A.K.; Chang, Y.H.; Misra, P.K.; Yang, J.M. Synthesis and Characterization of Modified Poly (vinyl alcohol) Membrane and Study of Its Enhanced Water-Induced Shape-Memory Behavior. J. Polym. Environ. 2022, 30, 3409–3419. [Google Scholar] [CrossRef]
  51. Zeng, L.; Qin, C.; Wang, L.; Li, W. Volatile compounds formed from the pyrolysis of chitosan. Carbohy. Polym. 2011, 83, 1553–1557. [Google Scholar] [CrossRef]
  52. Barreto, M.S.; Andrade, C.T.; da Silva, L.C.R.; Cabral, L.M.; Flosi Paschoalin, V.M.; Del Aguila, E.M. In vitro physiological and antibacterial characterization of ZnO nanoparticle composites in simulated porcine gastric and enteric fluids. BMC Vet. Res. 2017, 13, 181. [Google Scholar] [CrossRef] [PubMed]
  53. Tan, H.; Ma, R.; Lin, C.; Liu, Z.; Tang, T. Quaternized chitosan as an antimicrobial agent: Antimicrobial activity, mechanism of action and biomedical applications in orthopedics. Int. J. Mol. Sci. 2013, 14, 1854–1869. [Google Scholar] [CrossRef] [PubMed]
  54. Helander, I.M.; Latva-Kala, K.; Lounatmaa, K. Permeabilizing action of polyethyleneimine on Salmonella typhimurium involves disruption of the outer membrane and interactions with lipopolysaccharide. Microbiology 1998, 144, 385–390. [Google Scholar] [CrossRef] [Green Version]
  55. Gan, L.; Chen, S.; Jensen, G.J. Molecular organization of Gram-negative peptidoglycan. Proc. Natl. Acad. Sci. USA 2008, 105, 18953–18957. [Google Scholar] [CrossRef] [Green Version]
  56. Ortega-Ortiz, H.; Gutiérrez-Rodríguez, B.; Cadenas-Pliego, G.; Jimenez, L. Antibacterial activity of chitosan and the interpolyelectrolyte complexes of poly (acrylic acid)-chitosan. Braz. Arch. Biol. Technol. 2010, 53, 623–628. [Google Scholar] [CrossRef] [Green Version]
  57. Xie, W.; Xu, P.; Liu, Q. Antioxidant activity of water-soluble chitosan derivatives. Bioorg. Med. Chem. Lett. 2001, 11, 1699–1701. [Google Scholar] [CrossRef]
Polymers 15 00132 g001 550

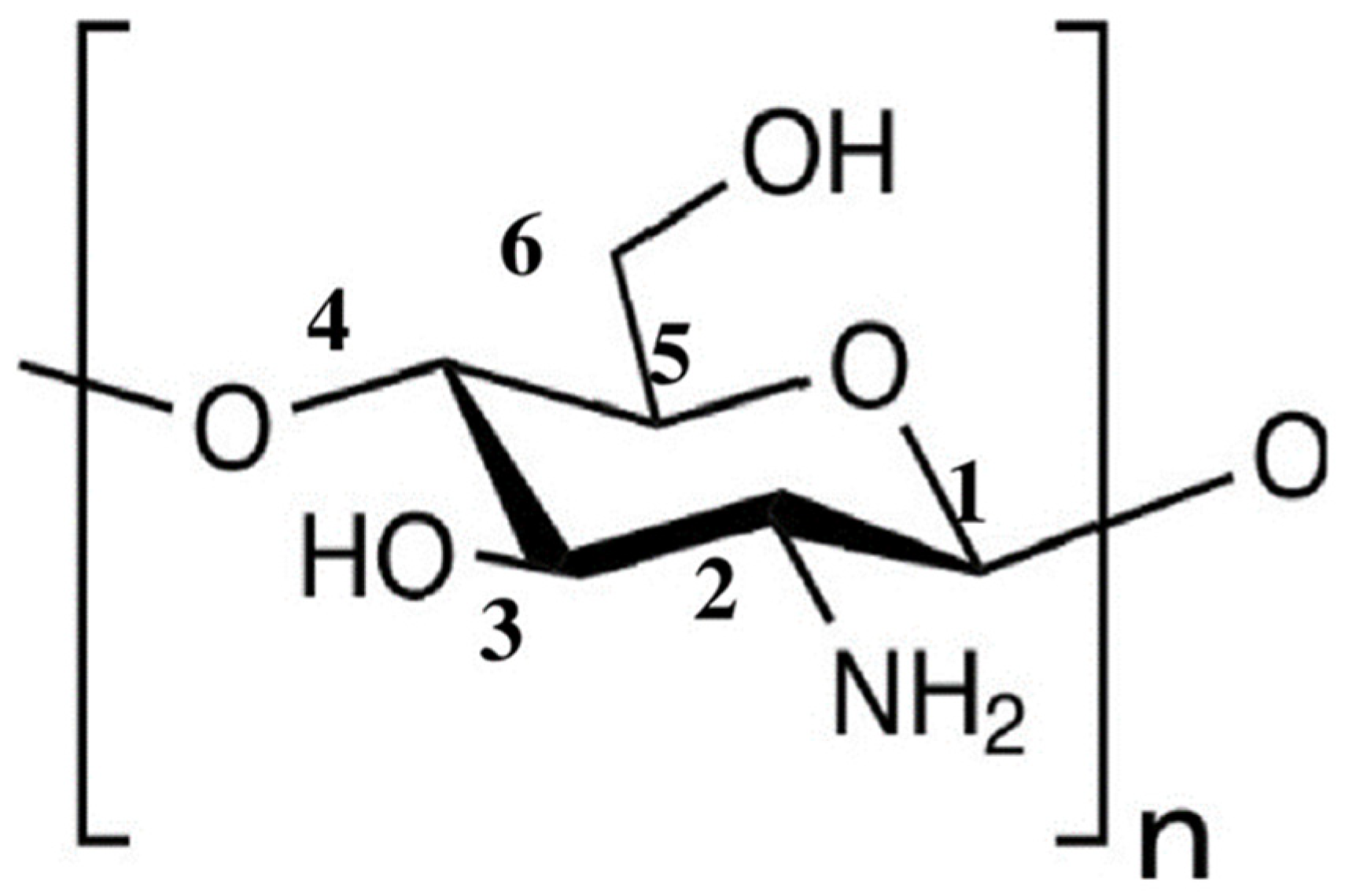

Figure 1. Chemical structure of chitosan.
Figure 1. Chemical structure of chitosan.
Polymers 15 00132 g001
Polymers 15 00132 g002 550

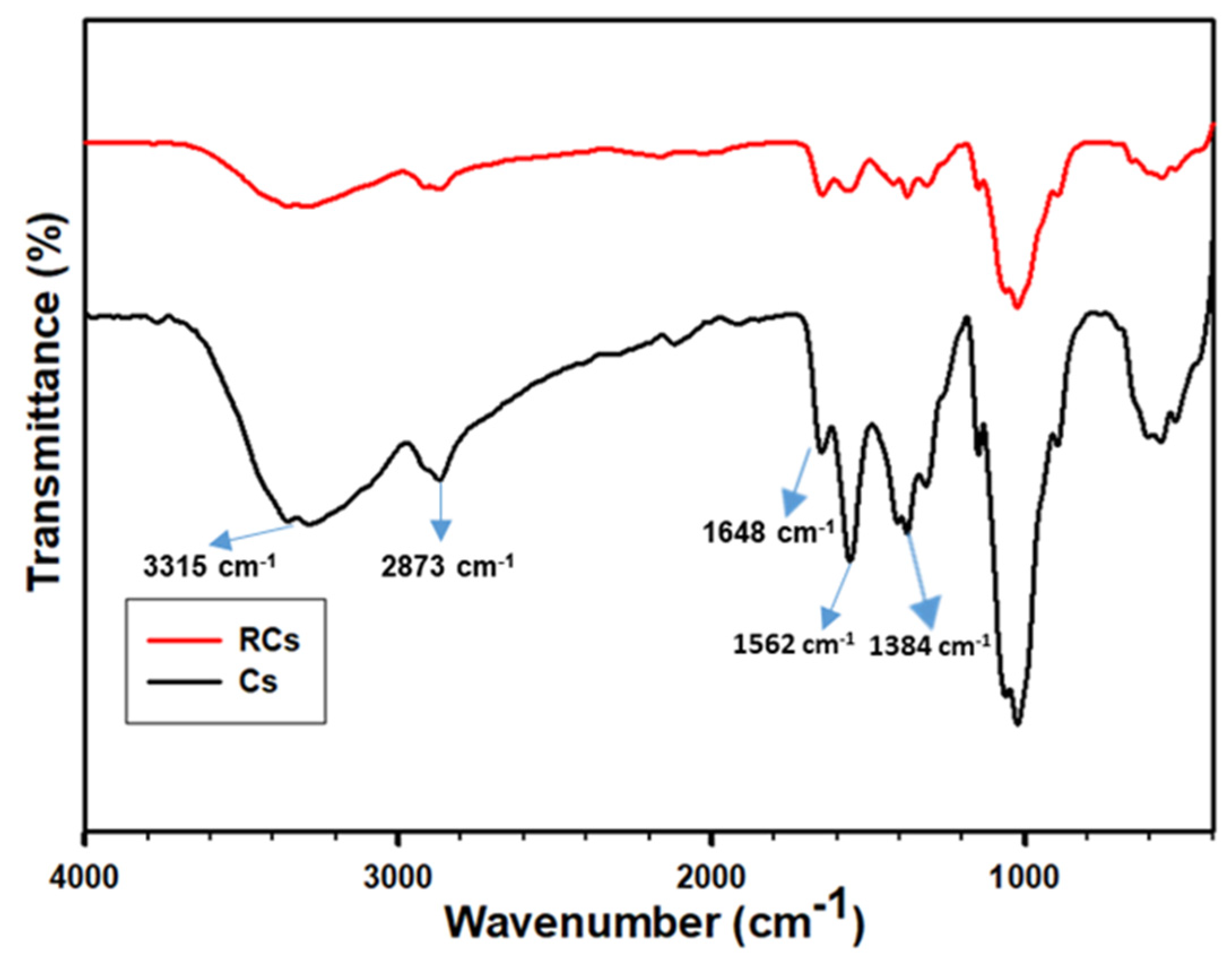

Figure 2. FTIR spectra of Cs and RCs.
Figure 2. FTIR spectra of Cs and RCs.
Polymers 15 00132 g002
Polymers 15 00132 g003 550

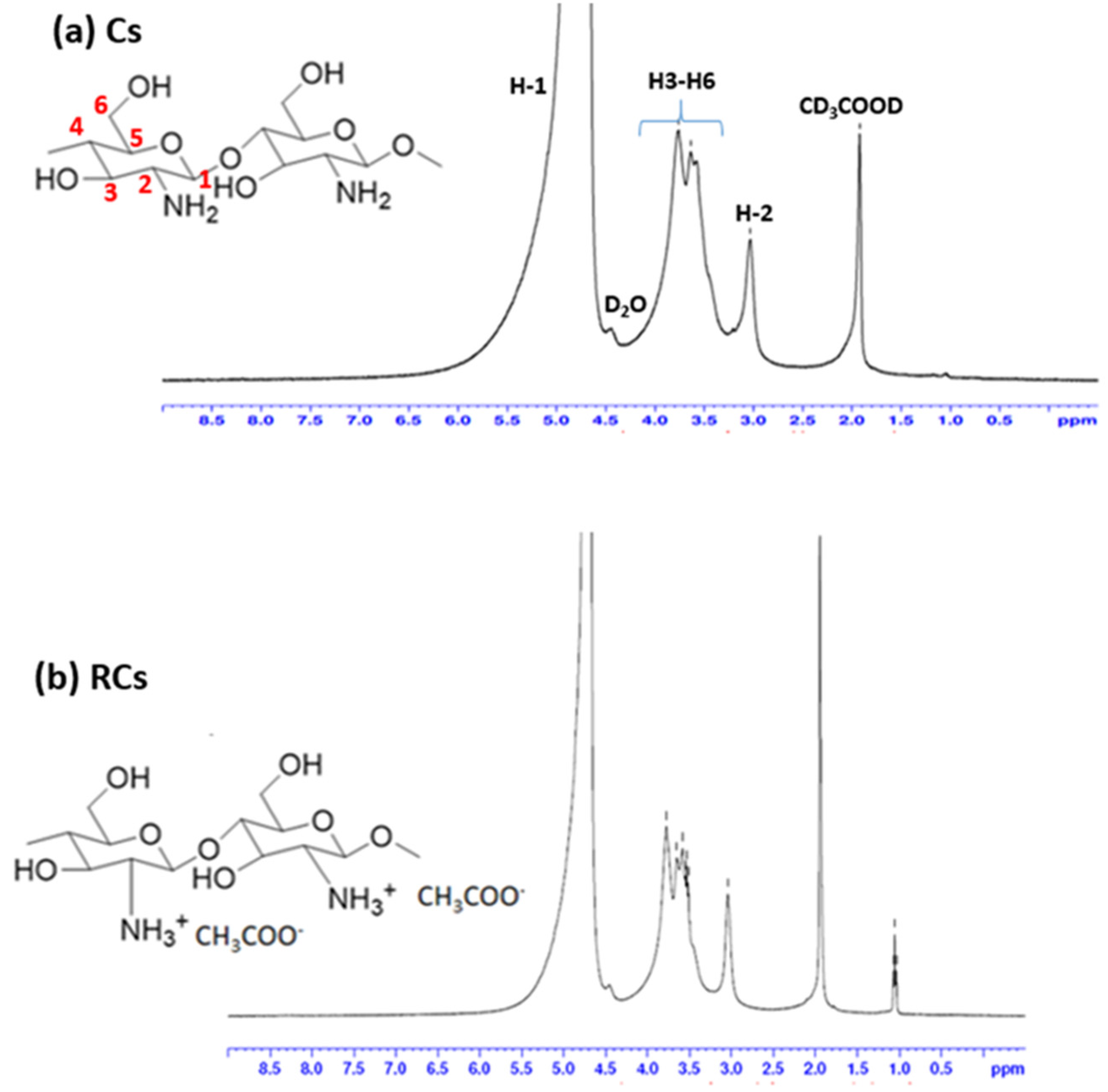

Figure 3. 1H-NMR spectra of (a) Cs and (b) RCs.
Figure 3. 1H-NMR spectra of (a) Cs and (b) RCs.
Polymers 15 00132 g003
Polymers 15 00132 g004 550

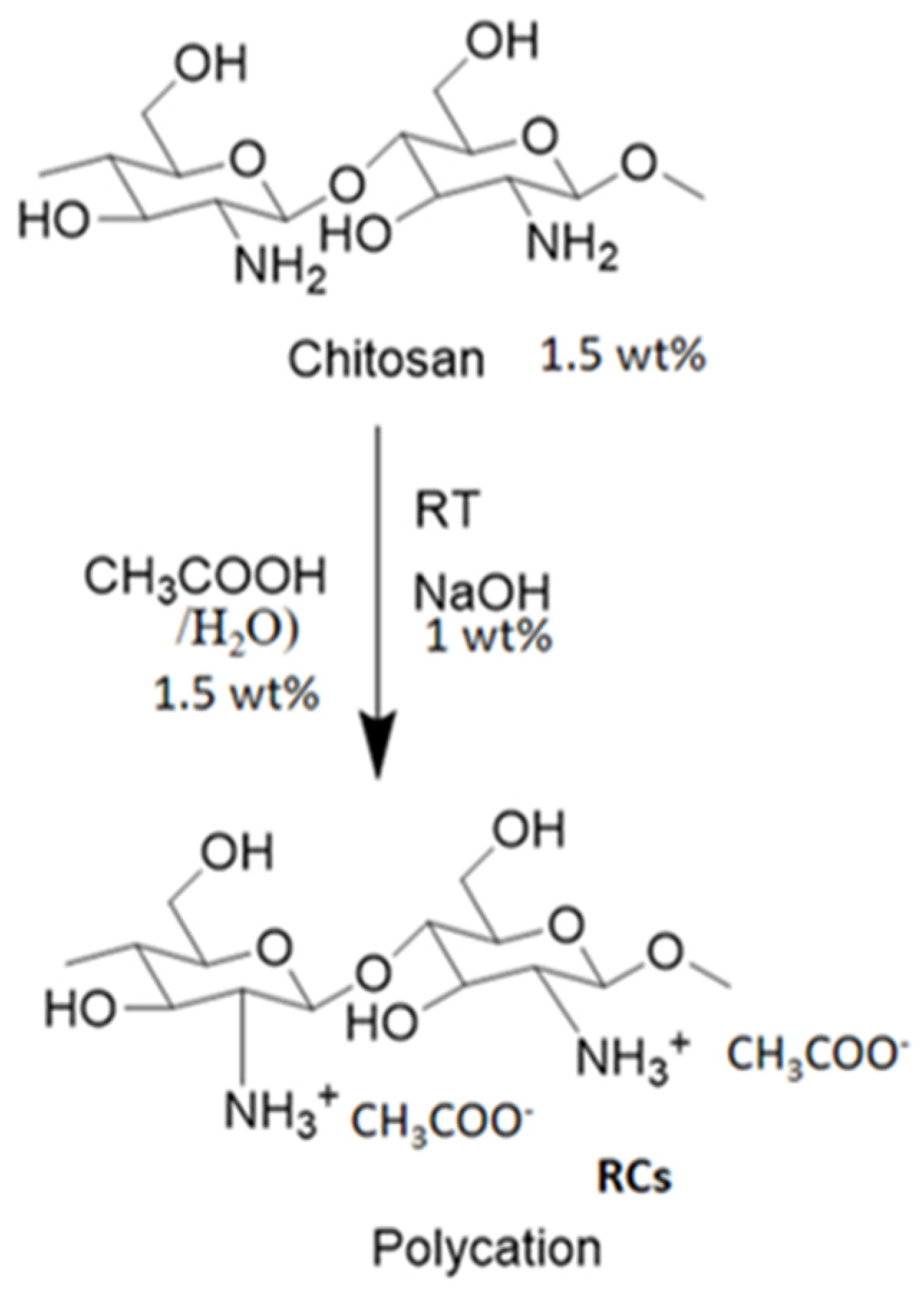

Figure 4. Chemical reaction pathway for synthesis of regenerated chitosan.
Figure 4. Chemical reaction pathway for synthesis of regenerated chitosan.
Polymers 15 00132 g004
Polymers 15 00132 g005 550

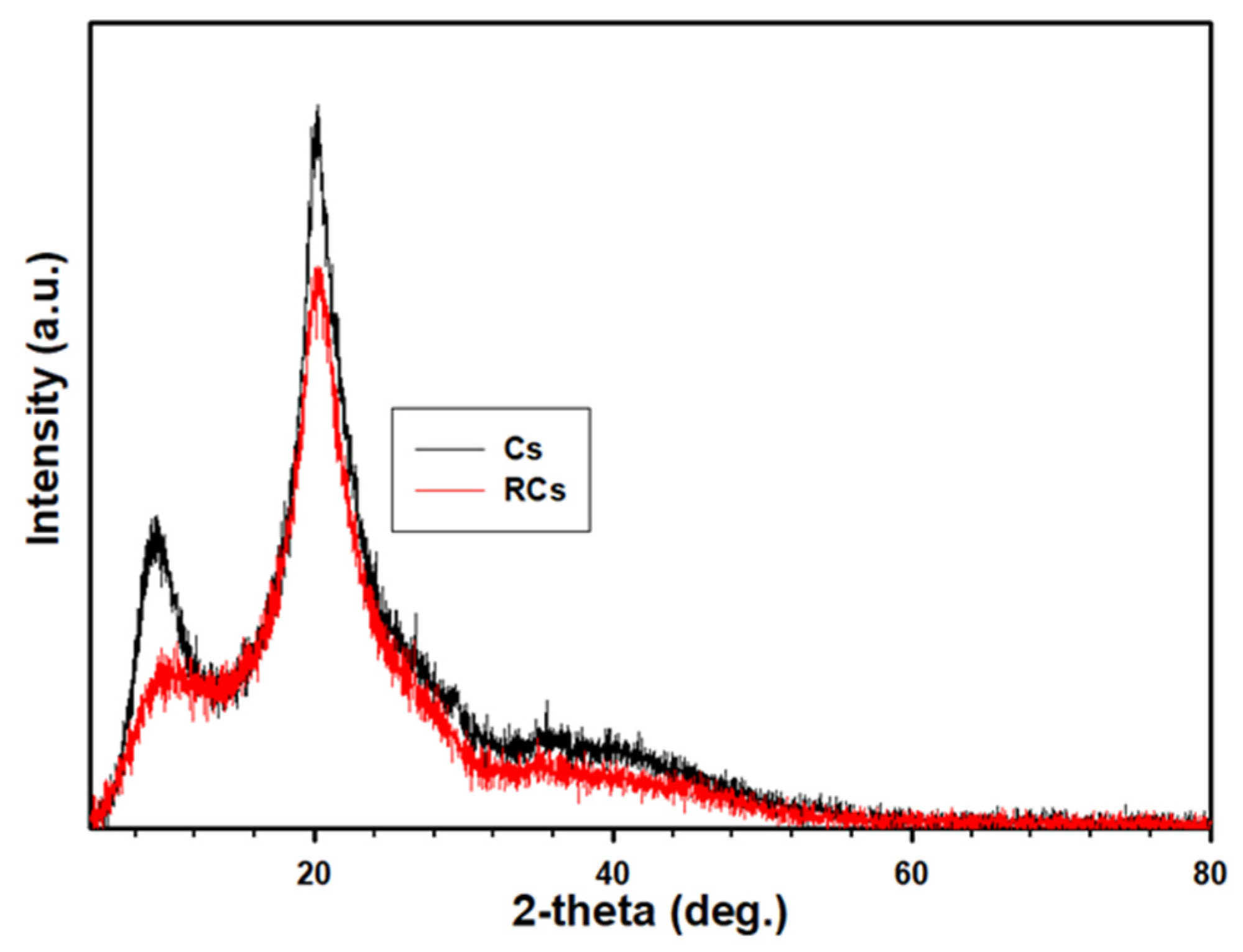

Figure 5. XRD spectra of Cs and RCs.
Figure 5. XRD spectra of Cs and RCs.
Polymers 15 00132 g005
Polymers 15 00132 g006 550

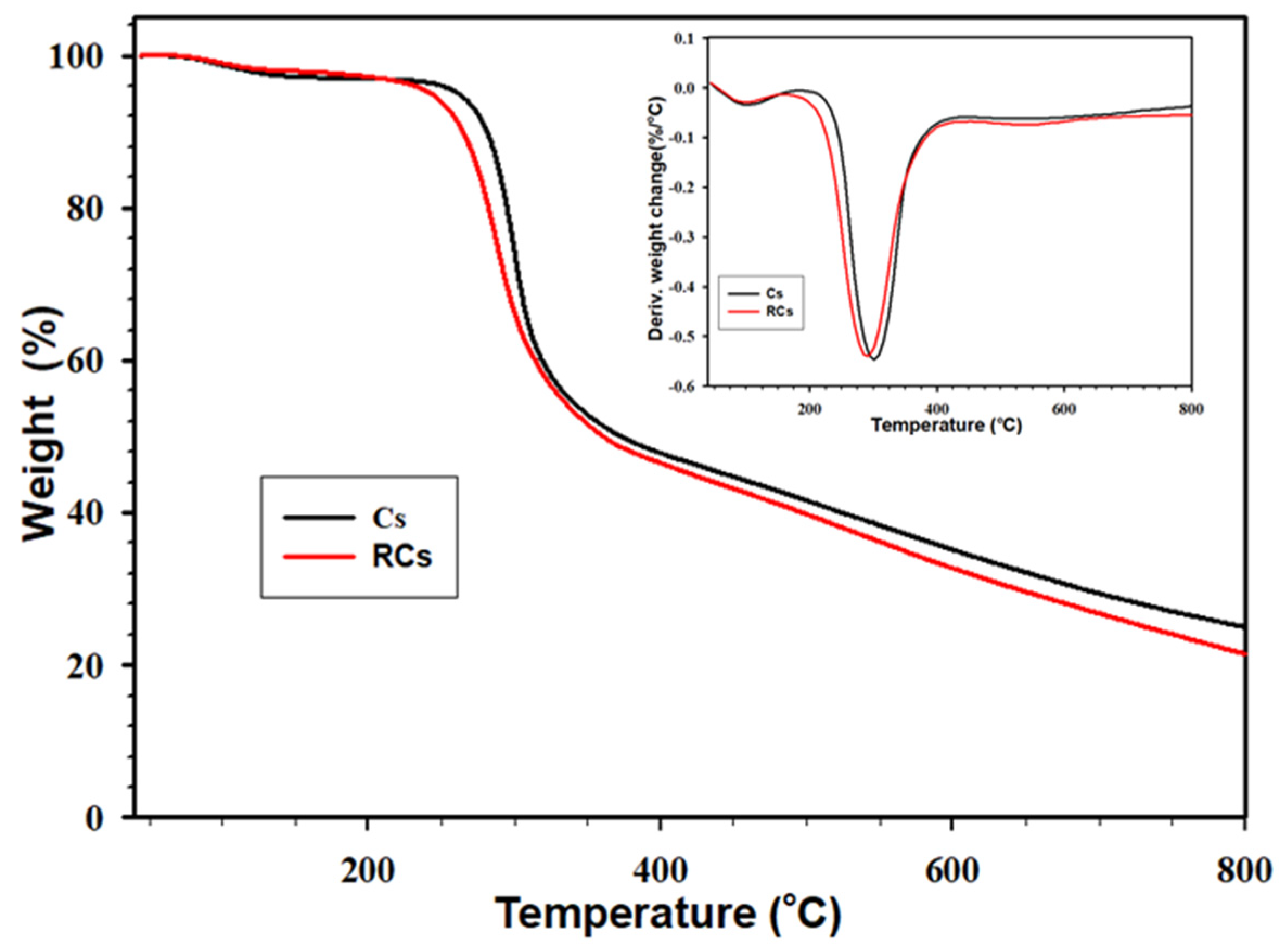

Figure 6. TGA and DTG (Inset) curves of Cs and RCs.
Figure 6. TGA and DTG (Inset) curves of Cs and RCs.
Polymers 15 00132 g006
Polymers 15 00132 g007 550

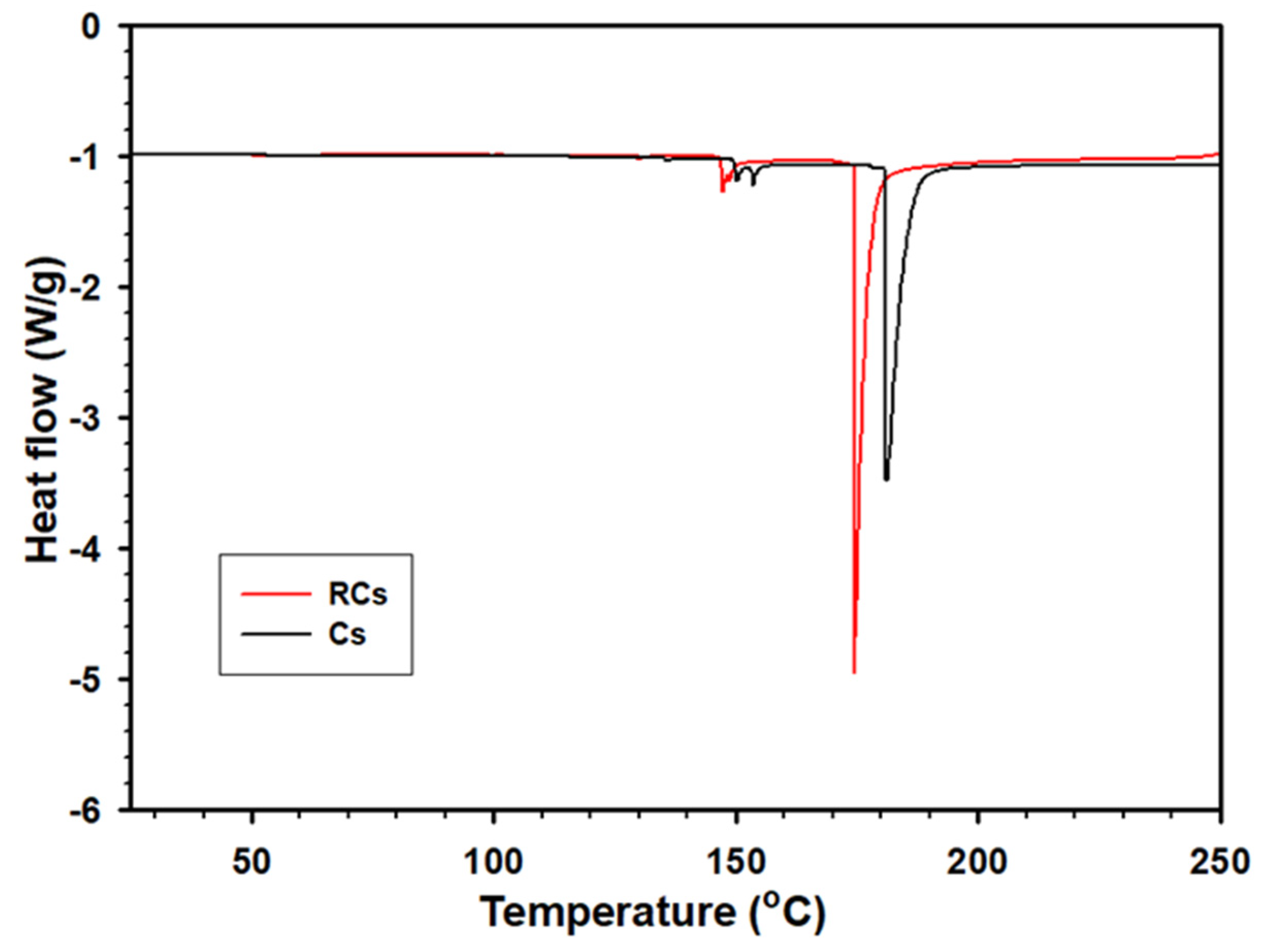

Figure 7. DSC curves of Cs and RCs.
Figure 7. DSC curves of Cs and RCs.
Polymers 15 00132 g007
Table
Table 1. FTIR bands of Cs and RCs with peak assignments.
Table 1. FTIR bands of Cs and RCs with peak assignments.
SamplePeak Assignments (cm−1)Reference
CsO-H and N-H stretching (3315); C–H symmetric and asymmetric stretching (2873); Amide I (1648); Amide II (1562); Amide III (1384)[9,43,44]
RCsO-H and N-H stretching (3292); C–H symmetric and asymmetric stretching (2865); Amide I (1639); Amide II (1547); Amide III (1372)[1,9,44]
Table
Table 2. Representative values of XRD.
Table 2. Representative values of XRD.
SampleIntensity (a. u.)Relative Intensity (%)Crystallinity (%)
Cs3144 ± 5100.0 ± 0.0063.02 ± 0.8
RCs2444 ± 377.73 ± 0.0349.52 ± 1.7
Table
Table 3. Representative thermal properties (TGA and DTG) values of Cs and RCs.
Table 3. Representative thermal properties (TGA and DTG) values of Cs and RCs.
Sample Td10% (°C)Td40% (°C)Residue (%)DTG (°C)
Cs281 ± 1 316 ± 125.02 ± 0.51302 ± 2
RCs264 ± 2311 ± 121.12 ± 0.64287 ± 3
Table
Table 4. Antibacterial activity of Cs and RCs.
Table 4. Antibacterial activity of Cs and RCs.
StrainCs (% w/v) RCs (% w/v)Positive Control (ZnO % w/v) Negative Control (HCl % w/v)
E. coli0.012500.003130.0250.05
S. aureus0.025000.006250.0500.10
Table
Table 5. Antioxidant activity of the Cs and RCs.
Table 5. Antioxidant activity of the Cs and RCs.
Sample DPPH Radical Scavenging Activity (%)Absorbance at 700 nm
Cs
RCs
Gallic acid		45.26 ± 1.20
87.32 ± 0.43
95.44 ± 0.98		0.36 ± 0.08
0.88 ± 0.12
0.93 ± 0.11
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Panda, P.K.; Sadeghi, K.; Park, K.; Seo, J. Regeneration Approach to Enhance the Antimicrobial and Antioxidant Activities of Chitosan for Biomedical Applications. Polymers 2023, 15, 132. https://doi.org/10.3390/polym15010132

AMA Style

Panda PK, Sadeghi K, Park K, Seo J. Regeneration Approach to Enhance the Antimicrobial and Antioxidant Activities of Chitosan for Biomedical Applications. Polymers. 2023; 15(1):132. https://doi.org/10.3390/polym15010132

Chicago/Turabian Style

Panda, Pradeep Kumar, Kambiz Sadeghi, Kitae Park, and Jongchul Seo. 2023. "Regeneration Approach to Enhance the Antimicrobial and Antioxidant Activities of Chitosan for Biomedical Applications" Polymers 15, no. 1: 132. https://doi.org/10.3390/polym15010132

APA Style

Panda, P. K., Sadeghi, K., Park, K., & Seo, J. (2023). Regeneration Approach to Enhance the Antimicrobial and Antioxidant Activities of Chitosan for Biomedical Applications. Polymers, 15(1), 132. https://doi.org/10.3390/polym15010132

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
