Formation Features of Polymer–Metal–Carbon Ternary Electromagnetic Nanocomposites Based on Polyphenoxazine

by
Sveta Ozkan
1,*,
Valeriy Petrov
1,
Andrey Vasilev
1,
Petr Chernavskii
1,2,
Mikhail Efimov
1,
Dmitriy Muratov
1,
Galina Pankina
1,2 and
Galina Karpacheva
1
1
A.V. Topchiev Institute of Petrochemical Synthesis, Russian Academy of Sciences, 29 Leninsky Prospect, Moscow 119991, Russia
2
Department of Chemistry Lomonosov, Moscow State University, 1-3 Leninskie Gory, Moscow 119991, Russia
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(13), 2894; https://doi.org/10.3390/polym15132894
Submission received: 10 June 2023 / Revised: 27 June 2023 / Accepted: 28 June 2023 / Published: 29 June 2023
(This article belongs to the Special Issue Advances in Smart Polymers and Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
Novel ternary hybrid polyphenoxazine (PPOA)-derived nanocomposites involving Co-Fe particles and single-walled (SWCNTs) or multi-walled (MWCNTs) carbon nanotubes were prepared and investigated. An efficient one-pot method employing infrared (IR) heating enabled the formation of Co-Fe/CNT/PPOA nanocomposites. During this, the dehydrogenation of phenoxazine (POA) units led to the simultaneous reduction of metals by released hydrogen, yielding bimetallic Co-Fe particles with a size range from the nanoscale (5–30 nm) to the microscale (400–1400 nm). The synthesized Co-Fe/CNT/PPOA nanomaterials exhibited impressive thermal stability, demonstrating a half-weight loss at 640 °C and 563 °C in air for Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA, respectively. Although a slightly broader range of saturation magnetization values was obtained using MWCNTs, it was found that the type of carbon nanotube, whether an SWCNT (22.14–41.82 emu/g) or an MWCNT (20.93–44.33 emu/g), did not considerably affect the magnetic characteristics of the resulting nanomaterial. By contrast, saturation magnetization escalated with an increasing concentration of both cobalt and iron. These nanocomposites demonstrated a weak dependence of electrical conductivity on frequency. It is shown that the conductivity value for hybrid nanocomposites is higher compared to single-polymer materials and becomes higher with increasing CNT content.

Graphical Abstract

1. Introduction

Ternary hybrid nanocomposites, with their constitutive elements including conjugated polymers, carbon nanomaterials, and magnetic nanoparticles, stand at the forefront of materials for modern technologies [1,2,3,4]. These materials hold potential for various applications, such as microwave absorption [5,6,7,8,9,10], energy storage [11,12,13,14,15,16,17,18], water resource remediation [19,20,21,22], drug delivery [23], corrosion resistance improvement [24], catalysis [25,26,27,28], sensing [29,30,31,32], and tracking electromagnetic environmental pollution [33]. Every component of these ternary nanocomposites significantly influences their cooperative properties. Metal nanoparticles often play a major role, giving nanocomposites distinctive properties. In particular, the nature and composition of these nanoparticles largely dictate the catalytic [34,35], magnetic [36,37], photocatalytic [38], electrochemical [39,40,41], sensory [42], and antibacterial [43] characteristics of nanocomposite materials.
Incorporating carbon nanomaterials, such as carbon nanotubes (CNTs), into polymer matrices and composites has become a common technique in materials science due to the many improvements that these carbon components provide [44,45]. The integration of CNTs contributes significantly to a material’s mechanical properties [46]. CNTs are known for their superior tensile strength and elasticity, attributes that, when embedded within a polymer matrix, increase the composite’s overall durability and resistance to wear and damage. In addition, the superior electrical conductivity of CNTs has attracted considerable interest [47,48]. The introduction of CNTs can significantly enhance the electrical performance of polymer composites, making them ideal for a wide array of applications in the electrical and electronics sectors.
Moreover, the interaction between these components can produce synergistic effects, potentially improving the performance of nanocomposites [49,50]. For instance, the integration of metal nanoparticles and carbon nanotubes can boost electron transfer and offer pathways for charge transportation. This feature can be crucial for applications such as energy storage, where efficient charge flow stands as one of the key requirements.
Regarding the role of conjugated polymers, it is worth noting that they contribute additional mechanical properties, along with imparting thermoplastic and conductive characteristics. Furthermore, the existence of a polymer matrix offers a supportive structure capable of efficiently encapsulating and stabilizing the aforementioned nanoparticles, enhancing the composite’s overall stability.
However, the tendency of CNTs to aggregate presents challenges in achieving their uniform distribution within nanocomposites, despite the presence of a stabilizing polymer matrix [51]. Achieving high dispersion can be accomplished via in situ oxidative polymerization of aromatic amine monomers in the presence of both CNTs and magnetic nanoparticles. Conventionally, to produce these ternary materials, oxidative polymerization is conducted on the surface of pre-prepared magnetic nanoparticles like Fe3O4, α-Fe2O3, γ-Fe2O3, and Co3O4 [29,33,52,53]. Developing a comprehensive synthetic strategy is key to broadening the range of magnetic nanoparticles in nanocomposites.
A trending approach in the development of ternary nanocomposite synthesis involves the careful selection of appropriate polymers. For instance, employing polyphenoxazine (PPOA), a semi-ladder heterocyclic polymer, could be an efficient strategy for establishing a polymer matrix, thereby promoting uniform distribution of the metal and carbon components. In this study, a one-pot procedure for thermostable ternary nanocomposite synthesis based on PPOA, Co-Fe particles, and CNTs is proposed. Initially, a suspension of single-walled (SWCNT) or multi-walled (MWCNT) carbon nanotubes in a co-solution of PPOA and metal salts in dimethylformamide (DMF) was obtained. The resulting composite precursor was then subjected to heat treatment under infrared (IR) radiation to reduce the metal components and form bimetallic Co-Fe nanoparticles. The phase composition, morphology, and thermal, electrical, and magnetic properties of the ternary nanomaterials were thoroughly examined, with a focus on how these characteristics varied based on the conditions under which they were synthesized.

2. Materials and Methods

2.1. Materials

Phenoxazine (POA) (97%) and DMF (99%) (both of reagent grade from Acros Organics, Geel, Belgium), toluene (analytical-grade), isopropyl alcohol (extra-pure-grade), Co(CH3CO2)2·4H2O (pure-grade), FeCl3·6H2O (pure-grade), and MWCNT (from MER, USA) were utilized as received. An electric arc discharge technique was used to produce SWCNT from Carbon Chg, Ltd. (Moscow, Russia) with dimensions of d = 1.4–1.6 nm and l = 0.5–1.5 µm. (NH4)2S2O8 (analytical grade) was subjected to recrystallization for purification. PPOA and Co-Fe/PPOA were synthesized following the methods developed in [54,55].

2.2. Synthesis of Co-Fe/CNT/PPOA

A co-solution of PPOA, Co(OOCCH3)2·4H2O, and FeCl3·6H2O in DMF containing CNTs (either SWCNTs or MWCNTs) was prepared for the synthesis of Co-Fe/CNT/PPOA. The composition included carbon nanotubes with CCNT = 3 and 10 wt%, cobalt (II) CCo = 5–10 wt%, and iron (III) CFe = 5–20 wt%, each relative to the weight of the polymer. After preparing the precursor, the solvent was evaporated at ~85 °C. The precursor was then subjected to IR heating in an Ar atmosphere at temperatures ranging between 400 and 600 °C for 2–10 min.

2.3. Characterization

A laboratory quartz tube IR furnace equipped with halogen lamps (total power of 24 kW) was employed for the synthesis of Co-Fe/CNT/PPOA nanocomposites [56,57]. The sample-loaded graphite box was positioned in the quartz reactor.
Metal content was measured using an ICPE-9000 Shimadzu ICP emission spectrometer (Kyoto, Japan) via the inductively coupled plasma atomic emission spectroscopy (ICP-AES) method. The quantitative carbon, hydrogen, and nitrogen contents of the examined samples were established using a Flash 2000 CHNS analyzer (Thermo Fisher Scientific, Waltham, MA, USA). XRD studies were conducted using a Difray-401 X-ray diffractometer (Scientific Instruments Joint Stock Company, Saint Petersburg, Russia) via CrKα radiation (λ = 0.229 nm). A Bruker HYPERION-2000 IR microscope (Bruker, Karlsruhe, Germany) coupled with a Bruker IFS 66v FTIR spectrometer (Karlsruhe, Germany) was utilized to record (ATR) FTIR spectra within the range of 600–4000 cm−1 (150 scans, ZnSe crystal). Raman spectra were obtained using a Senterra II Raman spectrometer (Bruker, Karlsruhe, Germany) with a wavelength of 532 nm and power of 0.25 mW. TEM and SEM images were captured using a JEM-2100 transmission electron microscope (JEOL, Akishima, Tokyo, Japan) and a Hitachi TM 3030 scanning electron microscope (Hitachi High-Technologies Corporation, Fukuoka, Japan), respectively. Thermogravimetric analysis (TGA) from 30 to 1000 °C was performed using a Mettler Toledo TGA/DSC1 (Giessen, Germany) in both air and argon atmospheres. A Mettler Toledo DSC823e calorimeter (Giessen, Germany) was utilized for differential scanning calorimetry (DSC) in a nitrogen atmosphere.
The magnetic properties of the obtained nanocomposites were investigated using a vibration magnetometer. The dependence of conductivity on current frequency was studied using an E7-20 precision LCR-meter (MC Meratest, Moscow, Russia) in a frequency range of 25.0 Hz–1.0 MHz.

3. Results

3.1. Characterization of Co-Fe/CNT/PPOA Nanomaterials

Ternary hybrid nanocomposites were synthesized using a one-pot method, which involved IR heating of a hybrid precursor composed of PPOA, CNTs, and Co (II) and Fe (III) salts. Since the procedure suggests 600 °C heating, a thermostable polymer is necessary. Consequently, we proposed PPOA as the polymer component due to its proven high thermal stability [55]. Figure 1 presents the chemical structure of PPOA, a semi-ladder heterocyclic polymer, where nitrogen and oxygen atoms participate in the conjugated system.
During heating, the POA units are dehydrogenated, and hydrogen is released, which contributes to the reduction of metal particles. These processes lead to the formation of hybrid ternary Co-Fe/CNT/PPOA nanomaterials, which is confirmed by the FTIR and XRD data described below.
ATR FTIR is used to show that the IR heating of PPOA in the presence of SWCNTs or MWCNTs and Co(CH3CO2)2·4H2O and FeCl3·6H2O salts leads to the dehydrogenation of POA units with the formation of C=N bonds. In the ATR FTIR spectra of Co-Fe/CNT/PPOA, there is a shift and broadening of the bands at 1587 and 1483 cm−1, which correspond to stretching vibrations of νC–C bonds in aromatic rings (Figure 2).
As the synthesis temperature increases, there is a decrease in the intensity of the absorption bands at 3380 and 3060 cm−1, corresponding to stretching vibrations of νN–H and νC–H bonds in POA units. Just as in PPOA, the absorption bands at 869 and 836 cm−1 are due to out-of-plane bending vibrations of the δC–H bonds of the 1,2,4-substituted benzene ring. The absorption band at 737 cm−1 refers to out-of-plane bending vibrations of the δC–H bonds of the 1,2-substituted benzene ring of the end groups [55]. The intensity of this absorption band decreases, which indicates that the number of end groups of the polymer chain drops with the temperature increase.
The data obtained from the elemental analysis confirm the dehydrogenation of POA units. As the heating temperature rises, there is a notable decrease in hydrogen content in the Co-Fe/CNT/PPOA nanocomposites. The initial C/H ratio for PPOA is 16.1, which, at 600 °C, increases to 35.6 and 39.5 for Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA, respectively, as shown in Table 1. The released hydrogen facilitates the reduction of metals, resulting in the formation of bimetallic Co-Fe particles. The reflection peaks of Co-Fe particles at diffraction scattering angles of 2θ = 69.04° and 106.5° (CrKα radiation) correspond to a solid solution [37,54].
To illustrate the changes occurring in the materials during the synthesis process, especially the conversion of the metal phase, XRD analysis was performed on the samples. Figure 3 shows the XRD patterns of the Co-Fe/CNT/PPOA nanocomposites (with Co and Fe contents of 5 and 10 wt%, respectively) obtained at different synthesis temperatures. At 400 °C, reflection peaks corresponding to Co-Fe solid solution particles are registered only for the Co-Fe/SWCNT/PPOA nanocomposite (Figure 3a). In the case of nanocomposites containing MWCNTs, the diffraction pattern reveals intense reflection peaks of Fe3O4 and β-Co particles (Figure 3b). Peaks of β-Co particles, denoting a cubic face-centered lattice, can be observed at 2θ = 67.7°, 80.3°, while peaks for Fe3O4 particles are present at 2θ = 45.9°, 54.1°, 63.1°, 74.49°, 90.7°, and 100.8°. Therefore, it is evident that the inclusion of SWCNTs enables the alloying of iron and cobalt at lower temperatures in comparison to when MWCNTs are used in the nanocomposite.
At temperatures above 400 °C in both series, reflection peaks of bimetallic Co-Fe particles at 2θ = 69.0° and 106.5° are observed, indicating almost complete alloying of both metals. At 500 °C, only the reflection peaks of bimetallic Co-Fe particles are observed in the XRD pattern of Co-Fe/MWCNT/PPOA. However, the Co-Fe/SWCNT/PPOA nanocomposite continues to display traces of Fe3O4 and β-Co (Figure 3a). As the synthesis temperature rises to 600 °C, the metal phase of both Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanocomposites is represented only by Co-Fe particles. Therefore, this specific temperature was chosen as the optimal condition for synthesizing the ternary nanocomposites to investigate their magnetic, electrical, and thermal properties.
Further, we investigated the effect of the content of different components on the phase composition of the resulting ternary nanocomposites. Figure 4a shows the XRD patterns of nanocomposites with 10 wt% CNT content. Compared to similar composites containing 3 wt% of CNTs (as shown in Figure 3b), increasing the content of the carbon component has no effect on the phase composition. Only the peak related to the graphite-like structure at 39° (CrKα radiation) becomes more distinct in the case of the composite with MWCNTs. The only observable difference is the more pronounced peak corresponding to the carbon phase at 2θ = 39° for the (002) plane, in the case of the composite with MWCNTs, and its intensity grows with the increase in the MWCNT content. This peak is absent in the XRD patterns of Co-Fe/SWCNT/PPOA, and this is explained by the impossibility of obtaining a diffraction pattern from a single SWCNT plane.
Significantly larger variations are observed when the metal content and ratios are adjusted. The XRD patterns of nanocomposites with a higher proportion of cobalt and iron are represented in Figure 4b.
With an increase in cobalt content, the XRD patterns exhibit not only reflection peaks from the Co-Fe alloy, but also peaks indicative of the β-Co phase. Given the observed shift in these peaks relative to the values typical of monometallic cobalt, it is reasonable to suggest that the XRD patterns represent the reflection peaks of a β-Co-based alloy phase. Increasing the iron content up to 20 wt% leads to the formation of Fe3O4 particles due to the excess iron relative to cobalt, along with the formation of a Co-Fe solid solution.
To demonstrate the difference in the carbon structure in the resulting ternary nanocomposites, Raman spectra of the samples are shown in Figure 5. From the Raman spectra, it is evident that CNTs significantly influence the carbon structure of nanocomposites, displaying typical profiles of both single- and multi-walled carbon nanotubes [58,59].
Specifically, the nanocomposite spectrum involving SWCNTs exhibits a well-defined G-band, indicative of the ordered in-plane carbon structure. In contrast, the spectrum for the nanocomposite with MWCNTs features a pronounced D-band, which is indicative of the sp3-hybridization of carbon atoms. Thus, the ID/IG ratio indicating the degree of disorder along the hexagonal plane varies greatly and is 0.06 and 0.81 for composites with SWCNTs and MWCNTs, respectively.
Figure 6 and Figure 7 show TEM and SEM micrographs of the obtained nanocomposites. The interaction of the three components of the composites can be seen.
According to the analysis of the images, a mixture of particles with sizes of 5–30 nm and 400–1400 nm is formed in Co-Fe/CNT/PPOA.
Varying the initial loading of metals and their ratios leads to changes in their actual content in nanocomposites. Accordingly, based on the ICP-AES data, cobalt and iron content are found to fluctuate within the ranges of 4.8–14.5% and 4.2–23.5%, respectively (Table 2).
Figure 8 illustrates the temperature-dependent weight decrease of Co-Fe/CNT/PPOA compared to Co-Fe/PPOA when heated up to 1000 °C, both in the argon flow and in air. The introduction of CNTs into the Co-Fe/PPOA composition has little effect on the thermal characteristics of nanocomposites, although it slightly improves them.
The weight loss at 122–130 °C is due only to the presence of moisture in the nanocomposites, which is confirmed by the endothermic peak on the DSC curves (Figure 9a). The processes of thermal–oxidative degradation of the Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanomaterials begin at 370 °C.
According to the DTG data, the decomposition processes of the Co-Fe/CNT/PPOA nanocomposites in air occur within the range of 340–750 °C, with the maximum at 596 °C (Figure 9b). In air, the Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanomaterials lose half of their initial weight at 643 and 563 °C, and at 1000 °C, the residues are 25 and 34%, respectively. In an inert medium, a gradual loss of weight is observed in the nanocomposites, and at 1000 °C, the residue is 63–70%. In the DTG curves, the maxima at 736 and 774 °C are associated with the reduction of Fe3O4 residue (Table 3).
Table 3 summarizes the thermal analysis data and thermal characteristics of the nanocomposites. As can be seen, at CCo = 10 wt% and CFe = 10 wt% upon loading, in Co-Fe/CNT/PPOA nanocomposites compared to Co-Fe/PPOA, there remain traces of Fe3O4 due to incomplete reduction to Co-Fe. Apparently, part of the released hydrogen is used for the reduction of oxygen-containing groups on the CNT surface. The Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanomaterials are characterized by high thermal stability.
The advancement in the preparation of these nanomaterials paves the way for high-performance magnetic nanocomposites with improved thermal and electrical properties.

3.2. Electromagnetic Properties of Co-Fe/CNT/PPOA Nanomaterials

The dependence of magnetization on the value of the applied magnetic field is shown in Figure 10. Table 2 shows the values of the main magnetic properties of Co-Fe/CNT/PPOA nanocomposites.
As seen in Table 2, the introduction of CNTs into the Co-Fe/PPOA structure results in an increase in saturation magnetization. Presumably, this is connected to the formation of smaller magnetic particles due to a decrease in their aggregation via their attachment to the CNT surface and dispersion in the polymer matrix. The magnetic characteristics of nanomaterials are practically independent of the nature of carbon nanotubes and are as follows for Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA, respectively: residual magnetization MR: 0.25–0.91 emu/g and 0.20–1.00 emu/g, coercive force HC: 50–75 Oe and 25–49 Oe, saturation magnetization MS: 22.14–41.82 emu/g and 20.93–44.33 emu/g. The MR/MS ratio is 0.009–0.034 for Co-Fe/SWCNT/PPOA and 0.010–0.023 for Co-Fe/MWCNT/PPOA, which indicates the formation of both superparamagnetic and ferromagnetic particles. This means that the magnetic behavior of the ternary nanocomposites is determined by the presence of small superparamagnetic and large ferromagnetic particles in their structure.
The dependence of electrical conductivity on the frequency of the Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanocomposites compared to Co-Fe/PPOA was studied (Figure 11).
Table 4 shows the values of conductivity (σac) of the materials at 25 Hz and 1 MHz. Nanomaterials are characterized by a weak dependence of electrical conductivity on frequency, which indicates that the percolation threshold is exceeded. At low frequencies, the electrical conductivity of the nanocomposites is 3.16 × 10−2 S/cm (Co-Fe/SWCNT/PPOA) and 1.41 × 10−1 S/cm (Co-Fe/MWCNT/PPOA).
The metallic component (Co-Fe) contributes significantly to the conductivity of nanomaterials, because neat PPOA demonstrates a low conductivity value (9.73 × 10−10 S/cm). The electrical conductivity of nanocomposites also depends on the concentration of carbon nanotubes. With an increase in the CNT content from 3 to 10 wt%, the electrical conductivity grows from 3.16 × 10−2 S/cm to 5.94 × 10−1 S/cm for Co-Fe/SWCNT/PPOA and from 1.46 × 10−1 S/cm to 7.28 × 10−1 S/cm for Co-Fe/MWCNT/PPOA. Thus, the increase in the electrical conductivity of nanomaterials occurs due to the presence of both Co-Fe particles and CNTs.

4. Conclusions

The proposed one-pot method enables the preparation of thermostable electromagnetic ternary hybrid nanomaterials via IR heating. New ternary nanocomposites were synthesized under the conditions of the IR heating of PPOA in the presence of CNTs and Co (II) and Fe (III) salts. Under IR heating, the formation of Co-Fe/CNT/PPOA nanomaterials proceeds with the simultaneous dehydrogenation of phenoxazine units and the reduction of metals by evolved hydrogen with the formation of Co-Fe particles with sizes of 5–30 nm and 400–1400 nm. The one-pot method for the formation of hybrid Co-Fe/CNT/PPOA nanomaterials makes it possible, without subjecting the polymer matrix to degradation, to obtain magnetic bimetallic particles directly during nanocomposite synthesis. These PPOA-derived nanocomposites display magnetic characteristics that exhibit minimal dependence on the type of employed carbon nanotube. Their saturation magnetization was found to be within a range of 22.14–41.82 emu/g for Co-Fe/SWCNT/PPOA and 20.93–44.33 emu/g for Co-Fe/MWCNT/PPOA. It was shown that the conductivity value for hybrid nanocomposites is significantly higher compared to the PPOA single-polymer. Both the metallic component (Co-Fe) and CNTs make a substantial contribution to the nanomaterials’ electrical conductivity. As the CNT content increases from 3 to 10 wt%, a growth in electrical conductivity is noted, escalating from 3.16 × 10−2 S/cm to 5.94 × 10−1 S/cm for Co-Fe/SWCNT/PPOA, and from 1.46 × 10−1 S/cm to 7.28 × 10−1 S/cm for Co-Fe/MWCNT/PPOA. In addition, the incorporation of CNTs into the Co-Fe/CNT/PPOA structure has a negligible impact on the thermal stability of the nanocomposites. When exposed to air, the Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA nanomaterials demonstrate a half-weight loss at 643 °C and 563 °C, respectively. Under inert conditions at 1000°C, 63–70% of the original weight is retained. These Co-Fe/CNT/PPOA nanomaterials demonstrate potential for deployment in the fabrication of electromagnetic shielding and corrosion-resistant coatings, and the manufacturing of electrode materials for electrochemical devices.

Author Contributions

Conceptualization, investigation, writing—original draft, and writing—review and editing, S.O.; supervision and writing—review and editing, G.K.; investigation and writing—review and editing, M.E.; synthesis and investigation, V.P.; investigation, A.V., P.C., D.M. and G.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was carried out within the State Program of TIPS RAS. This work was performed using the equipment of the Shared Research Center “Analytical center of deep oil processing and petrochemistry of TIPS RAS”. Analytical research was done using equipment of “Research Chemical and Analytical Center NRC “Kurchatov Institute” Shared Research Facilities”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, J.; Sun, Q.; Li, J.; Guo, Y.; Tian, W.; Liu, Y.; Wu, B.; Deng, L.; Mahmood, N.; Jian, X. Polymer-based nanocomposites: Role of interface for effective microwave absorption. Mater. Today Phys. 2023, 31, 100981. [Google Scholar] [CrossRef]
  2. Maleki, S.T.; Babamoradi, M. Microwave absorption theory and recent advances in microwave absorbers by polymer-based nanocomposites (carbons, oxides, sulfides, metals, and alloys). Inorg. Chem. Commun. 2023, 149, 110407. [Google Scholar] [CrossRef]
  3. Maruthi, N.; Faisal, M.; Raghavendra, N. Conducting polymer based composites as efficient EMI shielding materials: A comprehensive review and future prospects. Synth. Met. 2021, 272, 116664. [Google Scholar] [CrossRef]
  4. Goswami, S.; Nandy, S.; Fortunato, E.; Martins, R. Polyaniline and its composites engineering: A class of multifunctional smart energy materials. J. Solid State Chem. 2023, 317, 123679. [Google Scholar] [CrossRef]
  5. Yang, R.B.; Reddy, P.M.; Chang, C.J.; Chen, P.A.; Chen, J.K.; Chang, C.C. Synthesis and characterization of Fe3O4/polypyrrole/carbon nanotube composites with tunable microwave absorption properties: Role of carbon nanotube and polypyrrole content. Chem. Eng. J. 2016, 285, 497–507. [Google Scholar] [CrossRef]
  6. Sedighi, A.; Naderi, M.; Brycki, B. Wearable nonwoven fabric decorated with Fe3O4/rGO/PANI/Ni-P for efficient electromagnetic interference shielding. J. Alloys Compd. 2023, 938, 168454. [Google Scholar] [CrossRef]
  7. Idumah, C.I. Novel trends in conductive polymeric nanocomposites, and bionanocomposites. Synth. Met. 2021, 273, 116674. [Google Scholar] [CrossRef]
  8. Ma, Y.; Zhou, Y.; Sun, Y.; Chen, H.; Xiong, Z.; Li, X.; Shen, L.; Liu, Y. Tunable magnetic properties of Fe3O4/rGO/PANI nanocomposites for enhancing microwave absorption performance. J. Alloys Compd. 2019, 796, 120–130. [Google Scholar] [CrossRef]
  9. Zhang, K.; Zhang, X.; Zhao, X.; Gai, X.; An, W.; Fang, G.; Zhang, A.; Chen, X. Polypyrrole coated Fe3O4 nanoparticles decorated carbon nanotubes nanocomposites and the microwave absorption properties. J. Mater. Sci. Mater. Electron. 2019, 30, 17333–17341. [Google Scholar] [CrossRef]
  10. Dalal, J.; Lather, S.; Gupta, A.; Tripathi, R.; Maan, A.S.; Singh, K.; Ohlan, A. Reduced graphene oxide functionalized strontium ferrite in poly(3,4-ethylenedioxythiophene) conducting network: A high-performance EMI shielding material. Adv. Mater. Technol. 2019, 4, 1900023. [Google Scholar] [CrossRef]
  11. Lv, H.; Pan, Q.; Song, Y.; Liu, X.-X.; Liu, T. A review on nano-/microstructured materials constructed by electrochemical technologies for supercapacitors. Nano-Micro Lett. 2020, 12, 118. [Google Scholar] [CrossRef] [PubMed]
  12. Chahal, P.; Madaswamy, S.L.; Lee, S.C.; Wabaidur, S.M.; Dhayalan, V.; Ponnusamy, V.K.; Dhanusuraman, R. Novel manganese oxide decorated polyaniline/graphitic carbon nitride nanohybrid material for efficient supercapacitor application. Fuel 2022, 330, 125531. [Google Scholar] [CrossRef]
  13. Lin, H.; Huang, Q.; Wang, J.; Jiang, J.; Liu, F.; Chen, Y.; Wang, C.; Lu, D.; Han, S. Self-assembled graphene/polyaniline/Co3O4 ternary hybrid aerogels for supercapacitors. Electrochim. Acta 2016, 191, 444–451. [Google Scholar] [CrossRef]
  14. Ghanbari, R.; Ghorbani, S.R. High-performance nickel molybdate/reduce graphene oxide/polypyrrole ternary nanocomposite as flexible all-solid-state asymmetric supercapacitor. J. Energy Storage 2023, 60, 106670. [Google Scholar] [CrossRef]
  15. Payami, E.; Teimuri-Mofrad, R. Ternary nanocomposite of GQDs-polyFc/Fe3O4/PANI: Design, synthesis, and applied for electrochemical energy storage. Electrochim. Acta 2023, 439, 141706. [Google Scholar] [CrossRef]
  16. Patil, V.S.; Thoravat, S.S.; Kundale, S.S.; Dongale, T.D.; Patil, P.S.; Jadhav, S.A. Synthesis and testing of polyaniline grafted functional magnetite (Fe3O4) nanoparticles and rGO based nanocomposites for supercapacitor application. Chem. Phys. Lett. 2023, 814, 140334. [Google Scholar] [CrossRef]
  17. Azman, N.H.N.; Mamat, M.S.; Lim, H.N.; Sulaiman, Y. High-performance symmetrical supercapacitor based on poly(3,4)-ethylenedioxythiophene/graphene oxide/iron oxide ternary composite. J. Mater. Sci. Mater. Electron. 2018, 29, 6916–6923. [Google Scholar] [CrossRef]
  18. Moyseowicz, A.; Sliwak, A.; Miniach, E.; Gryglewicz, G. Polypyrrole/iron oxide/reduced graphene oxide ternary composite as a binderless electrode material with high cyclic stability for supercapacitors. Compos. B 2017, 109, 23–29. [Google Scholar] [CrossRef]
  19. Lei, C.; Wang, C.; Chen, W.; He, M.; Huang, B. Polyaniline@magnetic chitosan nanomaterials for highly efficient simultaneous adsorption and in-situ chemical reduction of hexavalent chromium: Removal efficacy and mechanisms. Sci. Total Environ. 2020, 733, 139316. [Google Scholar] [CrossRef]
  20. Khan, M.I.; Almesfer, M.K.; Elkhaleefa, A.; Shigidi, I.; Shamim, M.Z.; Ali, I.H.; Rehan, M. Conductive polymers and their nanocomposites as adsorbents in environmental applications. Polymers 2021, 13, 3810. [Google Scholar] [CrossRef]
  21. Gabal, M.A.; Al-Harthy, E.A.; Al Angari, Y.M.; Salam, M.A.; Awad, A.; Al-Juaid, A.A.; Saeed, A. Synthesis, characterization and dye removal capability of conducting polypyrrole/Mn0.8Zn0.2Fe2O4/graphite oxide ternary composites. Catalysts 2022, 12, 1624. [Google Scholar] [CrossRef]
  22. Al-Hasnawy, Z.A.A.N.; Jasim, K.K.; Awad, M.A. Preparation and characterization of zinc ferrite-polyaniline-graphene oxide nanocomposite for removal of orange G and malachite green dye from aqueous solution: As a model of water treatment and health environment. HIV Nur. 2023, 23, 463–474. Available online: https://hivnursing.net/index.php/hiv/article/view/1114 (accessed on 1 December 2022).
  23. Nordin, A.H.; Ahmad, Z.; Husna, S.M.N.; Ilyas, R.A.; Azemi, A.K.; Ismail, N.; Nordin, M.L.; Ngadi, N.; Siti, N.H.; Nabgan, W.; et al. The state of the art of natural polymer functionalized Fe3O4 magnetic nanoparticle composites for drug delivery applications: A review. Gels 2023, 9, 121. [Google Scholar] [CrossRef] [PubMed]
  24. Zhu, A.; Shi, P.; Sun, S.; Rui, M. Construction of rGO/Fe3O4/PANI nanocomposites and its corrosion resistance mechanism in waterborne acrylate-amino coating. Prog. Org. Coat. 2019, 133, 117–124. [Google Scholar] [CrossRef]
  25. Liu, Y.; Li, J.; Li, F.; Li, W.; Yang, H.; Zhang, X.; Liu, Y.; Ma, J. A facile preparation of CoFe2O4 nanoparticles on polyaniline-functionalised carbon nanotubes as enhanced catalysts for the oxygen evolution reaction. J. Mater. Chem. A 2016, 4, 4472–4478. [Google Scholar] [CrossRef]
  26. Ren, G.; Li, Y.; Guo, Z.; Xiao, G.; Zhu, Y.; Dai, L.; Jiang, L. A bio-inspired Co3O4-polypyrrole-graphene complex as an efficient oxygen reduction catalyst in one-step ball milling. Nano Res. 2015, 8, 3461–3471. [Google Scholar] [CrossRef]
  27. Zhao, C.; Jin, Y.; Du, X.; Du, W. In situ prepared amorphous FeCoO-polyaniline/multiwalled carbon nanotube nanohybrids as efficient oxygen evolution catalysts for rechargeable Zn-air batteries. J. Power. Sources 2018, 399, 337–342. [Google Scholar] [CrossRef]
  28. Hojati, S.F.; Amiri, A.; MoeiniEghbali, N.; Mohamadi, S. Polypyrrole/Fe3O4/CNT as a recyclable and highly efficient catalyst for one-pot three-component synthesis of pyran derivatives. Appl. Organometal. Chem. 2018, 32, E4235. [Google Scholar] [CrossRef]
  29. Radhakrishnan, S.; Krishnamoorthy, K.; Sekar, C.; Wilson, J.; Kim, S.J. A promising sensing platform on ternary composite of polyaniline-Fe2O3-reduced graphene oxide for sensitive hydroquinone determination. Chem. Eng. J. 2015, 259, 594–602. [Google Scholar] [CrossRef]
  30. Shokry, A.; Khalil, M.M.A.; Ibrahim, H.; Soliman, M.; Ebrahim, S. Highly luminescent ternary nanocomposite of polyaniline, silver nanoparticles and graphene oxide quantum dots. Sci. Rep. 2019, 9, 16984. [Google Scholar] [CrossRef] [Green Version]
  31. Park, S.J.; Kwon, O.S.; Jang, J. A high-performance hydrogen gas sensor using ultrathin polypyrrole-coated CNT nanohybrids. Chem. Commun. 2013, 49, 4673–4675. [Google Scholar] [CrossRef] [PubMed]
  32. Gao, L.; Yue, R.; Xu, J.; Liu, Z. One-pot synthesis of Fe2O3/PEDOT/rGO nanocomposite for sensitive determination of caffeine. Int. J. Electrochem. Sci. 2018, 13, 6791–6802. [Google Scholar] [CrossRef]
  33. Singh, A.P.; Mishra, M.; Sambyal, P.; Gupta, B.K.; Singh, B.P.; Chandra, A.; Dhawan, S.K. Encapsulation of γ-Fe2O3 decorated reduced graphene oxide in polyaniline core–shell tubes as an exceptional tracker for electromagnetic environmental pollution. J. Mater. Chem. A 2014, 2, 3581–3593. [Google Scholar] [CrossRef]
  34. Murugesan, B.; Pandiyan, N.; Sonamuthu, J.; Samayanan, S.; Mahalingam, S. Ternary nanocomposite designed by MWCNT backbone PPy/Pd for efficient catalytic approach toward reduction and oxidation reactions. Adv. Powder Technol. 2018, 29, 3173–3182. [Google Scholar] [CrossRef]
  35. Swathy, T.S.; Antony, M.J.; George, N. Active solvent hydrogen-enhanced p-nitrophenol reduction using heterogeneous silver nanocatalysts@surface-functionalized multiwalled carbon nanotubes. Ind. Eng. Chem. Res. 2021, 60, 7050–7064. [Google Scholar] [CrossRef]
  36. Ozkan, S.Z.; Kostev, A.I.; Karpacheva, G.P. Multifunctional nanocomposites based on polydiphenylamine-2-carboxylic acid, magnetite nanoparticles and single-walled carbon nanotubes. Polym. Bull. 2022, 79, 3721–3739. [Google Scholar] [CrossRef]
  37. Ozkan, S.Z.; Karpacheva, G.P.; Efimov, M.N.; Vasilev, A.A.; Muratov, D.G.; Petrov, V.A.; Chernavskii, P.A.; Pankina, G.V. One-step synthesis, characterization and properties of novel hybrid electromagnetic nanomaterials based on polydiphenylamine and Co-Fe particles in the absence and presence of single-walled carbon nanotubes. RSC Adv. 2021, 11, 24772–24786. [Google Scholar] [CrossRef]
  38. Malekkiani, M.; Heshmati Jannat Magham, A.; Ravari, F.; Dadmehr, M. Facile fabrication of ternary MWCNTs/ZnO/chitosan nanocomposite for enhanced photocatalytic degradation of methylene blue and antibacterial activity. Sci. Rep. 2022, 12, 5927. [Google Scholar] [CrossRef]
  39. Baruah, B.; Kumar, A. PEDOT:PSS/MnO2/RGO ternary nanocomposite based anode catalyst for enhanced electrocatalytic activity of methanol oxidation for direct methanol fuel cell. Synth. Met. 2018, 245, 74–86. [Google Scholar] [CrossRef]
  40. Movassagh-Alanagh, F.; Bordbar-Khiabani, A.; Ahangari-Asl, A. Fabrication of a ternary PANI@Fe3O4@CFs nanocomposite as a high performance electrode for solid-state supercapacitors. Int. J. Hydrogen Energy 2019, 44, 26794–26806. [Google Scholar] [CrossRef]
  41. Iqbal, J.; Ansari, M.O.; Numan, A.; Wageh, S.; Al-Ghamdi, A.; Alam, M.G.; Kumar, P.; Jafer, R.; Bashir, S.; Rajpar, A.H. Hydrothermally assisted synthesis of porous polyaniline@carbon nanotubes–manganese dioxide ternary composite for potential application in supercapattery. Polymers 2020, 12, 2918. [Google Scholar] [CrossRef] [PubMed]
  42. Cao, X.T.; Ngan Tran, T.Q.; Ngo, D.-H.; Tai, D.C.; Kumar, S. Click-chemistry-mediated synthesis of silver nanoparticle-supported polymer-wrapped carbon nanotubes: Glucose sensor and antibacterial material. ACS Omega 2022, 7, 37095–37102. [Google Scholar] [CrossRef] [PubMed]
  43. Deshmukh, S.P.; Dhodamani, A.G.; Patil, S.M.; Mullani, S.B.; More, K.V.; Delekar, S.D. Interfacially interactive ternary silver-supported polyaniline/multiwalled carbon nanotube nanocomposites for catalytic and antibacterial activity. ACS Omega 2020, 5, 219–227. [Google Scholar] [CrossRef]
  44. Moniruzzaman, M.; Winey, K.I. Polymer nanocomposites containing carbon nanotubes. Macromolecules 2006, 39, 5194–5205. [Google Scholar] [CrossRef]
  45. Moses, J.C.; Gangrade, A.; Mandal, B.B. Carbon nanotubes and their polymer nanocomposites. In Nanomaterials and Polymer Nanocomposites; Elsevier: Amsterdam, The Netherlands, 2019; pp. 145–175. [Google Scholar] [CrossRef]
  46. Arash, B.; Wang, Q.; Varadan, V.K. Mechanical properties of carbon nanotube/polymer composites. Sci. Rep. 2014, 4, 6479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Castellino, M.; Rovere, M.; Shahzad, M.I.; Tagliaferro, A. Conductivity in carbon nanotube polymer composites: A comparison between model and experiment. Compos. Part A Appl. Sci. Manuf. 2016, 87, 237–242. [Google Scholar] [CrossRef]
  48. Zare, Y.; Rhee, K.Y. Advancement of a model for electrical conductivity of polymer nanocomposites reinforced with carbon nanotubes by a known model for thermal conductivity. Eng. Comput. 2022, 38, 2497–2507. [Google Scholar] [CrossRef]
  49. Alsultan, M.; Choi, J.; Wagner, P.; Swiegers, G.F. Synergistic amplification of oxygen generation in (photo)catalytic water splitting by a PEDOT/nano-Co3O4/MWCNT thin film composite. ChemCatChem 2020, 12, 1580–1584. [Google Scholar] [CrossRef]
  50. Ghasemi, A.K.; Ghorbani, M.; Lashkenari, M.S.; Nasiri, N. Facile synthesize of PANI/GO/CuFe2O4 nanocomposite material with synergistic effect for superb performance supercapacitor. Electrochim. Acta 2023, 439, 141685. [Google Scholar] [CrossRef]
  51. Ma, P.C.; Siddiqui, N.A.; Marom, G.; Kim, J.K. Dispersion and functionalization of carbon nanotubes for polymer-based nanocomposites: A review. Compos. Part A Appl. Sci. Manuf. 2010, 41, 1345–1367. [Google Scholar] [CrossRef]
  52. Ibrahim, A.; Abdel-Aziz, M.H.; Zoromba, M.S.; Al-Hossainy, A.F. Structural, optical, and electrical properties of multi-walled carbon nanotubes/polyaniline/Fe3O4 ternary nanocomposites thin film. Synth. Met. 2018, 238, 1–13. [Google Scholar] [CrossRef]
  53. Zhou, H.; Wang, X.; Yu, K.; Zhang, C.; Li, H.; Du, Z. Preparation of multi-walled carbon nanotube/polyaniline/Fe3O4 composites. Integr. Ferroelectr. 2014, 154, 159–165. [Google Scholar] [CrossRef]
  54. Ozkan, S.Z.; Karpacheva, G.P.; Dzidziguri, E.L.; Chernavskii, P.A.; Bondarenko, G.N.; Efimov, M.N.; Pankina, G.V. One-step synthesis of hybrid magnetic material based on polyphenoxazine and bimetallic Co-Fe nanoparticles. Polym. Bull. 2017, 74, 3043–3060. [Google Scholar] [CrossRef]
  55. Ozkan, S.Z.; Karpacheva, G.P.; Bondarenko, G.N. Phenoxazine polymers: Synthesis and structure. Rus. Chem. Bull. 2011, 60, 1651–1656. [Google Scholar] [CrossRef]
  56. Efimov, M.N.; Vasilev, A.A.; Muratov, D.G.; Baranchikov, A.E.; Karpacheva, G.P. IR radiation assisted preparation of KOH-activated polymer-derived carbon for methylene blue adsorption. J. Environ. Chem. Eng. 2019, 7, 103514. [Google Scholar] [CrossRef]
  57. Yushkin, A.A.; Efimov, M.N.; Malakhov, A.O.; Karpacheva, G.P.; Bondarenko, G.; Marbelia, L.; Vankelecom, I.F.J.; Volkov, A.V. Creation of highlystable porous polyacrylonitrile membranes using infrared heating. React. Funct. Polym. 2021, 158, 104793. [Google Scholar] [CrossRef]
  58. Yan, X.; Suzuki, T.; Kitahama, Y.; Sato, H.; Itoh, T.; Ozaki, Y. A study on the interaction of single-walled carbon nanotubes (SWCNTs) and polystyrene (PS) at the interface in SWCNT–PS nanocomposites using tip-enhanced Raman spectroscopy. Phys. Chem. Chem. Phys. 2013, 15, 20618–20624. [Google Scholar] [CrossRef]
  59. Mohan, S.; Oluwafemi, O.S.; Songca, S.P.; Rouxel, D.; Miska, P.; Lewu, F.B.; Kalarikkal, N.; Thomas, S. Completely green synthesis of silver nanoparticle decorated MWCNT and its antibacterial and catalytic properties. Pure Appl. Chem. 2016, 88, 71–81. [Google Scholar] [CrossRef]
Polymers 15 02894 g001 550
Figure 1. Chemical structure of PPOA and its thermal transformation.
Figure 1. Chemical structure of PPOA and its thermal transformation.
Polymers 15 02894 g001
Polymers 15 02894 g002 550

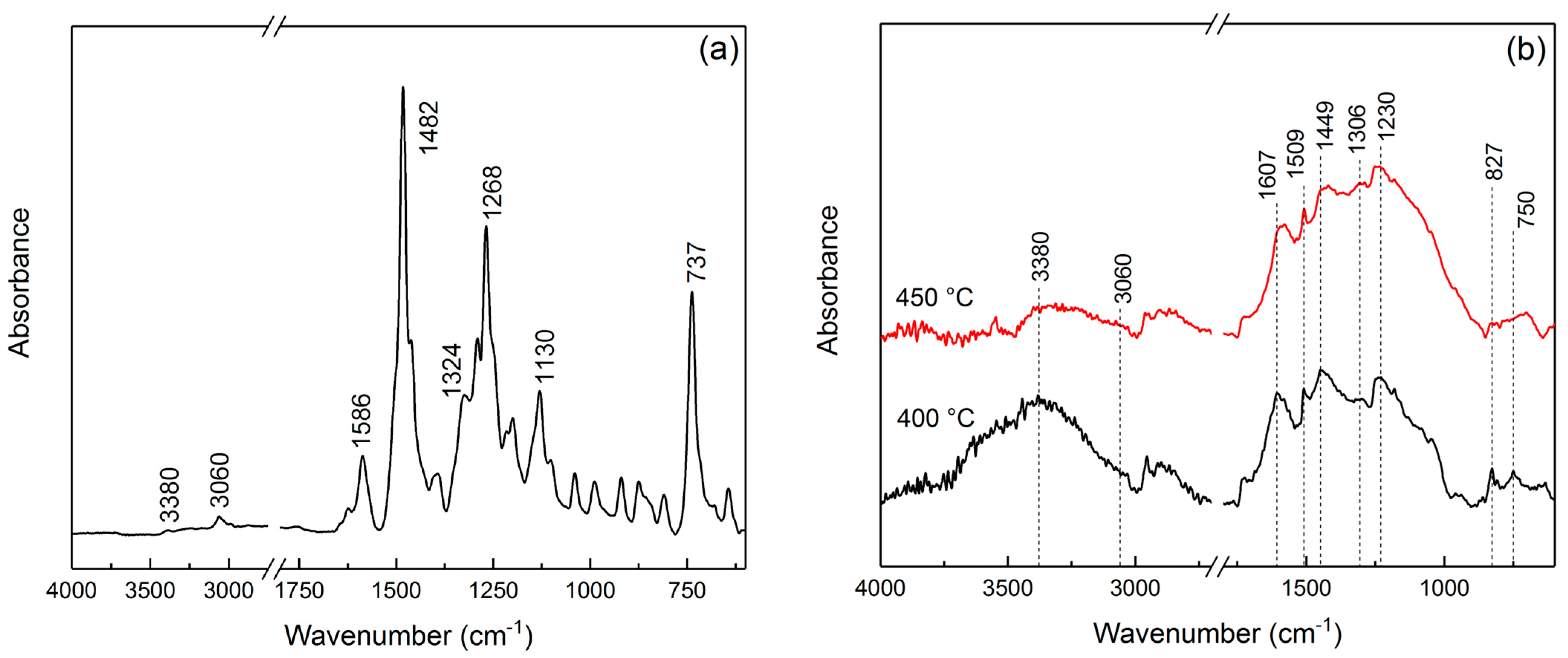

Figure 2. Attenuated total reflection (ATR) FTIR spectra of (a) PPOA and (b) Co-Fe/CNT/PPOA depending on the synthesis temperature.
Figure 2. Attenuated total reflection (ATR) FTIR spectra of (a) PPOA and (b) Co-Fe/CNT/PPOA depending on the synthesis temperature.
Polymers 15 02894 g002
Polymers 15 02894 g003 550
Figure 3. XRD patterns of (a) Co-Fe/SWCNT/PPOA and (b) Co-Fe/MWCNT/PPOA at 400, 500, and 600 °C. CNT content is 3 wt%. Co and Fe contents are 5 and 10 wt%, respectively.
Figure 3. XRD patterns of (a) Co-Fe/SWCNT/PPOA and (b) Co-Fe/MWCNT/PPOA at 400, 500, and 600 °C. CNT content is 3 wt%. Co and Fe contents are 5 and 10 wt%, respectively.
Polymers 15 02894 g003
Polymers 15 02894 g004 550
Figure 4. XRD patterns of Co-Fe/CNT/PPOA depending on (a) the CNT content (CCNT = 10 wt%, CCo = 5 wt%, CFe = 10 wt%) and (b) metals (CCNT = 3 wt%).
Figure 4. XRD patterns of Co-Fe/CNT/PPOA depending on (a) the CNT content (CCNT = 10 wt%, CCo = 5 wt%, CFe = 10 wt%) and (b) metals (CCNT = 3 wt%).
Polymers 15 02894 g004
Polymers 15 02894 g005 550
Figure 5. Raman spectra of Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA.
Figure 5. Raman spectra of Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA.
Polymers 15 02894 g005
Polymers 15 02894 g006 550
Figure 6. TEM images of (a,b) Co-Fe/SWCNT/PPOA and (c,d) Co-Fe/MWCNT/PPOA.
Figure 6. TEM images of (a,b) Co-Fe/SWCNT/PPOA and (c,d) Co-Fe/MWCNT/PPOA.
Polymers 15 02894 g006
Polymers 15 02894 g007a 550Polymers 15 02894 g007b 550
Figure 7. SEM images of (a,b) Co-Fe/PPOA, (c,d) Co-Fe/SWCNT/PPOA, and (e,f) Co-Fe/MWCNT/PPOA.
Figure 7. SEM images of (a,b) Co-Fe/PPOA, (c,d) Co-Fe/SWCNT/PPOA, and (e,f) Co-Fe/MWCNT/PPOA.
Polymers 15 02894 g007aPolymers 15 02894 g007b
Polymers 15 02894 g008 550
Figure 8. TGA curves of Co-Fe/PPOA, Co-Fe/SWCNT/PPOA, and Co-Fe/MWCNT/PPOA upon heating up to 1000 °C in air and in the argon flow.
Figure 8. TGA curves of Co-Fe/PPOA, Co-Fe/SWCNT/PPOA, and Co-Fe/MWCNT/PPOA upon heating up to 1000 °C in air and in the argon flow.
Polymers 15 02894 g008
Polymers 15 02894 g009 550

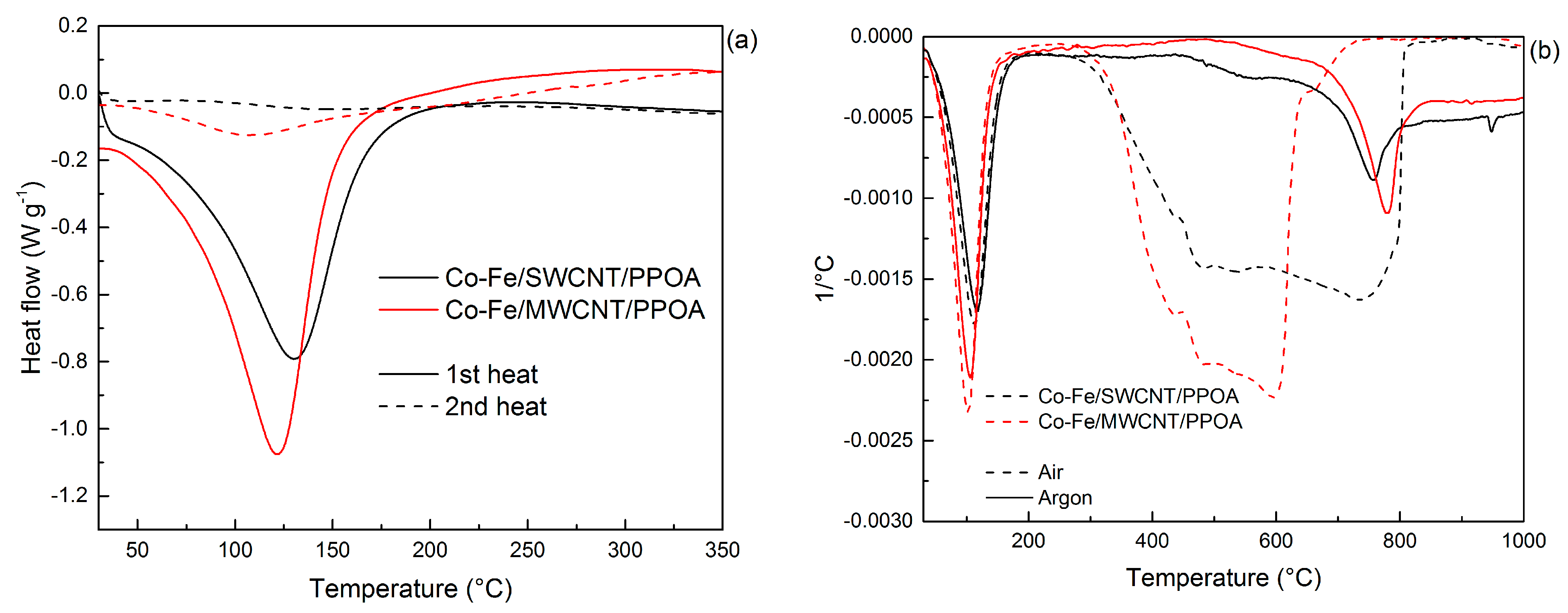

Figure 9. (a) DSC (after one and two rounds of heating) and (b) DTG curves (in air and in argon flow) of Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA.
Figure 9. (a) DSC (after one and two rounds of heating) and (b) DTG curves (in air and in argon flow) of Co-Fe/SWCNT/PPOA and Co-Fe/MWCNT/PPOA.
Polymers 15 02894 g009
Polymers 15 02894 g010 550

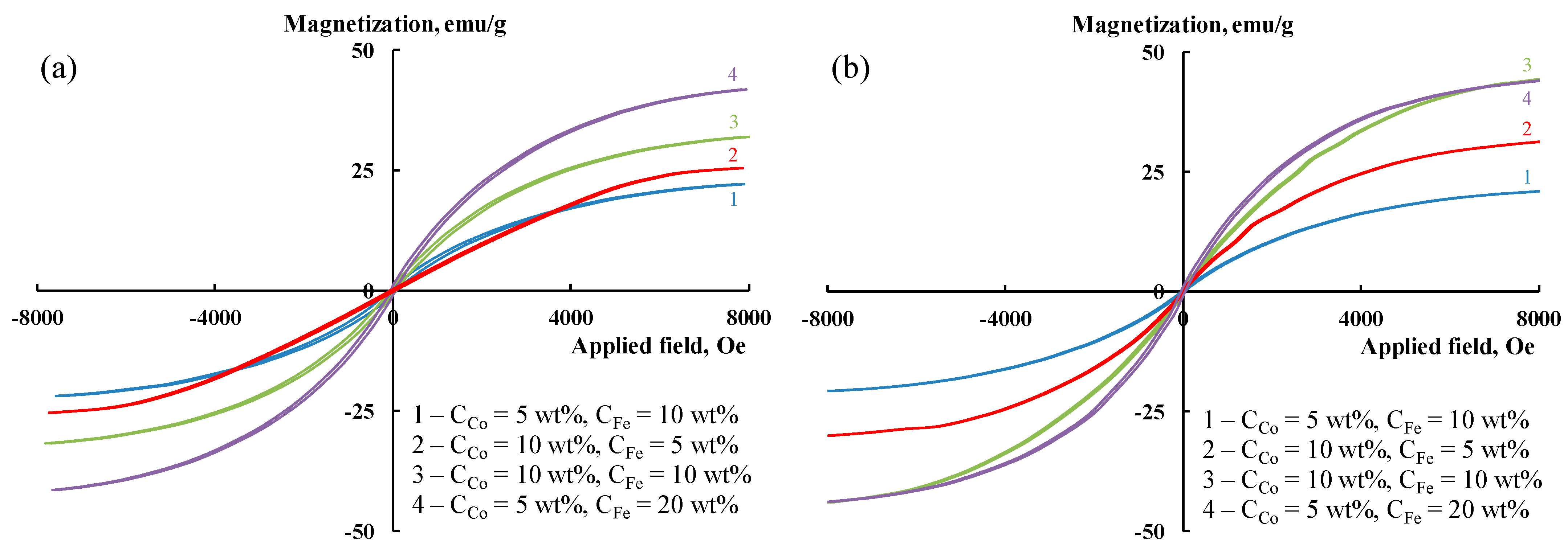

Figure 10. Magnetization of (a) Co-Fe/SWCNT/PPOA and (b) Co-Fe/MWCNT/PPOA as a function of applied magnetic field.
Figure 10. Magnetization of (a) Co-Fe/SWCNT/PPOA and (b) Co-Fe/MWCNT/PPOA as a function of applied magnetic field.
Polymers 15 02894 g010
Polymers 15 02894 g011 550

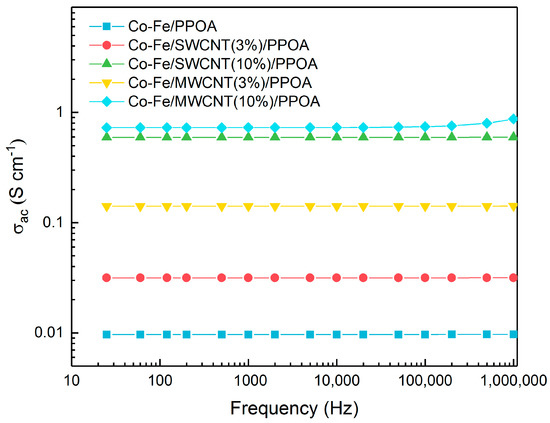

Figure 11. The dependence of conductivity on frequency for Co-Fe/PPOA, Co-Fe/SWCNT/PPOA, and Co-Fe/MWCNT/PPOA nanocomposites.
Figure 11. The dependence of conductivity on frequency for Co-Fe/PPOA, Co-Fe/SWCNT/PPOA, and Co-Fe/MWCNT/PPOA nanocomposites.
Polymers 15 02894 g011
Table
Table 1. ICP-AES data of nanocomposites and elemental analysis data of PPOA component.
Table 1. ICP-AES data of nanocomposites and elemental analysis data of PPOA component.
MaterialsCo, %Fe, %C, %N, %H, %O, %C/NC/H
PPOA--78.77.74.98.710.216.1
Co-Fe/PPOA11.410.353.55.51.817.59.729.7
Co-Fe/SWCNT/PPOA10.27.856.94.81.618.711.935.6
Co-Fe/MWCNT/PPOA14.514.155.34.31.410.412.939.5
CCo = 10 wt% and CFe = 10 wt% upon loading. CCNT = 10 wt%. Nanocomposites were prepared via IR heating at 600 °C.
Table
Table 2. Magnetic properties of nanomaterials.
Table 2. Magnetic properties of nanomaterials.
NanomaterialsCCo *, wt %CFe *, wt %CCo **, %CFe **, %Co and Fe
Phase Composition		HC, OeMS, emu/gMR, emu/gMR/MS
Co-Fe/PPOA5107.212.8Co-Fe508.960.190.021
Co-Fe/SWCNT/PPOA5105.59.8Co-Fe7522.140.750.034
5204.916.3Co-Fe, Fe3O4, Fe4N5041.820.910.022
10512.05.2Co-Fe, β-Co5025.480.250.009
101010.27.8Co-Fe, Fe3O4 (traces)6431.900.820.026
Co-Fe/MWCNT/PPOA5106.811.1Co-Fe3220.930.200.010
5204.823.5Co-Fe, Fe3O43744.330.500.011
10510.94.2Co-Fe, β-Co2531.190.450.014
101014.514.1Co-Fe, Fe3O44944.081.000.023
* Upon loading. ** According to ICP-AES data. CCNT = 10 wt%. Nanocomposites were prepared via IR heating at 600 °C. HC—coercive force, MS—saturation magnetization, MR—residual magnetization.
Table
Table 3. Thermal properties of nanomaterials.
Table 3. Thermal properties of nanomaterials.
MaterialsCCo *, %CFe *, %Co and Fe
Phase Composition		∧ T5%, °C∧∧ T50%, °C∧∧∧ Residue, %
PPOA---380/325580/>10000/51
Co-Fe/PPOA11.410.3Co-Fe134/131670/>100028/64
Co-Fe/SWCNT/PPOA10.27.8Co-Fe, Fe3O4 (traces)105/109643/>100025/63
Co-Fe/MWCNT/PPOA14.514.1Co-Fe, Fe3O493/97563/>100034/70
* According to ICP-AES data. CCo = 10 wt% and CFe = 10 wt% upon loading. CCNT = 3 wt%. Nanocomposites were prepared via IR heating at 600 °C. ∧ T5%, ∧∧ T50%—5 and 50 % weight loss (air/argon), ∧∧∧ residue at 1000 °C (air/argon).
Table
Table 4. Conductivity values of materials.
Table 4. Conductivity values of materials.
MaterialsCCNT* σac, S/cm
PPOA09.73 × 10−108.78 × 10−6
Co-Fe/PPOA09.67 × 10−39.71 × 10−3
Co-Fe/SWCNT/PPOA33.16 × 10−23.17 × 10−2
105.94 × 10−15.96 × 10−1
Co-Fe/MWCNT/PPOA31.41 × 10−11.42 × 10−1
107.28 × 10−18.71 × 10−1
* Conductivity (σac) at 25 Hz and 1 MHz.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ozkan, S.; Petrov, V.; Vasilev, A.; Chernavskii, P.; Efimov, M.; Muratov, D.; Pankina, G.; Karpacheva, G. Formation Features of Polymer–Metal–Carbon Ternary Electromagnetic Nanocomposites Based on Polyphenoxazine. Polymers 2023, 15, 2894. https://doi.org/10.3390/polym15132894

AMA Style

Ozkan S, Petrov V, Vasilev A, Chernavskii P, Efimov M, Muratov D, Pankina G, Karpacheva G. Formation Features of Polymer–Metal–Carbon Ternary Electromagnetic Nanocomposites Based on Polyphenoxazine. Polymers. 2023; 15(13):2894. https://doi.org/10.3390/polym15132894

Chicago/Turabian Style

Ozkan, Sveta, Valeriy Petrov, Andrey Vasilev, Petr Chernavskii, Mikhail Efimov, Dmitriy Muratov, Galina Pankina, and Galina Karpacheva. 2023. "Formation Features of Polymer–Metal–Carbon Ternary Electromagnetic Nanocomposites Based on Polyphenoxazine" Polymers 15, no. 13: 2894. https://doi.org/10.3390/polym15132894

APA Style

Ozkan, S., Petrov, V., Vasilev, A., Chernavskii, P., Efimov, M., Muratov, D., Pankina, G., & Karpacheva, G. (2023). Formation Features of Polymer–Metal–Carbon Ternary Electromagnetic Nanocomposites Based on Polyphenoxazine. Polymers, 15(13), 2894. https://doi.org/10.3390/polym15132894

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
