Article

3D Porous VOx/N-Doped Carbon Nanosheet Hybrids Derived from Cross-Linked Dicyandiamide–Chitosan Hydrogels for Superior Supercapacitor Electrode Materials

by
Jinghua Liu
1,
Xiong He
1,*,
Jiayang Cai
2,
Jie Zhou
1,
Baosheng Liu
1,
Shaohui Zhang
1,
Zijun Sun
1,
Pingping Su
2,
Dezhi Qu
2,* and
Yudong Li
3
1
Liuzhou Key Laboratory of New Energy Vehicle Power Lithium Battery, Guangxi Engineering Research Center for Characteristic Metallic Powder Materials, School of Electronic Engineering, Guangxi University of Science and Technology, Liuzhou 545000, China
2
Guangxi Key Laboratory of Green Processing of Sugar Resources, College of Biological and Chemical Engineering, Guangxi University of Science and Technology, Liuzhou 545006, China
3
Key Laboratory of Bio-Based Material Science & Technology, Northeast Forestry University, Harbin 150090, China
*
Authors to whom correspondence should be addressed.
Polymers 2023, 15(17), 3565; https://doi.org/10.3390/polym15173565
Submission received: 28 July 2023 / Revised: 20 August 2023 / Accepted: 26 August 2023 / Published: 28 August 2023
(This article belongs to the Special Issue Environmentally Responsive Polymer Materials)
Browse Figures
Versions Notes

Abstract

:
Three-dimensional porous carbon materials with moderate heteroatom-doping have been extensively investigated as promising electrode materials for energy storage. In this study, we fabricated a 3D cross-linked chitosan-dicyandiamide-VOSO4 hydrogel using a polymerization process. After pyrolysis at high temperature, 3D porous VOx/N-doped carbon nanosheet hybrids (3D VNCN) were obtained. The unique 3D porous skeleton, abundant doping elements, and presence of VOx 3D VNCN pyrolyzed at 800 °C (3D VNCN-800) ensured excellent electrochemical performance. The 3D VNCN-800 electrode exhibits a maximum specific capacitance of 408.1 F·g−1 at 1 A·g−1 current density and an admirable cycling stability with 96.8% capacitance retention after 5000 cycles. Moreover, an assembled symmetrical supercapacitor based on the 3D VNCN-800 electrode delivers a maximum energy density of 15.6 Wh·Kg−1 at a power density of 600 W·Kg−1. Our study demonstrates a potential guideline for the fabrication of porous carbon materials with 3D structure and abundant heteroatom-doping.

Graphical Abstract

1. Introduction

Chitosan (CS), as an eco-friendly biopolymer, has drawn considerable attention in the fabrication of various materials [1,2,3]. The presence of -NH2 and -OH groups in chitosan molecules makes them easily polymerized. With the assistance of glutaraldehyde, a 3D cross-linked gel can form through the interaction between amino groups in chitosan molecules and aldehyde functional groups in glutaraldehyde molecules [4]. The unique 3D structure was well maintained after carbonizing at high temperatures and leaves a 3D carbon skeleton. Moreover, the original N species in chitosan can introduce N-doping elements into the carbon skeleton. The gas released during the pyrolysis process ensures the carbon material’s porous structure. Without post-treatment processing, this efficient preparation method has recently been adopted to fabricate 3D carbon materials.
Carbon materials, as considerable supercapacitor electrode materials, have been extensively investigated to improve their specific capacitance [5,6,7,8]. Structure engineering is necessary for optimizing the carbon materials used in supercapacitors [9,10]. Three-dimensional porous structures have acquired wide attention due to high specific surface areas and large numbers of pores, which provide fast ion/electron transport [11,12,13]. These 3D porous carbon materials are also of great importance in designing advanced architecture for micro-supercapacitors [14]. Recently, the “bombing effect” method has been adopted to synthesize 3D porous carbon materials derived from popcorn, rice husk, etc. [15,16,17]. In addition, this polymerization method was also used to build 3D structures upon polymerizing various molecules. After pyrolysis at high temperatures, the 3D structure is well maintained, and large numbers of pores are formed simultaneously. For instance, Tong’s group fabricated 3D porous carbon/graphene hybrids through pyrolyzing graphene oxides-CS hydrogels, which exhibited an enhanced specific capacitance of 320 F·g−1 at 1 A·g−1 [4]. Zhou’s group prepared N and O enriched hierarchical porous carbon derived from CS-based hydrogel beads by microwave heating, which shows remarkable rate capability [18].
Heteroatom-doping is another effective method to improve specific capacitance of carbon materials [19,20]. The faradaic reaction at doping sites contributes additional pseudocapacitance to supplement electric double layer capacitance. To date, N, S, P, and B doping have been proved as effective methods to improve specific capacitance of carbon materials. Among them, the N-doping method has been verified as an effective approach to improve capacitance via surface faradaic reactions without sacrificing rate performance and cycle stability [12,21,22,23]. In addition to introducing doping elements, integrating suitable pseudo-capacitive materials with carbon materials is also widely used to improve electrochemical performance of carbon materials. Vanadium-based nanocomposites are promising energy storage materials. For instance, vanadium oxides have the merits of versatile structure, high capacity, easy synthesis, and adequate safety, which is widely used in various types of energy storage devices, such as Li-ion batteries, Na-ion batteries, K-ion batteries, and supercapacitors [24,25]. A hybrid of VN nanoparticle-assembled hollow microspheres encapsulated in N-doped nanofibers has been fabricated by Yang’s group, which exhibits a superb rate property and prolonged cyclability as the anode in K-ion battery [26]. A novel polyoxovanadate-based metal-organic framework microsphere with good supercapacitor performance was synthesized by Guo’s group [27]. A comparative list of performance metrics for 3D porous carbon materials, 3D N-doped porous carbon materials, and 3D porous carbon materials combined with pseudocapacitive materials is shown in Table S1. It can be seen that introducing doping elements and pseudocapacitive materials are efficient approaches to improving the capacitive performance of carbon materials.
Herein, we design a new route to fabricate 3D porous VOx/N-doped carbon nanosheet hybrids (3D VNCN) through the pyrolysis of cross-linked chitosan-dicyandiamide-VOSO4 (CS-DCDA-VOSO4) hydrogel. The aldehyde functional groups in glutaraldehyde can polymerize with -NH2 and -OH functional groups from CS and DCDA, leading to a cross-linked network structure. Meanwhile, VOSO4 uniformly disperses within the hydrogel. After pyrolysis at high temperature, 3D VNCN hybrids were obtained. The unique 3D skeleton, abundant doping elements, porous structure, and presence of VOx ensure the excellent electrochemical performance of 3D VNCN. The 3D VNCN electrode exhibits a maximum specific capacitance of 408.1 F·g−1 at 1 A·g−1 current density. The maintained capacitance retention was about 96.8% after 5000 cycles. Moreover, a 3D VNCN-based symmetrical supercapacitor shows a maximum energy density of 15.6 Wh·Kg−1 at a power density of 600 W·Kg−1. It is worth noting that our study provides a promising method for the fabrication of 3D porous carbon materials used in the energy storage field.

2. Materials and Methods

2.1. Preparation of 3D VNCN

In a typical procedure, 0.2 g of CS, 0.3 g of DCDA, and 0.05 g of VOSO4 were dissolved in 20 mL deionized water. A volume of 200 μL of acetic acid was added dropwise into the above solution and stirred for 15 min. Then, 400 μL glutaraldehyde was added into the above homogeneous suspension for polymerization. After standing for 2 h, the resulting jelly-like hydrogel containing CS, DCDA, and VOSO4 (CS-DCDA-VOSO4 hydrogel) was obtained. Followed by freeze–drying for 24 h, the hydrogel transformed into a 3D interconnected porous structure, and then the dried CS-DCDA-VOSO4 gel was transferred to a tube furnace for further carbonization. The carbonization process was adopted using a two-step pyrolysis method under N2 atmosphere at a heating rate of 5 °C·min−1. At first, the temperature was increased to 600 °C and held for 2 h, and then increased to a higher temperature (700 °C, 800 °C, and 900 °C) for 3 h. The products were marked as 3D VNCN-700, 3D VNCN-800, and 3D VNCN-900, respectively. For comparison, 3D N-doped carbon nanosheets derived from CS-DCDA hydrogel at 800 °C were denoted as 3D NCN. CS, DCDA, and VOSO4 with the same ratio were ground into a light blue powder (CS-DCDA-VOSO4 powder). After pyrolyzing at 800 °C, the obtained VOx/N-doped carbon material was marked as VNC.

2.2. Materials Characterization

X-ray diffraction (XRD, Ultima IV, RIGAKU, Tokyo, Japan) was conducted with Cu-Ka radiation (λ = 0.1504 nm) to investigate the phase of the as-prepared samples. Morphologies and structures of the samples were characterized using a scanning electron microscope (SEM, Gemini 300, Zeiss, Jena, Germany), transmission electron microscope (TEM, Tecnai F20, FEI, Hillsboro, OR, USA), and X-ray photoelectron spectroscope (XPS, Scientific K-Alpha+, Thermo fisher, Waltham, MA, USA). N2 adsorption and desorption isotherms were carried out on a Micrometrics ASAP 2020 V3.04 H system with Brunauer–Emmett–Teller measurements (BET). The functional groups on the surface of the samples were obtained using Fourier transform infrared (FT-IR) spectroscopy with a Nicolet 50 spectrometer. Raman measurements were investigated via an inVia confocal micro-Raman spectroscope (RTS2). Thermogravimetric analysis (TGA) was performed on Discovery TGA5500 (TA, New Castle, DE, USA) at a heating rate of 5 °C·min−1 under flowing N2.

2.3. Electrochemical Measurement

The electrochemical performance was characterized using a CHI760E electrochemical workstation. In a three-electrode system, Pt foil and a Hg/HgO electrode were used as counter and reference electrodes, respectively. The working electrode was prepared by coating a slurry on Ni foam. The slurry was prepared by mixing the active material with acetylene black and polytetrafluoroethylene in ethanol solvent at a mass ratio of 8:1:1. After being pressed under 10 MPa for 30 s and dried at 100 °C for 12 h, the working electrode was obtained for further electrochemical characterization. The mass loading of active material in the working electrode was about 2 mg. A 6 M KOH aqueous solution was used as the electrolyte. Cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) curves were obtained in the potential range of −0.95–0.25 V. Electrochemical impedance spectroscopy (EIS) measurements were tested under open circuit voltage at an amplitude of 5 mV with a frequency range between 0.01 and 100 kHz. The specific capacitance of the active material (Cs, F·g−1) was calculated from the GCD curves according to the equation Cs = (I × ∆t)/(m × ∆V), where I (A) is the discharge current, ∆t (s) is the discharge time, m (g) is the mass of the active material, and ∆V (V) is the voltage change during the discharge process. Furthermore, a symmetric supercapacitor was assembled with two identical electrodes, and the device was characterized using a 6 M KOH aqueous solution as the electrolyte. The energy and power density were characterized using the following equation: Ecell = Ccell × ∆V2/7.2 and Pcell = Ecell × 3600/∆t.

3. Results

3.1. Characterization of Prepared Materials

The fabrication of 3D VNCN adopted a two-step method. At first, CS and DCDA were polymerized with the assistance of glutaraldehyde and formed a transparent hydrogel, as illustrated in Figure 1a. During this procedure, a 3D cross-linked structure was fabricated through a synergistic process that included the interaction between the amino groups in CS and aldehyde functional groups in glutaraldehyde molecules, and amination reaction between CS and DCDA, as well as hydrogen bonding among CS [28,29]. Meanwhile, VOSO4 was uniformly dispersed into the hydrogel and formed CD-DCDA-VOSO4 hydrogel. After freezing–drying for 24, the dried gel was pyrolyzed at different temperatures under an N2 atmosphere, and finally, the 3D VNCN composites were obtained.
TGA curves of CS-DCDA-VOSO4 gel, CS-DCDA gel, and CS-DCDA-VOSO4 powder were performed to simulate the pyrolysis process at N2 flow from room temperature to 1000 °C as presented in Figure 1b. It can be seen that TGA curves of CS-DCDA-VOSO4 gel and CS-DCDA gel undergo almost similar mass loss process, demonstrating that a small amount of VOSO4 has negligible influence on the pyrolysis process. Before 80 °C, their TGA curves exhibit severe mass loss due to the loss of large amounts of water in CS-DCDA-VOSO4 gel and CS-DCDA gel. In the next stage, the mass loss can be attributed to the loss of crystal water and small molecule species. Upon increasing the temperature, the polymerized CS-DCDA gel decomposes to an N-doped carbon material. While VOSO4 gradually transforms to VOx and VOx are decorated on carbon skeleton, leading to VOx/N-doped carbon hybrids. Compared with CS-DCDA-VOSO4 gel and CS-DCDA gel, CS-DCDA-VOSO4 powder contains a small quantity of water content. The lack of a polymerization process between CS and DCDA makes the TGA curves slightly different. The mass loss in the first stage (<220 °C) also results from the loss of crystal water and small molecule species. During the next stage, CS decomposes to a carbon material, and DCDA successively condenses to melamine, tris-s-triazine, and C3N4 from 220 °C to 600 °C. VOSO4 transforms to VOx at this stage. Then, at higher temperatures (>600 °C), C3N4 further decomposes and leaves N species introduced into carbon materials derived from chitosan. VOx nanoparticles are also decorated on carbon skeleton, producing a VNC composite.
The FT-IR spectra (Figure 1c) were used to characterize the functional groups of CS-DCDA-VOSO4 gel and 3D VNCN-800. It can be observed that the FT-IR spectrum of CS-DCDA-VOSO4 gel exhibits obvious characteristic peaks ranging from 4200 cm−1 to 800 cm−1. Among them, the characteristic peaks from 3600 to 3000 cm−1 are attributed to the stretching vibration absorption peak of the N–H and O–H groups [30]. The appearance of strong peaks from 2300 to 1900 cm−1 is ascribed to C≡N stretching modes. The peaks in the wave number range of 1800–1300 cm−1 are caused by C–N heterocyclic stretching vibrations [31]. The peaks at 1254 and 1078 cm−1 are indexed to C–O stretching modes [32]. The peaks at 560 and 665 cm−1 refer to V–O symmetric and stretching vibrations [33,34]. After pyrolysis at 800 °C, most functional groups are eliminated; thus, the FT-IR spectrum of 3D VNCN-800 only retains a distinct O–H stretching vibration absorption peak around 3400 cm−1. No obvious peak of V–O bonds can be observed due to the low content of VOx.
Figure 2a shows the XRD patterns of 3D NCN, VNC, and 3D VNCN at different temperatures. Broad characteristic peaks centered around 24° and 44° correspond to the (002) and (100) planes of the graphitic plane, demonstrating the successful preparation of carbon materials. The (002) plane of 3D VNCN at different temperatures shows slight variation from 25.3° to 22.1°. Upon increasing the temperature, the 2θ degree of 3D VNCN gradually decreases, and the intensity of the (002) peak becomes weaker. This phenomenon can be ascribed to the increased temperature, which reduces stacking between carbon sheets, presenting enlarged interlayer spacing and loose structure of carbon materials. The (002) peak of 3D NCN and VNC centers at 21.2° and 26.6°, exhibiting distinct change compared with 3D VNCN. Without adding VOSO4, 3D NCN becomes less dense compared with 3D VNCN; thus, the (002) plane shifts to a low angle. While VNC fabricated from CS-DCDA-VOSO4 powder shows a bulk structure. The highly stacked structure results in the higher position of the (002) plane. Both VNC and 3D VNCN show no obvious VOx diffraction peaks, which may be ascribed to the small quantity of VOx in VNC and 3D VNCN. Raman characterizations were conducted to evaluate the graphitic degree of 3D VNCN, 3D NCN, and VNC in Figure 2b. Typical D-bands at around 1350 cm−1 are associated with disordered carbon structure. At the same time, G-bands at around 1600 cm−1 correspond to sp2-hybridized carbon [35,36]. The ID/IG values of 3D VNCN-700, 3D VNCN-800, 3D VNCN-900, 3D NCN, and VNC are 1.29, 1.23, 1.08, 1.18, and 1.46, respectively. This result demonstrates that these carbon materials are disordered structures with partial graphitization. The elevated temperature of 3D VNCN leads to a higher degree of graphitization. The 3D VNCN-800 product, with moderate defects and graphitic carbon, could provide abundant ion storage sites and facilitate ion/electron transportation. As for 3D NCN, without doping element and VOx, it exhibits an ordered structure compared with 3D VNCN-800. While VNC shows the highest ID/IG ratio, suggesting a highly disordered structure owing to the lack of a 3D skeleton resulting from CS-DCDA hydrogel.
Figure 2c shows N2 adsorption and desorption isotherms of 3D VNCN, 3D NCN, and VNC. A combination of Type-I and Type-IV with a slight hysteresis loop at high relative pressure (0.5–1.0) can be observed, indicating the co-existence of micropores and mesopores [37]. The specific surface areas (SSAs) of 3D VNCN-700, 3D VNCN-800, 3D VNCN-900, 3D NCN, and VNC were 125.5 m2·g−1, 288.0 m2·g−1, 358.2 m2·g−1, 285.5 m2·g−1, and 17.5 m2·g−1, respectively. The 3D VNCN-800 and 3D NCN products exhibit similar SSAs, while VNC displays a particularly small SSA due to the stacked structure. The SSA of 3D VNCN gradually increases with increasing temperature due to exfoliated carbon sheets and decreased stacking structure at high temperatures. Pore size distribution (PSD) curves in Figure 2d show the pore structure of 3D VNCN, 3D NCN, and VNC. The wide pore distribution range from 2 nm to 5 nm demonstrates hierarchical porous structure in 3D NCN and 3D VNCN, while VNC displays fewer pores. The presence of hierarchical pores in 3D VNCN helps to reserve electrolyte ions and shorten the ion/electron transport distance, which is beneficial for improving electrochemical performance [38].
The chemical compositions and surface element contents of 3D VNCN and VNC were investigated by XPS, and Figure 3a displays the corresponding XPS survey spectra. The strong signals reveal the co-existence of C, N, V, and O elements. The corresponding C, N, V, and O element contents are displayed in Table 1. The N content in 3D VNCN ranges from 9.05 to 4.61 %, which is higher than that of VNC. The phenomenon suggests that the 3D interconnected structure retains more N species after pyrolysis at high temperatures, which would be beneficial for improving the specific capacitance. Figure 3b displays the high-resolution V 2p peaks of 3D VNCN and VNC. Two sets of double peaks associated with V3+ in the V–O bond (515.2 eV and 522.3 eV) and V5+ in the V–O bond (516.6 eV and 523.8 eV) demonstrate the existence of the V element as vanadium oxide [39]. The co-existence of V3+ and V5+ in 3D VNCN could provide abundant faradic reaction sites, trigger fast redox reactions, and enhance specific capacitance. However, at 900 °C, the V species in 3D VNCN mainly comes from V5+. As for N1s, the high-resolution spectra (Figure 3c) exhibit three characteristic peaks associated with pyridinic-N (398.3 eV), pyrrolic-N (399.6 eV), and graphitic-N (400.6 eV), respectively [40]. The contents of different N species are illustrated in Figure 3d. It can be seen temperature greatly influences the content of pyridinic-N, pyrrolic-N, and graphitic-N. Upon increasing the temperature, the content of pyridinic-N and pyrrolic-N in 3D VNCN gradually decreases, while graphitic-N content increases. In addition, the content of N species in VNC is close to that of 3D VNCN-800 owing to the same pyrolysis temperature.
Figure 4 shows the SEM images of VNC, 3D NCN, CS-DCDA-VOSO4 gel, and 3D VNCN-800. It can be seen the VNC composite (Figure 4a) shows a bulk structure with highly stacked sheets. While 3D NCN (Figure 4b), CS-DCDA-VOSO4 gel (Figure 4c), and 3D VNCN-800 (Figure 4d) display obvious inter-connected 3D porous structures formed from cross-linked carbon nanosheets, demonstrating that 3D inter-linked structure can be achieved through a polymerization process. The 3D cross-linked carbon skeleton facilitates conductivity and provides a fast ion/electron transport path, which could improve the electrochemical performance. In addition, the element mapping of C, N, O, and V elements in Figure 4f–i further demonstrates the successful formation of 3D VNCN.
TEM was carried out to investigate more detailed information on 3D VNCN-800. As shown in Figure 5, similar to the analysis from SEM, a layered structure rich in worm-like nanopores on the surface can be observed, demonstrating the porous structure. Such a porous structure can effectively shorten the ion-transport pathways and prevent restacking between carbon nanosheets. Moreover, it can also be observed that plenty of nanoparticles are dispersed on carbon nanosheets, which can be attributed to vanadium oxide. However, no obvious lattice fringe can be found, indicating the vanadium oxides are amorphous. This result agrees well with the XRD and XPS results.

3.2. Electrochemical Performance

The combination of 3D hierarchically porous structure with uniformly dispersed N-doping and VOx nanoparticles makes 3D VNCN composites highly satisfactory as supercapacitor electrode materials. To evaluate the electrochemical performance of 3D VNCN, 3D NCN, and VNC electrodes, CV and GCD measurements were employed in a three-electrode system with 6.0 M aqueous KOH as the electrolyte. As shown in Figure 6a, all the CV curves exhibit nearly rectangular shapes, indicating good double-layer capacitive behavior. The quasi-triangular shapes of the GCD curves (Figure 6b) demonstrate the reversible Faradaic reactions and good conductivity. The longest discharge time indicates the highest specific capacitance of 3D VNCN-800. Calculated from the GCD curves in Figure 6b, the capacitance performances of 3D VNCN-700, 3D VNCN-800, 3D VNCN-900, 3D NCN, and VNC are summarized in Table 2. The highest specific capacitance of 3D VNCN-800 can be ascribed to the following reasons. (1) The inter-connected 3D porous structure facilitates conductivity and provides a fast ion/electron transport path. (2) The abundant N dopants provide large numbers of active sites to generate redox reactions and enhance specific capacitance. (3) The variable valence states of the V element in 3D NVCN-800 could trigger fast redox reactions and supplement additional pseudocapacitance.
Figure 6c shows the CV curves of the 3D VNCN-800 electrode at different scan rates. It can be seen the CV curve is well maintained even under 100 mV·s−1, indicating good rate capability. Figure 6d presents the GCD curves of the 3D VNCN-800 electrode at different current densities from 1 A·g−1 to 10 A·g−1. The calculated specific capacitances of the 3D VNCN-800 electrode are 408.1 F·g−1 (1 A·g−1), 365.0 F·g−1 (2 A·g−1), 324.0 F·g−1 (4 A·g−1), 313.3 F·g−1 (5 A·g−1), 290.7 F·g−1 (8 A·g−1), and 282.5 F·g−1 (10 A·g−1), respectively. The cycling stability of the 3D VNCN-800 electrode was evaluated using successive GCD measurements between −0.95 V and 0.25 V at 10 A·g−1. As shown in Figure 6e, the 3D VNCN-800 electrode exhibits admirable cycling stability with 96.8% capacitance retention after 5000 cycles. The recently reported 3D porous carbon-based electrode materials and their electrochemical performance investigated in three-electrode systems are summarized in Table S2. It is clear that our sample shows relatively high capacitive performances among these recently reported 3D porous carbon-based electrode materials.
EIS analyses were employed to evaluate the electron/ion transport process of the 3D VNCN-800 electrode before and after the cycling test. The Nyquist plot of the 3D VNCN-800 electrode (Figure 6f) shows a distorted semicircle in the high-frequency region and nearly vertical straight lines in the low-frequency zone, indicating low diffusion resistance and good EDLC performance [41,42]. The intercept from the x-axis represents the equivalent series resistance (Rs), which is 0.68 Ω for the 3D VNCN-800 electrode. Moreover, the small semicircle from the Nyquist plot corresponding to charge transfer resistance indicates a fast adsorption/desorption rate for the 3D VNCN-800 electrode. After 5000 cycling tests, the Nyquist plot of the 3D VNCN-800 electrode shows negligible change, demonstrating well-maintained electrochemical performance.
A symmetrical capacitor based on a 3D VNCN-800 electrode was assembled to evaluate the practical application (marked as 3D VNCN-800-SC). Figure 7a,b show the CV and GCD curves of 3D VNCN-800-SC in the potential window of 0–1.2 V. A pair of reduction/oxidation peaks from the CV curve at about 1.0/1.1 V mainly depends on the rapid redox reaction at V and N active sites, demonstrating the generation of pseudocapacitance supplementing EDLC. Calculated from the GCD curves, the specific capacitance of 3D VNCN-800-SC (Figure 7c) is 78.0 F·g−1 (1 A·g−1), 72.0 F·g−1 (2 A·g−1), 66.0 F·g−1 (4 A·g−1), 63.7 F·g−1 (5 A·g−1), 58.7 F·g−1 (8 A·g−1), and 56.7 F·g−1 (10 A·g−1), respectively. The Ragone plot of 3D VNCN-800-SC (Figure 7d) was plotted based on the GCD curves. A maximum energy density of 15.6 Wh·Kg−1 was obtained at a power density of 600 W·Kg−1. When the current density increased to 10 A·g−1, 3D VNCN-800-SC retains an energy density of 11.3 Wh·Kg−1 at a power density of 6003.5 W·Kg−1.

4. Conclusions

To sum up, we present an effective approach to fabricating 3D VNCN composites. The 3D skeleton comes from polymerized CS-DCDA hydrogel with the assistance of glutaraldehyde. After pyrolysis at high temperatures, the 3D structure is well maintained. Moreover, abundant N dopants and VOx nanoparticles provide additional pseudocapacitance. Hence, 3D VNCN-800 shows a maximum specific capacitance of 408.1 F·g−1 at a current density of 1 A·g−1 and admirable cycling stability with 96.8% capacitance retention after 5000 cycles. Moreover, 3D VNCN-800-SC delivers a maximum energy density of 15.6 Wh·Kg−1 at a power density of 600 W·Kg−1. It is hoped that our works could provide guidance for the fabrication of 3D porous carbon materials with excellent electrochemical performance.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/polym15173565/s1, Table S1: Summary of the recently reported performance metrics for 3D porous carbon materials, 3D N-doped porous carbon materials, and 3D porous carbon materials combined with pseudocapacitive materials; Table S2: Summary of the recently reported 3D porous carbon-based materials and their electrochemical performance in three-electrode configurations. Refs. [43,44,45,46,47,48,49,50,51,52] are cited in the supplementary materials.

Author Contributions

Conceptualization, J.L. and X.H.; methodology, J.C. and Y.L.; software, J.Z. and S.Z.; validation, X.H.; formal analysis, D.Q. and B.L.; investigation, J.C., D.Q. and P.S.; resources, X.H.; data curation, Z.S.; writing—original draft preparation, J.L.; writing—review and editing, X.H.; visualization, J.C.; supervision, J.L.; project administration, X.H. and Y.L.; funding acquisition, X.H. and J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Guangxi Province (2021GXNSFBA075025), National Natural Science Foundation of China (22269002), National Key Research and Development Program of China (2022YFE0134600) and Doctoral Fund Project, Guangxi University of Science and Technology (19Z24 and 19Z23).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank Yu Yang from Shiyanjia Lab (www.shiyanjia.com) for the SEM.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Roy, B.K.; Tahmid, I.; Rashid, T.U. Chitosan-based materials for supercapacitor applications: A review. J. Mater. Chem. A 2021, 9, 17592–17642. [Google Scholar] [CrossRef]
  2. Hamsan, M.H.; Nofal, M.M.; Aziz, S.B.; Brza, M.; Dannoun, E.M.; Murad, A.R.; Kadir, M.; Muzakir, S. Plasticized polymer blend electrolyte based on chitosan for energy storage application: Structural, circuit modeling, morphological and electrochemical properties. Polymers 2021, 13, 1233. [Google Scholar] [CrossRef]
  3. Şentürk, S.B.; Kahraman, D.; Alkan, C.; Gökçe, İ. Biodegradable PEG/cellulose, PEG/agarose and PEG/chitosan blends as shape stabilized phase change materials for latent heat energy storage. Carbohydr. Polym. 2011, 84, 141–144. [Google Scholar] [CrossRef]
  4. Sun, G.; Li, B.; Ran, J.; Shen, X.; Tong, H. Three-dimensional hierarchical porous carbon/graphene composites derived from graphene oxide-chitosan hydrogels for high performance supercapacitors. Electrochim. Acta 2015, 171, 13–22. [Google Scholar] [CrossRef]
  5. Wang, Q.; Yan, J.; Fan, Z. Carbon materials for high volumetric performance supercapacitors: Design, progress, challenges and opportunities. Energy Environ. Sci. 2016, 9, 729–762. [Google Scholar] [CrossRef]
  6. Li, Q.; Dai, Z.; Wu, J.; Liu, W.; Di, T.; Jiang, R.; Zheng, X.; Wang, W.; Ji, X.; Li, P.; et al. Fabrication of ordered macro-microporous single-crystalline MOF and its derivative carbon material for supercapacitor. Adv. Energy Mater. 2020, 10, 1903750. [Google Scholar] [CrossRef]
  7. Zhou, J.; Zhang, S.; Zhou, Y.-N.; Tang, W.; Yang, J.; Peng, C.; Guo, Z. Biomass-derived carbon materials for high-performance supercapacitors: Current status and perspective. Electrochem. Energy Rev. 2021, 4, 219–248. [Google Scholar] [CrossRef]
  8. Dong, Y.; Zhu, J.; Li, Q.; Zhang, S.; Song, H.; Jia, D. Carbon materials for high mass-loading supercapacitors: Filling the gap between new materials and practical applications. J. Mater. Chem. A 2020, 8, 21930–21946. [Google Scholar] [CrossRef]
  9. Liu, M.; Huo, S.; Xu, M.; Wu, L.; Liu, M.; Xue, Y.; Yan, Y.-M. Structural engineering of N/S co-doped carbon material as high-performance electrode for supercapacitors. Electrochim. Acta 2018, 274, 389–399. [Google Scholar] [CrossRef]
  10. Cheng, J.; Liu, Y.; Zhang, X.; Miao, X.; Chen, Y.; Chen, S.; Lin, J.; Zhang, Y. Structure engineering in interconnected porous hollow carbon spheres with superior rate capability for supercapacitors and lithium-sulfur batteries. Chem. Eng. J. 2021, 419, 129649. [Google Scholar] [CrossRef]
  11. Borchardt, L.; Oschatz, M.; Kaskel, S. Tailoring porosity in carbon materials for supercapacitor applications. Mater. Horiz. 2014, 1, 157–168. [Google Scholar] [CrossRef]
  12. Shao, J.; Song, M.; Wu, G.; Zhou, Y.; Wan, J.; Ren, X.; Ma, F. 3D carbon nanocage networks with multiscale pores for high-rate supercapacitors by flower-like template and in-situ coating. Energy Storage Mater. 2018, 13, 57–65. [Google Scholar] [CrossRef]
  13. Kumar, S.; Saeed, G.; Zhu, L.; Hui, K.N.; Kim, N.H.; Lee, J.H. 0D to 3D carbon-based networks combined with pseudocapacitive electrode material for high energy density supercapacitor: A review. Chem. Eng. J. 2021, 403, 126352. [Google Scholar] [CrossRef]
  14. Li, Y.; Qu, J.; Li, F.; Qu, Z.; Tang, H.; Liu, L.; Zhu, M.; Schmidt, O.G. Advanced architecture designs towards high-performance 3D microbatteries. Nano Mater. Sci. 2021, 3, 140–153. [Google Scholar] [CrossRef]
  15. Hou, J.; Jiang, K.; Wei, R.; Tahir, M.; Wu, X.; Shen, M.; Wang, X.; Cao, C. Popcorn-derived porous carbon flakes with an ultrahigh specific surface area for superior performance supercapacitors. ACS Appl. Mater. Interfaces 2017, 9, 30626–30634. [Google Scholar] [CrossRef]
  16. Gao, Y.; Li, L.; Jin, Y.; Wang, Y.; Yuan, C.; Wei, Y.; Chen, G.; Ge, J.; Lu, H. Porous carbon made from rice husk as electrode material for electrochemical double layer capacitor. Appl. Energy 2015, 153, 41–47. [Google Scholar] [CrossRef]
  17. Chen, Z.; Wang, X.; Xue, B.; Li, W.; Ding, Z.; Yang, X.; Qiu, J.; Wang, Z. Rice husk-based hierarchical porous carbon for high performance supercapacitors: The structure-performance relationship. Carbon 2020, 161, 432–444. [Google Scholar] [CrossRef]
  18. Luo, M.; Wang, X.; Meng, T.; Yang, P.; Zhu, Z.; Min, H.; Chen, M.; Chen, W.; Zhou, X. Rapid one-step preparation of hierarchical porous carbon from chitosan-based hydrogel for high-rate supercapacitors: The effect of gelling agent concentration. Int. J. Biol. Macromol. 2020, 146, 453–461. [Google Scholar] [CrossRef]
  19. Zhang, Y.; Sun, Q.; Xia, K.; Han, B.; Zhou, C.; Gao, Q.; Wang, H.; Pu, S.; Wu, J. Facile Synthesis of Hierarchically Porous N/P Codoped Carbon with Simultaneously High-Level Heteroatom-Doping and Moderate Porosity for High-Performance Supercapacitor Electrodes. ACS Sustain. Chem. Eng. 2019, 7, 5717–5726. [Google Scholar] [CrossRef]
  20. Wang, X.; Sun, G.; Routh, P.; Kim, D.-H.; Huang, W.; Chen, P. Heteroatom-doped graphene materials: Syntheses, properties and applications. Chem. Soc. Rev. 2014, 43, 7067–7098. [Google Scholar] [CrossRef]
  21. Deng, Y.; Xie, Y.; Zou, K.; Ji, X. Review on recent advances in nitrogen-doped carbons: Preparations and applications in supercapacitors. J. Mater. Chem. A 2016, 4, 1144–1173. [Google Scholar] [CrossRef]
  22. Li, Z.; Liu, Q.; Sun, L.; Li, N.; Wang, X.; Wang, Q.; Zhang, D.; Wang, B. Hydrothermal synthesis of 3D hierarchical ordered porous carbon from yam biowastes for enhanced supercapacitor performance. Chem. Eng. Sci. 2022, 252, 117514. [Google Scholar] [CrossRef]
  23. Shang, Z.; An, X.; Zhang, H.; Shen, M.; Baker, F.; Liu, Y.; Liu, L.; Yang, J.; Cao, H.; Xu, Q.; et al. Houttuynia-derived nitrogen-doped hierarchically porous carbon for high-performance supercapacitor. Carbon 2020, 161, 62–70. [Google Scholar] [CrossRef]
  24. Fu, Q.; Zhao, H.; Sarapulova, A.; Dsoke, S. V2O5 as a versatile electrode material for postlithium energy storage systems. Appl. Res. 2023, 2, e202200070. [Google Scholar] [CrossRef]
  25. Saravanakumar, B.; Purushothaman, K.K.; Muralidharan, G. V2O5/nitrogen enriched mesoporous carbon spheres nanocomposite as supercapacitor electrode. Microporous Mesoporous Mater. 2018, 258, 83–94. [Google Scholar] [CrossRef]
  26. Pei, Y.R.; Zhao, M.; Zhu, Y.P.; Yang, C.C.; Jiang, Q. VN nanoparticle-assembled hollow microspheres/N-doped carbon nanofibers: An anode material for superior potassium storage. Nano Mater. Sci. 2022, 4, 104–112. [Google Scholar] [CrossRef]
  27. Wu, X.-M.; Liu, M.-M.; Guo, H.-X.; Ying, S.-M.; Chen, Z.-X. Polyoxovanadate-based MOFs microsphere constructed from 3-D discrete nano-sheets as supercapacitor. Chin. J. Struct. Chem. 2021, 40, 994–998. [Google Scholar]
  28. Khalil, E.S.; Saad, B.; Negim, E.-S.M.; Saleh, M.I. Novel water-soluble chitosan derivative prepared by graft polymerization of dicyandiamide: Synthesis, characterisation, and its antibacterial property. J. Polym. Res. 2015, 22, 116. [Google Scholar] [CrossRef]
  29. Aziz, B.S.; Hamsan, M.H.; Nofal, M.M.; San, S.; Abdulwahid, R.T.; Raza Saeed, S.; Brza, M.A.; Kadir, M.F.; Mohammed, S.J.; Al-Zangana, S. From cellulose, shrimp and crab shells to energy storage EDLC cells: The study of structural and electrochemical properties of proton conducting chitosan-based biopolymer blend electrolytes. Polymers 2020, 12, 1526. [Google Scholar] [CrossRef]
  30. Xu, D.; Jin, J.; Chen, C.; Wen, Z. From Nature to Energy Storage: A novel sustainable 3D cross-linked chitosan–PEGGE-based gel polymer electrolyte with excellent Lithium-ion transport properties for Lithium batteries. ACS Appl. Mater. Interfaces 2018, 10, 38526–38537. [Google Scholar] [CrossRef]
  31. Boorboor Azimi, E.; Badiei, A.; Hossaini Sadr, M.; Amiri, A. A template-free method to synthesize porous g-C3N4 with efficient visible light photodegradation of organic pollutants in water. Adv. Powder Technol. 2018, 29, 2785–2791. [Google Scholar] [CrossRef]
  32. Wang, Q.F.; Li, S.M.; Wang, Z.Y.; Liu, H.Z.; Li, C.J. Preparation and characterization of a positive thermoresponsive hydrogel for drug loading and release. J. Appl. Polym. Sci. 2009, 111, 1417–1425. [Google Scholar] [CrossRef]
  33. Partheeban, T.; Kesavan, T.; Vivekanantha, M.; Sasidharan, M. One-pot solvothermal synthesis of V2O5/MWCNT composite cathode for Li ion batteries. Appl. Surf. Sci. 2019, 493, 1106–1114. [Google Scholar] [CrossRef]
  34. Wei, Q.; Liu, J.; Feng, W.; Sheng, J.; Tian, X.; He, L.; An, Q.; Mai, L. Hydrated vanadium pentoxide with superior sodium storage capacity. J. Mater. Chem. A 2015, 3, 8070–8075. [Google Scholar] [CrossRef]
  35. Zhang, X.; Han, R.; Liu, Y.; Li, H.; Shi, W.; Yan, X.; Zhao, X.; Li, Y.; Liu, B. Porous and graphitic structure optimization of biomass-based carbon materials from 0D to 3D for supercapacitors: A review. Chem. Eng. J. 2023, 460, 141607. [Google Scholar] [CrossRef]
  36. Zhu, Z.; Liu, Y.; Ju, Z.; Luo, J.; Sheng, O.; Nai, J.; Liu, T.; Zhou, Y.; Wang, Y.; Tao, X. Synthesis of diverse green carbon nanomaterials through fully utilizing biomass carbon source assisted by KOH. ACS Appl. Mater. Interfaces 2019, 11, 24205–24211. [Google Scholar] [CrossRef] [PubMed]
  37. Liu, Y.; Tang, P.; Zhu, Y.; Xie, W.; Yang, P.; Zhang, Z.; Liu, B. Green aerogel adsorbent for removal of organic compounds in shale gas wastewater: High-performance tuning and adsorption mechanism. Chem. Eng. J. 2021, 416, 129100. [Google Scholar] [CrossRef]
  38. Hou, L.; Hu, Z.; Wang, X.; Qiang, L.; Zhou, Y.; Lv, L.; Li, S. Hierarchically porous and heteroatom self-doped graphitic biomass carbon for supercapacitors. J. Colloid Interface Sci. 2019, 540, 88–96. [Google Scholar] [CrossRef]
  39. Lu, X.; Yu, M.; Zhai, T.; Wang, G.; Xie, S.; Liu, T.; Liang, C.; Tong, Y.; Li, Y. High energy density asymmetric quasi-solid-state supercapacitor based on porous vanadium nitride nanowire anode. Nano Lett. 2013, 13, 2628–2633. [Google Scholar] [CrossRef]
  40. Long, B.; Balogun, M.-S.; Luo, L.; Luo, Y.; Qiu, W.; Song, S.; Zhang, L.; Tong, Y. Encapsulated vanadium-based hybrids in amorphous N-doped carbon matrix as anode materials for Lithium-ion batteries. Small 2017, 13, 1702081. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, S.; Zhao, Y.; Zhang, B.; Xia, H.; Zhou, J.; Xie, W.; Li, H. Nano-micro carbon spheres anchored on porous carbon derived from dual-biomass as high rate performance supercapacitor electrodes. J. Power Sources 2018, 381, 116–126. [Google Scholar] [CrossRef]
  42. Yang, H.; Ning, P.; Cao, H.; Yuan, M.; Feng, J.; Yue, J.; Liu, Z.; Xu, G.; Li, Y. Selectively anchored vanadate host for self-boosting catalytic synthesis of ultra-fine vanadium nitride/nitrogen-doped hierarchical carbon hybrids as superior electrode materials. Electrochim. Acta 2020, 332, 135387. [Google Scholar] [CrossRef]
  43. Wu, Y.; Yang, Y.; Zhao, X.; Tan, Y.; Liu, Y.; Wang, Z.; Ran, F. A novel hierarchical porous 3D structured vanadium nitride/carbon membranes for high-performance supercapacitor negative electrodes. Nano-Micro Lett. 2018, 10, 63. [Google Scholar]
  44. Sun, W.; Gao, G.; Zhang, K.; Liu, Y.; Wu, G. Self-assembled 3D N-CNFs/V2O5 aerogels with core/shell nanostructures through vacancies control and seeds growth as an outstanding supercapacitor electrode material. Carbon 2018, 132, 667–677. [Google Scholar] [CrossRef]
  45. Ping, Y.; Yang, S.; Han, J.; Li, X.; Zhang, H.; Xiong, B.; Fang, P.; He, C. N-self-doped graphitic carbon aerogels derived from metal–organic frameworks as supercapacitor electrode materials with high-performance. Electrochim. Acta 2021, 380, 138237. [Google Scholar] [CrossRef]
  46. Shi, C.; Li, S.; Pan, Y.; Guo, L.; Wang, Y. Self-standing porous N doped carbon/carbon foam for high-performance supercarpacitor. Diam. Relat. Mater. 2020, 110, 108138. [Google Scholar] [CrossRef]
  47. Zhang, L.F.; Tang, J.; Liu, S.Y.; Peng, O.W.; Shi, R.; Chandrashekar, B.N.; Li, Y.; Li, X.; Li, X.N.; Xu, B.M.; et al. A laser irradiation synthesis of strongly-coupled VOx-reduced graphene oxide composites as enhanced performance supercapacitor electrodes. Mater. Today Energy 2017, 5, 222–229. [Google Scholar] [CrossRef]
  48. Zhang, G.; Ren, L.; Hu, D.; Zhang, S.; Gu, H. Fabrication of mesoporous carbon hollow spheres intercalated three-dimensional network structure V2O5 nanosheets with enhanced electrochemical performance. J. Alloys Compd. 2019, 781, 407–414. [Google Scholar] [CrossRef]
  49. Geng, D.; Zhang, S.; Jiang, Y.; Jiang, Z.; Shi, M.; Chang, J.; Liang, S.; Zhang, M.; Feng, J.; Wei, T. 3D interconnected porous carbon derived from spontaneous merging of the nano-sized ZIF-8 polyhedrons for high-mass-loading supercapacitor electrodes. J. Mater. Chem. A 2022, 10, 2027–2034. [Google Scholar] [CrossRef]
  50. Liu, H.; Huang, X.; Zhou, M.; Gu, J.; Xu, M.; Jiang, L.; Zheng, M.; Li, S.; Miao, Z. Efficient conversion of biomass waste to N/O co-doped hierarchical porous carbon for high performance supercapacitors. J. Anal. Appl. Pyrolysis 2023, 169, 105844. [Google Scholar] [CrossRef]
  51. Zuo, S.; Chen, J.; Liu, W.; Li, X.; Kong, Y.; Yao, C.; Fu, Y. Preparation of 3D interconnected hierarchical porous N-doped carbon nanotubes. Carbon 2018, 129, 199–206. [Google Scholar] [CrossRef]
  52. Zhou, Y.; Sun, L.; Wu, D.; Li, X.; Li, J.; Huo, P.; Wang, H.; Yan, Y. Preparation of 3D porous g-C3N4@V2O5 composite electrode via simple calcination and chemical precipitation for supercapacitors. J. Alloys Compd. 2020, 817, 152707. [Google Scholar] [CrossRef]
Polymers 15 03565 g001

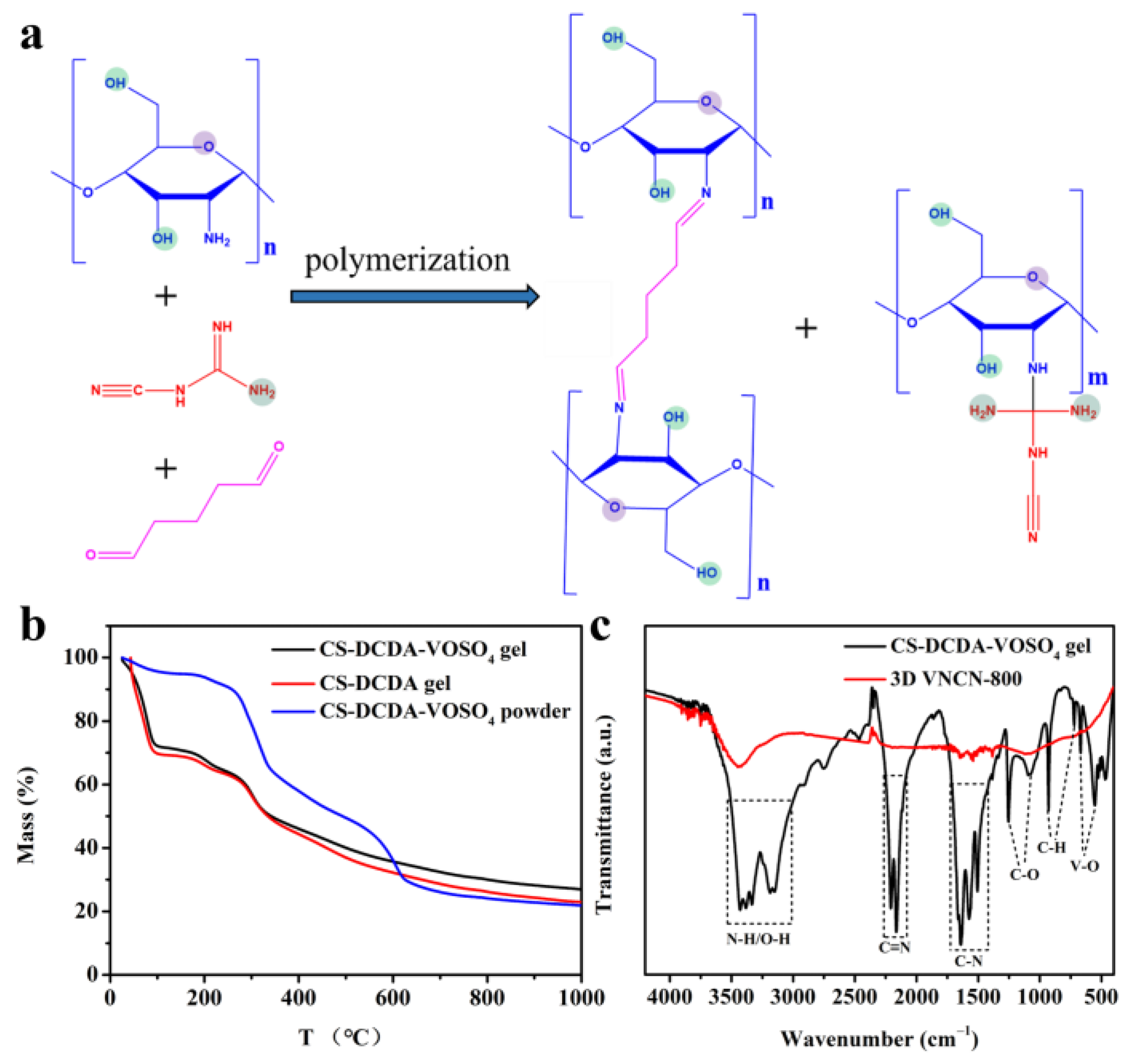

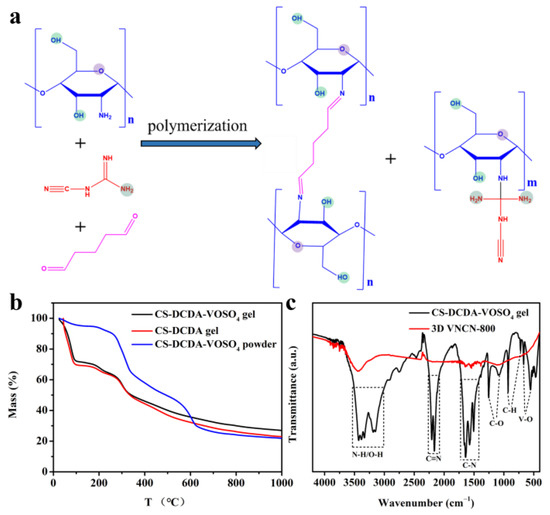

Figure 1. (a) Illustration of the polymerization process, (b) TGA curves of CS-DCDAVOSO4 gel, CS-DCD gel, and CS-DCDA-VOSO4 powder, (c) FT-TR spectra of CS-DCDA-VOSO4 gel and 3D VNCN-800.
Figure 1. (a) Illustration of the polymerization process, (b) TGA curves of CS-DCDAVOSO4 gel, CS-DCD gel, and CS-DCDA-VOSO4 powder, (c) FT-TR spectra of CS-DCDA-VOSO4 gel and 3D VNCN-800.
Polymers 15 03565 g001
Polymers 15 03565 g002

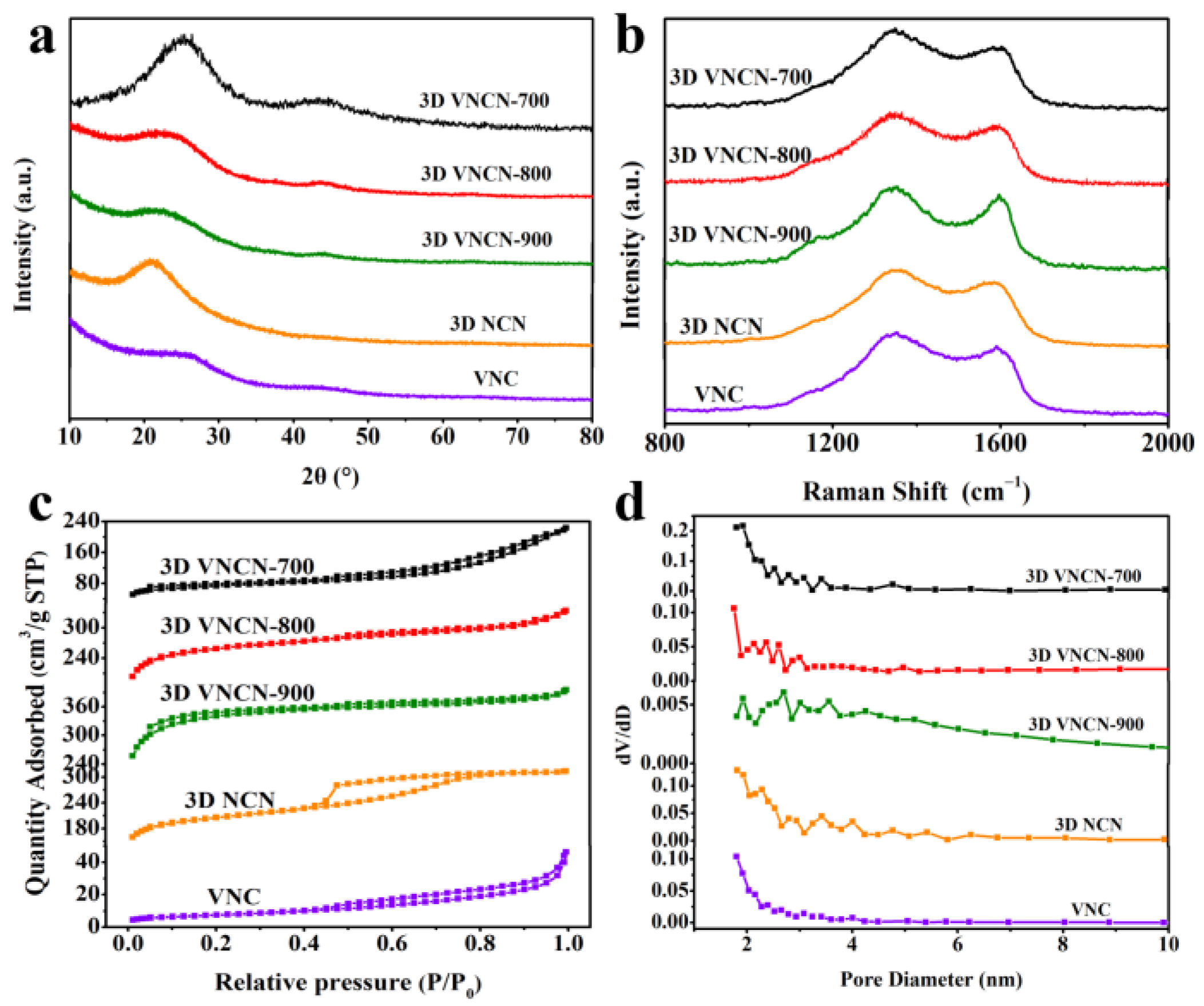

Figure 2. (a) XRD patterns of 3D VNCN, 3D NCN, and VNC, (b) Raman spectra of 3D VNCN, 3D NCN, and VNC, (c) N2 adsorption/desorption isotherms of 3D VNCN, 3D NCN, and VNC, (d) PSD curves of 3D VNCN, 3D NCN, and VNC.
Figure 2. (a) XRD patterns of 3D VNCN, 3D NCN, and VNC, (b) Raman spectra of 3D VNCN, 3D NCN, and VNC, (c) N2 adsorption/desorption isotherms of 3D VNCN, 3D NCN, and VNC, (d) PSD curves of 3D VNCN, 3D NCN, and VNC.
Polymers 15 03565 g002
Polymers 15 03565 g003

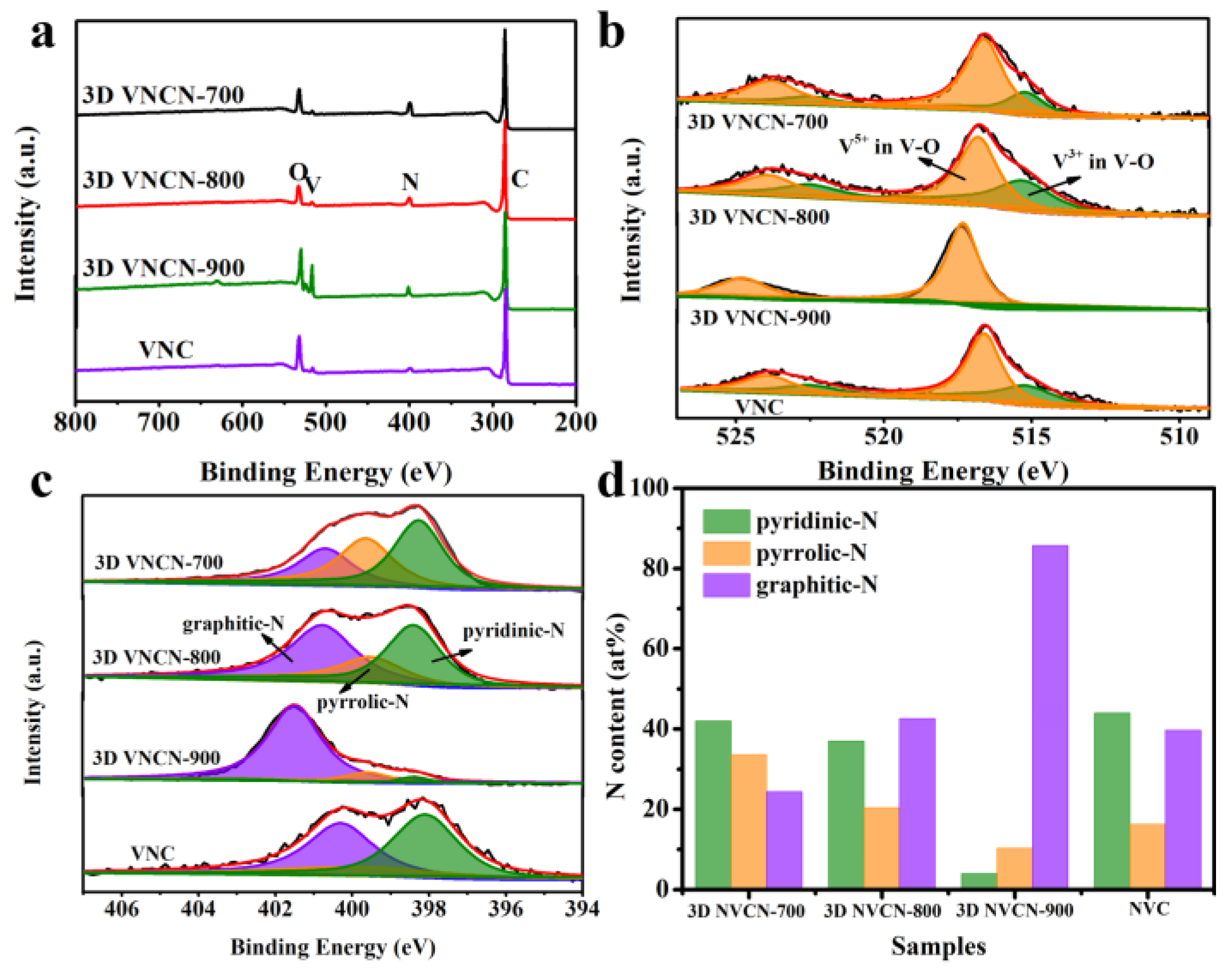

Figure 3. (a) XPS spectra of 3D VNCN and VNC, (b) V2p spectra of 3D VNCN and VNC, (c) N1s spectra of 3D VNCN and VNC, (d) the ratios of different nitrogen species determined from the N 1s XPS spectra.
Figure 3. (a) XPS spectra of 3D VNCN and VNC, (b) V2p spectra of 3D VNCN and VNC, (c) N1s spectra of 3D VNCN and VNC, (d) the ratios of different nitrogen species determined from the N 1s XPS spectra.
Polymers 15 03565 g003
Polymers 15 03565 g004

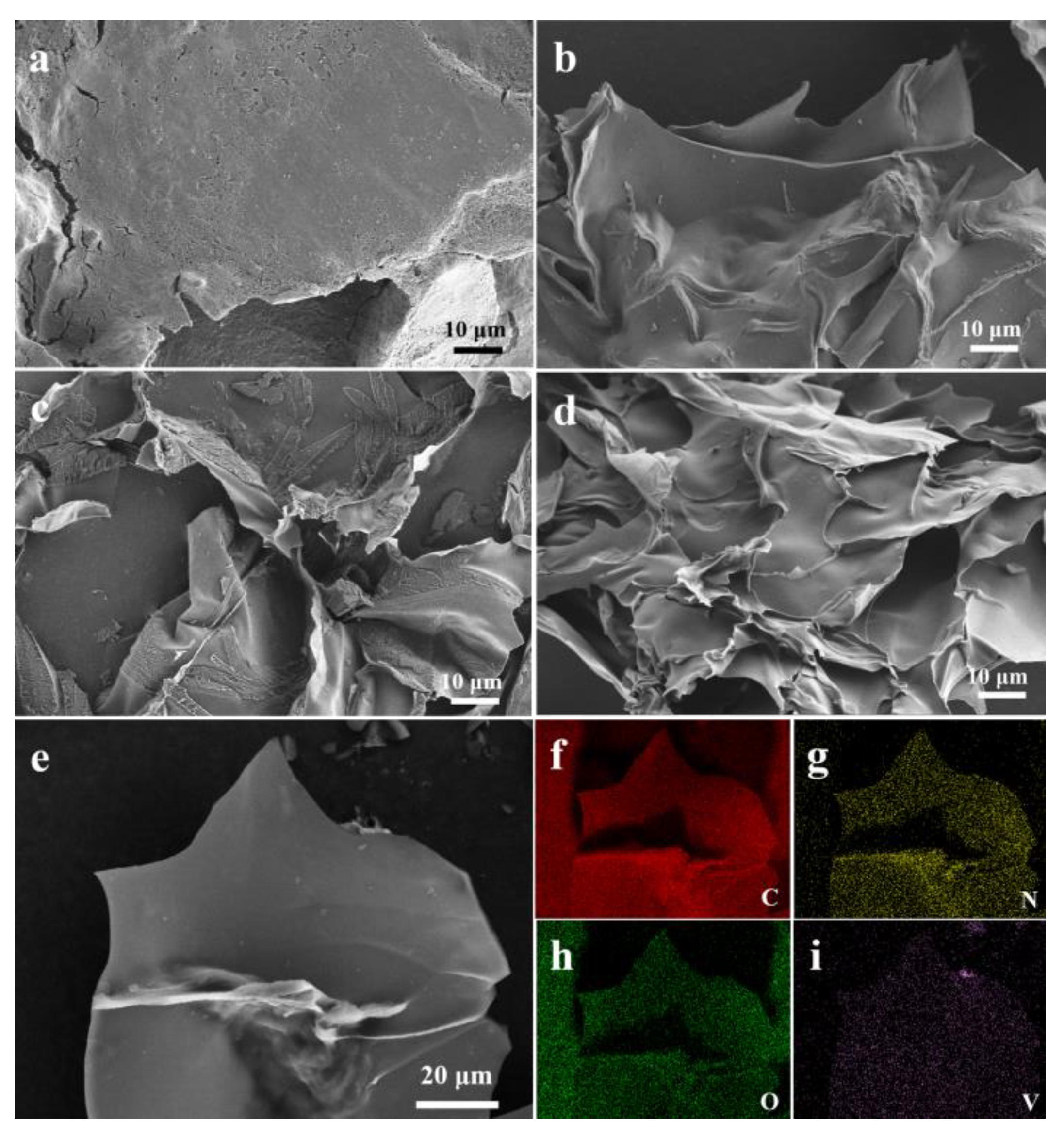

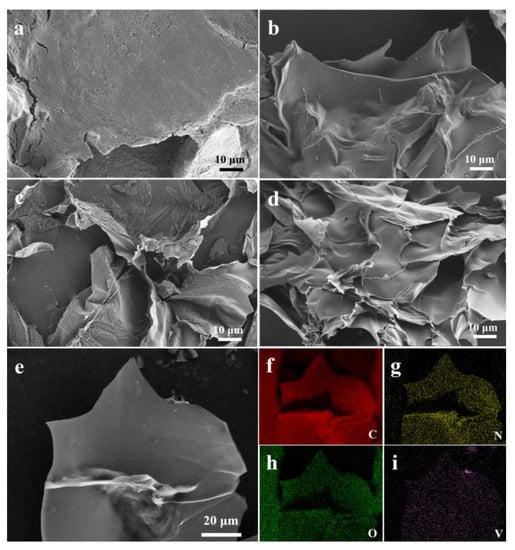

Figure 4. SEM images of (a) VNC, (b) 3D NCN, (c) CS-DCDA-VOSO4 gel, (d,e) 3D VNCN-800, (f–i) elemental mapping of C, N, O, and V.
Figure 4. SEM images of (a) VNC, (b) 3D NCN, (c) CS-DCDA-VOSO4 gel, (d,e) 3D VNCN-800, (f–i) elemental mapping of C, N, O, and V.
Polymers 15 03565 g004
Polymers 15 03565 g005

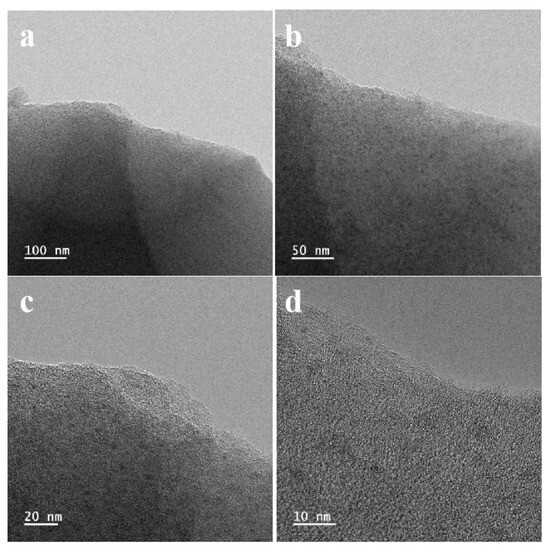

Figure 5. (a–d) TEM images of 3D VNCN-800.
Figure 5. (a–d) TEM images of 3D VNCN-800.
Polymers 15 03565 g005
Polymers 15 03565 g006

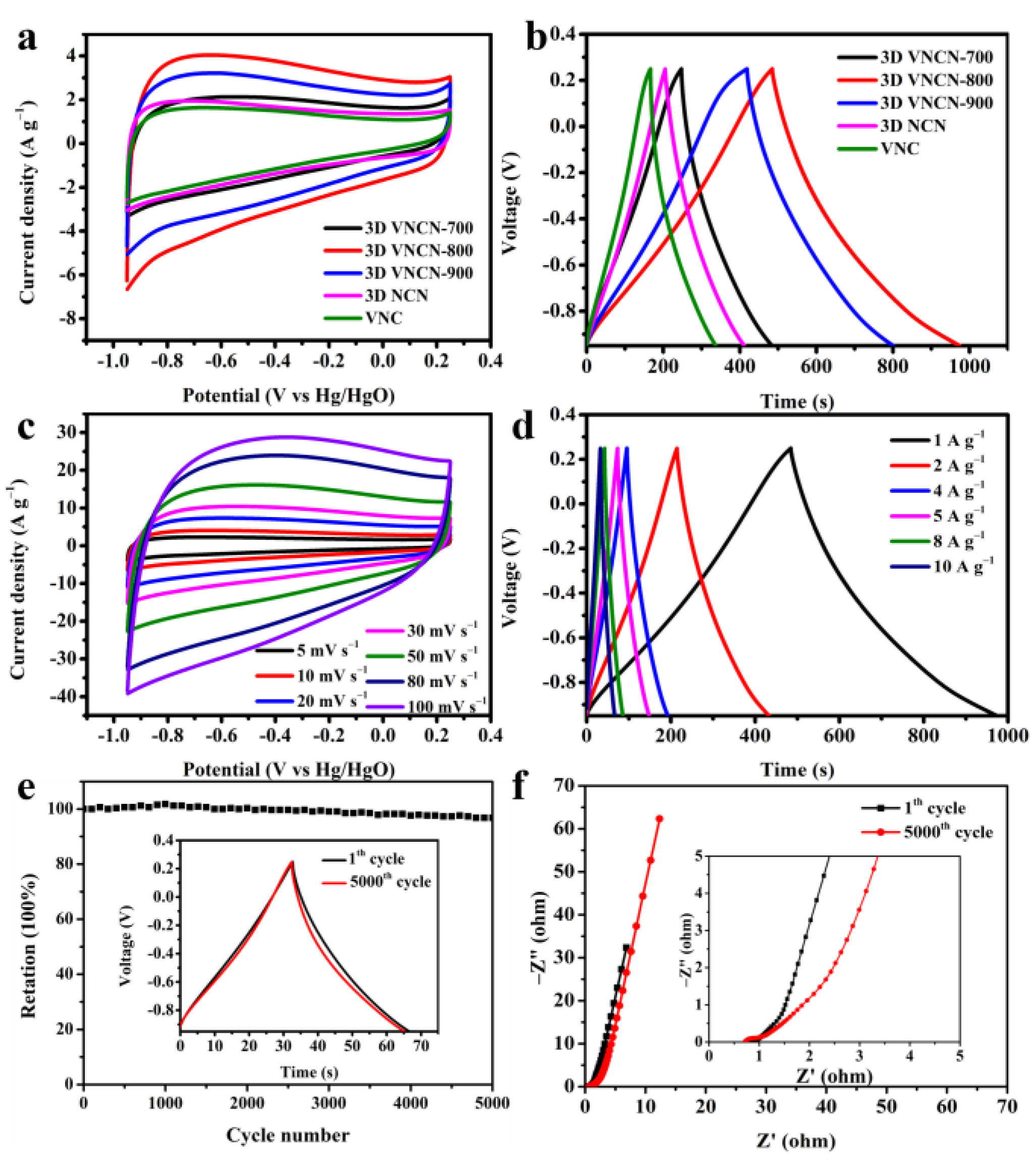

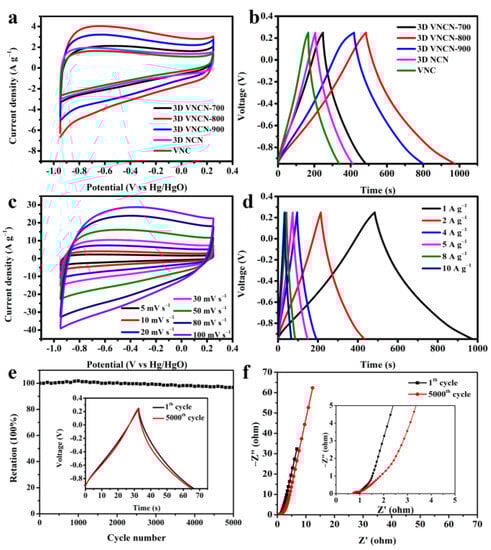

Figure 6. (a) CV curves of 3D VNCN, 3D NCN, and VNC at 10 mV·s−1. (b) GCD curves of 3D VNCN, 3D NCN, and VNC at 0.5 A·g−1. (c,d) CV and GCD curves of 3D VNCN-800 at different scan rates and different current densities. (e,f) Cycling performance and Nyquist plots of 3D VNCN-800.
Figure 6. (a) CV curves of 3D VNCN, 3D NCN, and VNC at 10 mV·s−1. (b) GCD curves of 3D VNCN, 3D NCN, and VNC at 0.5 A·g−1. (c,d) CV and GCD curves of 3D VNCN-800 at different scan rates and different current densities. (e,f) Cycling performance and Nyquist plots of 3D VNCN-800.
Polymers 15 03565 g006
Polymers 15 03565 g007

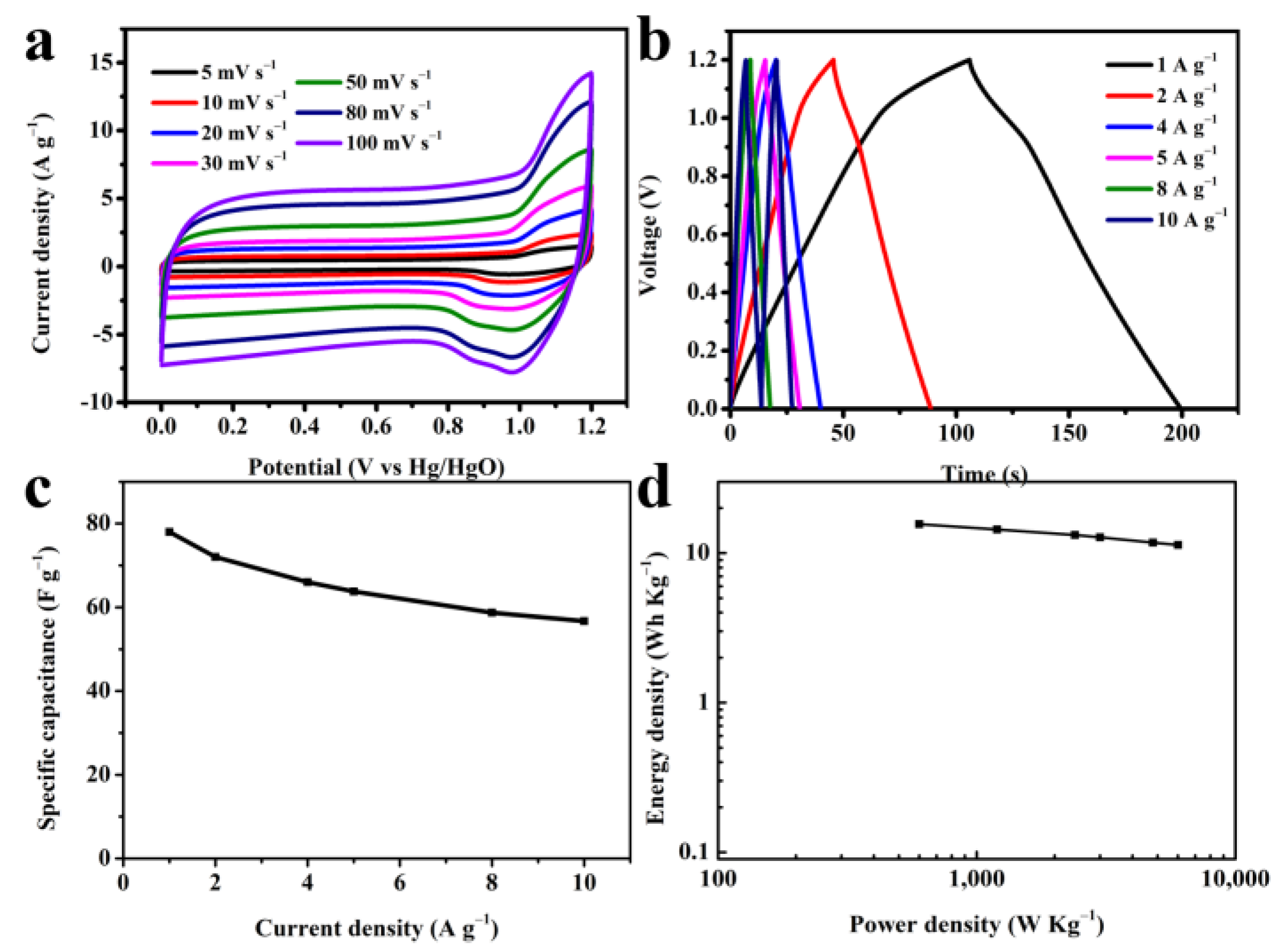

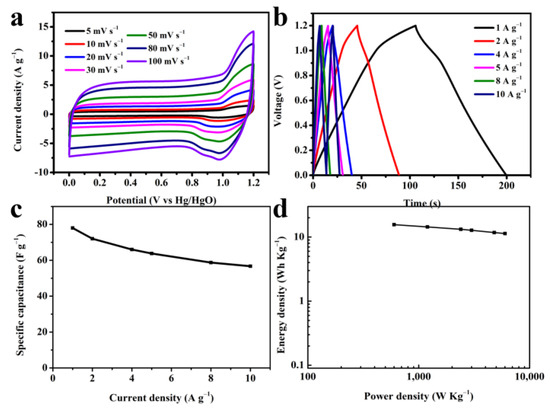

Figure 7. (a) CV curves of 3D VNCN-800-SC at different scan rates. (b) GCD curves of 3D VNCN-800-SC at different current densities. (c) Relationship between the specific capacitance versus current densities of 3D VNCN-800-SC. (d) Ragone plots of 3D VNCN-800-SC.
Figure 7. (a) CV curves of 3D VNCN-800-SC at different scan rates. (b) GCD curves of 3D VNCN-800-SC at different current densities. (c) Relationship between the specific capacitance versus current densities of 3D VNCN-800-SC. (d) Ragone plots of 3D VNCN-800-SC.
Polymers 15 03565 g007
Table 1. C, N, O, and V element content of 3D VNCN and VNC.
Table 1. C, N, O, and V element content of 3D VNCN and VNC.
SampleC (at%)N (at%)O (at%)V (at%)
3D VNCN-70076.239.0510.724.00
3D VNCN-80080.376.959.033.65
3D VNCN-90073.974.6113.777.65
VNC77.192.9614.155.70
Table 2. Electrochemical performances of the as-prepared electrode materials in a three-electrode system.
Table 2. Electrochemical performances of the as-prepared electrode materials in a three-electrode system.
MaterialsCs (1 A·g−1, F·g−1)Cs (10 Ag−1, F·g−1)Retention (1–10 A·g−1)
VNC142.478.355.0%
3D NCN172.312572.5%
3D VNCN-700197.5115.858.6%
3D VNCN-800408.1282.569.2%
3D VNCN-900318.6210.866.2%
