Synthesis and Properties of Ethylene/propylene and Ethylene/propylene/5-ethylidene-2-norbornene Copolymers Obtained on Rac-Et(2-MeInd)2ZrMe2/Isobutylaluminium Aryloxide Catalytic Systems

Faingol’d, Evgeny E.; Saratovskikh, Stanislav L.; Panin, Andrei N.; Babkina, Olga N.; Zharkov, Igor V.; Kapasharov, Artur T.; Bubnova, Maria L.; Shilov, Gennady V.; Bravaya, Natalia M.

doi:10.3390/polym15030487

Open AccessArticle

Synthesis and Properties of Ethylene/propylene and Ethylene/propylene/5-ethylidene-2-norbornene Copolymers Obtained on Rac-Et(2-MeInd)₂ZrMe₂/Isobutylaluminium Aryloxide Catalytic Systems

by

Evgeny E. Faingol’d

^*

,

Stanislav L. Saratovskikh

,

Andrei N. Panin

,

Olga N. Babkina

,

Igor V. Zharkov

,

Artur T. Kapasharov

,

Maria L. Bubnova

,

Gennady V. Shilov

^* and

Natalia M. Bravaya

^*

Federal Research Center of Problems of Chemical Physics and Medicinal Chemistry, Russian Academy of Sciences, Academician Semenov Avenue 1, 142432 Chernogolovka, Moscow Region, Russia

^*

Authors to whom correspondence should be addressed.

Polymers 2023, 15(3), 487; https://doi.org/10.3390/polym15030487

Submission received: 23 November 2022 / Revised: 9 January 2023 / Accepted: 13 January 2023 / Published: 17 January 2023

(This article belongs to the Special Issue Structural and Dynamic Properties of Synthetic Polymers in Complex Environments)

Download

Browse Figures

Versions Notes

Abstract

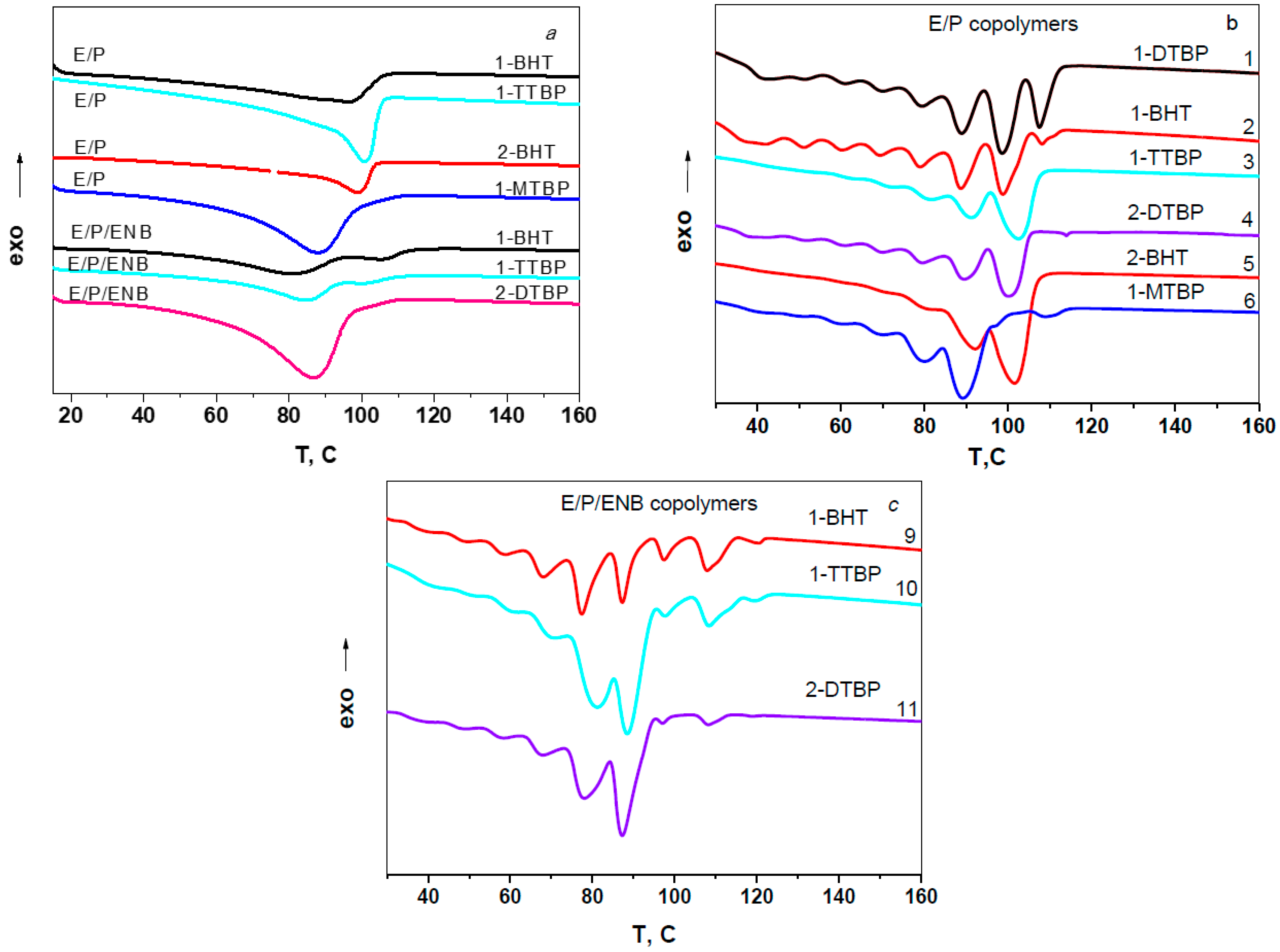

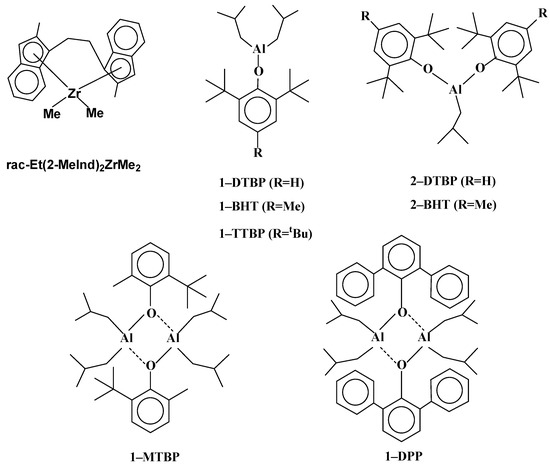

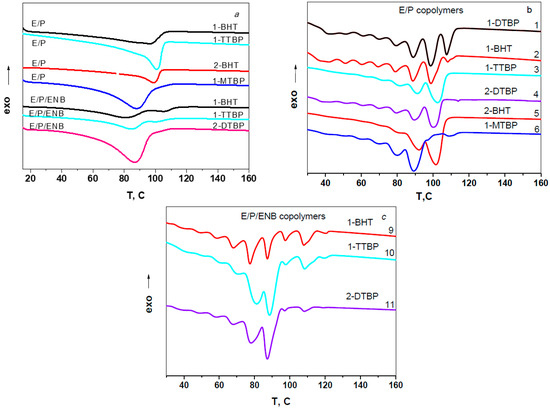

Ethylene/propylene (E/P) and ethylene/propylene/5-ethylidene-2-norbornene (E/P/ENB) copolymers were obtained on rac-Et(2-MeInd)₂ZrMe₂ activated by a number of isobutylaluminium aryloxides: (2,6-^tBu₂PhO-)AlⁱBu₂ (1-DTBP) (2,6-^tBu₂,4-Me-PhO-)AlⁱBu₂ (1-BHT), (2,4,6-^tBu₂PhO-)AlⁱBu₂ (1-TTBP), (2,6-^tBu₂,4-Me-PhO-)₂AlⁱBu (2-BHT), (2,6-^tBu₂PhO-)2AlⁱBu (2-DTBP), [(2-Me,6-^tBu-C₆H₃O)AlⁱBu₂]₂ (1-MTBP), [(2,6-Ph₂-PhO)AlⁱBu₂]₂ (1-DPP). This study shows how the structure of an activator influences catalytic activity and polymer properties, such as the copolymer composition, molecular weight characteristics, and thermophysical and mechanical properties. It has been shown that both the introduction of a bulky substituent in the para-position of the aryloxy group and the additional aryloxy group in the structure of an activator lead to a significant decrease in activity of the catalytic system in all studied copolymerization processes. Moreover, activation by bulkier aryloxides leads to lower levels of comonomer insertion and gives rise to higher molecular weight polymers. Broad or multiple endothermic peaks with different values of melting points are observed on the DSC curves of the copolymers obtained with different catalytic systems. The DSC of the thermally fractionated samples makes it possible to reveal the heterogeneity of the copolymer microstructure, which manifests itself in the presence of a set of lamellar crystallites of different thickness. The results also present the mechanical properties of the copolymers, such as the tensile strength (σ), elongation at break (ε), and engineering strain (EL). The synthesized E/P and E/P/ENB copolymers contain about 1–4 wt.% of the sterically hindered phenols obtained in situ as a residue of the hydrolyzed activators in the course of reaction quenching. This determines the increased thermooxidative stability of the copolymers.

Keywords: metallocene; isobutylaluminum aryloxide; catalyst; copolymerization; ethylene; propylene; 5-ethylidene-2-norbornene; EPM; EPDM; rubber; properties

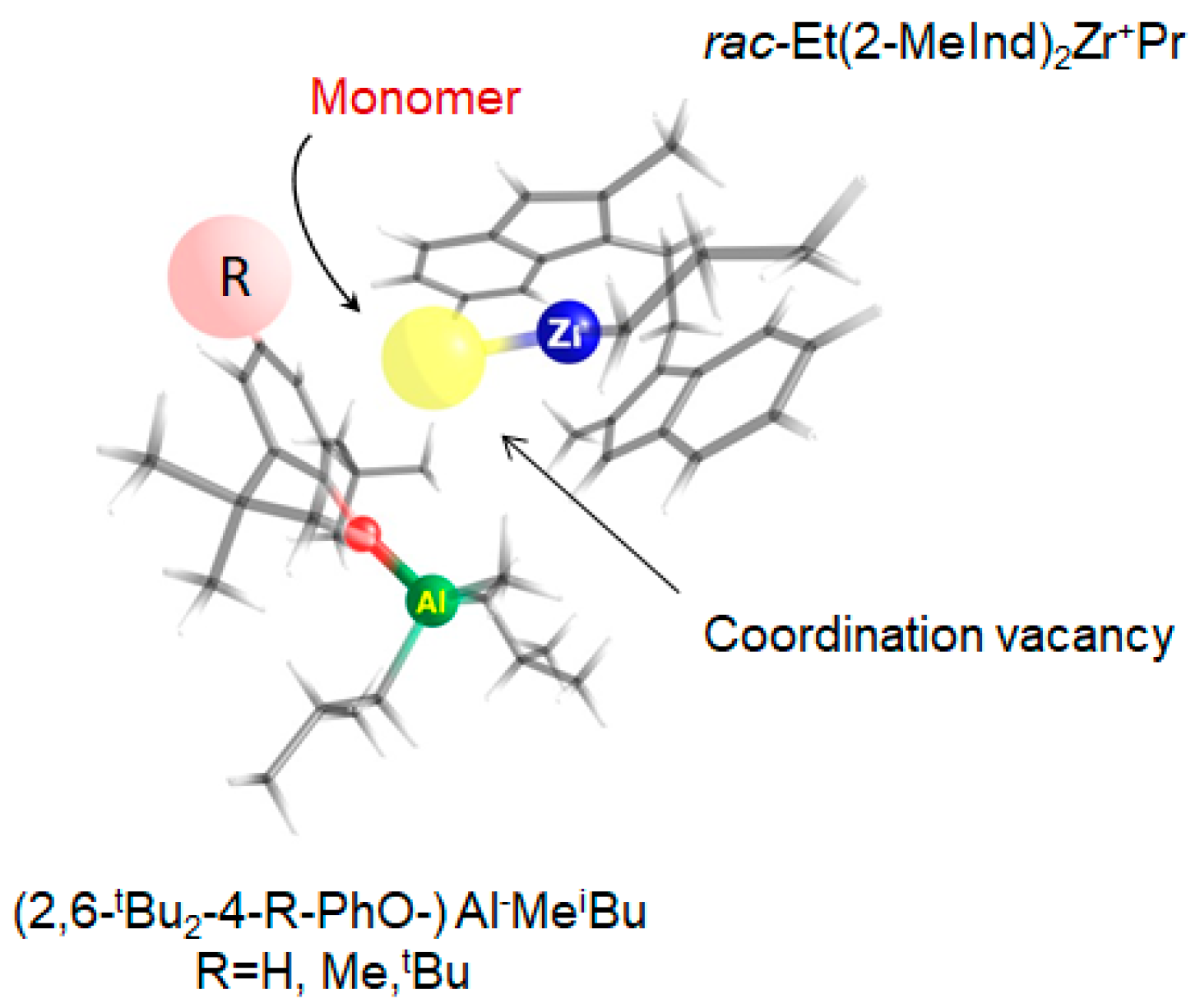

Graphical Abstract
