Formation of Olive-like TiO2 Nanospheres in a Polymeric Mesh by Sol-Gel Method

by
Claudia López Melendez
1,
Humberto Alejandro Monreal Romero
2,*,
Caleb Carreño-Gallardo
3,
Guillermo Martinez Mata
2,
Rosaura Pacheco Santiesteban
2,
Teresa Pérez Piñon
2,
Dagoberto Pérez Piñon
4,
Héctor Alfredo López Aguilar
1,
Marvin Elco Estrada Macias
2 and
José Guadalupe Chacón-Nava
3
1
Department of Engineering and Materials, La Salle University, Avenue Lómas de Majalca 1120, Chihuahua CP 31625, Chih., Mexico
2
Department of Biomaterials Science and Nanotechnology, University of Chihuahua (UACH), Avenue University, Chihuahua CP 31000, Chih., Mexico
3
Advanced Materials Research Center, S.C. (CIMAV) and National Nanotechnology Laboratory, Avenue M. Cervantes 120, Industrial Complex Chihuahua, Chihuahua CP 31136, Chih., Mexico
4
Department of Polymers and Biomaterials, University of Chihuahua (UACH), University Circuit Campus II, Chihuahua CP 31000, Chih., Mexico
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(13), 1875; https://doi.org/10.3390/polym16131875
Submission received: 18 May 2024 / Revised: 20 June 2024 / Accepted: 25 June 2024 / Published: 30 June 2024
(This article belongs to the Special Issue State-of-the-Art Polymer Science and Technology in Mexico)
Browse Figures
Versions Notes

Abstract

:
Olive-like TiO2 (titanium dioxide), nanospheres compounds were synthesized. Polysaccharide (1–3 linked β-D galactapyranose and 1.4-linked 3.6 anyhdro-α-L-galactopyranose and titanium isopropoxide (IV) was used as a precursor in its formation. The powder sample was evaluated by scanning tunneling microscope, X-ray diffraction pattern, power spectral density, fast Fourier transform, differential thermal analysis, continuous wavelet transform, and isotropy texture analysis. The results demonstrate that these nanospheres can successfully be synthesized in a solution using a polysaccharide network by means of the sol-gel method. The synthesized olive-like TiO2 nanospheres have diameters ranging from 50 nm to 500 nm. The synthesis parameters, such as temperature, time, and concentration of the polysaccharide, were controlled in solution.

1. Introduction

The synthesis of materials using various organic compounds has increased today to study aspects related to molecular self-assembly to generate structures of diverse morphology, such as nanoparticles, coatings, and organic-based nanomaterials [1]. The formation of olive-type structures, with different properties, such as drug release, hydrogen storage reservoirs, and the use of organic molecules such as vitamins, amino acids, and proteins, has led to the exploration of new routes to its synthesis. The use of metal oxides such as titanium represents a favorable alternative for these activities due to their chemical stability within organic systems. It has been used in various areas, such as clinical medicine in the application of prostheses, alternative energy, and biosensors. Titanium has proven to be very versatile within these areas since its physical, chemical, and electronic properties can increase the kinetic reactions between the surface of the titanium and the molecules that interact in the aqueous medium. This immobilizes the ionic density in the molecular self-assembly processes, reducing fluid resistance when used as transport vehicles within different complex systems such as the cell, muscle fibers, and nanoelectromechanical systems. The elaboration of olive-type morphologies in the presence of polysaccharides can help bind titanium through electrostatic interactions, controlling the growth of particles along the three-dimensional network of the polysaccharide. Due to the presence of pores, nanospheres have good photocatalytic activity and have several applications, such as solar cells, wastewater treatment, pharmacology, and biomedical applications. Additionally, there are different methods in the preparation of nanospheres, such as arc discharge, solvothermal method, laser pyrolysis, directed assembly method, sol-gel method, and tempering method. Likewise, the different strategies of synthesis highlight the importance of the preparation of nanospheres for the formation of olive-like structures using different methods such as the electrodeposition technique, hydrothermal technique, glycolated precursors, and mini-emulsion processes [2,3,4,5]. One of the most interesting and versatile processes for this purpose is related to the use of TiO2 (titanium dioxide) with different polymeric precursors such as Polyvinyl alcohol (PVA), poly(ethyleneimine) (PEI), poly(sodium4-styrene sulfonate), polymethylmethacrylate, polyamide [6,7,8,9,10,11]. In this manner, the importance of the elaboration of new nanostructures allows the use of different techniques, such as the solvothermal method, green synthesis, and sol-gel [12,13,14]. Other techniques used to synthesize nanoporous nanostructured materials and nanoparticles is the use of polymeric membranes and cylindrical micelles, which exhibit special characteristics [15,16]. The synthesis of nanoparticles and nanospheres in the presence of polymeric networks plays an important role in the elaboration of various compounds that can be used in areas such as the pharmacology, tissue engineering, and ceramics industries [17,18,19]. Furthermore, a very interesting area in the development of different structures designed through organic molecules is the design of bioinspired materials using biological organisms, such as biopolymers, bone, and fibers [20]. These structures have interesting mechanical properties that make them suitable for the formation of spatial geometric figures, although they present some limitations due to their natural origin, such as being able to imitate their biomimetic properties [21]. Nevertheless, the goal is to combine the properties of each organic and inorganic material to obtain materials with specific properties, such as the use of repellent compounds in different solutions or materials with high mechanical strength [22]. In this manner, several strategies in the development of nanospheres can be engaged with the generation of bioinspired materials with various biological components, such as agarose, cellulose, and rhodamine [23,24,25]. Likewise, other types of materials have been used, such as SiO2, carbon, and CuCo2O4, for the synthesis of nanospheres using techniques such as protein separation, chemical vapor deposition, and heterogeneous contraction [26,27,28]. Many of these works attempt to explore molecular recognition processes to study chirality mechanisms when molecules of organic origin interact. Thus, studies with chiral polymers are highly promising for catalytic and optoelectronic activities. Furthermore, various nanostructures, such as nanoparticles, nanofibers, and nanospheres, can be explored using diverse technologies, such as scanning tunneling microscopy, scanning electron microscopy, and scanning probe microscopy. It is important to highlight the use of polysaccharides in the synthesis of nanospheres due to the multiple benefits of biocompatibility, non-toxicity, and ease of acquisition. In addition, polysaccharides have several physical, chemical, thermal, and optical characteristics that allow them to be used to generate a wide variety of nanoscale structures. Most of the physical, chemical, thermal, and optical processes are carried out at the nanometric scale, using a great diversity of biomolecules, inorganic molecules, and polypeptides. The resulting nanostructures, in some cases, are assembled to form complexes and materials with different geometric shapes. The forces involved are electrostatic, non-covalent interactions, ionic and hydrogen bonds, the hydrophobic and hydrophilic effect, and van der Waals forces. In this way, an important factor to consider regarding the olive-like TiO2 nanospheres synthesized with the polysaccharide network is that the interaction of hydrogen bonds, in aqueous means, improves the electrostatic bonding during the synthesis process. In this work, we have prepared olive-like TiO2 nanospheres, and the resulting nanospheres showed a heterogeneous size using the sol-gel method.

2. Materials and Methods

2.1. Synthesis and Characterization of Olive-like TiO2 Nanospheres

The TiO2 nanospheres were synthesized using the following methodology. The compounds were prepared with the addition of 1 g of polysaccharide (1–3-linked β-D galactapyranose and 1.4-linked 3.6 anyhdro-α-L-galactopyranose 99% Sigma-Aldrich St. Louis MO 63178, USA) as a template and 100 mL of bidistilled water in a solution of 300 mL of 99.8% ethanol (Sigma-Aldrich, St. Louis MO 63178 USA). Subsequently, the solution with a pH of 7.0 was subjected to a heating process at 50 °C for 5 min, 25 mL of titanium (IV) isopropoxide (Ti [OCH(CH3)2]4—97% (Sigma-Aldrich, St. Louis MO 63178 USA), 0.5 M, under constant stirring and drying at room temperature for gel formation for 8 min in the mold. In this way, the polymerization of the agarose occurs slowly, forming an intramolecular network controlling the growth of the spheres by minimizing the free energy caused by the surface tension of the polysaccharide fibers. Once the gel was formed, it was placed in ethanol, and the gel obtained was subjected to aging for 24 h. Afterward, the ethanol was exchanged 3 times over the course of 5 days, and the gel was heated to 500 °C for approximately 10 min. The heating purpose is to obtain the powders and establish the beginning of the transition of the crystalline phases of TiO2. Furthermore, it increases the density of TiO2 and slows down the degradation of the polysaccharide network without compromising the formation of the geometric shape of the nanospheres. It also preserves the cross-linking of their fibers.
The powders obtained were characterized with the following techniques.

2.2. Characterization of Olive-like TiO2 Nanospheres by FESEM

The olive-like TiO2 nanospheres were studied with a field emission scanning electron microscope (FESEM) JEOL-JCSM-7401F Peabody, MA 01960 USA. The specimens were placed in a holder with an acceleration voltage of 2.0 kV and a magnification of 30,000.

2.3. Characterization of Olive-like TiO2 Nanospheres by X-ray

For the characterization by X-ray diffraction, the samples of the powders began to be prepared and were placed in the sample holder, being careful to place them in the center and without the sample protruding from the walls of the latter so that the diffraction phenomenon occurred without problems, and the results were optimal for later study. The sample was placed in the first space of the diffractor, and it was verified that it was completely well placed so that the container or the sample would not fall. Next, the parameters in which the sample was to be studied were placed, as well as the place where the sample was located, and diffraction was carried out. The crystalline phase of the nanostructures was detected by an X-ray diffraction (XRD) pattern using a CuK (α) at 0.1542 nm on a Phillips X’. PERT Eindhoven AMS. X-ray diffractometer.

2.4. Characterization of Olive-like TiO2 Nanospheres by TGA-DTA-DTG Analysis

The TGA-DTA-DTG analysis of the nanospheres was processed on DTA-TGA TA, CDMX equipment at a heating rate of 10 °C/min in an air atmosphere.

2.5. Characterization of Olive-like TiO2 Nanospheres by STM

The characterization of the compounds was carried out through a Nanosurf easyScan 2, Liestal, Switzerland, instrument scanning tunneling microscope equipped with Pt/Ir tips (BT00400), and the images were processed using an easyScan 2 imaging software version 1-6-0-0 and a Mountains software version 9.0 United States Laboratory. The preparation of the samples for STM was carried out as follows: the powders were placed in 5 mL of bidistilled water and stirred in a Thermo scientific 16715 vortex to disperse the nanospheres; subsequently, the nanospheres were dried at room temperature for 24 h. Once dried, they were placed on a microscope glass slide-Esco of 1.2 mm thickness. The parameters used in STM were continuous mode at 20 nN, the tip voltage was 1 V, the sweep speed was 0.1 s, and the operating mode was static force. The image resolution area was 161 × 161 nm.

2.6. Characterization of Olive-like TiO2 Nanospheres by Mountains Lab Software

The analysis of power spectral density (PSD), fast Fourier transform (FFT), surface geometry analysis, fractal dimension analysis, coefficient of determination R2, continuous wavelet transform analysis, decomposition of the continuous signal, profile of holes analysis, and texture isotropy analysis was executed utilizing the Mountains Lab 9.0 image processing software. The images obtained through STM and FESEM were processed in this software using the following parameters: structural analysis, texture direction, control chart, and critical dimension analysis.

3. Results and Discussion

3.1. Characterization of Olive-like TiO2 Nanospheres by SEM

Figure 1a shows the SEM micrograph of TiO2 in the absence of the polysaccharide matrix, it can be seen that there are no nanospheres present, and the surface is irregular. Figure 1b shows the image in SEM of the olive-like TiO2 nanospheres in the presence of a polysaccharide matrix with diameters of 50–500 nm. This type of morphology offers the advantage of being used as a vehicle to store different substances, such as drugs, proteins, and electronic nanodevices, compared to those existing in the literature. TiO2 nanospheres have been reported with sizes between 56 and 100 nm using polysaccharides such as agarose and alginate [23,24,25,26,27,28,29]. The image presents heterogeneous morphological characteristics, and the hole of the nanospheres is probably due to the polysaccharide matrix. Also, these images suggest that the electrical behavior of the electrostatic junction composed of polysaccharide and TiO2 is controlled by an electron transfer mechanism characteristic of molecular self-assembly systems in solution. Molecular self-assembly is a process of spontaneous organization with electrostatic interactions under several conditions of equilibrium, such as hydrogen bonds of the polysaccharides, non-covalent bonds, hydrophobic and hydrophilic interactions, and polymerization of processes.

3.2. Particle Size Distribution

Figure 2 shows the particle size distribution with ranges of 50–500 nm. Approximately 30% of the nanospheres obtained are in the range of about 100 nm in diameter. In another study, a particle size in the range of 100–200 nm was reported using the biphasic system [30]. Moreover, the average particle size, utilizing the polymeric system, permits the biological activity to be fixed on the surface of the nanospheres or in the aqueous medium. In other words, the control of the properties of the linear polymer and the particle size determine the characteristics of each sphere.

3.3. X-ray Diffraction Pattern

The crystalline phase of the olive-like TiO2 nanospheres was identified by X-ray diffraction patterns at 500 °C, Figure 3. In these patterns, the reflections at 2θ of 25°, 31°, 38°, 48°, 55°, 57°, 63°, 65°, 70°, and 75° visibly correspond to the anatase phase of TiO2. The system used allowed the obtaining of crystalline nanospheres, avoiding subsequent sintering methods that could induce TiO2 to crystallize, affecting the ability to adsorb the polysaccharide network. These results are similar to those found in other works during the synthesis of TiO2 nanospheres [31,32,33]. The degree of the crystalline phase is approximately 98%, and the intensity of the reflections of the anatase phase can be observed. A separation of the amorphous phase can be observed before the first reflection, and later, the other reflections appear, which remain during the sintering process.

3.4. Thermo-Gravimetric and Differential Thermal Analysis

In Figure 4 and Figure 5, the results of the TGA-DTA study of the olive-like TiO2 nanospheres are shown. The temperature region of the TGA curve, Figure 4, shows a weight loss at 100–200 °C. This behavior corresponds to the loss of water and alcohol that causes the appearance of an endothermic peak at 60 °C and an exothermic peak at 300 °C, Figure 5, caused by the combustion of organic matter and the titanium precursor. The polysaccharide fibers have oxidation degrees of the residual galactose and agarobiose groups, which means that there is no loss of weight at 45 °C. This behavior is due to a process of direct coagulation or chemical gelification of the polysaccharide, which allows it to increase the density of TiO2 and decrease the fast degradation of the polysaccharide.
In addition, there is a slow and continuous degradation of the polysaccharide matrix at temperatures between 65 and 600 °C. The permanence and evolution of the anatase phase is at approximately 500 °C. This prevalence may be due to the kinetic processes of phase transformation, in which the polysaccharide matrix is capable of retaining the anatase phase, inhibiting the nucleation processes for the formation of the rutile phase. Figure 6 shows the DTG analysis of the nanospheres. In the first, second, and third points of the curve, the mass loss occurs in a slow process between 100 and 200 °C. This loss may be due to the desorption of water adsorbed on the surface of the nanospheres. A fourth point is seen at approximately 250 °C; according to this, as the temperature increases, the loss of mass becomes even slower, reaching a curve at 300 °C. We report that the total weight loss is 22.5%. Subsequently, the stabilization of the curve begins at approximately 500 °C. The observed behavior may be due to the breaking of chemical bonds, causing the three-dimensional network of the polysaccharide to decompose and resulting in the thermal degradation of TiO2. In this way, the presence of these curves may represent the stability of TiO2 in relation to the three-dimensional network of the polysaccharide carried out by a complex thermal degradation interaction.

3.5. Characterization of Olive-like TiO2 Nanospheres by Scanning Tunneling Microscopy (STM)

Figure 7 shows a complex of nanospheres as part of the integration into a polysaccharide matrix, thereby demonstrating that compatibility exists and electronic activity is prevalent. The observed behavior of nanospheres at low temperatures in STM suggests, however, that the interaction of the adatom would be located in the central region between the rest of the atoms, as shown in Figure 7. In this manner, for the various partially occupied orbitals that are present in the unit cell of the reconstruction of Ti (110), an element more electronegative than the surface (electron acceptor) would have a preference to interact with the polysaccharide. Therefore, if there is an interaction with an electron acceptor component (more electronegative than the surface), there will be a charge transfer from the surface to the element. In both cases, there is a flow of electrons characterized by a variation in the chemical potential of electrons. This will have a model system to transfer (donate or accept) electrons. The study also suggests that the increase in the function of the polysaccharide matrix might be due to the similarity of the fibers and the TiO2 crystals found in the nanospheres. The binding of Ti-O-H molecules within a solution, such as ethanol, increases the additional energy of the Fermi level, causing the nanospheres to increase electrical conductivity. The difficulty of performing surface topography analysis on monosaccharides derives from the electrostatic charges emitted by STM. These results demonstrate the self-assembly of the nanospheres in the polysaccharide matrix, reducing the generation of unnecessary electrical charges and, thus, allowing the effective union of oxygen with Ti. In this way, the electronegative OR group of the alkoxide renders the metal very susceptible to nucleophilic attack, leaving a partial negative charge. This, during the reaction, allows the polysaccharide to provide a system capable of forming hydrogen bonds and reacting with the hydrolyzed Ti-OH species. During the polymerization process, in the presence of the polysaccharide network, the Ti-OR is converted into a Ti-OH bond. The results also demonstrate that the nanospheres induce a fusion process within the solution by modifying the supramolecular structure of the interpenetrated networks of the polysaccharide. Nanospheres allow the miniaturization and functionality of the networks, allowing the force fields between molecules to be optimal for interaction. This characteristic is what allows, through electrostatic interactions, in an aqueous medium, for the compounds in the solution, mainly the precursors of the titanium and water used, and the polysaccharide fibers, to interact, finally forming the structures and giving rise to the chemical modification of the surface results, favoring adhesion to the TiO2 surface. Several studies have been developed in which the properties of metal oxides such as TiO2 and the activity of oxygen vacancies in nanospheres have been analyzed, but this activity has not been reported with polysaccharides such as those performed in this study [34,35,36].

3.6. Characterization of Olive-like TiO2 Nanospheres by FFT

The frequency spectrum of the fast Fourier transform is observed in Figure 8; the nanospheres produce high frequencies in their intensity levels, which are observed as parts with greater luminosity due to the presence of TiO2. They can also cause low frequencies that are shown as less intense parts that are caused by the presence of the polysaccharide matrix. The value of power relative to carrier (dBc) analysis of −3522 indicates that the nanospheres have a higher power in the carrier signal than in the power of the input signal. In this way, greater power allows greater interaction in the molecular self-assembly process, leading to a stronger union. In this way, when the aggregates in each pore of the polysaccharide network align to form the nanospheres, there is an unequal number of negatively charged monomers in each pore, resulting in a molecular dipole throughout the matrix. Depending on the orientation of this molecular dipole, an applied voltage can mobilize and destabilize the aggregates, providing voltage-dependent ionic transport. In this manner, the amplitude of the fast Fourier transform is taken by the power spectral density to normalize the frequency width.

3.7. Characterization by Power Spectral Density (PSD) Analysis of Olive-like TiO2 Nanospheres

The image of Figure 9 shows the characterization of the nanospheres by means of the force spectral density analysis; the area of the square of the curve that corresponds to the energy of the signal, both vertical and lateral, is shown. The results are distinctive in representing the function of the moisture absorption capacity and the property of the nanospheres to scatter light emissions. The dominant energy corresponding to the wavelength presents a maximum peak of 0.4244 µm with an amplitude of 1.581 gL; the graph shows a decrease in its curve with the presence of two peaks, one at 0.6 µm and the other at 0.9 µm. The interaction of TiO2, ethanol, and polysaccharide facilitates the appearance of peaks that contain force periodicity signals, controlling the existence of electron vibrations and canceling the presence of noise during the temperature application process in the gels. In this context, the level of polarization may depend on the electromagnetic power of the nanospheres and the dipole moment at high and low frequencies, with changes in the dielectric balance.

3.8. Fractal Dimension Analysis

The values of the analysis of the fractal dimension are shown in Figure 10. The olive-like TiO2 nanospheres were analyzed using the following equation:
log ⁡ S = D log ⁡ L = D = log ⁡ S log ⁡ L
where S (8) is the size of the fractal, L is the measurement scale (2.246), and D is the unknown fractal dimension. The nanospheres present a homogeneous morphology, and the values of the fractal dimension of 2.569, as well as the R2 correlation data, establish the existence of a positive relationship with a value of 1, which demonstrates that the nanosphere formation system can be 100% replicated; see Figure 11. In this way, the system evolves and organizes into a state or structure that is consistent with the decrease in the total free energy of the system, including the free energies present in the volume as well as the free energies present at the interface. The energies can be elastic strain energies due to the mismatch between the various phases as well as between the real system and the substrate. The interface energy leads to the selection of those surfaces and interfaces that have the lowest energies. Kinematically controlled nanospheres are governed by variables such as deposition, time, and diffusion fluxes from the metal surface. The structure that is being formed is the result of the interaction of these processes, which act simultaneously during the deposition process of the metal precursor. Finally, depending on the different precursors, the growth rate is minimal, even in the presence of other acidic or basic media. Furthermore, the growth rate also depends on the concentration of the dispersing medium. Likewise, the result of the fractal dimension is related to the morphology of the edges since it presents an irregular surface that is continuous and characteristic of its geometric shape, which is due to the participation of the polysaccharide matrix. The study of particle addition and the formation of fractals in TiO2 nanostructures have been reported in several works [37,38,39,40,41].

3.9. Characterization by Continuous Wavelet Transform (CWT)

The continuous wavelet transform was used for the determination of the origin of the wave propagation of the mother signal in the composite materials of polysaccharide and Ti, and the textural characterization of the nanosphere surface to detect anomalies under the presence of wavelets. Figure 12 shows orthonormal wavelets, which means that they meet the orthonormality conditions within the same signal scale. The x-axis represents the position along the signal (time), the y-axis represents the scale, and the color represents the magnitude of the wave coefficient. The continuous wavelet transform is determined by the following equation:
X w t a , b = ⨜ ∞ x t Ψ a , b t d t
The mother wavelet generates several daughter wavelets that are added to the time of the signal f(t), originating sinusoidal components of the original signal. The image shows many of the wavelet coefficients (front and back), which are related to the scale and position of the mother wavelet. The peaks found in the wavelets can be caused by the effect of temperature at the time of sintering, which generates wear in the polymer chains. Figure 13 shows the histogram of the decomposition of the continuous signal. The signal values are greater for a scale factor of 8, 9, and 10 µm, which means that with that scale and at those positions, the similarity in the signals is greater, denoting that the energy of the signal and the energy of the wave are equal to one; this can be interpreted as a correlation coefficient (Figure 11). Likewise, the proposed system originates high- and low-frequency signals that vary in the time–frequency plane, causing high and low temporal resolutions, resulting in no discontinuity on the surface of the nanospheres. The columns of Figure 13 indicate non-periodic signal coefficients (wavelets) with short-duration pulses that make it possible to rapidly detect molecular self-assembly events between the compounds. The results do not show the presence of irregular edges on the surface; these data are conclusive in their determination of great compatibility between the interpenetrated networks of the polysaccharide with titanium. Other studies have analyzed the behavior of dispersive waves and frequency timing by means of cwt in TiO2 films, circular structures, and other nanostructures [42,43,44].

3.10. Characterization of the Profile of the Holes of Olive-like TiO2 Nanospheres

The profile of the holes in the center of the nanospheres is shown in Figure 14. The holes are represented in red, while the green color corresponds to the titanium precursor. The formation of the holes takes place by means of the polysaccharide host molecule, which has cavities that can retain the TiO2. The nanospheres have a maximum depth of 32.32 gL and an area of 36.59 µm gL. In this way, the proposed system generates supramolecular architectures from metallic TiO2 ions and organic ligands such as polysaccharide polymer networks. In a study developed by Nora et al., the shell thickness of the surface of the TiO2 nanospheres was analyzed; however, their depth and area were not measured [45].

3.11. Texture Isotropy Analysis

To measure the directional uniformity parameters of the surface planes of the olive-like TiO2 nanospheres, a textural isotropy analysis was performed. The characteristics of the direction of the surface texture can be seen in Figure 15. The results of the values found were isotropy 55.31%, first direction 60.26°, second direction 138.7°, and third direction 148.5°, respectively. These results show the isotropic nature of the system, maintaining the uniformity of the surface features in all directions. Various structures, such as Cu/Ni nanoparticles, collagen fibers, cells, and carbon nanotubes, have been analyzed, but systems such as the one proposed in this work have not been studied [46,47,48,49,50]. Additionally, the location of each point on the surface of the sphere is represented by the angular degrees corresponding to the specific rotation coordinates of the number of grains in the sample in several directions. This means that the diverse molecules that contain the nanospheres are evenly distributed, which corresponds to the isotropic texture of the olive-type TiO2 nanospheres.

4. Conclusions

In this work, we have reported the formation of olive-like TiO2 nanospheres in a range of 50–500 nm in diameter. The compounds synthesized can be replicated in other areas, such as biomaterials, nanotechnology, or materials science. The crystallinity of the nanospheres calcined at 500 °C is confirmed by X-ray. In summary, the olive-like TiO2 nanospheres were examined to determine their effects on the viability and adhesion of the polysaccharide matrix. Additionally, the proposed mechanism and the characteristics mentioned are factors of great relevance to studying the effects of the polysaccharide network and to be able to analyze variables, such as thermodynamic activity, electrostatic interactions, and organic ligands. The fractal dimension values with a value of 2.569 found in the fractal dimension analysis highlight the binding between the titanium and the polysaccharides network system. The functional activity of olive-like TiO2 nanospheres was confirmed by STM and FESEM in terms of morphological and size characteristics. Other studies of interest include corrosion studies and biocompatibility studies of metallic oxides.

Author Contributions

Methodology, H.A.M.R., C.C.-G., G.M.M., and T.P.P.; software, R.P.S.; formal analysis, D.P.P., H.A.L.A., M.E.E.M., and J.G.C.-N.; investigation, C.L.M.; data curation, M.E.E.M. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article. For more information can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jaison, J.; Ahmed, B.; Yen, S.; Alain, D.; Michael, D. Review on nanoparticles and nanostructured materials: History, sources, toxicity and regulations. Beilstein J. Nanotechnol. 2018, 9, 1050–1074. [Google Scholar]
  2. Artur, M.; Natalia, Ł.; Maciej, S.; Izabela, M.; Wojciech, S. Electrodeposition of Copper and Brass Coatings with Olive-Like Structure. Materials 2021, 14, 1762. [Google Scholar] [CrossRef]
  3. Reghunath, S.; Pinheiro, D.; KR, S.D. A review of hierarchical nanostructures of TiO2: Advances and applications. Appl. Surf. Sci. Adv. 2021, 3, 100063. [Google Scholar] [CrossRef]
  4. Lu, Y.; Gan, Z.; Xia, J.; Du, K.; Peng, Z.; Cao, Y.; Hu, G.; Xiao, J. Hydrothermal Synthesis of Tunable Olive-Like Ni0.8Co0.1Mn0.1CO3 and its Transformation to LiNi0.8Co0.1Mn0.1O2 Cathode Materials for Li-Ion Batteries. ChemElectroChem 2019, 6, 5661–5670. [Google Scholar] [CrossRef]
  5. Fröschl, T.; Hörmann, U.; Kubiak, P.; Kucerová, G.; Pfanzelt, M.; Weiss, C.; Behm, R.; Hüsing, N.; Kaiser, U.; Landfester, K.; et al. High surface area crystalline titanium dioxide: Potential and limits in electrochemical energy storage and catalysis. Chem. Soc. Rev. 2012, 41, 5313–5360. [Google Scholar] [CrossRef]
  6. Ye, L.; Zhenping, Q.; Hongxia, G.; Hanxiao, Y.; Guojun, Z.; Shulan, J.; Tingying, Z. Low-temperature synthesis of anatase TiO2 nanoparticles with tunable surface charges for enhancing photocatalytic activity. PLoS ONE 2014, 9, 114638. [Google Scholar]
  7. Satheesh, J.; Goud, D.; Narsimlu, N. Synthesis and Characterization of TiO2 nanoparticles in PVA Polymer Matrix. J. Appl. Phys. 2021, 13, 50–55. [Google Scholar]
  8. Yufan, Z.; Fan, F.; Yuzhou, L.; Desuo, Z.; Yuyue, C. One-Step Synthesis of Ag@TiO2 Nanoparticles for Enhanced Photocatalytic Performance. Nanomaterials 2018, 12, 1032. [Google Scholar] [CrossRef]
  9. Alamgir, M.; Ashis, M.; Nayak, S.; Tiwari, K. Development of PMMA/TiO2 nanocomposites as excellent dental materials. J. Mech. Sci. Technol. 2019, 33, 4755–4760. [Google Scholar] [CrossRef]
  10. Shalini, A.; Vibhav, S. Synthesis and Thermal Characterization of PMMA-TiO2 Nanocomposites. Mater. Sci. Res. 2014, 11, 168–172. [Google Scholar]
  11. Tian, Y.; Yang, D.; Wang, Y.; Jiang, Z. Template-free synthesis of TiO2 microcages in agarose gels with improved photocatalytic activity. J. Nanoparticle Res. 2013, 15, 2141. [Google Scholar] [CrossRef]
  12. Venkatraman, M.; Rama, K.; Muthukumara, S.; Natarajana, A.; Santhanama, V.; Asokan, S.; Dhayalan, V. Size controlled synthesis of TiO2 nanoparticles by modified solvothermal method towards effective photo catalytic and photovoltaic applications. Mater. Res. Bull. 2018, 97, 351–360. [Google Scholar]
  13. Aravind, M.; Amalanathan, M.; Sony, M. Synthesis of TiO2 nanoparticles by chemical and green synthesis methods and their multifaceted properties. Appl. Sci. 2021, 3, 409. [Google Scholar] [CrossRef]
  14. Mohammad, H.; Riccardo, C. Sol-Gel Synthesis of TiO2 Nanocrystalline Particles with Enhanced Surface Area through the Reverse Micelle Approach. Adv. Mater. Sci. Eng. 2019, 2019, 1567824. [Google Scholar]
  15. Takeshi, S.; Takafumi, O.; Hiroki, N.; Koji, N.; Masato, M.; Bartolome, S.; Ken, K.; Masafumi, Y.; Hiroki, T.; Takao, S.; et al. Development of Nanostructured Water Treatment Membranes Based on Thermotropic Liquid Crystals: Molecular Design of Sub-Nanoporous Materials. Adv. Sci. 2018, 5, 1700405. [Google Scholar]
  16. Meagan, S.; Menachem, E.; Chinedum, O. Nanocomposites of vertically aligned single-walled carbon nanotubes by magnetic alignment and polymerization of a lyotropic precursor. ACS Nano 2010, 4, 6651–6658. [Google Scholar]
  17. Zeynep, A.; Iva, C.; Gabriella, D.; Sabine, P.; Soccorso, G.; Ibtisam, E. Development of functionalized nanostructured polymeric membranes for water purification. Chem. Eng. J. 2016, 300, 358–366. [Google Scholar]
  18. Antonio, G.; Mani, D.; Monique, K.; John, A.; Jeroen, J.; Fang, Y. Development of a PCL-silica nanoparticles composite membrane for Guided Bone Regeneration. Mater. Sci. Eng. C Mater. Biol. Appl. 2018, 85, 154–161. [Google Scholar]
  19. Dina, E.; Norhan, A.; MhdAmmar, H.; Abdelbaki, B.; Alaa, H. Nanoparticles functionalized ceramic membranes: Fabrication, surface modification, and performance. Environ. Sci. Pollut. Res. 2021, 10, 12256–12281. [Google Scholar]
  20. Meyers, M.; McKittrick, P.Y.; Chen, P. Structural biological materials: Critical mechanics-materials connections. Science 2013, 339, 773–779. [Google Scholar] [CrossRef] [PubMed]
  21. Wegst, U.; Bai, H.; Saiz, E.; Tomsia, A.; Ritchie, R. Bioinspired structural materials. Nat. Mater. 2015, 14, 23–36. [Google Scholar] [CrossRef]
  22. Eder, M.; Amini, S.; Fratzl, S. Biological composites-complex structures for functional diversity. Science 2018, 362, 543–547. [Google Scholar] [CrossRef]
  23. Wang, Y.; Yang, D.; Shi, Y.; Jiang, Z. Bio-inspired synthesis of TiO2 hollow nanospheres in agarose gels. J. Alloys Compd. 2013, 560, 42–48. [Google Scholar] [CrossRef]
  24. Saba, H.; Masoud, J. Synthesis of TiO2 nanoparticles coated on cellulose nanofibers with different morphologies: Effect of the template and sol-gel parameters. Mater. Sci. Semicond. Process. 2020, 109, 104927. [Google Scholar]
  25. Gao, M.; Li, L.; Liu, Q.; Xue, Y.; Wang, W.; Zhao, Y.; Zou, X. Synthesis of multifunctional silica composite nanospheres and their application in separation of MBP-tagged protein. Mater. Lett. 2022, 318, 132–222. [Google Scholar] [CrossRef]
  26. Li, B.; Zhang, Y.; Cao, L.; Yonghui, W.; Zhao, Y. Synthesis of silica nanospheres with Ni2+-iminodiacetic acid for protein separation. J. Sol-Gel Sci. Technol. 2014, 71, 80–384. [Google Scholar]
  27. Gonzalez-Reyna, M.; Rodriguez-Lopez, A.; Pérez-Robles, J.F. One-step synthesis of carbon nanospheres with an encapsulated iron-nickel nanoalloy and its potential use as an electrocatalyst. Nanotechnology 2020, 32, 095706. [Google Scholar] [CrossRef]
  28. Feng, Y.; Liao, J.; Chen, X.; Wang, H.; Guo, B.; Li, H.; Zhou, L.; Huang, J.; Li, H. Synthesis of rattle-structured CuCo2O4 nanospheres with tunable sizes based on heterogeneous contraction and their ultrahigh performance toward ammonia borane hydrolysis. J. Alloys Compd. 2021, 863, 158089. [Google Scholar] [CrossRef]
  29. Paques, J.P.; van der Linden, E.; van Rijn, C.J.; Sagis, L.M. Preparation methods of alginate nanoparticles. Adv. Colloid Interface Sci. 2014, 209, 163–171. [Google Scholar] [CrossRef] [PubMed]
  30. Yuan, Y.; Xu, H.; Meng, X.; Han, Q. Two-phase synthesis of olive-like NiS particles and chain-like Bi2S3 nanowires. Mater. Sci.-Pol. 2015, 33, 1–5. [Google Scholar] [CrossRef]
  31. Ghosh, O.S.N.; Gayathri, S.; Alagarasan, D.; Kumar, K.V.P.; Viswanath, A.K. One pot transparent sol-gel synthesis of TiO2 nanospheres with pristine anatase phase and their physicochemical characteristics. Appl. Sci. Lett. 2016, 2, 23–30. [Google Scholar] [CrossRef]
  32. Urbano, M.A.V.; Vargas, A.; Muñoz, Y.H.O.; Ochoa, H.; Fernandez, Y.O.; Mosquera, P.; Paez, J.E.R.; Rodríguez, E.; Amado, R.J.C.; Camargo, J. Nanoparticles of TiO2, anatase phase, synthesized by chemical methods. Ing. Des. 2011, 29, 186–201. [Google Scholar]
  33. Gowthambabu, V.; Deshpande, M.; Govindaraj, R.; Nithesh Krishna, V.K.; Leela Charumathi, M.; Manish Kumar, J.; Dhilip Vignesh, M.S.; Isaac Daniel, R.; Ramasamy, P. Synthesis of anatase TiO2 microspheres and their efficient performance in dye-sensitized solar cell. J. Mater. Sci. Mater. Electron. 2021, 32, 26306–26317. [Google Scholar] [CrossRef]
  34. Chen, H.; Wu, T.; Li, X.; Lu, S.; Zhang, F.; Wang, Y.; Zhao, H.; Liu, Q.; Luo, Y.; Asiri, A.M.; et al. Modulating Oxygen Vacancies of TiO2 Nanospheres by Mn-Doping to Boost Electrocatalytic N2 Reduction. ACS Sustain. Chem. Eng. 2021, 9, 1512–1517. [Google Scholar] [CrossRef]
  35. Scheiber, P.; Fidler, M.; Dulub, O.; Schmid, M.; Diebold, U.; Hou, W.; Aschauer, U.; Selloni, A. (Sub)surface mobility of oxygen vacancies at the TiO2 anatase (101) surface. Phys. Rev. Lett. 2012, 109, 136103. [Google Scholar] [CrossRef]
  36. Arenas-Hernandez, A.; Zuñiga Islas, C.; Moreno, M.; Calleja Arriaga, W.; Mendoza-Cervantes, J.C.; Carlos, N.; Ascencio-Hurtado, C.R.; Heredia Jiménez, A. Study of Oxygen Vacancies in TiO2 Nanostructures and Their Relationship with Photocatalytic Activity. Appl. Sci. 2022, 12, 3690. [Google Scholar] [CrossRef]
  37. Emanuele, C.; Giulio, B.; Giuseppe, C.; Damiano, A.; Pasqualantonio, P.; Gabriele, F.; Luca, G. Aggregation and fractal formation of Au and TiO2 nanostructures obtained by fs-pulsed laser deposition: Experiment and simulation. J. Nanopart. Res. 2017, 19, 311. [Google Scholar]
  38. Cavaliere, E.; Ferrini, G.; Pingue, P.; Gavioli, L. Fractal TiO2 nanostructures by non-thermal laser ablation at ambient pressure. J. Phys. Chem. C 2013, 117, 23305–23312. [Google Scholar] [CrossRef]
  39. Celardo, G.; Archetti, D.; Ferrini, G.; Gavioli, L.; Pingue, P.; Cavaliere, E. Evidence of diffusive fractal aggregation of TiO2 nanoparticles by femtosecond laser ablation at ambient conditions. Mater. Res. Express 2017, 4, 015013. [Google Scholar] [CrossRef]
  40. Lavisse, L.; Le, G.; Hallo, L.; Jouvard, J.; Carles, S.; Perez, J.; Mitchell, J.; Decloux, J.; Girault, M.; Potin, V.; et al. In-situ small-angle X-ray scattering study of nanoparticles in the plasma plume induced by pulsed laser irradiation of metallic targets. Appl. Phys. Lett. 2012, 16, 164103. [Google Scholar] [CrossRef]
  41. Dobrescu, G.; Papa, F.; State, R.; Ballint, I. Characterization of bimetallic nanoparticles by fractal analysis. Powder Technol. 2018, 338, 905–914. [Google Scholar] [CrossRef]
  42. Lin, Y.; Rui, X.; Xue, X.; Li, P.; Wen, X. Wavelet analysis of the surface morphologic of nanocrystalline TiO2 thin films. Surf. Sci. 2005, 579, 37–46. [Google Scholar] [CrossRef]
  43. Kim, Y.; Kim, E. Effectiveness of the continuous wavelet transform in the analysis of some dispersive elastic waves. J. Acoust. Soc. Am. 2001, 110, 86–94. [Google Scholar] [CrossRef]
  44. Tkachenko, I.; Kozhanova, E.; Belyaev, E.; Yazbeck, H. Comparative analysis of application of wavelet analysis for the recognition of element composition nanostructures. J. Phys. Conf. Ser. 2019, 1309, 012020. [Google Scholar] [CrossRef]
  45. Justh, N.; Bakos, L.P.; Hernádi, K.; Kiss, G.; Réti, B.; Erdélyi, Z.; Parditka, B.; Szilágyi, I.M. Photocatalytic hollow TiO2 and ZnO nanospheres prepared by atomic layer deposition. Sci. Rep. 2017, 7, 4337. [Google Scholar] [CrossRef]
  46. Ghaderi, A.; Shafiekhani, A.; Solaymani, S.; Ţălu, Ş.; da Fonseca Filho, H.D.; Ferreira, N.S.; Matos, R.S.; Zahrabi, H.; Dejam, L. Advanced microstructure, morphology and CO gas sensor properties of Cu/Ni bilayers at nanoscale. Sci. Rep. 2022, 12, 12002. [Google Scholar] [CrossRef]
  47. Josso, B.; Burton, D.R.; Lalor, M.J. Texture orientation and anisotropy calculation by Fourier transform and Principal Component Analysis. Mech. Syst. Signal Process. 2005, 19, 1152–1161. [Google Scholar] [CrossRef]
  48. Hu, W.; Li, H.; Wang, C.; Gou, S.; Fu, L. Characterization of collagen fibers by means of texture analysis of second harmonic generation images using orientation-dependent gray level co-occurrence matrix method. J. Biomed. Opt. 2012, 17, 026007. [Google Scholar] [CrossRef]
  49. Efremov, Y.M.; Velay-Lizancos, M.; Weaver, C.J.; Athamneh, A.I.; Zavattieri, P.D.; Suter, D.M.; Raman, A. Anisotropy vs isotropy in living cell indentation with AFM. Sci. Rep. 2019, 9, 5757. [Google Scholar] [CrossRef]
  50. Jiang, H.; He, X.; Ma, Y.; Fu, B.; Xu, X.; Subramanian, B.; Hu, C. Isotropic Hedgehog-Shaped-TiO2/Functional-Multiwall-Carbon Nanotube Micromotors with Phototactic Motility in Fuel-Free Environments. ACS Appl. Mater. Interfaces 2021, 13, 5406–5417. [Google Scholar] [CrossRef]
Polymers 16 01875 g001

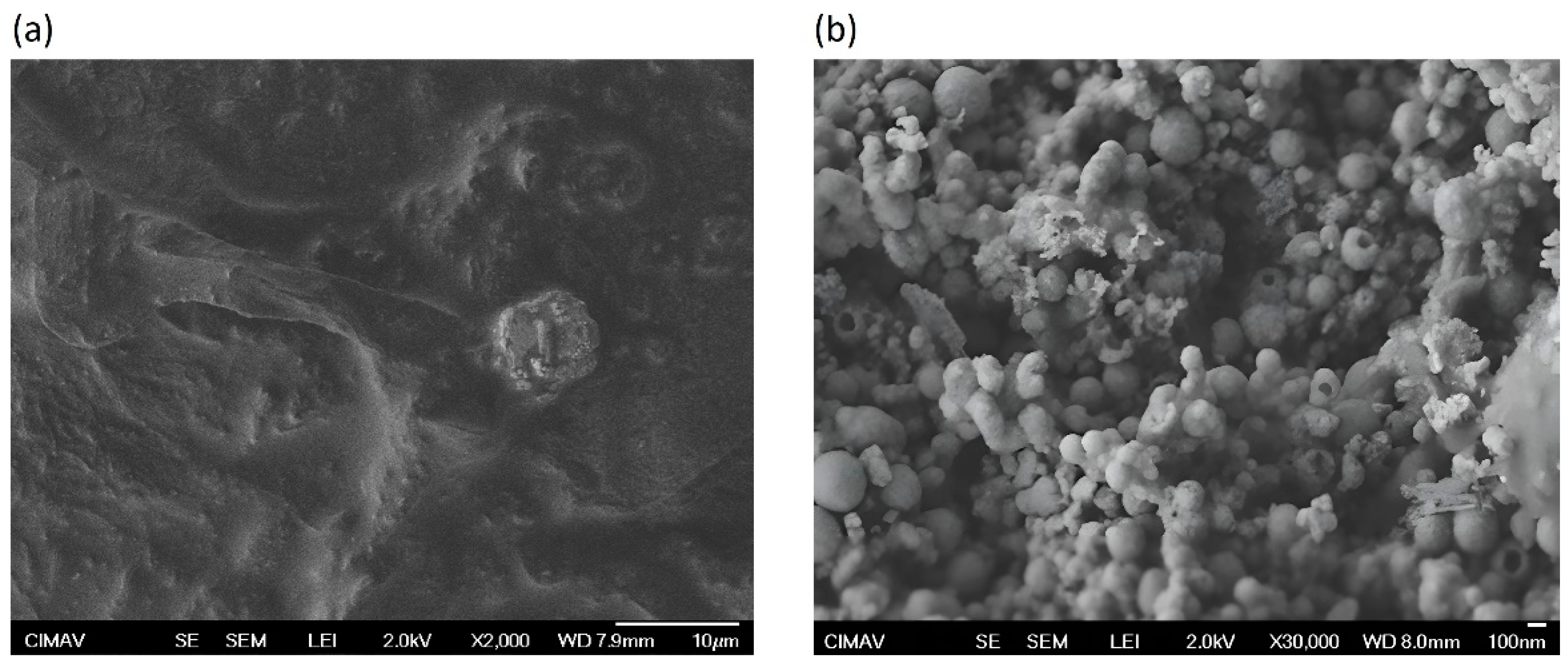

Figure 1. (a) SEM image of TiO2 (titanium dioxide) in absence of polysaccharide; (b) SEM micrograph of olive-like TiO2 nanospheres in presence of polysaccharide network.
Figure 1. (a) SEM image of TiO2 (titanium dioxide) in absence of polysaccharide; (b) SEM micrograph of olive-like TiO2 nanospheres in presence of polysaccharide network.
Polymers 16 01875 g001
Polymers 16 01875 g002

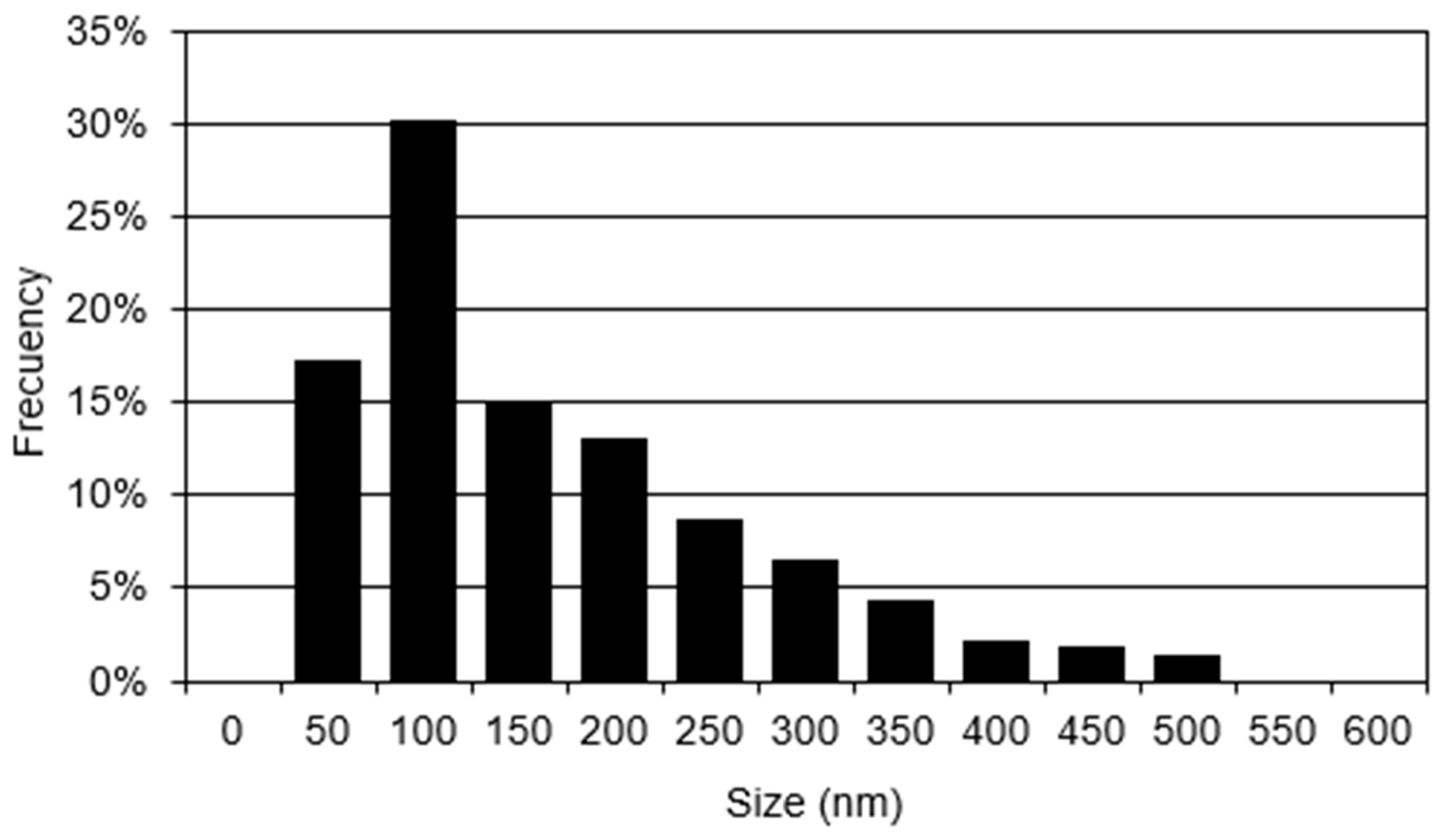

Figure 2. Chart of particle size distribution of olive-like TiO2 nanospheres.
Figure 2. Chart of particle size distribution of olive-like TiO2 nanospheres.
Polymers 16 01875 g002
Polymers 16 01875 g003

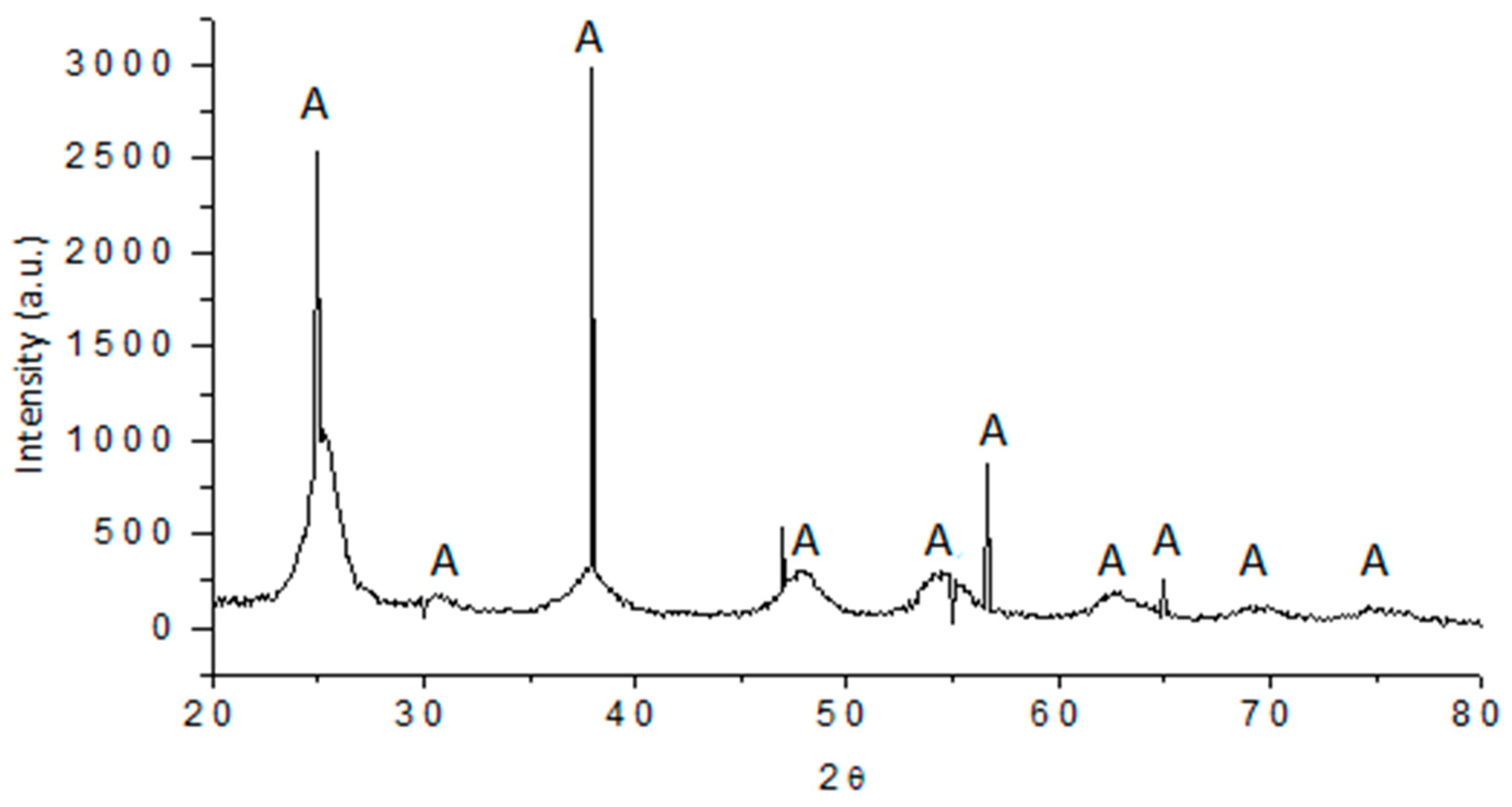

Figure 3. X-ray diffraction pattern of olive-like TiO2 nanospheres.
Figure 3. X-ray diffraction pattern of olive-like TiO2 nanospheres.
Polymers 16 01875 g003
Polymers 16 01875 g004

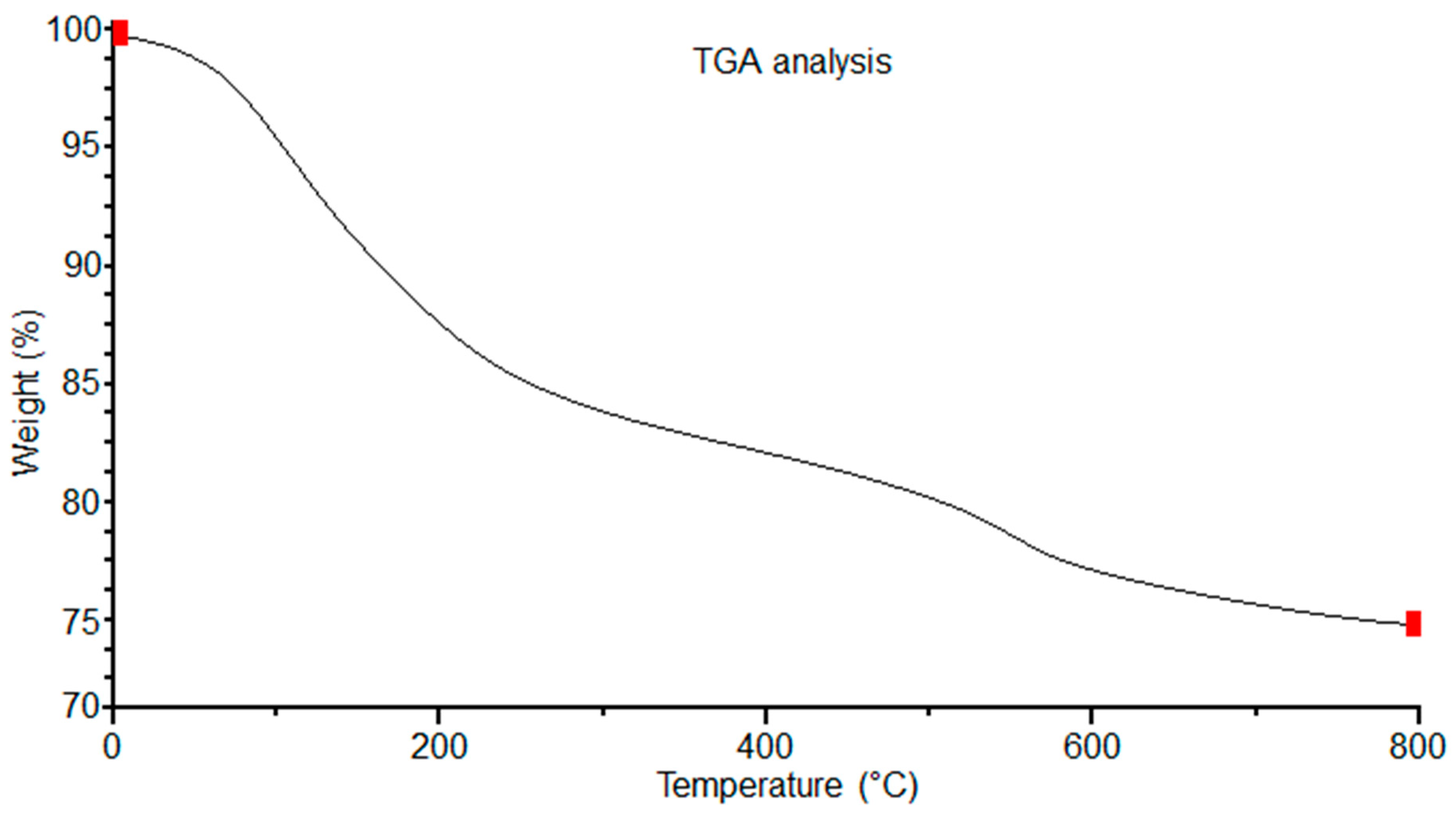

Figure 4. TGA analysis of the olive-like TiO2 nanospheres.
Figure 4. TGA analysis of the olive-like TiO2 nanospheres.
Polymers 16 01875 g004
Polymers 16 01875 g005

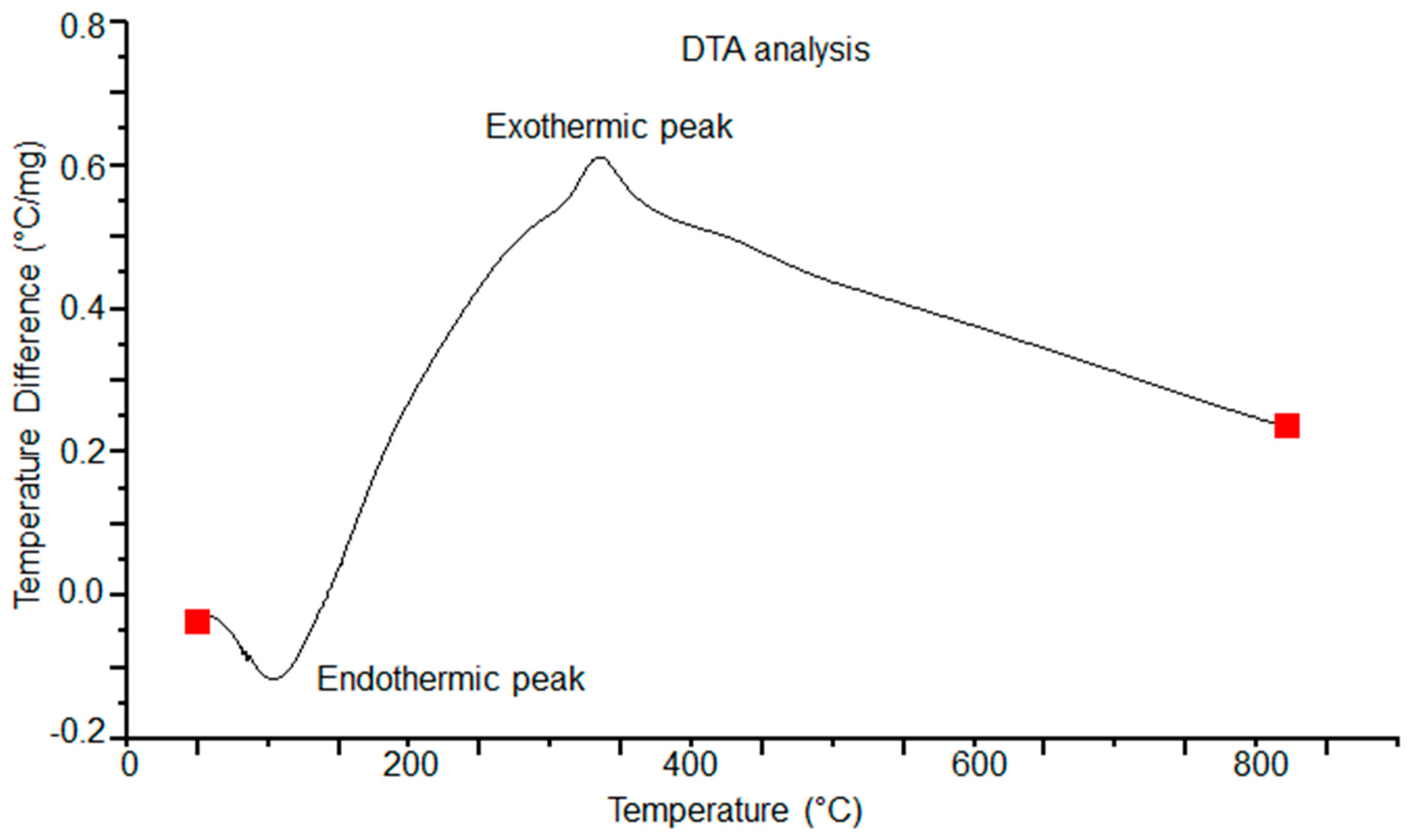

Figure 5. DTA analysis of the olive-like TiO2 nanospheres.
Figure 5. DTA analysis of the olive-like TiO2 nanospheres.
Polymers 16 01875 g005
Polymers 16 01875 g006

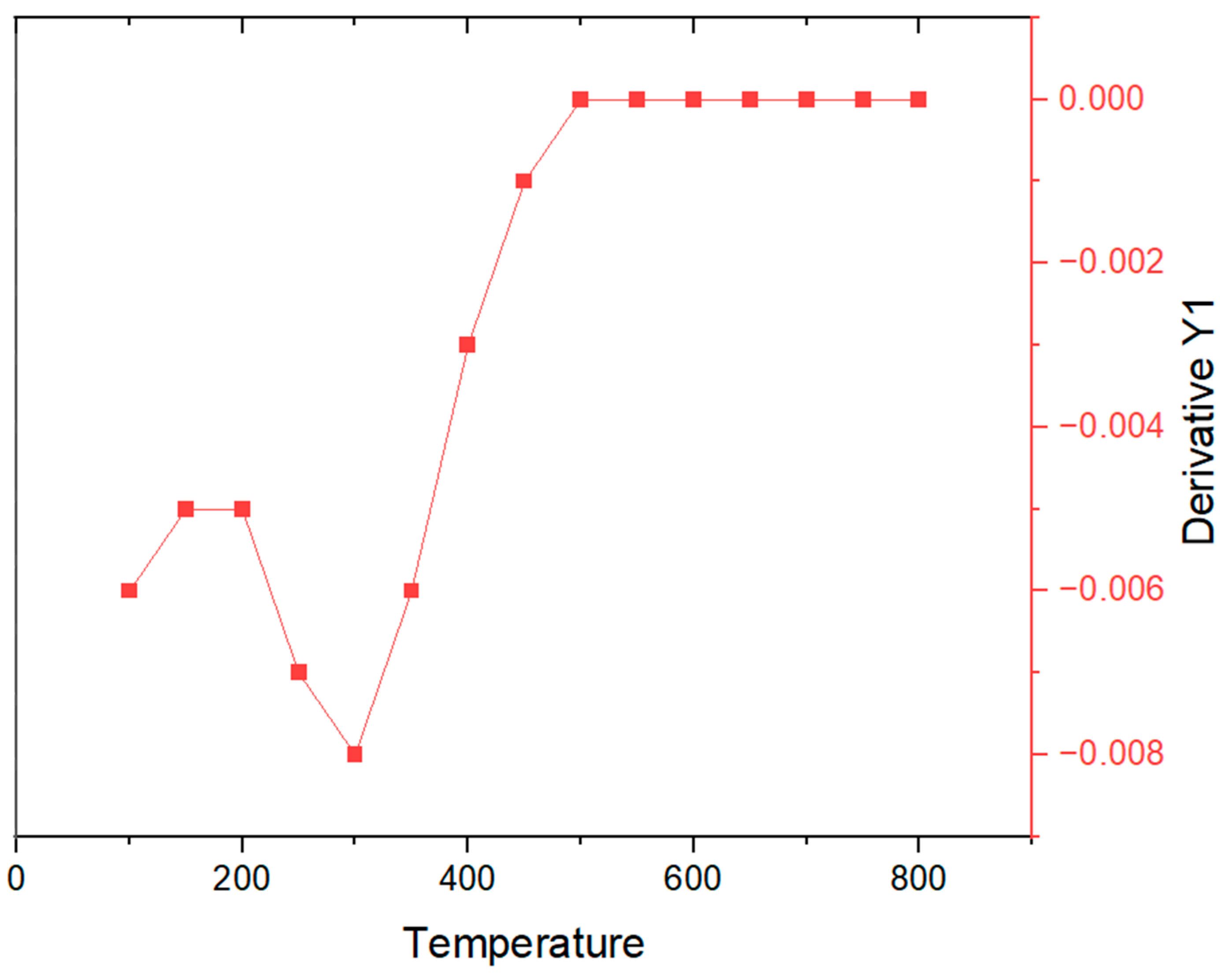

Figure 6. DTG analysis of the olive-like TiO2 nanospheres.
Figure 6. DTG analysis of the olive-like TiO2 nanospheres.
Polymers 16 01875 g006
Polymers 16 01875 g007

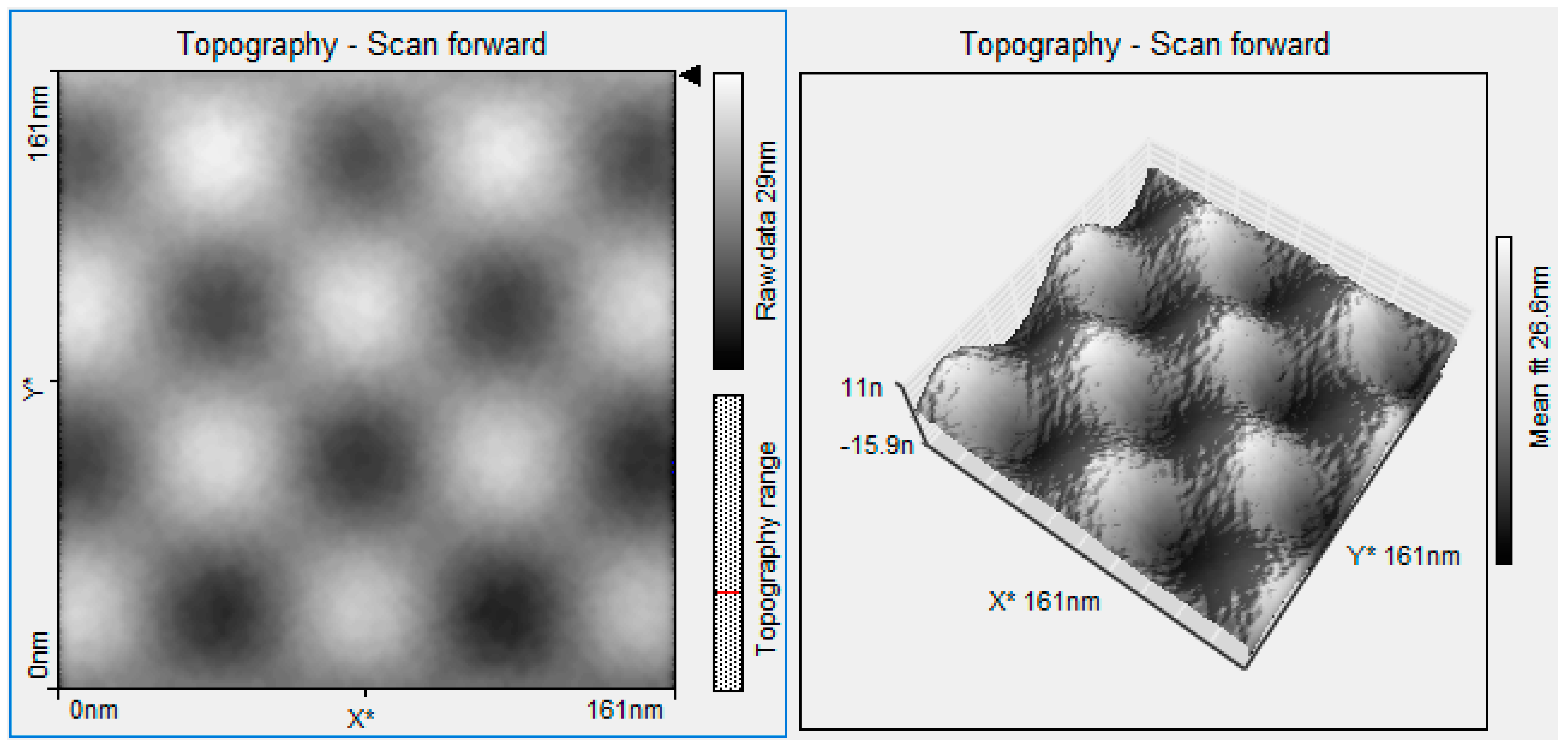

Figure 7. STM image of olive-like TiO2 nanospheres.
Figure 7. STM image of olive-like TiO2 nanospheres.
Polymers 16 01875 g007
Polymers 16 01875 g008

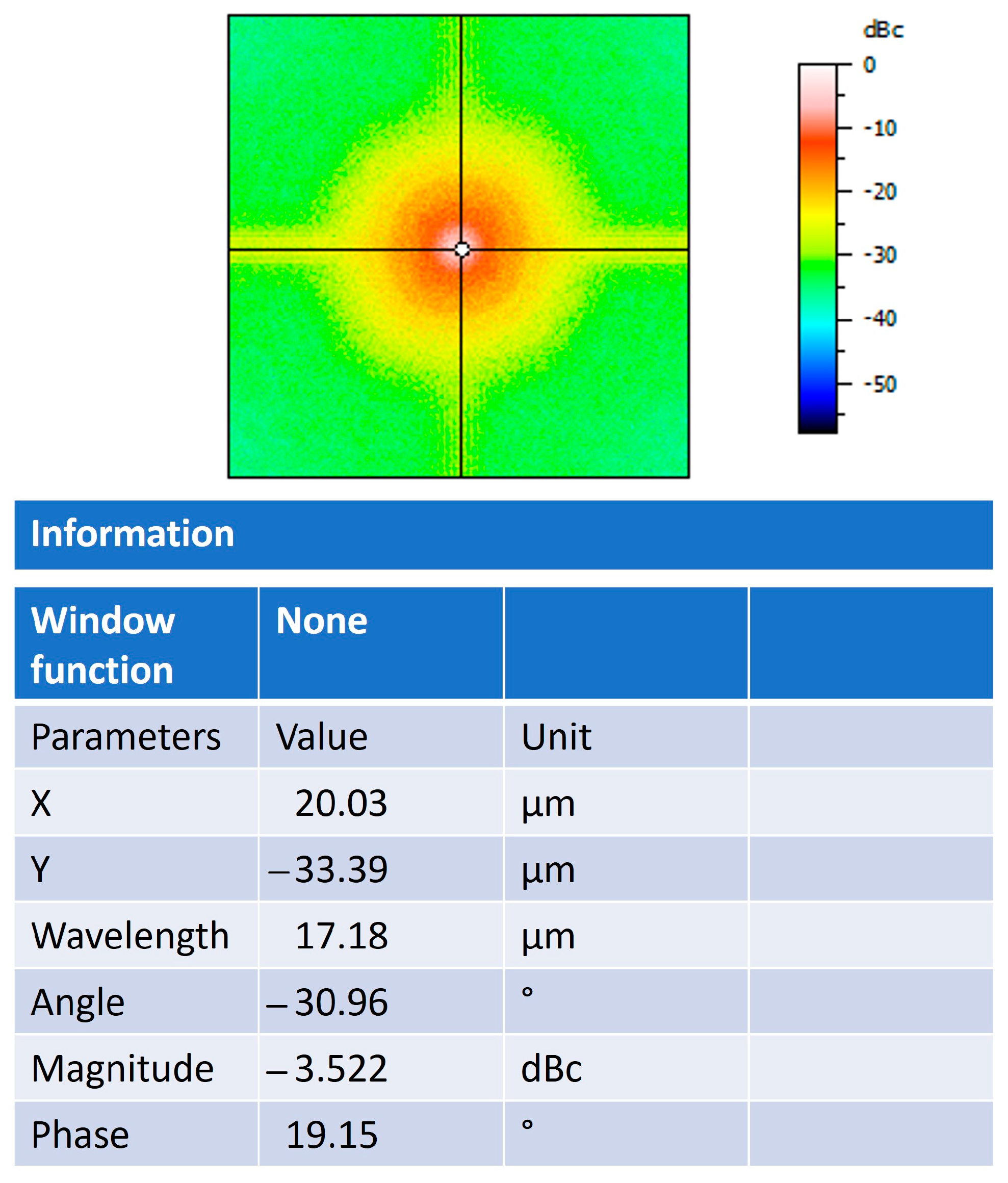

Figure 8. The frequency spectrum of FFT.
Figure 8. The frequency spectrum of FFT.
Polymers 16 01875 g008
Polymers 16 01875 g009

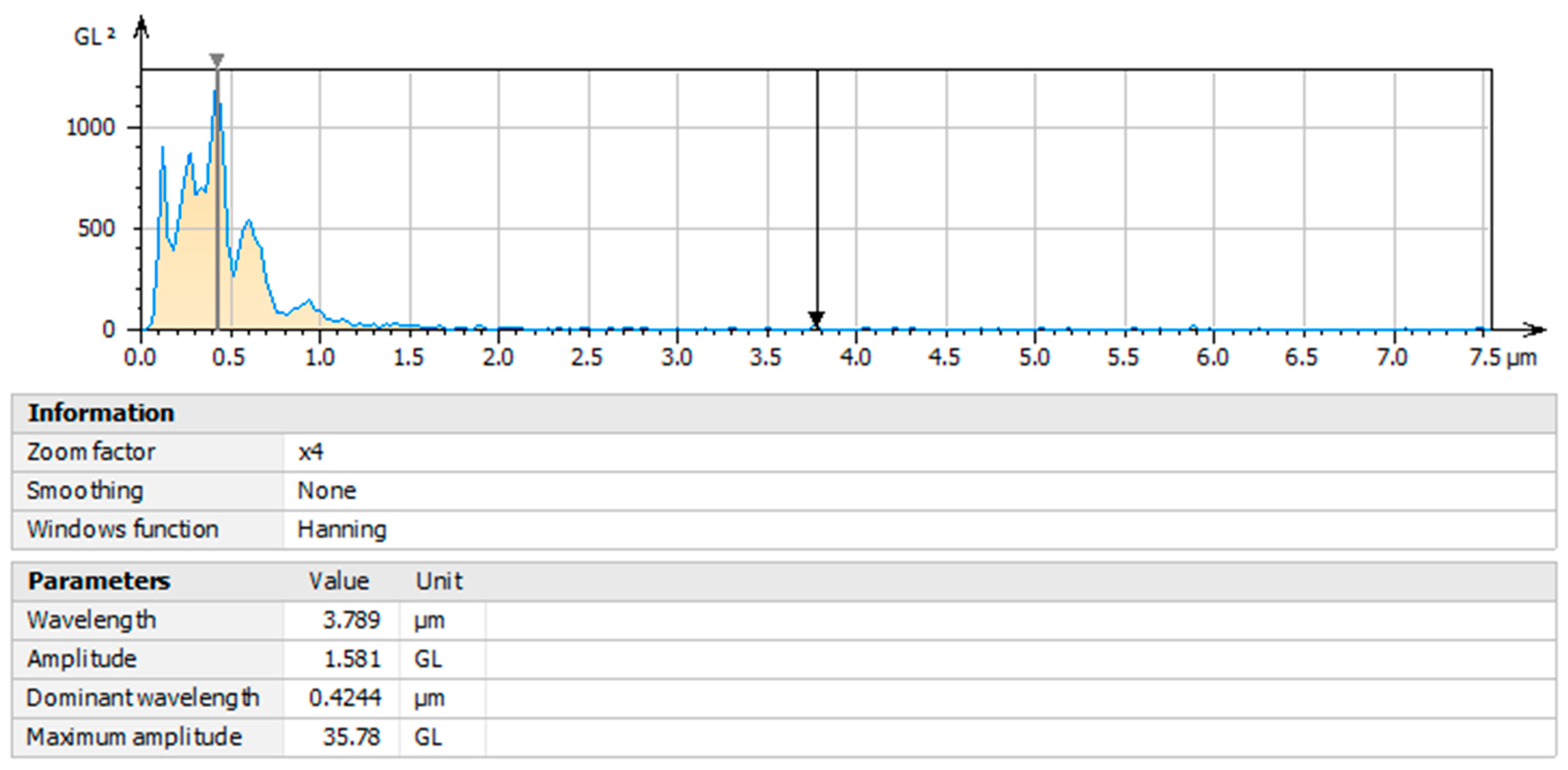

Figure 9. Power spectral density (PSD) analysis.
Figure 9. Power spectral density (PSD) analysis.
Polymers 16 01875 g009
Polymers 16 01875 g010
Figure 10. Fractal dimension analysis of olive-like TiO2 nanospheres.
Figure 10. Fractal dimension analysis of olive-like TiO2 nanospheres.
Polymers 16 01875 g010
Polymers 16 01875 g011

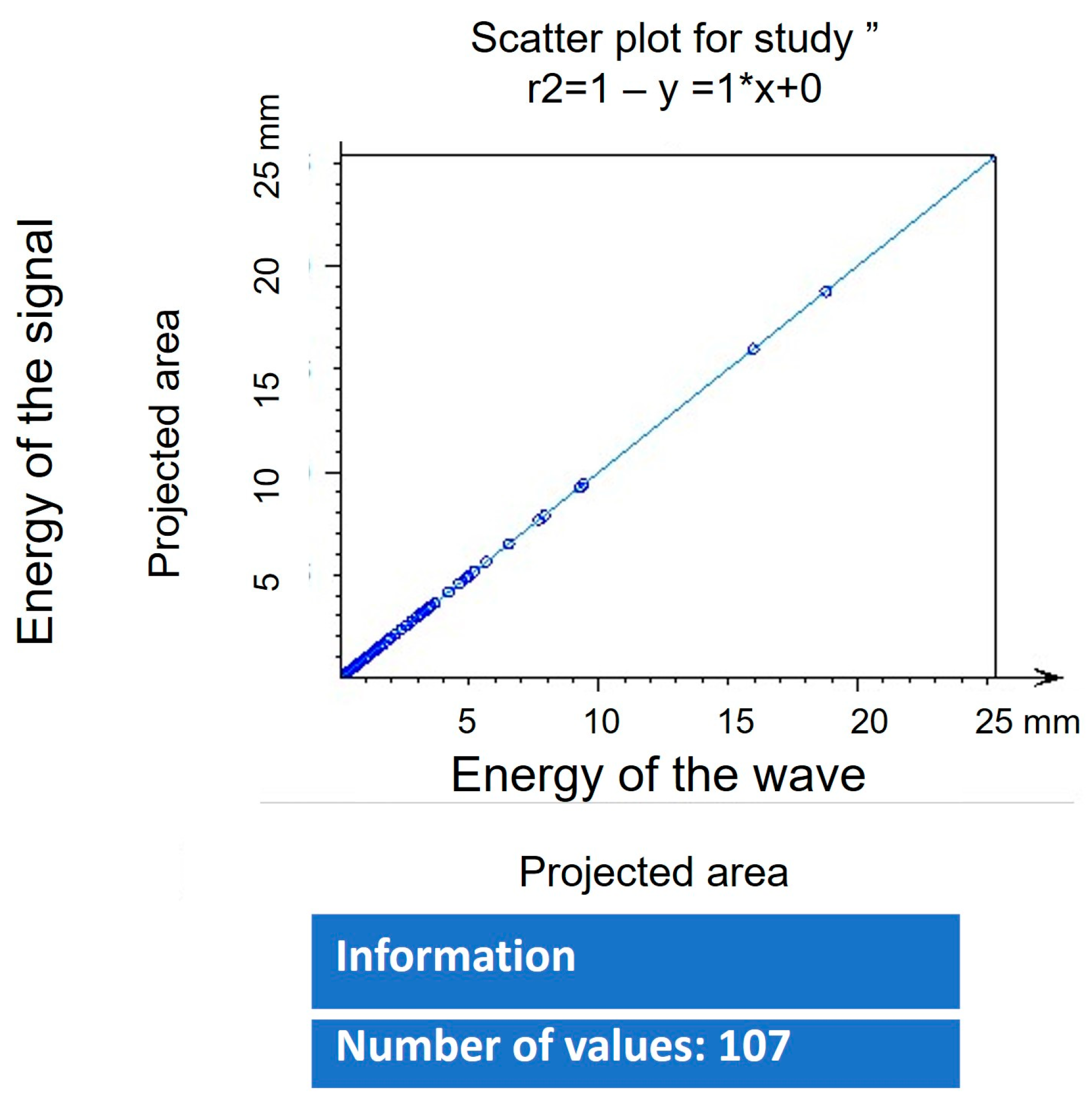

Figure 11. Coefficient of determination R2.
Figure 11. Coefficient of determination R2.
Polymers 16 01875 g011
Polymers 16 01875 g012

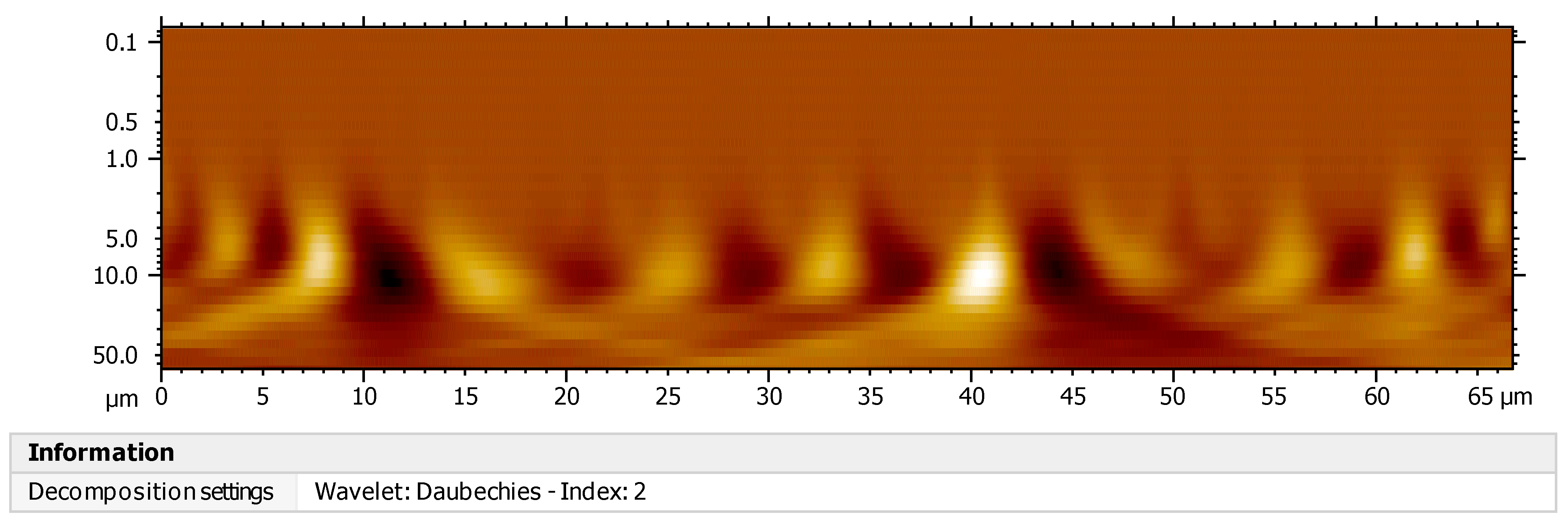

Figure 12. Wavelets of olive-like TiO2 nanospheres.
Figure 12. Wavelets of olive-like TiO2 nanospheres.
Polymers 16 01875 g012
Polymers 16 01875 g013

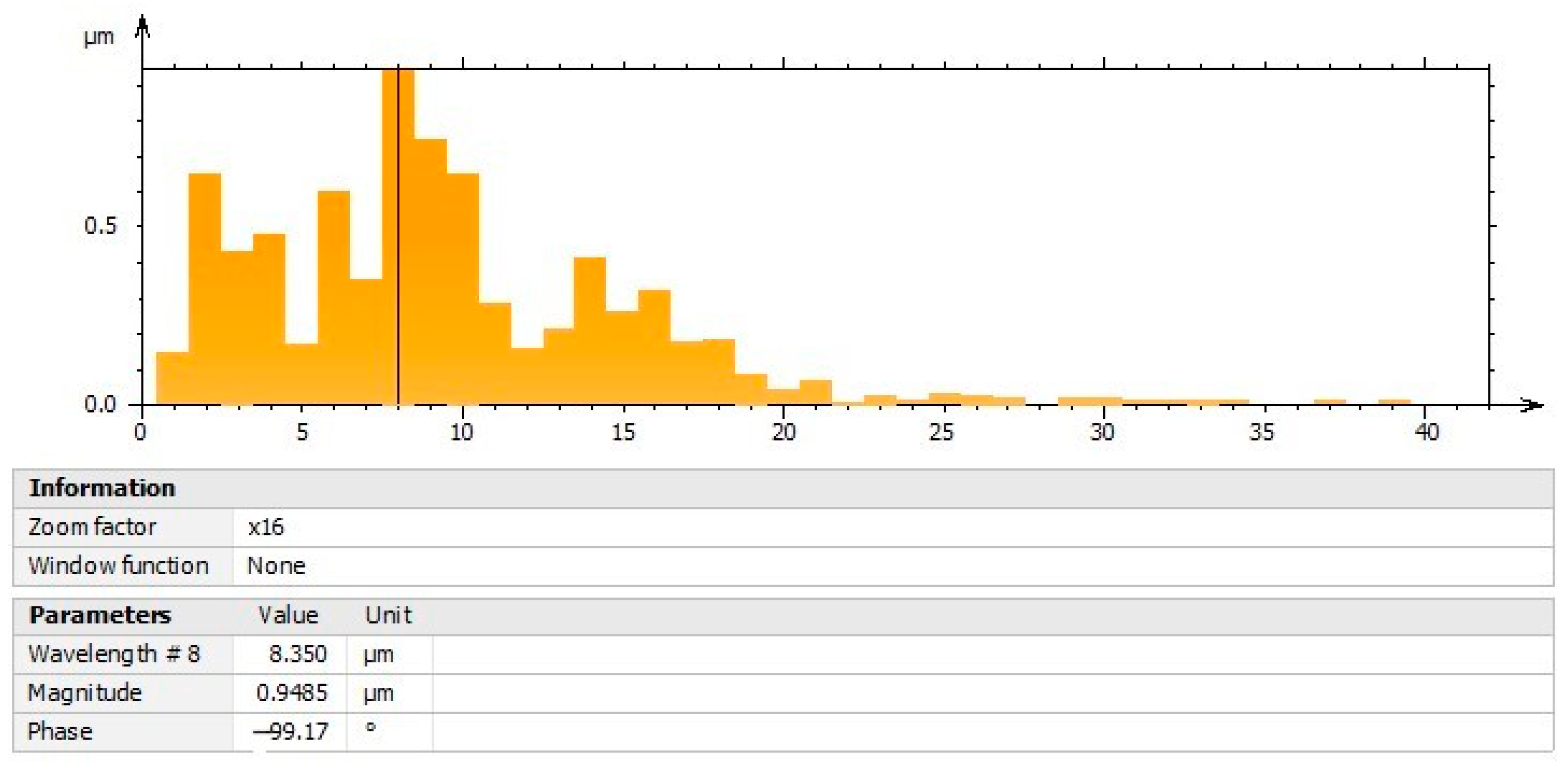

Figure 13. Histogram of signal decomposition of olive-like TiO2 nanospheres.
Figure 13. Histogram of signal decomposition of olive-like TiO2 nanospheres.
Polymers 16 01875 g013
Polymers 16 01875 g014
Figure 14. Profile of holes of olive-like TiO2 nanospheres.
Figure 14. Profile of holes of olive-like TiO2 nanospheres.
Polymers 16 01875 g014
Polymers 16 01875 g015

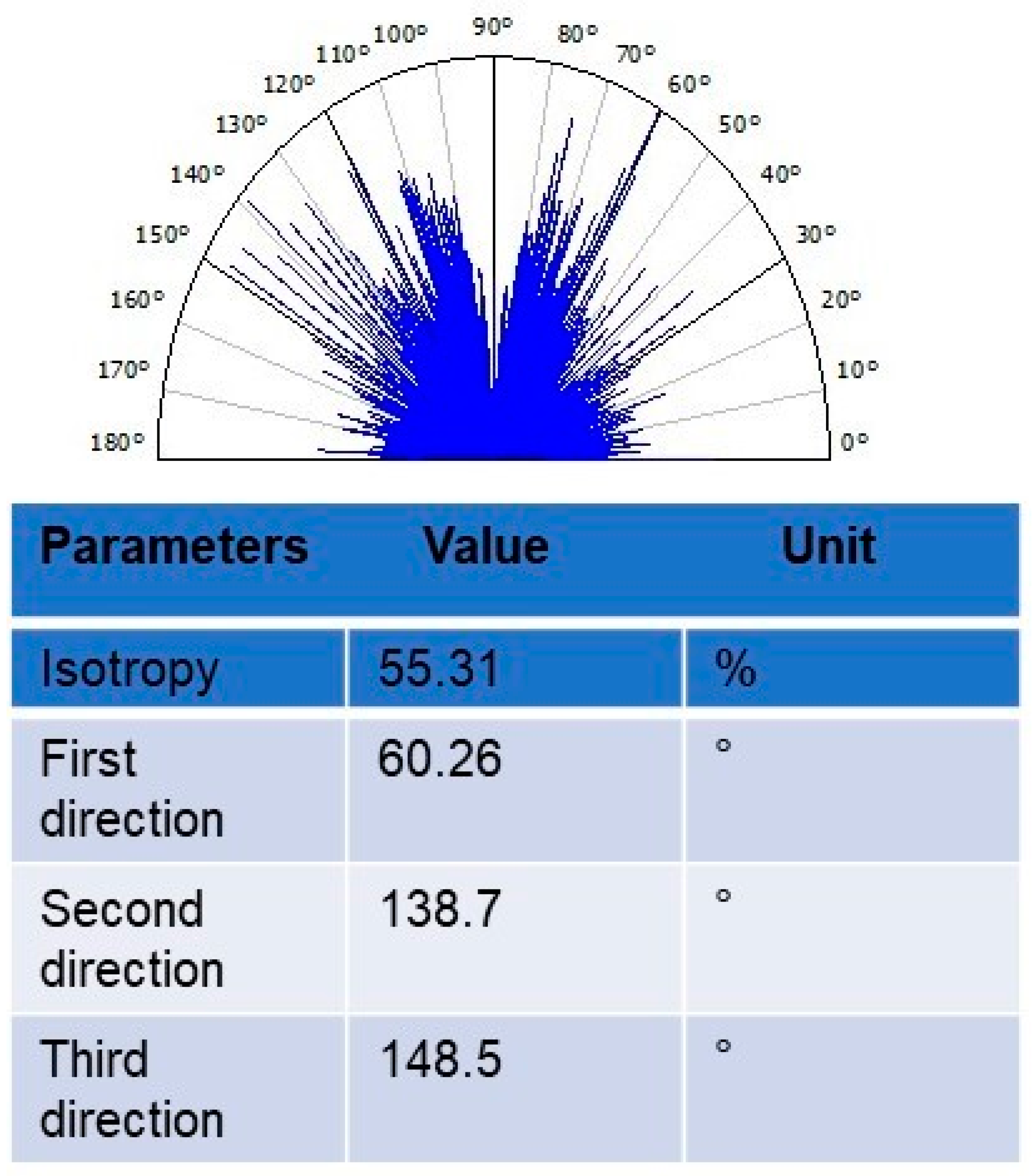

Figure 15. Texture isotropy analysis of olive-like TiO2 nanospheres.
Figure 15. Texture isotropy analysis of olive-like TiO2 nanospheres.
Polymers 16 01875 g015
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

López Melendez, C.; Monreal Romero, H.A.; Carreño-Gallardo, C.; Martinez Mata, G.; Pacheco Santiesteban, R.; Pérez Piñon, T.; Pérez Piñon, D.; López Aguilar, H.A.; Estrada Macias, M.E.; Chacón-Nava, J.G. Formation of Olive-like TiO2 Nanospheres in a Polymeric Mesh by Sol-Gel Method. Polymers 2024, 16, 1875. https://doi.org/10.3390/polym16131875

AMA Style

López Melendez C, Monreal Romero HA, Carreño-Gallardo C, Martinez Mata G, Pacheco Santiesteban R, Pérez Piñon T, Pérez Piñon D, López Aguilar HA, Estrada Macias ME, Chacón-Nava JG. Formation of Olive-like TiO2 Nanospheres in a Polymeric Mesh by Sol-Gel Method. Polymers. 2024; 16(13):1875. https://doi.org/10.3390/polym16131875

Chicago/Turabian Style

López Melendez, Claudia, Humberto Alejandro Monreal Romero, Caleb Carreño-Gallardo, Guillermo Martinez Mata, Rosaura Pacheco Santiesteban, Teresa Pérez Piñon, Dagoberto Pérez Piñon, Héctor Alfredo López Aguilar, Marvin Elco Estrada Macias, and José Guadalupe Chacón-Nava. 2024. "Formation of Olive-like TiO2 Nanospheres in a Polymeric Mesh by Sol-Gel Method" Polymers 16, no. 13: 1875. https://doi.org/10.3390/polym16131875

APA Style

López Melendez, C., Monreal Romero, H. A., Carreño-Gallardo, C., Martinez Mata, G., Pacheco Santiesteban, R., Pérez Piñon, T., Pérez Piñon, D., López Aguilar, H. A., Estrada Macias, M. E., & Chacón-Nava, J. G. (2024). Formation of Olive-like TiO2 Nanospheres in a Polymeric Mesh by Sol-Gel Method. Polymers, 16(13), 1875. https://doi.org/10.3390/polym16131875

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
