1. Introduction
In recent years, the continuous development of the transportation sector and increasing traffic volume have generated a growing demand for higher quality and better performance in road construction [
1,
2]. Asphalt material, as a fundamental component of road construction, has an essential role in the lifespan and load-bearing capacity of roads. Due to the limitations of unmodified asphalt, polymer-modified asphalt has been proposed to realize superior performance [
3,
4]. Among these, styrene-butadiene-styrene (SBS) is an excellent modifier that significantly improves the ductility and viscoelasticity of asphalt [
5], thereby greatly enhancing its high- and low-temperature and anti-aging properties. However, when the SBS content exceeds 5% in practical road construction, clustering and agglomeration phenomena easily occur in the asphalt [
6], which adversely affects the modification effect [
7]. The modifier content of SBS-modified asphalt (SBSMA) is usually 5%-8%. When the SBS content is further increased, the storage stability of asphalt will significantly decrease [
8], and the economic feasibility will also decrease significantly [
9].
To address the limitations of SBSMA, many researchers have proposed SBS/CR composite-modified asphalt (SCMA) [
10,
11,
12], which incorporates crumb rubber (CR) to replace a portion of SBS. The CR is derived from waste tires at low cost [
13,
14]. The adoption of CR not only facilitates waste recycling but also reduces the construction cost of SBSMA. Additionally, CR significantly enhances the high-temperature properties, anti-aging properties, and durability of modified asphalt [
15]. Some researchers have suggested a high dosage of CR to achieve a modification effect comparable to that of SBS-modified asphalt [
16]. However, a high dose of CR will lead to excessive viscosity and poor compatibility with SCMA. The storage stability of the modified asphalt will also be compromised [
17]. Zhang et al. [
18] revealed that the combination of CR with SBS increased the viscosity of the modified asphalt and improved its sensitivity to temperature. However, as the mixing temperature increased, the viscosity decreased, and the temperature sensitivity decreased, which was attributable to the degradation of SBS.
Moreover, the fineness of the CR particles influences the modification effect differently. In a previous study [
19], CRMA with different composite CR ratios of 80 mesh, 60 mesh, and 40 mesh exhibited superior high- and low-temperature properties. The asphalt was compatible with the modifier, and the modified asphalt presented increasing properties with a greater percentage of fine particles (80 mesh). However, as aging progresses, the fine CR particles gradually degrade. Therefore, it is essential to find a solution to mitigate the impact of fine CR particle degradation on SCMA performance. It is also important to address the issues of excessive viscosity due to the high CR dosage and poor compatibility between the modifier and asphalt to ensure the construction and workability of SCMA.
Bio-oil, sourced from various biomass pyrolysis products [
20] and byproducts of the petroleum industry [
21,
22], exhibits several advantageous properties. It is abundant, inexpensive, and renewable. Bio-oil is rich in light-weight components and has excellent compatibility with asphalt [
23,
24]. These attributes make bio-oil a viable strategy for addressing the stability, compatibility, and aging deficiencies in modified asphalt [
25]. Ma et al. [
26] reported that the addition of waste cooking oil to CRMA promoted the expansion and dissolution of CR particles, which improved the asphalt storage stability and decreased the viscosity of CRMA. Lyu et al. [
27] reported that the inclusion of bio-oil in CRMA increased the resistance to viscous damage threefold. Bio-oil-modified rubber (BMR) exhibited superior aging resistance. Huang et al. [
28] pretreated CR with bio-oil and found that the high-temperature properties of SCMA decreased. However, the storage stability of the modified asphalt improved. Wen et al. [
29] reported that the fatigue life of SBSMA was significantly reduced by long-term aging. However, by adding bio-oil to aged modified asphalt, the fatigue resistance of the modified asphalt was restored. Nizamuddin et al. [
30] demonstrated that bio-oil extracted from waste plastics, when used as a rehabilitating agent at 5% and 8% contents, provided functional components to asphalt and enhanced the aging resistance. Lei et al. [
31] prepared BMR using corn stover bio-oil at contents ranging from 5% to 15%, along with 20% CR. The results indicated that bio-oil promoted the further expansion of CR during aging, enhancing the elasticity and aging resistance of the asphalt. Zhou et al. [
32] researched the stability and rheological properties of different types of BMR and sulfur incorporating 15% bio-oil and 15% CR.
The study showed that castor oil and vegetable oil effectively improved the interaction between asphalt and sulfur, thereby enhancing the viscoelasticity of asphalt. Yang et al. [
33] investigated the rheological characteristics of composite-modified asphalt containing 1.5% polyphosphoric acid, 2.5% SBS, and unmodified asphalt to create bio-asphalt (85:15). The results indicated that bio-oil reduced the high-temperature properties of SBS-modified asphalt but also increased its low-temperature and anti-aging properties.
In summary, bio-oil not only enhances the low-temperature, anti-aging, and anti-fatigue properties of modified asphalt but also increases the utilization of CR while ensuring the construction and workability of the modified asphalt. Therefore, the core objective of this study was to investigate the influence of adding bio-oil on the performance of SCMA composites with different CRs. In this study, castor oil was selected for SCMA modification. Initially, the effects of bio-oil addition on the high-temperature and anti-aging properties of SCMA were preliminarily analyzed through penetration and softening point tests. Subsequently, the viscosity of the modified asphalt was determined by the Brookfield viscosity test, and its aging resistance was evaluated. Based on the DSR and BBR tests, the effects of bio-oil addition on the asphalt’s high- and low-temperature properties, together with the fatigue resistance of SCMA before and after aging, were further investigated. Additionally, FM and FTIR tests were conducted to analyze the microdispersion state of the modifier and to investigate the functional component variations in bio-oil-modified asphalt (B-SCMA). These analyses aimed to elucidate the micromechanism of the modification and provide both theoretical and practical support for improving the performance of the SCMA.

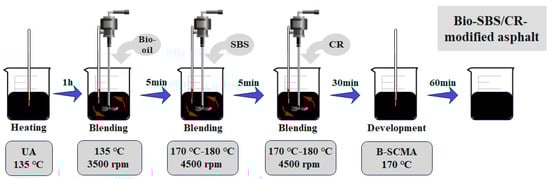

3. Results and Discussion
3.1. Conventional Performance Tests
The influence of adding bio-oil on the conventional performance of SCMA with different CR particle size ratios was initially evaluated by measuring the penetration and softening points before and after treatment in the RTFO. Subsequently, using Equations (1) and (2), the variation rates of the penetration ratio and softening point were measured to evaluate the aging resistance of B-SCMA under different CR particle size ratios. The test results are shown in
Figure 2 and
Figure 3.
According to
Figure 2, the penetration of UA was the highest both before and after treatment in the RTFO. With the addition of SBS, CR, and bio-oil, the penetration of the modified asphalts significantly decreased. The addition of modifiers improved the internal structure of the asphalt, making the modified asphalt harder. Notably, the penetration value was the lowest at 21500 when only SBS and CR were added. However, as the percentage of bio-oil increased, the penetration of the modified asphalts tended to increase. This is because adding bio-oil replenishes the light-weight components in the SCMA, making the SCMA softer and thereby increasing its penetration value. After RTFO treatment, the penetration values of all asphalts decreased, due to the volatilization of light-weight components.
However, the penetration changing rates before and after aging differed among the various asphalts, indicating different anti-aging performances. The PR test is used for evaluating the aging resistance of asphalt by analyzing the changes in hardness during the aging process. A smaller penetration ratio implies harder asphalt after passing through the RTFO, which also indicates poorer aging resistance. The order of the PR values for the six asphalts was UA < 21500 < 21505 < 21510 < 21515 < 21520 (
Figure 2). The PR value of 21520 was 18.7% greater than that of 21500. Clearly, bio-oil plays a positive role in improving the anti-aging properties of SCMA.

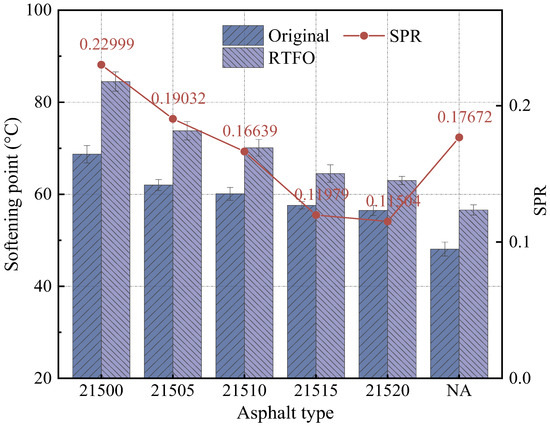

The softening point is an important indicator for assessing the high-temperature properties of asphalt. The softening point of UA was the lowest both before and after RTFO treatment, while the softening point of the sample without bio-oil was the highest. The softening point of the modified asphalt gradually decreased as the bio-oil content increased. This reduction can be attributed to the light-weight components in the bio-oil. When bio-oil is added to asphalt, the replenished light-weight components decrease the proportion of asphaltene, thereby decreasing the high-temperature properties of the asphalt. The softening point of 21520 is 56.5 °C, which is still 8.4 °C higher than that of UA, indicating that B-SCMA retains better high-temperature performance than UA.
After RTFO treatment, the softening points increased to different degrees, which indicates that the modified asphalts exhibited different aging resistances. The softening point change rate (SPR) evaluates the variation in the softening point before and after RTFO treatment and serves as an indicator of the anti-aging properties. A lower SPR indicates better anti-aging performance. As shown in

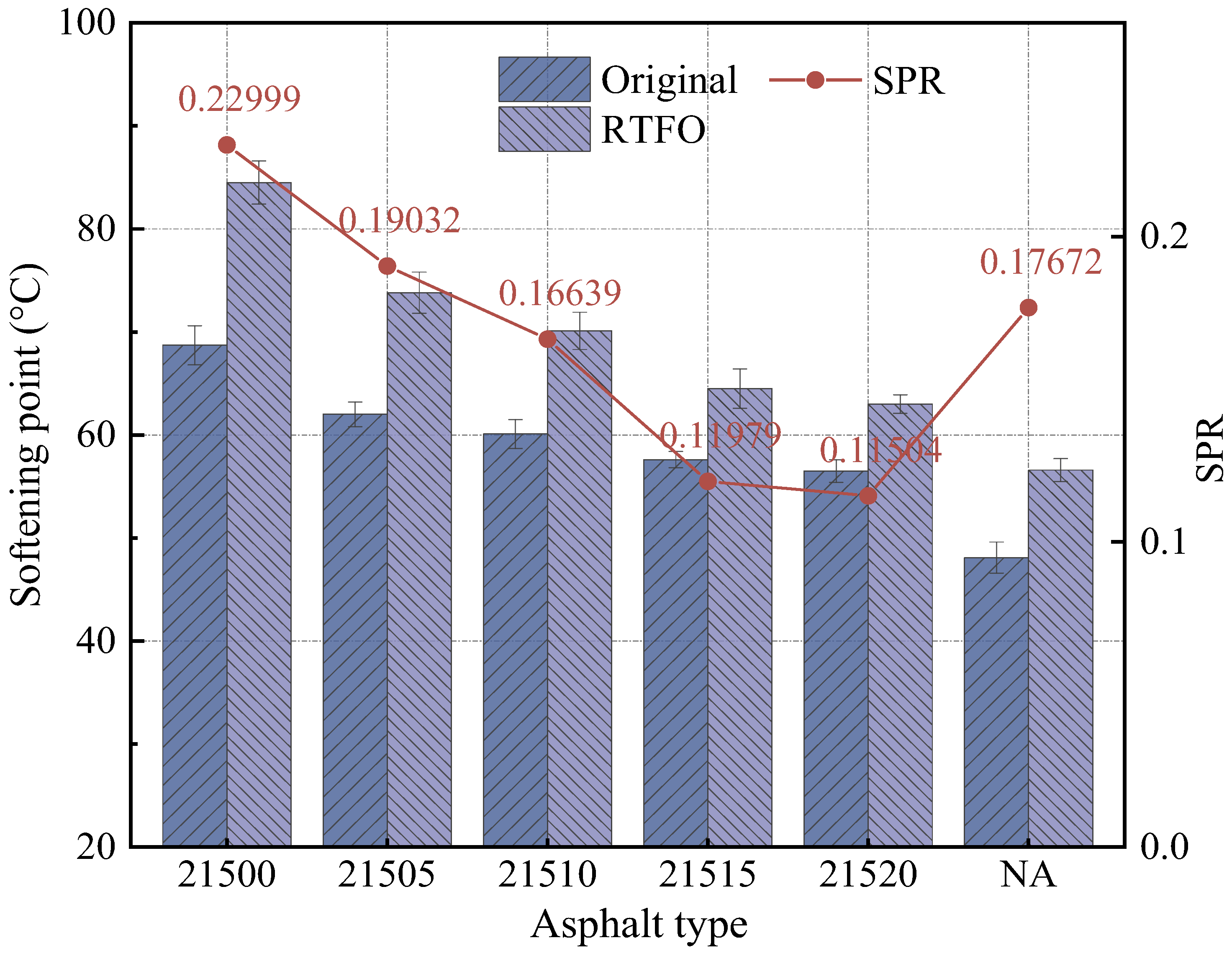

Figure 3, the SPR gradually decreased with increasing bio-oil content. Specifically, the SPR of 21520 was 49.9% lower than that of 21500, which indicates that adding bio-oil significantly improved the anti-aging properties of SCMA. Bio-oil mitigates the loss of light-weight components and fine CR particles during aging, thereby replenishing the lost light-weight components and enhancing the anti-aging performance of SCMA.
3.2. Viscosity Test
The viscosity reflects the asphalt’s macroscopic response to changes in the relative molecular weight. Since aging inevitably affects viscosity, the viscosity changes before and after aging are crucial indicators of the asphalt aging process. Brookfield viscosity tests were conducted to evaluate the influence of bio-oil on the viscosity of SCMA with composite CR particle size ratios, and the results are shown in

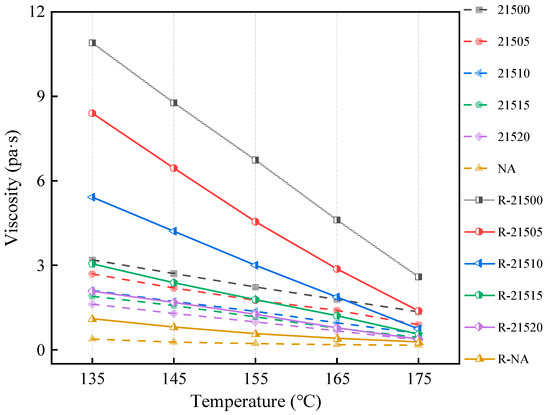

Figure 4. The changes in viscosity before and after RFTO treatment were compared to evaluate the anti-aging properties, as shown in
Figure 5.
The viscosity decreased with increasing temperature, both before and after RTFO treatment. This phenomenon occurs because higher temperatures enhance the thermal movement of asphalt molecules, thereby reducing the overall flow resistance and viscosity. Before and after RTFO treatment, the asphalt viscosity decreased in the order of UA < 21520 < 21515 < 21510 < 21505 < 21500. At 135 °C, the viscosity of 21500 was 740% greater than that of UA. After RTFO treatment, the viscosity of R-21500 increased significantly, negatively impacting the workability. However, the viscosity of SCMA decreased to different degrees with the addition of bio-oil. This also indicates that the addition of bio-oil has a positive effect on the construction workability of the modified asphalt. Specifically, at 135 °C, the viscosity of 21520 was 49.2% lower than that of 21500. As previously discussed, the addition of bio-oil replenishes the light-weight components in asphalt, reduces the proportion of asphaltenes, and results in a softer and more fluid asphalt.

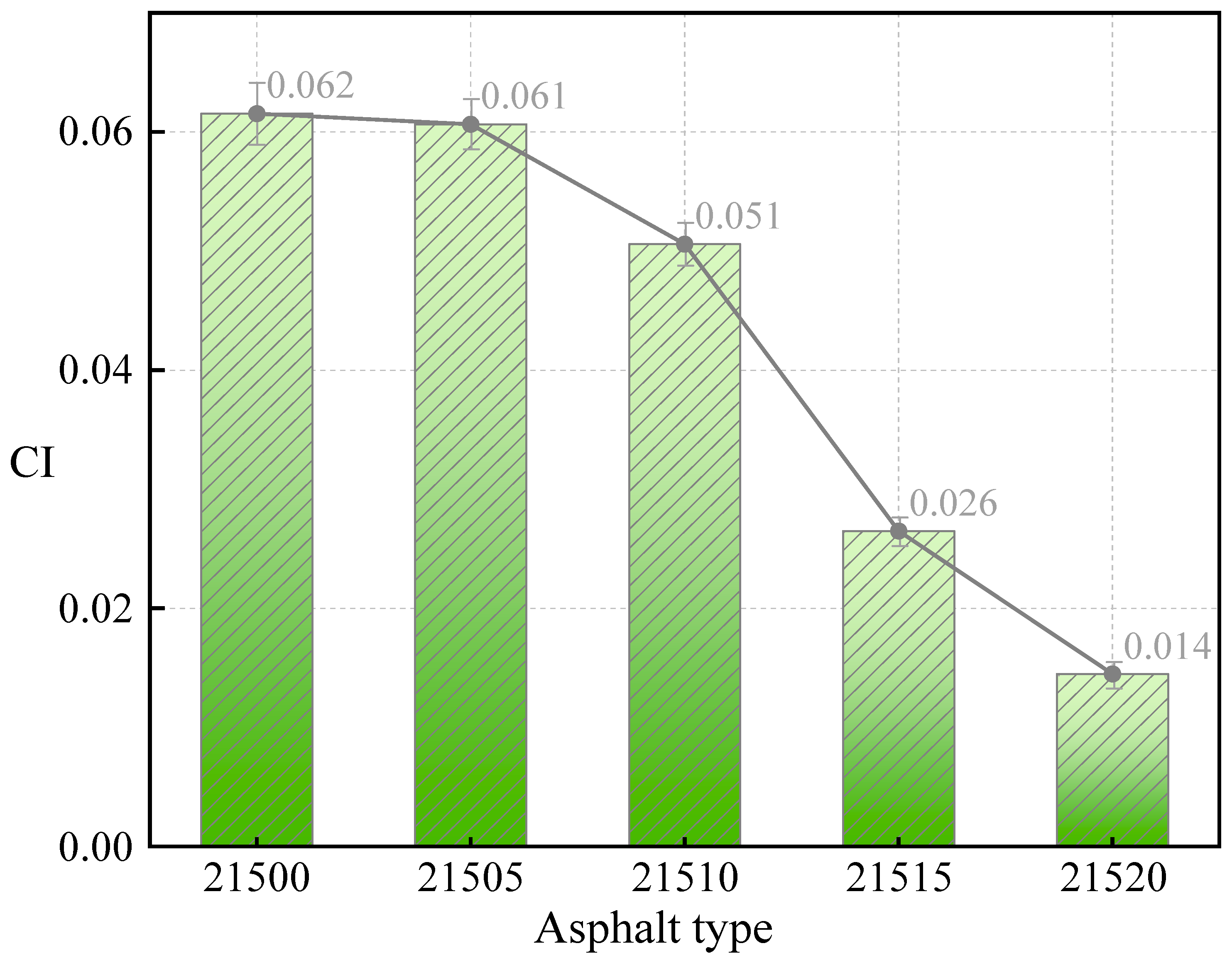

The increase in viscosity before and after RTFO treatment varies among different asphalts, reflecting differences in their anti-aging performance. The aging index (CI) at 135 °C, calculated using Equation (3), characterizes the anti-aging performance of asphalt. A smaller CI indicates better anti-aging performance. As shown in
Figure 5, the CI decreased with the addition of bio-oil. This decrease occurred because bio-oil mitigates the degradation of fine CR particles in SCMA due to aging, thereby enhancing the aging resistance. Although the difference in CI between 21505 and 21500 was small, the CI decreased more significantly as the bio-oil content increased. Specifically, the CI of 21520, which had the highest bio-oil content, was 76.5% lower than that of 21500. The CI value of 21515 is 56.9% lower than that of 21500. Overall, the bio-oil significantly improved the aging resistance of the SCMA, reduced the excessive viscosity caused by the high CR content, thereby improving the workability of the modified asphalt.
3.3. Rheological Tests
3.3.1. Temperature Sweep Test
To evaluate the effects of bio-oil on the high-temperature performance of SCMA composites with different CR particle size ratios, this section examines the rutting indices of unmodified asphalt and various modified asphalts before and after RTFO treatment through TS tests. The rutting index is a critical indicator of high-temperature performance, and high index values indicate better resistance to high-temperature deformation. The rutting index test results before and after RTFO treatment are shown in

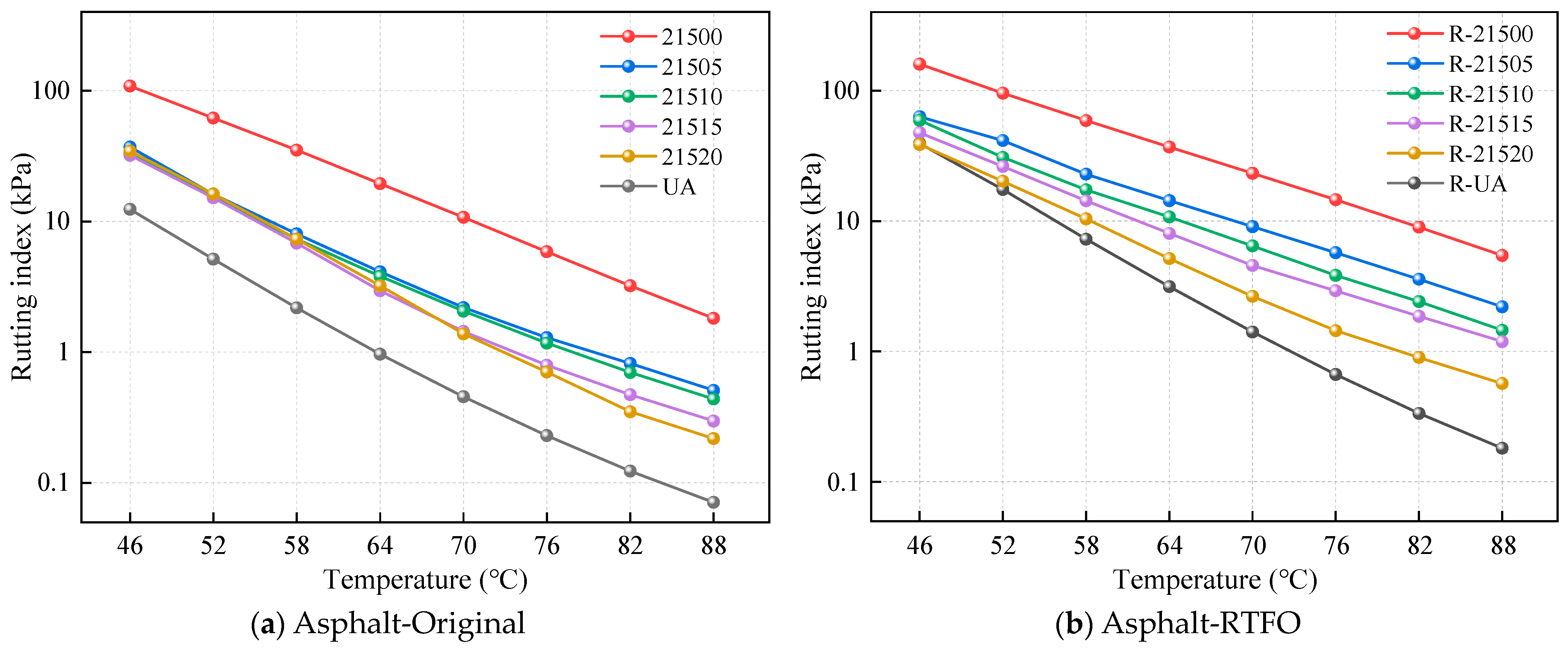

Figure 6.
Since asphalt becomes more fluid at higher temperatures, the rutting indices of various asphalts decrease with increasing temperature in the unaged state, as shown in
Figure 6a. The chemical properties of bio-oil and its compatibility with asphalt influence its melting characteristics and high-temperature properties, reducing its resistance to deformation under external forces. Notably, UA exhibited the lowest rutting index value, while 21500 displayed the highest value. At 76 °C, the rutting index of 21500 was 2450% greater than that of UA, indicating that SCMA with a high composite CR particle size ratio had excellent high-temperature properties. This is attributed to the creation of a denser microspatial structure in SCMA due to the composite CR particles, which enhances its high-temperature performance [
19]. Additionally, the rutting index of B-SCMA gradually decreased with increasing bio-oil content, indicating that bio-oil negatively impacts the high-temperature performance of modified asphalt. The addition of bio-oil changes the asphalt component ratios. An increase in the amount of light-weight components used reduces the high-temperature properties of modified asphalt [
40]. However, B-SCMA with various bio-oil contents still demonstrated superior high-temperature performance compared to that of UA. The variation in the rutting index of B-SCMA with temperature was less pronounced at 46–64 °C than at higher temperatures. The light-weight components in bio-oil are easily lost at elevated temperatures, contributing to the temperature sensitivity of B-SCMA.
Figure 6b illustrates the change in the rutting index after RTFO treatment at different temperatures. The order of the rutting indices of several modified asphalts is more pronounced between 46 and 64 °C than before short-term aging. The rutting index of asphalt increased significantly after aging compared to that in the unaged state. The loss of light-weight components and an increase in asphaltene content induced hardening of the asphalt. However, the degree of increase in the rutting index varied among the different asphalts. The change in the rutting index of modified asphalts before and after RTFO treatment was less pronounced with the addition of bio-oil, indicating enhanced anti-aging performance. This improvement can be attributed to the increase in aromatic content in the asphalt with bio-oil addition [
41]. A higher aromatic content can replenish volatile light-weight components lost during aging, thereby enhancing the anti-aging performance [
42].
The varying slopes of the rutting index indicate distinct temperature sensitivities. To quantitatively evaluate the temperature sensitivity, the rutting index for each asphalt sample was calculated using Equation (4). The test results are shown in
Table 6. Adding bio-oil to unmodified asphalt can alter its temperature sensitivity [
22]. In
Table 6, the “a” value represents the slope of the fitted curve and the temperature sensitivity of the asphalt. A smaller “a” value indicates lower temperature sensitivity, meaning that the rutting index changes less with temperature. The “a” values for the five modified asphalts were in the following order: 21520 < 21515 < 21510 < 21505 < 21500. With increasing bio-oil content, the temperature sensitivity of the modified asphalt decreased, indicating the improved compatibility of various modifiers in B-SCMA.
3.3.2. Frequency Sweep Test
The FS test is a dynamic mechanical testing method that is primarily employed to evaluate the viscoelastic characteristics of asphalt. This test involves applying dynamic loads at various frequencies to measure the
G* and
δ of the asphalt, which are then used to calculate the rutting index. This calculation helps evaluate the mechanical response under different vibration frequencies.

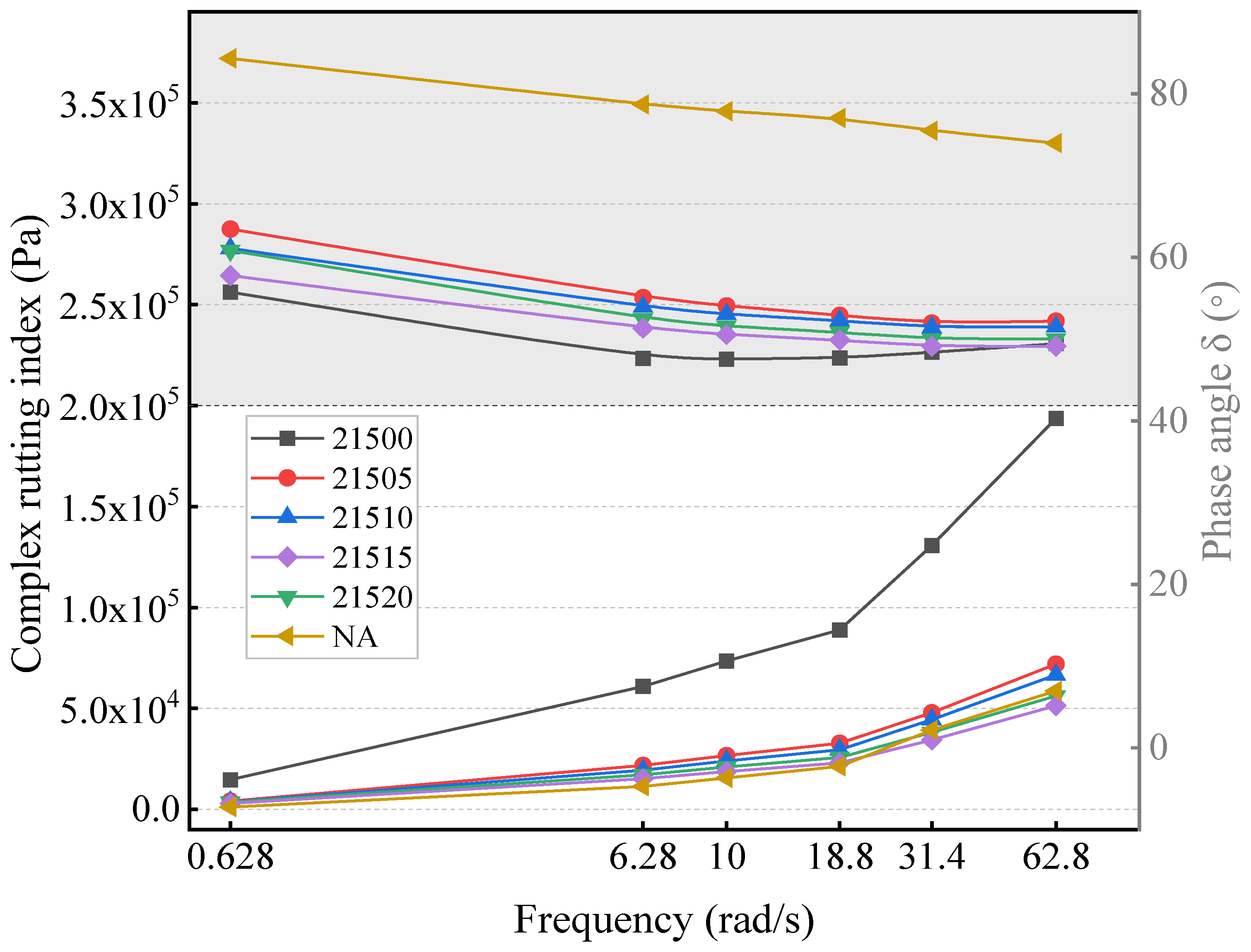

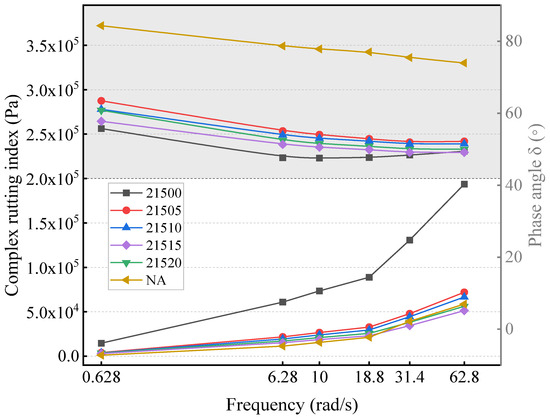

Figure 7 shows the variation curves of
G* and
δ with frequency for the modified asphalts at 46 °C.
As depicted in
Figure 7, the complex modulus increases with frequency, while the phase angle decreases [
43]. At the same frequency, the deformation resistance increases with increasing complex modulus and decreasing phase angle. Notably, in our tests, UA exhibited the weakest deformation resistance, whereas 21500 demonstrated the best deformation resistance. At the same frequency, the complex shear modulus of the modified asphalts followed the order 21500 > 21505 > 21510 > 21520 > 21515, with the phase angle order being the reverse. The shear deformation resistance of the modified asphalts initially decreased with increasing bio-oil content, but this trend reversed when the bio-oil amount surpassed 15%. This indicates the optimal bio-oil content for B-SCMA. To comprehensively analyze the effect of different bio-oil contents on the deformation resistance of B-SCMA,

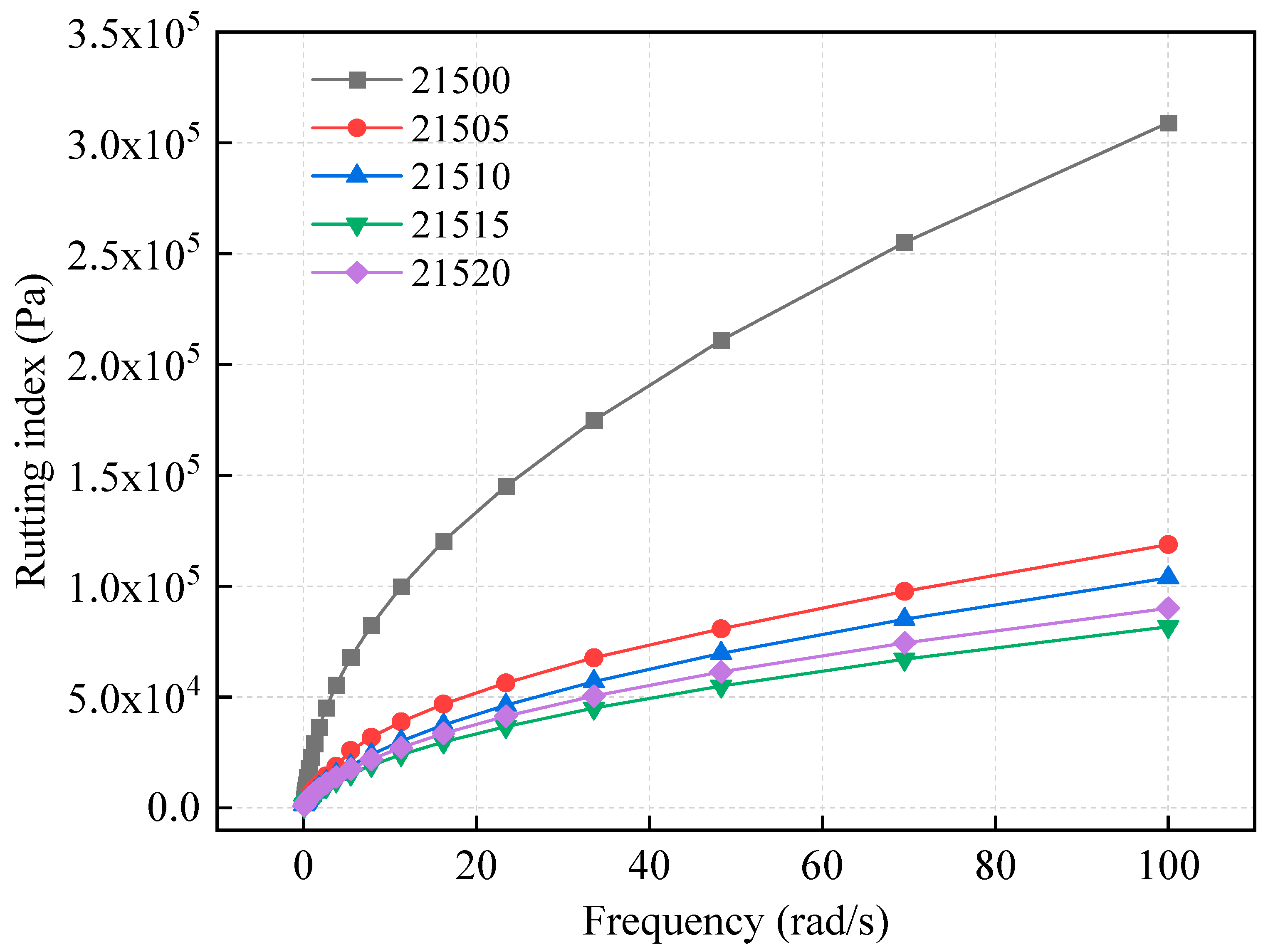

Figure 8 compares the rutting indices of modified asphalts with frequency.
Figure 8 illustrates that at 46 °C, the rutting index of asphalt increases with frequency, indicating that the deformation resistance is greater under high-speed loading than under low-speed loading. At the same frequency, the order of rutting indices for the modified asphalts in our study was 21500 > 21505 > 21510 > 21520 > 21515. It is evident that the rutting indices of the four bio-oil-modified asphalts were significantly lower than those of the asphalts without added bio-oil. This result is consistent with the temperature scanning test results, showing that bio-oil reduced the high-temperature properties of SCMA. The rutting index of modified asphalt usually decreases as the bio-oil content increases. This decrease can be attributed to the decrease in viscosity caused by the addition of bio-oil, which diminishes the high-temperature properties and weakens the resistance to pavement deformation under loads [
44].
However, the 21520-modified asphalt demonstrated superior high-temperature deformation resistance compared to 21515. This observation aligns with the temperature sweep test results, where the rutting index of unaged 21520 was greater than that of 21515 up to 70 °C. However, the rutting index of R-21515 exceeded that of 21520 at temperatures higher than 70 °C. After RTFO treatment, the rutting index of R-21515 remained higher than that of R-21520. This suggests that initially, a higher bio-oil content did not significantly affect the high-temperature performance. As temperature and aging increase, the influence of temperature on the rutting index of asphalt becomes more pronounced. This is due to the complementary or compensatory effect of bio-oil modification and the enhancement provided by SBS or CR modifiers, which temporarily mask the negative impact on high-temperature performance.
3.3.3. LAS Test
This section investigates the impact of bio-oil on the fatigue resistance of SCMA using LAS tests. The stress-strain curves of the asphalt were derived, and the fatigue performance was quantified using Equation (5).
Figure 9 presents the stress-strain curves obtained from the LAS tests, while
Figure 10 illustrates the fatigue life of each asphalt type.
According to the LAS test results depicted in
Figure 9, the stress-strain curve of the UA reaches its peak first, followed by a sharp decline in stress with increasing strain, leading to premature stress reduction to the lowest level. This indicates that UA exhibits the earliest fatigue failure and the poorest fatigue resistance. In contrast, the stress peaks of the other modified asphalts are notably lower than those of UA, and their stress changes with strain more gradually, suggesting superior fatigue resistance compared to that of UA. The stress-strain curve of P-21500, which contains only SBS and CR, is positioned above the curves of the five B-SCMA samples with bio-oil. This trend indicates that bio-oil addition enhanced the fatigue resistance of SCMA composites with different CR particle size ratios. This enhancement can be attributed to the ability of bio-oil to inhibit the degradation of fine CR particles during aging, thereby stabilizing the dense network structure inherent in SCMA. Notably, the positions of the P-21505 and P-21510 curves differ significantly. At low strain levels, the stress-strain curve of P-21520 is greater than that of P-21515. As the strain increases, the stress-strain curve of P-21515 surpasses that of P-21520, suggesting that P-21520 had inferior fatigue resistance compared to P-21515. This indicates that increasing the bio-oil content does not necessarily improve the fatigue resistance of modified asphalt. To better understand the anti-fatigue properties of various asphalts, the fatigue lives were calculated and are compared in
Figure 10.
Figure 10 illustrates the fatigue lives of the six tested asphalts at different stress levels. It is clear that the fatigue life of asphalts subjected to 2.5% stress is significantly longer than that of those subjected to 5% stress. This disparity arises because fatigue failure is cumulative damage and is linearly correlated with the stress amplitude magnitude. Consequently, a lower stress level (e.g., 2.5%) implies that the material experiences less stress per cycle, resulting in reduced microdamage in each cycle and an extended fatigue life. As the bio-oil content increased, the fatigue life of B-SCMA initially increased before decreasing. At a stress level of 2.5%, the fatigue life of P-21515 was improved by 61.8% compared with that of P-21500. This trend aligns with previous analyses, indicating that an increase in bio-oil content does not necessarily improve the fatigue resistance of modified asphalt. An optimal amount of bio-oil may improve the fluidity of modified asphalt, promoting a more uniform micro-distribution structure. This enhancement may mitigate the local stress contents arising from uneven mixing, thereby initially extending the fatigue life. However, excessive bio-oil addition diminishes the viscosity and cohesion of asphalt, increasing the susceptibility of the material to flow and deformation under repetitive loading. This vulnerability to deformation undermines the asphalt’s capacity to resist fatigue crack propagation, ultimately reducing the fatigue life of the asphalt.
3.3.4. BBR Test
To investigate the effect of bio-oil on the low-temperature properties of SCMA with diverse composite CR particle size ratios, the creep rate (m) and stiffness modulus (S) of various asphalts were assessed using the BBR test, and the results are presented in

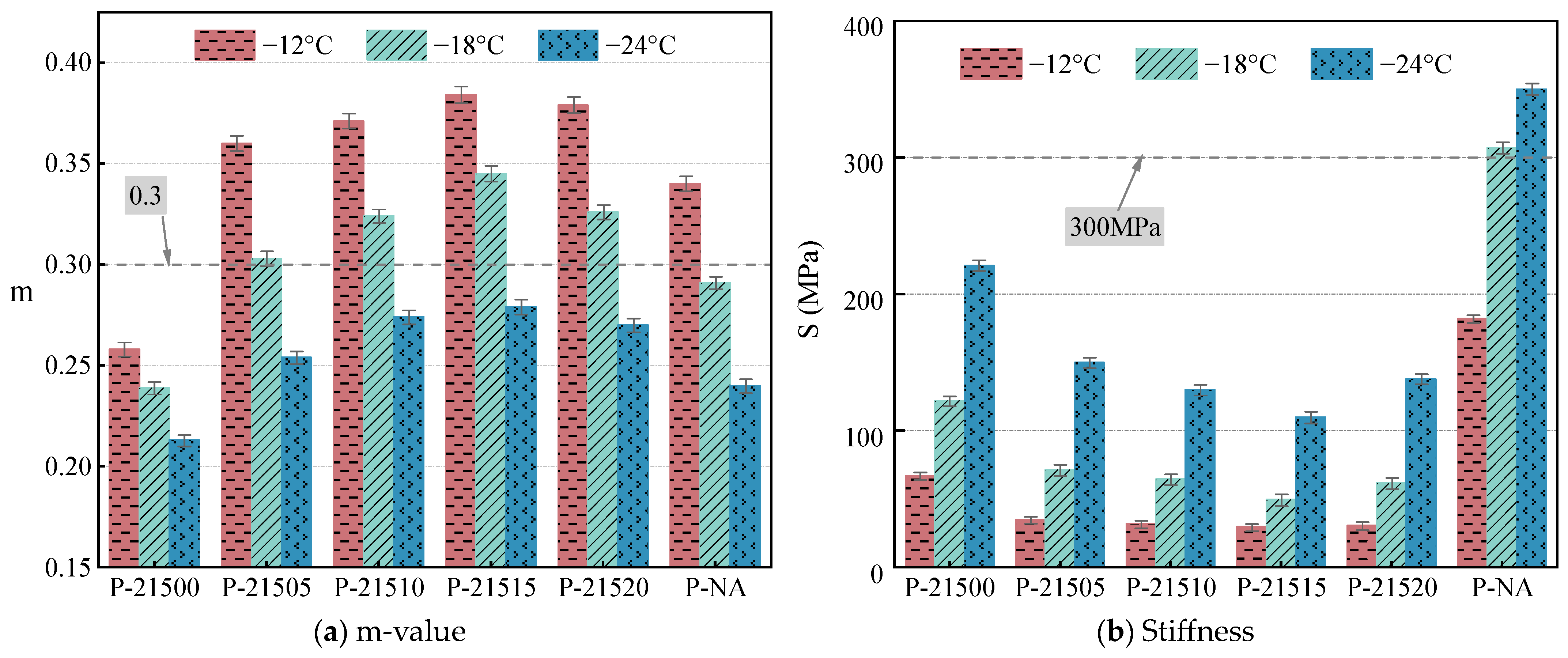

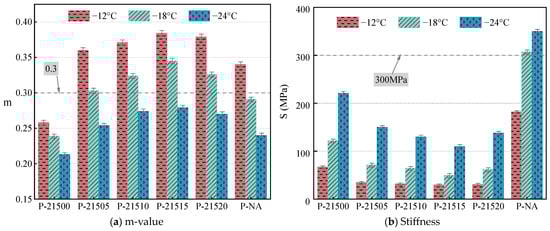

Figure 11.
Figure 11a,b depict the m and S values for both unmodified and modified asphalts. High m values and low S values indicate superior low-temperature properties. The low-temperature properties of the five modified asphalts were ranked as follows: P-21500 < P-21505 < P-21510 < P-21520 < P-21515. The lowest low-temperature properties of P-21500 correspond to the highest high-temperature properties, which also indicates that the high- and low-temperature properties of modified asphalt are usually the opposite of each other.
Figure 11 reveals that as the bio-oil content increased, the m value of the modified asphalt initially increased before decreasing. The S value decreased initially but later increased, particularly when the bio-oil content surpassed 15%. The low-temperature properties of the modified asphalt with bio-oil percentages below 15% may be attributed to the stiffness reduction effect facilitated by the bio-oil. The low-temperature performance is enhanced at the expense of high-temperature performance [
45]. However, when the bio-oil amount exceeds 15%, the low-temperature performance of B-SCMA deteriorates, which may be attributed to an excessive compromise with the use of bio-oil on the stability of the SCMA microstructure. This mechanism will also diminish the cohesion properties and impair the elastic recovery of asphalt at low temperatures.
3.4. FM Test

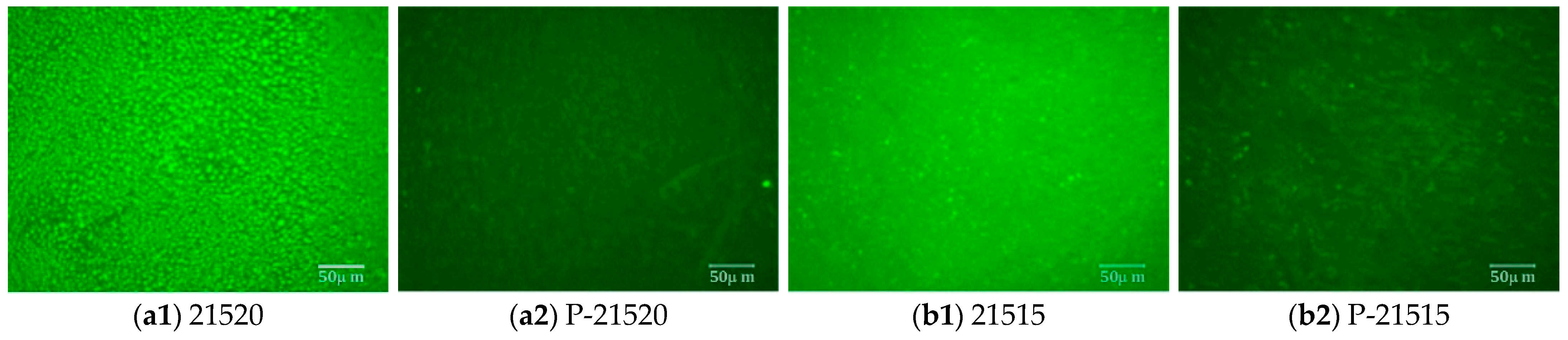

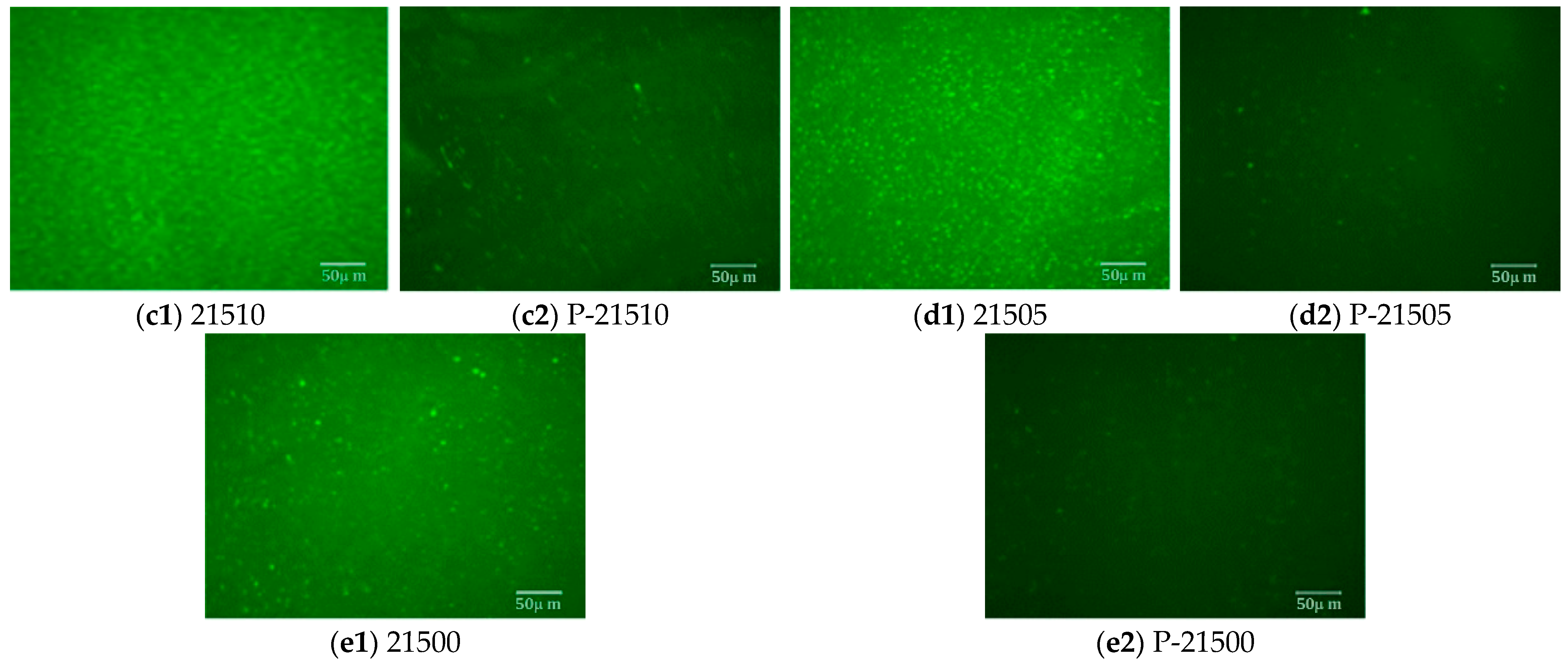

Fluorescence microscopy (FM) is a valuable tool for examining modifier particle distributions and for elucidating the micro interactions between modifiers and asphalt. In this study, FM was utilized to evaluate the impact of bio-oil on the distribution, uniformity, and aging resistance of SCMA. Fluorescence micrographs of B-SCMA under various bio-oil contents, both before and after PAV, were acquired and are presented in

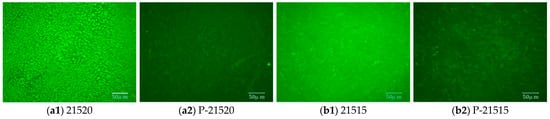

Figure 12.
As illustrated in
Figure 12, the proportion of fluorescent substances in B-SCMA increased with the addition of bio-oil, accompanied by morphological changes in B-SCMA. Compared to the SCMA results shown in
Figure 12(e1), the B-SCMA samples with 5% and 10% bio-oil contents (
Figure 12(c1,d1)) exhibited a more uniform dispersion of fluorescent substances and an increase in light-weight components within the asphalt. This occurs because bio-oil enhances the light-weight components of asphalt, promoting the swelling and uniform dispersion of SBS and CR modifiers into punctate shapes. This indicates that bio-oil improves the compatibility between asphalt and the SBS and CR modifiers, facilitating better dispersion.
Figure 12(b1) shows that with 15% bio-oil content, B-SCMA formed a more uniform cross-linked structure with filamentous features, suggesting a richer network structure due to the continuous swelling of modifiers and bio-oil. However, when the bio-oil content reached 20%, as shown in
Figure 12(a1), the continuous network structure disappeared and was replaced by larger cluster structures. This implies the existence of a threshold at approximately 15% of bio-oil content, beyond which the further addition of bio-oil does not enhance the modification effect. Excessive bio-oil disrupts the original spatial network structure, causing segments of the modifiers to aggregate with bio-oil molecules, resulting in phase separation structures that appear as clusters under fluorescence microscopy [
46].
Upon comparing the images of modified asphalt before and after PAV, it is evident that the fluorescence intensity decreases aging, with B-SCMA demonstrating enhanced aging resistance relative to SCMA as the bio-oil content increases. This improvement can be attributed to the esters in castor oil, which can retard or inhibit free radical chain reactions, thereby reducing asphalt oxidation and enhancing aging resistance [
47]. However, an increase in bio-oil does not invariably lead to better aging resistance. As depicted in
Figure 12(a2,b2,c2,d2), B-SCMA with 15% bio-oil content exhibited the most significant retention of fluorescent substances after aging. This suggests that while bio-oil initially enhances the compatibility and aging resistance of SCMA by increasing the amount of light-weight components and promoting SBS and CR swelling, an excess content of bio-oil can disrupt the stability of the SCMA spatial network structure once the swelling capacity is saturated. As a result, aging resistance is impaired. Within an optimal range of bio-oil contents, the compatibility and aging resistance of the SCMA improved. However, exceeding this threshold led to a reduction in modification efficacy due to the destabilization of the SCMA spatial network structure.
The physical blending and synergistic reaction mechanism of bio-oil plays a significant role in promoting compatibility between the SBS/CR modifier and unmodified asphalt. Bio-oil helps to reduce the interfacial tension between different components, which encourages the polymer chains of SBS and CR to be more uniformly distributed in the asphalt. The phase separation phenomenon decreases, and a more homogeneous and stable dispersion is obtained. This optimized dispersion state not only enhances the interaction between the modifier and asphalt but also effectively improves the asphalt’s performance. Furthermore, the asphalt’s anti-aging properties, mobile phase, and compatibility are improved due to the formation of a denser network structure. However, the modification effect will be reduced by an excessive dosage of bio-oil.
3.5. FTIR Test
FTIR experiments were employed to investigate the impact of bio-oil on the chemical composition and functional groups of SCMA at the microscopic level.

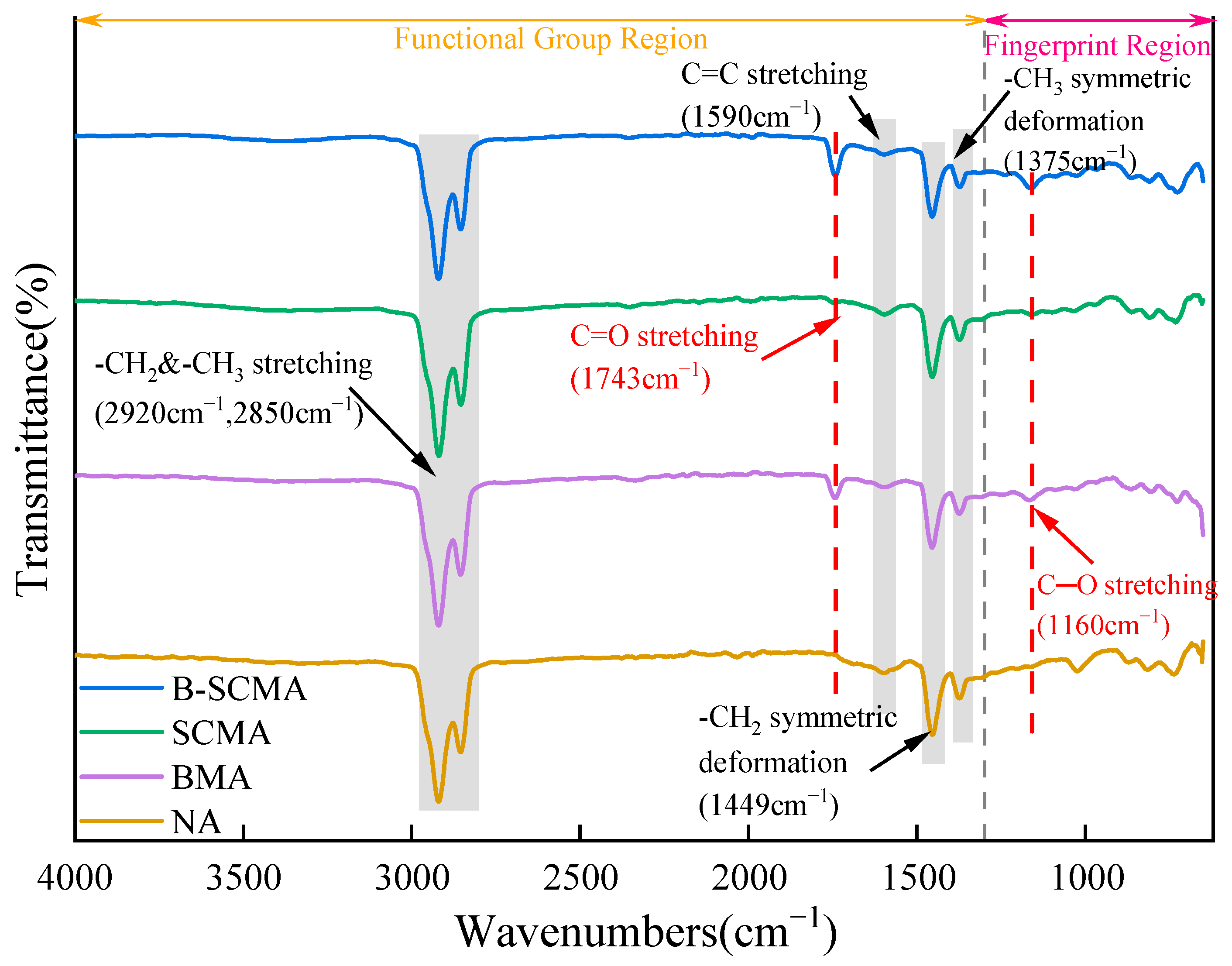

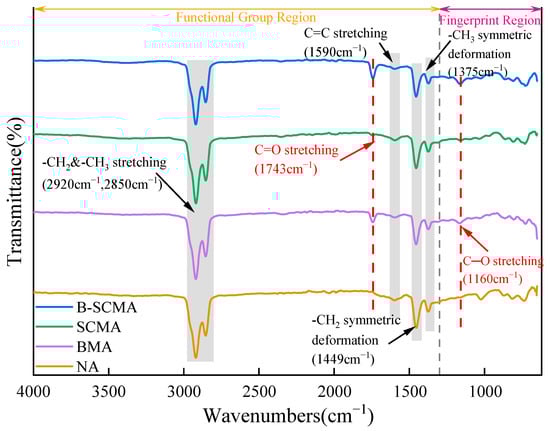

Figure 13 presents the infrared spectra of UA, SCMA, bio-oil-modified asphalt (BMA), and B-SCMA.

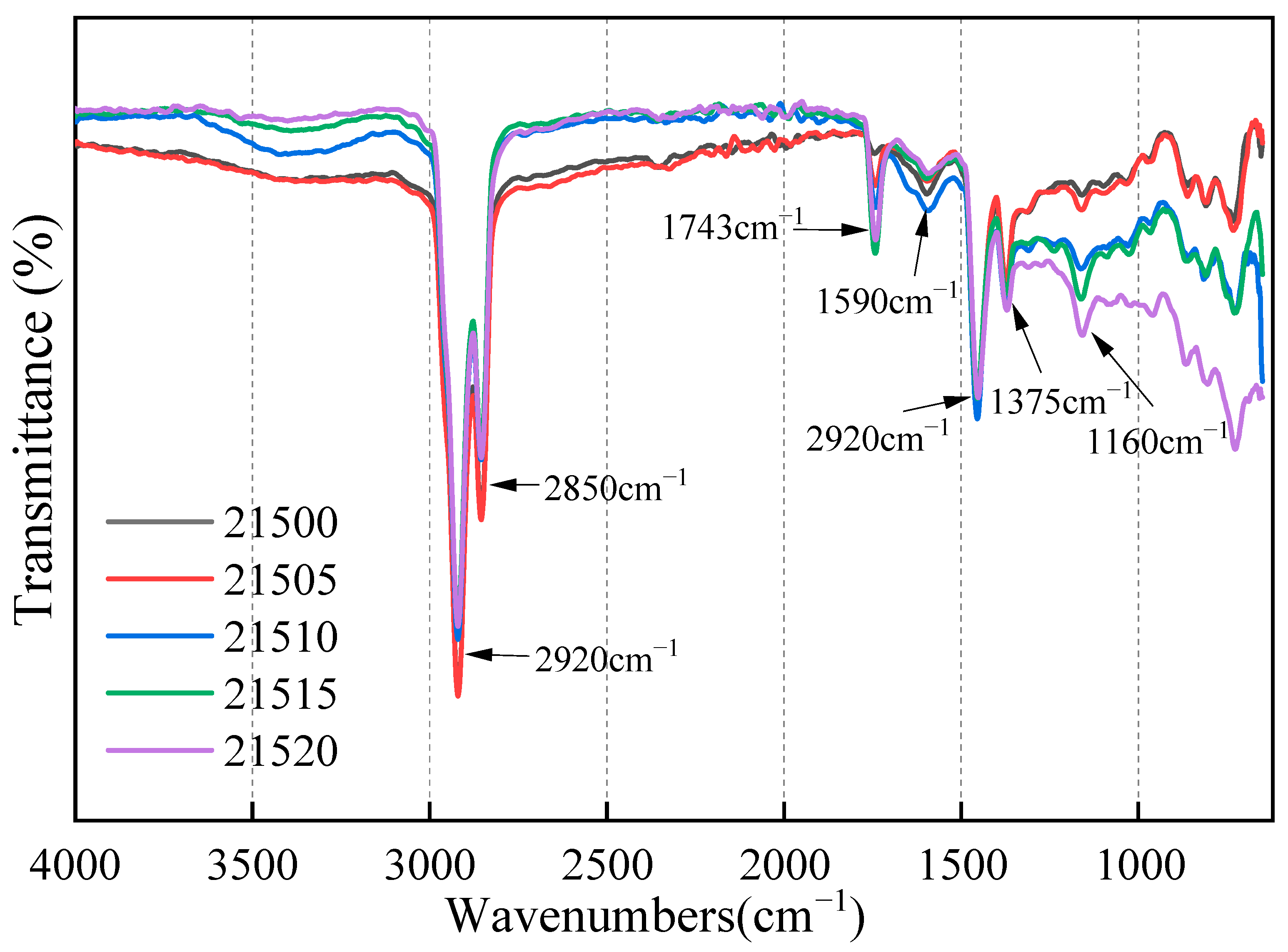

Figure 14 displays the infrared spectra of B-SCMA with varying bio-oil contents.
The characteristic peak positions of the modifiers were identified by their C-H stretching vibration, C=O stretching vibration, C=C stretching vibration, etc. The intensity changes of these characteristic peaks reflected the modification effect of the modifiers. As shown in
Figure 13, the absorption peaks shared by UA, SCMA, BMA, and B-SCMA in the functional group region are located at 2920 cm
−1, 2850 cm
−1, 1590 cm
−1, 1449 cm
−1, and 1375 cm
−1, respectively. The peaks at 2920 cm
−1 and 2850 cm
−1 can be attributed to the C-H stretching vibrations of methylene (-CH
2) and methyl (-CH
3) groups, while the peak at 1590 cm
−1 corresponds to the breathing vibration of the benzene ring C=C. The peaks at 1449 cm
−1 and 1375 cm
−1 represent the stretching vibrations of methylene and methyl symmetric bonds, indicating the presence of abundant light-weight components and small molecular compounds in these modified asphalts. Compared to the peaks of UA and SCMA, B-SCMA exhibited two new absorption peaks at 1743 cm
−1 and 1160 cm
−1, which can be attributed to the stretching vibration of saturated fatty acid esters (C=O) and the stretching vibration of C─O bonds [
30,
48].
This indicates that the characteristic peaks in B-SCMA can be attributed to bio-oil, SBS/CR, and unmodified asphalt. There were no new functional groups present during the modification process, suggesting that physical blending was synergistic. This also suggests that bio-oil enhances the compatibility between SBS, CR modifiers, and unmodified asphalt in SCMA, facilitating more complete reactions. This implies that bio-oil, when used as a modifier, adjusts and refines the microstructure of SCMA mainly by physical means, rather than by generating new functional groups through chemical reactions.
Figure 14 demonstrates that increasing the bio-oil content did not introduce new characteristic peaks in the modified asphalt. The peak values remain consistent with those in
Figure 13, although the intensity of the absorption peaks varies. This finding reaffirms that bio-oil primarily disperses physically in SCMA. Additionally, the saturated aromatic components in bio-oil exhibit low polarity and low molecular weight, creating a low-polarity region around the SCMA structure [
49]. The environment further dissolves the low-polarity saturated components and enhances the molecular dispersion within the SCMA, thereby improving its flowability. On a macroscopic level, serial reactions lead to reductions in the viscosity, softening point, and high-temperature properties of modified asphalt. Consequently, a high bio-oil content leads to low viscosity, a decreased softening point, and diminished high-temperature properties.
