Article

Preparation of Montmorillonite–Melamine Cyanurate and Inhibition of the Emission of Phosphine from PA6/Aluminum Hypophosphate

by
Lin Wang
,
Yuyang Li
,
Chenyang Yan
,
Xiangmei Li
*,
Jiyu He
and
Rongjie Yang
National Enginneering Research Center for Flame Retardant Materials, School of Materials Science & Engineering, Beijing Institute of Technology, 5 Zhongguancun South Street, Haidian District, Beijing 100081, China
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(20), 2946; https://doi.org/10.3390/polym16202946
Submission received: 12 September 2024 / Revised: 17 October 2024 / Accepted: 18 October 2024 / Published: 21 October 2024
(This article belongs to the Special Issue Flame Retardant Polymers: 2024 National Flame Retardant Academic Annual Conference)
Browse Figures
Versions Notes

Abstract

:
In order to mitigate the release of toxic phosphine from aluminum hypophosphite in twin-screw processing, montmorillonite–melamine cyanurate was prepared by three methods: (1) mechanical intercalation, (2) water intercalation and (3) in situ intercalation. The sheet spacing of montmorillonite was increased from 1.140 nm to 1.141 nm, 1.208 nm and 1.217 nm for these three methods, respectively, and scanning electron microscope (SEM) and transmission electron microscopy (TEM) proved that melamine cyanurate was successfully inserted into the montmorillonite sheets. The montmorillonite–melamine cyanurate from in situ intercalation can best inhibit the release of PH3 from aluminum hypophosphite, and the peaks of phosphine, mean values of phosphine and integral of phosphine were reduced by 81.9%, 72.1% and 72.2%, respectively. The mode of action of montmorillonite–melamine cyanuric inhibition of the emission of phosphine from aluminum hypophosphite can be attributed to the physical absorption of montmorillonite and the chemical bonding of melamine cyanurate. In addition, in situ intercalation can slightly improve flame retardancy, attributed to incomplete exfoliation of montmorillonite sheets.

1. Introduction

Polyamide 6 has excellent mechanical properties, wear resistance, chemical resistance and processing properties, so it is widely used in textile, automotive, electronic and electrical industries. However, polyamide 6 has poor flame retardancy, which limits its wider application [1,2,3]. In recent decades, halogen-free flame retardant containing phosphorus, nitrogen, silicon and metal oxides is attracting more and more attention in flame retardant research [4,5,6].
Aluminum hypophosphate (AHP), a kind of cheap and halogen-free inorganic phosphorus flame retardant, performs excellent flame retardancy, attributed to a 41.98 wt% high content of phosphorus. Therefore, aluminum hypophosphate is widely applied to flame retardant polymers [7,8,9,10,11,12]. However, AHP decomposes and releases phosphine gas (PH3) in the process of high-temperature processing of twin-screw extruder, because of its sensitivity to heat and shear [13]. PH3 gas can be accumulated and ignited easily during processing, and even explode in extreme cases [14]. In addition, PH3 gas can easily be inhaled into the lungs at a processing site or fire site, and causes unpredictable damage to the sympathetic nervous system, blood system and lung cells of people without respiratory protection [14]. Therefore, inhibiting the release of PH3 has very important practical significance for the promotion of the application of AHP.
To date, the release of PH3 from AHP can be inhibited by microencapsulation and synergistic compounding. Microcapsule technology, a very mature technology, has been widely used in various fields of research [15,16]. By forming a shell on the surface of AHP particles, microencapsulation technology gives special properties to the AHP, the core material, to enhance the application of AHP [17]. Ge [13] successfully microencapsulated AHP with melamine cyanurate by in situ polymerization. The results of TGA-FTIR showed that the amount of PH3 released was reduced and the release time was delayed. Compared with microcapsule technology, synergistic compounding is easier to be implemented with modification by simple processing [18]. Therefore, some substances absorbing or reacting with PH3 to form non-gaseous substances can be synergistically blended with AHP to inhibit the release of PH3. Yuyang Li [19] used metal–organic frameworks (MOFs) with large specific surface area to synergistically compound with AHP. PH3 release curves of both the processing process and TGA-FTIR showed that the PH3 release was successfully mitigated. There is little clear research on mitigating PH3 release of AHP except the above two mentioned studies [13,19].
Montmorillonite (MMT), an economical, available and environmentally friendly adsorbent, possesses distinctive and excellent attributes including unique two-dimensional special structure, mineral surface adsorption, interlayer cation exchange, pore filtration and special nanoscale structural effects [20,21,22,23]. Owing to the high special surface area and porous structure, MMT can effectively adsorb waste through various interactions, such as capillary forces, surface tension, hydrogen bonding and van der Waals forces [24,25]. In addition, MMT is also a good anti-drip agent [19]. Therefore, MMT is applied to flame retardancy [26], catalytic carrier [27], drug loading [28], wastewater treatment [29], attributed to excellent thermal stability, gas barrier ability [30,31], strong adhesion, and large specific area and adsorption ability [32]. MMT can be transformed into more efficient MMT-based adsorption materials through modification, activation or composite modification. The usual modification methods include activation, inorganic filling, organic intercalation, polymer intercalation and inorganic–organic composition [33]. Therefore, cheap and widely available MMT is a unique choice for a PH3 absorbent.
Melamine cyanurate (MCA) is a typical flame retardant for polyamides 6 and 66, attributed to high flame retardancy, non-toxic product, low smoke release and low price. The decomposition of MCA leads to the sublimation of melamine and the degradation of cyanuric acid [34,35,36]. The amino group in melamine can react with PH3 to form a non-gaseous compound; thereby, the release of phosphine gas can be inhibited [19]. Furthermore, Zhao Min [37] successfully achieved the preparation of montmorillonite–melamine cyanuric (MMT-MCA) by intercalation. Therefore, MMT-MCA can be prepared and applied as a better PH3 absorbent than raw MMT.
In this work, MMT-MCA was prepared by three methods: (1) in situ intercalation, (2) water intercalation and (3) mechanical intercalation. The three kinds of MMT-MCA compounded with AHP were applied to PA6, and the effect of the intercalation method and loading proportion of MMT-MCA on the emission of PH3 from AHP in the processing of twin-screw extrusion and flame retardant were studied. The results showed that in situ intercalation could best inhibit the emission of PH3 by 72% and slightly improve LOI and UL 94.

2. Materials and Methods

2.1. Materials

Sodium-montmorillonite (MMT) was produced by Nanocor Inc. (Chapel Hill, NC, USA). Melamine (MA), cyanuric acid (CA) and melamine cyanurate (MCA) were purchased from Aladdin (Shanghai) Co., LTD., Shanghai, China. Nylon 6 was purchased from Changle Hengshen Synthetic Fiber Technology Co., LTD., Fuzhou, China. Aluminum hypophosphate (AHP) was purchased from Hunan Meilaipo Technology Development Co., LTD., Yongzhou, China.

2.2. Preparation of MMT-MCA

(1)
In situ intercalation
MMT−MCA was prepared by in situ intercalation according to the previous literature in our laboratory [37]. First, 49.5 g cyanuric acid (CA) and 50.5 g melamine (MA) were individually dissolved in 3.0 L deionized water in 95 °C under magnetic agitation for 2 h. Next, 100.0 g of MMT was dispersed in deionized water in a 50 L reactor with mechanical agitation and high–low-temperature circulator at 85 °C, and the temperature of the reactor increased to 95 °C two hours later. Then, CA hot water dispersion was slowly added to the reactor by a metering pump at a constant speed for about 30 min and the reaction continued to be stirred for 3 h. Then, MA hot water dispersion was slowly added to the reactor by a metering pump at a constant speed for about 30 min and the reaction continued to be stirred for 3 h. Finally, the product named 2# was obtained by centrifugation, drying and grinding.
(2)
Water intercalation
First, 100.0 g MCA was dispersed in 5.0 L deionized water in 95 °C under magnetic agitation for 2 h. Next, 100.0 g of MMT was dispersed in deionized water in a 50 L reactor with mechanical agitation and high–low−temperature circulator at 85 °C, and the temperature of the reactor increased to 95 °C two hours later. Then, MCA hot water dispersion was slowly added to the reactor by a metering pump at a constant speed for about 30 min and the reaction continued to be stirred for 3 h. Finally, the product named 1# was obtained by centrifugation, drying and grinding.
(3)
Mechanical intercalation
In total, 50.0 g MMT and 50.0 g MCA were ground and blended in a grinder at 10,000 rpm/min for 5 min, and the product named 0# was obtained.

2.3. Preparation of PA6/FR

PA6/FR was blended in the twin-screw extruder SHJ-20 according to Table 1. The temperature profile over the screw from the feeding to the die was 230 °C, 235 °C, 240 °C, 245 °C, 245 °C and 240 °C. After drying at 80 °C for 2 h, the extruded granules were molded by injection molding machine HTF80X1, and the temperature of the screw ranged from 245 °C to 230 °C.

2.4. Characterization

The FTIR spectra of MMT-MCA, MMT, MCA, CA and MA were recorded with a Nicolet 6700 Fourier transform infrared spectrometer for 32 scan times at a resolution of 4 cm−1. The transition mode was used and the wavenumber range was set from 4000 to 400 cm−1.
Scanning electron microscopy (SEM) was used to observe the microstructure of MCA, MMT and MMT-MCA with a Hitachi ultra-high resolution S-4800 scanning electron microscope. The accelerated voltage of image information acquisition is 3.0 kV. The accelerated voltage of collecting energy spectrum information (EDS) was 20.0 kV.
A MiNiFlex600 X-ray diffractometer (XRD) was used to characterize the crystal structure of MMT-MCA. The X-ray wavelength used for scanning was 1.54078 A, the scanning range was 2~50°, the step size was 0.02° and the scanning speed was 2°/min.
The morphologies of MMT-MCA were characterized with a transmission scanning electron microscope (TEM) (JEOL JEM-F200, Tokyo, Japan) with an accelerating voltage of 200 kV and an energy spectrum model of JED-2300T.
The thermal decomposition and thermal stability of PA6/AHP/MMT-MCA were measured with a 209 F1 Iris thermogravimetric analyzer (TGA). All samples were tested in a nitrogen atmosphere with a total flow rate of 50 mL /min, a heating rate of 10 °C/min and a temperature range of 40~800 °C.
The real-time phosphine release concentration shown in Figure 1 was collected with a Plt400-PH3 phosphine detector with a range of 0–1000 ppm produced by Shenzhen Xinchuang Anda Electronic Technology Co., Ltd., Shenzhen, China, at the closest barrel to the die.
The TGA was coupled with a Fourier transform infrared spectrometer (TGA-FTIR, Nicolet 6700) to detect the PH3 gas release of flame retardant PA6 in sample 2#. TGA was performed with a Netzsch 209 F1 thermal analyzer, and the tests were carried out in the nitrogen atmosphere at a heating rate of 20 °C/min from 40 to 800 °C with a gas flow rate of 60 mL/min.
The UL-94 of PA6/FR was tested with a vertical combustion tester of (UL94-X) manufactured by Motis Combustion Technology (China) Co., LTD., Suzhou, China.
The LOI of PA6/FR was carried out with the intelligent critical oxygen index analyzer (TTECH-GBT2406-1) manufactured by Tectech (Suzhou) Testing Instrument Technology Co., LTD., Suzhou, China.

3. Results and Discussion

3.1. Structure of MMT-MCA

Figure 2 shows the FTIR spectra of CA, MA, MCA, MMT and MMT-MCA. The absorption at 3625 cm−1 was caused by the stretching vibration of the -OH group in the octahedral alumina sheet of MMT. The peak at 3388 cm−1 was caused by the symmetric stretching vibration of -NH2 of the triazine group [35]. The peaks at 3230 cm−1 and 3020 cm−1 were attributed to the formation of hydrogen bonds between the amino and imino groups [13]. The peak at 1780 cm−1 was attributed to the stretching vibration of the C=O of MCA. The strong peaks at 1731 cm−1 and 1660 cm−1 were caused by shear and bending vibrations of -NH2, respectively. The peaks at 1531 cm−1 and 1444 cm−1 were consistent with the stretching vibrations of C=N and C-N, respectively. The absorption peak at 1014 cm−1 was attributed to the bending vibrations of Si-O-Si and Al-O bonds, but this peak shape disappeared in the absorption pattern of 0#, 1# and 2# because the peak 1014 cm−1 was simply superimposed by the absorption peaks of 1083 cm−1, 1031 cm−1 and 912 cm−1 generated by MCA. The above results showed that MA and CA reacted successfully and MCA was synthesized in 2# [35,37], and the chemical structure of the three kinds of MMT-MCA did not change.
As shown in Figure 3, the crystal plane spacing of pure MMT was about 1.140 nm, and the spacing of MMT sheets in 0#, 1# and 2# was 1.141 nm, 1.208 nm and 1.217 nm, respectively. The slight increase in MMT sheet spacing of 0# may be attributed to the expansion of loose MMT sheets caused by mechanical fracturing. The MMT sheet spacing of 1# and 2# increased more obviously, contributing to the obvious expansion of MMT sheet spacing, and the effect of the in situ intercalation method on extending MMT sheet spacing was better.

3.2. Morphology of MMT-MCA

In Figure 4, MCA was a short rod-like crystal of MA and CA interleaved and hydrogen-bonded [38], while MMT was the product of the stacking of irregular layered structures with gaps matching MCA size between its sheets, shown as the red lines [25]. In 0#, MCA stick crystals were not observed between the sheets of MMT, which proved that the mechanical mixing without solvent could hardly implement the intercalation of MCA between the MMT sheets. In 1#, because of the hydrogen bonding between MCA and MMT, MCA was deposited on and covered the surface of MMT in large quantities, which was not conducive to the exfoliation of MMT [37]. However, in 2#, the MCA crystal grew inside the MMT and poked out between the MMT sheets, shown as yellow lines, which destroyed the layered stacking structure of the MMT and led to the partial exfoliation of the MMT sheets, promoting the exfoliation of the MMT. These phenomena were consistent with the shift of the 001 peak to a smaller angle in XRD [37], which further proved that MCA was successfully inserted into the MMT sheets and the in situ intercalation method had better intercalation efficiency than water intercalation.
Figure 5 shows the TEM images of MMT and MMT-MCA. Table 2 shows the element analysis of the corresponding position in the TEM images. Many filamentous structures can be clearly seen shown as the red arrows in MMT-1 and 0#-3 of Figure 5, which were caused by the sheets of MMT exactly parallel to the direction of the probe. In Figure 5, the cavity morphology of 1#-1 and 2#-1 shown as the arrows disappeared in MMT and 0#. According to the element analysis in Table 2, pure MMT contained almost no nitrogen element but carbon with 39.69 wt% content owing to the conductive carbon coating to facilitate TEM detection. Moreover, 0#-1 had significant content of nitrogen element, attributed to aggregation of MCA on the surface of MMT in mechanical mixing. However, 1#-1 and 2#-1 had significant content of not only the nitrogen element but also the cavity structure, because the barrier effect between layers of MMT prevented MCA from forming a continuous structure and TEM detective electrons could easily penetrate MCA based on hydrogen bonds [6]. This further confirmed that the water intercalation and in situ intercalation successfully inserted MCA into the sheets of MMT, while the mechanical intercalation could not achieve the intercalation of MCA into MMT, which was consistent with the results of XRD.

3.3. Thermal Stability of PA6/FR

TGA and DTG curves of pure PA6, PA6 loaded with 25 wt% AHP, and PA6 loaded with AHP modified with different proportions of MMT-MCA in nitrogen are shown in Figure 6, and the TGA data are listed in Table 3. The onset decomposition temperature (T-5%) obtained from Weight–Temp curves was considered as the temperature at the 5 wt% weight loss, and Tmax obtained from Deriv Weight–Temp curves was defined as the temperature at the maximal mass loss rate. The experimental residual at 800 °C (ER) was given by TGA. The theoretical residual at 800 °C (TR) was estimated according to Equation (1), as follows:
TR = 6.75/25x + 0.7486x + y
where x with unit “%” represents the mass content of AHP in PA6, and y with unit “%” represents the mass content of MMT in PA6. The gap ratio (GR) represents the gap between ER and TR, and is calculated by Equation (2):
GR = (TR − ER)/TR × 100%
The onset degradation temperature (T-5%) was around 317 °C and Tmax1 was attributed to the degradation of the first degradation stage of AHP. Tmax2 was mainly related to the degradation of MCA and the acceleration of sublimation of melamine. Tmax3 was mainly related to the accelerated degradation of polyamide 6 and the decomposition of thermal decomposition products of AHP. With the increase in MMT-MCA, Tmax1 and the T-5% of PA6/AHP loaded with MMT-MCA decreased, which was attributed to slight facilitatory effect of MCA on thermal degradation of AHP [13]. With the increase in MMT-MCA, compared with PA6/AHP, the Tmax2 and Tmax3 of PA6/AHP loaded with MMT-MCA rose, but the Tmax2 and Tmax3 only exceeded 380.2 °C with a high loading ratio of MMT-MCA, which was ascribed to the thermal protection of MMT [26]. The ER of PA6/AHP loaded with MMT-MCA decreased compared to that of PA6/AHP unloaded with MMT-MCA, attributed to the facilitatory effect of micromolecular degradation products of MCA on thermal degradation of PA6 [39,40,41]. However, the GR of 2#(7:3) was the minimum, because exfoliated MMT sheets had better thermal protection than untreated MMT but high loading could facilitate agglomeration of exfoliated MMT sheets [42]. These results indicated that 2# had better promotion than 0# and 1#, and exfoliated MMT sheets could reduce the promoting effect of MCA on the thermal degradation of PA6 and promote the char formation of PA6, and 2# had an optional loading mass ratio 3:7 with AHP.

3.4. LOI and UL 94 of PA6/FR

From Table 4, it can be seen that the LOI was the highest and the dripping of fire disappeared with PA6 loaded with 2# in the same mass ratio, owing to more efficient exfoliation of MMT sheets through in situ intercalation and the increase in the viscosity of the melted PA6 caused by exfoliated MMT sheets [25]. Although the LOI decreased with PA6 loaded with MMT-MCA, owing to the promoting effect of MCA on thermal degradation of PA6 [16], exfoliated MMT sheets formed a barrier to protect the matrix [25].

3.5. PH3 Release of PA6/FR

Figure 7 shows the PH3 release curves during the twin-screw extrusion process. Table 5 shows the parameters from the PH3 release curves of PA6/FR in Figure 7. For all samples, the total weight of each group of samples was 1000 g according to the formulation in Table 1, and the extrusion was completed before 1000 s, and the gas collection time was 1200 s. As the ratio of AHP/MMT-MCA changed from 9:1 to 5:5, phosphine release decreased first and then increased, and PH3 release was significantly inhibited at 7:3. Moreover, the PA6 loaded with AHP modified with 1# or 2# showed better inhibition than that loaded with AHP modified with 0#, reflected by relatively low PH3 release curves. Furthermore, 2#(7:3) had the slowest release of PH3 throughout, and its peaks of PH3, mean values of PH3 and integral of PH3 were reduced by 81.9%, 72.1% and 72.2%, respectively. The results indicated that MMT-MCA from in situ intercalation was the best inhibitor of PH3 release.
TGA-FTIR was used to analyze the emission of PH3 gas of PA6/AHP treated by MMT-MCA during thermal decomposition, as shown in Figure 8. The infrared absorption intensity of the P-H bond in the gas phase reflected the concentration of phosphine gas. In Figure 8(1), it is clearly shown that MMT-MCA could reduce the release concentration of phosphine gas, and MMT-MCA from in situ intercalation could better inhibit the phosphine release than MMT-MCA from the other two methods. In Figure 8(2), the P-H absorption peak intensity of 2#(5:5) is larger than that of 2#(7:3), which clearly indicates that the loading of MMT-MCA 2# should not be blindly increased; otherwise, the agglomeration of MMT sheets may not be conducive to the adsorption and blocking of PH3 release.

3.6. MMT-MCA Distribution in PA6

Figure 9 shows that the distribution of additives in PA6 sliced at low temperatures that could be observed by the TEM. Table 6 shows the EDS labeled in Figure 9. AHP with irregular sizes were randomly distributed in PA6. A large number of two-dimensional sheet structures, which were proven to be MMT-MCA by TEM-EDS, as shown in Table 6, were observed in 1#(7:3) and 2#(7:3). However, few small two-dimensional sheet structures were observed in 0#(7:3), and many larger MMT particles were present. This showed that both water intercalation and in situ intercalation could promote the exfoliation of MMT when MMT-MCA and PA6 were processed in the twin-screw extruder. The adsorption of PH3 by MMT was significantly enhanced by two-dimensional modification [43,44]. Moreover, the uniformly distributed two-dimensional MMT sheets formed obstacles in the release path of PH3, so that the release of PH3 was slowed down, which was owing to the physical adsorption of MMT and the chemical bonding of MCA [13,19,20].

4. Conclusions

Montmorillonite–melamine cyanurate (MMT-MCA) could be prepared by both water intercalation and in situ intercalation, with the sheet spacing of MMT increasing from 1.140 nm to 1.208 nm and 1.217 nm, respectively, while mechanical intercalation made it hard to achieve MCA intercalation into MMT. Owing to in situ synthesis and diffusion, in situ intercalation was more conducive to the intercalation of MCA into MMT than water intercalation, and promotion of the distribution of MMT in the PA6 matrix. In addition, exfoliated MMT sheets could promote thermal stability, char formation and flame resistance of PA6.
The inhibition efficiency of MCA-MMT in terms of PH3 emission was related not only to the intercalation method but also to the critical addition amount of MMT-MCA. The optimal ratio of MMT-MCA to AHP was about 3:7, and in situ intercalation MMT-MCA had the highest inhibition efficiency in terms of PH3 release, because in situ intercalation had stronger exfoliation in terms of MMT in the PA6 matrix, and MMT of MMT-MCA from in situ intercalation with larger specific surface area could adsorb more PH3 molecules.
Overall, in situ intercalation MMT-MCA is a cheap, environmentally friendly and efficient way to promote the safety of AHP, which can promote the application of AHP.

Author Contributions

Conceptualization, L.W., Y.L., C.Y. and X.L.; methodology, L.W., Y.L. and X.L.; investigation, L.W.; resources, L.W. and Y.L.; writing—original draft preparation, L.W.; writing—review and editing, Y.L., C.Y., X.L., J.H. and R.Y.; supervision, X.L., J.H. and R.Y.; project administration, X.L. and R.Y.; funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Hebei Shanghua New Material Co., Ltd., grant number 215A1201D.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The raw/processed data required to reproduce these findings cannot be shared at this time due to technical or time limitations.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper. The funder was not involved in the study design, collection, analysis, interpretation of data, the writing of this article or the decision to submit it for publication.

References

  1. Hou, W.; Fu, Y.; Zeng, C.; Liu, N.; Yin, C. Enhancement of flame retardancy and mechanical properties of polyamide 6 by incorporating melamine cyanurate combined with attapulgite. J. Appl. Polym. Sci. 2020, 137, 47298. [Google Scholar] [CrossRef]
  2. Boonkongkaew, M.; Sirisinha, K. Halloysite nanotubes loaded with liquid organophosphate for enhanced flame retardancy and mechanical properties of polyamide 6. J. Mater. Sci. 2018, 53, 10181–10193. [Google Scholar] [CrossRef]
  3. Yang, C.Q.; He, Q. Applications of micro-scale combustion calorimetry to the studies of cotton and nylon fabrics treated with organophosphorus flame retardants. J. Anal. Appl. Pyrolysis 2011, 91, 125–133. [Google Scholar] [CrossRef]
  4. Velencoso, M.M.; Battig, A.; Markwart, J.C.; Schartel, B.; Wurm, F.R. Molecular fireFigurehting—How modern phosphorus chemistry can help solve the challenge of flame retardancy. Angew. Chem. Int. Ed. 2018, 57, 10450–10467. [Google Scholar] [CrossRef]
  5. Shen, K.K. Review of Recent Advances on the Use of Boron-based Flame Retardants. In Polymer Green Flame Retardants; Elsevier: Amsterdam, The Netherlands, 2014; pp. 367–388. [Google Scholar] [CrossRef]
  6. Zhang, W.; Li, X.; Yang, R. Pyrolysis and fire behaviour of epoxy resin composites based on a phosphorus-containing polyhedral oligomeric silsesquioxane (DOPO-POSS). Polym. Degrad. Stab. 2011, 96, 1821–1832. [Google Scholar] [CrossRef]
  7. Liu, K.; Gao, X.; Liu, Z.; Hu, W.; Li, A.; Xu, Y.; Zhang, W. Flame retardant polyurethane microbubble elastomer based on ionic liquid/ammonium polyphosphate/aluminum hypophosphite ternary flame retardant system. J. Appl. Polym. Sci. 2024, 141, e55535. [Google Scholar] [CrossRef]
  8. Savas, L.A.; Dogan, M. Flame retardant effect of zinc borate in polyamide 6 containing aluminum hypophosphite. Polym. Degrad. Stab. 2019, 165, 101–109. [Google Scholar] [CrossRef]
  9. Savas, L.A.; Hacioglu, F.; Hancer, M.; Dogan, M. Flame retardant effect of aluminum hypophosphite in heteroatom-containing polymers. Polym. Bull. 2020, 77, 291–306. [Google Scholar] [CrossRef]
  10. Li, Y.; Qi, L.; Liu, Y.; Qiao, J.; Wang, M.; Liu, X.; Li, S. Recent Advances in Halogen-Free Flame Retardants for Polyolefin Cable Sheath Materials. Polymers 2022, 14, 2876. [Google Scholar] [CrossRef]
  11. Yang, W.; Zhang, W.; Xie, D.; Wang, Y.; Sun, X.; Zhou, R.; Jiang, J. A flame retardant containing dicyandiamide and aluminum hypophosphite for polyethylene. Case Stud. Constr. Mater. 2023, 18, e01797. [Google Scholar] [CrossRef]
  12. Tian, S.; He, H.; Wang, D.; Yu, P.; Jia, Y.; Luo, Y. Study of using aluminum hypophosphite as a flame retardant for low-density polyethylene. Fire Mater. 2017, 41, 983–992. [Google Scholar] [CrossRef]
  13. Ge, H.; Tang, G.; Hu, W.-Z.; Wang, B.-B.; Pan, Y.; Song, L.; Hu, Y. Aluminum hypophosphite microencapsulated to improve its safety and application to flame retardant polyamide 6. J. Hazard. Mater. 2015, 294, 186–194. [Google Scholar] [CrossRef]
  14. Nath, N.S.; Bhattacharya, I.; Tuck, A.G.; Schlipalius, D.I.; Ebert, P.R. Mechanisms of phosphine toxicity. J. Toxicol. 2011, 2011, 494168. [Google Scholar] [CrossRef]
  15. Laoutid, F.; Jouyandeh, M.; Murariu, O.; Vahabi, H.; Saeb, M.R.; Brison, L.; Murariu, M.; Dubois, P. New Transparent Flame-Retardant (FR) Coatings Based on Epoxy-Aluminum Hypophosphite Nanocomposites. Coatings 2023, 13, 140. [Google Scholar] [CrossRef]
  16. Zheng, Z.; Sun, H.; Li, W.; Zhong, S.; Yan, J.; Cui, X.; Wang, H. Co-microencapsulation of ammonium polyphosphate and aluminum hydroxide in halogen-free and intumescent flame retarding polypropylene. Polym. Compos. 2014, 35, 715–729. [Google Scholar] [CrossRef]
  17. Wu, K.; Zhang, Y.; Hu, W.; Lian, J.; Hu, Y. Influence of ammonium polyphosphate microencapsulation on flame retardancy, thermal degradation and crystal structure of polypropylene composite. Compos. Sci. Technol. 2013, 81, 17–23. [Google Scholar] [CrossRef]
  18. Yang, W.; Song, L.; Hu, Y.; Lu, H.; Yuen, R.K. Enhancement of fire retardancy performance of glass-fibre reinforced poly (ethylene terephthalate) composites with the incorporation of aluminum hypophosphite and melamine cyanurate. Compos. Part B Eng. 2011, 42, 1057–1065. [Google Scholar] [CrossRef]
  19. Li, Y.; Li, X.; Pan, Y.-T.; Xu, X.; Song, Y.; Yang, R. Mitigation the release of toxic PH3 and the fire hazard of PA6/AHP composite by MOFs. J. Hazard. Mater. 2020, 395, 122604. [Google Scholar] [CrossRef]
  20. Zhao, M.; Yi, D.; Camino, G.; Frache, A.; Yang, R. Interdigitated crystalline MMT–MCA in polyamide 6. RSC Adv. 2017, 7, 861–869. [Google Scholar] [CrossRef]
  21. Dong, W.; Wen, P.; Wang, C.; Tian, H.; Mou, D.; Huang, J.; Hu, R.; Xue, Z.; Jiang, D.; Li, D. 2D-3D cyclodextrin-modified montmorillonite assembly for efficient directional capture of amines. J. Water Process Eng. 2024, 66, 106029. [Google Scholar] [CrossRef]
  22. Ajbary, M.; Santos, A.; Morales-Flórez, V.; Esquivias, L. Removal of basic yellow cationic dye by an aqueous dispersion of Moroccan stevensite. Appl. Clay Sci. 2013, 80–81, 46–51. [Google Scholar] [CrossRef]
  23. Borah, D.; Nath, H.; Saikia, H. Modification of bentonite clay & its applications: A review. Rev. Inorg. Chem. 2022, 42, 265–282. [Google Scholar] [CrossRef]
  24. Li, D.; Zuo, X.; Zhang, X.; Tang, Y.; Zhao, X.; Zhang, Y.; Yang, H. Emerging urchin-like core-shell mineral microspheres with efficient photothermal conversion and solar energy storage. J. Energy Storage 2023, 68, 107661. [Google Scholar] [CrossRef]
  25. Lv, P.; Liu, C.; Rao, Z. Review on clay mineral-based form-stable phase change materials: Preparation, characterization and applications. Renew. Sustain. Energy Rev. 2017, 68, 707–726. [Google Scholar] [CrossRef]
  26. Cheng, J.; Hou, W.; Zheng, X.; Fediuk, R.; Qin, Y.; Chen, Z.; Luo, Y.; Mojahidul Islam, M. Modified space suspension bentonite-based powder for suppression dust explosion in moist conditions: Experimental testing and validations. Fuel 2024, 373, 132190. [Google Scholar] [CrossRef]
  27. Fouda, S.R.; Hassan, S.A. Impact of LaZnFe2O4 supported NiWO4@D400-MMT@CMS/MMA nanocomposites as a catalytic system in remediation of dyes from wastewater. Sci. Rep. 2024, 14, 11644. [Google Scholar] [CrossRef]
  28. Sreekanth Reddy, O.; Subha, M.C.S.; Jithendra, T.; Madhavi, C.; Chowdoji Rao, K. Curcumin encapsulated dual cross linked sodium alginate/montmorillonite polymeric composite beads for controlled drug delivery. J. Pharm. Anal. 2021, 11, 191–199. [Google Scholar] [CrossRef]
  29. Abdel-Karim, A.; El-Naggar, M.E.; Radwan, E.K.; Mohamed, I.M.; Azaam, M.; Kenawy, E.R. High-performance mixed-matrix membranes enabled by organically/inorganic modified montmorillonite for the treatment of hazardous textile wastewater. Chem. Eng. J. 2021, 405, 126964. [Google Scholar] [CrossRef]
  30. Schiessl, S.; Kucukpinar, E.; Schwiddessen, R.; Langowski, H.C.; Eisner, P. Mechanisms of permeation of helium, hydrogen, oxygen, and water vapor through silicate-based composite barrier coating layers. Surf. Coat. Technol. 2024, 483, 130800. [Google Scholar] [CrossRef]
  31. Cui, Y.; Kumar, S.; Kona, B.R.; van Houcke, D. Gas barrier properties of polymer/clay nanocomposites. Rsc Adv. 2015, 5, 63669–63690. [Google Scholar] [CrossRef]
  32. Hua, S.; Yang, H.; Wang, A. A pH-sensitive nanocomposite microsphere based on chitosan and montmorillonite with in vitro reduction of the burst release effect. Drug Dev. Ind. Pharm. 2010, 36, 1106–1114. [Google Scholar] [CrossRef] [PubMed]
  33. Ren, Z.; Zhu, Y.; Wu, Q.; Zhu, M.; Guo, F.; Yu, H.; Yu, J. Enhanced storage stability of different polymer modified asphalt binders through nano-montmorillonite modification. Nanomaterials 2020, 10, 641. [Google Scholar] [CrossRef]
  34. Gijsman, P.; Steenbakkers, R.; Fürst, C.; Kersjes, J. Differences in the flame retardant mechanism of melamine cyanurate in polyamide 6 and polyamide 66. Polym. Degrad. Stab. 2002, 78, 219–224. [Google Scholar] [CrossRef]
  35. Chen, Y.; Wang, Q.; Yan, W.; Tang, H. Preparation of flame retardant polyamide 6 composite with melamine cyanurate nanoparticles in situ formed in extrusion process. Polym. Degrad. Stab. 2006, 91, 2632–2643. [Google Scholar] [CrossRef]
  36. Li, Y.; Lin, Y.; Sha, K.; Xiao, R. Preparation and characterizations of flame retardant melamine cyanurate/polyamide 6 composite fibers via in situ polymerization. Text. Res. J. 2017, 87, 561–569. [Google Scholar] [CrossRef]
  37. Zhao, M.; Yi, D.; Camino, G.; Frache, A.; Yang, R. Interdigitated crystalline MMT-MCA: Preparation and characterization. Polym. Adv. Technol. 2018, 29, 22–29. [Google Scholar] [CrossRef]
  38. Xu, W.; Dong, M.; Gersen, H.; Rauls, E.; Vázquez-Campos, S.; Crego-Calama, M.; Reinhoudt, D.N.; Stensgaard, I.; Laegsgaard, E.; Linderoth, T.R.; et al. Cyanuric acid and melamine on Au(111): Structure and energetics of hydrogen-bonded networks. Small 2007, 3, 854–858. [Google Scholar] [CrossRef]
  39. Zhang, J.; Lewin, M.; Pearce, E.; Zammarano, M.; Gilman, J.W. Flame retarding polyamide 6 with melamine cyanurate and layered silicates. Polym. Adv. Technol. 2008, 19, 928–936. [Google Scholar] [CrossRef]
  40. Chen, Y.; Wang, Q. Preparation, properties and characterizations of halogen-free nitrogen-phosphorous flame-retarded glass fiber reinforced polyamide 6 composite. Polym. Degrad. Stab. 2006, 91, 2003–2013. [Google Scholar] [CrossRef]
  41. Wu, Z.Y.; Xu, W.; Liu, Y.C.; Xia, J.K.; Wu, Q.X.; Xu, W.J. Preparation and characterization of flame-retardant melamine cyanurate/polyamide 6 nanocomposites by in situ polymerization. J. Appl. Polym. Sci. 2009, 113, 2109–2116. [Google Scholar] [CrossRef]
  42. Im, J.S.; Lee, S.K.; In, S.J.; Lee, Y.S. Improved flame retardant properties of epoxy resin by fluorinated MMT/MWCNT additives. J. Anal. Appl. Pyrolysis 2010, 89, 225–232. [Google Scholar] [CrossRef]
  43. Liang, C.-Y.; Uchytil, P.; Petrychkovych, R.; Lai, Y.-C.; Friess, K.; Sipek, M.; Reddy, M.M.; Suen, S.-Y. A comparison on gas separation between PES (polyethersulfone)/MMT (Na-montmorillonite) and PES/TiO2 mixed matrix membranes. Sep. Purif. Technol. 2012, 92, 57–63. [Google Scholar] [CrossRef]
  44. Rezaei, M.; Ismail, A.F.; Bakeri, G.; Hashemifard, S.A.; Matsuura, T. Effect of general montmorillonite and Cloisite 15A on structural parameters and performance of mixed matrix membranes contactor for CO2 absorption. Chem. Eng. J. 2015, 260, 875–885. [Google Scholar] [CrossRef]
Polymers 16 02946 g001
Figure 1. Illustration of real-time phosphine release concentration testing.
Figure 1. Illustration of real-time phosphine release concentration testing.
Polymers 16 02946 g001
Polymers 16 02946 g002

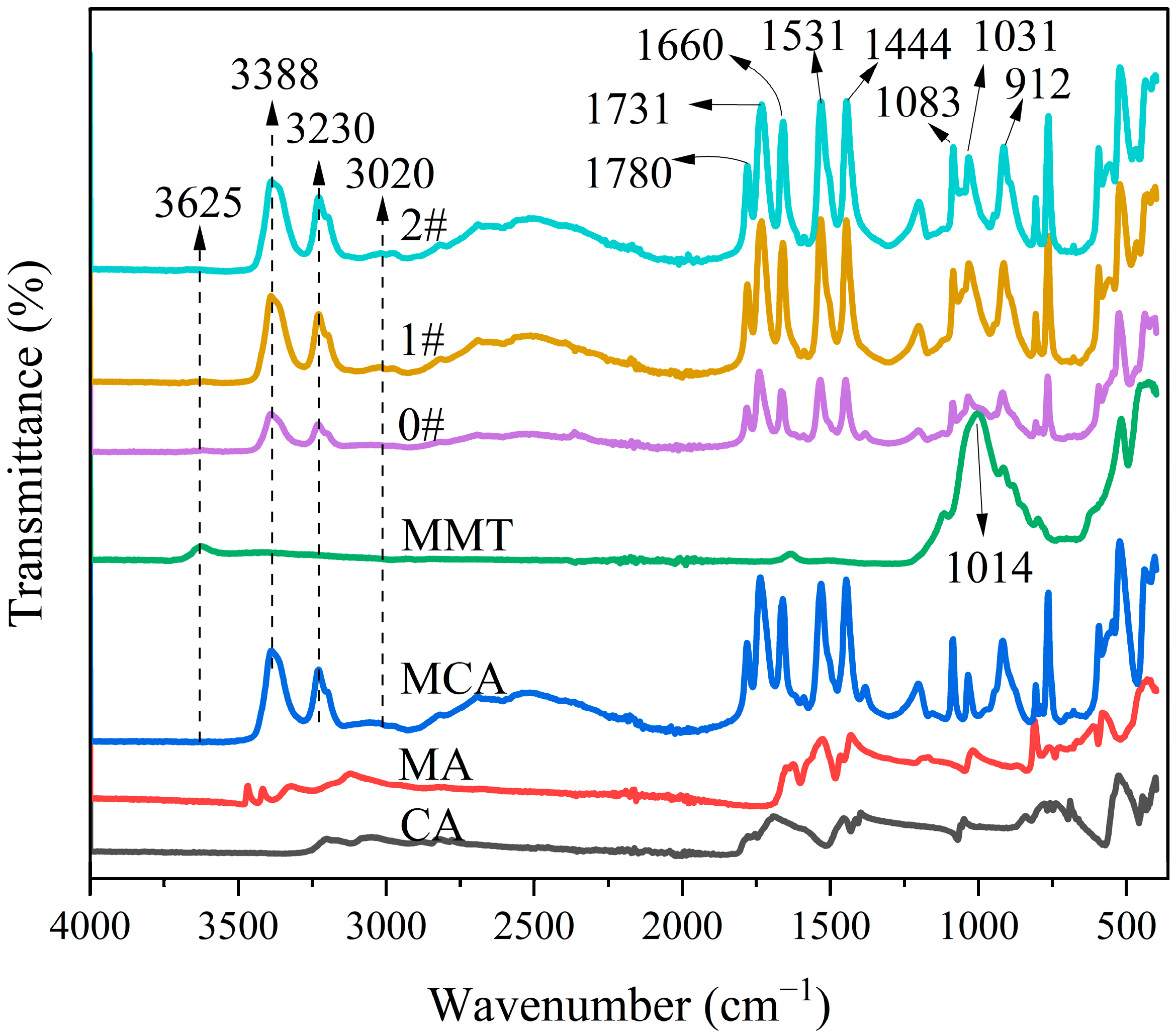

Figure 2. Characterization of FTIR spectra of CA, MA, MCA, MMT and modified MMT.
Figure 2. Characterization of FTIR spectra of CA, MA, MCA, MMT and modified MMT.
Polymers 16 02946 g002
Polymers 16 02946 g003

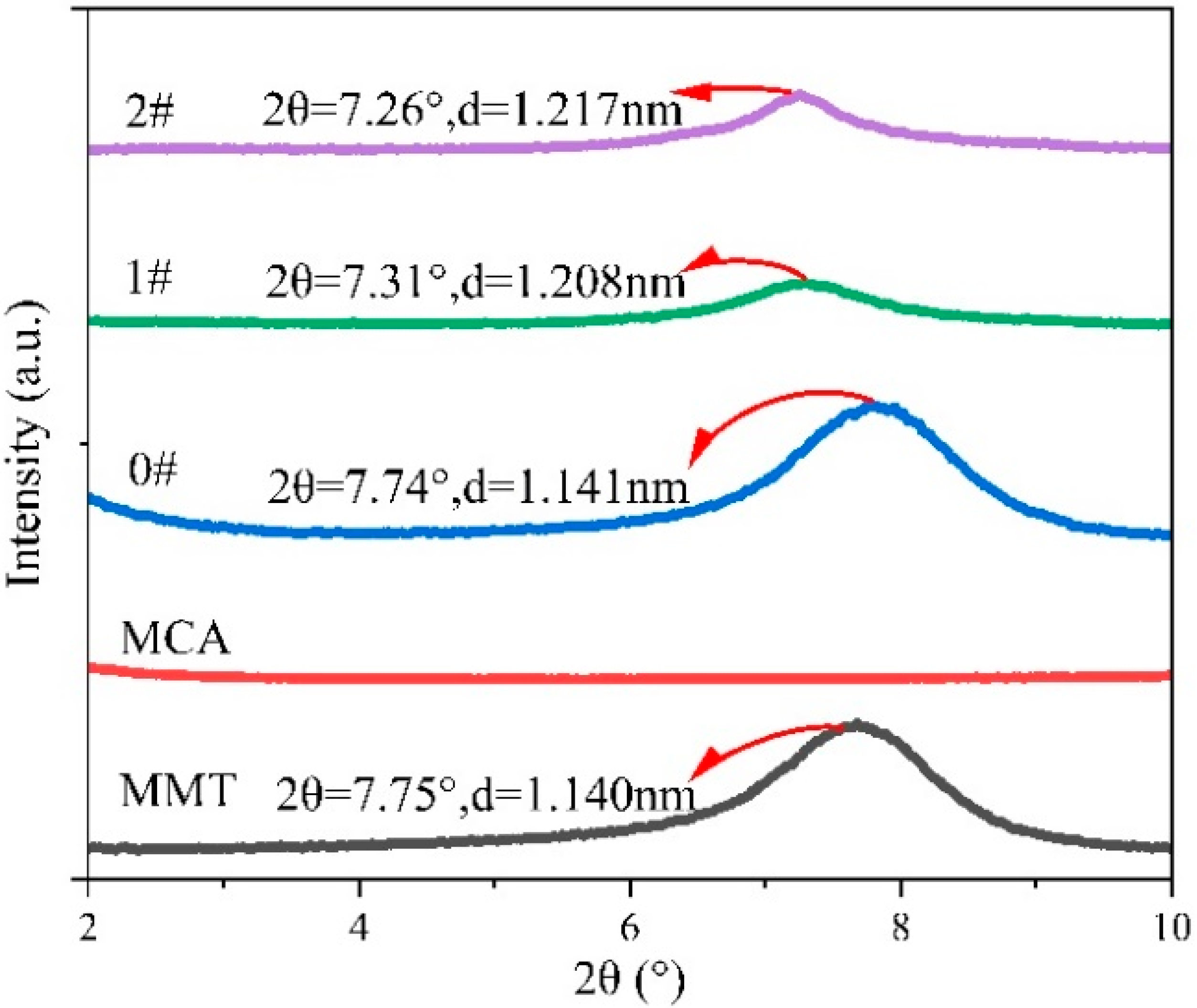

Figure 3. Characterization of XRD spectrum of MCA, MMT and MMT-MCA.
Figure 3. Characterization of XRD spectrum of MCA, MMT and MMT-MCA.
Polymers 16 02946 g003
Polymers 16 02946 g004

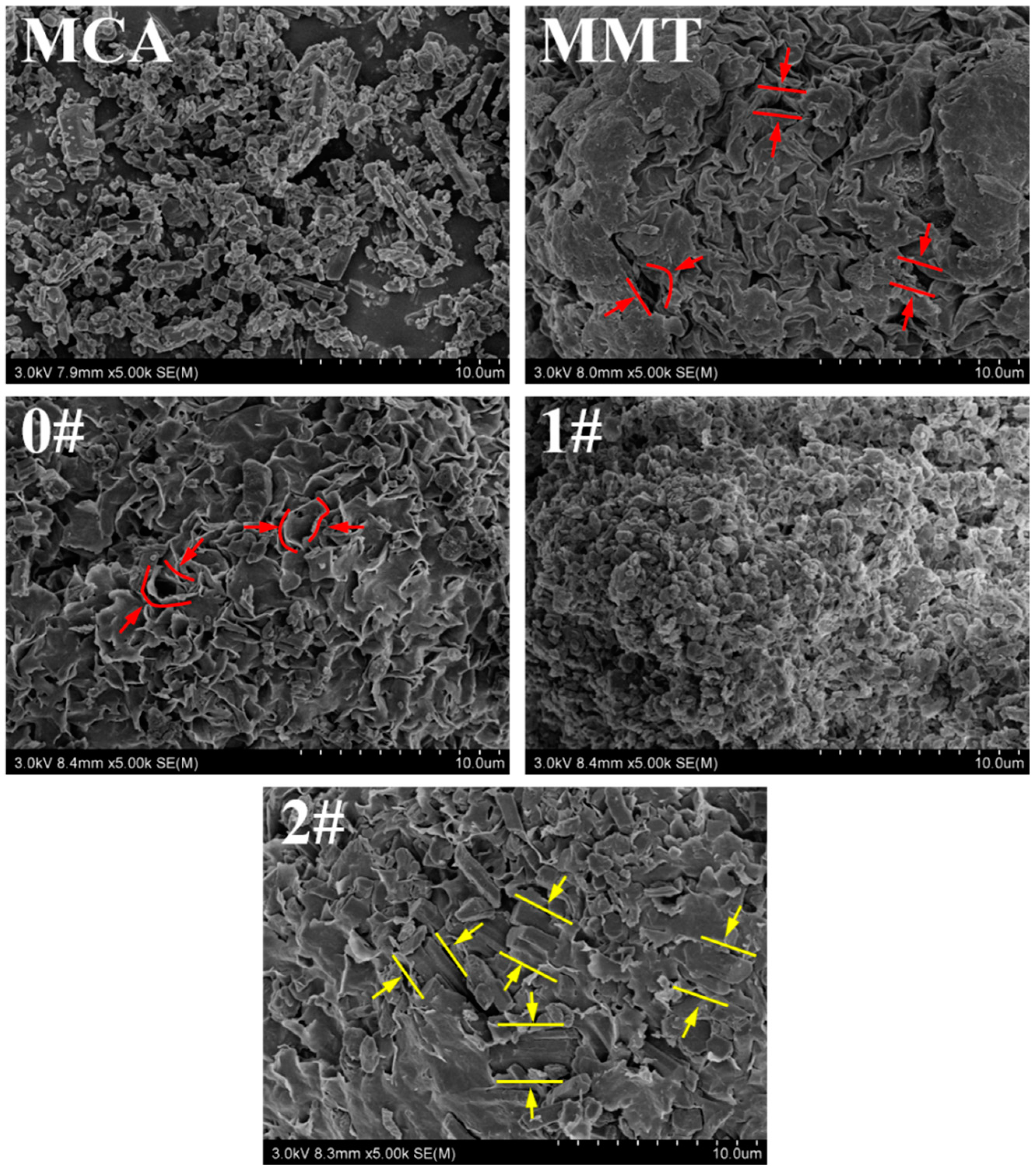

Figure 4. SEM images of MCA, MMT and MMT-MCA (0#, 1#, and 2#) at 3 kV accelerating voltage.
Figure 4. SEM images of MCA, MMT and MMT-MCA (0#, 1#, and 2#) at 3 kV accelerating voltage.
Polymers 16 02946 g004
Polymers 16 02946 g005

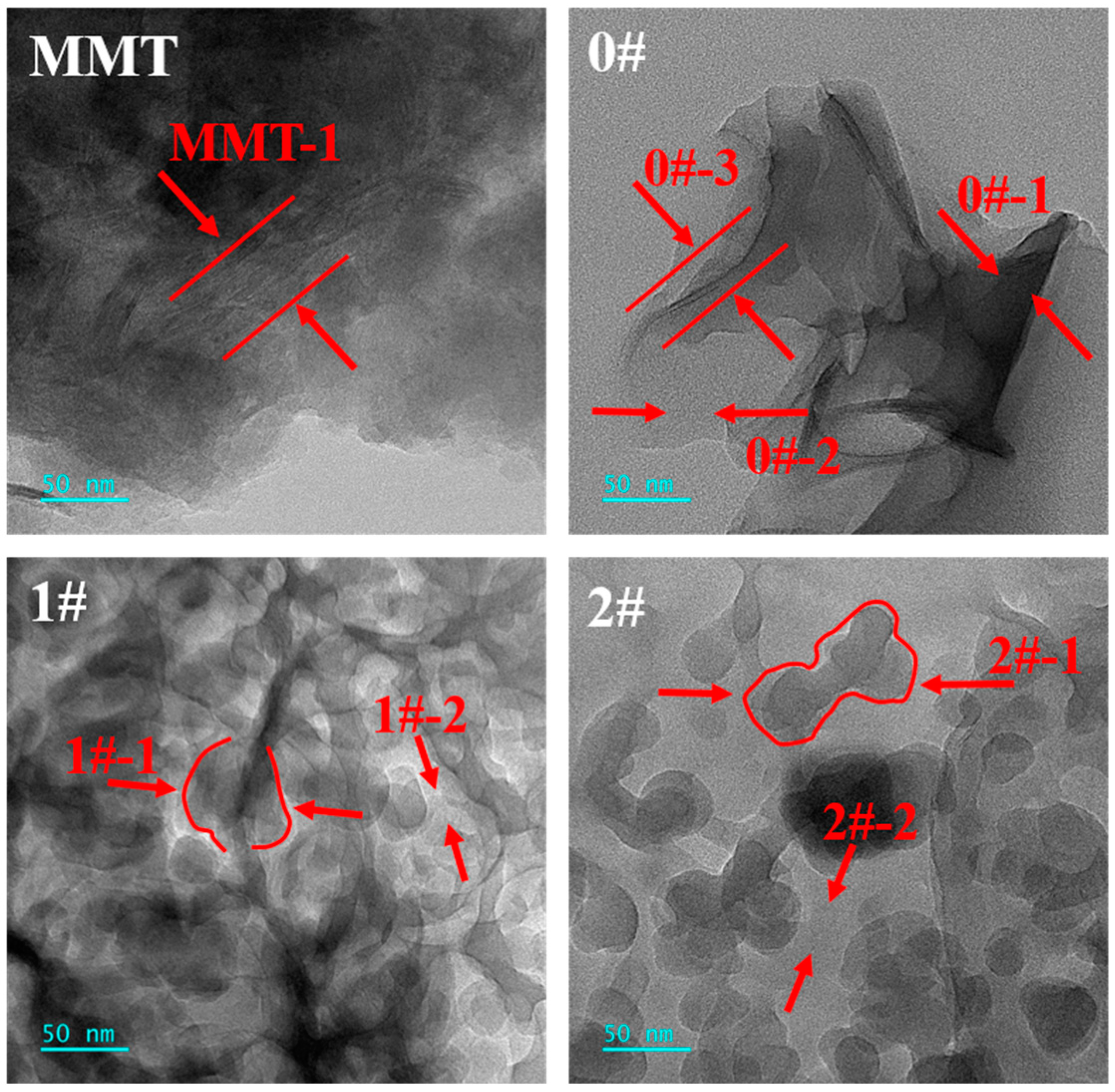

Figure 5. TEM images of MMT, MMT-MCA (0#, 1# and 2#) at 200 kV accelerating voltage.
Figure 5. TEM images of MMT, MMT-MCA (0#, 1# and 2#) at 200 kV accelerating voltage.
Polymers 16 02946 g005
Polymers 16 02946 g006

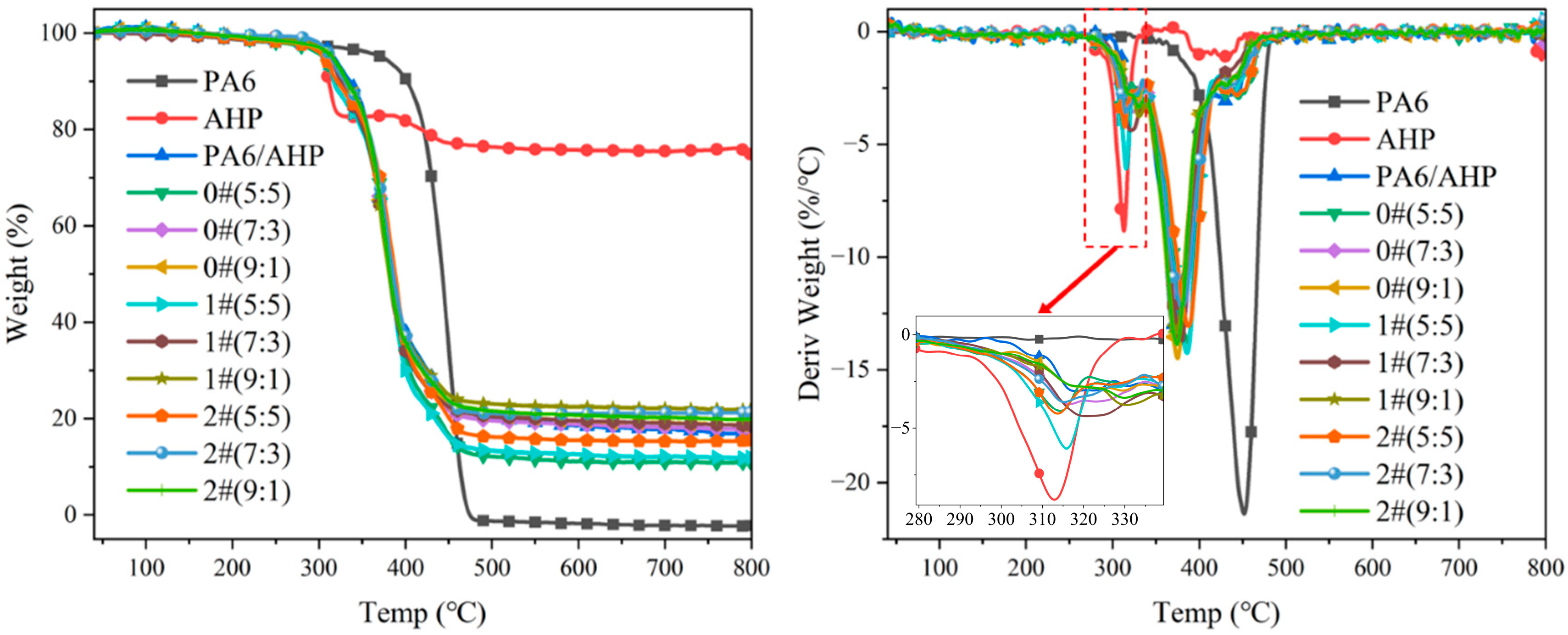

Figure 6. TGA-DTG curves of PA6/FR in nitrogen atmosphere.
Figure 6. TGA-DTG curves of PA6/FR in nitrogen atmosphere.
Polymers 16 02946 g006
Polymers 16 02946 g007

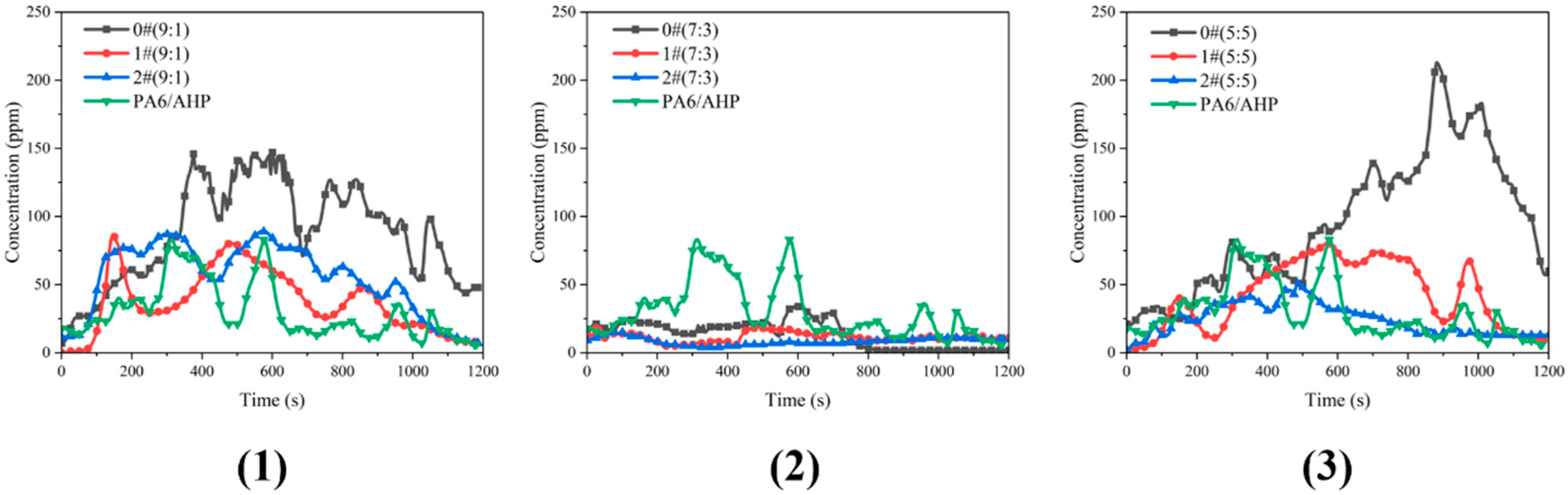

Figure 7. PH3 release curves of PA6/AHP modified at ratio of (1) 9:1, (2) 7:3 and (3) 5:5 in twin-screw processing.
Figure 7. PH3 release curves of PA6/AHP modified at ratio of (1) 9:1, (2) 7:3 and (3) 5:5 in twin-screw processing.
Polymers 16 02946 g007
Polymers 16 02946 g008

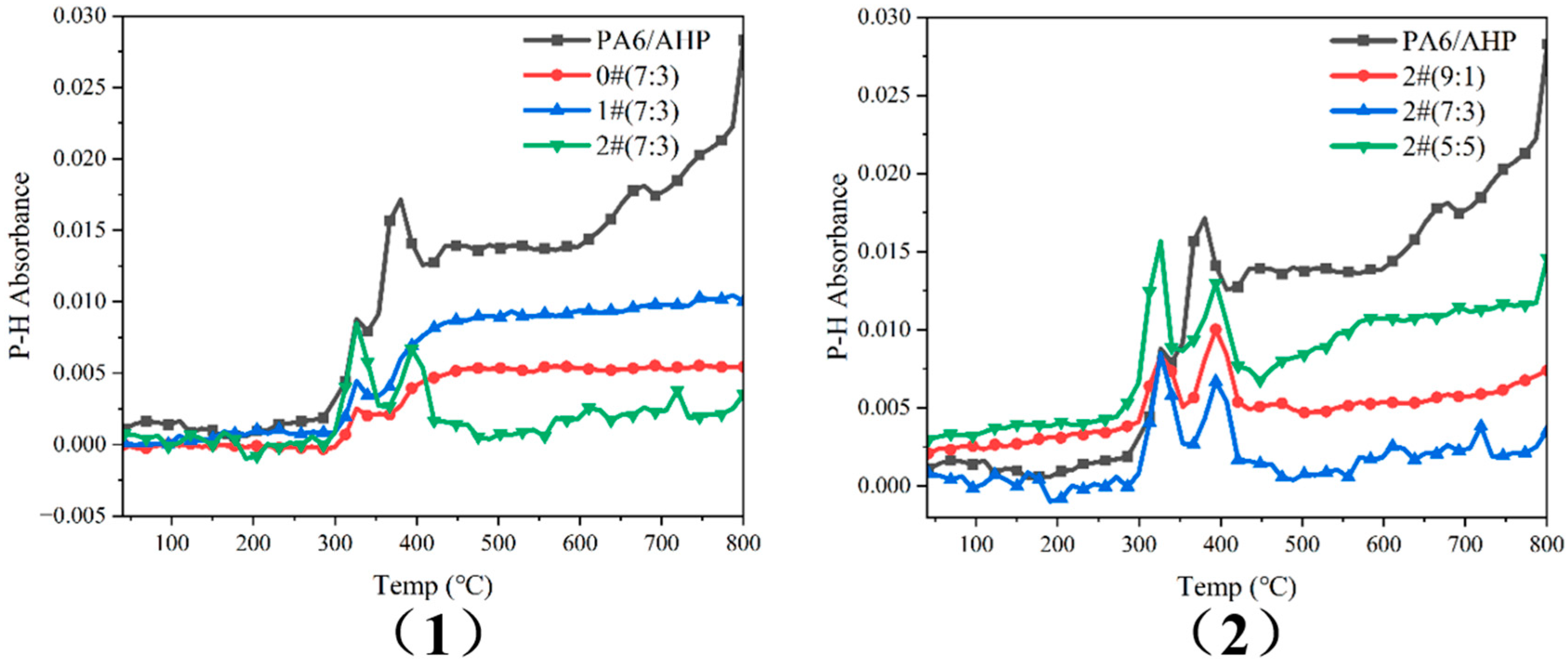

Figure 8. Infrared absorbance curves of P-H of (1) PA6/AHP loaded with 0#, 1# or 2# in the same mass ratio 7:3, (2) PA6/AHP loaded with 2# in the different mass ratio 9:1, 7:3 and 5:5, during the TGA testing.
Figure 8. Infrared absorbance curves of P-H of (1) PA6/AHP loaded with 0#, 1# or 2# in the same mass ratio 7:3, (2) PA6/AHP loaded with 2# in the different mass ratio 9:1, 7:3 and 5:5, during the TGA testing.
Polymers 16 02946 g008
Polymers 16 02946 g009

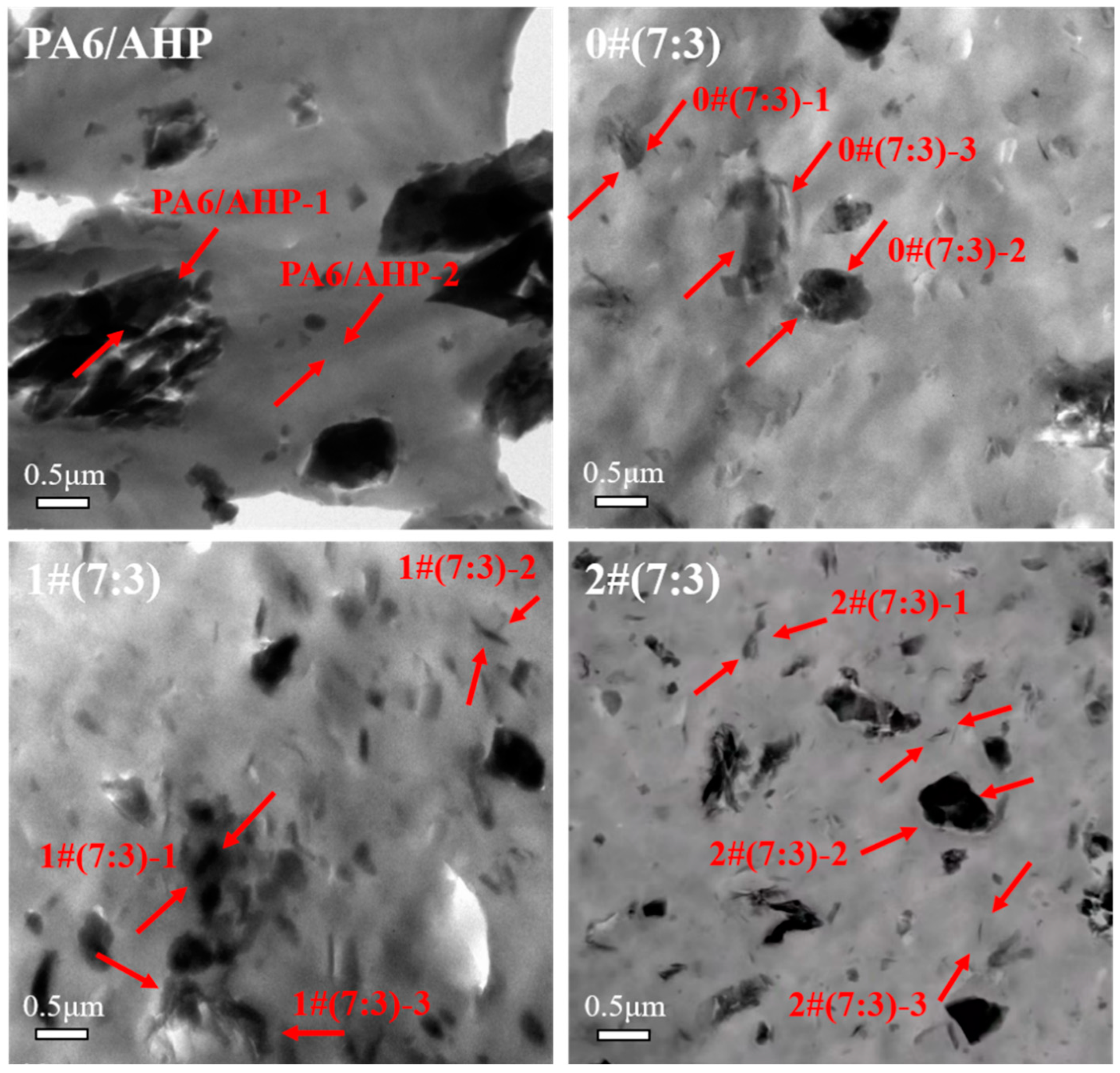

Figure 9. TEM images of PA6/AHP, 0#(7:3), 1#(7:3) and 2#(7:3) at 200 kV accelerating voltage.
Figure 9. TEM images of PA6/AHP, 0#(7:3), 1#(7:3) and 2#(7:3) at 200 kV accelerating voltage.
Polymers 16 02946 g009
Table 1. Formula of PA6/FR.
Table 1. Formula of PA6/FR.
SamplesPA6
(g)		AHP
(g)		MMT-MCA (g)Antioxid1010 (g)Antioxid168 (g)Calcium Stearate
(g)
0#1#2#
PA67920000125
PA6/AHP742250000125
0#(9:1)7422252500125
0#(7:3)7421757500125
0#(5:5)74212512500125
1#(9:1)7422250250125
1#(7:3)7421750750125
1#(5:5)74212501250125
2#(9:1)7422250025125
2#(7:3)7421750075125
2#(5:5)74212500125125
Table 2. The contents of elements C, N and Si of the marked positions in Figure 5 through EDS.
Table 2. The contents of elements C, N and Si of the marked positions in Figure 5 through EDS.
PositionsC (wt%)N (wt%)Si (wt%)
MMT-139.691.1959.12
0#-159.1336.903.96
0#-261.923.3134.77
1#-163.4027.479.13
1#-262.1819.6618.16
2#-156.8626.1017.04
2#-257.7716.7825.45
Table 3. TGA-DTG data of TGA of PA6/FR.
Table 3. TGA-DTG data of TGA of PA6/FR.
SamplesT-5% (°C)Tmax1 (°C)Tmax2 (°C)Tmax3 (°C)TR at 800 °C (%)ER at 800 °C (%)GR (%)
PA6372.6\\451.9\0\
AHP303.5312.9\434.0\74.86\
PA6/AHP317.4319.8380.2437.025.4725.470
0#(5:5)304.4314.4386.5442.418.9810.9842.2
0#(7:3)311.6316.5379.5436.121.5817.7018.0
0#(9:1)312.5321.5374.9432.724.1718.7422.5
1#(5:5)306.3315.8385.7441.318.9811.9137.2
1#(7:3)312.8320.5380.6433.121.5818.5813.9
1#(9:1)313.8329.8372.4432.024.1721.849.6
2#(5:5)309.2314.9381.7445.318.9811.1541.2
2#(7:3)314.0315.3380.0441.021.5821.241.6
2#(9:1)314.8331.2378.3433.424.1723.323.5
Table 4. The results of LOI and UL 94 of PA6/FR.
Table 4. The results of LOI and UL 94 of PA6/FR.
SamplesUL-94LOI (%)
DrippingGrade
PA6YesNone20%
PA6/AHPNoV-026.0
0#(5:5)YesNone24.5
0#(7:3)NoV-024.8
0#(9:1)NoV-025.2
1#(5:5)YesNone24.7
1#(7:3)NoV-025.5
1#(9:1)NoV-025.3
2#(5:5)NoV-025.0
2#(7:3)NoV-025.8
2#(9:1)NoV-025.7
Table 5. Parameters from PH3 release curves of PA6/FR.
Table 5. Parameters from PH3 release curves of PA6/FR.
SamplesPeaks of PH3 (ppm)Means of PH3 (ppm)Integral of PH3 (ppm·s)
PA6/AHP8329.835,830
0#(9:1)14786.8104,147
0#(7:3)3413.916,673
0#(5:5)21394.5113,468
1#(9:1)8637.044,410
1#(7:3)1911.413,694
1#(5:5)8042.050,385
2#(9:1)8954.465,345
2#(7:3)158.39977
2#(5:5)5324.429,244
Table 6. TEM-EDS of labeled positions in Figure 9.
Table 6. TEM-EDS of labeled positions in Figure 9.
PositionsC (wt%)N (wt%)Al (wt%)Si (wt%)P (wt%)
PA6/AHP-110.9565.856.580.0416.58
PA6/AHP-253.9345.950.040.050.03
0#(7:3)-115.6566.563.4314.210.14
0#(7:3)-218.0137.637.180.4236.77
0#(7:3)-379.003.025.6410.322.02
1#(7:3)-111.9965.956.140.915.02
1#(7:3)-233.9056.283.416.170.19
1#(7:3)-323.5365.071.509.850.06
2#(7:3)-129.5760.113.896.150.28
2#(7:3)-252.8038.402.770.095.94
2#(7:3)-343.3356.350.020.380.02
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, L.; Li, Y.; Yan, C.; Li, X.; He, J.; Yang, R. Preparation of Montmorillonite–Melamine Cyanurate and Inhibition of the Emission of Phosphine from PA6/Aluminum Hypophosphate. Polymers 2024, 16, 2946. https://doi.org/10.3390/polym16202946

AMA Style

Wang L, Li Y, Yan C, Li X, He J, Yang R. Preparation of Montmorillonite–Melamine Cyanurate and Inhibition of the Emission of Phosphine from PA6/Aluminum Hypophosphate. Polymers. 2024; 16(20):2946. https://doi.org/10.3390/polym16202946

Chicago/Turabian Style

Wang, Lin, Yuyang Li, Chenyang Yan, Xiangmei Li, Jiyu He, and Rongjie Yang. 2024. "Preparation of Montmorillonite–Melamine Cyanurate and Inhibition of the Emission of Phosphine from PA6/Aluminum Hypophosphate" Polymers 16, no. 20: 2946. https://doi.org/10.3390/polym16202946

APA Style

Wang, L., Li, Y., Yan, C., Li, X., He, J., & Yang, R. (2024). Preparation of Montmorillonite–Melamine Cyanurate and Inhibition of the Emission of Phosphine from PA6/Aluminum Hypophosphate. Polymers, 16(20), 2946. https://doi.org/10.3390/polym16202946

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
