An Assessment of the Catalytic and Adsorptive Performances of Cellulose Acetate-Based Composite Membranes for Oil/Water Emulsion Separation

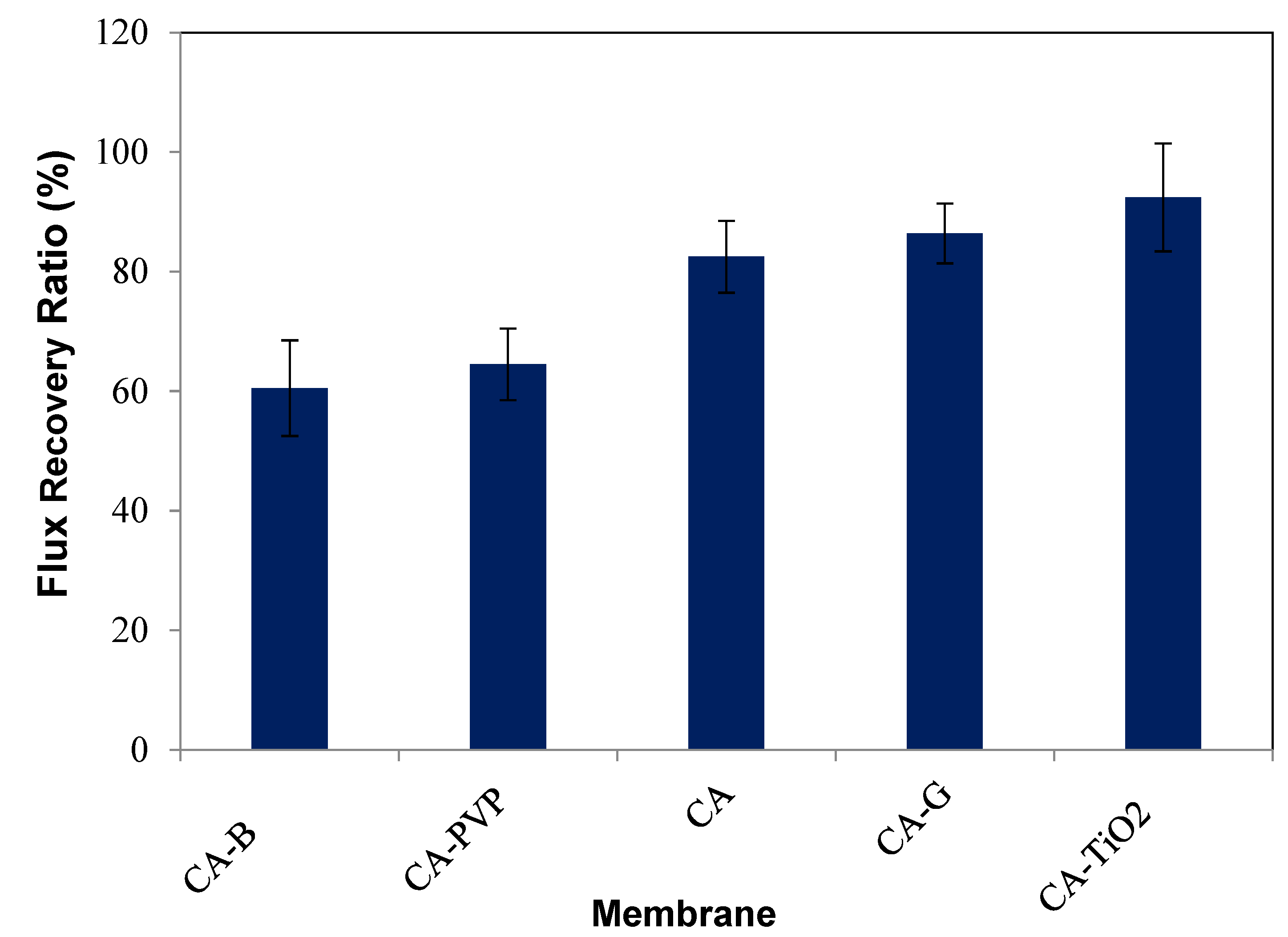

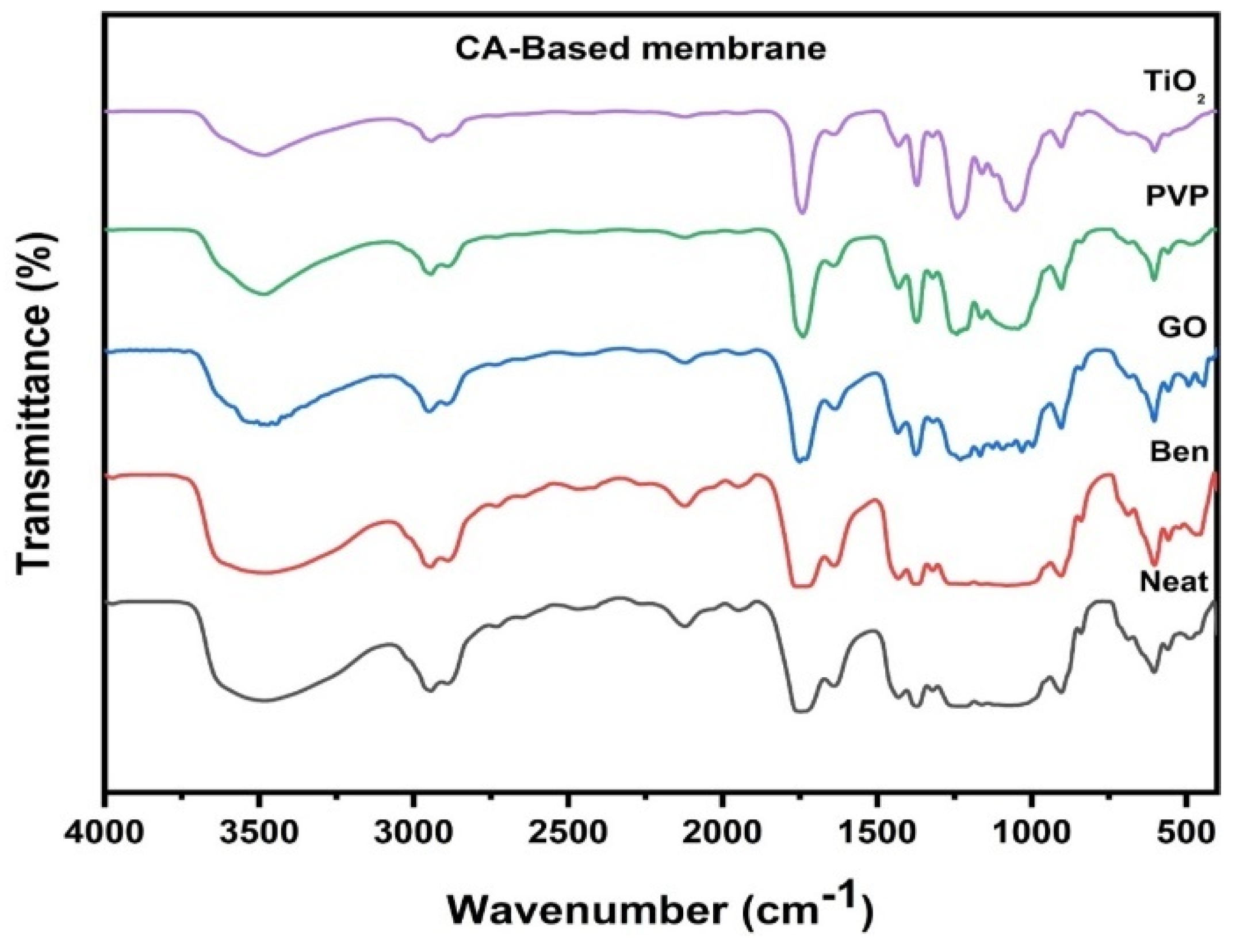

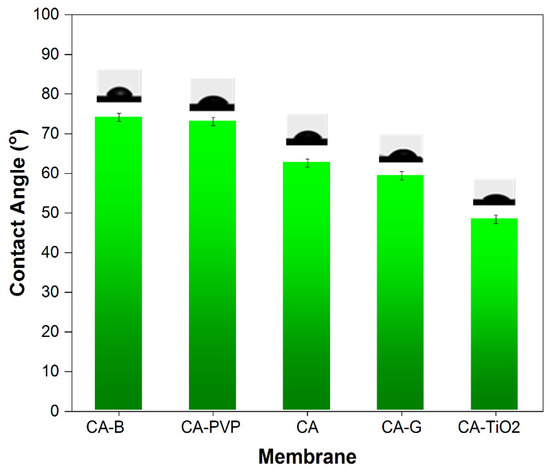

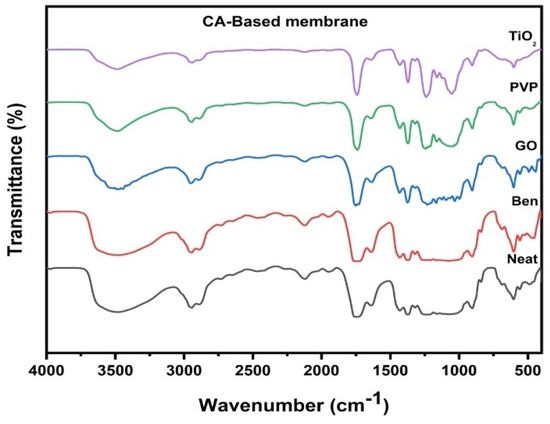

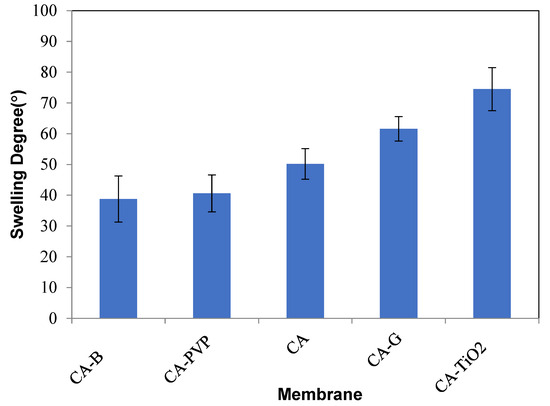

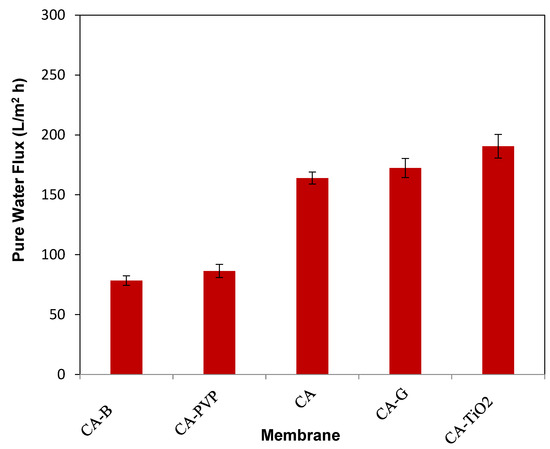

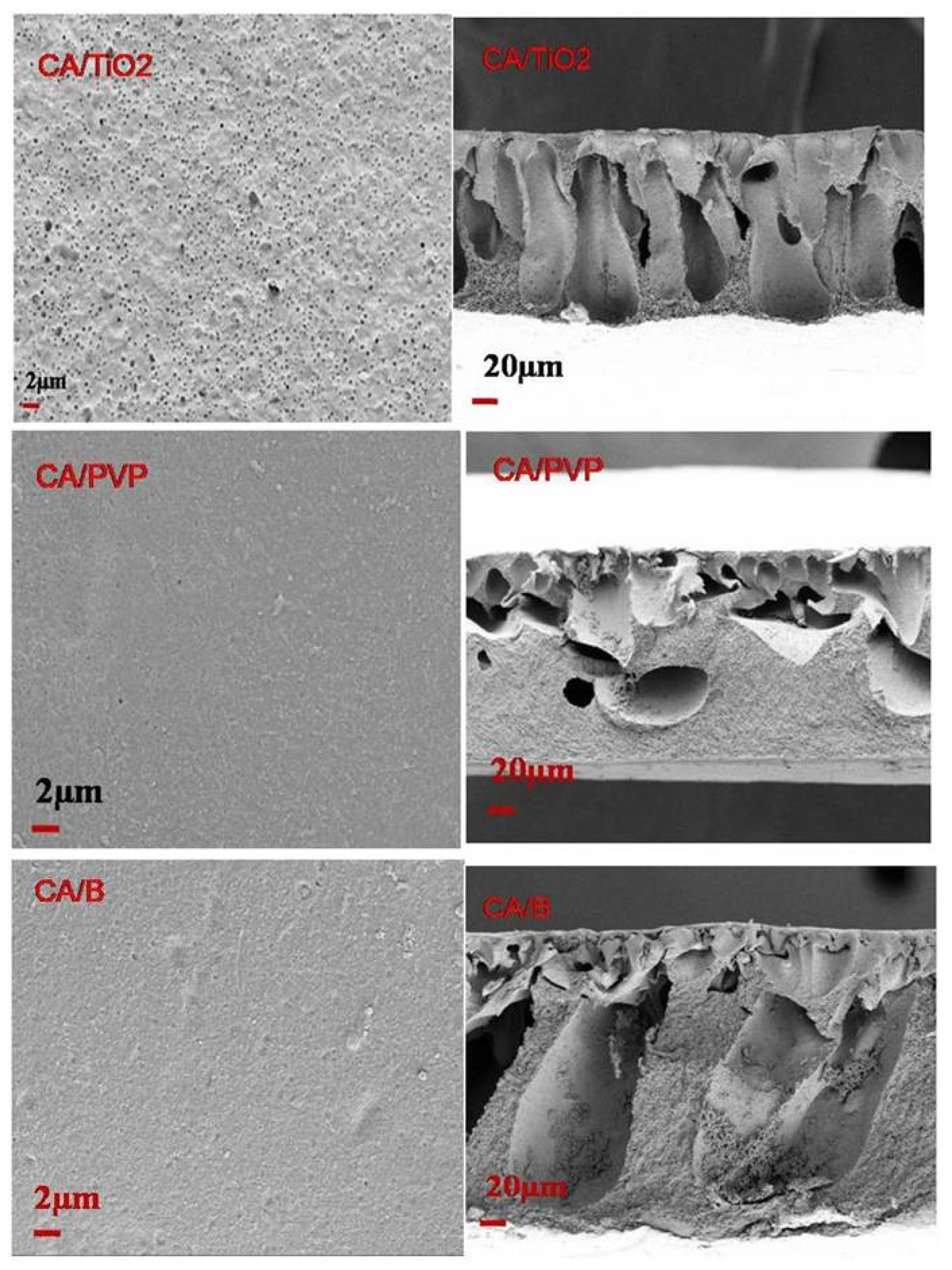

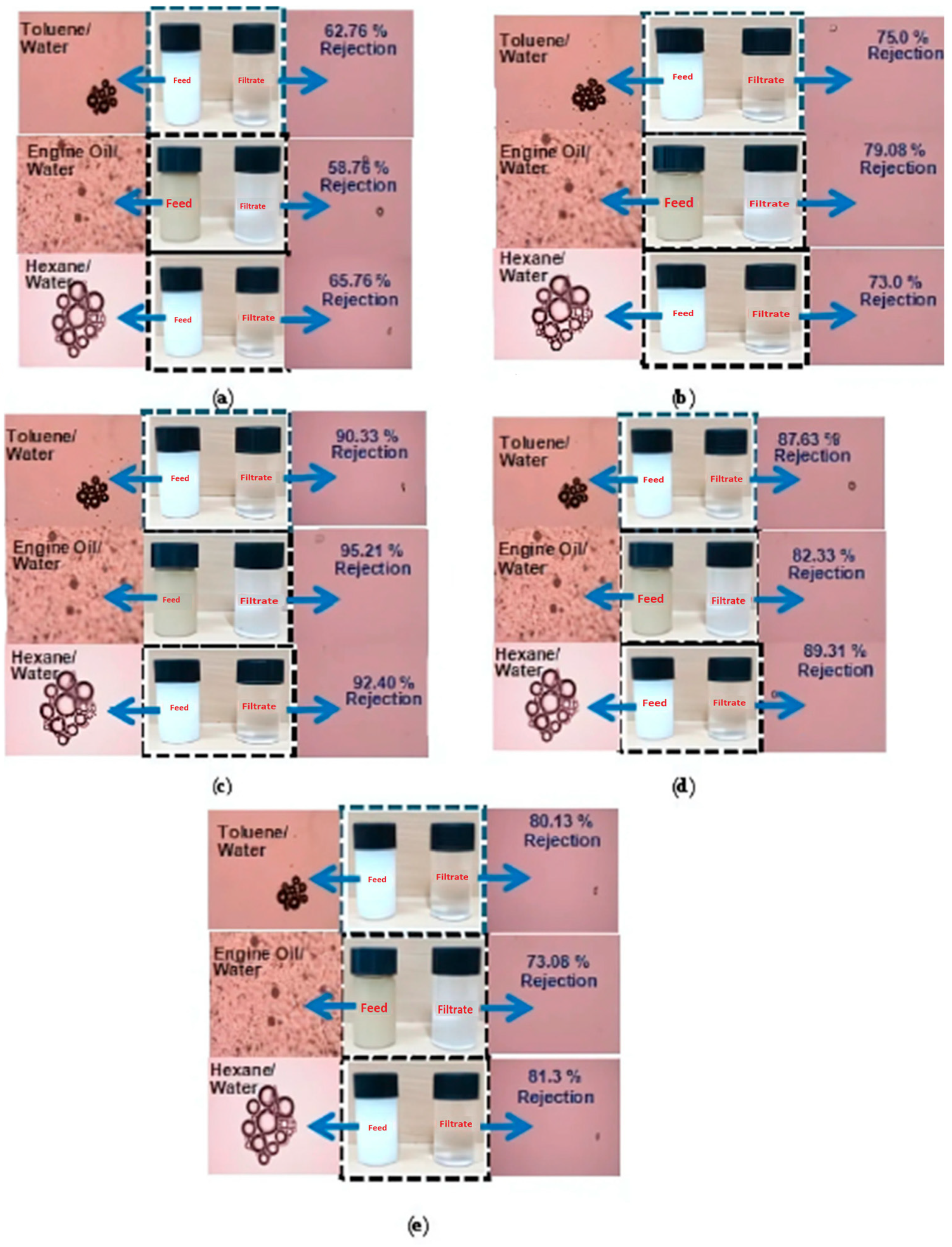

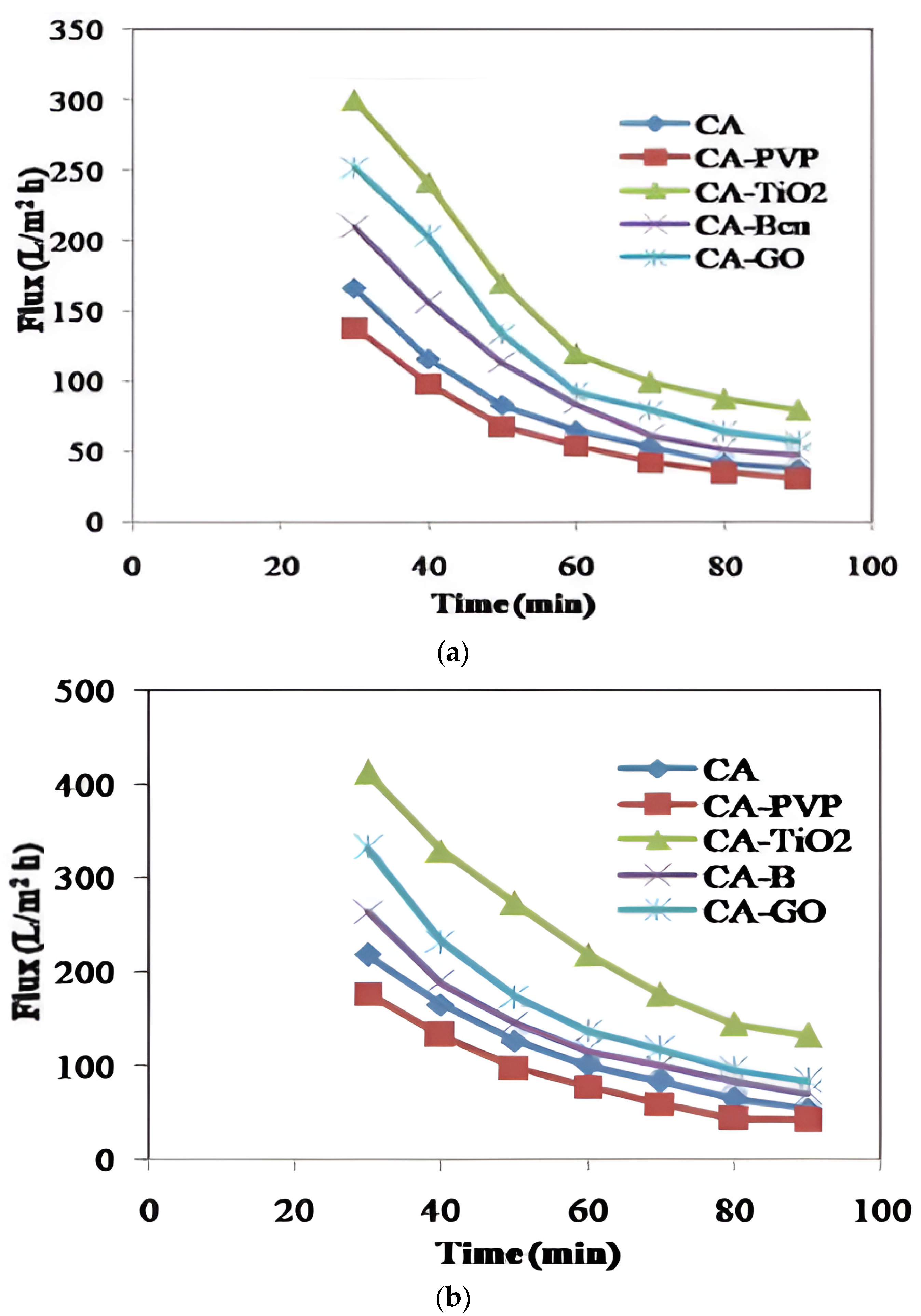

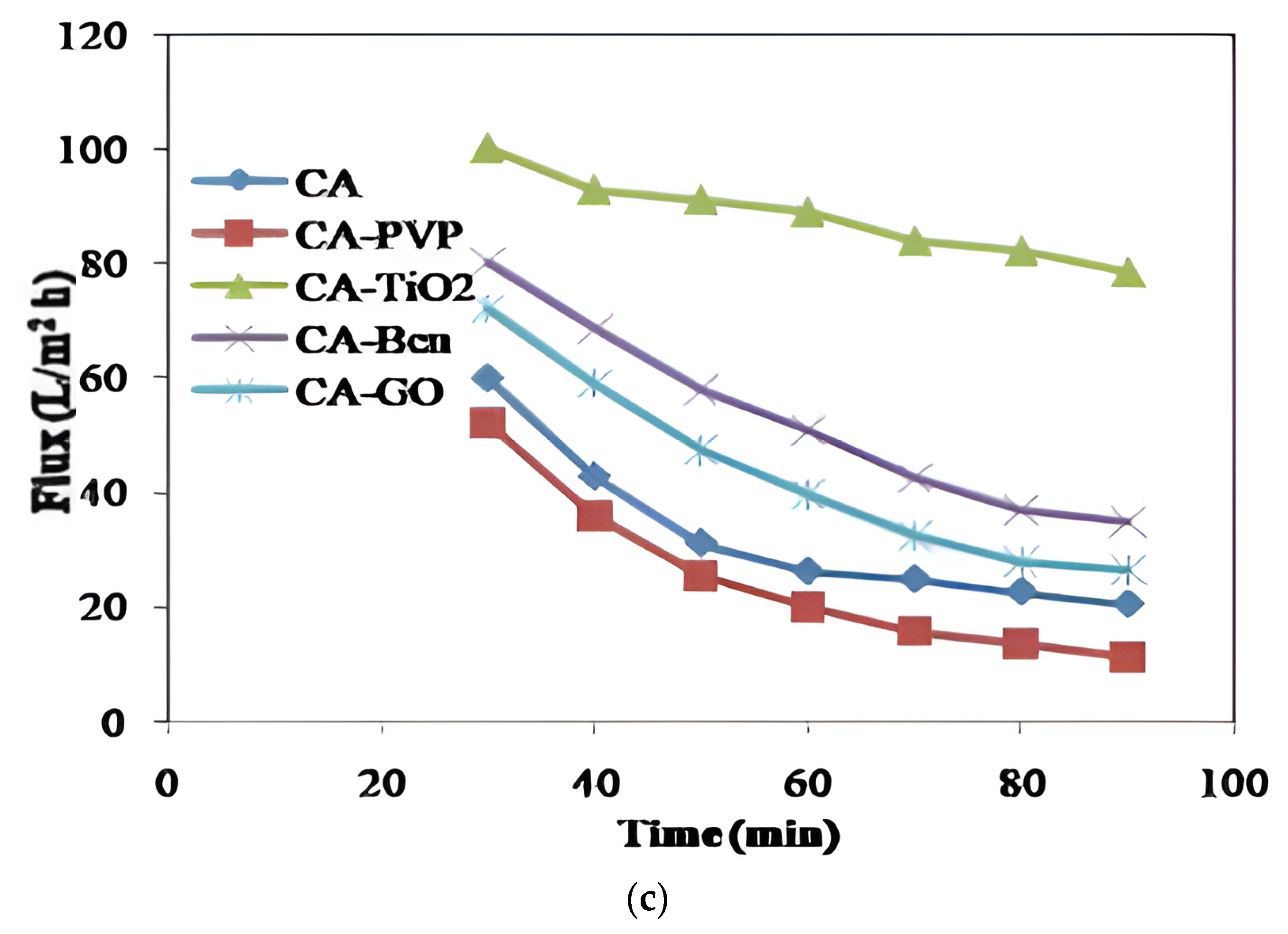

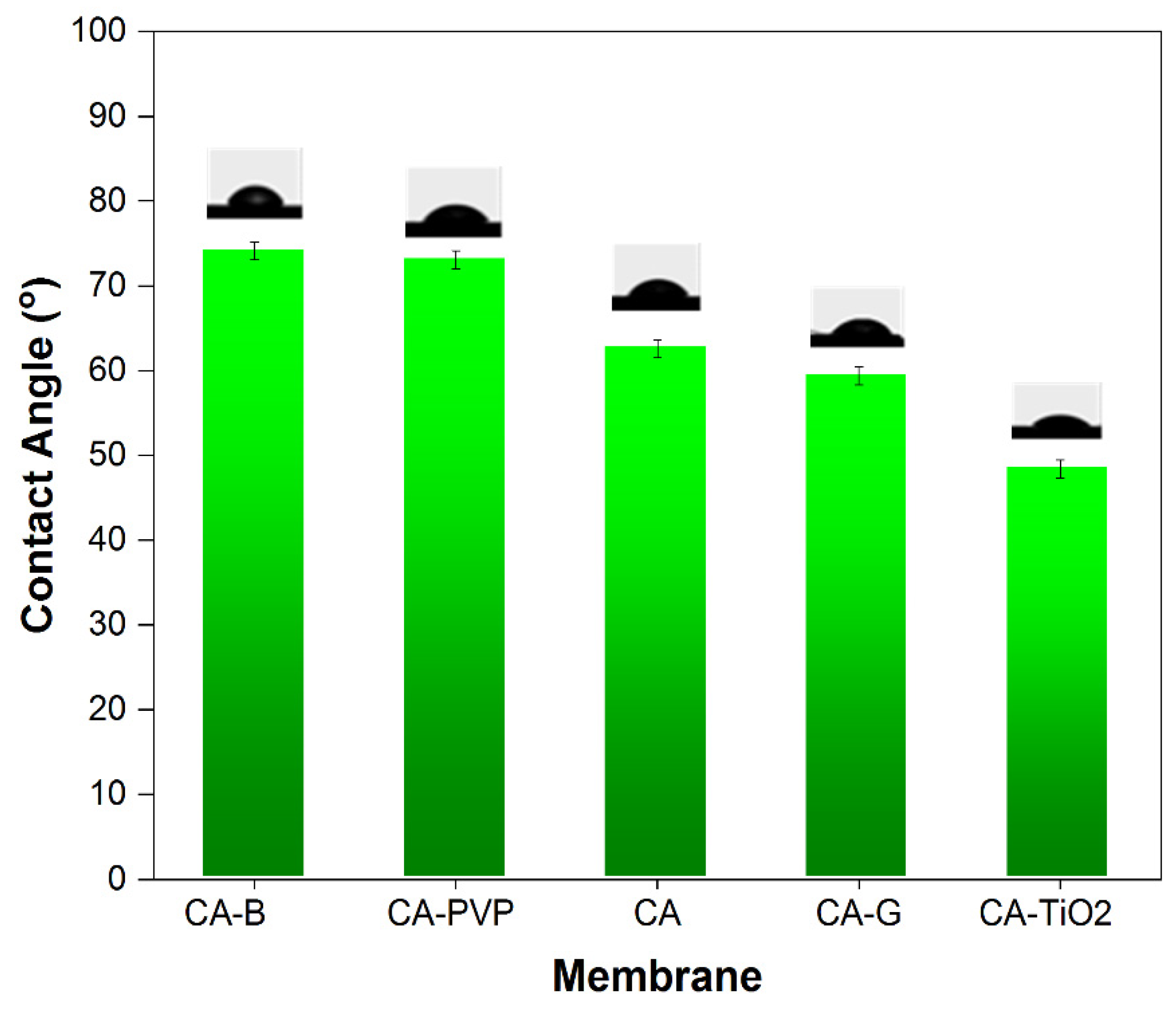

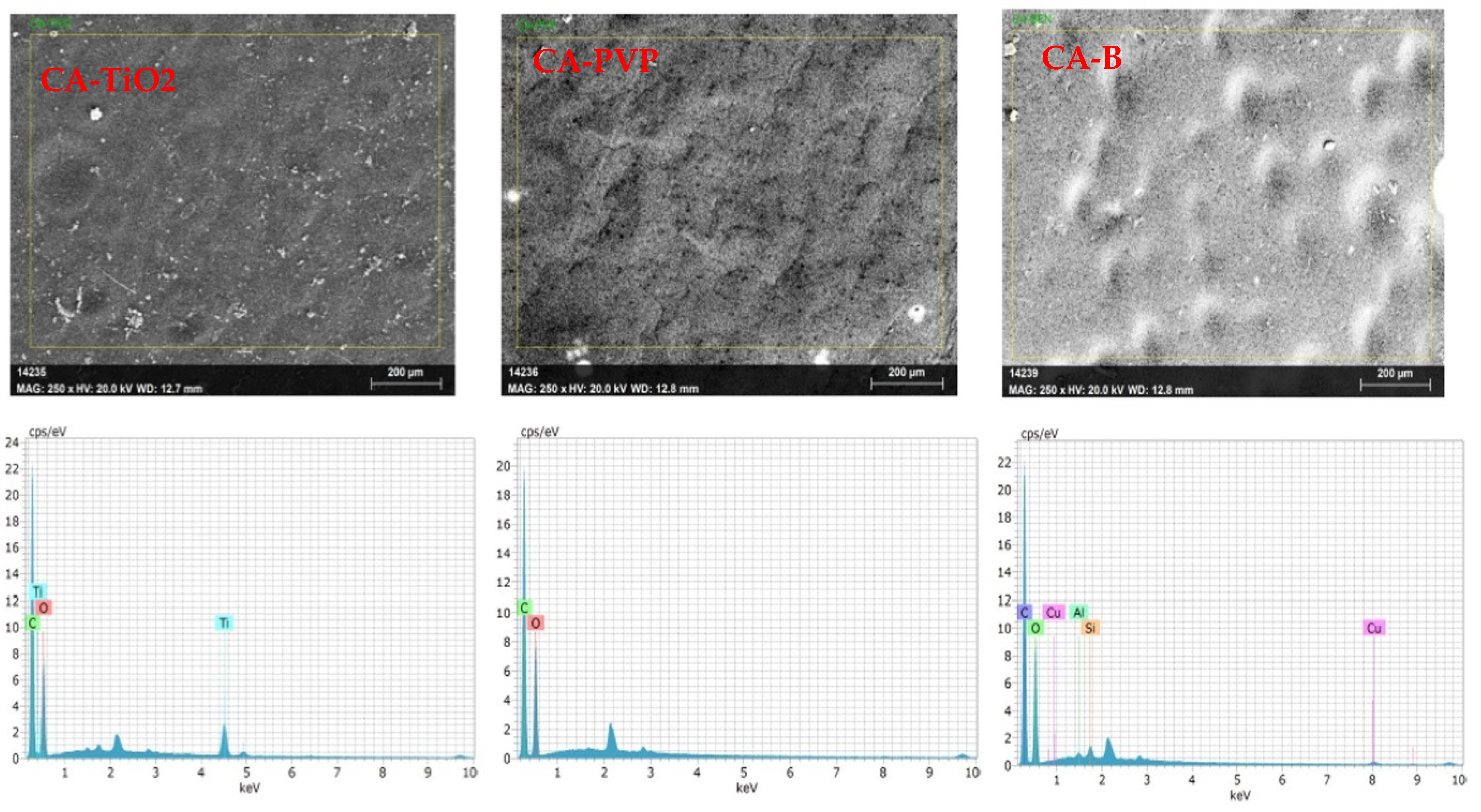

Cellulose acetate (CA) mixed-matrix membranes incorporating polyvinylpyrrolidone (PVP), bentonite (B or Ben), graphene oxide (GO), and titanium dioxide (TiO₂) were prepared by the phase inversion separation technique for oil/water separation. An investigation was performed where the mixed-matrix membrane was tested for the separation performance of hydrophilic and hydrophobic surface properties. An ultrafiltration experiment at the laboratory scale was used to test dead-end ultrafiltration models developed for the treatment performances of oily wastewater under dynamic full-scale operating conditions. Artificial oily wastewater solutions were prepared from hexane, toluene, and engine oil with Tween80 emulsions for oil removal treatment using composite membranes. The impacts of material hydrophilicity, weight loss, permeability, and pore size were investigated, and it was found that the oil retention of membranes with larger pore sizes enabled much more sophisticated water flux. The CA-GO-, CA-B-, and CA-TiO₂-incorporated membranes achieved pure water flux (PWF) values of 45.19, 53.41, and 100.25 L/m²h, respectively. The performance of CA-TiO₂ in oil/water emulsion rejection was assessed, and the rejection of engine oil/water, toluene/water, and hexane/water mixtures was determined to be 95.21%, 90.33%, and 92.4%, respectively. The CA-based mixed-matrix membrane portrayed better antifouling properties due to enhanced hydrophilicity and water molecules. The CA-TiO₂-incorporated membrane possessed the potential to provide high separation efficiency for oily wastewater treatment. This study demonstrates the potential of fine-tuning membrane performances through material hybridization to achieve efficient wastewater treatment.
