Effects of Ferric Ions on Cellulose Nanocrystalline-Based Chiral Nematic Film and Its Applications

by
Shuaiqi Wang
,
Bingqun Lin
,
Yihan Zeng
and
Mingzhu Pan
*
College of Materials Science and Engineering, Utilization of Forest Resources, Nanjing Forestry University, Nanjing 210037, China
*
Author to whom correspondence should be addressed.
Polymers 2024, 16(3), 399; https://doi.org/10.3390/polym16030399
Submission received: 12 January 2024 / Revised: 27 January 2024 / Accepted: 29 January 2024 / Published: 31 January 2024
(This article belongs to the Section Polymer Membranes and Films)
Browse Figures
Review Reports Versions Notes

Abstract

:
Chiral nematic materials have been attracting attention in fields of advanced functional applications due to their unique iridescent colors and tunable helical structure. A precisely decreased pitch is of importance for construction and applications of chiral nematic materials; however, it remains a huge challenge. Herein, cellulose nanocrystal (CNC) is selected as a constructed matrix for chiral nematic films, and ferric chloride (FeCl3) is used as a modification agent. We investigate the effects of the ferric ion loads on the helical structure and optical characteristics of iridescent film. Subsequently, the influence of ferric ions on the assembly process of CNC liquid crystal and the regulation of the structure color of self-assembled monolayers are discussed. Therefore, the CNC/FeCl3 chiral nematic films showed a blueshifted structural color from orange to blue, which highlights a simple route to achieve the regulation of decreased pitch. Further, we have applied this CNC/FeCl3 chiral nematic film for benzene gas detection. The sensing performance shows that the CNC/FeCl3 chiral nematic film reacts to benzene gas, which can be merged into the nematic layer of the CNC and trigger the iron ions chelated on the CNC, consequently arousing the redshift of the reflected wavelength and the effective colorimetric transition. This CNC/FeCl3 chiral nematic film is anticipated to boost a new gas sensing mechanism for faster and more effective in-situ qualitative investigations.

1. Introduction

Chiral nematic materials are attracting attention in fields of intelligent sensors, decoration, anti-counterfeiting, and encryption due to their unique iridescent colors and tunable helical structures [1,2,3,4]. What creates iridescent colors, also known as structural colors, is a fine structure with a spatially ordered lattice, which exhibits brilliant colors under refraction, diffuse reflection, diffraction, or interference of light [5,6,7,8]. Interestingly, this iridescent color has been discovered in natural creatures, such as beetles, butterflies, and fish. Inspired by nature, great efforts have been put forward on the fabrication of chiral nematic materials with a crystalline TiO2 microsphere [9], thiol-acrylate chemistries [10], and semi-interpenetrating polymer network [11].
Cellulose, one of the important biopolymers, is the richest biomass in the world [12]. Cellulose nanocrystals (CNCs) from sulfuric acid hydrolytic cellulose are a kind of natural photonic crystal with negatively charged groups on its surface. They can form a chiral nematic film with left-handed helical structure through self-assembly induced by the evaporation of water. The resultant chiral nematic film shows extraordinary optical properties and provides an iridescent color structure [13,14]. The unique optical characteristics of CNC chiral liquid crystals make it possible to develop in the field of colorimetric gas sensors. In addition, there are abundant active groups, such as hydroxyl and carboxyl, within cellulose molecules. On the other hand, they can automatically respond to humidity, aldehydes, or alcohol gas molecules by forming hydrogen bonds, so as to achieve the transformation of bright colors [15,16]. On the other hand, it can also be used as an excellent functional template carrier to achieve higher response characteristics or can be modified to give it special functions [17,18,19]. Up to now, fabrication of CNC-based chiral nematic materials with a precise helical structure remains a huge challenge.
To achieve the precise helical structure within chiral nematic materials, many modification strategies have been put forward: (1) regulating sulfuric acid hydrolytic conditions, such as acid-to-pulp ratio and the hydrolysis temperature [20]; (2) incorporation of metal ion, such as Cu2+, Na+, Al3+, or K+ [16,21,22,23]; (3) incorporation of small molecules, such as glucan [24]; (4) incorporation of neutral polymers, such as polyethylene glycol (PEG) [25] or waterborne polyurethane (PU) [26]; (5) incorporation of polyelectrolytes, such as polyacrylic acid (PAA) [3]; and (6) applying an ultrasmall magnetic field [27]. These modifications have effectively regulated the helical structure and mechanical properties of chiral nematic materials. However, the pitch of chiral nematic materials is almost always increased, which is not beneficial for advanced functional development. Limited studies have reported the modification methods for a decreased pitch 2127, which is of importance for chiral nematic materials.
In this study, CNC is selected as a constructed matrix for chiral nematic films, and the ferric chloride (FeCl3) is used for a modification agent. We investigate the effects of the ferric ion loads on the helical structure and optical characteristics of iridescent film. Subsequently, the influence of ferric ions on the assembly process of CNC liquid crystal and the regulation of the structure color of self-assembled monolayers are discussed. Therefore, the CNC/FeCl3 chiral nematic films showed blueshifted structural color from orange to blue, which provides a potential strategy to precisely regulate the pitch of chiral nematic materials.

2. Experimental Section

2.1. Materials

Microcrystalline cellulose (MCC) was provided by Shanhe Pharmaceutical Excipients Co., Ltd. (Huainan, China). H2SO4 (95–98 wt%) and ferric chloride (FeCl3·6H2O, 99.5 wt%) were supplied from Sinopharm Chemical Reagent Co., Ltd. (Nanjing, China). The detailed characterization methods are provided in the Supporting Information.

2.2. Preparation of CNC/FeCl3 Colloids

A typical preparation of CNC/FeCl3 chiral nematic film is described as follows: CNC colloid with a concentration of 2.0 wt% was fabricated via 64 wt% sulfuric acid hydrolysis according to our previous work 20, and the detailed preparation of CNC is illustrated in the Supporting Information. The resultant CNC colloid has a zeta potential value of −43.2 mV and OSO3- content of 0.32%. Subsequently, 100 μL FeCl3 aqueous solution (2, 4, 6, 8, 10, 12, 14, 16, and 18 mmol/L) was added to 3 mL CNC suspension; wherein, the corresponding FeCl3 load is 32, 63, 94, 126, 157, 188, 220, 252, and 283 mmol/(g·CNC). The mixture was mildly stirred for 5 min; finally, a CNC/FeCl3 colloidal suspension was prepared.
The obtained hybrid was subsequently placed in polystyrene Petri dishes (~30 mm in diameter). Subsequently, CNC/FeCl3 chiral nematic films were formed by evaporation-induced self-assembly (EISA) under ambient conditions for three days, and then, all films were conditioned at 20 °C and a relatively humidity of 40 ± 5%. The as-obtained films have typical thicknesses of approximately 30–70 μm, as shown in Figure 1, and are denoted as CFx, where C and F stand for CNC and FeCl3, respectively, and x refers to different loadings of FeCl3. For example, CF2 represents 2 mmol/L FeCl3. For comparison, the CNC without FeCl3 chiral nematic film was also prepared. Accordingly, under natural light, these obtained CNC and CNC/Fe films exhibited iridescent color, corresponding to orange (CNC), bright orange (CF2), greenish yellow (CF4), mint green (CF6), cyan (CF8), turquoise (CF10), sky blue (CF14), and transparent (CF16, CF18).

3. Results and Discussion

3.1. Morphological Characteristics of CNC/FeCl3 Colloids and Chiral Nematic Films

Figure 2 illustrates the morphological images of CNC and CNC/FeCl3 colloids. Neat CNC was oriented horizontally with a typical rod-like crystal that was 17.8 ± 2.1 nm in diameter and 300 ± 25 nm in length. Comparatively, the introduction of FeCl3 induced CNC aggregation. Specially, the tactoid aggregation and conformation can be precisely regulated with the FeCl3 concentration, which will be discussed later. The cross-sectional images of CNC/FeCl3 films showed a uniform arrangement, with apparent periodic spacing and spiral stacking, as shown in Figure 3. The pitch of neat CNC chiral nematic film was 382 nm, and the pitch of CNC/FeCl3 films decreased to 329 nm for CF2. Moreover, CF6 and CF10 were also helically arranged in layers with periodic spacing, and the pitch gradually decreased to 261 nm and 238 nm. However, the helically arranged structure was not clear for CF14, and it disappeared for CF18.
The morphologies of the prepared CNC and CF6 films were further studied with AFM measurement. Compared to the morphology of CNC film, the CF6 films had a more compact structure with nano-sized CNCs densely packed on the substrate. As illustrated in Figure 4a,b, neat CNC film had Ra roughness ≈1.45 nm, which revealed a formation of rough CNC films with low CNC number density. Incorporation of 6 mmol/L FeCl3 resulted in a smooth CF6 film with a reduced Ra roughness of ≈0.78 nm, which indicated a formation of densely packed CNC films. Here, we use the center-to-center distance between adjacent CNCs as a parameter to scale the packing density [28]. As shown in Figure 4(a2,a3), the neat CNC film formed a dense stacking structure with an average center-to-center distance of 17.25 nm. Moreover, CNC/FeCl3 chiral nematic films with 6 mmol/L FeCl3 had a decreased packing density with a center-to-center distance of 16.13 nm, as shown in Figure 4(b2,b3). This can also be confirmed from their phase diagrams (Figure 4(a1,b1)).

3.2. Optical Properties of CNC/FeCl3 Chiral Nematic Films

Optical properties of CNC and CNC/FeCl3 chiral nematic films were performed with UV–Vis spectra and CD spectra. Clearly, the CNC chiral nematic film exhibited the maximal reflection wavelengths (λmax) at 671 nm in Figure 5a,b. With the incorporation of FeCl3, the reflection wavelengths gradually decreased at 636 nm (CF2), 603 nm (CF4), 558 nm (CF6), 536 nm (CF8), 526 nm (CF10), 484 (CF12), and 442 nm (CF14), which displayed an obvious blueshifted phenomenon. What is important is that the chiral nematic structure disappeared for CF18 due to phase separation. To reveal the influence of FeCl3 on the iridescent films, the UV–Vis absorbance spectra were transformed into Commission on Illumination (CIE) chromaticity values (Figure 5c). They were in the sequence orange (CNC), bright orange (CF2), greenish yellow (CF4), mint green (CF6), cyan (CF8), turquoise (CF10), and sky blue (CF14). It is observed that CNC/FeCl3 chiral nematic structure successfully remained in resultant films and was precisely regulated by FeCl3 content. Furthermore, CD spectra also showed a gradual blueshift in λmax, which peaked at the visible region (Figure 5d) with the increase in FeCl3 from 0 to 14 mmol/L. The presence of a strong positive signal in the CD spectra indicates a left-handed chiral nematic organization in CNC/Fe films [29].

3.3. Chiral Nematic Formation of CNC/FeCl3 Iridescent Film

In order to compressively clarify the regulation of the chiral nematic phase of CNC/FeCl3 suspension correlated with FeCl3 content, POM was used to monitor the fingerprint textures and tactoid evolution during EISA. As depicted in Figure 6, the anisotropic phase was first formed at the early stage of the EISA process due to electrostatic repulsion and Coulombic attraction. Then, the anisotropic phase gradually grew and formed a liquid crystal phase with a birefringence phenomenon. As the evaporation continued, the liquid crystal phases contacted each other and then formed a fingerprint texture with a uniform pitch [3].
On the other hand, tactoids are first formed in the isotropic phase, inducing a phase separation relationship between isotropic and anisotropic phases in CNC suspensions. Subsequently, the tactoids are coalesced and deposited on the bottom of the sample, forming a high-density liquid crystal phase [23,30]. We can find that by adding FeCl3 to the suspension, the size of the tactoids decreases significantly. However, no obvious liquid crystal phase structure was observed in CF18. This is because excessive iron ions will greatly reduce the electrochemical repulsion on the surface of the CNC, and CNC agglomerates together to inhibit the phase transition process. It can be found that with the addition of FeCl3, the charge interaction between FeCl3 and CNC and the coordination between FeCl3 and hydroxyl are not obvious at low concentrations. With increasing FeCl3, metallic ferric ions were attracted by the chelation action sourced from multi-hydroxyl groups as well as the electrical affinity of negatively charged sulfate bearing on the surface of CNCs, thereby forming electrical ionic double layers as reported in the event of electrolyte effects, which makes the pitch of the film smaller [16]. When the concentration of FeCl3 continues to increase, the charge mutual attraction and coordination to hydroxyl will further increase, exceeding the repulsion force forming the pitch, and finally leading to the disappearance of the pitch. This is consistent with the results of the observed color change.
The zeta potential value of neat CNC (−43.2 mV, Figure 7a) is typical of polyanion species. With the incorporation of FeCl3, the zeta potential became −42.3 mV (CF2) and −33.4 mV (CF14). A decreased net electrostatic charge was taken as an indication of self-assembly that resulted from the electrostatic attraction between the anionic groups (OSO3− in CNC) and FeCl3 [3]. With 18 mmol/L FeCl3, the enhanced electrostatic attraction, as well as the coordination interaction between ferric ions and OH− in CNC molecules, led to a decreased absolute zeta potential (−28.6 mV for CF18) and iridescence disappearance, which is in accordance with Coulomb’s law (coulombic attraction) [31]. Further, neat CNC film had the absorption peak of hydroxyl groups at 3267 cm−1 in FTIR spectra. Whereas it shifted to 3338 cm−1 (CF2) and then to 3266 cm−1 (CF18), as is indicative of a hydrogen bonding formation between CNC and FeCl3 (Figure 7b). Additionally, the Fe-O bond at about 720 cm−1 is present for CF14 and CF18, and the coordination interaction between FeCl3 and hydroxyl groups 2800–2900 cm−1 is also observed [32]. The electrostatic repulsion, hydrogen bonding, and coordinated interaction simultaneously regulated the CNC/FeCl3 chiral nematic films during the self-assembly process (Figure 7c). It is noted that the presence of FeCl3 gives rise to electrostatic attraction between the OSO3− and ferric ions. At a lower FeCl3 concentration, CNCs can form and assemble at the interface due to the strong electrostatic repulsion, inducing the densely packed structures. With increasing FeCl3 concentration, the number of free protons from the sulfate groups and hydroxyl decrease, leading to electrostatic attraction and more densely packed CNC assemblies [28,33].

3.4. Applications for Aromatic Hydrocarbon Response

As the chemical industry develops rapidly, the quality of air, which is closely related to human life, decreases dramatically with the emission of aromatic hydrocarbon vapors. When the prepared CNC/FeCl3 chiral nematic film was placed in a self-made reaction chamber to study the sensing response of saturated benzene vapor, the color change before and after CF6 film was the most obvious (Figure 8a,b). Therefore, we chose to use a photonic crystal sensor assembled with blue-green CF6 to detect aromatic hydrocarbon vapors at different concentrations.
Benzene vapor was first tested to capture the colorimetric response by recording the structure color and measuring the reflectance spectrum. It was observed that the concentration of benzene vapor gradually increased from 0.00 to 1000 g/m3, the color of the structure changed from the initial blue-green to the final black-red (Figure 9a), and the position of the stop band correspondingly changed from 558 nm to 663 nm (Figure 9b). The same trend was also found in the CD spectra of the films after response under corresponding conditions (Figure 9c). It shows that after benzene gas is adsorbed by the film, the pitch of the film changes, resulting in a change in film color. An increase in vapor concentration leads to a change in the refractive index of the CNC/FeCl3 film layer, which alters the optical properties of the sensor and produces a significant redshift in the reflectance spectrum, which agrees well with the predictions of Bragg’s law. In addition, it was found that the rate of change of the maximum reflected wavelength decreased at concentrations above 500 g/m3, as benzene occupied all active sites on the film. After the response of the CNC film in the benzene vapor environment, the color and maximum reflection wavelength of the film remained basically unchanged, indicating that pure CNC will not adsorb benzene vapor, which further confirms that ferric ions play a sensitive role in CF6 film.
To evaluate the selectivity, the CNC colorimetric sensor was exposed to other VOCs. Moreover, wavelength diagrams of this sensor for sensing various concentrations of toluene, xylene, and acetone vapors with the correlation coefficients were also given in Figure 9e. It can be found that the CNC/FeCl3 film shows excellent sensitivity to aromatic gases. Moreover, the neat CNC films do not show an obvious color change in the benzene vapor environment with different concentrations (Figure 9d), which indicates that the color change of CF6 films in benzene vapor is caused by ferric ions. It should be noted that each gas resulted in a different color change wavelength. For aromatic hydrocarbon vapor, the more the number of methyl groups on the benzene ring, the stronger the molecular activity, and the stronger the adsorption with ferric ions. Therefore, under the same concentration of vapor environment, CF6 film shows higher sensitivity to xylene gas (Figure 9f). An evaluation of the reversible transition of the stop band position of the sensor for alternating exposure to 0 and 400 g/m3 benzene, as shown in Figure 9g, indicated that the sensor exhibited very good reversibility and repeatability over eight cycles of testing.
AFM measurements of CNC and CF6 films with different benzene vapor concentrations showed that the surface roughness of the films after gas sensitive adsorption was improved to varying degrees (Figure 10). It can be found that the surface morphology of neat CNC films in the benzene vapor environment will not change significantly (Figure 10a–a2). However, when the benzene vapor concentration reaches 400 g/m3, the CF6 surface has a convex envelope structure due to the swelling of the gas (Figure 10b–b2. The increase in vapor concentration leads to an expansion of the CNC/FeCl3 layer and an increase in the layer thickness, which causes a change in the optical properties of the sensor and produces a significant redshifted reflectance spectrum. In order to better prove that benzene molecules are indeed adsorbed by CF6 films, we also tested the FTIR of CF6 films before and after response. It can be seen from Figure 8c that in the spectrum of the sample after the response, new characteristic peaks belonging to benzene ring appear at 1455 cm−1, 2333 cm−1, and 2930 cm−1, and the peak intensity increases to varying degrees with the increase in vapor concentration.
As illustrated, although adsorption capacity of benzene gas onto CNC is limited, CNCs with certain ferric-ion-loading did change the possibility because of the strong chelation affinity of ferric ions to benzene gas. This may be due to the acid-based chemical interaction between the CNC/FeCl3 composite film and the benzene ring due to the existence of ferric ions, which makes the benzene vapor adsorb in the composite film and changes the pitch of the film. Delocalized π electrons of aromatic rings can pass through unfilled 3d metal orbitals with transition metal cations σ bond sharing electron density [34,35]. Because of the strong chelating affinity of iron ions for benzene gas, benzene gas will be attracted by the iron ions located between the CNC layers, which causes the expansion of the neighboring CNC layers, leading to an increase in the p value. However, the cholesteric mesophase of CNC was destroyed after the overdoping of CNC with 18 mmol/L of iron ions, and even though the iron ions could trap benzene, they had no significant effect on the very few mesophases in CNC that produced the color of the thin film structure. Therefore, it is not difficult to imagine that the perfect cholesteric structure of CNC and the good sensitive triggering of ferric ions have a crucial influence on the colorimetric sensing (redshift). In other words, as a benzene sensor, the separate film of CF6 can cause a significant reflection wavelength shift and a visible colorimetric change.
It is known that CNC-based composite films can interact with water through hydrogen bonding. Since water is required for the gating action of benzene gas on the moisture sensitivity of CNC films, the effect of benzene on the moisture sensitivity of CNC films and the effect of ambient relative humidity on the benzene sensitivity of CNC/FeCl3 films were further investigated. Figure 11 shows the results of the humidity response of CNC/FeCl3 iridescent films in gaseous benzene with Cb of 100, 500, and 750 g/m3. The λmax values of this films were found at 567, 575, 598, 610, and 626 nm at a relative humidity of 44, 54, 76, 87, and 99% (at 100 g/m3), respectively (Figure 11a). The λmax value of the CNC/FeCl3 iridescent film was redshifted by 59 nm at 100 g/m3 of Cb. As expected, the color of the CNC/FeCl3 iridescent film observed by the naked eye was also redshifted with the increase in RH at 100 g/m3, as shown in Figure 11a. These results indicate that the humidity sensitivity of CNC/FeCl3 iridescent films can be controlled by exposing the films to benzene gas. Similarly, the humidity response of CNC/FeCl3 films ranges from 46 nm (Figure 11b) to 35 nm (Figure 11c) when Cb is 500 and 750 g/m3, respectively. All these results show that the λmax of the CNC pentachromatic film increases and the color undergoes a significant redshift due to the steric contribution of the benzene molecules under different Cb conditions.
In order to further understand the induction mechanism of benzene, we use Gaussian 09 as a tool to simulate the adsorption energies of C6H6 molecules and H2O molecules on top of ferric ions and CNC. The former is based on the σ-bonding of the shared electron density between benzene and iron ions. The latter is due to the hydrogen bonding interaction between H2O and CNC. Therefore, exploring whether the ferric ions in CF6 films play a key role in the adsorption of benzene is interesting for further material design. However, this goal is difficult to achieve experimentally, so we used Gaussian 09 software to calculate the reaction energy barrier (ΔE) values by simulating the adsorption of benzene and water molecules on different sites of CNC. Through the enthalpy of the reaction between CNC and benzene before and after the introduction of ferric ions, the priority of reaction is judged, and the outstanding contribution of iron ions in the adsorption of benzene gas is confirmed.
In order to reduce the calculation cost, we simplified the cellulose chain as a monomer to participate in the calculation. In the optimization calculation, the system of CNC and benzene cannot be in a stable state, which shows that CNC and benzene will not react spontaneously (Figure 12a). The reaction energy barrier of CNC containing ferric ions with benzene vapor is ΔE = −21.78 kJ.mol−1, which shows that the adsorption of benzene by CNC/FeCl3 system is a spontaneous reaction, which is also consistent with the experimental results (Figure 12d). As expected, the calculated result ΔE > 0 between CNC and benzene molecules shows that CNC really cannot adsorb benzene vapor (Figure 12b). However, it is surprising that in the CNC/FeCl3 system, the simulation results show that the free energy of ferric ions and the water binding system is much more than the sum of their separate free energy, and during the optimization process, water molecules have the tendency to form hydrogen bonds with the carboxyl group on the edge of ferric ions. It shows that in the adsorption process, the hydrogen bonding force between H2O molecules and CNC is much greater than that between water molecules and ferric ions.
Notably, the humidity response range gradually decreased with increasing Cb. This is because there are abundant hydrophilic groups on the surface of CNC, which is easy for water molecules to bind, and ferric ions have excellent hydration, which means that water molecules may seize the active sites in ferric ions [36,37]. Therefore, there is a competitive relationship between benzene vapor and water molecules, and at the same time, they have a synergistic effect on the redshift of the film. It can be found from Figure 13 that with the increase in benzene vapor concentration, the response range of the CNC/FeCl3 film to ambient humidity gradually decreases, which may be caused by the presence of high concentration benzene vapor inhibiting the hydrogen bond binding force between water molecules and the film, likely because of the formation of σ bond between benzene molecules and ferric ions, leading to reduced numbers of humidity response sites.

4. Conclusions

In this study, a CNC/FeCl3 chiral nematic film was successfully fabricated. Among samples, CNC is selected as a constructed matrix and the ferric chloride (FeCl3) is used as a modification agent. We investigated the effects of the ferric ion loads on the helical structure and optical characteristics of iridescent film. With an appropriate content of ferric ions, chiral nematic films exhibited a progressive decrease in λmax, from 671 nm (neat CNC) to 442 nm (CF14). It is indicative of a maximum blueshifted wavelength of 229 nm because of the strong electrostatic attraction between OSO3− and ferric ions. Subsequently, the influence of ferric ions on the assembly process of CNC liquid crystal and the regulation of the structure color of self-assembled monolayers were discussed. Therefore, the CNC/FeCl3 chiral nematic films showed blueshifted structural color from orange to blue, which provides a potential strategy to precisely regulate the pitch of chiral nematic materials. Finally, we used the CNC/FeCl3 chiral nematic films for aromatic hydrocarbon gas detection. This CNC/FeCl3 chiral nematic film displayed a degree of the sensing performance, and the sensitive sensing for aromatic hydrocarbon gas detection will be emphasized in future research.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym16030399/s1.

Author Contributions

Methodology, B.L.; Formal analysis, S.W.; Data curation, B.L. and Y.Z.; Writing—original draft, S.W.; Project administration, M.P.; Funding acquisition, M.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Natural Science Foundation of Jiangsu Province: BK20201384; “333 Project” of Jiangsu Province.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The National High Technology Research and Development Program of China (2021YFD2200602-4).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Xu, M.C.; Wu, X.Y.; Yang, Y.; Ma, C.H.; Li, W.; Yu, H.P.; Chen, Z.J.; Li, J.; Zhang, K.; Liu, S.X. Designing Hybrid Chiral Photonic Films with Circularly Polarized Room-Temperature Phosphorescence. ACS Nano 2020, 14, 11130–11139. [Google Scholar] [CrossRef]
  2. Wang, F.Y.; Zhu, Z.G.; Xue, M.; Xue, F.; Wang, Q.H.; Meng, Z.H.; Lu, W.; Chen, W.; Qi, F.L.; Yan, Z.Q. Cellulose photonic crystal film sensor for alcohols. Sens. Actuators B-C 2015, 220, 222–226. [Google Scholar] [CrossRef]
  3. Zhao, G.M.; Huang, Y.P.; Mei, C.T.; Zhai, S.C.; Xuan, Y.; Liu, Z.P.; Pan, M.Z.; Rojas, O.J. Chiral nematic coatings based on cellulose nanocrystals as a multiplexing platform for humidity sensing and dual anti-counterfeiting. Small 2021, 17, 2103936. [Google Scholar] [CrossRef]
  4. Zhao, G.M.; Zhang, Y.; Zhai, S.C.; Sugiyama, J.; Pan, M.Z.; Jingbo, S.; Lu, H.Y. Dual Response of Photonic Film with Chiral Nematic Cellulose Nanocrystal: Humidity and Formaldehyde. ACS Appl. Mater. Interfaces 2020, 12, 17833–17844. [Google Scholar] [CrossRef]
  5. Sharma, V.; Crne, M.; Park, J.O.; Srinivasarao, M. Structural Origin of Circularly Polarized Iridescence in Jeweled Beetles. Science 2009, 325, 449–451. [Google Scholar] [CrossRef] [PubMed]
  6. Bykov, V.P. Spontaneous emission from a medium with a band spectrum. Quantum Electron. 1975, 4, 861–871. [Google Scholar] [CrossRef]
  7. Yablonovitch, E. Inhibited spontaneous emission in solid-state physics and electronics. Phys. Rev. Lett. 1987, 58, 2059–2062. [Google Scholar] [CrossRef] [PubMed]
  8. Johansen, V.E.; Onelli, O.D.; Steiner, L.M.; Vignolini, S. Photonics in Nature: From Order to Disorder. Funct. Surf. Biol. III 2017, 3, 53–89. [Google Scholar]
  9. Mohd-Noor, S.; Jang, H.; Baek, K.; Pei, Y.R.; Alam, A.; Kim, Y.H.; Kim, I.S.; Choy, J.H.; Hyun, J.K. Ultrafast humidity-responsive structural colors from disordered nanoporous titania microspheres. J. Mater. Chem. A 2019, 7, 10561–10571. [Google Scholar] [CrossRef]
  10. Hu, W.; Chen, M.; Wang, Q.; Zhang, L.Y.; Yuan, X.T.; Chen, F.W.; Yang, H. Broadband Reflection in Polymer Stabilized Cholesteric Liquid Crystals via Thiol-Acrylate Chemistry. Angew. Chem. Int. Ed. 2019, 58, 6698–6702. [Google Scholar] [CrossRef] [PubMed]
  11. Kragt, A.J.J.; Broer, D.J.; Schenning, A.P.H.J. Easily Processable and Programmable Responsive Semi-Interpenetrating Liquid Crystalline Polymer Network Coatings with Changing Reflectivities and Surface Topographies. Adv. Funct. Mater. 2018, 28, 1704756. [Google Scholar] [CrossRef]
  12. Oksman, K.; Mathew, A.P.; Sain, M. Novel bionanocomposites: Processsing, properties and potential applications. Plast. Rubber. Compos. 2009, 38, 396–405. [Google Scholar] [CrossRef]
  13. Dong, X.; Zhang, Z.L.; Zhao, Y.Y.; Li, D.; Wang, Z.L.; Wang, C.; Song, F.; Wang, X.L.; Wang, Y.Z. Bio-inspired non-iridescent structural coloration enabled by self-assembled cellulose nanocrystal composite films with balanced ordered/disordered arrays. Compos. Part B 2022, 229, 109456. [Google Scholar] [CrossRef]
  14. Anusuyadevi, P.R.; Shanker, R.; Cui, Y.X.; Riazanova, A.V.; Järn, M.; Jonsson, M.P.; Svagan, A.J. Photoresponsive and Polarization-Sensitive Structural Colors from Cellulose/Liquid Crystal Nanophotonic Structures. Adv. Mater. 2021, 33, 2101519. [Google Scholar] [CrossRef] [PubMed]
  15. Song, W.; Lee, J.K.; Gong, M.S.; Heo, K.; Chuang, W.J.; Lee, B.Y. Cellulose Nanocrystal-Based Colored Thin Films for Colorimetric Detection of Aldehyde Gases. ACS Appl. Mater. Interfaces 2018, 10, 10353–10361. [Google Scholar] [CrossRef]
  16. Dai, S.D.; Prempeh, N.; Liu, D.G.; Fan, Y.M.; Gu, M.Y.; Chang, Y. Cholesteric film of Cu(II)-doped cellulose colorimetric sensing of ammonia gas. Carbohydr. Polym. 2017, 174, 531–539. [Google Scholar] [CrossRef]
  17. Chen, H.; Hou, A.; Zheng, C.; Tang, J.; Xie, K.; Gao, A. Light- and Humidity-Responsive Chiral Nematic Photonic Crystal Films Based on Cellulose Nanocrystals. ACS Appl. Mater. Interfaces 2020, 12, 24505–24511. [Google Scholar] [CrossRef]
  18. Zhang, Z.L.; Dong, X.; Fan, Y.N.; Yang, L.M.; He, L.; Song, F.; Wang, X.L.; Wang, Y.Z. Chameleon-Inspired Variable Coloration Enabled by a Highly Flexible Photonic Cellulose Film. ACS Appl. Mater. Interfaces 2020, 12, 46710–46718. [Google Scholar] [CrossRef]
  19. He, Y.D.; Zhang, Z.L.; Xue, J.; Wang, X.H.; Song, F.; Wang, X.L.; Zhu, L.L.; Wang, Y.Z. Biomimetic Optical Cellulose Nanocrystal Films with Controllable Iridescent Color and Environmental Stimuli-Responsive Chromism. ACS Appl. Mater. Interfaces 2018, 10, 5805–5811. [Google Scholar] [CrossRef]
  20. Zhao, G.M.; Zhang, S.; Zhai, S.; Pan, M.Z. Fabrication and characterization of photonic cellulose nanocrystal films with structural colors covering full visible light. J. Mater. Sci. 2020, 55, 8756–8767. [Google Scholar] [CrossRef]
  21. Zhao, G.M.; Lin, B.Q.; Liu, Z.P.; Rojas, O.J.; Pan, M.Z. Metal ion and ultrasonication assisted assembling chiral nematic coatings towards humidity-responsive and anti-counterfeiting. Compos. Sci. Technol. 2022, 228, 109656. [Google Scholar] [CrossRef]
  22. Chen, C.; Sun, W.J.; Wang, L.; Tajvidi, M.; Wang, J.W.; Gardner, D.J. Transparent Multifunctional Cellulose Nanocrystal Films Prepared Using Trivalent Metal Ion Exchange for Food Packaging. ACS Sustain. Chem. Eng. 2022, 10, 9419–9430. [Google Scholar] [CrossRef]
  23. Dong, X.M.; Kimura, T.; Revol, J.F. Effects of ionic strength on the isotropic chiral nematic phase transition of suspensions of cellulose crystallites. Langmuir 1996, 12, 2076–2082. [Google Scholar] [CrossRef]
  24. Meng, Y.; Long, Z.; He, Z.; Fu, X.; Dong, C. Chiral Cellulose Nanocrystal Humidity-Responsive Iridescent Films with Glucan for Tuned Iridescence and Reinforced Mechanics. Biomacromolecules 2021, 22, 4479–4488. [Google Scholar] [CrossRef] [PubMed]
  25. Gu, M.; Jiang, C.; Liu, D.; Prempeh, N.; Smalyukh, I.I. Cellulose Nanocrystal/Poly(ethylene glycol) Composite as an Iridescent Coating on Polymer Substrates: Structure-Color and Interface Adhesion. ACS Appl. Mater. Inter. 2016, 8, 32565–32573. [Google Scholar] [CrossRef]
  26. Wan, H.; Li, X.F.; Zhang, L.; Li, X.P.; Liu, P.F.; Jiang, Z.G.; Yu, Z.Z. Rapidly Responsive and Flexible Chiral Nematic Cellulose Nanocrystal Composites as Multifunctional Rewritable Photonic Papers with Eco-Friendly Inks. ACS Appl. Mater. Inter. 2018, 10, 5918–5925. [Google Scholar] [CrossRef]
  27. Chen, T.; Zhao, Q.; Meng, X.; Li, Y.; Peng, H.; Whittaker, A.K.; Zhu, S. Ultrasensitive Magnetic Tuning of Optical Properties of Films of Cholesteric Cellulose Nanocrystals. ACS Nano 2020, 14, 9440–9448. [Google Scholar] [CrossRef]
  28. Wu, X.F.; Yuan, Q.Q.; Liu, S.Y.; Shi, S.W.; Russell, T.P.; Wang, D. Nanorod-Surfactant Assemblies and Their Interfacial Behavior at Liquid-Liquid Interfaces. ACS Macro Lett. 2019, 8, 512–518. [Google Scholar] [CrossRef]
  29. Shopsowitz, K.E.; Qi, H.; Hamad, W.Y.; Maclachlan, M.J. Free-standing mesoporous silica films with tunable chiral nematic structures. Nature 2010, 468, 422-U246. [Google Scholar] [CrossRef]
  30. Lin, M.; Raghuwanshi, V.S.; Browee, C. Modulating the chiral nanoarchitecture of cellulose nanocrystals through interaction with salts and polymer. J. Colloid. Interface Sci. 2022, 613, 207–217. [Google Scholar] [CrossRef]
  31. Dickman, S. Could Coulomb’s experiment result in Coulomb's law? Science 1993, 262, 500. [Google Scholar] [CrossRef]
  32. Sehaqui, H.; Kulasinski, K.; Pfenninger, N.; Zimmermann, T.; Tingaut, P. Highly Carboxylated Cellulose Nanofibers via Succinic Anhydride Esterification of Wheat Fibers and Facile Mechanical Disintegration. Biomacromolecules 2017, 18, 242–248. [Google Scholar] [CrossRef]
  33. Li, Q.; Renneckar, S. Supramolecular structure characterization of molecularly thin cellulose I nanoparticles. Biomacromolecules 2011, 12, 650–659. [Google Scholar] [CrossRef]
  34. Mirzaei, A.; Kim, J.H.; Kim, H.W.; Kim, S.S. Resistive-based gas sensors for detection of benzene, toluene and xylene (BTX) gases: A review. J. Mater. Chem. C 2018, 6, 4342–4370. [Google Scholar] [CrossRef]
  35. Eltouny, N.A.; Ariya, P.A. Fe3O4 Nanoparticles and Carboxymethyl Cellulose: A Green Option for the Removal of Atmospheric Benzene, Toluene, Ethylbenzene, and o-Xylene (BTEX). Ind. Eng. Chem. Res. 2012, 51, 12787–12795. [Google Scholar] [CrossRef]
  36. Zhang, D.Z.; Jiang, C.X.; Zhou, X.Y. Fabrication of Pd-decorated TiO2/MoS2 ternary nanocomposite for enhanced benzene gas sensing performance at room temperature. Talanta 2018, 182, 324–332. [Google Scholar] [CrossRef]
  37. Cao, J.; Wang, S.M.; Li, J.Y.; Xing, Y.N.; Zhao, X.Y.; Li, D.J. Porous nanosheets assembled Co3O4 hierarchical architectures for enhanced BTX (Benzene, Toluene and Xylene) gas detection. Sens. Actuators B-C 2020, 315, 128120. [Google Scholar] [CrossRef]
Polymers 16 00399 g001

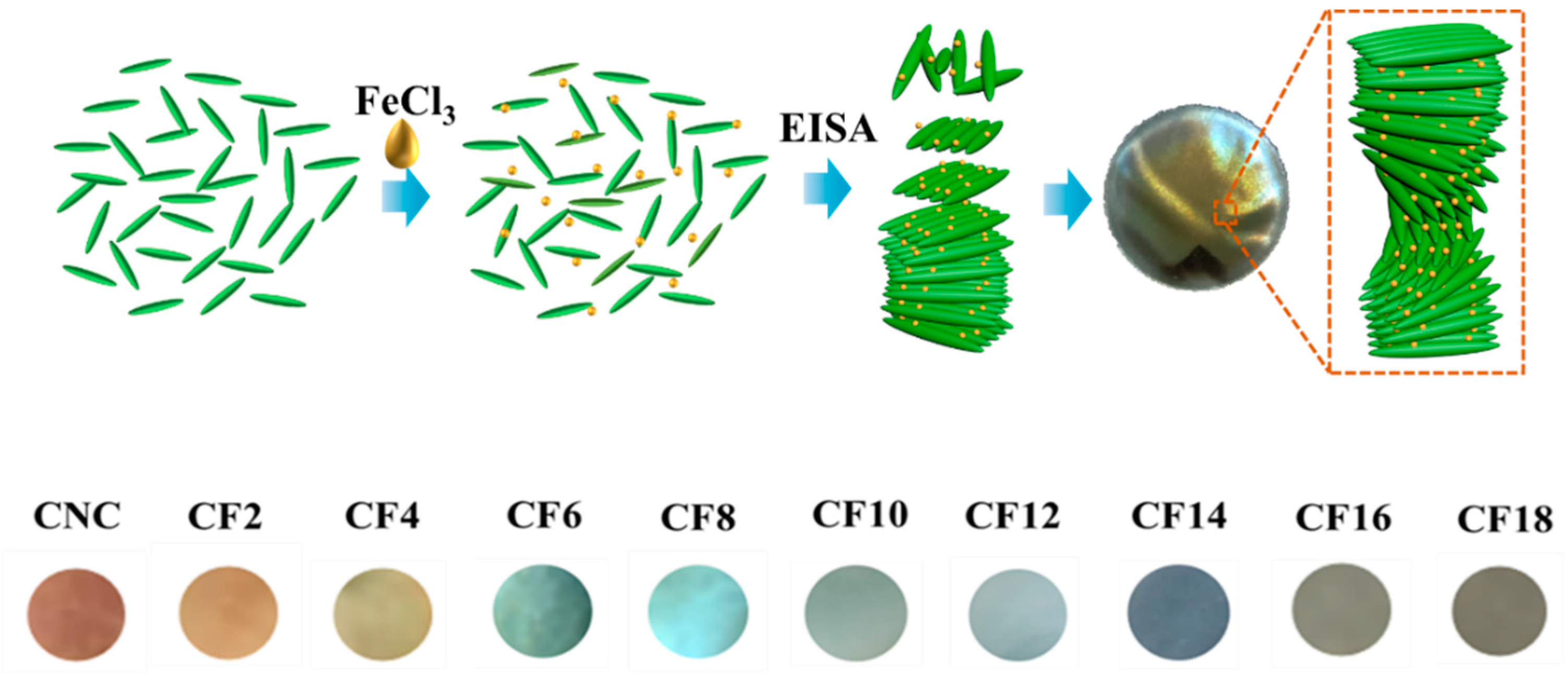

Figure 1. Preparation of the CNC/FeCl3 chiral nematic film and its structural relevant color.
Figure 1. Preparation of the CNC/FeCl3 chiral nematic film and its structural relevant color.
Polymers 16 00399 g001
Polymers 16 00399 g002

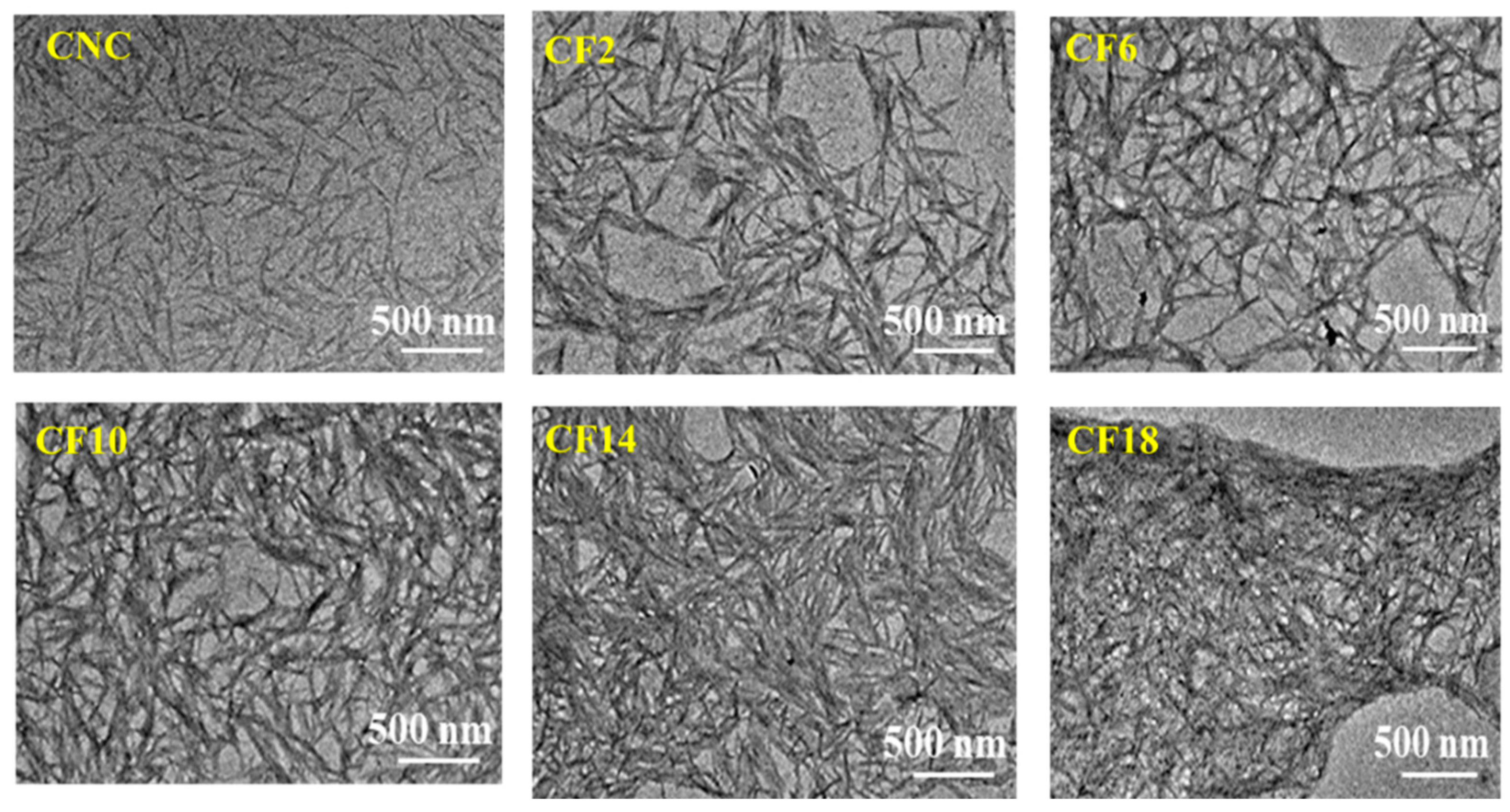

Figure 2. Morphological images of CNC/FeCl3 colloids from TEM measurement.
Figure 2. Morphological images of CNC/FeCl3 colloids from TEM measurement.
Polymers 16 00399 g002
Polymers 16 00399 g003
Figure 3. Morphological images of CNC/FeCl3 chiral nematic films from FE-SEM measurement.
Figure 3. Morphological images of CNC/FeCl3 chiral nematic films from FE-SEM measurement.
Polymers 16 00399 g003
Polymers 16 00399 g004

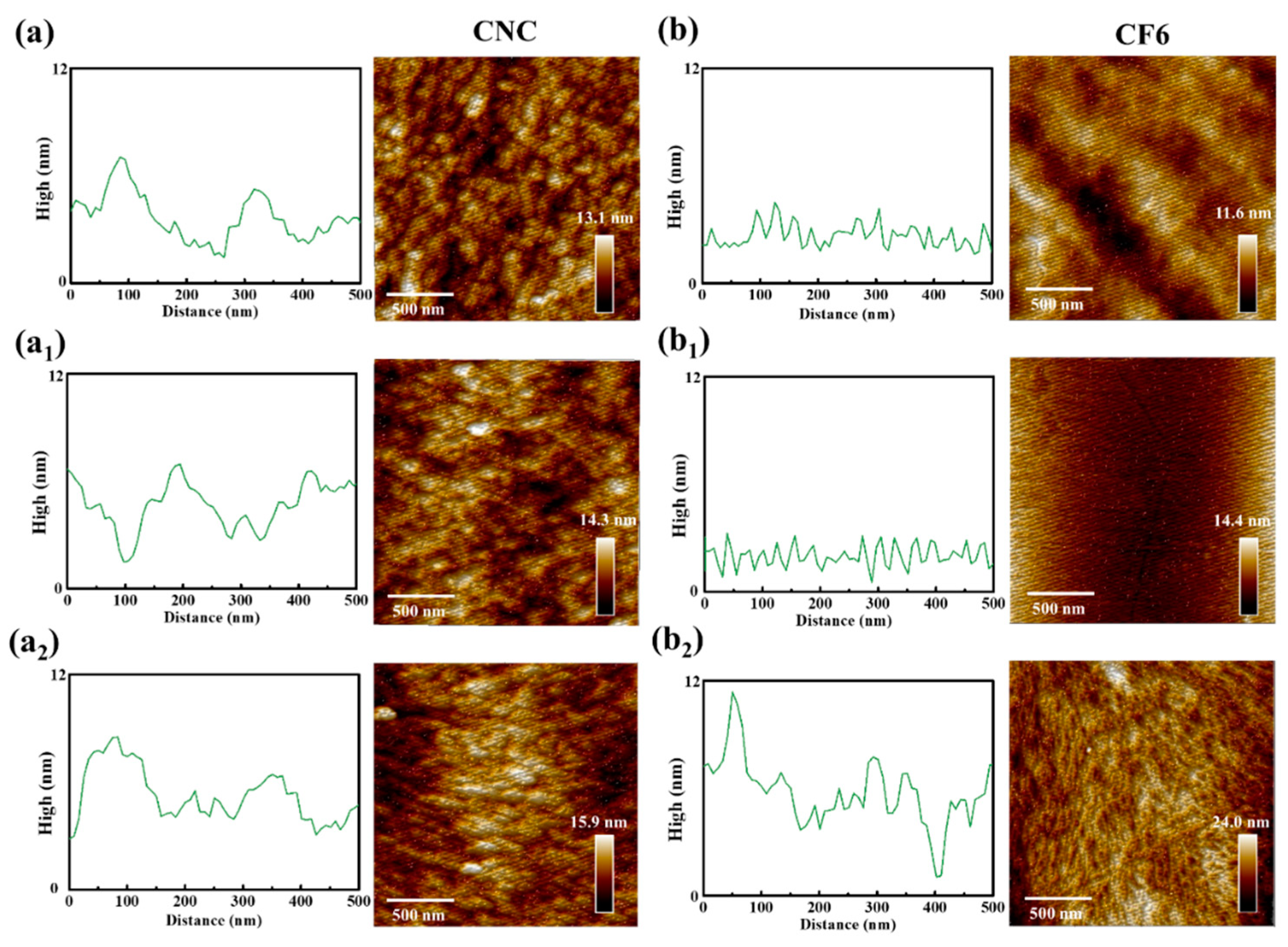

Figure 4. AFM topography of films with CNC and CF6: (a,b) height images; (a1,b1) phase images; (a2,b2) show the line profiles of the fiber widths obtained on the CNC and CF6 surfaces; (a3,b3) represent the distribution of fiber width.
Figure 4. AFM topography of films with CNC and CF6: (a,b) height images; (a1,b1) phase images; (a2,b2) show the line profiles of the fiber widths obtained on the CNC and CF6 surfaces; (a3,b3) represent the distribution of fiber width.
Polymers 16 00399 g004
Polymers 16 00399 g005

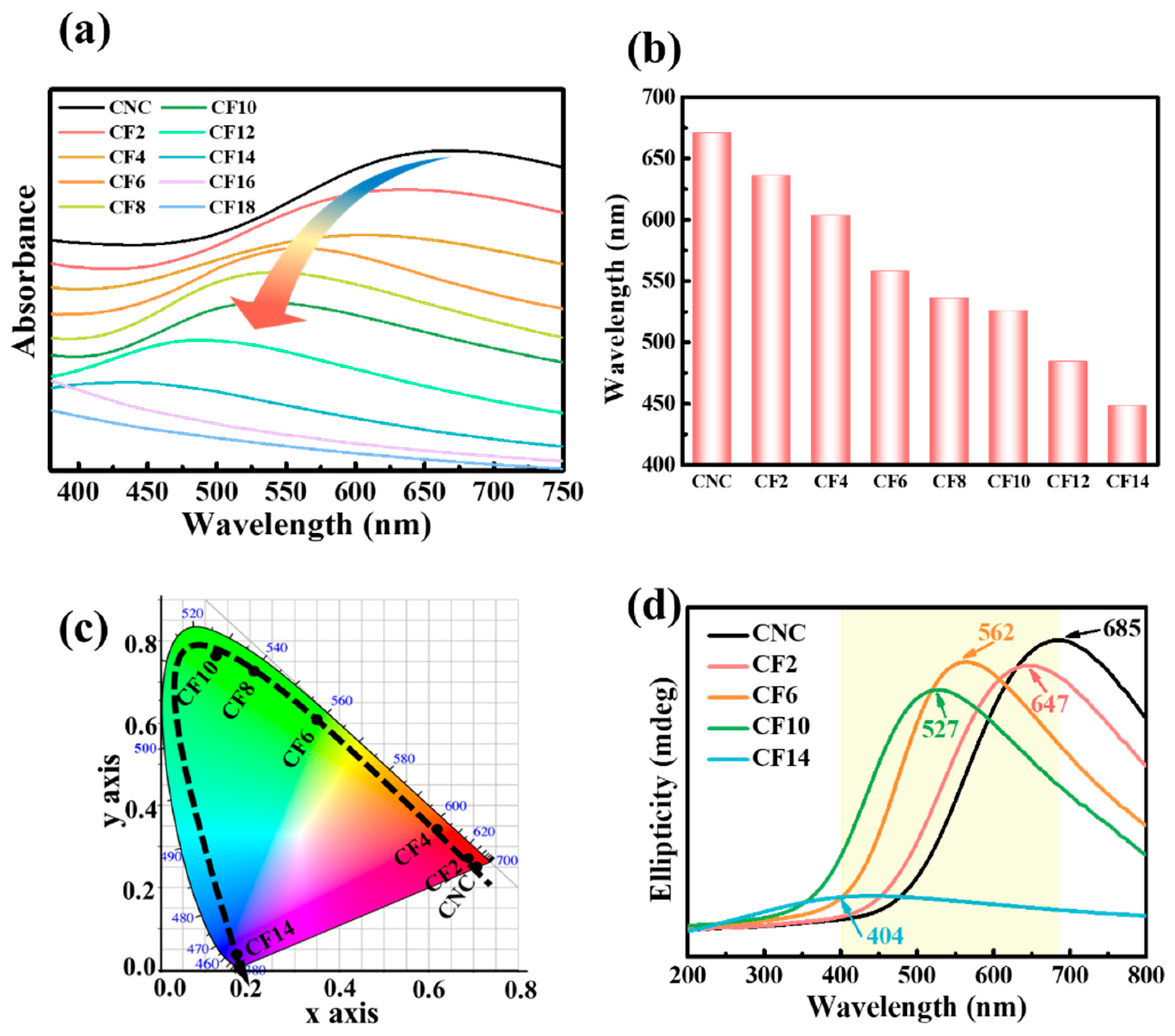

Figure 5. Optical characteristics of CNC/FeCl3 chiral nematic films. (a,b) UV–Vis spectra, (c) CIE chromaticity diagram, and (d) CD spectra.
Figure 5. Optical characteristics of CNC/FeCl3 chiral nematic films. (a,b) UV–Vis spectra, (c) CIE chromaticity diagram, and (d) CD spectra.
Polymers 16 00399 g005
Polymers 16 00399 g006

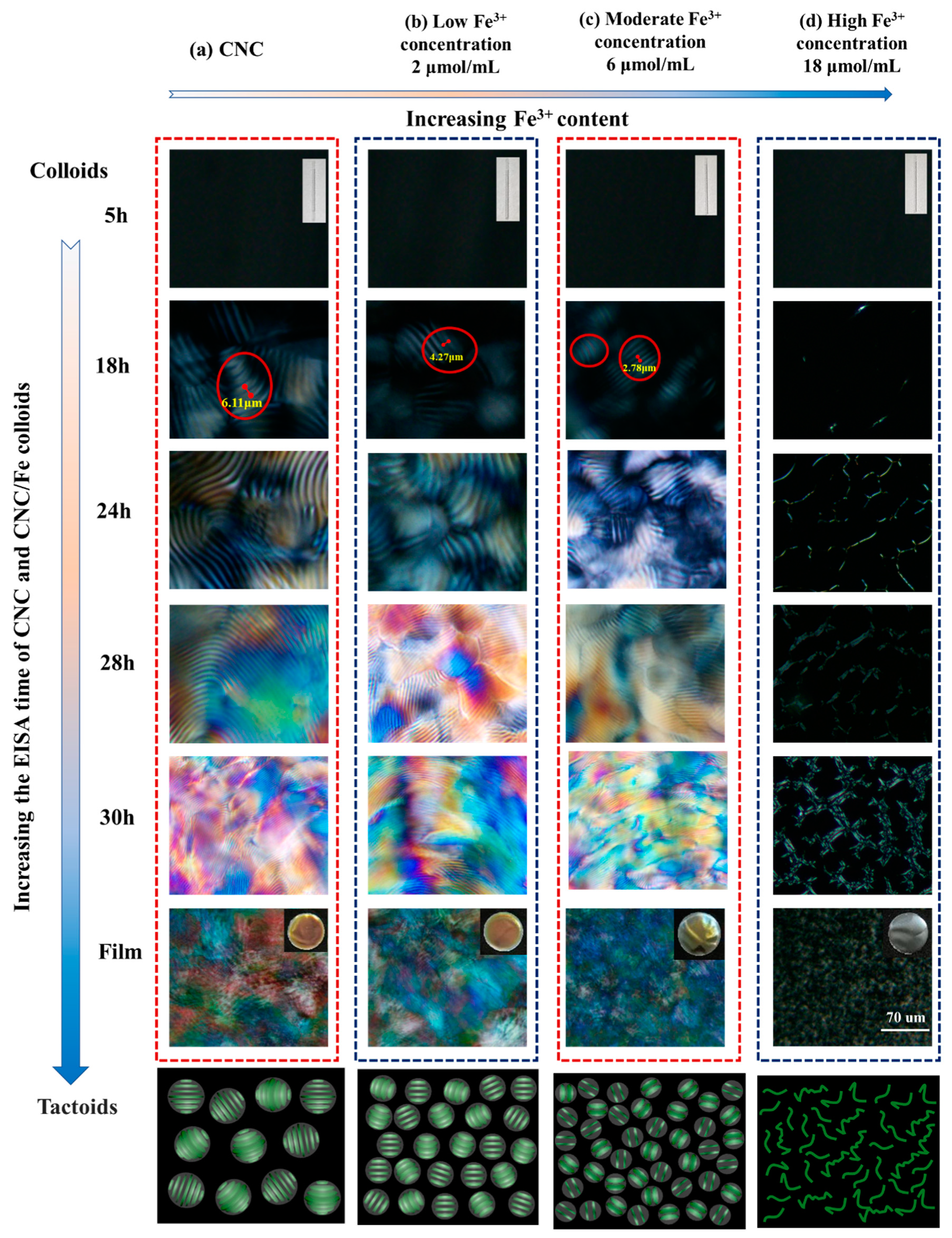

Figure 6. Evolution of the fingerprint and tactoid conformation correlated with FeCl3 content during EISA of CNC/Fe using POM measurement.
Figure 6. Evolution of the fingerprint and tactoid conformation correlated with FeCl3 content during EISA of CNC/Fe using POM measurement.
Polymers 16 00399 g006
Polymers 16 00399 g007
Figure 7. (a) Zeta potential value of CNC/FeCl3 complexes; the inset image represents the correlated relationship between FeCl3 and zeta potential value. (b) FTIR spectra of CNC/FeCl3 chiral nematic films. (c) The interaction bonds between CNC and FeCl3.
Figure 7. (a) Zeta potential value of CNC/FeCl3 complexes; the inset image represents the correlated relationship between FeCl3 and zeta potential value. (b) FTIR spectra of CNC/FeCl3 chiral nematic films. (c) The interaction bonds between CNC and FeCl3.
Polymers 16 00399 g007
Polymers 16 00399 g008

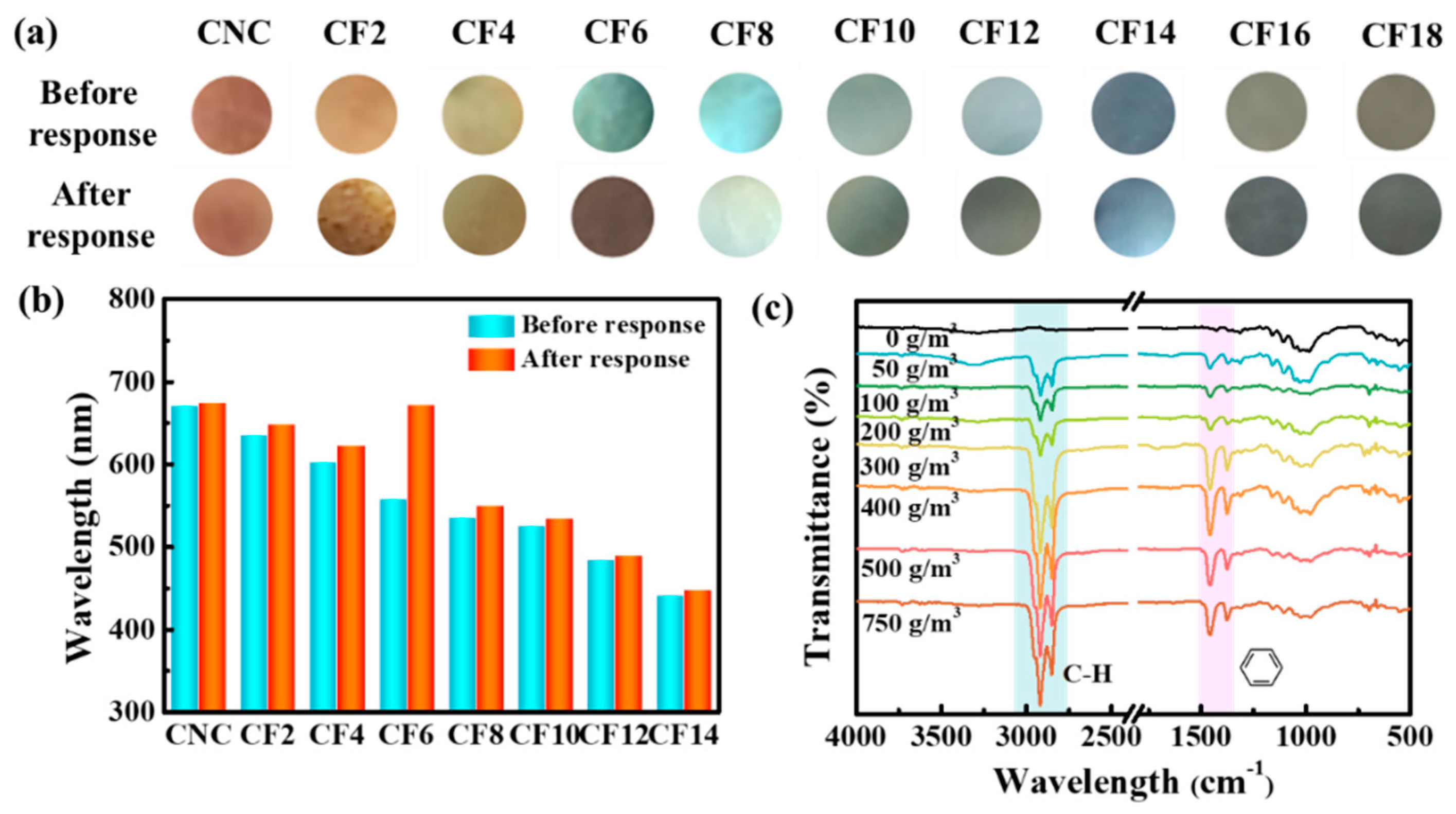

Figure 8. Response of CNC/FeCl3 films to saturated benzene vapor: (a) physical drawing, (b) UV–Vis data change diagram; (c) FTIR data diagram of CNC/FeCl3 films after response.
Figure 8. Response of CNC/FeCl3 films to saturated benzene vapor: (a) physical drawing, (b) UV–Vis data change diagram; (c) FTIR data diagram of CNC/FeCl3 films after response.
Polymers 16 00399 g008
Polymers 16 00399 g009

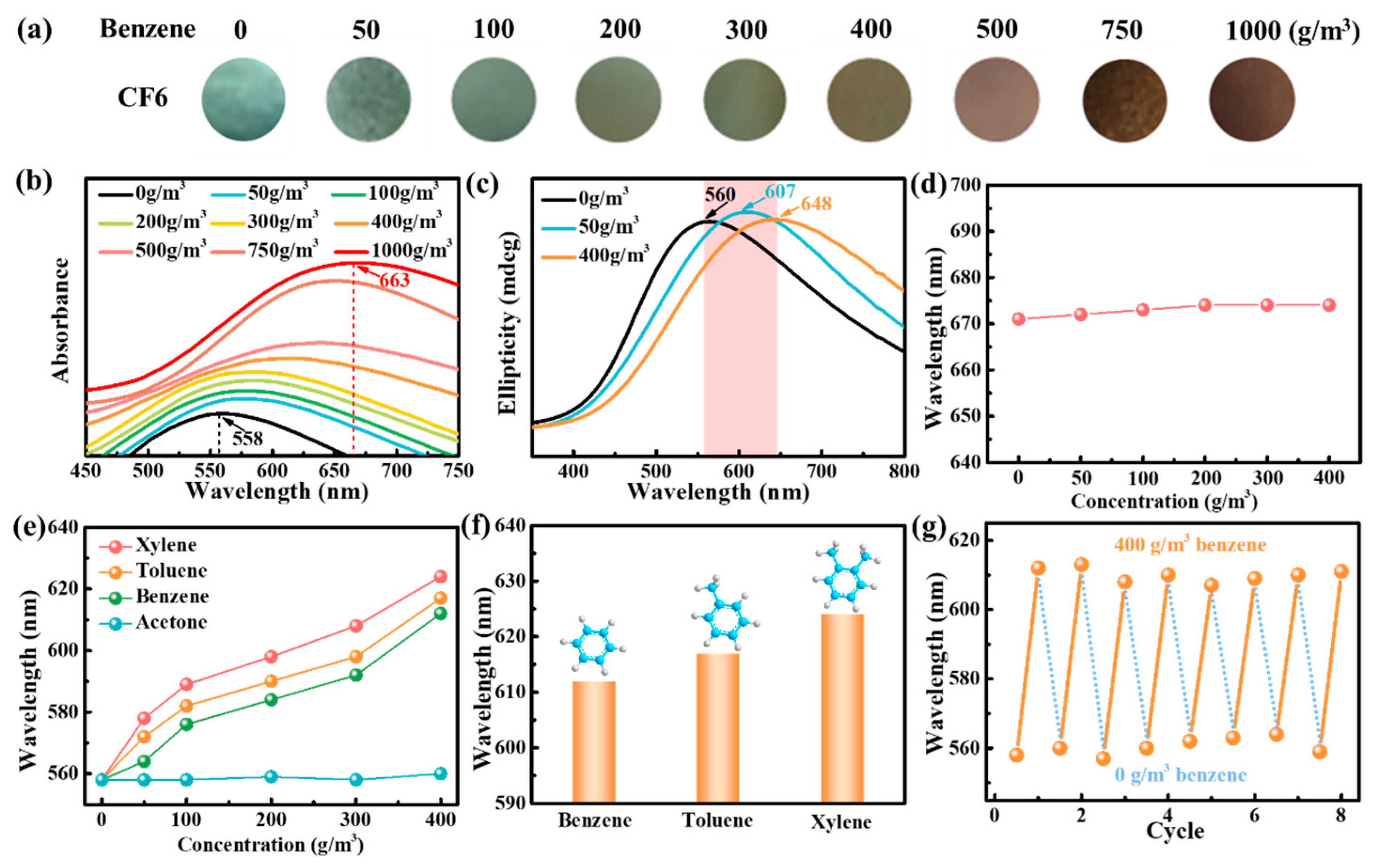

Figure 9. Benzene-responsive results of the CF6 photonic crystal film: (a) digital images; (b) UV–vis absorbance spectra; (c) CD spectra; (d) λmax change of neat CNC films in response to benzene vapor; (e) gas sensitivity of CF6 to different gas; (f) maximum reflection wavelength change of CF6 in different aromatic hydrocarbon vapors of 400 g/m3; (g) cycle performance of CF6.
Figure 9. Benzene-responsive results of the CF6 photonic crystal film: (a) digital images; (b) UV–vis absorbance spectra; (c) CD spectra; (d) λmax change of neat CNC films in response to benzene vapor; (e) gas sensitivity of CF6 to different gas; (f) maximum reflection wavelength change of CF6 in different aromatic hydrocarbon vapors of 400 g/m3; (g) cycle performance of CF6.
Polymers 16 00399 g009
Polymers 16 00399 g010
Figure 10. Surface AFM diagram of CNC and CF6 after response to different benzene vapors: (a,b) 0 g/m3; (a1,b1) 50 g/m3; (a2,b2) 400 g/m3.
Figure 10. Surface AFM diagram of CNC and CF6 after response to different benzene vapors: (a,b) 0 g/m3; (a1,b1) 50 g/m3; (a2,b2) 400 g/m3.
Polymers 16 00399 g010
Polymers 16 00399 g011

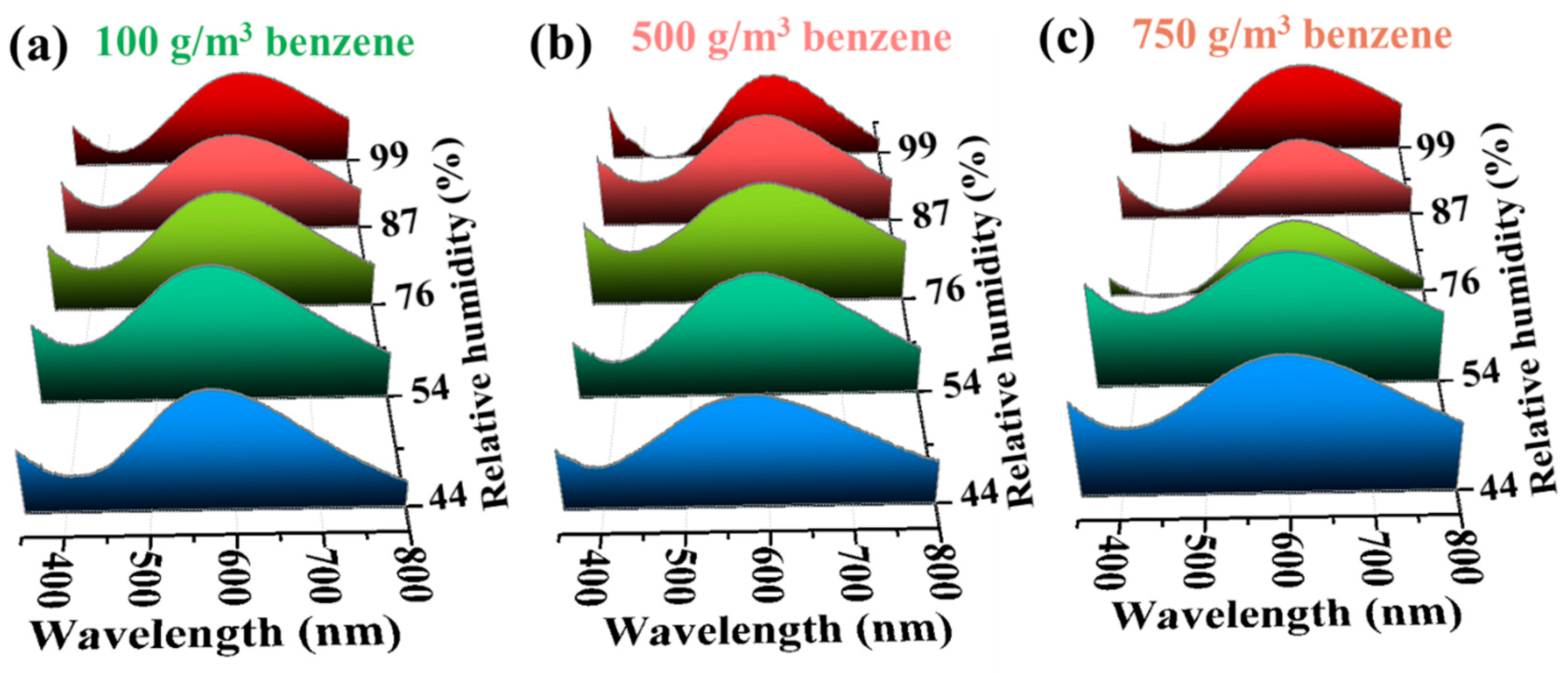

Figure 11. Humidity-responsive results of the CNC/FeCl3 film when exposed to gaseous benzene with Cb of (a) 100 g/m3, (b) 500 g/m3, and (c) 750 g/m3.
Figure 11. Humidity-responsive results of the CNC/FeCl3 film when exposed to gaseous benzene with Cb of (a) 100 g/m3, (b) 500 g/m3, and (c) 750 g/m3.
Polymers 16 00399 g011
Polymers 16 00399 g012

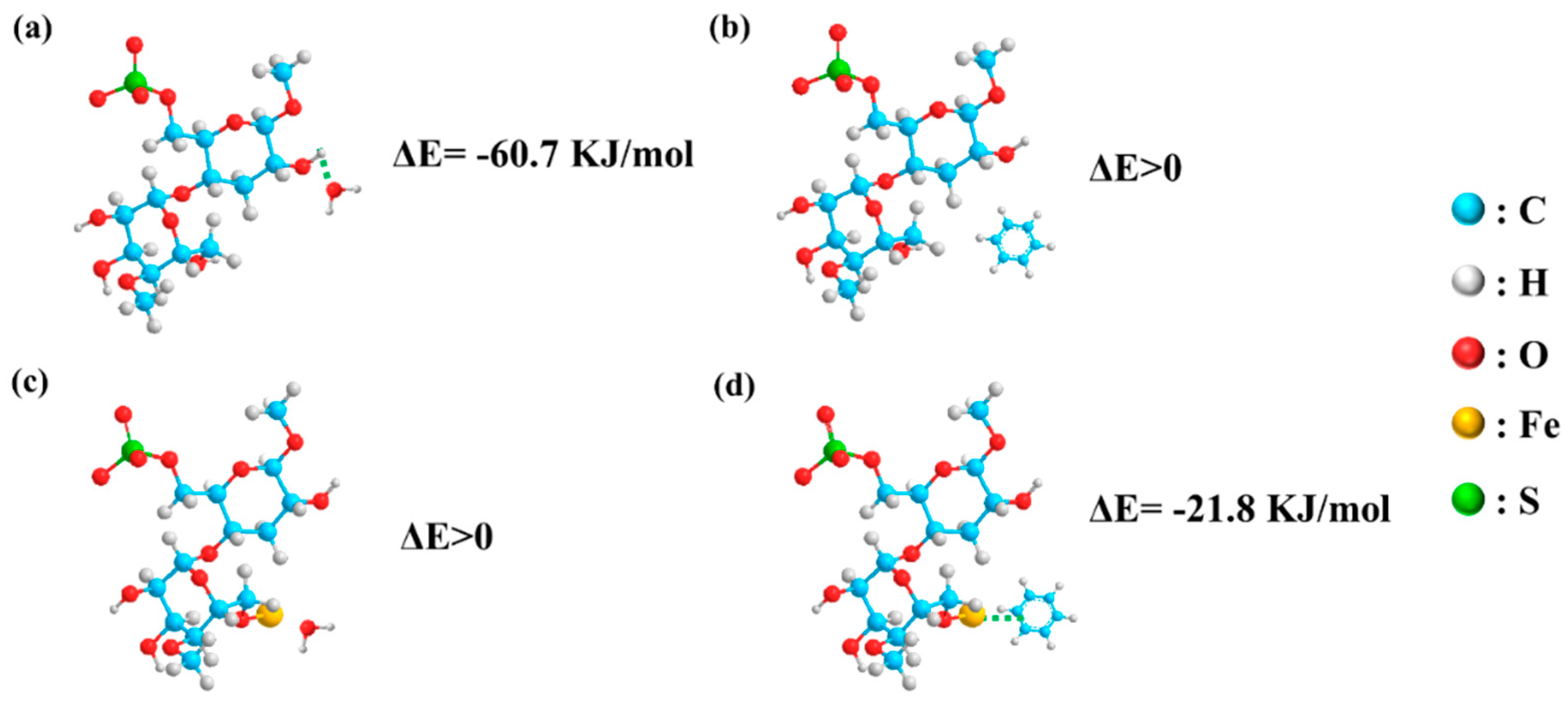

Figure 12. DFT calculation of reaction energy barriers ΔE of different systems: (a) CNC and H2O; (b) CNC and benzene; (c) CNC/FeCl3 and H2O; (d) CNC/FeCl3 and benzene.
Figure 12. DFT calculation of reaction energy barriers ΔE of different systems: (a) CNC and H2O; (b) CNC and benzene; (c) CNC/FeCl3 and H2O; (d) CNC/FeCl3 and benzene.
Polymers 16 00399 g012
Polymers 16 00399 g013

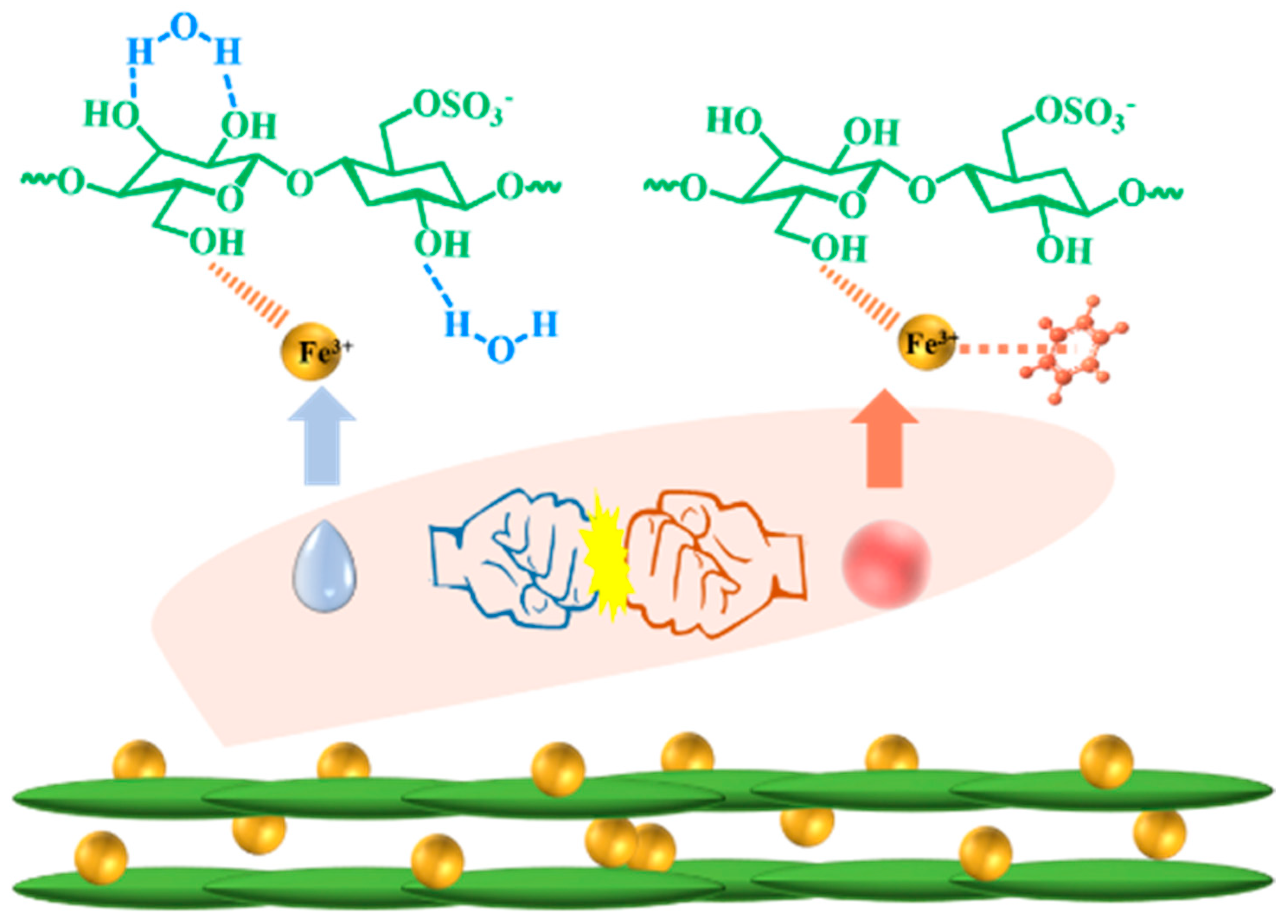

Figure 13. Schematic diagram of competitive adsorption mechanism of benzene and water molecules.
Figure 13. Schematic diagram of competitive adsorption mechanism of benzene and water molecules.
Polymers 16 00399 g013
